NEFF T69S86N0AU Specifications Sheet
90 cm Gas Cooktop, Black ceramic glass
Features
Technical Data
Product name/family : gas hob w integrated controls
Construction type : Built-in
Energy input : Gas
Total number of positions that can be used at the same time : 5

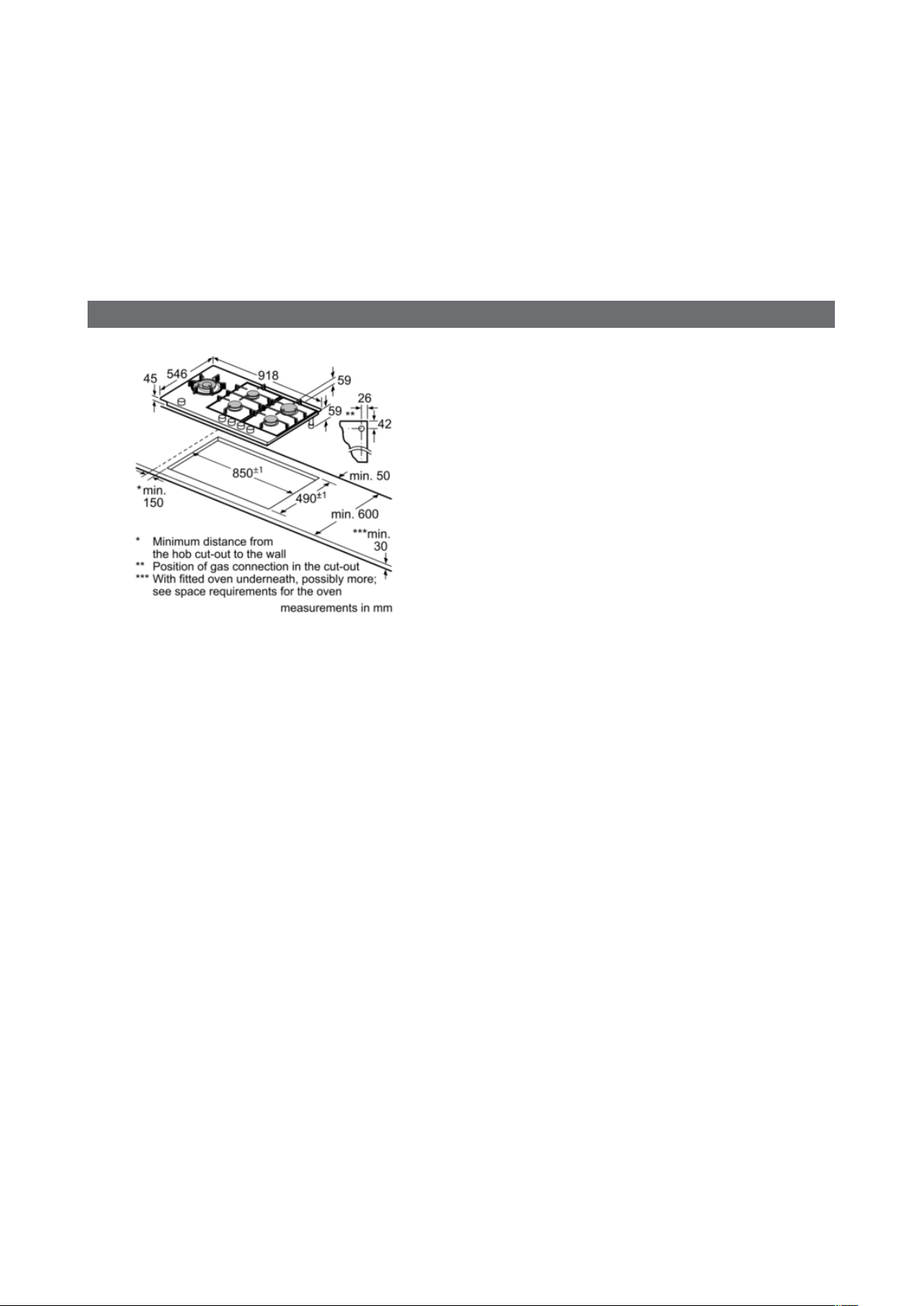

Required niche size for installation (HxWxD) : 45 x 850-850 x
490-490
Width of the product (mm) : 918
Dimensions of the product (mm) : 45 x 918 x 546
Dimensions of the packed product (HxWxD) (mm) : 170 x 665 x 1115
Net weight (kg) : 18.0
Gross weight (kg) : 20.0
Residual heat indicator : without
Location of control panel : Hob front
Basic surface material : Ceramic
Color of surface : Black, Stainless steel
Color of frame : Black, Stainless steel
Approval certificates : CE
Length electrical supply cord (cm) : 100
EAN code : 4242004125174
Electrical connection rating (W) : 1
Gas connection rating (W) : 13700
Current (A) : 3
Voltage (V) : 240
Frequency (Hz) : 50
Included accessories
1 x cross support for espresso
1 x governor 10mbar NG (AU)
1 x test point
1 x WOK attachment ring
'!2E20AE-bcfbhe!
T69S86N0AU
1/3
90 cm Gas Cooktop, Black ceramic glass
T69S86N0AU
Features
#
5 burner Black gas cooktop
#
1 Dual flame wok burner
#
1 high-speed burner, 1 economy burner, 1 wok burner and 2
standard burners
#
Left: Wok burner 22 Mj/h
#
Front centre: Standard burner 8.1 Mj/h
#
Rear centre: Economy burner 4.8 Mj/h
#
Rear right: High-speed burner 11.6 Mj/h
#
Front right: Standard burner 8.1 Mj/h
#
Knob ignition
#
Flame failure device fitted to each individual burner
#
Enamelled cast-iron pan supports with non-scratch rubber feet
#
Full trim in Stainless steel
#
Connecting cable 1 m with plug
#
Suitable for natural gas (factory set-up) or LPG (via included
conversion kit)
2/3
