NEFF T11D41X2 Specifications Sheet

T11D41X2

The glass-ceramic radiant cooktop: makes cooking and cleaning
especially easy.

√ With touchControl the cooking zones can be activated and

controlled with the light touch of a single finger.

√ Space for large pots and pans thanks to the 210 mm two-ring

cooking zone.
√ The child safety lock safely prevents unintentional switch-on.
√ The timer with switch-off function safely shuts off the cooking

zone when the selected cooking time expires.

Features

Technical Data

Product name/family : Cooking zone ceramic
Construction type : Built-in
Energy input : Electric
Total number of positions that can be used at the same time : 4
Required niche size for installation (HxWxD) : 45 x 560-560 x
490-500
Width of the product (mm) : 592
Dimensions of the product (mm) : 45 x 592 x 522
Dimensions of the packed product (HxWxD) (mm) : 100 x 590 x 750
Net weight (kg) : 8.0
Gross weight (kg) : 8.0
Residual heat indicator : Separate
Location of control panel : Hob front
Basic surface material : Ceramic
Color of surface : Black
Approval certificates : Australia Standards, CE, VDE
EAN code : 4242004163497
Electrical connection rating (W) : 6600
Voltage (V) : 220-240
Frequency (Hz) : 60; 50

'!2E20AE-bgdejh!

Optional accessories

Z9442X0 Set of 3 pots and 1 pan

ELECTRIC COOKTOP WITH INTEGRATED CONTROLS

1/3

T11D41X2
ELECTRIC COOKTOP WITH INTEGRATED
CONTROLS

Features

Handling

●

Central electronic touch control operation

Flexibility

●

4 zone ceramic cooktop

●

1 dual circuit zone

●

Cooking zones
front left: Ø 145 mm, 1.2 KW
rear left: Ø 180 mm, 2 KW
rear right: Ø 145 mm, 1.2 KW
front right: Ø 120 mm, 210 mm, 0.75 KW, 2.2 KW

Comfort & Convenience

●

Keep warm function for all cooking zones

●

ReStart function

●

Residual heat indicator: Digital 2-step

●

Digital display

●

Alarm clock for each zone with switch off function

●

Wipe protection function

●

Automatic safety switch-off

●

Main switch with stop-function

●

Child safety lock

●

Energy consumption display

Design

●

Frameless with front facetted glass

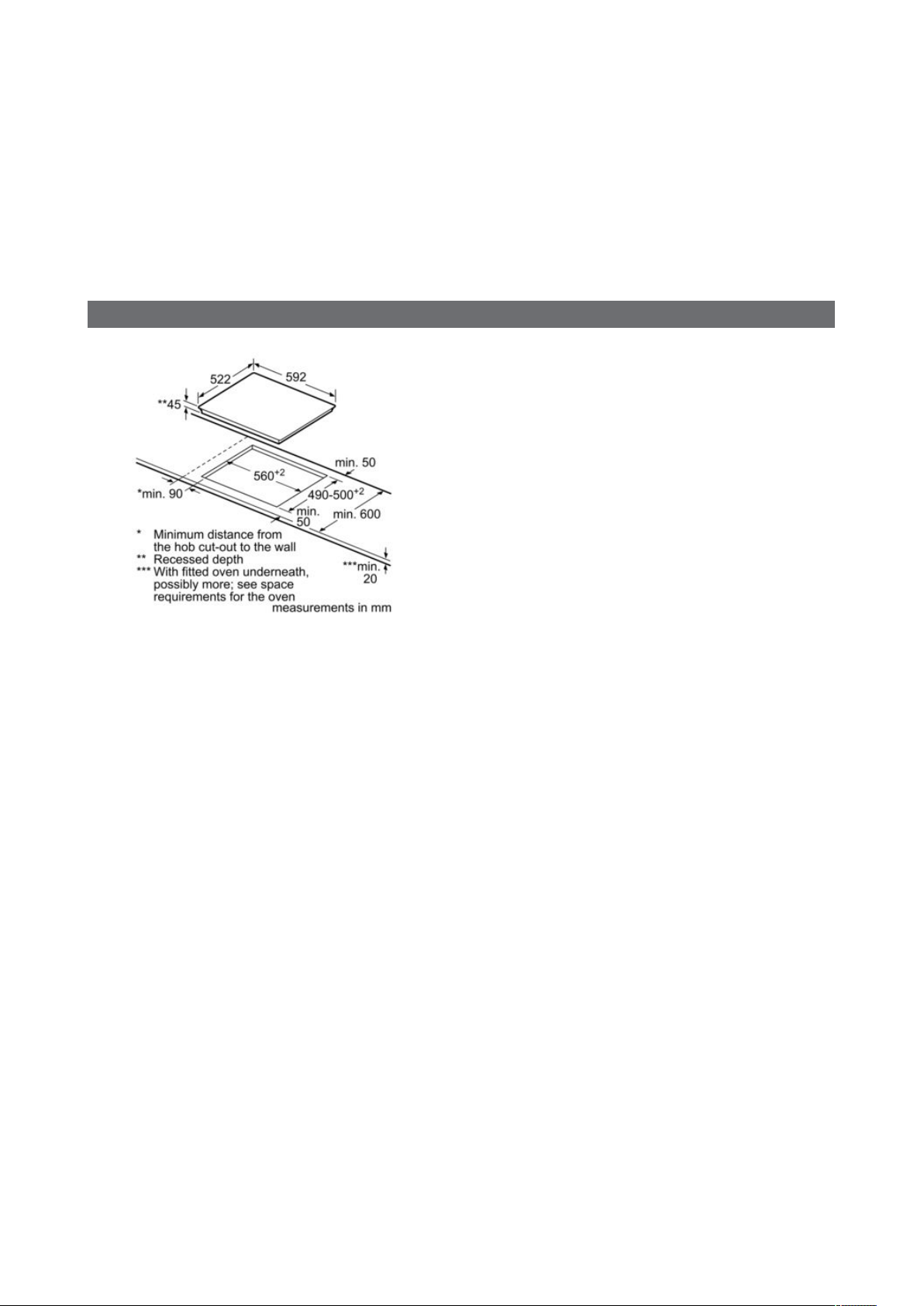

Technical Information

●

60 cm width

●

Installation measurements: 560 mm x 490 mm

●

Min. worktop thickness: 20 mm

●

6.6 kW total connected load

2/3
