Neff S54T59X0GB, S55T59X0GB, S54T57X2EU, S55T67X0EU, 3VS953ID instruction Manual

Quick and easy: everything you need to know about your dishwasher...
You should, however, still read the installation and operating instructions before you use the dishwasher for the first time.
Switch on the appliance the dishwasher starts...
Switch off the appliance that’s it...
Press the on/off switch, the cycle time for the programme selected appears
Press the on/off switch when the indicator shows 0 (programme end)
Pour in the water/special salt
Pour in the rinsing agent
Pour in the cleaning agent
Select the programme

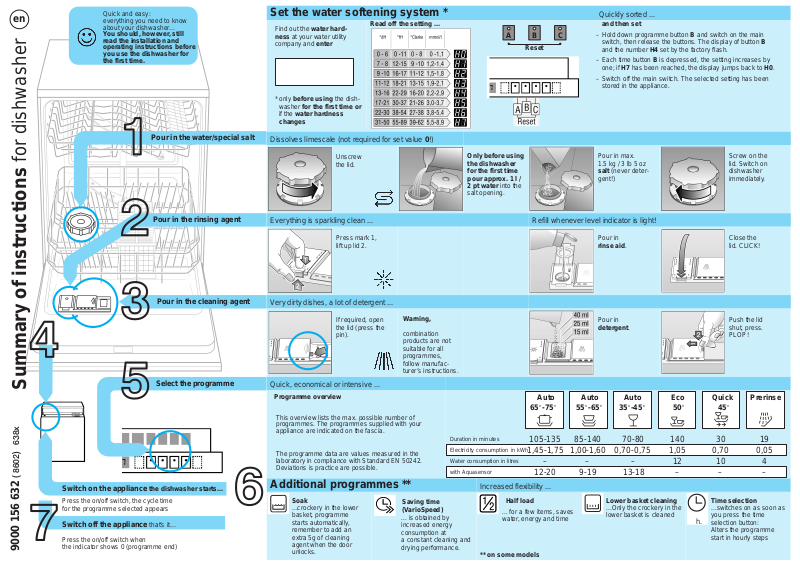

Summary of instructions for dishwasher
9000 156 632 
en
Set the water softening system *
Quickly sorted ...
Find out the water hard- ness at your water utility company and enter
* only before using the dish-
washer for the first time or if the water hardness
changes
Read off the setting ... and then set
– Hold down programme button B and switch on the main
switch, then release the buttons. The display of button B and the number H4 set by the factory flash.
– Each time button B is depressed, the setting increases by
one; if H7 has been reached, the display jumps back to H0.
– Switch off the main switch. The selected setting has been
stored in the appliance.
Reset
A B C
Dissolves limescale (not required for set value 0!)
Unscrew the lid.
Only before using the dishwasher for the first time pour approx. 1 l / 2 pt water into the
salt opening.
Pour in max.
1.5 kg / 3 lb 5 oz salt (never deter­gent!)
Screw on the lid. Switch on dishwasher immediately.
Everything is sparkling clean ... Refill whenever level indicator is light!
Press mark 1, lift up lid 2.
Pour in rinse aid.
Close the lid. CLICK!
Very dirty dishes, a lot of detergent ...
If required, open the lid (press the pin).
Warning,
combination products are not suitable for all programmes, follow manufac­turer’s instructions.
Pour in detergent.
Push the lid shut, press. PLOP!
Quick, economical or intensive ...
Programme overview
This overview lists the max. possible number of programmes. The programmes supplied with your appliance are indicated on the fascia.
The programme data are values measured in the laboratory in compliance with Standard EN 50242. Deviations is practice are possible.
45_55_-65_ 50_
Duration in minutes Electricity consumption in kWh Water consumption in litres with Aquasensor
Auto Eco Quick
Prerinse
65_-75_
Auto
35_-45_
Auto
105-135
1,45-1,75
12-20
140
1,05
12
70-80
0,70-0,75
13-18
30
0,70
10
19
0,05
4 –
85-140
1,00-1,60
9-19
Additional programmes **
Increased flexibility ...
Soak
...crockery in the lower basket, programme starts automatically, remember to add an extra 5g of cleaning agent when the door unlocks.
Saving time (VarioSpeed)
... is obtained by increased energy consumption at a constant cleaning and drying performance.
** on some models
Half load
... for a few items, saves water, energy and time
Lower basket cleaning
...Only the crockery in the lower basket is cleaned
h.
Time selection
...switches on as soon as you press the time selection button: Alters the programme start in hourly steps
Maintenance and care
For perfect rinsing results ...
Cleaning the waste-water pump *
Strainers ...
Check, if required, clean
Rotate filter cylinder, remove filter system ...
rinse under flowing water ...
Insert ... Screw in filter
system NOTE MARK!
* With some models – Ladle out water and remove filters
– Unscrew cover (Torx T20) – Check area of fan impeller for foreign objects – Screw in cover and insert filters
Spray arms ...
Remove blockages/deposits
Pull lower arm upwards ...
Unscrew upper arm ...
Clean spray nozzles under flowing water (perhaps with toothpick) ...
Insert lower arm ...
Screw in upper arm
Eliminating minor faults yourself ...
... Self–help pays!
Fault Possible Cause
Device does not work/stops Check water supply
Display lights up
Supply fitting not open Supply hose kinked Supply fitting jammed or calcified
Open supply fitting. Lay supply hose without kinks.
1. Unscrew water connection.
2. Clean filter in the water connection.
3. Flow rate must be min. 9 l/min when the water inlet is open. If the flow rate is less, replace the supply fitting.
Remedy
Plastic parts / parts of dishes discoloured
Too little cleaning product Discoloration caused by food colourings
(tomato sauce)
Follow manufacturer’s specifications (detergent).
Discoloration is quite safe; fades after subsequent rinse cycles.
Residual water in the device Waste-water pump blocked
Programme not yet ended
Clean waste-water pump (see above). Switch on appliance and close or
terminate programme (see Terminating the programme).
Cutlery rusty Cutlery not rust-proof
Hard knife blades are more susceptible Extraneous rust
Use dishwasher-proof cutlery.
Never wash rusting parts in the appliance.
Fault Possible Cause Remedy
Stains and streaks
Milky residues on dishes (can be removed)
Rinse aid dosage too high / too low
Glasses not dishwasher-proof.
Streaks: Reduce dosage. Water or limescale stains: Increase
dosage.
Use dishwasher-proof glasses. Use glass-friendly cleaning products.
Further advice can be found in the instruction manual
Milky film, glasses cloudy / dull (cannot be removed)
Water softening system incorrectly set; no special salt
Set water softening system correctly. Refill with special salt.
Dishes not clean Sand or grainy residues
on dishes
Utensils are situated too close to each other or on top of each other
Too little cleaning product
Unsuitable programme selected Spray nozzles blocked Filters dirty, not installed securely Spray arms blocked
Spread out the utensils, avoid contact between the utensils.
Follow manufacturer’s specifications (detergent).
Select more intensive programme. Clean spray arms (see above). Clean the strainers (see above). Arrange the utensils so that the spray
arms can rotate freely.
Stopping the programme ... Loading the dishwasher correctly ...
Press and hold the two reset buttons simultaneously for approximately 3 seconds while the programme is running (RESET)
”0” appears
The programme will stop after 1 minute
Switch off the appliance.
Arrange dishwasher-proof utensils (having removed any ash, wax, grease, ink, sticky labels; remove, large remnants of jam, dairy products and food) according to the operating instructions and check that the spray arms can rotate freely.
