Neff SC76M530TI, S66M63N0GB, 3VC730XC, SC76M531EU, S66M63N1EU instruction Manual

Brief and handy: everything your dishwasher needs …

Before using for the first time, read the Installation instructions and Operating instructions!

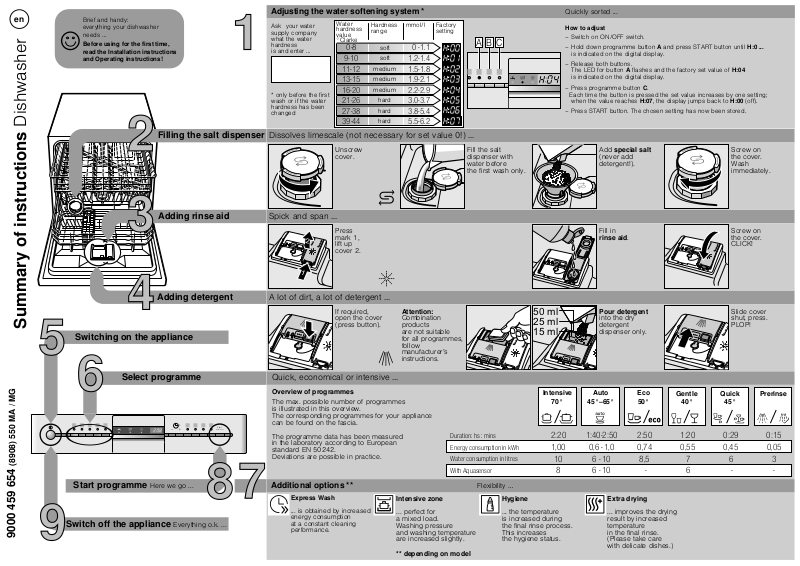

Summary of instructions Dishwasher

Switching on the appliance

(8908) 550 MA / MG

Start programme

Switch off the appliance

9000 459 654

Filling the salt dispenser

Adding rinse aid

Adding detergent

Select programme

Here we go...

Everything o.k....

Start

Reset 3 sec

Adjusting the water softening system*

Ask your water supply company what the water hardness is and enter...

* only before the first wash or if the water hardness has been changed

Dissolves limescale (not necessary for set value 0!) ...

Water hardness value °Clarke

11-12 13-15 16-20 21-26 27-38 39-44

Unscrew cover.

0-8

9-10

Hardness range

soft

medium

hard

mmol/l

0 -1.1

1.2-1.4

1.5-1.8

1.9-2.1

2.2-2.9

3.0-3.7

3.8-5.4

5.5-6.2

Factory setting

• ‹‹

• ‹‚

• ‹ƒ

• ‹„

• ‹…

• ‹†

• ‹‡

• ‹ˆ

Spick and span ...

Press

mark 1, lift up cover 2.

A lot of dirt, a lot of detergent ...

If required, open the cover (press button).

Quick, economical or intensive ...

Overview of programmes

The max. possible number of programmes is illustrated in this overview. The corresponding programmes for your appliance can be found on the fascia.

The programme data has been measured in the laboratory according to European standard EN 50242. Deviations are possible in practice.

Additional options**

Express Wash

... is obtained by increased

energy consumption at a constant cleaning performance.

Attention:

Combination products are not suitable for all programmes, follow manufacturer’s instructions.

Intensive zone

... perfect for a mixed load. Washing pressure and washing temperature are increased slightly.

** depending on model

Duration: hs : mins

Energy consumption in kWh

Water consumption in litres

With Aquasensor

Fill the salt dispenser with water before the first wash only.

Flexibility…

Hygiene

... the temperature is increased during the final rinse process. This increases the hygiene status.

Quickly sorted ...

How to adjust

– Switch on ON/OFF switch.

– Hold down programme button A and press START button until H:0... is indicated on the digital display.

– Release both buttons. The LED for button A flashes and the factory set value of H:04 is indicated on the digital display.

– Press programme buttonC. Each time the button is pressed the set value increases by one setting; when the value reaches H:07, the display jumps back toH:00 (off).

– Press START button. The chosen setting has now been stored.

Quick

45°

Screw on the cover. Wash immediately.

Screw on the cover. CLICK!

Slide cover shut, press. PLOP!

Add special salt (never add detergent!).

Fill in rinse aid.

50 ml 25 ml 15 ml

Intensive

70°

2:20 1:40-2:50 2:50 1:20 0:29 0:15 1,00 0,6 - 1,0 0,74 0,55 0,45 0,05

10 6 - 10 8,5 7 6 3

8 6 - 10 - 6 - -

Pour detergent

into the dry detergent dispenser only.

Auto

45°–65°

Extra drying

... improves the drying result by increased temperature in the final rinse. (Please take care with delicate dishes.)

Eco 50°

Gentle

40°

Prerinse

ø²

Maintenance and care

Filters

... check, if required, clean

Rotate filter cylinder, remove filter system...

For perfect rinsing results ...

rinse under running water ...

insert ...

screw on filter system NOTE MARK!

Cleaning waste water pump

– Pull out the mains plug. – Remove filters and scoop out water. – Loosen screws on the pump cover (TorxT20). – Pull off cover. – Check area around the fan impeller for foreign objects. – Insert cover and screw tight. – Insert filters.

Spray arms

...remove blockages/ deposits

Rectifying minor faults yourself ...

Fault Possible causes

Display “6” is lit

Display “E:24” and “6” are lit

Display “E:25” and “6” are lit

Other fault display “E:XX” is lit

Residual water in the appliance

Rust on the cutlery

Supply fitting jammed or calcified

Waste water hose is blocked or kinked

Cover not attached to waste water pump

Waste water pump blocked

Appliance has technical defect

The programme has not yet ended

Cutlery not rust-resistant Hard knife blades are more susceptible

Extraneous rust

Pull lower arm upwards...

unscrew upper arm …

... as it is worth doing it yourself!

Remedial action

Open supply fitting.

1. Unscrew water connection.

2. Clean filter in the water connection.

3. Flow rate must be min. 10l/min., when water supply is open. If the flow rate is less, replace the supply fitting.

Install supply hose without kinks.

Install waste water hose without kinks.

Attach cover (see above).

Clean waste-water pump (see above).

Call factory customer service (state fault display).

Unplug appliance.

Close the appliance and switch it on or terminate the programme (see Terminating the programme).

Use dishwasher-proof cutlery.

Never wash rusting parts in the appliance.

clean spray nozzles under running water (if required use toothpicks) ...

insert lower arm ...

Fault Possible causes

Utensils are not clean

Sand or gritty residue on the utensils

Stains and streaks

Utensils not dry

Milky deposits on the utensils (can be removed)

Milky deposits, glasses cloudy/tarnished (cannot be removed)

Plastic/utensils discoloured

Utensils are situated close together or one above the other

Too little detergent

Unsuitable programme selected

Spray arm nozzles blocked

Filters dirty, not seated firmly

Spray arms blocked

Rinse aid dosage too high/too low

Rinse aid Increase dosage.

The combined detergent used has a poor drying performance

Appliance setting

Water softening system incorrectly set

No salt

Glasses not dishwasher-proof

Too little detergent

Discoloration caused by food colourings (tomato sauce)

screw on upper

arm tightly

More information can be found in the operating instructions

Remedial action

Separate the utensils, prevent contact points.

Follow manufacturer’s instructions (detergent).

Select a more intensive programme.

Clean the spray arms (see above).

Clean the filters (see above).

Arrange the utensils so that the spray arms can rotate freely.

Streaks: reduce dosage.

Water or limescale stains: increase dosage.

Change the product.

Use rinse aid.

Activate intensive drying (depending on model).

Correctly set water softening system.

Refill with special salt.

Use dishwasher- proof glasses.

Use a detergent suitable for glasses.

Follow manufacturer’s instructions (detergent).

Discoloration is harmless; subsequent rinse cycles will cause it to fade.

Terminating the programme ... Loading the dishwasher correctly ...

While the programme is running, press the START button for approx. 3 sec. (Reset).

The numerical display indicates “0:01”; approx. 1 minute after the programme ends, “0:00” is indicated.

Switch off the appliance.

Dishwasher-proof utensils (not soiled with ash, wax, lubricating grease, ink or adhesive labels; remove large remnants of jam, milk products and food according to the operating instructions and check that the spray arms can rotate freely.
