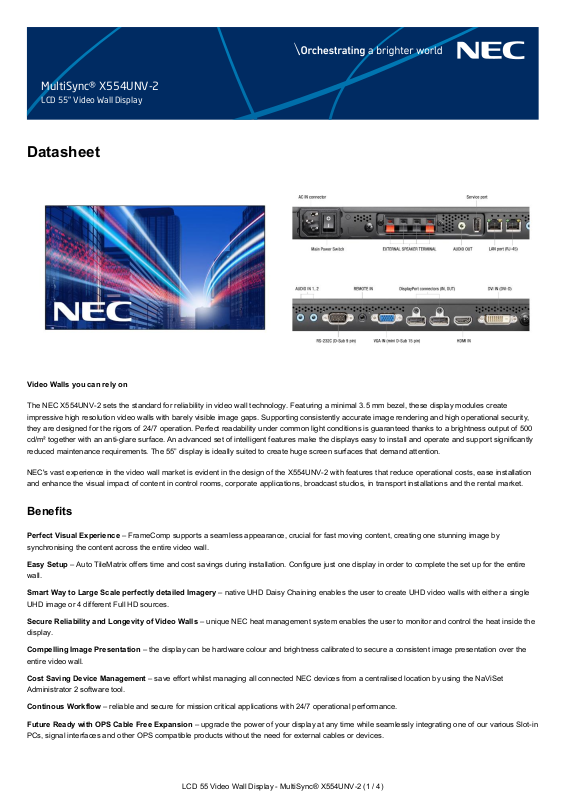

Page 1
Datasheet
MultiSync® X554UNV-2
LCD 55" Video Wall Display
Video Walls you can rely on
The NEC X554UNV-2 sets the standard for reliability in video wall technology. Featuring a minimal 3.5 mm bezel, these display modules create
impressive high resolution video walls with barely visible image gaps. Supporting consistently accurate image rendering and high operational security,
they are designed for the rigors of 24/7 operation. Perfect readability under common light conditions is guaranteed thanks to a brightness output of 500
cd/m² together with an anti-glare surface. An advanced set of intelligent features make the displays easy to install and operate and support significantly
reduced maintenance requirements. The 55” display is ideally suited to create huge screen surfaces that demand attention.
NEC's vast experience in the video wall market is evident in the design of the X554UNV-2 with features that reduce operational costs, ease installation
and enhance the visual impact of content in control rooms, corporate applications, broadcast studios, in transport installations and the rental market.
Benefits
Perfect Visual Experience – FrameComp supports a seamless appearance, crucial for fast moving content, creating one stunning image by
synchronising the content across the entire video wall.
Easy Setup – Auto TileMatrix offers time and cost savings during installation. Configure just one display in order to complete the set up for the entire
wall.
Smart Way to Large Scale perfectly detailed Imagery – native UHD Daisy Chaining enables the user to create UHD video walls with either a single
UHD image or 4 different Full HD sources.
Secure Reliability and Longevity of Video Walls – unique NEC heat management system enables the user to monitor and control the heat inside the
display.
Compelling Image Presentation – the display can be hardware colour and brightness calibrated to secure a consistent image presentation over the
entire video wall.
Cost Saving Device Management – save effort whilst managing all connected NEC devices from a centralised location by using the NaViSet
Administrator 2 software tool.
Continous Workflow – reliable and secure for mission critical applications with 24/7 operational performance.
Future Ready with OPS Cable Free Expansion – upgrade the power of your display at any time while seamlessly integrating one of our various Slot-in
PCs, signal interfaces and other OPS compatible products without the need for external cables or devices.
LCD 55 Video Wall Display - MultiSync® X554UNV-2 (1 / 4)
Page 2
Product Information
Product Name MultiSync®X554UNV-2
Product Group LCD 55" Video Wall Display
Order Code 60004272
Display
Panel Technology S-PVA with direct LED backlight
Active Screen Area (W x H) [mm] 1,209.6 x 680.4
Screen Size [inch/cm] 55 / 138.8
Aspect Ratio 16:9
Brightness [cd/m²] 500, 300 Eco (shipment setting)
Contrast Ratio (typ.) 4000:1
Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms] 8
Panel Refresh Rate [Hz] 60
Haze Level [%] 25
Supported Orientation Face Up; Landscape; Portrait
Synchronisation Rate
Horizontal Frequency [kHz] 31.5 - 91.1
Vertical Frequency [Hz] 50 - 85
Resolution
Native Resolution 1920 x 1080 at 60 Hz
Supported on DisplayPort and
HDMI
Supported on HDMI only 4096 x 2160 (24 Hz); 3840 x 2160 (25 Hz); 1360 x 768; 576i (Value Hz); 480i (60 Hz)
3840 x 2160 (24/30 Hz); 1920 x 1080; 1600 x 1200; 1360 x 768; 1280 x 1024; 1280 x 768; 1080i; 1080p;
1024 x 768; 800 x 600; 720p (50/60 Hz); 640 x 480; 576p (50 Hz); 480p (60 Hz)
Connectivity
Input Video Analogue 1 x D-sub 15 pin
Input Video Digital 1 x DisplayPort (with HDCP); 1 x DVI-D (with HDCP); 1 x HDMI (with HDCP); 1 x Interface Extension Slot; 1 x
OPS Slot
Input Audio Analogue 2 x 3,5 mm jack
Input Audio Digital 1 x DisplayPort; 1 x HDMI
Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232
Output Video Digital 1 x DisplayPort out (loop through:DisplayPort, DVI-D, HDMI, Interface Extension Slot, OPS)
Output Audio Analogue 3,5mm jack
Output Control LAN 100Mbit
Remote Control LAN with SNMP; Remote Control IR (internal/external (optional) sensor); RS-232C (9-pin D-sub) Input
Open Modular Intelligence
OPS Slot Slot Technology: Open pluggable specification (NEC / Intel OPS standard)
Inrush Current [A] max. 10
Power Consumption [W] max. 61
Voltage / Current [V/A] 16/4
Interface Extension Slot
Slot Technology analogue and digital interface extension (NEC standard)
LCD 55 Video Wall Display - MultiSync® X554UNV-2 (2 / 4)
Page 3
Sensors
Ambient Light Sensor Integrated, triggered actions programmable
Human Sensor Optional, external, 4-5m range, triggered actions programmable
Temperature Sensor Integrated, 3 sensors, triggered actions programmable
NFC Sensor Integrated, 2cm range, free NEC Android App required
Electrical
Power Consumption [W] 125 Eco (shipment setting), 170
Power Savings Mode [W] < 0.5; < 2.5 (Networked Standby)
Power Management VESA DPMS
Environmental Conditions
Operating Temperature [°C] +0 to +40
Operating Humidity [%] 20 to 80
Mechanical
Dimensions (W x H x D) [mm] Without stand: 1,214 x 684 x 100
Weight [kg] Without stand: 25.9
Bezel Width [mm] 1.2 bottom/right; 2.3 top/left; 3.5; Content to content 3.7
VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M6
Ingress Protection IP40 (front); IP20 (back)
Additional Features
Special Characteristics Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; DICOM support; Frame Comp; HTTP
Server; Image flip; Intelligent Wireless Data (based on NFC); NaViSet Administrator 2; Point Zoom Function;
Programmable 10-bit LUT with 3 memory banks; Sticky Note Function in OSD; TileMatrix; User readable log
function
Safety and Ergonomics C-tick; CE; EAC; FCC Class A; PSB; RoHS; SASO; TÜV GS; UL/C-UL or CSA; VCCI
Audio Optional Speakers (15 W + 15 W)
Shipping Content CD-ROM (User Guides/Manuals); Display; DisplayPort Cable; Free LAN control software (download); Power
Cable
Signal Cable: LAN cable
Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension
Operating Hours 24/7
Available Options
Accessories Calibration kit (KT-LFD-CC2); Feet (ST-5220); Overframe kit (KT-55UN-OF2); Remote control kit (KT-RC2);
Speaker (SP-RM1 ); Speaker (SP-TF1); Trolley (PD02VWM 2x2 46 55 L, PD02VWM 3x3 46 55 L); Wall
mount (PDVWXUN 55 L/P; PD02VW MFS 46 55 L/)
Interface Extension SB3-AB1 analogue: Audio; Component; Composite; S-Video
SB3-AB2 analogue: Audio; RGBHV
OPS Slot HD-SDI 1.5G / 3G; HDBaseT receiver; Intel® Celeron and Core i3, i5, i7 Slot-in PCs; OPS Digital Signage
Player
Green Features
Energy Efficiency Ambient light sensor; Annual energy consumption: 173 kWh (based on 4 operating hours per day); Carbon
savings meter; ECOMode; Energy efficiency class: B; Human Sensor
LCD 55 Video Wall Display - MultiSync® X554UNV-2 (3 / 4)
Page 4
This document is © 2018 NEC Display Solutions Europe GmbH.
All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the
respective manufacturers. All specifications are subject to change without notice. Errors and omissions are excepted. 08.02.2018
