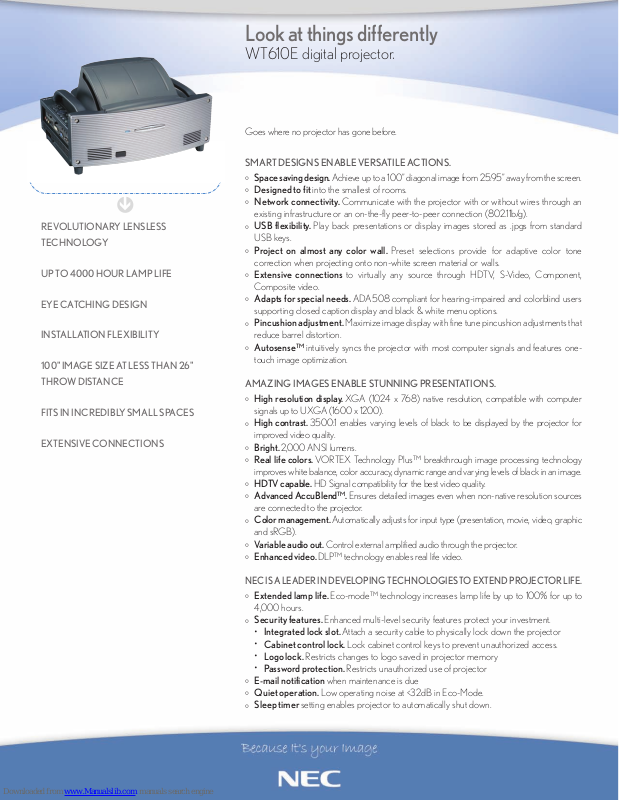

Page 1

REVOLUTIONARY LENSLESS TECHNOLOGY

UP T

O 4000 HOUR LAMP LIFE

EYE CATCHING DESIGN

INSTALLATION FLEXIBILITY

100" IMAGE SIZE AT LESS THAN 26" THROW DISTANCE

FITS IN INCREDIBLY SMALL SPACES

EXTENSIVE CONNECTIONS

Look at things differently

WT610E digital projector.

Goes where no projector has gone before.

SMART DESIGNS ENABLE VERSATILE ACTIONS.

Space saving design. Achieve up to a 100” diagonal image from 25.95” away from the screen.

Designed to fit into the smallest of rooms.

Network connectivity. Communicate with the projector with or without wires through an

existing infrastructure or an on-the-fly peer-to-peer connection (802.11b/g). USB flexibility. Play back presentations or display images stored as .jpgs from standard

USB keys. Project on almost any color wall. Preset selections provide for adaptive color tone

correction when projecting onto non-white screen material or walls. Extensive connections to virtually any source through HDTV, S-Video, Component,

Composite video. Adapts for special needs. ADA508 compliant for hearing-impaired and colorblind users

supporting closed caption display and black & white menu options. Pincushion adjustment. Maximize image display with fine tune pincushion adjustments that

reduce barrel distortion. Autosense™ intuitively syncs the projector with most computer signals and features one-

touch image optimization.

AMAZING IMAGES ENABLE STUNNING PRESENTATIONS.

High resolution display. XGA (1024 x 768) native resolution, compatible with computer

signals up to UXGA (1600 x 1200). High contrast. 3500:1 enables varying levels of black to be displayed by the projector for

improved video quality. Bright. 2,000 ANSI lumens.

Real life colors. VORTEX Technology Plus™ breakthrough image processing technology

improves white balance, color accuracy, dynamic range and varying levels of black in an image. HDTV capable. HD Signal compatibility for the best video quality.

anced AccuBlend™.

are connected to the projector. Color management. A

° °

GB).

and sR

Variable audio out. Control external amplified audio through the projector. Enhanced video. DLP™ technology enables real life video.

Ensur

tomatically adjusts for input type (presentation, movie, video, graphic

ailed images even when non-native resolution sources

es det

NEC IS A LEADER IN DEVELOPING TECHNOLOGIES TO EXTEND PROJECTOR LIFE.

Extended lamp life. Eco-mode™ technology increases lamp life by up to 100% for up to

4,000 hours. Security features. Enhanced multi-level security features protect your investment.

Integrated lock slot. Attach a security cable to physically lock down the projector

•

Cabinet control lock. Lock cabinet control keys to prevent unauthorized access.

•

Logo lock. Restricts changes to logo saved in projector memory

•

Password protection. Restricts unauthorized use of projector

•

E-mail notification when maintenance is due

Quiet operation. Low operating noise at <32dB in Eco-Mode.

Sleep timer setting enables projector to automatically shut down.

Page 2

2.32”

(

313 mm)

14.96”

(380 mm)

2.32”

(313 mm)

UNIQUE FEATURES

Advanced AccuBlend E

utosense Automatically syncs with any computer signal and

VORTEX™ Technology Plus Breakthrough image processing technology improves

3D Reform™ Provides the ability to square the image by adjusting 3D

Eco-Mode™ Technology Extends lamp life, lowers audible noise and reduces total

Built-in Wall Color Correction Presets provide for adaptive color tone correction to

Kensington Lock Slot Enables security cable to be attached to projector. Image Magnification 64-step image magnification with location control. Sleep Timer Count down timer can be set to automatically turn off

nsures detailed images when non-native resolution ources are connected to the projector.

eatures one touch image optimization.

hite level, color accuracy, dynamic range and varying

w levels of black in an image.

Reform horizontally, vertically or diagonally when the projector can not be placed parallel or perpendicular to the screen.

cost of ownership.

display properly on non-white surfaces.

the projector.

Look at things differently

WT610E digital projector.

PTICAL

isplay Technology Single chip 12 degree DMD

esolution Native: XGA 1024 x 768

ight Output (lumens) 2000 normal, 1500 eco

ontrast Ratio 3500:1

C Lamp Type 275W DC

amp Life (up to) 2000 hours normal, 4000 hours eco

creen Size (diagonal) 40-100 inches diagonal

S Projection Distance 2.5 – 25.9 inches, 64 – 659 mm Projection Angle 55°

eystone Correction ±5° Horizontal and –5° Vertical

SIGNAL COMPATIBILITY/CONNECTIVITY

Scan Rate Horizontal 15 to 100 kHz (non-interlaced)

upported Video NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM

tandards

S SD/HD Video Signal 1080i, 720p, 576p,576i, 480p, 480i

ompatibility

C Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA

P Macintosh Compatibility Yes Input/Output Terminals RGB 1 (analog) 15 pin

Audio 1Wx2

xternal Control RS232, LAN (AMX/Crestron compatibility), remote in

E Sync Compatibility Separate Sync/Composite Sync/Sync on G Networking Wired LAN using integrated RJ45, 802.11b/g wireless with optional card

ELECTRICAL

Power Req. 100-120VAC/200-240VAC, 50/60Hz Input Current 3.9A (100V), 1.7A (240V) Power Consumption Eco-Mode 300W, Normal 370W, 0.6W Standby, 8.0W Idle Mode

MECHANICAL

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear Dimensions (WxDxH) 14.96” x 12.32” x 12.32”, 380x313x313mm, mirror open (not including protrusions) Net Weight 14.1 lb., 6.4 kg) Fan Noise <37 dB normal/<32 dB eco Regulations USA UL 1950 FCC Class B, Canada CSA950 (C-UL), NOM

ENVIRONMENTAL

Operational Temp 41° to 95°F / 5° to 35°C Humidity 20-80% non-condensing Storage 14° to 122°F / -10° to 50°C

WARRANTY

Owners receive a 2-year limited parts and labor warranty. RepairCare™ is provided during the first year of coverage for registered owners. RepairCare provides the original owner with 3-business day repair and return of the projector. When used under normal operating conditions, the lamp is covered for 90 days or 500 hours, whichever comes first.

IN THE BOX

Users manual, wired/wireless remote control, D-sub signal cable, DVI-D signal cable, DVI-A – D-sub signal cable, audio cable, USB A-B cable, power cable, set up guide, registration card

ACCESSORIES

der Code

Or WT610E WT610E 2000 ANSI lumen mirror projector WT61LP WT60CM WT60ATA ATA shipping case NWL-100A WTPL-01

Maximum: UXGA 1600x1200

Vertical 50 to 120Hz

GB 2 (analog) DVI-I with HDCP

ideo 1 Composite

V Video 2 S-Video

udio 1 set RCA, 2 stereo mini

udio Out Variable audio out

A Monitor Out Yes

Description

Replacement lamp Ceiling mount kit

802.11b/g wireless LAN PC card m of limited par

Extends ter

ts and labor war

ranty to three years

For more information, call 1.800.NEC.INFO or visit www.necvisualsystems.com

NEC is a registered trademark of NEC Corporation. All other trademarks ar All specifications subject to change without notice.

NEC Corporation of America Visual Systems Division 1250 Arlington Heights Rd., Suite 400 Itasca, IL 60143-1248

NEC 060611
