Nec VERSA V user Manual

Page 1

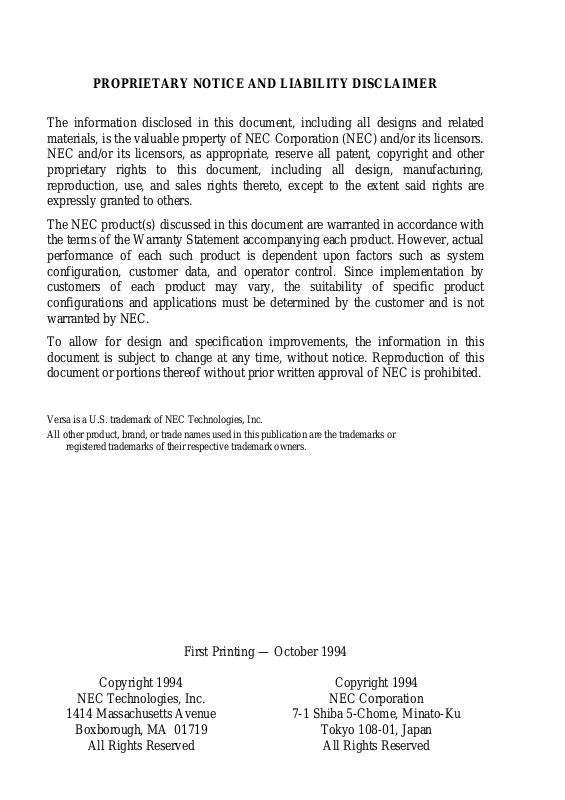

PROPRIETARY NOTICE AND LIABILITY DISCLAIMER
The information disclosed in this document, including all designs and related materials, is the valuable property of NEC Corporation (NEC) and/or its licensors. NEC and/or its licensors, as appropriate, reserve all patent, copyright and other proprietary rights to this document, including all design, manufacturing, reproduction, use, and sales rights thereto, except to the extent said rights are expressly granted to others.
The NEC product(s) discussed in this document are warranted in accordance with the terms of the Warranty Statement accompanying each product. However, actual performance of each such product is dependent upon factors such as system configuration, customer data, and operator control. Since implementation by customers of each product may vary, the suitability of specific product configurations and applications must be determined by the customer and is not warranted by NEC.
To allow for design and specification improvements, the information in this document is subject to change at any time, without notice. Reproduction of this document or portions thereof without prior written approval of NEC is prohibited.
Versa is a U.S. trademark of NEC Technologies, Inc. All other product, brand, or trade names used in this publication are the trademarks or
registered trademarks of their respective trademark owners.
First Printing — October 1994
Copyright 1994 Copyright 1994
NEC Technologies, Inc. NEC Corporation
1414 Massachusetts Avenue 7-1 Shiba 5-Chome, Minato-Ku
Boxborough, MA 01719 Tokyo 108-01, Japan
All Rights Reserved All Rights Reserved
Page 2
Using this Guide
This Versa™ V Series User’s Guide contains all the infor- mation you need to use your notebook computer. To help you get the most out of your Versa V, this guide describes system features, options, and setup programs.
Read the following chapters to find out more about your Versa V.
■ Chapter 1 gives basic information like setting up the
notebook computer, using function keys, and reading LCD status icons.
Chapter 1 describes the Versa V buttons, controls, PCMCIA slots, and other features.
■ Chapter 2 offers ideas for using your Versa V in the
office, at meetings, and on the road.
■ Chapter 3 focuses on adding options, like PCMCIA
cards. This chapter also describes how to connect external devices like printers, monitors, and keyboards.
■ Chapter 4 describes the power-saving programs that
come with your Versa V. It introduces options for conserving energy and saving battery power.
■ Chapter 5 introduces you to the Versa V Auto Setup
program. This software lets you change the system date and time, set a password, and define many other system options.
■ Chapter 6 gives you a checklist to follow if you
have problems with the Versa V. Solutions are also suggested.
Using this Guide ix
Page 3
TEXT SETUP
■ Chapter 7 provides telephone numbers for NEC help and
information lines. This chapter guides you to locating the help you need for basic system service or upgrades.
■ Appendix A lists system specifications.
■ Appendix B describes the NEC Communications
Assistant.
Use this guide along with the software documentation that comes with your Versa V.
To make this guide as easy to use as possible, text is set up in the following ways.
■ Cautions, notes, and tips have the following format:
CAUTION: Cautions indicate situations that can damage the system hardware or software.
x Using this Guide
NOTE: Notes give particularly important information about whatever is being described.
TIPS: Tips give helpful hints about getting the most out of your system.
Page 4
■ Names of keys are printed as they appear on the key-
board, for example,
■ Text that you have to type or keys that you must press
are presented in bold type. For example, type
Enter.
press
RELATED DOCUMENTS
In addition to this guide, a number of other documents ship with your Versa V system, including:
Hardware Documents
The Versa V Quick Setup shows you how to set up your
■
system after you unpack it.
■ The Versa Series Battery User’s Guide gives hints
about extending the life of your battery pack and sug­gests energy conserving techniques.
■ The Versa Series Quick Reference Card contains
brief descriptions of function keys, LEDs, NEC help telephone numbers and troubleshooting tips. Tuck this card inside the notebook when you take it with you. The card is designed as a quick, portable reference to frequently-used functions.
Ctrl, Alt, or Enter.
dir and
■ The Versa Series PCMCIA User’s Guide contains
information about optional PCMCIA cards, their installation, and use.
Software Documents
Microsoft Windows and MS-DOS 6 User’s Guide pro-
■
vides a comprehensive source of information for using
®
Windows™ and MS-DOS
.
Using this Guide xi
Page 5
Contents
Using this Guide ix
Text Setup................................................................ x
Related Documents................................................... xi
1 Getting to Know Your New Information Tool
What’s in the Box..................................................... 1-1
Setting it Up............................................................. 1-2
Features ................................................................... 1-4
LCD Panel .......................................................... 1-4
Function Keys ..................................................... 1-5
Key Combinations.......................................... 1-6
LCD Status Bar................................................... 1-8
PCMCIA Cards................................................... 1-12
VersaTrack Ball ............................................... 1-13
Cleaning the VersaTrack................................. 1-13
Buttons and Controls........................................... 1-14
Smart Power Switch............................................ 1-16
Online Help......................................................... 1-16
Batteries.............................................................. 1-17
Main Battery.................................................. 1-17
Bridge Battery................................................ 1-18
CMOS Battery............................................... 1-19
Plug and Play...................................................... 1-19
System Care............................................................. 1-20
2 Using Your Versa V
In the Office............................................................. 2-1
Organizing and Managing Your Work ................. 2-2
Managing Your Time ..................................... 2-2
Managing Your Contacts................................ 2-2
Managing Data............................................... 2-2
Using a Scanner.............................................. 2-3
Contents iii
Page 6
Keeping Secure............................................... 2-3
Creating Presentations......................................... 2-3
Creating Slides............................................... 2-3
Using Audio................................................... 2-3
Using CD-ROM............................................. 2-3
Communicating from the Office........................... 2-4
Using a Modem.............................................. 2-4
Using a Pager................................................. 2-4
Transferring Data........................................... 2-4
Sending E-Mail .............................................. 2-4
Unwinding with the Versa V................................ 2-4
In Meetings .............................................................. 2-5
Creating Instantly................................................ 2-5
Organizing in Meetings ........................................ 2-5
Communicating the Essentials.............................. 2-5
Using a CRT Connector.................................. 2-5
Using Wireless LAN....................................... 2-6
Giving Demos...................................................... 2-6
On the Road............................................................. 2-6
Creating as You Travel........................................ 2-6
Organizing Yourself ............................................ 2-7
Communicating with Home.................................. 2-7
Using a Modem.............................................. 2-7
Using a Pager................................................. 2-7
Using Global Positioning ................................ 2-8
Unwinding on the Road........................................ 2-8
What to Take....................................................... 2-8
Before You Leave................................................ 2-9
3 Adding Options
PCMCIA Cards........................................................ 3-1
Modems ................................................................... 3-3
Telephone Line Connections ................................ 3-3
iv Contents
Inserting and Removing Cards ........................ 3-2
Connecting a Phone Cable Only...................... 3-4
Connecting a Phone and a Versa V.................. 3-5
Page 7
Memory Expansion................................................... 3-6
Hard Disk................................................................. 3-9
Printers .................................................................... 3-12
Parallel Printer .................................................... 3-12
Serial Printer....................................................... 3-14
External Keyboard.................................................... 3-14
External Mouse........................................................ 3-16
External Monitor...................................................... 3-18
Docking Station ........................................................ 3-20
Expansion Bays ................................................... 3-20
Expansion Slots ................................................... 3-20
Ports ................................................................... 3-20
Port Replicator......................................................... 3-21
Ports ................................................................... 3-21
4 Understanding Power Management
What is Power Management? .................................... 4-1
Default Settings................................................... 4-1
Power-Saving Modes........................................... 4-2
Active Mode ................................................... 4-2
Local Stand-by Mode ..................................... 4-2
Suspend Mode................................................ 4-3
Smart Power Switch....................................... 4-4
Automatic Suspend Mode Initiation ................ 4-4
Power Management with a Docking Station ......... 4-4
Prolonging Battery Life ............................................ 4-5
5 Using Auto Setup
Auto Setup............................................................... 5-1
How to Enter Auto Setup ..................................... 5-2
With an Error at POST................................... 5-2
With No Error at POST.................................. 5-2
How to Use Auto Setup....................................... 5-3
Looking at the Screen ..................................... 5-3
Using Key Functions ...................................... 5-4
Checking/Setting System Parameters............... 5-5
Contents v
Page 8
System Parameter Options........................................ 5-6
Comms................................................................ 5-8
Drives ................................................................. 5-8
Keyboard ............................................................ 5-9
Power.................................................................. 5-10
System ................................................................ 5-12
Time/Date........................................................... 5-12
Security Options ....................................................... 5-13
System Password................................................. 5-13
Keyboard Lock Hot Keys .................................... 5-16
6 Problem Solving
Problem Checklist..................................................... 6-1
Start-Up Problems.................................................... 6-3
If You Need Assistance............................................. 6-6
Direct Technical Support..................................... 6-6
Remote Technical Support................................... 6-7
Setting an Initial System Password.................. 5-13
Using the System Password ............................ 5-14
Removing/Replacing a Password .................... 5-15
Valid Keys ..................................................... 5-16
Invalid Keys................................................... 5-16
Selecting Hot Keys......................................... 5-17
Setting Your Hot Keys.................................... 5-17
Using Your Hot Keys ..................................... 5-18
Features ......................................................... 6-8
7 If You Need Help
UltraCare SUPPORT ............................................... 7-2
Support from the NEC Reseller................................. 7-3
Support from NEC................................................... 7-4
NEC FastFacts.................................................... 7-4
NEC Bulletin Board System ................................ 7-5
vi Contents
What is the BBS?........................................... 7-5
How Do You Use the BBS?............................ 7-6
Page 9
NEC Technical Support....................................... 7-7
NEC Customer Service Response Center ............. 7-7
Mail-in Service......................................................... 7-8
Maintenance Contracts ............................................. 7-8
A Specifications
B NEC Communications Assistant
Glossary
Index
List of Tables
Temperature and Humidity Requirements.................. 1-21
Automatic Power-Saving Features ............................ 4-1
Auto Setup Quick Reference..................................... 5-4
System Parameter Options........................................ 5-7
Troubleshooting........................................................ 6-2
POST Error Messages.............................................. 6-4
Contents vii
Page 10
viii Contents
Page 11
Getting to Know Your
1
WHAT’S IN THE BOX
New Information Tool
Your Versa V is a wonderfully useful tool that you’ll soon find is indispensable. It’s easy to carry around with you and can be used for most of your information and communica­tion needs.
Your Versa V comes with lots of features fully loaded on the system. All you have to do is open the packing box, unpack the notebook computer, the cables, and the Quick Setup sheet. Look for the following.
Notebook Computer
AC Power Cable
AC/DC Adapter
User Guides
Box contents
Getting to Know Your New Information Tool 1-1
Page 12
SETTING IT UP
1. Remove the Versa V from the packing box and press the
front latch to open the notebook.
LCD Release Latch
Pressing the latch
2. Plug in the Versa to an AC (alternating current) power
source, using the cable and the AC adapter that came with your Versa V. Simply plug the AC adapter into the socket in the back of your system. Plug the cable into the AC adapter and the other end into a wall socket.
1-2 Getting to Know Your New Information Tool
Page 13
Power Connector Port
The power connector
3. Press the power button to start up the system. The
power button is located on the top left of the unit.
Power Button
Pressing the power button
You are now ready to familiarize yourself with your new Versa.
Getting to Know Your New Information Tool 1-3
Page 14
FEATURES
LCD Panel
Here are some of the Versa V’s features:
n LCD Panel n Function Keys n LCD Status Bar n PCMCIA Slots n Trackball n Buttons and Controls n Smart Power Switch n Online Help.
Your Versa V comes with one of three types of LCD panel, a TFT color, DSTN color, or DSTN monochrome.
n The active-matrix thin-film transistor (TFT) color LCD
has a resolution of 640 x 480 pixels, is backlit, and supports up to 256 colors. The TFT LCD provides a
9.5-inch display area, brilliant resolution, and an impressive array of colors.
n The Dualscan Super-Twisted Nematic (DSTN) color
LCD uses cold cathode fluorescent tube (CCFT), is backlit, and supports up to 256 colors. The STN LCD provides a 9.5-inch display area, exceptional clarity, and color for the most demanding graphics.
n The monochrome LCD has a 640 x 480 pixel resolution
and supports 64 shades of gray. The 9.5-inch screen uses the Dualscan Super-Twisted Nematic (DSTN) backlit technology for crisp clear images. (Not available in the U.S.)
1-4 Getting to Know Your New Information Tool
Page 15
Function Keys
The function keys are located, as on most PCs, along the top of keyboard. The Fn (Function) key activates functions printed on keys having dual functions.
NOTE: NEC LCD panels meet exacting manufac­turing standards. Of the 921,600 elements involved in creating the display on your screen, NEC accepts no TFT screen with more than 6 non-working ele­ments. Although this may mean a pixel or two is non-functional, its impact on your display should prove minimal.
Function Keys
Fn Key
Function keys
Some special functions are specific to the Versa V systems. These keys set specific parameters that are built into ROM (Read-Only Memory).
Getting to Know Your New Information Tool 1-5
Page 16
Key Combinations
The key combinations for system-specific functions are as follows.
Fn F1 Not used
Highlight Use to set the color LCD contrast to standard or full high-
light for DOS text mode.
LCD/CRT Use to toggle between LCD mode only, LCD and CRT
modes simultaneously, and CRT only screen mode.
Reverse LCD Use to reverse the LCD screen image (monochrome only).
Backlight Use to adjust the screen brightness to standard or full as
your environment requires.
Speaker Use to regulate the speaker volume. Press Fn F6 to toggle
from off to low, medium, or high. A beep sounds when the volume setting is changed.
1-6 Getting to Know Your New Information Tool
Page 17
Power Management Levels Use to set the power management level to off, custom, low,
or high. Notice the changes in the LCD panel as you toggle the key combination.
Hard Disk Drive Spin Up/Down Use to spin the hard disk up or down. Spin down means that
the motor that spins the disk within the hard disk drive shuts off to save power. Spin up means the disk motor turns on again. Pressing Fn F8 bypasses any timeout. A beep sounds when the hard disk spins down or up.
Battery I Use to reset the primary battery icon to four bars on the
LCD status bar. (yyyy) Use when you have reinserted the primary battery.
Battery II Use to reset the secondary battery icon to four bars on
the LCD status bar. (yyyy)Use when you have reinserted the secondary battery.
Fn F11 Not used.
Scroll Lock Use of this key combination depends upon the software ap-
plication you are using. Refer to the application user’s guide.
Getting to Know Your New Information Tool 1-7
Page 18

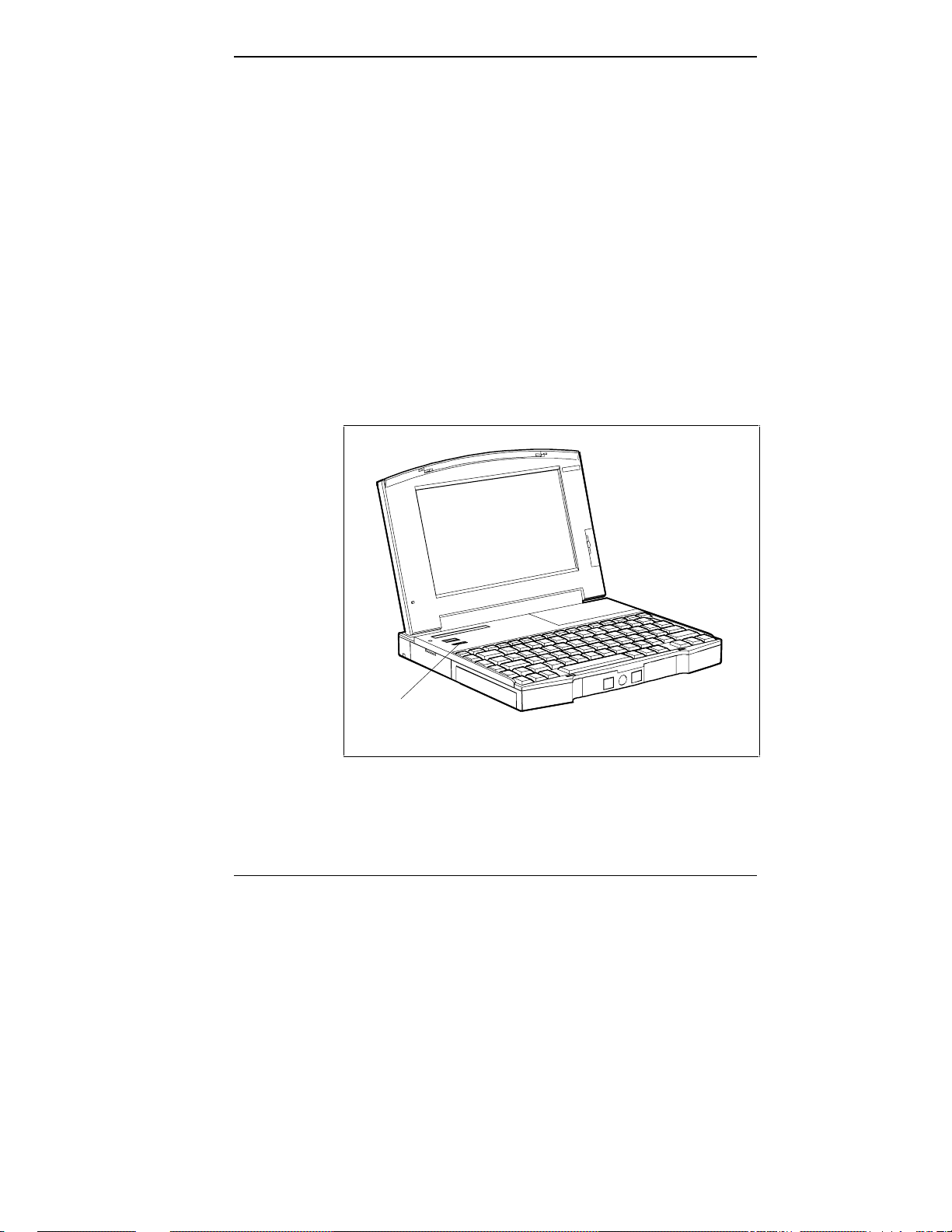

LCD Status Bar
The Versa V has an LCD indicator panel located above the keyboard. It shows status for the following system functions and components.
LCD status bar
LCD Status Bar
Suspend A half moon icon appears when the system is in Suspend
(or Sleep) mode.
Power Management
Faucet icons indicate the level of power management being used.
Off Indicates that power management is not enabled.
Low
1-8 Getting to Know Your New Information Tool
Page 19
Indicates that power management is set at low.
High Indicates that high power management is set.
Custom Indicates custom power management features are set.
Hard Disk Drive Access Indicates the hard disk drive is being accessed.
Diskette Drive Access Indicates the diskette drive is being accessed.
Num Lock Indicates the numeric keypad lock function is enabled.
Scroll Lock Indicates the scroll lock function is enabled.
Getting to Know Your New Information Tool 1-9
Page 20
Caps Lock Indicates the caps lock function is enabled.
Battery The left battery icon represents the primary battery and the
right battery icon represents the secondary battery. Bars within the battery icons represent the remaining bat-
tery charge when the system is in use:
n 4 bars indicate a 100% charge zzzz n 3 bars indicate a 75% charge zzz n 2 bars indicate a 50% charge zz n 1 bar indicates a 25% charge. z
If two fully charged batteries are installed, 8 bars contained in 2 battery icons appear in the display. Neither the bars nor icons blink.
1-10 Getting to Know Your New Information Tool
Page 21
As battery power is consumed, the bars disappear. When one solid blinking bar remains, battery power is almost used up.
A blinking battery shell in the display indicates that the battery is charging. Four bars in a box represent one fully charged battery and eight bars in two boxes represent two fully charged batteries.
If only bars 1 and 3 appear, the battery status is unknown. This is caused when the battery is removed and reinserted, or when a newly charged battery is first inserted. To return to fully charged status, press Fn F9 if you have one battery and Fn F10 if you have two batteries installed to reset the battery icon. Be sure to do this only if you know the battery is fully charged. Four (or eight) bars should appear and the system should work normally.
Eight solid blinking bars indicate an abnormal battery status. The battery
pack may not be installed correctly, or is defective.
Getting to Know Your New Information Tool 1-11
Page 22

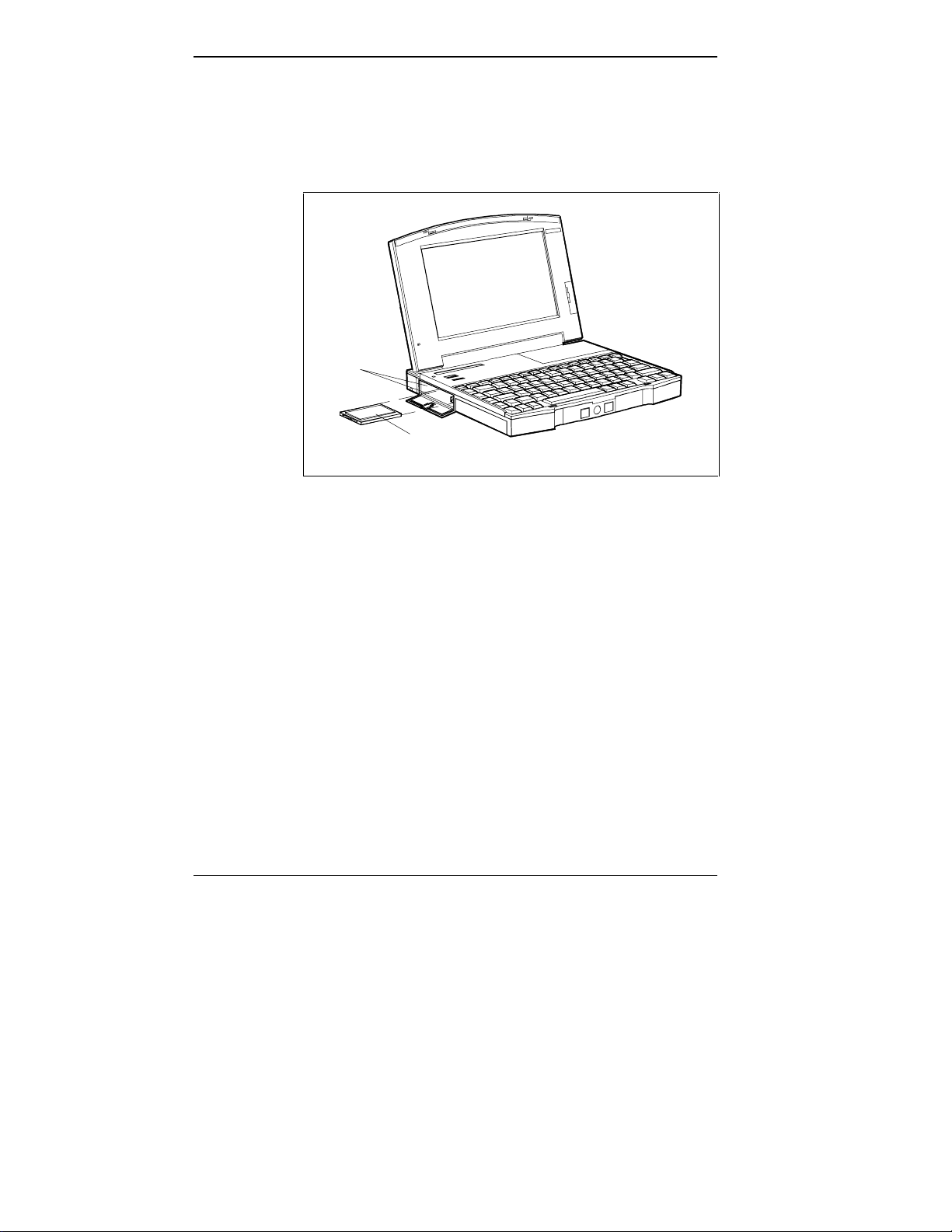

PCMCIA Cards
Your Versa V has two PCMCIA card slots for attaching options such as fax/modems, Local Area Network (LAN), and extra hard disk storage.
Refer to the Versa Series PCMCIA User’s Guide for information on card types.
The PCMCIA slots in your Versa V are located on the left side of the unit stacked one above the other. Slot 0 is in the lower position, Slot 1 is above it.
Slot 1
Slot 0
PCMCIA card slots
For more information on using PCMCIA cards with your Versa V, see the Versa Series PCMCIA User’s Guide.
1-12 Getting to Know Your New Information Tool
Page 23
VersaTrack Ball
The VersaTrack ball, located on the front of the Versa V, works much like a mouse — you use it to control the movement of the pointer in Windows and any other appli­cation that supports a mouse. Use the Windows Control panel to set the speed of the pointer.
Click the left button to select a function and click the right button to cancel a function. Quickly pressing either button twice is double clicking. Rotating the ball with either button pressed is dragging.
VersaTrack Ball
VersaTrack ball
Cleaning the VersaTrack
Periodically, dust and dirt builds up and you need to clean the roller inside the VersaTrack. Follow these steps.

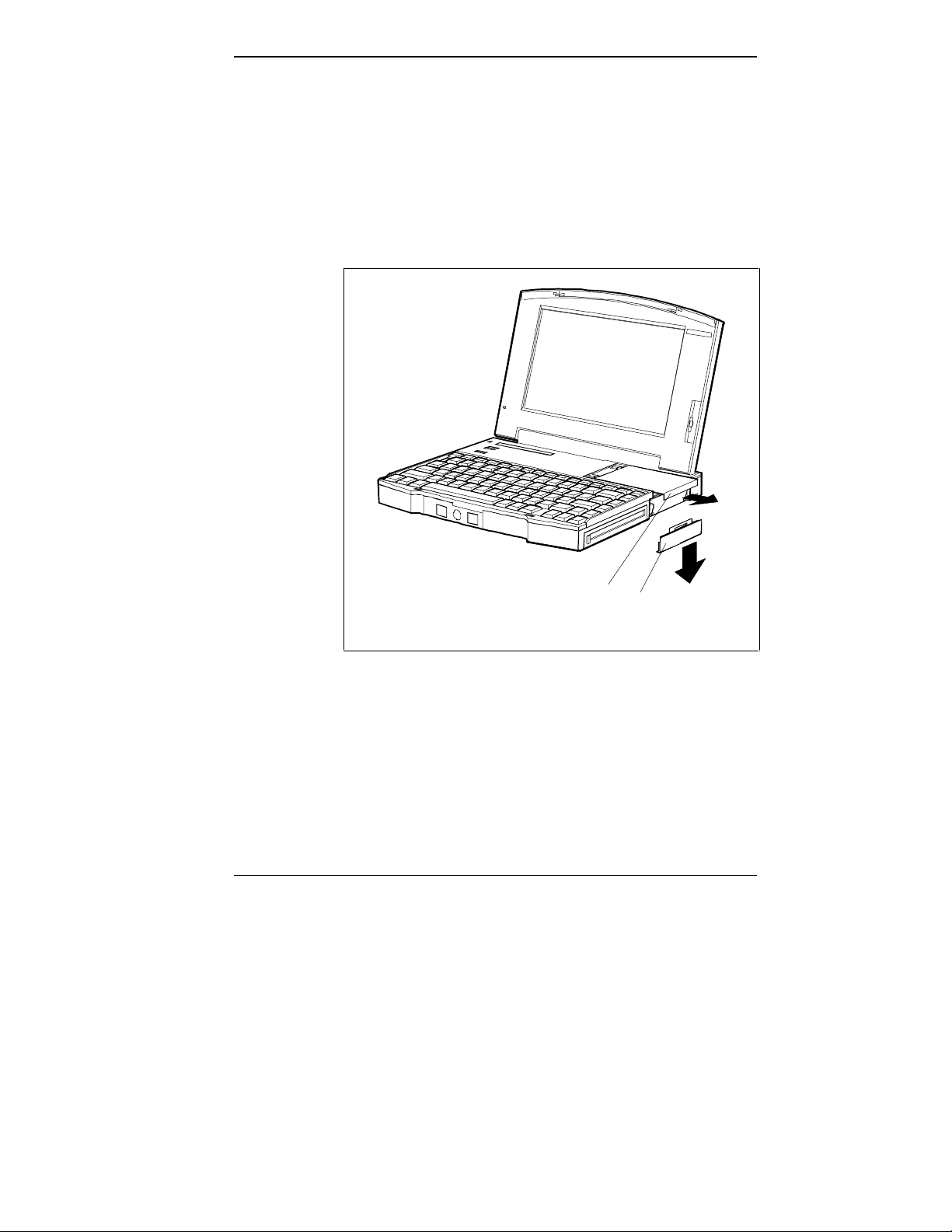

1. Tip the system to easily pull and remove the VersaTrack
cover and the ball.
Getting to Know Your New Information Tool 1-13
Page 24
2. Use a lint-free applicator to carefully remove any dirt on
the rollers.
NOTE: Be careful when cleaning the rollers that they don’t become misaligned. If the rollers aren’t aligned you may experience sticking.
3. Place the ball into the opening, align the notch of the
VersaTrack cover with the system, and push the cover to secure it into place.
Buttons and Controls
The following figure shows the buttons and controls besides the VersaTrack that you use to run the Versa V. Descrip­tions of them follow.
Contrast Control
Brightness Control
Power Button
Suspend Button
Buttons and controls
1-14 Getting to Know Your New Information Tool
Page 25
n Power Button — controls power on the system. Pull,
momentarily hold, and then release the power button to
turn the system on. Pull the power button again to turn
the system off. When power is available, the LCD indi-
cator panel shows the operational status of the system.
TIP: After turning off the system, wait 5 seconds before turning the system back on. Turning the system off and on before allowing it to completely power down strains the system.
n Contrast Control (only on DSTN panels) increases or
decreases the contrast of the LCD backlight. Slide
the control up to increase the contrast, down to decrease
the contrast.
n Brightness Control — increases or decreases the
brightness of the LCD backlight. Slide the control up
to increase the brightness or slide it down to decrease
the brightness.
TIP: The degree of brightness affects the length of battery operation. A brighter adjustment uses more battery power. For longer battery operation, decrease the brightness.
n Suspend Button — lets you manually put the system
in the Suspend mode of operation while using battery
power. Suspend mode retains the contents of memory
(RAM) and system status. Suspend mode saves battery
power. To exit Suspend mode, press the suspend
button again.
Getting to Know Your New Information Tool 1-15
Page 26
Use Suspend mode when you need to be away from the system for a short time and you want to return to where you left off.
To activate the Suspend mode, press the suspend button or use Auto Setup to set the system to enter Suspend mode automatically. A half moon icon appears on the LCD indicator panel when the system is in Suspend mode.
To resume system operation, press the suspend button. System operation returns to where it stopped.
Smart Power Switch
The Versa V has a Smart Power Switch feature that pre­vents you from accidentally turning off the system while it’s in Suspend mode.
If your system is in Suspend mode and you want to override the Smart Power Switch and turn off the system, hold down the Suspend button and press the Power switch.
For more information about Suspend mode, using the suspend button, and the Smart Power Switch, see “Understanding Power Management.”
Online Help
The Versa V has online help to assist you when you have questions about using the system.
1. From Windows, look for the Versa Help program group.
2. Click on the icon for the guide you need.
1-16 Getting to Know Your New Information Tool
Page 27
Batteries
Main Battery
There are three battery types that come with the Versa V:
n Main battery n Bridge battery n CMOS battery.
The main battery is the removable NiMH battery pack that comes with your Versa V. With it you can run your system without a wall outlet. It’s easy to install and remove.
Once you install the battery pack, you can leave it inside the computer. You can install a second battery pack at the same time; it replaces the standard diskette drive.
To get the most out of battery operation, familiarize your­self with how to
n use battery power n check battery conditions on the LCD indicator panel n recharge a battery pack n install/replace a battery.
You can read all about each of these areas in the Versa Series Battery Guide.
Getting to Know Your New Information Tool 1-17
Page 28
Bridge Battery
The Versa V has an internal bridge battery that acts as a safety net. The bridge battery keeps the memory contents and system status when the system is in Suspend mode and the main battery pack is removed.
To exchange a drained battery with a charged battery, you do not have to turn off system power if the system is in Suspend mode. The bridge battery keeps alive the data you are currently working with while you replace the primary battery.
TIP: The bridge battery supplies power for up to 5 minutes while the system is in Suspend mode.
The bridge battery is easy to keep charged. You recharge
the bridge battery whenever you plug in the AC adapter. It’s a good idea to leave your Versa V plugged in for 24 hours at least once a month to insure that your bridge battery is fully charged.
The bridge battery uses up its reserve of power each time you change batteries while traveling. It’s a good idea to plug in your Versa V using the AC adapter to recharge the bridge battery every few days, at least.
If you replace the bridge battery, allow it 24 hours to fully charge.
1-18 Getting to Know Your New Information Tool
Page 29
CMOS Battery
Plug and Play
There is alithium battery that backs up the CMOS RAM. The CMOS retains the internal system information such as configuration, date, and time.
NOTE: The CMOS battery lasts approximately three years. When the CMOS battery no longer re­tains information, contact NEC about CMOS battery replacement. Call 1-800-632-4525. (Refer to Chapter 7, “If You Need Help...”)
To install the new CMOS lithium battery, follow the steps
in the Versa Series Battery Guide.
Your Versa V system has a Plug and Play feature which allows you to add or remove an external mouse, keyboard, or monitor “live” while the system is in Suspend mode without damaging your system. When you resume Active mode, the Versa recognizes the option you added. (Refer to “Suspend Mode” in Chapter 4.)
CAUTION: Do not add an external mouse, keyboard, or monitor while the Versa V is in Active mode. This could cause system damage. Press the Suspend/Resume button to place the Versa in Suspend mode before attaching an option.
Getting to Know Your New Information Tool 1-19
Page 30
SYSTEM CARE
The Versa V is a durable, dependable system built for extensive use and travel. Follow these guidelines to maintain the condition and performance of your computer.
n Periodically clean the outside and inside surface areas
n Keep food and liquids away from your computer. n Avoid vibrations and shocks.
with a soft, clean, dry cloth. You can remove fingerprints or stains with a cloth
slightly dampened with a mild detergent. Never use a strong cleaner or solvent on any part of the computer.
For safety, unplug your system from an electrical outlet before cleaning.
If the LCD screen gets dirty, apply a household glass cleaner to a clean dry cloth or paper towel and wipe the screen. Do not spray cleaners directly on the screen. The cleaner could run down inside the unit.
n Avoid environments with dust and smoke. n Turn off the power button when you are not using
the system.
n Close the screen securely before moving the system.
Never lift or carry the computer by its screen.
n Keep the system cover closed when you are not using
the computer.
n Close all system covers before you transport the Versa. n Keep ths battery pack charged. Whenever possible, leave
the AC/DC adapter connected to your computer and wall outlet. The adapter continues to charge the battery when the computer is on or off.
1-20 Getting to Know Your New Information Tool
Page 31
n Periodically, fully discharge the battery. n Do not expose the system to direct sunlight or high
temperatures. For example, do not leave it in an enclosed
car parked in the sun. Heat can raise the internal
temperatures of the system and damage its components.
n Operate and store the system within the following
temperature and humidity ranges.
Temperature and Humidity Requirements
ENVIRONMENT
TEMPERATURE
RELATIVE HUMIDITY
Operation 41°F to 95°F
(5°C to 35°C)
Storage -4°F to 104°F
(-20°C to 40°C)
20% to 80% no condensation
20% to 80% no condensation
CAUTION: If the environmental temperature of the Versa suddenly rises (for example, when you move the system from a cold place to a warm place), vapor condenses inside the system. Turning on the system under this condition can cause damage to the internal components.
Wait before turning the system on so that the inter­nal temperature of the system can equalize with the warmer environment and any moisture can dry.
Getting to Know Your New Information Tool 1-21
Page 32
2
IN THE OFFICE
Using Your Versa V
There are any number of ways you can use your Versa V as you go through your daily life. Whether you are in the office, on the road, or in a meeting, your Versa can go with you and be an invaluable tool.
This chapter describes how you can use your Versa V to do all the things you do ordinarily throughout your day:
■ Create
■ Organize
■ Communicate
■ Unwind and demonstrate.
Your portable Versa V can replace your large desktop sys­tem giving you more space in your office to spread out and work. Or, with a Docking Station or port replicator you can plug your Versa V right into your desktop interface and start using it immediately with your larger desktop monitor and keyboard.
The following scenarios suggest ways you can use the Versa V in your office.
Using Your Versa 2-1
Page 33
Organizing and Managing Your Work
Your Versa V takes up less space in the office than your desktop system. You can now better organize your space to suit your work habits.
Managing Your Time
Time management is now easier. The time you used to spend on time-consuming tasks such as transcribing meeting notes or writing appointments in your bound calendar, is now available to you. And, you can use the Versa V wherever you are.
■ Meeting notes can now be transformed from an after-
the-fact chore to a real-time task. You can bring your Versa V to the meeting with you and take notes in the meeting.
■ You can also use the Versa V to do work that you
normally leave behind in your office to fill “idle” time while you wait for the meeting to begin, and at other such lull times.
■ Using your favorite personal information management
(PIM) application, you can keep track of your schedule and plan tasks.
Managing Your Contacts
Use your Versa V to manage your business contacts. With a PIM software application, you can maintain an on-line address book. If you have communications software and a modem, you can autodial your contacts and send a fax directly from your Versa.
Managing Data
You can use your Versa to manage your business data­bases, such as inventory, sales calls, production runs, etc.
2-2 Using Your Versa
Page 34
Using a Scanner
If you have a scanner with a SCSI connector and a PCMCIA SCSI card, you can scan in important informa­tion, even business cards!
Keeping Secure
For security purposes you may choose to lock up your hard disk which you can easily remove from your hard disk drive bay. You can also password protect your Versa through the Auto Setup program.
Creating Presentations
You have a client presentation to give at the end of the week. You can gather slides from previous presentations that have been stored in an information base on a CD-ROM disk. You can create additional slides to tailor the presenta­tion to your client's particular needs.
Creating Slides
Use your favorite slide presentation software to create outstanding visuals.
Using Audio
If you have external speakers, you can include sound in your presentation. Plug the speakers into the PCMCIA audio card.
Using CD-ROM
You can access a CD ROM reader if you have a SCSI interface. With your Versa V connected to CD ROM reader, insert the CD ROM disk. Then retrieve the files you need.
CD-ROM can also enable you to create dynamic multi­media presentations that include sound and animation along with your bright, colorful still visuals.
Using Your Versa 2-3
Page 35
Communicating from the Office
You can send e-mail messages, faxes using an NEC PCMCIA modem, and even page someone from your office using the VersaPage™ paging facility. All it takes is your Versa V, a modem, and the appro p riate s oftware pac kage(s).
Using a Modem
A modem allows you to connect your Versa to a telephone line. A PCMCIA modem, which is light and convenient, slides easily into either PCMCIA slot on the side of your Versa. (See Chapter 3.) There are a number of modems that can work with your Versa V. See the Versa Series PCMCIA Guide for an up-to-date list of modems.
Using a Pager
Using VersaPage, you can page the people you need immediate contact with. All you need is paging software and a paging modem that fits into your PCMCIA slot.
Transferring Data
You can transfer data from your Versa to your desktop computer, freeing up valuable space on your Versa.
Sending E-Mail
If you have an electronic mail (e-mail) network address, you can communicate with the world! You can send memos, access on-line databases, set up meetings, — the possibili­ties go on and on.
Unwinding with the Versa V
We actually learn best when we play. Use your Versa to run on-line tutorials that teach you how to use software that you’ve installed on your Versa.
■ Play with on-line games to relax you such as Solitaire,
or others you have installed.
2-4 Using Your Versa
Page 36
■ Communicate with friends using a modem and a
cellular phone.
■ Browse through your favorite on-line service for the
latest news, or information on a topic of special interest to you.
IN MEETINGS
Business these days requires us to spend many hours in meetings. Take your Versa V to the meeting with you and try using it in some of the following ways.
Creating Instantly
Create an instant agenda and print it with a portable printer for other Versa users at the meeting.
Brainstorm ideas with your colleagues or design team and capture it all on-line.
Organizing in Meetings
Take meeting notes in real-time, saving valuable time and extra steps.
Show your team project lists, graphs, graphics to illustrate your arguments.
Communicating the Essentials
Use your Versa for an effective presentation tool with the following accessories.
Using a CRT Connector
You can show your presentation on an overhead projector or a large-screen color monitor.
Using Your Versa 2-5
Page 37
Using Wireless LAN
You can access files anywhere on the network that you could access from your office desktop system.
Giving Demos
You can demo your software, letting others “play” with it to get a feel for it.
ON THE ROAD
You can do all the tasks you perform in your office while you are on the road using your Versa V.
Creating as You Travel
You can plan your presentation, and organize your thoughts on the way to the business meeting.
You can gather and record data as you travel, for example, sales call information, site visit observations. Equipment like bar code readers, digitized cameras, scanners, can speed up the data-gathering process even more.
With the appropriate software, you can make sketches on­site of layouts, floor plans, etc.
You can write up your expense report on the way back from the trip.
2-6 Using Your Versa
Page 38
Organizing Yourself
Organize your itinerary, incorporating last-minute changes as necessary. Check flight plans using an on-line service to ensure your flights are on time.
Plan your meeting agenda enroute. Take notes as you ride in a taxi or wait in an airport. Gather information on site.
Communicating with Home
There are lots of ways to use remote messaging to stay in touch with your office.
Using a Modem
Use a modem and fax software to fax your home office. Record point-of-sale transactions and transfer the data
immediately back to your office through a telephone link. E-mail your staff.
Using a Pager
Check flight information using an on-line information service.
Call your office using VersaConnect and your cellular phone.
With VersaPage™ (available in the U.S. only), a PCMCIA pager option, you can send pages to reach fellow travelers or the home office. If you have a page receiver, you can also receive a paging message.
Using Your Versa 2-7
Page 39
Using Global Positioning
With a global positioning system (GPS) PCMCIA device, you can identify your exact position. This comes in handy when you are managing a car or truck fleet and you want to track the location of drivers.
Unwinding on the Road
Wile away long travel hours or simply unwind with the following activities using your Versa V “companion.”
■ Play your favorite on-line games on your Versa V —
Solitaire, or others you have installed.
■ Take those on-line software tutorials you’ve been put-
ting off. Learn the finer points of applications you use routinely.
■ Learn a new language using a software tutorial.
What to Take
The following are the things you should take with you when you travel with your Versa.
■ Single-outlet surge protector
■ Long telephone extension cord and male-to-male coupler
■ AC adapter
■ Copy of proof of purchase for computer and other
■ Versa Series Quick Reference card
■ Customer support phone numbers for your software
■ AC extension cord
2-8 Using Your Versa
equipment for customs
Page 40
Before You Leave
Here are some things to do before you leave home:
■ Back up your Versa’s hard disk
■ Put your system into Suspend or Standby mode so you
can quickly boot up at the airport security check
■ Fully charge all your batteries.
Tape your business card to your Versa, AC adapter, and batteries.
Using Your Versa 2-9
Page 41
3
Adding Options
You can add a number of options to your Versa V system. This chapter describes procedures for adding the following options:
■ PCMCIA cards
■ Modems
■ Memory expansion
■ Hard disk

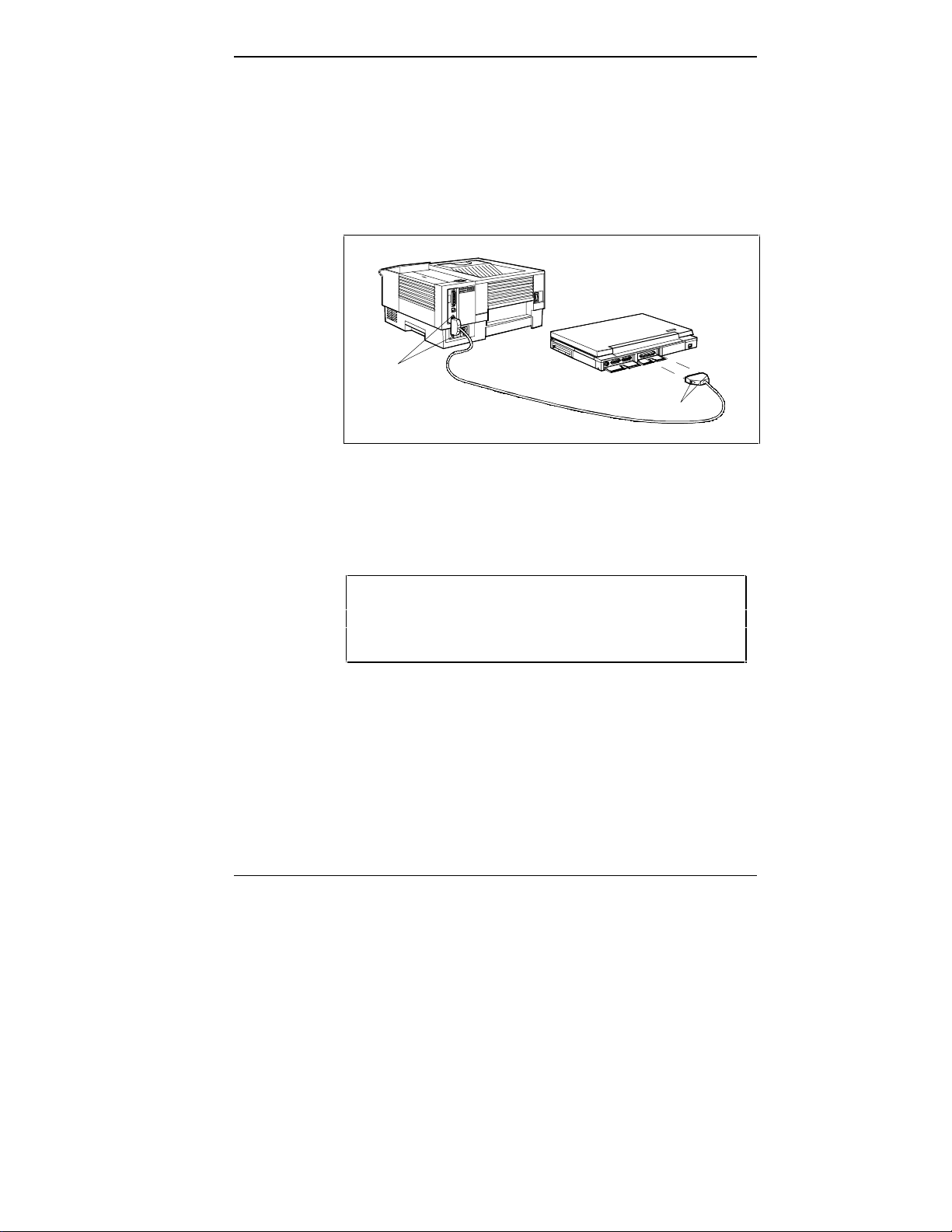

■ Printer
■ External keyboard

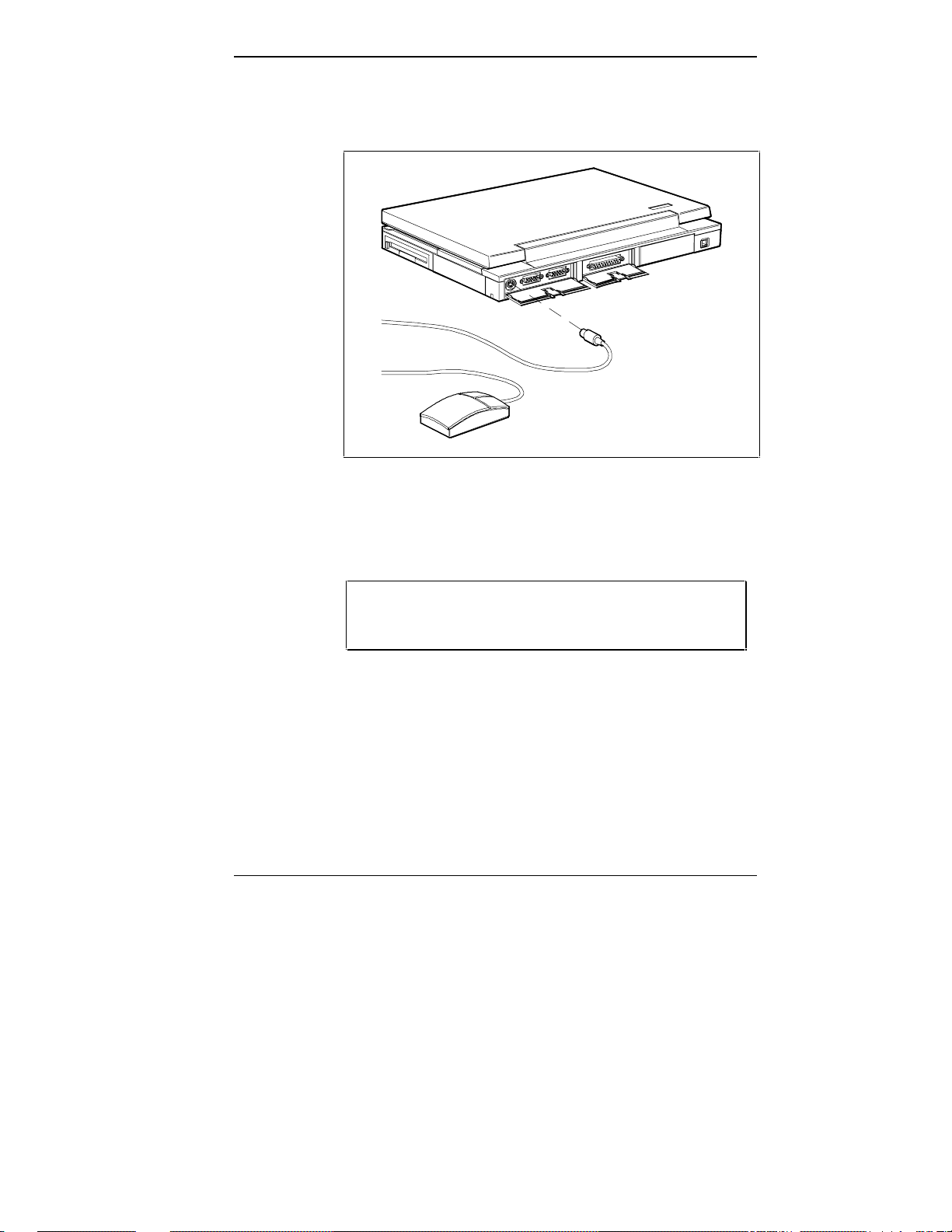

■ External mouse
■ External monitor

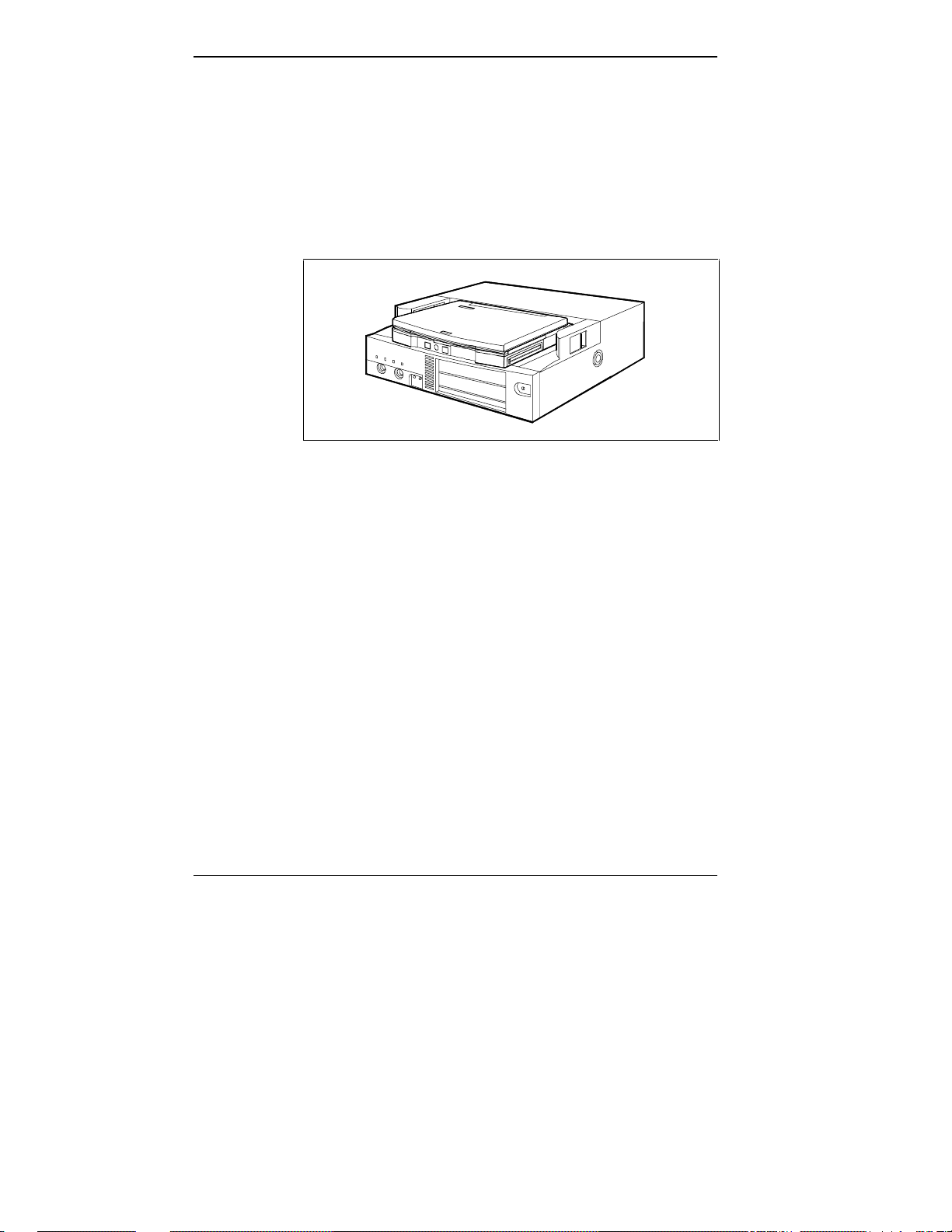

■ Docking station
■ Port replicator.
NOTE: Some of the optional components may not be available outside the U.S. Contact an authorized NEC dealer for specific information.
PCMCIA CARDS
You can add various types of PCMCIA cards to your sys­tem. The Versa V system provides two PCMCIA slots in which different kinds of PCMCIA cards can be installed. Cards that are currently available include modem, network, memory, SCSI, and storage cards.
Adding Options 3-1
Page 42

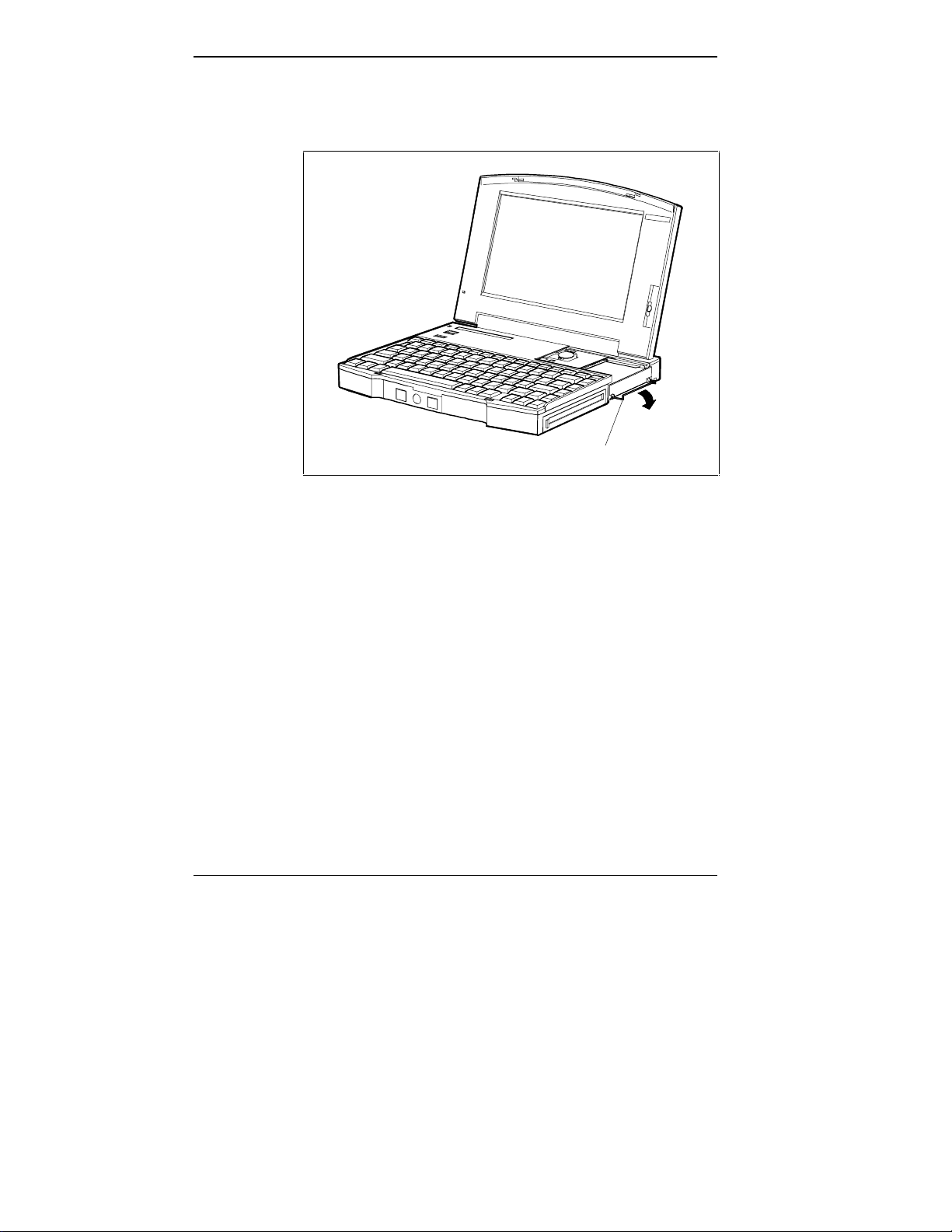

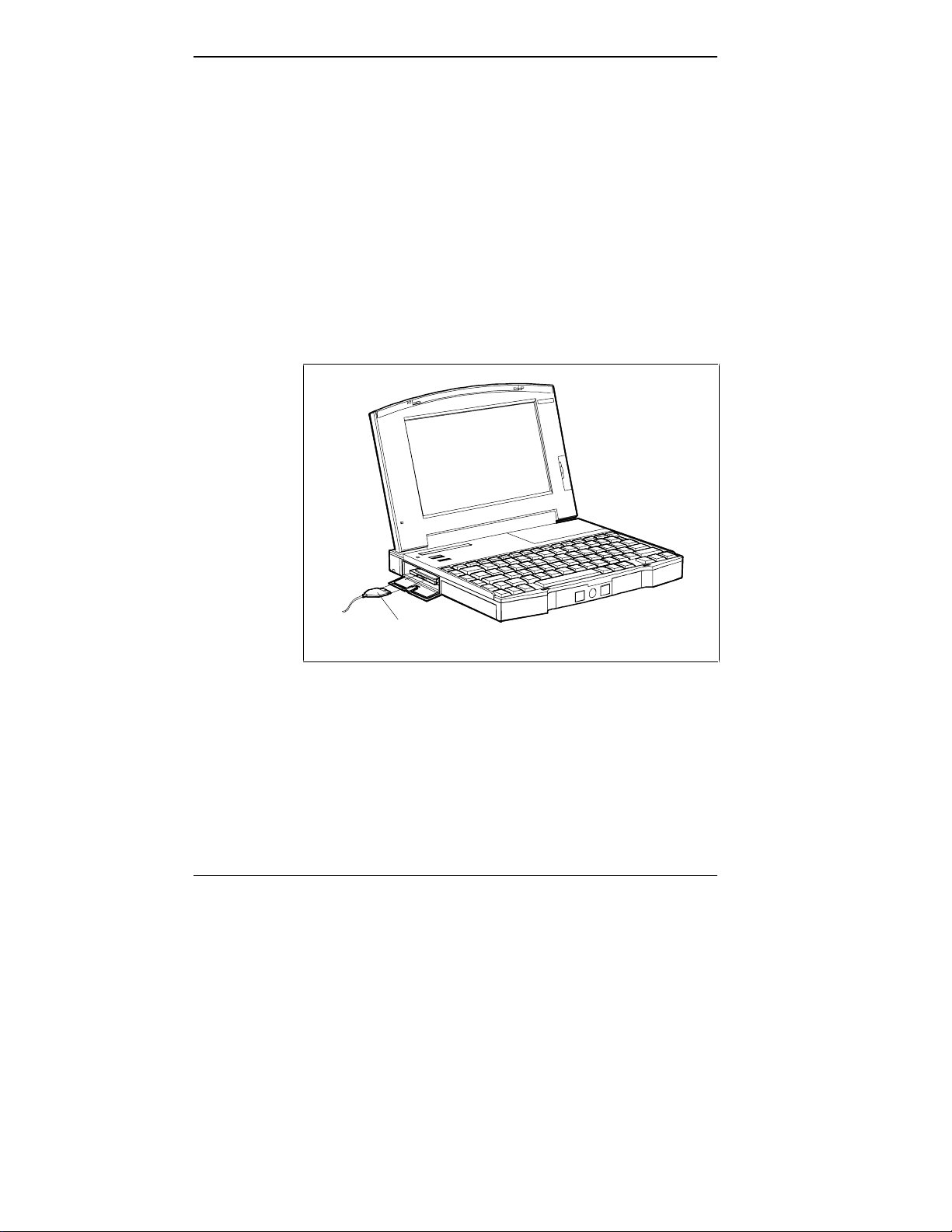

The PCMCIA slots are located on the left side of the system. The Versa's two slots are stacked. The primary slot (slot 0) is on the bottom and the secondary slot (slot 1) is on the top.
PCMCIA Slots
PCMCIA Card
PCMCIA slots
Inserting and Removing Cards
Inserting and removing a PCMCIA card is simple. Open the slot cover and follow these steps.
1. Hold the card with the 68-pin connector pointing toward
the slot.
2. Slide the card into either slot. A double beep sounds to
let you know that it's fully inserted and recognized by the system. (If you have elected to turn off the sound on your Versa, the beeps do not sound.)
3. If you like, look for the CardView™ icon on the
Windows Program Manager. It shows which slot contains a PCMCIA card and which slot is empty.
3-2 Adding Options
Page 43
MODEMS
4. To remove the card, press the button on the side of the
slot. A double beep again sounds and the card is ejected.
You can leave the card in the slot for storage even though it is disconnected from the system.
NOTE: Some cards draw power even when not in use. Be sure the card is disconnected. CardView should show an empty slot.
If you'd like to know more about PCMCIA cards and NEC Versa series computers, see the Versa Series PCMCIA User's Guide.
Using a modem and a phone line, you can communicate using your Versa V — send faxes and E-mails, access information services, transfer data.
Telephone Line Connections
Before you can connect the Versa V to a telephone line, you must install a PCMCIA modem into the system. The modem option comes with an adapter that provides a tele­phone cable jack.
TIP: PCMCIA modem connector adapters vary. Refer to your modem card’s manual for specific setup procedures.
Adding Options 3-3
Page 44
Connecting a Phone Cable Only
To connect the modem’s telephone jack to a wall telephone outlet, use a telephone cable with a modular (RJ11) connec­tor on both ends. You can buy telephone cables and any other necessary accessories in computer stores or wherever telephones are sold.
Follow these steps to connect your system to a phone line.
1. Insert the PCMCIA modem into one of the Versa’s
PCMCIA slots.
2. Connect the modem’s adapter to the PCMCIA modem.
3-4 Adding Options
Modem Adapter
Connecting the adapter
3. Connect one end of the modular telephone cable to the
adapter’s telephone jack.
4. Connect the other end of the telephone cable to the wall
outlet (you might have to unplug the telephone if it is plugged into the outlet).
Page 45
Telephone Jack

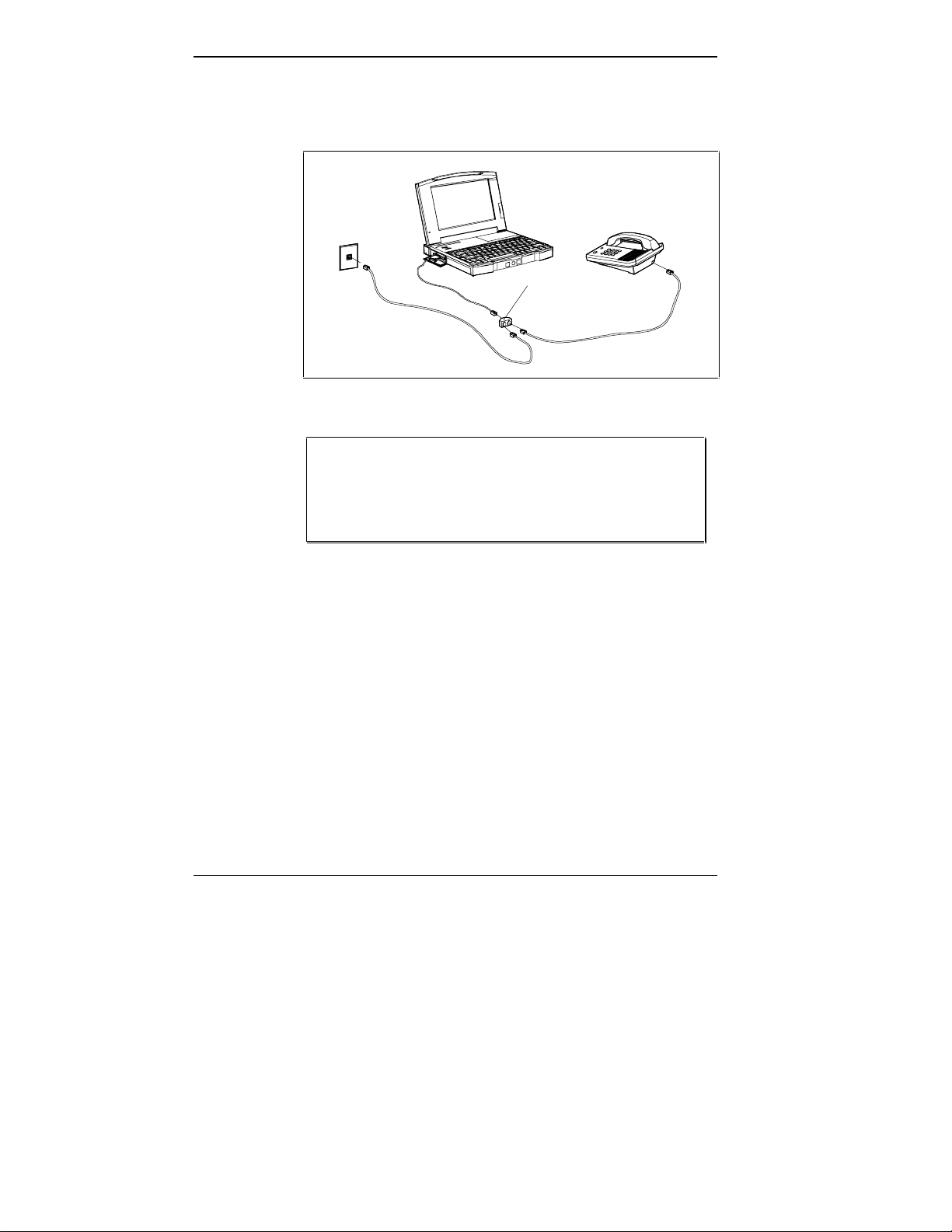

Connecting a Phone and a Versa V
To connect both your system and a telephone to the wall outlet, use a dual-RJ11 connector. Use the following proce­dure to attach a dual-RJ11 connector.

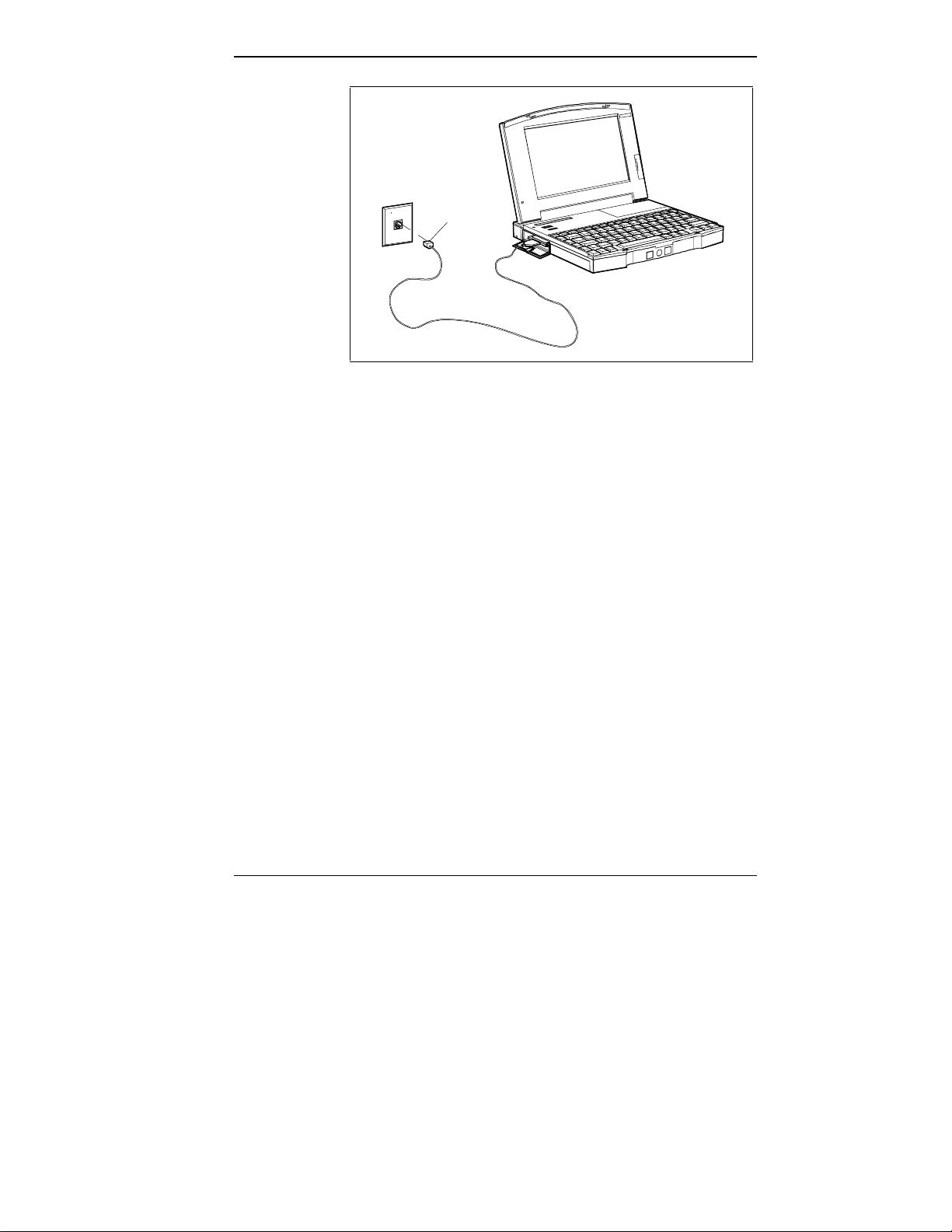

Connecting to a telephone line
1. Insert the PCMCIA modem into one of the Versa V’s
PCMCIA slots.
2. Connect the modem’s adapter to the PCMCIA modem.
3. Connect the one end of a modular telephone cable to the
adapter’s telephone jack.
4. Connect the other end of the telephone cable to the single
jack on the dual-RJ11 connector.
5. Unplug the telephone cable from the wall outlet. Connect
the cable to one of the two available jacks of the dual­RJ11 connector and to the telephone.
Adding Options 3-5
Page 46
6. Connect another telephone cable to the other available
jack of the dual-RJ11 connector and to the wall outlet.
Dual­Connector
Using a dual-RJ11 connector
TIP: When using a modem outside the U.S. and Canada, you might need an international telephone adapter. You can buy this at an electronics supply store.
For more information on using the modem, see the guide that came with the modem.
MEMORY EXPANSION
You can increase system memory by installing memory cards in the Versa V. You can install any of the following memory cards in the system.
■ 4-MB memory card
■ 8-MB memory card
■ 12-MB memory card
■ 16-MB memory card
3-6 Adding Options
Page 47
Use the following steps to install a memory card.
1. Make sure the system power is off.

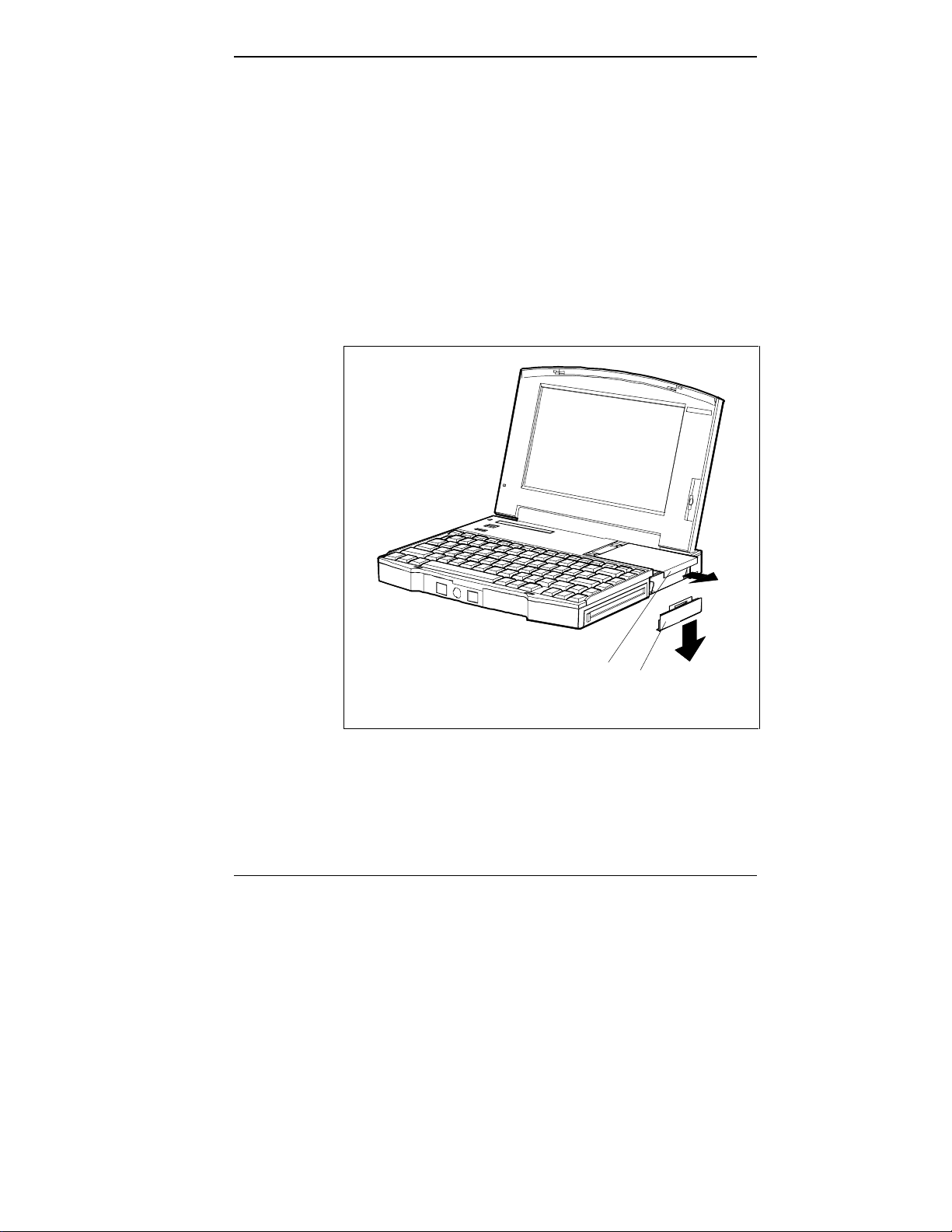

2. Remove the memory compartment cover from the
system by pressing down slightly and sliding it to the right. Lift the cover off the system. Remove the disk compartment cover by sliding it downward.
Memory Compartment Cover
Disk Compartment Cover
Removing covers
Adding Options 3-7
Page 48

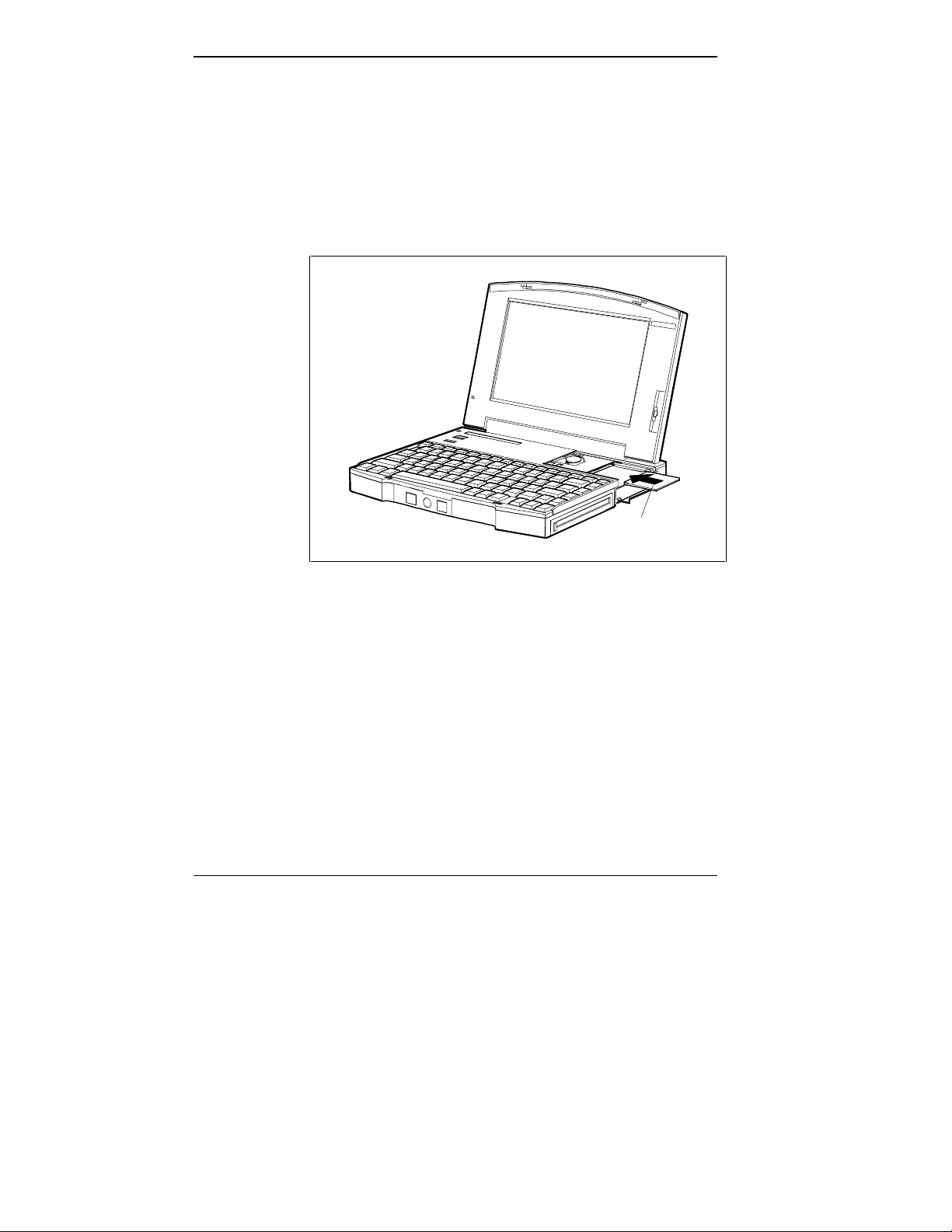

3. Install the memory card as follows.
■ Align the memory card connector with the connector
in the system.
■ Insert the card connector by sliding it into the system
connector. Press the card to make sure it is securely seated.
3-8 Adding Options
Memory Card
Inserting a memory card
4. Replace the disk compartment cover.
5. Replace the memory compartment cover.
6. Run Auto Setup to check the new configuration.
Page 49
HARD DISK
You can increase the system's storage capacity by replacing the standard hard disk.
Use the following procedure to replace the hard disk.
1. Check that the Versa power is off.
2. Remove the memory compartment cover from the
system by pressing down slightly and sliding it to the right. Lift the cover off the system. Remove the disk compartment cover by sliding it downward.
Memory Compartment Cover
Disk Compartment Cover
Compartment covers
Adding Options 3-9
Page 50
3. Swing the pull handle down and pull the drive out of
the compartment.
Drive Lever
Drive lever
4. Insert the new drive by sliding it into the compartment.
3-10 Adding Options
Swing the pull handle up and press firmly to make sure the drive is fully seated.
Page 51

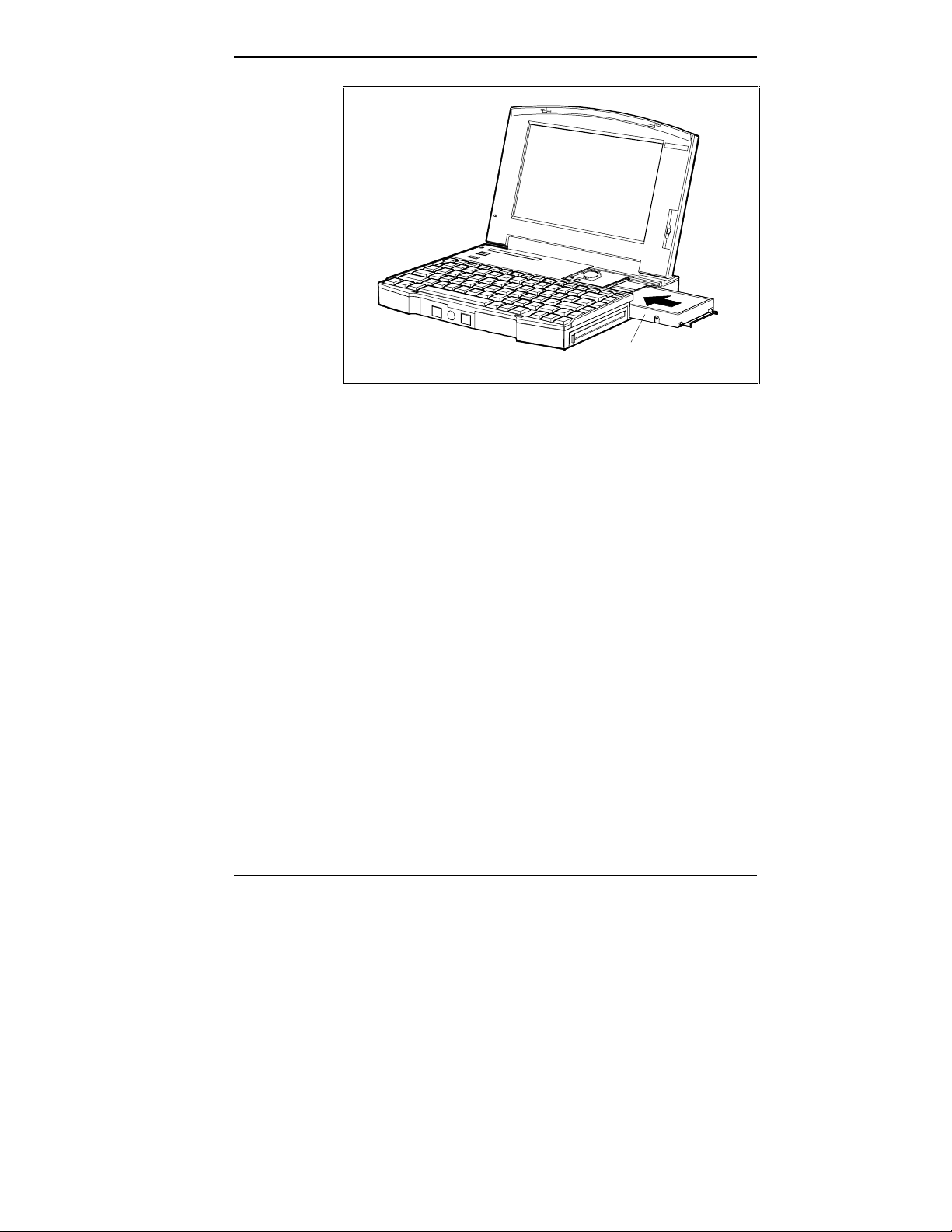

Hard Disk
Installing a hard disk
5. Replace the disk compartment cover.
6. Replace the memory compartment cover.
7. Run Auto Setup to check the new configuration.
Adding Options 3-11
Page 52
PRINTERS
You can install either a parallel printer or a serial printer to connect with your Versa V.
Parallel Printer
To install a parallel printer you need a cable with a male 25-pin connector for the system and, for most parallel print­ers, a Centronics®-compatible 36-pin connector.
TIP: Be sure you have set up the printer correctly before connecting it to your system. Follow the setup instructions that came with the printer.
NOTE: Before you connect a printer be sure you have installed the appropriate printer driver through the Windows Control Panel.
To connect a parallel printer to your Versa V, do the following.
1. Check that both the Versa and printer power are off.
2. Open the middle-rear cover of the system.
3. Attach the 25-pin printer cable connector to the printer
4. Attach the printer cable connector to the port on
3-12 Adding Options
port on the system. (The parallel printer port is the fourth from the left.)
the printer.
Page 53

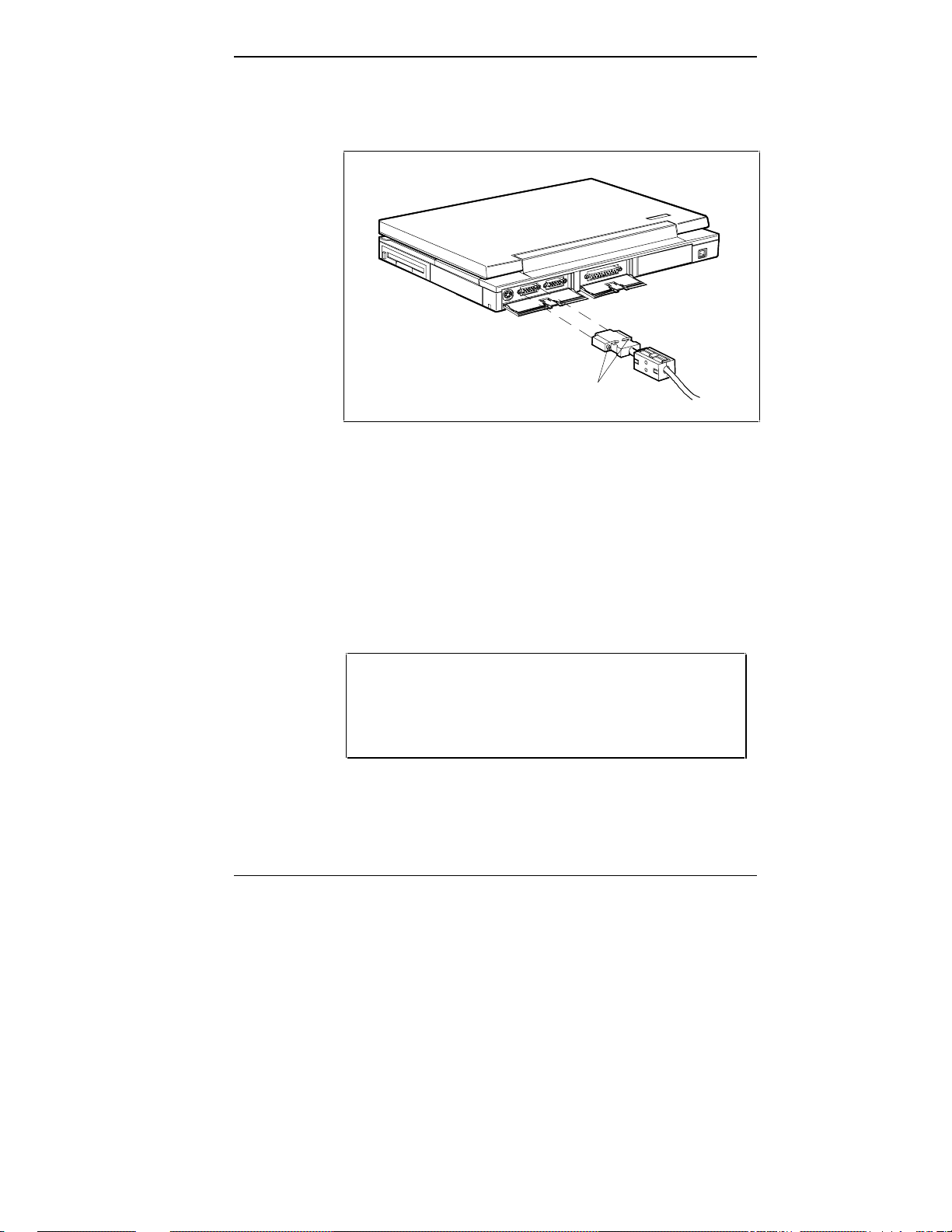

5. Secure the printer cable as follows.
■ Secure the system connection with the screws
provided.
■ Lock the connector to the printer with the
connector clips.
Connector Clips
Screws
Connecting a parallel printer
6. Connect the power cable to the printer.
7. Turn on power to the system and the printer.
TIP: Check that the printer is on line before you try to print. See the instructions that came with your printer for printing information.
Adding Options 3-13
Page 54
Serial Printer
To install a serial printer, you need a cable with a female 9-pin connector.
NOTE: Before you connect a printer be sure you have installed the appropriate printer driver through the Windows Control Panel.
To connect a serial printer to your Versa V, do the following.
1. Check that both the Versa and the printer power is off.
2. Open the left-rear port cover.
3. Connect the printer cable connector to the printer port on
the system. (The serial port is the third from the left.)
4. Attach the other end of the cable to the appropriate port
on the printer.
5. Secure the connections with the screws provided.
6. Connect the power cable to the printer.
7. Turn on power to the system and the printer.
NOTE: You can also use the serial port to connect an external modem.
EXTERNAL KEYBOARD
You can add a full-size external keyboard to your Versa V using the Plug and Play feature. To connect a PS/2-style keyboard to the system, do the following.
3-14 Adding Options
Page 55

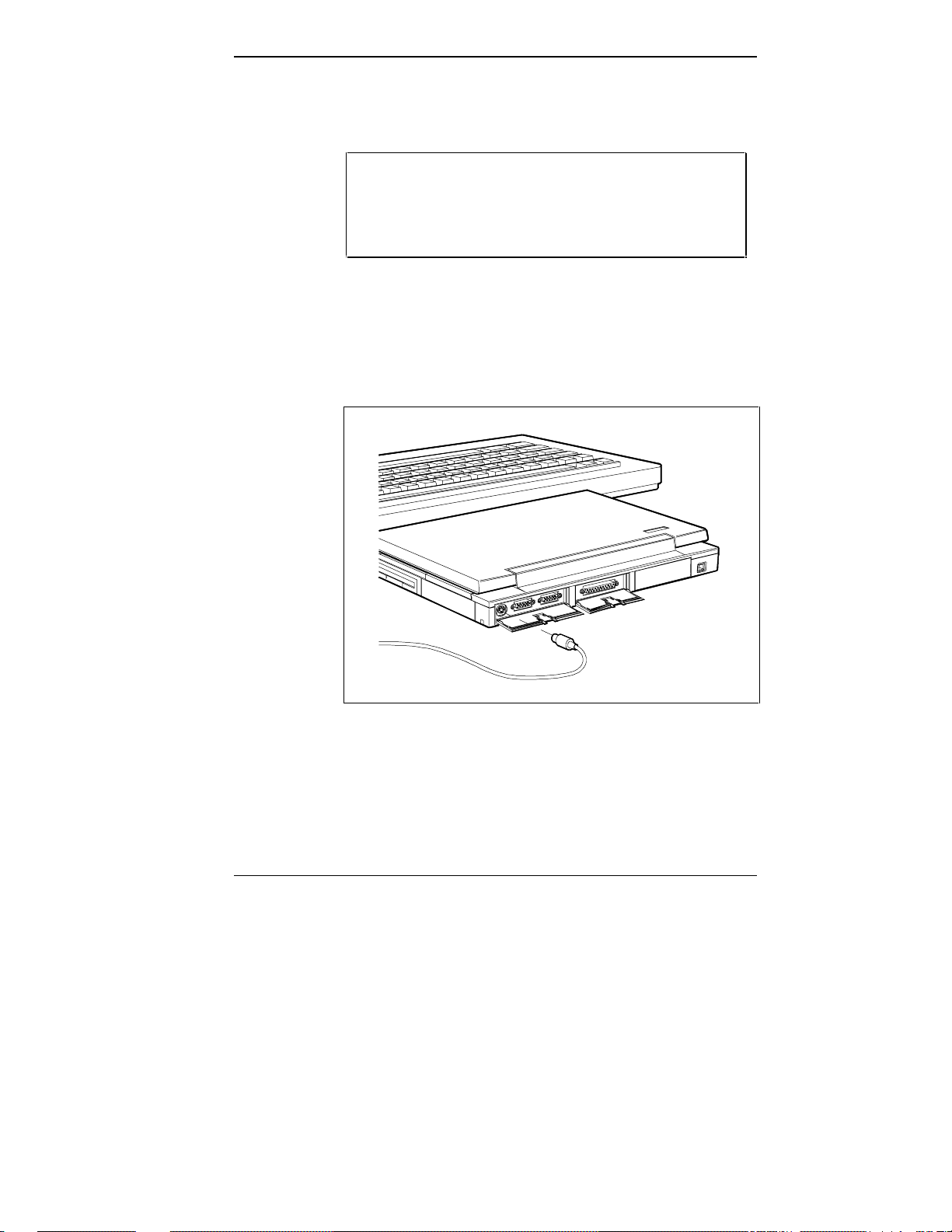

1. Press the Suspend button on the Versa. Check that the
system is in Suspend mode.
CAUTION: Make sure the Versa power is in Suspend mode whenever you add or remove the keyboard. Doing so with the power on in Active mode may damage the keyboard controller chip.
2. Open the left-rear cover of the system.
3. Connect the keyboard cable connector to the keyboard
port on the system. (The keyboard/mouse port is the first one.)
Connecting an external keyboard
4. Press the Suspend button again to resume Active mode.
The system will immediately recognize the keyboard.
Adding Options 3-15
Page 56
After you connect an external keyboard, you can use both the built-in keyboard and external keyboard simultaneously.
NOTE: For instructions on connecting an external keyboard to the docking station, see the
Series Docking Station User's Guide
EXTERNAL MOUSE
You can add an external mouse to your Versa V to use in place of the VersaTrack ball for moving the pointer. Use the following procedure to connect a PS/2-style mouse to the system. The Plug and Play feature allows you to do this with the system powered on, but in Suspend mode.
NOTE: For instructions on connecting an external mouse to the docking station, see the
Docking Station User's Guide
Versa
.
Versa Series
.
1. Check that the Versa is in Suspend mode.
2. Open the left-rear cover of the system.
3-16 Adding Options
CAUTION: Make sure the Versa power is in Sus- pend mode whenever you add or remove a mouse. Doing so with the power on in Active mode may damage the system.
Page 57
3. Connect the mouse cable connector to the mouse port on
the system. (The keyboard/mouse port is the first one.)
Connecting an external mouse
4. Press the Suspend button again to resume Active mode
on the Versa.
NOTE: Connecting an external mouse automatically disables the VersaTrack ball.
Adding Options 3-17
Page 58
EXTERNAL MONITOR
You can add a standard external CRT monitor to your Versa V using the Plug and Play feature. You need a display signal cable, which is usually provided with the monitor. One end of the cable must have a male 15-pin connector for the system. (See the back of the Versa, behind the left-rear cover for the monitor connector.)
NOTE: When you connect a monochrome VGA or super VGA monitor to the color Versa, the built-in color LCD displays in monochrome mode.
Follow these steps to connect an external monitor.
1. Check that the Versa is in Suspend mode and
the monitor power switch is turned off.
NOTE: The Versa power must be i n Suspend mode while the monitor is being connected. If power re­mains Active, the Versa won’t recognize the new display type, and Auto Setup can’t switch the active screen from LCD to monitor.
2. Open the left-rear cover of the system.
3. Attach the 15-pin cable connector to the monitor port
3-18 Adding Options
on the system. (The monitor port is the second from the left.)
Page 59
4. Secure the cable connection with the screws provided on
the 15-pin connector.
Screws
Connecting a monitor
5. Connect the display power cable and plug it into a
wall socket.
6. Follow any setup instructions in the monitor manual.
7. Turn on power to the monitor.
8. Press the Suspend button to resume Active mode on the
Versa.
TIP: Each time you resume Active mode, be sure to power on the external monitor before you resume the Versa. Otherwise, the Versa won’t recognize the new display type.
See the section on Function Keys in Chapter 1 for informa­tion about using both the LCD and CRT monitor.
Adding Options 3-19
Page 60
DOCKING STATION
The Versa Docking Station is an option that lets you turn your portable computer into a desktop or even a multimedia station. It features expansion bays and slots, and extra ports for connecting peripherals. See the Versa Series Docking Station User's Guide for instructions on connecting the Docking Station.
Expansion Bays
The Docking Station provides an internal bay for a hard disk drive. Its three external bays let you install your choice of floppy diskette, CD-ROM, or tape drives.
Versa Docking Station
Expansion Slots
The Docking Station also features two expansion slots for sound boards, LAN cards, CD-ROM controller boards, or video cards.
Ports
The Docking Station has a headphone port and a micro­phone port in addition to the mouse and keyboard ports.
3-20 Adding Options
Page 61

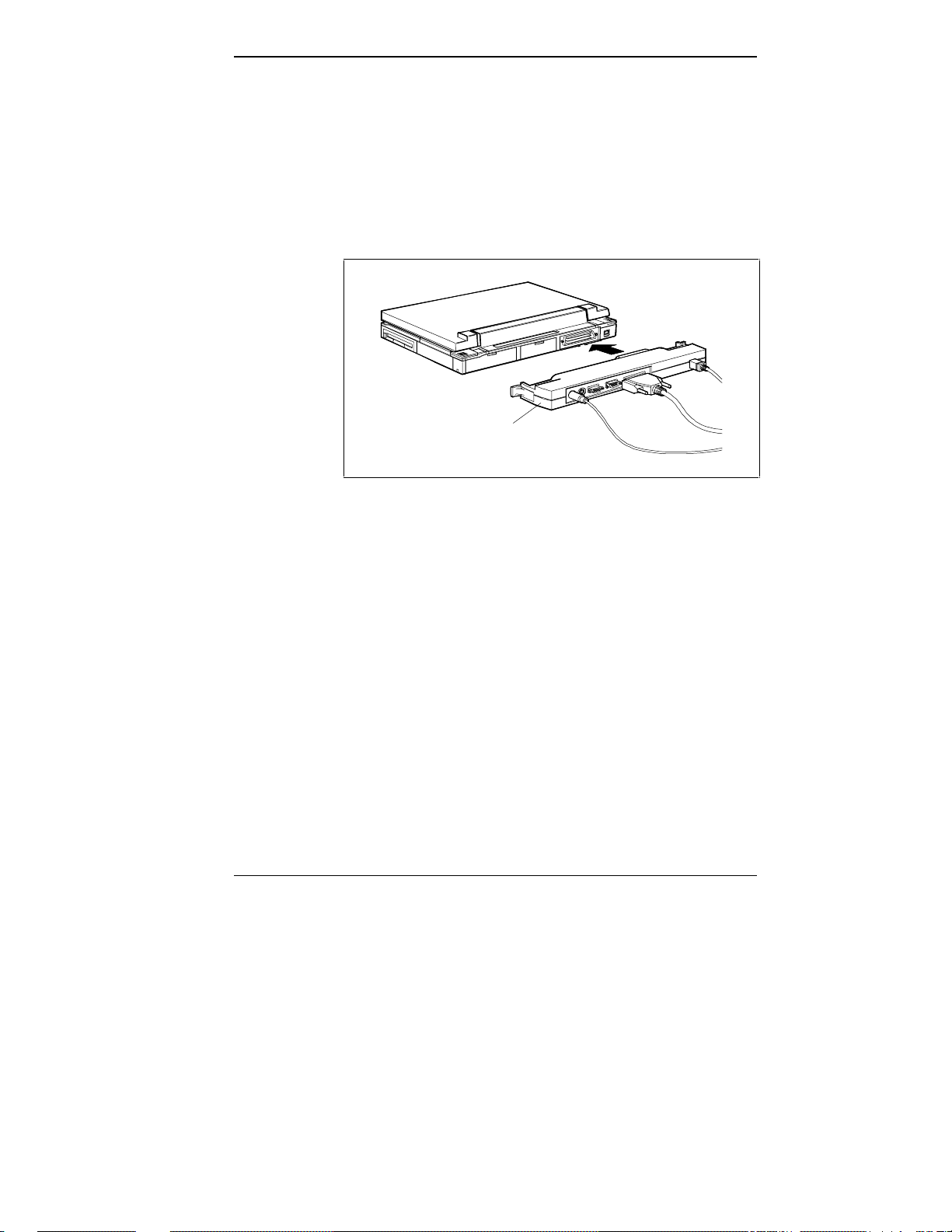

PORT REPLICATOR
The Versa Port Replicator option provides you with the convenience of a single-touch dock at your desk. With your Versa V securely attached to a Port Replicator, you can have one connection with all your peripheral resources — printer, local network, monitor, mouse, and keyboard — instead of five.
Port Replicator
Versa Port Replicator
Ports
The Versa Port Replicator provides the following connector ports:
■ Enhanced parallel port
■ Serial port
■ VGA CRT monitor (supports up to 256 colors at
1024 x 768)
■ PS/2-style mouse
■ PS/2-style keyboard/keypad
The Versa V has a combined mouse/keyboard port. The Versa Port Replicator allows you to have separate mouse and keyboard ports.
Adding Options 3-21
Page 62
Understanding Power
4
WHAT IS POWER MANAGEMENT?
Default Settings
Management
Power Management is a set of features in the Versa V that conserve battery power, maximize the life of your battery pack and LCD backlight, and provide protection against data loss due to low battery power.
You can set some features to function automatically or acti­vate them manually with the keyboard or a button.
Some people like to keep power management enabled, even when using AC power to ensure privacy. Other people find that having the Versa drop into Suspend mode frequently is a nuisance. Adapt a style that fits your work habits.
The system arrives from the factory set up with many power-saving features already enabled. See the following table.
Automatic Power-Saving Features
DEFAULT
DEVICE
TIMEOUT COMMENT
LCD backlight
Hard disk 1 min. Hard disk motor stops when hard
Serial port 4 sec. The serial port times out after the
Suspend 10 min. System enters Suspend mode.
2 min. Backlight is turned off after there is
no keyboard or trackball input for the specified timeout.
disk is not accessed for specified timeout.
specified time of system inactivity.
Understanding Power Management 4-1
Page 63
You can change the timeout period for any of the devices using Auto Setup. See “Using Auto Setup” in this guide.
Use the
Fn F7 key combination to set the power manage-
ment level. Low and High are preset. You can modify the third level, Custom, for your specific working environment using Auto Setup. Default values change depending on the type of power management you use.
Power-Saving Modes
The Versa V has three different power consumption states:
■ Active mode
■ Local Stand-by mode
■ Suspend mode.
The system can switch automatically to Local Stand-by and Suspend modes. This eliminates unnecessary power consumption when you operate the system on battery power or AC.
Active Mode
Active mode is when the system is fully active — all components are turned on and active.
Local Stand-by Mode
Each major component of the system (the hard disk drive, the LCD, input/output ports) may be individually timed to turn off after a period of inactivity. This is known as Local Stand-by mode.
Some components (such as the LCD) that have “timed out” automatically reactivate, returning to Active mode when you move the trackball, press a key, or when there is a communication through an I/O port.
4-2 Understanding Power Management
Page 64
If the notebook has been shut, the LCD comes back on and the system returns to Active mode when it’s reopened.
Suspend Mode
Suspend mode is a power-saving mode that shuts down all possible devices in the system while retaining data and sys­tem status.
The system resumes Active mode when you press the suspend button or if an optional serial port modem detects a ring. The system will not resume Active mode if a PCMCIA modem detects a ring.
Press the suspend button to enter Suspend mode when you need to be away from your system for a short period of time and want to return to where you left off.
Suspend Button
Suspend button
You can toggle between Suspend mode and Active mode.
Understanding Power Management 4-3
Page 65
Smart Power Switch
The Smart Power Switch is an automatic feature that pre­vents you from accidentally powering off the Versa and losing your data while your system is in Suspend mode. The Smart Power Switch senses that the system is in Suspend mode and becomes deactivated.
To power off the system from Suspend mode
1. Press the Suspend/Resume button to make the
system active.
2. Press the Power button to shut it off.
Automatic Suspend Mode Initiation
You can set your system to enter Suspend mode auto­matically after a specified number of minutes of system inactivity.
You specify how long system is inactive before the system enters Suspend mode. System activity includes any key­board, trackball, or finger touch, diskette or hard disk drive access, PCMCIA modem, network, or LAN card, serial, or printer port communications.
Resume Active mode by pressing the suspend button. See Chapter 5 in this guide for information on how to set
system modes.
Power Management With a Docking Station
When the optional Versa Docking Station is connected, power management is turned off, although the LCD still shuts off after the timeout. See the Versa Docking Station User’s Guide for more information on docking stations.
4-4 Understanding Power Management
Page 66
PROLONGING BATTERY LIFE
Use the following guidelines to reduce power consumption and prolong battery life.
■ Put the system in Suspend mode when you need to leave
the system for a short time but plan to resume working. Suspend mode uses the least amount of battery power or AC power, if you are using AC. In Suspend mode, all operations stop temporarily.
Suspend mode lets you stop working and return to where you left off.
■ Turn off the system when you are finished using it.
■ Close the Versa V notebook. When you close the note-
book, the LCD panel sensor automatically shuts off the LCD.
■ Use the Fn F5 key combination or BACKLITE.EXE
to toggle the LCD backlight between standard and full brightness.
■ Adjust the LCD brightness control to the lowest setting
that is comfortable for viewing.
■ Use the automatic hard disk power-saving function.
Set the timeout to power down the hard disk with Auto Setup.
■ Use the Fn F8 key combination to turn off the hard disk
if you are not going to use it for awhile.
Understanding Power Management 4-5
Page 67
5
AUTO SETUP
Using Auto Setup
Your Versa V comes with a hardware setup program called Auto Setup that allows you to view and set system parame­ters. Auto Setup also includes security features that protect your system from unauthorized use.
The system has two sets of internal settings: one mobile and one docked. The mobile settings are used when the system is on the move, away from a Docking Station. The docked settings are used when the Versa V is connected to a Docking Station. The sample screens in this chapter show both kinds of setting configurations.
With Auto Setup you can modify the active configuration. This chapter describes Auto Setup and the system parame-
ters you can set with it.
You can access the Auto Setup program at power-on (you don’t need a diskette). Auto Setup detects current system parameters automatically during the Power-On Self-Test (POST).
Use Auto Setup
■ to set the time and date.
■ to check a hardware discrepancy when POST displays
an error message and prompts you to run Auto Setup.
■ to identify which parameter(s) changed. Auto Setup
indicates specific hardware changes with blinking double carets (>>).
Using Auto Setup 5-1
Page 68
■ to confirm that any optional memory you added is
installed correctly.
■ to customize your system.
How to Enter Auto Setup
When it is enabled, (it comes that way from the factory), you can access Auto Setup at power-on, when the cursor changes to a block character (❚).
The following sections describe how to enter Auto Setup no matter what the message at POST.
With an Error at POST
If an Invalid Configuration message prompts you to “Press F1 to run Auto Setup” during POST, simply press the prompt.
F1 at
After you press is collecting Auto Setup data. Then it displays an error message regarding changes found in the current parameter settings. Press
After you press Enter, Auto Setup displays windows that indicate the detected hardware changes. For information about using Auto Setup, see “How to Use Auto Setup.”
With No Error at POST
To enter Auto Setup when no error message is displayed during POST, press test and while the cursor is a large block.
After you press ing that it is collecting Auto Setup data. After the message, the Auto Setup Summary screen appears. The summary screen displays the current hardware parameters of your computer.
5-2 Using Auto Setup
F1, the system displays a message that it
Enter to check these settings.
F1 after POST displays the memory
F1, the system displays a message indicat-
Page 69
See “How to Use Auto Setup” for information about using Auto Setup.
Auto Setup Summary
Exit Comms Drives Keyboard Power System Time/Date about
System RAM: 4.00 MB
Current Extended RAM: 3.00 MB Previous Extended RAM: 3.00 MB
Power Management: High
Diskette Drive A: 1.44 MB - 3.5″ Diskette Drive B: Not Installed
Hard Disk Drive1: BIOS Defined Type 18* Hard Disk Drive 2: Not Installed
Auto Setup Summary screen
How to Use Auto Setup
The following sections describe the menu areas, keys, and procedures you use in Auto Setup for checking and chang­ing system parameters.
Looking at the Screen
Auto Setup screens have three main areas of information:
■ Menu bar — top line of the screen. This line contains
user-selectable menu options.
*220 MB hard drive is type 18. 340 MB hard drive is type 20.
Using Auto Setup 5-3
Page 70
■ Parameter list — middle of the screen. This list provides
current parameter information. Selecting a parameter from the list (using the menu bar) opens a pop-up window. That window may display another window with a list of selectable parameter settings.
■ Key status line — bottom line of the screen. This line
displays the keys that you can use to move the cursor or to select a particular function, such as saving parameters and exiting the menu.
Using Key Functions
The following table provides a quick reference to key func­tions that you can use in Auto Setup.
Auto Setup Quick Reference
KEY WHAT IT DOES Tab Moves the cursor to another field in the menu. For
example, pressing Tab moves the cursor up or down a list of current parameters.
Highlighted character Selects the menu bar option or parameter with the
highlighted letter. Alt and Opens a window with a list of parameter settings. or Moves the cursor up or down a list of parameter
settings. Esc Exits a parameter window without changing
parameter settings. C Saves parameter changes and closes a parameter
window. Also opens the Auto Setup Comms menu
on the main screen. Enter Saves parameter changes and closes a parameter
window.
5-4 Using Auto Setup
Page 71
Checking/Setting System Parameters
If it finds no error condition, Auto Setup starts at the summary screen. If there is an error condition, Auto Setup displays the discrepancy in the appropriate parameter window.
Use the following steps to view or change system parameters.
See “System Parameter Options” later in this chapter for a description of all parameter options and their settings.
1. If there is an error condition, go to step 2. Otherwise,
select a parameter menu for the menu bar by simultane­ously pressing
Alt and the highlighted character in the
menu name. For example, to select “Drives,” press
Alt-D. A window
appears with a parameter menu and the current setting for each parameter. Continue to step 3.
2. If you entered Auto Setup with an error condition,
blinking double carets (
>>) identify the changed
parameter(s). You can do one of the following:
■ accept the change(s) by pressing Enter and return to
the Auto Setup Summary screen. Continue to step 7.
■ check other settings for the changed parameter by
continuing to the next step.
3. Position the cursor on the parameter that you wish to
view by pressing
4. View the parameter settings by simultaneously pressing
Alt and the down arrow ( ).
Tab or the arrows.
A window appears with a list of parameter settings.
Using Auto Setup 5-5
Page 72
5. Select a setting as follows.
Press
or to position your cursor on the parameter
setting. Press
Enter to select the new setting. Auto Setup rec-
ords the change, exits the window, and returns you to the parameter window.
6. Repeat steps 3, 4, and 5 to set parameters in the same
parameter menu. When you are through viewing and setting parameters
within the parameter menu, press
Enter or C to record
any parameter changes, close the window, and return to the Auto Setup Summary screen.
To return to the summary screen without saving changes, press
7. When you are through viewing or changing parameters, X to select Exit in the menu bar. The screen dis-
press
Esc.
plays a list of options.
8. Use to select “Exit and Save Changes” and press
Enter. The screen displays a prompt requesting
confirmation that you wish to exit.
9. Press Enter to confirm your selection. The system
reboots with the saved changes.
SYSTEM PARAMETER OPTIONS
This section provides descriptions of the available parameter options in Auto Setup. Refer to the following table for a quick reference list of parameters and their factory default settings in the mobile mode.
You can select default nonvolatile memory (complementary metal oxide semiconductor = CMOS) settings as an option in Auto Setup if you have trouble setting specific parameters.
5-6 Using Auto Setup
Page 73
System Parameter Options
MENU/PARAMETER DEFAULT SETTING Comms
Serial Port Parallel Port Parallel Port Mode
Drives Diskette Drive A Diskette Drive B Hard Disk Drive 1 Hard Disk Drive 2 IDE Hard Disk Drive Interface Diskette Boot
Keyboard Typematic Rate NumLock Status System Password Keyboard Lock Hot Keys
Power Power Management Power Management under AC Slow CPU Speed When Idle Backlight Highlight Suspend Warning Tone Resume on Serial Port Ring Resume on Time of Day
3F8h-3FFh/IRQ4 (COM) 378h-37Fh/IRQ7 (LPT1) Unidirectional
Internal 1.44 MB — 3.5” Not installed BIOS defined Not installed Internal only Enable
Normal NumLock Off Disable Disable
High Disable Enable Full Full Enable Disable Disable
System Quick Boot Setup Lock
Time/Date Time Date
Disable Disable
— —
Using Auto Setup 5-7
Page 74
Comms
The Comms option (Alt-C) lets you check or change settings for the following system communication ports:
■ Serial port
■ Parallel port.
Comms lets you change the input/output (I/O) address for the serial and parallel ports. Change the default address and interrupt level only if there is a conflict between optional board settings. Comms also allows you to set the mode of the parallel port.
NOTE: Use the default settings whenever possible. Change these settings only if your system condi­tions require different settings.
For system security, you can disable a port entirely by selecting the “Disable” setting. This prevents unauthorized data transfer through the port.
Drives
The Drives option (Alt-D) lets you check or change parameters for your diskette drives and hard disk, including security features.
Unless you are connecting the Versa V to a Docking Station equipped with additional diskette drives or hard drives, you do not need to change Diskette Drive or Hard Disk Drive parameter settings. If you install another hard disk drive type, you need to enter Auto Setup to accept the new sys­tem configuration.
5-8 Using Auto Setup
Page 75
Keyboard
Drive options include the following:
■ IDE Hard Disk Interface
Allows you to select the internal IDE controller, the docking station’s IDE controller if the system is docked, or to disable the interface completely.
■ Diskette Boot
Lets you specify from which drive you would like the system to boot. When disabled, prevents boot-up from the diskette drive. When enabled, allows start-up from the diskette drive. If a diskette is not inserted in drive A or drive A isn’t installed, the system defaults to drive C.
The Keyboard option (Alt-K) lets you check or change key­board parameters and set password options. The following information describes the parameters.
■ Typematic Rate
The typematic rate is the speed at which a key repeats it­self when you press the key. Use this parameter to change the rate to suit your typing speed.
■ Numlock Boot Status
This controls the Numlock key status at power-on. When set to “Numlock Off” (the default), this parameter disables the Numeric Keypad mode at power-on. Set this parameter to “Numlock On” to enable the Numeric Keypad mode at power-on.
■ System Password
You can use this parameter to enable and set a system password for system security. The system password protects your data by allowing your system to boot only after you enter a password. You are not prompted for a password until you set an initial password.
Once you set a system password, you can enable the keyboard lock hot keys.
Using Auto Setup 5-9
Page 76
To set and use a system password, see “System Pass­word” later in this chapter.
■ Keyboard Lock Hot Keys
This parameter offers a security feature after you set a system password.
After you select a hot key sequence, you can lock your keyboard, mouse, or trackball at any time, using any operating system, by executing the hot key sequence. Your keyboard, mouse, or trackball remain locked until you enter the system password.
For information about selecting and using keyboard lock hot keys, see “Keyboard Lock Hot Keys.”
NOTE: Select your hot keys carefully to prevent locking your keyboard unintentionally. See “Keyboard Lock Hot Keys” for guidelines on choos­ing hot keys.
Power
The Power option (Alt-P) lets you select the level of power management, suspend mode, and suspend/resume options.
■ Power Management
5-10 Using Auto Setup
The Versa V’s ability to manage power can be set to high, low, or turned off completely. A “High” setting provides maximum power saving. “Low” sets minimal savings and “Off” disables all power management timers. You can also customize the system’s power management by entering values for the following timeouts:
Automatic SuspendHard Disk Timer
Page 77
Serial TimerLCD Panel Timer.
■ Power Management under AC
Normally, whenever AC power is connected to the Versa, power management is disabled. If you enable this option, the system uses the power management mode (high, custom, low, or off) you set using the Power Management option.
■ Suspend Mode
Suspend mode has a method of operation called Suspend/Resume that stores information in RAM and maintains RAM contents after shutting down all local devices.
■ Slow CPU Speed
This option automatically slows the CPU speed when the system is idle.
■ BackLight
Use this option to set the backlight to either standard or full. Using the lower setting, “standard”, saves power.
■ HighLight
Use this option to set the character brightness to either standard or full. Using the lower setting, “standard”, saves power.
■ Suspend Warning Tone
This option lets you enable or disable a warning tone when Suspend/Resume starts. It is best to keep this op­tion enabled.
Using Auto Setup 5-11
Page 78
System
The System option (Alt-S) lets you set the following system parameters.
■ Quick Boot
■ Setup Lock
The Quick Boot option removes certain tests from POST to reduce the time needed to boot the system.
The Setup Lock option is a security feature which, when set to disable, keeps unauthorized users from changing system parameters at power on.
NOTE: To enable Auto Setup after disabling it, you must use the ENABLACU.EXE utility. At the MS­DOS prompt, type enablacu. Turn the system off and back on again. Press F1 in enter Auto Setup.
Time/Date
Use this option (Alt-T) to set the current time and date. The settings remain in memory even after you turn off system power.
To set the time, enter the current hour, minute, and second in hh:mm:ss, 24-hour format. For example, type for 1:30 p.m.
To set the date, enter the current day, month, and year in dd/mm/yyyy format.
5-12 Using Auto Setup
13:30:00
TIP: When setting the time and date, enter preced- ing zeroes. For example, to enter 9:20 a.m. and February 4, 1994, type 09:20:00 and 02/04/1994.
Page 79
SECURITY OPTIONS
Your system supports the following options for system security:
■ system password
■ keyboard lock hot keys.
System Password
The system password protects your data by allowing your system to boot only after you enter a password.
When a system password is set, you must enter the pass­word before you can enter Auto Setup. This feature allows only an authorized user to change system parameters.
You are not prompted to enter a password until you set an initial password. Your system is not protected until you enter the initial password.
Use the following procedures to set and use your system password.
Setting an Initial System Password
Set an initial password as follows.
1. Select the Keyboard option (Alt-K) in Auto Setup.
2. Select “System Password” on the Keyboard settings
menu.
3. Select “Enter and Enable.”
4. At the prompt, enter a password up to seven characters
long. Another window appears with a prompt to reenter your password for verification. Write your password down and keep it in a secure place in case you forget it.
5. Reenter you password. Auto Setup returns you to the
Keyboard settings menu.
Using Auto Setup 5-13
Page 80
6. Save your changes and return to the initial summary
screen.
7. Save the changes and exit Auto Setup.
NOTE: Once you set a system password, you can- not edit or disable it in Auto Setup. If you want to change or remove it, see “Removing/Replacing a Password” in this chapter.
The next section tells you how to use your system password.
Using the System Password
After you set your password for the first time and reboot the Versa, a password prompt appears each time you power on your system. The password prompt is a key icon (
The key icon appears after POST completes.
).
To use your password, boot the system by turning the power off and then on again. At the password prompt ( your operating system or to enter Setup.
5-14 Using Auto Setup
NOTE: If a system password is set, you can’t enter Auto Setup until you enter the password.
), enter your password and press Enter to load
NOTE: For security , the characters you enter do not appear on your screen. Enter your password care­fully. The password is case sensitive, which means uppercase and lowercase letters are seen as distinct.
Page 81
If you enter the password incorrectly, your system will not boot. You have three chances to enter the correct password. After the third unsuccessful attempt, you must power off your system and try again.
Removing/Replacing a Password
You can remove a password and you can replace a current password with a new one.
■ To remove a password, at the password prompt
type your current password and a slash in the following format:
current password/
Press
Enter. Your password clears and you are no
longer prompted to enter one when you power on the system.
■ To replace your current password with a new one, at the
password prompt type your current password, a slash, and your new password in the following format:
current password/new password
Enter. Your password changes to the new pass-
Press word. The next time you power on and enter the new password, the operating system loads.
NOTE: Enter your new password carefully. If you make a mistake, you cannot change the password again without powering off and starting over.
Using Auto Setup 5-15
Page 82
Keyboard Lock Hot Keys
This feature lets you use a key sequence to lock your key­board. This key sequence (up to three keys) can be used at any time or while in any application program. You must have a system password to use this feature. (See “Setting an Initial Password”.)
Valid Keys
The following are valid hot keys:
■ All keys on the typewriter key area of your keyboard
including Ctrl, Alt, Caps, Lock, Tab, left Shift, right Shift,
Enter, and Backspace
“Lowercase” keyspunctuation, brackets, and slashesnumbers 0 through 9 (excluding the numeric
keypad)
■ Esc key
■ all function keys (F1 through F12).
Invalid Keys
The following keys are invalid hot keys:
■ Numeric keypad keys
■ Arrow keys
■ “Uppercase” keys
■ Print Screen, Scroll Lock, and Pause keys
■ Insert, Delete, Home, End, Page Up, and Page
Before you select a key sequence, review the guidelines in the next section.
5-16 Using Auto Setup
Down keys.
Page 83
Selecting Hot Keys
It is extremely important to choose your hot keys within the parameters described in this section. To prevent locking your keyboard unintentionally, select your hot-key sequence as follows:
■ Use a different key sequence than your system password.
■ Avoid key sequences that are used by your operating
system and commonly used applications.
■ Avoid key sequences that contain all alphanumeric
characters. Use non-printable keys such as the Ctrl key or Function
keys to start your key sequence. This helps eliminate accidental lockout by the use of commonly typed charac­ter sequences.
For example, if you select “ste” as your hot keys, your keyboard locks every time you type “system.”
■ Avoid a one-key sequence.
Setting Your Hot Keys
Use the following procedure to set your hot keys.
1. If you don't have a system password, set one (see
“Setting an Initial System Password”).
2. Select “Keyboard” (Ctrl-K) from the menu bar.
3. Select “Keyboard Lock Hot Keys” on the Keyboard
Settings menu.
4. Select “Enable and Disable.” A window opens with a
prompt to enter up to three keys.
Using Auto Setup 5-17
Page 84
5. Type up to a three-key sequence (see “Selecting
Hot Keys”). When you are through entering your hot keys, press
to save them.
6. Save the changes and exit Auto Setup.
Using Your Hot Keys
To use your keyboard lock hot keys, simply type them when you want to lock your keyboard. The first two keystrokes appear on your screen, if they are printable keys. The third keystroke does not appear.
To unlock your keyboard, enter your system password. If you have a problem with the keyboard lock hot keys,
disable them or set new hot keys using “Keyboard Lock Hot Keys” from the Auto Setup Keyboard menu. You must first disable the system password and reboot the system.
End
5-18 Using Auto Setup
Page 85
6
PROBLEM CHECKLIST
Problem Solving
The Versa V has a built-in checking program that automati­cally tests its components when you turn the system power on. This diagnostic test is called the Power-On Self-Test (POST). If the system finds a problem during the POST, the system displays an error message. If this happens, fol­low the instructions in the POST error message table later in this chapter.
Read through this chapter to familiarize yourself with what to do if you encounter a problem.
If the screen is blank, the instructions do not help, or an error message does not appear, use the information in this chapter to determine and fix the problem. The problem is often one you can solve yourself.
First check the items in the following list. If these items do not help, see the table that follows the list.
■ Power is on to the computer.
■ The electrical outlet to which your AC adapter is
connected is working. Test the outlet by plugging in a lamp or other electrical device.
■ All cables are tightly connected.
■ The display setting is configured correctly.
■ The display's brightness and contrast controls are
adjusted properly.
Problem Solving 6-1
Page 86
■ If you do not have the AC adapter connected, check that
the battery pack is properly inserted and fully charged.
■ System parameters are set correctly through Auto Setup
for your hardware configuration.
Troubleshooting
PROBLEM WHAT TO DO The system does not
power on
If you have the AC adapter attached, check that
LCD screen is dark
and blank
Brightness and contrast controls need adjustment.
The system entered Suspend mode due to low
Battery power does not
last long
If you are operating the system with battery power, check that the battery pack is correctly inserted. Attach the AC adapter to recharge the battery.
the electrical outlet you are using works.
Power-saving mode has shut off the backlight. Press any key, Fn F5, or use the suspend button. The built-in LCD may not be selected. Press
once or twice.
Fn F3
Adjust the controls. Power-saving mode has shut off the backlight. Press any key, Fn F5, or use the suspend button.
battery power. Plug in the AC adapter or replace the battery pack, then press the suspend button to resume operation.
Use power-saving modes. Recharge the battery pack fully. If this doesn’t
work, use the Discharge utility (dcharge replace the battery pack, then press the suspend button to resume operation.
) or
Information on the LCD
screen is difficult to see
6-2 Problem Solving
Adjust the brightness and contrast controls.
Page 87
Troubleshooting
PROBLEM WHAT TO DO An optional component
does not work
The suspend button
does not work
The docking station might be connected to the
System BIOS cannot be
reprogrammed
Make sure the component is securely installed or connected. Verify that the system parameter for the I/O port configuration is set correctly in Auto Setup.
A disk drive might be busy. Wait until the disk drive stops and try again.
Versa. Some power management functions do not work when the docking station is connected.
System Configuration switch 1 may be in the up position. Move switch 1 down and retry flashing a BIOS.
The docking station might be connected to the Versa. You cannot reprogram System BIOS when the docking station is connected.
START-UP PROBLEMS
The system displays an invalid configuration error message at power on when there are the following conditions:
■ current configuration information does not match con-
figuration information stored in Auto Setup, such as when an internal option is added.
■ the system loses configuration information.
■ the lithium battery for the CMOS is depleted.
If any of these conditions is true, the system displays an “invalid configuration information” message.
To continue start-up procedures, press
F1 and run Auto
Setup to set current system parameters.
Problem Solving 6-3
Page 88
If an error message appears before the operating system starts, look up the error message in the following table. Follow the instructions. If you see other error messages, the hardware might need repair.
NOTE: When the Versa detects an error related to display devices, it cannot display on either the LCD or a CRT. The system warns you by beeping.
POST Error Messages
MESSAGE WHAT TO DO Diskette drive n failure Drive n does not work or is not properly
connected. ( drives A and B.)
n
is 0 or 1. Drives 0 and 1 refer to
Diskette read failure — Remove the diskette from
No boot device available
— press F1 to run Auto Setup
Invalid configuration
information — run Setup program
Check that drive power is on.
Press F1 to start Auto Setup to check the diskette drive parameters.
If there’s still a problem, drive
drive A and press F1 to run Auto Setup. Press any other key to retry boot, or start the system from the hard disk.
Or, insert a bootable disk in drive A and press F1.
Press F1 to start Auto Setup. Change the hard disk type to the correct setting. Exit and save Auto Setup.
One or more system configuration parameters are not properly set. Start Auto Setup, set them correctly, and exit and save to update the parameters.
Replace the CMOS lithium battery.
n
is securely connected and
n
might need repair.
6-4 Problem Solving
Page 89
POST Error Messages
MESSAGE WHAT TO DO Real time clock
failure
Replace the internal CMOS lithium battery.
Time-of-day not set —
Run Setup program
Fixed disk
configuration error
Fixed disk failure
Fixed disk controller
failure
Check to see if the hard disk connector is seated
Set time and date using Auto Setup. Exit and save to update the parameters.
Set the time and date using Auto Setup. Exit and save Setup to update the parameters.
Start Auto Setup. Exit and save to update the parameters. Check to see if the hard disk connector is seated properly. If there is still a problem, the hard disk might need repair.
Press F1 to start Auto Setup. Exit and save to update the parameters. Check to see if the hard disk connector is seated properly. If there is still a problem, the hard disk might need repair.
Press F1 to start Auto Setup. Exit and save to update the parameters.
properly. The hard disk controller does not work and might
need repair.
Keyboard clock line
failure
Keyboard data line failure Have the keyboard repaired.
Keyboard controller failure Have the keyboard repaired.
Have the keyboard repaired.
Problem Solving 6-5
Page 90
POST Error Messages
MESSAGE WHAT TO DO Keyboard stuck
key failure
A key is jammed. Remove any obstruction you find.
You may have repeatedly pressed the F1 key when trying to enter Auto Setup.
If the error message remains, you may have to have the keyboard repaired.
IF YOU NEED ASSISTANCE
If you have a problem with your computer, first review the checklist and troubleshooting table in the previous section.
If you still have a problem, call the NEC Technical Support Center (TSC), toll free, at 1-800-632-4525. Direct technical assistance is available Monday through Friday, between 8:30 a.m. and 8:00 p.m. eastern time.
Your system is supplied with remote diagnostic software. If you bought a modem to use with your system, a TSC tech­nician may be able to diagnose the system remotely.
Direct Technical Support
When TSC receives a call from you, a technician attempts to diagnose your problem over the telephone. The technician determines if your problem requires troubleshooting your system remotely with the Remote Support Session software that comes on your NEC Hardware Utilities diskette.
6-6 Problem Solving
Page 91
Remote Technical Support
With Remote Support Session, the technician can diagnose your system from a TSC computer. To use this utility, you must connect your modem to a telephone line. (See “Connecting Phone Lines” in Chapter 3.)
If the Remote Support Session software is required, the technician asks you for your phone number and helps you to prepare your system for remote support.
Follow these steps to prepare your system for remote sup­port. You must have a modem installed in the system and connected to a telephone line.
1. With the system power off, insert the NEC Hardware
Utilities diskette into the diskette drive.
2. Turn on the system power. A menu appears.
3. Type 2 to select “Remote Support Session.” Your screen
displays “Wait Dial-In Set” and a message indicating that the system is waiting for the remote dial-in.
TIP: Do not touch your keyboard while waiting for the remote dial-in. You may interfere with the remote connection.
To cancel the remote dial-in, remove the diskette and simul­taneously press
Ctrl-Alt-Del.
Problem Solving 6-7
Page 92
Features
Remote Support Session has the following features:
■ The remote screen (technician's screen) looks like your
computer's screen.
■ The technician can access data, run and control applica-
tions on your system, and print reports using the remote keyboard and mouse. Or the technician can simply observe your computer’s operations.
■ You can simultaneously view what the technician sees
on the remote screen.
■ The technician can view your keystrokes and whatever
appears on your screen.
6-8 Problem Solving
Page 93
7
If You Need Help
The NEC Customer Service & Support (CS&S) organization provides high quality technical service and support for all NEC products. CS&S offers many programs and options from which to choose to keep your NEC Versa V working at peak performance.
Warranty information and resources outlined in this chapter apply if you purchased your system in the United States or Canada. The 800 phone numbers noted in this chapter let you call NEC free of charge from locations in the U.S. and Canada. Other numbers noted in this chapter can be used by NEC users throughout the world to access technical infor­mation. (Local/international telephone charges apply to these calls.)
If you purchased your system outside of the United States or Canada, check with your local dealer and NEC subsidi­ary for details about warranty coverage and service.
These resources include:
■ UltraCare
program for the Versa family
®
— industry-leading warranty service
■ A network of authorized service centers located
throughout the U.S. and Canada
■ NEC’s own factory repair depots
■ Automated self-help technical support services.
If You Need Help 7-1
Page 94
NEC products carry some of the industry’s leading warranties. Your Versa V is backed by a 3-year limited warranty. NEC warrants its products to be free from defects in material and workmanship and agrees to repair or replace any part of the products that proves defective under the warranty terms and conditions.
This means that anywhere in the U.S. or Canada, your Versa V is covered — no matter what the problem — by the NEC warranty.
If you are enrolled in UltraCare, your Versa V is covered anywhere in the U.S. and Canada, and in 26 other countries.
For more information on what components your warranty does and does not cover, review the Limited Warranty Statement. The statement is packed with the Versa V product registration materials.
The warranty covers only NECTECH-supplied components. Service required as a result of third-party components is not covered under this warranty.
Repair service and technical support for the Versa V can be obtained from any of the following sources:
■ UltraCare
■ Your reseller
■ Directly from NEC.
UltraCare SUPPORT
UltraCare is NEC’s warranty service program for the Versa Series. UltraCare eliminates the hassles involved in getting your Versa repaired, if needed.
UltraCare offers the following benefits at no charge for the first year:
■ Coverage in the U.S., Canada, and 26 other countries.
7-2 If You Need Help
Page 95
■ Toll-free number 24 hours a day, 7 days a week in the
U.S. and Canada.
■ Free overnight courier pick up and return.
■ Repair service within one business day (U.S. and
Canada) or two business days (internationally).
■ Virus detection and customer notification.
■ Option to extend UltraCare coverage.
To enroll in UltraCare, complete the warranty registration program hotloaded on your hard drive and return the regis­tration either by mail or fax. UltraCare coverage is free for the first year. For coverage after the first year, you can purchase UltraCare for the second and third years of your Versa V warranty.
Without UltraCare, your Versa V is covered by NEC’s standard limited 3-year warranty. Warranty repair service is provided by your local authorized reseller or NEC’s factory repair depot.
When you enroll in UltraCare, NEC sends you a package of registration materials within 30 days. The materials include a registration decal to attach to your system, a special toll­free number for UltraCare customers only, and details about using the program.
SUPPORT FROM THE NEC RESELLER
Your NEC reseller is prepared to provide technical and service support. The reseller should have a thorough under­standing of how your NEC product is set up and operates.
NEC resellers receive special training and are equipped to resolve most hardware and software questions that you may have. Nearly all resellers have trained technicians on their staff to make most repairs in a timely manner.
If You Need Help 7-3
Page 96
Depending on your needs, the reseller can provide support via telephone, fax, electronic bulletin board, or in person. If you feel that the reseller made every effort to solve the problem but was unable to do so, contact NEC directly for support.
SUPPORT FROM NEC
NEC is ready to support you in operating and maintaining your NEC system. If you need support, NEC suggests that you use the following services in the order presented.
1. NEC FastFacts: An automated electronic service
that offers the latest technical information about all our products.
2. NEC Bulletin Board Service: An electronic bulletin
board service that provides facilities for downloading BIOS updates, print utilities, drivers and more. (This service requires that you use a modem with your system.)
3. NEC Technical Support: Toll-free support for help in
4. NEC Customer Service Response Center: An organiza-
NEC FastFacts
FastFacts is the NEC Technologies’ automated response system that provides free technical information whenever you need it, 24 hours a day, 7 days a week. Simply call FastFacts from a touch-tone phone. Listen to the instruc­tions and order the documents you need or a list of available documents and catalogs.
Placing an order takes only minutes and the information goes directly to your fax machine.
7-4 If You Need Help
diagnosing and resolving technical hardware problems.
tion that provides help with hardware service and repair, warranty issues, and customer service problems.
Page 97
Reach FastFacts by dialing:
■ 1-800-366-0476 (U.S. and Canada)
■ 1-708-860-9500 x2621 (International).
FastFacts contains the following information:
■ Product brochures
■ Technical information bulletins, including:
Installation proceduresQuick reference guidesTroubleshooting information.
NEC Bulletin Board System
The NEC Electronic Bulletin Board System (BBS) is available to all customers free of charge. If you dial us directly at (508) 635-4706, your only expense is the cost of the phone call. The BBS is also accessible through CompuServe for customers who are already members. The CompuServe password is “GO NECTECH.”
The BBS provides the most up-to-date service tips, drivers, BIOS updates and is available 24 hours a day, 7 days a week. You have access to information developed by our technical support team to ensure superior operation of your NEC system.
What is the BBS?
The BBS is a remote database containing files devoted to enhancing the maintenance and functionality of NEC’s products. It is a non-commercial system and its services are organized into straightforward menus that include:
If You Need Help 7-5
Page 98
■ A Message Menu containing an interactive e-mail
network that lets you leave messages for members of the NEC support staff and correspond with other BBS members.
■ A Bulletin Menu that contains online help, important
NEC Technologies’ phone numbers, and a selection of useful files and utilities available for downloading. These files include:
BIOS update filesDriver files for CD-ROMs, video boards, and
printers
Replacement set-up disks.
■ A Door Menu that makes it possible to run external
programs online.
How Do You Use the BBS?
To access the BBS, you need a computer, modem, and communications software. The communications software allows you to transfer files (download or upload) through the modem to and from a remote system.
If the phone you are using with your modem has call­waiting, disable it while using the modem. The beep that signals another call can be interpreted by the system as a break signal and result in a disconnect.
To contact the BBS, dial (508) 635-4706. The first time you access the BBS, you must supply your name, address, and telephone number to create your password. For security purposes, you are also asked for personal information that only you would know. The next time you log in, you only need to give your name and password to access the system.
7-6 If You Need Help
Page 99
BBS communication parameters are as follows:
■ Baud rate — 2400 to 9600 bps
■ Parity — none
■ Data bits — 8
■ Stop bits — 1.
NEC Technical Support
NEC offers a free technical support service to use if you have a technical problem that cannot be resolved by your dealer. NEC’s technical support can help you with ques­tions about software and hardware compatibility, operating system software issues, and using the products.
Call 1-800-632-4525, Monday through Friday, between 8:30 a.m. and 8:00 p.m. Eastern Standard Time (EST).
NEC Customer Service Response Center
If the need arises, the NEC Customer Service Response Center (CSRC) can help you with alternatives for servicing and repairing your NEC product. The CSRC also provides general information, handles call routing, and resolves any warranty issues and customer complaints.
Call the CSRC at 1-800-632-4525, Monday through Friday, between 8:30 a.m. and 8:00 p.m., EST.
The NEC service and repair network includes the following:
■ 250 premier level TotalService Preferred servicers
■ 1350 NEC Authorized Service Centers (NASC)
■ Mail-in to an NEC repair depot (for warranty and out-
of-warranty products).
If You Need Help 7-7
Page 100
MAIL-IN SERVICE
NEC provides an optional mail-in repair service in circumstances that preclude the use of UltraCare, a local authorized dealer, or if the warranty has expired. You can mail your NEC product to one of four repair depots located across the U.S. and Canada. Arrange for mail-in service through the CSRC at 1-800-632-4525.
MAINTENANCE CONTRACTS
Maintenance contracts are available for servicing products after their warranties expire. The contract continues the same high-quality service available during the warranty period. (See the section on UltraCare earlier in this chapter for information about NEC’s industry-leading warranty service program.)
You can buy maintenance contracts through NEC’s Service Telemarketing Department. Call 1-800-632-4525. Pricing depends on the product and your location.
7-8 If You Need Help
