Page 1

SOLD BY laptopia2005 DO NOT RESELL!!

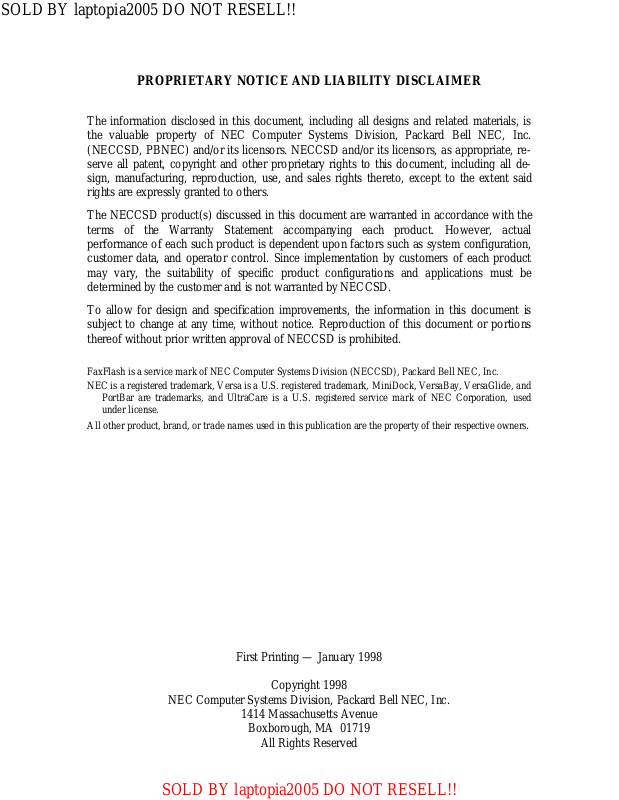

PROPRIETARY NOTICE AND LIABILITY DISCLAIMER

The info rmat ion disclos ed in t his do cument , inclu ding all designs and r elat ed materials, is the valuable property of NEC Computer Systems Division, Packard Bell NEC, Inc. (NECCSD, P BNEC) and/or its licensors. NECCSD and/o r its licensors, as appro priate, reserve all patent, copyright and other proprietary rights to this document, including all design, manufacturing, reproduction, use, and sales rights thereto, except t o the extent said rights are expressly granted to others.

The NECCSD product(s) discussed in this document are warrant ed in accordance with the terms of the Warranty Statement accompanying each product. However, actual performance of each such product is dependent upon factor s such as system configuration, customer data, and operator control. Since implementation by customers of each product may vary, the suitability of specific product configurations and applications must be determined by the customer and is not warranted by NECCSD.

To allow for design and specification impro vement s, t he information in this do cument is subject to change at any time, without not ice. Reproduction of this document or port ions thereof without prior written approval of NECCSD is prohibited.

FaxFlash is a ser vice ma rk of NEC Computer Systems Division (NEC CSD) , Packar d Bell NEC, In c. NEC is a registered trademark, Versa is a U.S. registered trademark, MiniDock, VersaBay, VersaGlide, and

PortBar are trademarks, and UltraCare is a U.S. registered service mark of NEC Corporation, used under license.

All other product, brand, or trade names used in this publication are the property of their respective owners

First Printing — January 1998

NEC Computer Systems Division, Packard Bell NEC, Inc.

1414 Massachusetts Avenue

Boxborough, MA 01719

SOLD BY laptopia2005 DO NOT RESELL!!

Page 2

SOLD BY laptopia2005 DO NOT RESELL!!

Preface

This service and reference manual contains the technical info r mation necessary to set up and maintain the NEC Ve rs a® 6220/30/60 notebook computers.

The manual also pro vides hardware and interface information for users who need an overview of the system design. T he manual is written for NEC-t r ained customer engineers, system analysts, service center personnel, and dealers.

The manual is organized as follows: Section 1  Technical Information, pr ovides an overview of the har dwar e and interface

components. System specifications are listed including computer dimensio ns, weight, environment, safety compliance, power consumption, and system memory specifications.

Section 2  Setup and Operation, takes t he aut ho r ized service technician or dealer from unpacking to setup and o per ation. The section includes a description of operating controls, setting parameters and accessing the NECCSD bulletin board system (BBS).

Section 3  Troubleshooting, lists troubleshooting procedures as well as helpful se rvicing hints.

Section 4  Field Service Guidelines, provides disassembly and assembly procedures, and an explo ded- view diagram of the NEC Versa system with part number s.

Appendix A  Connector Locations and Pin Assignments, pro vides a list of the main board internal connector pin assignments and a list of external pin assignments.

Appendix B  Video Modes, lists NEC Versa supported video modes. An Index is included for convenience.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 3

SOLD BY laptopia2005 DO NOT RESELL!!

Abbreviations

xiii

Aampere AC alternating current AT advanced technology

(IBM PC)

BBS Bulletin Board System BCD binary-code d dec imal BC U BIOS Customiz ed Utility BIOS basic input/out put system bit binary digit bp i bits per inch bps bits pe r second BUD BIOS Upgrade Diskette C Celsius or centigrade Cache high- speed buffer storage CAM constant ly addressable memory CAS column address stro be CD-ROM compact disk ROM CGA Color Graphics Adapter CGB Color Graphics Board CH channel clk clock cm cen timeter CM OS comp leme nt ar y metal ox ide

semiconducto r

COM communication CONT contrast CPGA ceramic pin gr id a rray CPU central processing unit CRT c athode-ra y tube DAC digital-to-analog convert er DACK DMA acknowledge DC direct current DIMM dua l-inlin e memory mod ule DIP dual in -line p acka ge DLAB Divisor Latch Add ress bit DMA direct memory access

DMAC DMA controller DOS disk operating system DRAM dynamic RAM DTE data ter minal equipment ECC error checking and correction ECP extended capabilities port EDO enhance d date out EDS error detecting system EGA E nhanced Graphics Adapter EMS E xpanded Memory

Specification

EPP enhan ced p ar alle l por t EPROM erasable and pr ogrammable

ROM

EVGA E nhanced Video Graphics

Array

F Fahrenheit FAX facsimile tra nsmis sion FCC Federal Communications

Commission

FG frame ground FM frequency modulation Fn Function FRU field-replaceable unit GB gigabyte GND ground HDD hard disk drive HEX hexadecimal HGA Hercules Graphics Adapt er Hz hertz IC integrated circuit ID identification IDE inte lligent devic e elec tronics IDTR interrupt descriptor table

IMR Interrupt Mask register

SOLD BY laptopia2005 DO NOT RESELL!!

Page 4

SOLD BY laptopia2005 DO NOT RESELL!!

xiv Abbreviations

in. inch INTA interrupt acknowledge IPB illus tra ted parts breakd own IR infrared IRR Interrupt Request register ISA Industry Standard Architecture ISR In Service register I/O input/output IPC integrated peripheral controller ips inches pe r sec ond IRQ interrupt request K kilo (1024) k kilo (1000) KB kilobyte kg kilogram kHz kilohertz kV kilovolt lb pound LBA logical block addressing LDTR local descriptor t able register LED light-emitting diode LSB least- significant bit LSI large-scale integration Mmega mA milliamps max maximum MB megabyte MDA Monochrome Display Adapter MFM modified frequency mo dulation Mhz megahertz mm millimeter ms millisecond MSB most-significant bit NASC National Authorized Service

Center NC not co nnected NDP numeric dat a pr ocessor

NMI Non-maskable Interrupt ns nanosecond NSRC National S er vice Response

Center PAL programmable array logic PC per sonal computer PCB pr inted circuit board PCI pe riphe ra l compon ent

interconnect PFP plastic flat package PIO Programmed Input/Output pixel picture element PJQFP plastic J-lead quad flat pack PLCC plastic lead chip carrier PLL phas e lock loop p-p peak-to-peak PPI programmable peripheral

interface PROM prog ra mmable ROM QFP quad flat pack RAM random-access memory RAMDAC RAM digital-to-analog RAS row ad d r ess strobe RGB r ed gr een blue RGBI red green blue intensity ROM re ad -only memor y rpm revolutions per minute R read RTC real-time clo ck R/W read/write Sslave SCSI Small Computer System

Interface SDLC Synchrono us Data Link

Contr o l SG signal gr ound SIMM single inline memor y module SIR seria l infrar ed

SOLD BY laptopia2005 DO NOT RESELL!!

Page 5

SOLD BY laptopia2005 DO NOT RESELL!!

SOIC small outline integrated circuit SQFP silver quad flat package SVGA Super Video Graphics Array SW switch TCP T hin chip package TQFP Thin-quad flat package TSC Technical Support Center TTL transistor/transistor log ic tpi tracks per inch UART universal asynchronous

receiver/transmitter Vvolt Vdc volts, direct current

Abbreviations xv

VESA Video Electronics Standards

Association VFO variable fr equency oscillator VGA Video Graphics Array VLSI ver y large-scale int egr ation VRAM virtual RAM Wwatt

µf microfarad µPD microprocessor µs microsecond Ω ohm

SOLD BY laptopia2005 DO NOT RESELL!!

Page 6

SOLD BY laptopia2005 DO NOT RESELL!!

Preface......................................................................................................................... xi

Abbreviations............................................................................................................... xiii

Section 1 Technical Information

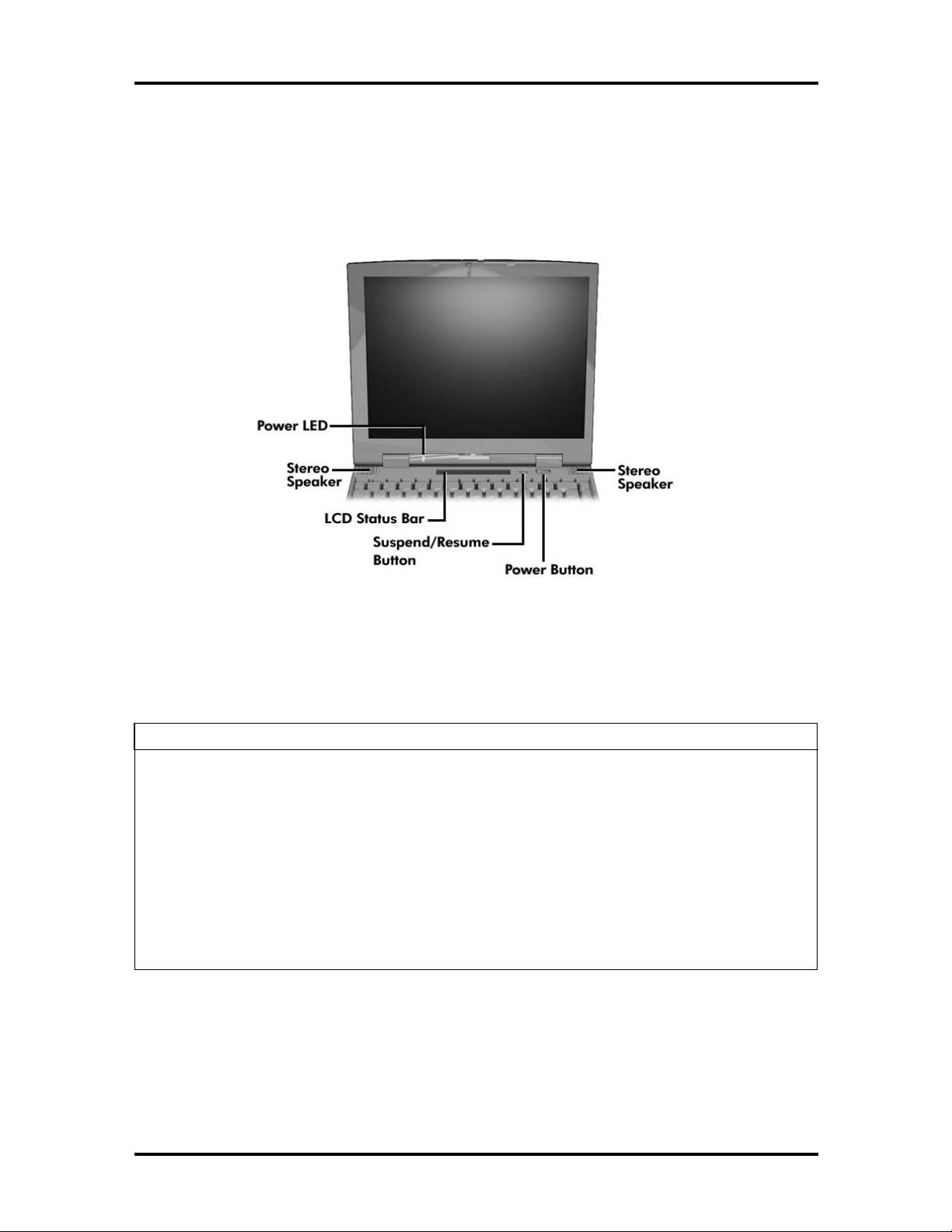

Hardware Overview — Front.......................................................................................1-2

Liquid Crystal Display (LCD)................................................................................1-2

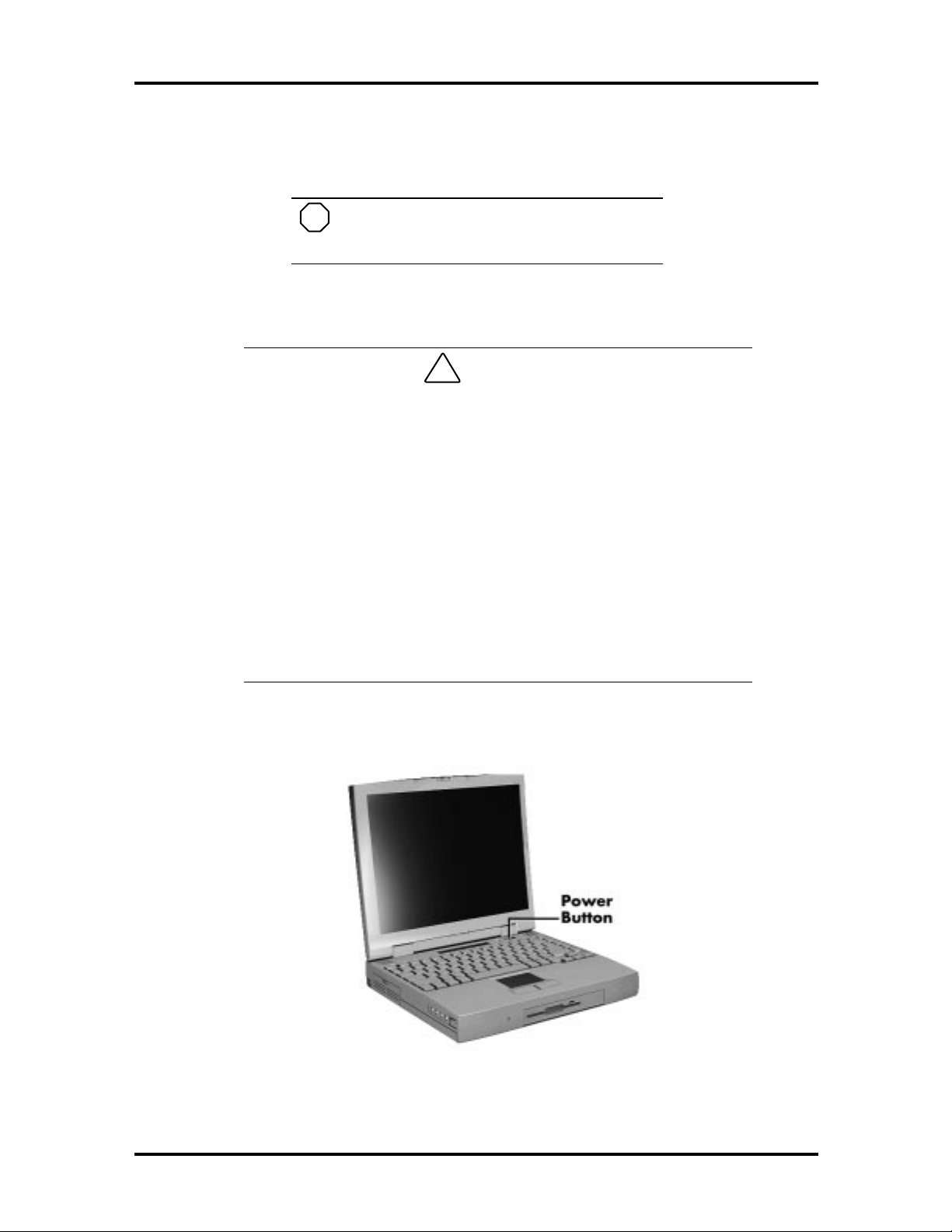

Power Button .......................................................................................................1-3

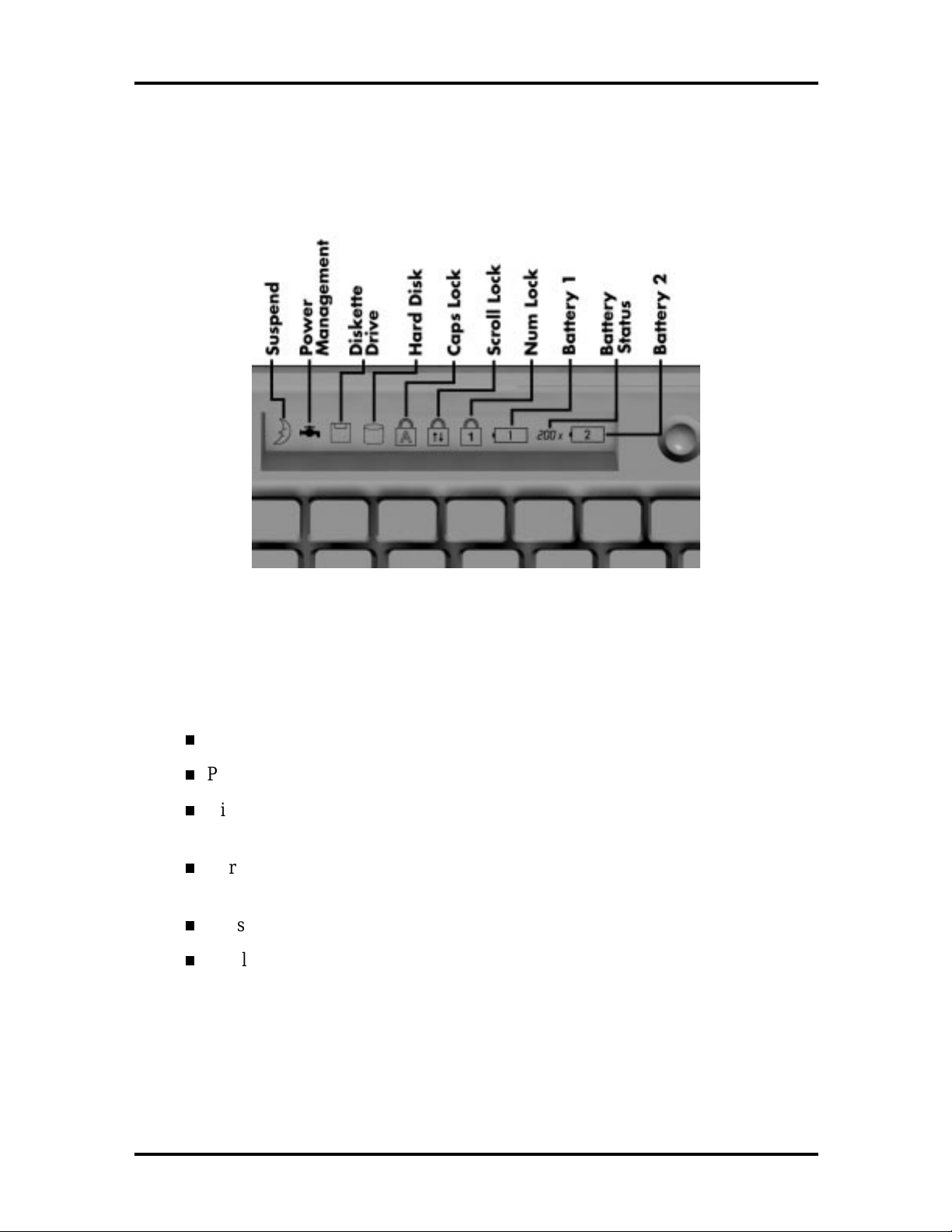

LCD Status Bar and Power Indicator....................................................................1-4

Status Icons ...................................................................................................1-5

Keyboard..............................................................................................................1-6

NEC VersaGlide...................................................................................................1-6

iii

Diskette Drive and the NEC VersaBay II ..............................................................1-7

Infrared (IR) Assembly..........................................................................................1-8

Hardware Overview — Right Side...............................................................................1-8

Hardware Overview — Left Side.................................................................................1-10

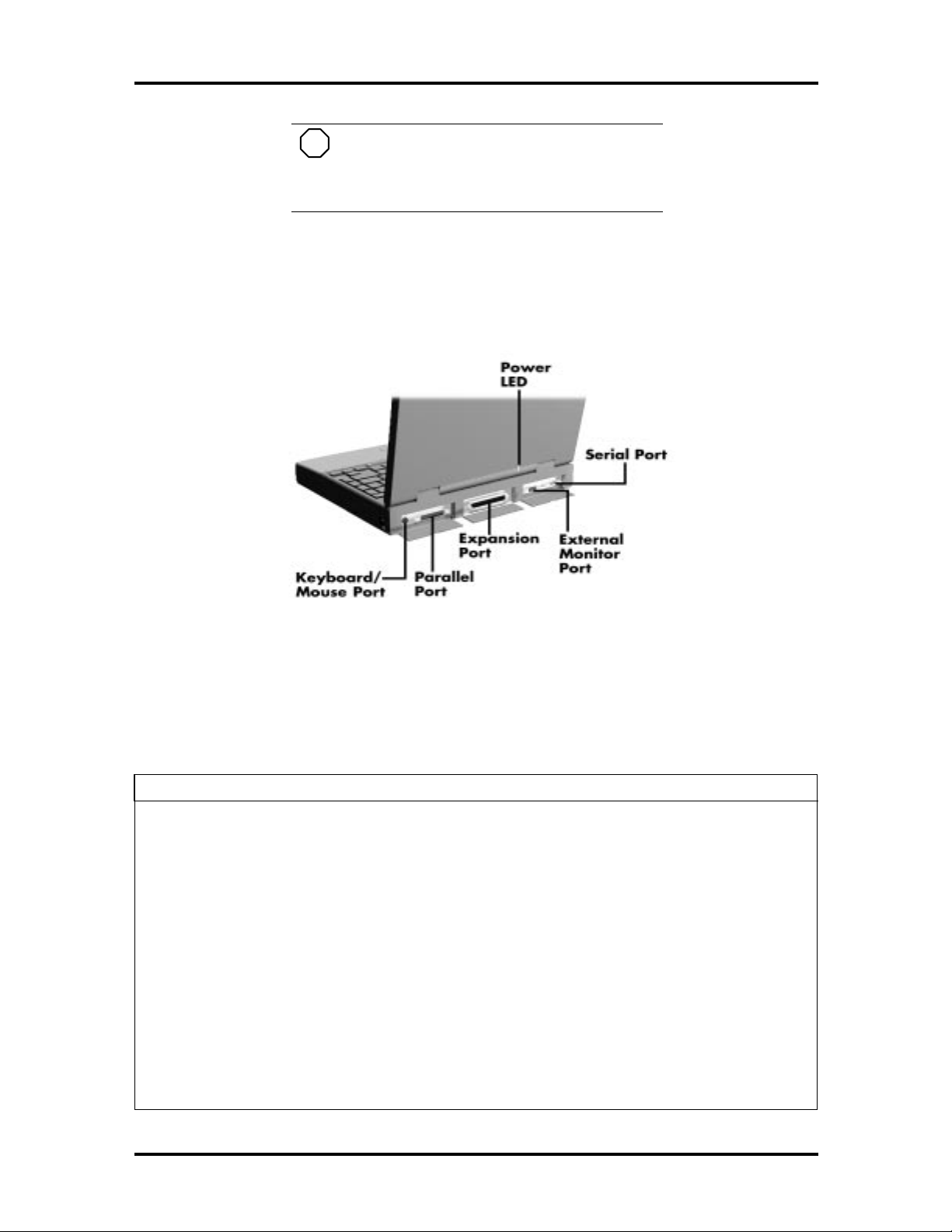

Hardware Overview — Rear Side................................................................................1-11

Hardware Overview — Internal Components...............................................................1-12

Battery Pack.........................................................................................................1-12

Hard Disk Drive....................................................................................................1-12

Diskette Drive.......................................................................................................1-12

20X CD-ROM Reader ..........................................................................................1-12

CPU Board...........................................................................................................1-12

Sound Bo ard .........................................................................................................1-12

Graph Board.........................................................................................................1-14

I/O Board.............................................................................................................1-14

CMOS Battery......................................................................................................1-15

Bridge Battery......................................................................................................1-15

System Memory...........................................................................................................1-15

Memory Map........................................................................................................1-16

System Video...............................................................................................................1-16

Parallel Interface..........................................................................................................1-17

Serial Interface.............................................................................................................1-17

NEC Versa Chip Set....................................................................................................1-18

Intel Pentium P55CLM Microprocessor................................................................1-18

M-Trit o n System Controllers ................................................................................1-18

SOLD BY laptopia2005 DO NOT RESELL!!

Page 7

SOLD BY laptopia2005 DO NOT RESELL!!

iv Contents

256K X Flash ROM..............................................................................................1-19

ROM BIOS....................................................................................................1-19

VGA Controller....................................................................................................1-19

Parallel Interface ...................................................................................................1-20

Keyboard Cont ro ller .............................................................................................1-20

PC CardBus Controller.........................................................................................1-20

Sound Integrated Circuit.......................................................................................1-20

Interrupt Controllers.............................................................................................1-21

Power Management Overview .....................................................................................1-22

System Power Management ..................................................................................1-23

Local Power Management.....................................................................................1-23

Plug and Play...............................................................................................................1-24

Specifications............................................................................................................... 1-25

Section 2 Setup and Operation

Unpacking t he Syst em..................................................................................................2-1

Hardware Setup...........................................................................................................2-1

Cable Connections................................................................................................2-3

Power Sources.............................................................................................................2-4

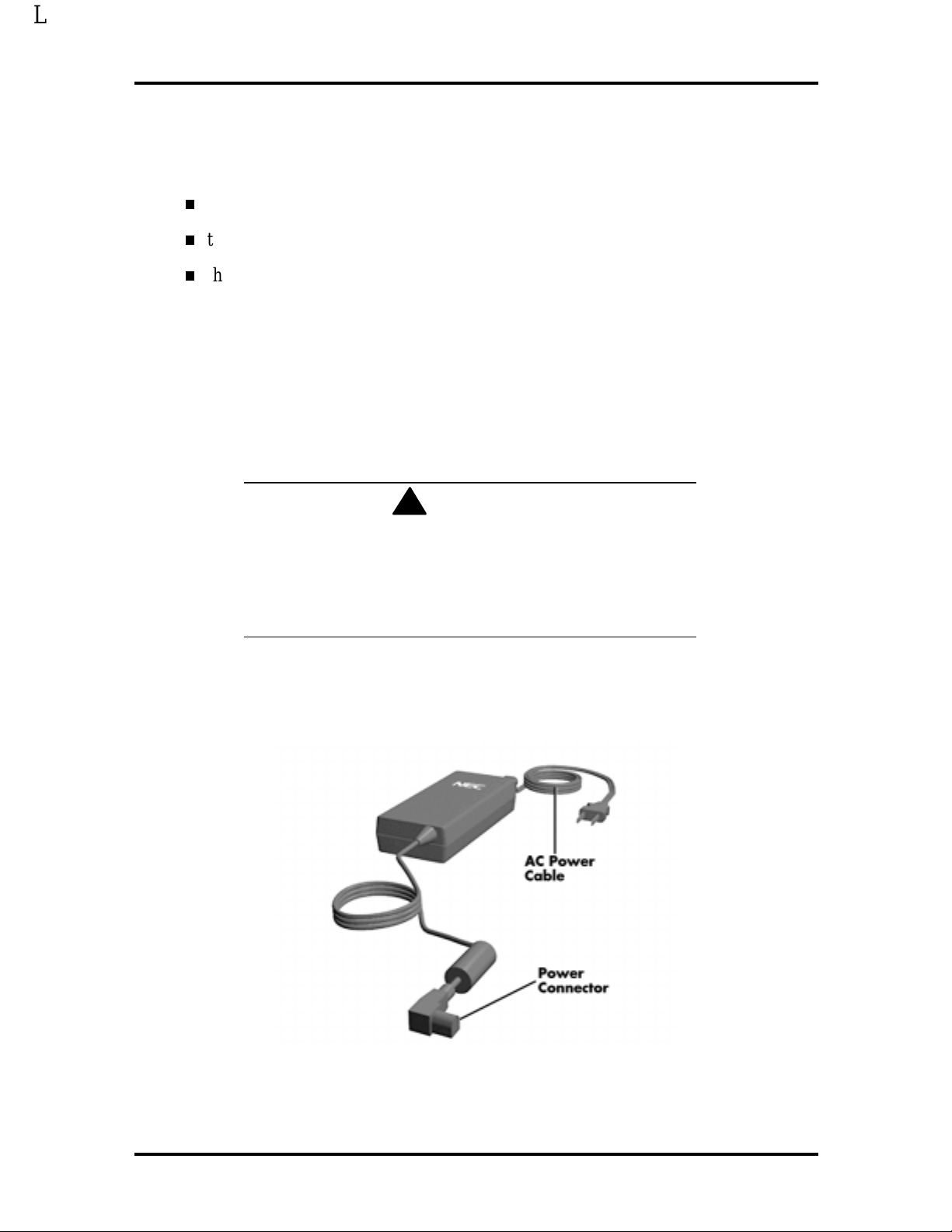

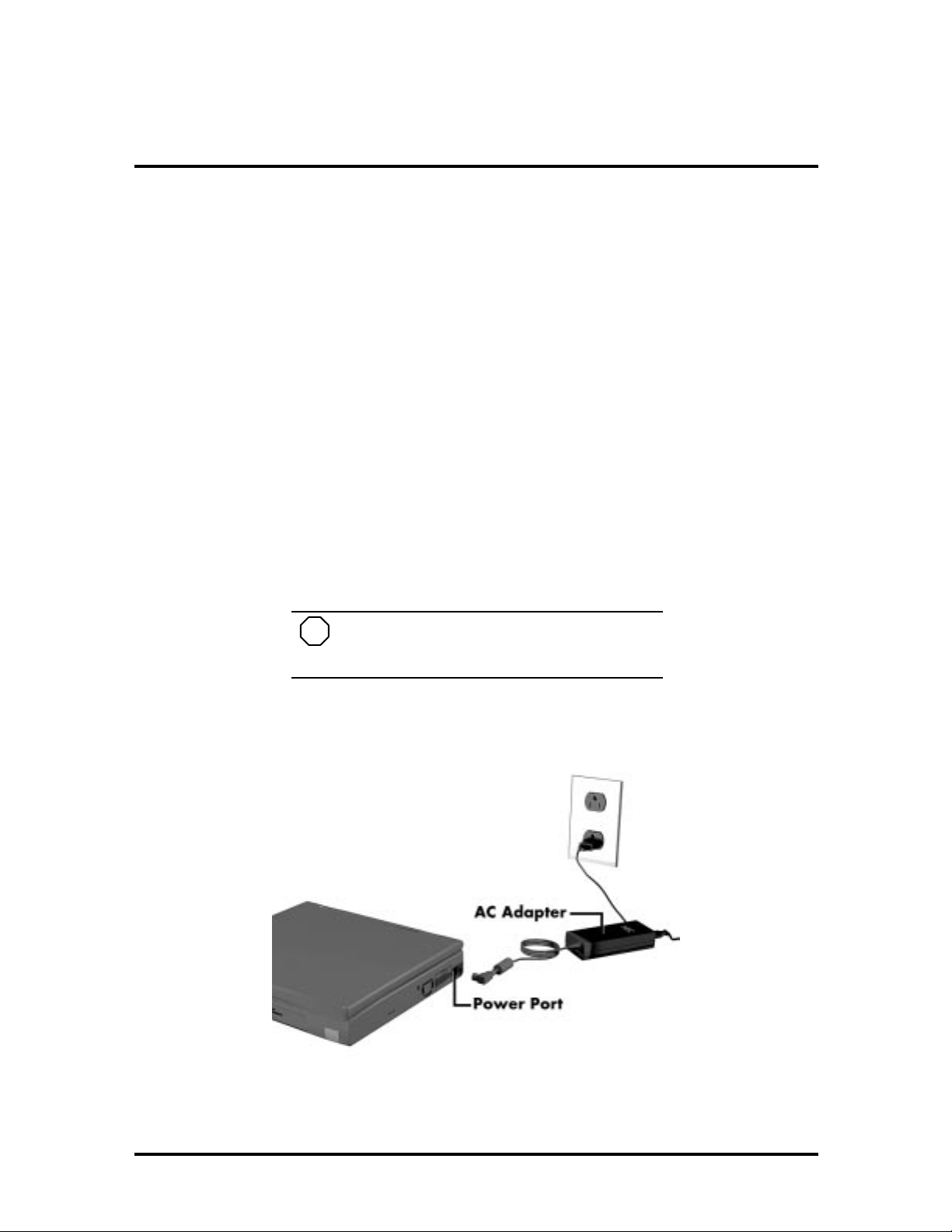

Using the AC Adapter...........................................................................................2-4

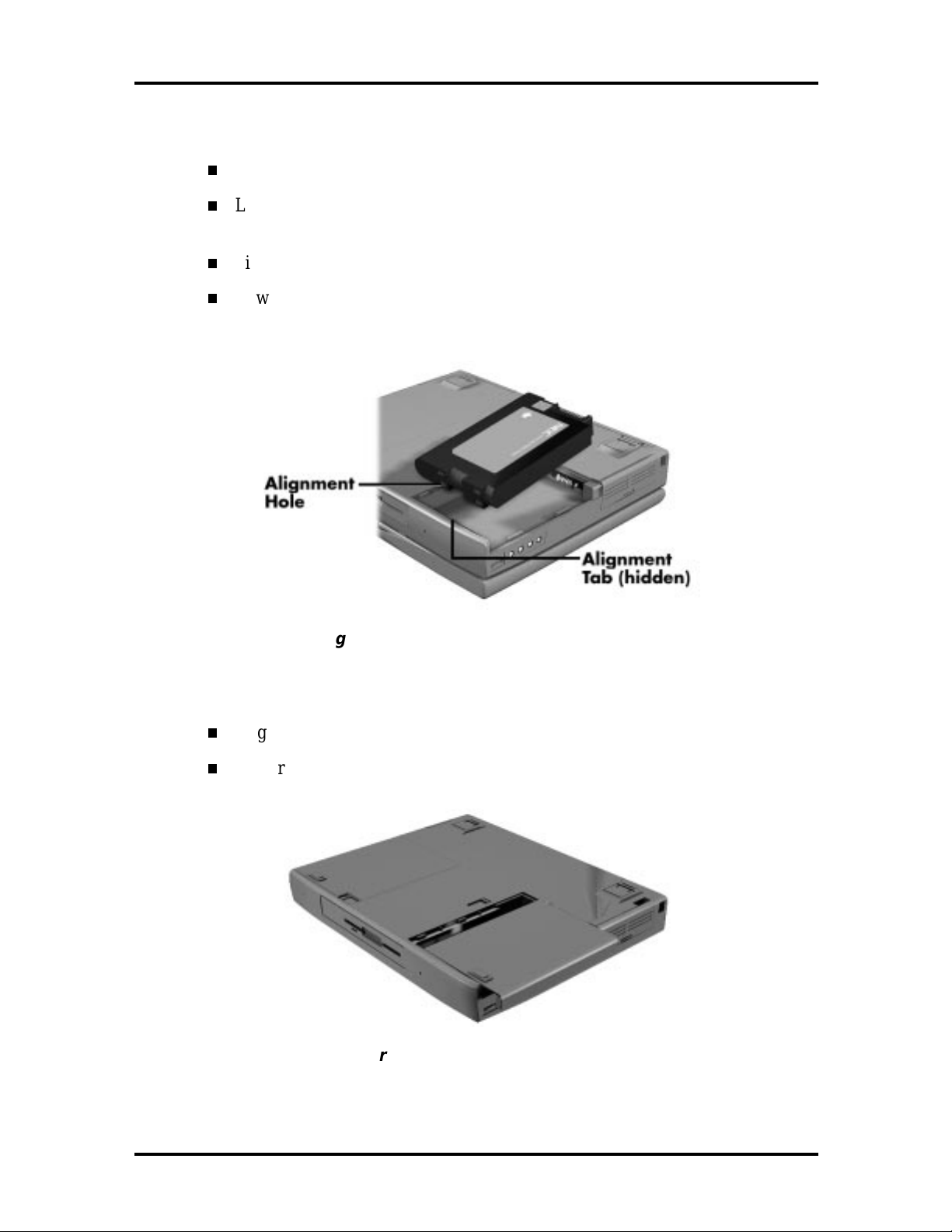

Using the Main Battery Pack.................................................................................2-5

Checking Battery Power Levels......................................................................2-5

What t o Do When Battery Power Get s Low...................................................2-6

Returning the Battery to Full Operation..........................................................2-6

When to Change the Battery..........................................................................2-6

Battery Handling............................................................................................2-6

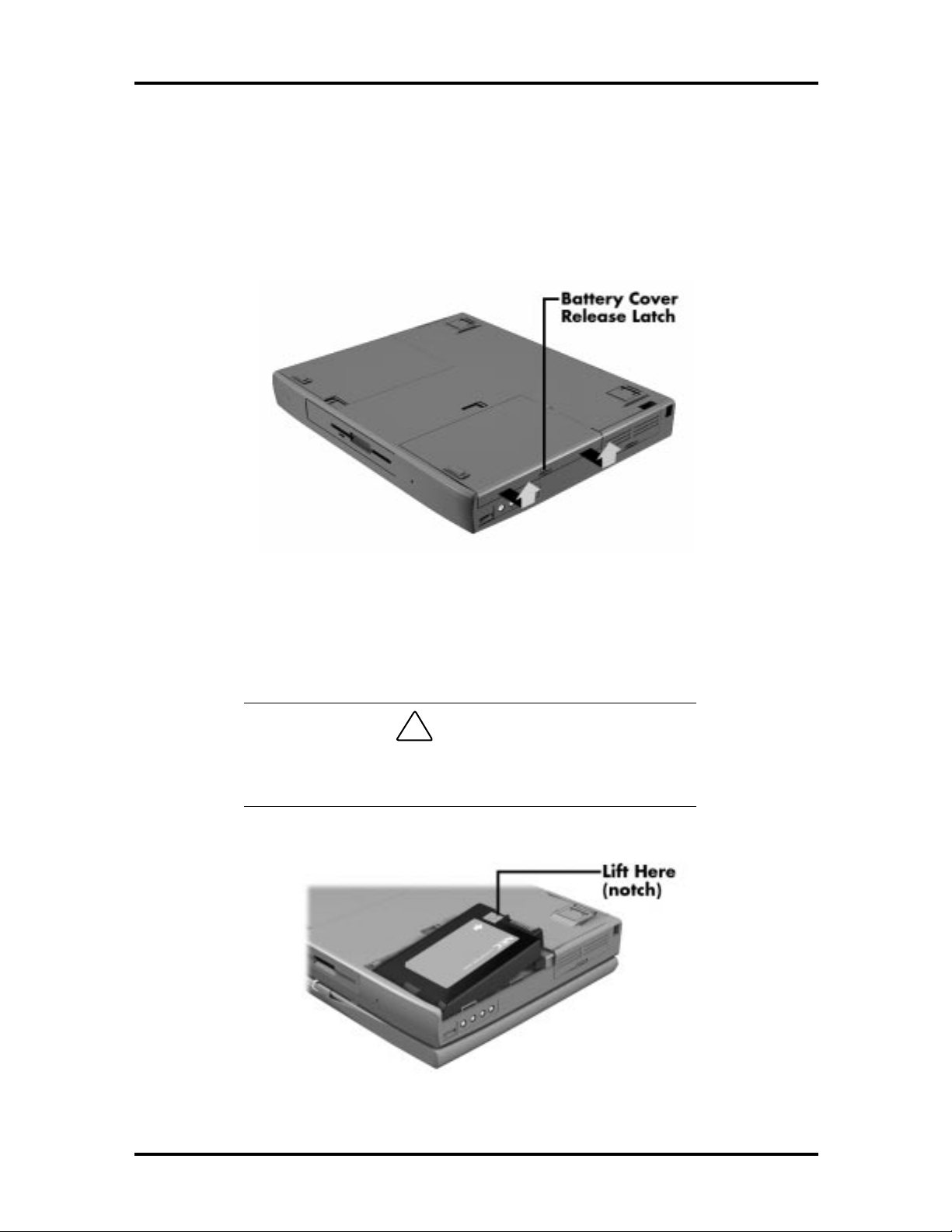

Replacing the Battery Pack ............................................................................2-7

Batter y Precaut ions........................................................................................ 2-10

Recharging Battery Precautions...................................................................... 2-10

NEC VersaBay II Battery and Adapter Kit............................................................2-11

Extending Batt ery Life..........................................................................................2-11

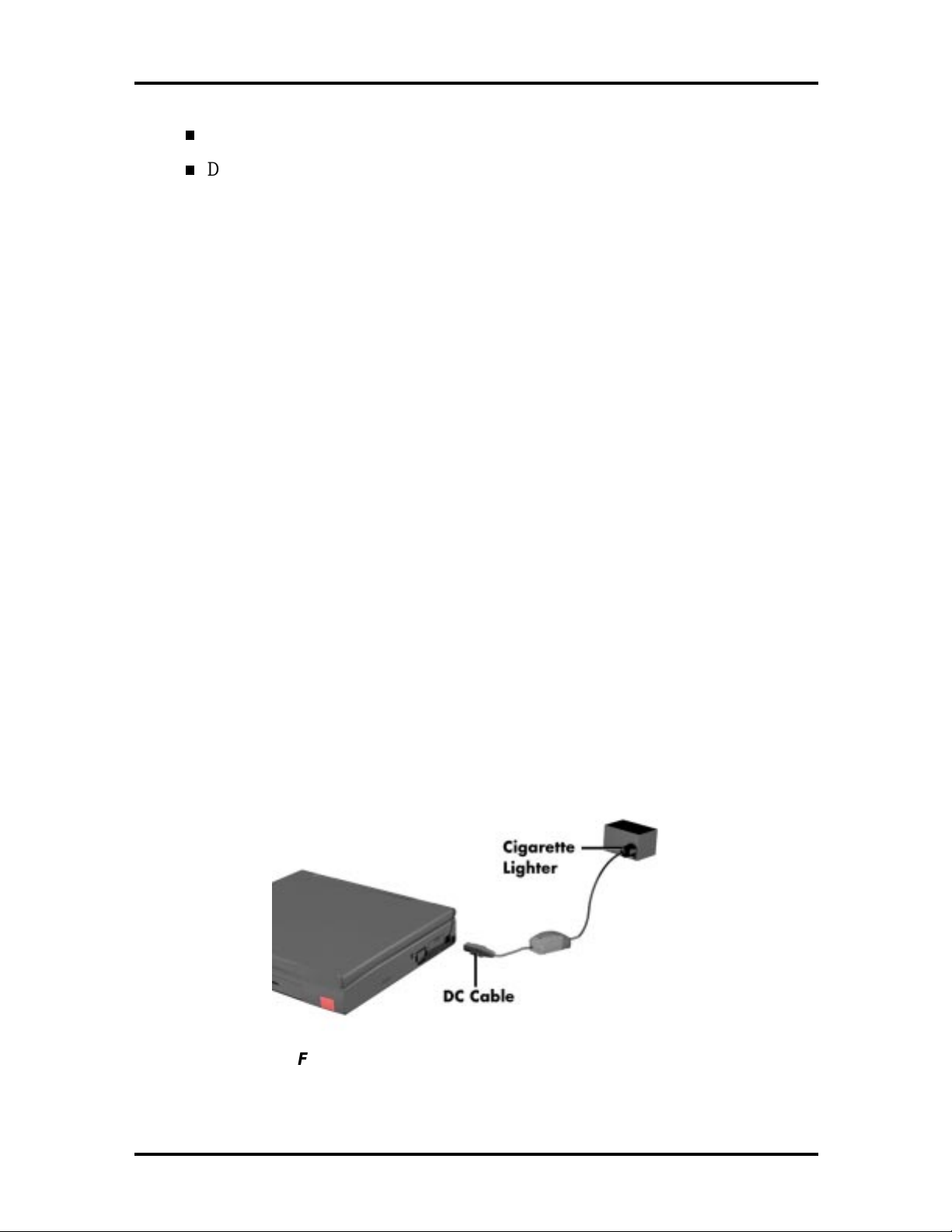

Using the DC Car Adapter....................................................................................2-11

Operating Controls ...................................................................................................... 2-12

LCD Status Bar....................................................................................................2-13

Status Icons ...................................................................................................2-13

Function Keys (Fn Keys).......................................................................................2-14

Smart Po wer Switch.............................................................................................2-14

SOLD BY laptopia2005 DO NOT RESELL!!

Page 8

SOLD BY laptopia2005 DO NOT RESELL!!

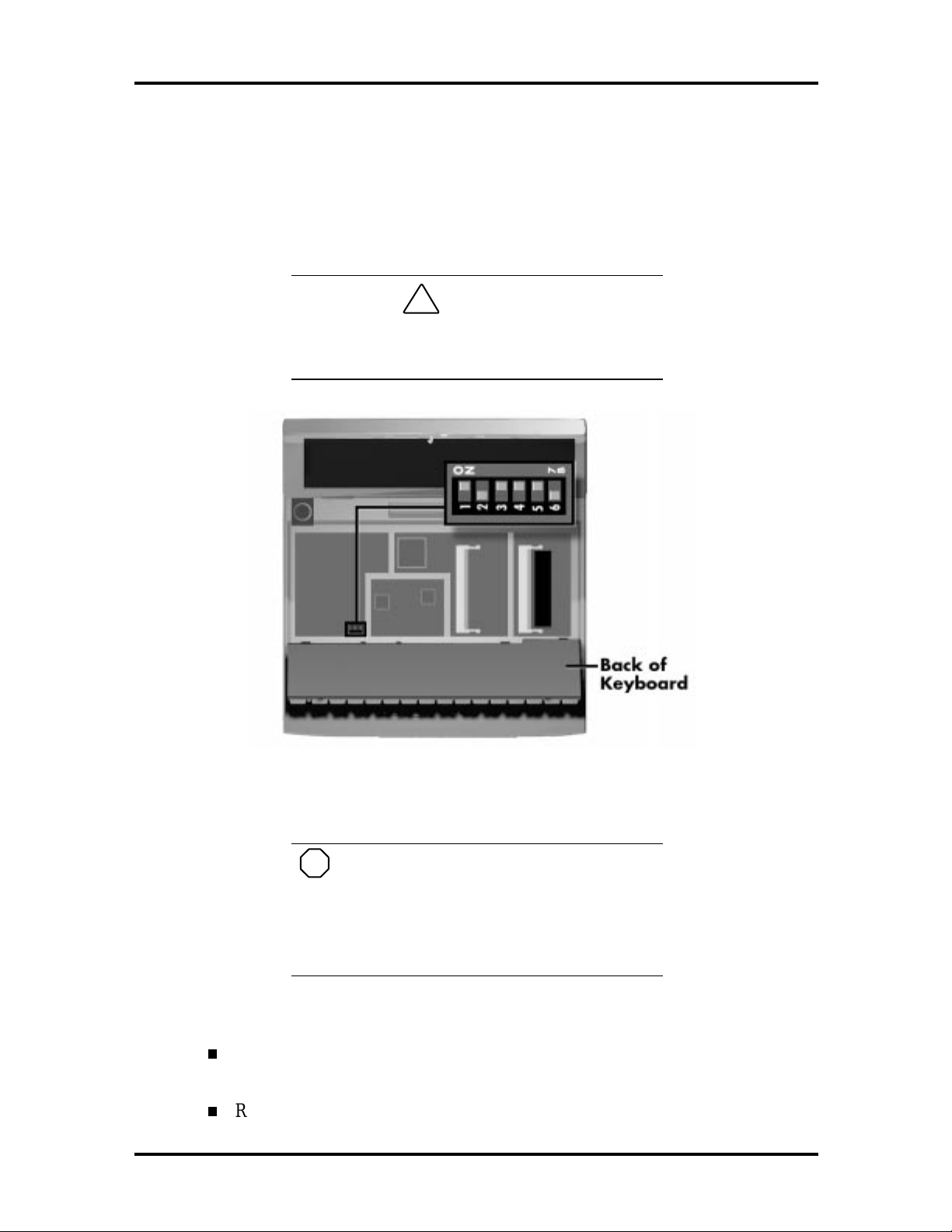

Setting Switches ...................................................................................................2-15

Updating the System BIOS ............................................................................2-16

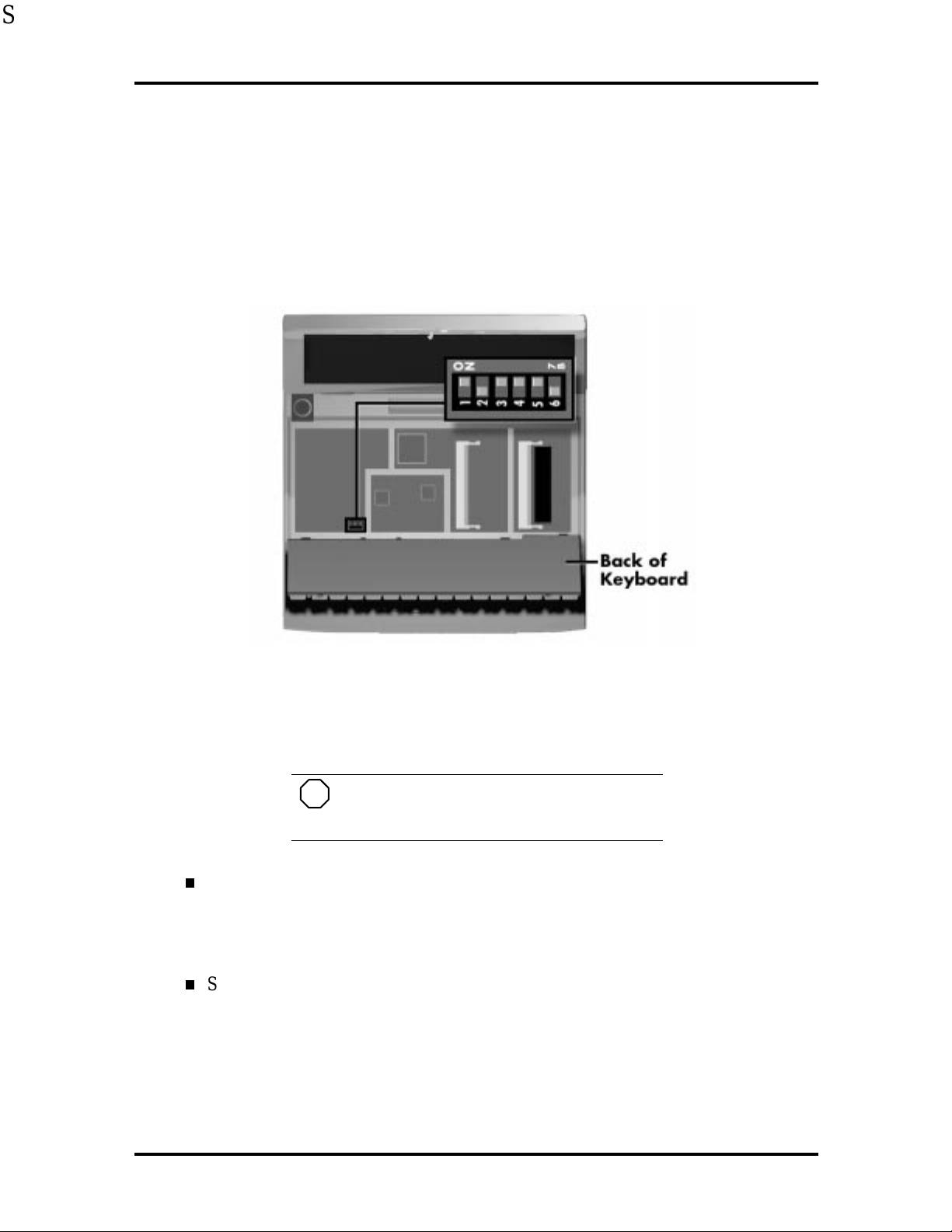

Changing Switch Sett ings............................................................................... 2-17

Perfo rming the BIOS Update.........................................................................2-20

Power-on Self-Test (POST).........................................................................................2-21

POST Errors.........................................................................................................2-22

Setup Utility ................................................................................................................ 2-25

Accessing Setup ....................................................................................................2-25

With an Error at POST ..................................................................................2-25

With No Errors at POST................................................................................2-25

Setup U tility Main Menu....................................................................................... 2-26

How to Use Setup..........................................................................................2-26

Looking at Screens ........................................................................................2-27

Contents v

Using Keys.....................................................................................................2-28

Checking/Setting System Parameters..............................................................2-28

BIOS Setup Menus...............................................................................................2-31

Standard CMOS Setup...................................................................................2-31

Advanced CMOS Setup.................................................................................2-32

Power Management Setup..............................................................................2-32

Boot Device Setup ........................................................................................2-34

Peripherals Setup ...........................................................................................2-34

Other BIOS Setup Options.............................................................................2-35

Password Protectio n ......................................................................................2-35

Using BIOS Set up to Set Power Management....................................................... 2-35

Using the Save to File (STF) Feature..............................................................2-36

STF Benefits..................................................................................................2-36

Section 3 Troubleshooting

Quick Trouble Shooting ...............................................................................................3-1

Problem Checklist.................................................................................................3-1

Start-up Problems.................................................................................................3-3

POST Error Messages....................................................................................3-4

Helpful Questions ........................................................................................................3-7

Section 4 Field Service Guidelines

Preventive Maintenance...............................................................................................4-1

Cleaning the Notebook’s Exterior.........................................................................4-1

SOLD BY laptopia2005 DO NOT RESELL!!

Page 9

SOLD BY laptopia2005 DO NOT RESELL!!

vi Contents

Cleaning the Notebook’s Interior..........................................................................4-2

Protecting the Disk Drives ....................................................................................4-2

Handling the Battery Packs...................................................................................4-3

Maintaining the LCD Quality................................................................................4-3

Required Tools and Equipment....................................................................................4-3

Disassembly and Reassembly........................................................................................4-4

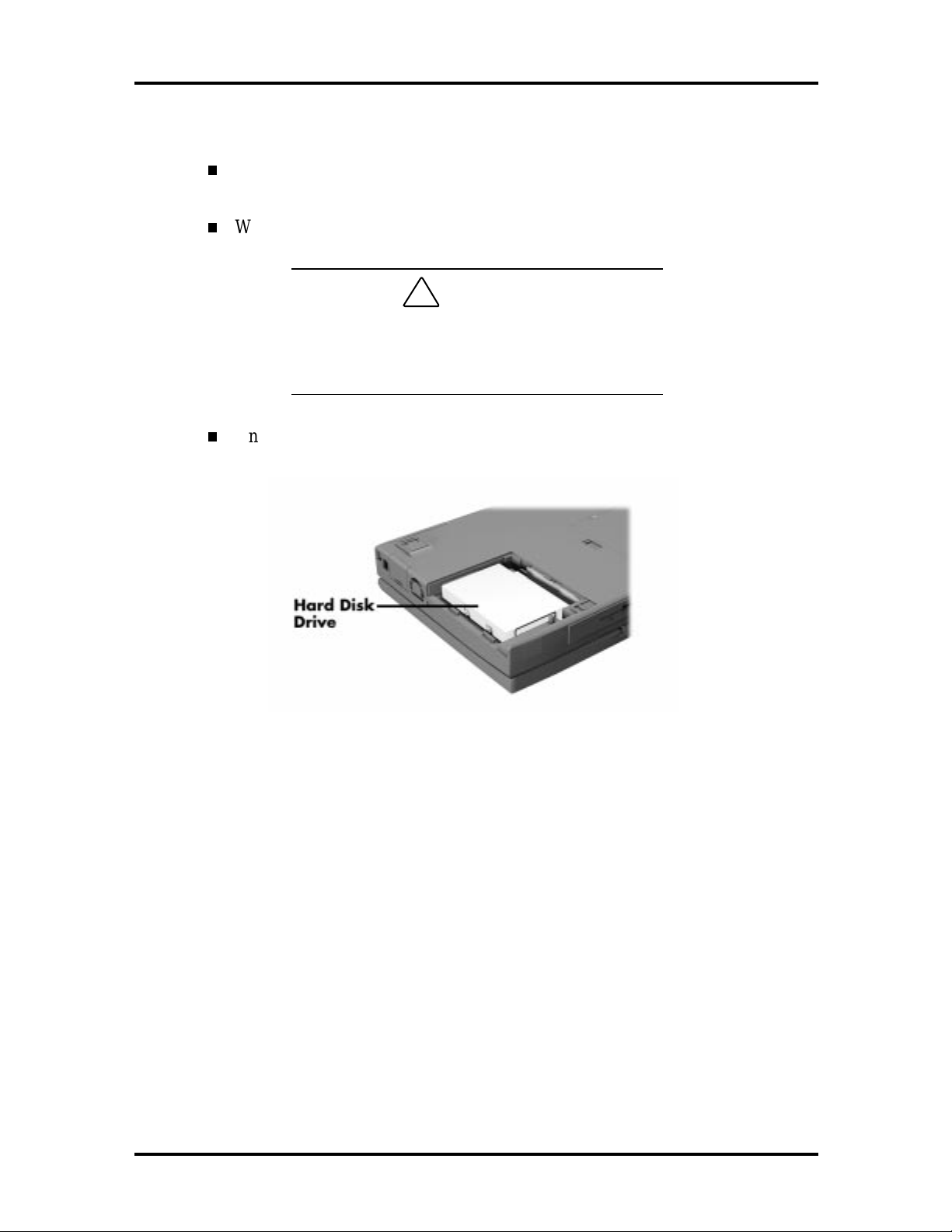

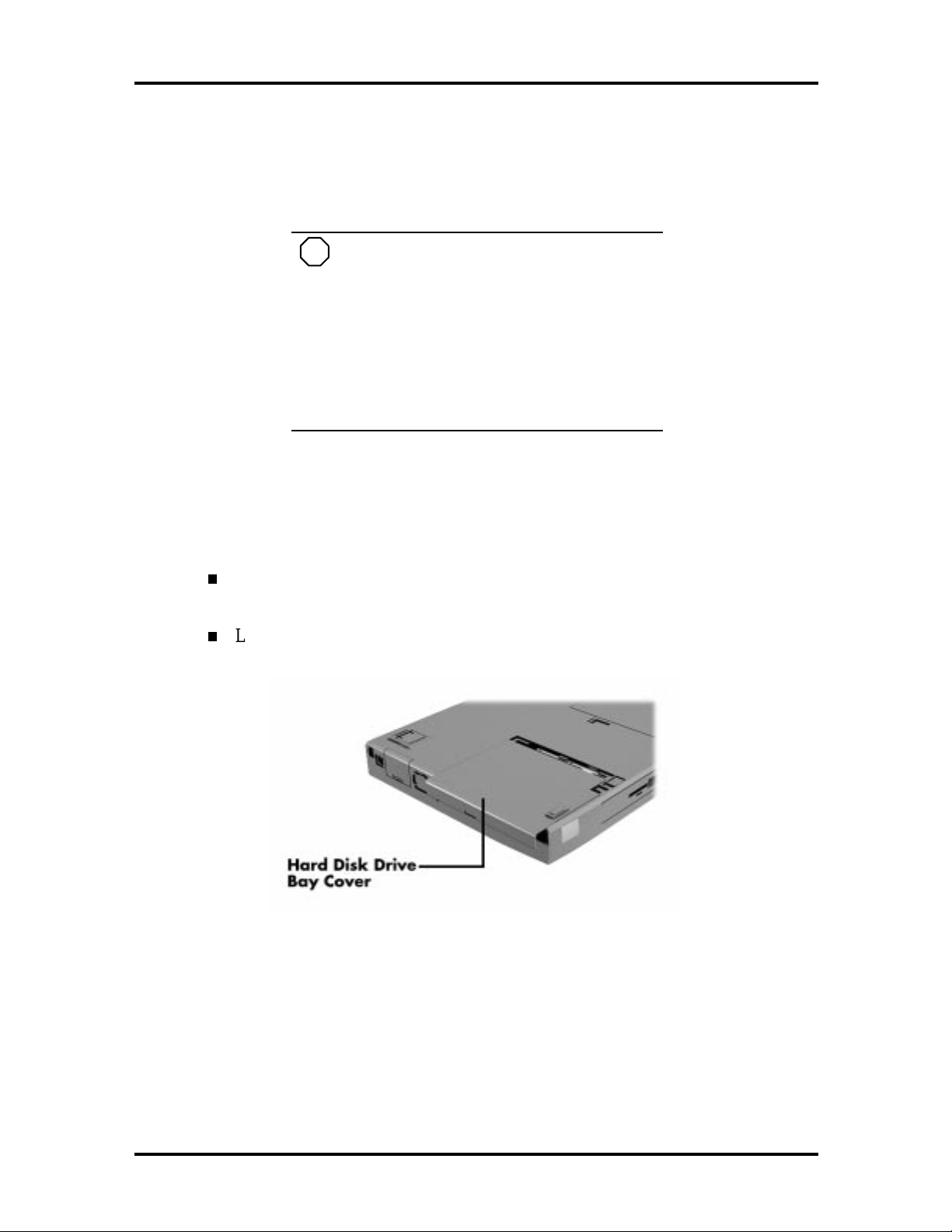

Hard Disk Drive....................................................................................................4-5

Diskette Drive.......................................................................................................4-7

Main Battery Pack (Li-Io n Type) ..........................................................................4-8

Removing the Keyboard........................................................................................4-10

Memory Upgrade..................................................................................................4-12

LCD and Top Cover.............................................................................................4-15

VersaGlide............................................................................................................4-18

LCD Status Bar and Power Button.......................................................................4-19

Bridge Battery, CMOS Battery, Buzzer ................................................................4-20

Sound Bo ard and Microphone...............................................................................4-21

IR Assembly and Graph Board..............................................................................4-21

CPU Assembly......................................................................................................4-23

I/O Board.............................................................................................................4-24

Illustrated Parts Breakdown.........................................................................................4-25

Service Informatio n......................................................................................................4-29

Technical Support........................................................................................................4-30

Product Informatio n .....................................................................................................4-30

Ordering Informatio n from FaxFlash............................................................................4-30

Appendix A Connector Locations and Pin Assignme nts

Appendix B Video Modes

List of Figures

1-1 NEC Versa 6220/30/60 Series Notebook....................................................... 1-1

1-2 LCD Panel..................................................................................................... 1-3

1-3 LCD Status Bar and Button Locations ........................................................... 1-4

1-4 System Status Bar.......................................................................................... 1-5

1-5 Keyboard Layout ........................................................................................... 1-6

SOLD BY laptopia2005 DO NOT RESELL!!

Page 10

SOLD BY laptopia2005 DO NOT RESELL!!

1-6 VersaGlide Location ...................................................................................... 1-7

1-7 NEC VersaBay II Location............................................................................ 1-7

1-8 Right Side Features........................................................................................ 1-8

1-9 Left Side Features.......................................................................................... 1-10

1-10 Rear Features ................................................................................................. 1-11

1-11 Sound Bo ard Layo ut...................................................................................... 1-13

1-12 Graph Board Layout ...................................................................................... 1-14

1-13 I/O Board Layout........................................................................................... 1-14

2-1 Connecting the AC Adapter........................................................................... 2-1

2-2 Powering on the System................................................................................. 2-2

2-3 Power and I/O Connect o r Locations.............................................................. 2-3

2-4 NEC Versa AC Adapter ................................................................................. 2-4

Contents vii

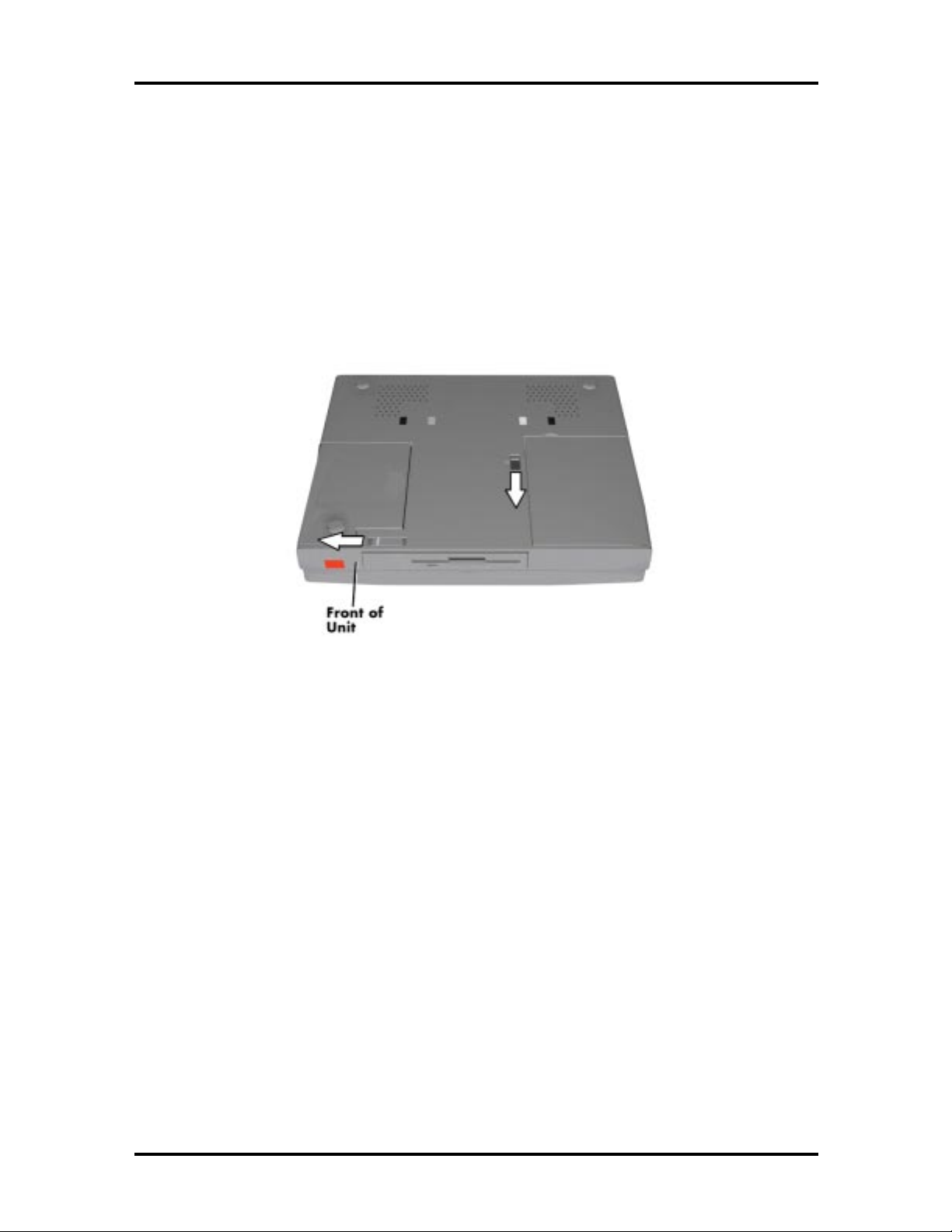

2-5 Remo ving the Co ver ...................................................................................... 2-8

2-6 Remo ving the Batt ery .................................................................................... 2-8

2-7 Inserting the Batt ery Pack.............................................................................. 2-9

2-8 Replacing the Cover....................................................................................... 2-9

2-9 Connecting the Car DC Adapter..................................................................... 2-11

2-10 Keyboard Panel LEDs and Controls............................................................... 2-12

2-11 Status Bar Location ....................................................................................... 2-13

2-12 Dip Switch Location...................................................................................... 2-15

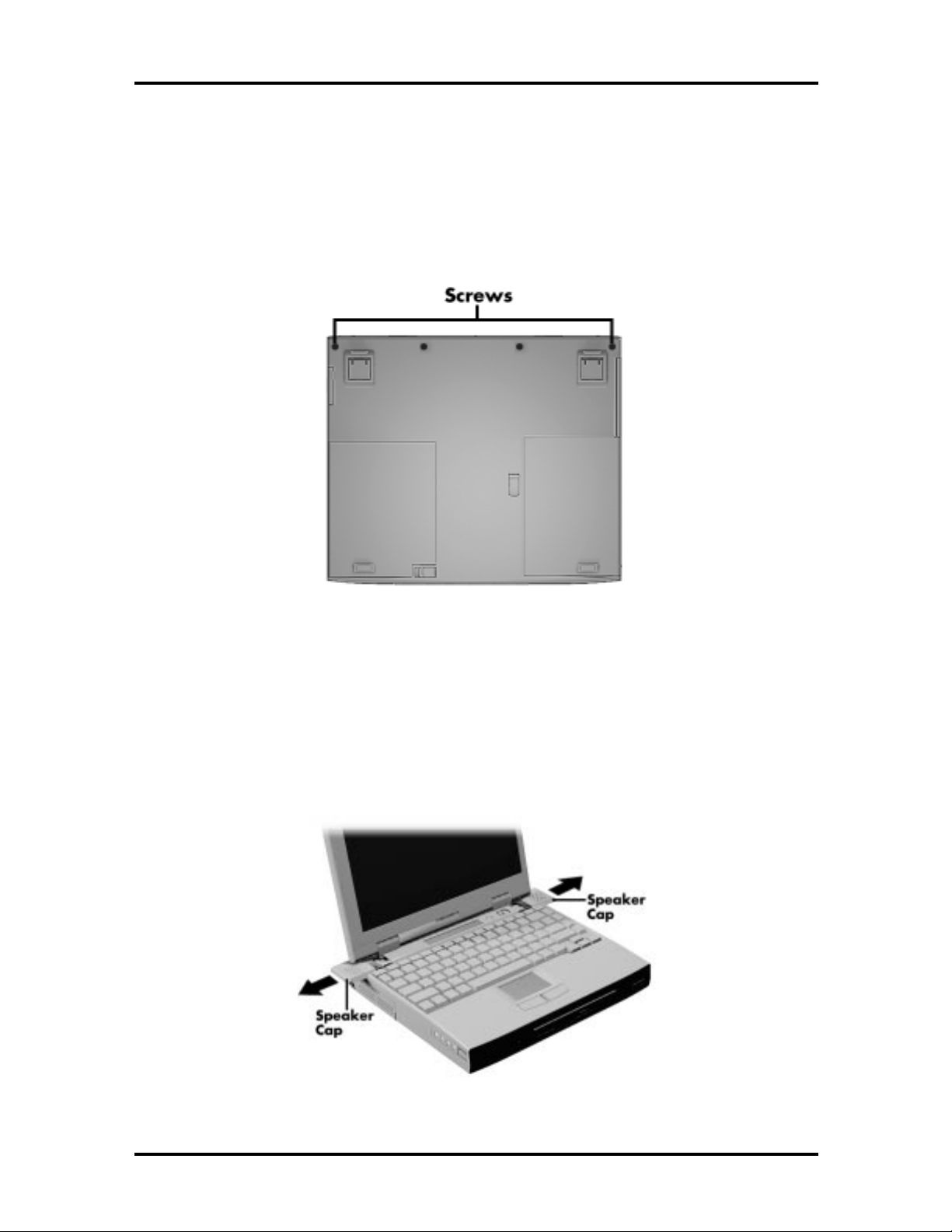

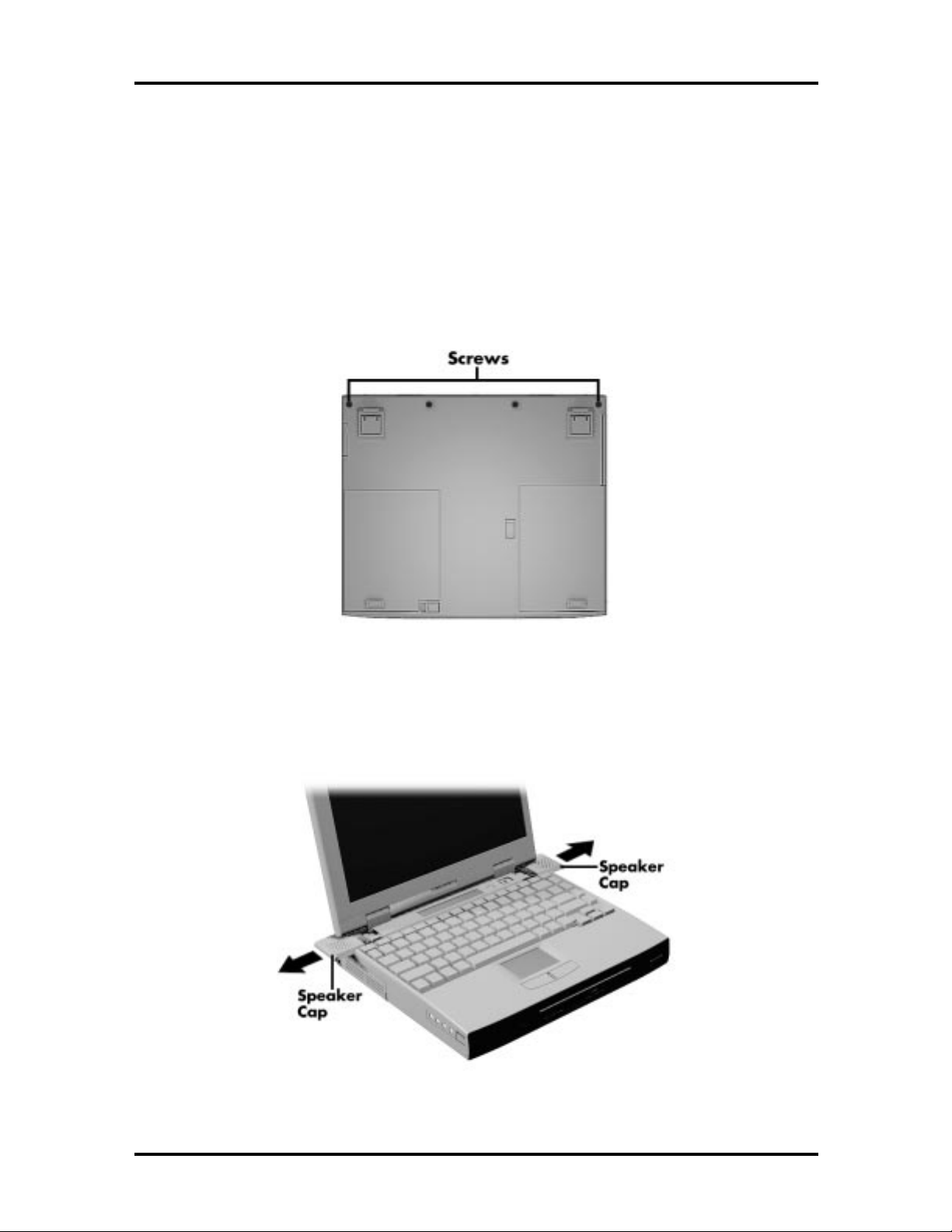

2-13 Locating the Speaker Cap Screws .................................................................. 2-17

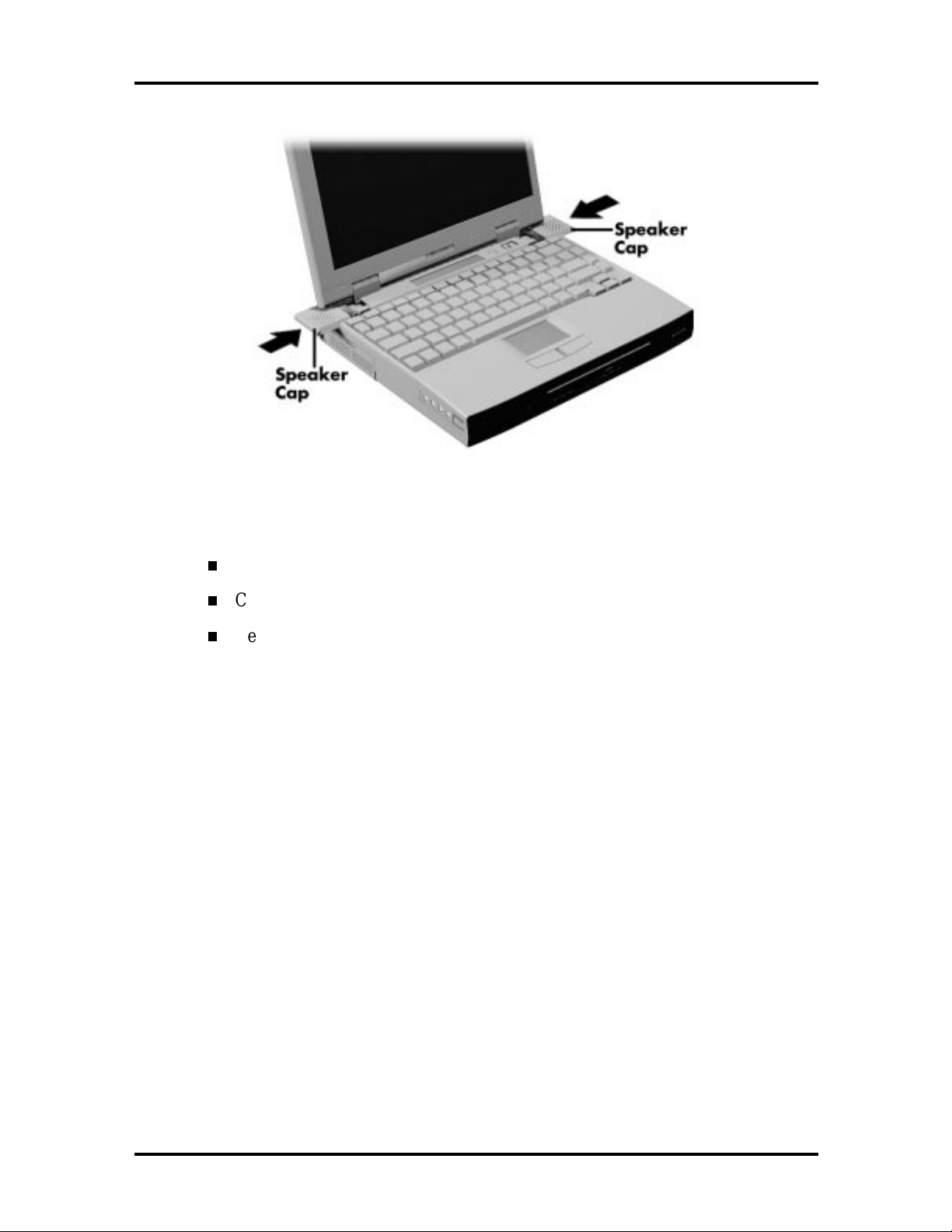

2-14 Removing the Speaker Caps........................................................................... 2-17

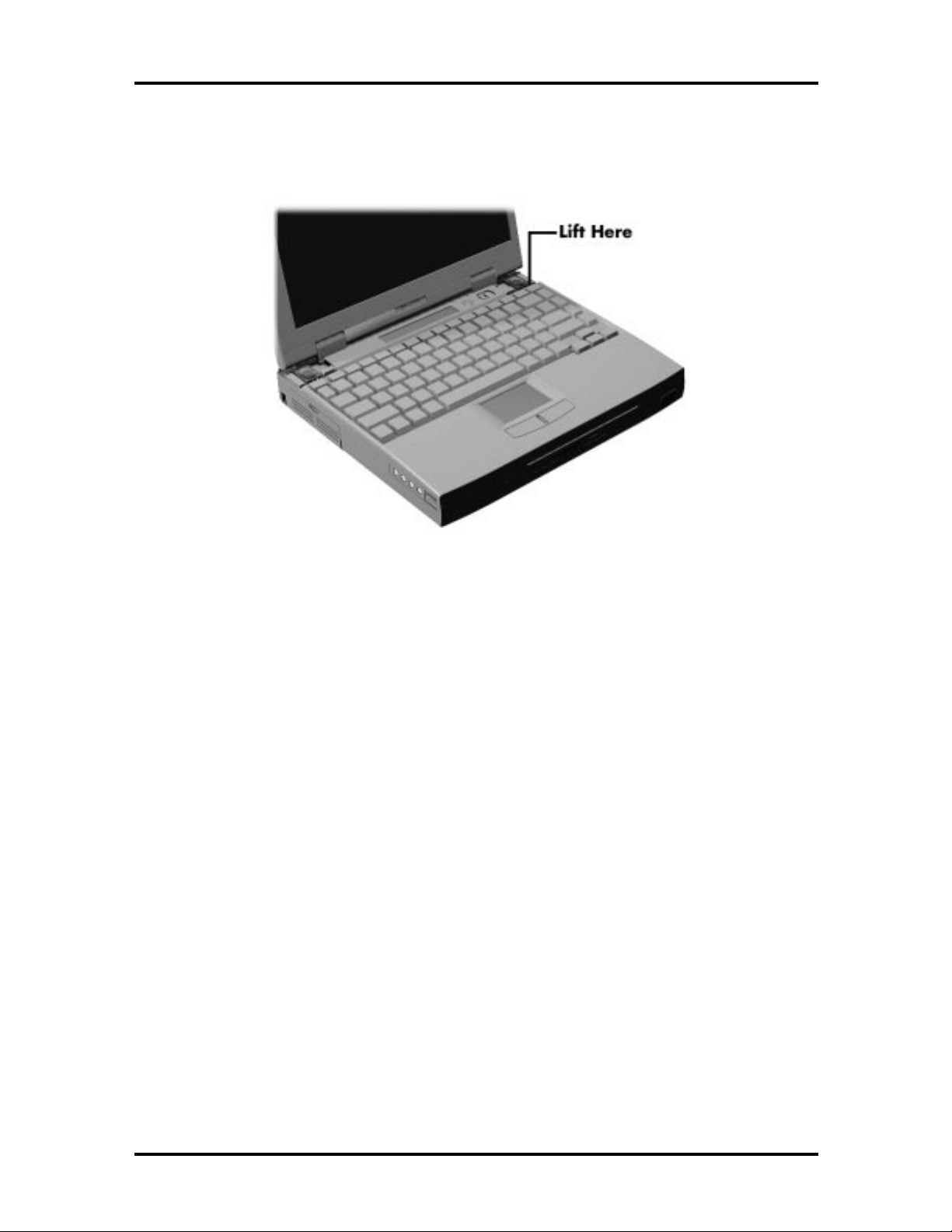

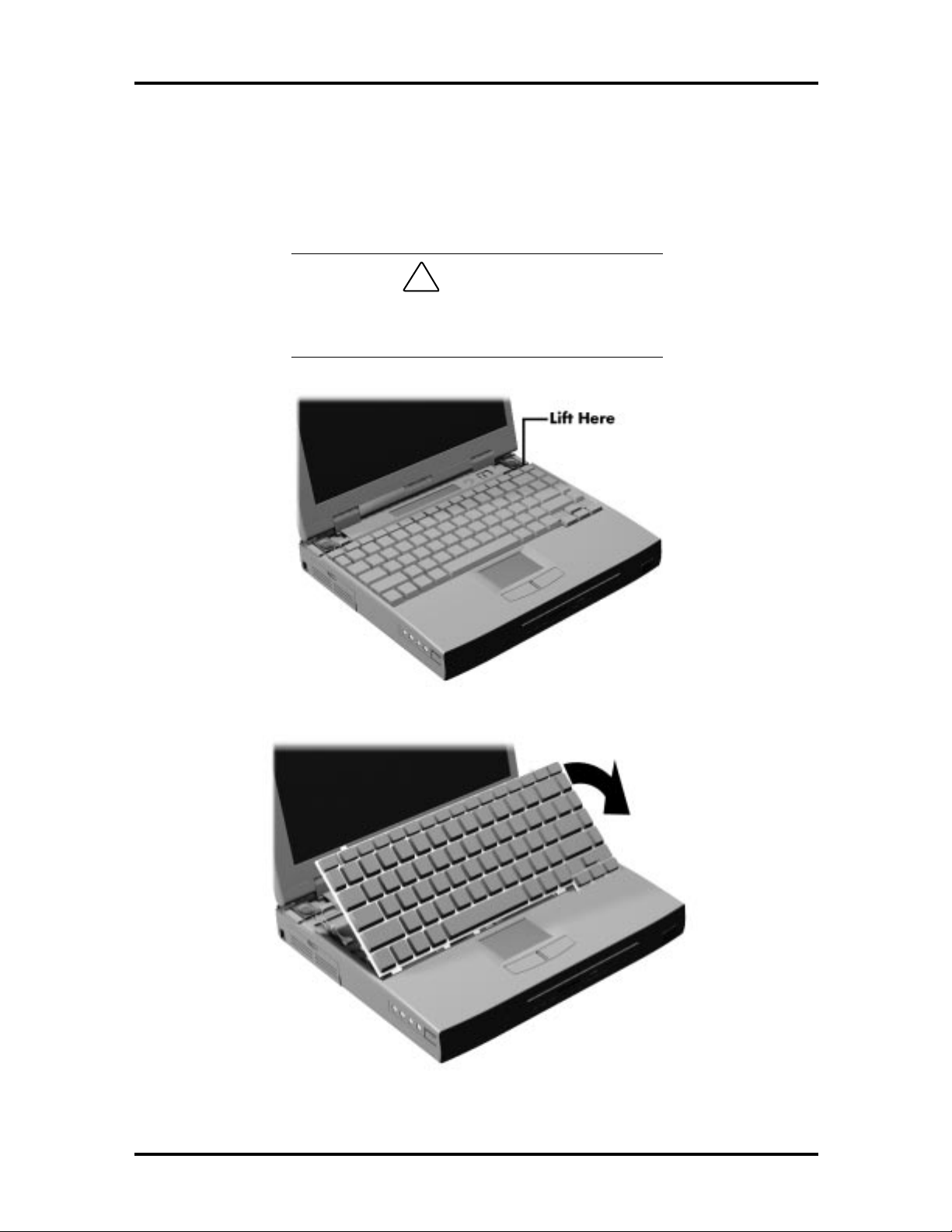

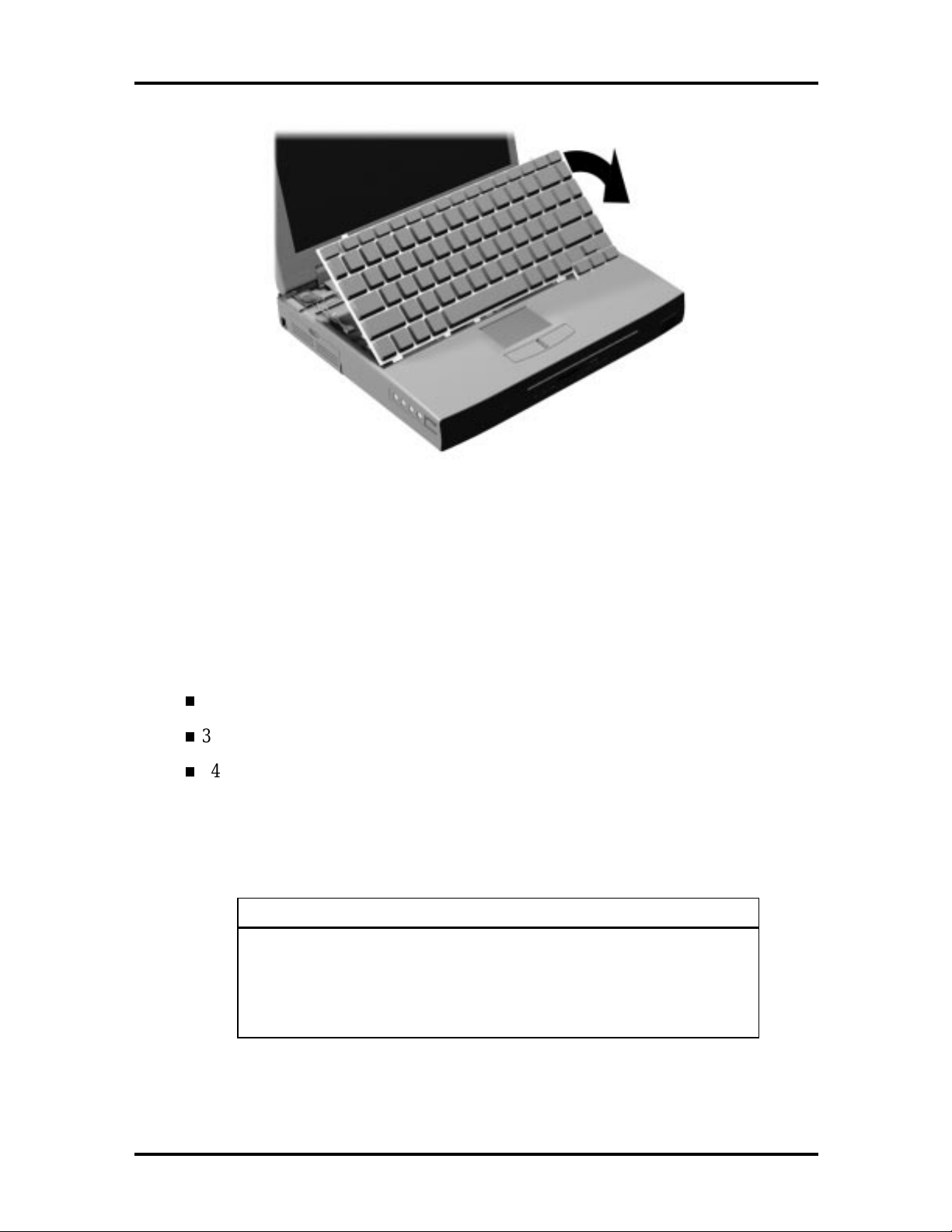

2-15 Lifting the Keyboard...................................................................................... 2-18

2-16 Posit ioning the Keyboard............................................................................... 2-18

2-17 Dip Switches.................................................................................................. 2-19

2-18 Reassembling the System............................................................................... 2-20

2-19 Setup Main Menu........................................................................................... 2-26

2-20 Advanced CMOS Setup Menu ....................................................................... 2-27

4-1 Remo ving the Drive Bay Cover...................................................................... 4-5

4-2 Remo ving the Hard Disk Drive ...................................................................... 4-6

4-3 VersaBay II Release Latches.......................................................................... 4-7

4-4 Remo ving the Standard Diskette Drive........................................................... 4-8

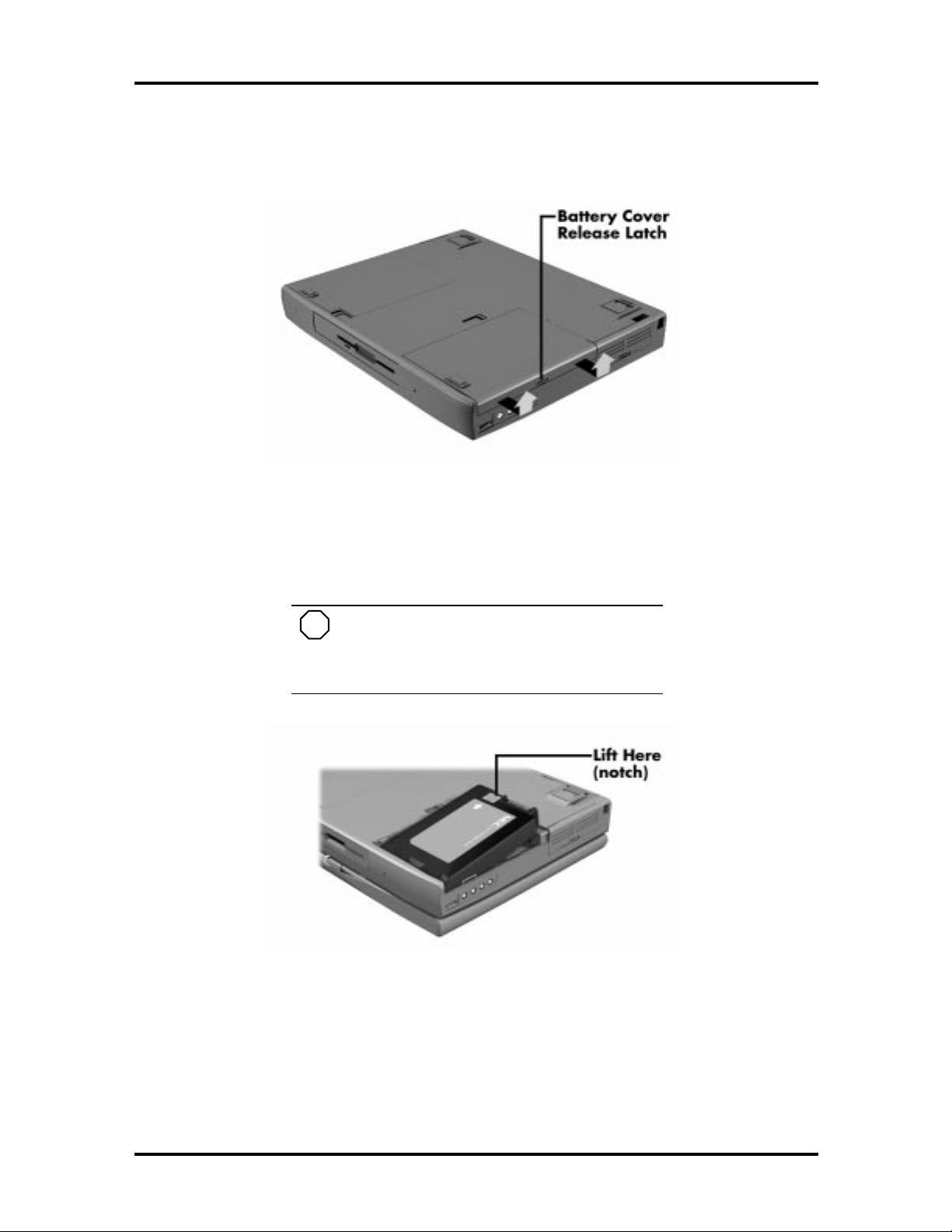

4-5 Remo ving the Batt ery Compartment Cover.................................................... 4-9

4-6 Remo ving the Batt ery .................................................................................... 4-9

4-7 Locating the Speaker Cap Screws.................................................................. 4-10

SOLD BY laptopia2005 DO NOT RESELL!!

Page 11

SOLD BY laptopia2005 DO NOT RESELL!!

viii Contents

4-8 Remo ving the Speaker Caps........................................................................... 4-10

4-9 Lifting up the Keybo ard ................................................................................. 4-11

4-10 Posit ioning the Keyboard............................................................................... 4-12

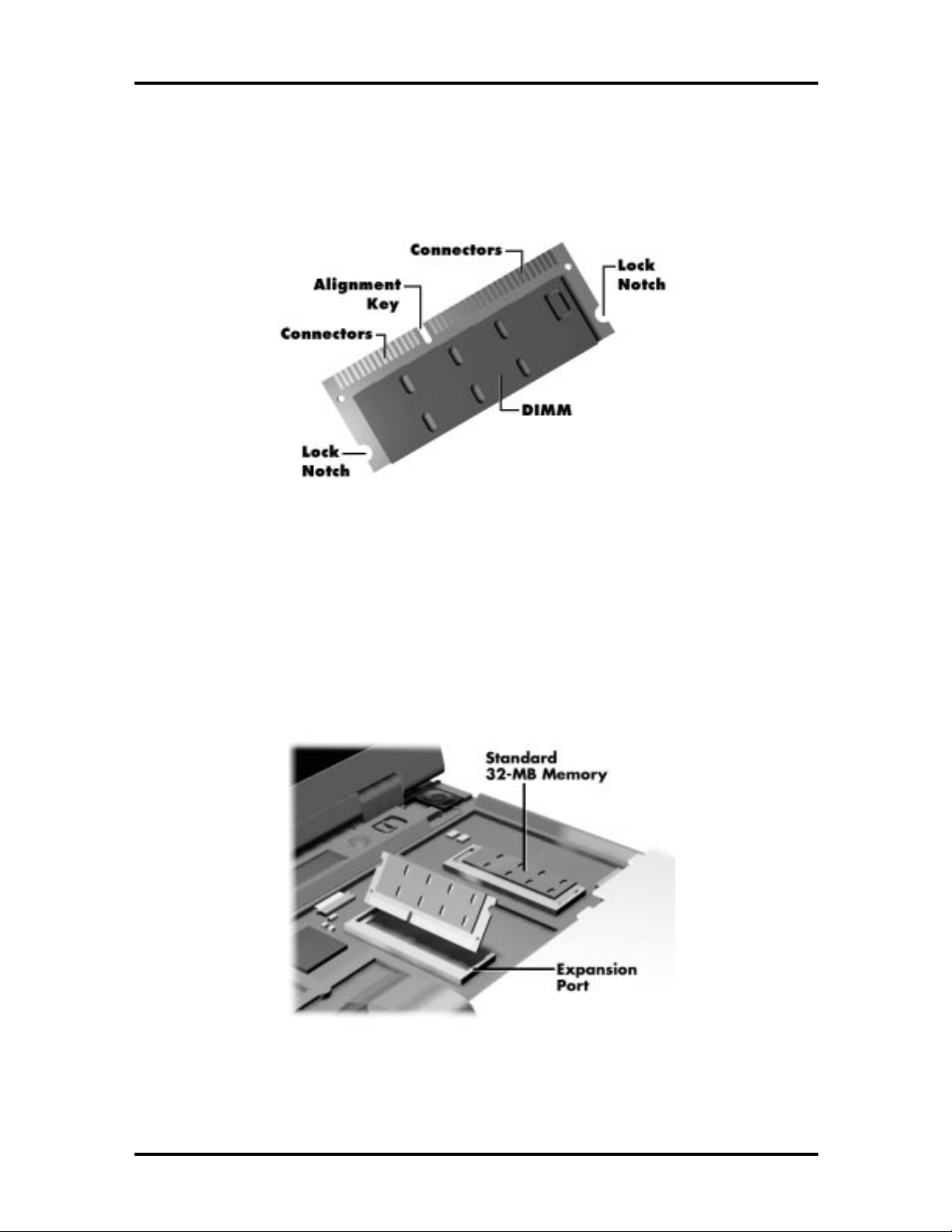

4-11 DIMM Features............................................................................................. 4-13

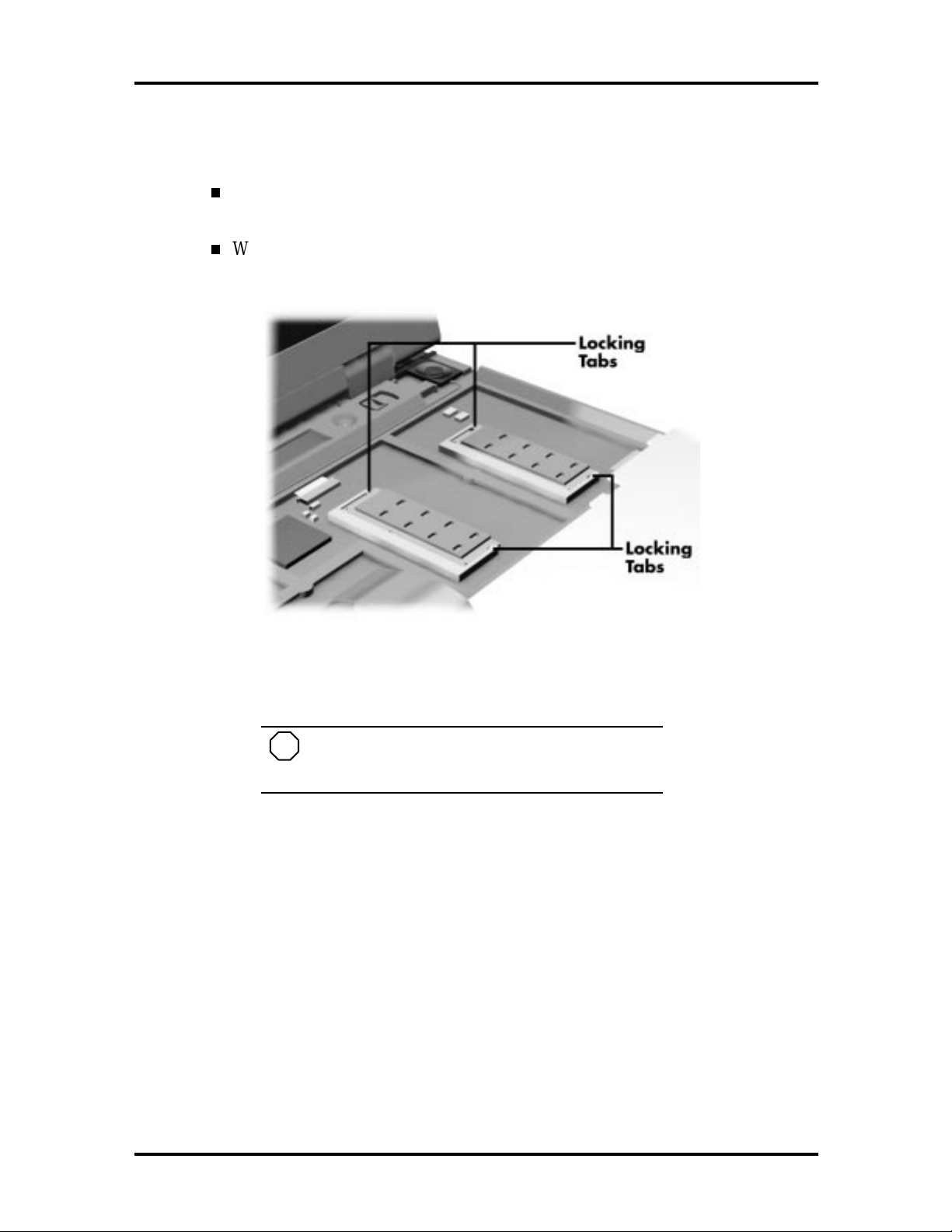

4-1 2 Ins talling t he DI MM....................................................................................... 4-13

4-13 Removing an Installed DIMM........................................................................ 4-14

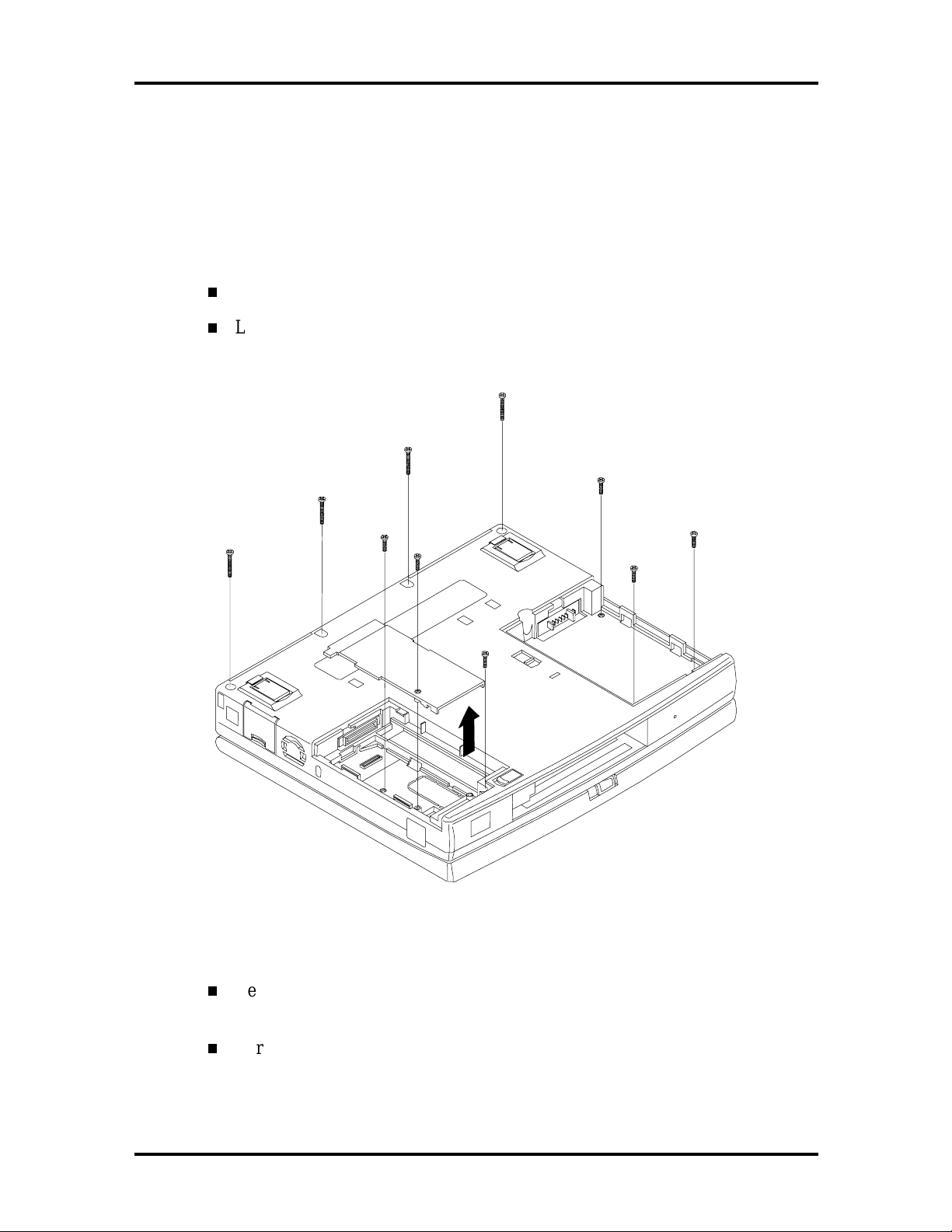

4-14 Removing the Bottom Base Screws................................................................ 4-15

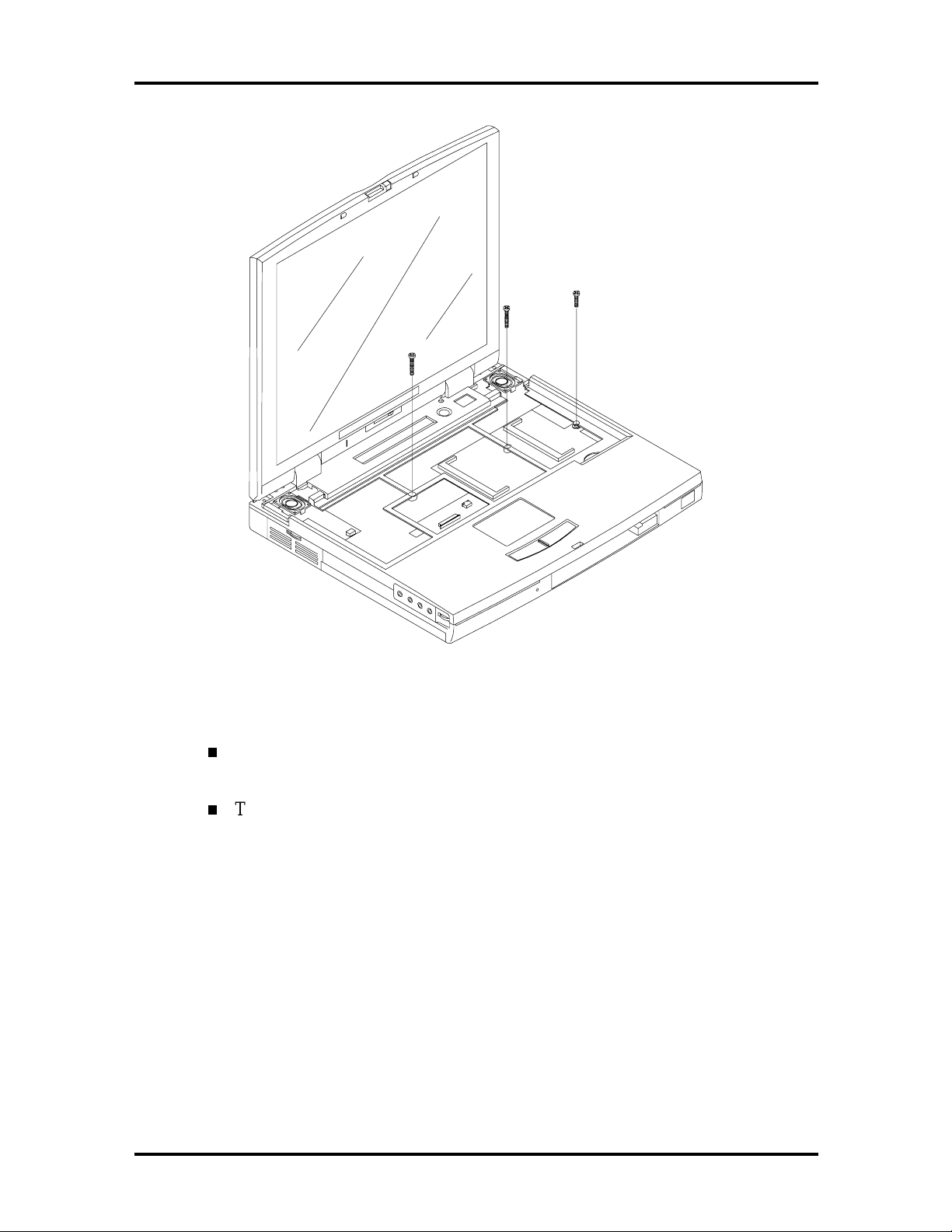

4-15 Location of the Three Screws......................................................................... 4-16

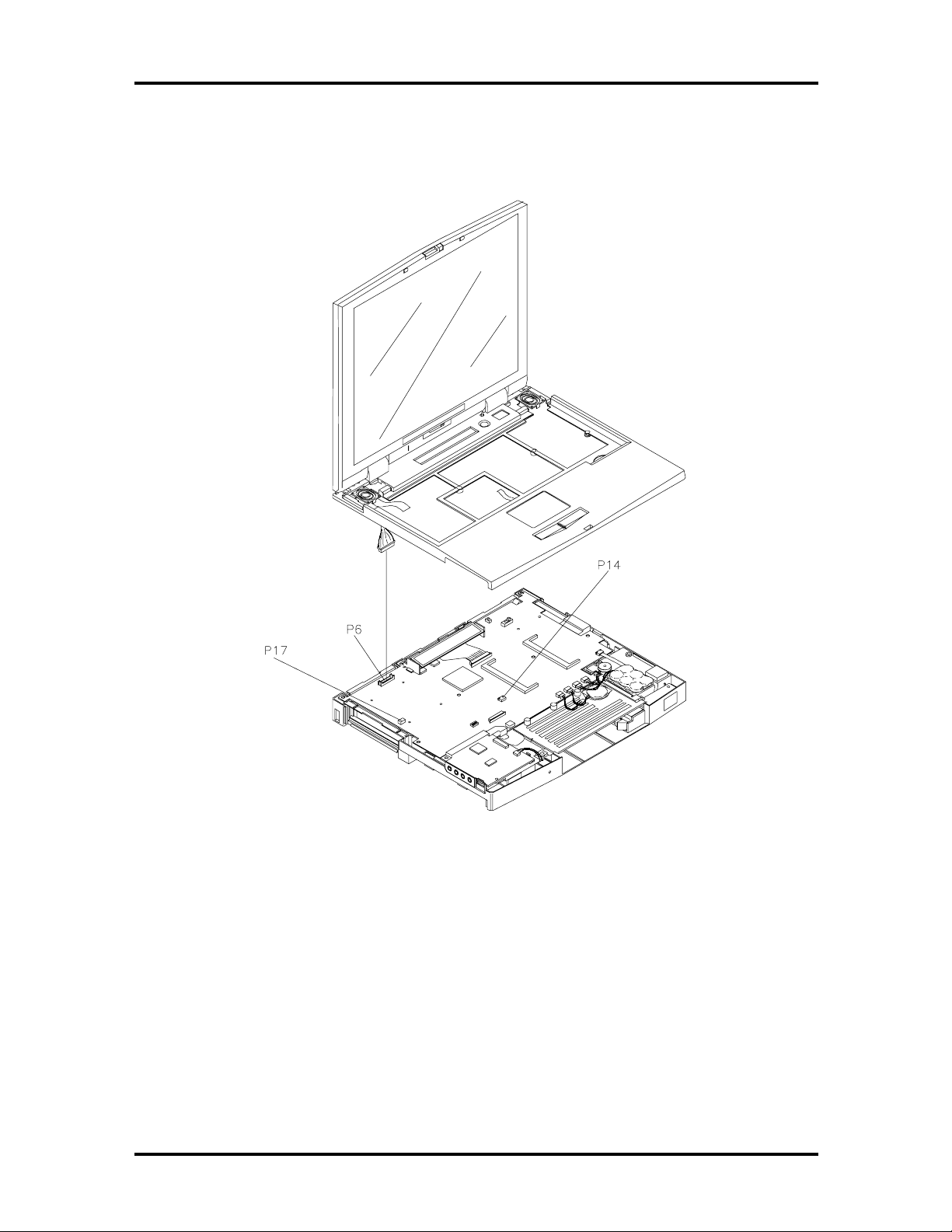

4-16 Separating the Top Cover from the Base Unit ................................................ 4-17

4-17 Removing the VersaGlide............................................................................... 4-18

4-18 LCD Status Board ......................................................................................... 4-19

4-19 Removing Bridge Battery, CMOS Batter y, and Buzzer .................................. 4-20

4-20 Removing the IR Assembly and Graph Board................................................. 4-22

4-21 Removing the CPU Board from the Graph Board........................................... 4-24

4-22 Removing the I/O Board................................................................................ 4-25

4-23 NEC Versa Model 6220/30/60 Illustrated Parts Breakdown........................... 4-26

A-1 Graph Board Layout ...................................................................................... A-1

A-2 I/O Board Layout........................................................................................... A-2

List of Tables

1-1 Model Configurations .................................................................................... 1-2

1-2 Memo ry Map................................................................................................. 1-16

1-3 NEC Versa Series Chip Types and Technologies............................................ 1-18

1-4 Interrupt Cont ro llers...................................................................................... 1-21

1-5 Automat ic Power-Saving Features ................................................................. 1-22

1-6 Maximum Performance Default Sett ings......................................................... 1-24

1-7 Specifications................................................................................................. 1-25

2-1 I/O Connector Descriptions............................................................................ 2-3

2-2 Control and Switch Functions ........................................................................ 2-12

2-3 Fn Key Operations ......................................................................................... 2-14

2-4 POST Error Messages.................................................................................... 2-22

2-5 Beep Codes.................................................................................................... 2-24

2-6 Setup Key Functions...................................................................................... 2-28

2-7 Setup Parameters........................................................................................... 2-29

SOLD BY laptopia2005 DO NOT RESELL!!

Page 12

SOLD BY laptopia2005 DO NOT RESELL!!

3-1 Troubl es hooti n g............................................................................................. 3-2

3-2 POST Error Messages.................................................................................... 3-4

3-3 Beep Codes.................................................................................................... 3-6

4-1 NEC Versa 6220/30/60 Disassembly Sequence .............................................. 4-4

4-2 System RAM Expansion................................................................................ 4-12

4-3 NE C Ver sa 6220/30/60 Field-Replaceable Parts............................................. 4-27

4-4 NEC Service and Information Telephone Numbers ......................................... 4-29

A-1 Graph Board Connectors................................................................................ A-2

A-2 I/O Board Connectors.................................................................................... A-3

A-3 Keyboard/Mouse Connectors......................................................................... A-3

A-4 Serial Port Connect o r Pin Assignments .......................................................... A-3

Contents ix

A-5 CRT Connector Pin Assignment s ................................................................... A-4

A-6 Parallel Printer Pin Assignments ..................................................................... A-4

A-7 Power Connector ........................................................................................... A-5

A-8 Hard Disk Drive Connect o r............................................................................ A-5

B-1 LCD Display Mode Setting (1024x768 TFT Color LCD and

Simultaneous CRT Display) Standard Video Mode .................................... B-1

B-2 Frequency Table of Standard Video Mode ..................................................... B-2

B-3 Expanded Video Mode................................................................................... B-2

B-4 Frequency Table of Extended Video Mode..................................................... B-3

B-5 CRT Display Mode Setting (CRT-only Display)............................................. B-3

B-6 Extended Video Mode................................................................................... B-4

B-7 Panning Video Mode for (1024x768 TFT Color LCD and

Simultaneous CRT Display)....................................................................... B-5

B-8 NTSC/PAL TV Display Mode ....................................................................... B-5

B-9 Panning NTSC/PAL TV Mode....................................................................... B-5

SOLD BY laptopia2005 DO NOT RESELL!!

Page 13

SOLD BY laptopia2005 DO NOT RESELL!!

Section 1

Technical Information

The NEC Versa 6220/30/60 notebook computer is lightweight, compact, and fully IBM compatible.

NOTE

This service manual covers only the NEC Versa 6220/30/60 notebooks. All figures in this manual r eflect this series of noteboo ks.

Figure 1-1 NEC Versa 6220/30/60 Series Notebook

This section of the manual provides system configuration information, including an overview of hard war e and interface components. See the following table for a system-specific breakdown of the hardware.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 14

SOLD BY laptopia2005 DO NOT RESELL!!

1-2 Technical Information

Table 1-1 Model Configurati ons

Feature NE C V ersa 6220 NEC V ersa 6230 NEC V ersa 6260

CPU Intel Pentium® with

MMX technology

P55CLM/200 MHz O n- B oar d DRA M 32-MB 32-MB 32-MB Video Memory 2-MB 2-MB 2-MB Hard Disk Drive 3.0 GB 12.5 mm high 5.4 G B 17mm high 5.4 GB 17mm high CD-ROM Reader 20X CD-ROM Reader 20X CD-ROM Reader 20X CD-ROM Reader Color LCD 13.3” E xtended

Graphics Array

(XGA),TFT Color

Display

Intel Pentium® with MMX technology P55CLM/233 MHz

13. 3” E xtended Graphics Array (XGA),TFT Color Display

Intel Pentium® with MMX technology P55CLM/266 MHz

13. 3” E xtended Graphics Array (XGA),TFT Color Display

HARDWARE OVERVIEW—FRONT

Take a moment to be come familiar w ith th e locatio n and fu nction of co nt rols located on th e front of the system.

Liquid Crystal Display (LCD)

The LCD operates with the NeoMagic NMG4 contro ller. The contro ller supports XGA, uses a 64-bit accelerator with a Peripheral Component Interco nnect ( P CI ) interface. The LCD also supports VESA t iming.

The NEC Versa 6220/30/60 LCD features the following:



13.3-inch Extended Graphics Ar r ay (XGA) TFT high-resolution active matrix

XGA c olor display



0.264 mm do t pitch



18-bit digital interface



1024 x 768 resolution



64K colors.

Additional LCD panel features:



Power LED that indicates the current power status. This LED is visible with the

LCD panel opened or closed.



Slid e switch t hat adjusts screen brightness.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 15

SOLD BY laptopia2005 DO NOT RESELL!!

Figure 1-2 LCD Panel

Technical Information 1-3

Another video feature includes a CRT port o n t he system's rear panel that allows the user to connect an opt ional monochrome or color external display to the system. The computer can support the LCD and external display simultaneously.

Power- sav ing features for con trolling t he L CD's backlig ht ing in clude th e ROM-based h ot key combination Fn F5, and Auto Setup power management settings. See Section 2, Setup and Operation, for information on using these sett ings. In addition, the automatic LCD status featur e conserves the backlight. When the LCD is closed the backlight shuts off automatically, saving battery power.

Power Button

Slide the Power button to the right to power on and power off the computer. The Power butto n is a “smar t” switch, meaning that it recognizes when the system is in Suspend mode. If in Suspend mode, you cannot power off until yo u pr ess the Suspend butto n again to bring the system out of Suspend mode.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 16

SOLD BY laptopia2005 DO NOT RESELL!!

1-4 Technical Information

Figure 1-3 LCD Status Bar and Button Locati ons

LCD Status Bar and Power Indicator

The LCD status bar is situated right below the LCD screen. It pro vides an easy way to detect system stat us. Different graphic icons appear on the LCD bar indicating that a device is accessed, an operat ion performed, or a po wer mode activated. The graphic icons displayed on the LCD bar resemble either t heir physical characteristics or their primary function. See the LCD Stat us Bar figure shown next, and the descriptions that follow for the specific meaning of each icon.

The power indicator is located just above and to t he left of the status bar. T he power indicator lights green when computer power is on.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 17

SOLD BY laptopia2005 DO NOT RESELL!!

Figure 1-4 System Status Bar

Technical Information 1-5

Status Icons

The following list defines the status icons displayed in the system status bar.



Suspend — appears when the system is in Suspend mode. Suspend mode conserves system power by shutting down devices in the system while ret aining data and system status.



Power Management — shows the current power management mode in use, including Off, Custom, High Performance or Longest Life.



Diskette Drive — appears when the NEC Versa writes data to or retrieves data from a diskette.



Hard Disk — shows when the NEC Versa writes data to or retrieves data from the hard disk.



Caps Lock — appears when Caps Lock is in effect.



Scroll Lo ck — sh ows th at Scr oll Lo ck is in e ffect.



Num Lock — appears when Num Lock is in effect. Num Lock lets the user enter number s for calculations via the numeric keyp ad.



Battery Stat us — displays the percentage of battery power available.

 Battery 1 appears when you have the main battery installed in the battery bay.  Batter y 2 appears when you have an optional battery installed in the

VersaBay II.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 18

SOLD BY laptopia2005 DO NOT RESELL!!

1-6 Technical Information

Keyboard

The built-in, 85-key keyboard (U.S.) or 79-key keyboard (UK and Germany) uses the standard QWERTY format. The keyboard pro vides 12 function keys and 7 cursor control keys, with an Fn key for ROM-based key functions. The numeric keypad is embedded in the standard key layout.

Figure 1-5 Keyboard Layout

NEC VersaGlide

The NEC VersaGlide is a built-in mechanism that functions as the system’s mouse. It co ntro ls the on-screen po inter (cur sor). T o use the VersaGlide, move your finger across the NEC VersaGlide pad, and the cursor follows. T he buttons below the NEC VersaGlide allow the user to select or deselect menu items. Tap and double- tap are supported on the VersaGlide pad.

The PS/2 Microsoft mouse is the system’s default pointing device until the user selects the NEC Setup icon. When the user selects the NEC Setup icon, the NEC VersaGlide is installed as the system pointing device. If an external mouse is installed, the NEC VersaGlide is deactivated. A serial mouse is not supported.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 19

SOLD BY laptopia2005 DO NOT RESELL!!

Figure 1-6 VersaGlide Location

Technical Information 1-7

Diskette Drive and the NEC VersaBay II

A standard 1.44-MB diskette drive or SuperDisk LS-120 drive comes installed in the VersaBay II slot on the front o f the computer . T he VersaBay II expansion slot lets the user replace the standard diskette drive with the 20X CD-ROM reader that also ships with the system. In addition to t he CD-ROM reader , the VersaBay II accepts NEC options including a second battery pack, or an additional har d disk.

Figure 1-7 NEC VersaBay II Location

SOLD BY laptopia2005 DO NOT RESELL!!

Page 20

SOLD BY laptopia2005 DO NOT RESELL!!

1-8 Technical Information

Infrared (IR) Assembly

The IR assembly consists of a small board with two infrared LEDs, connected to the Graph board at co nnector P10. The board allows the NEC Versa computer to communicate with other infrared-ready computers. For example, the infrared port allows the user to transfer files between the NEC Versa and an IR-equipped computer, or pr int to an IR-equipped printer without using cables.

HARDWARE OVERVIEW—RIGHT SIDE

Review the following section for a description of the hardware on the right side of the NEC Versa.

Figure 1-8 Right Side Feature s



Kensington Lock — Gives the user the option to add an optional Kensington Lock.



Hard Disk Drive Bay Cover Release Latch — The hard disk drive bay contains the remova ble hard disk dr ive.

To access the hard disk drive, power off the system, turn the system over, remove the hard disk drive bay co ver scr ew and lift up the hard disk drive bay cover release latch while pushing the cover away from the system.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 21

SOLD BY laptopia2005 DO NOT RESELL!!

Fan Vents — Allow your system to co ol properly and maintain a safe operating



temperature.

Always keep the fan vent clear to allow proper system cooling.

USB Port — The Univer sal Serial Bus (USB) port allows you to connect up to



127 USB-equipped peripheral devices to your NEC Versa.

TV Out Jack — Lets you use your television set as an external mo nitor . T his port



supports both NTSC and PAL signals.

Technical Information 1-9

CA UT ION

NOTE

The TV Out port does not suppo r t the SECAM signal used in some countries. For proper display, set the video mode to 640 x 480.



AC Power Por t — Use the power jack to attach the NEC Versa to a DC power source, such as t he AC adapter or the op tional DC car adapter.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 22

SOLD BY laptopia2005 DO NOT RESELL!!

1-10 Technical Information

HARDWARE OVERVIEW — LEFT SIDE

Review the following section for a description of the hardware on the left side of the NEC Versa.

Figure 1-9 Left Side Features



PC card slots — provides two slots for inserting two Type II PC cards or one Type III PC card.

Batter y bay and battery bay cover release lat ch — Co nt ains an eight-cell Lithium



Ion (Li-Ion) battery that lets yo u run your system on DC power.



Audio ports and a volume cont r ol knob. The audio ports include:

 Volume Co nt rol — allows you to co nt rol the speaker volume.  Headphones — lets you connect external headphones or speakers to your

NEC Versa. Plugging in headphones disables the built-in syst em speakers.

 Line- Out — lets the NEC Versa act as an input source for another audio

system. Connect this port to a Line-In port on anot her audio system to play or record.

 Line-In — lets you use another audio system, like a home stereo, as an input

source. Use a cable to connect to the Line- O ut port on the other audio system to record or play.

 Microphone (MIC) — allows you to connect an external micro pho ne for

monophonic recording or amplificat ion through the unit. Plugging in an external micro phone disables the bu ilt-in microphone.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 23

SOLD BY laptopia2005 DO NOT RESELL!!

HARDWARE OVERVIEW — REAR SIDE

Review the following sections for descriptions of the hardware on the rear o f the NEC Versa.

Technical Information 1-11

Figure 1-10 Rear Features

Keyboard/Mouse Port — Use the standard PS/2 port t o connect an external



PS/2-st yle mouse or a PS/2-style keyboard to the system. With an optional Y-cable adapter, you can connect both a mouse and a keyboar d at the same time.



Par allel Por t — U se th is port to connect a para llel printer or othe r para llel device. Th e p ort is an Enhanced Capabilities Port (ECP) . The ECP stan dard provides you with a greater processing speed than the conventional parallel port. I t also supports Enhanced Parallel Port (E PP) bi-directional and uni-directional pr otocols.



Expansion Port — T his port (also called the Docking po r t) provides a connection for NEC Versa 6220/30/60 options including the NEC Docking Station 6000 Plus, the NEC PortBar 6000, t he NEC MiniDock 6000, and the NEC Floppy Disk Drive (FDD) Co nnector.

Only dock the NEC Versa 6220/30/60 Series notebooks on the NEC Docking Station 6000 Plus or the NEC MiniDock 6000. T he cover of the docking station is specially designed to allow for proper system cooling.

CA UT ION

SOLD BY laptopia2005 DO NOT RESELL!!

Page 24

SOLD BY laptopia2005 DO NOT RESELL!!

1-12 Technical Information

External Monitor (Video) Por t — Use this 15-pin port t o att ach an external



monitor to your NEC Versa. You can run the LCD display and the external monitor simultaneously or run either alone.

Serial Port — Use this port to co nnect an external modem or other serial device.



HARDWARE OVERVIEW—INTERNAL COMPONENTS

Review the following sections for a description of the system’s internal hardware.

Battery Pack

The system uses a rechargeable Lithium-Ion (Li-Ion) battery as its transient power source. The battery pack installs in the compartment next to t he VersaBay II on t he bottom of the NEC Versa.

Hard Disk Drive

A standard 2.5-inch 3.0- GB 12. 5 mm or 5.4-GB 17 mm hard disk drive ships with the system.

Diskette Drive

The interchangeable 3.5-inch 1.44 MB diskette drive inst alls in the front of the system in the VersaBay II slot .

20X CD-ROM Reader

A 20X CD-ROM reader ships with the NEC Versa 6220/30/60 notebooks. The interchangeable t went y-speed CD-ROM reader featur es the latest in CD-ROM technology. It installs in t he front of the system in the VersaBay II slot .

CPU Board

The CPU board is a rectangular-shaped board located between the graph board and I/O board. The CPU boar d is part of a subassembly, which includes a heat sink, fan and the CPU board.

Sound Board

Th e sound board provides the NEC Versa system with its au dio capabilities via line-in/lin eout jacks, and headphone/micro pho ne jacks. It is situated on top of the main board. The sound board integrates the following features:



ESS Technology Plug and Play support

 ES1869

SOLD BY laptopia2005 DO NOT RESELL!!

Page 25

SOLD BY laptopia2005 DO NOT RESELL!!

 Integrat ed Music Synthesis, ESFM™ and Stereo Digital to Analog Converter

(DAC) FM Synthesizer

 16 bit Stereo CODEC  4.0KHz to 44.1KHz Sampling Rate  7 Channe l Mixer.

Technical Information 1-13

Figure 1-11 Sound Board Layout

SOLD BY laptopia2005 DO NOT RESELL!!

Page 26

SOLD BY laptopia2005 DO NOT RESELL!!

1-14 Technical Information

Graph Board

The system Graph board (G8YJP) ho uses a variety of connectors and cont r ols, including the DIMM connecto r s. These are identified in the diagr am shown in Appendix A.

Figure 1-12 Graph Board Lay out

I/O Board

The system I/O board (G8YAQ) contains peripher al subsystems including serial, par allel and video port s, and charger. I t is located underneath the main bo ar d. Refer to Appendix A for a list of connectors.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 27

SOLD BY laptopia2005 DO NOT RESELL!!

Figure 1-13 I/O Board Layout

CMOS Battery

Technical Information 1-15

The lit hium battery (3 Volts, 280 mAh capacit y) is attached to P13 on the Graph board. It provides battery backup and prevent s data loss in the system’s complementary metal oxide semiconductor ( CMOS ) RAM. T his memory area contains infor mation on the system’s configu ra tion like date, t ime, drives, and memory. The CM OS batter y lasts approximately three years.

Bridge Battery

The bridge batter y saves the memory contents and system status for up to 5 minutes while in Suspend mode. I t is connected to the Graph board via connector P11. T he AC adapter maint ains voltage in the br idge batt er y when the system is power ed on or off. The bridge battery stores 7.2 Vo lts, 70 mAH.

SYSTEM MEMORY

The Graph board provides 32 MB (3.3 V SO-D I MM) of standard RAM. Optional SO-DIMMs with a value of 16-, 32-, or 64-MB can be added to increase system

memo r y up to a maximum of 128-MB (70 ns 3.3V EDO access). In addition, 256-KB of read-only memory (ROM), 1 x 28F020, enables the system BIOS to be flashed.

The system provides 2 MB of video RAM (50-ns HyperPage mode, self-refresh). The follo wing Cache RAM is pr ovided:



L1: 32 KB (Internal Pentium)



L2: 512 KB write back (External).

SOLD BY laptopia2005 DO NOT RESELL!!

Page 28

SOLD BY laptopia2005 DO NOT RESELL!!

1-16 Technical Information

Memory Map

The system supports system and video memory shadowing, both controlled through complementary metal oxide semiconductor (CMOS sett ings). The system supports BIOS as a cacheable area with write pro tection. Table 1-2 lists the system's memory map.

Table 1-2 Memory Map

Memory Space Size Function

000000-0002FFh 768 bytes BIOS Interrupt Vector Table 000300-0003FFh 256 bytes BIOS Stack Area 000400-0004FFh 256 bytes BIOS Data A r ea 000500-09FFFFh 639 KB Applicati on M emory (used by the Oper ating

System, devi c e dr iver s, TSRs, and all DO S

applicat ions) 0A0000-0AFFFFh 64 KB Video Buffer ( E GA and VGA) 0B0000-0B7FFFh 32 KB Video buf fer (m onoc hr ome, CGA c olor, VGA

monochrome) 0B8000-0BFFFFh 32 KB Video Buffer (CG A , EGA col or , and VGA color ) 0C0000-0CBFFFh 48 KB Video ROM (E GA and VGA) 0CC000-0CFFFFh 16 KB Unused, (Reserved for Adapter ROMs and other

devices requiring ROMs) 0D0000-0DFFFFh 64 KB Used by Adapter ROMs (i.e., network controllers,

hard disk controllers, SCSI host adapters) 0E0000-0EFFFFh 64 KB Used by System ROM adapters (i.e., network

controllers with boot capability) 0F0000-0FFFFFh 64 KB System A M IBIOS (includes Setup and hard disk

drive utilities) 100000-1FFFFFFh 32 MB Bui lt-in E xtended Mem or y 2000000-5FFFFFFh 64 MB Ex tended Memory

SYSTEM VIDEO

The system's LCD o per ates using the NeoMagic NMG4 VGA Controller . Video signals travel from the controller through the system's 15-pin D-SUB connector using 5 volts.

System video integrates a PCI-bus interface. The system ships with 2 MB Video RAM (VRAM). It supports video modes up to 1024 x 768 with 64K colors in LCD mode.

See A pp endix B for a list of Video modes .

SOLD BY laptopia2005 DO NOT RESELL!!

Page 29

SOLD BY laptopia2005 DO NOT RESELL!!

PARALLEL INTERFACE

The system' s parallel interface integrates National Semiconductor’s PC87338 chip with a 25-pin D-subconnector. T he por t is located o n the system's rear panel.

The modes of operation available fo r a PC87338 chip are:

comp atibility mod e



nibble mode



byte mo de Ex tended Capabilities Port (ECP)



Enhanced Parallel Port (EPP).

The user selects between four parallel interface modes using Auto Setup. T hese include un idir ec tional, bid ire ctiona l, extended or e nhanced. Unid ire ctiona l mode sends data out put from the standard ISA port only. Bidirectional mode sends data using the standard ISA port or PS/ 2 technology. Enhanced mode enables high speed data transmission to occur using either th e u nidire ctional or bidir ec tional modes.

Technical Information 1-17

The default parallel port address is 378h and the interrupt level is IRQ07. Pin locations for the parallel interface are listed in Appendix A.

SERIAL INTERFACE

The RS-232C serial port is a 9-pin connector on the system’s rear panel. The serial port consists of a 16550A and 16450 compatible serial port controller with a programmable baud rate up to 115,200 bps. The serial por t connects an RS-232C device or an external modem. The default serial port address is 3F8h and the int er r upt level is IRQ04.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 30

SOLD BY laptopia2005 DO NOT RESELL!!

1-18 Technical Information

NEC VERSA CHIP SET

Refer to Table 1-3 for a quick summary of chip types used in the system. See the Abbr eviations section at the beginning of this manu al for a translation of chip technologies.

Table 1-3 NEC Versa Seri es Chip Types and Technologie s

Chip Manufacture Description Technology

I ntel Penti um P55CLM Intel 200, 233 or 266 MHz CP U 320-pin TCP 82430T X (MTXC) Intel M-Triton System Controller 208-pin SQFP 82371T X (PIIX4) Intel M-PCI IDE ISA Xcelerator 176-pin TQFP N28F020-150 Intel 256k x 8 Flash ROM 32-pin PLCC NMG4 NeoMagic VGA Controller 208-pin FQFP PC97338 National

Semiconductor M38813E Mitsubishi K ey boar d Controller 64-pin TQFP PC1131 Texas Instruments PC Card Controller 208-pin QF P

ES1869 ESS Technol ogies Sound Cont r oller 100-pin PQF P

Diskette Control ler, IDE, Parallel Interface

100-pin TQFP

Intel Pentium P55CLM Microprocessor

The 200, 233 or 266 MHz Intel Pentium microprocessors with MMX technology used in the NEC Versa 6220/30/60 computer is built on Intel’s advanced 2. 5V BiCMOS silicon technology. The CPU has on-chip dual-processing, a local multiprocessor interrupt contro ller, and power management features. NEC adopt ed the chip specifically for its pipelined Floatin g Po int Unit (FPU), and local inter rupt mana ge ment.

M-Triton System Controllers

NEC implements Intel’s Mo bile Triton technology (MTXC 83439TX) for the NEC Versa 6220/30/60 notebook’s subsystems including the DRAM contro ller, Second Level Cache Controller and PCI Bus interface. The Mobile Triton PCI set features include:



3.3V EDO DIMM (70-ns) support



direct mapped organization write-back policy



fully synchronous 33 MHz PCI bus interface.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 31

SOLD BY laptopia2005 DO NOT RESELL!!

256K X Flash ROM

The N28F020 flash ROM is a 32-pin, plastic lead chip carrier (PLCC). The chip allows easy updates to the system's BIOS if needed. More specifically, t he ROM is flashed electronically, insta lling th e latest BIOS re visions to the syste m. It is po ssible to reprogram the BIO S up to 100,000 times. See Section 2, Setup and Operation, for BIOS update procedures.

The N28F020 provides the system upgrade capability as well as t he follow ing:

256 KB memory



Quick- Pulse Progra mmin g Algorithm 150 nanoseconds (ns) maximum access time



ET OX Nonvolatile flash te chnolo gy



CMOS low power consumption

Technical Information 1-19

ROM BIOS

The system uses a Flash ROM known as the system's ROM BIOS to store machine language programs. The BIOS size is 256 KB, consisting of the system utility (f or PC card s, Auto Setup), system BIOS, video BIOS, and power management.

The BIOS programs execute the power-on self-test (POS T), initialize CPU controllers, and interact with the LCD indicator panel, diskette drive, hard drive, communication devices and peripherals. T he system BIOS also contains Auto Setup and provides VGA contro ller support. T he ROM BIOS is copied into RAM (shadowing) for optimum performance.

The ROM BIOS cont ains both the system and video BIOS. The system BIOS is located in the upper portion of the device; video BIOS is located in the lo wer portion. System BIOS is located between F0000h-FFFFFh.

The BIOS often changes after the product release to pro vide enhanced features or bug fixes. T o acquire the latest BIOS release, the ROM is flashed electro nically, allowing the BIOS update to occur without removing the ROM. See Section 2, Setup and Operation, for BIOS upgrade procedures.

VGA Controller

The NeoMagic NMG4 is a P CI 64- bit Graphics Accelerator. T he integrated programmable linear address featur e accelerates the graphics user int er face (GUI) performance. The contro ller also supports Hardware Multimedia and VESA interface standards. The controller provides ad van ced p ower ma nagement that he lps to min imize power us age in the followin g mo des:



normal operation



Standby (sleep) mode



panel off pow er sa ving modes.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 32

SOLD BY laptopia2005 DO NOT RESELL!!

1-20 Technical Information

Parallel Interface

The PC87338VJG chip is a 100-pin Thin Quad Flat Plastic (TQFP) chip. The cont roller changes 8-bit parallel data into serial data and writes the data to the diskette. Conversely, the serial data is transmitted from the diskette into parallel data, where it remains until the read operation takes place.

Additional PC87338VJG chip operations include:

ISA co mpa tib ility



low-power CMOS with enhanced power-down mode

Keyboard Controller

The keyboard contro ller (M38813E) supports a PS/2-st yle keyboar d, mouse and password security feature. Refer to Appendix A for keyboard interface connector pin assignments.

When data is written to the output buffer, the controller generates an interrupt, and requests the CPU to receive the data. The contr oller automatically adds an even parity bit to t he dat a sent and waits for a response. The device mu st acknowledge that the data was successfully received by sending a response to the contr oller for each byte of data received.

PC CardBus Controller

The Texas Instruments PC1131 controller interfaces with the PCI bus, PC CardBus socket and configuration registers to provide:

compliant with PCI 2.1 and 1995 PC card standards



CardBus slots w ith hot insertion and removal



independent Read and Write buffer s for each direction



burst transfers to maximize data throughput on the PCI CardBus bus.

Sound Integrated Circuit

The ESS Technologies chip set ES1869 provides dynamic audio circuitry with the following:



Audio digital processor



Plug and Play support



High-performance 16-bit Stereo Codec



Full-duplex operation for simult aneous r ecord and playback



Analo g joystick quad timer and digital joystick support.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 33

SOLD BY laptopia2005 DO NOT RESELL!!

Interrupt Controllers

Using interr upts, it is possible t o change the system’s code sequence. To change the sequence, reassign the int er r upt-levels. Fifteen interrupt s can be used with a cascade connection of two 82C59 interrupt controllers.

Interrupt- level assignments 0 through 15 are list ed in Table 1-4, in or der of decreasing priority.

Table 1-4 Interrupt Controllers

Technical Information 1-21

Controller (Master/Slave)

Master 0 IRQ00 Counter 0/Tim er 1 Master 1 IRQ01 Keyboard Master 2 IRQ02 Programmabl e Controller Slave 3 IRQ08 Real-time Clock Slave 4 IRQ09 Infrared Por t Slave 5 IRQ10 USB Port Slave 6 IRQ11 P C Car d B us cont r oller Slave 7 IRQ12 P S /2 Mouse Slave 8 IRQ13 M ath Coprocessor (built into CPU) Slave 9 IRQ14 Har d Disk Controll er 1 Slave 10 IRQ15 IDE DS/ M D6000 or P C Car d in MD6000 Master 11 IRQ03 Not used, av ailable Master 12 IRQ04 Serial Port Master 13 IRQ05 Sound

Priority

Name

Device

Master 14 IRQ06 Diskette Drive Cont r oller Master 15 IRQ07 Parallel Port

SOLD BY laptopia2005 DO NOT RESELL!!

Page 34

SOLD BY laptopia2005 DO NOT RESELL!!

1-22 Technical Information

POWER MANAGEMENT OVERVIEW

Power Management in the NEC Versa lets you conserve energy, save battery power, extend the life of your LCD panel, and pro tect against data loss due to low batter y power.

Set so me features to function automatically or activate them manually with the keyboard o r a butto n. It is wise to keep Power Management features enabled, even when using AC power.

The system ships with many power - saving features already enabled. See the following table.

Table 1-5 Automatic Power-Saving Features

Device

Video 2 minutes Video turns off aft er there is no

Hard Disk 2 minutes Har d disk motor stops when hard disk

Standby 4 minutes System enters Standby mode after

Default Timeout

Comment

keyboard or VersaGl ide input for the specified timeout.

is not accessed for speci fied t imeout.

total system inactivity.

You can change the timeout period for any of the devices using Setup. See Section 2 for Setup u tility pr ocedu res.

Use the

FnF7

key combination to s et the power man ageme n t level. The fa ucet icon chang es when the power management set ting changes. You can toggle between Highest Performance, Longest Battery Life, Custom Power Management, and Off. Default values change depending on the type of power management you use.

NOTE

Some power management features ar e no t available when connected to a docking station. For example, the Suspend and Save to File features do not work. The system enters Standby mo de if Suspen d or Sa ve to File is activ ated.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 35

SOLD BY laptopia2005 DO NOT RESELL!!

System Power Management

NEC Versa system power management consists of the following operat ion modes. These modes are:

Active Mode  In active mode, the system uses no power management. It oper-



ates with the default clock speed. The system continues to run at this speed unless overwritten by the power management features.

Standby Mode  The system switches automatically to Standby mode. This



eliminates unnecessary power co nsumption when yo u operate the system on battery power or AC. Standby mode shuts down the LCD panel, pr oviding privacy as well as po wer savings.

Suspend Mode  Suspend mode causes the CPU to po wer down, local devices



to shut down, and register values to be stored in RAM. System RAM is put into a slow refresh state. A half mo on icon in the LCD Status Bar indicates that Suspend mo de is in e ffec t.

Technical Information 1-23

The system resumes Active mod e when you press the Suspend button, or the sys tem is set to r esume at a certa in t ime of d ay. Suspen d mode le ts yo u save power without first saving the working data.

Press the Suspend button to enter S uspend mode when you need to be away from the system for a short period of time and want to r eturn to where you left off.

In addition, to quickly activate the Save to File feature, press the Fn and Suspend buttons simultaneously. This shuts down the system, and saves the current wor k ing da ta to a file.

Local Power Management

Use Auto Setup to select one of four power management sett ings for local devices. T hese include Longest Off. The power management levels are also available during AC oper ation. The NEC Versa computer ships with Longest Section 2 for specific procedures on using Auto Setup to select the power management settings.

Whe n set to L on ge st Bat ter y Life, CMOS w ill set loc al d evic e timeout va lues, a local standby timeout value, and a suspend timeout value to ensure the longest battery life. The Highes t Pe rforman ce settin g selects CMOS values tha t will provide minimal ene rgy sa ving s and a shorter bat tery life. The cust om settings enable end-users to set the timeout values of their choice. The Pow er Man ag ement Off selection terminates all po we r ma n ag ement timer s.

Battery

Life, High Performance, Cust om Setup, and Power Management

Battery

Life as the default power management set ting. See

SOLD BY laptopia2005 DO NOT RESELL!!

Page 36

SOLD BY laptopia2005 DO NOT RESELL!!

1-24 Technical Information

Local device timer s in the system control power co nsumption in the LCD and Hard Disk Drive. Table 1- 6 sho ws NEC Versa Series Maximum P er formance default power management timer s.

Table 1-6 Maximum Performance Default Settings

Power Management M ode

Longest Battery Life 10 minutes 2 minutes 2 minutes High Performance 30 mi nutes 10 minutes 10 minutes Custom 10 minutes 2 minutes 2 minutes

Automatic Suspend

Hard Disk T imer

Video Timeout

PLUG AND PLAY

Th e N EC Ve rs a features Plug and Play functio nality. P lug and Play is th e a b ility of th e BIOS and/or operating system to dynamically assign system resources to a newly installed device without user intervention.

For example, you can suspend the system, add an external keyboard, mouse, or monitor, and when you r esume working, the NEC Versa recognizes the devices that have been connected to it. Simila rly, you can remove external dev ices in Suspend mode and the N EC Versa detect s the status when resumed.

NOTE

The system must be turned off when installing t he CD-ROM reader, diskette dr iv e or hard disk dr ive in th e V er saBay II. Installin g these devices in Suspend mode may cause damage to the system.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 37

SOLD BY laptopia2005 DO NOT RESELL!!

SPECIFICATIONS

Table 1-7 provides a complet e list of NEC Versa Series system specifications.

Table 1-7 Specifications

Item Specification Ch assis Configuration

Size Widt h: 11.58 in. (297 mm)

Dept h: 9.78 in. (251 mm ) Height: 2.28 in. ( 58.5 mm) Weight: 7.49 lb ( 3.42 kg), Ex ac t weight depends on options

Keyboard P S /2 compatible, 85-key ( both U.S. and International ) with

QW ERTY-key layout (Internat ional keyboards are countryspecific)

Technical Information 1-25

Device S lots Two PC Card slots that support up to two opti onal cards-

oriented one on top of the other O ne 3 1/2-inch x 0.75-inch hi gh sl ot, front access, for standard

1.44 diskette dr iv e, optical diskette drive 120 MB, 20X CDROM reader optional hard disk drive or Li-Ion batter y .

Power 100 t o 240 V olts AC at 50 or 60 Hz

O utput Voltage — 18.5 V DC, 2.45 A (45.5 W)

Battery Pack

F r ont Panel Controls Power Button

Weight  .85 lb (.38 K g) Voltage  14.4 V Capacity  2600 mAH Battery Life  Approxi mately 2 to 4 hours (depending on

model and power m anagement settings) Rechar ging Time  Approxi mately 2 hour s when the system is

on or off Br idge Battery  Backs up mem or y c ontents up to 5 minutes

in Suspend mode

Suspend But ton Br ightness Control

LEDs Power LED

Battery Stat us LCDs

SOLD BY laptopia2005 DO NOT RESELL!!

Page 38

SOLD BY laptopia2005 DO NOT RESELL!!

1-26 Technical Information

Table 1-7 Specifications (cont’d)

Item Specification Syst em Board

CPU Intel Pentium 200, 233 or 266 M Hz with 16 KB L1 cache and

built- in numeric coprocessor Clock Speed 200, 233, or 266 MHz CPU B us Speed 66 MHz F lash ROM 256 KB: 28F020 Connector Support Parallel —1 por t, 25-pin D-sub

Ser ial — 1 port, 9-pin D-sub

I nfrared — 1 on front of system

VGA — 1 port, 15-pin high-densit y D- sub

External K ey boar d/Exter nal Mouse — 1 port, PS/2, 6-pin

MiniDin; exclusionary use or both supported with optional

Y-adapter

Expansion — 1 port, for optional NEC Docki ng S tation 6000

Plus, opti onal PortBar 6000, or optional FDD Connector Kit.

Mono M IC IN — 1 port, 3- pin, Mini Pin Jack

Stereo Headphones — 1 port, 3-pi n, Mini P in Jack, .5 watt s per

channel

Stereo Line-In — 1 por t, 3-pin, M ini Pin J ac k

Stereo Line-Out — 1 por t, 3-pin, M ini Pin J ac k

TV Out — 1 port; RCA Jack

USB P or t — 1 port, 4 pi n

DC I n — 1 por t, for A C adapter cable

Memory

System Mem ory 32 MB high- speed EDO ac c ess, 70 ns Optional T wo DIMM sockets (f or base and ex pansi on memory) under

the keyboard, available f or one additional S O-DIMM.

Expandable in 16-MB, 32-MB, 64-MB increments

Maximum 128-MB (by swapping base RAM to 64-MB and

adding a 64-MB expansion DI MM) Video RAM 2 MB

Video I nterface (VGA)

LCD 13.3-inch high-resolution active matrix thin Film Transistor

(TFT) Extended Graphics Array (XGA) color display, 1024 x

768 pixels, 0.264 mm dot pitc h, 64K colors

SOLD BY laptopia2005 DO NOT RESELL!!

Page 39

SOLD BY laptopia2005 DO NOT RESELL!!

Table 1-7 Specifications (cont’d)

Item Specification I nternal Device Support

Diskette Drive User-removable 3 1/2-inch, 1.44-MB, installs in VersaBay II

slot Hard Disk Drives IDE interf ac e ( built-in), System ships with a 3.0 or 5.1-G B har d

disk drive 20X CD-ROM Reader User-removable twenty-speed (20X) CD-ROM reader, instal ls

in VersaBay II sl ot

Ext ernal Device Support

CRT Displ ay s up to 1280 x 1024 resolution x 256 color s Mouse P S /2-compatible mouse Keyboard B uilt-in 85 key keyboard with 12 progr ammable function keys,

embedded numer ic keypad and special function control k ey s,

dedicated screen cont r ol keys, and inverted “T” cursor keys /

IBM enhanced 101/102-k ey c ompatible keyboard

Technical Information 1-27

Software

Standard Wi ndows® f or Workgr oups Versi on 3.11, Window 95 or

Windows NT

Adobe Acrobat Reader

AT&T WorldNet

CompuTrace™ Security Sof t ware

I ntel’s LANDesk Client M anager

Microsoft Internet Explorer

MindPath™ Presentat ion FX

McAfee VirusScan™

McAfee WebScan™

Official Airline Guide (OAG®)

Pr odigy Internet S er vi c e S ampler

Net scape Navigat or Dial-Up Edition

LapLink® File Transfer S oftware

CompuServe®

America O nline®

Medi aMatics Arcade™ MPEG Player

Xing MPEG Player™

SOLD BY laptopia2005 DO NOT RESELL!!

Page 40

SOLD BY laptopia2005 DO NOT RESELL!!

1-28 Technical Information

Table 1-7 Specifications (cont’d)

Item Specification Reco mmended Envi ronment

Operation Temperature: 41° to 95°F ( 5° to 35°C)

Relative Humidity: 20% to 80% (No condensation) Storage Temperature: -4° to 104°F ( - 20° to 40°C)

Relative Humidity: 20% to 80% (No condensation)

Administrative Compliance

U.S.: F CC, UL

O ther Compliance PC97 Compliance

Canada: CSA, DOC Germany: VDE, TUV, CE Australia: AS for A C adapter only

Energy Star VESA & PnP VESA PnP ISA

SOLD BY laptopia2005 DO NOT RESELL!!

Page 41

SOLD BY laptopia2005 DO NOT RESELL!!

Section 2

Setup and Operation

This section provides setup and operation infor mation for the NEC Versa S er ies system (includin g cabling, power- on verification and usin g the Se tup utility, from this point on referred to as “Setup” only).

UNPACKING THE SYSTEM

Find an area away from devices that generate st r ong magnetic fields (electric motors, transformers, etc.) . Place the shipping carton on a sturdy surface and carefully unpack the system. The carton content s include the system, CD-ROM reader, AC adapter, AC power cord, bat tery, software CDs, and user documentation.

HARDWARE SETUP

When connecting power and signal cables, do the following. Not e that the Po wer switch turns on o r off. Slide the switch right to turn it on, slide the switch again to t u r n it off.

NOTE

Always plug t he AC adapter co r d into an

easily accessible outlet.

Connect the AC adapter cable to the po wer port o n right side of the NEC Versa.

Figure 2-1 Connecting the AC Adapter

SOLD BY laptopia2005 DO NOT RESELL!!

Page 42

SOLD BY laptopia2005 DO NOT RESELL!!

2-2 Setup and Operation

Plug one end of the AC po wer cable into the AC adapter and the other end into a

properly grounded 120- or 240-volt wall outlet.

NOTE

Do not cover or place objects on the AC

adapter. T his allows heat to dissipate proper ly.

Ensure that all connections are properly seated and secure.

This equipment uses an ungrounded power cable. Replace the cord if it becomes damaged. U.S. and Canadian replacement cord s must be UL-approved (CSA certified in Canada) t ype SPT-2, 18 AWG, 2-conducto r cord with a permanently attached NEMA type 5-15P plug at one end, and a permanently attached connector bo dy on the other. Cord length may not exceed 15 feet. Outside the U.S. and Canada the cord must be rated for at least 250VAC at 10 amps, and must indicate international safety agency approval. The plug must be a type appropriate for the countr y where it is used.

CA UT ION

Obtain replacement cor d s at an authorized service center. The replacement must be of the same type and voltage rating as the original cord.

Slide the Power button to the right to power on the computer.

Figure 2-2 Powering on the Sy stem

SOLD BY laptopia2005 DO NOT RESELL!!

Page 43

SOLD BY laptopia2005 DO NOT RESELL!!

NOTE

If operating the system on DC power, verify that the system has a char ged bat tery pack installed.

Cable Connections

Figure 2-3 shows the rear external connectors for the system. Where appropriate, secur e cables by tightening the cable holding screws.

Setup and Operation 2-3

Figure 2-3 Power a nd I/O Conne c tor Locations

Table 2-1 describes the connecto r s on the system. For pin assignments, see Appendix A.

Table 2-1 I/O Connec tor Descriptions

I/O Connector Function

USB Port (right side) Connects to a 4- pin USB device. T V Output Jack (r ight side) Connec ts to a RCA jack. AC Power Port (right side) Connects to a AC adapter. Key boar d/Mouse Port Connects to a PS/2-style mouse, or a 101-key , external PS/2-style

keyboard. Parall el Port Connects to a 25-pi n par allel devic e. Expansion Connector Provides a 75-pi n c onnec tor to attac h the optional NE C Doc k ing

Station 6000 P lus, Mini Doc k 6000 or P or tBar 6000. Monitor Port Connects to a 15-pin external CRT. Serial Port Connect s to an RS - 232C devic e. Audio Ports (left side) Connects to 4 mini pin jacks.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 44

SOLD BY laptopia2005 DO NOT RESELL!!

2-4 Setup and Operation

POWER SOURCES

The NEC Versa can be powered using three different so ur ces, as follows:

the AC adapter connected to an electrical wall outlet (using AC power)



the batter y pack or an op tional second battery pack



the opt ional DC adapter connected t o a car cigarette lighter.



The follo wing sections summar ize the power sources.

Using the AC Adapter

Use the AC adapter and power cable that came with the NEC Versa to run the computer on alternating current (AC) power, or to recharge t he battery pack. Use the AC adapter whenever a wall o u tlet is nearby.

Do not attempt to disassemble the AC adapter. The AC adapter has no user-replaceable or serviceable par ts inside. Dangerous voltage in the AC adapter can cause serious personal injury or death. The AC adapter is intended for use with a computer. Both must meet EN60950 standards.

Keep the adapter connected whenever possible. The AC adapter charges the battery whether or not you are using the NEC Versa.

WARNING

Figure 2-4 NEC Versa AC Adapter

SOLD BY laptopia2005 DO NOT RESELL!!

Page 45

SOLD BY laptopia2005 DO NOT RESELL!!

See the “Hardware Set up” ear lier in this section for steps o n co nnecting the AC adapter.

Using the Main Battery Pack

The NEC Versa comes with a rechargeable Lithium Ion (Li-Ion) battery pack. Batt er y power lasts for approximately two to four hours with power management features enabled. The battery pack is easy to install and remove.

Checking Battery Power Levels

The NEC Versa system int egr ates two tools to help the user keep track o f the main (and an optional) battery's power level. T hese include the battery icon located in the tray on the t askba r, an d the Power Gaug e utility for Windo ws for Wor kg roups and Windo ws 95 and PowerProfiler for Windows NT.

Using the status bar icons (and percentages) t o determine battery status is easy. For example, if one battery pack is installed, one battery icon appears. If two batteries are installed, two bat tery packs appear. A blinking battery icon indicates that the battery is charging. A fast blinking battery ico n occ urs:

Setup and Operation 2-5



when in stallin g a n ew batte ry



during unknown batter y status



when there is a problem with the battery.

Similar ly, read th e p er ce n tag es th at app ear next to the battery icons to fin d out exactly how much bat ter y power is av ailable. T he battery percentage icon blin ks under the fo llowing conditions:



when b attery p ower is low, t he n umber icon blinks.



if batter y power is ext re mely low, the numbe r ic on blinks rapid ly.



if the battery has been in storage for a long period o f time.

To access t he PowerGauge utility in W indows for Workg rou ps syste ms, select the P owerGauge Utility icon from the NEC Utilities prog ra m group. To access in Windows 95 or Windows NT systems, right click the PowerGauge icon located in the tray on the taskbar. It also starts automatically at power on.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 46

SOLD BY laptopia2005 DO NOT RESELL!!

2-6 Setup and Operation

What to Do When Battery Power Gets Low

When battery power is very low, the power LED flashes amber. When battery power gets low, do either of the following:

Press the Suspend button to put the system in Suspend mode, remove the battery



pack, and replace it with a fu lly charged Li-Ion battery. Leave the battery pack in the syst em and connect your NEC Versa t o the AC



adapter and a wall outlet. If you connect t he system to AC power and cont inue to use it, the batter y recharges in approximat ely 2 hours. If you connect the system to AC power and do not use it, the battery recharges in about 2 hours.

Customers can also buy an optional NEC Versa battery charger to quickly charge the battery. See the o nline Versa Tools Catalog for mo re information.

Returning the Battery to Full Operation

To return the battery to its normal state, try the following:

remove and the n reinstall the batte ry.



reinstall t he battery in the NEC Versa, discharge the battery, then fully recharge the batter y (to 100%) if the battery in use was in stor age for an extended period o f time.

When to Change the Battery

The follo wing symptoms indicat e that batter y life is nearing an end. Replace batteries that display the se symp toms.



Shorter work times.



Discoloration, warping.



Hot to the touch.



Strange odor.

Battery Ha ndling

Keep the following in mind when r emoving or replacing a battery.



Use Li-Ion batteries only in the NEC Versa co mputer for which they are designed.



Turn off power to the system aft er use. Keeping system power on can degrade battery performance and shorten battery life.



Clean the batter y terminals with a dry cloth when they get dirty.



Keep the battery out of the reach of children.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 47

SOLD BY laptopia2005 DO NOT RESELL!!

There is a danger of explosion if the battery is incorr ectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batter ies according to t he manufacturer’s instructions.

Keep the battery away from heat sources including direct



sunlight , open fires, micro wave ovens, and high-voltage containers. Temperatures over 60ºC (140ºF) may cause damage.

Do not drop or impact the battery.



Do not disassemble the battery.



Do not solder the battery.



WARNING

Setup and Operation 2-7

Do not puncture the battery.



Do not use a battery that appears damaged or deformed,



has any r u st on its casing, is discolored, overheats, or emits a foul odor.

Keep the battery dry and away from water.



Keep metal object s away from battery terminals. Metal



objects in contact with the terminals can cause a shor t circuit and damage.

If the battery leaks onto skin or clothing, wash the area



immediately. Batter y fluid can cause a skin rash a nd damage fabric.

If batt ery fluid gets in eyes, DO NOT rub; rinse with



clear w ater immediately and see a doctor. Ma ke sure t he b attery is pr operly installed in t he b attery



bay.

Replacing the Battery Pack

Replace the battery pack installed in your NEC Versa system as follows.

NOTE

Use Li-Ion batteries in the NEC Versa computer for which they are designed. Also, installing anothe r manu factur er ’s battery, or u sing a combinat ion of very old and new batteries can deteriorate battery and equipment performance.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 48

SOLD BY laptopia2005 DO NOT RESELL!!

2-8 Setup and Operation

Save your files, exit Windows, and press the Suspend button or turn off system

power. Close the LCD and turn the system over.

Release the battery cover latch and slide the batt er y bay cover away from the

system.

Figure 2-5 Removing the Cover

Place a finger in the notch on the batt er y and lift t he battery out o f the system.

(T he notch has a n arr ow ne xt to it .)

Always lift the battery out of the system by the notch. Failure to do so can damage the battery terminals.

CA UT ION

Figure 2-6 Removing the Battery

SOLD BY laptopia2005 DO NOT RESELL!!

Page 49

SOLD BY laptopia2005 DO NOT RESELL!!

Insert the new battery as follows:



Locate the alignment groo ve on t he end of the batt er y opposite the terminals. Locate the alignment tab inside t he battery bay at the end opposite the termi-



nals.



Fit the battery alignment groove over the tab inside the bay. Lower the battery into the battery compartment, pressing gently to secure the



terminal co nnections.

Setup and Operation 2-9

Figure 2-7 Inserting the Battery Pack

Replace the battery bay cover as follows:



Align the t abs o n t he bay cover with the groo ves o n t he system chassis.



Lower the co ver o nt o the bay and slide it into place.

Turn the system over.

SOLD BY laptopia2005 DO NOT RESELL!!

Figure 2-8 Replacing the Cover

Page 50

SOLD BY laptopia2005 DO NOT RESELL!!

2-10 Setup and Operation

Battery Precautions

To prevent accidental battery ignition, rupture, o r explosion, adhere to the following:

To avoid personal injury and property damage, read these batter y precautions on handling, charging, and disposing of Li-Io n batt eries.

Keep the battery away fr om heat sources including direct sunlight, open fires, mi-



crowave ovens, and high-voltage containers. Temperatures over 140º F (60ºC) may cause damage.



Do not drop or impact the battery.

WARNING

Do not disassemble the battery.



Do not solder the battery.



Do not puncture the battery.



Do not use a bat tery that appears damaged or deformed, has any rust on its casing, is discolored, overheats, or emits a foul odor.



Keep the battery dry and away from water.



Keep metal object s away from battery terminals. Metal objects in contact with the terminals can cause a short circuit and damage.

If the battery leaks:



If th e batt ery leaks o nto skin o r clo th ing, w ash t he area immediately with clean water. Bat tery fluid can cause a skin rash and damage fabric.



If b attery flu id gets in to eyes , DO NOT rub ; rin se with c lear wate r imme dia tely and consult a doctor.



Take extra precaut ions to keep a leaking battery away from fire. There is a danger of ignition or explosion.

Recharging Battery Precautions

Adhere to the following precautions when recharging the Li-Ion batter y.



Read the instructions that came with the battery charger before charging the battery.



Use only the NEC batter y charger designed for your NEC Versa battery type. Different NEC Versa models require different batteries and batt ery chargers.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 51

SOLD BY laptopia2005 DO NOT RESELL!!

Charge the battery for the specified charge time only.



During char ging, keep the environmental temperature between 32°F and 104°F (0°C to 40°C).

NEC VersaBay II Battery and Adapter Kit

The NEC VersaBay II Batter y and Adapter Kit provides a second lithium ion (Li-Ion) battery and adapter to use in your NEC Versa 6220/30/60 notebook computer. Inserting a second fully charged battery incr eases battery life approximately 4 to 5 ho ur s.

See the online Versa Tools Catalog in the NE C Versa He lp Cente r, for more info rma tion.

Extending Battery Life

While o n t he road, it is importa n t to be a ware o f the simple things you can do to extend th e life of the system’s main battery. One way is to keep the LCD backlight sett ing to S tandard instead of Full. You can t oggle between these two set tings by pressing the function keys,

Fn+F5

. Or , slide the brightn ess control to a dimmer le vel.

Setup and Operation 2-11

Using the DC Car Adapter

Another way to power the NEC Versa is via car battery power using the optional DC car adapter. Connect the system to t he o p tional DC car adapter as follows.

Disconnect the AC adapter from the system if connected.

Plug the appropriate end of the car DC adapter into t he po wer port on the system.

Connect the plug of the DC car adapter t o a car cigarette lighter.

Figure 2-9 Connecting the Car DC Adapter

SOLD BY laptopia2005 DO NOT RESELL!!

Page 52

SOLD BY laptopia2005 DO NOT RESELL!!

2-12 Setup and Operation

OPERATING CONTROLS

The following section describes system controls, the LEDs, and function keys. Refer to Figure 2-10 to locat e system controls and swit ches. Table 2-2 describes t he

controls.

Figure 2-10 Keyboard Panel LEDs and Controls

Table 2 -2 Controls and Switch Func tions

Control Function

LCD Status Bar T he status bar provides an easy way to detect system status. Different

graphic ic ons appear on t he LCD bar indicating that a device i s accessed, an operation performed, or a power mode is activat ed.

Power LED Lights green when the computer is powered on and blinks green in the

suspend mode. Lights am ber and blinks at l ow batt er y levels.

Suspend/Resume Button

Power Button Turns the system on when pushed to the right. Turns the system off

Pr ess the button for Suspend m ode, press again to resume act ive mode.

when pushed to the right again.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 53

SOLD BY laptopia2005 DO NOT RESELL!!

LCD Status Bar

The NEC Versa status bar is located in the upper center of the keyboard panel. Figure 2-11 shows the st atus bar.

Setup and Operation 2-13

Figure 2-11 Status Bar Location

Status Icons

The NEC Versa uses ten icons to let the user determine system status, as follows.



Suspend — appears when the system is in Suspend mode.



Power Management — shows current power management mode.



Diskette Drive — appears when the NEC Versa writes data to, or r etrieves data from a diskette.



Hard Disk — shows when the NEC Versa writes data to, or r etrieves data from the hard disk drive.



Caps Lock — appears when Caps Lock is used.



Scroll Lock — indicates t hat S croll Lock is used.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 54

SOLD BY laptopia2005 DO NOT RESELL!!

2-14 Setup and Operation

Num Lock — indicates t hat Num Lock is in effect.



Battery Stat us — displays the percentage of battery power available.

 Batter y 1 appears when you have one or more batteries installed.  Batter y 2 appears when you have an optional battery installed in the

VersaBay II.

Function Keys (Fn Keys)

Function keys set specific system parameters and are built into the ROM. When using these keys, simulta neously press Fn and the correspo nding function key. See Table 2-3 for a list of ROM-based hot keys. ROM-based hot keys change system parameters temporarily. Hot Key functions op er ate until the system is turned off or reset.

Table 2-3 Fn Key Operations

Key Function

Fn F2 Highlight, toggles the contrast between standard and full. Fn F3 LCD/CRT, toggles between LCD, CRT, T V out and

Fn F4 Standby On/Off Fn F5 Backlight, toggles the backli ght between standard and full. Fn F6 Speaker Vol ume, toggles speaker volume between high,

Fn F7 Power Management ( P /M), sets P/M levels to highest

Fn F8 Expand 640 X 480 applications to fill the panel. Fn F12 Scroll/Lock On/Off

F n S uspend Save-To-File On Demand Fn Left Ctrl Simulat es pressing the r ight control key for support of IBM

Smart Power Switch

simultaneous modes (LCD and CRT).

medium, low, and off.

performance, longest battery life, custom values, or of f.

327x connections.

Provides an automatic feature that prevents you from accidentally powering off the NEC Versa, and losing your data while yo ur system is in Suspend mode. The smart power switch senses that the system is in Suspend mode and prevents you from directly powering off the system when you press the Power but ton.

To power off the system from Suspend mode,

Press the Suspend/Resume button to make the system active.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 55

SOLD BY laptopia2005 DO NOT RESELL!!

Press the Power button to turn off the system.

Setting Switches

A six- position dip switch is located underneath the keyboard. (Dip switch instr u ctions and location for accessing the switches follows this section.) The following lists identifies each switch setting and its function.

Setup and Operation 2-15

Figure 2-12 Dip Switch Location

NOTE

Switches 3, 4, and 6 are reserved for NEC factory use only. S witch 5 is not used.



Switch 1, BIOS Flash Protection Switch — The default setting is “ON.” Change the setting to “OFF” when you update your system’s basic input/out put system (or BI OS) flash memory. See “Updating the System BIOS,” to complete this procedure.



Switch 2, Password Override Swit ch — The default setting is “OFF.” For example, if you forget your passwor d and cannot access the data on your NEC Versa, change the setting to “ON” and yo ur cur r ent passwo r d dissolves.

To enter a new passwo r d, r eset the switch to “OFF,” and follow the instructions in Chapt er 3, “Using Setup,” to set up a new password. You may want to keep this password in a special place so that you don’t forget it again!

SOLD BY laptopia2005 DO NOT RESELL!!

Page 56

SOLD BY laptopia2005 DO NOT RESELL!!

2-16 Setup and Operation

Switch 3 — Reserved for factor y use.



Switch 4 — Reserved for factory use. Switch 5 — Not used.



Switch 6 — Reserved for factor y use.



Updating the Syste m BIOS

Use the following steps to update your NEC Versa 6220/30/60 system BIOS with the BIOS Update Diskette (BUD). Specifically, the BIOS is the code transmitted onto your system’s micr oprocesso r, or cent r al processing unit (CPU).

NOTE

You only need to update the BIOS if NEC makes sig nificant imp rovements or fix es to the current system BIOS. Your authorized NEC dealer or Technical Support Services representat ive can help you determine this.

If you are informed that the default BI OS needs an upgrade, t o receive a copy of the BUD contact the NEC CSD D iskette F ulfillment Cent er at ( 800) 842-6446, or NECCSD Customer Service and Technical Support at (800) 632- 4525, Fax (978) 635-4100.

You should only use the BIOS upgrade diskette for your specific model.

NOTE

If you purchased and are using this co mputer o utside the U.S. or Canada, please contact a local NEC office or dealer in yo ur country.

Updating the BIOS involves the following procedures:



removing the speaker caps



lifting and moving the keyboard out of the way



setting the switch



reassembling the unit and updat ing the BIOS



resetting the switch.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 57

SOLD BY laptopia2005 DO NOT RESELL!!

Changing Switch Settings

Use the following steps to change switch settings.

Make sure the system is powered off and that no peripheral devices are at tached.

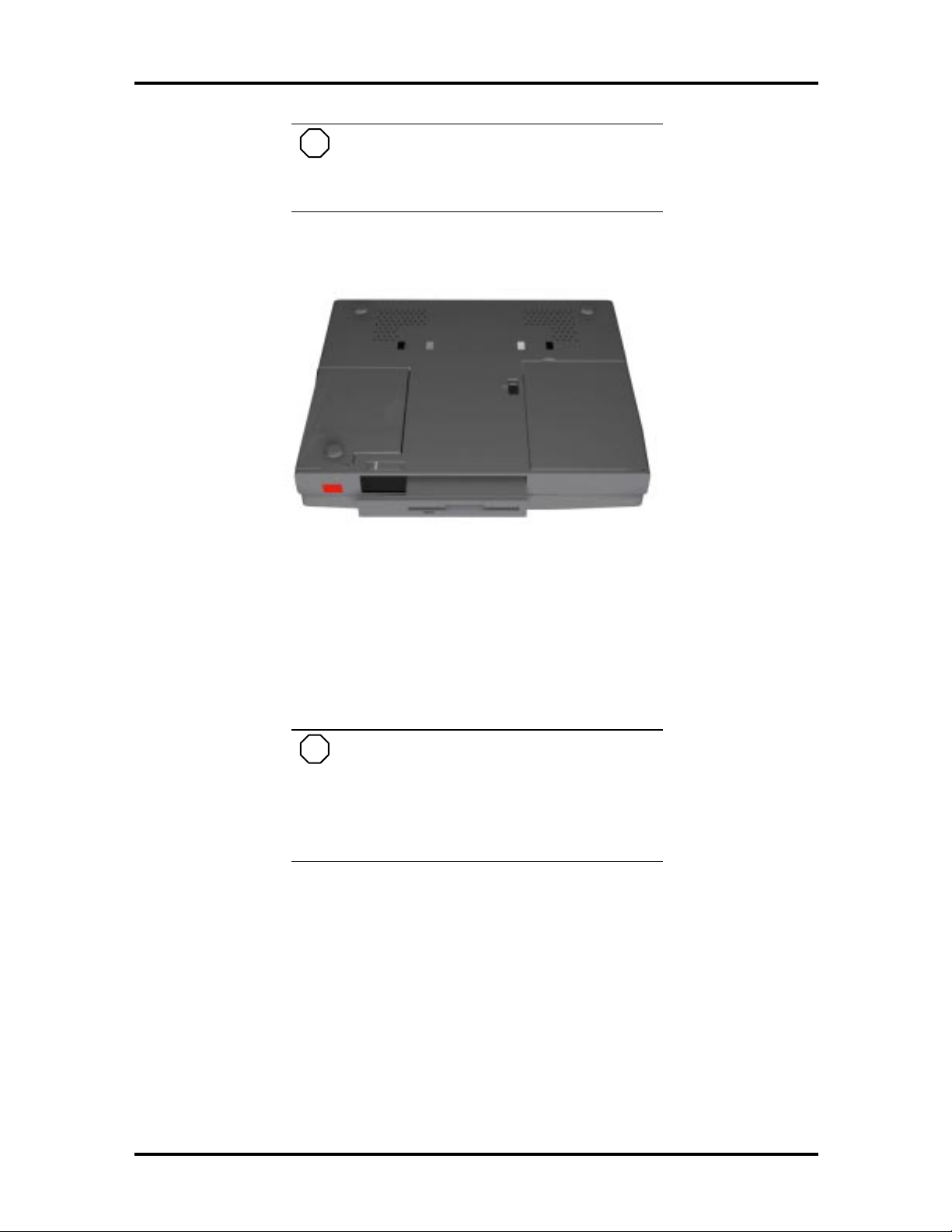

Locate and r emove the two Phillips-head scr ew s on the bottom o f th e V er sa

6220/30/60 that secure the speaker caps. Put the screws in a safe place for reassembly.

Setup and Operation 2-17

Figure 2-13 Locating the Speaker Cap Screws

Turn the NEC Versa not ebo ok over and open the LCD panel.

Figure 2-14 Removing the Speaker Caps

SOLD BY laptopia2005 DO NOT RESELL!!

Page 58

SOLD BY laptopia2005 DO NOT RESELL!!

2-18 Setup and Operation

Locate the two speaker caps, slide each one toward s the outside edge of the sys-

t em, and remove them. Gently lift up the edge of the keyboard nearest t he LCD and slide the keyboard

towar d s the LCD screen to release the ta bs that secure it.

Be careful no t to disconnect t he keyboard or keyboard cable entirely from the system.

CA UT ION

Figure 2-15 Lifting the Key board

Figure 2-16 Positioning the Keyboard

SOLD BY laptopia2005 DO NOT RESELL!!

Page 59

SOLD BY laptopia2005 DO NOT RESELL!!

Carefully turn over the keyboard and place it face down on the VersaGlide. Be

careful no t to twist or disconnect the keyboard cable. Locate t he dip switch blo ck. Using a fine t ipped object, change the Dip Switch 1

setting to Off. (For other functions, set the appropriate switch to the required setting. See “Setting Switches” for switch functions and settings.)

Never use a lead pencil, ball point pen or ink pen to change switch settings.

Setup and Operation 2-19

CA UT ION

Figure 2-17 Dip Switches

NOTE

The system memor y expansion slots are also located underneath the keyboard. Therefore, if yo u need to install DIM M modules, you mig h t want to do so while the system is already disassembled.

Reassemble the system as fo llows:



Lift up the keyboard and align the tabs on the front of it with the grooves in the system.



Re seat the ke ybo ard in its o rigina l position.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 60

SOLD BY laptopia2005 DO NOT RESELL!!

2-20 Setup and Operation

Figure 2-18 Reassembling the System

Slide the speaker caps back onto the system.



Close the LCD panel and t ur n t he system upside down.



Replace the speaker cap screws.

Your system is now ready for the BIOS update. Co nt inue to the next section to

update the BIOS.

Performing the BIOS Upda te

Use the following procedure to perform the actual BIOS update.

Make sure that the computer is operating under AC power, and that the power is

off. Insert the BIOS Update diskette into diskette drive A. Power o n t he co mputer with the diskette in drive A. T he computer bo ots and

auto matically loads th e u tility. A mess ag e similar to the followin g a pp ears :

WARNING: The BIOS Update Procedure is about to begin, press ENTER to continue. To abort, remove the diskette and reset the unit.

Press

Th e u tility che ck s the cu rren tly in stalled BI OS vers ion and the diske tte’s BI OS

Enter

to continue.

version. The Main Me nu app e ars.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 61

SOLD BY laptopia2005 DO NOT RESELL!!

Use the arrow keys to highlight the “Display BIOS Version” option on the Main

Menu. Use this option to check t he curr ent ly installed BIOS version and the version of the new replacement BIOS.

Press any key to return to the Main Menu.

Setup and Operation 2-21

Highlight the “Install New BIOS ” option and press

Press

Power off your computer and remove the disket te. Now po wer on your com-

and then press

Enter

The utility updates the BIOS.

Enter

puter, you will now hav e the latest NEC V er sa 6220/30/60 computer BIOS revision leve l.

When the update is complete, follow the instructions in the previous section and

reset dip switch 1 back to t he ON position. Press F1 to enter Setup and restore the default parameter settings.

POWER-ON SELF-TEST (POST)

Each time the system is powered o n, the system checks the working stat us of components through an auto matic power- on self-test (P OS T ) . The test checks the system configur ation for any discrepancies. One beep means that POST is successful. If any problems in data transfer or hardwar e exist, an error message appears.

If the message is a CMOS settings wrong message, press F2 t o ente r the S etu p u tility. U se the Arrow Keys to review the settings and make any necessary corrections, t hen use the arrow keys to select “Save Settings and Exit.”

If no er ror messages appear bu t th e system s till malfu n ctions , check th e items in the fo llowing list.

The power switch for each peripheral is on.



All cables and power cords are tightly connected.



The electrical o utlet is working.



The brightness and contrast controls for the display are adjusted pr operly.



All options have b ee n properly insta lled .

NOTE

If syst em parameters (date, time, options, etc.) wer e not entered for t he present configur ation, enter them when you complete the setup pro cedur es ( see “System Parameters” in t his s ection ).

SOLD BY laptopia2005 DO NOT RESELL!!

Page 62

SOLD BY laptopia2005 DO NOT RESELL!!

2-22 Setup and Operation

POST Errors

Erro r me ssages will app ear d uring PO ST wh en co nfigur ation information does not matc h t he settings sto red in memor y. Er ror mes sage s will also appear if t he syste m loses the configuratio n infor matio n du e to hardware failure .

Refer to Table 2-4 for a description of POST error messages.

Table 2-4 POST Error Messages

Message What To Do

Addr ess Line Shor t Error in the address decoding circuitry on the system

board. Contact y our NE CCS D servic e r epr esentative for service work.

C: Drive Error Hard disk drive C: does not respond. Chec k that C: hard

disk type in Setup is correct.

C: Dr ive Failure Hard disk drive C: does not respond. You may need to

replace the hard disk drive.

Cache M emory Bad, Do Not Enable Cache

CH-2 Timer Error Most IS A c omputers include two timer s. There is an

CMOS Battery State Low

CMOS Checksum Failure

CMOS System Options Not Set

CMOS Time and Date Not Set

Diskette Boot Failure The boot disket te in floppy drive A: is corrupt. It c annot

Cache memory is defective. It must be r eplaced. Contact your NECCS D servic e r epr esentative for service work.

error in timer 2. Contact your NECCSD service representative for service work.

CMOS RAM is powered by a battery . The battery power is low. Contact y our NE CCS D servic e r epr esentative to replace the CMOS battery.

After CMO S RA M val ues are saved, a checksum value is generated f or er r or c hec k ing. The previous value is different from t he c ur r ent value. Run Setup to r eset the value.

T he values stored in CMOS RAM are either corrupt or nonexistent . Run Setup to reset t he value.

Run Setup to set the ti me and date.

be used to boot the com puter. Use another boot disk and follow the on-screen instruct ions.

DMA error Error in the DMA controller. Cont act your NECCSD

servi c e r epr esentative for service.

DMA#1 Error Error i n t he first DMA channel. Cont act your NECCSD

servi c e r epr esentative for service.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 63

SOLD BY laptopia2005 DO NOT RESELL!!

Table 2-4 POST Error Messages (cont’d)

Message What To Do

DMA #2 Error Error in the second DMA channel. Contact your

NECCSD service representative for serv ice.

Setup and Operation 2-23

F DD Controller Failure

HDD Cont r oller Failure

INTR #1 Error Interrupt channel 1 failed POST. Contact your NECCSD

INTR #2 Error Interrupt channel 2 failed POST. Contact your NECCSD

Invalid Boot Di skette The BIOS can read the diskette i n dr iv e A :, but cannot

Key boar d is Locked Unlock It

KB\interface error There is an error in the keyboar d c onnec tor. Contact

Off Board parity Error Parity er r or in mem or y module i nstalled in an expansion

T he B IOS cannot communi c ate with the f loppy disk controller. Contact y our NE CCS D service r epr esentative to check all appropriat e c onnec tions.

T he B IOS cannot communi c ate with the hard disk drive controller. Contact y our NE CCS D service r epr esentative to check all appropriat e c onnec tions.

servi c e r epr esentative for service.

boot the com puter. Use another boot diskette. T he k ey boar d lock on the computer is engaged. T he

computer must be unlocked to continue.

your NECCSD service representat ive for service.

slot. Contact your NECCSD service representat ive to be sure that the m emory m odule is installed correctly.

The error format is: OFF BOARD PARITY ERROR

XXXX

ADDR(HEX) = (

XXXX

is the hex address where the error occ ur r ed.

)

On Board Parity Error Parity error in system board m emory. Contac t your

NECCSD service representative for serv ice.

Pari ty Error ???? Par ity error in system memory at an unknown address.

Contact your NECCS D servic e r epr esentative for service.

Fatal errors that occur during POST are communicat ed through a series of beeps that are repeated co ntinuously. All beep code errors, except beep code 8, ar e fatal erro r s and do not allow the system to continue to boot.

If beep codes occur during POST, check the items in the Problem Checklist (at t he st art of this chapter), verify that all the hardware is set up properly and securely co nnected, and t r y rebooting. If you still g et a beep code, go to the section “If Y ou Need Assis tance” at the end of this chapter.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 64

SOLD BY laptopia2005 DO NOT RESELL!!

2-24 Setup and Operation

Beep Codes are listed in the table that follows.

Table 2-5 Beep Codes

Nu mber Of Beeps

1 Ref resh Failure The memory refresh circuitry on

2 Parit y Error Parity error in the first 64 KB of

3 Base 64 KB Memory

4 T imer Not Operational Memory f ai lure in the first

5 Processor Error T he CP U on the motherboar d

6 8042 – G ate A20 Fail ur e The key boar d c ontroller ( 8042)

7 Processor Exception

8 Display Memory

Error

Failure

Interrupt Error

Read/Write Error

Description

the mother boar d is faulty.

memory. Mem ory failure in the first

64 KB.

64 KB of memory or Timer 1 on the mother boar d is not functioning.

generated an error.

may be bad. T he B IOS cannot switch to protect ed mode.

T he CP U gener ated an exception interrupt.

T he system mem or y is faulty. (This is not a fatal er r or .)

9 ROM Checksum Error The ROM checksum value does

not matc h the value encoded in the BIOS.

10 CMOS S hutdown

11 Cache Error/External

Cache Bad

T he shutdown regi ster for CMOS RAM failed.

T he external c ac he is faulty.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 65

SOLD BY laptopia2005 DO NOT RESELL!!

SETUP UTILITY

Th e S etup u tility is a R OM-based pr ogr am. It is fun ctional when enab led (factory default). Setup aut omatically detects current system parameters during the power-o n self-test (POST), described in the previous section. It also provides the following functions:



sets date and time signals any hardwar e discrepancies during POST via error messages



verifies that any optional memo r y that you installed was installed correctly



integrates user-defined security features.



Accessing Setup

To access Setup, press F2 at the power - on prompt.

Setup and Operation 2-25

With an Error at POST

You will n eed to use th e S etup u tility if th e system detects an error dur ing PO ST. It prompts you with double beep sound and a message: Press F1 to resume. If you press F1, the system enters Setup automatically.

With No Errors at POST

To enter Set up when no error message is displayed dur ing POST, press F2 when the prompt appears.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 66

SOLD BY laptopia2005 DO NOT RESELL!!

2-26 Setup and Operation

Setup Utility Main Menu

After you press F2, th e system displays the Se tup Main Menu screen, similar t o th e fo llowing.

AMIBIOS HIFLEX SETUP UTILITY – VERSION 1.11

NEC Versa XXXX BIOS Version XXXXXX

Advanced CMOS Setup

Power Management Setup

Change Supervisor Password

Standard CMOS Setup

Boot Device Setup

Peripheral Setup

Change User Password

Auto Configuration with Defaults

Save Settings and Exit

Exit Without Saving

Advanced CMOS setup for configuring system options

ESC: Exit F3/F4: Color F10: Save & Exit| | : Sel

Figure 2-19 Setup Mai n Menu

Use the up and down arrow keys (located on the lower right corner o f the keyboard) to toggle through the Setup menu items.

How to Use Setup

The following sections describe how to use Setup, including these to pics:



Looking at screens



Using keys



Checking and set ting system parameters.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 67

SOLD BY laptopia2005 DO NOT RESELL!!

Looking at Screens

Setup screens have three areas as shown next.

AMIBIOS SETUP – ADVANCED CMOS SETUP

Setup and Operation 2-27

Plug and Play Aware O/S Auto

BootUp USB Configuration Disabled Bootup Sequence A:,C: Docking Station Video Dock Stn. BootUp Num–Lock Auto LCD Panel View Expansion Off Password Check Setup

Select the boot configuration of AMIBIOS. Yes indicates the system will boot to a Plug and Play aware Operating System such as Windows 95(tm). When set to Auto, the system will detect Plug and Play OS’s.

:Exit :Sel :Modify :Color

Figure 2-20 Advanced CMOS Setup Menu

Paramet ers



The left part of the screen. This area lists parameters and their current set tings.



Available O ptions The right part of the screen. This area lists and explains alternate sett ings.



Key Lege nd The bott om right corner o f the screen. These lines display the keys that move the cursor and select parameters.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 68

SOLD BY laptopia2005 DO NOT RESELL!!

2-28 Setup and Operation

Using Keys

The following table lists Setup keys and their functions.

Table 2 -6 Setup Key Func tions

Key What It Does

↓

↑ PgUp/PgDn Modifies the cur r ent parameter settings. Tab For some parameter settings, moves the cursor

Esc In the Main Menu screen, press Esc to display t he “ Quit

F3/F4 Changes the screen color.

Moves the cursor between the displayed parameters.

between the subfields. For example, for System Time, Tab moves the cursor from hour to minute t o second.

without sav ing” prompt. Also, press Esc to ex it Setup menus, and return to the Main Menu.

Checking/Setting System Parameters

See the following t able for a list of parameters, their factory default settings, and alternate settings. A description of each setting follows the table.

To reset all parameters to the default settings, select Auto Configuration with Defaults from the Setup Main Menu and press Y.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 69

SOLD BY laptopia2005 DO NOT RESELL!!

Table 2-7 Setup Parameters

Parameter Default Setting Alternate Setting(s)

Setup and Operation 2-29

Standard CMOS Setup

Date Time Diskette Drive A Diskette Drive B *

Internal Har d Dr iv e Internal Master

LBA Mode Blk Mode

PIO Mode 32-bit Mode

Internal Slave

LBA Mode Blk Mode PIO Mode

32-bit Mode

mm/dd/yyyy hh/mm/ss

1.44 MB, 3 1/2

1.44 MB, 3 1/2 Enabled

Auto

On On Auto On

Auto

On On Auto

Not installed, 1.2 MB 5 1/4 Not installed, 1.2 MB 5 1/4

Disabled User Defined/ CD- ROM/LS-120/ Pre-defined types/Not I nstalled

Off Off 0, 1, 2, 3, 4, 5

Off User Defined/ CD- ROM/LS-120

Pre-defined types/ Not I nstalled Off

Off Off 0, 1, 2, 3, 4, 5 Off

Docking Station Hard Drives* DS Master*

DS Slave* System Memory

Advanced CMOS Set up

Plug and Play A ware O/S BootUp USB Configur ation BootUp Num-Loc k LCD Panel View Expansion Password Check PS/2 Port Hot Swap Internal Mouse

**** If the docki ng stati on joystick is set to Auto, us e I/O Address 201.

Visible or available only when notebook is docked.

** Can only be modified when power management is set to Custom.

*** Default options when sound setup is set to User Defined.

Enabled Auto Auto 32 MB

Auto Disabled

Auto Off

Setup Enabled Enabled

Disabled

Not installed/User Defined CD-ROM/LS-120 (automat icall y detected)

48, 64, 96, 128 MB

No, Y es Enabled

On, Off On

Always Disabled Disabled

SOLD BY laptopia2005 DO NOT RESELL!!

Page 70

SOLD BY laptopia2005 DO NOT RESELL!!

2-30 Setup and Operation

Table 2 -7 Setup Para meters (cont’d)

Parameter Default Setting Alternate Setting(s)

Power Management Setup

ACPI Aware O/S

Power Management Under AC Power Savings Level Hard Disk Timeout** Video Ti meout** Peripheral Timeout** Audio Device Time out** Standby Ti meout** Auto Suspend Tim eout**

Suspend Option Auto Save to File Panel Backlight Suspend Warnin Modem Ring Resume

Wak e Up A larm Resume Alarm Time

Tone

Off Longest Life

2 min. 2 min. On On

4 min. 10 min.

Suspend Enabled Auto On On Off

Off

Yes

On High Perform/Custom /Off

5/30/45 sec; 1/2/ 4/6/8/10/15 min.; Off 30/45 sec.; 1/2/ 4/6/8/10/15 min.; Off Off Off

Off/1/2/ 4/6/8/10/15 min. Off/5/10/ 15/20/25/30 min.

STF Disabled Full/Standard Off Off On

On Set time in 5 min. inc r ements when wake up is set to On.

Bo ot Device Setup

Boot DS IDE*

1st Boot Device 2nd Boot Device

3rd boot Device 4th Boot Device

Other Boot Devi c es

Tr Docking Station Video*

** Can only be modified when power management is set to Custom. *** Default options when sound setup is set to User Defined. **** If the docking station joystick is set to Auto, us e I/O Address 201.

Visible or available only when notebook is docked.

No LS-120

CD-ROM Floppy IDE-0 Yes Dock Stn.

Yes Floppy/CD-ROM/SCSI/Network Disabl ed/IDE-0/1/2/3 Floppy/LS-120/Disabled/IDE-0 LS-120/CD-ROM/Disabled/IDE-0 Floppy/CD-ROM/LS-120/Disabled No Portable

SOLD BY laptopia2005 DO NOT RESELL!!

Page 71

SOLD BY laptopia2005 DO NOT RESELL!!

Table 2 -7 Setup Para meters (cont’d)

Parameter Default Setting Alternate Setting(s)

Setup and Operation 2-31

Peripheral S et up

Serial Port

Parallel Port

Parallel Mode IR Serial Port

TV Mode Sound Sound IRQ SB-compatible DMA Full Duplex Mode DMA Dockin (MPU-401)* Docking Station Joystick*

Visible or available only when notebook is docked.

** Can only be modified when power management is set to Custom.

*** Default options when sound setup is set to User Defined.

**** If the docking station joystick is set t o Auto, use I/O Address 201.

Station M IDI

Auto

ECP Auto

NTSC Auto N/A N/A N/A

Auto Auto

Disabled COM1/IRQ4 COM2/IRQ3 COM3/IRQ4 COM4/IRQ3 Disabled LPT1/LPT2

Uni-Directional/Bi-Directional/EPP Disabled COM3/IRQ9 COM2/IRQ3,COM4/IRQ3 PAL Disabled/220h/240/260/280 IRQ5***/7/9/10/11 DMA #0/DMA #1*** DMA #0/DMA #3***

300h/310h/320h/330h/Disabled **** Disabled

BIOS Setup Menus

Read the following descriptions for explanat ions of items that appear in the BIOS Setup menus, as listed in the preceding table. S ee the item-specific help that appears on t he Setup screen for more details.

Standard CMOS Setup

When you select th e S tandard CMOS S etup s cr ee n yo u w ill see system Time an d system Date parameters , as well as drive para meters .

Date — Set your NE C Ver sa’s calendar month, day and year. The calendar clock



is year 2000- compliant. These settings remain in memory even after you t u r n off system power.

To set the date use the

PgUp

Time — Set the t ime, enter the current hour , minute, and second in



key to change the numbers within each field.

PgDn

24-hour format. To set the time use the

PgUp

key to change the numbers within each field.

PgDn

or arrow keys to move from field to field. Use the

Tab

hr/min/sec

or arrow keys to move from field to field. Use the

Tab

SOLD BY laptopia2005 DO NOT RESELL!!

Page 72

SOLD BY laptopia2005 DO NOT RESELL!!

2-32 Setup and Operation

Diskette Drives — Lets you designate the drive type fo r your diskette dr ives.



Internal Hard Drive — Allows you to enable or disable the internal har d disk drive in your system. You can also define internal master and slave drives, while also specifying the LBA, Blk and PIO modes.

Docking Station Hard Drives — Enable and disable t he hard drives installed in a



docking station. (These options are only available when the NEC Versa is docked.)

Syst em Memor y — D isplays th e amount of s ystem memory in stalled.



Advanced CMOS Setup

Advanced CMO S sett ings let you define the following functions.



Plug and Play Aware O/S — Selects whether or no t the system boots t o a Plug and Play o per ating system.



BootUp USB Configuration — Selects whether or not the system boots to a USB supported o p er ating system.

BootUp Num-Lock — Specifies whether NumLock is On or Off at system



startup.



LCD Panel View Expansion — Specifies whether the panel view is reduced/o ff or expanded/on.



Password Check — Specifies whether the system prompts you to enter a password w hen entering BIOS setup, bo oting the system, and resuming from suspend.



PS/2 Por t Hot Swap — S pecifies whether or not you can swap a PS/2 device during syst em oper ation.



Internal Mouse — Specifies whether o r no t you can use both the internal and the external mouse.

Power Management Setup

Your NEC Ver sa uses the Advanced Configuration and Power Int er face (ACPI) which enables the operating system to manage the power given to each attached device and to turn off a device when not in use. In addition, ACPI enables manufacturers to develop computers that automatically power up with a touch to the keyboard.

The Power Management Setup menu lets you balance high performance and energy conservation using parameters including the following.



ACPI Aware O/S — Specifies whether to enable ACPI when a Window s system supports ACPI.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 73

SOLD BY laptopia2005 DO NOT RESELL!!

Power Management Under AC — Specifies whether to enable power manage-



ment features when AC power is in use. When AC power is connected to your NEC Vers a system, p ower ma nagement is usua lly disabled. If you ena ble this parameter, the system automatically activates the power management profile you set, even when AC power is used.



Po wer Savings Le vel — Lets you c hoose one o f four leve ls of power management.

 High Perform provides the greatest system performance with only minimal

power co nservation.

 Longest Life pr ov ides the maximum amount of power savings.  Off disables power management and all device timeo uts.  Custo m lets you define your ow n power mana gement configuration by se-

lecting values fo r specific device timeouts. Custom lets you set the follo wing timeouts.

Setup and Operation 2-33

Hard D isk Time-out — A llows you to select th e a mount of time before



your hard disk shuts down.



Video Time-ou t — Allows you to select the amount of time b efor e your video shuts down.



Audio Device Time-out — Selects the amount of time before your audio device shut s do wn.



Standby Time-o ut — Allo ws you to select the system standby timeout period.



Auto Suspend Time-o ut — Defines how much t ime elap ses be fore th e system automatically enters Suspend Mode.



Suspend Option — Allows you to specify either Suspend or Save to File (STF) as the default power management mode. In Suspend, after a specified t ime of system inactivity, your NEC Versa go es into Su spend o r S T F, based o n t he selection. All your data is automatically recovered from where you left off when you Resume.



Automatic ST F — A f ter 30 minutes in Suspen d mode the current file is automatically saved to a special file on the hard disk and t he system shuts down. To resume, you must press the power button. The system reads the saved file and sets up your system accordingly.



If Auto Save to File is set to Off and HDPREPEZ or AMI STF (depending o n model) is present , pressing the

Fn-Suspend

key combination puts t he system into

Save to F ile mode.



Panel Backlight — Lets you select the LCD screen backlight intensity.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 74

SOLD BY laptopia2005 DO NOT RESELL!!

2-34 Setup and Operation

Suspend Warning Tone — Specifies whether the system warning tone sounds



when Suspend mode starts. It is best to keep this option enabled. Modem Ring Resume — Lets you choose whether the system resumes automati-



cally from suspend mode when an external modem receives a ring signal. Wake Up from Suspend Alarm/Resume A lar m Time — Lets you set a re sume



t ime fr om Suspend mode.

Boot Device Setup

Boot From Docking Station IDE — Specifies t he do cking station hard drive as



the boot dr ive. Boot Devices — Specifies the sequence of boot devices and whether or not the



system attempts to bo ot from a device other than those specified.



Docking Station Video — Selects whether or not the Docking Station video card is enabled at system boot .

Peripheral Setup

The Peripherals Setup menu displays the connection locations between the system and t he Input/Output ( I/ O) ports. This menu also lets you specify different port assignments as needed.

NOTE

If you disable a device in Peripheral Setup, you cannot enable o r assign it using the Windows 95 device manager. The device is not listed in the Windows 95 device list. To contro l the device using the Window s 95 d evice manag er, s elect any setting other than “Disable” in P er ipheral Setup.



Serial Port — Allows yo u to disable the port or change its address assignment.



Par allel Por t/Parallel Mode — Lets you disab le or re assign t he para llel p ort and se lec t a par allel port mode.



IR Serial Port — Allows you to disable or reassign the IR Serial port.



TV Mode — Specifies the signal type used by the TV being connected to the TV Out port.



Sound/Sound IRQ/SB-Compatible DMA/Full-Duplex Mode DMA/Docking Station MIDI — Allows the system BIOS to assign a conflict- free resource to the sound devices.



Docking Station Joystick — Enables or disables the docking station joystick.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 75

SOLD BY laptopia2005 DO NOT RESELL!!

Other BIOS Setup Options

BIOS Setup offers other options, including the following:

Change User Password — Allows you establish a user password once a Supervi-



sor passw ord is set.



Change Supervisor Password — Allows you to est ablish passwor d protect ion for enter ing the BIOS setup utility, bo otin g the sys tem, and r esuming from suspend.

Auto Configuration with Defaults — Loads default settings.



Save Sett ings and Exit — Accepts changes made to current sett ings, saves to



CMOS, and exit s BIOS Setup.



Exit Without S aving — Reverts to previously selected sett ings and exits Setup.

Password Protection

Setup and Operation 2-35

Your NEC Versa suppor ts a password for system securit y on several levels. Once yo u set a password, you must enter it before you can enter BIOS S etup, access the system at startup, or resume from suspend, depending on your configuration select ion.

You are not pr ompted to enter a passwo r d until you set a superviso r passwo rd. Your system is not pro tected until yo u set a user password.

NOTE

You must set the supervisor password befo re th e BIOS Se tup utility allows you to set a user password.

Using BIOS Setup to Set Power Management

Power Management Setup allows you to use t he factory-defined po wer savings level (Longest Life), or choo se betw een High Perform, Custom, or Off. Each provides a special value to your current work effort. These power management levels were designed with you in mind. For example, you can use them under the following circumstances:



Longest Life — Provides best batt er y life and goo d per formance. Use while traveling long distances.



High Perfor m — Prov ides best perfor mance and good batte ry life . Use wh ile on the road or traveling short distances.



Custom — Lets you decide! Set power management levels according to your own needs and present envir onment.



Off — Wo r ks well in an office environment while powering your NEC Versa with AC power.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 76

SOLD BY laptopia2005 DO NOT RESELL!!

2-36 Setup and Operation

Using the Save to File (STF) Feature

STF prot ects the integrity of your working files. For example, if you are called away from your NEC Versa and Suspend mode is selected with aut o Save to File active, your system automatically goes into Suspend mo de. After 30 minutes, if you don’t return, your working environment is saved to a special file on your hard disk.

To co nfigure your NEC Versa’s STF feature:

Acce ss th e BIOS setup utility.

Select Power Management from the Setup Main Menu.

Move the cursor down and highlight Suspend Mode.

Press the PgUp key and select STF.

Save the settings and exit BIOS Setup.

There are two ways to invoke the NEC Versa’s STF feature, one aut omatic and one manual.



After 30 minutes of in activit y, your NEC Versa a utomatically invok es STF, provid ed you have configured STF in th e BIOS Se tup utility.



You can ma n ua lly invoke S TF by pressin g Fn Suspend simultane ously, before you leave your NE C Ver sa.

NOTE

When the status bar reads that there is only 4% p ower remaining in the system, the NEC Vers a auto matically performs a Sa v e to File.

STF Benefits

Us ing STF c an b enefit you in the followin g w ays.



When in ST F, th er e is minimum b attery d ra in.



Preserves the life o f your NEC Versa.

Saves you time. When you return from that urgent call or meeting, you don’t have to reboot, just press the Suspend/Resume butt on to resume system.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 77

SOLD BY laptopia2005 DO NOT RESELL!!

Section 3

Troubleshooting

Th is section focuses o n provid ing you with some in formation on basic tro ubleshooting as well as how to translate so me system error messages.

QUICK TROUBLE SHOOTING

Th is section summar ize s problems that may develop dur ing syste m operat ion and lists suggested cor r ective actions.

Problem Checklist

First check the items in the following list. I f these items don't help, see the table that follo ws the list.

Sets date and time



Power is on to the computer.



The electrical ou tlet to which your AC adapter is connected is working. Test the

outlet by plugging in a lamp or other electrical device.



All cables are tightly connected.



The display setting is configured corr ectly.



Th e disp lay bright ness co nt rol is adjusted pr operly.



If using battery power, check that t he batt er y pack is properly inserted and fully

charged.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 78

SOLD BY laptopia2005 DO NOT RESELL!!

3-2 Troubleshooti ng

Table 3-1 Troubleshooting

Problem What To Do

T he system does not power on.

If you have the A C adapter attached, c hec k that the electrical outlet

LCD screen is dark and blank.

Screen bright ness needs adjustm ent. Adjust t he c ontrol. The system entered S uspend mode due to low battery power. ( Chec k

Battery power does not last long.

I nformation on the LCD screen is difficult to see.

I f you are operating the system wit h battery power, check t hat the battery pack is correctl y inserted. Att ac h the AC adapter to rechar ge the battery.

you are using works. Power-saving m ode has shut off t he bac k light. P r ess a keyboard key

or the Suspend button. T he built-in LCD may not be sel ec ted. Press

the Status bar for a half-moon i c on.) Plug in the AC adapter or replace the bat tery pack, and t hen pr ess the Suspend butt on to resume operati on.

Use power-sav ing modes. F ully charge and discharge the battery several t imes to recondition it. Replace the battery . Adjust the bright ness control.

Fn F3

once or twice.

An optional component does not work.

The Suspend/Resume button does not work.

The NEC Versa may be c onnec ted to a docking station. Some power

Mak e sure t he c omponent is securely installed or c onnec ted. Verify that the system parameter for the I/O port configuration is set correctly in Setup.

A disk drive mi ght be busy. W ait until the disk dri ve stops and try again.

I f system does not resum e, it may have auto suspended on a low battery. A ttach the AC Adapter and try again.

I f the system does not r esume, check that Auto Play is disabled. See “Changing the Aut o P lay Setting” in Chapter 4 for detai ls.

management funct ions do not work when the NEC Versa is docked.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 79

SOLD BY laptopia2005 DO NOT RESELL!!

Start-up Problems

The system displays an invalid configuration error message at po wer on when there are the fo llowing condit ion s:

the current co nfiguration information doesn't match configuration information



stor ed in Auto Set up, such as when an internal option is added. the system loses configuration information.



If either cond ition is true , the system displays an “ inva lid c on figu rat ion info rmat ion ” me ssage.

To cont inue start- up procedures, press F2 an d run t he Setup utility to set cur rent system parameters.

If an error message appears before the oper ating system starts, look up the error message in the fo llowing table. Follow the instructions. If you see other error messages, the hardware migh t n eed repair.

Troubleshooti ng 3-3

NOTE

When the NEC Versa detects an erro r related to display devices, it cannot display on either the LCD or a CRT. T he system warns you by beeping.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 80

SOLD BY laptopia2005 DO NOT RESELL!!

3-4 Troubleshooti ng

POST Error Messages

The NEC Versa 6220/30/60 notebook computer has a built-in checking pro gr am that aut omatic ally tests its compon ents when you tur n the system power on. This dia gnos tic test is called the Power-On Self-Test (POST). If the system finds a problem during the POST, the system disp lays an error message or emits a series of beep signals. I f t his happens, follow the instructions in the POST Error Messages table or t he Beep Co de table, as appropriate.

Table 3-2 POST Error Messages

Message What To Do

Addr ess Line Shor t Error in the address decoding circuitry on the system board.

Contact your NECCS D servic e r epr esentative for service work.

C: Drive Error Hard disk drive C: does not respond. Chec k that C: hard disk t y pe

in Setup is correct.

C: Dr ive Failure Hard disk drive C: does not respond. You may need to repl ac e the

hard disk drive.

Cache M emory Bad, Do Not Enable Cache

CH-2 Timer Error Most IS A c omputers include two timer s. There is an error i n timer

CMOS Battery State Low

CMOS Checksum Failure

CMOS System Options Not Set

CMOS Display Ty pe Mismatch

CMOS Time and Date Not Set

Diskette Boot Failure The boot disket te in floppy drive A: is corrupt. It c annot be used to

DMA error Error in the DMA controller. Cont act your NECCSD service

Cache memory is defective. It must be r eplaced. Contact y our NECCSD service representative for serv ice work.

2. Contact your NE CCS D servic e r epr esentative for service work. CMOS RAM is powered by a battery . The battery power i s l ow.

Contact your NECCS D servic e r epr esentative to replace t he CMOS battery.

After CMO S RA M val ues are saved, a checksum value is generated for er r or c hec k ing. The previous value is di ff er ent from the current value. Run Setup to reset the value.

T he values stored in CMOS RAM are either corrupt or nonexistent . Run Setup to reset t he value.

T he amount of memory on the system board is differ ent than the amount i n CM OS RAM. Run Set up to reset the value.

Run Setup to set the ti me and date.

boot the com puter. Use another boot disk and follow the on-screen instructions.

representative to replace the CMOS battery.

DMA#1 Error Error in t he first DMA channel. Cont act your NECCSD service

representative for service.

DMA #2 Error Error in the second DMA channel. Contact your NECCSD service

representative for service.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 81

SOLD BY laptopia2005 DO NOT RESELL!!

Table 3-2 POST Error Messages (cont’d)

Message What To Do

F DD Controller Failure

The BIOS c annot communicate with the floppy disk controller. Contact your NECCS D servic e r epr esentative to check all appropriate connec tions.

Troubleshooti ng 3-5

HDD Cont r oller Failure

INTR #1 Error Interrupt channel 1 failed POST. Contact your NECCSD service

INTR #2 Error Interrupt channel 2 failed POST. Contact your NECCSD service

Invalid Boot Di skette The BIOS can read the diskette i n dr iv e A :, but cannot boot the

Key boar d is Locked Unlock It

Keyboard Error There is a ti ming problem with the k ey boar d. Set the

KB\interface error There is an error in the keyboar d c onnec tor. Contact y our

Off Board parity Error Parity er r or installed in an expansion slot . Contact your NECCS D

T he B IOS cannot communi c ate with the hard disk drive c ontroller. Contact your NECCS D servic e r epr esentative to check all appropriate connec tions.

representative for service.

computer. Use another boot diskette. T he k ey boar d lock on the computer is engaged. T he c omputer

must be unlock ed to continue.

Keyboard

option in S etup to routines.

NECCSD service representative for serv ice.

servi c e r epr esentative to be sure that the memory module i s installed correctly.

Not Installed

to skip the keyboar d P OST

The error format is: OFF BOARD PARITY ERROR

XXXX

ADDR(HEX) = (

XXXX

is the hex address where the error occ ur r ed.

On Board Parity Error Parity error in system board m emory. Contac t your NECCSD

servi c e r epr esentative for service.

Pari ty Error ???? Par ity error in system memory at an unknown address. Contact

your NECCSD service representat ive for service.

)

Fatal errors that occur during POST are communicat ed through a series of beeps. All beep code errors, except beep code 8, are fatal erro r s and do not allow the system to cont inue to boot.

Beep Codes are listed in the table that follows.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 82

SOLD BY laptopia2005 DO NOT RESELL!!

3-6 Troubleshooti ng

Table 3-3 Beep Codes

Nu mber of Beeps Error Description

1 Refresh Failure The memory refresh circuitry on the

2 Parity Error Parity error in the first 64 KB of memory.

motherboard is faulty.

3 Base 64 KB Memory

Failure

4 Tim er Not Operati onal Memory fai lure in the first 64 KB of mem ory

5 Processor Error The CPU on the motherboard generated an

6 Gate A20 Failure The keyboard controller may be bad. The

7 Processor Exception

Interrupt Error

8 Display Memory

Read/Write Error

9 ROM Checksum Error T he ROM checksum value does not match

10 CMO S S hutdown

11 Cache Error/External

Cache Bad

Mem ory failure in the first 64 KB.

or Timer 1 on the motherboard is not functioning.

error.

BIOS cannot switc h to protected mode. T he CP U gener ated an exception interrupt.

T he system video adapter is ei ther missing or its memory is faulty. ( This is not a f atal error.)

the v alue encoded in the B IOS. T he shutdown regi ster for CMOS RA M

failed.

T he external c ac he is faulty.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 83

SOLD BY laptopia2005 DO NOT RESELL!!

HELPFUL QUESTIONS

Here are some helpful questions to ask when troubleshooting the notebook:

Is there any external power source connected to the computer?



Is the battery fully charged? Is the computer t ur ned o n and the Power LE D activated?



Ar e the LC D d isplay con trols set to the minimum lev el?



Is the LCD display switched to the external monitor?



Are all cables and devices co nnected pr operly and secur ely?



Are all needed device drivers installed properly?



Have you checked the AUTOEXEC.BAT and CONFIG.SYS files for er r ors?

Troubleshooti ng 3-7



Is the Suspend Mode act ivated on t he LCD St atus Bar? Press any key or press the Power switch to po w er on the system.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 84

SOLD BY laptopia2005 DO NOT RESELL!!

Section 4

Field Service Guidelines

This section contains preventive and cor r ective maintenance procedures for the NEC Versa 6220/30/60 notebook computers.

The first part of the section describes cleaning procedures and preferred handling procedures for sensitive components (for example disk drives, batteries).

The second part of the section identifies all field replaceable parts with the remainder o f the section containing t he removal and replacement pro cedur es for the field replaceable parts.

PREVENTIVE MAINTENANCE

Pre v entive ma in tenanc e is limited to cleaning the pla stic case, the keyboa rd, and the displa y screen and cleaning the diskette drive heads as required.

NOTE

Remove the battery and disconnect the AC adapter before performing any maintenance. Voltage is present inside the system unit and LCD even after the system is turned off.

Cleaning the Notebook’s Exterior

Use the steps below to clean the outer surface of the system.

Power off the system and remo ve all battery packs. Unplug all cables connected to the system.

Wipe the outside of the system unit, keyboard, and display with a soft, clean cloth. Remove stains with a damp, almost dry cloth. Use liquid glass cleaner to clean the LCD indicato r panel. Apply t he glass cleaner directly to t he cloth and then wipe the LCD indicat or panel. Do not use solvents or strong, abrasive cleaners on any part of the system.

Clean the keys with a damp cloth. A small, soft- bristle brush may be used to clean between the keys. Make sure to use a damp cloth (not wet) to prevent moisture from seeping between the keyboard and the metal plat e, possibly damaging the components under the keys. If the keyboard gets wet , thoroughly dry it before reassembling the system unit.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 85

SOLD BY laptopia2005 DO NOT RESELL!!

4-2 Field Service Guidelines

Cleaning the Notebook’s Interior

Whe n serv icing the inside of the noteb ook, re mov e dust and o th er fore ign particles from inside the system unit as follows.

Remove the top cover and keyboard using t he disassembly procedures discussed late r in th is section .

Dust or vacuum (with a rubber-tipped nozzle) the inside of the system unit par ticularly the motherboard surface. Use care t o avoid damaging or dislodging any components or cables.

Inspect all cables connecto r s for damage. Ensure t hat connectors are seated properly before replacing the cover.

Protecting the Disk Drives

To protect the disk drives and data, back up t he system disk perio d ically on diskettes. Occasionally use a head-cleaning diskette in the disk drive to pro long the life o f the drive and t o h elp mainta in data in tegrity.

Here are some maint enance procedures to use when servicing a hard disk:



Always back up the data files from the hard disk.



Run a virus detecting program to check for po ssible virus infected areas on the

hard disk.



Use the preinstalled ScanDisk program to cor r ect any errors found in the direc-

t ory and F ile Alloc ation T able (FAT). This will a lso free up space from any unused sector s.



Never turn the computer o ff when the hard disk is being accessed.



Never move or raise the computer while t he hard disk is being accessed, most es-

pecially don't jar the hard disk as this may cause a hard disk crash.



Acquir e a hard disk maintenance program like DE FRAG under DOS, or Norto n

Utilitie s S PEEDISK pro grams. These p rog ra ms r eor ganize your hard d isk b y eliminating fragmentation and improves the ha rd disk access time.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 86

SOLD BY laptopia2005 DO NOT RESELL!!

Handling the Battery Packs

The battery packs furnished with the computer require reasonable care and handling to ensure efficient operation and maximum life. Periodically inspect the battery terminals and the batteries for evidence of corrosion and oxide build- up.

To ensure t hat the battery packs endure normal life cycle, always observe the following precautions when handling the battery packs:

Do not dr op the batt er y packs or subject them to excessive shock and vibrat ion.



Do not expo se the battery packs to direct sunlight, moisture, or chemical co m-



pounds, or ext r eme heat. Do not disassemble the battery packs.



Do not use the battery packs to power other devices.

Field Service Guidelines 4-3

Do not short the battery leads or connect the battery with reversed polarity.



Never attempt to charge the battery packs in any way other than as described in this manual and the User’s Guide.



Always charge the batt er y packs as soo n as po ssible after a low batter y indication.

Maintaining the LCD Quality

When it comes to screen pro blems, heat plays a big part. After a good working session, the typical ro utine is t o shut the machine and close the cover. The display surface (no matter what type it is) radiates heat. When you close the cover, you trap the heat against the screen. Make sure to leave the computer's cover open for about ten minutes while the heat disperses, before closing the LCD.

REQUIRED TOOLS AND EQUIPMENT

All NEC Versa co r r ective maintenance procedures can be performed using the following tools:



Tweezers



Small flat-head screwdriver



Small Phillips screw dr iver



Small Hex-bolt s c rewdriver

SOLD BY laptopia2005 DO NOT RESELL!!

Page 87

SOLD BY laptopia2005 DO NOT RESELL!!

4-4 Field Service Guidelines

DISASSEMBLY AND REASSEMBLY

This subsection contains step-by-step disassembly procedures for the system. Reassembly is the reverse of disassembly. Each procedure is supported by a simplified disassembly illust ra tion to facilitat e r emova l. The Illustrated Pa rts Br eakd own a nd parts lists for t he s ystem un it ar e sh own later in this subs ection .

For complete disassembly o f the syste m unit, follow the d isassembly order listed in Table 4-1. To reassemble, follo w the table in reverse or der .

Table 4-1 NEC Versa 6220/30/60 Disassembly Sequence

Sequence Part S ee P age

1 2 Diskette Drive (i nstalled in Ver saBay II) 4-7 3 Main Battery Pack (Li-Ion Type) 4-8 4 Removing the Keyboard 4-10 5 Memory Upgrade 4-12 6 LCD and Top Cover 4-15 7 VersaGlide 4-18 8 LCD Status Bar and Power Button 4-19

9 Bridge Battery , CMOS Battery, Buzzer 4-20 10 Sound Board and Microphone 4-21 11 IR Assembly and Graph B oar d 4-21 12 CPU Assembly 4-23 13 I/O Board 4-24

Hard Disk Drive 4-5

Whe n disas sembling th e syst em u n it, follow th ese general r ules.



Turn off and disco nnect all power and all options, including the AC adapter (if connected) and battery packs (see the pro cedur es that follow).



Do not disassemble the system into parts that are smaller than those specified in the procedure.



Label all removed connectors. Note where the connector goes and in what posit ion it was ins talled.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 88

SOLD BY laptopia2005 DO NOT RESELL!!

Hard Disk Drive

To disassemble t he entire NEC Versa co mputer , start by removing the hard disk drive as follows.

NOTE

NEC Versa hard disk drives can be used in other NE C no tebook computers such as the NEC Versa 2000 and 4000 Series systems. However, hard dis k d rives from ear lier models can only b e used in the VersaBay II. Check the to p of the hard drive fo r a blue dot. I f the drive case has the blue dot on it, you can use the drive in either the drive bay or the VersaBay II.

Field Service Guidelines 4-5

Check that the NEC Versa power is off.

Turn the NEC Versa upside down with the front of the unit facing you.

Remove the drive cover as follows:



Locate the drive cover screw. Remove screw. Push the drive cover release latc h up wh ile u sing some pr essure to s lide th e cov er to the left.

Lift the cover up and off the system.



Figure 4-1 Removing the Drive Bay Cover

SOLD BY laptopia2005 DO NOT RESELL!!

Page 89

SOLD BY laptopia2005 DO NOT RESELL!!

4-6 Field Service Guidelines

Re mov e the hard disk d rive as follo ws:



Using your fingers, press down on the hard disk drive at the end closest to the connector.

While mainta ining pres sure , s lide th e d rive to wards the fr ont of th e syst em.



Do not lift the drive out of the system before releasing it from the system connector. Doing so can damage the connectors.



Once the drive is disconnected, lift the drive up and out of the system.

CA UT ION

Figure 4-2 Removing the Hard Disk Drive

SOLD BY laptopia2005 DO NOT RESELL!!

Page 90

SOLD BY laptopia2005 DO NOT RESELL!!

Diskette Drive

Remove the diskette drive as follows.

Make sure the NEC Versa is powered o ff, all options are disconnected, and the LC D p anel is clo sed.

Turn the system upside down with the front facing you.

Locate the VersaBay II release lat ches o n t he bottom of the unit.

Field Service Guidelines 4-7

Figure 4-3 VersaBay II Release Latches

Slid e the front latch towards the hard disk drive side of the system, and hold it.

Push the middle latch towards you until t he diskette drive pops part way out of the unit.

Continue to hold the latch near the front of the system to the left, and pull the diskette drive the rest of the way out of the system.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 91

SOLD BY laptopia2005 DO NOT RESELL!!

4-8 Field Service Guidelines

NOTE

If you release the front latch before completely removing the device, the device casing catches on the inside of the latch.

Figure 4-4 Removing the Standard Diskette Drive

Main Battery Pack (Li-Ion Type)

Re mov e the main b attery pack as follows .

NOTE

Save your files, exit Windows, and press the Suspend button or turn off system power.

Close the LCD and turn the system over, with the front facing you.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 92

SOLD BY laptopia2005 DO NOT RESELL!!

Release the battery cover latch and slide the batt er y bay cover away from the

system.

Field Service Guidelines 4-9

Figure 4-5 Removing the Battery Compartment Cover

Place a finger in the notch on the batt er y and lift t he battery out o f the system.

NOTE

Always lift the battery out of the system by the notch. Failure to do so can damage the battery terminals.

Figure 4-6 Removing the Battery

SOLD BY laptopia2005 DO NOT RESELL!!

Page 93

SOLD BY laptopia2005 DO NOT RESELL!!

4-10 Field Service Guidelines

Removing the Keyboard

Make sure the system is powered off and that no peripheral devices are at tached.

Locate and r emove the two Phillips-head scr ew s on the bottom o f th e NEC Versa that secure the speaker caps. Put the screws in a safe place for reassembly.

Figure 4-7 Locating the Speaker Cap Screws

Turn the NEC Versa over and op en the LCD panel.

Locate the two speaker caps, slide each one toward the outside edge of the syst em, and remove it.

Figure 4-8 Removing the Speaker Caps

SOLD BY laptopia2005 DO NOT RESELL!!

Page 94

SOLD BY laptopia2005 DO NOT RESELL!!

Gently lift up the edge of the keyboard nearest t he LCD and slide the keyboard

towar d the LCD screen to release the tabs that secur e it.

Field Service Guidelines 4-11

Figure 4-9 Lifting Up the Keyboard

Carefully turn over the keyboard and place it face down on the VersaGlide. Mem-

ory Upgrades do not require disconnecting the keyboard ribbon cable from the graph board. To disassemble t he NEC Ver sa further you need to disconnect the keyboard ribbon cable at P15 and remove the keyboard.

Memory Upgrades are detailed in the next section. Instr uctions to further disas-

semble t he NEC Versa ar e pr ovided following Memory Upgrade starting with “LCD and T op Cover.”

SOLD BY laptopia2005 DO NOT RESELL!!

Page 95

SOLD BY laptopia2005 DO NOT RESELL!!

4-12 Field Service Guidelines

Figure 4-10 Positioning the Keyboard

Memory Upgrade

The NEC Versa 6220/30/60 notebook comes standard with 32 megabytes (MB) o f random access memor y (RAM). You can increase system memory to a maximum of 128 MB. The RAM combinations possible are 32, 48, 64, 96 and 128 MB depending on which two o f the liste d d ua l in line memory modules (D IM M) are used.



16-MB memory module



32-MB memory module



64-MB memory module

Th e followin g tab le sh ows the me mory ex pa nsion poss ib ilities.

Table 4-2 System RAM Expansion

Base Memory Exp ansion Memory Total Memory

32 MB 16 MB 48 MB 32 MB 32 MB 64 MB 32 MB 64 MB 96 MB 64 MB * 64 MB 128 MB

*Replacing the prov ided 32-MB DIMM with a 64-MB DIMM provides optimum memory expansion.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 96

SOLD BY laptopia2005 DO NOT RESELL!!

Install DIMMs as follows:

Remove the keybo ar d as descr ibed in the preceding section.

Locate the lock notches and alignment key on the DIMM.

Field Service Guidelines 4-13

Figure 4-11 DIMM Features

Locate the DIMM expansion port.

Hold the DIMM at a 45 degree angle and align the DIMM co nt acts with the

socket in the system. Push the connector into the socket. Press down on t he edge o f the DIMM o pposite the contacts until the lock tabs on

the sides snap into place, securing the module.

Figure 4-12 Installing the DIMM

SOLD BY laptopia2005 DO NOT RESELL!!

Page 97

SOLD BY laptopia2005 DO NOT RESELL!!

4-14 Field Service Guidelines

If you are replacing a DIMM and need to remove one that is already installed, do so as follo ws:

Press the locking tabs away fro m the sides of the DIMM and hold while gently



lifting on the edge of the DIMM. When the edge of the DIMM pops up and is at approximately a 60 degree an-



gle, pull the DIMM from the socket.

Figure 4-13 Removing an installed DIMM

NOTE

The system switches are also located under-

neath the keyboard.

SOLD BY laptopia2005 DO NOT RESELL!!

Page 98

SOLD BY laptopia2005 DO NOT RESELL!!

LCD and Top Cover

Remove the LCD and top cover as follows.

Perform the previous disassembly process as described.

Re mov e the bo ttom base unit cove r a s follows .

Turn the computer over with the VersaBay II slot facing t owards you.



Locate the 10 screws that secure the bottom base unit cover. In all, there are 4



long screws, 6 shor t screws.

Field Service Guidelines 4-15

Figure 4-14 Removing the Bottom Base Screws



Remove the remaining screws (two o f the ten were removed when removing the keyboard).



Turn the laptop over and remove three screws. ( T here are 2 medium screws and 1 short screw.)

SOLD BY laptopia2005 DO NOT RESELL!!

Page 99

SOLD BY laptopia2005 DO NOT RESELL!!

4-16 Field Service Guidelines

Figure 4-15 Location of Three Sc rews



Using a flat-head screwdriver, carefully detach the bott om base unit cover from the top cover.



To lift off the top cover, place your left hand in the PC cards slot bay, and pull the left cor ner o f the system upward with your right hand. Be careful not to lift t he co ver up too far until yo u have disconnected the LCD cables (see the next s tep .)

SOLD BY laptopia2005 DO NOT RESELL!!

Page 100

SOLD BY laptopia2005 DO NOT RESELL!!

Disconnect the LCD cables from connecto r P 6 on the Graph board. Also discon-

nect the speaker cables (P17) and VersaGlide cables (P14).

Field Service Guidelines 4-17

Figure 4-16 Separating Top Cover from Base Unit

SOLD BY laptopia2005 DO NOT RESELL!!
