NEC V422, V551, V651 User Manual

User’s Manual
MultiSync V422 MultiSync V462 MultiSync V551 MultiSync V651
(For use in landscape position only)

Index

DECLARATION OF CONFORMITY .............................................................................................................English-1
Important Information ...................................................................................................................................English-2
WARNING ....................................................................................................................................... English-2
CAUTION ........................................................................................................................................ English-2
Declaration ................................................................................................................................................... English-2
Safety Precautions, Maintenance & Recommended Use............................................................................. English-3
Contents ....................................................................................................................................................... English-4
Installation .................................................................................................................................................... English-5
Attaching Mounting Accessories ..................................................................................................... English-6
Parts Name and Functions ........................................................................................................................... English-8
Control Panel .................................................................................................................................. English-8
Terminal Panel ................................................................................................................................English-9
Wireless Remote Control ................................................................................................................ English-11
Operating Range for the Remote Control ....................................................................................... English-12

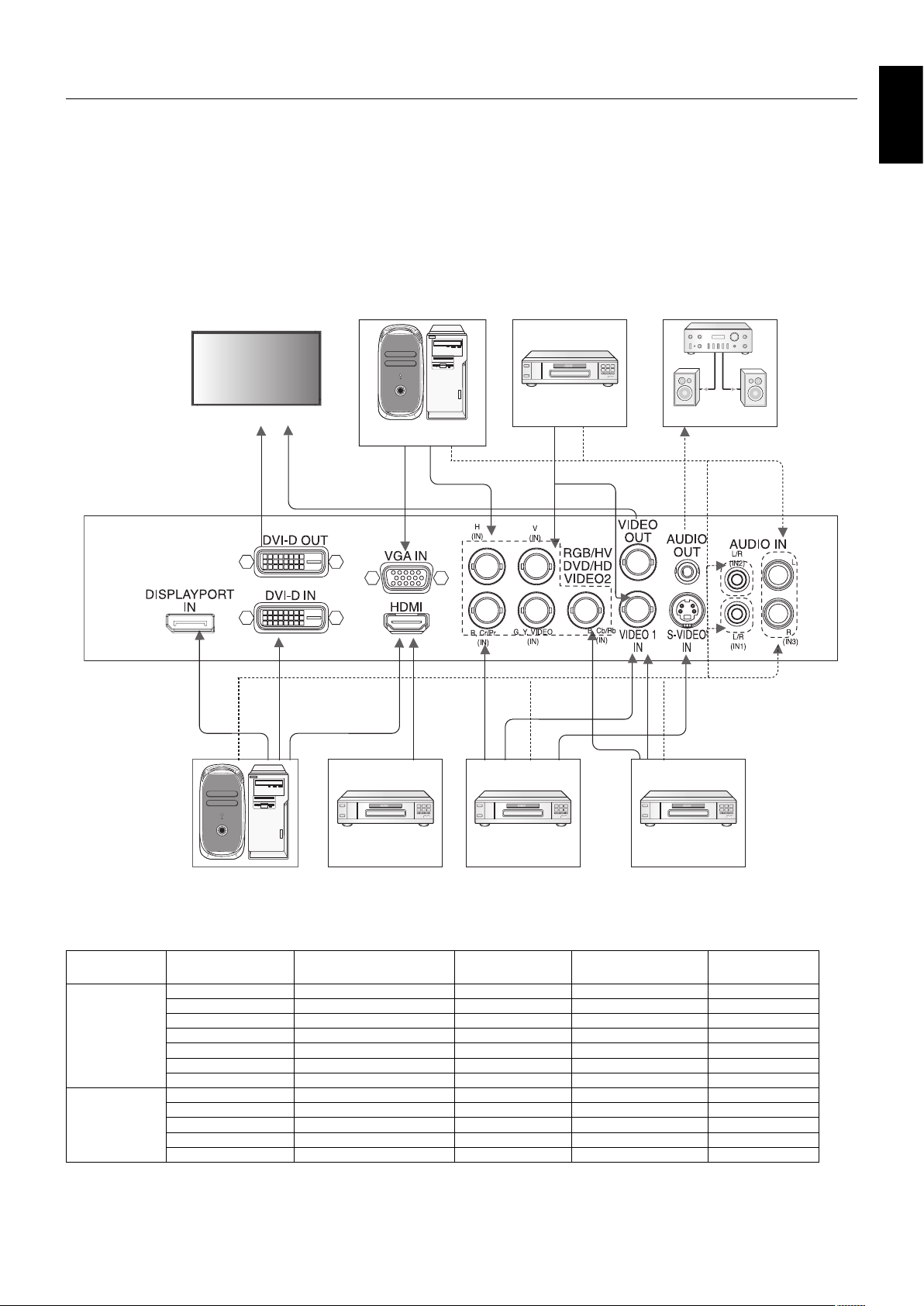

Wiring Diagram ............................................................................................................................... English-15
Connecting a Personal Computer ................................................................................................... English-16
Connecting a DVD Player or Computer with HDMI out ..................................................................English-16
Connecting a Computer with DisplayPort ....................................................................................... English-16
Power ON and OFF Modes ............................................................................................................English-17
Power Indicator ............................................................................................................................... English-18
Using Power Management ............................................................................................................. English-18
Selecting a video source ................................................................................................................. English-18

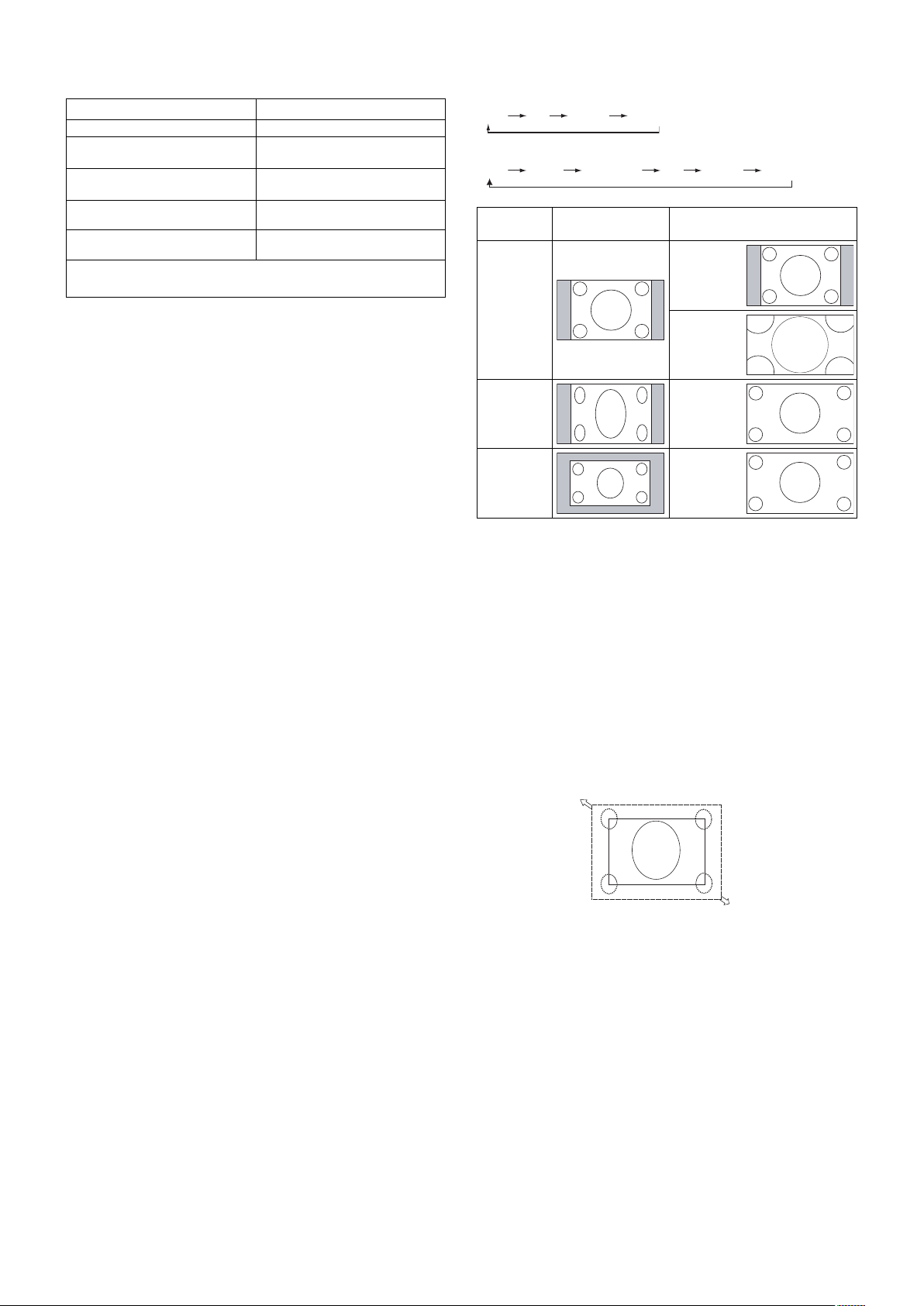

Picture Aspect ................................................................................................................................. English-18

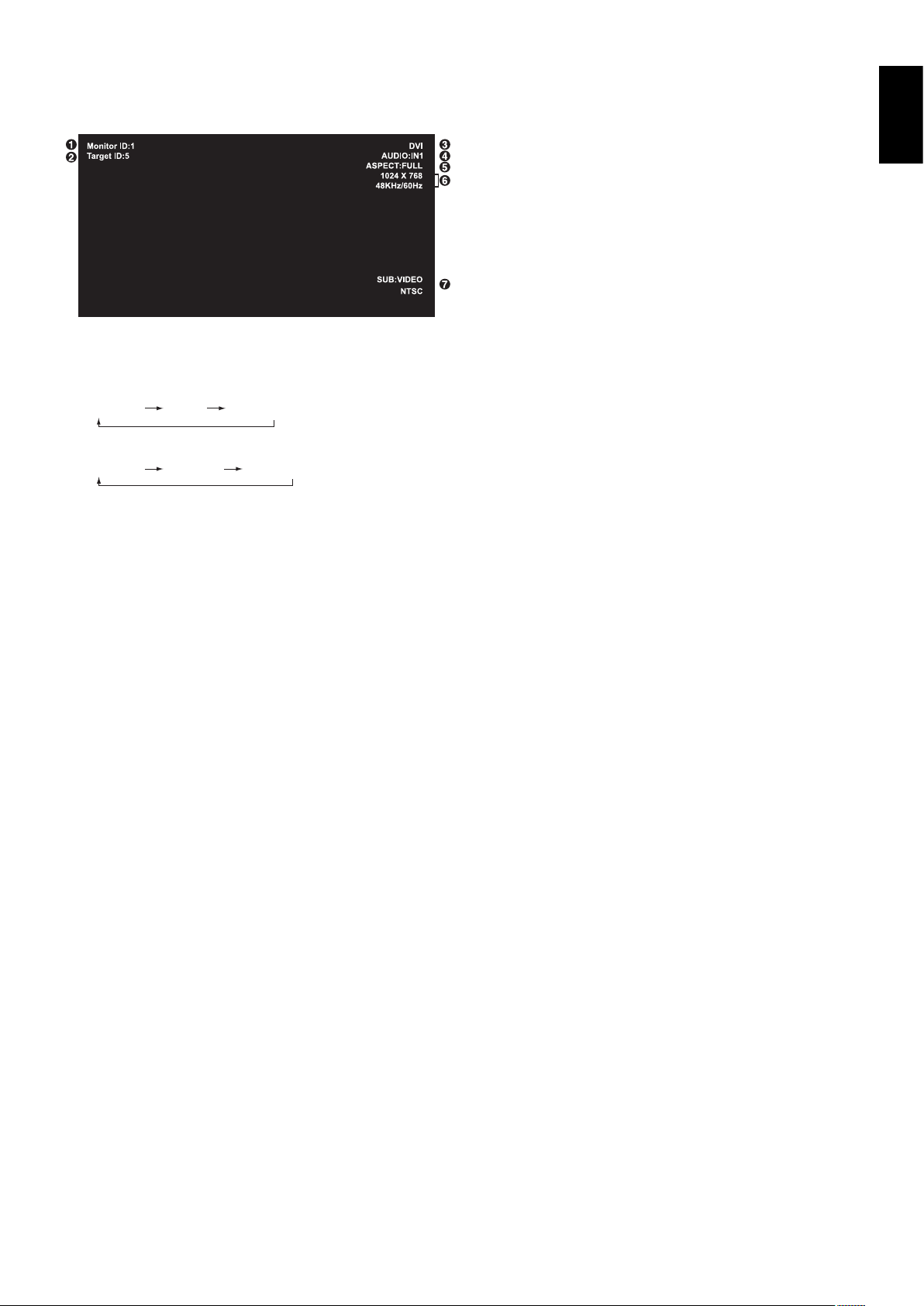

Information OSD ............................................................................................................................. English-19
Picture Mode ................................................................................................................................... English-19
PICTURE ........................................................................................................................................ English-21
ADJUST .......................................................................................................................................... English-21
AUDIO ............................................................................................................................................ English-22
SCHEDULE .................................................................................................................................... English-22
PIP .................................................................................................................................................. English-23
OSD ................................................................................................................................................ English-23
MULTI DISPLAY ............................................................................................................................. English-24
DISPLAY PROTECTION ................................................................................................................English-25
ADVANCED OPTION ..................................................................................................................... English-26

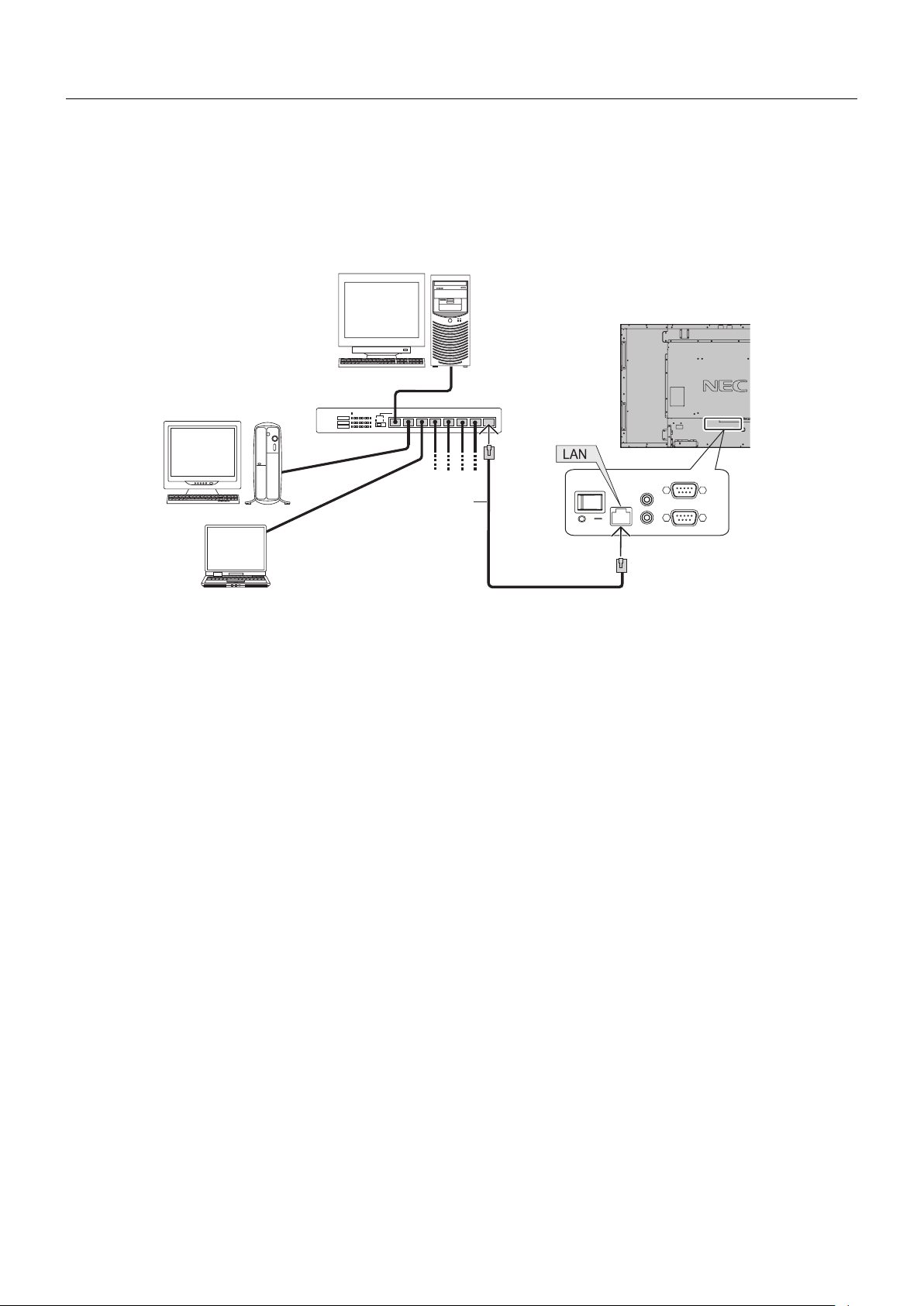

Connecting to a Network ................................................................................................................ English-32
Network Setting by Using an HTTP Browser .................................................................................. English-32
www.necdisplaysolutions.com

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
U.S. Responsible Party: NEC Display Solutions of America, Inc. Address: 500 Park Boulevard, Suite 1100 Itasca, Illinois 60143 Tel. No.: (630) 467-3000
Type of Product: Display Monitor Equipment Classifi cation: Class B Peripheral Model: MultiSync V422 (L420UA)
MultiSync V462 (L460UB) MultiSync V551 (L550UC) MultiSync V651 (L650U9)
We hereby declare that the equipment speciÞ ed above
conforms to the technical standards as speciÞ ed in the FCC Rules.
Canadian Department of Communications Compliance Statement
DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.
FCC Information
1. Use the attached specifi ed cables with the MultiSync V422 (L420UA)/MultiSync V462 (L460UB)/MultiSync V551 (L550UC)/ MultiSync V651 (L650U9) colour monitor so as not to interfere with radio and television reception.
(1) Please use the supplied power cord or equivalent to ensure FCC compliance. (2) Please use the supplied shielded video signal cable, Mini D-SUB 15 pin to Mini D-SUB 15 pin.
2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help.
English
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may fi nd the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Offi ce, Washington, D.C., 20402, Stock No. 004-000-00345-4.
Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland. DisplayPort is trademarks of Video Electronics Standards Association. All other brands and product names are trademarks or registered trademarks of their respective owners.
HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
English-1

Important Information

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM
WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION: Please use the power cord provided with this monitor in accordance with the table below. If a power cord is not supplied with this equipment, please contact your supplier. For all other cases, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.
This symbol warns user that uninsulated voltage within the unit may have suffi cient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.
Plug Type North America
Plug Shape
Region
Voltage
* When operating the monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply
voltage of the AC power outlet being used.
NOTE: This product can only be serviced in the country where it was purchased.
• The intended primary use of this product is as an Information Technical Equipment in an offi ce or domestic environment.
• The product is intended to be connected to a computer and is not intended for the display of television broadcast signals.
U.S.A./Canada
120* 230 220 100230
European
Continental
U.K. Chinese Japanese
U.K. China JapanEU (except U.K.)
English-2

Safety Precautions, Maintenance & Recommended Use

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE
FOLLOWING WHEN SETTING UP AND USING
THE MULTI-FUNCTION MONITOR:
• DO NOT OPEN THE MONITOR. There are no user
serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualifi ed service personnel.
• Do not spill any liquids into the cabinet or use your monitor
near water.
• Do not insert objects of any kind into the cabinet slots,
as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fi re or equipment failure.
• Do not place any heavy objects on the power cord.
Damage to the cord may cause shock or fi re.
• Do not place this product on a sloping or unstable cart, stand
or table, as the monitor may fall, causing serious damage to the monitor.
• Do not mount this product face up, face down or upside down
for an extended period of time as it may cause permanent damage to the screen.
• The power supply cord you use must have been approved by
and comply with the safety standards of your country. (Type H05VV-F 3G 1mm
• In UK, use a BS-approved power cord with molded plug
having a black (13A) fuse installed for use with this monitor.
• Do not place any objects onto the monitor and do not use the
monitor outdoors.
•
The lamps in this product contain mercury. Please
2
should be used in Europe)
dispose according to state, local or federal law.
• Do not bend, crimp or otherwise damage the power cord.
• If glass is broken, handle with care.
• Do not cover vent on monitor.
• Do not use monitor in high temperature, humid, dusty, or oily
areas.
• If monitor or glass is broken, do not come in contact with the
liquid crystal and handle with care.
• Allow adequate ventilation around the monitor, so that heat
can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of the monitor.
• The power cable connector is the primary means of detaching
the system from the power supply. The monitor should be installed close to a power outlet, which is easily accessible.
•
Do not move or mount this product by hanging a rope or wire to the backside handle. Do not mount or secure this product by using the backside handle. It may fall and cause personal injury.
• Handle with care when transporting. Save packaging for
transporting.
• If using the cooling fan continuously, it is recommended to
wipe holes clean a minimum of once a month.
• Please clean the holes of back cabinet to reject dirt and dust
at least once a year because of set reliability.
• When using a LAN cable, do not connect to a peripheral
device with wiring that might have excessive voltage.
Connecting to a TV*
• Cable distribution system should be grounded (earthed) in
accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.
• The screen of the coaxial cable is intended to be connected
to earth in the building installation.
English-3
Immediately unplug your monitor from the wall outlet and refer servicing to qualifi ed service personnel under the following conditions:
• When the power supply cord or plug is damaged.
•
If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If you notice any structural damage such as cracks or unnatural wobbling.
• If the monitor does not operate normally by following operating instructions.
Recommended Use
• For optimum performance, allow 20 minutes for warm-up.
• Rest your eyes periodically by focusing on an object at least 5 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other light sources to minimize glare and refl ections.
• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!
• Adjust the monitor’s brightness, contrast and sharpness controls to enhance readability.
• Avoid displaying fi xed patterns on the monitor for long periods of time to avoid image persistence (after image effects).
• Get regular eye checkups.
Ergonomics
To realize the maximum ergonomic benefi ts, we recommend the following:
• Use the preset Size and Position controls with standard signals.
• Use the preset Color Setting.
• Use non-interlaced signals.
• Do not use primary color blue on a dark background, as it is diffi cult to see and may produce eye fatigue due to insuffi cient contrast.
Cleaning the LCD Panel
• When the liquid crystal panel is dusty, please gently wipe with a soft cloth.
• Please do not rub the LCD panel with hard material.
• Please do not apply pressure to the LCD surface.
• Please do not use OA cleaner as it will cause deterioration or discolor on the LCD surface.
Cleaning the Cabinet
• Unplug the power supply
• Gently wipe the cabinet with a soft cloth
• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.
NOTE: DO NOT clean with benzene thinner, alkaline detergent,
alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period of time. These types of fl uids and materials can cause the paint to deteriorate, crack or peel.
* The product you purchased may not have this feature.
English

Contents

Your new MultiSync monitor box* should contain the following:
• LCD monitor
• Power cord*
• Video Signal Cable
• Wireless Remote Control and AA Batteries
• Setup Manual
1
Video Signal Cable
(Mini D-SUB 15 pin to
Mini D-SUB 15 pin)
• Clamp x 2*
• Screw (M4 x 10) x 2*
2
2
• CD-ROM
• Thumbscrew for optional stand x 2*
• Eyebolt x 2*
3
2
2
Thumbscrew for
optional stand x 2*
Clamp x 2*
2
2
Power Cord*
1
Screw (M4 x 10) x 2*
Setup Manual
Complete
User's Manual
Information Files for
Windows
Setup Manual
Wireless Remote Control
Eyebolt x 2*
and AA Batteries
* Remember to save your original box and packing material to transport or ship the monitor.
1
Type and number of power cords included will depend on the where the LCD monitor is to be shipped. When more than one
*
power cord is included, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.
2
Except for V651.
*
3
V651 only.
*
3
English-4

Installation

This device cannot be used or installed without the Tabletop Stand or other mounting accessory for support. For proper installation it is strongly recommended to use a trained, NEC authorized service person. Failure to follow NEC standard mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation. Failure to follow these recommendations could result in voiding the warranty.
Mounting
DO NOT mount the monitor yourself. Please ask dealer. For proper installation it is strongly recommended to use a trained, qualifi ed technician. Please inspect the location where the unit is to be mounted. Mounting on wall or ceiling is the customer’s responsibility. Not all walls or ceilings are capable of supporting the weight of the unit. Product warranty does not cover damage caused by improper installation, remodelling, or natural disasters. Failure to comply with these recommendations could result in voiding the warranty.
DO NOT block ventilated openings with mounting accessories or other accessories.
For NEC Qualifi ed Personnel:
To ensure safe installation, use two or more brackets to mount the unit. Mount the unit to at least two points on the installation location.
Orientation (V422/V462/V551)
• When using the monitor in the portrait position, the monitor should be rotated clockwise so that the left side is moved to the top and the LED indicator light is on the bottom. This will allow for proper ventilation and will extend the lifetime of the monitor. Improper ventilation may shorten the lifetime of the monitor.
Orientation (V651 only)
• DO NOT use this monitor in the portrait position. Doing so may cause failure and void the warranty.
English
Please note the following when mounting on wall or ceiling
• When using mounting accessories other than those that are NEC approved, they must comply with the VESA­compatible (FDMlv1) mounting method.
• NEC recommends mounting interfaces that comply with UL1678 standard in North America.
• V422/V462: NEC strongly recommends using size M6 screws (14-16 mm + thickness of bracket and washer in length). If using screws longer than 14-16 mm, check the depth of the hole. (Recommended Fasten Force: 470 - 635N•cm) Bracket hole should be under ø 8.5 mm.
• V551: NEC strongly recommends using size M6 screws (11-13 mm + thickness of bracket and washer in length). If using screws longer than 11-13 mm, check the depth of the hole. (Recommended Fasten Force: 470 - 635N•cm) Bracket hole should be under ø 8.5 mm.
• V651: NEC strongly recommends using size M8 screws (15-17 mm + thickness of bracket in length). If using screws longer than 15-17 mm, check the depth of the hole. (Recommended Fasten Force: 1125 - 1375N•cm) Bracket hole should be under ø10.0 mm.
• Prior to mounting, inspect the installation location to insure that it is strong enough to support the weight of the unit so that the unit will be safe from harm.
• Refer to the instructions included with the mounting equipment for detailed information.
• Make sure there is no gap between the monitor and the bracket.
Under φ 8.5 mm (V422/V462/V551)
Under φ 10.0 mm (V651)
No gap
Unit
11-13 mm (V551)
14-16 mm (V422/V462)
15-17 mm (V651)
Mounting Bracket
Washer
Screw
Thickness of bracket and washer
Mounting location
• The ceiling and wall must be strong enough to support the monitor and mounting accessories.
• DO NOT install in locations where a door or gate can hit the unit.
• DO NOT install in areas where the unit will be subjected to strong vibrations and dust.
• DO NOT install near where the main power supply enters the building.
• Do not install in where people can easily grab and hang onto the unit or the mounting apparatus.
• When mounting in a recessed area, as in a wall, leave at least 4 inches (100 mm) of space between the monitor and the wall for proper ventilation.
• Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the unit and mounting apparatus.
English-5
Mounting on ceiling
• Ensure that the ceiling is sturdy enough to support the weight of the unit and the mounting apparatus over time, against earthquakes, unexpected vibrations, and other external forces.
• Be sure the unit is mounted to a solid structure within the ceiling, such as a support beam. Secure the monitor using bolts, spring lock washers, washer and nut.
• DO NOT mount to areas that have no supporting internal structure. DO NOT use wood screws or anchor screws for mounting. DO NOT mount the unit to trim or to hanging fi xtures.
Maintenance
• Periodically check for loose screws, gaps, distortions, or other problems that may occur with the mounting apparatus. If a problem is detected, please refer to qualifi ed personnel for service.
• Regularly check the mounting location for signs of damage or weakness that may occur over time.
Attaching Mounting Accessories
The monitor is designed for use with the VESA mounting system.
1.
Attach eyebolts for mounting (V651 only)
This model is equipped with attachable eyebolts to aid in mounting.
• Screw the eyebolts into eyebolt holes as shown in the picture.
• Be sure eyebolts are secure.
• In order to move the monitor into position, use a lifting device attached to the eyebolts.
DO NOT mount the monitor using only the eyebolts. Use an approved mounting accessory.
Eyebolt
Eyebolt
Hole
2. Attach Mounting Accessories
Be careful to avoid tipping monitor when attaching accessories.
VESA Mounting Interface
300 mm (V422/V462)
400 mm (V551/V651)
300 mm (V422/V462) 400 mm (V551/V651)
Mounting accessories can be attached with the monitor in the face down position. To avoid damaging the screen face, place the protective sheet on the table underneath the LCD. The protective sheet was wrapped around the LCD in the original packaging. Make sure there is nothing on the table that can damage the monitor.
When using mounting accessories other than NEC compliant and approved, they must comply with the VESA-compatible mounting method.
NOTE (for V651):
• Do not leave the monitor in the face-up or face-down position for more than one hour as this may result in a negative effect on the screen's performance.
• Prior to installation, be sure to place the monitor on a fl at area with adequate space.
English-6
3. Installing and removing optional table top stand
CAUTION: Installing and removing the stand must be done
by two or more people for V422/V462, by four or more people for V551/V651.
To install, follow those instructions included with the stand or mounting apparatus. Use only those devices recommended by the manufacturer.
NOTE: Use ONLY thumbscrews which are included in the
monitor. For V651, use ONLY the thumbscrews which are included with the optional table top stand.
When installing the stand, handle the unit with care to avoid pinching your fi ngers.
Optional table top stand
5. Prevent Tipping
When using the monitor with the optional table top stand fasten the LCD to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling. Fasten the cord or chain to the monitor using the provided clamps and screws. For the V651, the clamps and screws are included with the optional table top stand.
204 mm (V422/V462) 400 mm (V551/V651)
Screw Holes
English
Table
Protective Sheet
NOTE: For V422/V462/V551, install the stand so the long
end of the feet face forward. For V651, install the stand in the direction of the arrow which is imprinted on the surface of the stand. Use the ST-4020 for the V422, the ST-4620 for the V462, the ST-5220 for the V551 and the ST-651 for the V651.
4. Ventilation Requirements
When mounting in an enclosed space or recessed area, leave adequate room between the monitor and the enclosure to allow heat to disperse, as shown below.
Clamp
Screw
Before attaching the LCD monitor to the wall, make sure that the wall can support the weight of the monitor.
Be sure to remove the cord or chain from the wall before moving the LCD.
Cord or chain
Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the unit and mounting apparatus; especially when you use monitors in multiple screen.
NOTE: The sound quality of the internal speakers will
differ according to the acoustics of the room.
English-7

Parts Name and Functions

Control Panel

쐃 POWER button
Switches the power on/off. See also page 17.
쐇 MUTE button
Switches the audio mute ON/OFF.
쐋 INPUT button
Acts as SET button within OSD menu. (Toggle switches between [DVI], [DPORT], [VGA], [RGB/HV], [HDMI], [DVD/HD], [SCART], [VIDEO1], [VIDEO2] or [S-VIDEO]). These are available input only, shown as their factory preset name.
쐏 PLUS button
Acts as (+) button to increase the adjustment with OSD menu. Increases the audio output level when the OSD menu is turned off.
쐄 MINUS button
Acts as (-) button to decrease the adjustment with OSD menu. Decreases the audio output level when the OSD menu is turned off.
쐂 UP button
Activates the OSD menu when the OSD menu is turned-off. Acts as adjustment items within OSD menu.
button to move the highlighted area up to select
쐊 EXIT button
Activates the OSD menu when the OSD menu is turned-off. Acts as EXIT button within the OSD to move to previous menu.
쐎 Remote control sensor and Power Indicator
Receives the signal from the remote control (when using the wireless remote control). See also page 11. Glows green when the LCD monitor is in active mode*. Glows red when the LCD is in POWER OFF mode. Glows both green and red when the monitor is in Power Save Mode. Glows green and blinks red while in Power Standby mode with the “SCHEDULE SETTINGS” function enabled. When a component failure is detected within the monitor, the indicator will blink red. * If “OFF” is selected in “POWER INDICATOR” (see page 24), LED will not light when the LCD monitor is in active mode.
Control Key Lock Mode
This control completely locks out access to all Control Key functions. To activate the control key lock function, press
and and hold down simultaneously for more than
both 3 seconds. To resume user mode, press both hold simultaneously for more than 3 seconds.
*: The product you purchased may not have this feature.
and and
쐆 DOWN button
Activates the OSD menu when the OSD menu is turned-off. Acts as adjustment items within OSD menu.
button to move the highlighted area down to select
English-8

Terminal Panel

RGB/HV DVD/HD
VIDEO2
VGA IN
AUDIO IN
SPEAKER
INTERNAL/EXTERNAL
SPEAKER SWITCH
AUDIO
OUT
VIDEO 1
IN
S-VIDEO
IN
VIDEO
OUT
English
RS-232C
OUT
LAN
REMOTE
OUT
REMOTE
IN
RS-232C
IN
DISPLAYPORT
IN
AC IN
MAIN POWER
쐃 AC IN connector
Connects with the supplied power cord.
쐇 Main Power Switch
On/Off switch to turn main power ON/OFF.
쐋 LAN port (RJ-45)
LAN connection. See page 32.
쐏 REMOTE IN/OUT
Use the optional wired remote control by connecting it to your monitor. NOTE: When you use Remote IN/OUT, IR CONTROL in OSD menu should be NORMAL. NOTE: Do not use this connector unless specifi ed.
DVI-D
OUT
DVI-D
B, Cb/Pb
H
(IN)V(IN)
VGA IN
VGA IN
HDMI
IN
R, Cr/Pr
(IN)
RGB/HV
RGB/HV DVD/HD
DVD/HD VIDEO2
VIDEO2
G, Y, VIDEO
(IN)
(IN)
VIDEO
VIDEO
OUT
OUT
VIDEO 1
VIDEO 1
IN
IN
AUDIO
AUDIO
OUT
OUT
S-VIDEO
S-VIDEO
IN
IN
L/R
(IN2)
AUDIO IN
AUDIO IN
L/R
(IN1)
L
(IN3)
(IN3)
R
R
SPEAKER
SPEAKER
L
INTERNAL/EXTERNAL
INTERNAL/EXTERNAL
쐅 VGA IN (mini D-Sub 15 pin)
To input analog RGB signals from a personal computer or from other RGB equipment.
쐈 RGB/HV IN [R, G, B, H, V] (BNC)*
To input analog RGB signals or signals from other RGB equipment. This is also to connect equipment such as a DVD player, HDTV device and Set-Top-Box. Sync-on-Green signal can be connected to the G connector. This input can be used with an RGB, DVD/HD or Video source. Please select signal type in TERMINAL SETTING.
쐉 VIDEO 1 IN connector (BNC)*
To input a composite video signal.
SPEAKER SWITCH
SPEAKER SWITCH
쐄 RS-232C (D-Sub 9 pin)
IN connector: Connect RS-232C input from external equipment such as a PC in order to control RS-232C functions. OUT connector: Connect RS-232C output. To connect multiple MultiSync monitors via RS-232C daisy Chain.
쐂 DISPLAYPORT connector
IN connector: To input DisplayPort signals.
쐆 DVI IN (DVI-D)
To input digital RGB signals from a computer or HDTV device having a digital RGB output.
* This connector does not support analog input.
쐊 DVI OUT (DVI-D)
To output the DVI signal from either DVI IN or HDMI connection. To output the DVI signal from the HDMI connection, the HDMI input must be selected.
쐎 HDMI connector
To input digital HDMI signals.
English-9
씈 VIDEO OUT connector (BNC)
To output the composite video signal from the VIDEO IN connector.
씉 AUDIO OUT
To output the audio signal from the AUDIO IN 1, 2, 3, DPORT and HDMI to an external device (stereo receiver, amplifi er, etc.).
씊 S-VIDEO IN connector (Mini DIN 4 pin)
To input the S-video (Y/C separate signal).
씋 AUDIO IN 1, 2, 3
To input audio signal from external equipment such as a computer, VCR or DVD player.
씌 EXTERNAL SPEAKER TERMINAL
To output the audio signal from AUDIO 1, 2, 3, DPORT and HDMI. Red terminal is plus (+). Black terminal is minus (-). Note: This speaker terminal is for 15W + 15W (8 ohm) speaker.
씍 Internal/External speaker switch
Switch to turn internal speaker/external speaker.
: Internal speaker : External speaker.
NOTE: Please power off the monitor when you use Internal/ External speaker switch.
씎 Kensington Lock
For security and theft prevention.
씏 Option board slot
Slot 1 and slot 2 type accessories are available. Please contact your supplier for detailed information. NOTE: Please contact your supplier for available option board. NOTE: When you use slot 2 type option board, you need to install it with the optional “SB-02AM” adapter.
Internal speaker
Cable holder
* BNC input signal
English-10

Wireless Remote Control

DVI
DPORT
VGA
RGB/HV
HDMI
DVD/HD
SCART
VIDEO1
VIDEO2
S-VIDEO
DVI
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
DPORT
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
VGA
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
RGB/HV
Yes
Yes
Yes
Yes
Yes
HDMI
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
DVD/HD
Yes
Yes
Yes
Yes
Yes
Yes
SCART
Yes
Yes
Yes
Yes
VIDEO1
Yes
Yes
Yes
Yes
Yes
Yes
VIDEO2
Yes
Yes
Yes
Yes
S-VIDEO
Yes
Yes
Yes
Yes
Yes
Yes
쐂 KEYPAD
Press buttons to set and change passwords, change channel and set REMOTE ID.
쐆 ENT button*
2
쐊 DISPLAY button
Turns on/off the information OSD. See page 19.
쐎 MENU button
Turns on/off the menu mode.
쐅 AUTO SETUP button
Enters auto setup menu. See page 21.
쐈 EXIT button
Returns to previous menu within OSD menu.
쐉 UP/DOWN button
Acts as to select adjustment items within OSD menu. Small screen which adjusted “PIP” mode moves up or down.
button to move the highlighted area up or down
씈 MINUS/PLUS (-/+) button
Increases or decreases the adjustment level within OSD menu settings. Small screen which adjusted “PIP” mode moves left or right.
English
쐃 POWER button
Switches the power on/standby.
쐇 INPUT button
Selects input signal. DVI: DVI DISPLAYPORT: DPORT VGA: VGA RGB/HV: RGB/HV HDMI: HDMI DVD/HD: DVD/HD, SCART VIDEO: VIDEO1, VIDEO2 S-VIDEO: S-VIDEO OPTION: Depends on your connection
쐋 PICTURE MODE button
Selects picture mode, [HIGHBRIGHT], [STANDARD], [sRGB], [CINEMA]. See page 19.
HIGHBRIGHT: for moving images such as DVD. STANDARD: for images. sRGB: for text based images. CINEMA: for movies.
쐏 ASPECT button
Selects picture aspect, [FULL], [WIDE], [DYNAMIC], [1:1], [ZOOM] and [NORMAL]. See page 18. Note: HDMI, DVD/HD, SCART, VIDEO1, VIDEO2, S-VIDEO inputs only.
쐄 SOUND button
Artifi cial surround sound for internal/external speakers. Audio out is disabled when surround is set to ON.
English-11
씉 SET button
Makes selection.
씊 VOLUME UP/DOWN button
Increases or decreases audio output level.
씋 CH UP/DOWN button* 씌 GUIDE button*
2
2
씍 MUTE button
Turns on/off mute function.
씎 STILL button
ON/OFF button: Activates/deactivates still picture mode. STILL CAPTURE button: Captures still picture.
씏 PIP (Picture In Picture) button
ON/OFF button: Toggle switches between PIP, POP, PICTURE BY PICTURE-ASPECT and PICTURE BY PICTURE-FULL. See page 23.
INPUT button: Selects the “picture in picture” input signal. CHANGE button: Replaces to the main picture and sub
picture.
Sub picture
RGB/HV
HDMI
DVD/HD YesNoNo Yes
Yes Yes YesNoNoNoNo
YesNoNo
YesNoNoNoNo YesNoNoNoNoNoNoNoNoNoNo
Yes
Yes YesNoNoNoNoNoNoNoNoNoNo
Yes
Yes
SCART
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
YesNoNoNoNoNoNoNoNo
YesNoNoNoNoNoNoNoNo
VIDEO1
Yes Yes Yes YesNoNo Yes YesNoNo
VIDEO2
Yes Yes Yes
Yes
S-VIDEO
DVINoNo
DPORT
VGA
RGB/HV
HDMINoNo
DVD/HD
SCART
Main picture
VIDEO1 VIDEO2
S-VIDEO
DVI
DPORT
Yes YesNoNo Yes
YesNoNoNoNo Yes
YesNoNoNoNo
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes Yes
Yes
VGA Yes Yes
Yes YesNoNo YesNoNo Yes YesNoNo Yes
Yes Yes Yes Yes Yes Yes
REMOTE ID button
Activates REMOTE ID function.
MTS button*
2
AUDIO INPUT button
Selects audio input source [IN1], [IN2], [IN3], [DPORT], [HDMI], [OPTION]*
1
.
button
Activates closed captioning. Note: VIDEO1, VIDEO2, S-VIDEO inputs only.
*1: The product you purchased may not have this feature.
*2: This button’s action depends on which option board you use. Refer to the option board’s manual for further information.

Operating Range for the Remote Control

Point the top of the remote control toward the LCD monitor’s remote sensor during button operation.
Use the remote control within a distance of about 7 m (23 ft.) from remote control sensor or at a horizontal and vertical angle of within 30° within a distance of about 3.5 m (10 ft.).
Caution: Important, the remote control
system may not function when direct sunlight or strong illumination strikes the remote control sensor or when there is an object in the path.
Handling the remote control
• Do not subject to strong shock.
• Do not allow water or other liquid to splash the remote control. If the remote control gets wet, wipe it dry immediately.
• Avoid exposure to heat and steam.
• Other than to install the batteries, do not open the remote control.
English-12
Loading...
+ 31 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
