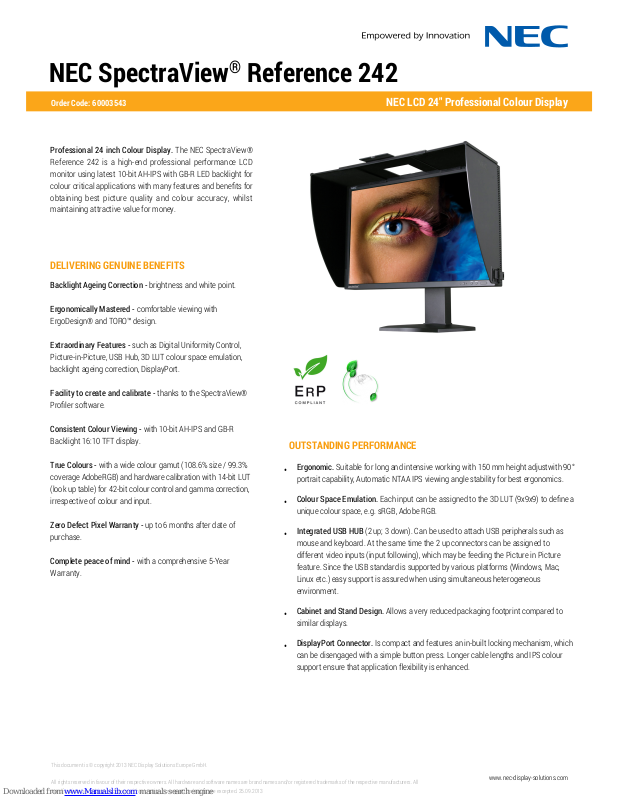

NEC SpectraView® Reference 242
Order Code: 60003543
NEC LCD 24" Professional Colour Display
Professional 24 inch Colour Display. The NEC SpectraView®
Reference 242 is a high-end professional performance LCD
monitor using latest 10-bit AH-IPS with GB-R LED backlight for
colour critical applications with many features and benefits for
obtaining best picture quality and colour accuracy, whilst
maintaining attractive value for money.
DELIVERING GENUINE BENEFITS
Backlight Ageing Correction - brightness and white point.
Ergonomically Mastered - comfortable viewing with
ErgoDesign® and TORO™ design.
Extraordinary Features - such as Digital Uniformity Control,
Picture-in-Picture, USB Hub, 3D LUT colour space emulation,
backlight ageing correction, DisplayPort.
Facility to create and calibrate - thanks to the SpectraView®
Profiler software.
Consistent Colour Viewing - with 10-bit AH-IPS and GB-R
Backlight 16:10 TFT display.
True Colours - with a wide colour gamut (108.6% size / 99.3%
coverage AdobeRGB) and hardware calibration with 14-bit LUT
(look up table) for 42-bit colour control and gamma correction,
irrespective of colour and input.
Zero Defect Pixel Warranty - up to 6 months after date of
purchase.
Complete peace of mind - with a comprehensive 5-Year
Warranty.
OUTSTANDING PERFORMANCE
Ergonomic. Suitable for long and intensive working with 150 mm height adjustwith 90°
portrait capability, Automatic NTAA IPS viewing angle stability for best ergonomics.
•
Colour Space Emulation. Each input can be assigned to the 3D LUT (9x9x9) to define a
unique colour space, e.g. sRGB, Adobe RGB.
•
Integrated USB HUB (2 up; 3 down). Can be used to attach USB peripherals such as
mouse and keyboard. At the same time the 2 up connectors can be assigned to
different video inputs (input following), which may be feeding the Picture in Picture
feature. Since the USB standard is supported by various platforms (Windows, Mac,
Linux etc.) easy support is assured when using simultaneous heterogeneous
environment.
•
Cabinet and Stand Design. Allows a very reduced packaging footprint compared to
similar displays.
•
DisplayPort Connector. Is compact and features an in-built locking mechanism, which
can be disengaged with a simple button press. Longer cable lengths and IPS colour
support ensure that application flexibility is enhanced.
•
This document is © copyright 2013 NEC Display Solutions Europe GmbH.
All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All
specifications are subject to change without notice. Errors and omissions are excepted. 25.09.2013
www.nec-display-solutions.com
Page 2
NEC SpectraView® Reference 242
SPECIAL CHARACTERISTICS
Adjustable power LED (colour and brightness), Advanced NTAA,
AmbiBright, Auto Black Level, Auto Brightness, Auto Contrast,
AutoBright, Backlight Ageing Correction, CableComp with Sync
Continuity Detection, DDC/CI compatible, Digital Uniformity
Control (ColorComp), Direct Brightness and Contrast, EcoModes,
GammaComp (14 bit Look Up Table) and 14 bit Gamma
Correction, NaViSet Administrator 2, NaViSet®and
NaViSet®Administrator compatible, OmniColor™: sRGB and 6-AxisColour-Control, Overdrive, Picture-in-Picture Mode, Quick release
Stand and Handle, Rapid Response Technology, RapidMotion, Self
Diagnostics, SpectraView® Profiler Software, TileComp, TileMatrix,
TORO™ Design, Windows 8 compatible
Energy Efficiency Carbon Footprint Meter / Carbon Savings
Meter
Ecological
Materials
Efficient mechanical design for minimised
packaging; Minimal use of harmful material
Ecological
Standards
ErP compliant
Technical Specification NEC SpectraView® Reference 242
DISPLAY
Panel Technology
AH-IPS GB-R LED Backlight
Screen Size [inch/cm]
24.1 / 61.1
Screen Aspect Ratio
16:10
Pixel Pitch [mm]
0.270
Brightness (typ.) [cd/m2]
340
Contrast Ratio (typ.)
1000:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms]
8 (grey-to-grey); 16 (8 white / black; 8 black / white)
Colours [Billion]
1.074 (10-bit per colour)
Colour Gamut Size / Coverage
108.6% / 99.3% Adobe RGB
SYNCHRONISATION RATE
Horizontal Frequency [kHz]
31.5 - 93.8 and 118.4 (analog); 31.5 - 91.1 and 118.4 (digital)
Vertical Frequency [Hz]
50 - 85
RESOLUTION
Optimum Resolution
1920 x 1200 at 60 Hz
Supported
1920 x 1080p; 1600 x 1200; 1440 x 900; 1400 x 1050; 1280 x 1024; 1280 x 960;
1280 x 720p; 1200 x 1920; 1152 x 870; 1152 x 864; 1024 x 768; 832 x 624; 800 x
600; 720 x 576p; 720 x 480p; 720 x 400; 640 x 480; 640 x 480p
CONNECTIVITY
Digital
1 x DVI-D; 1 x HDMI; 1 x DisplayPort
Analog
1 x D-sub 15 pin
ELECTRICAL
Power Consumption on Mode [W]
37 (typ.); 28 (Eco Mode); 56 (max.)
Power Savings Mode [W]
0.5
Power Supply
100-240 V; 0.84 A/0.38 A; integrated power supply
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C]
+5 to +35
Operating Humidity [%]
20 to 80
ERGONOMICS
Height adjustable Stand [mm]
150 (Landscape mode)
Screen Tilt / Swivel [°]
-5 to +30; -45 to +45
Screen Rotate [°]
0 to 90 (landscape to portrait mode)
MECHANICAL
Bezel Width [mm]
18.2
Dimensions (W x H x D) [mm]
556.8 x 378 - 528 x 227.6 (Landscape mode)
Weight [kg]
10.6
VESA Mounting [mm]
100 x 100 (4 points)
ADDITIONAL FEATURES
Colour Versions
Black Front Bezel, Black Back Cabinet
Cable Management
yes
Kensington security slot
yes
Plug and Play
VESA DDC/CI; DDC2B/2Bi; EDID Standard
Audio
Option: MultiSync® Soundbar Pro
Adjust Functions
Advanced NTAA (Advanced Non-Touch-Auto-Adjustment); Advanced User Menu;
Auto Adjust; Black Level; Brightness; Colour Temperature Control; Contrast;
Expansion Mode; Fine Adjust (analog); Hotkeys; Intelligent Power Management;
Language Select; Monitor Information; OmniColor™: sRGB and 6-axis-colourcontrol; On-Screen-Display (OSD) lock-out; Sharpness; sRGB; USB; User Menu
Shipping Content
DisplayPort cable; DisplayPort to Mini DisplayPort cable; Monitor; Power Cable;
Sales Office List; User Manual; CD-ROM with SpectraView® Profiler Software and
manual; Detachable black light protection hood including accessories
Signal Cable: DVI-D - DVI-D
Safety and Ergonomics
EAC; CE; TÜV Ergonomics; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; CCC; ISO
9241-307 (pixel failure class I); MPR II/ MPR III; PCBC/B-mark; PSB; RoHS
Warranty
5 years warranty incl. backlight; Zero Defect Pixel Warranty up to 6 months after
date of Purchase
