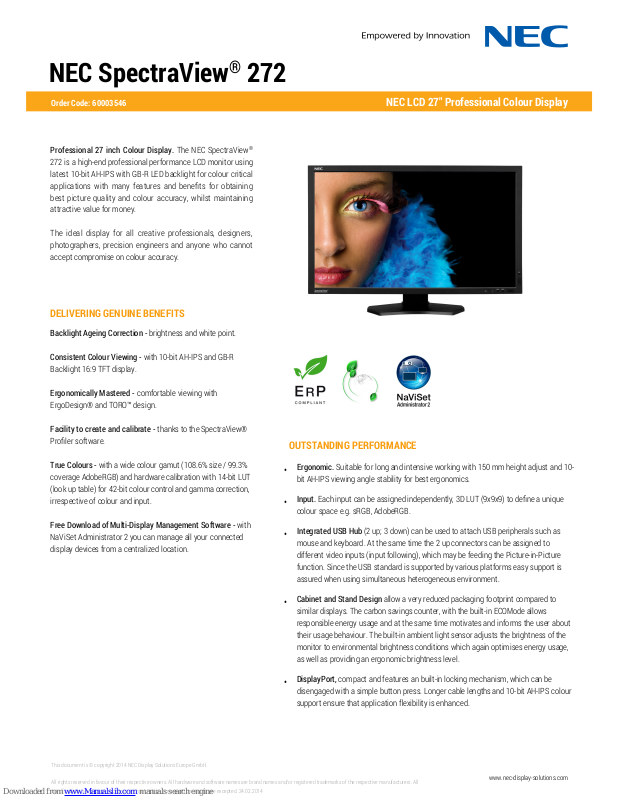

Page 1
NEC SpectraView® 272
Order Code: 60003546
NEC LCD 27" Professional Colour Display
Professional 27 inch Colour Display. The NEC SpectraView
®
272 is a high-end professional performance LCD monitor using
latest 10-bit AH-IPS with GB-R LED backlight for colour critical
applications with many features and benefits for obtaining
best picture quality and colour accuracy, whilst maintaining
attractive value for money.
The ideal display for all creative professionals, designers,
photographers, precision engineers and anyone who cannot
accept compromise on colour accuracy.
DELIVERING GENUINE BENEFITS
Backlight Ageing Correction - brightness and white point.
Consistent Colour Viewing - with 10-bit AH-IPS and GB-R
Backlight 16:9 TFT display.
Ergonomically Mastered - comfortable viewing with
ErgoDesign® and TORO™ design.
Facility to create and calibrate - thanks to the SpectraView®
Profiler software.
True Colours - with a wide colour gamut (108.6% size / 99.3%
coverage AdobeRGB) and hardware calibration with 14-bit LUT
(look up table) for 42-bit colour control and gamma correction,
irrespective of colour and input.
Free Download of Multi-Display Management Software - with
NaViSet Administrator 2 you can manage all your connected
display devices from a centralized location.
OUTSTANDING PERFORMANCE
Ergonomic. Suitable for long and intensive working with 150 mm height adjust and 10bit AH-IPS viewing angle stability for best ergonomics.
•
Input. Each input can be assigned independently, 3D LUT (9x9x9) to define a unique
colour space e.g. sRGB, AdobeRGB.
•
Integrated USB Hub (2 up; 3 down) can be used to attach USB peripherals such as
mouse and keyboard. At the same time the 2 up connectors can be assigned to
different video inputs (input following), which may be feeding the Picture-in-Picture
function. Since the USB standard is supported by various platforms easy support is
assured when using simultaneous heterogeneous environment.
•
Cabinet and Stand Design allow a very reduced packaging footprint compared to
similar displays. The carbon savings counter, with the built-in ECOMode allows
responsible energy usage and at the same time motivates and informs the user about
their usage behaviour. The built-in ambient light sensor adjusts the brightness of the
monitor to environmental brightness conditions which again optimises energy usage,
as well as providing an ergonomic brightness level.
•
DisplayPort, compact and features an built-in locking mechanism, which can be
disengaged with a simple button press. Longer cable lengths and 10-bit AH-IPS colour
support ensure that application flexibility is enhanced.
•
This document is © copyright 2014 NEC Display Solutions Europe GmbH.
All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All
specifications are subject to change without notice. Errors and omissions are excepted. 24.02.2014
www.nec-display-solutions.com
Page 2
NEC SpectraView® 272
SPECIAL CHARACTERISTICS
Adjustable power LED (colour and brightness), AmbiBright, Auto
Black Level, Auto Brightness, Auto Contrast, AutoBright, Backlight
Ageing Correction, CableComp with Sync Continuity Detection,
Consistent colour viewing with 10-bit AH-IPS 16:9 TFT, DDC/CI
compatible, Digital Uniformity Control (ColorComp), Direct
Brightness and Contrast, EcoModes, GammaComp (14 bit Look Up
Table) and 14 bit Gamma Correction, NaViSet Administrator 2,
OmniColor™: sRGB and 6-Axis-Colour-Control, Overdrive, Picture-inPicture Mode, Quick release Stand and Handle, Rapid Response
Technology, RapidMotion, Self Diagnostics, SpectraView® Profiler
Software, TileComp, TileMatrix, TORO™ Design, Windows 8
compatible
Energy Efficiency Carbon Footprint Meter / Carbon Savings
Meter
Ecological
Materials
Efficient mechanical design for minimised
packaging; Minimal use of harmful material
Ecological
Standards
ErP compliant
Technical Specification NEC SpectraView® 272
DISPLAY
Panel Technology
AH-IPS GB-R LED Backlight
Screen Size [inch/cm]
27 / 68.5
Pixel Pitch [mm]
0.233
Brightness (typ.) [cd/m2]
340
Contrast Ratio (typ.)
1000:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms]
7 (grey-to-grey); 12 (6 white / black; 6 black / white)
Colours [Billion]
1.074 (10-bit per colour)
Colour Gamut Size / Coverage
108.6% / 99.3% Adobe RGB
SYNCHRONISATION RATE
Horizontal Frequency [kHz]
31.5 - 96.5
Vertical Frequency [Hz]
50 - 85
RESOLUTION
Optimum Resolution
2560 x 1440 at 60 Hz
Supported
1920 x 1080p; 1600 x 1200; 1280 x 1024; 1280 x 960; 1280 x 720p; 1200 x 1920;
1152 x 870; 1152 x 864; 1024 x 768; 832 x 624; 800 x 600; 720 x 576p; 720 x
480p; 720 x 400; 640 x 480; 640 x 480p
CONNECTIVITY
Digital
1 x DVI-D; 1 x HDMI; 1 x Mini DisplayPort; 1 x DisplayPort
ELECTRICAL
Power Consumption on Mode [W]
50 (typ.); 37 (Eco Mode); 73 (max.)
Power Savings Mode [W]
1.4
Power Supply
100-240 V; 1 A/0.45 A; integrated power supply
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C]
+5 to +35
Operating Humidity [%]
20 to 80
ERGONOMICS
Height adjustable Stand [mm]
150; 150 (Landscape mode)
Screen Tilt / Swivel [°]
-5 to +30; -45 to +45
Screen Rotate [°]
0 to 90 (landscape to portrait mode)
MECHANICAL
Bezel Width [mm]
20.3 (left and right); 20 (top and bottom)
Dimensions (W x H x D) [mm]
640.4 x 396.2 x 235.5
Weight [kg]
12.9
VESA Mounting [mm]
100 x 100 (4 points); 200 x 100 (5 points)
ADDITIONAL FEATURES
Colour Versions
Black Front Bezel, Black Back Cabinet
Cable Management
yes
Kensington security slot
yes
Plug and Play
VESA DDC/CI; DDC2B/2Bi; EDID Standard
Audio
Option: MultiSync® Soundbar Pro
Adjust Functions
Advanced User Menu; Auto Adjust; Black Level; Brightness; Colour Temperature
Control; Contrast; Expansion Mode; Fine Adjust (analog); Hotkeys; Intelligent
Power Management; Language Select; Monitor Information; OmniColor™: sRGB
and 6-axis-colour-control; On-Screen-Display (OSD) lock-out; Sharpness; sRGB;
USB; User Menu
Shipping Content
Monitor; Power Cable; Signal Cable DisplayPort; CD-ROM; Sales Office List; User
Manual; CD-ROM with SpectraView® Profiler Software and manual
Signal Cable: Mini DisplayPort; DVI-D - DVI-D
Safety and Ergonomics
EAC; CE; TÜV Ergonomics; TÜV GS; C-tick; FCC Class B; UL/C-UL or CSA; CCC; ISO
9241-307 (pixel failure class I); MPR II/ MPR III; PCBC/B-mark; PSB; RoHS
Warranty
3 years warranty incl. backlight
