NEC PlasmaSync PX-50XM5A Guide

PlasmaSync Plasma Monitor

PlasmaSync

PX-50XM5A

Start up Guide

™

50XM5

Start up Guide

NEC Solutions (America), Inc.

Guide rapide

Guía de inicio

Guia de iniciação

202

Start up Guide

(Enhanced split screen Model)

For the operation of your plasma monitor, refer to the CD-ROM.

Contents

Important Information .................................. En-2

Installation .................................................. En-4

Ventilation Requirements for enclosure mounting ...... En-4

Creating a video wall ........................................... En-5

Cable Management..............................................En-5

Caution when placing the plasma monitor in portrait

mode .............................................................. En-6

Using the remote control ....................................... En-6

Battery Installation and Replacement ..................... En-6

Using the wired remote control mode .................... En-6

Operating Range .................................................... En-6

Handling the remote control................................... En-6

Part Names and Function .............................. En-7

Front View .......................................................... En-7

Rear View/ Terminal Board ...................................En-8

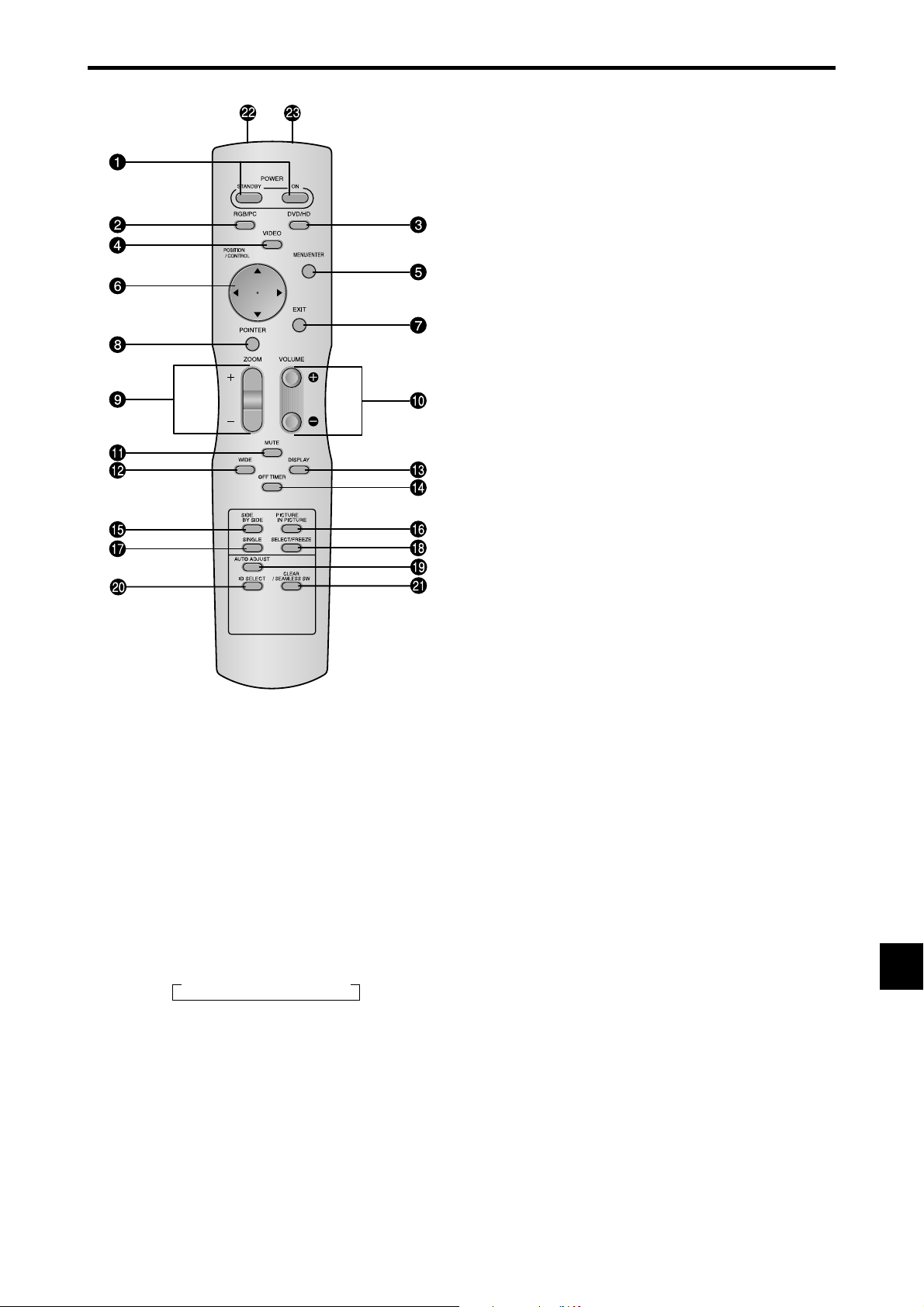

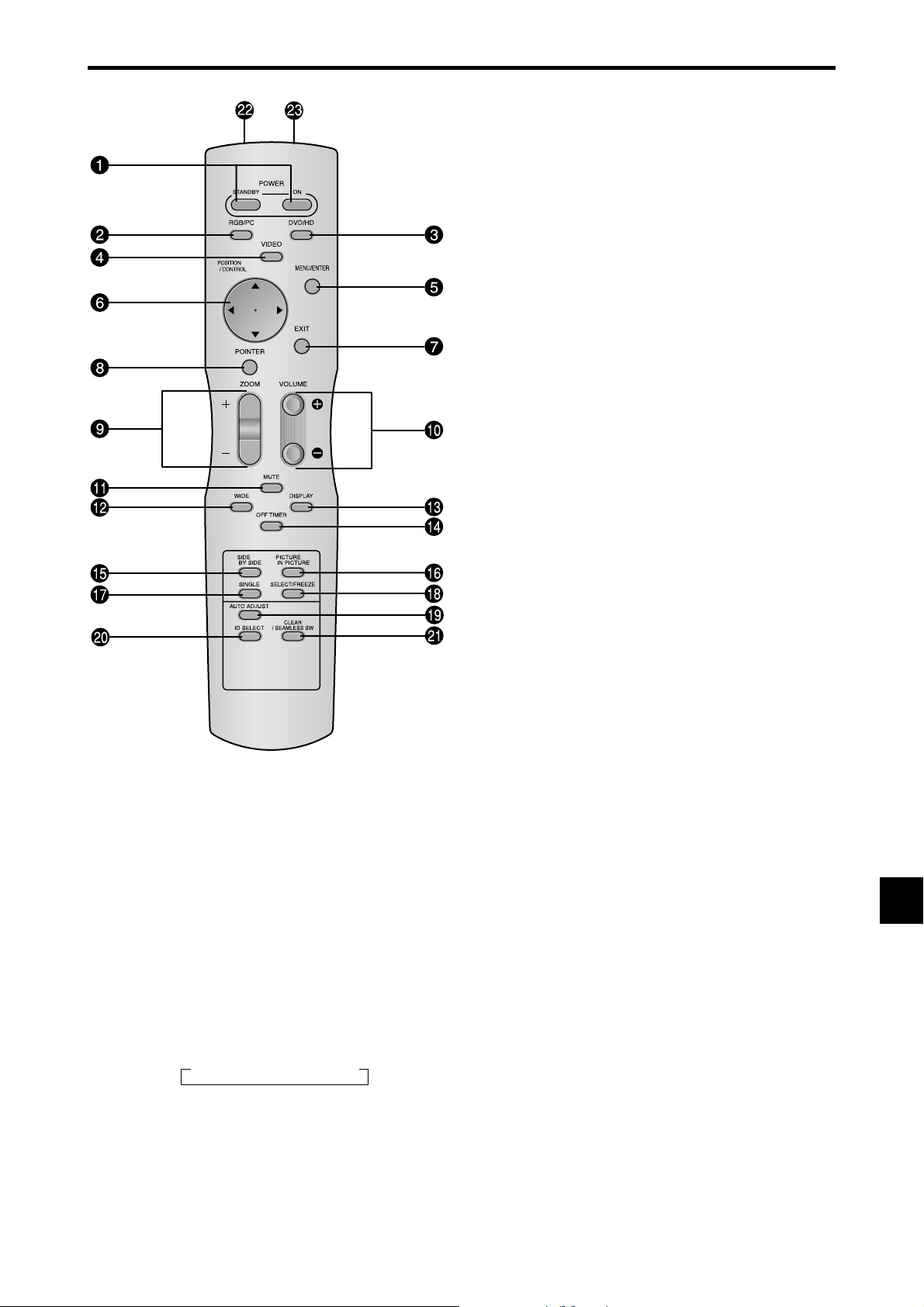

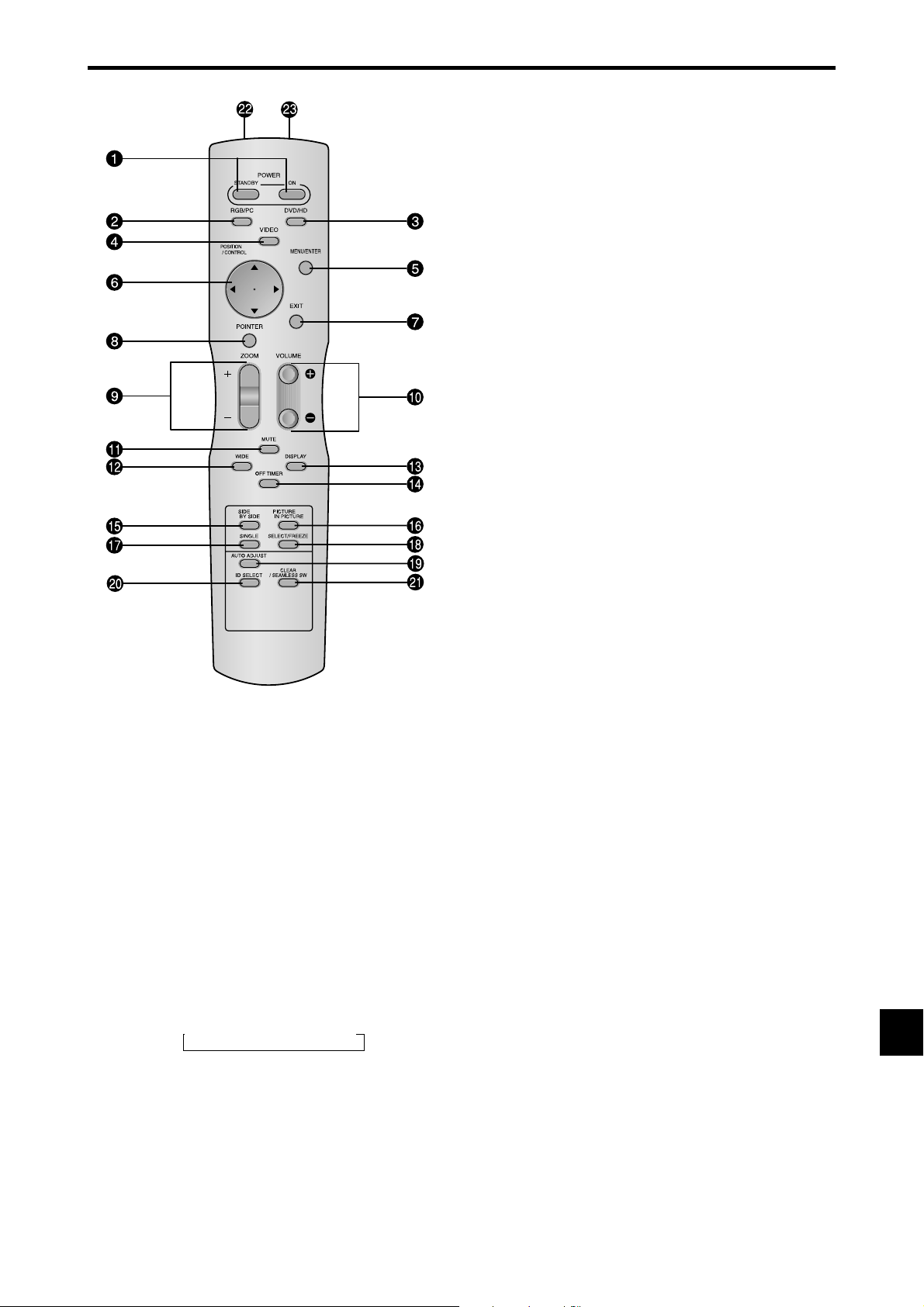

Remote Control .................................................... En-9

Basic Operations ......................................... En-10

POWER ............................................................ En-10

To turn the unit ON and OFF: .............................. En-10

VOLUME .......................................................... En-10

To adjust the sound volume:................................. En-10

MUTE ............................................................... En-10

To mute the audio: ............................................... En-10

DISPLAY ............................................................En-10

To check the settings:........................................... En-10

DIGITAL ZOOM ................................................. En-10

AUTO ADJUST .................................................. En-10

To adjust the size or quality of the picture automatically: ....

OFF TIMER ........................................................En-10

To set the of f timer:.............................................. En-10

To check the remaining time: ............................... En-10

To cancel the off timer: ........................................ En-10

OSM (On Screen Menu) Controls ................... En-11

Menu Operations ............................................... En-11

Menu Tree ......................................................... En-12

Troubleshooting .......................................... En-14

Specifications ............................................. En-15

Limited Warranty Plasma Monitors .............................. En-16

En-10

User’s Manual on CD-ROM

䢇 The complete user’s manual is supplied on the CD-ROM in

PDF (Portable Document Format) and provides detailed product and useage information for your NEC plasma monitor.

Y ou must have Adobe Acrobat Reader™ or Adobe Reader™ in order to view and/or print the PDF files.

NOTE:

Adobe Acrobat Reader or Adobe Reader can be downloaded from Adobe’s website. Visit http://www.adobe.com and obtain the current version for your OS.

䢇 Viewing the User’s Manual (PDF)

[Windows]

1. Insert the supplied CD-ROM in your computer’s CD-ROM drive.

2. A menu should be displayed automatically. If this does not happen:

1) On the Windows desktop, double-click the [My Computer] icon.

2) Double-click the [NECPLASMA-UM] CD-ROM drive letter.

3) Double-click the “start_menu.pdf”.

3. Click your product name. The user’s manual will be displayed on the screen.

[Macintosh]

1. Insert the supplied CD-ROM in your Macintosh’s CD-ROM drive.

2. Double-click the [NECPLASMA-UM] CD-ROM icon.

3. Double-click the “start_menu.pdf”. The Start Menu will be shown.

4. Click your product name. The user’s manual will be displayed on the screen.

䢇 Copying the User’s Manual (PDF) to your computer

The user’s manual on the supplied CD-ROM can be copied onto your computer’s hard drive.

ENGLISH

Contents of the Package

䡺 Plasma monitor 䡺 Power cord 䡺 Remote control with two AAA Batteries 䡺 Manuals (Start up Guide and CD-ROM) 䡺 Ferrite cores 䡺 Cable clamps

Options

• Wall mount unit

• Ceiling mount unit

• Tilt mount unit

• Tabletop Stand

• Attachable speakers

Important Information

Precautions

Please read this manual carefully before using your plasma monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPT ACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warnings and Safety Precaution

This plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Please see the section “Plasma monitor cleaning procedure”. The plasma display panel consists of fine picture elements (cells) with more than 99.99 percent active cells. There may be some cells that do not produce light or remain lit. For operating safety and to avoid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal heat buildup. Do not cover rear vents or install the unit in a closed cabinet or shelves. If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for 60 minutes to cool the monitor. If the problem persists, contact your dealer for service.

2. Do not use this unit’s polarized plug with extension cords or outlets unless the prongs can be completely inserted.

3. Do not expose the unit to water or moisture.

4. Avoid damage to the power cord, and do not attempt to modify the power cord.

5. Unplug the power cord during electrical storms or if the unit will not be used over a long period.

6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.

7. Do not attempt to service or repair the unit. The manufacturer is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Service Centers.

8. This equipment shall be connected to a MAIN outlet with a protective earth-ground connection.

9. The outlet shall be installed near the equipment and shall be easily accessible.

To avoid damage and prolong operating life:

1. Use only with 100-240V 50/60Hz AC power supply. Continued operation at line voltages greater than 100-240 Volts AC will shorten the life of the unit, and might even cause a fire hazard.

2. Handle the unit carefully when installing it and do not drop.

3. Set the unit away from heat, excessive dust, and direct sunlight.

4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the power cord and have it serviced by an authorized Service Center.

5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6. For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

8. To avoid sulfurization it is strongly recommended not to place the unit in a dressing room in a public bath or hot spring bath.

9. Do not use in a moving vehicle, as the unit could drop or topple over and cause injuries.

10. Do not place the unit on its side, upside-down or with the screen facing up or down, to avoid combustion or electric shock.

Plasma monitor cleaning procedure:

1. Use a soft dry cloth to clean the front panel and bezel area. Never use solvents such as alcohol or thinner to clean these surfaces.

2. Clean plasma ventilation areas with a vacuum cleaner with a soft brush nozzle attachment.

3. To ensure proper ventilation, cleaning of the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.

Recommendations to avoid or minimize image retention:

Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to image retention under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in image retention if proper precautions are not taken. To protect your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image retention:

* Always enable and use your computer ’s screen saver function

during use with a computer input source. * Display a moving image whenever possible. * Change the position of the menu display from time to time. * Always power down the monitor when you are finished using it.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of image retention:

* Lower the Brightness and Contrast levels as much as possible without

impairing image readability. * Display an image with many colors and color gradations (i.e.

photographic or photo-realistic images). * Create image content with minimal contrast between light and dark

areas, for example white characters on black backgrounds. Use

complementary or pastel color whenever possible. * A void displaying images with few colors and distinct, sharply defined

borders between colors.

Plasma monitor driving sound

The panel of the Plasma monitor is composed of extremely fine pixels and these pixels emit light according to received video signals. This principle may cause you to hear a buzz or electrical hum coming from the Plasma monitor. Also note that the rotation speed of the cooling fan motor increases when the ambient temperature of the Plasma monitor becomes high. You may hear the sound of the motor at that time.

Note:

The following items are not coverd by the warranty.

• Image retention

• Panel generated sound, examples: Fan motor noise, and electrical circuit humming /glass panel buzzing.

Contact your dealer for other recommended procedures that will best suit your particular application needs.

En-2

dnd

Warning

Not for use in a computer room as defined in the Standard for the Protection of Electronic Computer/ Data Processing Equipment ANSI/NFPA 75.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

NOTE: When you connect a computer to this monitor, use an RGB cable including the ferrite core on both ends of the cable. And regarding power cable, attach the supplied ferrite cores. If you do not do this, this monitor will not conform to mandatory FCC standards. Set the ferrite cores on both ends of the power cable (supplied). Use the band to fasten the ferrite core (supplied) to the power cable.

Caution

This model is for use with the following optional accessories. Use with other optional accessories is capable of resulting in instability causing possible injury.

Manufacturer’s name: NEC Viewtechnology, Ltd. Speakers: PX-50SP1U, PX-50SP1U/S

PX-SP2U/S, PX-SP2U/B

Stand: PX-ST1U, PX-ST1U/S Please contact NEC Solutions (America), Inc. for

approved optional accessories.

Disposing of your used product

EU-wide legislation as implemented in each Member State requires that used electrical and electronic products carrying the mark (left) must be disposed of separately from normal household waste. This includes plasma monitors and their electrical accessories. When you dispose of such products, please follow the guidance of your local authority and/or ask the shop where you purchased the product. After collecting the used products, they are reused and recycled in a proper way. This effort will help us reduce the wastes as well as the negative impact to the human health and the environment at the minimum level. The mark on the electrical and electronic products only applies to the current European Union Member States.

CAUTION

When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country/ area.

wer

supplie

En-3

50mm (2")

(2") 50

(2")

Wall

50mm (2")

Installation

You can attach your optional mounts or stand to the plasma monitor in one of the following two ways: * While it is upright. (See Drawing A) * As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the

monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.

* Do not touch or hold the screen face when carrying the unit.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)

• For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

* Use only a mounting kit or stand recommended by the manufacturer and listed as an accessory.

Drawing A

Drawing B

Ventilation Requirements for enclosure mounting

T o allow heat to disperse, leave space between surrounding objects as shown on the diagram when installing.

En-4

RGB

/ DVD

/ HD

RGB

G/ B/

( IN/OUT

)

Cr/Pr Y Cb/Pb

IN OUT

REMOTE

BNC connector

RGB signal/ DVD/HD signal

OUT

Remote control

RGB signal/ DVD/HD signal

Remote control

Creating a video wall

With built-in matrix display capability, you can create a (2⳯2, 3⳯3, 4⳯4, 5⳯5) video wall.

• Connect signal cables and remote cables as shown below. Video signal RGB/DVD/HD signal

VIDEO

BNC connector

VIDEO

(

IN/OUT

)

VIDEO

VIDEO Signal

Remote control

RCA phono plug

AUDIO

(

MONO

)

DVD

IN OUT

REMOTE

Note:

1. The VIDEO1 and RGB1 terminals can be used for either INPUT or OUTPUT. When LOOP OUT is ON, do not connect an OUTPUT signal fr om another unit as it may damage the other unit due to an extraordinary load.

2. LOOP OUT can not be turned ON while signals are input to the RGB1 terminal.

3. LOOP OUT can be turned ON while signals are input to the RGB1 terminal if the POWER is switched ON.

Information

• T o loop signals out to another plasma display, set the LOOP OUT to ON.

• To create a video wall, set the VIDEO WALL menu items properly.

• To connect monitors, please use a 1~2m (3.3~6.6 feet) BNC cable (any commercially available cable).

• If the image quality is poor, do not use the monitor’s out terminal. Use a distribution amplifier (any commercially available distribution amplifier) to connect the split signals to the respective monitor INPUT terminals.

• Being used as a video wall function, maximaly 4-screen is rough-standard with lower than 1024⳯768, 60Hz signal.

• A distribution amplifier is particularly recommended when creating a 3⳯3 (or greater) video wall.

• When looping from plasma to plasma, a 1~2m (3.3~6.6 feet) 15 pin male D-Sub - 5BNC conversion cable is required.

OUT

VIDEO Signal

Remote control

Cable Management

Using the cable clamps provided with the plasma display; Bundle the signal and audio cables at the back of the unit to connect to the display.

To attach To detach

1. 2.

mounting hole

clamp

cables

Back of the unit

mounting holes

En-5

External Control

IN OUT

REMOTE

Caution when placing the plasma monitor in portrait mode

• Use the optional unit. Contact your store of purchase when installing.

• Rotate 90° clockwise as seen from the front when installing.

90°

• After installing, make sure the NEC logo is located at the left hand side of the screen when facing the plasma from the front.

• Be sure to set “OSM ANGLE” to “V” when using.

* Failure to heed the above cautions may lead to malfunction.

Using the remote control

INPUT SELECT

VOLUME

MENU/ENTER

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in with the proper polarity.

1.Press and open the cover.

2.Align the batteries according to the (+) and (–) indication inside the case.

DOWN UP LEFT/-RIGHT/+/EXIT

Operating Range

* Use the remote control within a distance of about 7 m/

23ft. from the front of the monitor’s remote control sensor and at horizontal and vertical angles of up to approximately 30°.

* The remote control operation may not function if the

monitor’s remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

OPTION1

MENU/ENTER

OSM

DOWN UP LEFT/

VOLUME

BNC INPUT

: RGB

RIGHT/

D-SUB INPUT

+ INPUT SELECT /EXIT

: RGB

RGB SELECT

: AUTO

HD SELECT

: 1080B

INPUT SKIP

: OFF

ALL RESET

: OFF 1024ⴒ768

SEL.

MENU/ENTER

Bottom side

Top side

EXIT

RETURN

3.Replace the cover.

Using the wired remote control mode

Connect the remote cable* to the remote control’s remote jack and the “REMOTE IN” terminal on the monitor. When the cable is connected, the mode automatically switches to wired remote control. When the wired remote control mode is used, the remote control can be operated even if no batteries are loaded.

Remote Control Cable*

To Remote Jack

Approx.

7m/23ft

Handling the remote control

• Do not drop or mishandle the remote control.

• Do not get the remote control wet. If the remote control gets wet, wipe it dry immediately.

• Avoid heat and humidity.

• When not using the remote control for a long period, remove the batteries.

• Do not use new and old batteries together, or use dif ferent types together.

• Do not take apart the batteries, heat them, or throw them into a fire.

• When using the remote control in the wireless condition, be sure to unplug the remote cable from the REMOTE IN terminal on the monitor.

* The 1/8 Stereo Mini cable must be purchased separately.

En-6

Part Names and Function

Front View

INPUT SELECT

VOLUME

MENU/ENTER

DOWN UP LEFT/-RIGHT/+/EXIT

MENU/ENTER

VOLUME

DOWN UP LEFT/-RIGHT/

q Power

Turns the monitor’s power on and off.

w Remote sensor window

Receives the signals from the remote control.

e POWER/STANDBY indicator

When the power is on ............................. Lights green.

When the power is in the standby mode ... Lights red.

r INPUT SELECT / EXIT

Switches the input. Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.

INPUT SELECT

/EXIT

t LEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the



CURSOR (

/ ) buttons in the On-Screen Menu

(OSM) mode.

y VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/ ▼) buttons in the On-Screen Menu (OSM) mode.

u MENU/ENTER

Sets the On-Screen Menu (OSM) mode and displays the main menu.

WARNING

The Power on/off switch does not completely disconnect power from the display.

En-7

Rear View/ Terminal Board

VIDEO

MONO

(

)

(

)

(

)

External Control

REMOTE

Y Cb /Pb Cr/Pr

Cr/Pr Y Cb/Pb

DVI

( Digital RGB

)

IN OUT

VIDEO 2VIDEO

AUDIO

DVD

/ HD

AUDIO

G/ B/

RGB

/ DVD

/ HD

RGB

AUDIO

RGB

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers (optional) here. Maintain the correct polarity. Connect the

(positive) speaker wire to the

EXT SPEAKER terminal and the (negative)

speaker wire to the

EXT SPEAKER terminal on both LEFT and RIGHT channels. Please refer to your speaker’s owner’s manual.

C VIDEO1, 2, 3 (BNC, RCA, S-Video)

Connect VCR’s, DVD’s or Video Cameras, etc. here. VIDEO1 can be used for Input or Output.

D AUDIO1, AUDIO2, AUDIO3

These are audio input terminals. The input is selectable. Set which video image corresponds to the audio input from the audio menu screen.

E DVD1 / HD1

Connect DVD’s, High Definition or Laser Discs, etc. here.

F RGB2/ DVD2/ HD2

RGB2: Y ou can connect an analog RGB signal

and the syncronization signal.

DVD2/ HD2: You can connect DVDs, High

Definition sources, Laser Discs, etc. here. This input can be set for use with an RGB or component source.

G RGB1 (mini D-Sub 15pin)

Connect an analog RGB signal from a computer, etc. here. This input can be used for Input or Output.

H RGB3

(DVI 24pin)

Connect a digital signal (TMDS) from a source with a DVI output. This input can be set for use with an RGB/PC3.

I EXTERNAL CONTROL

This terminal is used when operating and controlling the monitor externally with a control system (by RS232C).

J REMOTE IN (DC +5V)

Connect the remote cable* to the remote control’s remote jack to obtain wired remote control.

K REMOTE OUT (C-MOS DC +5V)

Connect the remote cable* to the REMOTE IN jack of the other display monitor to obtain wired remote control.

Connection Example: Connecting a TV tuner

PLASMA DISPLAY

VIDEO IN

VIDEO OUT

REMOTE OUT

REMOTE IN

TV T uner Remote Control Carrier fHz: 38kHz

* The 1/8 Stereo Mini cable must be purchased separately.

En-8

TV T uner

Remote Control

q POWER ON/STANDBY

Switches the power on/standby. (This does not operate when the POWER/ST ANDBY indicator of the plasma is off.)

w RGB/PC

Press this button to select RGB/PC as the source. RGB/PC can also be selected using the INPUT SELECT button on the monitor.

e DVD / HD

Press this button to select DVD/HD as the source. DVD/HD can also be selected using the INPUT SELECT button on the monitor.

r VIDEO

Press this button to select VIDEO as the source.

→ VIDEO1 → VIDEO2 → VIDEO3

VIDEO can also be selected using the INPUT SELECT button on the monitor.

t MENU/ENTER

Press this button to access the OSM controls. Press this button during the display of the main menu to go to the sub menu.

y CURSOR (▲ / ▼ /

Use these buttons to select items or settings and to adjust settings or switch the display patterns.



/ )

u EXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the previous menu.

i POINTER

Press this button to display the pointer.

o ZOOM (+ /–)

Enlarges or reduces the image.

!0 VOLUME (+ /–)

Adjusts the audio volume.

!1 MUTE

Mutes the audio.

!2 WIDE

Automatically detects the signal and sets the aspect ratio. Wide button is not active for all signals.

!3 DISPLAY

Displays the source settings on the screen.

!4 OFF TIMER

Activates the off timer for the unit.

!5 SIDE BY SIDE

Press this button to show a couple of pictures in the side-by-side mode.

!6 PICTURE IN PICTURE

Press this button to show a couple of pictures in the picture-in-picture mode.

!7 SINGLE

Cancels the split screen mode.

!8 SELECT/FREEZE

Press this button to select the active picture in a split screen mode. When the PIC FREEZE function is operating, this button can be used to display still images on the sub screen.

!9 AUTO ADJUST

Press this button to adjust Fine Picture, Picture ADJ, Position, and Contrast automatically. Press this button in video mode and the Auto Adjust switches to ZOOM mode automatically when a letter box image is displayed.

@0 ID SELECT

Set the ID number in the remote control. The remote control can then be used only for a display with the same ID number. When several displays are used together they can be controlled individually.

@1 CLEAR/SEAMLESS SW

Clears the number set by the ID SELECT button. When the SEAMLESS SW function is operating, this button can be used to switch the input source quickly.

@2 Remote control signal transmitter

Transmits the remote control signals.

@3 Remote Jack

Insert the plug of the remote cable (The 1/8 Stereo Mini cable) here when using the supplied remote control in the wired condition.

En-9

Basic Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

2. Press the Power button (on the unit). The monitor’s POWER/STANDBY indicator turns red and the standby mode is set.

3. Press the POWER ON button (on the remote control) to turn on the unit. The monitor’s POWER/STANDBY indicator will light up (green) when the unit is on.

Press the POWER ST ANDBY button (on the remote control)

4. or the Power button (on the unit) to turn off the unit. The monitor’s POWER/STANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME button (on the remote control or the unit) to increase to the desired level.

2. Press and hold the VOLUME control or the unit) to decrease to the desired level.

button (on the remote

MUTE

To mute the audio:

Press the MUTE button on the remote control to mute the audio; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is pressed.

2. If the button is not pressed for approximately three seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. (Be sure ZOOM NAV is off.) Press the POINTER button to display the pointer. (

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture. The pointer will change to resemble a magnifying glass.

)

( A press of the ZOOM- button will reduce the picture and return it to its original size.

To change the picture position:

 

Select the position with the ▲▼

2. Press the POINTER button to delete the pointer.

buttons.

)

AUTO ADJUST

To adjust the size or quality of the picture automatically:

Press the AUT O ADJUST button.

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

1. Press the OFF TIMER button to start the timer at 30 minutes.

2. Press the OFF TIMER button to the desired time.

3. The timer starts when the menu turns off.

→ 30 → 60 → 90 → 120 → 0

OFF TIMER 30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER button once.

2. The remaining time is displayed, then turns off after a few seconds.

3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER 28

To cancel the off timer:

1. Press the OFF TIMER button twice in a row .

2. The off timer is canceled.

OFF TIMER 0

Note:

After the power is turned off with the off timer ... A slight current is still supplied to the monitor. When you are leaving the r oom or do not plan to use the system for a long period of time, turn off the power of the monitor.

Information

 AUTO ADJUST ON setting

When RGB (still picture) input is selected:

Fine Picture, Picture ADJ, Position, and Contrast will be adjusted automatically.

When RGB (motion picture), VIDEO, or Y/Pb/Pr (component) input is selected:

The screen size switches to ZOOM mode automatically when a letter box image is displayed.

En-10

OSM (On Screen Menu) Controls

Menu Operations

The OSM window is displayed with respect to the screen as shown on the diagram.

* Depending on the screen’s mode, the OSM may be

displayed differently. In the explanation, the OSM section is shown close up.

MAIN MENU 1 / 2 PICTURE AUDIO IMAGE ADJUST OPTION1

ADVANCED OSM

: OFF

MENU/ENTEROKEXIT

SEL.

The following describes how to use the menus and the selected items.

1. Press the MENU/ENTER button on the remote control to display the MAIN MENU.

EXIT

MAIN MENU 1 / 2 PICTURE AUDIO IMAGE ADJUST OPTION1

ADVANCED OSM

MENU/ENTEROKEXIT

SEL.

MAIN MENU 2 / 2 PREVIOUS PAGE LANGUAGE COLOR SYSTEM SOURCE INFORMATION

: OFF

EXIT

Note:

The main menu disappears by pressing the EXIT

button.

Information

 Advanced menu mode

When “ADVANCED OSM” is set to “ON” in the main menu (1/2), full menu items will be shown.

MAIN MENU 1 / 2 PICTURE AUDIO IMAGE ADJUST OPTION1 OPTION2 OPTION3 OPTION4 ADVANCED OSM

MENU/ENTEROKEXIT

SEL.

: ON

EXIT

* The actual screen may be different from the ones

in this manual.

MENU/ENTEROKEXIT

SEL.

EXIT

2. Press the cursor buttons ▲ ▼ on the remote control to

highlight the menu you wish to enter.

3. Press the MENU/ENTER button on the remote control to select a sub menu or item.

CONTRAST BRIGHTNESS SHARPNESS COLOR TINT PICTURE MODE NR

SEL. ADJ. RETURN

PICTURE 1 / 2

: NORMAL : OFF

EXIT

: 52 : 32 : 16 : 32

: 32

4. Adjust the level or change the setting of the selected item

 

by using the cursor buttons

on the remote control.

5. The adjustments or settings are then stored in memory. The change is stored until another change is made.

6. Repeat steps 2 – 5 to adjust an additional item, or press the EXIT button on the remote control to return to the main menu.

* When adjusting using the bar at the bottom of the screen,



press the

or  button within 5 seconds. If not, the

current setting is stored and the previous screen appears.

En-11

Menu Tree

* For further details of each menu item, please refer to the CD-ROM.

:Shaded areas indicate the default value.

←→

: Press the



or  button to adjust.

:Menu items in a ruled box are available when the ADVANCED OSM is set to ON.

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

PICTURE CONTRAST ←→ 0←52→72 YES En-20

BRIGHTNESS ←→ 0←32→64 YES En-20 SHARPNESS ←→ 0←16→32 YES En-20 COLOR ←→ 0←32→64 YES En-20 TINT R←→G 0←32→64 YES En-20 PICTURE MODE BRIGHT/NORMAL/THEAT.1/THEAT.2/DEFAULT YES En-20 NR OFF/NR-1/NR-2/NR-3 YES En-20 COLOR TEMP. LOW/MID LOW/MID/HIGH YES En-20 WHITE BALANCE GAIN RED ←→ 0←40→70 YES En-21

GAIN GREEN ←→ 0←40→70 YES En-21 GAIN BLUE ←→ 0←40→70 YES En-21 BIAS RED ←→ 0←40→70 YES En-21 BIAS GREEN ←→ 0←40→70 YES En-21 BIAS BLUE ←→ 0←40→70 YES En-21

GAMMA 1←→2←…→4 YES En-21 LOW TONE * COLOR TUNE RED Y←→M0←32→64 YES En-21

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

AUDIO BASS ←→ 0←13→26 YES En-22

TREBLE ←→ 0←13→26 YES En-22 BALANCE L←→R -22←0→+22 YES En-22 AUDIO INPUT1 VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3 YES En-22 AUDIO INPUT2 VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3 YES En-22 AUDIO INPUT3 VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3 YES En-22

RESET OFF←→ON YES En-21

AUTO←→1←…→3 YES En-21

GREEN C←→Y0←32→64 YES En-21 BLUE M←→C0←32→64 YES En-21 YELLOW G←→R0←32→64 YES En-21 MAGENTA R←→B0←32→64 YES En-21 CYAN B←→G0←32→64 YES En-21 RESET OFF←→ON YES En-21

REFERENCE

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

IMAGE ADJUST ASPECT MODE NORMAL/FULL/STADIUM/ZOOM/2.35:1/14:9/TRUE*

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

OPTION1 OSM DISPLAY OSM OFF←→ON YES En-23

V-POSITION ←→ -64←0→+64 YES En-22 H-POSITION ←→ -128←0→+127 YES En-22 V-HEIGHT ←→ 0←→64 YES En-22 H-WIDTH ←→ 0←→64 YES En-22 AUTO PICTURE OFF←→ON* FINE PICTURE* PICTURE ADJ.*

BNC INPUT RGB←→COMP. YES En-23 D-SUB INPUT RGB — En-23 RGB SELECT AUTO YES En-23 HD SELECT 1080B/1035I/1080A NO En-24 INPUT SKIP OFF←→ON YES En-24 ALL RESET OFF←→ON — En-24

←→*20←→64 YES En-22

←→*20←→128 YES En-22

OSM ADJ. 1←…→6 YES En-23 OSM ANGLE H←→V YES En-23 OSM ORBITER OFF←→ON YES En-23 OSM CONTRAST LOW←→NORMAL YES En-23

— En-22

NO En-22

REFERENCE

En-12

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

OPTION2 PWR. MGT. OFF←→ON YES En-25

CINEMA MODE OFF←→ON YES En-25 LONG LIFE PLE AUTO/LOCK 1/LOCK 2/LOCK 3 YES En-25

ORBITER AUTO 1 YES En-26

AUTO 2 YES En-26 MANUAL H-DOT/V-LINE/TIME YES En-26 OFF YES En-26

INVERSE OFF YES En-26

ON WORKING TIME/WAITING TIME YES En-26 WHITE YES En-26

SCREEN WIPER OFF YES En-27

ON WORKING TIME/WAITING TIME/SPEED YES En-27

SOFT FOCUS OFF/1/2/3/4 YES En-27

GRAY LEVEL 0←…→3←…→15 YES En-27 S1/S2 AUTO←→OFF YES En-28 PICTURE SIZE*

OFF←→ON YES En-28

DVI SET UP PLUG/PLAY PC←→STB/DVD NO En-28

BLACK LEVEL LOW←→HIGH NO En-28 CLOSECAPTION OFF←→CC1~4←→TEXT1~4 YES En-28 CAPTION CONT. LOW←→NORMAL YES En-28

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

OPTION3 TIMER PRESENT TIME

DAYLIGHT SAVING TIME

OFF←→ON NO En-29

REFERENCE

DAY/HOUR/MINUTES NO En-29

PROGRAM OFF YES En-29

ON DATE/ON/OFF(HOUR, MINUTES)/INPUT/FUNCTION YES En-29

MULTI REPEAT OFF YES En-30

ON MULTI MODE/WORK TIME/INPUT MODE YES En-30

PWR. ON MODE INPUT LAST /MULTI/ VIDEO 1-3 / HD/DVD 1-2 / RGB 1-3 YES En-30

VOLUME LAST←→0←…→44 YES En-30 CONTROL LOCK OFF←→ON YES En-30 IR REMOTE OFF←→ON YES En-31 LOOP OUT OFF←→ON YES En-31 REMOTE ID ALL←→1←→4 NO En-31 ID NUMBER ALL←→1←…→256 YES En-31 VIDEO WALL DIVIDER OFF/1/4/9/16/25 YES En-32

POSITION

No.1←…→No.4/No.7←…→No.15/No.16←…→No.31/No.32←…→No.56

— En-32

DISP. MODE SPLIT←→BLANK YES En-32

AUTO ID OFF←→ON YES En-32

IMAGE ADJUST ASPECT MODE NORMAL/FULL/STADIUM/ZOOM/2.35:1/14:9/TRUE*

V-POSITION/H-POSITION/V-HEIGHT/H-WIDTH/AUTO PICTURE/ FINE PICTURE*

PICTURE ADJ.*

— En-33

P. ON DELAY OFF/ON/MODE1/MODE2 YES En-33

PLE LINK OFF←→ON YES En-33

REPEAT TIMER OFF YES En-34

ON DIVIDER/SOURCE/WORK TIME YES En-34

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

OPTION4 SUB. PICTURE SUB. P DETECT OFF←→AUTO YES En-34

DISPLAY FADE←→NORMAL YES En-34

SUB. P RATE 20%←…→100% YES En-34 ZOOM NAV OFF←→S BY S←→BTM LFT←→BTM RGT←→TOP RGT←→TOP LFT YES En-34 PIC FREEZE OFF←→S BY S1←→S BY S2←→BTM LFT←→BTM RGT←→TOP RGT←→TOP LFT YES En-35 SEAMLESS SW OFF YES En-35

ON SELECT1/SELECT2 YES En-35 TEXT INSERT OFF/TOP/MID HIGH/MID LOW/BOTTOM YES En-36

INPUT/PIC. RATE/DISPLAY YES En-36

Main menu Sub menu Sub menu 2 Sub menu 3 Sub menu 4 RESET

REFERENCE

ADVANCED OSM OFF←→ON YES En-36 LANGUAGE ENGLISH/DEUTSCH/FRANÇAIS/ESPAÑOL/ITALIANO/SVENSKA/У/PORTUGUÊS NO En-36 COLOR SYSTEM AUTO/3.58NTSC/4.43 NTSC/PAL/PAL 60/PAL-N/PAL-M/SECAM NO En-37 SOURCE INFORMATION

— — En-37

*1 Only when AUTO PICTURE is OFF *2 RGB/PC only *3 “PICTURE SIZE”, “TRUE” and “LOW TONE” are only for 50 and 61 inch types.

Information

 Restoring the factory default settings

Select “ALL RESET” under the OPTION1 menu. Note that this also restores other settings to the factory defaults.

En-13

Troubleshooting

If the picture quality is poor or there is some other problem, check the adjustments, operations, etc., before requesting service.

Symptom

The unit emits a crackling sound.

Picture is disturbed. Sound is noisy. Remote control operates erroneously.

The remote control does not work.

Monitor’s power does not turn on when the remote control’s power button is pressed.

Monitor does not operate when the remote control’s buttons are pressed.

The front panel buttons of the main unit do not function.

No sound or picture is produced.

Picture appears but no sound is produced.

Poor picture with VIDEO signal input.

Poor picture with RGB signal input.

Tint is poor or colors are weak. Nothing appears on screen.

Part of picture is cut off or picture is not centered.

Image is too large or too small.

Picture is unstable. POWER/STANDBY indicator is lighted in red.

POWER/STANDBY indicator is blinking in red.

POWER/STANDBY indicator is blinking in green and red, or green.

Checks

• Are the image and sound normal?

• Is a connected component set directly in front or at the side of the display?

• Are the remote control’s batteries worn out?

• Is IR REMOTE set to ON?

• Has an ID number been set for the main unit?

• Is the monitor’s power cord plugged into a power outlet?

• Are all the monitor’s indicators off?

• Are the remote control’s batteries worn out?

• Is IR REMOTE set to OFF?

• Has an ID number been set for the main unit?

• Is the remote control pointed at the monitor, or is there an obstacle between the remote control and the monitor?

• Is direct sunlight or strong artificial light shining on the monitor’s remote control sensor?

•

Are the remote control’s batteries worn out?

• The remote cable is plugged into the REMOTE IN terminal (Wired).

• The front panel buttons do not function during Control Lock.

• Is the monitor’s power cord plugged into a power outlet?

• Is the volume set at the minimum?

• Is the mute mode set?

• Are the speakers properly connected?

• Is AUDIO INPUT set correctly?

• Improper control setting. Local interference. Cable interconnections. Input impedance is not correct level.

• Improper control setting. Incorrect 15 PIN connector pin connections.

• Are the tint and colors properly adjusted?

• Is the computer’s power turned on?

• Is a source connected?

• Is the power management function in the standby or off mode?

• Is LOOP OUT set to ON?

• Is the position adjustment appropriate?

• Is the screen size adjustment appropriate?

• Is the computer’s resolution setting appropriate?

• Horizontal and / or vertical sync signal is not present when the Intelligent Power Manager control is on.

• The temperature inside the main unit has become too high and has activated the protector.

——————

• If there are no abnormalities in the image and sound, the noise is caused by the cabinet reacting to changes in temperature. This will not affect performance.

• Leave some space between the display and the connected components.

• Replace both batteries with new ones.

• Set IR REMOTE OFF on OPTION3 menu.

• Set an ID number with the ID SELECT button, or set the ID number to ALL.

• Plug the monitor’s power cord into a power outlet.

• Press the power button on the monitor to turn on the power.

• Replace both batteries with new ones.

• Set IR REMOTE ON.

• Set an ID number with the ID SELECT button, or set the ID number to ALL.

• Point the remote control at the monitor’s remote control sensor when pressing buttons, or remove the obstacle.

• Eliminate the light by closing curtains, pointing the light in a different direction, etc.

• Replace both batteries with new ones.

• Unplug the remote cable from the monitor.

• Set the Control Lock to OFF.

• Plug the monitor’s power cord into a power outlet.

• Increase the volume.

• Press the remote control’s MUTE button.

• Connect the speakers properly.

• Set AUDIO INPUT on the AUDIO menu correctly.

• Adjust picture control as needed. Try another location for the monitor. Be sure all connections are secure.

• Adjust picture controls as needed. Check pin assignments and connections.

• Adjust the tint and color (under PICTURE).

• Turn on the computer’s power.

• Connect source to the monitor.

• Operate the computer (move the mouse, etc.).

• Set LOOP OUT OFF.

• Adjust the IMAGE ADJUST properly.

• Press the WIDE button on the remote control and adjust properly.

• Set to the proper resolution.

• Check the input signal.

• Promptly switch off the power of the main unit and wait until the internal temperature drops. See*1.

• Prompty switch off the power of the main unit. See *2.

Remedy

*1 Overheat protector

If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location and wait for the monitor to cool for 60 minutes. If the problem persists, contact your dealer.

*2 In the following case, power off the monitor immediately and contact your dealer or authorized Service Center.

The monitor turns off 5 seconds after powering on and then the POWER/STANDBY indicator blinks. It indicates that the power supply circuit, plasma display panel, temperature sensor, or one or more fans have been damaged.

En-14

Specifications

Screen Size 43.5"(H)⳯24.5"(V) inches

1106(H)⳯622(V) mm diagonal 50"

Aspect Ratio 16 : 9 Resolution 1365(H)⳯768(V) pixels Pixel Pitch 0.032"(H)⳯0.032"(V) inches

0.81(H)⳯0.81(V) mm

Color Processing 4,096 steps, 68.7 billion colors Signals

Synchronization Range Horizontal : 15.5 to 110.0 kHz

Input Signals RGB, NTSC (3.58/4.43), P AL (B,G,M,N),

Input Terminals (VIDEO1 and RGB1 can also be used as OUTPUT terminals)

RGB

Visual 1 (Analog) mini D-sub 15-pin⳯1 Visual 2 (Analog) BNC (R, G, B, HD, VD)⳯1* Visual 3 (Digital) DVI-D 24-pin⳯1*

Video

Visual 1 BNC⳯1 Visual 2 RCA-pin⳯1 Visual 3 S-Video: DIN 4-pin⳯1

DVD/HD

Visual 1 RCA-pin (Y, Cb/Pb, Cr/Pr)⳯1* Visual 2 BNC (Y, Cb/Pb, Cr/Pr)⳯1* Visual 3 DVI-D 24-pin⳯1*

Audio Stereo RCA⳯3 (Selectable)

External Control D-sub 9-pin⳯1 (RS-232C) Sound output 9W+9W at 6 ohm Power Supply AC100-240V 50/60Hz Current Rating 7.6A (maximum) Power Consumption 435W (typical) Dimensions 48.1 (W)⳯30 (H)⳯3.8 (D) inches

Weight 97 lbs / 44 kg (without stand) Environmental Considerations

Operating Temperature 0°C to 40°C / 32°F to 104°F

Humidity 20 to 80% (no condensation) Altitude 720 to 1114 hPa

Storage Temperature -10°C to 50°C / 14°F to 122°F

Humidity 10 to 90% (no condensation) Altitude 700 to 1114 hPa

Other Features Motion compensated 3D Scan Converter (NTSC,

Regulations UL 60950-1, CAN/CSA-C22.2 No.60950-1-03,

(automatic : step scan) Vertical : 50.0 to 120.0 Hz (automatic : step scan)

P AL60, SECAM, HD*1 , DVD*1 , DTV*1

1, *2

1222 (W)⳯736 (H)⳯96(D) mm

(0 to 9180 feet / 0 to 2800 m)

(0 to 9840 feet / 0 to 3000 m)

PAL, 480I, 576I, 525I, 625I, 1035I, 1080I), 2-3 pull down Converter (NTSC, 480I, 525I, 1035I, 1080I (60Hz)), 2-2 pull down Converter (P AL, 576I, 625I, NTSC, 480I, 525I), Digital Zoom Function (100-900% Selectable), Video Wall 4-25 multi screen, Self Diagnosis, Image Burn reduction tools (PLE LOCK1~3, INVERSE, WHITE, ORBITER (Auto1,2/Manual), SCREEN WIPER), Color T emperature select (high/mid/mid low/low, user has 4 memories), Control lock (Except power SW), Auto Picture, Input Skip, Color Tune, Low Tone (3 mode), Auto ID, Programmable Timer, Gamma Correction (4 mode), Loop through interface, Plug and play (DDC1, DDC2b, RGB3: DDC2b only), Split screen operations

FCC class B, ICES-003 class B

48.1" (1222)

43.5" (1106)

24.5" (622)

1.5" (38)

30" (736)

Units are in inch

3.8"

(96)

2.3" (58)

(mm)

The features and specifications may be subject to change without notice.

*1HD/DVD/DTV input signals supported on this system.

480P (60 Hz) 480I (60 Hz) 525P (60 Hz) 525I (60 Hz) 576P (50 Hz) 576I (50 Hz) 625P (50 Hz) 625I (50 Hz) 720P (60 Hz) 720P (50 Hz) 1035I (60 Hz) 1080I (50 Hz) 1080I (60 Hz) 1080P (50 Hz) 1080P (60 Hz)

The 5-BNC connectors are used as RGB/PC2 and HD/DVD2 input. Select one of them under “BNC INPUT”.

Compatible with HDCP.

Supported Signals

• 640ⴒ480P @ 59.94/60Hz • 1920ⴒ1080I @ 50Hz

• 1280ⴒ720P @ 59.94/60Hz • 720ⴒ576P @ 50Hz

• 1920ⴒ1080I @ 59.94/60Hz • 1280ⴒ720P @ 50Hz

• 720ⴒ480P @ 59.94/60Hz Note: In some cases a signal on the plasma monitor may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc...). If you do experience such a problem please contact NEC Solutions (America), Inc. and also the manufacturer of the source equipment.

En-15

Limited Warranty Plasma Monitors

NEC Solutions, Inc. (hereinafter NEC Solutions) warrants this product to be free from defects in material and workmanship under the following terms and, subject to the conditions set forth below, agrees to repair or replace (at NEC Solutions’ sole option) any part of the enclosed unit which proves defective. Replacement parts or products may be new or refurbished and will meet specifications of the original parts or products.

HOW LONG IS THE WARRANTY?

Parts and labor are warranted for (1) one year from the date of the first customer purchase.

WHO IS PROTECTED?

This warranty may be enforced only by the first purchaser.

WHA T IS COVERED AND WHAT IS NOT COVERED

Except as specified below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty:

1. Any product which is not distributed in the U.S.A. or Canada by

NEC Solutions or which is not purchased in the U.S.A. or Canada from an authorized NEC Solutions dealer.

2. Any product of which the serial number has been defaced,

modified or removed.

3. Damage, deterioration or malfunction resulting from:

a. Accident, misuse, abuse, neglect, fire, water, lightning or other

acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

b. Repair or attempted repair by anyone not authorized by NEC

Solutions.

c. Any shipment of the product (claims must be presented to the

carrier). d. Removal or installation of the product. e. Any other cause which does not relate to a product defect. f. Burns or residual images upon the phosphor of the panel.

4. Cartons, carrying cases, batteries, external cabinets, magnetic tapes, or any accessories used in connection with the product.

5. Service outside of the U.S.A. and Canada.

WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR

W e will pay labor and material expenses for covered items, but we will not pay for the following:

1. Removal or installation charges.

2. Costs of initial technical adjustments (set-up), including

adjustment of user controls. These costs are the responsibility of the NEC Solutions dealer from whom the product was purchased.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on your product, consult the dealer from whom you purchased the product.

2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage. Please also include in any mailing your name, address and a description of the problem(s).

3. For the name of the nearest NEC Solutions authorized service center, call NEC Solutions at 800-836-0655.

LIMITATIONS OF LIABILITY

Except for the obligations specifically set forth in this warranty statement, we will not be liable for any direct, indirect, special, incidental, consequential, or other types of damages, whether based on contract, tort, or any other legal theory, whether or not we have been advised of the possibility of such damages. This warranty is in lieu of all other warranties expressed or implied, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose.

EXCLUSION OF DAMAGES

NEC Solutions’ liability for any defective product is limited to the repair or replacement of the product at our option. NEC Solutions shall not be liable for:

1. Damage to other property caused by any defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss; or

2. Any other damages whether incidental, consequential or otherwise. Some states do not allow limitation on how long an implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

HOW ST A TE LA W RELATES TO THE WARRANTY

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

FOR MORE INFORMATION, TELEPHONE 800-836-0655 NEC SOLUTIONS (AMERICA), INC. 1250 N. Arlington Heights Road, Suite 400 Itasca, Illinois 60143-1248

Note:

All products r eturned to NEC Solutions (America), Inc. for service MUST have prior approval. To get approval, call NEC Solutions (America), Inc. at 800-836-

0655.

3. Shipping charges.

En-16

Guide rapide

(Modèle à découpe d’image avancée)

Pour le fonctionnement de votre moniteur plasma, référez-vous au CD-ROM.

Table des matière

Recommandations importantes ..................... Fr-2

Installation .................................................. Fr-4

Ventilation requise pour le montage de l’ensemble ........... Fr-4

Créer un mur d’images ................................................. Fr-5

Fixation des câbles ....................................................... Fr-5

Faire attention lorsque le moniteur plasma est installé

verticalement ............................................................ Fr-6

Comment utiliser la télécommande ................................. Fr-6

Mise en place et remplacement des piles ......................... Fr-6

Utilisation du mode télécommande à câble...................... Fr-6

Distance de fonctionnement ............................................Fr-6

Manipulation de la télécommande ................................... Fr-6

Noms des composants et leur fonction ........... Fr-7

Vue de face ................................................................. Fr-7

Vue arrière / Raccordements ......................................... Fr-8

Télécommande ............................................................. Fr-9

Fonctions de base ....................................... Fr-10

POWER (MARCHE/ARRÊT) ......................................... Fr-10

Pour mettre en marche et arrêter l’appareil : .................. Fr-10

VOLUME................................................................... Fr-10

Pour régler le volume sonore : ....................................... Fr-10

MUTE (SOURDINE) .................................................... Fr-10

Pour mettre le son en sourdine : ..................................... Fr-10

DISPLAY (AFFICHAGE) ................................................ Fr-10

Pour vérifier les réglages : ............................................. Fr-10

ZOOM NUMERIQUE.................................................. Fr-10

AUTO ADJUST (REGLAGE AUTO) ............................... Fr-10

Pour régler automatiquement le format et la qualité de

l’image: ...................................................................... Fr-10

OFF TIMER (ARRÊT TEMPORISÉ) .................................. Fr-10

Réglage de la temporisation de l’alimentation : ............. Fr-10

Vérification du temps restant avant l’arrêt

automatique: ............................................................... Fr-10

Annulation de la temporisation de l’alimentation: ......... Fr-10

Commandes OSM (MENUS ÉCRAN) ................. Fr-11

Opérations de menu ................................................... Fr-11

Arborescence de menus .............................................. Fr-12

Dépannage................................................. Fr-14

Caractéristiques ......................................... Fr-15

Garantie limitée Moniteurs Plasma....................... Fr-16

Manuel d’utilisation sur CD-ROM

䢇 Le manuel d’utilisation complet est fourni sur le CD-ROM en

format PDF (Portable Document Format) et fournit des informations détaillées concernant le produit et son utilisation pour votre moniteur plasma NEC.

Vous devez avoir Acrobat Reader™ ou Adobe Reader ™ pour pouvoir visionner et/ou imprimer les fichiers PDF.

REMARQUE:

être téléchargés sur le site d’Adobe. Rendez-vous sur http://www.adobe.com pour obtenir la version correspondant à votre système d’exploitation.

䢇 Visionner le manuel d’utilisation (PDF)

[Windows]

1. Insérez le CD-ROM fourni dans le lecteur de CD-ROM de votre ordinateur.

2. Un menu doit s’afficher automatiquement. Si ce n’est pas le cas :

1) Sur le bureau Windows, double-cliquez sur l’icône [Mon

ordinateur].

2)Double-cliquez sur la lettre du lecteur de CD-ROM

[NECPLASMA-UM].

3) Double-cliquez sur “start_menu.pdf”.

3. Cliquez sur le nom de votre produit. Le guide de l’utilisateur s’affichera à l’écran.

[Macintosh]

1. Insérez le CD-ROM fourni dans le lecteur de CD-ROM de votre Macintosh.

2. Double-cliquez sur l’icône du CD-ROM [NECPLASMA-UM].

3. Double-cliquez sur “start_menu.pdf”. Le menu de départ s’affichera.

4. Cliquez sur le nom de votre produit. Le guide de l’utilisateur s’affichera à l’écran.

䢇 Copier le manuel d’utilisation (PDF) sur votre ordinateur

Le manuel d’utilisation se trouvant sur le CD-ROM fourni peut être copié sur le disque dur de votre ordinateur.

Adobe Acrobat Reader ou Adobe Reader peuvent

Contenu du colis

䡺 Moniteur à plasma 䡺 Cordon d’alimentation 䡺 Télécommande avec 2 piles R6 AAA 䡺 Manuels (Guide rapide et CD-ROM) 䡺 Tores en ferrite 䡺 Collier de câble

Options

• Unité de montage mural

• Unité de montage au plafond

• Unité de montage incliné

• Support sur table

• Haut-parleurs amovibles

FRANÇAIS

Recommandations importantes

Précaution

V euillez lire avec attention ce manuel avant d’utiliser le moniteur à plasma et le conserver accessible pour s’y référer ultérieurement.

ATTENTION..

RISQUE D’ELECTROCUTION

NE PAS OUVRIR

ATTENTION:

POUR EVITER TOUT RISQUE D’ELECTROCUTION, NE PAS OUVRIR LE BOITIER. A L’INTERIEUR, AUCUNE PIECE NE NECESSITE L’INTER-VENTION DE L’UTILISATEUR. EN CAS DE PROBLEME, S’ADRESSER A UN REPARATEUR SPECIALISTE.

Ce symbole est une mise en garde contre les risques d’électrocution que présentent certaines parties dépourvues d’isolation à l’intérieur de l’appareil. Il est donc dangereux d’établir le moindre contact avec ces parties. Ce symbole avertit l’utilisateur que d’importantes informations sont fournies sur le fonctionnement ou l’entretien de cet appareil. De ce fait, il faut lire attentivement ces instruc-tions pour éviter tout problèm.

AVERTISSEMENT

AFIN D’EVITER TOUT RISQUE D’INCENDIE OU D’ELECTROCUTION, NE PAS EXPOSER CET APP AREIL A LA PLUIE OU A L’HUMIDITE. NE PAS BRANCHER LA PRISE D’ALIMENTATION POLARISEE DANS UNE PRISE MURALE AVEC UNE RALLONGE OU UN ADAPTATEUR MULTIPRISE SI LES FICHES NE PEUVENT ETRE INSEREES COMPLETEMENT. EVITER D’OUVRIR LE BOITIER CAR CELUI-CI PROTEGE DES COMPOSANTS FONCTIONNANT A HAUTE TENSION. EN CAS DE PROBLEME, S’ADRESSER A UN REPARATEUR SPECIALISTE.

Avertissements et précautions de sécurité

Ce moniteur à plasma a été conçu et fabriqu pour une utilisation fiable et durable. Il ne nécessite aucun entretien en dehors du nettoyage. Voir la section “Méthode de nettoyage du moniteur à plasma” plus loin. Le panneau à affichage plasma est constitué de fines particules d’images (cellules) dont plus de 99,99%sont actives. Certaines d’entre elles ne produisent pas de lumière ou restent allumées. Pour des raisons de sécurité et pour éviter d’endommager l’appareil, lire attentivement les instructions suivantes. Pour éviter les risques d’éléctrocution et d’incendie:

Laisser suffisamment d’espace autour de l’appareil pour la ventilation et éviter toute augmentation excessive de la température interne. Ne pas couvrir les fentes d’aération ou installer l’appareil dans un endroit trop exigu. Si vous installez l’appareil dans un espace clos, assurezvous qu’il y ait suffisamment d’espace au dessus pour permettre l’air chaud de s’élever et de s’évacuer. Si la température du moniteur devient excessive, la protection contre les surchauffes entrera en action et coupera l’alimentation. Dans ce cas, éteindre l’appareil et débrancher le câble d’alimentation. Si la température de la pièce dans laquelle se trouve le moniteur est particulièrement élevée, déplacer celui-ci dans un endroit plus frais et attendre environ 60 minutes qu’il refroidisse. Si le problème persiste, prendre contact avec votre revendeur.

2. Ne pas raccorder la prise d’alimentation polarisée de ce périphérique à une rallonge ou une prise murale si les fiches ne peuvent pas être complètement insérées.

3. Ne pas exposer cet appareil à la pluie ou à l’humidité.

4. Eviter d’endommager le câble d’alimentation et ne pas le modifier.

5. Débrancher le câble d’alimentation électrique pendant les orages ou les longues périodes d’inactivité.

6. Ne pas ouvrir le boîtier protégeant les parties dangereuses fonctionnant hauts voltages. Si l’appareil est endommagé de cette manière, la garantie sera annulée. De plus, les risques d’électrocution grave sont grands.

7. Ne pas essayer d’intervenir ou de réparer l’appareil. Le fabricant décline toute responsabilité en cas de blessure corporelle ou de dégâts matériels résultant d’une opération d’entretien quelconque effectuée par des personnes non qualifiées ou résultant de l’ouverture du couvercle arrière. S’adresser au service après-vente autorisé.

8. Cet équipement doit être connecté à une prise secteur (MAIN) équipée d’une mise à la terre.

9. La prise secteur doit se trouver près de l’équipement et doit être facile d’accès.

Pour éviter tout dommage et assurer une utilisation durable:

1. Utiliser seulement une alimentation en courant de 100– 240 V 50/60 Hz. T oute utilisation prolongée avec un courant supérieur à 100–240 V risque de diminuer la durée de vie de l’appareil et même de provoquer un incendie.

2. Manipuler l’appareil avec précautions lors de son installation, ne pas le laisser tomber.

3. L’installer loin de toute source de chaleur ou de poussière. Ne pas l’exposer au soleil.

Eviter la pénétration de liquides ou petits objets métalliques l’intérieur de l’appareil. En cas d’incident de ce genre, débrancher le câble d’alimentation électrique et confier le moniteur à un service après-vente agréé.

5. Ne pas cogner ou rayer la surface de l’écran, des déformations de l’image en résulteraient.

6. Pour un montage et une installation correcte, il est fortement recommandé de faire appel à un revendeur agréé et qualifié .

7. Comme c’est le cas pour tout affichage à base de phosphore (comme un moniteur CRT, par exemple), la puissance de lumière baisse graduellement au cours de la vie du panneau d’affichage à plasma.

8. Pour éviter tout risque de sulfuration, il est fortement conseillé de ne pas installer l’appareil dans un vestiaire, un bain public ou un bain de source thermale.

9. Ne pas utiliser dans un véhicule en marche car l’unité pourrait tomber ou glisser et provoquer des blessures.

10. Pour éviter l ‘inflammation ou les chocs électriques, ne pas placer l’unité sur la tranche, à l’envers ou avec l’écran vers le bas ou vers le haut.

Méthode de nettoyage du moniteur à plasma:

1. Nettoyer le panneau avant et le cadre en procédant à l’aide d’un chiffon doux et sec. Ne jamais utiliser de solvents du type alcool ou diluant pour le nettoyage de ces surfaces.

2. Nettoyer les prises d’aération du plasma en procédant à l’aide d’une brosse à poils doux fixée à un aspirateur.

Pour garantir la bonne ventilation du moniteur, nettoyer les prises d’air tous les mois. Un nettoyage plus fréquent peut s’avérer nécessaire selon les conditions environnantes dans lesquelles le moniteur à plasma est utilisé.

Pour éviter les risques de brûlage du luminophore, les mesures suivantes sont recommandées:

Comme tous les périphériques d’affichage à base luminophore et tous les autres affichages gaz plasma, les moniteurs plasma peuvent être sujets au brûlage du luminophore dans certaines circonstances. Certaines conditions d’utilisation, telles que l’affichage continu d’une image statique pour une durée prolongée, peuvent causer le brûlage du luminophore si aucune précaution n’est prise. Pour protéger votre investissement dans ce moniteur à plasma, veuillez suivre les directives et les conseils suivantes pour minimiser l’occurence le marquage de l’écran: * S’assurer de mettre en marche et d’utiliser l’économiseur d’écran chaque

fois que c’est possible, pendant l’utilisation avec une source d’entrée

venant d’ un ordinateur. * Afficher une image en mouvement aussi souvent que possible. * Changer la position de l’affichage de menu de temps à autre. * Toujours couper l’alimentation après la fin de l’utilisation du moniteur. Si le moniteur à plasma est en usage continu ou de longue durée, prendre les mesures suivantes afin d’éviter l’occurence le brûlage du luminophore: * Abaisser le niveau de l’image (contraste, luminance) autant que possible,

sans faire perdre la lisibilit de l’image. * Afficher une image avec de nombreuses couleurs et graduations de

couleur. (par ex. des images photo-graphiques ou photo-réalistes). *

Créer un contenu d’image avec un contraste minimal entre les zones sombres

et les zones claires, par exemple des caractères blancs sur un fond noir.

Utiliser des couleurs complémentaires ou pastels le plus souvent possible. * Eviter d’afficher des images avec peu de couleurs et des limites nettes et

clairement définies entre les couleurs.

Son de fonctionnement du moniteur plasma

Le panneau du moniteur plasma est composé de pixels extrêmement fins et ces pixels émettent de la lumière en fonction des signaux vidéo reçus. Ce principe peut créer un bourdonnement ou un ronflement électrique venant du moniteur plasma. V euillez également noter que la vitesse de rotation du ventilateur de refroidissement peut augmenter lorsque la température ambiante du moniteur plasma augmente. Lorsque cela se produit, il est possible que vous entendiez le moteur du ventilateur.

Remarque:

Les éléments suivants ne sont pas couverts par la garantie.

• Rémanence

• Sons générés par le panneau, par exemple : Bruit du moteur de ventilateur, ronflement du circuit électrique / bourdonnement du panneau de verre.

Contactez un revendeur agréé ou un revendeur de marque pour d'autres

Fr-2

procédures qui conviendront le mieux à vos besoins particuliers.

Avertissement

Ne pas utiliser dans une salle d’ordinateurs telle que définie dans la Norme pour la protection des ordinateurs électroniques/appareils de traitement des données ANSI/NFP A75.

Attention

Ce modèle peut être utilisé avec les accessoires optionnels suivants. L’utilisation de ce modèle avec d’autres accessoires optionnels peut entraîner une instabilité qui peut causer des blessures.

Cet appareil a été testé est trouvé conforme avec les limites des appareils numériques de classe B, conformément à l’article 15 du règlement FCC. Ces limites sont conçues pour offrir une protection raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet appareil génère, utilise et peut émettre de l’énergie radiofréquence et, s’il n’est pas installé et utilisé selon les instructions, peut causer des interférences nuisibles aux communications radio. Cependant, il n’y a aucune garantie que de telles interférences ne se produisent pas pour une installation particulière. Si cet appareil causait des interférences nuisibles à la réception radio ou télévisée, ce qui peut être déterminé en mettant l’appareil hors et sous tension, vous être encouragé à essayer de corriger ces interférences à l’aide de l’une ou plusieurs mesures suivantes:

• Réorientez ou déplacez l’antenne réceptrice.

• Augmentez l’espace entre l’appareil est le récepteur.

• Connectez l’appareil sur une prise secteur appartenant à un circuit différent de celui sur lequel le récepteur est connecté.

• Consultez votre revendeur ou un technicien radio/ télévision expérimenté.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

REMARQUE: Pour raccorder un ordinateur à ce moniteur, procéder à l’aide d’un câble RGB à âme de ferrite aux deux extrémités. Sur les câbles d’alimentation électrique, fixer les âmes de ferrite fournies aux extrémités. Si vous ne faites pas cela, le moniteur ne sera pas conforme aux normes obligatoires FCC. Monter les tores en ferrite aux deux extrémités du câble d’alimentation électrique (fourni). Fixer le tore en ferrite (fourni) au câble d’alimentation à l’aide d’un collier.

Nom du fabricant : NEC Viewtechnology, Ltd. Enceintes: PX-50SP1U, PX-50SP1U/S

PX-SP2U/S, PX-SP2U/B

Support: PX-ST1U, PX-ST1U/S Veuillez contacter NEC Solutions (America), Inc. pour

obtenir la liste des accessoires optionnels agréés.

Mise au rebut de votre produit usagé

La législation européenne, appliquée dans tous les Etats membres, exige que les produits électriques et électroniques portant la marque (à gauche) doivent être mis au rebut séparément des autres ordures ménagères. Ceci inclus les moniteurs plasma et leurs accessoires électriques. Lorsque vous mettez au rebut ces produits, veuillez suivre les recommandations des autorités locales et/ou demandez conseil au magasin qui vous a vendu le produit. Une fois ces produits mis au rebut, ils sont recyclés et de manière appropriée. Cet effort nous aidera à réduire les déchets et à maintenir au niveau minimum leurs conséquences négatives sur la santé humaine et sur l’environnement. La marque figurant sur les produits électriques et électroniques ne s’applique qu’aux Etats membres actuels de l’Union Européenne.

ATTENTION

Lorsque vous diposez de piles / batteries usées, veuillez vous conformer aux normes gouvernementales ou environnementales en vigueur dans votre pays ou région.

Câble d’alimentation (fourni)

Collier

tore

Collier

tore

Fr-3

+ 47 hidden pages
