NEC Plasma Monitor User Manual

Operation Manual

(Enhanced split screen Model)

For the specifications of your plasma monitor ,

refer to “Model Information”.

NEC Solutions (America), Inc.

Important Information

Precautions

Please read this manual carefully before using your plasma monitor and keep the manual handy for future reference.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS, UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

WARNING

Warnings and Safety Precaution

This plasma monitor is designed and manufactured to provide long, trouble-free service. No maintenance other than cleaning is required. Please see the section “Plasma monitor cleaning procedure” on the next page. The plasma display panel consists of fine picture elements (cells) with more than 99.99 percent active cells. There may be some cells that do not produce light or remain lit. For operating safety and to avoid damage to the unit, read carefully and observe the following instructions. To avoid shock and fire hazards:

1. Provide adequate space for ventilation to avoid internal heat build-up. Do not cover rear vents or install the unit in a closed cabinet or shelves. If you install the unit in an enclosure, make sure there is adequate space at the top of the unit to allow hot air to rise and escape. If the monitor becomes too hot, the overheat protector will be activated and the monitor will be turned off. If this happens, turn off the power to the monitor and unplug the power cord. If the room where the monitor is installed is particularly hot, move the monitor to a cooler location, and wait for 60 minutes to cool the monitor. If the problem persists, contact your dealer for service.

2. Do not use this unit’s polarized plug with extension cords or outlets unless the prongs can be completely inserted.

3. Do not expose the unit to water or moisture.

4. Avoid damage to the power cord, and do not attempt to modify the power cord.

5. Unplug the power cord during electrical storms or if the unit will not be used over a long period.

6. Do not open the cabinet which has potentially dangerous high voltage components inside. If the unit is damaged in this way the warranty will be void. Moreover, there is a serious risk of electric shock.

7. Do not attempt to service or repair the unit. The manufacturer is not liable for any bodily harm or damage caused if unqualified persons attempt service or open the back cover. Refer all service to authorized Service Centers.

To avoid damage and prolong operating life:

1. Use only with 100-240V 50/60Hz AC power supply. Continued operation at line voltages greater than 100240 Volts AC will shorten the life of the unit, and might even cause a fire hazard.

2. Handle the unit carefully when installing it and do not drop.

3. Set the unit away from heat, excessive dust, and direct sunlight.

4. Protect the inside of the unit from liquids and small metal objects. In case of accident, unplug the power cord and have it serviced by an authorized Service Center.

5. Do not hit or scratch the panel surface as this causes flaws on the surface of the screen.

6. For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

7. As is the case with any phosphor-based display (like a CRT monitor, for example) light output will gradually decrease over the life of a Plasma Display Panel.

8. To avoid sulfurization it is strongly recommended not to place the unit in a dressing room in a public bath or hot spring bath.

9. Do not use in a moving vehicle, as the unit could drop or topple over and cause injuries.

10. Do not place the unit on its side, upside-down or with the screen facing up or down, to avoid combustion or electric shock.

Plasma monitor cleaning procedure:

1. Use a soft dry cloth to clean the front panel and bezel area. Never use solvents such as alcohol or thinner to clean these surfaces.

2. Clean plasma ventilation areas with a vacuum cleaner with a soft brush nozzle attachment.

3. To ensure proper ventilation, cleaning of the ventilation areas must be carried out monthly. More frequent cleaning may be necessary depending on the environment in which the plasma monitor is installed.

Recommendations to avoid or minimize phosphor burn-in:

Like all phosphor-based display devices and all other gas plasma displays, plasma monitors can be susceptible to phosphor burn under certain circumstances. Certain operating conditions, such as the continuous display of a static image over a prolonged period of time, can result in phosphor burn if proper precautions are not taken. T o protect

your investment in this plasma monitor, please adhere to the following guidelines and recommendations for minimizing the occurrence of image burn:

* Always enable and use your computer’s screen saver

function during use with a computer input source. * Display a moving image whenever possible. * Change the position of the menu display from time to time. * Always power down the monitor when you are finished

using it.

* Lower the Brightness and Contrast levels as much as

possible without impairing image readability .

* Display an image with many colors and color gradations

(i.e. photographic or photo-realistic images).

* Create image content with minimal contrast between light

and dark areas, for example white characters on black backgrounds. Use complementary or pastel color whenever possible.

* Avoid displaying images with few colors and distinct,

sharply defined borders between colors.

If the plasma monitor is in long term use or continuous operation take the following measures to reduce the likelihood of phosphor burn:

Note:

Contact your dealer for other recommended procedures that will best suit your particular application needs.

Burn-in is not covered by the warranty.

Recommandations importantes

Précautions

Veuillez lire avec attention ce manuel avant d’utiliser le moniteur à plasma et le conserver accessible pour s’y référer ultérieurement.

ATTENTION

RISQUE D’ELECTROCUTION

NE P AS OUVRIR

MISE EN GARDE: AFIN DE REDUIRE LES RISQUES

D’ELECTRO-CUTION, NE PAS DEPOSER LE COUVERCLE, IL N’Y A AUCUNE PIECE UTILISABLE A L’INTERIEUR DE CET APPAREIL. NE CONFIER LES TRAVAUX D’ENTRETIEN QU’A UN PERSONNEL QUALIFIE.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’une tension dangereuse, non isolée se trouvant à l’intérieur de l’appareil. Elle est d’une intensité suffisante pour constituer un risque d’électrocution. Eviter le contact avec les pièces à l’intérieur de cet appareil.

Ce symbole a pour but de prévenir l’utilisateur de la présence d’importantes instructions concernant l’entretien et le fonctionnement de cet appareil. Par conséquent, elles doivent être lues attentivement afin d’éviter des problèmes.

A VERTISSEMENT

AFIN DE REDUIRE LES RISQUES D’INCENDIE OU D’ELECTROCUTION, NE P AS EXPOSER CET APP AREIL A LA PLUIE OU A L’HUMIDITE. AUSSI, NE P AS UTILISER LA FICHE POLARISEE AVEC UN PROLONGATEUR OU UNE AUTRE PRISE DE COURANT SAUF SI CES LAMES PEUVENT ETRE INSEREES A FOND. NE PAS OUVRIR LE COFFRET , DES COMPOSANTS HAUTE TENSION SE TROUVENT A L ’INTERIEUR. LAISSER A UN PERSONNEL

QUALIFIE LE SOIN DE REPARER CET APPAREIL.

Mises en garde et précautions de sécurité

Ce moniteur à plasma a été conçu et fabriqué pour une utilisation fiable et durable. Il ne nécessite aucun entretien en dehors du nettoyage. Voir la section “Méthode de nettoyage du moniteur à plasma” plus loin. Le panneau à affichage plasma est constitué de fines particules d’images (cellules) dont plus de 99,99%sont actives. Certaines d’entre elles ne produisent pas de lumière ou restent allumées. Pour des raisons de sécurité et pour éviter d’endommager l’appareil, lire attentivement les instructions suivantes.

Pour éviter les risques d’éléctrocution et d’incendie:

1. Laisser suffisament d’espace autour de l’appareil pour la ventilation et éviter toute augmentation excessive de la température interne. Ne pas couvrir les évents ou l’installer dans un endroit trop exigu. Si vous installez l’appareil dans un espace clos, assurezvous qu’il y ait suffisamment d’espace au dessus pour permettre à l’air chaud de s’élever et de s’évacuer. Si la température du moniteur devient excessive, la protection contre les surchauffes entrera en action et coupera l’alimentation. Dans ce cas, éteindre l’appareil et débrancher le câble d’alimentation. Si la température de la pièce dans laquelle se trouve le moniteur est particulièrement élevée, déplacer celui-ci dans un endroit plus frais et attendre environ 60 minutes qu’il refroidisse. Si le problème persiste, prendre contact avec votre revendeur.

2. Ne pas raccorder la prise d’alimentation polarisée de ce périphérique à une rallonge ou une prise murale si les fiches ne peuvent pas être complètement insérées.

3. Ne pas exposer à L ’eau ou à l’humidité.

4. Eviter d’endommager le cordon d’alimentation, et ne pas modifier le cordon d’alimentation.

5. Débrancher le câble d’alimentation électrique pendant les orages ou les longues périodes d’inactivité.

6. Ne pas ouvrir le coffret. Des composants de haute tension se trouvent à l’intérieur. Si l’appareil est endommagé de cette manière, la garantie devient caduque. De plus, il y a risque d’électrocution.

7. Ne pas essayer d’intervenir ou de réparer l’appareil. Le

fabricant décline toute responsabilité en cas de blessure corporelle ou de dégâts matériels résultant d’une opération d’entretien quelconque effectuée par des personnes non qualifiées ou résultant de l’ouverture du couvercle arrière. S’adresser aux services après-vente autorisés.

Pour éviter des dommages et prolonger la durée de service de l’appareil:

1. N’utiliser qu’une source d’alimentation de 100-240 V 50/60 Hz CA. Le fait d’utiliser l’appareil en continu à des tensions de ligne supérieures à 100-240 Volts CA réduit sa durée de vie et risque de provoquer un incendie.

2. Manipuler l’appareil avec soin pendant son déplacement et ne pas le faire tomber.

3. Eloigner l’appareil des endroits chauds, très poussiéreux et exposés en plein soleil.

4. Eviter que des liquides et des petits objets métalliques pénètrent à l’intérieur de l’appareil. En cas d’incident de ce genre, débrancher le câble d’alimentation électrique et confier le moniteur à un service après-vente agréé.

5. Ne pas frapper ou rayer la surface de la écran plasma, car des défauts risquent de se produire sur la surface de la écran plasma.

6. Pour un montage et une installation correcte, il est fortement recommandé de faire appel à un revendeur agréé et qualifié.

7. Comme c’est le cas pour tout affichage à base de phosphore (comme un moniteur CRT, par exemple), la puissance de lumière baisse graduellement au cours de la vie du Panneau d’Affichage à Plasma.

8. Pour éviter tout risque de sulfuration, il est fortement conseillé de ne pas installer l’appareil dans un vestiaire, un bain public ou un bain de source thermale.

9. Ne pas utiliser dans un véhicule en marche car l’unité pourrait tomber ou glisser et provoquer des blessures.

10. Pour éviter l ‘inflammation ou les chocs électriques, ne pas placer l’unité sur la tranche, à l’envers ou avec l’écran vers le bas ou vers le haut.

• Assurez-vous de mettre en marche et d’utliser l’économisateur d’écran chaque fois que c’est possible lorsque vous l’utilisez avec une source d’entrée d’ordinateur.

• Affichez une image en mouvement aussi souvent que possible.

• Changer la position de l’affichage de menu de temps à autre.

• Coupez toujours l’alimentation lorsque vous avez terminé

d’utiliser la moniteur.

Si le moniteur est en usage continu ou longue durée, prenez les mesures suivantes afin d’éviter l’occurence le brûlage du luminophore:

• Abaissez le niveau de l’image (contraste, luminosité) autant que possible, sans faire perdre la lisibilité de l’image.

• Affichez une image avec de nombreuses couleurs et graduations de couleur (par ex. des images photographiques ou photo-réalistes).

• Créez un contenu d’image avec un contraste minimal entre les zones sombres et les zones claires, par exemple, des caractères blancs sur un fond noir. Utilisez des couleurs complémentaires ou pastels le plus souvent possible.

•Évitez d’afficher des images avec peu de couleurs et des limites nettes et clairement définies entre les couleurs.

Remarque:

par la garantie.

Contactez un revendeur agréé ou un revendeur de marque pour d'autres procédures qui conviendront le mieux à vos besoins particuliers.

Le brûlage de l’écran n’est pas couvert

Méthode de nettoyage du moniteur à plasma:

1. Nettoyer le panneau avant et le cadre en procédant à l’aide d’un chiffon doux et sec. Ne jamais utiliser de solvents du type alcool ou diluant pour le nettoyage de ces surfaces.

2. Nettoyer les prises d’aération du plasma en procédant à l’aide d’une brosse à poils doux fixée à un aspirateur.

3. Pour garantir la bonne ventilation du moniteur, nettoyer les prises d’air tous les mois. Un nettoyage plus fréquent peut s’avérer nécessaire selon les conditions environnantes dans lesquelles le moniteur à plasma est utilisé.

Pour éviter les risques de brûlage du luminophore, les mesures suivantes sont recommandées:

Comme tous les périphériques d’affichage à base luminophore et tous les autres affichages gaz plasma, les moniteurs plasma peuvent être sujets au brûlage du luminophore dans certaines circonstances. Certaines conditions d’utilisation, telles que l’affichage continu d’une image statique pour une durée prolongée, peuvent causer le brûlage du luminophore si aucune précaution n’est prise. Pour protéger votre investissement dans ce moniteur à plasma, veuillez suivre les directives et les conseils suivantes pour minimiser l’occurence le marquage de l’écran:

Contents

Installation ...................................................... 6

Ventilation Requirements for enclosure mounting .......... 6

How to use the safety metal fittings and the screws for

safety metal fittings ................................................ 6

Cable Management.................................................. 7

How to use the remote control.................................... 7

Battery Installation and Replacement ...........................7

Operating Range .......................................................... 7

Handling the remote control......................................... 7

Part Names and Function .................................. 8

Front View .............................................................. 8

Rear View/ Terminal Board ....................................... 9

Remote Control ...................................................... 10

Basic Operations ............................................. 11

POWER ................................................................ 11

To turn the unit ON and OFF: .................................... 11

VOLUME .............................................................. 11

To adjust the sound volume:....................................... 11

MUTE ................................................................... 11

To mute the audio: ..................................................... 11

DISPLAY ................................................................ 11

To check the settings:................................................. 11

DIGITAL ZOOM ..................................................... 11

OFF TIMER ............................................................ 11

To set the of f timer:.................................................... 11

To check the remaining time: ..................................... 11

To cancel the off timer: ..............................................11

WIDE Operations ............................................. 12

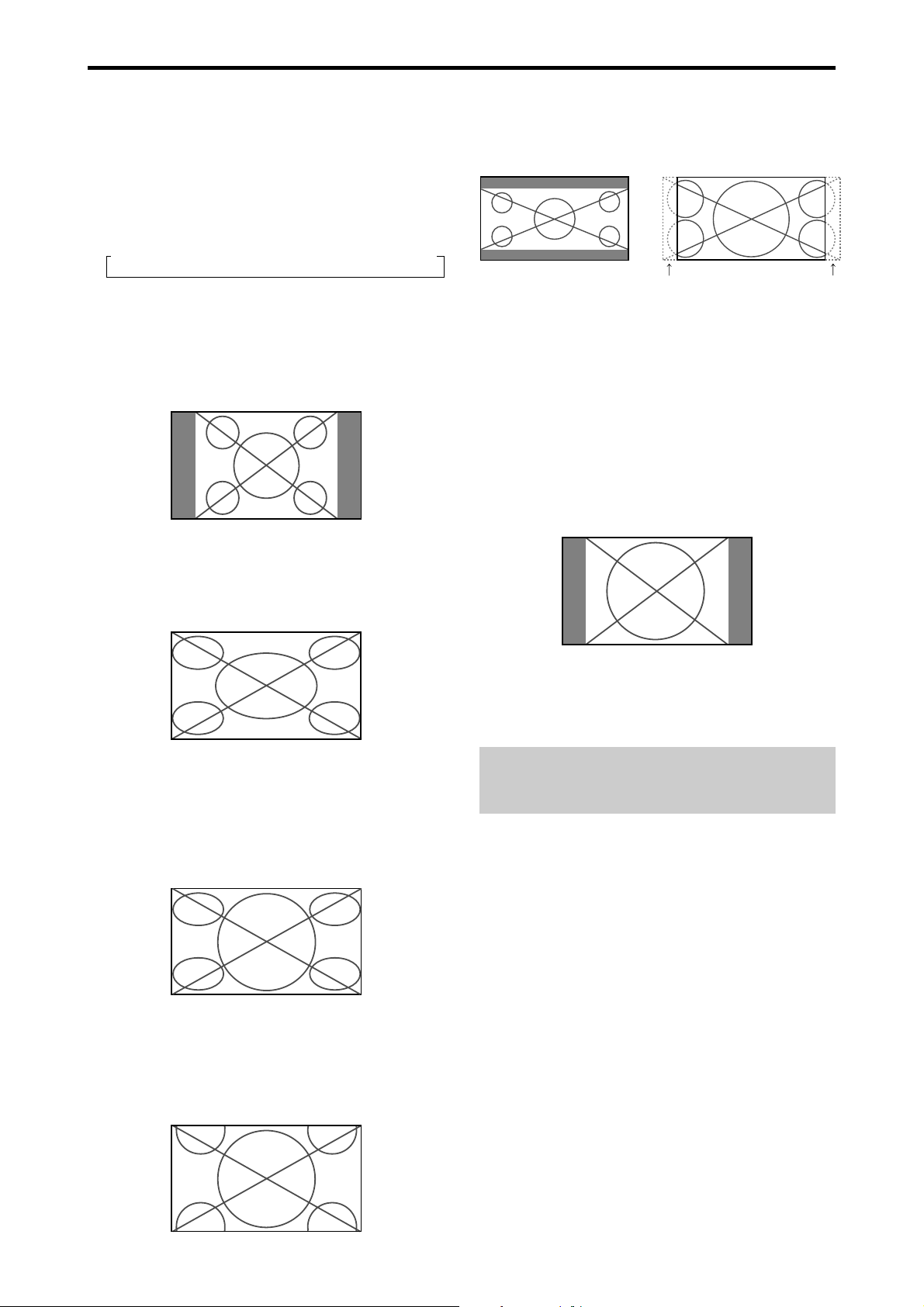

Wide Screen Operation (manual) ............................ 12

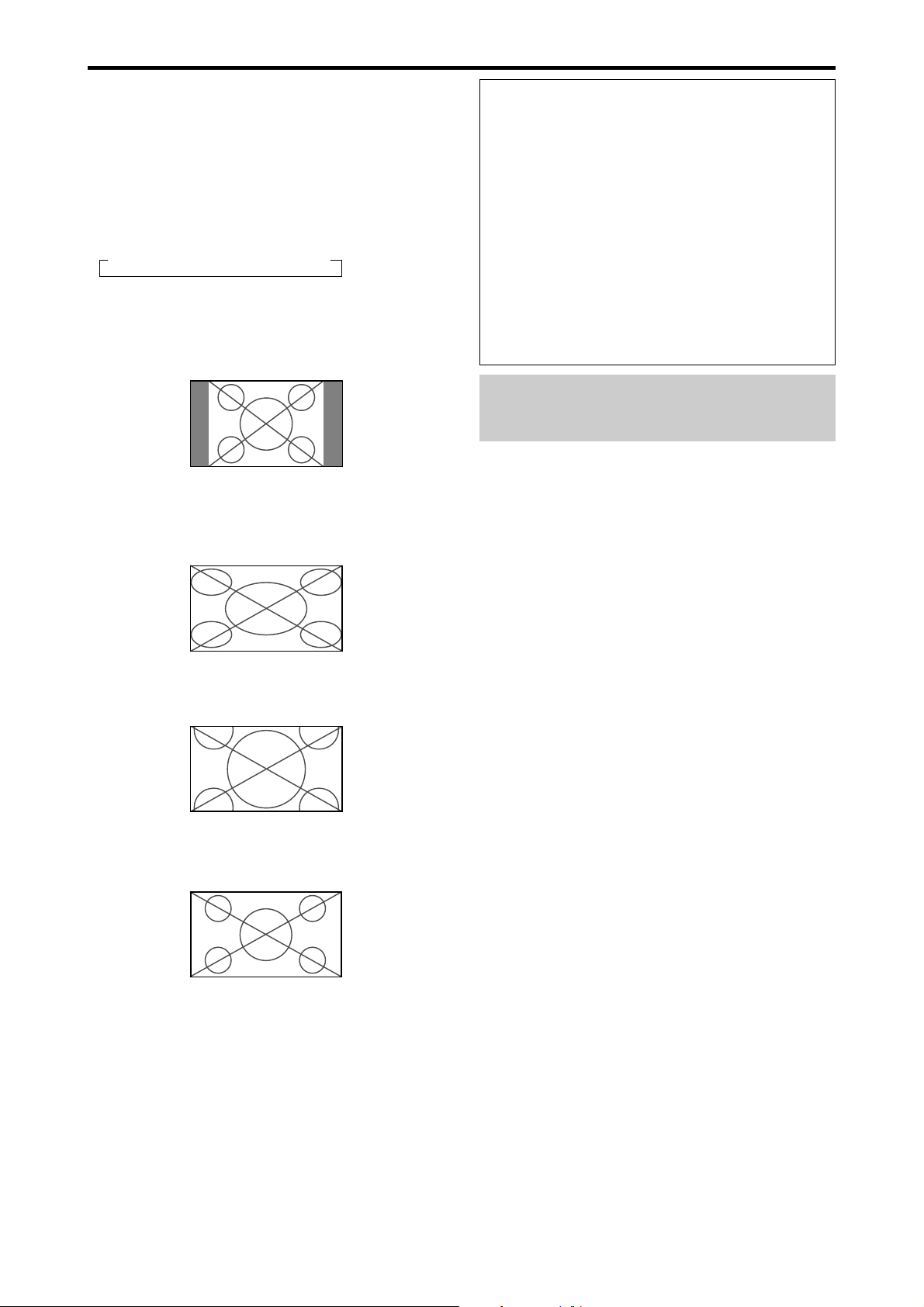

When viewing videos or digital video discs ...............12

Wide Screen Operation with Computer Signals ......... 13

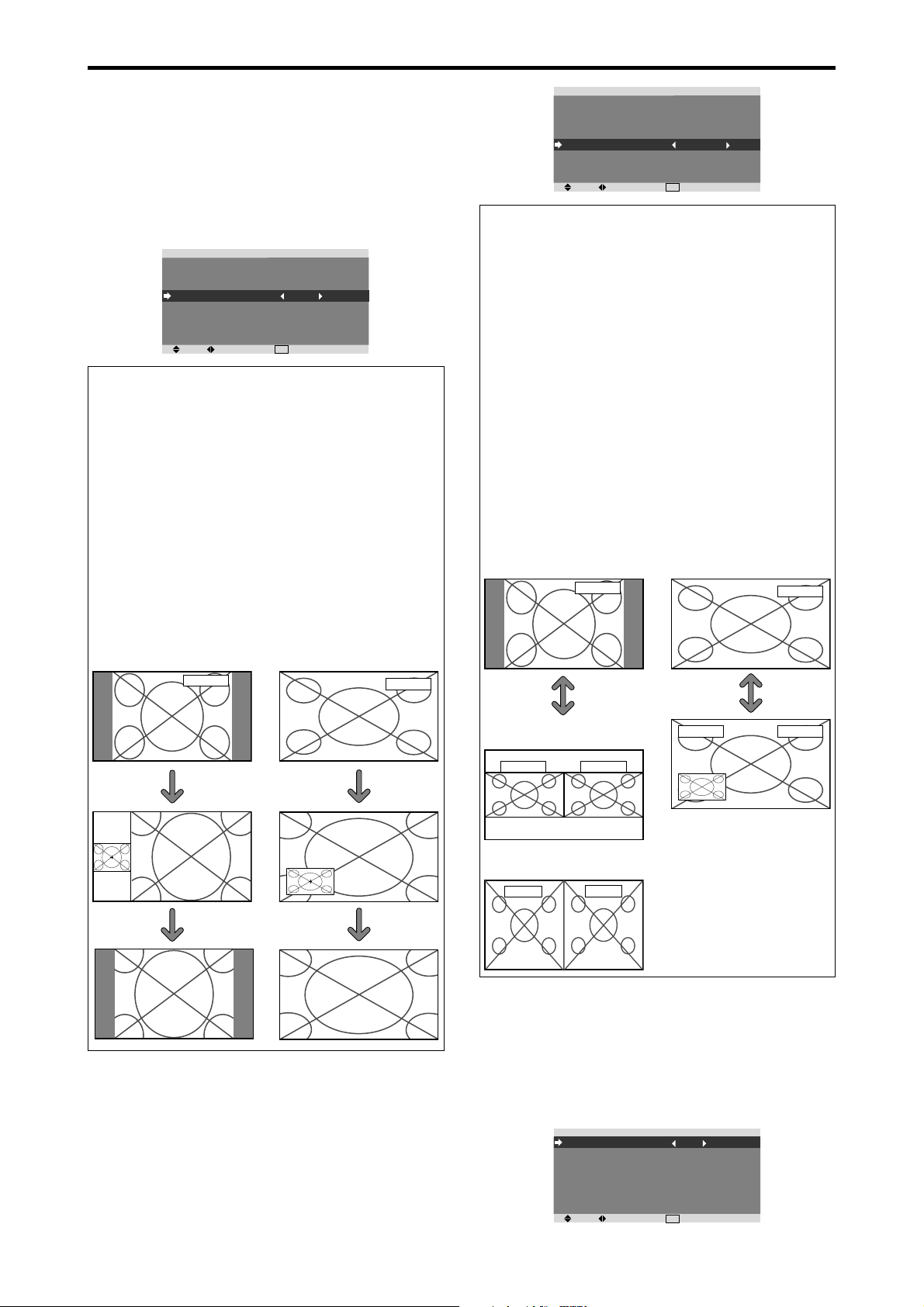

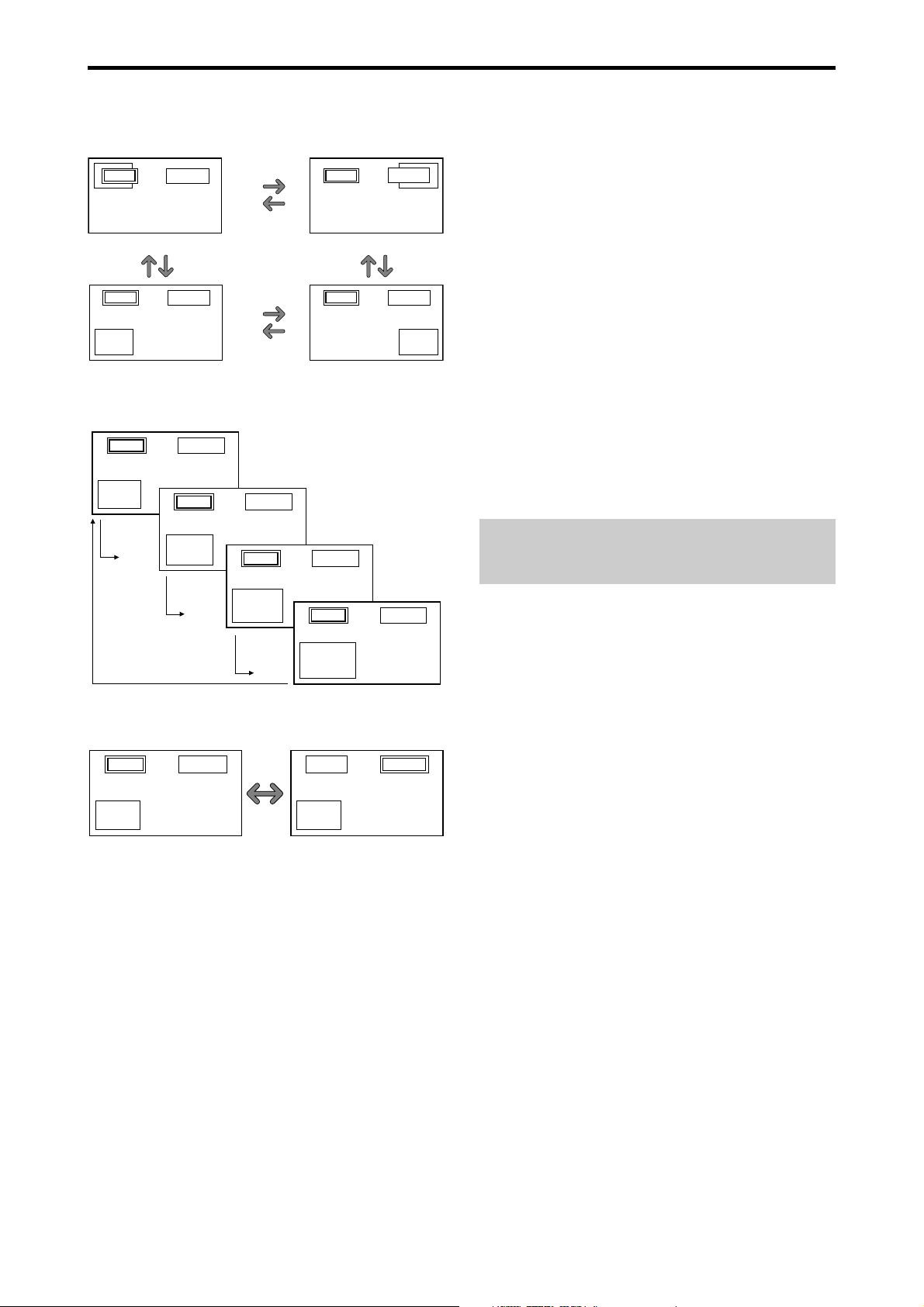

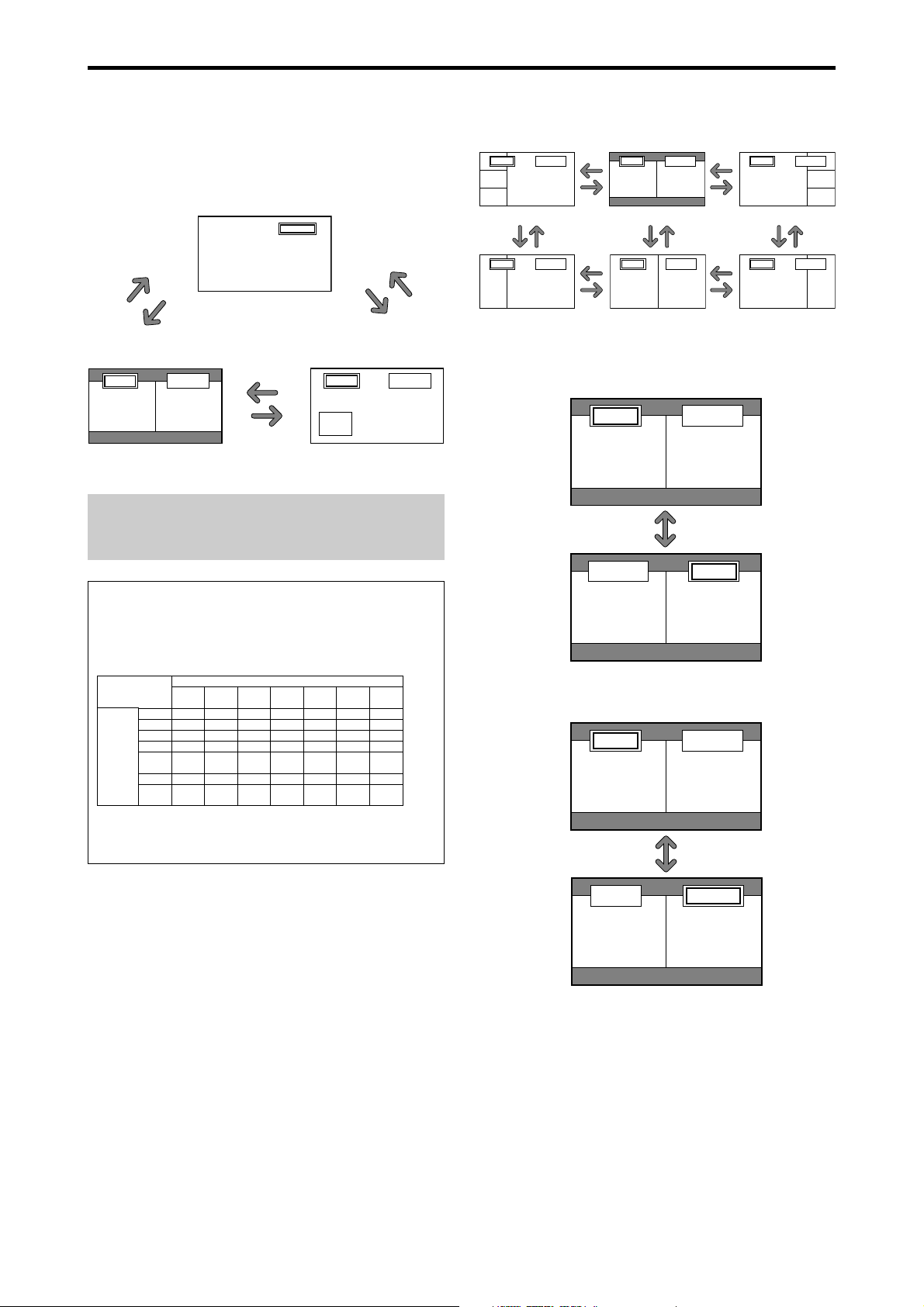

SPLIT SCREEN Operations ................................. 14

Showing a couple of pictures on the screen at the

same time .......................................................... 14

Operations in the Side-by-side mode.......................... 14

Operations in the Picture-in-picture mode .................. 15

Selecting the input signals to be displayed .................15

Zooming up pictures .................................................. 15

Adjusting the OSM controls....................................... 15

OSM (On Screen Menu) Controls ....................... 16

Menu Operations ................................................... 16

Menu Tree ............................................................. 17

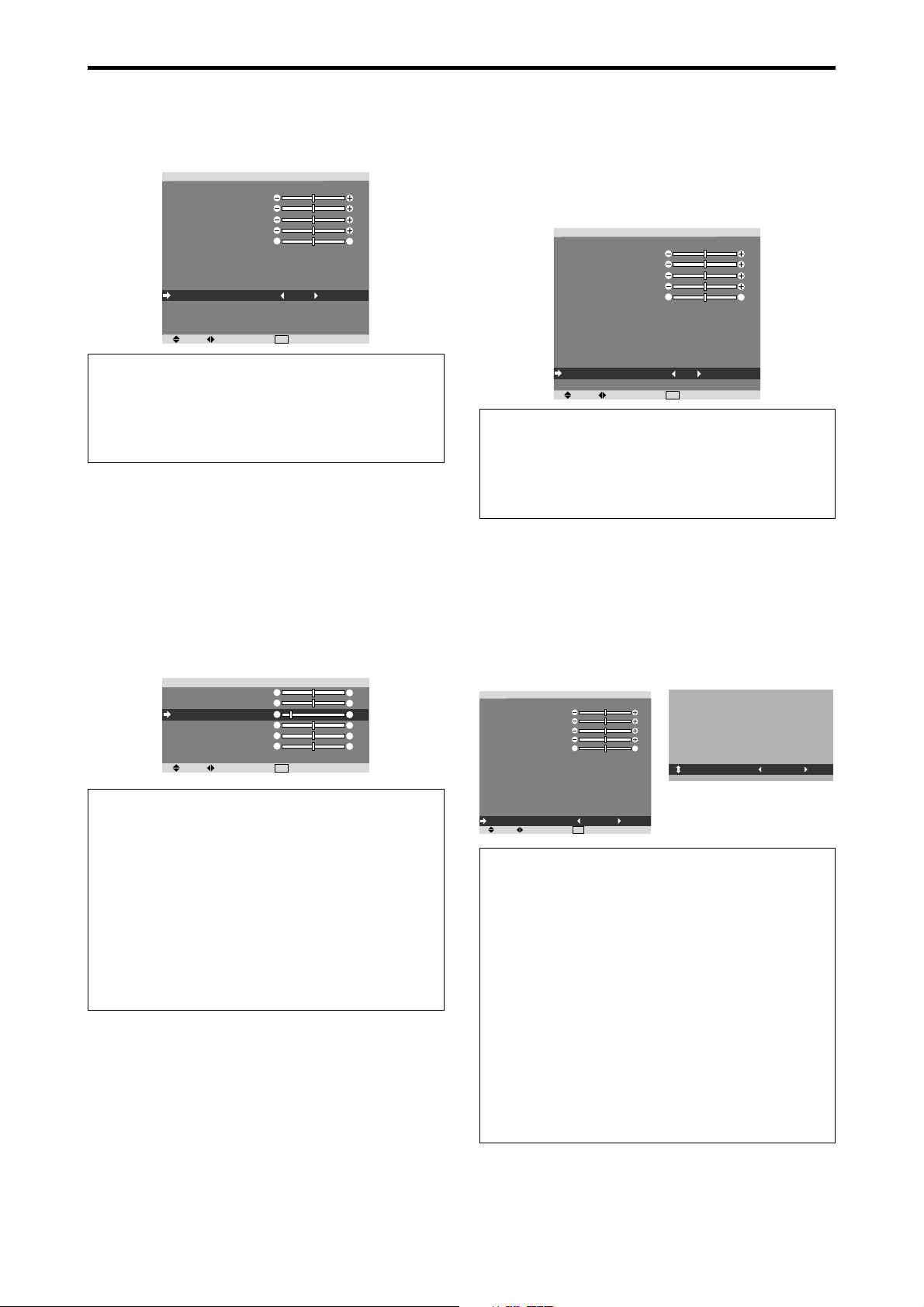

Picture Settings Menu.............................................. 19

Storing picture settings............................................... 19

Adjusting the picture.................................................. 19

Reducing noise in the picture ..................................... 19

Setting the color temperature .....................................20

Adjusting the color to the desired level ......................20

Changing the Gamma Curve ......................................20

Making the Low T one adjustments ............................ 20

Adjusting the pedestal level (black level) ................... 21

Adjusting the colors ................................................... 21

Setting the picture to suit the movie ........................... 21

Setting the picture mode according to the brightness of

the room .................................................................. 21

Audio Settings Menu .............................................. 22

Adjusting the treble, bass and left/right balance and

audio input select..................................................... 22

Setting the allocation of the audio connectors ............22

Image Adjust Settings Menu .................................... 22

Adjusting the Position, Size, Fine Picture, Picture Adj.....

SET UP Settings Menu ............................................. 23

Setting the language for the menus............................. 23

Setting the BNC connectors ....................................... 23

Checking the signal being transmitted to RGB1 terminal ....

Setting high definition images to the suitable screen size ....

Setting a computer image to the correct RGB select

screen ...................................................................... 23

Setting the signal and black level for DVI signal........ 24

Setting the video signal format................................... 24

23 23

Setting the background color when no signal is being

input ........................................................................ 24

Setting the gray level for the sides of the screen ......... 25

Setting the screen size for S1/S2 video input .............. 25

Turning on/off the menu display ................................ 25

Setting the position of the menu ................................. 25

Resetting to the default values.................................... 25

Function Settings Menu ........................................... 26

Setting the power management for computer images .....

POWER/ST ANDBY indicator ................................... 26

Setting the Input Skip................................................. 26

Erasing the sub screen image when there is no input

signal....................................................................... 26

Displaying the entire image during DIGIT AL ZOOM

operations ................................................................ 27

Displaying still images in the sub screen .................... 27

Reducing burn-in of the screen ..................................27

Setting Closed Caption ..............................................29

Reducing the brightness of Closed Caption ................29

Signal Information Menu ......................................... 29

Checking the frequencies, polarities of input signals,

and resolution .......................................................... 29

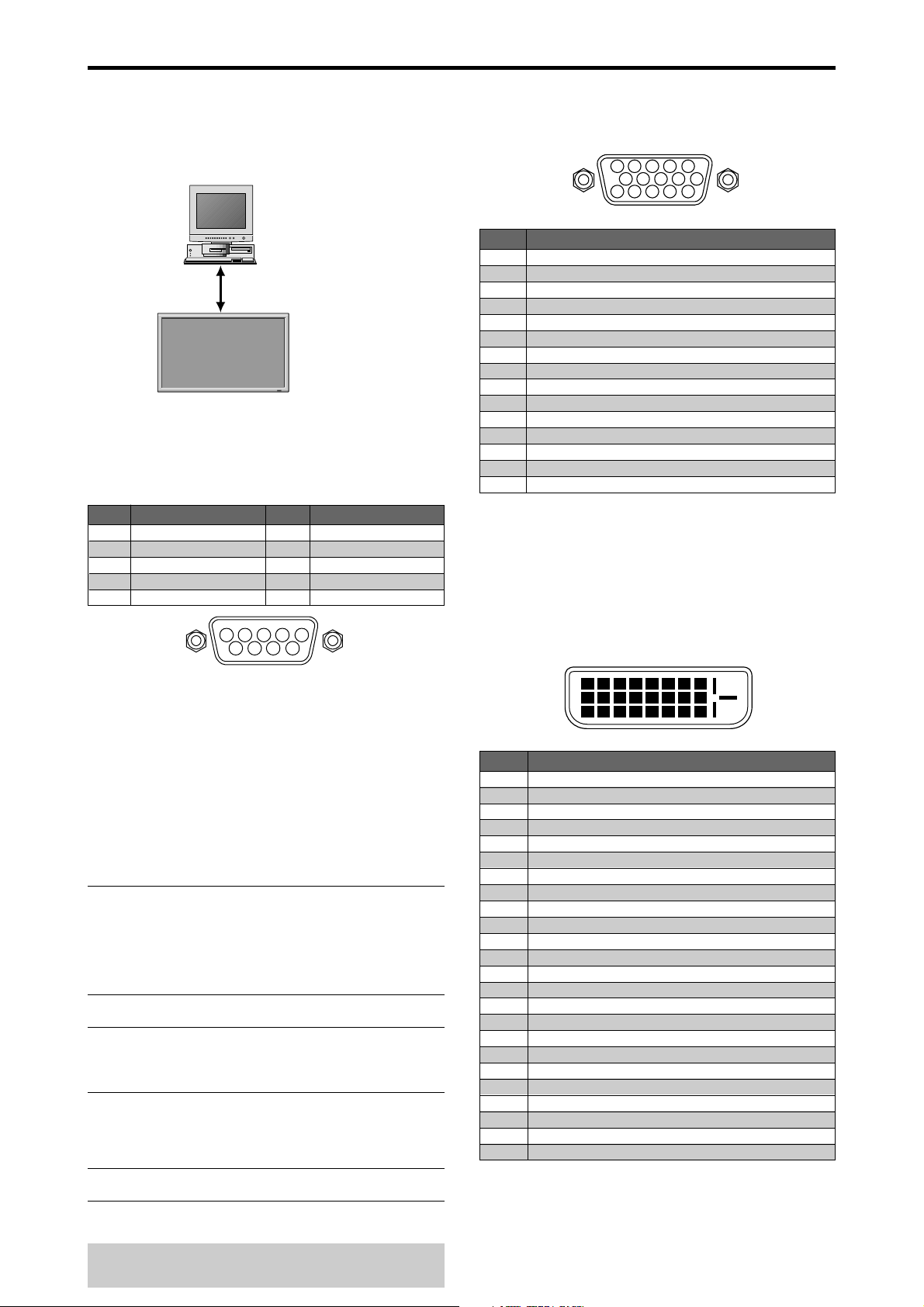

External Control ............................................. 30

Application ........................................................... 30

Connections .......................................................... 30

Type of connector: D-Sub 9-pin male ........................ 30

Communication Parameters ..................................... 30

External Control Codes (Reference) .......................... 30

Pin Assignments ............................................. 30

mini D-Sub 15-pin connector (Analog) ..................... 30

DVI-D 24-pin connector (Digital) .............................. 30

Troubleshooting .............................................. 31

Contents of the Package

䡺 Plasma monitor 䡺 Power cord 䡺 Remote control with two AAA Batteries 䡺 Manuals (Model Information and Operation) 䡺 Safety metal fittings* 䡺 Ferrite cores, bands 䡺 Cable clamps 䡺 HDMI-DVI cable

* Contents will differ according to the model. * These are fittings for fastening the unit to a wall to prevent

tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws (see page 6).

Options

• Wall mount unit

• Ceiling mount unit

• T ilt mount unit

• Stand

• Attachable speakers

Installation

You can attach your optional mounts or stand to the plasma monitor in one of the following two ways: * While it is upright. (See Drawing A) * As it is laid down with the screen face down (See Drawing B). Lay the protective sheet, which was wrapped around the

monitor when it was packaged, beneath the screen surface so as not to scratch the screen face.

* Do not touch or hold the screen face when carrying the unit.

• This device cannot be installed on its own. Be sure to use a stand or original mounting unit. (Wall mount unit, Stand, etc.)

* See page 5.

• For correct installation and mounting it is strongly recommended to use a trained, authorized dealer.

Failure to follow correct mounting procedures could result in damage to the equipment or injury to the installer.

Product warranty does not cover damage caused by improper installation.

* Use only the mounting kit or stand provided by manufacturer and listed under Options.

Drawing A

Drawing B

Ventilation Requirements for enclosure mounting

T o allow heat to disperse, leave space between surrounding objects as shown on the diagram below when installing.

Wall

50mm (2")

(2")

Wall

When installing or carrying, use the handles attached to the upper back of the display.

How to use the safety metal fittings and the screws for safety metal fittings

These are fittings for fastening the unit to a wall to prevent tipping due to external shock when using the stand (optional). Fasten the safety fittings to the holes in the back of the monitor using the safety fitting mount screws. * Safety metal fittings will differ according to the model.

Screw hole

Screw or Hook etc. (Not supplied)

Safty metal fittings

50mm (2")

(2") 50

Screw for Safty metal

fittings

Metal chain

(Not supplied)

Wall

Table Top

Cable Management

Using the cable clamps provided with the plasma display, bundle at the back of the unit the signal and audio cables connected to the display.

Back of the unit

mounting holes

Operating Range

* Use the remote control within a distance of about 7 m/

23ft. from the front of the monitor’s remote control sensor and at horizontal and vertical angles of up to approximately 30°.

* The remote control operation may not function if the

monitor’s remote control sensor is exposed to direct sunlight or strong artificial light, or if there is an obstacle between the sensor and the remote control.

To attach

1. 2.

clamp

cables

mounting hole

To detach

How to use the remote control

Battery Installation and Replacement

Insert the 2 “AAA” batteries, making sure to set them in with the proper polarity.

1.Press and open the cover.

Approx.

7m/23ft

Handling the remote control

• Do not drop or mishandle the remote control.

• Do not get the remote control wet. If the remote control gets wet, wipe it dry immediately.

• Avoid heat and humidity.

• When not using the remote control for a long period, remove the batteries.

• Do not use new and old batteries together, or use different types together.

• Do not take apart the batteries, heat them, or throw them into a fire.

2.Align the batteries according to the (+) and (–) indication inside the case.

3.Replace the cover.

Part Names and Function

Front View

INPUT SELECT

VOLUME

MENU/ENTER

DOWN UP LEFT/-RIGHT/+/EXIT

MENU/ENTER

VOLUME

DOWN UP LEFT/-RIGHT/

q Power

Turns the monitor’s power on and off.

w Remote sensor window

Receives the signals from the remote control.

e POWER/STANDBY indicator

When the power is on ............................. Lights green.

When the power is in the standby mode ... Lights red.

r INPUT SELECT / EXIT

Switches the input. The available inputs depend on the setting of “BNC INPUT”, “RGB SELECT” and “DVI SET UP”. Functions as the EXIT buttons in the On-Screen Menu (OSM) mode.

INPUT SELECT

/EXIT

t LEFT/– and RIGHT/+

Enlarges or reduces the image. Functions as the CURSOR (



/ ) buttons in the On-Screen Menu

(OSM) mode.

y VOLUME DOWN and UP

Adjusts the volume. Functions as the CURSOR (▲/ ▼) buttons in the On-Screen Menu (OSM) mode.

u MENU/ENTER

Sets the On-Screen Menu (OSM) mode and displays the main menu.

WARNING

The Power on/off switch does not disconnect the plasma display completely from the supply mains.

Rear View/ Terminal Board

A AC IN

Connect the included power cord here.

B EXT SPEAKER L and R

Connect speakers (optional) here. Maintain the correct polarity. Connect the

EXT SPEAKER terminal and the (negative) speaker wire to the both LEFT and RIGHT channels. Please refer to your speaker’s owner’s manual.

C VIDEO1, 2, 3 (BNC, RCA, S-Video)

Connect VCR’s, DVD’s or Video Cameras, etc. here.

D AUDIO1, AUDIO2, AUDIO3

These are audio input terminals. The input is selectable. Set which video image to allot them from the audio menu screen.

E DVD1 / HD1

Connect DVD’s, High Definition or Laser Discs, etc. here.

(positive) speaker wire to the

EXT SPEAKER terminal on

F DVD2/ HD2, RGB2

DVD2/ HD2: You can connect DVDs, High

Definition sources, Laser Discs, etc. here. This input can be set for use with an RGB or component source. (see page

23)

RGB2: Y ou can connect an analog RGB signal

and the syncronization signal.

G RGB1 (D-Sub)

Connect an analog RGB signal from a computer, etc. here.

H DVD3/ HD3, RGB3 (DVI)

Connect a digital signal (TMDS) from a source with a DVI output. This input can be set for use with an RGB3 or DVD3/ HD3 source. (see page 24)

I EXTERNAL CONTROL (D-Sub)

This terminal is used when operating and controlling the monitor externally (by external control).

Remote Control

i MUTE

Mutes the audio.

o VOLUME (+ /–)

Adjusts the audio volume.

!0 ZOOM (+ /–)

Enlarges or reduces the image.

!1 SINGLE

Cancels the split screen mode.

!2 SIDE BY SIDE

Press this button to show a couple of pictures in the side-by-side mode.

!3 PICTURE IN PICTURE

Press this button to show a couple of pictures in the picture-in-picture mode.

!4 ACTIVE SELECT

Press this button to make the desired picture activate during split screen mode.

!5 VIDEO1, 2, 3

Press this button to select VIDEO as the source. VIDEO can also be selected using the INPUT SELECT button on the monitor.

!6 DVD/HD1, 2, 3

Press this button to select DVD/HD as the source. DVD/HD can also be selected using the INPUT SELECT button on the monitor.

!7 PC/RGB

Press this button to select PC/RGB as the source. PC/RGB can also be selected using the INPUT SELECT button on the monitor.

!8 PICTURE MEMORY

Switches sequentially between picture memory settings 1 to 6.

!9 Remote control signal transmitter

Transmits the remote control signals.

q POWER ON/STANDBY

Switches the power on/standby. (This does not operate when POWER/STANDBY indicator of the main unit is off.)

w OFF TIMER

Activates the off timer for the unit.

e DISPLAY

Displays the source settings on the screen.

r WIDE

Automatically detects the signal and sets the aspect ratio. Wide button is not active for all signals.

t MENU/ENTER

Press this button to access the OSM controls. Press this button during the display of the main menu to go to the sub menu.



y CURSOR (▲ / ▼ /

Use these buttons to select items or settings and to adjust settings or switch the display patterns.

u EXIT

Press this button to exit the OSM controls in the main menu. Press this button during the display of the sub menu to return to the previous menu.

/ )

Basic Operations

POWER

To turn the unit ON and OFF:

1. Plug the power cord into an active AC power outlet.

2. Press the Power button (on the unit). The monitor’s POWER/STANDBY indicator turns red and the standby mode is set.

3. Press the POWER ON button (on the remote control) to turn on the unit. The monitor’s POWER/STANDBY indicator will light up (green) when the unit is on.

4. Press the POWER STANDBY button (on the remote control) or the Power button (on the unit) to turn off the unit. The monitor’s POWER/STANDBY indicator turns red and the standby mode is set (only when turning off the unit with the remote control).

VOLUME

To adjust the sound volume:

1. Press and hold the VOLUME button (on the remote control or the unit) to increase to the desired level.

2. Press and hold the VOLUME control or the unit) to decrease to the desired level.

button (on the remote

MUTE

To mute the audio:

Press the MUTE button on the remote control to mute the audio; press again to restore.

DISPLAY

To check the settings:

1. The screen changes each time the DISPLAY button is pressed.

2. If the button is not pressed for approximately three seconds, the menu turns off.

DIGITAL ZOOM

Digital zoom specifies the picture position and enlarges the picture.

1. (Be sure ZOOM NAV is of f.) Press the ZOOM (+ or -) button to display magnifying

glass. (

To change the size of the picture:

Press the ZOOM+ button and enlarge the picture. A press of the ZOOM- button will reduce the picture and return it to its original size.

To change the picture position:

Select the position with the ▲▼

2. Press the EXIT button to delete the pointer .

)

 

buttons.

OFF TIMER

To set the off timer:

The off timer can be set to turn the power off after 30, 60, 90 or 120 minutes.

1. Press the OFF TIMER button to start the timer at 30 minutes.

2. Press the OFF TIMER button to the desired time.

3. The timer starts when the menu turns off.

→ 30 → 60 → 90 → 120 → 0

OFF TIMER 30

To check the remaining time:

1. Once the off timer has been set, press the OFF TIMER button once.

2. The remaining time is displayed, then turns off after a few seconds.

3. When five minutes remain the remaining time appears until it reaches zero.

OFF TIMER 28

To cancel the off timer:

1. Press the OFF TIMER button twice in a row.

2. The off timer is canceled.

OFF TIMER 0

Note:

After the power is turned off with the off timer ... A slight current is still supplied to the monitor. When you are leaving the r oom or do not plan to use the system for a long period of time, turn off the power of the monitor.
