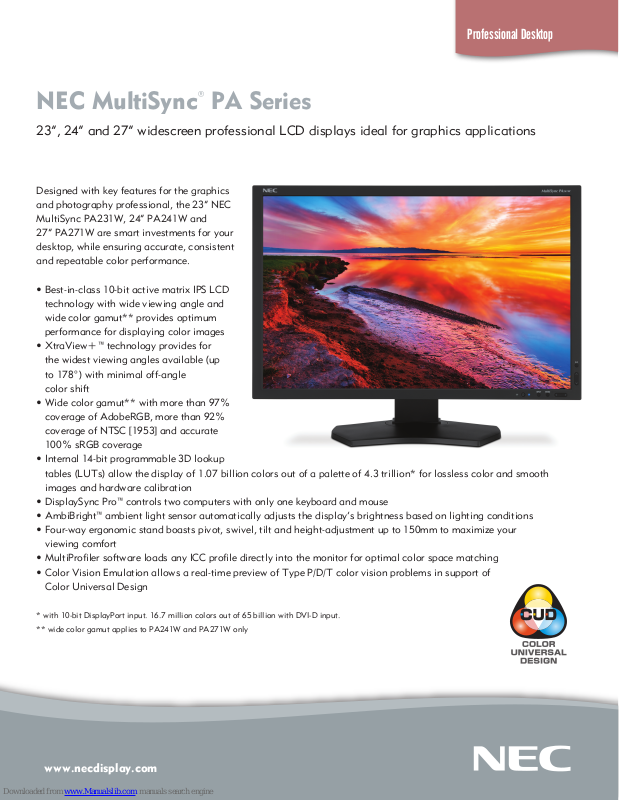

Professional Desktop
NEC MultiSync® PA Series
23”, 24” and 27” widescreen professional LCD displays ideal for graphics applications

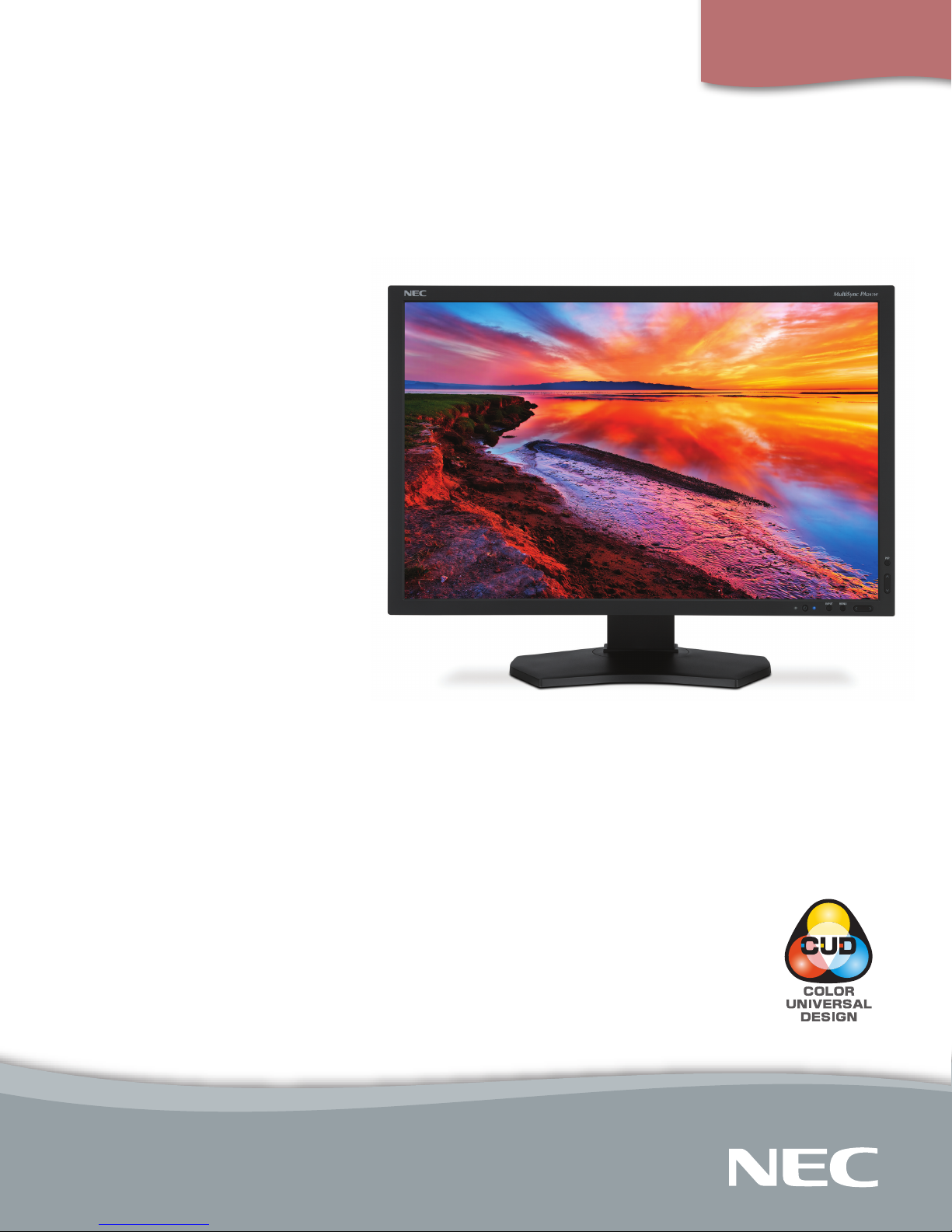

Designed with key features for the graphics
and photography professional, the 23” NEC
MultiSync PA231W, 24” PA241W and
27” PA271W are smart investments for your
desktop, while ensuring accurate, consistent
and repeatable color performance.
• Best-in-class 10-bit active matrix IPS LCD
technology with wide viewing angle and
wide color gamut** provides optimum
performance for displaying color images
• XtraView+™ technology provides for
the widest viewing angles available (up
to 178°) with minimal off-angle
color shift
• Wide color gamut** with more than 97%
coverage of AdobeRGB, more than 92%
coverage of NTSC [1953] and accurate
100% sRGB coverage
• Internal 14-bit programmable 3D lookup
tables (LUTs) allow the display of 1.07 billion colors out of a palette of 4.3 trillion* for lossless color and smooth
images and hardware calibration
• DisplaySync Pro™ controls two computers with only one keyboard and mouse
• AmbiBright™ ambient light sensor automatically adjusts the display’s brightness based on lighting conditions
• Four-way ergonomic stand boasts pivot, swivel, tilt and height-ad justment up to 150mm to maximize your
viewing comfort
• MultiProfiler software loads any ICC profile directly into the monitor for optimal color space matching
• Color Vision Emulation allows a real-time preview of Type P/D/T color vision problems in support of
Color Universal Design
* with 10-bit DisplayPort input. 16.7 million colors out of 65 billion with DVI-D input.
** wide color gamut applies to PA241W and PA271W only
www.necdisplay.com
Page 2
Model
Display
Viewable Size Image
Pixel Pitch
Pixels Per Inch
Brightness (typical)
Contrast Ratio (typical)
Viewing Angle (typical)
Response Time (typical)
Panel Bit Depth
Color Gamut*
Adobe RGB** Coverage/Size
NTSC Coverage/Size
sRGB Coverage/Size
Synchronization Range
Horizontal
Vertical
Input Signal
Video
Sync
Inputs
Resolutions Supported (Analog/Digital)
Native Resolution
Additional Features
Touch-Capable
Voltage Rating
Power Consumption (typical)
On
Power Savings Mode
Dimensions (WxHxD)
Net (with stand)
Net (without stand)
Net Weight
(with stand)
(without stand)
VESA Hole Configuration Specifications
Environmental Conditions
Operating Temperature
Operating Humidity
Operating Altitude
Storage Temperature
Storage Humidity
Storage Altitude
Safety Standards
Limited Warranty
Technical Support
* Color gamut size and coverage calculated as 2-D gamut area in CIE 1931 xy colorspace. Size is the total relative display gamut area
and includes any colors outside the reference gamut. Coverage is the relative display gamut area contained inside the reference gamut.
NTSC values provided for comparison purposes - modern broadcast video uses SMPTE-C, ITU-R BT, 709-5/sRGB or EBU primatries.
MultiSync PA231W
23"
0.265mm
96 @ native resolution
2
270 cd/m
1000:1
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>5
8ms Rapid Response™ (Gray-to-Gray)
14-bit internal 3D LUTs, displays 1.07 billion colors
out of 4.3 trillion (10-bit DisplayPort input); 16.7 million
colors out of 1.05 billion color palette (DVI-D input)
TBD/TBD
72%/TBD
TBD/TBD
31.5 - 83/118.4 kHz (Analog/ Digital)
50 - 85 Hz
Analog RGB 0.7 Vp-p/75 Ohms
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p
positive)
DisplayPort, DVI-D (2) & VGA 15-pin D-sub
720 x 400 @ 70-85 Hz
640 x 480 @ 60-85 Hz
800 x 600 @ 56-85 Hz
832 x 624 @ 75 Hz
1024 x 768 @ 60-85 Hz
1152 x 864 @ 70-85 Hz
1152 x 870 @ 75 Hz
1280 x 960 @ 60 Hz
1280 x 1024 @ 60-85 Hz
1400 x 1050 @ 60-75 Hz
1440 x 900 @ 60-85 Hz
1600 x 900 @ 60 Hz
1024 x 1280 @ 60 Hz
720 x 480p @ 60 Hz
720 x 576p @ 50 Hz
1280 x 720p @ 50-60 Hz
1920 x 1080p @ 50-60 Hz
1920 x 1080
USB hub (2 up/3 down) with DisplaySync Pro, Picturein-Picture, Picture-by-Picture, ICC Profile Emulation,
Color Vision Emulation, 14-bit 3D LUTs, Adobe
RGB, DICOM, ColorComp, overdrive, ECO Mode,
cable management, touch-enabled, tilt, swivel, pivot,
150mm height-adjustable stand with locking base, No
Touch Auto Adjust, quick release stand, VESA Mount,
TCO 5.0, ENERGY STAR 5.0
Designed for integration
AC 100-120V / AC 220-240V
46W (without USB active) /
57W (with USB active)
0.2W (without USB active) / 15W (with USB active)
21.4 x 13.3-19.2 x 9 in. /
543.6 x 337.8-487.7 x 228.6mm
21.4 x 12.7 x 2.9 in. / 543.6 x 322.6 x 73.7mm
22.5 lbs. / 10.2 kg
15.4 lbs. / 7 kg
100 x 100mm
5-35° C / 41-95° F
30-80%
3048m / 10,000 ft.
-10-60° C / 14-140° F
10-85%
12,192m / 40,000 ft.
UL / C-UL, CE, Gost/PCT, PSB, CCC, NOM, TUV GS,
FCC Class B/Canadian DOC, C-tick, MPR III, VCCI
(class 2)
4 years parts and labor, including backlight
M - F (7am - 7pm CST)
640 x 400 @70-85 Hz
720 x 400 @ 70-85 Hz
640 x 480 @ 60-85 Hz
800 x 600 @ 56-85 Hz
832 x 624 @75 Hz
1024 x 768 @ 60-85 Hz
1152 x 864 @ 70-85 Hz
1152 x 870 @ 75 Hz
1280 x 960 @ 60 Hz
1280 x 1024 @ 60-85 Hz
1400 x 1050 @ 60-75 Hz
1440 x 900 @ 60-85 Hz
1600 x 900 @ 60 Hz
1024 x 1280 @ 60 Hz
720 x 480p @ 60 Hz
720 x 576p @ 50 Hz
1280 x 720p @ 50-60 Hz
1920 x 1080p @ 50-60 Hz
MultiSync PA241W
24.1"
0.27mm
93 @ native resolution
2
360 cd/m
1000:1
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>5
8ms Rapid Response™ (Gray-to-Gray)
14-bit internal 3D LUTs, displays 1.07 billion colors
out of 4.3 trillion (10-bit DisplayPort input); 16.7 million
colors out of 1.05 billion color palette (DVI-D input)
98.1% / 107%
93.2% / 102.2%
100% / 144.3%
31.5 - 93.8/118.4 kHz (Analog) /
31.5 - 91.9/118.4 kHz (Digital)
50 - 85 Hz
Analog RGB 0.7 Vp-p/75 Ohms
Separate sync: TTL Level (Positive/Negative)
Composite sync: TTL Level (Positive/Negative)
Composite sync on green: (0.3Vp-p negative 0.7Vp-p
positive)
DisplayPort, DVI-D (2) & VGA 15-pin D-sub
720 x 400 @ 70-85 Hz
640 x 480 @ 60-85 Hz
800 x 600 @ 56-85 Hz
832 x 624 @ 75 Hz
1024 x 768 @ 60-85 Hz
1152 x 864 @ 70-85 Hz
1152 x 870 @ 75 Hz
1280 x 960 @ 60 Hz
1280 x 1024 @ 60-85 Hz
1400 x 1050 @ 60-75 Hz
1440 x 900 @ 60-85 Hz
1600 x 1200 @ 60-75 Hz
1920 x 1200 @ 60 Hz
1024 x 1280 @ 60 Hz
1200 x 1920 @ 60 Hz
720 x 480p @ 60 Hz
720 x 576p @ 50 Hz
1280 x 720p @ 50-60 Hz
1920 x 1080p @ 50-60 Hz
1920 x 1200
USB hub (2 up/3 down) with DisplaySync Pro, Picturein-Picture, Picture-by-Picture, ICC Profile Emulation,
Color Vision Emulation, 14-bit 3D LUTs, Adobe
RGB, DICOM, ColorComp, overdrive, ECO Mode,
cable management, touch-enabled, tilt, swivel, pivot,
150mm height-adjustable stand with locking base,
No Touch Auto Adjust, quick release stand, VESA
Mount, TCO 5.0
Designed for integration
AC 100-120V / AC 220-240V
95W (without USB active) /
114W (with USB active)
1W (without USB active) / 15W (with USB active)
21.9 x 14.9-20.8 x 9 in. /
556.8 x 378-528 x 227.6mm
21.9 x 14.3 x 3.3 in. / 556.8 x 362.4 x 85mm
23.4 lbs. / 10.6 kg
16.3 lbs. / 7.4 kg
100 x 100mm
5-35° C / 41-95° F
30-80%
3048m / 10,000 ft.
-10-60° C / 14-140° F
10-85%
12,192m / 40,000 ft.
UL / C-UL, CE, Gost/PCT, PSB, CCC, NOM, TUV GS,
FCC Class B/Canadian DOC, C-tick, MPR III, VCCI
(class 2)
4 years parts and labor, including backlight
M - F (7am - 7pm CST)
** AdobeRGB is a standard defined by Adobe Systems Incorporated.
640 x 400 @70-85 Hz
720 x 400 @ 70-85 Hz
640 x 480 @ 60-85 Hz
800 x 600 @ 56-85 Hz
832 x 624 @75 Hz
1024 x 768 @ 60-85 Hz
1152 x 864 @ 70-85 Hz
1152 x 870 @ 75 Hz
1280 x 960 @ 60 Hz
1280 x 1024 @ 60-85 Hz
1400 x 1050 @ 60-75 Hz
1440 x 900 @ 60-85 Hz
1600 x 1200 @ 60 Hz
1920 x 1200 @ 60 Hz
1024 x 1280 @ 60 Hz
720 x 480p @ 60 Hz
720 x 576p @ 50 Hz
1280 x 720p @ 50-60 Hz
1920 x 1080p @ 50-60 Hz
MultiSync PA271W
27"
0.23mm
109 @ native resolution
2
300 cd/m
1000:1
178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>5
7ms Rapid Response™ (Gray-to-Gray)
14-bit internal 3D LUTs, displays 1.07 billion colors
out of 4.3 trillion (10-bit DisplayPort input); 16.7 million
colors out of 1.05 billion color palette (DVI-D input)
97.1% / 107.2%
92.6% / 102.5%
100% / 144.7%
31.5 - 93.9 KHz (Digital)
50 - 87 Hz
NA
DisplayPort & DVI-D (2)
DIGITAL ONLY
640 x 400 @70-85 Hz
720 x 400 @ 70-85 Hz
640 x 480 @ 60-85 Hz
800 x 600 @ 56-85 Hz
832 x 624 @75 Hz
1024 x 768 @ 60-85 Hz
1152 x 864 @ 70-85 Hz
1152 x 870 @ 75 Hz
1280 x 960 @ 60 Hz
1280 x 1024 @ 60-85 Hz
1400 x 1050 @ 60-75 Hz
1440 x 900 @ 60-85 Hz
1600 x 900 @ 60 Hz
1600 x 1200 @ 60 Hz
1920 x 1200 @ 60 Hz
2560 x 1440 @ 60Hz
720 x 480p @ 60 Hz
720 x 576p @ 50 Hz
1280 x 720p @ 50-60 Hz
1920 x 1080p @ 50-60 Hz
2560 x 1440
USB hub (2 up/3 down) with DisplaySync Pro,
Picture-in-Picture, Picture-by-Picture, ICC Profile
Emulation, Color Vision Emulation, 14-bit 3D
LUTs, Adobe RGB, DICOM, ColorComp, overdrive,
ECO Mode, cable management, tilt, swivel, pivot,
150mm height-adjustable stand with locking
base, quick release stand, VESA Mount, TCO ‘03,
ISO9241-307 (Class 1) certification
No
AC 100-120V / AC 220-240V
117W (without USB active) /
131W (with USB active)
1.4W (without USB active) / 11W (with USB active)
25.2 x 15.6-21.5 x 9.3 in. /
640.4 x 396.2-546.2 x 235.5mm
25.2 x 14.9 x 3.3 in. / 640.4 x 378.6 x 85mm
30 lbs. / 13.6 kg
21.2 lbs. / 9.6 kg
100 x 100mm, 200 x 100mm
5-35° C / 41-95° F
30-80%
2000m / 6562 ft.
-10-60° C / 14-140° F
10-85%
12,192m / 40,000 ft.
UL / C-UL, CE, Gost/PCT, PSB, CCC, NOM, TUV
GS, FCC Class B/Canadian DOC, C-tick, MPR III,
VCCI (class 2)
4 years parts and labor, including backlight
M - F (7am - 7pm CST)
MultiSync is a registered trademark, and AmbiBright, SpectraViewII and
XtraView+ are trademarks of NEC Display Solutions. All other brand or
product names are trademarks or registered trademarks of their respective
holders. Product specifications subject to change. 10/10 ver. 5.
2010 NEC Display Solutions of America, Inc. All rights reserved.
©
