Page 1
NEC Display Solutions of America, Inc.
NP1150/P2150/NP3150 Installation Guide
Desktop and Ceiling Mount v 1.3 Contents
Product Description, Lens Specs, Screen/Aspect Ratio
Notes and Formulas
Diagrams & Distance Charts; 4:3
16:9___
Lens Shift Adjustable Range
Cabinet Dimensions
Lens Dimensions
Ceiling Mount Dimensions
Ceiling Mount Dimensions (continued)
Input Panel and Control Codes

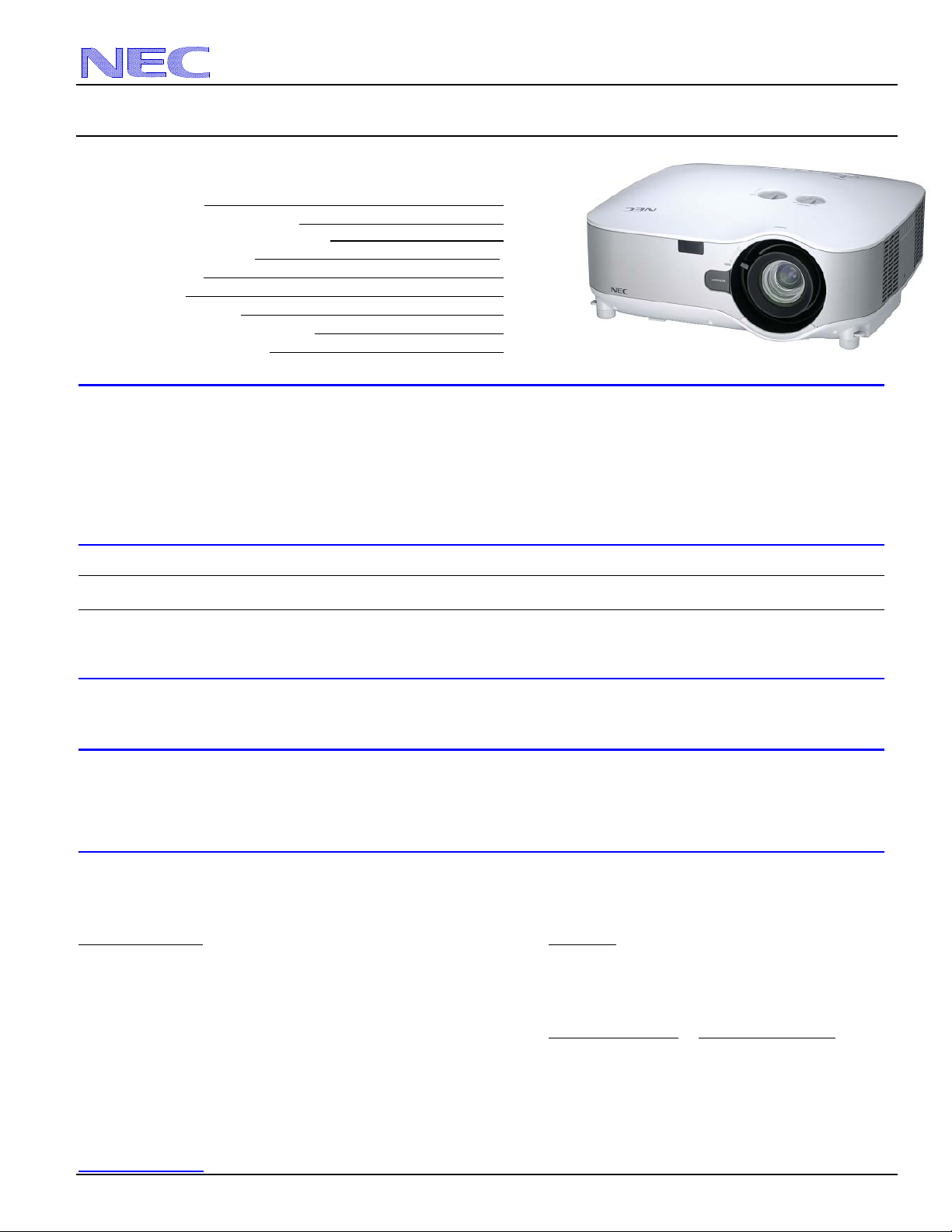

Product Description
Type: 3 panel LCD projector, Dimensions: 15.7”(W) x 5.9”(H) x 14.1”(D)
0.80 p-Si TFT w/MLA Weight: 16.1 lbs
Resolution: 1024 x 768 (4:3) / 1024 x 576 (16:9) Brightness: NP1150 – 3700 Lumens
Fan Noise: NP1150 33 dB / 30dB @ 1 meter NP2150 – 4200 Lumens
NP2150 34 dB / 30dB @ 1 meter NP3150 – 5000 Lumens
NP3150 38 dB / 31dB @ 1 meter
Power Consumption: NP1150/NP2150 460W (max) BTU’s: 167 2 BTU/hour
NP3150 490W (max)
Network Ready, integrated wired and wireless adapter Manual: Lens Shift, Horizontal & Vertical /Zoom/ Focus
Lens Specifications
NP01FL: Throw Ratio: ~ 0.8:1 Focal Length: 13.2mm NP03FL: Throw Ratio: 1.94 - 3.07:1 Focal Length: 31.6 – 50.2mm
Screen Sizes: 40”-150” F/#:2.3 Screen Sizes: 40” - 500” F/#:2.2
NP02FL: Throw Ratio: 1.18 - 1.54:1 Focal Length: 19.42 - 25.26mm NP04FL: Throw Ratio: 2.98 -4.77:1 Focal Length: 48.8 - 77.6mm
Screen Sizes: 30” - 500” F/#:2.2 _________ Screen Sizes: 60” - 500” F/#:2.2
Standard: Throw Ratio: 1.5 - 2.0:1 Focal Length: 24.4 - 32.5mm NP05FL: Throw Ratio: 4.62 - 7.02:1 Focal Length: 76.6 - 116.5mm
Screen Sizes: 30” – 500 ” F/#:1.7 Screen Sizes: 80” - 500” F/#:2.2
Screen/Aspect Ratio
Both 4:3 and 16:9 screens are fully supported with proper aspect ratio control for both type sources using NEC developed
scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.
Notes
For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table.
• All calculati ons are based on 4:3 aspect ratio.
• Distances are in inches, for millimeters multiply by 25.4.
• Distances may vary ±5%.
Formulas
The Projection Formulas use the image width for calculation. Image width is the same for all aspect ratios, only vertical image size
varies. For proper projector placement, determine the image width for a desired screen size. Use the Screen Formulas below to
calculate all screen dimensions. Plug in the image width for “W” in the Projection Formulas.
Refer to the diagrams and charts for popular screen sizes on page 2 and 3:
Projection Formulas: Definitions:
NP01FL: C = 0.8325W – 1.33 W = Image Width
NP02ZL: C(Wide) = 1.2220W – 1.798 ----- C(Tele) = 1.5894W – 1.795 H = Image Height (size)
Standard: C(Wide) = 1.5455W – 2.022 ------ C(Tele) = 2.0555W – 2.015 C = Throw distance
NP03ZL: C(Wide) = 2.0069W – 2.830 ------ C(Tele) = 3.1710W – 2.840
NP04ZL: C(Wide) = 3.0537W – 4.830 ------ C(Tele) = 4.8860W – 4.850 4:3 Screen Formulas:
NP05ZL: C(Wide) = 4.8275W – 7.625 ------ C(Tele) = 7.3379W – 7.645 W = H x 4/3 W = H x 16/9
H = W x 4/3 H = W x 9/16
Diagonal = W x 5/4 Screen Diagonal = W x 18.358/16
Note: Tilting the front of the projector up or down by more than 45° from level could reduce lamp life by up to 20%.
www.necdisplay.com NP1150/NP2150/3150 Page 1 of 9
Pg 1
Pg 2
Pg 3
Pg 4
Pg 5
Pg 6
Pg 7
Pg 8
Pg 9
16:9 Screen Formulas:
Page 2
inch
inchesinch
inchesinch
NEC Display Solutions of America, Inc.
NP1150/P2150/NP3150 Installation Guide

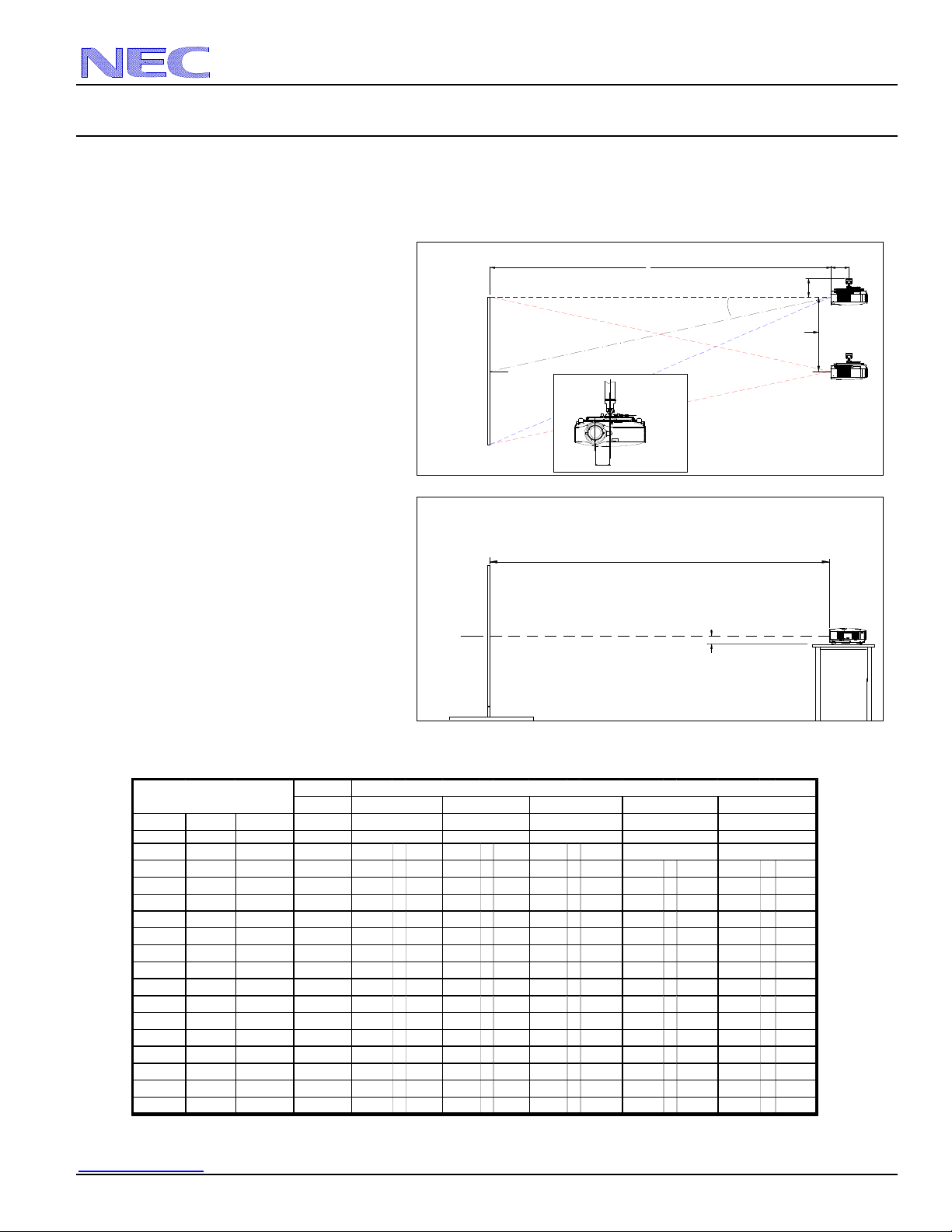

Desktop and Ceiling Mount v 1.3 Projection Distance and Screen Size for Ceiling Mount
The following shows the proper relative positions of the projector and screen. Refer to the table to determine the positi on of
installation.
Distances are in inches. For millimeters multiply by 25.4.
Ceiling Mount Installation
Screen Top
Screen Ctr
3.30"
Desktop Installation
Lens shift feature is not available with NP01FL
Note:
(rear lens) NP01FL should be used only for
“zero degree” / “no-offset” applications.
Screen Ctr
Screen Bottom
Distance Chart for popular 4:3 screens
Screen Size (4:3)
Diagonal Width(H) Height (V) 0.8:1
inches inches inches inches
40 32 24 25.38 47.37 - 63.8 37.3 - 49.07 61.4 98.6
60 48 36 38.7 72.11 - 96.6 56.9 - 74.5 93.5 - 149.4 141.7 229.7 NA NA
67 53.6 40.2 43.3 80.8 - 108.2 63.7 - 83.4 104.7 - 167.1 158.8 257.0 NA NA
72 57.6 43.2 46.6 86.9 - 116.4 68.6 - 89.8 112.8 - 179.8 171.1 276.6 260.7 415.0
84 67.2 50.4 54.6 1 01.8 - 136.1 80.3 - 105.0 132.0 - 210.3 200.4 - 323.5 316.8 - 485.5
90 72 54 58.6 109.2 - 146.0 86.2 - 112.6 141.7 - 225.5 215.0 - 346.9 340.0 - 520.7
100 80 60 65.2 121.6 - 162.4 95.96 - 125.4 157.7 - 250.8 239.5 - 386.0 378.6 - 579.4
120 96 72 78.5 146.3 - 195.3 115.5 - 150.8 189.8 - 301.6 288.3 - 464.2 455.8 - 696.8
150 120 90 98.46 183.4 - 244.6 144.8 - 188.9 238.0 - 377.7 361.6 - 581.5 571.7 - 872.9
180 144 108 NA 220.5 - 294.0 174.2 - 227.1 286.2 - 453.8 434.9 - 698.7 687.5 - 1049.0
210 168 126 NA 257.6 - 343.3 203.5 - 265.2 334.3 - 529.9 508.2 - 816.0 803.4 - 1225.1
240 192 144 NA 294.7 - 392.6 232.8 - 303.4 382.5 - 606.0 581.5 - 933.3 919.3 - 1401.2
270 216 162 NA 331.8 - 442.0 262.2 - 341.5 430.7 - 682.1 654.8 - 1050.5 1035.1 - 1577.3
300 240 180 NA 368.9 - 491.3 291.5 - 379.7 478.8 - 758.2 728.1 - 1167.8 1151.0 - 1753.5
400 320 240 NA 492.6 - 655.7 389.2 - 506.8 639.4 - 1011.9 972.4 - 1558.7 1537.2 - 2340.5
500 400 300 NA 616.30 - 820.2 487.0 - 634.0 799.9 1265.6 1216.7 - 1949.6 1923.4 - 2927.5
Rear Lens
NP01FL
Standard NP02ZL NP03ZL NP04ZL
1.5 - 2.0:1 1.18 - 1.54:1
es
For screen sizes not indicated on the projection tables, use the formulas on page 1.
Note:
www.necdisplay.com NP1150/NP2150/3150 Page 2 of 9
Zoom Lenses
1.94 - 3.07:1
C
Throw Distance
Lens Offset From
Mount Pipe
C
Throw Distance
2.98 - 4.77:1
NA
X
7.72"
Shift Range
X=Distance from lens to mount ctr
3.45"
NP05ZL
4.62 - 7.02:1
es
NA
es
NP01FL: X=7.99"
NP02ZL: X=7.78"
Standard: X=7.03"
NP03ZL: X=7.83"
NP04ZL: X=7.43"
NP05ZL: X=7.41"
Page 3
inch
inchesinch
inchesinch
NEC Display Solutions of America, Inc.
NP1150/P2150/NP3150 Installation Guide
Desktop and Ceiling Mount v 1.3

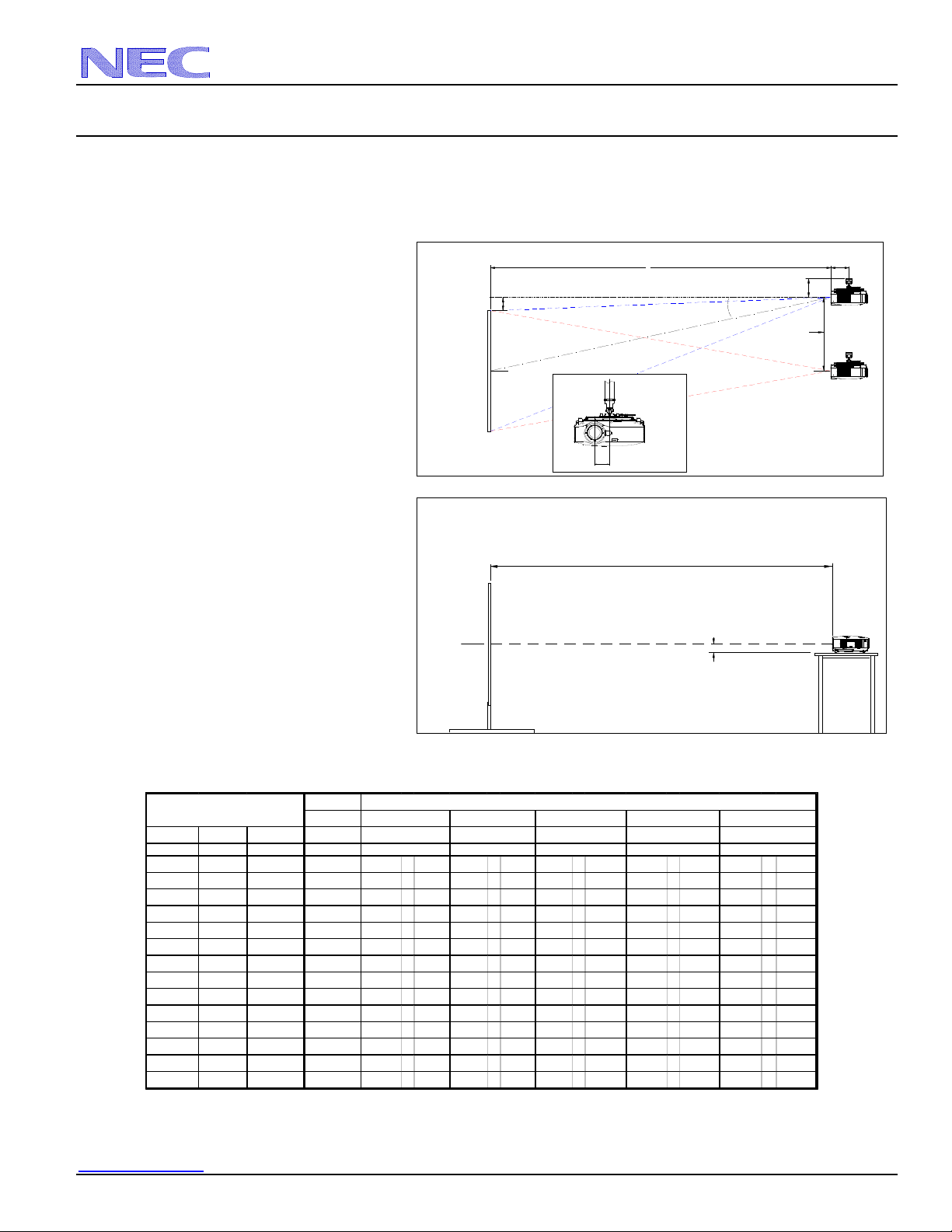

Projection Distance and Screen Size for Ceiling Mount
The following shows the proper relative positions of the projector and screen. Refer to the table to determine the positi on of
installation.
Distances are in inches. For millimeters multiply by 25.4.
Ceiling Mount Installation
Screen Top
~5.40"
Screen Ctr
3.30"
Desktop Installation
Lens shift feature is not available with NP01FL
Note:
(rear lens) NP01FL should be used only for
“zero degree” / “no-offset” applications.
Screen Ctr
Screen Bottom
Distance Chart for popular 16:9 screens
Screen Size (16:9)
Diagonal Width(H) Height (V) 0.8:1
inches inches inches inches
92 80 45 65.24 121.6 - 162.4 96.0 - 125.4 157.7 250.8 239.5 386.0 366.4 579.4
100 87 49 71.1 132.4 - 176.8 104.5 - 136.5 171.8 - 273.0 260.8 420.2 399.5 630.8
106 92 52 75.2 140.1 - 187.1 110.6 - 144.4 181.8 - 288.9 276.1 444.7 423.1 667.4
110 96 54 78.5 146.3 - 195.3 115.5 - 150.8 189.8 - 301.6 288.3 464.2 442.0 696.8
119 104 58.8 85.2 158.7 - 211.8 125.3 - 163.5 205.9 - 326.9 312.8 - 503.3 494.4 - 755.5
123 107 60 87.7 163.3 - 217.9 129.0 - 168.3 211.9 - 336.5 321.9 - 518.0 508.9 - 777.5
133 116 65 95.1 177.2 - 236.4 140.0 - 182.6 230.0 - 365.0 349.4 - 561.9 552.4 - 843.6
135 118 66 96.8 180.3 - 240.5 142.4 - 185.8 234.0 - 371.3 355.5 - 571.7 562.0 - 858.2
159 139 78 NA 212.8 - 283.7 168.1 - 219.1 276.1 - 437.9 419.6 - 674.3 663.4 - 1012.3
161 140 79 NA 214.3 - 285.8 169.3 - 220.7 278.1 - 441.1 422.7 - 679.2 668.2 - 1019.7
229 200 113 NA 307.1 - 409.1 242.6 - 316.1 398.6 - 631.4 605.9 - 972.4 957.9 - 1459.9
275 240 135 NA 368.9 - 491.3 291.5 - 379.7 478.8 - 758.2 728.1 - 1167.8 1151.0 - 1753.5
367 320 180 NA 492.6 - 655.7 389.2 - 506.8 639.4 - 1011.9 972.4 - 1558.7 1537.2 - 2340.5
459 400 225 NA 616.3 - 820.2 487.0 - 634.0 799.9 - 1265.6 1216.7 - 1949.6 1923.4 - 2927.5
Rear Lens
NP01FL
Standard NP02ZL NP03ZL NP04ZL
1.5 - 2.0:1 1.18 - 1.54:1
es
For screen sizes not indicated on the projection tables, use the formulas on page 1.
Note:
www.necdisplay.com NP1150/NP2150/3150 Page 3 of 9
Zoom Lenses
1.94 - 3.07:1
C
Throw Distance
Lens Offset From
Mount Pipe
C
Throw Distance
2.98 - 4.77:1
X
7.72"
Shift Range
X=Distance from lens to mount ctr
3.45"
NP05ZL
4.62 - 7.02:1
es
Standard: X=7.03"
NP01FL: X=7.99"
NP02FL: X=7.78"
NP03FL: X=7.83"
NP04FL: X=7.43"
NP05FL: X=7.41"
es
Page 4
NEC Display Solutions of America, Inc.
NP1150/P2150/NP3150 Installation Guide

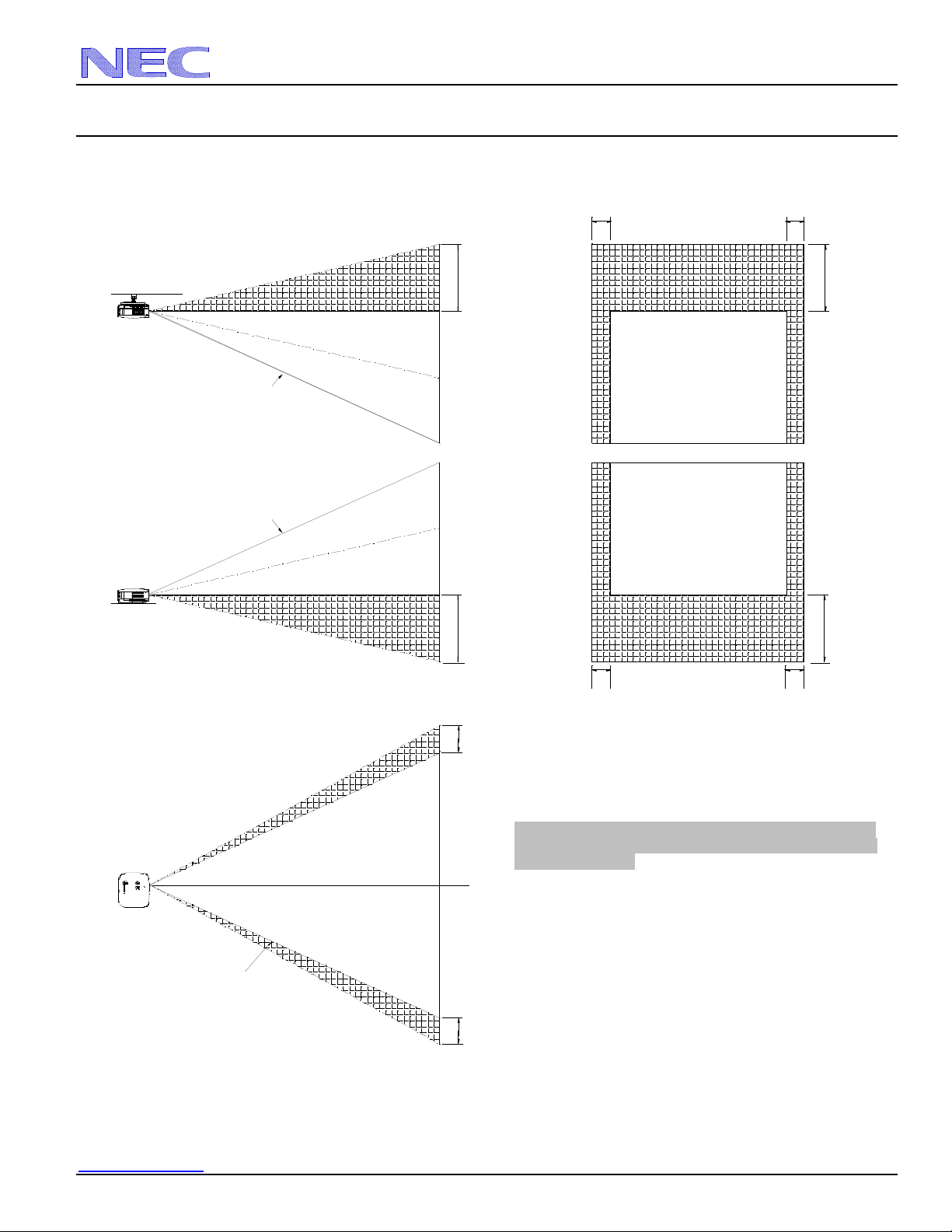

Desktop and Ceiling Mount v 1.3 Lens Shift Adjustable Range
Ceiling Front
Vertical
Desktop Front
Vertical
Horizontal
0.5H
Normal Position
Normal Position
0.5H
0.1W
Normal Position
0.1W
0.1W
Normal Projection Position
0.1W
0.5H
Ceiling Front
Normal Projection Position
Desktop Front
0.5H
Lens Shift Range for Desktop and Ceiling Mount
Application
The diagram below shows the location of the image position
in the lens. The lens can be shifted within the shaded area as
shown using the normal projection position as a starting
point.
Note: Lens shift feature is not available with NP01FL (rear
lens). NP01FL should be used only for “zero degree” / “nooffset” applications.
Maximum Possible Range
for Standard Lens/NP02ZL/NP03ZL/NP04ZL/NP05ZL:
Up: 0.5V
Right: 0.10H
Left: 0.10H
(H: width of projected image, V: height of projected image)
0.1W
0.1W
www.necdisplay.com NP1150/NP2150/3150 Page 4 of 9
Page 5
NEC Display Solutions of America, Inc.
NP1150/P2150/NP3150 Installation Guide
Desktop and Ceiling Mount v 1.3

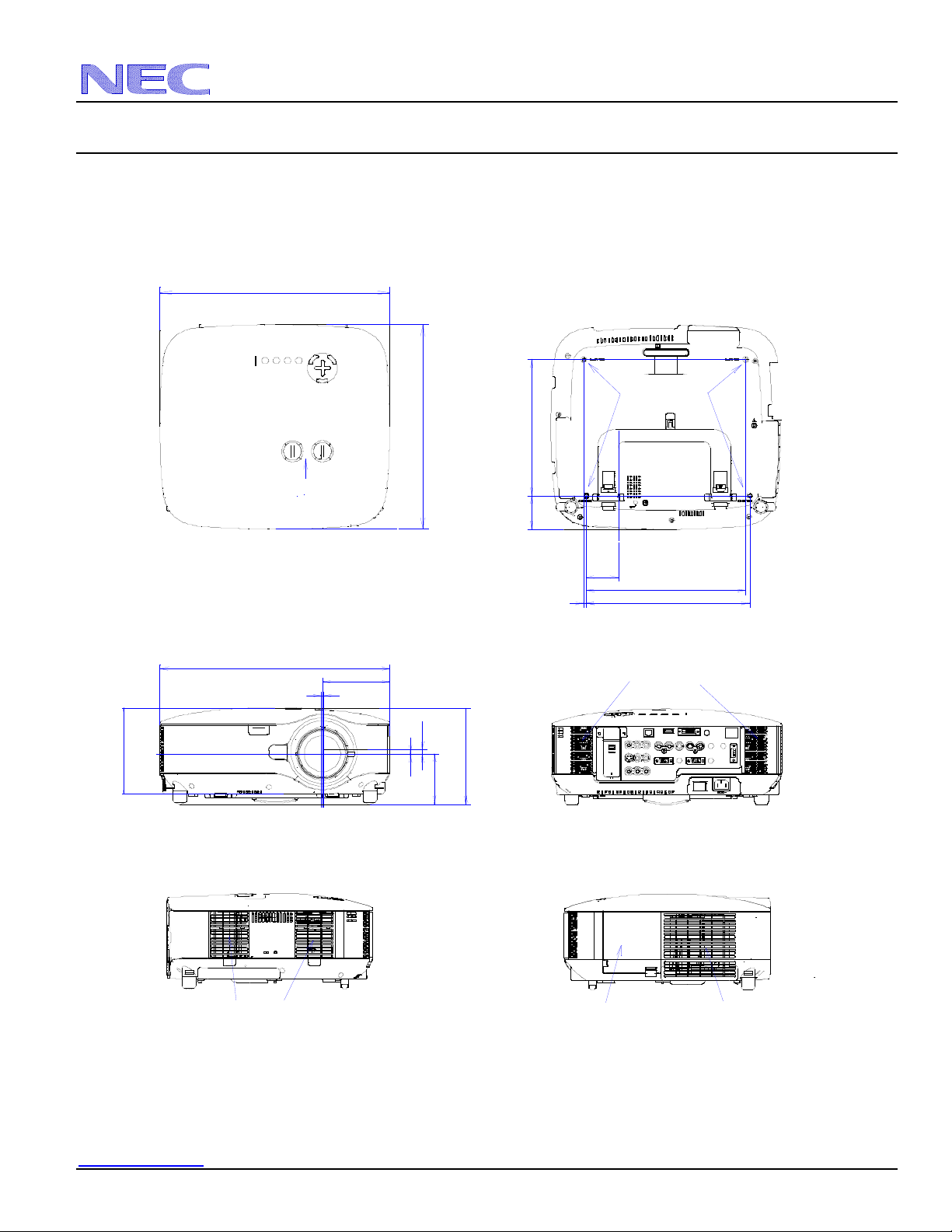

Cabinet Dimensions
The following diagrams show the cabinet dimensions for the NP3151.
Dimensions are in inches. For millimeters multiply by 25.4.
5.93
www.necdisplay.com NP1150/NP2150/3150 Page 5 of 9
15.70
Lens Shift Control
15.70
.16
Air Filters
4.59
0.02
14.09
.28
3.46
6.63
For Mount
M4*8 Max
9.37
2.33
2.20
.16
Lamp Cover Air Exhaust
10.93
11.20
Speakers
Page 6
NEC Display Solutions of America, Inc.
NP1150/P2150/NP3150 Installation Guide

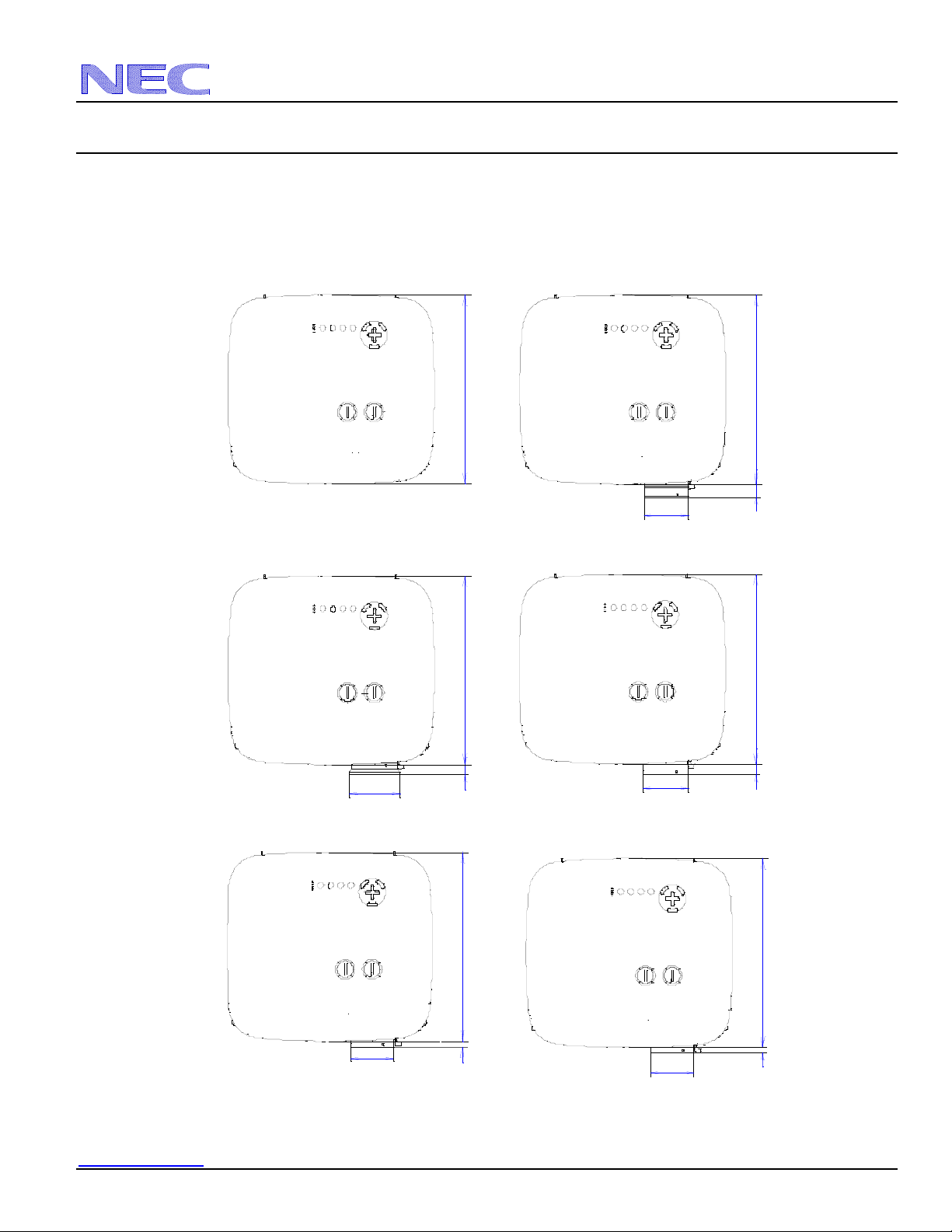

Desktop and Ceiling Mount v 1.3 Lens Dimensions
The following drawings show the added dimensions for the optional lenses
Dimensions are in inches. For millimeters multiply by 25.4.
NP w Standard Lens
14.09
NP02ZL
14.09
3.81
NP04ZL
.75
14.09
3.25
.40
www.necdisplay.com NP1150/NP2150/3150 Page 6 of 9
NP01FL
14.09
.96
3.385
NP03ZL
14.09
.80
3.385
NP05ZL
14.09
.38
3.25
Page 7
NEC Display Solutions of America, Inc.
NP1150/P2150/NP3150 Installation Guide
Desktop and Ceiling Mount v 1.3

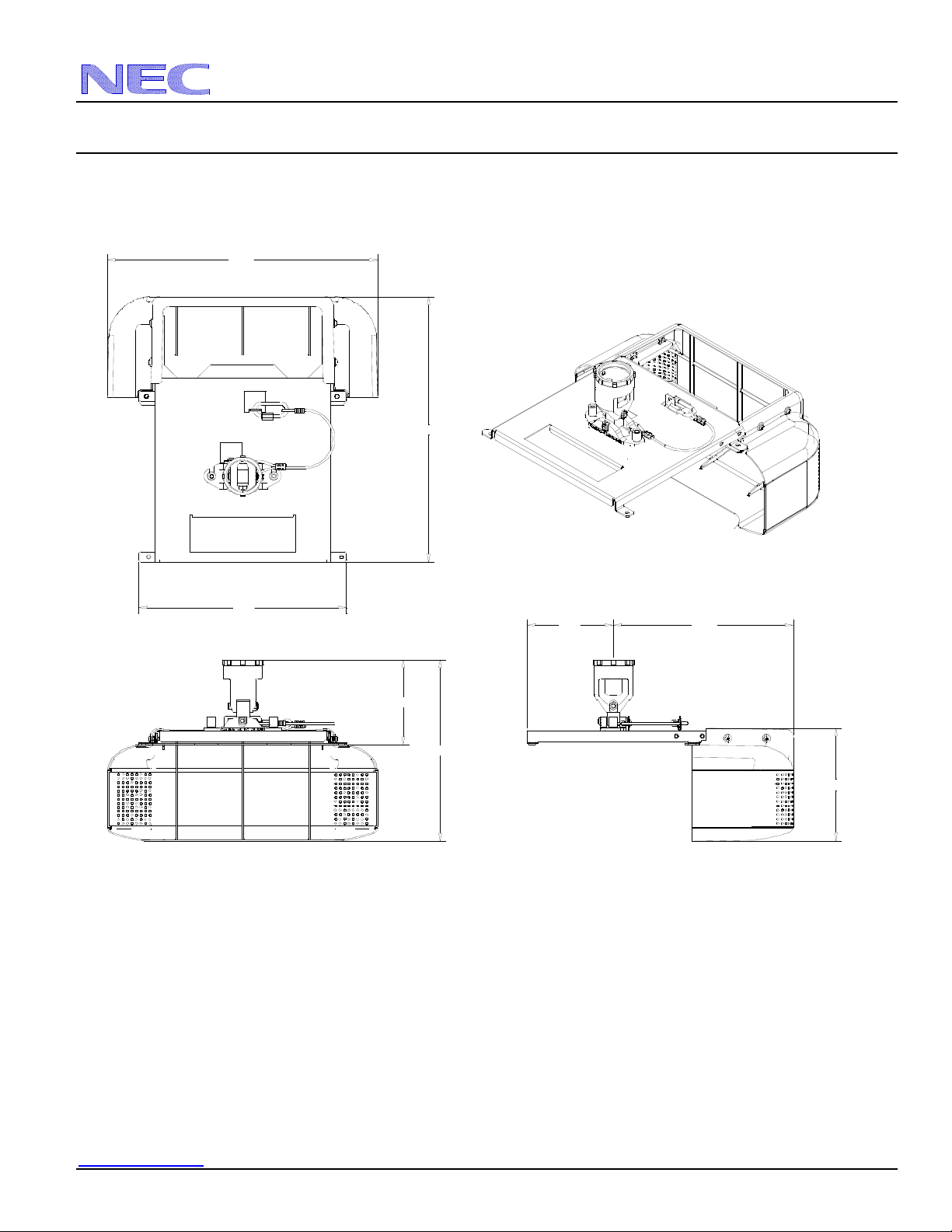

Optional Ceiling Mount Dimensions (Model #: NP1000CM)
The following diagrams show ceiling mount dimensions for the NP3151.
Dimensions are in inches. For millimeters multiply by 25.4.
15.70
15.48
12.11
10.475.02
4.95
10.59
6.59
POLE MOUNT WITH I/O COVER
www.necdisplay.com NP1150/NP2150/3150 Page 7 of 9
Page 8
NEC Display Solutions of America, Inc.
NP1150/P2150/NP3150 Installation Guide
Desktop and Ceiling Mount v 1.3

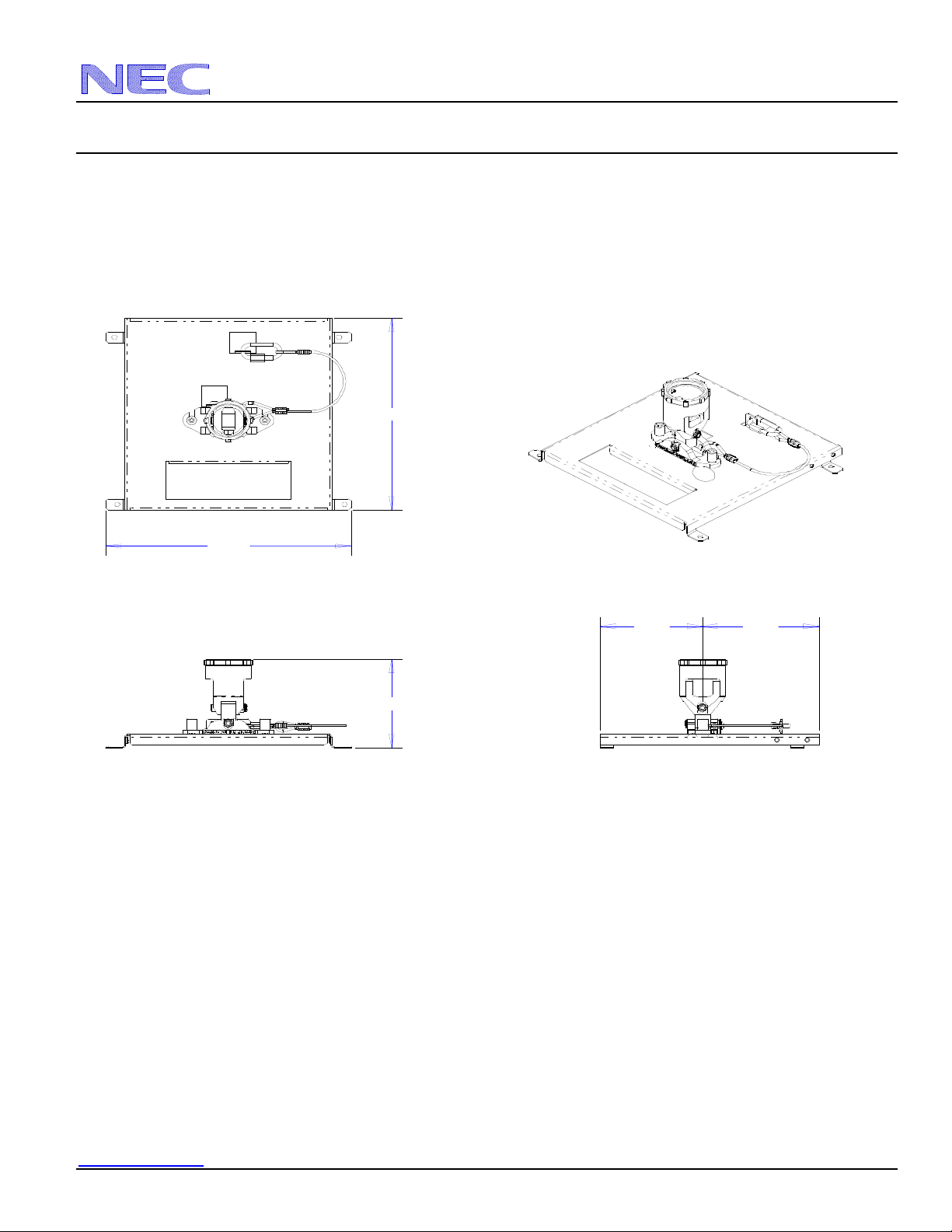

Optional Ceiling Mount Dimensions (Model #: NP1000CM) (continued)
The following diagrams show ceiling mount dimensions for the NP3151.
Dimensions are in inches. For millimeters multiply by 25.4.
12.11
POLE MOUNT W/O I/O COVER
www.necdisplay.com NP1150/NP2150/3150 Page 8 of 9
10.75
4.95
5.02
5.73
Page 9
NEC Display Solutions of America, Inc.
NP1150/P2150/NP3150 Installation Guide
Desktop and Ceiling Mount v 1.3

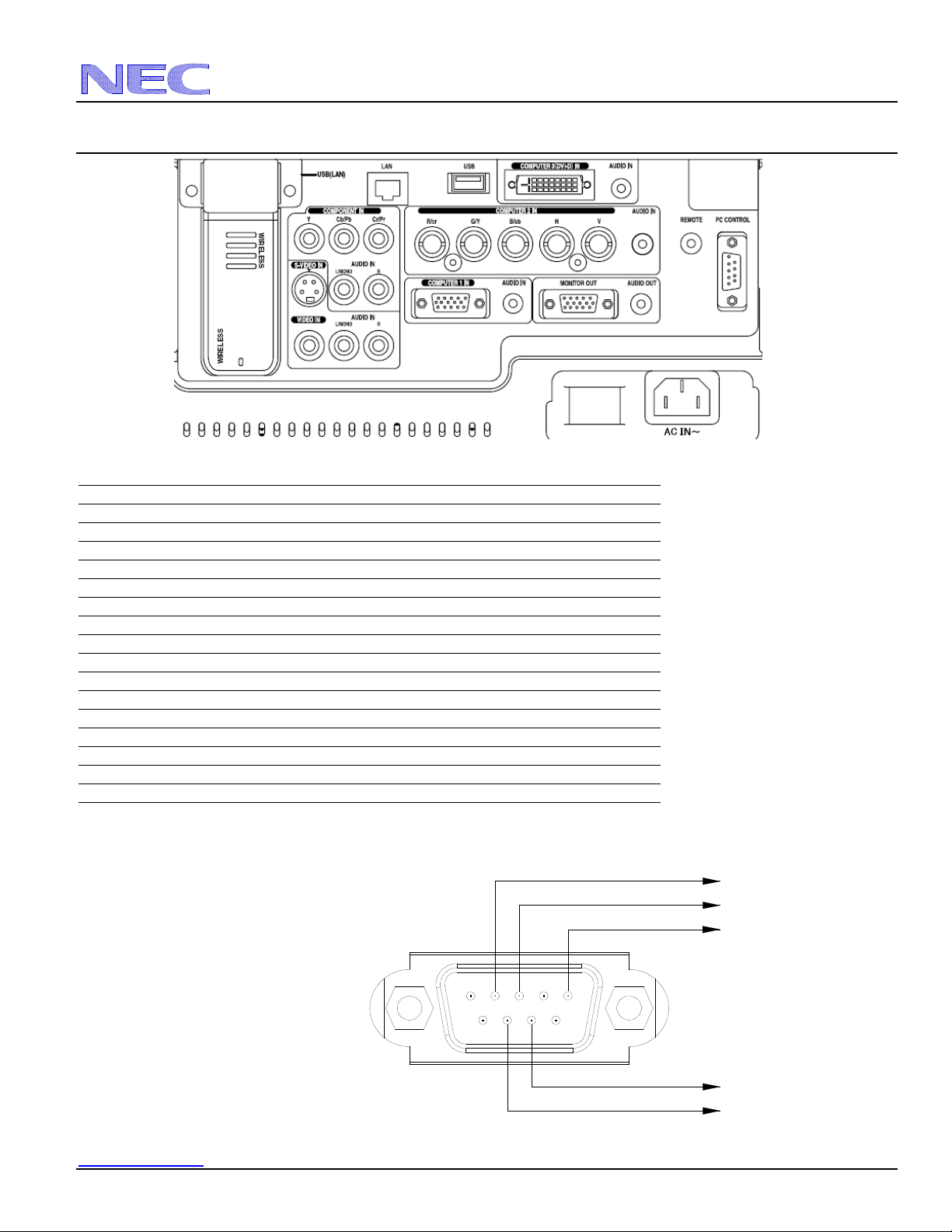

PC Control Codes
Function Code Data
POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT RGB 1 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT RGB 2 02H 03H 00H 00H 02H 01H 02H 0AH
INPUT SELECT VIDEO 1 02H 03H 00H 00H 02H 01H 06H 0EH
INPUT SELECT VIDEO 2 02H 03H 00H 00H 02H 01H 07H 0FH
INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H
INPUT SELECT DVI (DIGITAL) 02H 03H 00H 00H 02H 01H 1AH 22H
INPUT SELECT DVI (ANALOG) 02H 03H 00H 00H 02H 01H 03H 0BH
INPUT SELECT NETWORK 02H 03H 00H 00H 02H 01H 1FH 27H
PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H
SOUND MUTE ON 02H 12H 00H 00H 00H 14H
SOUND MUTE OFF 02H 13H 00H 00H 00H 15H
ON SCREEN MUTE ON 02H 14H 00H 00H 00H 16H
ON SCREEN MUTE OFF 02H 15H 00H 00H 00H 17H
Cable Connection
Communication Protocol:
Baud Rate: 38400 bps (for cable lengths longer than 2 0’, it is recommended changing to 9600 bps in setup menu)
Data Length: 8 bits
Parity: No Parity
Stop Bit: One bit
X on/off: None
Communications: Full duplex
12
34
5
67 8
9
PC Control Connector (D-Sub 9P)
NOTE: Pins 1, 4, 6, and 9 are used inside the projector.
Jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
www.necdisplay.com NP1150/NP2150/3150 Page 9 of 9
To TxD of PC
To RxD of PC
To GND of PC
To RTS of PC
To CTS of PC
Loading...
