NEC NX7700i-5080H-32, TX7-i9610, NX7700i-5040H-32 User Manual

855-900547-200-A

Rev. １

TX7/i9610

NX7700i/5080H-64, NX7700i/5040H-32

Operation Manual

CAUTION

Before using the product, be sure to read this manual and strictly
adhere to the instructions.
Keep this manual at hand for quick reference as required.

©NEC Corporation 2006
This manual cannot be duplicated or revised without permission from NEC Corp.
The contents of this manual may be changed without prior notice.

NEC Corporation

t

p

y

y

p

p

r

y

f

t

y

y

Notes on export

This product (including software) may be classified into the cargo (or service) to
which the Foreign Exchange and Foreign Trade Control Law is applied.

If this is the case, an export permit issued by the Government of Japan is
required.

If you need materials to help go through the process of applying for an export
permit, consult your delivery agent or the nearby NEC branch office.

Compliance with the criteria of Voluntary Control Council for Interference

by Information Technology Equipment

This product is class A information technology equipment specified by the
Voluntary Control Council for Interference by Information Technology Equipment
(VCCI).
Use of this product in home environments may cause interference.
In this case, the user may be asked for taking appropriate preventive actions.

Compliance with the Harmonic Current Emissions Guideline

This product is in compliance with the Harmonic Current Emissions Guideline for
home appliance and general purpose appliance notices by METI.

Disposing of your used NEC product

In the European Union

In the European Union

EU-wide legislation as implemented in each Member State requires tha

-

EU

used electrical and electronic products carrying the mark (left) must be

hat used electrical and electronic products carrying theleft)

disposed of separately from normal household waste.

must be dis

When you dispose of such products, please follow the agreements made

When

by between you and NEC.

made b

The mark on the electrical and electronic products onl
current European Union Member Stat es.

The mark on the electrical and electronic

Outside the European Union

current Euro

If you wish to dispose of used electrical and electronic products outside

Outside the European

the European Union, please contact

If

correct method of disposal.

outside the European Union, please contact your local
and ask for the correct method o

Disposing of your used NEC

wide legislation as implemented in each Member State

osed of separately from normal household

ou dispose of such products, please follow the

between you and

applies to the

roducts onlyto the

ean Union Membe

ou wish to dispose of used electrical and electronics

our local authority and ask for the

■ PL DESCRIPTION FOR OPERATIONAL MANUAL

z INSTRUCTION FOR PRESERVATION OF THIS MANUAL

NOTE:

Read this manual carefully before using the unit. Keep this manual
nearby as a handy reference and refer to the “CAUTION” and
“WARNING” statements whenever necessary.

z NOTICE OF REVISION UP

NOTE:
This manual might be revised without any announcement
in the near future.

ii

z SAFETY PRECAUTIONS

SAFETY PRECAUTIONS

Before using this unit, read this manual carefully and keep these instructions in order to use this u
nit safely and correctly and to avoid injury and damage to properties. Keep this manual handy for
easy reference.
The following symbols are used in this manual to help you easily understand how to operate the u
nit safely and correctly.

Indicate there is a risk of death or serious

WARNING

wound.
Indicate there is a risk of burn or injury.

CAUTION

Risks and necessary actions to reduce risks are indicated individually by the
following symbols.

Indicates the risk of smoke emission or fire outbreak.

Indicates the risk of explosion.

Indicates the risk of electric shock.

Indicates the danger of an injury due to harmful material.

Indicates prohibition of disassembling or reconfiguring the
unit.

Indicates notice of general prohibition.

Indicates required general actions for operators.

Indicates instructions to pull power plug from outlet and to
turn Off main circuit breaker.

iii

z CAUTION AND WARNING DESCRIPTION WHEN UNIT IS OPERATING

WARNING

DO NOT TRY TO ACCESS INSIDE THE UNIT.

Only service personnel is allowed to open the door.
Never disassemble, repair or reconfigure the unit yourself. While the door is opened by
service personnel for maintenance, do not touch nor access the inside of the unit,
otherwise you may suffer an electrical shock or become injured .

DO NOT PUT FOREIGN SUBSTANCES INSIDE THE UNIT.

Do not insert a foreign substance, such as a wire or other metal object through a
ventilation opening, or any other openings for that matter.
Foreign substances may cause a fire to break out or cause an electrical shock.

ACTION TO BE TAKEN DURING UNIT MALFUNCTIONIN

In case of malfunctioning, turn off the circuit breaker immediately and contact authorized
service personnel.

ACTION TO BE TAKEN IN AN EMERGENCY SITUATION.

The EPO switch can be used in an emergency situation when there is danger present
and the main power switch needs to be disconnected immediately. Because data will be
lost or damaged when this occurs, employees to be forewarned . For additional details,
please contact NEC Sales Personnel.

iv

CAUTION

HANDLING THE LITHIUM BATTERY

A lithium battery is used in this unit. Incorrect exchange of the lithium battery
Could result in an explosion. The same type or an equivalent type of the battery
is recommended by the manufacturer. Contact beforehand an authorized NEC
service personnel before exchanging or disposing of the lithium battery.

HANDLING THE LASER PRODUCTS

Class 1 laser product which is complied with JISC6802 ,EN60825 ,IEC825 and FDA
21CFR chapter1, subchapter J is used in this unit.
NOTE: Class 1 laser product is regarded safety emission lebel for the body, stated in
JISC6802 ,EN60825 ,IEC825 and FDA 21CFR .
If there is an adjustment which can affect the laser emission power level,
don’t touch or adjust without authorized NEC service personnel’s permission,
otherwise harmful laser may be emitted and you will be exposed .

This marking is put on this unit.
クラス 1 レ－ザ製品
CLASS 1 LASER PRODUCT PER IEC825
LASER KLASSE 1 NACH IEC825
PRODUCTO LASER DE CLASE 1
Complies with 21CFR chapter 1, Subchapter J

HANDLING THE DAMAGED LIQUID CRYSTAL DISPLAY

A liquid crystal display is used in this unit.
When handling the damaged liquid crystal display, be careful to take care and
avoid exposure of the liquid on the inside of the liquid crystal display.

The liquid can cause bodily harm. In the event the liquid is ingested, gargle at once
and consult a doctor immediately.
If the liquid should come in contact with the skin, or get into the eyes, wash the skin
with cool running water, or flush the eye with cool running water for at least 15 minutes
and consult a doctor.

"HANDLING DISPOSAL OR RECYCLING OF EQUIPMENT

Please let our salesperson or dealer know when discarding or recycling this
unit."

v

■ PL BESCHREIBUNG FÜR DAS BENUTZERHANDBUCH

z Hinweise zur Aufbewahrung dieses Handbuchs

Hinweis:

Lesen Sie dieses Handbuch vor Gebrauch des Gerätes sorgfältig durch. Heben Sie
dieses Handbuch an einen sicheren Ort auf, und schlagen - wenn immer nötig - bei den
mit "WARNUNG" und "VORSICHT" markierten Hinweisen nach.

z Hinweis zur Überarbeitung (des Handbuchs)

Hinweis:
“Änderungen im Benutzerhandbuch bleiben ohne vorherige
Ankündigung vorbehalten”

vi

z Sicherheitshinweise

Sicherheitshinweise

Vor Ingebrauchnahme des Geräts lesen Sie diese Bedienungsanleitung
sorgfältig durch und beachten Sie die Vorsichtsmaßnahmen, um das Gerät
sicher und ordnungsgemäß zu benutzen und Schäden an Personen und
Eigentum zu vermeiden. Bewahren Sie die Anleitung zur späteren

Bezugnahme auf. Die folgenden Symbole werden in dieser

Bedienungsanleitung benutzt, so daß Sie leicht verstehen können,
wie das Gerät sicher und ordnungsgemäß zu bedienen ist.

Diese Kennzeichnung verweist auf eine Gefahr, die zu

Warnung

Vorsicht

schweren Personenschäden oder Tod führen kann.

Diese Kennzeichnung verweist auf eine Gefahr, die zur

Verletzung von Personen und Feuer führen kann.

Gefahren und Vorsichtsmaßnahmen sind durch die folgenden Symbole

entsprechend gekennzeichnet

Dieses Zeichen warnt vor Rauch und Feuergefahr.

Dieses Zeichen warnt vor Explosionsgefahr.

Dieses Zeichen warnt vor Stromschlaggefahr.

Dieses Zeichen warnt vor Verletzungsgefahr durch Schadstoffe.

Dieses Zeichen warnt vor verbotener Zerlegung und Zusammenbau

des Geräts.

Dieses Zeichen zeigt ein generelles Verbot an.

Dieses Zeichen zeigt grundsätzliche Maßnahmen für den

Benutzer an.

Dieses Zeichen zeigt an, den Netzstecker aus der Steckdose zu
ziehen und den Leistungsschalter auszuschalten.

z Vorsichts- und Warnhinweise während der Benutzung des Geräts

vii

WARNUNG

Versuchen Sie nicht, sich Zugang zu dem Geräteinneren zu verschaffen

Nur dem Fachpersonal ist es gestattet, die Tür zu öffnen. Das Gerät
niemals zerlegen, reparieren oder verändern. Wenn die Tür vom
Fachpersonal für Wartungsarbeiten geöffnet wurde, berühren Sie niemals
das Geräteinnere oder verschaffen Sie sich niemals Zugang zum Geräteinneren.
Andernfalls können Sie einen elektrischen Stromschlag erleiden oder werden durch
unsachgemäßen Betrieb des Geräts verletzt .

Keine Fremdkörper in das Geräteinnere einführen .

Führen Sie keine Fremdkörper wie Draht oder Leitungen durch
Lüftungsöffnungen oder durch andere Öffnungen ein. Fremdkörper
können Feuer oder elektrischen Schlag verursachen .

Maßnahmen bei Betriebsstörungen des Geräts .

Bei Betriebsstörungen schalten sie sofort den Hauptschalter
aus und benachrichtigen Sie den zuständigen Kundendienst.

Maßnahmen bei einem Notfall

Im Notfall den Notausschalter betätigen, wenn eine Gefahr besteht
und die Stromversorgung unverzüglich unterbrochen werden muß.
Für zusätzliche Informationen kontaktieren Sie bitte

die NEC Vertriebsabteilung.

viii

VORSICHUT

Handhabung der Lithiumbatterie

In diesem Gerät wird eine Lithiumbatterie verwendet. Unsachgemäßer
Austausch der Batterie kann zur Explosion führen. Es wird empfohlen,
den gleichen oder ähnlichen Typ der Batterie zu verwenden. Vor

Austausch und Entsorgung der Lithiumbatterie setzen Sie sich mit

dem zuständigen NEC-Kundendienst in Verbindung.

Handhabung von Laserprodukten

Dieses Gerät ist ein Klasse 1 Laserprodukt, das der JISC6802, EN60825,
IEC825 und FDA 21CFR Kapitel 1, Unterkapitel J entspricht.

Hinweis:

Laserstrahlung der Klasse 1 gilt als ungefährlich, auch wenn der Benutzer

dieser direkt ausgesetzt ist. Falls Sie sich Zugang zu Einstelleinrichtungen

verschaffen, die die Laserstrahlung verändern können, berühren oder verstellen

Sie diese Elemente niemals ohne Erlaubnis des zuständigen NEC
Kundendienstes. Veränderungen können zum Austritt gefährlicher
Laserstrahlung führen, der Sie ausgesetzt und durch die Sie verletzt werden
können.

Dieses Hinweisschild ist auf dem Gerät angebracht:

クラス 1 レ－ザ製品

CLASS 1 LASER PRODUCT PER IEC825

LASER KLASSE 1 NACH IEC825

PRODUCTO LASER DE CLASE 1

Complies with 21CFR chapter 1, Subchapter J

ix

Handhabung von beschädigten Flüssigkristallanzeigen

(LCD-Anzeige)

Eine Flüssigkristallanzeige wird in diesem Gerät verwendet.
Gehen Sie sorgfältig mit einer beschädigten Flüssigkristallanzeige

um und vermeiden Sie den direkten Hautkontakt mit der auslaufenden

Flüssigkeit der Flüssigkristallanzeige.

Die Flüssigkeit kann Gesundheitsschäden verursachen. Wenn
Ihr Mund mit der Flüssigkeit in Berührung kommt, gurgeln Sie
sofort mit frischen Wasser und verständigen Sie umgehend einen
Arzt. Wenn Ihre Haut oder Ihre Augen mit der Flüssigkeit in
Berührung kommt, waschen Sie die Haut mit kalten fließenden
Wasser, spülen Sie die Augen mit kalten fließenden Wasser für

mindestens 15 Minuten. Konsultieren Sie umgehend einen Arzt.

" Handhabung des gebrauchten Equipments und Recycling "

Unsere Verkäufer oder Händler müssen über die Entsorgung oder
Verwertung des Geräts informiert werden.

x

■ PL DESCRIPTION FOR OPERATIONAL MANUAL 〔FRENCH〕

z INSTRUCTION FOR PRESERVATION OF THIS MANUAL

NOTE:

Read this manual carefully before using the unit. Keep this manual
nearby as a handy reference and refer to the “CAUTION” and
“WARNING” statements whenever necessary.

z NOTICE OF REVISION UP

NOTE:
This manual might be revised without any announcement
in the near future.

xi

z MESURES DE SÉCURITÉ

MESURES DE SÉCURITÉ

Avant d’utiliser cette unité, lire attentivement ce manuel et prendre
les précautions qui y sont indiquées, afin d’éviter tout risque de
dommage physique ou matériel.
Conserver ce manuel afin de pouvoir le consulter chaque fois que cela s’avèrera
nécessaire. Les symboles ci-dessous sont utilisés afin
que les interventions soient correctement réalisées dans les
meilleures conditions de sécurité.

DANGER

Signale un danger de mort ou de blessure
grave.

ATTENTION

Signale un risque de brûlure ou de bless

ure.

Chacun des risques et les actions nécessaires visant à diminuer ces
mêmes risques sont signalés par les symboles suivants.

Signale un risque d’émission de fumée ou d’un début
d’incendie.

Signale un risque d’explosion.

Signale un risque de commotion électrique.

Signale un risque de blessure due à une matière

dangereuse.

Signale l’interdiction de démontage ou de
reconfiguration de l’unité.

Indique la notification de prohibition générale.

Indique l’action nécessaire d’un opérateur.

xii

Indique qu’il fault débrancher l’unité et éteindre
l’interrupteur principal.

DANGER!

Ne pas accéder à l’intérieur de l’unité.

Seul le personnel qualifié est autorisé à ouvrir la porte.
Ne pas désassembler, réparer ni remodeler cette unité. Lorsqu’une
personne autorisée à ouvert la porte pour effectuer une opération
de maintenance, ne pas toucher ou accéder à l’intérieur de l’unité.
Autrement, vous risquez un choc électrique ou autre blessure suite
à une opération anormale.

N’introduisez aucun corps étranger à l’intérieur de l’unité.

Ne faîtes passer aucun corps étranger, comme un fil de fer ou autre
objet en métal à travers la fenêtre de ventilation ou dans toute

autre ouverture.

Un corps étranger peut causer un début d’incendie ou une commotion
électrique.

Que faire en cas de mauvais fonctionnement?

En cas de mauvais fonctionnement, actionner l’interrupteur coupe-circu
it immédiatement et contacter le service de maintenace.

Que faire en cas d’urgence?

Lorsqu’un danger se présente et nécessite une interruption du courant,
utiliser l’interrupteur EPO. Il est possible que cela ait pour effet
la perte ou l’endommagement des données. Par conséquence, prévenez
vos employés de ce danger.
Pour plus d’informations, contacter le personnel de NEC.

xiii

ATTENTION!

Manipulation de la pile au lithium

Cette unité utilise une pile au lithium.
Lorsque la pile est usée, remplacez-la par une autre de même type ou
de type équivalent. Autrement, vous risquez de subir une explosion
dans l’unité.
Avant de remplacer ou de jeter cette pile, ou bien de jeter l’unité,

contacter le service de maintenance.

Manipulation des produits laser

Cette unité contient un produit laser de classe 1, en conformité avec

JISC6802,EN60925,IEC825 et FDA 21 CFR chapitre1, section J. La class

e 1 signifie que le niveau d’emissions contre le corps humain est conf
orme aux règles enonciées dans JISC6802,EN60925,IEC825 et FDA 21 CFR.
L’étiquette ci-dessous est affixée à l’unité.
Si un ajustment est nécessaire, seul le personnel de service de NEC
est autorsé à controler le niveau d’ émissions laser. Si vous tentez
de le faire vous- même, vous risquez de vous exposer à des émissions

laser dangereuses.

Cett mention est marquée sur l’unité

クラス １ レーザ製品
CLASS 1 LASER PRODUCT PR IEC825
LASER KLASSE 1 NACH IEC825
PRODUCTO LASER DE CLASE 1
Complies with 21CFR chapter 1, Subchapter J

xiv

Manipulation d’un écran à crystaux liquides déterioré

Cette unité contient un écran à crystaux liquides.
Lors de la manipulation d’un écran à crystaux liquides déterioré, pren
ez garde à ne pas être en contact avec le liquide contenu dans l’unité

.
Ce liquide est dangereux pour le corps humain.

En cas d’absoption, effectuer des gargarismes et consulter un docteur.
Si le liquide vient en contact avec la peau, ou si le liquide pénètre
dans l’oeil, rincer immédiatement et abondamment la peau ou l’oeil pen

dant au moins 15 minutes et consulter un docteur.

MANIPULATION ET RECYCLAGE DU MATÉRIEL USAGÉ

Merci d'informer notre commercial ou notre revendeur lors de toute

opération de manipulation ou de recyclage de cette pièce.

xv

The labels listed below are attached to the cabinet of this system.
Read the explanation of each label carefully before operating the system.

133–300656–GRP MARKINGS
001

031

注※意：搭載品に関しては、インストレーションマニュアルを見ること。

WARNING:See operation Manual for a List of
Equipment to be used with the rack.
AVERTISSEMENT:Voyez au mode d'emploi fourni,
pour un liste des materiels quels peuvent
utiliser avec l'appareil.

033

注※意：

WARNING:Confirm there is sufficient output
voltage of power distribution from t he outlet
box before mounting units.
AVERTISSEMENT:Avant la installation des
materiels, confirmez que la tensio n d e sortie au
socle de raccordement au reseau e s t suffisan te.

分電盤の出力を確認後,ユニットを搭載すること。

103

140

150

163

18kg

MASS>

40 lbs

注※意：同型同定格のヒューズと交換すること。

CAUTION:For continued protection against risk
of fire, replace only with same type and ratings of fuse.
ATTENTION:Pour une protec t ion con t in ue co nt re
l'incendie,remplacer les fusibles par ceux de meme
type et de meme amperage.

注※意：資格者のみ保守すること。

HAZARD AREA:QUALIFIED SERVICE
PERSONNEL
ONLY
DANGER:RESERVE SEULEMENT AU
PERSONNEL

矢印を上に向けて取り付けること。

Install with arrow pointing
upwards.

Monter de maniere a orienter
la fleche vers le haut.

xvi

165

211

注※意：

CAUTION:

Grounding circuit continuity is vital for safe operation
of machine

ATTEN TION

de FUITE

アースされていない場合には機器を動作させないこと。

HIGH LEAKAGE CURRENT

NEVER OPERATE MACHINE WITH GROUNDING
CONDUCTOR DISCONNECTED.

:MACHINE a FORT COURANT

NE JAMAIS FAIRE FONCTIONNER AVEC FIL DE
TERRE DECONNECT.

(voir instruction d'installation)

(see installation instruction)

217

243

416

417

CAUTION:

Conductors only"

ATTENTION:

注※意：入力電源線
銅線のみ接続

のこと。

"Use Copper

N'utilisez que

は

les conducteurs de cuivre

注※意：カバーを開ける前に入力電源(分電盤)切断のこと。

CAUTION:

this cover.

ATTENTION:

avant de demonter ce capot.

注※意：保守時は安定板を引き出すこと。

CAUTION:

PULL OUT STABILIZER WHEN
MAINTAINING.

ATTENTION:

TIRER LE STABILISIEREN.

Disconnect input power before removing

Couper l'alimentation electrique

xvii

420

422

xviii

A

A

133-314121-GRP MARKINGS

051

保守者の方へ

052

053

複数の装置を
同時に引き出さないで下さい。
ラックの破損、転倒などの事故の原因となります。

Do not pull out more than one component at
a time as it may cause damege to the rack
or allow the rack to tip over.

警告

WAR NI N G

保守者の方へ

警告

装置を引き出したり、装置の積み下ろしを行う際は、必ずラック前面
にあるスタビライザを引き出し確実に設置してから作業を行ってください。
スタビライザを引き出さないまま作業を行うと、ラックの破損、転倒など事故の原因となります。

lways extract and install the stabilizers when pulling

out ore unloading components from the rack. Operating on
the rack without the stabilizers in place may cause
damage to the rack or allow the rack to tip over .

WAR N IN G

保守者の方へ

本ラックを床に耐震固定しないで設置する場合、必ずスタビライザを取り付けて設置してください。
スタビライザを取り付けないと、ラックの転倒など事故の原因となります。
設置前に、必ず保守説明書をお読み下さい。

lways install the stabilizers when not bolting to the floor
for seismic restraint. Operating on the rack or allow
the rack to tip over. Please read the Service Manual before
installation.

危険

DANGER

055

注意

指をドアに挟まないよう、注意してください。

Take care not to pinch y our
finger in the door.

CAUTION

xix

243-304367-GRP MARKINGS

001

243-306629-GRP MARKINGS

001

002

Note.

The cables supplied with this product are designed to be used solely for this product. Do
not use them for other purposes.

Lithium Battery life is about 5 years. Replacement of the lithium battery (paid) is therefore
required once every five years.

xx

Preface

This document explains how to operate the hardware of the basic processing system, the main body of the
TX7/i9610, NX7700i/5080H-64, and NX7700i/5040H-32 systems. It is recommended that the related
documents be read in order to make the best use of the above-mentioned systems.
Special techniques are necessary for installing and expanding the system. Please consult our sales
personnel.

Rev. 1, May 2006

Notes:

(1) All rights reserved. This document cannot be reprinted or reproduced partly or entirely without

permission from NEC Corp.

(2) The contents of this document may be changed at any time without prior notice.

xxi

Contents

■ PL DESCRIPTION FOR OPERATIONAL MANUAL.................................................................... ii

■ PL BESCHREIBUNG FÜR DAS BENUTZERHANDBUCH ........................................................ vi

■ PL DESCRIPTION FOR OPERATIONAL MANUAL 〔FRENCH〕 ...........................................xi

CHAPTER 1 System Overview.................................................................................................. 1-1

1.1. Configuration and Specifications of the Base Module ...............................................1-2

1.2. Expandability.......................................................................................................................1-8

1.2.1. Adding Processors......................................................................................................1-8

1.2.2. Expanding Memory Capacity.....................................................................................1-8

1.2.3. Adding Cells.................................................................................................................1-8

1.2.4. Adding I/O Enclosures ...............................................................................................1-8

1.2.5. Adding I/O Modules ....................................................................................................1-8

1.2.6. Adding iSPs (Service Processors) (Duplicated Configuration) ...........................1-8

1.2.7. Adding Peripheral Units.............................................................................................1-9

CHAPTER 2 BASE MODULE .....................................................................................................2-1

2.1. Partition Function...............................................................................................................2-2

2.2. Name and Function of Components ..............................................................................2-3

2.2.1. Main Cabinet (Primary Cabinet)................................................................................2-3

2.2.2. Expansion Cabinet (Additional Cabinet) .................................................................2-3

2.2.3. Cell.................................................................................................................................2-3

2.2.4. Crossbar Interconnect ................................................................................................2-3

2.2.5. CLK Card ......................................................................................................................2-3

2.2.6. I/O Enclosure ...............................................................................................................2-3

2.2.7. I/O Module ....................................................................................................................2-7

2.2.8. Power Bay ....................................................................................................................2-8

2.2.9. iSP..................................................................................................................................2-9

2.2.10. DVD-ROM Unit ........................................................................................................2-10

2.2.10.1. Loading and Unloading Media.........................................................................2-10

2.2.11. DAT Unit ..............................................................................................................2-11

2.2.11.1. Location of Index Labels..................................................................................2-11

2.2.11.2. Notes on Index Labels......................................................................................2-11

xxii

2.2.11.3. Preventing Accidental Erasure of Data..........................................................2-11

2.2.11.4. Cleaning the DAT Unit ......................................................................................2-12

2.2.11.5. Cleaning Schedule..............................................................................................2-12

2.2.11.6. Cleaning Medium for the DAT Unit ................................................................2-12

2.2.11.7. Life of Data Cartridge (Tape) for the DAT Unit ...........................................2-13

2.2.11.8. Handling of the DAT Unit.................................................................................2-13

2.2.11.9. Location of the DAT Unit .................................................................................2-13

2.2.11.10. Loading and Unloading Digital Audio Tapes..............................................2-13

2.2.12. AC SW .....................................................................................................................2-15

2.3. Consoles............................................................................................................................2-16

2.3.1. SP Console.................................................................................................................2-16

2.4. Service Processor (SP)...................................................................................................2-19

2.4.1. Console Connection and Login..............................................................................2-19

2.4.1.1. Type of Console Connections .........................................................................2-19

2.4.1.2. Accessible Console Functions......................................................................... 2-19

2.4.1.3. Console Status and Login Authentication.....................................................2-20

2.4.1.4. Login and Main Menu .......................................................................................2-22

2.4.2. Note .............................................................................................................................2-24

2.4.3. OS (BIOS) Console ...................................................................................................2-25

2.4.4. Virtual SOP.................................................................................................................2-27

2.4.4.1. Details of Partition Status Display.................................................................. 2-29

2.4.5. SP Command Console .............................................................................................2-30

2.4.5.1. SP Command Console Buffer.......................................................................... 2-31

2.4.5.2. SP Command Prompt........................................................................................ 2-31

2.4.5.3. SP Message Header........................................................................................... 2-31

2.4.5.4. SP Command List ..............................................................................................2-32

2.4.6. SP Command Reference..........................................................................................2-35

2.4.6.1. DF (Shut down System Power <override>)...................................................2-36

2.4.6.2. DN (Shut down System Power).......................................................................2-38

2.4.6.3. DP (System Dump).............................................................................................2-39

2.4.6.4. DT (SP Data and Time)..................................................................................... 2-40

2.4.6.5. EN (Environmental Information).......................................................................2-41

2.4.6.6. FV (Firmware Versions)..................................................................................... 2-47

2.4.6.7. HC (Hardware Configuration) ...........................................................................2-48

2.4.6.8. HE (Help)..............................................................................................................2-74

2.4.6.9. ML (Message Log)..............................................................................................2-75

2.4.6.10. PC (Power Cycle) ...............................................................................................2-77

2.4.6.11. RS (Cold Reset System) ...................................................................................2-78

2.4.6.12. SG (SP/System Setting).....................................................................................2-79

2.4.6.13. SR (Save System CMOS/NvRAM).................................................................... 2-90

xxiii

2.4.6.14. UB (Bring up BIOS)...........................................................................................2-92

2.4.6.15. UP (Bring up System) .......................................................................................2-93

CHAPTER 3 Operation Procedure............................................................................................3-1

3.1. System Startup...................................................................................................................3-1

3.1.1. System Startup Procedure.........................................................................................3-1

3.1.2. SP Console Messages................................................................................................3-6

3.2. System Shutdown ..............................................................................................................3-8

3.2.1. System Shutdown Procedure....................................................................................3-8

3.2.2. SP Console Messages..............................................................................................3-11

3.3. Emergency System Shutdown with AC SW................................................................3-12

3.4. AC-LINK (Auto Control)...................................................................................................3-12

3.5. OS Boot.............................................................................................................................3-14

3.5.1. OS Boot with Boot Manager (Before Installing the OS) ...................................3-14

3.5.2. OS Boot from the EFI (Extensible Firmware Interface) Boot Manager...........3-15

3.5.3. EFI Shell ..................................................................................................................... 3-16

3.5.4. EFI Shell Commands ................................................................................................3-16

3.5.5. OS Boot from EFI Shell...........................................................................................3-19

3.5.6. EFI Devices ................................................................................................................ 3-21

3.5.7. EFI Boot Option Maintenance.................................................................................3-24

3.5.7.1. Boot from a File................................................................................................. 3-26

3.5.7.2. Add a Boot Option ............................................................................................3-27

3.5.7.3. Add Boot Option(s)............................................................................................3-28

3.5.7.4. Change Boot Order............................................................................................3-28

3.5.7.5. Manage BootNext Setting .................................................................................3-29

3.5.7.6. Set Auto Boot Timeout .....................................................................................3-30

3.5.7.7. Setting the Network Boot .................................................................................3-31

3.5.7.8. Changing BIOS Settings ...................................................................................3-33

3.6. System Dump ...................................................................................................................3-35

CHAPTER 4 Troubleshooting....................................................................................................4-1

4.1. Troubleshooting..................................................................................................................4-1

CHAPTER 5 Notes on Handling ...............................................................................................5-1

5.1. Transportation.....................................................................................................................5-1

xxiv

5.2. DVD-ROM/CD-ROM .............................................................................................................5-1

5.3. Digital Audio Tape .............................................................................................................5-1

5.4. Cleaning...............................................................................................................................5-2

5.5. Notes on Installation .........................................................................................................5-3

xxv

System Overview

CHAPTER 1 System Overview

The TX7/i9610, NX7700i/5080H-64, and NX7700i/5040-32 systems are the servers that
implement the following by using the high performance Intel Itanium2 processor:

• High processing capability

• Open system using the industry standard architecture

• Advanced system management and RAS function

• High system expandability with a host of optional products

(a) Perspective View (Front) (b) Perspective View (Rear)

Figure 1-1 External Views of the Main Cabinet

855-900547-200 1-1

System Overview

1.1. Configuration and Specifications of the Base Module

The base module of this system is composed of the following hardware components:

− CELL
Can install one to four Intel Itanium2 processors.
The minimum required memory capacity is 2GB and can be expanded up to 128GB.

− Crossbar Interconnect
Contains:
Interface to the cell (3.2Gbps interface) x 8
Interface to other Crossbar Interconnect (3.2Gbps interface) x 4
Interface to each of 2 I/O modules (2.4Gbps interface) x 4

− I/O ENCLOSURE
Can install up to 2 I/O modules.

− I/O MODULE
Can contain:
Up to 8 PCI cards
A DVD-ROM unit
A DAT unit
Up to 4 HDDs (up to two HDDs when DAT is used)

− POWER BAY
Can contain up to 6 DPSs (AC/DC converters).

The iSP of the base module supports the following interfaces as standard equipment:
(1) 10/100Base-TX Ethernet interface for the SP console
(2) Serial (RS-232C) interface for the SP console

Figure 1-2 shows the layout of parts in the Main Cabinet, Figure 1-3 the layout of parts in the
Expansion Cabinet, and Table 1-1 lists the system specifications.

855-900547-200 1-2

A

CPU CAGE

I/O

ENCLOSURE

I/O

ENCLOSURE

POWER BAY
POWER BAY

System Overview

C SW

iSP CARD

Crossbar

CLK CARD

CELL

I/O MODULE

DPS

(Front) (Rear)

Interconnect

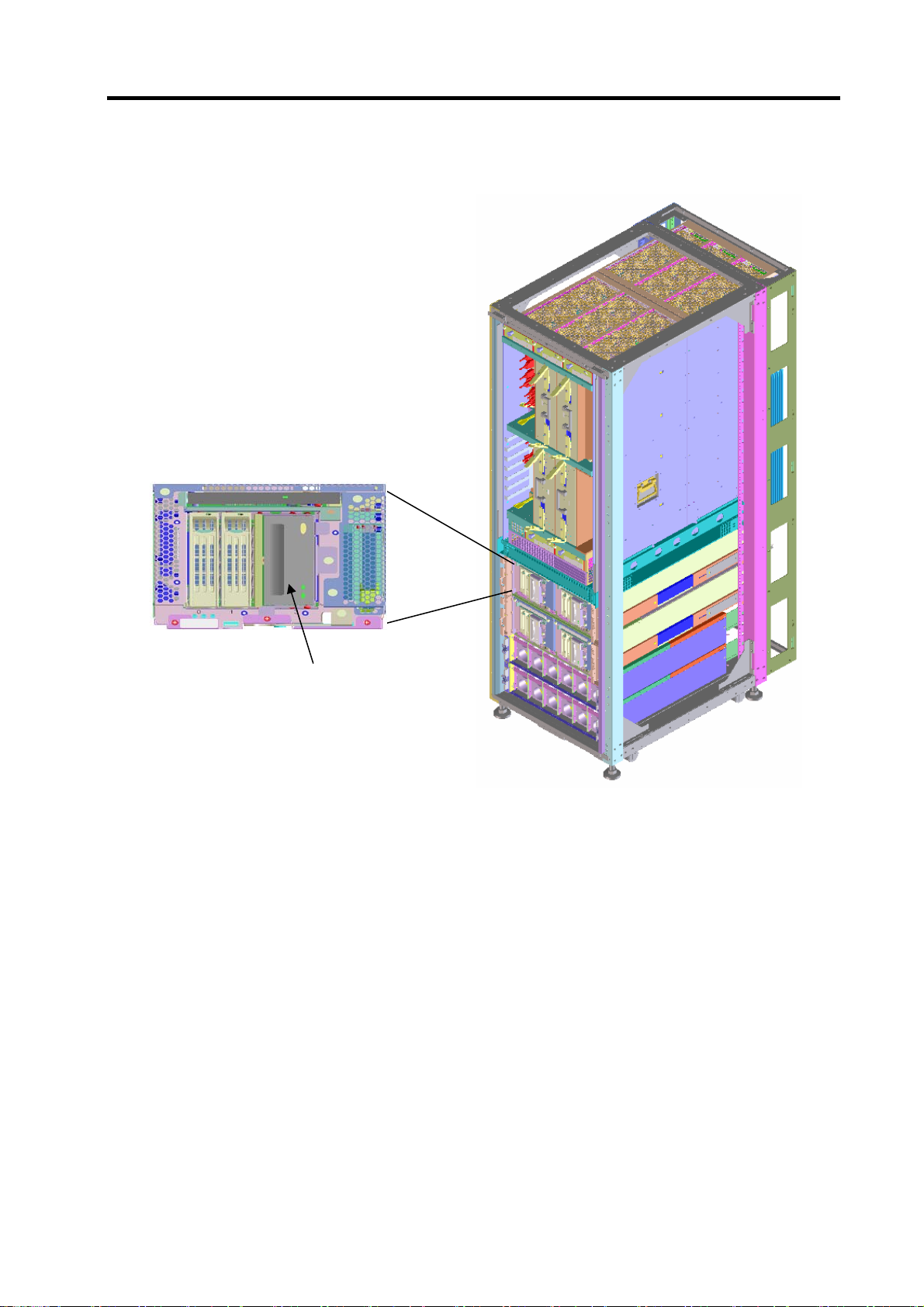

Figure 1-2 Layout of Parts in the Main Cabinet

855-900547-200 1-3

System Overview

I/O

ENCLOSURE

I/O

ENCLOSURE

POWER BAY
POWER BAY

I/O MODULE

DPS

(Front)

Figure 1-3 Layout of Parts in the Expansion Cabinet

855-900547-200 1-4

Table 1-1 Base Module Specifications

Main Cabinet

CPU CAGE

CELL (up to 8 cells can be installed in the cabinet)

CPU

Processor Itanium2 processor (1.6GHz, 533MHz)
Max. No. of processors 32 (up to 4 in one cell)

Main memory

Unit of expansion 2GB/4GB/8GB
Capacity 2GB to 1TB

Crossbar Interconnect (up to 4 crossbar interconnects can be installed in the cabinet)

Methodology Crossbar switching
Max. bandwidth 204.8GB/s (25.6GB/s per cell)

System Overview

I/O ENCLOSURE (up to 2 I/O enclosures can be installed in the cabinet)

I/O MODULE (up to 4 I/O modules can be installed in the cabinet)

Max. No. of PCI slots 64 slots (133MHz)
Max. I/O bandwidth 67GB/s

One unit can be installed in each I/O module (up to 4 units in

DVD-ROM unit

DAT unit

Magnetic disk unit

POWER BAY (up to 2 units can be installed in the cabinet)

DPS (up to 6 units can be installed)

the cabinet)
DVD-ROM/CD-ROM mode selection
One unit can be installed in each I/O module (up to 4 units in
the cabinet)
DDS-4 4mm DAT unit
Up to 4 units can be installed in each I/O module (two units
when DAT is used)
(Up to 16 units can be installed in the cabinet.)
Selection from 73GB/146GB/300GB

* In NX7700i/5040H-32, the maximum nu mber of processors defined is 16, and consequently

up to 4 cells can be installed. According to this configuration, the number of I/O modules is
also halved. Namely, it is a half system of NX7700i/5080H-64. Since the figures in the
specifications are based on the maximum system configuration, those for NX7700i/5040-32
are not indicated.

855-900547-200 1-5

System Overview

Main Cabinet

Cabinet size/weight

Table 1-1 Base Module Specifications (Cont’d)

Width
Height
Depth 1050mm (1070mm including the back door handle)
Weight (in max. configuration) 545Kg

Power supply

Volt age
Frequency

Power consumption (in max.
configuration)

Environmental conditions

Temperature

Operating

Storage

Humidity

Operating
Storage

600mm
1800mm

Single-phase, 200 to 240V±10%
50/60Hz±1Hz

13.2kVA

+5°C to +32°C
+5°C to +45°C

20% to 80% (no condensation)
8% to 80% (no condensation)

855-900547-200 1-6

Table 1-1 Base Module Specifications (Cont’d)

Expansion Cabinet

I/O ENCLOSURE (up to 2 I/O enclosures can be installed in the cabinet)

I/O MODULE (up to 4 I/O modules can be installed in the cabinet)

Max. No. of PCI slots 64 slots (133MHz)
Max. I/O bandwidth 67GB/s

One unit can be installed in each I/O module (up to 4 units in

DVD-ROM unit

DAT unit

Magnetic disk unit

POWER BAY (up to 2 units can be installed in the cabinet)
* The power bay is not installed in some expansion cabinet.

DPS (up to 6 units can be installed)

the cabinet)
DVD-ROM/CD-ROM mode selection
One unit can be installed in each I/O module (up to 4 units in
the cabinet)
DDS-4 4mm DAT unit
Up to 4 units can be installed in each I/O module (two units
when DAT is used)
(Up to 16 units can be installed in the cabinet.)
Selection from 73GB/146GB/300GB

System Overview

Expansion Cabinet

Cabinet size/weight

Width 600mm
Height 1800mm
Depth 1050mm (1070mm including the rear door handle)
Weight (in max. configuration) 330kg

Power supply

Voltage Single-phase, 200 to 240V±10%
Frequency 50/60Hz±1Hz
Power consumption 1.9kVA

Environmental conditions

Temperature

Operating

Storage

Humidity

Operating
Storage

+5°C to +32°C
+5°C to +45°C

20% to 80% (no condensation)
8% to 80% (no condensation)

855-900547-200 1-7

System Overview

1.2. Expandability

This section explains the expandability of this system and available configurations.

Contact the maintenance personnel of NEC to replace or

CAUTION

upgrade the system.

1.2.1. Adding Processors

At least one processor is required in the main cabinet. Using the CPU expansion feature, the
Itanium2 processor can be added one by one. Up to four processors can be installed for each
cell. To install more than four processors, the cell must be added first using the cell expansion
feature. A maximum of 32 processors can be installed in the main cabinet.

1.2.2. Expanding Memory Capacity

The minimum required memory capacity in the main cabinet is 2GB. This memory capacity can
be expanded up to 128GB for each cell. This means a maximum of 1TB of memory can be
installed in the main cabinet.

2GB, 4GB and 8GB memories are supported at present. For other memories, inquire the sales
personnel of NEC.

1.2.3. Adding Cells

At least one cell is required in the main cabinet. For system expansion, such as the addition of
processors, the cell must be added first using the cell expansion feature. Up to 8 cells can be
installed in the main cabinet.

1.2.4. Adding I/O Enclosures

At least one I/O enclosure is required in the main cabinet. A maximum of two enclosures can be
installed in the main and expansion cabinets, respectively.

1.2.5. Adding I/O Modules

At least one I/O module is required in the main cabinet. It is contained in the I/O enclosure. A
maximum of four I/O modules can be installed in the main and expansion cabinets, respectively.

The device bay contained in the I/O module is able to accommodate up to four magnetic disk
units. 73GB, 146GB and 300GB HDD units are supported at present. For other HDD units,
inquire the sales personnel of NEC.

1.2.6. Adding iSPs (Service Process ors) (Duplicated Configuration)

An iSP (service processor) is installed in the main cabinet as standard equipment. A maximum
of two iSPs can be installed in the main cabinet.

855-900547-200 1-8

System Overview

1.2.7. Adding Peripheral Units

The iSP is installed in the base module to satisfy various customer’s requirements for system
configurations. The system is designed to connect a wide variety of peripheral units through this
iSP. Peripheral units can also be connected through various types of PCI cards available on the
I/O module.

855-900547-200 1-9

System Overview

N

N

N

N

Main Cabinet

Itanium2

CELL

I/O ENCLOSURE

I/O MODULE

I/O ENCLOSURE

I/O MODULE

POWER BAY

DVD-ROM UNIT

E

C

DAT UNIT

DVD-ROM UNIT

E

C

DAT UNIT

Memory can be increased
from 2GB up to 128GB per
cell.

RS232C(Console)

10/100Base - TX

2.4G Interface

2.4G Interface

Ethernet cable

I/O ENCLOSURE

I/O ENCLOSURE

POWER BAY

LAN for server
management
Interface

Expansion Cabinet

DVD-ROM UNIT

E

C

DAT UNIT

I/O MODULE

DVD-ROM UNIT

E

C

DAT UNIT

I/O MODULE

SP Console
(Standard)

Figure 1-4 System Configuration Diagram

855-900547-200 1-10

CHAPTER 2 BASE MODULE

This chapter covers operations required on the base module of this system.

Locking/unlocking the cabinet

Front door

Back door

Base Module

Figure 2-1 Doors of System Cabinet

855-900547-200 2-1

Base Module

2.1. Partition Function

The base module of this system has the partition function which enables the system to operate
as if multiple units are present on one unit.

The system is capable of partitioning in units of the cell or I/O module within the same base
module. For example, in a system consisting of four cells and three I/O modules, partitioning
shown in Figure 2-2 is possible.

Note that each partition should contain at least one cell card and one I/O module (including the core
module).

The partition structure in the base module can be changed with the “hc” command of the SP
command. (For details of the SP command, see 2.4.6 SP Command Reference.)

Itanium2

I/O MODULE

CELL CELL CELL CELL

Partition #0 Partition #1 Partition #2

8-CPU SMP

configuration

under the

same OS.*1

Under OS#0

Figure 2-2 Image of Partitions

855-900547-200 2-2

Under OS#1 Under OS#2

*1: SMP stands for Symmetric Multi-Processors.

Base Module

2.2. Name and Function of Components

2.2.1. Main Cabinet (Primary Cabinet)

The main cabinet contains the cells, crossbar interconnects, iSP cards, CLK cards, I/O
enclosures, I/O modules, power bays, and DPSs. For the mounting location of these
components, see Figure 1-2 in Section 1.1.

2.2.2. Expansion Cabinet (Additional Cabinet)

The expansion cabinet contains the I/O enclosures, I/O modules, power bays, and DPSs. For
the mounting location of these components, see Figure 1-3 in Section 1.1. Some expansion
cabinets do not contain the power bay. Peripheral units are installed in such cabinets.

Mount the expansion cabinet containing the power bay at the left side of the main cabinet
viewed from the front. The expansion cabinet which does not contain the power bay can be
installed in either the left or right side of the main cabinet.

2.2.3. Cell

A cell consists of up to four processors, a CPU node controller, a memory controller, and main
memory. The minimum 2GB to maximum 128GB can be installed for the main memory by
combining the MEM cards. At least one cell is required in the main cabinet. A maximum of eight
cells can be installed.

2.2.4. Crossbar Interconnect

The crossbar interconnect is connected to other crossbar interconnect for data transmission
between cells. It can connect to one to four I/O modules for data transmission between the cell
and I/O modules. A maximum of four crossbar interconnects can be installed in the main
cabinet.

2.2.5. CLK Card

The CLK card supplies the clock to the system. A system having high reliability can be
constructed by duplicating the CLK card.

2.2.6. I/O Enclosure

The I/O enclosure contains two PCI bays each mounting one I/O module. Up to two I/O
enclosures can be installed in the main and expansion cabinets, respectively.

Figure 2-3 shows the external view of the I/O enclosure, and Figure 2-4 the look of the I/O
enclosure with the filter cover removed. PCIBAY numbers in the main cabinet are shown in
Figure 2-5, and those in the expansion cabinet in Figure 2-6.

855-900547-200 2-3

Base Module

Filter cover

Hand screw

Figure 2-3 I/O Enclosure

DVD

DAT

PCIBAY

PCIBAY

I/O modules are mounted.

Figure 2-4 I/O Enclosure (A View without the Filter Cover)

855-900547-200 2-4

Base Module

PCIBAY2 PCIBAY3

PCIBAY0

PCIBAY1

Figure 2-5 PCIBAY Numbers in the Main Cabinet

855-900547-200 2-5

Base Module

PCIBAY6 PCIBAY7

PCIBAY4

PCIBAY5

Figure 2-6 PCIBAY Numbers in the Expansion Cabinet

855-900547-200 2-6

Base Module

2.2.7. I/O Module

The I/O module is connected to the crossbar interconnect via two 2.4Gbps interface cables. It
has eight PCI slots compatible with 133MHz PCI-X bus, allowing up to eight PCI cards to be
mounted. To support standard option I/O interface, one base IO card can be mounted.

The PCI card can be inserted or taken out in online mode (hereafter called the “hot swap”) with
some exceptions. Consequently, the base module need not be shut down or rebooted each time
the PCI card is added or replaced. High availability is achieved with this implementation (note
that the OS that supports this implementation is required).

One core module or HDD module is mounted on the I/O module. At least one core module is
required for each partition.

A DVD-ROM unit is installed in the I/O module as standard equipment. In addition, a DAT unit
and up to four 73GB/146GB/300GB magnetic disk units can be installed as optional units.

At least one I/O module is required for the main cabinet. A maximum of four I/O modules can be
installed in the main and expansion cabinets, respectively.

855-900547-200 2-7

Base Module

r

2.2.8. Power Bay

The power bay supplies power to the system. A power bay can contain up to six DPSs (device
power supplies with a fan). Figure 2-7 shows the power bay, and Figure 2-8 the DPSs.

DPS

For CPU CAGE powe

For AC SW

CB for AC power

For I/O ENCLOSURE power

Figure 2-7 Power Bay

Figure 2-8 DPS (Perspective Views)

855-900547-200 2-8

Base Module

2.2.9. iSP

One iSP-M card is mounted on the base module of the system as standard equipment. It
contains the following interfaces:

1) 10/100Base-TX Ethernet interface (x1) for SP console

2) Serial (RS-232C) interface (x1) for SP console

Up to two iSP-M cards can be mounted on the main cabinet, but in this case, they are used in
the duplicated configuration for increasing the reliability. Figure 2-9 shows the iSP-M card.

The iSP-D card is required when five or more I/O modules are used.

iSP POWER switch

iSP RESET button

iSP HALT button

LED

RS232C port (for SP console)
LED(100TX/ACT/LINK)

ETHER port
PCIBAY3 (I/O MODULE) port
PCIBAY2 (I/O MODULE) port

PCIBAY1 (I/O MODULE) port
PCIBAY0 (I/O MODULE) port

Figure 2-9 iSP-M Card (Side View)

855-900547-200 2-9

Base Module

2.2.10. DVD-ROM Unit

One DVD-ROM unit can be installed for each I/O module. A DVD-ROM unit is mounted on each
I/O module in the main cabinet as standard equipment. The DVD-ROM and CD-ROM media
can be used on the DVD-ROM unit.

2.2.10.1. Loading and Unloading Media

(1) Loading DVD-ROM/CD-ROM

1) Remove the front filter cover of the I/O enclosure (loosen the hand screw).

2) Push the Eject button lightly, and the tray pops out.

3) Place DVD-ROM/CD-ROM securely on the tray.

4) Push the Eject button lightly, and the tray goes back in the drive.

(2) Unloading DVD-ROM/CD-ROM

1) Be sure that the DVD-ROM drive access indicator LED (orange) goes off.

2) Push the Eject button lightly, and the tray pops out.

3) Take out DVD-ROM/CD-ROM.

CAUTION

Be careful not to touch the tray while it recesses in the drive
unit to prevent hand injury.

Figure 2-10 Loading and Unloading DVD-ROM/CD-ROM

855-900547-200 2-10

Base Module

2.2.11. DAT Unit

A DAT unit can be mounted on the I/O module in the main or expansion cabinet as optional
equipment.

2.2.11.1. Location of Index Labels

Figure 2-11 shows the location of index labels attached to the digital audio tape.

OFD!

Figure 2-11 Index Labels on the Digital Audio Tape

2.2.11.2. Notes on Index Labels

(1) Attach index labels properly as shown in 2.2.11.1. Be sure to write the start date on these

labels.

(2) Change the labels when the DAT is used for other purpose. Remove the old labels before

attaching the new labels.

(3) When using index labels other than those supplied by NEC, make sure that they are in the right

size and easy to remove without remnant paste.

2.2.11.3. Preventing Accidental Erasure of Data

As shown in Figure 2-12, open the write protect slider next to the side label of the cartridge to
prevent data on the DAT from being erased by accident. Write on the DAT is permitted by
closing the write protect slider.

855-900547-200 2-11

Base Module

Figure 2-12 Preventing Accidental Erasure of Data on DAT (Write Protect)

2.2.11.4. Cleaning the DAT Unit

Wipe off the dusts on the DAT unit. See 2.2.11.5 to 2.2.11.7 for how to clean the DAT unit.

2.2.11.5. Cleaning Schedule

How often the DAT unit should be cleaned depends on the operating environment. The table
below will be of some help.

Frequency of using data cartridge Cleaning schedule
Use of one cartridge per day Once a week

Use of 2 to 3 cartridges per day Twice a week
Use of more than 3 cartridges per day Everyday

Cleaning is important to remove accumulated dust on the magnetic head caused by running
tapes and surrounding environment. Periodic cleaning is recommended.

2.2.11.6. Cleaning Medium for the DAT Unit

The cleaning cartridge can be used approximately 50 times.
Clean the drive head with this cartridge before using the new data cartridge. It is recommended

to clean the head prior to writing or reading the DAT. Clean the head once a month even though
the DAT unit is not used.

855-900547-200 2-12

Base Module

2.2.11.7. Life of Data Cartridge (Tape) for the DAT Unit

The life of data cartridge according to the frequency of use is shown below. It may be shortened
depending on the operating environment (temperature, humidity, dust, etc.).

Frequency of using data cartridge Life

Once a week/volume Approx. one year
Three times a week/volume Approx. half a year
Everyday Approx. three months

The data cartridge is worn out every time it is read or written. It should be noted that using the
worn-out cartridge will cause trouble. To prevent trouble caused by aged deterioration, storage
of the data cartridge should not exceed five years.

2.2.11.8. Handling of the DAT Unit

Keep the following in mind for proper operation of the DAT unit:

• Do not move the DAT unit with the cleaning or data cartridge loaded.

• Take out the cleaning or data cartridge before turning off the DAT unit.

• Do not leave the DAT unit for a prolonged period of time with the cleaning or data cartridge

loaded.

2.2.11.9. Location of the DAT Unit

Avoid placing the DAT unit in the following locations as much as possible to prevent trouble in
the DAT unit:

• Near the printer (to prevent toner or paper powder dusts)

• By the window or near the passage way (to prevent soil dusts)

• On the carpet (to prevent dust generation)

2.2.11.10. Loading and Unloading Digital Audio Tapes

How to load and unload a digital audio tape is explained below.

(1) Loading a digital audio tape

1) Remove the front filter cover of the I/O enclosure (loosen the hand screw).

2) Hold the DAT lengthwise with the DAT label oriented to the left, and insert it into the drive
vertically and slowly.

3) Keep pushing the tape slowly until you feel it touching the stopper inside the drive and being
locked in the drive. When the tape is locked, a clicking sound is heard.

(2) Unloading a digital audio tape

1) Be sure that the DAT drive access indicator LED (green) goes off.

2) Push the Eject button at the lower part of the DAT unit lightly.

3) The DAT slides out from the drive.

4) Take out the DAT from the drive vertically and slowly.

855-900547-200 2-13

Base Module

I/O MODULE

DAT slot

Main Cabinet

Figure 2-13 Loading and Unloading DAT

855-900547-200 2-14

Base Module

2.2.12. AC SW

The AC switch is provided for the use only when emergency power shutdown is required to
shirk danger. Do not use this switch in normal operation. Figure 2-14 shows the location of the
AC switch.

When a UPS is connected, emergency power shutdown should be done on the UPS. For how to
do this, refer to the UPS manual.

Data may be destroyed when the AC SW is pressed during

CAUTION

CAUTION

operation.

Provide AC SW operation criteria and use the AC SW
according to the criteria.

Main
Cabinet

Expansion
Cabinet

ON

ON

AC SW

AC SW

Shutdown

OFF

SW1

SW2

OFF

Shutdown

Figure 2-14 Location of AC SW (Rear of Cabinet)

855-900547-200 2-15

Base Module

2.3. Consoles

The base module contains console interfaces as standard equipment. The consoles connected
to the interfaces provided by the iSP are roughly classified into two:

• OS console (also called the system console or SW console) to display BIOS/OS messages

• SP console (also called the HW console) to display SP messages

2.3.1. SP Console

The SP console requires:

• Recommended Windows2003 operation environment

Two or more LAN ports (for duplicated iSP configuration)

•

On the subsquent pages, Figure 2-15 shows the console connection diagram for the single iSP
configuration, and Figure 2-16 the console connection diagram for the duplicated iSP
configuration.

The iSP-M standard I/O interface connected to “Console PC” in these figures is:

• Ether Port (10/100Base-TX)

855-900547-200 2-16

Base Module

A

CPU CAGE

SYS BP

XBX CARD

I/O MODULE

CRT

MOUSE/

KEYBOARD

OS console

CELL CARD

iSP-M CARD

Console PC

SP
console

LAN

OS
console

RS232C

modem

modem

LIVE

console

Figure 2-15 Console Connection Diagram

855-900547-200 2-17

Base Module

A

CPU CAGE

SYS BP

XBX CARD

I/O MODULE

CRT
MOUSE/
KEYBOARD

OS console

CELL CARD

iSP-M CARD

LAN

Console PC

OS
console

SP
console

RS232C

modem

modem

LIVE

console

Figure 2-16 Console Connection Diagram (Duplicated iSP Configuration)

855-900547-200 2-18

Base Module

2.4. Service Processor (SP)

This system contains interfaces to offer advanced system management and RAS function to the
user. The service processor (hereafter called the “SP”) in the iSP implements these capabilities.

2.4.1. Console Connection and Login

2.4.1.1. Type of Console Connections

The iSP supports two types of console connections: i.e. local console connection via serial port
and LAN console connection via TCP port 5001.

Either type of connection provides completely identical user interface, except that all LAN
configuration such as IP address setting can only be done from the local console.

For the details of serial port and LAN configuration, refer to the “SG Command Reference.”

iSP-card

null modem cable

Serial connector 0

LAN connector

TCP5001

local

console

LAN

console

Figure 2-17 Type of Console Connections

2.4.1.2. Accessible Console Functions

The console operator has access to the following console operations:

• iSP operation using SP commands

• Redirection of OS (BIOS) serial (inside the CPU) console

• Virtual SOP display

855-900547-200 2-19

Base Module

2.4.1.3. Console Status and Login Authentication

To gain access to console operation, you must first login to the iSP.
When you login to the iSP, the Main Menu opens. The Main Menu has three options: i.e. Virtual

SOP, OS Console, and SP Command Console.

• Virtual SOP provides periodical updates to system operation status for each partition.

• OS Console redirects serial I/Os as viewed from the OS (including BIOS).

• SP Command Console lets you monitor iSP messages for system or maintenance operations

and enter commands into the iSP. Only the commands required for system operation can be
executed on the SP Command Console.

Factory default login account and password

Type Default

Login account spfw
Login password nec

The numbers of consoles that can be attached to the system at a time are: Up to one OS
Console for each partition; up to nine Virtual SOPs and up to one SP Command Console
throughout the entire system.

OS Console and SP Command Console include two types: i.e. one that allows console input
(with operational authority) and the other that only allows message displays (with no operational
authority). The OS Console that is first attached to the specified partition is given operational
authority. Similarly, the SP Command Console that is first attached to the system is given
operational authority. Once a console is attached with no operational authority given to it, it
cannot acquire operational authority until the existing console with operational authority is
disconnected or its operational authority is removed in the Main Menu.

If key entry is attempted on a console without operational authority, it will output the message,
“This console is mirror console.”

855-900547-200 2-20

Base Module

Serial console

inoperative

Choose Exit

Press ESC

iSP login prompt

Login password

required

Main Menu

TCP-5001 not

connected

Connect TCP5001

Choose Exit

Enter ^B

Choose OS

OS Console

Choose SOP

Virtual SOP

Enter ^B

Enter ^B

Choose SP

SP Console

Normal Mode

CM command

Password required

SP Console

Maintenance Mode

Figure 2-18 Console Mode Status Transitions

855-900547-200 2-21

Base Module

2.4.1.4. Login and Main Menu

Immediately after a console is attached to the iSP, login prompts appear on the console, waiting
for user login. When you enter your login account name and password, the Main Menu opens.

Login account and password are both case-sensitive. Alphabetic letters used in the Main Menu
are not case-sensitive, however (e.g. “e” and “E” are interpreted as the same character).

(Screen Example)

Integrated Service Processor.
Cabinet-ID:xx, Location:iSPy, State:ssssss

iSP login: spfw
iSP password: xxxxxxxx

Copyright (C) 2005 NEC Corporation, All Rights Reserved.
Welcome to Integrated Service Processor.

iSP FW version : 01.00 generated on 01/01/2005 19:20:33

iSP MAIN MENU

0) OS(BIOS) serial console of partition#0 (INITIALIZING )

1) OS(BIOS) serial console of partition#1 (RUNNING )

2) OS(BIOS) serial console of partition#2 (STOPPED )

3) OS(BIOS) serial console of partition#3 (FAULT )

4) OS(BIOS) serial console of partition#4 (POWER OFF )

5) OS(BIOS) serial console of partition#5 (RUNNING )

6) OS(BIOS) serial console of partition#6 (NOT CONFIGURED)

7) OS(BIOS) serial console of partition#7 (NOT CONFIGURED)
V) Virtual System Operator Panel
S) iSP commands
E) Exit

DISCONNECTALL) disconnect all console connections

iSPyz>

<ENTER>

<ENTER>

Description

No.

(a)

(b)

(c)

(d)

(e)

855-900547-200 2-22

(Description)

Description

No.

xx is a cabinet ID identifying a particular cabinet in a multi-cabinet system
(“system number” itself set with an SG command).

(a)

(b)
(c) Version information for iS PFW

(d)

(e)

y is the location of the iSP Card (0 or 1).
ssssss represents “master” if the SP is assigned as master, “backup”* if it is
assigned as backup, and “undetermined” if it is assigned as neither master nor
backup.
Enter your login account and password at these prompts.
The password is not echoed.

The Main Menu.
OS Console and Virtual SOP can b e chosen only if the iSP is assigned as the
master.
The OS Console menu includes the summary status of partitions.
Main Menu prompt.
y is the location of the iSP Card (0 or 1).
z is “m” if the SP is assigned as the master, “b” if it is assigned as the backup,
and “u” if it is assigned as neither master nor backup.

Description

* The “backup” indicator will not appear if no backup SP exists.

Base Module

If maintenance operation or SPFW fails, the BOOT FW may boot up. In this case, the screen
information is only limited to that needed for the BOOT FW (no login entry fields appear).

(Screen Example…BOOT FW)

iSP BOOT MAIN MENU

S) iSP commands
E) Exit

DISCONNECTALL) disconnect all console connections

iSPy*>

Description

No.

855-900547-200 2-23

Base Module

• Possible Events (including operator entries) and System Responses

Login account or password was wrong. The login prompt reappears after the message
Login account or password rejected 3

times consecutively.
No operations made for 5 minutes on the
login account or password prompt screen.
A letter not specified in the menu was
entered.
No operation made for 5 minutes on the
Menu screen.
The menu became invalid after iSP
master assignment has been changed.

A value from 0 to 7 selected.
(valid only on the master iSP)
S selected.
(valid regardless of master/backup
assignment)
V selected.
(valid only on the master iSP)
E selected. The current console connection is disconnected.
DISCONNECTALL selected. All TCP connections to the iSP other than the

The number of simultaneous connections
allowable for the selected mode was
exceeded.

Event System Response

“incorrect” comes on.
The console is disconnected.

The console is disconnected after the message
“timeout” appears.
The menu reopens.

The console is disconnected after the message
“timeout” appears.
The invalid menu or prompt is not identified
immediately.
If you make a selection in the invalid menu, that
selection is rejected and a new menu opens.
OS (BIOS) Serial Console Redirection is chosen.

SP Command Console is chosen.

Virtual SOP is chosen.

current console connection are disconnected and
the screen is forcibly returned to the Main Menu
in case of serial connection console.
This emergency action might be needed if
console operation is prohibited when actually
disconnected TCP connections remain alive
under the iSP management due to client’s illegal
access.
The screen returns to the Main Menu after
showing a message “N connections to the
selected mode are already established. Try it
later.”

2.4.2. Note

While in serial or OS console connection, characters that are shown on the console screen may
be disturbed due to redirection made in a half way of ESC sequence.

855-900547-200 2-24

Base Module

2.4.3. OS (BIOS) Console

If OS (BIOS) Console is chosen from the iSP Main Menu, I/O to/from the serial controller is
redirected as viewed from the OS (BIOS).

To return to the Main Menu, enter “^B” (press the B key while holding down the CTRL key).
While the OS (BIOS) Console I/O is redirected, the screen displays and operations depend

solely on the BIOS or OS that runs in that partition, and not on the iSPFW.
OS (BIOS) Console redirection is only allowed for the master iSP.

(Screen Example)

iSP MAIN MENU

0) OS(BIOS) serial console of partition#0 (INITIALIZING )

1) OS(BIOS) serial console of partition#1 (RUNNING )

2) OS(BIOS) serial console of partition#2 (STOPPED )

3) OS(BIOS) serial console of partition#3 (FAULT )

4) OS(BIOS) serial console of partition#4 (POWER OFF )

5) OS(BIOS) serial console of partition#5 (RUNNING )

6) OS(BIOS) serial console of partition#6 (NOT CONFIGURED )

7) OS(BIOS) serial console of partition#7 (NOT CONFIGURED )
V) Virtual System Operator Panel
S) iSP commands
E) Exit

DISCONNECTALL) disconnect all console connections

iSPyz> 0
***** redirection of serial console 0 *****
***** enter CTRL+B to quit *****
:
:
:
:
:

<ENTER>

<CTRL>+<B>

***** returned from serial console 0 redirection *****

Description

No.

(a)
(b)

(c)

(d)
(e)

855-900547-200 2-25

Base Module

(Description)

Description

• Possible Events (including operator entries) and System Responses

^B (CTRL+B) entered. The screen shows an “Exit OS (BIOS) Console”

OS (BIOS) Console became invalid after
iSP master assignment changed.

There are no partitions on display after an
SP command was entered.

No.

(a)

If a value (0 to 7) is entered, I/O is redirected to OS Console within the
corresponding partition.

Description

(b) An opening message for OS Console redirection
(c) All I/Os made in OS Console redirection depends on the OS or BIOS.
(d) Enter ^B to quit OS Console redirection.

(e)

An end of redirection message.
The screen returns to the Main Menu after this message.

Event System Response

message, and then returns to the Main Menu
and prompts.
The screen shows an “Exit OS (BIOS) Console”
message, and then returns to the Main Menu
and prompts.
The screen shows an “Exit OS (BIOS) Console”
message, and then returns to the Main Menu
and prompts.

855-900547-200 2-26

Base Module

2.4.4. Virtual SOP

If Virtual SOP (Virtual System Operator Panel) is chosen from the Main Menu, Virtual SOP
appears on the console screen. Virtual SOP periodically lists outlined status information of all
the existing partitions.

To return from Virtual SOP to Main Menu, enter “^B” (press the B key while holding down the
CTRL key).

Virtual SOP is selectable only if the iSP is assigned as the master.

(Screen Example)

iSP MAIN MENU

0) OS(BIOS) serial console of partition#0 (INITIALIZING )

1) OS(BIOS) serial console of partition#1 (RUNNING )

2) OS(BIOS) serial console of partition#2 (STOPPED )
:
:

7) OS(BIOS) serial console of partition#7 (NOT CONFIGURED )

V) Virtual System Operator Panel
S) iSP commands
E) Exit

DISCONNECTALL) disconnect all console connections

iSPyz> V

----- Virtual System Operator Panel ---------- 01/31/2005,19:30:20 -----

00 0 HW INITIALIZING yyyyyy 00 1 RUNNING yyyyyy

00 2 STOPPED yyyyyy 00 3 FAULT yyyyyy

00 4 POWER OFF yyyyyy 00 5 RUNNING yyyyyy

00 6 NOT CONFIGURED yyyyyy 00 7 NOT CONFIGURED yyyyyy

----- Enter CTRL+B to quit --------------------------------------------­ :

<ENTER>

BIOS messages BIOS messages
SP messages SP messages

BIOS messages BIOS messages
SP messages SP messages

BIOS messages BIOS messages
SP messages SP messages

BIOS messages BIOS messages
SP messages SP messages

<CTRL>+<B>

Description

No.

(a)

(b)

(c)
(d)

855-900547-200 2-27

Base Module

(Description)

Description

• Possible Events (including operator entries) and System Responses

^B (CTRL+B) entered.
Virtual SOP became invalid after iSP master

assignment was changed.

No.

(a) Virtual SOP appears if V is entered at this prompt.
(b) Virtual SOP screen.

(c)
(d) Virtual SOP periodically appears u ntil these keys are pressed.
(e)

SP messages shared for all the partitions or those not concerned with partitions
appear here.

Entering ^B quits Virtual SOP.
The screen returns to the Main Menu.

Event System Response

Description

The screen returns to the Main Menu and
prompts.
The screen shows a message “Exit Virtual
SOP,” and then returns to the Main Men u and
prompts.

855-900547-200 2-28

2.4.4.1. Details of Partition Status Display

The status information for each partition consists of the following items:

1 2

3 4

5

Base Module

xx N sssssssssssssss cccccc

6

ttttttttttttttttttttttttttttttt

uuuuuuuuuuuuuuuuuuuuuuuuuuuuuuu

No. Item Description

(1) Numeral Represents the system No. Fixed to 00 for all other

models.
(2) Numeral (0-7) Denotes the partition number .
(3) Character string Represents partition states.

POWER OFF Indicates DC OFF state.
STOPPED Indicates DC ON, No Failure, and Halt state.
HW INITIALIZING Means that the iSP is initializing the HW. BIOS is still not

booted.

SW INITIALIZING Means that the system is being initialized by BIOS.
OS BOOTING Means that the OS is being booted (HP-UX only).
RUNNING Means that control is passed to EFI after system

initialization by BIOS is complete.

FAULT Means that the system is in Halt state due to failure.
SHUT DOWN Means that the ISP is shutting down the HW.
NOT CONFIGURED Means “Not Configured.”

(4) 6 digit hex number Represents the latest chassis code sent from the BIOS

or OS.
(5) Character string Four-digit error code provided by BIOS.

It is cleared when the system is booted next time, or

with the CS command.
(6) Character string Warning or error message provided by the SP, shown in

the same format as Activity logs. For long messages,

their tail part will be omitted.

It is cleared when the system is booted next time, or

with the CS command.

855-900547-200 2-29

Base Module

2.4.5. SP Command Console

If SP Command is chosen from the iSP Main Menu, SP Command Console appears on the
console screen.

To return from SP Command Console to the Main Menu, enter “^B” (press the B key while
holding down CTRL).

Some SP commands are only valid on the master iSP.

(Screen Example)

iSP MAIN MENU

0) OS(BIOS) serial console of partition#0 (INITIALIZING )

1) OS(BIOS) serial console of partition#1 (RUNNING )

2) OS(BIOS) serial console of partition#2 (STOPPED )

3) OS(BIOS) serial console of partition#3 (FAULT )

4) OS(BIOS) serial console of partition#4 (POWER OFF )

5) OS(BIOS) serial console of partition#5 (RUNNING )

6) OS(BIOS) serial console of partition#6 (NOT CONFIGURED)

7) OS(BIOS) serial console of partition#7 (NOT CONFIGURED)
V) Virtual System Operator Panel
S) iSP commands
E) Exit

DISCONNECTALL) disconnect all console connections

iSPyz> S
:
:
:
:
:

<ENTER>

(a)

<CTRL>+<B>

(Description)

Description

No.

(a) SP Command Console appears if S is entered at this prom pt.
(b) You can enter SP commands and monitor SP messages until ^B is entered.
(c) CTRL+B quits SP Command Console. The screen returns to the Main Menu.

Description

Description

No.

(b)

(c)

855-900547-200 2-30

Base Module

2.4.5.1. SP Command Console Buffer

The output from SP Command Console may contain some critical information such as causes of
system status changes. Also when the iSP is running in LAN Console mode, it is not possible to
monitor the console output until LAN Console connection is established after the iSP boots up.
For these reasons, the iSP is provided with a buffering capability that buffers a certain amount
of messages that are output before SP Command Console connection is established.

The buffer has a size of approx. 1000 lines, capable to save the latest 1000 lines of output
messages.

The buffer contents can be listed with the “ML command.”

2.4.5.2. SP Command Prompt

When in SP Command mode, pressing the [ESC] key shows either of the following command
prompts.

Prompt

iSPyz:--->

2.4.5.3. SP Message Header

SP messages are, in general, output with the following headers attached to them.
No message headers are attached to interactive prompts or messages used in SP commands,

however.

Message Header Description

[iSPyz:INFO.ccccc] string Information message:

ccccc represents a message ID.

string represents the message body.
[iSPyz:WARN.ccccc] string Warning message
[iSPyz:ERRORccccc] string Error message

855-900547-200 2-31

Base Module

2.4.5.4. SP Command List

The following tables contain SP command lists by category:

System Control

CMD command name function

Shut down System power

DF

(override)

DN Shut down System power

DP System Dump

PC Power Cycle

RS Cold Reset System

UB Bring up BIOS

UP Bring up System

“m”: Commands can be executed only on the master iSP.

The iSP turns off the DC power of the
specified partition without notifying the
SW (OS) even if it is running.
If the specified partition is in S0 state,
the iSP only generates the SCI
(POWBTN). Otherwise, the iSP turns
off the DC power directly.
The iSP generates the INIT signal to
the specified partition. SW (OS) will
enter its dump routine.
The iSP turns off the DC power of the
specified partition without notifying the
SW (OS) even if it is running, turns on
the DC power, initializes HW and
hands off the control to the BIOS.
The iSP initializes the specified
partition without notifying the SW (OS)
even if it is running.
The iSP turns on the DC power of the
specified partition and initializes HW
and hands off the control to the BIOS.
The iSP turns on the DC power of the
specified partition and initializes HW
and hands off the control to the BIOS.
The BIOS will boot the Operating
System.

iSP

state

m

m

m

m

m

m

m

855-900547-200 2-32

Base Module

(Reference) System Status Transitions and System Control Commands

DN/DP
(only trigger)

DC OFF

UP/PC

DN/DF

DC ON

Not running

DF

PC

Ready

SW running

RS

UP/PC/RS

Figure 2-19 System Status Transitions and System Control Commands

Note) When the UB command is used for system boot, the system always halts at the

EFI Shell screen. Operation cannot therefore be continued if the system is started
and stopped using, for example, the automatic power control feature, or rebooted
following error detection. If the system halts at the EFI Shell screen, the OS
cannot boot. Be sure to use the UP command to boot the OS. When you use the
UB command for changing the EFI settings, shut down the system and then
reboot it with the UP command.

855-900547-200 2-33

Base Module

Configuration

CMD command name function

HC Hardware Configuration

Normal mode other commands

CMD command name function

DT SP Date and Time

EN Environmental Information

FV Firmware Version

HE Help Display the help information. m/b/u

ML Message Log Display the iSP’s message buffer. m/b/u

Settings

CMD command name function

SG SP/System Setting

SR

Save system CMOS/
NvRAM

Display and/or modify the hardware
configuration including the
configuration about partitioning.

Display the SP RTC (Real Time
Clock) and set it.
Display the environmental information
such as the power status and the
temperature sensors.
Display the iSP FW version and BIOS
version.

Set up the settings about the iSP,
system and partitions. Some settings
are only available in MNT mode.
Save and/or restore the system
CMOS/NvRAM.

iSP

state

m

iSP

state

m/b/u

m

m/b/u

iSP

state

m/b/u

m

855-900547-200 2-34

Base Module

2.4.6. SP Command Reference

This section provides command reference describing the details of SP commands.
Command availability on the master iSP, backup iSP, and undetermined iSP is indicated on the

first page of each command.

(Legend)

m b u
X

m: Command validity on the master iSP. X denotes “valid.”
b: Command validity on the backup iSP. X denotes “valid.”
u: Command validity on the undefined iSP. X denotes “valid.”

The example above indicates that the commands are valid only if the iSP is assigned as the
master.

The SP commands and subcommands are not case-sensitive. For this reason, case-sensitive
data such as accounts and passwords is clearly indicated.

If the backup iSP card is configured (duplicated iSP configuration), the iSP command can also
be operated on the backup iSP.

[Note]

* When the following list (a list of codes indicating the system configuration) is included in the

command description, this system corresponds to 32Way:

• 8Way

• 32Way

• ISPF

If the above indication is omitted, this description is common across the system.

855-900547-200 2-35

Base Module

2.4.6.1. DF (Shut down System Power <override>)

m b u
X

* The command is executable to the active partition (after automatic system boot/UP

command execution).

Function:

This command is used to shut down the system DC power.
It shuts down the system power overriding the current OS or BIOS state, notifying nothing to

them. (It is equivalent to a Power button override on systems having a physical Power button.)

(Screen Example)

iSPyz:---> df
CAUTION: System power will be turned off without any notice to the softwares
even if they are running.

Enter partition number (0-7/all/CR=exit) : all
Execute OK? (y/[n]) y
DF command was accepted. System power of all partitions will be turned off
soon.

mm/dd/yyyy HH:MM:SS 0------- System shutdown started. (SPFW:Rxx.xx)
:
*************************************************
* Waiting 2 minutes for cooling components. *
* DC power is still active. *
*************************************************
* DO NOT turn off AC power. *
*************************************************
mm/dd/yyyy HH:MM:SS 0------- System shutdown completed. (SPFW:Rxx.xx)
[iSP0m:INFO.2042]
************************************************
* All DC power has been turned off. *
* You can turn off AC power. *
************************************************

<ENTER>

<ENTER>

Description

No.

<ENTER>

(a)
(b)

(c)

(d)

(e)

(f)

855-900547-200 2-36

Base Module

(Description)

Description

No.

Enter the target partition number at this prompt.

(a)

(b)
(c)

(d) Shows background command execution in progress.
(e)

(f)

If “all” is specified, all the existing partitions are the target of this command.
The partition numbers that can be specified depend on models.
A confirmatio n messa ge appears.
If you are sure to continue command execution, enter “y.”
A “DF command accepted” message appears.
Actual processing will progress in the background.

The message here indicates that you have to wait for 2 minutes for the system
to cool off before the Power Bay is shut down.
It won’t appear if there are active partitions somewhere.
The message here indicates that the DC power in the Power Bay is shut down
and you are ready to shut off the system AC power.
It won’t appear if there are active partitions somewhere.

Description

855-900547-200 2-37

Base Module

2.4.6.2. DN (Shut down System Power)

m b u
X

* The command is executable to the active partition (after automatic system boot/UP

command execution).

Function:

This command is used to shut down the system DC power.
It shuts down the system DC power only if the software is not running (not in S0 state).
If the system software (OS or BIOS) is running (S0 state), this command only reports a Power

Button interrupt to the software. The interrupt service depends on the software (the software
may ignore the interrupt or perform a shut-down).

The software may not be able to service the power button interrupt due to stall or other cause
even if the iSP recognizes that the software is running. In this case use the DF command to
force a system power shut-down.

(Screen Example)

iSPyz:---> dn
System power will be turned off if the software(OS) is NOT running.
Only power button interrupt will be generated if the software(OS) is running.
If you want to turned off the system power in any system state, use DF command.

Enter partition number (0-7/all/CR=exit) : 0
Execute OK? (y/[n]) y
DN command was accepted. System power of all partitions will be turned off
or power button interrupt will be generated soon.

[iSPyz:INFO.ccc] partition 0 : power button interrupt.
mm/dd/yyyy HH:MM:SS 0------- System shutdown started. (SPFW:Rxx.xx)
:
:
mm/dd/yyyy HH:MM:SS 0------- System shutdown completed. (SPFW:Rxx.xx)

<ENTER>

<ENTER>

<ENTER>

Description

No.

(a)
(b)

(c)

(d)

(Description)

Description

No.

(a)
(b)
(c)
(d)

Enter the target partition number here.
If “all” is specified, all the existing partitions are the target of this command.
A confirmatio n messa ge appears.
If you are sure to continue command execution, enter “y.”
A “DN command accepted” message appears.
Actual processing progresses in the background.
The same message as that shown in Section 1.5.2, “DN Command Screen
Example” appears.

Description

855-900547-200 2-38

Base Module

2.4.6.3. DP (System Dump)

m b u
X

* The command is executable to the active partition (after automatic system boot/UP

command execution).

Function:

This command causes a Dump interrupt to the system after a system dump is taken.
Whether a system dump is actually taken or not, or a system reset is subsequently activated or

not, depends on the system software (OS or BIOS). This command only causes a Dump
interrupt.

Nothing will happen, of course, if the software is not running.

(Screen Example)

iSPyz:---> dp
Dump button interrupt will be generated.

Enter partition number (0-7/all/CR=exit) : all
Execute OK? (y/[n]) y
DP command was accepted. Dump button interrupt will be generated soon.

[iSPyz:INFO.ccc] partition 0 : dump button interrupt.
[iSPyz:INFO.ccc] partition 1 : dump button interrupt.
:
:
:

<ENTER>

(Description)

Description

No.

(a)
(b)
(c)

(d) Shows progress in the background.

Enter the target partition number here.
If “all” is specified, all the existing partitions are the target of this command.
A confirmatio n messa ge appears.
If you are sure to continue command execution, enter “y.”
A “DP command accepted” message appears.
Actual processing progresses in the background.

<ENTER>

Description

No.

<ENTER>

Description

(a)
(b)

(c)

(d)

855-900547-200 2-39

Base Module

2.4.6.4. DT (SP Data and Time)

m b u
X X X

* Always valid without regard to the current system status.

Function:

This command is used to show iSP’s internal real-time clock.

(Screen Example … Normal Mode)

iSPyz:---> dt
current iSP RTC : 19:20:57,03/31/2005 +09:00
synchronized with NTP server (10.20.30.40)
DT command terminated.

(Description)

Description

No.

(a) This command shows the present time before quitting.

<ENTER>

Description

Description

No.

(a)

855-900547-200 2-40

Base Module

2.4.6.5. EN (Environmental Information)

m b u
X

* Always valid without regard to the current system status.

Function:

This command is used to list system environmental data including temperature sensor data,
FAN error, and so on.

Note that part of the environmental monitoring functions are not available to inactive
components.

The temperature sensor threshold shown in the following Screen Example may not reflect the
actual threshold.

(Screen Example)

iSPyz:---> en
select display mode? (i[nteractive per page]/a[ll]/CR=exit) : i

(32Way: For one or two AC power receiving systems)

---- Power Bay Units ------------------------------- 19:20:57,01/31/2005 ---­ state DPS0 DPS1 DPS2 DPS3 DPS4 DPS5
* MAIN POWBAY0 ON --- --- ALARM --­ * POWBAY1 ON --- --- NORESP --­ EXT POWBAY2 OFF --- --- --- --­ POWBAY3 OFF --- --- --- ---

-----------------------------------------------------------------------------

(8Way/ISPF: For one or two AC power receiving systems)

---- Power Bay Units ------------------------------- 19:20:57,01/31/2005 ---­ state DPS0 DPS1 DPS2 DPS3 DPS4 DPS5
* MAIN POWBAY0 ON --- --- ALARM --- --- --­ * EXT POWBAY1 ON --- NORESP ---

-----------------------------------------------------------------------------

ISPF does not have two AC power receiving systems.
(8Way/ISPF receiving 48 VDC)

---- Power Bay Units ------------------------------- 19:20:57,01/31/2005 ---­ state

EXT POWBAY1 ON

<ENTER>

<ENTER>

Description

No.

(a)

(b)

855-900547-200 2-41

Base Module

(32Way)

---- MAIN cabinet FANs ----------------------------- 19:20:57,01/31/2005 ---­ Location FR00 FR01 FR02 FR10 FR11 FR12
HIGH HIGH HIGH HIGH HIGH HIGH

Location FF00 FF01 FF02 FF11 FF12
ALARM HIGH HIGH HIGH HIGH

----------------------------------------------------------------------------­(8Way)

---- MAIN Chassis FANs ----------------------------- 19:20:57,01/31/2005 ---­ Location FR0 FF0
low low

----------------------------------------------------------------------------­(ISPF)

---- MAIN Chassis FANs ----------------------------- 19:20:57,01/31/2005 ---­ Location FR0 FR1 FF0
low low low

-----------------------------------------------------------------------------

Next page? (n[ext]/e[xit]/CR=next) :

(The numbers of CELL and XBX cards depend on 32Way/8Way and ISPF models.)

---- Power state of CELL cards and PROCs ----------- 19:20:57,01/31/2005 ---­ PROC state
state x0 x1 x2 x3
CELL0 ON ON ON OFF --­ CELL1 OFF --- --- --- --­ CELL2 ON ON ON OFF OFF
CELL3 OFF --- --- ON ON
CELL4 ON --- --- ON ON
CELL5 ON --- --- ON ON
CELL6 ON ON ON --- --­ CELL7 --- --- --- --- ---

(The following information will be missing for 8Way:)

---- XBX card power state -------------------------- 19:20:57,01/31/2005 ---­ state
XBX_C0 ON
* XBX_C1 ON
XBX_C2 OFF
XBX_C3 ---

-----------------------------------------------------------------------------

Previous/Next page? (p[revious]/n[ext]/e[xit]/CR=next) :

(The numbers of PCI Bays to be shown depend on 32Way/8Way and ISPF models.)

---- PCIBAY power state/FAN alarm ------------------ 19:20:57,01/31/2005 ---­ state FANs
COREM/HDDM PCIM
PCIBAY0(D) ON
PCIBAY1(D) --- --- --­ * PCIBAY2(D) ON ALARM
PCIBAY3(D) OFF
PCIBAY4(D) ON
PCIBAY5(D) ON
PCIBAY6(E) 未定
PCIBAY7(E) 未定

-----------------------------------------------------------------------------

<ENTER>

<ENTER>

(c)

(d)

(e)

(f)

855-900547-200 2-42

Base Module

Previous/Next page? (p[revious]/n[ext]/e[xit]/CR=next) :

(The total number of pages and page numbers depend on 32Way/8Way and ISPF models.)

---- Temperature (Celsius) [1/7] ------------------- 19:20:57,01/31/2005 ---­ current threshold comment
FAN IPMI ACPI S.D.
CELL0 46 - 55 57 65
PROC00 50 77/ 80 89 91 120
* PROC01 82 77/ 80 89 91 120 FAN High-speed
PROC02 24 77/ 80 89 91 120
PROC03 - - - - ­ CELL1 24 - 55 57 65
PROC10 - - - - ­ PROC11 - - - - ­ PROC12 24 77/ 80 89 91 120
PROC13 24 77/ 80 89 91 120

-----------------------------------------------------------------------------

Previous/Next page? (p[revious]/n[ext]/e[xit]/CR=next) :

---- Temperature (Celsius) [2/7] ------------------- 19:20:57,01/31/2005 ---­ current threshold comment
FAN IPMI ACPI S.D.
CELL2 46 - 55 57 65
PROC20 50 77/ 80 89 91 120
* PROC21 82 77/ 80 89 91 120 FAN High-speed
PROC22 24 77/ 80 89 91 120
PROC23 24 77/ 80 89 91 120
* CELL3 26 - 55 57 65
PROC30 27 77/ 80 89 91 120
PROC31 27 77/ 80 89 91 120
PROC32 27 77/ 80 89 91 120
PROC33 27 77/ 80 89 91 120

-----------------------------------------------------------------------------

Previous/Next page? (p[revious]/n[ext]/e[xit]/CR=next) :

---- Temperature (Celsius) [3/7] ------------------- 19:20:57,01/31/2005 ---­ current threshold comment
FAN IPMI ACPI S.D.
CELL4 46 - 55 57 65
PROC40 50 77/ 80 89 91 120
* PROC41 82 77/ 80 89 91 120 FAN High-speed
PROC42 - - - - -
PROC43 - - - - -
* CELL5 52 - 55 57 65
PROC50 - - - - -
PROC51 - - - - -
PROC52 70 77/ 80 89 91 120
* PROC53 103 77/ 80 89 91 120 reported to the software

-----------------------------------------------------------------------------

Previous/Next page? (p[revious]/n[ext]/e[xit]/CR=next) :

<ENTER>

<ENTER>

<ENTER>

<ENTER>

(g)

(g)

(g)

855-900547-200 2-43

Base Module

---- Temperature (Celsius) [4/7] ------------------- 19:20:57,01/31/2005 ---­ current threshold comment
FAN IPMI ACPI S.D.
CELL6 46 - 55 57 65
PROC60 50 77/ 80 89 91 120
* PROC61 82 77/ 80 89 91 120 FAN High-speed
PROC62 - - - - -
PROC63 - - - - -
CELL7 - - - - -
PROC70 - - - - -
PROC71 - - - - -
PROC72 - - - - -
PROC73 - - - - -

-----------------------------------------------------------------------------

Previous/Next page? (p[revious]/n[ext]/e[xit]/CR=next) :

(The numbers of XBX and Cx cards are changed on 32Way/8Way and ISPF.)

---- Temperature (Celsius) [5/7] ------------------- 19:20:57,01/31/2005 ---­ current threshold comment
FAN IPMI ACPI S.D.
XBX_C0 52 - 55 57 65
* XBX_C1 61 - 55 57 65 reported to the software
XBX_C2 24 - 55 57 65
XBX_C3 - - - - -

FAN WARN S.D.
* AIR FLOW IN 23 23/ 25 37 40 FAN High-speed

-----------------------------------------------------------------------------

Previous/Next page? (p[revious]/n[ext]/e[xit]/CR=next) :

(The numbers of PCI Bay cards are changed on 32Way/8Way and ISPF.)

---- Temperature (Celsius) [6/7] ------------------- 19:20:57,01/31/2005 ---­ current threshold comment
PCI- FAN IPMI ACPI S.D.
BAY0(D) A 45 - 55 57 65

-B 45 - 55 57 65
IOX_C 52 - 55 57 65
BAY1(D) -A - - - - -

-B - - - - -
IOX_C - - - - -
BAY2(D) -A 45 - 55 57 65

-B 45 - 55 57 65
IOX_C 63 - 55 57 65 reported to the software
BAY3(D) -A 45 - 55 57 65

-B 45 - 55 57 65
IOX_C 52 - 55 57 65

----------------------------------------------------------------------------­Previous/Next page? (p[revious]/n[ext]/e[xit]/CR=next) :

<ENTER>

<ENTER>

<ENTER>

(g)

(g)

(g)

855-900547-200 2-44

Base Module

(The numbers of PCI Bay cards are changed on 32Way/8Way and ISPF.)

---- Temperature (Celsius) [7/7] ------------------- 19:20:57,01/31/2005 ---­ current threshold comment
PCI- FAN IPMI ACPI S.D.
BAY4(D) -A 45 - 55 57 65

-B 45 - 55 57 65
IOX_C 52 - 55 57 65
BAY5(D) -A * - 55 57 65

-B 45 - 55 57 65
IOX_C 52 - 55 57 65
BAY6(E) -A 45 - 55 57 65 (tentative)

-B 45 - 55 57 65 (tentative)
IOX_C 52 - 55 57 65 (tentative)
BAY7(E) -A 45 - 55 57 65 (tentative)

-B 45 - 55 57 65 (tentative)
IOX_C 52 - 55 57 65 (tentative)

-----------------------------------------------------------------------------

Previous page? (p[revious]/e[xit]/CR=back) :
select display mode? (i[nteractive per page]/a[ll]/CR=exit) :
EN command terminated.

<ENTER>

<ENTER>

(g)

855-900547-200 2-45

Base Module

(Description)

Description

No.

(a)

(b)

(c)

(d) Press <ENTE R> to go to th e next page.
(e)

(f)

(g)

Allows to choose environmental data format s from page format of 24 lines each
or online format.
Indicates the states of the Power Bay within the cabinet.
If an alarm condition exists, this line is prefixed with an asterisk (*).
state
ON : A DC power (48V) is applied to the components inside the cabinets.
OFF : No DC power (48V) is applied to the components inside the cabinets.

--- : The Power Bay itself is not existent (not visible from the iSP).
DPSx
(blank) : Indicates the normal state.
ALARM : Indicates an alarm state.

--- : Indicates that the DPS is not existent (not visible from the iSP).
NORESP : Indicates that the DPS is existent but not visible from the iSP.
No DPS exists on a 48-VDC supply.
Shows the states of the fans located in the CPU cage or main chassis in the
Main Cabinet.
If an alarm condition exists, this line is prefixed with an asterisk (*).

--- : Indicates that no fan exist s.
ALARM : Indicates an alarm state.
low : Indicates that the fan is running at low speed.
HIGH : Indicates that the fan is running at high speed. “HIGH” will appear if

any cause of high-speed fan exists even when the system is in Halt.

Power On/Off state of the CELL and XBX Ca rds in the CPU cage or main chassis
within the Main Cabinet.
Power and fan states within the PCI Bay.
If a fan alarm exists, this line is prefixed with an asterisk (*)
PCI Bay types (D) and (E) are added for PCID Bay and PCIE Bay, respectively.
Temperature detected by the card’s temperature sensor is shown here. If a
temperature sensor failure exists, an asterisk (*) is shown in place of a
temperature readout.
If a temperature alarm exists, the pertinent line is prefixed with an asterisk (*)
The threshold information hardwire-coded in the iSPFW is also shown here.
“FAN” gives the tempe ratu re thresholds where fan speed is switched from low to
high and vice versa.
The values on the right side give the threshold to switch from low to high speed,
and those on the left side from high to low speed.
“IPMI” gives the threshold over which temperature information is reported to the
software through the IPMI interface.
“ACPI” gives the threshold over which temperature information is reported to the
software through the ACPI interface.
“S.D.” specifies the temperature threshold for the SPFW to force system shut
down. If AIR FLOW IN (intake temperature) reaches the S.D. theshold, all the
running partitions are forcibly shut down.
The WARN column on AIR FLOW IN (intake temperature) gives the threshold
rejecting to boot currently inactive partitions.

Description

855-900547-200 2-46

Base Module

2.4.6.6. FV (Firmware Versions)

m b u
X X X

* Always valid without regard to the current system status.

Function:

This command is used to show version information for the iSPFW and BIOS.
This command also provides checksum test on the FW storage areas.
Note that, in a duplicated iSP environment, information is managed separately for each of the

duplicated iSPs.
Also the display information may slightly change from one SPFW version to another.

(Screen Example)

iSPyz:---> fv
Firmware Versions : (currently running firmware is Rxx.xx)
iSP BOOT (*) : xx.xx generated on mm/dd/yyyy hh:mm:ss
iSP FW bank (*) : xx.xx generated on mm/dd/yyyy hh:mm:ss
BIOS bank0 (012 ) : xx.xx generated on mm/dd/yyyy hh:mm:ss

BIOS bank1 ( 345 ) : xx.xx generated on mm/dd/yyyy hh:mm:ss
BIOS bank2 ( 67) : xx.xx generated on mm/dd/yyyy hh:mm:ss

Do you want to check the flash memory? (y/[n]) : y
checking iSP BOOT bank...
passed.
checking iSP FW bank...
passed.
checking BIOS bank0...
passed.
checking BIOS bank1...
passed.
checking BIOS bank2...
passed.
FV command terminated.

<ENTER>

<ENTER>

(Description)

Description

No.

(a) Lists the current states of the FW storage areas.
(b) If a checksum test on the FW storage area is needed, enter “y.”
(c) Lists the results of che cksum test.

Description

Description

No.

(a)

(b)

(c)

855-900547-200 2-47

Base Module

2.4.6.7. HC (Hardware Configuration)

m b u
X

* For system states and subcommand validity, read the description of subcommands.

Function:

This command is used to show the hardware configuration and enable to change it.
It is also used to configure, show, or change partitions.
In a duplicated iSP environment, the hardware configuration is automatically matched between

the duplicated iSPs.

Description of Subcommands

cmd arg1 arg2 arg3 arg4 Description

help - - - - Show a list of subcommands.

This subcommand is always valid without

regard to the current system state.
quit
exit

disp

- - - - Quit the HC command.
Before the HC command quits, the check
subcommand is automatically run.
These subcommands are always valid
without regard to the current system state.

- - - - Show the system’s hardware configuration.
If no argument is specified or has an error ,
the disp subcommand help opens.
This subcommand is always valid without
regard to the current system state.

all - - - Argument “all” shows all the configuration

information.

part - - - Show the current partitioning.

The following information is given for each
partition:
State summary
Physical CELL No. and logical CELL No.
Physical IOX No. and logical IOX No.
Size of shared memory (ISPF only)

main - - - Show the Main Cabinet or Main Chassis

configuration.
For the 8Way/ISPF model, the configurations
of external PCI Bay and Power Bay are also
shown.

exp - - - Valid only for the 32Way model.

Use this argument to show the expansion
cabinet configuration.

cellx - - - Show the CELL configuration.

X denotes a physical CELL number (0-7).

855-900547-200 2-48

Base Module

cmd arg1 arg2 arg3 arg4 Description

attach - - - - Use this command to attach partition

mmxxy - - - Show the detailed configuration of the ROW

under the MMX specified by xy, and in the
case of the 32Way(H) model, show detailed
configuration of the DIR.
x is the physical CELL number where the
MMX is installed (0-7).
y is the MMX number within the CELL (0-3).

tagxs - - - Show the detailed configuration of the TAG

for the 32Way(B)/8Way/ISPF models. This
argument is invalid for the 32Way(H) model.
x is the physical CELL number where the
TAG is installed (0-7).
s is either ’e’ (EVEN side) or ’o’ (ODD si de).

xbxcx - - - Show the XBX Card configuration and XBX

LSI configuration on that card.
x is a physical XBX Card number (0-3).

xbxxy - - - Show the XBX configuration.

x is an XBX Card number (0-3).
y specifies an XBX number on the XBX Card

(0-1).
pcibx
ioxx

pcix - - - Show the configurations and information of

cpcix - - - Show the configurations and information of

pbayx - - - Show the Power Bay configuration.

- - - Show the PCI Bay (IOX) configuration.
x is the DGI/I2C cable port number (0-7) that
connects iSP to PCI Bay.

the PCI Cards that are under the PXH within
the PCI Bay.
x is the DGI/I2C cable port number (0-7) that
connects iSP to PCI Bay.

the PCI Cards on the Core Card within the
PCI Bay.
x is the DGI/I2C cable port number (0-7) that
connects iSP to PCI Bay.

x is a Power Bay number. The allowable
range of x is as follows:
For 32Way:
0, 1: Power Bay numbers within the Main

Cabinet

2, 3: Power Bay numbers within the

Expansion Cabinet

For 8Way:

0: Power Bay No. inside the chassis
1: Power Bay No. outside the chassis

For ISPF:

0: Power Bay No. inside the chassis

numbers to CELL or IOX Cards.
If no argument is specified or an argument
has an error, the attach command help
opens.
This command is not valid while the partition
is booting up, shutting down, or handling an
error.

855-900547-200 2-49

Base Module

cmd arg1 arg2 arg3 arg4 Description

detach

cellx

ioxx

- - - - Use this command to detach partition

cellx - - - Detach the CELL Card with physical CELL

ioxx - - - Detach the IOX Card with physical IOX

partx - - - Detach all the CELL and IOX Cards from the

n m

n m

- Attach the CELL Card having physical CELL
number x to partition number n, using logical
CELL number m (which is visible to the
software or BIOS).
This command may also be used to change
a logical CELL number for an already
attached CELL.
A logical CEL L number must be unique to
every 8 CELL Cards.
The logical CELL number of an online CELL
Card is unable to be altered.

[p|s] Attach the IOX Card having physical IOX

number x to partition number n, using logical
IOX number m (which is visible to the
software or BIOS).
Specify p for arg4 if the PCI Bay with BIO is
to use that BIO. Specify s for arg4 if the PCI
Bay having duplicated BIOs is to use the
secondary BIO.
This command may also be used to change
a logical IOX number for an already attached
IOX.
A logical IOX numb er must be unique within
a partition.
The logical IOX number of an online IOX
Card cannot be altered.

numbers from CELL or IOX Cards.
If no argument is specified or an argument
has an error, the detach command help
opens.
Online components are unable to be
detached.
It is not allowed to detach components either
when the partition is booting up, shutting
down, or handing an error.

number x from the partition to which it is
currently attached.

number x from the partition to which it is
currently attached.

partitions to which they are currently
attached.
x: Partition number

855-900547-200 2-50

cmd arg1 arg2 arg3 arg4 Description

swap

smem

cmem

- - - -

cellx celly - - Swap a running CELL having physical CELL

- - - - This command is only supported on the ISPF

n mmm

- - - - This command is only supported on the

n mmm

- - Set the shared memory size for the partition

- - Set the memory size for inter-CELL

This command is currently not supported.

This command can be used to swap a CELL
with another CELL while the software is
running (it is not a combination of
attach/detach commands, but provides a
function exclusive to this command).
If no argument is specified or an argument
has an error, the swap command help opens.
While this command is valid to running
partitions, it is only functional when it is used
with the OS that supports online
attach/detach capability.
This command is supported on the 32Way(B)
and 8Way models.

number x with another CELL having physical
CELL number y.
CELLy must be the one that is not attached
to any partition.
For CELL swapping, an invalid pa rtition is
needed to which no CELLs or IOXs belong.
When swapping is complete, CELLx is
detached from the partition, while CELLy is
attached to it.
Logical CELL number is transferred from
CELLx to CELLy.

model. It is not supported on any other
models.
Use this command to set the size of the
memory area shared by partitions.
If no argument is specified or an argument
has an error, the smem command help
opens.
This command is valid to partitions that are
not running.

with partition number n, in a GB increment.
It is not allowed to change the shared
memory size for active partitions.
No shared memory is used if 0 is specified.

32Way(B) model. It is not supported on any
other models.
Use this command to set the size of the
memory used for inter-CELL interleaving. If
no argument is specified or an argument has
an error, the cmem command help opens.
This command is valid to inactive partitions.

interleaving for partition number n, in a GB
increment.
No interleaving is used if 0 is specified.
Numbers that are not multiples of 16 GB will
be rounded to multiples of 16 GB.

Base Module

855-900547-200 2-51

Base Module

cmd arg1 arg2 arg3 arg4 Description

add

- - - - Use this command to manually inform the
iSP of an addition of components. iSP’s
management state will change from
“nonexist.” to “power-off.”
If no argument is specified or an argument
has an error, the add command help opens.
This command is always valid without regard
to the current system state (with the
exception of the PBAY, to which this
command is valid only if none of the
partitions is active).
This command is not valid to the CELL
Cards, XBX Cards, PCI Bay, or their
subcomponents if any of the partitions within
the system is booting up, shutting down, or
handling an error.

pbayx - - - Add Power Bays.

x is a Power Bay number. The allowable
value of x is as follows:
For 32Way:
0, 1: Power Bay No. in the Main Cabinet
2, 3: Power Bay No. in the Expansion

Cabinet

For 8Way:

0: Power Bay No. inside the chassis
1: Power Bay No. outside the chassis

For ISPF:

0: Power Bay No. inside the chassis

dpsxy - - - Add DPS’s to Power Bays.

The meaning of x is identical to that for
argument pbay.
y is a DPS No. within a Power Bay (0-5).

ispx - - - Add backup iSPs.

x is the physical number of an iSP (0 or 1).
Backup iSPs can only be added to the
32Way model.

clkx - - - Add CLK Cards.

x is the physical number of the CLK Card (0
or 1).
The CLK Card can only be added to the
32Way model.

xbxcx - - - Add XBX Cards.

x is an XBX Card number (0-3).
The SP will automatically recognize the
number of XBX LSI chips installed on the
XBX Card.

cellx - - - Add CELL Cards.

x is the physical number of the CELL Card
(0-7).

procxy - - - Add processors.

x is the physical number of the CELL Card
(0-7).
y is the location of the processor on the
CELL Card (0-3).

855-900547-200 2-52

Base Module

cmd arg1 arg2 arg3 arg4 Description

memdx - - - This command is only valid to the 32Way

model.
Use it to add MMX (2-3) and ROW to the
memory daughter card. The DIMM capacity
is automatically read when it is being
initialized.
x is the physical number of the CELL Card
(0-7).

pcibx d|e [core] - Add PCI Bays.

x is a DGI/I2C port number on the iSP side
(0-7).
Use arg2 to specify the type of the PCI Bay
(mandatory). Specify “d” for PCID-Bays, and
“e” for PCIE-Bays.
Specify “core” for arg3 if Core Cards (GXB)
are installed.
If the type of the PCI Bay (PCID/PCIE) or the
presence of the Core Card has been
changed, the SP will know that change from
the revision information for that PCI Bay.

delete

enable - - - - Use this command to enable the

- - - - Use this command to delete components
from iSP management. If physically removed
components are left under iSP management,
they will be handled as an “INVISIBLE” error
indefinitely.
If no argument is specified or an argument
has an error, the delete co mmand help
opens.
Components in DC-ON sta t e are unable to
be deleted (with the exception of the CLK
and DPS).
The CELL Card, XBX Card, PCI Bay, or their
subcomponents is unable to be deleted if
any of the partitions within the system is
booting up, shutting down, or handling an
error.

<arg1>

- - - <arg1> is identical to that for the add
command.

components that are currently “DISABLED.”
If no argument is specified or an argument
has an error, the enable command help
opens.
This command is valid only if the partition to
which the pertinent components belong is
not active.
The CELL Card, XBX Card, PCIX, and their
subcomponents can be enabled unless any
of the partitions within the system is booting
up, shutting down, or handling an error.
The Power Bay can be enabled only if none
of the partitions within the system is active.

855-900547-200 2-53

Base Module

cmd arg1 arg2 arg3 arg4 Description

pbayx - - - Enable the Power Bay.

x is a Power Bay number. The allowable
value of x is as follows:
For 32Way:
0, 1: Power Bay numbers within the Main

Cabinet

2, 3: Power Bay numbers within the

Expansion Cabinet
For 8Way:
0: Power Bay number inside the chassis
1: Power Bay number outside the chassis
For ISPF:
0: Power Bay number inside the chassis

clkx - - - Enable the CLK.

x is a CLK number (0 or 1).
The CLK is installed only in the 32W ay
model.

xbxcx [all] - - Enable the XBX Card.

x is an XBX Card number (0-3).
If arg2 is omitted, only the XBX Card is
enabled, with its subcomponents left
disabled.
If “all” is specified for arg2, XBX Card is
enabled including all of its subcomponents.

xbxxy [all] - - Enable the XBX LSI.

x is an XBX Card number (0-3).
y is an XBX LSI number (0-1) on an XBX

Card.
If arg2 is omitted, only the XBX Card is
enabled, with its subcomponents left
disabled.
If “all” is specified for arg2, the XBX Card is
enabled including all of its subcomponents.

cellx [all] - - Enable the CELL Card.

x is a physical CELL number (0-7).
If arg2 is omitted, only the CELL Card is
enabled, with its subcomponents left
disabled. In this case, console operation will
be rejected if essential components are
disabled.
If “all” is specified for arg2, the CELL Card is
enabled including all of its subcomponents.

cnxxy - - - Enable the CNX LSI.

x is a physical CELL number (0-7).
y is a CNX number (0-1) within a CELL.

CNX1 exists only in the 32Way(H) mode l.

procxy - - - Enable the Processor.

x is a physical CELL number (0-7).
y is a Processor number (0-3) within the

CELL.

mmxxy [all] - - Enable the MMX.

x is a physical CELL number (0-7).
y is an MMX number (0-3) within the CELL.

If arg2 is omitted, only the MMX is enabled,
with its subcomponents lef t disabled.
If “all” is specified for arg2, the MMX is
enabled including all of its subcomponents.

855-900547-200 2-54

cmd arg1 arg2 arg3 arg4 Description

rowxzz - - - Enable the ROW.

x is a physical CELL number (0-7).
zz is a ROW number (00-15), which must

always be specified with a 2-digit number.
For the 32Way(H) model, the corresponding
Directory memory is also enabled.
There is no individual DIMM control. The
DIMM is automatically detected on boot-up.

dirxzz - - - For the 32Way(H) model, use this argument

to enable the Directory memory and the
corresponding ROW memory.
This command is invalid to the
32Way/8Way/ISPF models.

x is a physical CELL number (0-7).
zz is a Directory number (00-15), which must

always be specified with a 2-digit number.
There is no individual DIMM control. The
DIMM is automatically detected on boot-up.

tagx[sy
z]

pcibx [all] - - Enable the PCI Bay.

ioxx

gxbxy - - - Enable the GXB on the Core IO Card.

cpcixy - - - Enable the slots (1-2) on the Core IO Card.

pxhxy - - - Enable the PXH.

pcix0y - - - Enable the slots (1-8) on the PXH.

- - - Enable the TAG for 32Way(B)/8Way/ISPF
models.

x is a physical CELL number (0-7).
s should be either ‘e’ (EVEN side) or ‘o’

(ODD side).

y is a TAG Bank number (0-1).
z is a TAG Bank level number (0-5).

If s, y, and z are all omitted, all the TAGs
under the CELL Card speci f ied by x are
enabled.

x is the DGI/I2C cable port number (0-7) that
connects iSP to PCI Bay.
Always specify “all” for arg2, so that all the
subcomponents including the PCI Bay itself
are enabled.

[all] - - Enable the IOX.

x is a physical IOX number (0-7).
If arg2 is omitted, only the IOX is enabled,
with its subcomponents lef t disabled.
If “all” is specified for arg2, the IOX Card is
enabled including all of its subcomponents.

iocy - - Enable the IOC.

y is an IOC number (0 or 1) within an IOX.
x is the DGI/I2C cable port number (0-7) that

connects iSP to PCI Bay.

y is a GXB number (0).
x is a PCI Bay number (0-7).

y is a slot number (1-2).
x is the DGI/I2C cable port number (0-7) that

connects iSP to PCI Bay.

y is a PXH number (0-3).
x is a PCI Bay number (0-7).

y is a slot number (1-8).

Base Module

855-900547-200 2-55

Base Module

cmd arg1 arg2 arg3 arg4 Description

disable

online

- - - - Use this command to manually “DISABLE”
the components that are currently enabled.
If no argument is specified or an argument
has an error, the disa ble command help
opens.
Online components are unable to be
disabled.
It is not allowed to disable the CELL Card,
XBX Card, PCI Bay, and their
subcomponents when any of the partitions
within the system is booting up, shutting
down, or handling an error.

<arg1> <arg2>

- - - -

cellx - - - Connect CELL Cards to the partition to which

xbxcx - - - Connect XBX Cards to the system.

xbxc0 portx Connect inter-XBX external interface ports to

- - <arg1> and <arg2> are the same as those
for the enable command.
Argument “all” is not allowed for this
command.

This command is currently not supported.

This command can be used to dynamically
connect currently offline components (CELL,
XBX Card, and PCI Bay) to the system while
the OS is running. It remains invalid while
any of the partitions within the system is
booting up, shutting down, or handling an
error.
The CELL and PCI Bay are functional only if
they are used in online conjunction with the
OS that supports this command function.
If no argument is specified or an argument
has an error, the online command help
opens.
This command is supported on the
32Way(B), 8Way, an d ISPF models. It is not
supported on the 32Way(H) model.

they belong.
A vacant p artition to which no CELL or IOX
belongs is needed.
This command is supported on the 32Way(B)
and 8Way models.

On the 32Way(B) model, XBX Cards need
be connected to the system in pairs: i.e. XBX
Cards 0 and 2 or 1 and 3. A single XBX Card
alone is not accepted.
The XBX Card is not connectable to the
8Way model.

the system, to which cabinets are connected.
x: XBX port number (4-5)
This command is supported on the ISPF
system. It is valid when the operating
systems are running (ACPI S0 State) on both
systems.

855-900547-200 2-56

Base Module

cmd arg1 arg2 arg3 arg4 Description

pcibx - - - Connect PCI Bays to the partitions to which

they belong.
x: Physical PCI Bay number (0-7)
This command is supported on the 32Way(B)
model.

offline

led - - - - Use this command to turn on/off the LEDs

- - - -

cellx - - - Disconnect the CELL Cards from the system

xbxcx - - - Disconnect the XBX Cards from the system.

xbxc0 portx Disconnect the inter-XBX external interface

pcibx - - - Disconnect the PCI Bay from the system and

This command is currently not supported.

This command can be used to dynamically
disconnect currently online components
(CELL, XBX Card, and PCI Bay) from the
system while the OS is running.
If this command attempts to disrupt the
current system operation, it will be rejected.
This command remains invalid while any of
the partitions within the system is booting up,
shutting down, or handling an error.
The CELL and PCI Bay are functional only if
they are used in conjunction with the OS that
supports this command.
If no argument is specified or an argument
has an error, the offline command help
opens.
This command is supported on the
32Way(B), 8Way, an d ISPF models. It is not
supported on the 32Way(H) model.

and shut off their power. The CELL that
controls the Compatibility PCI is unable to be
disconnected.
The ISPF is not the target of this command.

On the 32Way(B) model, they must always
be disconnected in pairs: i.e. XBX Cards 0
and 2 or 1 and 3. It is not allowed to
disconnect a single XBX Card alone.
The XBX Cards are unable to be
disconnected on the 8Way model.

that connects cabinets.
x: XBX port number (4-5)
This command is supported on the ISPF
System on which the OS is running (ACPI S0
State).

shut off its power. It is not allowed to
disconnect the PCI Bay that contains the
Compatibility PCI.
This command is supported on the 32Way(B)
model.

used for device location checkout.
If no argument is specified or an argument
has an error, the led command help opens.
This command is always valid to the CLK,
XBX, and CELL Cards along with the PCI
Bay regardless of the current system state.
It is valid to the PCI slot only if the host GXB
or PXH is online.

855-900547-200 2-57

Base Module

cmd arg1 arg2 arg3 arg4 Description

clkx on|off - - Turn On/Off the LED on the CLK Card.

x is a CLK Card number (0-1).

xbxcx on|off - - Turn On/Off the LED on the XBX Card.

x is a XBX Card number (0-3).

cellx on|off - - Turn On/Off the LED on the CELL Card.

x is a physical CELL number (0-7).

pcibx on|off - - Turn On/Off the LED on the PCI Bay.

x is a PCI Bay number (0-7).

pcix0y on|off - - Turn On/Off the LEDs on the PCI Bay’s PXH

PCI slots by specifying the slot numbers
printed on the back of the box.

x is a PCI Bay number (0-7).
y is a slot number (PXH slot number (1-8)

printed on the back of the box).

frn

ffn

loc

pbayx

- - - - This command is supported on the 8Way

main

on|off - - Turn On/Off the Fan-Box LEDs by specifying

their locations.
Argument frn specifies the rear-side
Fan-Box, and ffn the front-side Fan-Box.

and ISPF models.
Use this command to manually specify
devices’ location information.
If no argument is specified or an argument
has an error, the loc command help opens.
This command is valid only if all the
partitions are inactive.

d

d h

This command is supported on the 8Way

and ISPF models.
It sets the vertical position of the main
chassis within the cabinet.
Argument d specifies the position (U) of the
bottom of the main chassis with a decimal
number (0-40).
The default value is null (0).

- Set the vertical position and height of Power
Bay No.1 that is installed outside the main
chassis of the 8Way mod el.
x is only valid if it specifies Power Bay No.1.
Argument d specifies the position (U) of the
bottom of the unit with a decimal number
(0-40).
Argument h specifies the height of the unit
(2).
This command is not supported on the
32Way, ISPF, or Power Bay No. 0 for the
8Way model as the Power Bay position and
height are uniquely determined on those
models.

855-900547-200 2-58

Base Module

cmd arg1 arg2 arg3 arg4 Description

check - - - - This command is used to check the current

system configuration focusing on the
following points:

• Presence of units with unspecified

locations

• Presence of DISABLED components

• Presence of INVISIBLE units

This command is always valid without regard
to the current system state.
The “DISABLE.” components are not the
target of this command.

clear rowxyy

|
dirxzz

- - - Use this command to clear the ROW or
Directory memory bit error counters.

x is a physical CELL number (0-7).
yy is a ROW number (00-15) within a CELL,

which must be specified with a 2-digit
number.
zz is a Directory number (00-15) within a
CELL, which must be specified with a 2-digit
number.
This command clears the 3 counters - the
single-bit error counter that counts errors for
every DIMM and the multibit error counter
that counts errors for every ROW - at a time,
along with the page deallocation entry table.
Argument dirxzz is only supported on the
32Way(H) model.
This command is always valid without regard
to the current system state.

bio ioxy [ioxz] - - Use this command to specify the BIO to be

used on the IOX (PCI Bay) that is attached to
a partition.
For partitions with duplicated BIOs, use
<arg2> to specify the IOX (PCI Bay) with a
secondary BIO. If <arg2> is omitted, the
secondary BIO is regarded to be
non-existent.
The IOX (PCI Bay) specified in this
command must be attached to a partition.
This command is valid only if the partition is
inactive.
It is not supported on the ISPF.

scsi_sp
lit

pcibx on|off - - Use this command to specify the SCSI split

mode (split mode ON or OFF) for PCI Bay
No. x.
Split mode is set to OFF by default.
Split mode setting can be changed when the
partition to which the pertinent PCI Bay
belongs is inactive or the power to the PCI
Bay is left off. Split mode setting cannot be
changed while the partition is booting up or
shutting down.

855-900547-200 2-59

Base Module

Description of Status Indicator Strings

Indicator

nonexist. Indicates that a resource is defined to be non-existent (the iSP does not
INVISIBLE The iSP assumes that the resource “should” be existent, but actually the

power-off Indicates that the DC power is Off.

power-ON Indicates that the DC power is On.

offline Indicates that the component’s DC power is On but it is not connected to the
ONLINE Indicates that the component’s DC power is On and it is connected to the
MASTER This indicator is only valid for iSP/CLK status display. It indicates that the

backup This indicator is only valid for iSP/CLK status display. It indicates that the

enable Indicates that the component itself is valid (used for system operation).
enable- Indicates that the component itself is valid but is reserved by software, etc. so

enable* Indicates that the component is invalid on a next shut-down due to
DISABLE Indicates that the component itself is invalid (not used for system operation).
DISABLE* Indicates that the component itself is invalid (not used for system operation).

DISABLE& Indicates that the component itself is made invalid by a software request, and
DISABLE+ Indicates that the component itself is made invalid by a software request, and
DISABLE．

not used Indicates an unused subcomponent.
DEG Indicates that there are one or more subcomponents that are in DISABLE or

RUN Indicates that the partition (BIOS) is already booted.
INIT Indicates that the partition is being booted.
FAIL Indicates that the partition is in a fatal fault.
SHUT Indicates that the partition is being shut down.
DIAG Indicates that the partition is running an auxiliary CELL diagnosis.
P-ON Indicates that the partition is powered On for expanded diagnosis.
stop Indicates that the partition is inactive (DC power off).

string

Description

assume that it “should” be existent).
resource is not visible to the iSP due to a failure or removal of a card.

Once a resource is visible to the iSP (whether it is automatically detected or
manually configured), it is subsequently assumed to be “existent” unless it is
explicitly deleted with the delete command.

On some components, the DC power is activated immediately when the AC
power is applied.

On some components, this indicator may be overwritten with any of the
following indicators.

system as viewed from the software (OS or BIOS).
system as viewed from the software (OS or BIOS).
component is assigned as the master.

When the CLK is assigned as the master, it means that it supplies the CELL
and XBX Cards with the clocks.

component is assigned as backup.
The CLK, if assigned as backup, is supplying the CELL or XBX Cards with no
clocks. The backup indicator is active when the system is in Halt mode.

it will not be used for system operation on a next boot.
component’s own failure.
The component is manually disconnected with the disable command.
The component is disconnected due to component’s own failure.

It should not be connected to the system until the failure is serviced.
is to stay invalid on a next boot.
is reversed to become valid on a next boot.

Indicates that the component is invalid because it cannot be made valid due to
its upper-level components or system co nfiguration restrictions, but is reserved
to be made valid on a next boot.

DISABLE. state.

855-900547-200 2-60

Base Module

(Screen Example … Help Screen)

iSPyz:---> hc

<ENTER>

iSP FW version is Rxx.xx.

HC> help

<ENTER>

HC command help :

help : print this message.
disp : display current status.
smem : set size of shared memory of a partition.
attach : attach CELLs and IOXs to a partition.
detach : detach CELLs and IOXs from a partition.
swap : swap CELLs in a partition.
add : add a component.
delete : delete a component.
enable : enable a component.
disable : disable a component.
online : make a component online.
offline : make a component offline.
led : turn on/off maintenance LED of a component.
loc : set location info.
clear : clear memory bit error counters.
check : check illegal configuration.
bio : add and set a bio to a pcibay.
scsi_split : set/reset split mode of SCIS on PCIBAY
quit : quit from HC command prompt.

Description

No.

(a)

(b)

(Description)

Description

No.

(a) If “help” is entered, the HC command help opens.
(b) An HC command list appears.

Description

(Screen Example … ALL Screen)

iSPyz:---> hc
iSP FW version is Rxx.xx.

HC> disp all

(32Way) The CIMB-CELL interleave memory size is only shown for the 32Way(B) model.
When operating in inter-CELL interleave mode, an asterisk “*” appears.

==== Partitioning ==================================== 19:20:23,07/31/2005 ===
part0(RUN ) CELL:01-----7 (01-----2) IOX:0-----67 (0-----12) CIMB: 32GB*
part1(INIT) CELL:--2----- (--5-----) IOX:-1------ (-0------) CIMB:128GB
part2(stop) CELL:---3---- (---4----) IOX:--2----- (--0-----) CIMB:----­ part3(stop) CELL:------6- (------3-) IOX:---3---- (---0----) CIMB:----­ part4(----) CELL:-------- (--------) IOX:-------- (--------) CIMB:----­ part5(----) CELL:-------- (--------) IOX:-------- (--------) CIMB:----­ part6(----) CELL:-------- (--------) IOX:-------- (--------) CIMB:-----

<ENTER>

<ENTER>

Description

No.

(a)

855-900547-200 2-61

Base Module

part7(----) CELL:-------- (--------) IOX:-------- (--------) CIMB:----­==============================================================================

(8Way)
==== Partitioning ==================================== 19:20:23,07/31/2005 ===
part0(RUN ) CELL:01 (01) IOX:0- (0-)
part1(INIT) CELL:-- (--) IOX:-1 (-0)
==============================================================================

(ISPF)
==== Partitioning ==================================== 19:20:23,07/31/2005 ===
part0(RUN ) CELL:01 (01) IOX:0- (0-) SM: 4096MB
part1(INIT) CELL:-- (--) IOX:-1 (-0) SM: -------­==============================================================================

The SM size is shown for the ISPF.

(32Way)
==== Main cabinet ==================================== 19:20:23,07/31/2005 ===
POWBAY0 (loc=M-00/03) power-ON enable DEG
POWBAY1 (loc=M-03/03) power-ON enable DEG

---- CPU/Memory sub-chassis (loc=M-14/23) ------------ 19:20:23,07/31/2005 --­ iSP0 (loc=M-14/23) MASTER ------- --­ iSP1 (loc=M-14/23) backup ------- --­ CLK0 (loc=M-14/23) MASTER enable --­ CLK1 (loc=M-14/23) backup DISABLE* --­ XBX_C0(loc=M-14/23) offline enable
XBX_C1(loc=M-14/23) power-off DISABLE
XBX_C2(loc=M-14/23) ONLINE enable
XBX_C3(loc=M-14/23) ONLINE enable
CELL0 (loc=M-14/23) ONLINE enable DEG part.0 (LCN=0)
CELL1 (loc=M-14/23) power-off DISABLE DEG part.0 (LCN=1)
CELL2 (loc=M-14/23) ONLINE enable part.1 (LCN=5)
CELL3 (loc=M-14/23) power-off enable part.2 (LCN=4)
CELL4 (loc=M-14/23) nonexist. ------­ CELL5 (loc=M-14/23) nonexist. ------­ CELL6 (loc=M-14/23) power-off DISABLE* part.3 (LCN=3)
CELL7 (loc=M-14/23) INVISIBLE ------- part.0 (LCN=2)

---- PCIBAYs (Main) ---------------------------------- 19:20:23,07/31/2005 --­ PCIBAY0(D) (loc=M-06/04) ONLINE enable DEG part.0 (LIN=2,-,S) *1
PCIBAY1(D) (loc=M-06/04) ONLINE enable part.1 (LIN=0,-,N) *1
PCIBAY2(D) (loc=M-16/04) ONLINE enable part.1 (LIN=1,P,N) *1
PCIBAY3(D) (loc=M-10/04) power-off enable part.2 (LIN=0,-,S) *1
==== End of Main cabinet =====================================================

==== Expansion cabinet =============================== 19:20:23,07/31/2005 ===
POWBAY2 (loc=E-00/03) power-ON enable
POWBAY3 (loc=E-03/03) power-ON enable

---- PCIBAYs (Expansion) ------------------------------ 19:20:23,07/31/2005 --­ PCIBAY4(D) (loc=E-06/04) power-off enable part.0 (LIN=0,-,N) *1
PCIBAY5(D) (loc=E-06/04) power-off enable part.0 (LIN=0,-,N) *1

PCIBAY6(D) (loc=E-10/04) power-off DISABLE DEG part.0 (LIN=0,-,N) *1
PCIBAY7(D) (loc=E-10/04) ONLINE enable DEG part.0 (LIN=1,-,N) *1
==== End of Expansion cabinet =================================================

(b)

(c)

(d)

(e)

855-900547-200 2-62

(8Way)
==== Summary (loc=M-00/08) =========================== 19:20:23,07/31/2005 ===
POWBAY0 (loc=M-00/08) power-ON enable

iSP0 (loc=M-00/08) MASTER ------- --­ CELL0 (loc=M-00/08) ONLINE enable part.0 (LCN=0)
CELL1 (loc=M-00/08) power-off DISABLE DEG part.0 (LCN=1)

PCIBAY0(D) (loc=M-00/08) ONLINE enable part.0 (LIN=0,P,N) *1

PCIBAY1(D) (loc=M-00/08) ONLINE enable part.0 (LIN=0,S,N) *1
==== End of Summary ==========================================================
(ISPF)
==== Summary (loc=M-00/10) =========================== 19:20:23,07/31/2005 ===
POWBAY0 (loc=M-00/10) power-ON enable

iSP0 (loc=M-00/10) MASTER ------- --­ XBX_C0(loc=M-00/10) power-off enable DEG
CELL0 (loc=M-00/10) ONLINE enable part.0 (LCN=0)
CELL1 (loc=M-00/10) power-off DISABLE DEG part.0 (LCN=1)

PCIBAY0(D) (loc=M-00/10) ONLINE enable part.0 (LIN=0,P,N) *1

PCIBAY1(D) (loc=M-00/10) ONLINE enable part.0 (LIN=0,-.N) *1
==== End of Summary ==========================================================

*1 (LIN=x,y,z):
x: Logical IOX number
y: “P” for Primary BIO configuration, and “S” for Secondary BIO configuration
z: “S” if SCSI SPLIT Mode is selected, and “N” if it is deselected.

(For 32Way(H))

---- CELL0 ------------------------------------------- 19:20:23,07/31/2005 --­ CELL0 (loc=M-14/23) ONLINE enable DEG part.0 (LCN=2)
CNX00 ONLINE DISABLE --­ PROC00 offline DISABLE --­ PROC01 ONLINE enable --­ CXI port0 ONLINE enable --- --->XBX00 CXI_P0
CXI port2 offline DISABLE --- --->XBX00 CXI_P1
CNX01 ONLINE DISABLE --­ PROC02 offline DISABLE* --­ PROC03 nonexist.
CXI port0 offline DISABLE --- --->XBX10 CXI_P0
CXI port2 offline DISABLE --- --->XBX10 CXI_P1
MMX00 ONLINE enable DEG
MMX01 offline enable DEG
MMX02 offline enable DEG
MMX03 offline enable DEG

Base Module

(b)

(b)

(f)

855-900547-200 2-63

Base Module

(For 32Way(B))

---- CELL0 ------------------------------------------- 19:20:23,07/31/2005 --­ CELL0 (loc=M-14/23) ONLINE enable DEG part.0 (LCN=2)
CNX00 ONLINE DISABLE --­ PROC00 offline DISABLE --­ PROC01 ONLINE enable --­ PROC02 offline DISABLE* --­ PROC03 nonexist.
TAG0_e0 --------- -------- DEG
TAG0_e1 --------- -------- DEG
TAG0_o0 --------- -------- DEG
TAG0_o1 --------- -------- DEG
CXI port0 ONLINE enable --- --->XBX00 CXI_P0
CXI port1 offline DISABLE --- --->XBX01 CXI_P0
CXI port2 offline DISABLE --- --->XBX10 CXI_P0
CXI port3 offline DISABLE --- --->XBX11 CXI_P0
MMX00 ONLINE enable DEG
MMX01 offline enable DEG
MMX02 offline enable DEG
MMX03 offline enable DEG

(For 8Way)

---- CELL0 ------------------------------------------- 19:20:23,07/31/2005 --­ CELL0 (loc=M-00/08) ONLINE enable DEG part.0 (LCN=2)
CNX00 offline enable --­ PROC00 offline DISABLE --­ PROC01 ONLINE enable --­ PROC02 offline DISABLE* --­ PROC03 nonexist.
TAG0_e0 --------- -------- DEG
TAG0_e1 --------- -------- DEG
TAG0_o0 --------- -------- DEG
TAG0_o1 --------- -------- DEG
CXI port0 ONLINE enable --- --->PCIBAY0_P0
CXI port1 ONLINE enable --- --->PCIBAY1_P1

CXI port3 ONLINE enable --- --->CELL1 CXI_P3
MMX00 ONLINE enable DEG
MMX01 offline DISABLE DEG

(f)

CXI port2 ONLINE enable --- --->CELL1 CXI_P2

855-900547-200 2-64
