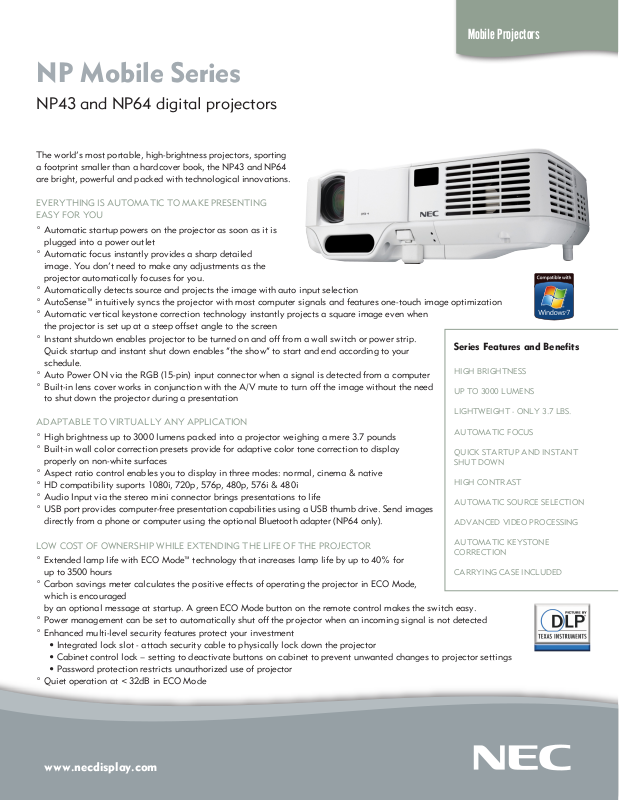

NEC NP64, NP43 Product Sheet
Mobile Projectors
NP Mobile Series
NP43 and NP64 digital projectors
The world’s most portable, high-brightness projectors, sporting
a footprint smaller than a hardcover book, the NP43 and NP64
are bright, powerful and packed with technological innovations.
EVERYTHING IS AUTOMATIC TO MAKE PRESENTING
EASY FOR YOU
° Automatic startup powers on the projector as soon as it is
plugged into a power outlet
° Automatic focus instantly provides a sharp detailed
image. You don’t need to make any adjustments as the
projector automatically focuses for you.
° Automatically detects source and projects the image with auto input selection
° AutoSense™ intuitively syncs the projector with most computer signals and features one-touch image optimization
° Automatic vertical keystone correction technology instantly projects a square image even when
the projector is set up at a steep offset angle to the screen
° Instant shutdown enables projector to be turned on and off from a wall switch or power strip.
Quick startup and instant shut down enables “the show” to start and end according to your
schedule.
° Auto Power ON via the RGB (15-pin) input connector when a signal is detected from a computer
° Built-in lens cover works in conjunction with the A/V mute to turn off the image without the need
to shut down the projector during a presentation
ADAPTABLE TO VIRTUALLY ANY APPLICATION
° High brightness up to 3000 lumens packed into a projector weighing a mere 3.7 pounds
° Built-in wall color correction presets provide for adaptive color tone correction to display
properly on non-white surfaces
° Aspect ratio control enables you to display in three modes: normal, cinema & native
° HD compatibility suports 1080i, 720p, 576p, 480p, 576i & 480i
° Audio Input via the stereo mini connector brings presentations to life
° USB port provides computer-free presentation capabilities using a USB thumb drive. Send images
directly from a phone or computer using the optional Bluetooth adapter (NP64 only).
Series Features and Benefits
HIGH BRIGHTNESS
UP TO 3000 LUMENS
LIGHTWEIGHT - ONLY 3.7 LBS.
AUTOMATIC FOCUS
QUICK STARTUP AND INSTANT
SHUT DOWN
HIGH CONTRAST
AUTOMATIC SOURCE SELECTION
ADVANCED VIDEO PROCESSING
LOW COST OF OWNERSHIP WHILE EXTENDING THE LIFE OF THE PROJECTOR
° Extended lamp life with ECO Mode™ technology that increases lamp life by up to 40% for
up to 3500 hours
° Carbon savings meter calculates the positive effects of operating the projector in ECO Mode,
which is encouraged
by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
° Power management can be set to automatically shut off the projector when an incoming signal is not detected
° Enhanced multi-level security features protect your investment
• Integrated lock slot - attach security cable to physically lock down the projector
• Cabinet control lock – setting to deactivate buttons on cabinet to prevent unwanted changes to projector settings
• Password protection restricts unauthorized use of projector
° Quiet operation at <32dB in ECO Mode
AUTOMATIC KEYSTONE
CORRECTION
CARRYING CASE INCLUDED
www.necdisplay.com
Note: Input panel applies only to the NP64
9.7”
(246mm)
7.3”
(182mm)
2.8”
(72mm)
ADDITIONAL FEATURES
Advanced video processing with IP conversion and 3-2/2-2
pull down provides error-free interpolation for moving video
resulting in a smooth image with greater detail
BrilliantColor™ technology can dramatically increase system
brightness and color saturation at mid and low video levels,
while optimizing color gain across the full color gamut
PC control port enables external control of the projector using
a computer or control system RS-232C (Mini DIN 8 pin)
Kensington lock slot enables a security cable to be attached
to the projector
64-step image magnification with location control
Sleep timer can be set to automatically turn off the projector
Direct power off protects the lamp by enabling the cooling fan
to continue running after power is disconnected
IN THE BOX
Carrying case, remote control, battteries, power cord, RGB
signal cable, lens cap, user’s manual on CD-ROM, quick start
guide, product registration card
WARRANTY
Registered owners receive a 2-year parts and labor warranty
including the first year of InstaCare. The lamp is covered for
one year or 500 hours, whichever comes first. InstaCare provides the original owner one year of either limited 3-businessday repair/return or next-business-day exchange.
Specifications for NP43/NP64
OPTICAL
Display Technology
Resolution
Native
Maximum
Light Output (lumens)
Contrast Ratio (up to)
Lamp Type
Lamp Life (up to)
Screen Size (diagonal)
Throw Ratio
Projection Distance
Projection Angle
Lens
Zoom
Focus
F-number
Keystone Correction
SIGNAL COMPATIBILITY/CONNECTIVITY
Scan Rate
Supported Video Standards
SD/HD Video Signal Compatibility
PC Signal Compatibility
Macintosh Compatibility
Input/Output Terminals
RGB (analog)
Video 1
Video 2
Audio
USB Port
External Control
Audio
Sync Compatibility
ELECTRICAL
Power Requirements
Input Current
Power Consumption
Normal Mode/ECO Mode/
Standby (Power Saving)
MECHANICAL
Installation Orientation
Dimensions (WxDxH)
Net Weight
Fan Noise
Regulations
ENVIRONMENTAL
Operational Temperature
Humidity
Storage
ACCESSORIES
IR-RCVR
WPA001
NP01BA
SPKR30
SC200
ADP-CV1E
LEATHERCASE
LEATHERROLLER
NP40CM
ADJ006009
ADJ0012018
ADJ0203
ADJ0305
SCP100
NP08LP
NP09LP
RMT-PJ30
PWRCRD-NP40
RGBCBL-PJPX
VLMTC-02
NECEW1-MP
NECEW2-MP
ADVEXON1-MP
ADVEXON2-MP
NECECO
DLP (0.55” DMD)
XGA 1024 x 768
UXGA 1600 x 1200
NP43: 2300 normal / Eco = approx. 85% of normal mode
NP64: 3000 normal / Eco = approx. 75% of normal mode
1600:1
NP43: 200W AC / 170 eco
NP64: 220W AC / 170 eco
2500 hours normal / 3500 hours eco
33 to 300 in. / .84 to 7.62m
1.8 to 2.2
4.8 to 44 ft. / 1.45 to 13.4m
12.3 to 12.6° tele / 14.7 to 15° wide
1 to 1.2
Automatic/Manual
F=2.2 to 2.34, f=20.4 to 24.5mm
Automatic or manual +/- 40°
Horizontal 15 - 100 kHz (RGB: 24 - 100 kHz)
Vertical 50 - 120 Hz (above 85 Hz = 1024 x 768 or lower)
NTSC, NTSC 4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
480i, 480p, 576i, 576p, 720p, 1080i
VGA, SVGA, XGA, SXGA, SXGA+, UXGA
Yes
15-pin
RCA
S-Video
1/8 in. stereo
Type A (NP62 only)
RS-232, IR, mini DIN 8-pin
0.3W speaker
Separate Sync / Composite Sync / Sync on G
100 – 240V AC, 50/60 Hz
NP43: 2.8/1.2A
NP64: 3.2/1.4A
NP43: 266W / 221W / 3.2W
NP64: 292W / 223W / 3.2W
Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
9.7 x 7.2 x 2.8 in. / 246 x 182 x 72mm
3.7 lbs. / 1.7 kg
37dB normal / 32dB eco
USA UL 1950 FCC Class B, Canada CSA 950 (C-UL), NOM
41° – 104°F / 5° – 40°C
20 – 80% non-condensing
-14° – 122°F / -10° – 50°C
IR receiver enables PJ remote to control PC or Mac functions
802.11b/g wireless adapter connects to projector to receive
data from wireless PC
Bluetooth USB adapter to receive wireless images from a
PC/PDA or mobile phone
Amplified 30-watt speaker for connection to PJ, microphone
or video source
Security cable attaches to PJ lock slot
Component video to VGA adapter
Leather case with compartments for laptop and PJ
Leather rolling case with compartments for laptop and PJ /
fits in most airline storage bins
Ceiling mount with adapter plate
6-9 in. adjustable extension column for use with PJ mount
12-18 in. adjustable extension column for use with PJ mount
2-3 ft. adjustable extension column for use with PJ mount
3-5 ft. adjustable extension column for use with PJ mount
Adjustable suspended ceiling plate for use with ceiling mount
Replacement lamp for NP43
Replacement lamp for NP64
Replacement remote control
Replacement power cord
Replacement RGB signal cable
3-year international service program provides U.S. and
Canadian customers loaner and repair services in
Europe, Japan and Australia
Extends term of parts and labor warranty to 3 years
Extends term of parts and labor warranty to 4 years
Extends term of InstaCare service program to 2 years
Extends term of InstaCare service program to 3 years
Projector recycling program, disposal certificate
AutoSense, ECO Mode and VORTEX are trademarks of NEC Display
Solutions. BrilliantColor is a trademark, and the DLP logo is a registered
trademark of Texas Instruments. All other brand or product names are
trademarks or registered trademarks of their respective holders. Product
specifications subject to change. 2/10 ver. 1.
2010 NEC Display Solutions of America, Inc. All rights reserved.
©
