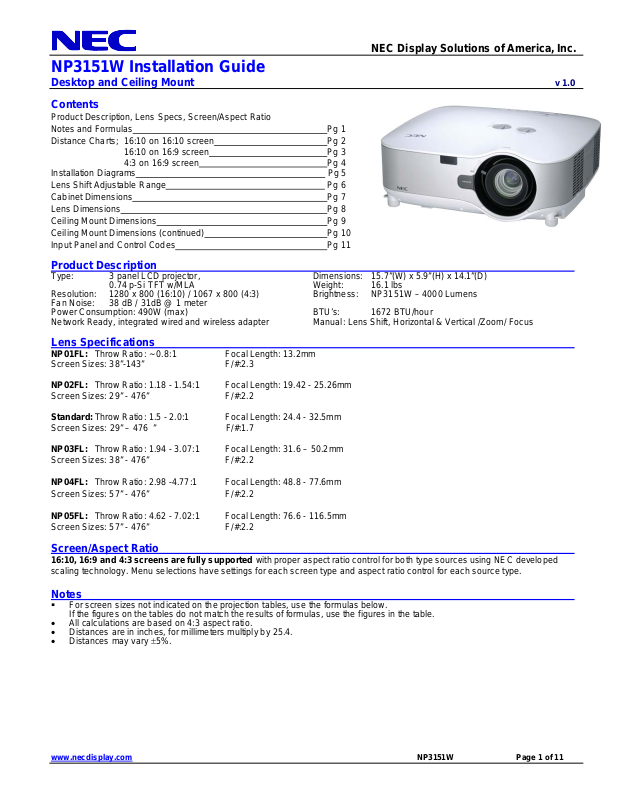

NEC NP3151W User Manual 2

NEC Display Solutions of America, Inc.

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.0 Contents

Product Description, Lens Specs, Screen/Aspect Ratio
Notes and Formulas
Distance Charts; 16:10 on 16:10 screen

16:10 on 16:9 screen
4:3 on 16:9 screen
Installation Diagrams

Lens Shift Adjustable Range
Cabinet Dimensions
Lens Dimensions
Ceiling Mount Dimensions
Ceiling Mount Dimensions (continued)
Input Panel and Control Codes

Product Description

Type: 3 panel LCD projector, Dimensions: 15.7”(W) x 5.9”(H) x 14.1”(D)

0.74 p-Si TFT w/MLA Weight: 16.1 lbs
Resolution: 1280 x 800 (16:10) / 1067 x 800 (4:3) Brightness: NP3151W – 4000 Lumens
Fan Noise: 38 dB / 31dB @ 1 meter
Power Consumption: 490W (max) BTU’s: 1672 BTU/hour
Network Ready, integrated wired and wireless adapter M anual: Lens Shift, Horizontal & Vertical /Zoom/ Focus

Lens Specifications

NP01FL: Throw Ratio: ~ 0.8:1 Focal Length: 13.2mm
Screen Sizes: 38”-143” F/#:2.3

NP02FL: Throw Ratio: 1.18 - 1.54:1 Focal Length: 19.42 - 25.26mm

Screen Sizes: 29” - 476” F/#:2.2
Standard: Throw Ratio: 1.5 - 2.0:1 Focal Length: 24.4 - 32.5mm

Screen Sizes: 29” – 476 ” F/#:1.7
NP03FL: Throw Ratio: 1.94 - 3.07:1 Focal Length: 31.6 – 50.2mm

Screen Sizes: 38” - 476” F/#:2.2
NP04FL: Throw Ratio: 2.98 -4.77:1 Focal Length: 48.8 - 77.6mm

Screen Sizes: 57” - 476” F/#:2.2
NP05FL: Throw Ratio: 4.62 - 7.02:1 Focal Length: 76.6 - 116.5mm

Screen Sizes: 57” - 476” F/#:2.2

Screen/Aspect Ratio

16:10, 16:9 and 4:3 screens are fully supported with proper aspect ratio control for both type sources using NEC developed

scaling technology. Menu selections have settings for each screen type and aspect ratio control for each source type.

Notes

 For screen sizes not indicated on the projection tables, use the formulas below.

If the figures on the tables do not match the results of formulas, use the figures in the table.

• All calculati ons are based on 4:3 aspect ratio.

• Distances are in inches, for millimeters multiply by 25.4.

• Distances may vary ±5%.

www.necdisplay.com NP3151W Page 1 of 11

Pg 1
Pg 2

Pg 3
Pg 4

Pg 5
Pg 6

Pg 7
Pg 8
Pg 9
Pg 10
Pg 11

inchesinch

inchesinchesinch

NEC Display Solutions of America, Inc.

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.0

Formulas

The Projection Formulas use the image width for calculation. Image height is the same for all aspect ratios, only horizontal image
size varies when using a 16:10 aspect ratio screen. For proper projector placement, determine the image width for a desired screen
size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the image width “W” for a 16:10 aspect ratio image
in the Projection Formulas.
Refer to the diagrams (page 5) and charts below for popular screen sizes 16:10 screens:

Projection Formulas: Definitions:
NP01FL: C = 0.8260W – 1.33 W = Image Width
NP02ZL: C(Wide) = 1.2120W – 1.798 ------ C(Tele) = 1.5770W – 1.795 H = Image Height (size)
Standard: C(Wide) = 1.5330W – 2.022 ------ C(Tele) = 2.0390W – 2.015 C = Throw distance
NP03ZL: C(Wide) = 1.9910W – 2.830 ------ C(Tele) = 3.1460W – 2.840
NP04ZL: C(Wide) = 3.0300W – 4.830 ------ C(Tele) = 4.8465W – 4.850 16:10 Screen Formulas:
NP05ZL: C(Wide) = 4.7888W – 7.625 ------ C(Tele) = 7.2779W – 7.645 W = H x 16/10

H = W x 10/16
Screen Diagonal = W x 18.868/16

Note: Tilting the front of the projector or down by more than 45° from level could reduce lamp life by up to 20%.

Distance Chart for popular 16:10 screens

Image Size (16:10)

on a (16:10) screen

Di agonal Width(W) Height (H) 0.8:1

inches inches inches inches

85 72 45 58 108 - 145 85 - 112 141 - 224 213 - 344 337 - 516
92 78 49 63 118 - 158 93 - 122 153 - 244 233 - 375 368 - 563

98 83 52 67 126 - 168 99 - 129 163 - 259 247 - 398 391 - 598
102 86 54 70 130 - 174 103 - 134 169 - 269 257 - 414 406 - 621
111 94 59 76 142 - 190 112 - 147 184 - 293 280 - 451 443 - 677
113 96 60 78 145 - 194 115 - 150 188 - 299 286 - 460 452 - 691
123 104 65 85 157 - 210 124 - 162 204 - 324 310 - 499 490 - 749
125 106 66 86 160 - 213 126 - 165 207 - 329 315 - 507 498 - 761
147 125 78 NA 189 - 252 149 - 195 246 - 390 373 - 600 590 - 901
149 126 79 NA 192 - 256 151 - 198 249 - 395 378 - 608 598 - 912
213 181 113 N A 275 - 367 217 - 283 357 - 566 543 - 871 858 - 1308
255 216 135 N A 329 - 438 260 - 339 427 - 677 650 - 1042 1027 - 1564
340 288 180 N A 439 - 585 347 - 452 571 - 903 868 - 1391 1372 - 2088
425 360 225 N A 550 - 732 435 - 566 714 - 1130 1086 - 1740 1716 - 2612

Rear Lens

NP01FL

Standard NP02ZL NP03ZL NP04ZL

es

For screen sizes not indicated on the projection tables, use the formulas on page above.

Note:

www.necdisplay.com NP3151W Page 2 of 11

Zoom Lenses

1.94 - 3.07:11.5 - 2.0:1 1.18 - 1.54:1

2.98 - 4.77:1
es

NP05ZL

4.62 - 7.02:1

inchesinch

inchesinchesinch

NEC Display Solutions of America, Inc.

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.0

Formulas

The Projection Formulas use the image width for calculation. Image height is the same for all aspect ratios, only horizontal image
size varies when using a 16:10 aspect ratio screen. For proper projector placement, determine the image width for a desired screen
size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the image width “W” for a 16:10 aspect ratio image
in the Projection Formulas.
Refer to the diagrams (page 5) and charts below for popular screen sizes 16:9 screens:

Projection Formulas: Definitions:
NP01FL: C = 0.7426W – 1.33 W = Image Width
NP02ZL: C(Wide) = 1.0885W – 1.798 ------ C(Tele) = 1.4225W – 1.795 H = Image Height (size)
Standard: C(Wide) = 1.3743W – 2.022 ------ C(Tele) = 1.8319W – 2.015 C = Throw distance
NP03ZL: C(Wide) = 1.7992W – 2.830 ------ C(Tele) = 2.8325W – 2.840
NP04ZL: C(Wide) = 2.7275W – 4.830 ------ C(Tele) = 4.3620W – 4.850 16:9 Screen Formulas:
NP05ZL: C(Wide) = 4.3259W – 7.625 ------ C(Tele) = 6.5228W – 7.645 W = H x 16/9

H = W x 9/16
Screen Diagonal = W x 18.358/16

Note: Tilting the front of the projector or down by more than 45° from level could reduce lamp life by up to 20%.

Distance Chart for popular 16:10 images on a 16:9 screen

Screen Size (16:9)

Di agonal Width(H) Height (V) Di agonal Width(W) Height (H) 0.8:1

inches inches inches inches inches inches i nches

92 80 45 85 72 45 58 108 - 145 85 - 112 141 - 224 213 - 344 337 - 516
100 87 49 92 78 49 63 118 - 158 93 - 122 153 - 244 233 - 375 368 - 563
106 92 52 98 83 52 67 126 - 168 99 - 129 163 - 259 247 - 398 391 - 598
110 96 54 102 86 54 70 130 - 174 103 - 134 169 - 269 257 - 414 406 - 621
119 104 59 111 94 59 76 142 - 190 112 - 147 184 - 293 280 - 451 443 - 677
123 107 60 113 96 60 78 145 - 194 115 - 150 188 - 299 286 - 460 452 - 691
133 116 65 123 104 65 85 157 - 210 124 - 162 204 - 324 310 - 499 490 - 749
135 118 66 125 106 66 86 160 - 213 126 - 165 207 - 329 315 - 507 498 - 761
159 139 78 147 125 78 NA 189 - 252 149 - 195 246 - 390 373 - 600 590 - 901
161 140 79 149 126 79 NA 192 - 256 151 - 198 249 - 395 378 - 608 598 - 912
229 200 113 213 181 113 NA 275 - 367 217 - 283 357 - 566 543 - 871 858 - 1308
275 240 135 255 216 135 NA 329 - 438 260 - 339 427 - 677 650 - 1042 1027 - 1564
367 320 180 340 288 180 NA 439 - 585 347 - 452 571 - 903 868 - 1391 1372 - 2088
459 400 225 425 360 225 NA 550 - 732 435 - 566 714 - 1130 1086 - 1740 1716 - 2612
490 427 240 453 384 240 NA 587 - 781 464 - 604 762 - 1205 1159 - 1856 1831 - 2787

Image Size (16:10)
on a (16:9) screen

For screen sizes not indicated on the projection tables, use the formulas on page above.

Note:

Rear Lens

NP01FL

Standard NP02ZL NP03ZL NP04ZL

1.94 - 3.07:11.5 - 2.0:1 1.18 - 1.54:1

es

Zoom Lenses

2.98 - 4.77:1
es

NP05ZL

4.62 - 7.02:1

www.necdisplay.com NP3151W Page 3 of 11

inch

inchesinch

inchesinch

NEC Display Solutions of America, Inc.

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.0

Formulas

The Projection Formulas use the image width for calculation. Image height is the same for all aspect ratios, only horizontal image
size varies when using a 16:10 aspect ratio screen. For proper projector placement, determine the image width for a desired screen
size. Use the Screen Formulas below to calculate all screen dimensions. Plug in the imag e width “W” for a 4:3 aspect ratio image in
the Projection Formulas.
Refer to the diagrams (page 5) and charts below for popular screen sizes 16:9 screens:

Projection Formulas: Definitions:
NP01FL: C = 0.995W – 1.33 W = Image Width
NP02ZL: C(Wide) = 1.453W – 1.798 ------ C(Tele) = 1.895W – 1.795 H = Image Height (size)
Standard: C(Wide) = 1.838W – 2.022 ------ C(Tele) = 2.447W – 2.015 C = Throw distance
NP03ZL: C(Wide) = 2.389W – 2.830 ------ C(Tele) = 3.775W – 2.840
NP04ZL: C(Wide) = 3.632W – 4.830 ------ C(Tele) = 5.815W – 4.850 4:3 Screen Formulas:
NP05ZL: C(Wide) = 5.747W – 7.625 ------ C(Tele) = 8.732W – 7.645 W = H x 4/3

H = W x 4/3
Screen Diagonal = W x 5/4

Note: Tilting the front of the projector or down by more than 45° from level could reduce lamp life by up to 20%.

Distance Chart for popular 4:3 aspect ratios on a 16:9 screen

Screen Size (16:9)

Di agonal Width(H) Height (V) Diagonal Width(H) Hei ght (V) 0.8:1

inches inches inches inches inches inches inches

49 43 24 40 32 24 30 57 - 76 45 - 59 74 - 118 112 181 177 271
73 64 36 60 48 36 46 86 - 115 68 - 89 112 - 178 170 - 274 269 - 410

92 80 45 75 60 45 58 108 - 145 85 - 112 141 - 224 213 - 344 337 - 516
100 87 49 82 65 49 63 118 - 158 93 - 122 153 - 244 233 - 375 369 - 563
106 92 52 87 69 52 67 126 - 168 99 - 130 163 - 259 247 - 398 391 - 598
110 96 54 90 72 54 70 130 - 174 103 - 134 169 - 269 257 - 414 406 - 621
120 105 59 98 78 59 76 142 - 190 112 - 147 185 - 293 280 - 451 443 - 677
122 107 60 100 80 60 78 145 - 194 114 - 150 188 - 299 286 - 460 452 - 691
133 116 65 108 87 65 85 157 - 210 124 - 162 204 - 324 310 - 499 490 - 749
135 117 66 110 88 66 86 160 - 213 126 - 165 207 - 329 315 - 507 498 - 761
159 139 78 130 104 78 NA 189 - 252 149 - 195 246 - 390 373 - 600 590 - 901
161 140 79 132 105 79 NA 192 - 256 151 - 198 249 - 395 378 - 608 598 - 912
230 201 113 188 151 113 NA 275 - 367 217 - 284 357 - 566 543 - 871 858 - 1308
275 240 135 225 180 135 NA 329 - 438 260 - 339 427 - 677 650 - 1042 1027 - 1564
367 320 180 300 240 180 NA 439 - 585 347 - 452 571 - 903 868 - 1391 1372 - 2088
459 400 225 375 300 225 NA 550 - 732 435 - 566 714 1130 1086 - 1740 1716 - 2612
490 427 240 400 320 240 NA 587 - 781 464 - 604 762 - 1205 1159 - 1856 1831 - 2787

Note: For screen sizes not indicated on the projection tabl es, use the formulas on page above.

Input Signal Aspect Ratio 4:3 image on a 16:9 screen

Screen Size (4:3)

Rear Lens

NP01FL

Standard

1.5 - 2.0:1 1.18 - 1.54:1
es

NP02ZL NP03ZL NP04ZL

Zoom Lenses

1.94 - 3.07:1

2.98 - 4.77:1
es

NP05ZL

4.62 - 7.02:1
es

www.necdisplay.com NP3151W Page 4 of 11

NEC Display Solutions of America, Inc.

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.0

Projection Distance and Screen Size for Ceiling Mount and Desktop

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the positi on of
installation.
Distances are in inches. For millimeters multiply by 25.4.

Ceiling Mount Installation

Screen Top

Screen Ctr

3.30"

Rear Projection Desktop Installation

Screen Ctr

Screen Bottom

Lens shift feature is not available with NP01FL (rear lens) NP01FL should be used only for “zero degree” / “no-offset”

Note:

applications.

www.necdisplay.com NP3151W Page 5 of 11

C

Throw Distance

Lens Offset From
Mount Pipe

C

Throw Distance

X

7.72"

Shift Range

X=Distance from lens to mount ctr

NP01FL: X=7.99"

NP02ZL: X=7.78"
Standard: X=7.03"
NP03ZL: X=7.83"
NP04ZL: X=7.43"
NP05ZL: X=7.41"

3.45"

NEC Display Solutions of America, Inc.

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.0

Lens Shift Adjustable Range

Ceiling Front

Vertical

Desktop Front

Vertical

Horizontal

Normal Position

Normal Position

Normal Position

www.necdisplay.com NP3151W Page 6 of 11

0.5H

0.1W

Normal Projection Position

0.1W

0.5H

Ceiling Front

Normal Projection Position

Desktop Front

0.5H

0.5H

0.1W

0.1W

Lens Shift Range for Desktop and Ceiling Mount
Application

The diagram below shows the location of the image position
in the lens. The lens can be shifted within the shaded area as
shown using the normal projection position as a starting
point.

Note: Lens shift feature is not available with NP01FL (rear
lens). NP01FL should be used only for “zero degree” / “no­offset” applications.

Maximum Possible Range
for Standard Lens/NP02ZL/NP03ZL/NP04ZL/NP05ZL:

Up: 0.5V
Right: 0.10H
Left: 0.10H
(H: width of projected image, V: height of projected image)

0.1W

0.1W

NEC Display Solutions of America, Inc.

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.0

Cabinet Dimensions

The following diagrams show the cabinet dimensions for the NP3151.
Dimensions are in inches. For millimeters multiply by 25.4.

5.93

www.necdisplay.com NP3151W Page 7 of 11

15.70

Lens Shift Control

15.70

.16

Air Filters

4.59

0.02

14.09

.28

3.46

6.63

For Mount

M4*8 Max

9.37

2.33

2.20

.16

Lamp Cover Air Exhaust

10.93

11.20

Speakers

NEC Display Solutions of America, Inc.

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.0 Lens Dimensions

The following drawings show the added dimensions for the optional lenses
Dimensions are in inches. For millimeters multiply by 25.4.

NP w Standard Lens

14.09

NP02ZL

14.09

3.81

NP04ZL

.75

14.09

3.25

.40

www.necdisplay.com NP3151W Page 8 of 11

NP01FL

14.09

.96

3.385

NP03ZL

14.09

.80

3.385

NP05ZL

14.09

.38

3.25

NEC Display Solutions of America, Inc.

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.0

Optional Ceiling Mount Dimensions (Model #: NP1000CM)

The following diagrams show ceiling mount dimensions for the NP3151.
Dimensions are in inches. For millimeters multiply by 25.4.

15.70

15.48

12.11

10.475.02

4.95

10.59

6.59

POLE MOUNT WITH I/O COVER

www.necdisplay.com NP3151W Page 9 of 11

NEC Display Solutions of America, Inc.

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.0

Optional Ceiling Mount Dimensions (Model #: NP1000CM) (continued)

The following diagrams show ceiling mount dimensions for the NP3151.
Dimensions are in inches. For millimeters multiply by 25.4.

12.11

POLE MOUNT W/O I/O COVER

www.necdisplay.com NP3151W Page 10 of 11

10.75

4.95

5.02

5.73

NEC Display Solutions of America, Inc.

NP3151W Installation Guide

Desktop and Ceiling Mount v 1.0

PC Control Codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H
POWER OFF 02H 01H 00H 00H 00H 03H
INPUT SELECT COMPUTER 1 02H 03H 00H 00H 02H 01H 01H 09H
INPUT SELECT COMPUTER 2 02H 03H 00H 00H 02H 01H 02H 0AH
INPUT SELECT COMPUTER 3 02H 03H 00H 00H 02H 01H 1AH 22H
INPUT SELECT COMPONENT 02H 03H 00H 00H 02H 01H 10H 18H
INPUT SELECT VIDEO 1 02H 03H 00H 00H 02H 01H 06H 0EH
INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H
INPUT SELECT VIEWER 02H 03H 00H 00H 02H 01H 1FH 27H
INPUT SELECT NETWORK 02H 03H 00H 00H 02H 01H 20H 28H
PICTURE MUTE ON 02H 10H 00H 00H 00H 12H
PICTURE MUTE OFF 02H 12H 00H 00H 00H 14H
SOUND MUTE OFF 02H 13H 00H 00H 00H 15H
ON SCREEN MUTE ON 02H 14H 00H 00H 00H 16H
ON SCREEN MUTE OFF 02H 15H 00H 00H 00H 17H
ASPECT RATIO (4:3 Screen)

4:3 03H 10H 00H 00H 05H 18H 00H 00H 00H 00H 30H
LETTERBOX 03H 10H 00H 00H 05H 18H 00H 00H 01H 00H 31H
WIDESCREEN 03H 10H 00H 00H 05H 18H 00H 00H 02H 00H 32H
ZOOM 03H 10H 00H 00H 05H 18H 00H 00H 03H 00H 33H

ASPECT RATIO (16:10 or 16:9 Screen)

4:3 WINDOW 03H 10H 00H 00H 05H 18H 00H 00H 00H 00H 30H
LETTERBOX 03H 10H 00H 00H 05H 18H 00H 00H 01H 00H 31H
WIDESCREEN 03H 10H 00H 00H 05H 18H 00H 00H 02H 00H 32H
4:3 FILL 03H 10H 00H 00H 05H 18H 00H 00H 03H 00H 33H

AUTO ADJUST 02H 0FH 00H 00H 02H 05H 00H 18H

Cable Connection

Communication Protocol:

Baud Rate: 38400 bps (for cable lengths longer than 20’, it is recommended changing to 9600 bps in setup menu)
Data Length: 8 bits
Parity: No Parity
Stop Bit: One bit
X on/off: None
Communications: Full duplex

PC Control Connector (D-Sub 9P)

NOTE: Pins 1, 4, 6, and 9 are used inside the projector.
Jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.

www.necdisplay.com NP3151W Page 11 of 11

To TxD of PC

To RxD of PC

To GND of PC

12

34

5

9

67 8

To RTS of PC
To CTS of PC
