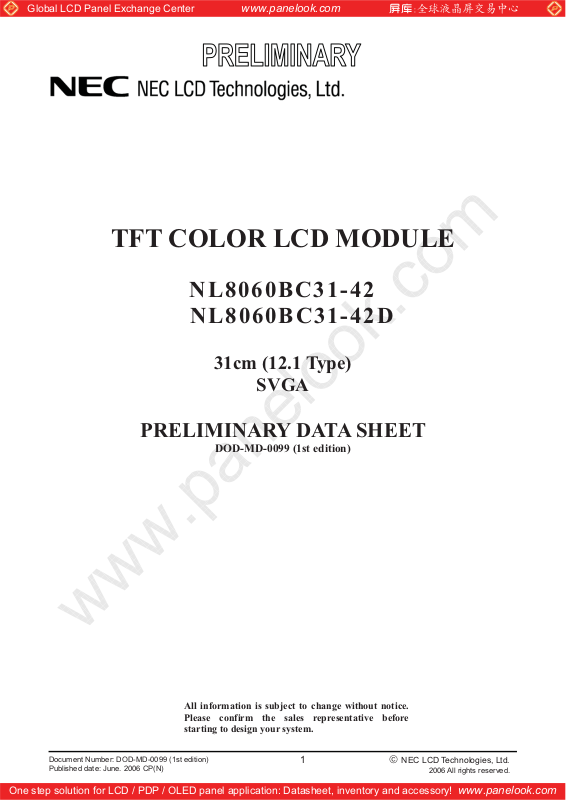

TFT COLOR LCD MODULE
www.panelook.com
NL8060BC31-42 NL8060BC31-42D
31cm (12.1 Type)
SVGA
PRELIMINARY DATA SHEET
DOD-MD-0099 (1st edition)
Document Number: DOD-MD-0099 (1st edition) Published date: June. 2006 CP(N)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
¤ NEC LCD Technologies, Ltd.
2006 All rights reserved.
www.panelook.com
Global LCD Panel Exchange Center
The Copyright to this document belongs to NEC LCD Technologies, Ltd. (hereinafter called "NEC").
No part of this document will be used, reproduced or copied without prior written consent of NEC.
NEC does and will not assume any liability for infringement of patents, copyrights or other intellectual property rights of any third party arising out of or in connection with application of the products described herein except for that directly attributable to mechanisms and workmanship thereof. No license, express or implied, is granted under any patent, copyright or other intellectual property right of NEC.
Some electronic parts/components would fail or malfunction at a certain rate. In spite of every effort to enhance reliability of products by NEC, the possibility of failures and malfunction might not be avoided entirely. To prevent the risks of damage to death, human bodily injury or other property arising out thereof or in connection therewith, each customer is required to take sufficient measures in its safety designs and plans including, but not limited to, redundant system, fire-containment and anti-failure.
www.panelook.com
NL8060BC31-42/42D
INTRODUCTION
The products are classified into three quality grades: "Standard", "Special", and "Specific" of the highest grade of a quality assurance program at the choice of a customer. Each quality grade is designed for applications described below. Any customer who intends to use a product for application other than that of Standard quality grade is required to contact an NEC sales representative in advance.
The Standard quality grade applies to the products developed, designed and manufactured in accordance with the NEC standard quality assurance program, which are designed for such application as any failure or malfunction of the products (sets) or parts/components incorporated therein a customer uses are, directly or indirectly, free of any damage to death, human bodily injury or other property, like general electronic devices.
Examples: Computers, office automation equipment, communications equipment, test and measurement
equipment, audio and visual equipment, home electronic appliances, machine tools, personal electronic equipment, industrial robots, etc.
The Special quality grade applies to the products developed, designed and manufactured in accordance with an NEC quality assurance program stricter than the standard one, which are designed for such application as any failure or malfunction of the products (sets) or parts/components incorporated therein a customer uses might directly cause any damage to death, human bodily injury or other property, or such application under more severe condition than that defined in the Standard quality grade without such direct damage.
Examples: Control systems for transportation equipment (automobiles, trains, ships, etc.), traffic control
systems, anti-disaster systems, anti-crime systems, medical equipment not specifically designed for life support, safety equipment, etc.
The Specific quality grade applies to the products developed, designed and manufactured in accordance with the standards or quality assurance program designated by a customer who requires an extremely higher level of reliability and quality for such products.
Examples: Military systems, aircraft control equipment, aerospace equipment, nuclear reactor control
systems, medical equipment/devices/systems for life support, etc.
The quality grade of this product is the "Standard" unless otherwise specified in this document.
PRELIMINARY DATA SHEET DOD-MD-0099 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2
www.panelook.com
Global LCD Panel Exchange Center
INTRODUCTION ..........................................................................................................................................2
1. OUTLINE....................................................................................................................................................4
1.1 STRUCTURE AND PRINCIPLE...........................................................................................................4
1.2 APPLICATION.......................................................................................................................................4
1.3 FEATURES.............................................................................................................................................4
2. GENERAL SPECIFICATIONS ................................................................................................................5
3. BLOCK DIAGRAM ................................................................................................................................... 6
4. DETAILED SPECIFICATIONS ............................................................................................................... 7
4.1 MECHANICAL SPECIFICATIONS......................................................................................................7
4.2 ABSOLUTE MAXIMUM RATINGS ....................................................................................................7
4.3 ELECTRICAL CHARACTERISTICS................................................................................................... 8
4.3.1 LCD panel signal processing board ............................................................................................... 8
4.3.2 Backlight lamp...............................................................................................................................9
4.3.3 Power supply voltage ripple.........................................................................................................10
4.3.4 Fuse.............................................................................................................................................. 10
4.4 POWER SUPPLY VOLTAGE SEQUENCE ........................................................................................ 11
4.4.1 LCD panel signal processing board ............................................................................................. 11
4.4.2 Inverter (Option).......................................................................................................................... 11
4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS.........................................................12
4.5.1 LCD panel signal processing board ............................................................................................. 12
4.5.2 Backlight lamp.............................................................................................................................13
4.5.3 Positions of plugs and a socket .................................................................................................... 13
4.6 DISPLAY COLORS AND INPUT DATA SIGNALS ..........................................................................14
4.7 DISPLAY POSITIONS......................................................................................................................... 15
4.8 SCANNING DIRECTIONS .................................................................................................................15
4.9 INPUT SIGNAL TIMINGS..................................................................................................................16
4.9.1 Outline of input signal timings ..........................................................................................
4.9.2 Timing characteristics..................................................................................................................17
4.9.3 Input signal timing chart ..............................................................................................................19
4.10 OPTICS...............................................................................................................................................22
4.10.1 Optical characteristics................................................................................................................22
4.10.2 Definition of contrast ratio............................................................................................
4.10.
3 Definition of luminance uniformity ...........................................................................................23
4.10.4 Definition of response times ...................................................................................................... 23
4.10.5 Definition of viewing angles......................................................................................................23
5. RELIABILITY TESTS.............................................................................................................................24
6. PRECAUTIONS .......................................................................................................................................25
6.1 MEANING OF CAUTION SIGNS ...................................................................................................... 25
6.2 CAUTIONS ..........................................................................................................................................25
6.3 ATTENTIONS ......................................................................................................................................25
6.3.1 Handling of the product ............................................................................................................... 25
6.3.2 Environment.................................................................................................................................26
6.3.3 Characteristics..............................................................................................................................26
6.3.4 Other ............................................................................................................................................26

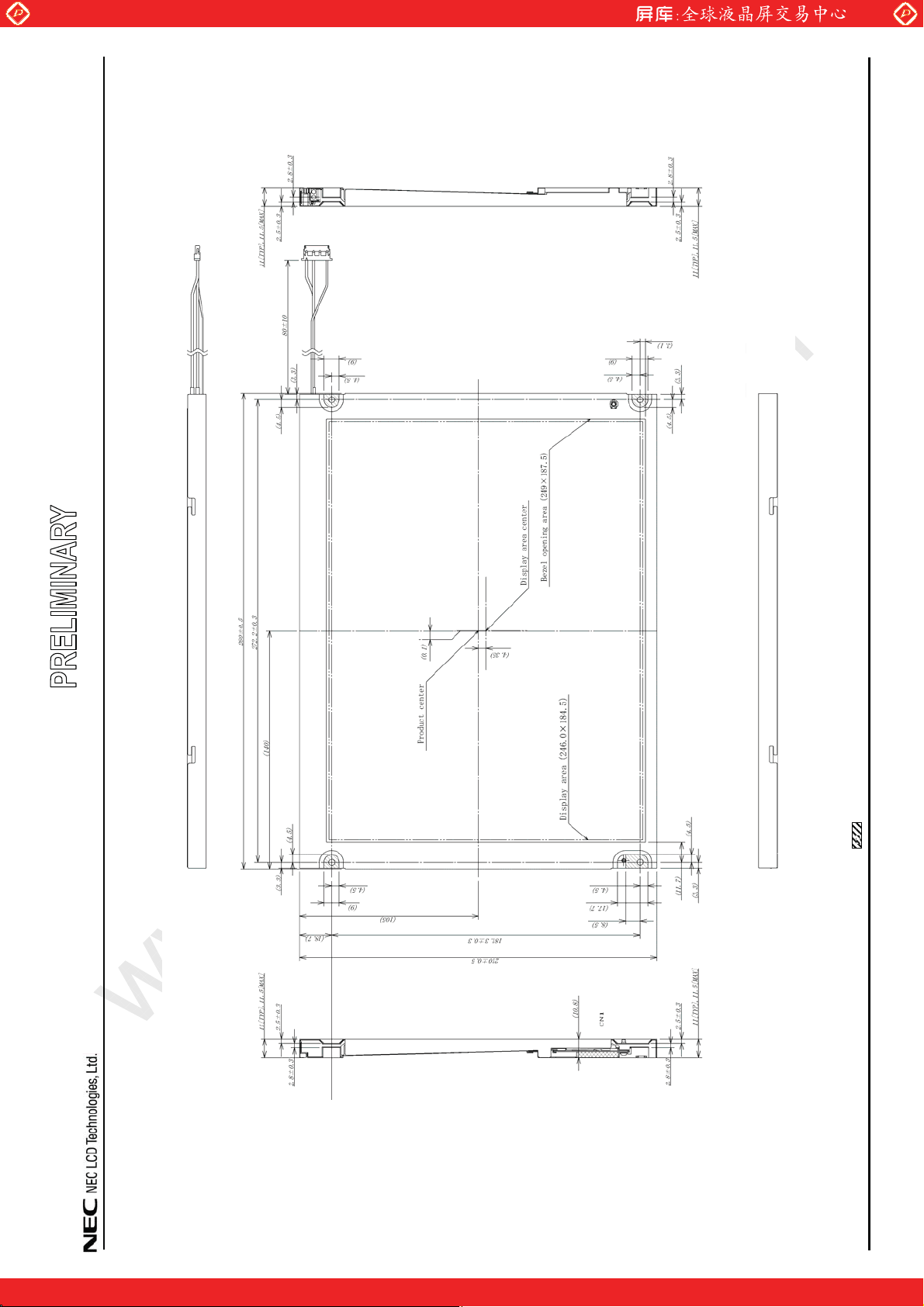

7. OUTLINE DRAWINGS ........................................................................................................................... 27
7.1 FRONT VIEW......................................................................................................................................27
7.2 REAR VIEW ........................................................................................................................................28
www.panelook.com
NL8060BC31-42/42D
CONTENTS
..........16
.............23
REVISION HISTORY .................................................................................................................................29
PRELIMINARY DATA SHEET DOD-MD-0099 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3
www.panelook.com
Global LCD Panel Exchange Center
1. OUTLINE
1.1 STRUCTURE AND PRINCIPLE
Color LCD module NL8060BC31-42 is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a backlight.
The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array glass substrate and a color-filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. signal generator, etc.) are modulated into best form for active matrix system by a signal processing circuit, and sent to the driver LSIs which drive the individual TFT arrays.
The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight assembly, when it is controlled by data signals. Color images are created by regulating the amount of transmitted light through the TFT array of red, green and blue dots.
www.panelook.com
NL8060BC31-42/42D
1.2 APPLICATION
x For industrial use
1.3 FEATURES
x High luminance x High contrast x Wide viewing angle x Wide temperature range x 6-bit digital RGB signals x Reversible-scan direction x Edge light type (without inverter) x Replaceable lamp for backlight x Acquisition product for UL60950-1/CSA C22.2 No.60950-1-03 (File number: E170632) x Difference between NL8060BC31-42 and NL8060BC31-42D
Polarizer surface
NL8060BC31-42 NL8060BC31-42D
Clear Antiglare
PRELIMINARY DATA SHEET DOD-MD-0099 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4
www.panelook.com
Global LCD Panel Exchange Center
2. GENERAL SPECIFICATIONS
www.panelook.com
NL8060BC31-42/42D
Display area
Diagonal size of display
Drive system
Display color
Pixel
Pixel arrangement
Dot pitch
Pixel pitch
Module size
Weig ht
Contrast ratio
Viewing angle
Designed viewing direction
Polarizer surface
Polarizer pencil-hardness
246.0 (H) u 184.5 (V) mm
31cm (12.1 inches)
a-Si TFT active matrix
262,144 colors 800 (H) u 600 (V) pixels
RGB (Red dot, Green dot, Blue dot) vertical stripe
0.1025 (H) u 0.3075 (V) mm
0.3075 (H) u 0.3075 (V) mm
280.0 (W) u 210.0 (H) u 11.0 (D) mm (typ.)
670g (typ.)
600:1 (typ.)
At the contrast ratio
x Horizontal: Right side 80q (typ.), Left side 80q (typ.) x Vertical: Up side 80q (typ.), Down side 60q (typ.)
At DPS= Low or open: Normal scan
x Viewing direction without image reversal: up side (12 o'clock) x Viewing direction with contrast peak: down side (6 o'clock) x Viewing angle with optimum grayscale (J=2.2): normal axis (perpendicular)
NL8060BC31-42 Clear
NL8060BC31-42D
3H (min.) [by JIS K5400]
t
10:1
Antiglare
Color gamut
Response time
Luminance
Signal system
Power supply voltage
Backlight
Power consumption
At LCD panel center
40% (typ.) [against NTSC color space]
Ton+Toff (10%
25ms (typ.)
At IBL= 5.0mArms / lamp
400cd/m
6-bit digital signals for data of RGB colors, Dot clock (CLK), Data enable (DE), Horizontal synchronous signal (Hsync), Vertical synchronous signal (Vsync)
LCD panel signal processing board: 3.3V or 5.0V
Edge light type: 2 cold cathode fluorescent lamps
Replaceable part
x Lamp holder set: Type No. 121LHS22
Recommended inverter (Option)
x Inverter: Type No. 121PW181
At IBL=5.0mArms / lamp, Checkered flag pattern
TBD W (typ., Power dissipation of the inverter is not included.)
2
(typ.)
mo
90%)
PRELIMINARY DATA SHEET DOD-MD-0099 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5
www.panelook.com
Global LCD Panel Exchange Center
k
p
3. BLOCK DIAGRAM
www.panelook.com
NL8060BC31-42/42D
Host
R0 to R5
G0 to G5
B0 to B5
CLK
Hsync
Vsync
DE
DPS
LCD module (Product)
200:
200:
200:
:
200:
Controller
200:
200:
47k:
:
47
Power supply
for gradation
V-driver
H-driver
2,400 lines
LCD panel
H: 800 × 3 (R, G, B) V: 600
600 lines
GND Note1 Note2
VCC
Fuse
FG
Note1
DC/DC
converter
LCD panel signal processing board
Backlight (Edge light type)
Note2
VDDB
VBLH
Inverter
VBLH
(Option)
Lam
Lamp
GNDB Note2
VBLC Note1
Metallic frame of lamp holder
Note1: Relations between GND (Signal ground), FG (Frame ground) and VBLC (Lamp low voltage terminal)
in the LCD module are as follows.
GND - FG Connected GND - VBLC Not connected FG - VBLC Not connected
Note2: GND, FG and GNDB must be connected to customer equipment’s ground, and it is recommended
that these grounds are connected together in customer equipment.
PRELIMINARY DATA SHEET DOD-MD-0099 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6
www.panelook.com
Global LCD Panel Exchange Center
4. DETAILED SPECIFICATIONS
4.1 MECHANICAL SPECIFICATIONS
Parameter Specification Unit
www.panelook.com
NL8060BC31-42/42D
Module size
Display area
Weight
Note1: See "7. OUTLINE DRAWINGS".
4.2 ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Rating Unit Remarks
Power supply
voltage
Input voltage
for signals
Operating temperature
LCD panel signal processing board VCC -0.3 to +6.5 V
Lamp voltage VBLH 1,800 Vrms
Display signals
Note1
Function signal
Note2
Storage temperature Tst -30 to +80
Front surface TopF -20 to +70
Rear surface TopR -20 to +70
280.0 r 0.5 (W) u 210.0 r 0.5 (H) u 11.0 (typ.,D)
11.5 (max.,D)
246.0 (H) u 184.5 (V)
670 (typ.), 70
VD
VF
0 (max.)
-0.3 to VCC+0.3 V
Note1 mm
Note1 mm
qC
qC
qC
g
-
-
Note3
Note4
%
%
%
%
g/m
Relative humidity
Note5
Absolute humidity
Note5
RH
AH
d 95
d 85
d 55
d 36
d 70
Note6
Note1: CLK, Hsync, Vsync, DE, DATA (R0 to R5, G0 to G5 and B0 to B5) Note2: DPS Note3: Measured at center of LCD panel surface (including self-heat) Note4: Measured at center of LCD module's rear shield surface (including self-heat) Note5: No condensation Note6: Water amount at Ta= 70°C and RH= 36%
3
Ta d 40qC
40qC <Tad 50qC
50qC <Tad 60qC
60qC <Tad 70qC
Ta> 70qC
PRELIMINARY DATA SHEET DOD-MD-0099 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7
www.panelook.com
Global LCD Panel Exchange Center
4.3 ELECTRICAL CHARACTERISTICS
4.3.1 LCD panel signal processing board
Parameter Symbol min. typ. max. Unit Remarks
Power supply voltage VCC
www.panelook.com
NL8060BC31-42/42D
(Ta= 25qC)
3.0 3.3 3.6 V at VCC= 3.3V
4.75 5.0 5.25 V at VCC= 5.0V
-
Power supply current ICC
-
Permissible ripple voltage VRP - - 100 mVp-p for VCC
Logic input voltage for
display signals
Input voltage for DPS
signal
High VDH 0.7VCC - VCC V
Low VDL 0 - 0.3VCC V
High VFH 0.7VCC - VCC V
Low VFL 0 - 0.3VCC V
TBD
Note1
TBD
Note1
TBD
Note2
TBD
Note2
mA at VCC= 3.3V
mA at VCC= 5.0V
Note1: Checkered flag pattern [by EIAJ ED-2522] Note2: Pattern for maximum current
CMOS level
PRELIMINARY DATA SHEET DOD-MD-0099 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8
www.panelook.com
Global LCD Panel Exchange Center
4.3.2 Backlight lamp
Parameter Symbol min. typ. max. Unit Remarks
Lamp current IBL 2.0 5.0 5.5 mArms
Lamp voltage VBLH - 560 - Vrms Note2, Note3
Lamp starting voltage VS
Lamp oscillation frequency FO 58 63 68 kHz Note6
Note1: This product consists of 2 backlight lamps, and these specifications are for each lamp.
Note2: The lamp voltage cycle between lamps should be kept on a same phase. "VS" and "VBLH" are
the voltage value between low voltage side (Cold) and high voltage side (Hot).
www.panelook.com
940 - - Vrms
1,560 - - Vrms
NL8060BC31-42/42D
(Ta= 25qC, Note1)
at IBL= 5.0mArms:
L= 450cd/m Note3, Note4
Ta= 25qC
Note2, Note3, Note5
Ta= -20qC
Note2, Note3, Note5
2
Note3: The asymmetric ratio of working waveform for lamps (Power supply voltage peak ratio, power
supply current peak ratio and waveform space ratio) should be less than 5 % (See the following figure.). If the waveform is asymmetric, DC (Direct current) element apply into the lamp. In this case, a lamp lifetime may be shortened, because a distribution of a lamp enclosure substance inclines toward one side between low voltage terminal (Cold terminal) and high voltage terminal (Hot terminal). When designing the inverter, evaluate asymmetric of lamp working waveform sufficiently.
Pa
Pb
Sa
0
Sb
_Pa - Pb_
Pb
_Sa - Sb_
Sb
u 100 d 5%
u 100 d 5%
Pa: Supply voltage/current peak for positive, Pb: Supply voltage/current peak for negative Sa: Waveform space for positive part, Sb: Waveform space for negative part.
Note4: This product consists of 2 lamps. 2 lamps are contained in the 1 lamp holder, and both lamps are
connected to 1 low voltage cable. Recommended lamp current is 5.0mArms typical for each lamp, and sum of 2 lamps is 10mArms typical. The lamp current should be measured by high-frequency current meter at the low voltage terminal.
Note5: The inverter should be designed so that the lamp starting voltage can be maintained for more
than 1 second. Otherwise the lamp may not be turned on.
Note6: In case "FO" is not the recommended value, beat noise may display on the screen, because of
interference between "FO" and "1/th". Recommended value of "FO" is as following.
FO
1
=
4
1
(2n-1)
th
u
u
th: Horizontal cycle (See "4.9.2 Timing characteristics".) n : Natural number (1, 2, 3 )
Note7: Method of lamp cable installation may invite fluctuation of lamp current and voltage or
asymmetric of lamp working waveform. When designing method of lamp cable installation, evaluate the fluctuation of lamp current, voltage and working waveform sufficiently.
PRELIMINARY DATA SHEET DOD-MD-0099 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9
www.panelook.com
Loading...
+ 20 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
