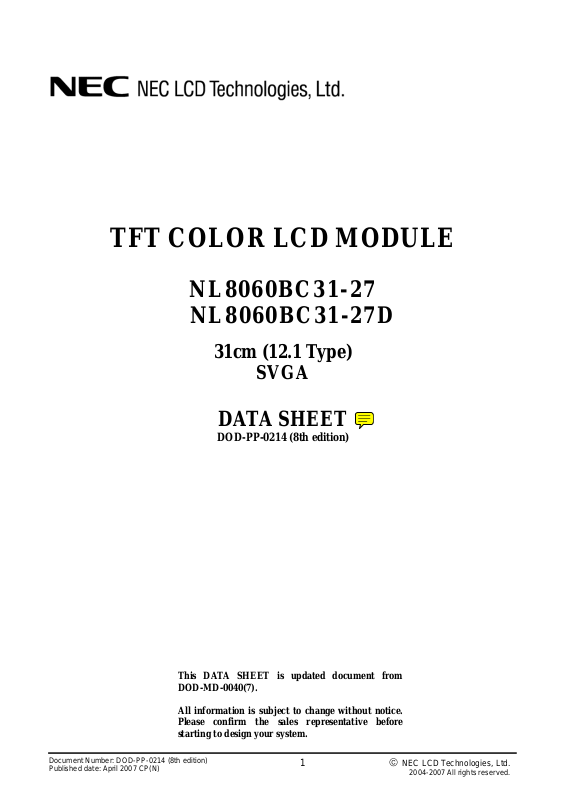

Page 1

TFT COLOR LCD MODULE

NL8060BC31-27 NL8060BC31-27D

31cm (12.1 Type)

SVGA

DATA SHEET

DOD-PP-0214 (8th edition)

This DATA SHEET is updated document from DOD-MD-0040(7).

All information is subject to change without notice. Please confirm the sales representative before starting to design your system.

Document Number: DOD-PP-0214 (8th edition) Published date: April 2007 CP(N)

Page 2

NL8060BC31-27/27D

INTRODUCTION

The Copyright to this document belongs to NEC LCD Technologies, Ltd. (hereinafter called "NEC").

No part of this document will be used, reproduced or copied without prior written consent of NEC.

NEC does and will not assume any liability for infringement of patents, copyrights or other intellectual property rights of any third party arising out of or in connection with application of the products described herein except for that directly attributable to mechanisms and workmanship thereof. No license, express or implied, is granted under any patent, copyright or other intellectual property right of NEC.

Some electronic parts/components would fail or malfunction at a certain rate. In spite of every effort to enhance reliability of products by NEC, the possibility of failures and malfunction might not be avoided entirely. To prevent the risks of damage to death, human bodily injury or other property arising out thereof or in connection therewith, each customer is required to take sufficient measures in its safety designs and plans including, but not limited to, redundant system, fire-containment and anti-failure.

The products are classified into three quality grades: "Standard", "Special", and "Specific" of the highest grade of a quality assurance program at the choice of a customer. Each quality grade is designed for applications described below. Any customer who intends to use a product for application other than that of Standard quality grade is required to contact an NEC sales representative in advance.

The Standard quality grade applies to the products developed, designed and manufactured in accordance with the NEC standard quality assurance program, which are designed for such application as any failure or malfunction of the products (sets) or parts/components incorporated therein a customer uses are, directly or indirectly, free of any damage to death, human bodily injury or other property, like general electronic devices.

Examples: Computers, office automation equipment, communications equipment, test and measurement

equipment, audio and visual equipment, home electronic appliances, machine tools, personal electronic equipment, industrial robots, etc.

The Special quality grade applies to the products developed, designed and manufactured in accordance with an NEC quality assurance program stricter than the standard one, which are designed for such application as any failure or malfunction of the products (sets) or parts/components incorporated therein a customer uses might directly cause any damage to death, human bodily injury or other property, or such application under more severe condition than that defined in the Standard quality grade without such direct damage.

Examples: Control systems for transportation equipment (automobiles, trains, ships, etc.), traffic control

systems, anti-disaster systems, anti-crime systems, medical equipment not specifically designed for life support, safety equipment, etc.

The Specific quality grade applies to the products developed, designed and manufactured in accordance with the standards or quality assurance program designated by a customer who requires an extremely higher level of reliability and quality for such products.

Examples: Military systems, aircraft control equipment, aerospace equipment, nuclear reactor control

systems, medical equipment/devices/systems for life support, etc.

The quality grade of this product is the "Standard" unless otherwise specified in this document.

DATA SHEET DOD-PP-0214 (8th edition)

Page 3

NL8060BC31-27/27D

INTRODUCTION.......................................................................................................................................2

1. OUTLINE................................................................................................................................................4

1.1 STRUCTURE AND PRINCIPLE.......................................................................................................4

1.2 APPLICA TION...................................................................................................................................4

1.3 FEATURES.........................................................................................................................................4

2. GENERAL SPECIFICATIONS ............................................................................................................ 5

3. BLOCK DIAGRAM...............................................................................................................................6

4. DETAILED SPECIFICATIONS ...........................................................................................................7

4.1 MECHANICAL SPECIFICATIONS..................................................................................................7

4.2 ABSOLUTE MAXIMUM RATINGS.................................................................................................7

4.3 ELECTRICAL CHARACTERISTICS...............................................................................................8

4.3.1 LCD panel signal processing board .............................................................................................8

4.3.2 Backlight lamp............................................................................................................................. 9

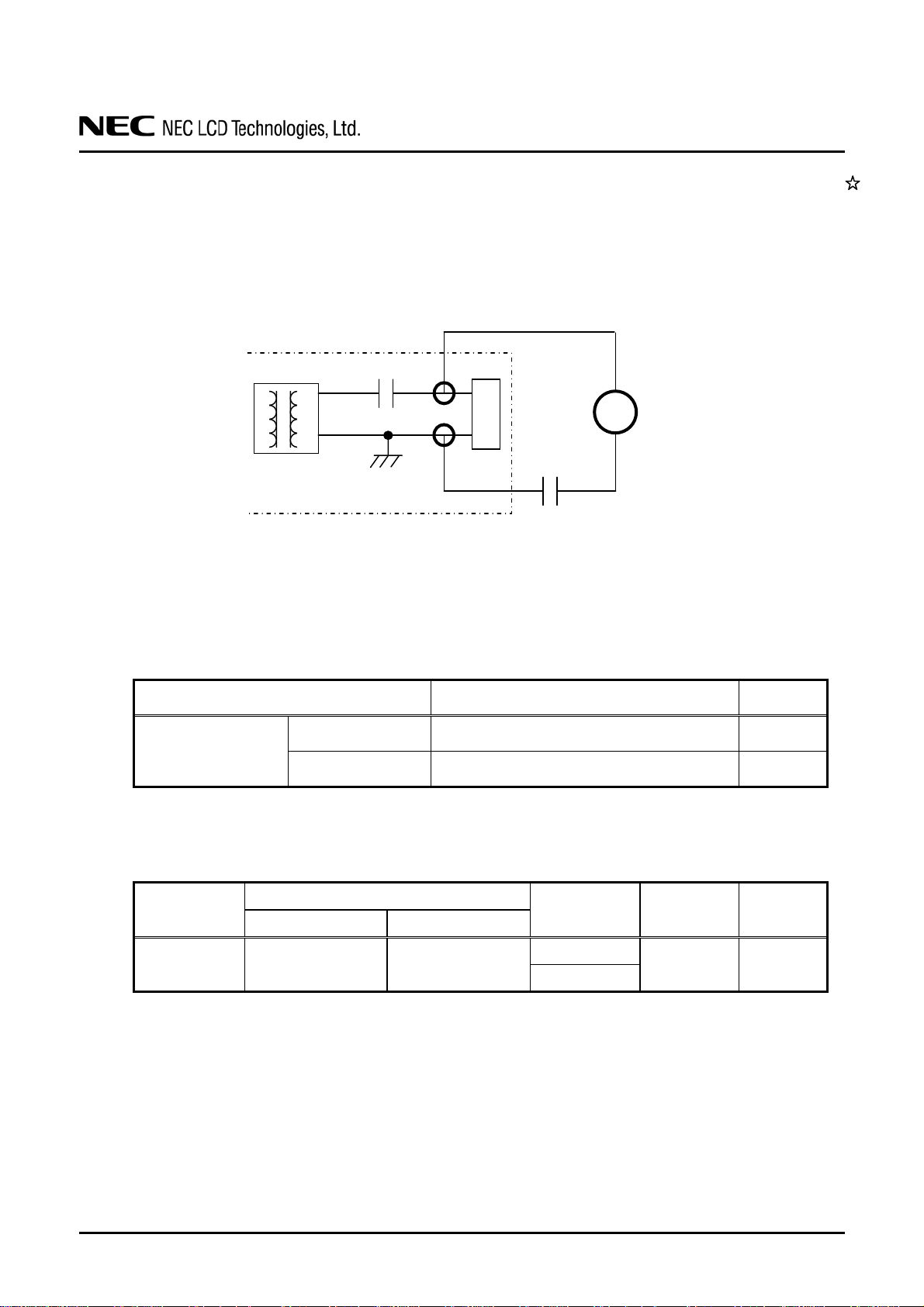

4.3.3 Power supply voltage ripple....................................................................................................... 10

4.3.4 Fuse............................................................................................................................................ 10

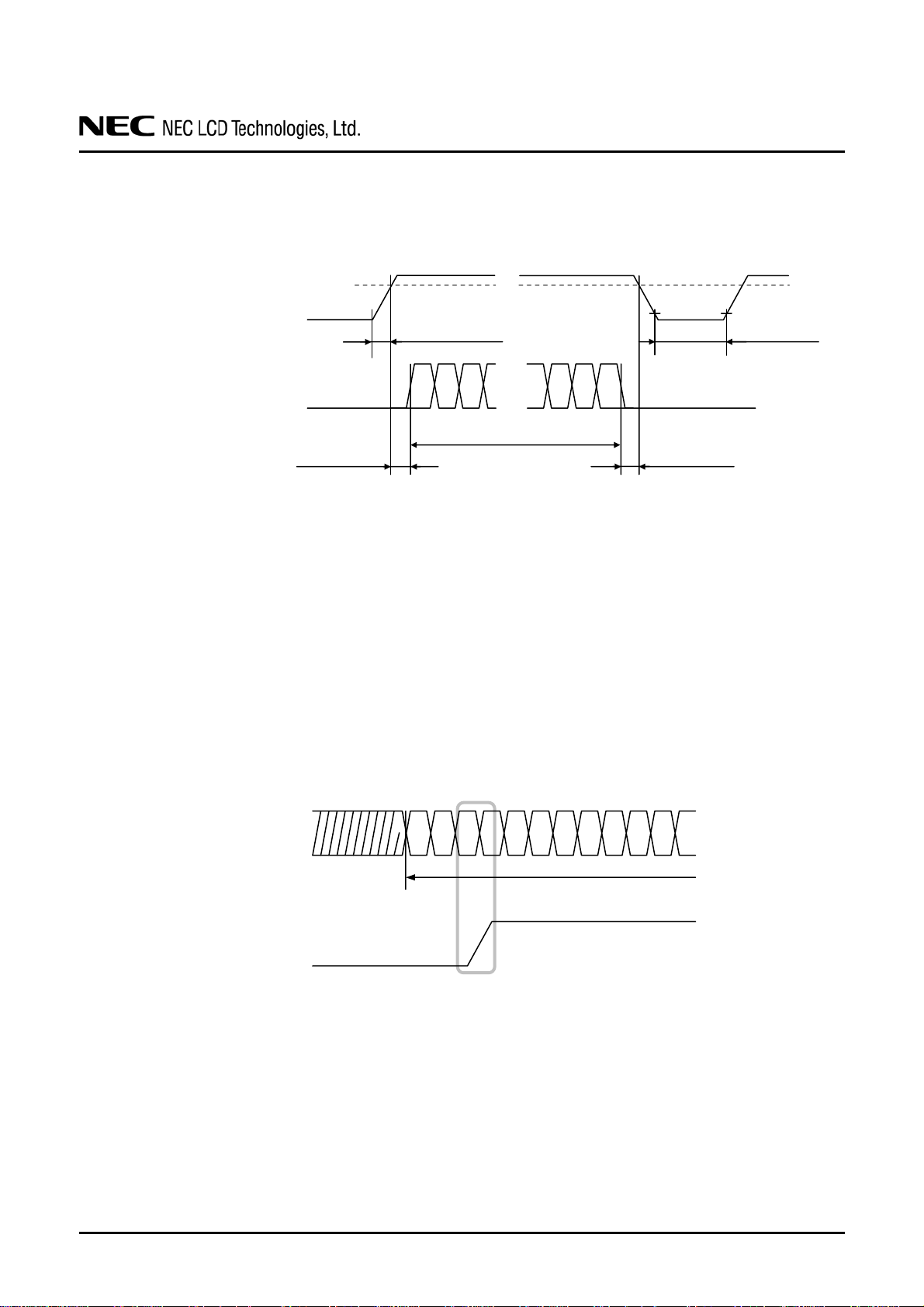

4.4 POWER SUPPLY VOLTAGE SEQUENCE.....................................................................................11

4.4.1 LCD panel signal processing board ........................................................................................... 11

4.4.2 Inverter....................................................................................................................................... 11

4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS..................................................... 12

4.5.1 LCD panel signal processing board ...........................................................................................12

4.5.2 Backlight lamp........................................................................................................................... 13

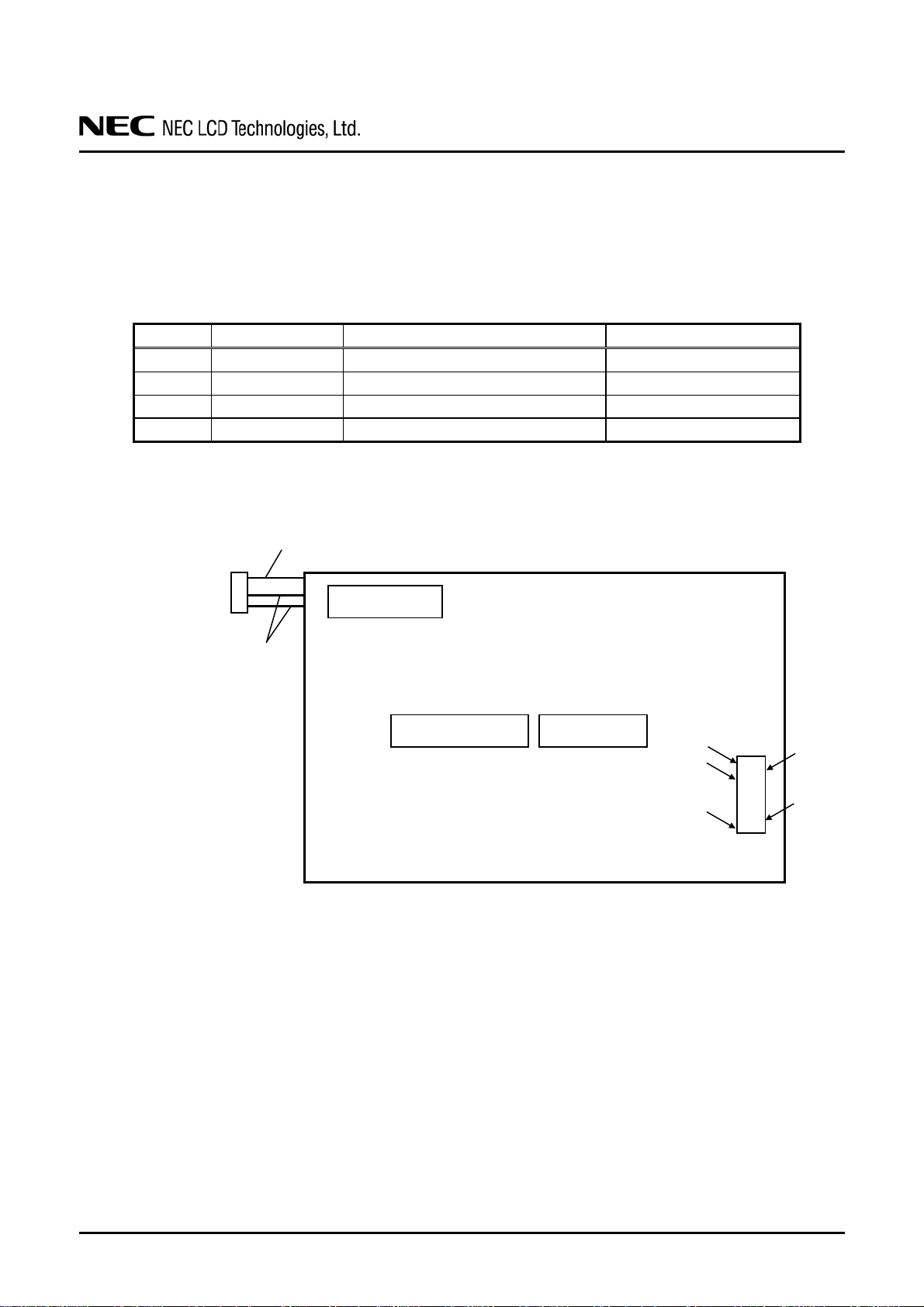

4.5.3 Positions of plug and socket.......................................................................................................13

4.6 DISPLAY COLORS AND INPUT DATA SIGNALS.......................................................................14

4.7 DISPLAY POSITIONS.....................................................................................................................15

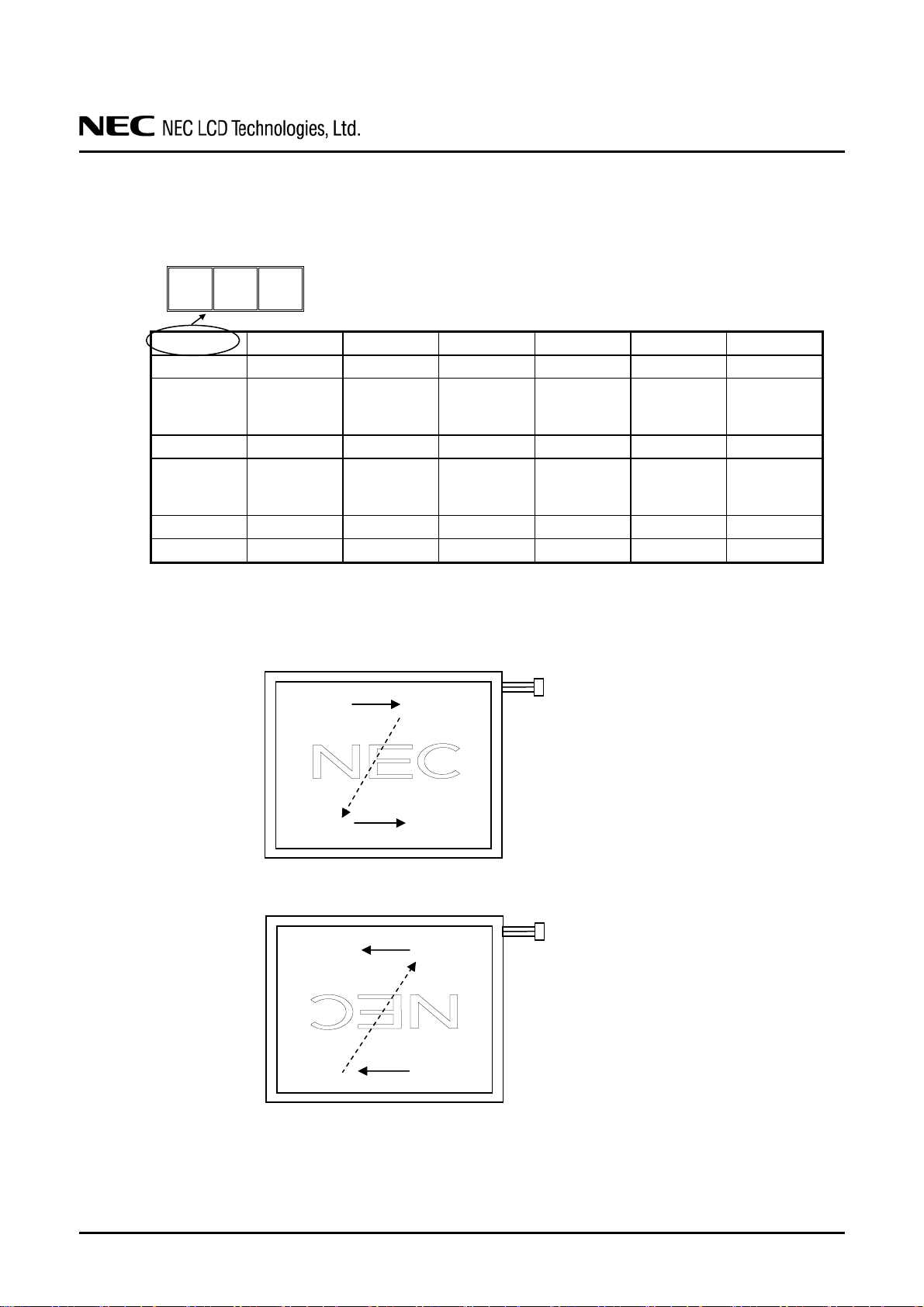

4.8 SCANNING DIRECTIONS ............................................................................................................. 15

4.9 INPUT SIGNAL TIMINGS..............................................................................................................16

4.9.1 Outline of input signal timings...................................................................................................16

4.9.2 Timing characteristics................................................................................................................17

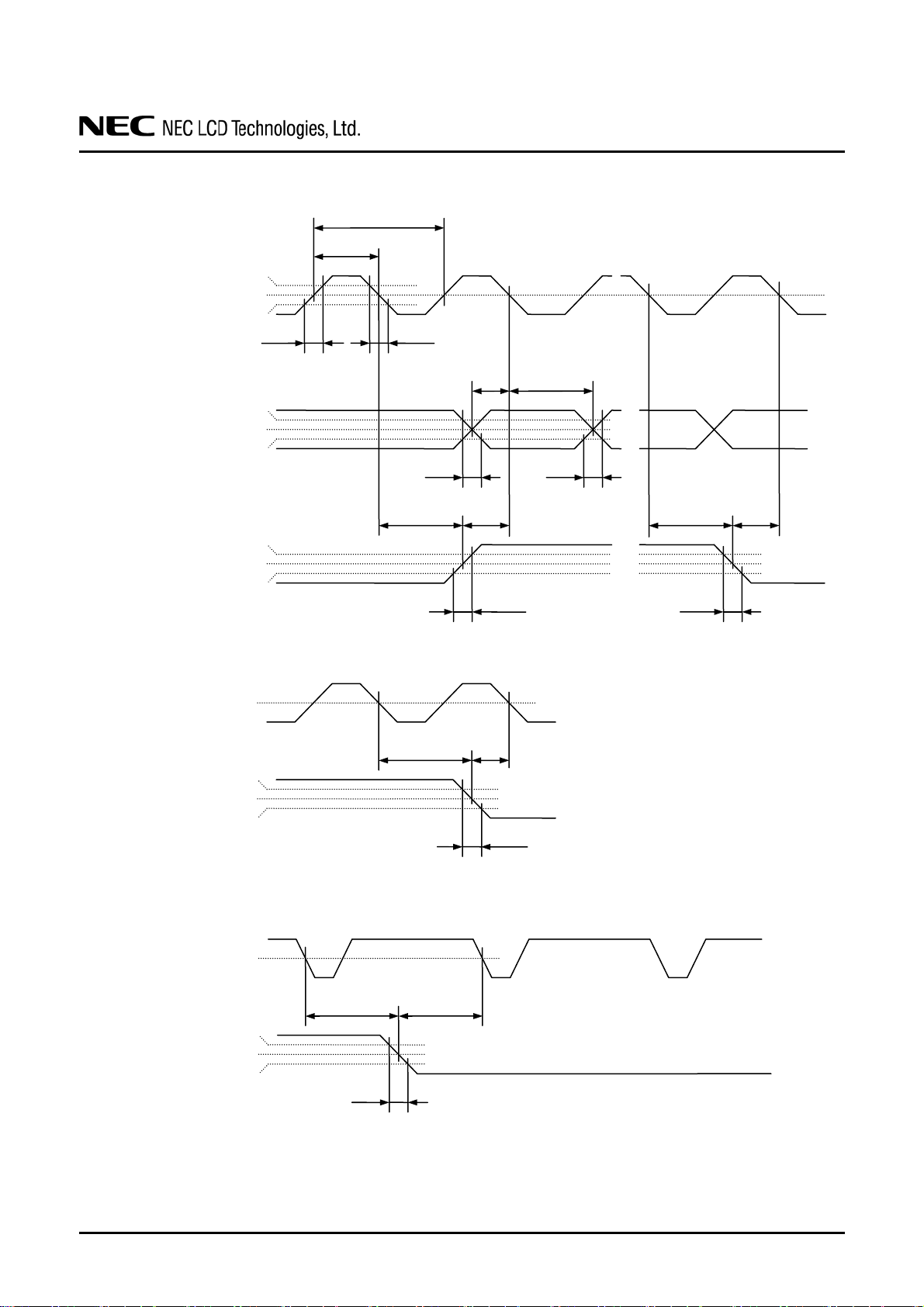

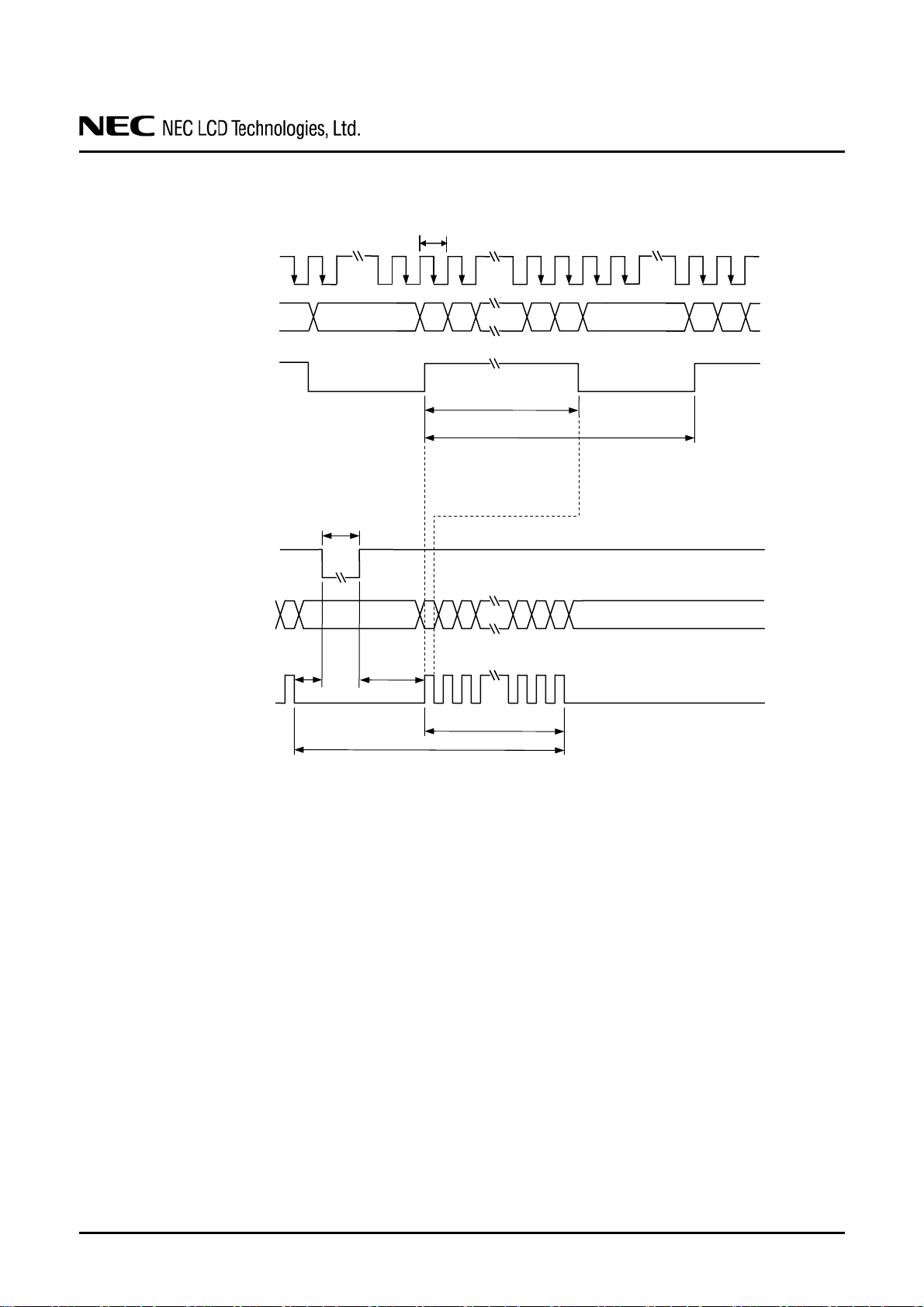

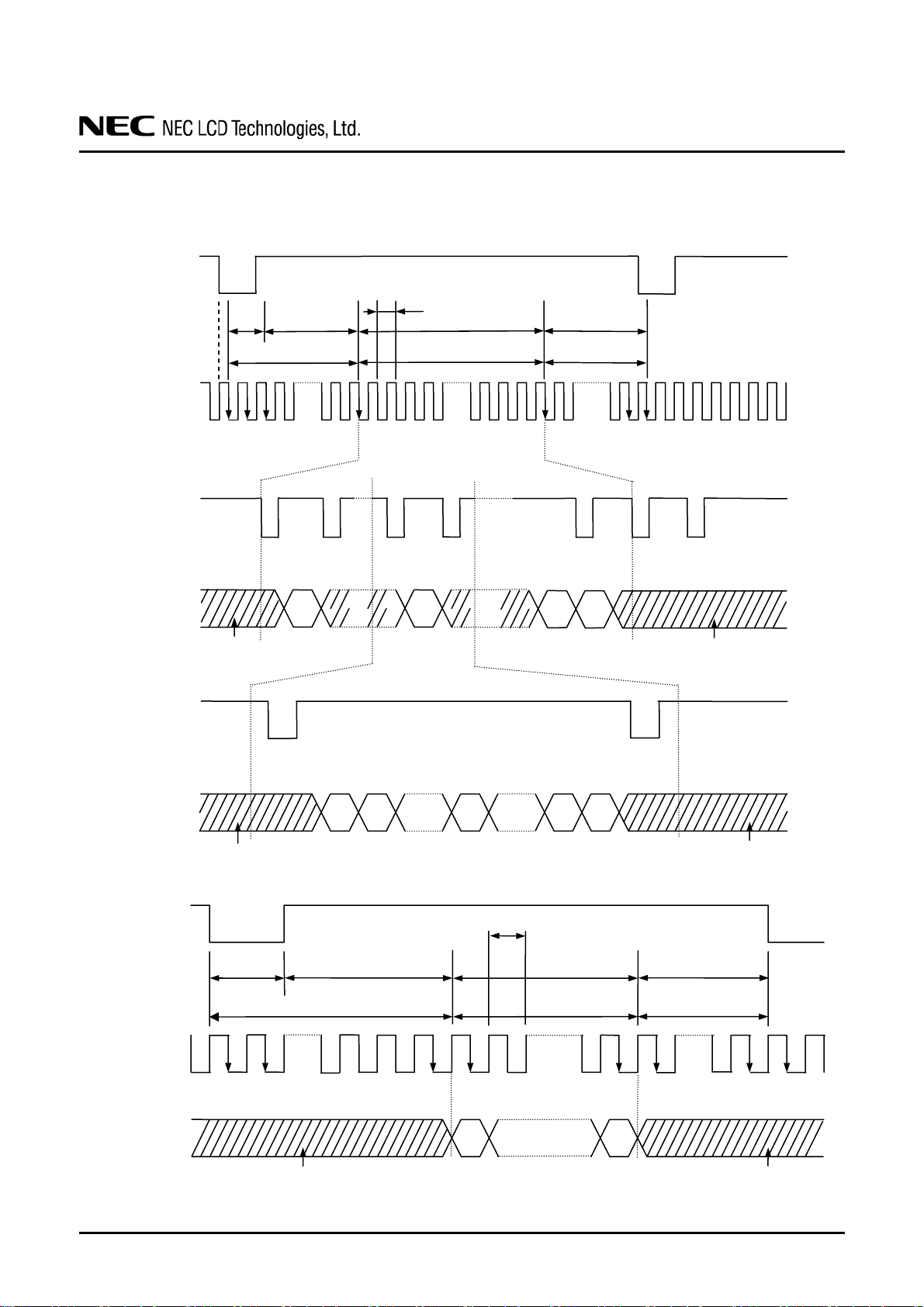

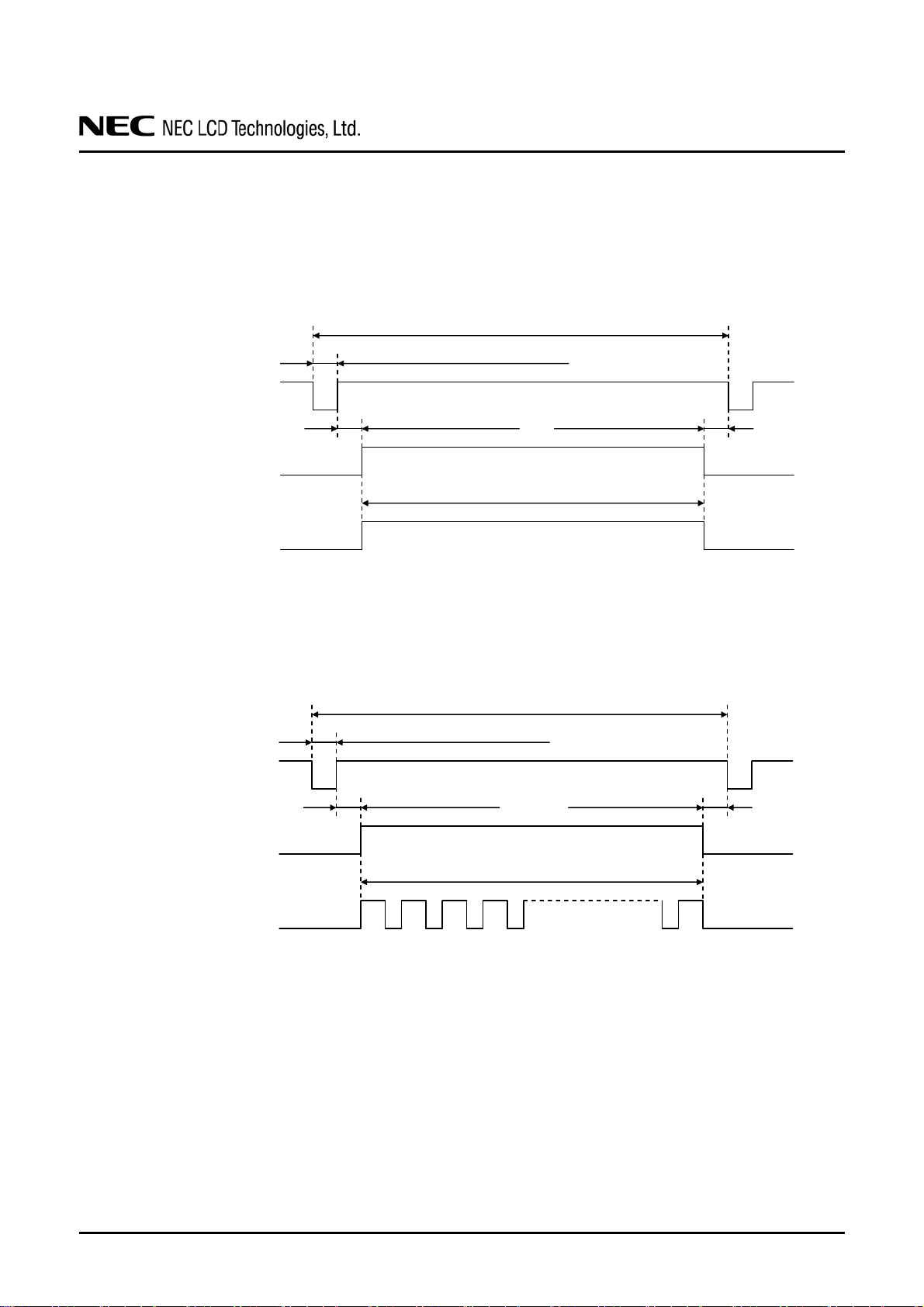

4.9.3 Input signal timing chart............................................................................................................19

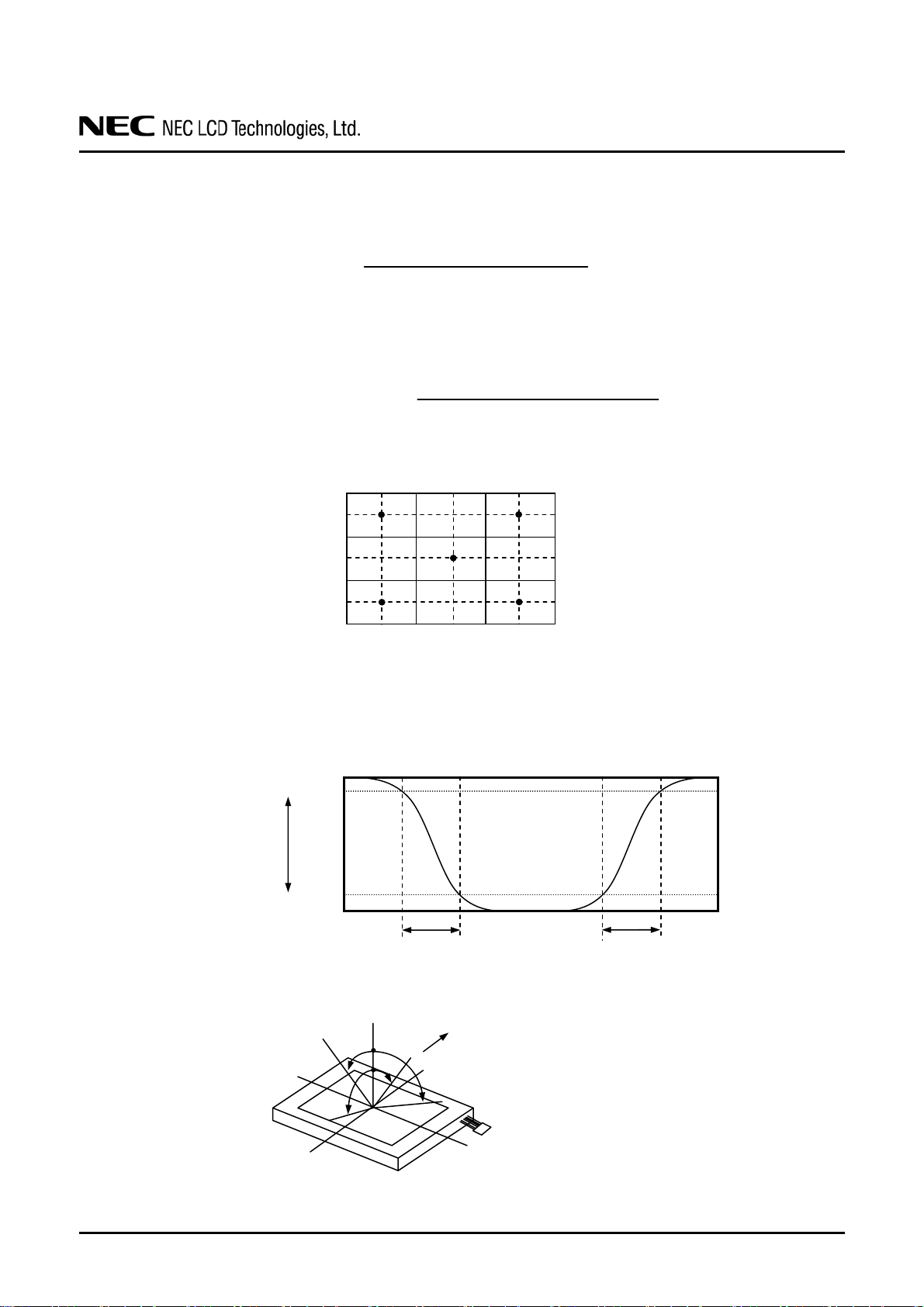

4.10 OPTICS...........................................................................................................................................22

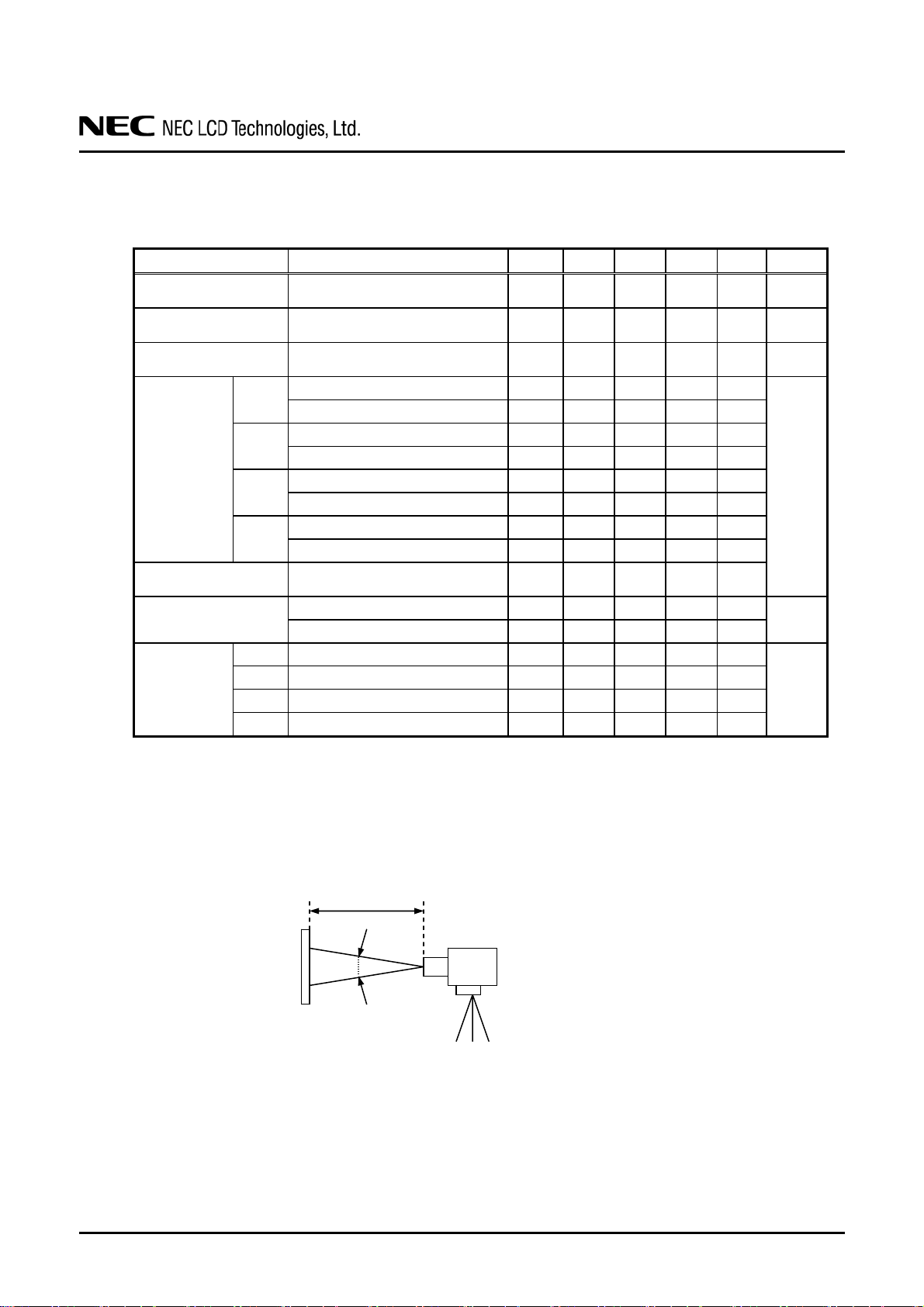

4.10.1 Optical characteristics.............................................................................................................. 22

4.10.2 Definition of contrast ratio....................................................................................................... 23

4.10.3 Definition of luminance uniformity.........................................................................................23

4.10.4 Definition of response times ....................................................................................................23

4.10.5 Definition of viewing angles....................................................................................................23

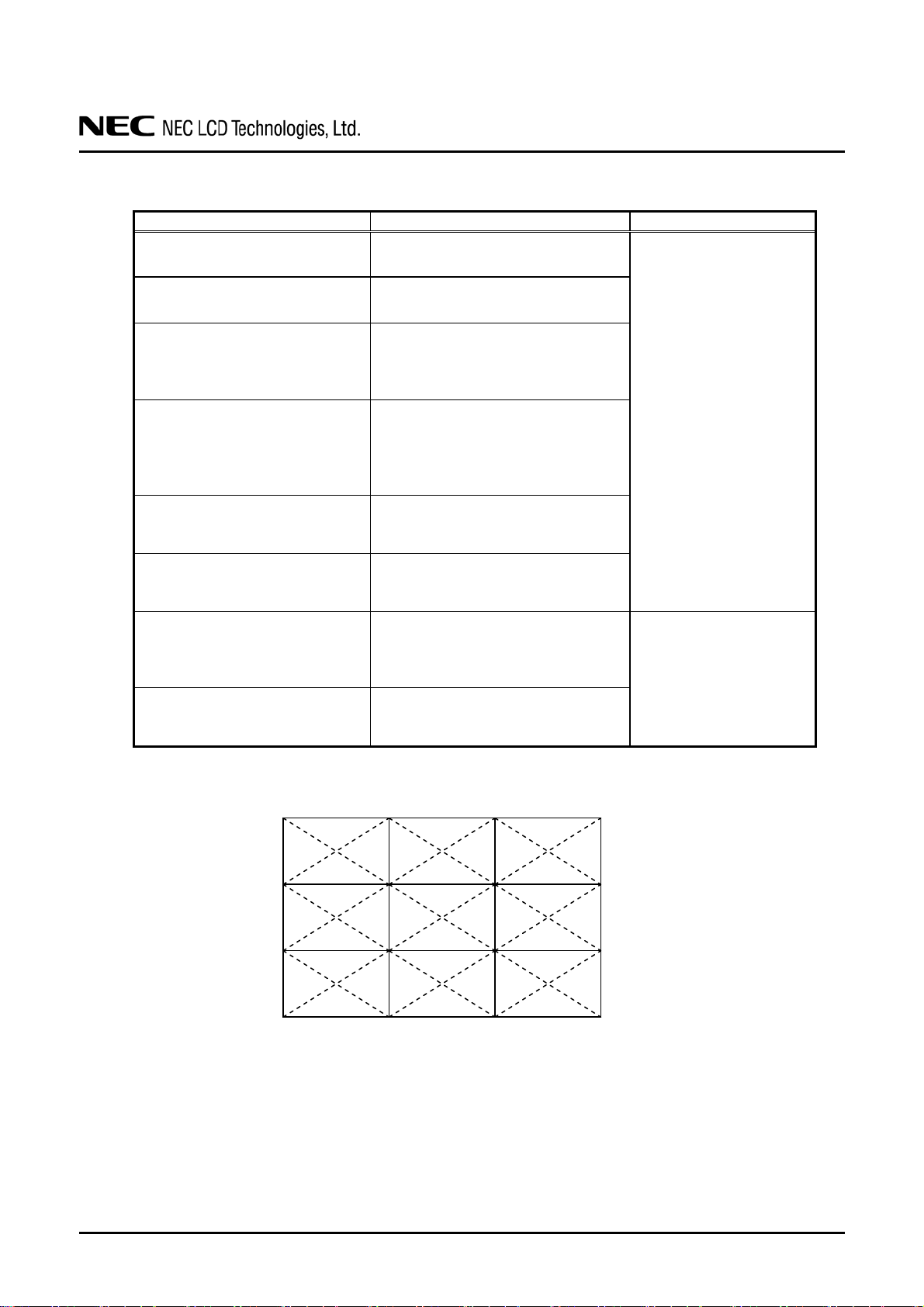

5. RELIABILITY TESTS.........................................................................................................................24

6. PRECAUTIONS ...................................................................................................................................25

6.1 MEANING OF CAUTION SIGNS ..................................................................................................25

6.2 CAUTIONS ...................................................................................................................................... 25

6.3 A TTE NTIONS .................................................................................................................................. 25

6.3.1 Handling of the product .............................................................................................................25

6.3.2 Environment............................................................................................................................... 26

6.3.3 Characteristics............................................................................................................................26

6.3.4 Other .......................................................................................................................................... 27

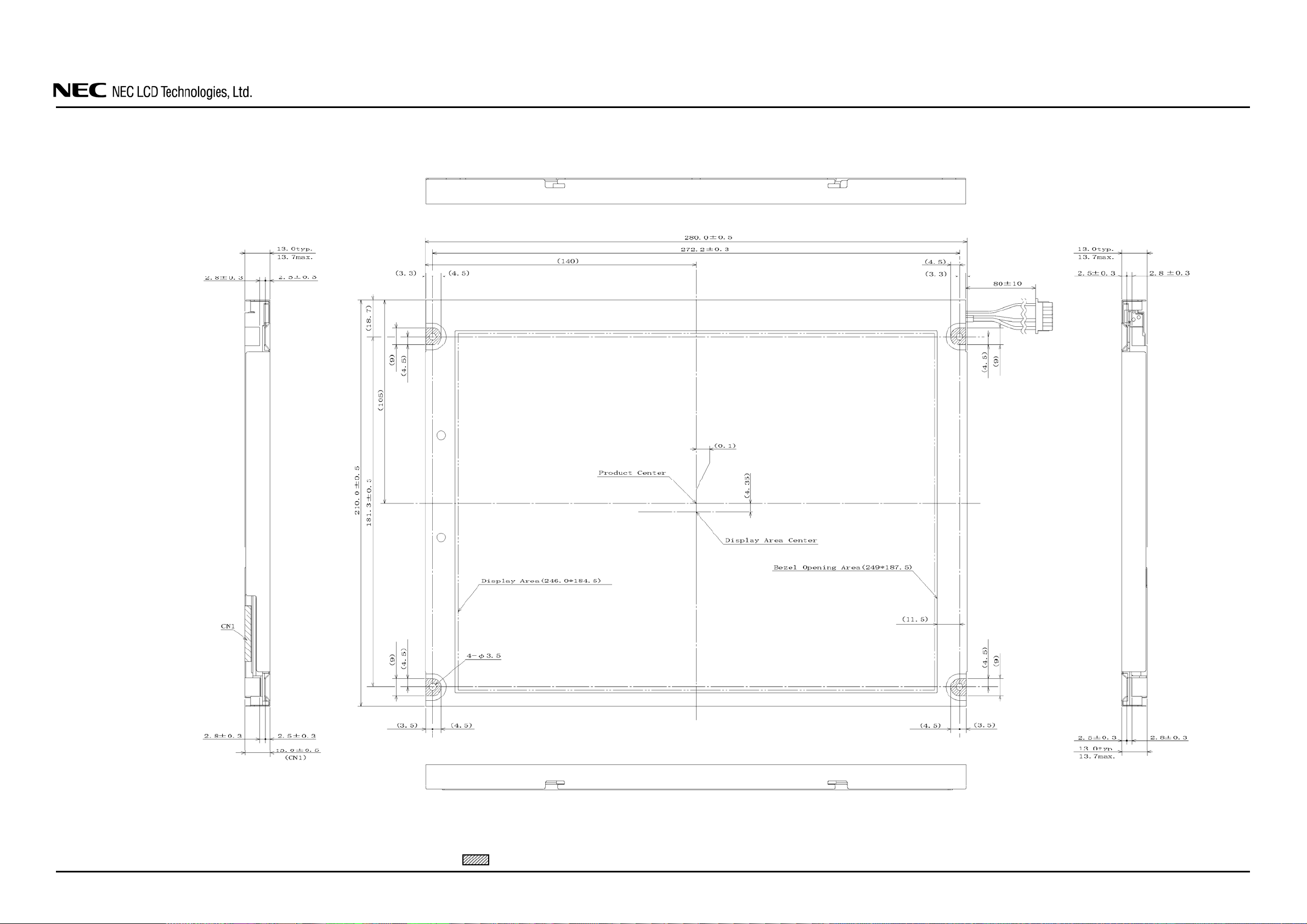

7. OUTLINE DRAWINGS.......................................................................................................................28

7.1 FRONT VIEW..................................................................................................................................28

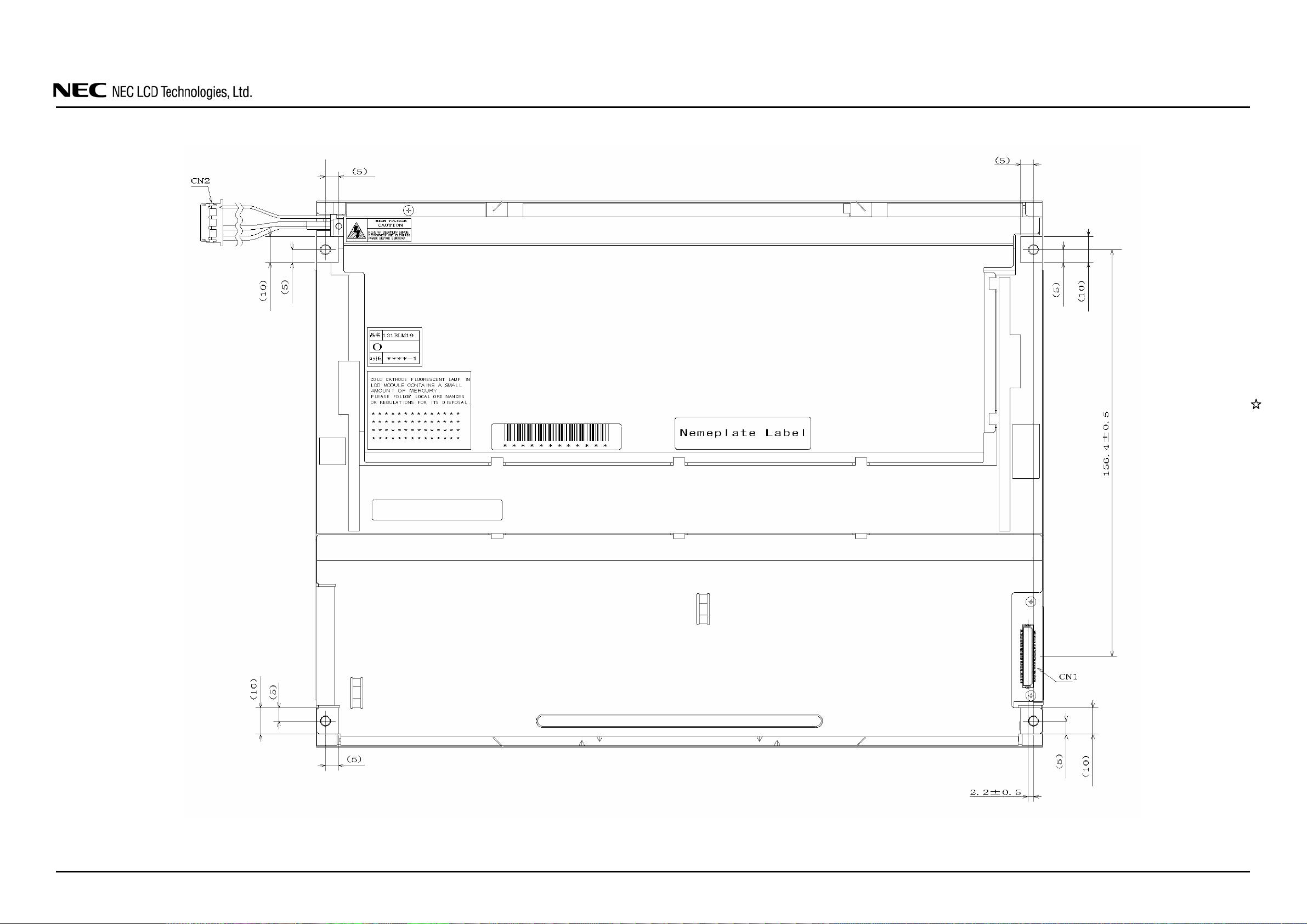

7.2 REAR VIEW.....................................................................................................................................29

DATA SHEET DOD-PP-0214 (8th edition)

Page 4

1. OUTLINE

1.1 STRUCTURE AND PRINCIPLE

Color LCD module NL8060BC31-27 and NL8060BC31-27D are composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a backlight.

The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array glass substrate and a color-filter glass substrate.

Color (Red, Green, Blue) data signals from a host system (e.g. signal generator, etc.) are modulated into best form for active matrix system by a signal processing circuit, and sent to the driver LSIs which drive the individual TFT arrays.

The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight assembly, when it is controlled by data signals. Color images are created by regulating the amount of transmitted light through the TFT array of red, green and blue dots.

1.2 APPLICA TION

• For industrial use

1.3 FEATURES

• High luminance

• High contrast

• Wide viewing angle

• Wide temperature range

• 6-bit digital RGB signals

• Reversible-scan direction

• Edge light type (without inverter)

• Replaceable lamp for backlight

• Acquisition product for UL60950-1/CSA C22.2 No.60950-1-03 (File number: E170632)

• Difference between NL8060BC31-27 and NL8060BC31-27D

Polarizer surface

• Compliance with the European RoHS directive (2002/95/EC)

(From product which was produced after April. 1, 2006)

NL8060BC31-27/27D

NL8060BC31-27 NL8060BC31-27D

Clear Antiglare

DATA SHEET DOD-PP-0214 (8th edition)

Page 5

2. GENERAL SPECIFICATIONS

Display area Diagonal size of display Drive system Display color Pixel Pixel arrangement Dot pitch Pixel pitch Module size Weight Contrast ratio

NL8060BC31-27/27D

246.0 (H) × 184.5 (V) mm (typ.) 31cm (12.1 inches) a-Si TFT active matrix 262,144 colors 800 (H) × 600 (V) pixels RGB (Red dot, Green dot, Blue dot) vertical stripe

0.1025 (H) × 0.3075 (V) mm

0.3075 (H) × 0.3075 (V) mm

280.0 (W) × 210.0 (H) × 13.0 (D) mm (typ.) 740g (typ.) 600:1 (typ.)

Viewing angle

Designed viewing direction

Polarizer surface

Polarizer pencil-hardness

Color gamut

Response time

Luminance

Signal system

Power supply voltage

Backlight

At the contrast ratio

• Horizontal: Right side 70° (typ.), Left side 70° (typ.)

• Vertical: Up side 45° (typ.), Down side 55° (typ.)

At DPS= Low or Open: Normal scan

• Viewing direction without image reversal: up side (12 o'clock)

• Viewing direction with contrast peak: down side (6 o'clock)

• Viewing angle with optimum grayscale (γ=2.2): normal axis

NL8060BC31-27 Clear NL8060BC31-27D 3H (min.) [by JIS K5400]

At LCD panel center

40% (typ.) [against NTSC color space]

Ton+Toff (10%

33ms (typ.)

At IBL= 5.0mArms / lamp

400cd/m

6-bit digital signals for data of RGB colors, Dot clock (CLK), Data enable (DE), Horizontal synchronous signal (Hsync), Vertical synchronous signal (Vsync)

LCD panel signal processing board: 3.3V or 5.0V Edge light type: 2 cold cathode fluorescent lamps

Replaceable part

Recommended inverter (Option)

(typ.)

• Lamp holder set: Type No. 121LHS18

• Inverter: Type No. 121PW181

←→

≥

10:1

90%)

Antiglare

Power consumption

At IBL=5.0mArms / lamp, Checkered flag pattern

6.4W (typ., Power dissipation of the inverter is not included.)

DATA SHEET DOD-PP-0214 (8th edition)

Page 6

3. BLOCK DIAGRAM

Host

LCD module (Product)

R0 to R5

G0 to G5

B0 to B5

200Ω

CLK

Hsync

Vsync

47Ω

200Ω

DPS

GND Note1 Note2

VCC

Fuse

VDDB

GNDB

Note2

Note1: Relations between GND (Signal ground), FG (Frame ground) and VBLC (Lamp low voltage

terminal) in the LCD module are as follows.

Note2: GND, FG and GNDB must be connected to customer equipment’s ground, and it is

recommended that these grounds are connected together in customer equipment.

NL8060BC31-27/27D

H-driver

2,400 lines

Controller

LCD panel

H: 800 × 3 (R, G, B)

600 lines

Power supply

for gradation

DC/DC

converter

LCD panel signal processing board

V-driver

VBLH

Inverter

(Option)

VBLH

VBLC

Note1

GND-FG Not connected GND-VBLC Not connected FG-VBLC Not connected

V: 600

Backlight (Edge light type)

Lamp

Metallic frame of lamp holder

DATA SHEET DOD-PP-0214 (8th edition)

Page 7

4. DETAILED SPECIFICATIONS

4.1 MECHANICAL SPECIFICATIONS

Parameter Specification Unit

NL8060BC31-27/27D

Module size Display area

Weight 740 (typ.), 770 (max.) g

Note1: See "7. OUTLINE DRAWINGS".

4.2 ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Rating Unit Remarks

Power supply

voltage

Input voltage

for signals

Operating temperature

LCD panel signal processing board VCC -0.3 to +6.5 V

Storage temperature Tst -20 to +80

280.0 ± 0.5 (W) × 210.0 ± 0.5 (H) × 13.0 (typ., D)

13.7 (max., D)

246.0 (H) × 184.5 (V)

Lamp voltage VBLH 1,800 Vrms

Display signals

Note1

Function signal

Note2

Front surface TopF -10 to +70

Rear surface TopR -10 to +70

-0.3 to VCC+0.3 V

°C

Note1 mm Note1 mm

Ta= 25°C

Note3

Note4

Relative humidity

Note5

Absolute humidity

Note5

≤ 95

≤ 85 ≤ 70

Note6

g/m3

40 < Ta ≤ 50°C

Note1: Display signals are CLK, Hsync, Vsync, DE, DATA (R0 to R5, G0 to G5, B0 to B5). Note2: Function signal is DPS. Note3: Measured at center of LCD panel surface (including self-heat) Note4: Measured at center of LCD module's rear shield surface (including self-heat) Note5: No condensation Note6: Water amount at Ta= 50°C and RH= 85%

Ta ≤ 40°C

Ta > 50°C

DATA SHEET DOD-PP-0214 (8th edition)

Page 8

4.3 ELECTRICAL CHARACTERISTICS

4.3.1 LCD panel signal processing board

Parameter Symbol min. typ. max. Unit Remarks

Power supply voltage VCC

Power supply current ICC

Logic input voltage for

display signals

Input voltage for DPS

signal

High VDH 0.7VCC - VCC V

Low VDL 0 - 0.3VCC V

High VFH 0.7VCC - VCC V

Low VFL 0 - 0.3VCC V

Note1: Checkered flag pattern [by EIAJ ED-2522] Note2: Pattern for maximum current

NL8060BC31-27/27D

(Ta = 25°C)

3.0 3.3 3.6 V at VCC= 3.3V

4.75 5.0 5.25 V at VCC= 5.0V

210

Note1

140

Note1

450

Note2

300

Note2

mA at VCC= 3.3V

mA at VCC= 5.0V

CMOS level

DATA SHEET DOD-PP-0214 (8th edition)

Page 9

4.3.2 Backlight lamp

Lamp current

Lamp voltage

NL8060BC31-27/27D

(Ta= 25°C, Note1)

Parameter Symbol min. typ. max. Unit Remarks

at IBL=5.0mArms:

400cd/m

Note3, Note4

Note2, Note3

IBL 2.0 5.0 5.5 mArms

VBLH - 570 - Vrms -

Lamp starting voltage

Note2, Note3, Note5, Note8

Lamp oscillation frequency

Note6

970 - - Vrms

1,410 - - Vrms

FO 58 63 68 kHz -

Ta= 25°C

Ta= -10°C

Note1: This product consists of 2 backlight lamps, and these specifications are for each lamp.

Note2: The lamp voltage cycle between lamps should be kept on a same phase. "VS" and "VBLH"

are the voltage value between low voltage side (Cold) and high voltage side (Hot).

Note3: The asymmetric ratio of working waveform for lamps (Power supply voltage peak ratio,

power supply current peak ratio and waveform space ratio) should be less than 5 % (See the following figure.). If the waveform is asymmetric, DC (Direct current) element apply into the lamp. In this case, a lamp lifetime may be shortened, because a distribution of a lamp enclosure substance inclines toward one side between low voltage terminal (Cold terminal) and high voltage terminal (Hot terminal). When designing the inverter, evaluate asymmetric of lamp working waveform sufficiently.

|Pa - Pb|

|Sa - Sb|

× 100 ≤ 5 %

Pa: Supply voltage/current peak for positive, Pb: Supply voltage/current peak for negative Sa: Waveform space for positive part, Sb: Waveform space for negative part.

Note4: Thi s product consists of 2 lamps. 2 lamps are contained in the 1 lamp holder, and both lamps

are connected to 1 low voltage cable. Recommendation lamp current is 5.0mArms typical for each lamp, and sum of 2 lamps is 10mArms typical. The lamp current should be measured by high-frequency current meter at the low voltage terminal.

Note5: The inverter should be designed so that the lamp starting voltage can be maintained for more

than 1 second. Otherwise the lamp may not be turned on.

Note6: In case "FO" is not the recommended value, beat noise may display on the screen, because of

interference between "FO" and "1/th". Recommended value of "FO" is as following

1 1

FO = × × (2n-1)

4 th

th: Horizontal cycle (See "4.9.2 Timing characteristics".) n: Natural number (1, 2, 3 ⋅⋅⋅⋅⋅⋅⋅⋅)

Note7: Method of lamp cable installation may invite fluctuation of lamp current and voltage or

asymmetric of lamp working waveform. When designing method of lamp cable installation, evaluate the fluctuation of lamp current, voltage and working waveform sufficiently.

DATA SHEET DOD-PP-0214 (8th edition)

Page 10

Note8: In case of Inverter with Ballast condenser, "VS" is the voltage level between Ballast condenser

and Connector (Refer to the below “Example of measurement”). "VS" should be designed to be more than minimum "VS". Otherwise the lamp may not be turned on because the lamp starting voltage is less than minimum "VS".

Example of measurement

Probe capacity: 3pF (Tektronix, inc.: P6015A)

Transformer

4.3.3 Power supply voltage ripple

This product works, even if the ripple voltage levels are beyond the permissible values as following

the table, but there might be noise on the display image.

Power supply voltage

Ballast condenser

Inverter

NL8060BC31-27/27D

(Lamp side)

Connector

Probe capacity

Ripple voltage Note1

(Measure at input terminal of power supply)

High voltage probe

Unit

3.3V

VCC

5.0V

≤ 100 ≤ 100

Note1: The permissible ripple voltage includes spike noise.

4.3.4 Fuse

Parameter

Type Supplier

VCC FCC16202AB

Fuse

KAMAYA

ELECTRIC Co., Ltd

Rating Fusing current Remarks

2.0A 32V

4.0A Note1

Note1: The power supply capacity should be more than the fusing current. If it is less than the fusing

current, the fuse may not blow in a short time, and then nasty smell, smoke and so on may occur.

mVp-p mVp-p

DATA SHEET DOD-PP-0214 (8th edition)

Page 11

4.4 POWER SUPPLY VOLTAGE SEQUENCE

4.4.1 LCD panel signal processing board

VCC

Note1

3.0V or 4.75V 0V

Display signal, Function signal

Note2

0ms < t < 35ms

Note1: In terms of voltage variation (voltage drop) while VCC rising edge is below 3.0V in "VCC =

3.3V" or 4.75V in "VCC = 5.0V", a protection circuit may work, and then this product may not work.

Note2: Display signals (CLK, Hsync, Vsync, DE, DATA (R0 to R5, G0 to G5, B0 to B5)) and

function signal (DPS) must be Low or High-impedance, exclude the VALID period (See above sequence diagram), in order to avoid that internal circuits is damaged.

If some of display and function signals of this product are cut while this product is working,

even if the signal input to it once again, it might not work normally. VCC should be cut when the display and function signals are stopped.

4.4.2 Inverter (Option)

Display signal, Function signal

Note1

VDDB

Note1: These are the display and function signals for LCD panel signal processing board. Note2: The backlight should be turned on within the valid period of display and function signals, in

order to avoid unstable data display.

10μs ≤ Tr < 50ms

Note2

VALID period

NL8060BC31-27/27D

OFF

0ms < t < 35ms

0.3V

Toff ≥50ms

DATA SHEET DOD-PP-0214 (8th edition)

Page 12

4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS

4.5.1 LCD panel signal processing board

CN1 socket (LCD module side): DF9C-41P-1V (2∗) (Hirose Electric Co., Ltd. (HRS)) Adaptable plug: DF9-41S-1V (2∗), DF9-41S-1V (3∗) (Hirose Electric Co., Ltd. (HRS))

Pin No. Symbol Signal Remarks

1 GND Ground Note1 2 CLK Dot clock 3 GND Ground Note1 4 Hsync Horizontal synchronous signal 5 Vsync Vertical synchronous signal 6 GND 7 GND 8 GND

9 R0 Red data (LSB) Least significant bit 10 R1 Red data 11 R2 Red data 12 GND Ground Note1 13 R3 Red data 14 R4 Red data 15 R5 Red data (MSB) Most significant bit 16 GND 17 GND 18 GND 19 G0 Green data (LSB) Least significant bit 20 G1 Green data 21 G2 Green data 22 GND Ground Note1 23 G3 Green data 24 G4 Green data 25 G5 Green data (MSB) Most significant bit 26 GND 27 GND 28 GND 29 B0 Blue data (LSB) Least significant bit 30 B1 Blue data 31 B2 Blue data 32 GND Ground Note1 33 B3 Blue data 34 B4 Blue data 35 B5 Blue data (MSB) Most significant bit 36 GND Ground Note1

37 DE Selection of DE / Fixed mode 38 N.C. - Keep this pin Open.

39 VCC Power supply 40 VCC Power supply

41 DPS Selection of scan direction

Ground Note1

Note1: All GND and VCC terminals should be used without any non-connected lines. Note2: See "4.8 SCANNING DIRECTIONS".

NL8060BC31-27/27D

Data enable signal: DE mode High or Open: Fixed mode

Note1

High: Reverse scan Low or Open: Normal scan Note2

DATA SHEET DOD-PP-0214 (8th edition)

Page 13

4.5.2 Backlight lamp

Attention: VBLH and VBLC must be connected correctly. Wrong connections will cause electric

shock and also break down of the product.

CN2 plug (LCD module side): BHR-04VS-1 (J.S.T Mfg. Co., Ltd.) Adaptable socket: SM03 (7-D1) B-BHS-1-TB (LF) (SN), SM03 (7-D1) B-BHS-1-TB (J.S.T Mfg. Co., Ltd.)

Pin No. Symbol Signal Remarks

1 VBLH High voltage (Hot) Cable color: Pink 2 VBLH High voltage (Hot) Cable color: Pink 3 N. C. - Keep this pin Open. 4 VBLC Low voltage (Cold) Cable color: White

4.5.3 Positions of plug and socket

CN2

High voltage (Hot)

2 1

Low voltage (Cold)

Caution label

Rear side

Barcode label Name plate

NL8060BC31-27/27D

1 3

CN1

DATA SHEET DOD-PP-0214 (8th edition)

Page 14

4.6 DISPLAY COLORS AND INPUT DATA SIGNALS

This product can display in equivalent to 262,144 colors in 64 gray scales. Also the relation between

display colors and input data signals is as the following table.

Display colors

Black

Blue

Red

Magenta

Green

Basic colors

Red gray scale

Green gray scale

Blue gray scale

Cyan

Yellow

White Black

dark

↑ ↓

bright

Red

Black

dark

↑ ↓

bright

Green Black

dark

↑ ↓

bright

Blue

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0 000000

000000 111111 111111 000000 000000 111111 111111 000000 000001 000010

: 111101 111110 111111 000000 000000 000000

: 000000 000000 000000 000000 000000 000000

: 000000 000000 000000

NL8060BC31-27/27D

Data signal (0: Low level, 1: High level)

000000 000000 000000 000000 111111 111111 111111 111111 000000 000000 000000

: 000000 000000 000000 000000 000001 000010

: 111101 111110 111111 000000 000000 000000

: 000000 000000 000000

000000 111111 000000 111111 000000 111111 000000 111111 000000 000000 000000

000000 000000 000000 000000 000000 000000

000000 000000 000000 000000 000001 000010

111101 111110 111111

: :

DATA SHEET DOD-PP-0214 (8th edition)

Page 15

4.7 DISPLAY POSITIONS

The following table is the coordinates per pixel (See "4.8 SCANNING DIRECTIONS".).

C (0, 0)

R G B

C( 0, 0) C( 1, 0) ∙ ∙ ∙ C( X, 0) ∙ ∙ ∙ C(798, 0) C(799, 0) C( 0, 1) C( 1, 1) ∙ ∙ ∙ C( X, 1) ∙ ∙ ∙ C(798, 1) C(799, 1)

∙ ∙ ∙

C( 0, Y) C( 1, Y) ∙ ∙ ∙ C( X, Y) ∙ ∙ ∙ C(798, Y) C(799, Y)

∙ ∙ ∙

C( 0, 598) C( 1, 598) ∙ ∙ ∙ C( X, 598) ∙ ∙ ∙ C(798, 598) C(799, 598) C( 0, 599) C( 1, 599) ∙ ∙ ∙ C( X, 599) ∙ ∙ ∙ C(798, 599) C(799, 599)

4.8 SCANNING DIRECTIONS

The following figures are seen from a front view. Also the arrow shows the direction of scan.

Note1: Meaning of C (X, Y) and D (X, Y)

C (X, Y): The coordinates of the display position (See "4.7 DISPLAY POSITIONS".) D (X, Y): The data number of input signal for LCD panel signal processing board

∙ ∙ ∙

C (0, 0) D (0, 0)

C (0, 599) D (0, 599)

∙

∙ ∙ ∙

∙

∙ ∙ ∙

∙

C (799, 0) D (799, 0)

C (799, 599) D (799, 599)

∙ ∙ ∙

Figure1. Normal scan (DPS: Low or Open)

C (0, 0) D (799, 599)

C (0, 599) D (799, 0)

C (799, 0) D (0, 599)

C (799, 599) D (0, 0)

Figure2. Reverse scan (DPS: High)

∙ ∙ ∙

Note1

NL8060BC31-27/27D

∙

∙ ∙ ∙

∙

∙ ∙ ∙

∙

∙ ∙ ∙

DATA SHEET DOD-PP-0214 (8th edition)

Page 16

4.9 INPUT SIGNAL TIMINGS

4.9.1 Outline of input signal timings

• Horizontal signal Note1

Hsync Note2

Display period

DE (Data enable)

• Vertical signal

Note1

Vsync

Note2

Display period

DE (Data enable)

Note1: This diagram indicates virtual signal for set up to timing. Note2: Fixed mode cannot be used while working of DE mode. Note3: See "4.9.3 Input signal timing chart" for numeration of pulse.

NL8060BC31-27/27D

Horizontal synchronizing cycle (th)

Horizontal synchronizing pulse width (thp)

Horizontal back-porch (thb)

Horizontal display period (thd)

Vertical synchronizing cycle (tv)

Vertical synchronizing pulse width (tvp)

Vertical back-porch (tvb)

Vertical display period (tvd)

1 2 3 4 600 Note3

Horizontal front-porch (thf)

Vertical front-porch (tvf)

DATA SHEET DOD-PP-0214 (8th edition)

Page 17

4.9.2 Timing characteristics

(a) Fixed mode

CLK

DATA

(R0-R5) (G0-G5) (B0-B5)

Hsync

Vsync

Note1: Definition of parameters is as follows.

tc= 1CLK, tcd= tch/tc, th= 1H

Note2: Keep tvp + tvb and thp + thb within the table. If it is out of specification, display position will

be shifted to right/left side or up/down.

NL8060BC31-27/27D

(Note1, Note2)

Parameter Symbol min. typ. max. Unit Remarks

Frequency 1/tc 34.0 38.362 40.0 MHz 26.067ns (typ.)

Duty tcd 0.4 0.5 0.6 -

Rise time, Fall time tcrf - - 10 ns

CLK-DATA

Rise time, Fall time tdrf - - 10 ns

Display period thd 800 CLK

Front-porch thf 24 CLK Pulse width thp 12 72 - CLK Back-porch thb - 128 188 CLK

Total of pulse width and back-porch thp + thb 200 CLK -

CLK- Hsync

Rise time, Fall time thrf - - 10 ns

Display period tvd 600 H

Front-porch tvf 1 H Pulse width tvp 1 2 - H Back-porch tvb - 22 23 H

Total of pulse width and back-porch tvp + tvb 24 H -

Hsync-Vsync timing thv 1 - - CLK Vsync-Hsync timing tvh 15 - - ns

Rise time, Fall time tvrf - - 10 ns

Setup time tds 3 - - ns

Hold time tdh 5 - - ns

Cycle th

Setup time ths 3 - - ns

Hold time thh 5 - - ns

Cycle tv

24.0 26.693 30.1 1,024 CLK

16.1 16.683 17.2 ms 59.94Hz (typ.)

625 H

μs

37.463kHz (typ.)

DATA SHEET DOD-PP-0214 (8th edition)

Page 18

NL8060BC31-27/27D

(b) DE mode

(Note1, Note2)

Parameter Symbol min. typ. max. Unit Remarks

Frequency 1/tc 34.0 38.362 40.0 MHz 26.067ns (typ.)

CLK

DATA (R0-R5) (G0-G5) (B0-B5)

Vsync

CLK-DATA

Vsync-DE timing

Horizontal

Vertical

(One frame)

CLK-DE

Note1: Definition of parameters is as follows.

tc= 1CLK, tcd= tch/tc, th= 1H

Note2: Hsync signal (Pin No.4 of CN1) is not used inside the product at DE mode, but do not keep

pin open to avoid noise problem.

Duty tcd 0.4 0.5 0.6 -

Rise time, Fall time tcrf - - 10 ns

Setup time tds 3 - - ns

Hold time tdh 5 - - ns

Rise time, Fall time tdrf - - 10 ns

Pulse width tvp 1 2 - H

Setup time tvds 1 - - CLK

Hold time tvdh 1 - - CLK

Rise time, Fall time tvrf - - 10 ns

Cycle th

Display period thd 800 CLK

Cycle tv

Display period tvd 600 H

Setup time tdes 3 - - ns

Hold time tdeh 5 - - ns

Rise time, Fall time tderf - - 10 ns

24.0 26.693 30.1 829 1,024 - CLK

16.1 16.683 17.2 ms 59.94Hz (typ.) 603 625 - H

μs

37.463kHz (typ.)

DATA SHEET DOD-PP-0214 (8th edition)

Page 19

4.9.3 Input signal timing chart

(a) Fixed mode

Vsync

Hsync

DATA

(R0-R5)

(G0-G5)

(B0-B5)

INVALID

Hsync

DATA

(R0-R5)

(G0-G5)

(B0-B5)

INVALID

Hsync

CLK

DATA

(R0-R5)

(G0-G5)

(B0-B5)

tvp

thp thb

tvb tvd

24H (fixed)

D(X,0)

D(0,Y)D(1,Y) D(X,Y) D(798,Y)D(799,Y)

200CLK (fixed)

INVALID

600H (fixed)

D(X,Y)

D(0,Y)D(1,Y) D(799,Y)

D(X,598)D(X,599)

1CLK

800CLK (fixed)

1H (fixed)

thd

NL8060BC31-27/27D

tvf

INVALID

(Note: X=0 to 799)

INVALID

thf

24CLK (fixed)

INVALID

(Note: Y=0 to 599)

DATA SHEET DOD-PP-0214 (8th edition)

Page 20

NL8060BC31-27/27D

(b) DE mode

Horizontal timing

CLK

DATA (R0-R5) (G0-G5) (B0-B5)

Vertical timing

Vsync

DATA (R0-R5) (G0-G5) (B0-B5)

tvds

INVALID

tvp

INVALID

tvdh

INVALID 1 2 799 800

thd

INVALID

1 2 599 600

tvd

DATA SHEET DOD-PP-0214 (8th edition)

Page 21

NL8060BC31-27/27D

CLK

0.7VCC

0.5VCC

0.3VCC

tcrf

DATA

(R0-R5) (G0-G5) (B0-B5)

0.7VCC

0.5VCC

0.3VCC

INVALID

0.7VCC

0.5VCC

0.3VCC

CLK

0.5VCC

Hsync

0.7VCC

0.5VCC

0.3VCC

Hsync

0.5VCC

Vsync

0.7VCC

0.5VCC

0.3VCC

tch

thv

tvrf

tcrf

tdeh

thh

tdrf

tvh

tds

tdes

ths

tderf

thrf

tdh

tdrf

tdeh

tderf

tdes

DATA SHEET DOD-PP-0214 (8th edition)

Page 22

4.10 OPTICS

4.10.1 Optical characteristics

Parameter Condition Symbol min. typ. max. Unit Remarks

Luminance

Contrast ratio

Luminance uniformity

Chromaticity

Color gamut

Response time

Viewing angle

Note1: These are initial characteristics. Note2: Measurement conditions are as follows.

Ta= 2 5°C, VCC= 3.3V, IBL= 5.0mArms/lamp, Display mode: SVGA, Horizontal cycle= 1/37.463kHz, Vertical cycle= 1/59.94Hz, DPS= Low or Open: Normal scan

Optical characteristics are measured at luminance saturation after 20minutes from working the product, in the dark room. Also measurement methods are as follows.

Note3: See "4.10.2 Definition of contrast ratio". Note4: See "4.10.3 Definition of luminance uniformity". Note5: These coordinates are found on CIE 1931 chromaticity diagram. Note6: Product surface temperature: TopF= 28°C Note7: See "4.10.4 Definition of response times". Note8: See "4.10.5 Definition of viewing angles".

White

Red

Green

Blue

at center, against NTSC color space

Right

Left

Down

LCD module

(Product)

White at center

θR= 0°, θL= 0°, θU= 0°, θD= 0°

White/Black at center

θR= 0°, θL= 0°, θU= 0°, θD= 0°

White

θR= 0°, θL= 0°, θU= 0°, θD= 0°

x coordinate Wx 0.283 0.313 0.343 - y coordinate Wy 0.299 0.329 0.359 - x coordinate Rx - 0.586 - - y coordinate Ry - 0.345 - - x coordinate Gx - 0.327 - - y coordinate Gy - 0.518 - - x coordinate Bx - 0.156 - - y coordinate By - 0.145 - -

θR= 0°, θL= 0°, θU= 0°, θD= 0°

White to Black Ton - 8 10 ms Black to White Toff - 25 30 ms

θU= 0°, θD= 0°, CR≥ 10 θR θU= 0°, θD= 0°, CR≥ 10 θL

θR= 0°, θL= 0°, CR≥ 10 θU θR= 0°, θL= 0°, CR≥ 10 θD

50cm

Photodetector (BM-5A)

1°

NL8060BC31-27/27D

(Note1, Note2)

L 300 400 - cd/m2 -

CR 300 600 - - Note3

LU - 1.25 1.40 - Note4

Note5

C 35 40 - %

Note6 Note7

60 70 60 70 35 45 45 55 -

° °

Note8

° °

DATA SHEET DOD-PP-0214 (8th edition)

Page 23

4.10.2 Definition of contrast ratio

The contrast ratio is calculated by using the following formula.

Contrast ratio (CR) =

4.10.3 Definition of luminance uniformity

The luminance uniformity is calculated by using following formula.

Luminance uniformity (LU) =

The luminance is measured at near the 5 points shown below.

4.10.4 Definition of response times

Response time is measured, the luminance changes from "white" to "black", or "black" to "white" on the same screen point, by photo-detector. Ton is the time it takes the luminance change from 90% down to 10%. Also Toff is the time it takes the luminance change from 10% up to 90% (See the following diagram.).

White

100%

90%

Luminance

Black

10%

4.10.5 Definition of viewing angles

Left

Lower

Luminance of white screen Luminance of black screen

Maximum luminance from ① Minimum luminance from ①

133

100

300

①

④

Ton

ormal axis (Perpendicular)

θL

θU

θD

Upper

θR

400

③

12 o’clock

Right

NL8060BC31-27/27D

to ⑤

667

②

⑤

Toff

DATA SHEET DOD-PP-0214 (8th edition)

Page 24

5. RELIABILITY TESTS

Test item Condition Judgment

High temperature and humidity

(Operation)

NL8060BC31-27/27D

① 60 ± 2°C, RH= 90%, 240hours ② Display data is black.

High temperature

(Operation)

Heat cycle

(Operation)

Thermal shock

(Non operation)

ESD

(Operation)

Dust

(Operation)

Vibration

(Non operation)

Mechanical shock

(Non operation)

① 70 ± 2°C, 240hours ② Display data is black.

① -10 ± 3°C…1hour

70 ± 3°C…1hour

② 50cycles, 4hours/cycle ③ Display data is black.

① -20 ± 3°C…30minutes

80 ± 3°C…30minutes

② 100cycles, 1hour/cycle ③ Temperature transition time is within

5 minutes.

① 150pF, 150Ω, ±10kV ② 9 places on a panel surface Note2 ③ 10 times each places at 1 sec interval

① Sample dust: No. 15 (by JIS-Z8901)) ② 15 seconds stir ③ 8 times repeat at 1 hour interval ① 5 to 100Hz, 19.6m/s ② 1 minute/cycle ③ X, Y, Z direction ④ 120 times each directions

① 539m/ s ② ±X, ±Y, ±Z direction ③ 5 times each directions

, 11ms

No display malfunctions

Note1

No display malfunctions No physical damages

Note1

Note1: Display and appearance are checked under environmental conditions equivalent to the

inspection conditions of defect criteria.

Note2: See the following figure for discharge points.

{

{ {

{

DATA SHEET DOD-PP-0214 (8th edition)

Page 25

6. PRECAUTIONS

6.1 MEANING OF CAUTION SIGNS

The following caution signs have very important meaning. Be sure to read "6.2 CAUTIONS" and

"6.3 ATTENTIONS", after understanding these contents!

This sign has the meaning that cu sto mer wi l l be in ju re d by h i mself o r t h e p rod uc t will

sustain a damage, if customer has wrong operations.

This sign has the meaning that customer will get an electrical shock, if customer has

wrong operations.

This sign has the meaning that customer will be injured by himself, if customer has

wrong operations.

6.2 CAUTIONS

∗ Do not touch the working backlight. There is a danger of an electric shock.

NL8060BC31-27/27D

∗ Do not touch the working backlight. There is a danger of burn injury. ∗ Do not shock and press the LCD panel and the backlight! There is a danger of

breaking, because they are made of glass. (Shock: To be not greater 539m/s not greater 11ms, Pressure: To be not greater 19.6 N (φ16mm jig))

6.3 A TTENTIONS

6.3.1 Handling of the product

① Take hold of both ends without touching the circuit board when the product (LCD module) is

picked up from inner packing box to avoid broken down or misadjustment, because of stress to

mounting parts on the circuit board.

② Do not hook nor pull cables such as lamp cable, and so on, in order to avoid any damage. ③ When the product is put on the table temporarily, display surface must be placed downward. ④ When handling the product, take the measures of electrostatic discharge with such as earth band,

ionic shower and so on, because the product may be damaged by electrostatic.

⑤ The torque for mounting screws must never exceed 0.294N⋅m. Higher torque values might result in

distortion of the bezel.

⑥ The product must be installed using mounting holes without undue stress such as bends or twist

(See outline drawings). And do not add undue stress to any portion (such as bezel flat area). Bends

or twist described above and undue stress to any portion may cause display mura.

⑦ Do not press or rub on the sensitive product surface. When cleaning the product surface, use of the

cloth with ethanolic liquid such as screen cleaner for LCD is recommended.

and to be

DATA SHEET DOD-PP-0214 (8th edition)

Page 26

⑧ Do not push nor pull the interface connectors while the product is working. ⑨ Do not bend or unbend the lamp cable at the near part of the lamp holding rubber, to avoid the

⑩ Properly connect the plug (backlight side) to adaptable socket (inverter side) without incomplete

⑪ If the lamp cable is attached on the metal part of the product directly, high frequency leak current

⑫ When not connecting FG of the LCD module to the customer's equipment ground, inverter noise

⑬ When handling the product, use of an original protection sheet on the product surface (polarizer) is

⑭ Usually liquid crystals don't leak through the breakage of glasses because of the surface tension of

6.3.2 Environment

① Do not operate or store in high temperature, high humidity, dewdrop atmosphere or corrosive gases.

② In order to prevent dew condensation occurring by temperature difference, the product packing box

③ Do not operate in high magnetic field. Circuit boards may be broken down by it. ④ This product is not designed as radiation hardened.

6.3.3 Characteristics

The following items are neither defects nor failures.

① Response time, luminance and color may be changed by ambient temperature. ② Display mura, flicker, vertical seam or small spot may be observed depending on display patterns. ③ Optical characteristics (e.g. luminance, display uniformity, etc.) gradually is going to change

④ Do not display the fixed pattern for a long time because it may cause image sticking. Use a screen

⑤ The display color may be changed depending on viewing angle because of the use of condenser

⑥ Optical characteristics may be changed depending on input signal timings. ⑦ The interference noise between input signal frequency for this product's signal processing board

⑧ After the product is stored under condition of low temperature or dark place for a long time, the

NL8060BC31-27/27D

damage for high voltage side of the lamp.

connection. After connecting, be careful not to hook the lamp cables because incomplete

connection may occur by hooking the lamp cables. This incomplete connection may cause

abnormal operation of high voltage circuit.

to the metal part may occur, then the brightness may decrease or the lamp may not be turned on.

may create video noise on the LCD screen.

recommended for protection of product surface. Adhesive type protection sheet may change color

or characteristics of the polarizer.

thin layer and the construction of LCD panel. But, if you contact with liquid crystal for the worst,

please wash it out with soap.

Keep the product in packing box with antistatic pouch in room temperature to avoid dusts and

sunlight, when storing the product.

should be opened after enough time being left under the environment of an unpacking room.

Evaluate the leaving time sufficiently because a situation of dew condensation occurring is

changed by the environmental temperature and humidity. (Recommended leaving time: 6 hours or

more with packing state)

depending on operating time, and especially low temperature, because the LCD has cold cathode

fluorescent lamps.

saver, if the fixed pattern is displayed on the screen.

sheet in the backlight.

and luminance control frequency of the inverter may appear on a display. Set up luminance control

frequency of the inverter so that the interference noise does not appear.

cold cathode fluorescent lamp may not be turned on under the same condition because of the

general characteristic of cold cathode fluorescent lamp. In addition, when Luminance control ratio

is low in pulse width modulation method inverter, the lamp may not be turned on. In this case,

power should be supplied again.

DATA SHEET DOD-PP-0214 (8th edition)

Page 27

NL8060BC31-27/27D

6.3.4 Other

① All GND and VCC terminals should be used without any non-connected lines. ② Do not disassemble a product or adjust variable resistors. ③ See "REPLACEMENT MANUAL FOR LAMP HOLDER SET", when replacing backlight lamps. ④ Pay attention not to insert foreign materials inside of the product, when using tapping screws. ⑤ Pack the product with original shipping package, in order to avoid any damages during

transportation, when returning the product to NEC for repair and so on.

DATA SHEET DOD-PP-0214 (8th edition)

Page 28

7. OUTLINE DRAWINGS

7.1 FRONT VIEW

Note1: The values in parentheses are for reference. Note2: The torque for product mounting screws must never exceed 0.294N⋅m. Note3: Mounting hole portions (4 pieces)

DATA SHEET DOD-PP-0214 (8th edition)

NL8060BC31-27/27D

Unit: mm

Page 29

7.2 REAR VIEW

Note1: The values in parentheses are for reference. Note2: The torque for product mounting screws must never exceed 0.294N·m.

NL8060BC31-27/27D

Unit: mm

DATA SHEET DOD-PP-0214 (8th edition)

NEC NL8060BC31-27D, NL8060BC31-27 Specification

INTRODUCTION

CONTENTS

1. OUTLINE

1.1 STRUCTURE AND PRINCIPLE

1.2 APPLICA TION

1.3 FEATURES

2. GENERAL SPECIFICATIONS

3. BLOCK DIAGRAM

4. DETAILED SPECIFICATIONS

4.1 MECHANICAL SPECIFICATIONS

4.2 ABSOLUTE MAXIMUM RATINGS

4.3 ELECTRICAL CHARACTERISTICS

4.3.1 LCD panel signal processing board

4.3.2 Backlight lamp

4.3.3 Power supply voltage ripple

4.3.4 Fuse

4.4 POWER SUPPLY VOLTAGE SEQUENCE

4.4.1 LCD panel signal processing board

4.4.2 Inverter (Option)

4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS

4.5.1 LCD panel signal processing board

4.5.2 Backlight lamp

4.5.3 Positions of plug and socket

4.6 DISPLAY COLORS AND INPUT DATA SIGNALS

4.7 DISPLAY POSITIONS

4.8 SCANNING DIRECTIONS

4.9 INPUT SIGNAL TIMINGS

4.9.1 Outline of input signal timings

4.9.2 Timing characteristics

4.9.3 Input signal timing chart

4.10 OPTICS

4.10.1 Optical characteristics

4.10.2 Definition of contrast ratio

4.10.3 Definition of luminance uniformity

4.10.4 Definition of response times

4.10.5 Definition of viewing angles

5. RELIABILITY TESTS

6. PRECAUTIONS

6.1 MEANING OF CAUTION SIGNS

6.2 CAUTIONS

6.3 A TTENTIONS

6.3.1 Handling of the product

6.3.2 Environment

6.3.3 Characteristics

6.3.4 Other

7. OUTLINE DRAWINGS

7.1 FRONT VIEW

7.2 REAR VIEW
