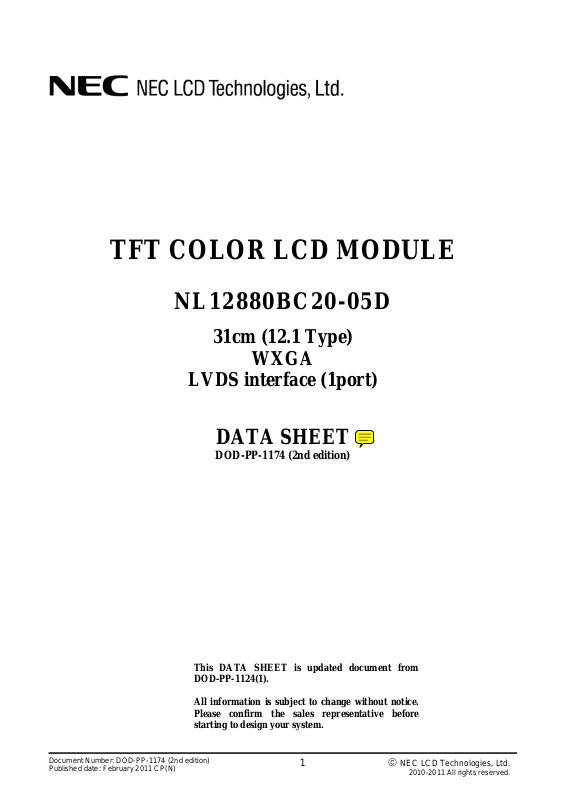

NEC NL12880BC20-05D Specification

TFT COLOR LCD MODULE

NL12880BC20-05D

31cm (12.1 Type)

WXGA

LVDS interface (1port)

DATA SHEET

DOD-PP-1174 (2nd edition)

This DATA SHEET is updated document from
DOD-PP-1124(1).

All information is subject to change without notice.
Please confirm the sales representative before
starting to design your system.

Document Number: DOD-PP-1174 (2nd edition)
Published date: February 2011 CP(N)

1

© NEC LCD Technologies, Ltd.

2010-2011 All rights reserved.

NL12880BC20-05D

INTRODUCTION

The Copyright to this document belongs to NEC LCD Technologies, Ltd. (hereinafter called "NEC").

No part of this document will be used, reproduced or copied without prior written consent of NEC.

NEC does and will not assume any liability for infringement of patents, copyrights or other intellectual
property rights of any third party arising out of or in connection with application of the products
described herein except for that directly attributable to mechanisms and workmanship thereof. No license,
express or implied, is granted under any patent, copyright or other intellectual property right of NEC.

Some electronic parts/components would fail or malfunction at a certain rate. In spite of every effort to
enhance reliability of products by NEC, the possibility of failures and malfunction might not be avoided
entirely. To prevent the risks of damage to death, human bodily injury or other property arising out
thereof or in connection therewith, each customer is required to take sufficient measures in its safety
designs and plans including, but not limited to, redundant system, fire-containment and anti-failure.

The products are classified into three quality grades: "Standard", "Special", and "Specific" of th e
highest grade of a quality assurance program at the choice of a customer. Each quality grade is designed
for applications described below. Any customer who intends to use a product for application other than
that of Standard quality grade is required to contact an NEC sales representative in advance.

The Standard quality grade applies to the products developed, designed and manufactured in
accordance with the NEC standard quality assurance program, which are designed for such application as
any failure or malfunction of the products (sets) or parts/components incorporated therein a customer
uses are, directly or indirectly, free of any damage to death, human bodily injury or other property, like
general electronic devices.
Examples: Computers, office automation equipment, communications equipment, test and measurement

equipment, audio and visual equipment, home electronic appliances, machine tools, personal
electronic equipment, industrial robots, etc.

The Special quality grade applies to the products developed, designed and manufactured in accordance
with an NEC quality assurance program stricter than the standard one, which are designed for such
application as any failure or malfunction of the products (sets) or parts/components incorporated therein
a customer uses might directly cause any damage to death, human bodily injury or other property, or
such application under more severe condition than that defined in the Standard quality grade without
such direct damage.
Examples: Control systems for transportation equipment (automobiles, trains, ships, etc.), traffic control

systems, anti-disaster systems, anti-crime systems, medical equipment not specifically
designed for life support, safety equipment, etc.

The Specific quality grade applies to the products developed, designed and manufactured in accordance
with the standards or quality assurance program designated by a customer who requires an extremely
higher level of reliability and quality for such products.
Examples: Military systems, aircraft control equipment, aerospace equipment, nuclear reactor control

systems, medical equipment/devices/systems for life support, etc.

The quality grade of this product is the "Standard" unless otherwise specified in this document.

DATA SHEET DOD-PP-1174 (2nd edition)

2

NL12880BC20-05D

CONTENTS

INTRODUCTION ..........................................................................................................................................2

1. OUTLINE....................................................................................................................................................4

1.1 STRUCTURE AND PRINCIPLE ........................................................................................................4

1.2 APPLICATION....................................................................................................................................4

1.3 FEATURES..........................................................................................................................................4

2. GENERAL SPECIFICATIONS................................................................................................................ 5

3. BLOCK DIAGRAM...................................................................................................................................6

4. DETAILED SPECIFICATIONS...............................................................................................................8

4.1 MECHANICAL SPECIFICATIONS...................................................................................................8

4.2 ABSOLUTE MAXIMUM RATINGS..................................................................................................8

4.3 ELECTRICAL CHARACTERISTICS.................................................................................................9

4.3.1 LCD panel signal processing board.............................................................................................9

4.3.2 Backlight lamp...........................................................................................................................10

4.3.3 Power supply voltage ripple.......................................................................................................10

4.3.4 Fuse............................................................................................................................................10

4.4 POWER SUPPLY VOLTAGE SEQUENCE.....................................................................................11

4.4.1 LCD panel signal processing board...........................................................................................11

4.4.2 LED driver board.......................................................................................................................11

4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS......................................................12

4.5.1 LCD panel signal processing board...........................................................................................12

4.5.2 Backlight lamp...........................................................................................................................13

4.5.3 Positions of plug and socket ......................................................................................................13

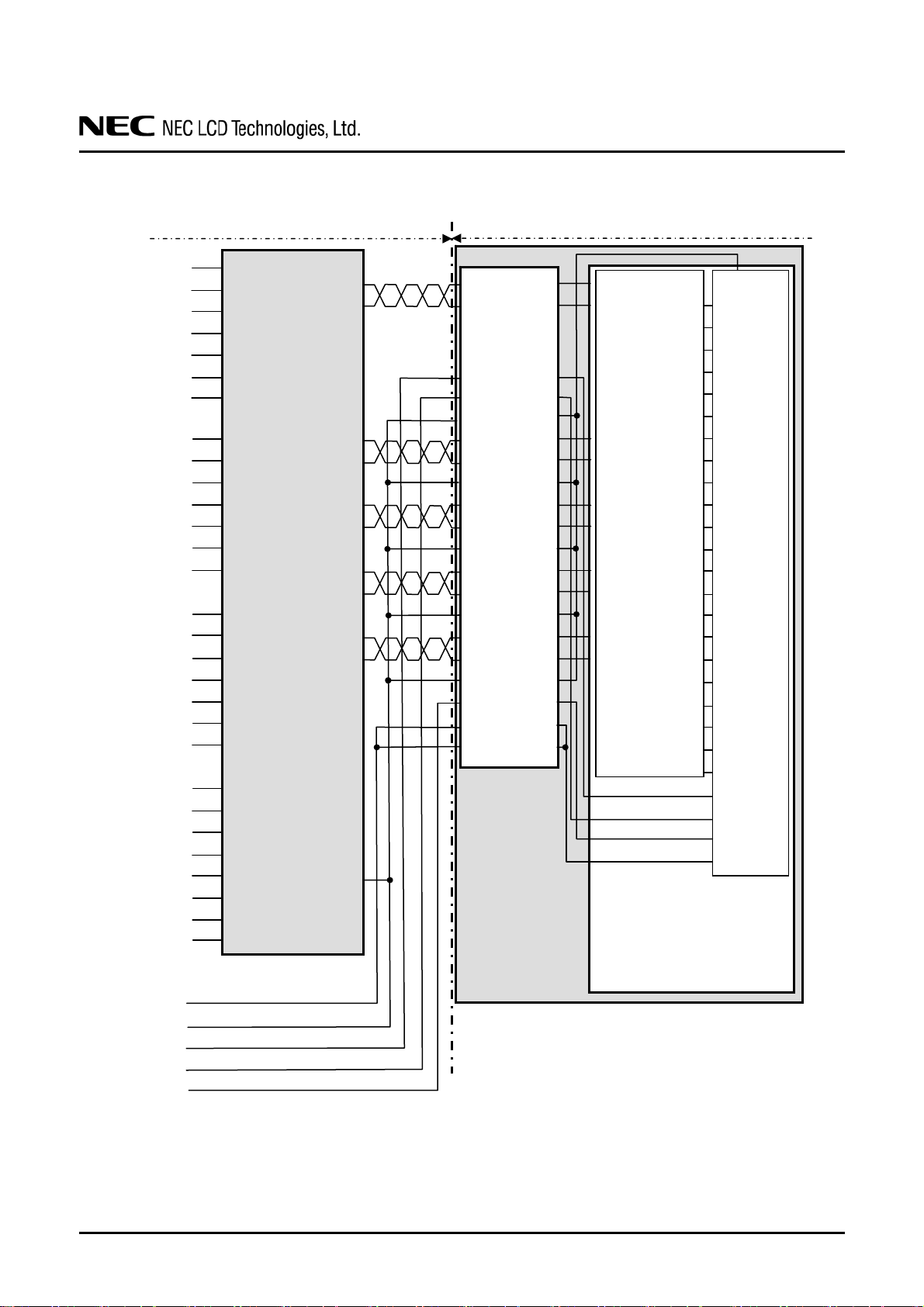

4.5.4 Connection between receiver and transmitter for LVDS...........................................................14

4.5.5 Input data mapping ....................................................................................................................17

4.6 DISPLAY COLORS AND INPUT DATA SIGNALS.......................................................................18

4.6.1 Combinations of input data signals, FRC and MSL signal........................................................18

4.6.2 16,777,216 colors.......................................................................................................................19

4.6.3 262,144 colors............................................................................................................................20

4.7 DISPLAY POSITIONS......................................................................................................................21

4.8 SCANNING DIRECTIONS...............................................................................................................21

4.9 INPUT SIGNAL TIMINGS ...............................................................................................................22

4.9.1 Outline of input signal timings ..................................................................................................22

4.9.2 Timing characteristics................................................................................................................23

4.9.3 Input signal timing chart............................................................................................................24

4.10 OPTICS.............................................................................................................................................25

4.10.1 Optical characteristics..............................................................................................................25

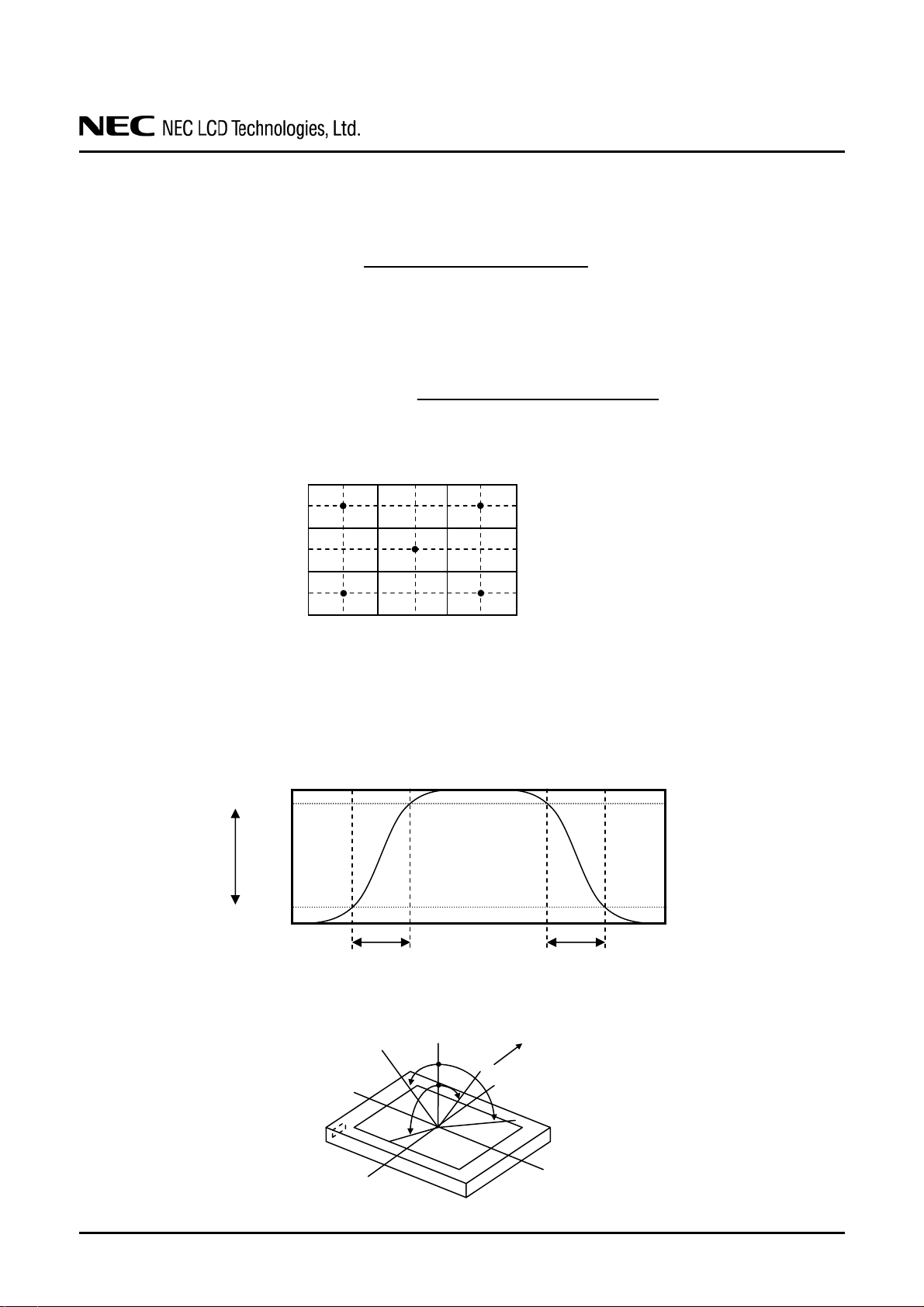

4.10.2 Definition of contrast ratio.......................................................................................................26

4.10.3 Definition of luminance uniformity.........................................................................................26

4.10.4 Definition of response times....................................................................................................26

4.10.5 Definition of viewing angles....................................................................................................26

5. ESTIMATED LUMINANCE LIFETIME..............................................................................................27

6. RELIABILITY TESTS ............................................................................................................................28

7. PRECAUTIONS .......................................................................................................................................29

7.1 MEANING OF CAUTION SIGNS....................................................................................................29

7.2 CAUTIONS........................................................................................................................................29

7.3 ATTENTIONS....................................................................................................................................29

7.3.1 Handling of the product.............................................................................................................29

7.3.2 Environment...............................................................................................................................30

7.3.3 Characteristics............................................................................................................................30

7.3.4 Others.........................................................................................................................................30

8. OUTLINE DRAWINGS...........................................................................................................................31

8.1 FRONT VIEW....................................................................................................................................31

8.2 REAR VIEW ......................................................................................................................................32

DATA SHEET DOD-PP-1174 (2nd edition)

3

1. OUTLINE

1.1 STRUCTURE AND PRINCIPLE

Color LCD module NL12880BC20-05D is composed of the amorphous silicon thin film transistor
liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film
Transistor) array and a backlight.

The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the
TFT array glass substrate and a color-filter glass substrate.

Color (Red, Green, Blue) data signals from a host system (e.g. signal generator, etc.) are modulated
into best form for active matrix system by a signal processing board, and sent to the driver LSIs which
drive the individual TFT arrays.

The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight
assembly, when it is controlled by data signals. Color images are created by regulating the amount of
transmitted light through the TFT array of red, green and blue dots.

1.2 APPLICATION

• For industrial use

1.3 FEATURES

• Ultra-wide viewing angle (Adoption of Ultra-Advanced Super Fine TFT (UA-SFT))

• Long life LED backlight type

• Small foot print

• High luminance

• High contrast

• Wide temperature range

• LVDS interface

• Reversible-scan direction

• Selectable 8bit or 6bit digital signals for data of RGB

• Replaceable lamp for backlight

• ColorXcell technology (Color Enhancement)

• Acquisition product for UL60950-1 /CSA C22.2 No.60950-1-03 (File number: E170632)

• Compliant with the European RoHS directive (2002/95/EC)

NL12880BC20-05D

DATA SHEET DOD-PP-1174 (2nd edition)

4

2. GENERAL SPECIFICATIONS

Display area
Diagonal size of display
Drive system

Display color
Pixel

Pixel arrangement
Dot pitch
Pixel pitch
Module size
Weight
Contrast ratio

NL12880BC20-05D

261.12 (H) × 163.2 (V) mm
31cm (12.1 inches)
a-Si TFT active matrix
16,777,216 colors (At 8-bit input, FRC terminal= High)

262,144 colors (At 6-bit input, FRC terminal= Low or Open)
1280 (H) × 800 (V) pixels

RGB (Red dot, Green dot, Blue dot) vertical stripe

0.068 (H) × 0.204 (V) mm

0.204 (H) × 0.204 (V) mm

277.7 mm (W) (typ.) × 180.6 mm (H) (typ.) × 8.7 (D) mm (typ.)
460 g (typ.)
1,000:1 (typ.)

Viewing angle

Designed viewing direction

Polarizer surface
Polarizer pencil-hardness

Color gamut

Response time

Luminance

Signal system

Power supply voltage

Backlight

At the contrast ratio

≥

10:1

• Horizontal: Right side 88° (typ.), Left side 88° (typ.)

• Vertical: Up side 88° (typ.), Down side 88° (typ.)

At DPS= Low or Open: Normal scan

• Viewing angle with optimum grayscale (γ≒ 2.2): Normal axis
(perpendicular)

Antiglare
3H (min.) [by JIS K5600]

At LCD panel center

40 % (typ.) [against NTSC color space]

Ton+Toff (10%

←→

90%)

25 ms (typ.)

At IL= 50mA/One circuit

450 cd/m

2

(typ.)

LVDS 1port
(Receiver: THC63LVDF84B, THine Electronics Inc. or equivalent)
[8bit/6bit digital signals for data of RGB colors, Dot clock (CLK),

Data enable (DE)]

LCD panel signal processing board: 3.3V
LED backlight type:

Replaceable part

• Lamp holder set: Type No. 121LHS30

Recommended LED driver board (Option)

• LED driver board: Type No. 104PW03F

• Corresponding wiring harness: Type No. 121CBL02

Power consumption

At IL= 50mA/One circuit, Checkered flag pattern

6.45W (typ.)

DATA SHEET DOD-PP-1174 (2nd edition)

5

3. BLOCK DIAGRAM

Host

D0+

D0­D1+

D1­D2+

D2­D3+

D3­CLK+

CLK-

MSL
DPS
FRC

GND
Note1
Note2

VCC

Fuse

Cathode1-4

FG

Note1

Note2

Anode1-4

Note1: Relations between GND (Signal ground) and FG (Frame ground) in the LCD module are as

follows.

GND - FG Connected

Note2: GND and FG must be connected to customer equipment’s ground, and it is recommen ded that

these grounds be connected together in customer equipment.

LCD module (Product)

100Ω

100Ω

100Ω

100Ω

Controller with receiver for LVDS

100Ω

50kΩ

50kΩ

47kΩ

converter

LCD panel signal processing board

4
4

Power supply

for gradation

DC/DC

V-driver

NL12880BC20-05D

H-driver

3,840 lines

LCD panel

H: 1280 × 3 (R, G, B)
V: 800

800 lines

Backlight Note3

DATA SHEET DOD-PP-1174 (2nd edition)

6

NL12880BC20-05D

Note3: Backlight in detail

Anode 1

Cathode 1

Anode 2

Cathode 2

Anode 3

Cathode 3

Anode 4

Cathode 4

Backlight

DATA SHEET DOD-PP-1174 (2nd edition)

7

4. DETAILED SPECIFICATIONS

4.1 MECHANICAL SPECIFICATIONS

Parameter Specification Unit

NL12880BC20-05D

Module size
Display area

Weight 460(typ.), 490(max.) g

Note1: See "8. OUTLINE DRAWINGS".

4.2 ABSOLUTE MAXIMUM RATINGS

Parameter Symbol Rating Unit Remarks

Power supply

voltage

Input voltage

for signals

Backlight Forward current IL 60 mA per one circuit

Operating temperature

LCD panel signal processing board VCC -0.3 to +4.0 V

Display signals

Storage temperature Tst -30 to +80

Function signals

277.7 ± 0.5 (W) × 180.6 ± 0.5 (H) × 8.7 ± 0.5 (D)

261.12 (H) × 163.2 (V)

Note1

Note2

Front surface TopF -20 to +70

Rear surface TopR -20 to +70

VD

-0.3 to VCC+0.3 V

VF

≤ 95

Note1 mm
Note1 mm

°C
°C
°C

%

-

-

Note3

Note4

Ta ≤ 40°C

Relative humidity

Note5

Absolute humidity

Note5

RH

AH

≤ 85

≤ 55

≤ 36
≤ 70

Note6

%

%

%

g/m

40°C < Ta ≤ 50°C

50°C < Ta ≤ 60°C

60°C < Ta ≤ 70°C

3

Ta > 70°C

Note1: D0+/-, D1+/-, D2+/-, D3+/- and CLK+/­Note2: DPS, FRC and MSL.
Note3: Measured at LCD panel surface (including self-heat)
Note4: Measured at LCD module's rear shield surface (including self-heat)
Note5: No condensation
Note6: Water amount at Ta= 70°C and RH= 36%

DATA SHEET DOD-PP-1174 (2nd edition)

8

4.3 ELECTRICAL CHARACTERISTICS

4.3.1 LCD panel signal processing board

Parameter Symbol min. typ. max. Unit Remarks

Power supply voltage VCC 3.0 3.3 3.6 V -

NL12880BC20-05D

(Ta= 25°C)

Power supply current ICC -

Permissible ripple voltage VRP - - 100 mVp-p for VCC

Differential input threshold
voltage

Terminating resistance RT - 100 -

Input voltage for DPS, FRC
and MSL signals

Input current for DPS, FRC
and MSL signal

High VTH - - +100 mV

Low VTL -100 - - mV

High VFH 0.7VCC - VCC V

Low VFL 0 - 0.3VCC V

High IFH - - 300

Low IFL -300 - -

500

Note1

860

Note2

mA at VCC= 3.3V

Ω

μA

μA

at VCM= 1.2V

Note3

-

CMOS level

-

Note1: Checkered flag pattern [by EIAJ ED-2522]
Note2: Pattern for maximum current
Note3: Common mode voltage for LVDS receiver

DATA SHEET DOD-PP-1174 (2nd edition)

9

4.3.2 Backlight lamp

Parameter Symbol min. typ. max. Unit Remarks

Forward current IL - 50.0 55.0 mA -

Forward Voltage VL

Note1: Please drive with constant current.
Note2: The

Luminance uniformity may be changed depending on the current variation between 4 circuits.

It is recommended that the current value difference among the circuits be less than 5%.

4.3.3 Power supply voltage ripple

This product works if the ripple voltage levels are over the permissible values as the following table,

but there might be noise on the display image.

Power supply voltage

VCC 3.3V

21.2 24.0 27.2

19.3 - -

- - 29.2

- - 29.5

Ripple voltage Note1

(Measure at input terminal of power supply)

≤ 100

NL12880BC20-05D

(Ta= 25°C, Note1, Note2)

Ta= +25°C

at IL= 50mA

/One circuit

Ta= +70°C

at IL= 50mA

V

/One circuit

Ta= -20°C

at IL= 50mA

/One circuit

Ta= -20°C

at IL= 55mA

/One circuit

Unit

mVp-p

Note1: The permissible ripple voltage includes spike noise.

4.3.4 Fuse

Parameter

Type Supplier

VCC FCC16202AB

Fuse

KAMAYA ELECTRIC

Co., Ltd.

Rating Fusing current Remarks

2.0A

4.0A Note1

36V

Note1: The power supply’s rated current must be more than the fusing current. If it is less than the

fusing current, the fuse may not blow in a short time, and then nasty smell, smoke and so on
may occur.

DATA SHEET DOD-PP-1174 (2nd edition)

10

4.4 POWER SUPPLY VOLTAGE SEQUENCE

4.4.1 LCD panel signal processing board

VCC
Note1

0V

Display signals*
Function signals

Note2

0V

0ms < t < 35ms

* These signals should be measured at the terminal of 100Ω resistance.

Note1: If there is a voltage variation (voltage drop) at the rising edge of VCC below 3.0V, there is a

possibility that a product does not work due to a protection circuit.

Note2: Display signals (D0+/-, D1+/-, D2+/-, D3+/- and CLK+/-) and function signals (DPS, FRC

and MSL) must be set to Low or High-impedance, except the VALID period (See above
sequence diagram), in order to avoid the circuitry damage.

If some of display and function signals of this product are cut while this product is working,

even if the signal input to it once again, it might not work normally. If a customer stops the
display and function signals, VCC also must be shut down.

4.4.2 LED driver board

Display signals,

Function signals

Note1

LED backlight: ON

Note1: These are the display and function signals for LCD panel signal processing board.
Note2: Th e backlight should be turned on within the valid pe riod of display and function signals, in

order to avoid unstable data display.

3.0V

ON

10μs ≤ Tr < 50ms

VALID period

Note2

VALID period

NL12880BC20-05D

OFF

Toff ≥ 50ms

0ms < t < 35ms

ON

0.3V

DATA SHEET DOD-PP-1174 (2nd edition)

11

4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS

4.5.1 LCD panel signal processing board

CN1 socket (LCD module side): FI-SE20P-HFE (Japan Aviation Electronics Industry Limited (JAE))
Adaptable plug: FI-S20S (Japan Aviation Electronics Industry Limited (JAE))

Pin No. Symbol Signal

A D3+ Pixel data R0-R1,G0-G1,B0-B1 R6-R7,G6-G7,B6-B7 -

1

B GND Ground - Ground Note3
A D3- Pixel data R0-R1,G0-G1,B0-B1 R6-R7,G6-G7,B6-B7 -

2

B GND Ground - Ground Note3

3 DPS

4 FRC

5 GND Ground Ground Note3

6 CLK+

7 CLK-

Selection
of scan direction

Selection of the
number of colors

Pixel clock Pixel clock Note2

High : Reverse scan
Low or Open : Normal scan

Input data signal: 8bit

MAP A MAP B

NL12880BC20-05D

Input data

signal: 6bit

High Low or Open

Remarks

Note1,
Note2

Note1,
Note2

Note4
Note1

Note5

8 GND Ground Ground Note3

9 D2+

Pixel data B4-B7,DE B2-B5,DE Note2

10 D2-

11 GND Ground Ground Note3

12 D1+

Pixel data G3-G7,B2-B3 G1-G5,B0-B1 Note2

13 D1-

14 GND Ground Ground Note3

15 D0+

Pixel data R2-R7,G2 R0-R5,G0 Note2

16 D0-

17 GND Ground Ground Note3

18 MSL

19 VCC

20 VCC

Selection of
LVDS input map

Power supply Power supply Note3

Low High Low Note5

Note1: See "4.6 DISPLAY COLORS AND INPUT DATA SIGNALS".
Note2: Twist pair wires with 100Ω (Characteristic impedance) should be used between LCD panel

signal processing board and LVDS transmitter.

Note3: All GND and VCC terminals should be used without any non-connected lines.
Note4: See "4.8 SCANNING DIRECTIONS".
Note5: See "4.5.4 Connection between receiver and transmitter for LVDS".

DATA SHEET DOD-PP-1174 (2nd edition)

12

4.5.2 Backlight lamp

CN2 plug (LCD module side): SM08B-SRSS-TB (J.S.T. Mfg. Co., Ltd.)
Adaptable socket: SHR-08V-S, SHR-08V-S-B (J.S.T. Mfg. Co., Ltd.)

Pin No. Symbol Signal Remarks

1 A1 Anode1 ­2 K1 Cathode1 ­3 A2 Anode2 ­4 K2 Cathode2 ­5 A3. Anode3 ­6 K3 Cathode3 ­7 A4 Anode4
8 K4 Cathode4

4.5.3 Positions of plug and socket

NL12880BC20-05D

-

-

Insert direction

1

CN1

20

Rear side

1

CN2

8

Insert direction

DATA SHEET DOD-PP-1174 (2nd edition)

13

4.5.4 Connection between receiver and transmitter for LVDS

(1) Input data signal: 8bit, MAP A

Note2

R2
R3
R4
R5
R6
R7
G2

G3
G4
G5
G6
G7
B2
B3

B4
B5
B6

B7
Note4
Note4

DE

R0

R1

G0

G1

B0

B1
Note4

CLK

VCC

GND

DPS
FRC

MSL

TA0
TA1
TA2
TA3
TA4
TA5
TA6

TB0
TB1
TB2
TB3
TB4
TB5
TB6

TC0
TC1
TC2
TC3
TC4
TC5
TC6

TD0
TD1
TD2
TD3
TD4
TD5
TD6
CLK IN

LVDS transmitter
THC63LVDM83R or equivalent

Host

Note1

Note3

TD+

TD-

TCLK+

TCLK-

TC+

TC-

TB+

TB-

TA+

TA-

GND

Note1: Recommended transmitter: THC63LVDM83R (THine Electronics Inc.) or equivalent
Note2: LSB (Least Significant Bit) – R0, G0, B0 MSB (Most Significant Bit) – R7, G7, B7
Note3: Twist pair wires with 100Ω (Characteristic impedance) should be used between LCD panel

signal processing board and LVDS transmitter.

Note4: Input signals to TC4, TC5 and TD6 are not used inside the product, but do not keep TC4, TC5

and TD6 open to avoid noise problem.

1A
2A

3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20

NL12880BC20-05D

LCD module (Product)

D3+

D3-

DPS
FRC

GND
CLK+
CLK-

GND

D2+

D2-

GND

D1+

D1-

GND

D0+

D0­GND
MSL
VCC
VCC

CN1

LCD panel signal processing board

RD+
RD-

RCLK+
RCLK-

RC+
RC-

RB+
RB-

RA+
RA-

Receiver for LVDS

Equivalent of

THC63LVDF84B

LCD controller

GND

Signal

processor

DPS
FRC
MSL
VCC

DATA SHEET DOD-PP-1174 (2nd edition)

14

NL12880BC20-05D

(2) Input data signal: 8bit, MAP B

Note2

R0
R1
R2
R3
R4
R5
G0

G1
G2
G3
G4
G5
B0
B1

B2
B3
B4

B5
Note4
Note4

DE

R6

R7

G6

G7

B6

B7
Note4

CLK

VCC

GND

DPS

FRC

MSL

TA0
TA1
TA2
TA3
TA4
TA5
TA6

TB0
TB1
TB2
TB3
TB4
TB5
TB6

TC0
TC1
TC2
TC3
TC4
TC5
TC6

TD0
TD1
TD2
TD3
TD4
TD5
TD6
CLK IN

LVDS transmitter
THC63LVDM83R or equivalent

Note1: Recommended transmitter: THC63LVDM83R (THine Electronics Inc.) or equivalent
Note2: LSB (Least Significant Bit) – R0, G0, B0 MSB (Most Significant Bit) – R7, G7, B7
Note3: Twist pair wires with 100Ω (Characteristic impedance) should be used between LCD panel

signal processing board and LVDS transmitter.

Note4: Input signals to TC4, TC5 and TD6 are not used inside the product, but do not keep TC4, TC5

and TD6 open to avoid noise problem.

Host

Note1

TD+

TD-

TCLK+

TCLK-

TC+

TC-

TB+

TB-

TA+

TA-

GND

LCD module (Product)

Note3

1A

D3+

2A

D3-

3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20

DPS
FRC

GND

CLK+

CLK­GND

D2+

D2-

GND

D1+

D1-

GND

D0+

D0­GND
MSL
VCC
VCC

CN1

LCD panel signal processing board

RD+
RD-

RCLK+
RCLK-

RC+
RC-

RB+
RB-

RA+
RA-

Receiver for LVDS

Equivalent of

THC63LVDF84B

LCD controller

GND

Signal

processor

DPS
FRC
MSL
VCC

DATA SHEET DOD-PP-1174 (2nd edition)

15

NL12880BC20-05D

(3) Input data signal: 6bit

Note2

R0
R1
R2
R3
R4
R5

G0

G1
G2
G3
G4
G5
B0
B1

B2
B3
B4

B5
Note4
Note4

DE

CLK

LVDS transmitter
THC63LVDM83R or equivalent

VCC

GND

DPS
FRC

MSL

TA0
TA1
TA2
TA3
TA4
TA5
TA6

TB0
TB1
TB2
TB3
TB4
TB5
TB6

TC0
TC1
TC2
TC3
TC4
TC5
TC6

CLK IN

Note1: Recommended transmitter THC63LVDM83R (THine Electronics Inc.) or equivalent
Note2: LSB (Least Significant Bit) – R0, G0, B0 MSB (Most Significant Bit) – R5, G5, B5
Note3: Twist pair wires with 100Ω (Characteristic impedance) should be used between LCD panel

signal processing board and LVDS transmitter.

Note4: Input signals to TC4 and TC5 are not used inside the product, but do not keep TC4 and TC5

open to avoid noise problem.

Note1

Host

TCLK+

TCLK-

TC+

TC-

TB+

TB-

TA+

TA-

GND

LCD module (Product)

Note3

1B
2B

3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20

GND
GND

DPS

FRC

GND

CLK+

CLK­GND

D2+

D2-

GND

D1+

D1-

GND

D0+

D0-

GND

MSL
VCC
VCC

CN1

LCD panel signal processing board

RCLK+
RCLK-

RC+
RC-

RB+
RB-

RA+
RA-

Receiver for LVDS

Equivalent of

THC63LVDF84B

LCD controller

GND

Signal

processor

DPS
FRC
MSL
VCC

DATA SHEET DOD-PP-1174 (2nd edition)

16

4.5.5 Input data mapping

(1) Input data signal: 8bit, MAP A

CLK+/-

D0+/-

D1+/-

D2+/-

D3+/-

(2) Input data signal: 8bit, MAP B

CLK+/-

D0+/-

D1+/-

D2+/-

D3+/-

DE

DE

B2 B3

-

B1

B0 B1

-

B7

NL12880BC20-05D

tc

1CLK

R2 R3 R4 R5 R6 R7 G2

G7

-

B0

tc

1CLK

G5

-

B6

G5 G6

B5 B6 B7

R1 G0 G1

G3 G4

B3 B4 B5

R7 G6 G7

G3 G4

B4

R0

R0 R1 R2 R3 R4 R5 G0

G1 G2

B2

R6

DATA SHEET DOD-PP-1174 (2nd edition)

17

(3) Input data signal: 6bit

CLK+/-

tc

D0+/-

D1+/-

B0 B1

D2+/-

DE

-

4.6 DISPLAY COLORS AND INPUT DATA SIGNALS

4.6.1 Combinations of input data signals, FRC and MSL signal

This product can display 16,777,216 colors equivalent with 256 gray scales and 262,144 colors with

64 gray scales by combination of input data signals, FRC and MSL signal. See the following table.

Combination

Input data

signals

Input Data

mapping

CN1-

Pin No.1 and 2

NL12880BC20-05D

1CLK

R0 R1 R2 R3 R4 R5 G0

G5

-

FRC terminal MSL terminal Display colors Remarks

G3 G4

B3 B4 B5

G1 G2

B2

①

②

③

8 bit MAP A D3+/- High Low 16,777,216 Note1

8 bit MAP B D3+/- High High 16,777,216 Note1

6 bit - GND Low or Open Low 262,144 Note2

Note1: See "4.6.2 16,777,216 colors".
Note2: See "4.6.3 262,144 colors".

DATA SHEET DOD-PP-1174 (2nd edition)

18

4.6.2 16,777,216 colors

This product can display 16,777,216 colors equivalent with 256 gray scales by combination ① or ②.
(See "4.6.1 Combinations of input data signals, FRC and MSL signal".)

Also the relation between display colors and input data signals is as follows.

Display colors

Basic Colors

Red gray scale

Green gray scale

Blue gray scale

Black

Blue

Red

Magenta

Green

Cyan

Yellow

White
Black

dark

↑
↓

bright

Red

Black

dark

↑
↓

bright

Green
Black

dark

↑
↓

bright

Blue

NL12880BC20-05D

Data signal (0: Low level, 1: High level)

R7 R6 R5 R4 R3 R2 R1 R0 G7 G6 G5 G4 G3 G2 G1 G0 B7 B6 B5 B4 B3 B2 B1 B0
00000000

00000000
11111111
11111111
00000000
00000000
11111111
11111111
00000000
00000001
00000010

:

:
11111101
11111110
11111111
00000000
00000000
00000000

:

:
00000000
00000000
00000000
00000000
00000000
00000000

:

:
00000000
00000000
00000000

00000000
00000000
00000000
00000000
11111111
11111111
11111111
11111111
00000000
00000000
00000000

:

:
00000000
00000000
00000000
00000000
00000001
00000010

:

:
11111101
11111110
11111111
00000000
00000000
00000000

:

:
00000000
00000000
00000000

00000000
11111111
00000000
11111111
00000000
11111111
00000000
11111111
00000000
00000000
00000000

:

:
00000000
00000000
00000000
00000000
00000000
00000000

:

:
00000000
00000000
00000000
00000000
00000001
00000010

:

:
11111101
11111110
11111111

DATA SHEET DOD-PP-1174 (2nd edition)

19

4.6.3 262,144 colors

This product can display 262,144 colors with 64 gray scales by combination ③.
(See "4.6.1 Combinations of input data signals, FRC and MSL signal ".)

Also the relation between display colors and input data signals is as follows.

Display colors

Black

Blue

Red

Magenta

Green

Basic colors

Cyan

Yellow

White
Black

dark

bright

Red gray scale

Red

Black

dark

bright

Green gray scale

Green
Black

dark

bright

Blue gray scale

Blue

NL12880BC20-05D

Data signal (0: Low level, 1: High level)

R5 R4 R3 R2 R1 R0 G5 G4 G3 G2 G1 G0 B5 B4 B3 B2 B1 B0
000000

000000
111111
111111
000000
000000
111111
111111
000000
000001
000010

↑
↓

111101
111110
111111
000000
000000
000000

↑
↓

000000
000000
000000
000000
000000
000000

↑
↓

000000
000000
000000

:
:

:
:

:
:

000000
000000
000000
000000
111111
111111
111111
111111
000000
000000
000000

:

:
000000
000000
000000
000000
000001
000010

:

:
111101
111110
111111
000000
000000
000000

:

:
000000
000000
000000

000000
111111
000000
111111
000000
111111
000000
111111
000000
000000
000000

000000
000000
000000
000000
000000
000000

000000
000000
000000
000000
000001
000010

111101
111110
111111

:
:

:
:

:
:

DATA SHEET DOD-PP-1174 (2nd edition)

20

4.7 DISPLAY POSITIONS

The following table is the coordinates per pixel (See "4.8 SCANNING DIRECTIONS".).

C (0, 0)

R G B

C( 0, 0) C( 1, 0) ∙ ∙ ∙ C( X, 0) ∙ ∙ ∙ C(1278, 0) C(1279, 0)
C( 0, 1) C( 1, 1) ∙ ∙ ∙ C( X, 1) ∙ ∙ ∙ C(1278, 1) C(1279, 1)

∙
∙
∙

C( 0, Y) C( 1, Y) ∙ ∙ ∙ C( X, Y) ∙ ∙ ∙ C(1278, Y) C(1279, Y)

∙
∙
∙

C( 0, 798) C( 1, 798) ∙ ∙ ∙ C( X, 798) ∙ ∙ ∙ C(1278, 798) C(1279, 798)
C( 0, 799) C( 1, 799) ∙ ∙ ∙ C( X, 799) ∙ ∙ ∙ C(1278, 799) C(1279, 799)

4.8 SCANNING DIRECTIONS

The following figures are seen from a front view. Also the arrow shows the direction of scan.

Note1: Meaning of C (X, Y) and D (X, Y)

C (X, Y): The coordinates of the display position (See "4.7 DISPLAY POSITIONS".)
D (X, Y): The data number of input signal for LCD panel signal processing board

∙
∙
∙

∙
∙
∙

C (0, 0)
D (0, 0)

CN1 CN2

C (0, 799)
D (0, 799)

∙

∙ ∙ ∙

∙

∙

∙ ∙ ∙

∙

∙
∙
∙

∙
∙
∙

C (1279, 0)
D (1279, 0)

C (1279, 799)
D (1279, 799)

Figure1. Normal scan (DPS: Low or Open)

C (0, 0)

CN1 CN2

D (1279, 799)

C (0, 799)
D (1279, 0)

C (1279, 0)
D (0, 799)

C (1279, 799)
D (0, 0)

Figure2. Reverse scan (DPS: High)

∙

∙ ∙ ∙

∙

∙

∙ ∙ ∙

∙

Note1

Note1

NL12880BC20-05D

∙
∙
∙

∙
∙
∙

∙

∙ ∙ ∙

∙

∙
∙
∙

DATA SHEET DOD-PP-1174 (2nd edition)

21

4.9 INPUT SIGNAL TIMINGS

4.9.1 Outline of input signal timings

• Horizontal signal

Note1

DE (Data enable)

Display period

• Vertical signal

Note1

DE (Data enable)

Display period

Note1: This diagram indicates virtual signal for set up to timing.
Note2: See "4.9.3 Input signal timing chart" for the pulse number.

NL12880BC20-05D

Horizontal display period (thd)

Vertical display period (tvd)

1

2

34

800

Note2

DATA SHEET DOD-PP-1174 (2nd edition)

22

4.9.2 Timing characteristics

CLK

DATA

DE

Note1: Definition of parameters is as follows.

Note2: See the data sheet of LVDS transmitter.
Note3: Vertical cycle (tv) should be specified in integral multiple of Horizontal cycle (th).

NL12880BC20-05D

(Note1, Note2, Note3)

Parameter Symbol min. typ. max. Unit Remarks

Frequency 1/tc 67.0 71.0 75.0 MHz 14.085 ns (typ.)

Duty - -

Rise time, Fall time -

CLK-DATA

Rise time, Fall time -

Horizontal

Vertical

(One frame)

CLK-DE

Rise time, Fall time -

Setup time - ns

Hold time - ns

Cycle th

Display period thd 1280 CLK

Cycle tv

Display period tvd 800 H

Setup time - ns

Hold time - ns

tc= 1CLK, th= 1H

17.20 20.28 21.49
1,290 1440 - CLK

14.16 16.69 17.69 ms

- 823 - H

-
ns

-

ns
μs

49.306 kHz (typ.)

59.92 Hz (typ.)

-
ns

-

-

-

DATA SHEET DOD-PP-1174 (2nd edition)

23

4.9.3 Input signal timing chart

Horizontal timing

(R0-R7) (R0-R5)
(G0-G7) or (G0-G5)
(B0-B7) (B0-B5)

Vertical timing

(R0-R7) (R0-R5)
(G0-G7) or (G0-G5)
(B0-B7) (B0-B5)

CLK

DATA

DE

DATA

DE

INVALID

INVALID

tc

1 2 1279 1280

thd

1 2 799 800

tvd

tv

NL12880BC20-05D

INVALID

th

INVALID

DATA SHEET DOD-PP-1174 (2nd edition)

24

4.10 OPTICS

4.10.1 Optical characteristics

Parameter Condition Symbol min. typ. max. Unit

Luminance

Contrast ratio

Luminance uniformity

White

Red

Chromaticity

Green

Blue

Color gamut

Response time

Right

Viewing angle

Left

Up

Down

Note1: These are initial characteristics.
Note2: Measurement conditions are as follows.

Ta= 25
Horizontal cycle= 1/49.306kHz, Vertical cycle= 1/59.92Hz, DPS= Low or Open: Normal scan

Optical characteristics are measured at luminance saturation 20minutes after the product works
in the dark room. Also measurement methods are as follows.

LCD module
(Product)

Note3: See "4.10.2 Definition of contrast ratio".
Note4: See "4.10.3 Definition of luminance uniformity".
Note5: These coordinates are found on CIE 1931 chromaticity diagram.
Note6: Product surface temperature: TopF= 29 °C
Note7: See "4.10.4 Definition of response times".
Note8: See "4.10.5 Definition of viewing angles".

White at center

θR= 0°, θL= 0°, θU= 0°, θD= 0°

White/Black at center

θR= 0°, θL= 0°, θU= 0°, θD= 0°

White

θR= 0°, θL= 0°, θU= 0°, θD= 0°

x coordinate Wx 0.263 0.313 0.363 ­y coordinate Wy 0.279 0.329 0.379 ­x coordinate Rx - 0.570 - ­y coordinate Ry - 0.350 - ­x coordinate Gx - 0.350 - ­y coordinate Gy - 0.540 - ­x coordinate Bx - 0.155 - ­y coordinate By - 0.135 - -

θR= 0°, θL= 0°, θU= 0°, θD= 0°

at center, against NTSC color space

Black to White Ton - 10 15 ms
White to Black Toff - 15 20 ms

θU= 0°, θD= 0°, CR≥ 10 θR
θU= 0°, θD= 0°, CR≥ 10 θL

θR= 0°, θL= 0°, CR≥ 10 θU
θR= 0°, θL= 0°, CR≥ 10 θD

L 250 450 - cd/m

CR 500 1,000 - - BM-5A Note3

LU - 1.25 1.4 - BM-5A Note4

C 35 40 - %

70 88 ­70 88 ­70 88 ­70 88 -

°C, VCC= 3.3V, IL= 50mA/One circuit, Display mode: WXGA,

50cm

1°

Photodetector (BM-5A or SR-3)

LCD module
(Product)

NL12880BC20-05D

(Note1, Note2)

Measuring
instrument

2

BM-5A -

SR-3 Note5

BM-5A

°
°

Contrast

°
°

Photodetector (EZ Contrast)

EZ

Remarks

Note6
Note7

Note8

DATA SHEET DOD-PP-1174 (2nd edition)

25

N

θ

θUθLθ

4.10.2 Definition of contrast ratio

The contrast ratio is calculated by using the following formula.

Contrast ratio (CR) =

4.10.3 Definition of luminance uniformity

The luminance uniformity is calculated by using following formula.

Luminance uniformity (LU) =

The luminance is measured at near the 5 points shown below .

133

400

667

4.10.4 Definition of response times

Response time is measured at the time when the luminance changes from "black" to "white", or
"white" to "black" on the same screen point, by photo-detector. Ton is the time when the
luminance changes from 10% up to 90%. Also Toff is the time when the luminance changes from
90% down to 10% (See the following diagram.).

White

100%

90%

Luminance

Black

10%

0%

4.10.5 Definition of viewing angles

CN2

Luminance of white screen

Luminance of black screen

Maximum luminance from ①
Minimum lumin ance from ①

213

640

①

③

④

Ton

ormal axis (Perpendicular)

Left

D

Lower

NL12880BC20-05D

to ⑤

to ⑤

1067

②

⑤

Toff

12 o’clock

Upper

R

Right

DATA SHEET DOD-PP-1174 (2nd edition)

26

5. ESTIMATED LUMINANCE LIFETIME

The luminance lifetime is the time from initial luminance to half-luminance.

This lifetime is the estimated value, and is not guarantee value.

Condition

25°C (Ambient temperature of the product)

LED

elementary substance

Continuous operation, IL=50mA/One circuit

70°C (Surface temperature at screen)

Continuous operation, IL=50mA/One circuit

Note1: Life time expectancy is mean time to half-luminance.
Note2: Estimated luminance lifetime is not the value for an LCD module but the value for LED

elementary substance.

Note3: By ambient temperature, the lifetime changes particularly. Especially in case the product

works under high temperature environment, the lifetime becomes short.

NL12880BC20-05D

Estimated luminance lifetime

(Life time expectancy)

Note1, Note2, Note3

70,000 h

60,000 h

Unit

DATA SHEET DOD-PP-1174 (2nd edition)

27

6. RELIABILITY TESTS

Test item Condition Judgment Note1

NL12880BC20-05D

High temperature and humidity

(Operation)

High temperature

(Operation)

Heat cycle

(Operation)

Thermal shock

(Non operation)

ESD

(Operation)

Dust

(Operation)

Vibration

(Non operation)

Mechanical shock

(Non operation)

① 60 ± 2°C, RH= 90%, 240hours
② Display data is white .

① 70 ± 3°C ,240hours
② Display data is white .

① -20 ± 3°C…1hour

70 ± 3°C…1hour

② 50cycles, 4 hours/cycle
③ Display data is white .

① -30 ± 3°C…30minutes

80 ± 3°C…30minutes

② 100cycles, 1hour/cycle
③ Temperature transition time is within

5 minutes.

① 150pF, 150Ω, ±10kV
② 9 places on a panel surface Note2
③ 10 times each places at 1 sec interval

① Sample dust: No. 15 (by JIS-Z8901)
② 15 seconds stir
③ 8 times repeat at 1 hour interval
① 5 to 100Hz, 19.6m/s
② 1 minute/cycle
③ X, Y, Z directions
④ 30 times each directions

① 539m/ s
② ±X, ±Y, ±Z directions
③ 5 times each directions

2

, 11ms

2

No display malfunctions

No display malfunctions
No physical damages

Note1: Display and appearance are checked under environmental conditions equivalent to the

inspection conditions of defect criteria.

Note2: See the following figure for discharge points.

{ {

{

{

{

{

{

{

{

DATA SHEET DOD-PP-1174 (2nd edition)

28

!

7. PRECAUTIONS

7.1 MEANING OF CAUTION SIGNS

The following caution signs have very important meaning. Be sure to read "7.2 CAUTIONS" and

"7.3 ATTENTIONS"!

This sign has the meaning that a customer will be injured or the product will sustain

damage if the customer practices wrong operations.

This sign has the meaning that a customer will be injured if the customer practices

wrong operations.

7.2 CAUTIONS

∗ Do not shock and press the LCD panel and the backlight! There is a danger of

breaking, because they are made of glass. (Shock: Equal to or no greater than 539m/s
and equal to or no greater than 11ms, Pressure: Equal to or no greater than 19.6 N
(φ16mm jig))

NL12880BC20-05D

2

7.3 ATTENTIONS

7.3.1 Handling of the product

① Take hold of both ends without touching the circuit board when the product (LCD module) is

picked up from inner packing box to avoid broken down or misadjustment, because of stress to
mounting parts on the circuit board.

② When the product is put on the table temporarily, display surface must be placed downward.
③ When handling the product, take the measures of electrostatic discharge with such as earth band,

ionic shower and so on, because the product may be damaged by electrostatic.

④ The torque for product mounting screws must never exceed 0.23N⋅m. Higher torque might result

in distortion of the bezel. And the length of product mounting screws must be ≤ 2.5mm.

⑤ The product must be installed using mounting holes without undue stress such as bends or twist

(See outline drawings). And do not add undue stress to any portion (such as bezel flat area). Bends
or twist described above and undue stress to any portion may cause display mura.

⑥ Do not press or rub on the sensitive product surface. When cleaning the product surface, wipe it

with a soft dry cloth.

⑦ Do not push or pull the interface connectors while the product is working.
⑧ When handling the product, use of an original protection sheet on the product surface (polarizer) is

recommended for protection of product surface. Adhesive type protection sheet may change color
or characteristics of the polarizer.

⑨ Usually liquid crystals don't leak through the breakage of glasses because of the surface tension of

thin layer and the construction of LCD panel. But, if you contact with liquid crystal by any chance,
please wash it away with soap and water.

!

DATA SHEET DOD-PP-1174 (2nd edition)

29

7.3.2 Environment

① Do not operate or store in high temperature, high humidity, dewdrop atmosphere or corrosive

② In order to prevent dew condensation occurred by temperature difference, the product packing box

③ Do not operate in high magnetic field. If not, circuit boards may be broken.
④ This product is not designed as radiation hardened.

7.3.3 Characteristics

The following items are neither defects nor failures.

① Characteristics of the LCD (such as response time, luminance, color uniformity and so on) may be

② Display mura, flickering, vertical streams or tiny spots may be observed depending on display

③ Do not display the fixed pattern for a long time because it may cause image sticking. Use a screen

④ The display color may be changed depending on viewing angle because of the use of condenser

⑤ Optical characteristics may be changed depending on input signal timings.

7.3.4 Others

① All VCC and GND terminals should be used without any non-connected lines.
② Do not disassemble a product or adjust variable resistors.
③ See "REPLACEMENT MANUAL FOR LAMP HOLDER SET", when replacing lamp holder set.
④ Pack the product with the original shipping package, in order to avoid any damages during

⑤ The information of China RoHS directive six hazardous substances or elements in this product is

NL12880BC20-05D

gases. Keep the product in packing box with antistatic pouch in room temperature to avoid dusts
and sunlight, when storing the product.

must be opened after enough time being left under the environment of an unpacking room.
Evaluate the storage time sufficiently because dew condensation is affected by the environmental
temperature and humidity. (Recommended leaving time: 6 hours or more with the original
packing state after a customer receives the package)

changed depending on ambient temperature. If the product is stored under condition of low
temperature for a long time, it may cause display mura. In this case, the product should be
operated after enough time being left under condition of operating temperature.

patterns.

saver, if the fixed pattern is displayed on the screen.

sheet in the backlight.

transportation, when returning the product to NEC for repairing and so on.

as follows.

China RoHS directive six hazardous substances or elements

Lead

(Pb)

✕     

Mercury

(Hg)

Cadmium

(Cd)

Hexavalent

Chromium

(Cr VI)

Note1:  : This indicates that the poisonous or harmful material in all the homogeneous materials

for this part is equal or below the limitation level of SJ/T11363-2006 standard
regulation.

✕ : This indicates that the poisonous or harmful material in all the homogeneous

materials for this part is above the limitation level of SJ/T11363-2006 standard
regulation.

Polybrominated

Biphenys

(PBB)

Polybrominated
Biphenyl Ethers

(PBDE)

DATA SHEET DOD-PP-1174 (2nd edition)

30

8. OUTLINE DRAWINGS

8.1 FRONT VIEW

Note1: The values in parentheses are for reference.
Note2: The torque for product mounting screws must never exceed 0.23N⋅m. And the length of product mounting screws must be ≤ 2.5mm.

NL12880BC20-05D

Unit: mm

DATA SHEET DOD-PP-1174 (2nd edition)

31

8.2 REAR VIEW

Note1: The values in parentheses are for reference.
Note2: The torque for product mounting screws must never exceed 0.23N⋅m. And the length of product mounting screws must be ≤ 2.5mm.

NL12880BC20-05D

Unit: mm

DATA SHEET DOD-PP-1174 (2nd edition)

32
