NEC NL128102BC29-01B Specification
Global LCD Panel Exchange Center
TFT COLOR LCD MODULE
www.panelook.com
NL128102BC29-01B
NL128102BC29-01C
48.0 cm (19.0 Type)
SXGA
LVDS interface (2port)
DATA SHEET
DOD-PD-0744 (1st edition)
All information is subject to change without notice.
Please confirm the sales representative before
starting to design your system.
Document Number: DOD-PD-0744 (1st edition)
Published date: December 2004 CP(N)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
1
¤ NEC LCD Technologies, Ltd.
2004 All rights reserved.
www.panelook.com
Global LCD Panel Exchange Center
No part of this document shall be copied in any form or by any means without the prior written consent
of NEC LCD Technologies, Ltd. (hereinafter called "NEC").
NEC does not assume any liability for infringement of patents, copyrights or other intellectual property
rights of third parties by or arising from use of a product described herein or any other liability arising
from use of such application. No license, express, implied or otherwise, is granted under any patents,
copyrights or other intellectual property rights of NEC or of others.
While NEC has been making continuous effort to enhance the reliability of its products, the possibility
of failures cannot be eliminated entirely. To minimize risks of damage to property or injury to person
arising from a failure in an NEC product, customers must incorporate sufficient safety measures in their
design, such as redundancy, fire-containment and anti-failure features.
NEC products are classified into the following three quality grades:
"Standard", "Special", "Specific"
www.panelook.com
NL128102BC29-01B/01C
INTRODUCTION
The "Specific" quality grade applies only to applications developed based on a customer designated
"quality assurance program" for a specific application. The recommended applications of a product
depend on its quality grade, as indicated below. Customers must check the quality grade of each
application before using it in a particular application.
Standard: Computers, office equipment, communications equipment, test and measurement equipment,
audio and visual equipment, home electronic appliances, machine tools, personal electronic
equipment and industrial robots
Special: Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically
designed for life support)
Specific: Military systems, aircraft, aerospace equipment, submersible repeaters, nuclear reactor control
systems, life support systems (medical equipment, etc.) and any other equipment
The quality grade of this product is "Standard" unless otherwise specified in this document. If
customers intend to use this product for applications other than those specified for "Standard" quality
grade, they should contact NEC sales representative in advance.
DATA SHEET DOD-PD-0744 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
2
www.panelook.com
Global LCD Panel Exchange Center
INTRODUCTION ..........................................................................................................................................2
1. OUTLINE....................................................................................................................................................4
1.1 STRUCTURE AND PRINCIPLE...........................................................................................................4
1.2 APPLICATION.......................................................................................................................................4
1.3 FEATURES.............................................................................................................................................4
2. GENERAL SPECIFICATIONS ................................................................................................................5
3. BLOCK DIAGRAM ................................................................................................................................... 6
4. DETAILED SPECIFICATIONS ............................................................................................................... 7
4.1 MECHANICAL SPECIFICATIONS......................................................................................................7
4.2 ABSOLUTE MAXIMUM RATINGS ....................................................................................................7
4.3 ELECTRICAL CHARACTERISTICS................................................................................................... 8
4.3.1 LCD panel signal processing board ............................................................................................... 8
4.3.2 Backlight lamp...............................................................................................................................9
4.3.3 Power supply voltage ripple.........................................................................................................10
4.3.4 Fuse.............................................................................................................................................. 10

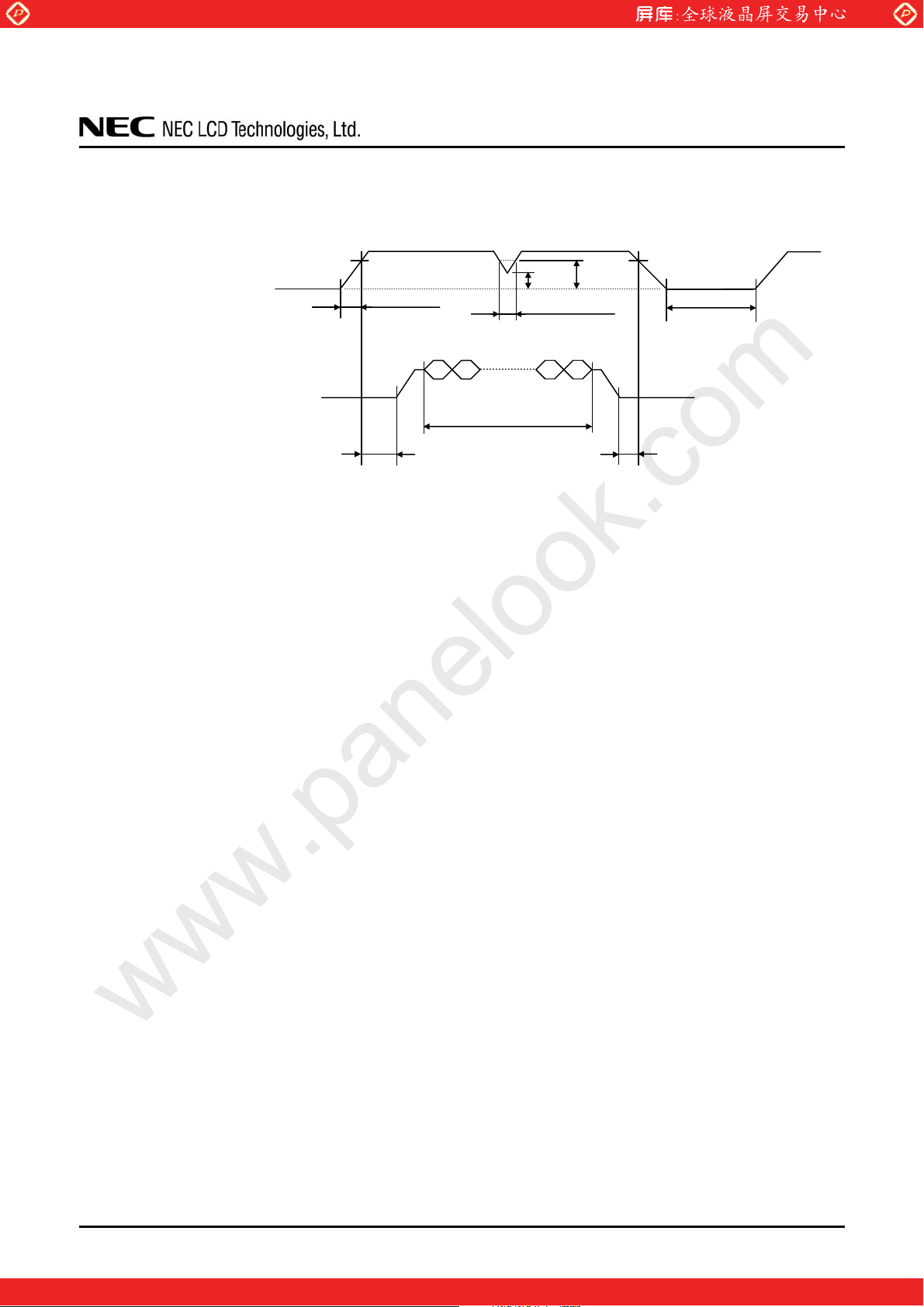

4.4 POWER SUPPLY VOLTAGE SEQUENCE ........................................................................................ 11
4.5 CONNECTIONS AND FUNCTIONS FOR INTERFACE PINS.........................................................12
4.5.1 LCD panel signal processing board ............................................................................................. 12
4.5.2 Backlight lamp.............................................................................................................................13

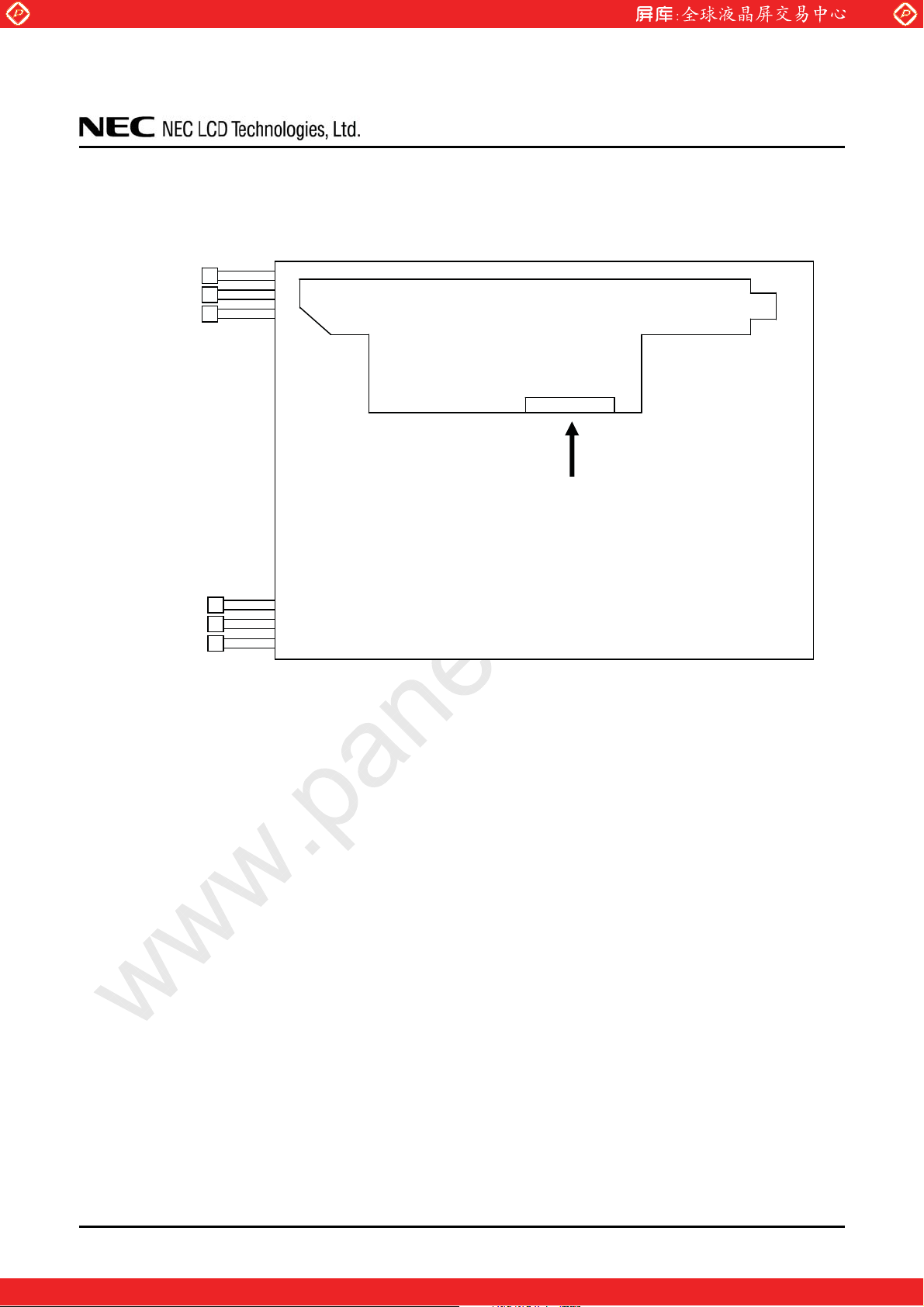

4.5.3 Positions of plugs and socket.......................................................................................................15
4.6 SELECTION OF LVDS DATA INPUT MAP......................................................................................16
4.6.1 Mode A ........................................................................................................................................16
4.6.2 Mode B ........................................................................................................................................17
4.7 DISPLAY COLORS AND INPUT DATA SIGNALS ..........................................................................18
4.8 DISPLAY POSITION...........................................................................................................................19
4.9 INPUT SIGNAL TIMINGS..................................................................................................................19
4.9.1 Timing characteristics..................................................................................................................19

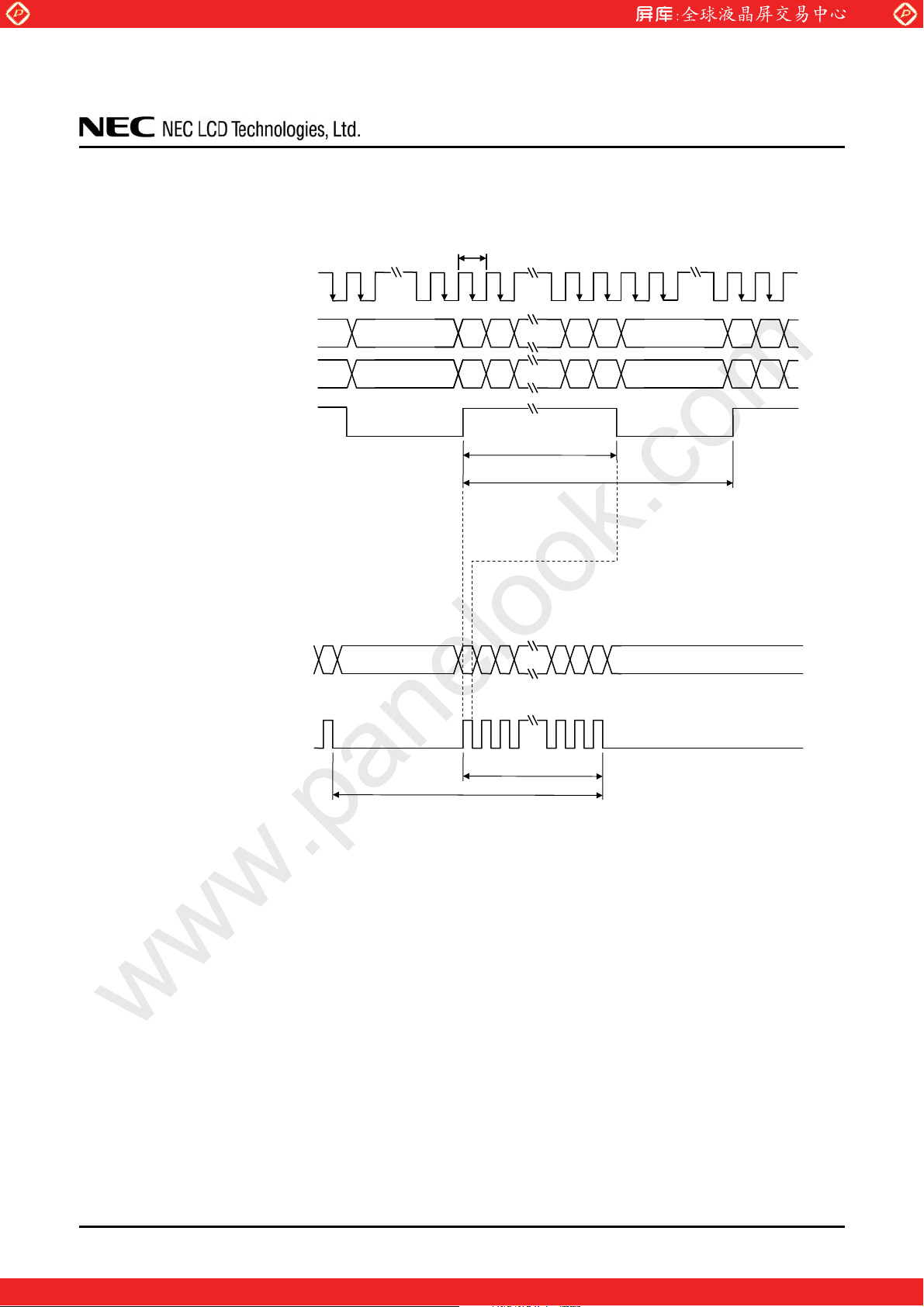

4.9.2 Input signal timing chart ..............................................................................................................
4.10 OPTICS...............................................................................................................................................21

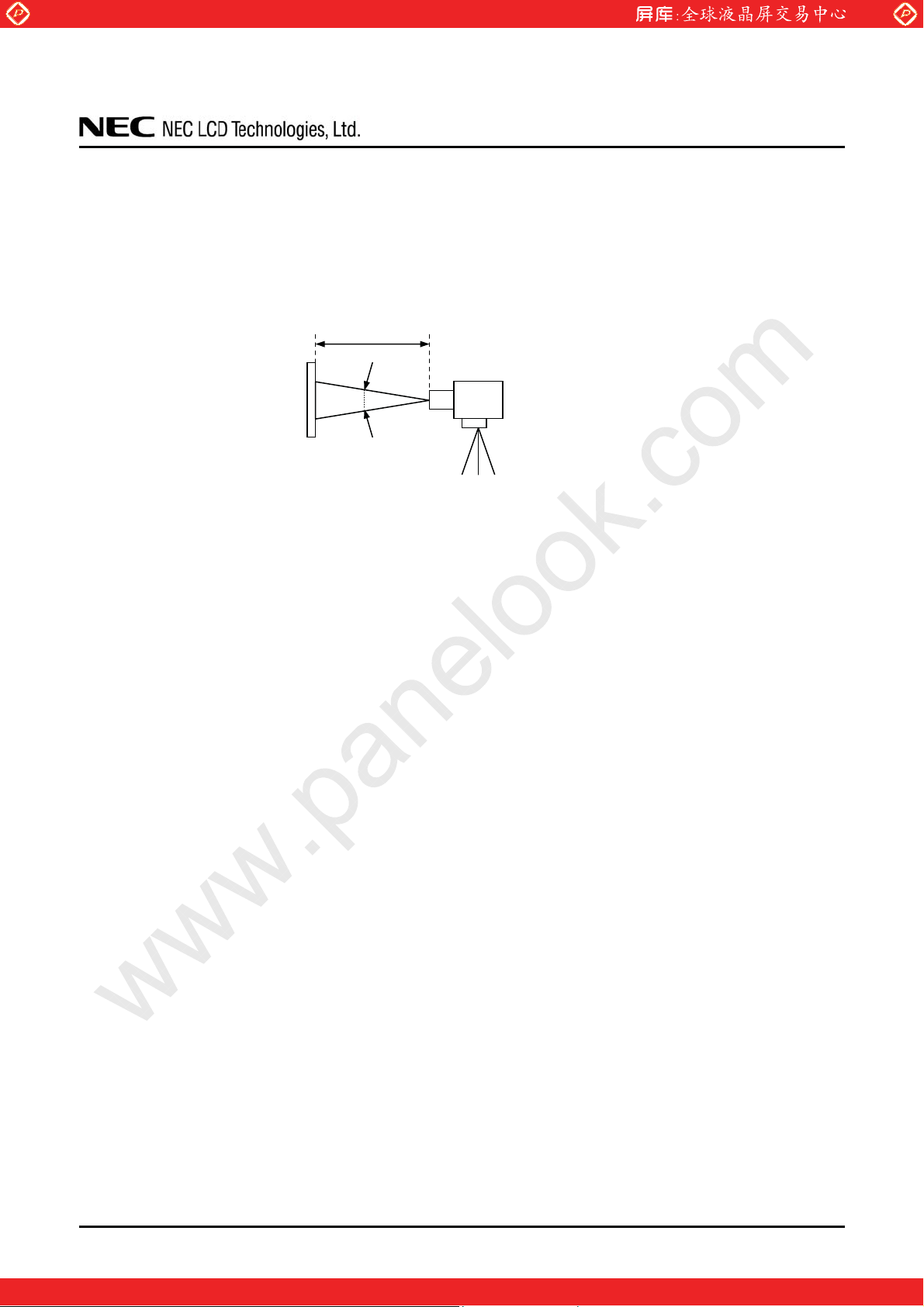

4.10.1 Optical characteristics................................................................................................................21
4.10.2 Definition of contrast ratio......................................................................................................... 23

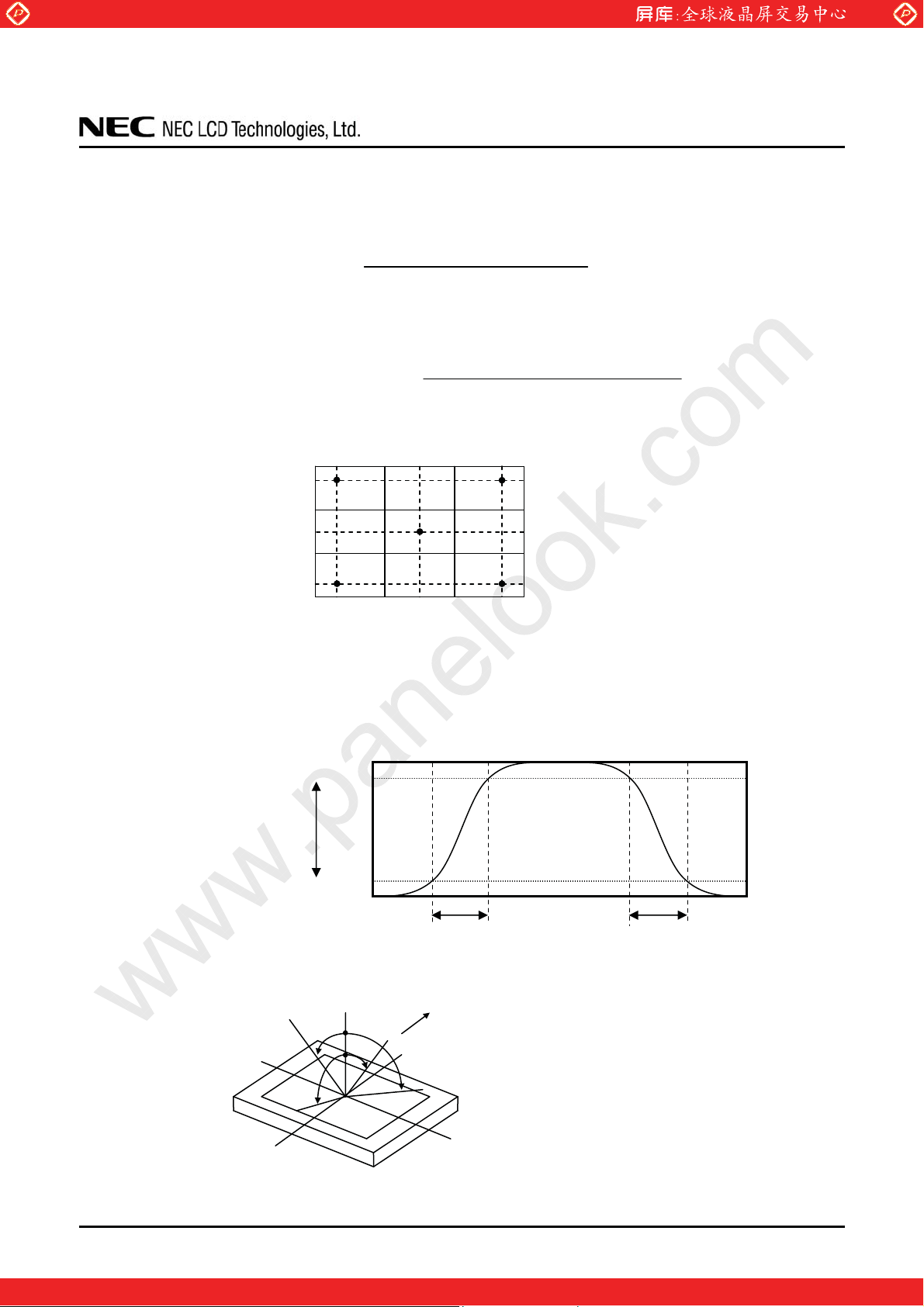

4.10.3 Definition of luminance uniformity......................................................................................
4.10.4 Definition of response times ...................................................................................................... 23
4.10.5 Definition of viewing angles......................................................................................................23

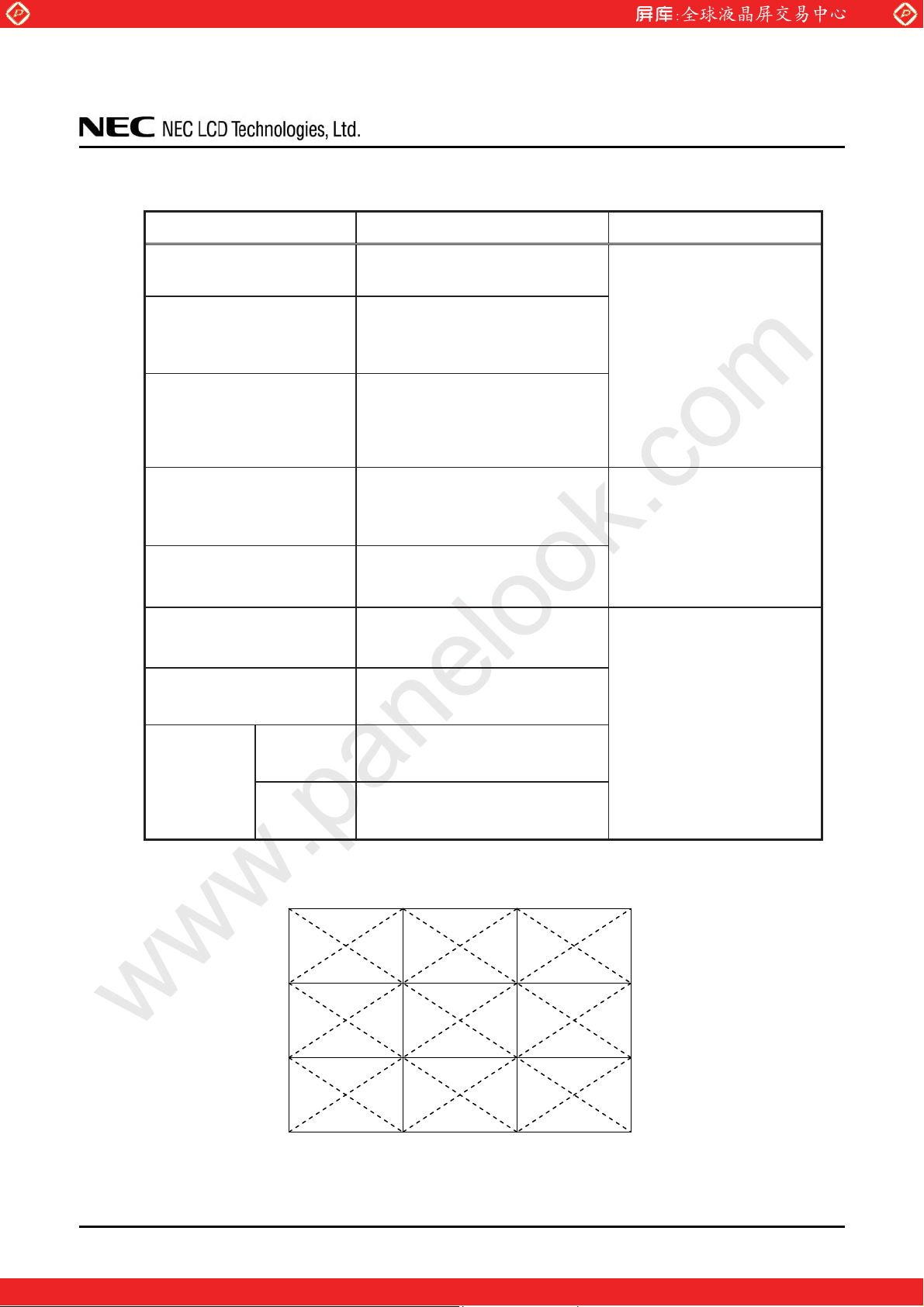

5. RELIABILITY TESTS.............................................................................................................................24
6. PRECAUTIONS .......................................................................................................................................25
6.1 MEANING OF CAUTION SIGNS ...................................................................................................... 25
6.2 CAUTIONS ..........................................................................................................................................25
6.3 ATTENTIONS ......................................................................................................................................25
6.3.1 Handling of the product ............................................................................................................... 25
6.3.2 Environment.................................................................................................................................26
6.3.3 Characteristics..............................................................................................................................26
6.3.4 Other ............................................................................................................................................26
7. OUTLINE DRAWINGS ........................................................................................................................... 27
7.1 FRONT VIEW......................................................................................................................................27
7.2 REAR VIEW ........................................................................................................................................28
www.panelook.com
NL128102BC29-01B/01C
CONTENTS
20
.....23
DATA SHEET DOD-PD-0744 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
3
www.panelook.com
Global LCD Panel Exchange Center
1. OUTLINE
1.1 STRUCTURE AND PRINCIPLE
Color LCD module NL128102BC29-01B and NL128102BC29-01C are composed of the amorphous
silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for
driving the TFT (Thin Film Transistor) array and a backlight.
The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT
array glass substrate and a monochrome-filter glass substrate.
Color (Red, Green, Blue) data signals from a host system (e.g. PC, signal generator, etc.) are modulated
into best form for active matrix system by a signal processing board, and sent to the driver LSIs which
drive the individual TFT arrays.
The TFT array as an electro-optical switch regulates the amount of transmitted light from the backlight
assembly, when it is controlled by data signals. Color images are created by regulating the amount of
transmitted light through the TFT array of red, green and blue dots.
www.panelook.com
NL128102BC29-01B/01C
1.2 APPLICATION
x Monitor for PC
1.3 FEATURES
x Ultra-wide viewing angle (Adoption of Super Advanced-Super Fine TFT (SA-SFT))
x Wide color gamut
x High contrast
x LVDS interface
x Selectable LVDS data input map
x Edge light type (without inverter)
x Acquisition product for UL60950-1 1st edition/CSA-C22.2 No.60950-1-03 (File number: E170632)
x Difference between NL128102BC29-01B and NL128102BC29-01C
Item NL128102BC29-01B NL128102BC29-01C
Luminance 280cd/m2 (typ.) 270cd/m2 (typ.)
White chromaticity Wx, Wy = (0.313, 0.329) (typ.) Wx, Wy = (0.300, 0.315) (typ.)
Cable color of backlight lamps See "4.5.2 Backlight lamp".
DATA SHEET DOD-PD-0744 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
4
www.panelook.com
Global LCD Panel Exchange Center
2. GENERAL SPECIFICATIONS
www.panelook.com
NL128102BC29-01B/01C
Display area
Diagonal size of display
Drive system
Display color
Pixel
Pixel arrangement
Dot pitch
Pixel pitch
Module size
Weig ht
Contrast ratio
Viewing angle
Designed viewing direction
Polarizer surface
Polarizer pencil-hardness
Color gamut
Response time
Luminance
White chromaticity
Signal system
Power supply voltage
Backlight
Power consumption
376.32 (H) u 301.056 (V) mm
48.0 cm (19.0 inches)
a-Si TFT active matrix
16,777,216 colors
1,280 (H) u 1,024 (V) pixels
RGB (Red dot, Green dot, Blue dot) vertical stripe
0.098 (H) u 0.294 (V) mm
0.294 (H) u 0.294 (V) mm
404.2 (W) u 330.0 (H) u 22.0 (D) mm (typ.)
2,900 g (typ.)
450:1 (typ.)
At the contrast ratio
x Horizontal: Right side 85q (typ.), Left side 85q (typ.)
x Vertical: Up side 85q (typ.), Down side 85q (typ.)
Viewing angle with optimum grayscale (J=2.2): normal axis
Antiglare
2H (min.) [by JIS K5400]
At LCD panel center
72 % (typ.) [against NTSC color space]
Ton+Toff (10%
20 ms (typ.)
NL128102BC29-01B
NL128102BC29-01C
NL128102BC29-01B Wx, Wy = (0.313, 0.329) (typ.)
NL128102BC29-01C Wx, Wy = (0.300, 0.315) (typ.)
LVDS 2 port
8bit digital signals for data of RGB colors, Dot clock (CLK),
Data enable (DE)
LCD panel signal processing board: 5.0V
Edge light type: 6 cold cathode fluorescent lamps (without inverter)
At IBL=6.0mArms / lamp and checkered flag pattern
26.8 W (typ., Power dissipation of the inverter is not included.)
mo
t
10:1
90%)
At IBL=6.0mArms / lamp
280cd/m
At IBL=6.0mArms / lamp
270cd/m
2
(typ.)
2
(typ.)
DATA SHEET DOD-PD-0744 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
5
www.panelook.com
Global LCD Panel Exchange Center
3. BLOCK DIAGRAM
Host LCD module (Product)
www.panelook.com
NL128102BC29-01B/01C
DA0+
DA0-
DA1+
DA1-
DA2+
DA2-
CKA+
CKA-
DA3+
DA3-
DB0+
DB0-
DB1+
DB1-
DB2+
DB2-
CKB+
CKB-
DB3+
DB3-
100:
100:
100:
100:
100:
100:
100:
100:
100:
100:
H - driver
LVDS receiver LVDS receiver
3,840 lines
LCD panel
1,024 lines
Controller
V - driver
H: 1,280 u 3 (R, G, B)
V: 1,024
Lamp
Lamp
Lamp
TxSEL
VDD
GND
Fuse
DC/DC
Converter
LCD panel signal processing board
Power
supply
for drivers
Backlight
(Edge light type)
FG
Note1
Note2
VBLH
VBLC
Note1
Note1: Connections between GND (Signal ground), FG (Frame ground) and VBLC (Lamp low voltage
terminal) in the LCD module
GND - FG Connected
GND - VBLC Not connected
FG - VBLC Not connected
Note2: GND and FG must be connected to customer equipment's ground, and it is recommended that GND,
FG and customer inverter ground are connected together in customer equipment.
DATA SHEET DOD-PD-0744 (1st edition)
6
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
4. DETAILED SPECIFICATIONS
4.1 MECHANICAL SPECIFICATIONS
Parameter Specification Unit
www.panelook.com
NL128102BC29-01B/01C
Module size
Display area
Weight 2,900 (typ.), 3,100 (max.) g
404.2 r 0.5 (W) u 330.0 r 0.5 (H) u 22.0 r 0.3 (D)
376.32 (H) u 301.056 (V)
Note1: Excluding lamp cable, cable clamp and projections.
Note2: See "7. OUTLINE DRAWINGS".
4.2 ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Rating Unit Remarks
Power supply
voltage
Input voltage
for signals
Operating temperature
LCD panel signal processing board VDD -0.3 to +6.0 V
Lamp voltage VBLH 2,000 Vrms
Display signals
Note1
Function signal
Note2
Storage temperature Tst -20 to +60
Front surface TopF 0 to +55
Rear surface TopR 0 to +60
Note1
VD V
-0.3 to +2.8
VF
Note2 mm
Note2 mm
Ta = 25qC
Ta = 25qC
V
qC
qC
qC
VDD= 5.0V
-
Note3
Note4
%
%
%
g/m
m
m
Ta d 40qC
40 < Ta d 50qC
50 < Ta d 55qC
3
Ta > 55qC
0qCd Ta d 55qC
-20qCd Ta d 60qC
Relative humidity
Note5
Absolute humidity
Note5
Operating altitude -
Storage altitude -
RH
AH
d 95
d 85
d 70
d 73
Note6
d 4,850
d 13,600
Note1: DA0+/-, DA1+/-, DA2+/-, DA3+/-, CKA+/-, DB0+/-, DB1+/-, DB2+/-, DB3+/-, CKB+/Note2: TxSEL
Note3: Measured at center of LCD panel surface (including self-heat)
Note4: Measured at center of LCD module's rear shield surface (including self-heat)
Note5: No condensation
Note6: Water amount at Ta = 55°C and RH = 70%

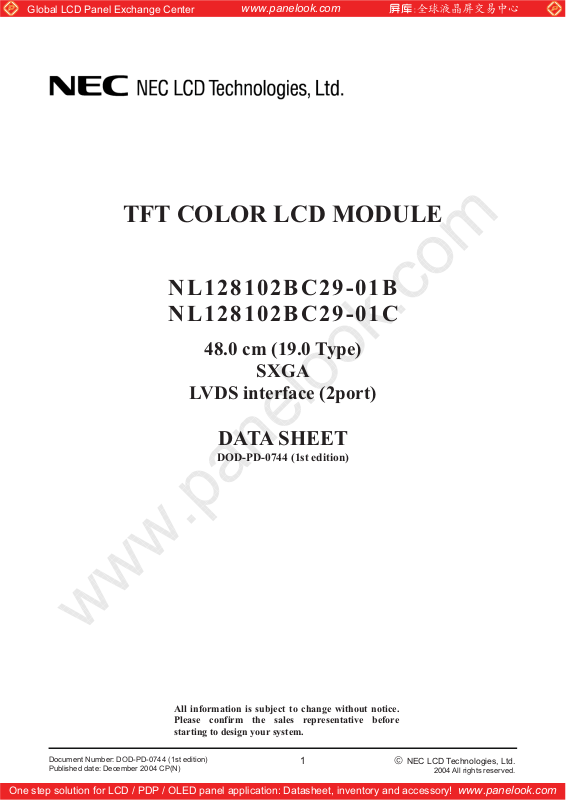

DATA SHEET DOD-PD-0744 (1st edition)
7
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
4.3 ELECTRICAL CHARACTERISTICS
4.3.1 LCD panel signal processing board
Parameter Symbol min. typ. max. Unit Remarks
Power supply voltage VDD 4.5 5.0 5.5 V -
Power supply current IDD -
Permissible ripple voltage VRP - - 100 mVp-p for VDD
www.panelook.com
680
Note1
NL128102BC29-01B/01C
(Ta = 25qC)
1,400
Note2
mA at VDD = 5.0V
Differential input threshold
voltage for LVDS receiver
Terminating resistance RT - 100 -
Input voltage for TxSEL
signal
Input current for TxSEL signal IFL -80 - -35
High VTH - - +100 mV
Low VTL -100 - - mV
High VFH High must be Open. -
Low VFL - - 0.5 V
Note1: Checkered flag pattern [by EIAJ ED-2522]
Note2: Pattern for maximum current
Note3: Common mode voltage for LVDS receiver
Note4: TxSEL is pulled-up in the product. (Pull-up resistance: 50k:)
:
PA
at VCM=1.2V
Note3
-
TxSEL
Note4
DATA SHEET DOD-PD-0744 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
8
www.panelook.com
Global LCD Panel Exchange Center
4.3.2 Backlight lamp
Parameter Symbol min. typ. max. Unit Remarks
Lamp current IBL 3.5 6.0 7.0 mArms
Lamp voltage VBLH - 650 - Vrms Note2, Note3
Lamp starting voltage VS
Lamp oscillation frequency FO 40 48 55 kHz Note4
Note1: This product consists of 6 backlight lamps, and these specifications are for each lamp.
www.panelook.com
1,350 - - Vrms
1,550 - - Vrms
NL128102BC29-01B/01C
(Ta=25qC, Note1)
at IBL=6.0mArms:
NL128102BC29-01B
280cd/m
NL128102BC29-01C
270cd/m
Ta = 25qC
Note2, Note3
Ta = 0qC
Note2, Note3
2
2
Note3
Note2: The lamp voltage cycle between lamps should be kept on a same phase. "VS" and "VBLH" are
the voltage value between low voltage side (Cold) and high voltage side (Hot).
Note3: The asymmetric ratio of working waveform for lamps (Power supply voltage peak ratio, power
supply current peak ratio and waveform space ratio) should be less than 5 % (See the following
figure.). If the waveform is asymmetric, DC (Direct current) element apply into the lamp. In
this case, a lamp lifetime may be shortened, because a distribution of a lamp enclosure
substance inclines toward one side between low voltage terminal (Cold terminal) and high
voltage terminal (Hot terminal). When designing the inverter, evaluate asymmetric of lamp
working waveform sufficiently.
Pa
Pb
Sa
0
Sb
_Pa - Pb_
Pb
_Sa - Sb_
Sb
u 100 d 5 %
u 100 d 5 %
Pa: Supply voltage/current peak for positive, Pb: Supply voltage/current peak for negative
Sa: Waveform space for positive part, Sb: Waveform space for negative part
Note4: In case "FO" is not the recommended value, beat noise may display on the screen, because of
interference between "FO" and "1/th". Recommended value of "FO" is as following.
FO
1
=
4
1
(2n-1)
th
u
u
th: Horizontal cycle (See "4.9.1 Timing characteristics".)
n: Natural number (1, 2, 3 )
Note5: Method of lamp cable installation may invite fluctuation of lamp current and voltage or
asymmetric of lamp working waveform. When designing method of lamp cable installation,
evaluate the fluctuation of lamp current, voltage and working waveform sufficiently.
DATA SHEET DOD-PD-0744 (1st edition)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
9
www.panelook.com
Loading...
