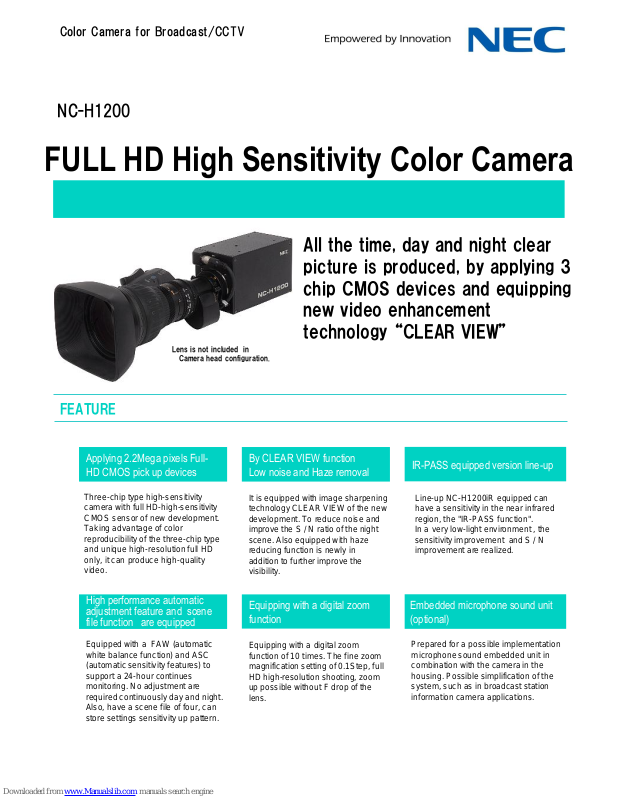

NEC NC-H1200 Specifications

FULL HD High Sensitivity Color Camera

NC-H1200

Color Camera for Broadcast/CCTV

Applying 2.2Mega pixels Full­HD CMOS pick up devices

Three-chip type high-sensitivity
camera with full HD-high-sensitivity
CMOS sensor of new development.
Taking advantage of color
reproducibility of the three-chip type
and unique high-resolution full HD
only, it can produce high-quality
video.

IR-PASS equipped version line-up

It is equipped with image sharpening
technology CLEAR VIEW of the new
development. To reduce noise and
improve the S / N ratio of the night
scene. Also equipped with haze
reducing function is newly in
addition to further improve the
visibility.

FEATURE

All the time, day and night clear
picture is produced, by applying 3
chip CMOS devices and equipping
new video enhancement
technology “CLEAR VIEW”

High performance automatic
adjustment feature and scene
file function are equipped

Equipped with a FAW (automatic
white balance function) and ASC
(automatic sensitivity features) to
support a 24-hour continues
monitoring. No adjustment are
required continuously day and night.
Also, have a scene file of four, can
store settings sensitivity up pattern.

Embedded microphone sound unit

(optional)

Prepared for a possible implementation
microphone sound embedded unit in
combination with the camera in the
housing. Possible simplification of the
system, such as in broadcast station
information camera applications.

Equipping with a digital zoom
function

Equipping with a digital zoom
function of 10 times. The fine zoom
magnification setting of 0.1Step, full
HD high-resolution shooting, zoom
up possible without F drop of the
lens.

By CLEAR VIEW function
Low noise and Haze removal

Lens is not included in

Camera head configuration.

Line-up NC-H1200iR equipped can
have a sensitivity in the near infrared
region, the "IR-PASS function".
In a very low-light environment , the
sensitivity improvement and S / N
improvement are realized.

NC-H1200 FULL HD High Sensitivity Color Camera

Specification

Pick up devices 2/3” 2.2Mega pixels ＣＭＯＳ Image Sensor

Effective pixels 1920（H）×1080（V）

Pick up system R,G,B 3 chip

Lens mount Bayonet BTA S-1005B

Television Standard 1080/59.94i

Optical Filter

CLEAR,1/4ND,1/16ND,1/64ND (NC-H1200)
CLEAR, 1/8ND, 1/64ND, IR-PASS (NC-H1200iR)

Resolution 1000TVLine

Minimum illumination

0.007lx (F1.4, Maximum sensitivity , full motion ,output 50% level)

0.00007lx (F1.4, Maximum sensitivity , semi motion ,output 50% level)

S/R 64dB (NR ON)

Color Bar SMPTE MULTI Color Bar equipped

Electric shutter 1/60(off),1/100,1/125,1/250,1/500,1/1000,1/2000,1/4000,1/10000

Electric zoom ×1.1～×10.0 0.1 step

White Balance FAW（Full auto ）/AWB（One push）/3200K/5600K

Video output HD-SDI （SMPTE292M)

Power DC 12V （11V～16V） 20W

Operating Temperature -10℃～+45℃

Size 90mm (W) ×103mm (H) ×161mm (D)

Weight 1.3㎏

NC-H1200 out view

Lens flange

●If this product is exported outside Japan and is deemed to be a strategic goods (or service) by the provisions of the Foreign
Exchange and Foreign Trade Law, then export authorization by the Japanese government is required based on that Law.

●The figure and specification of the product described herein are subject to change for improvement and other reasons without
prior notice.
