NEC N-3481, N-4881, FS-5172 User's Guide

INSTRUCTION MANUAL

Colour Television

N-3481
N-4881

FS-5172

Contents

Important safeguards 1
Before Operation 2
Connecting external equipment 3

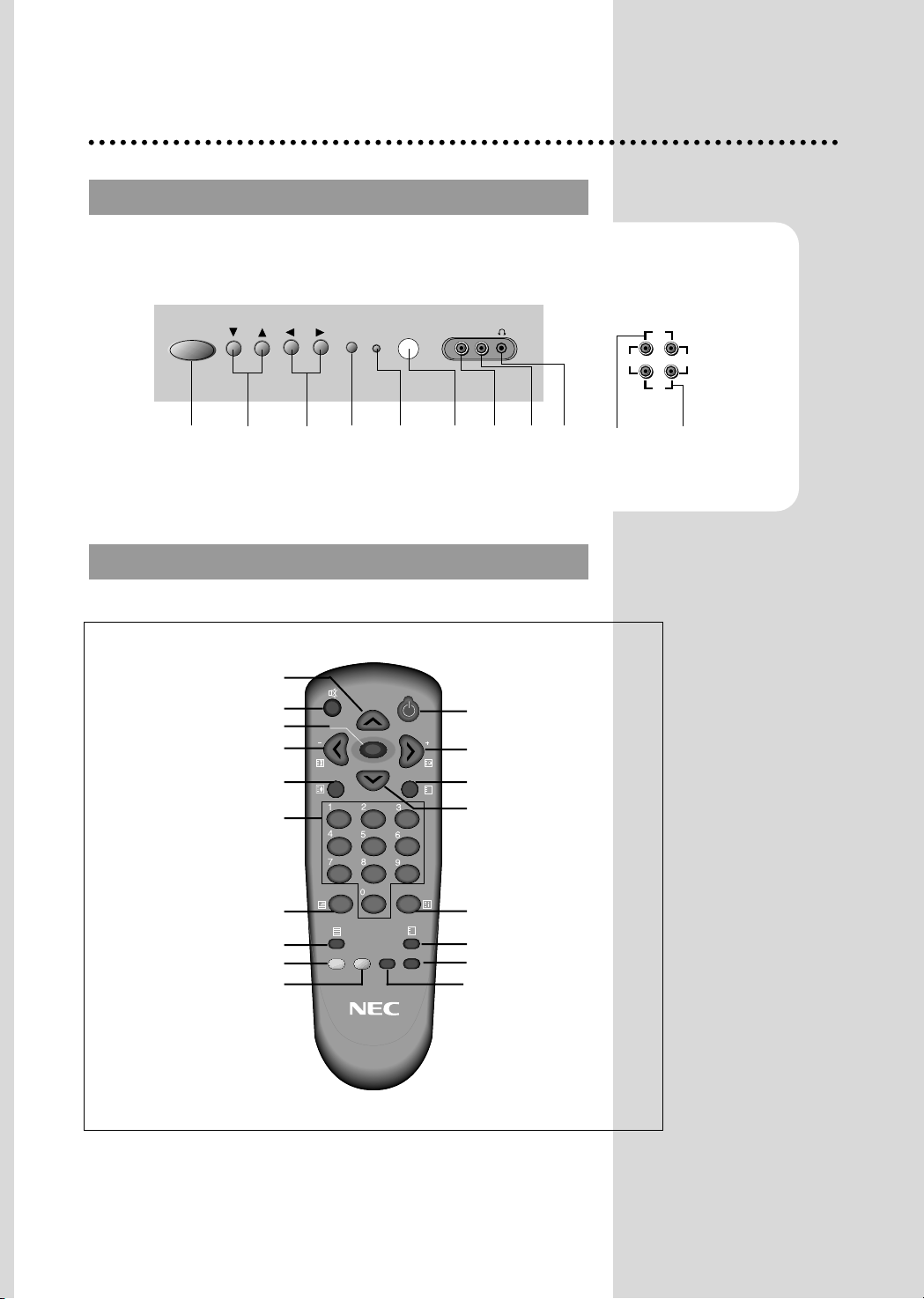

Identification of Controls 5

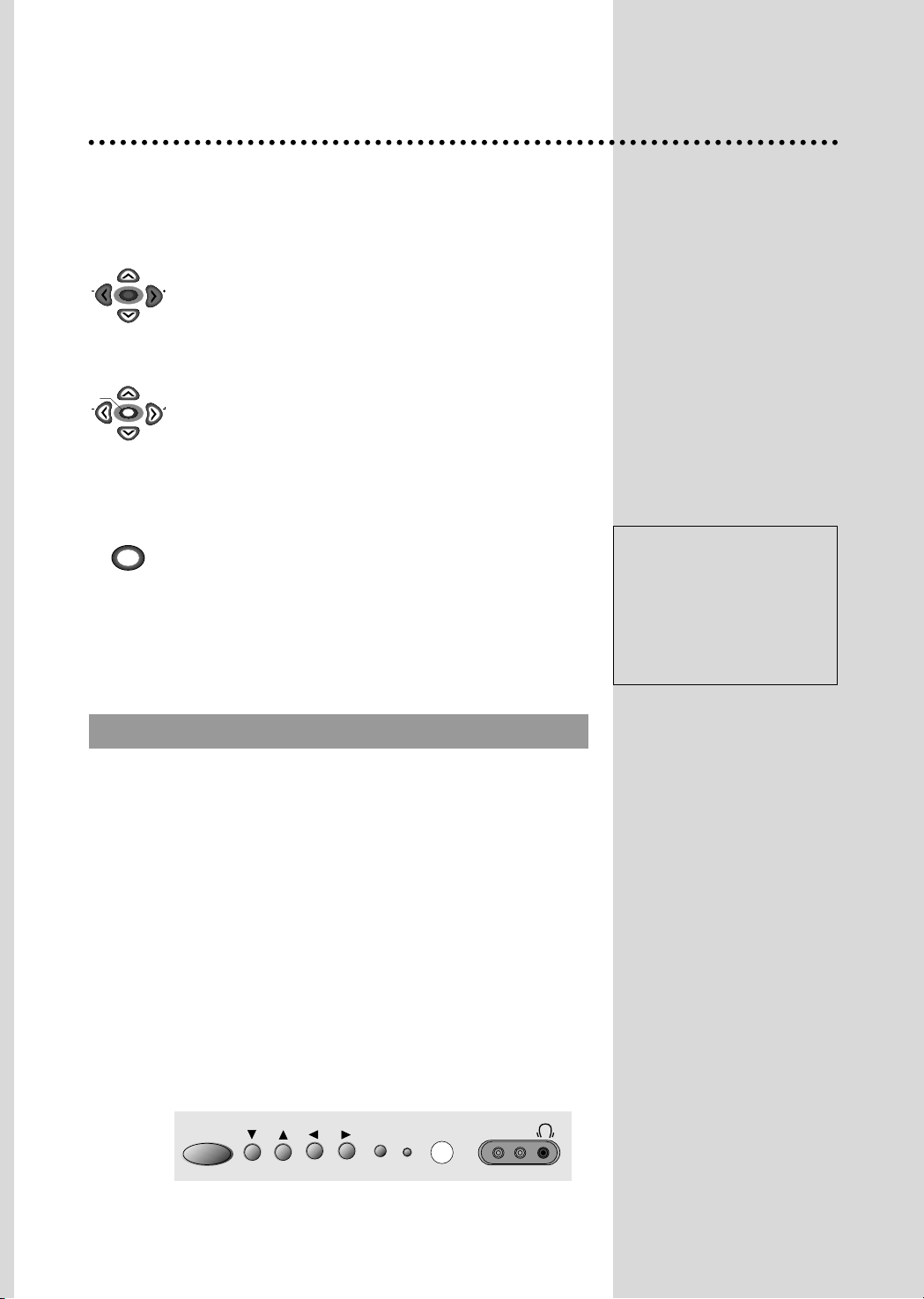

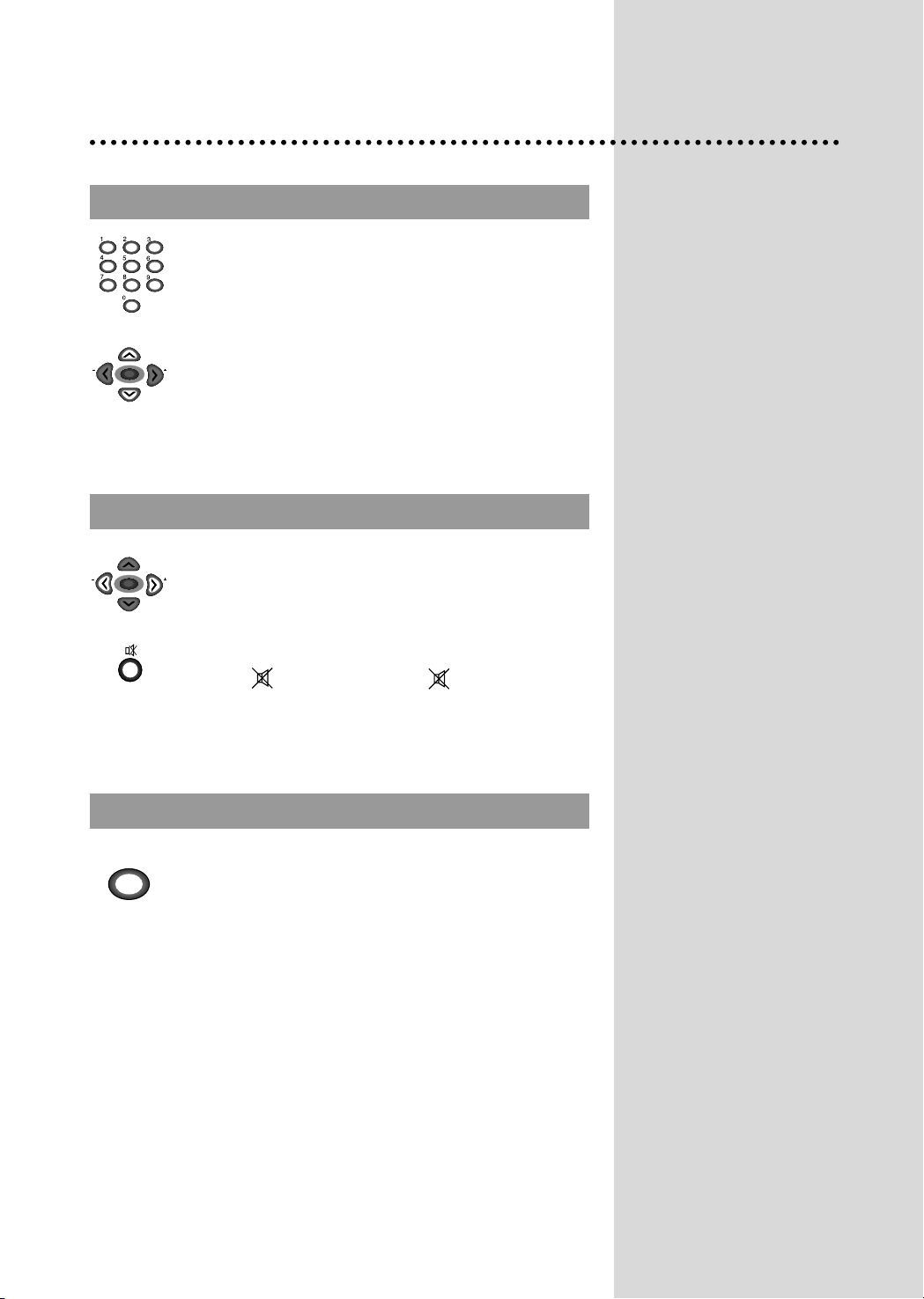

Daily use 6

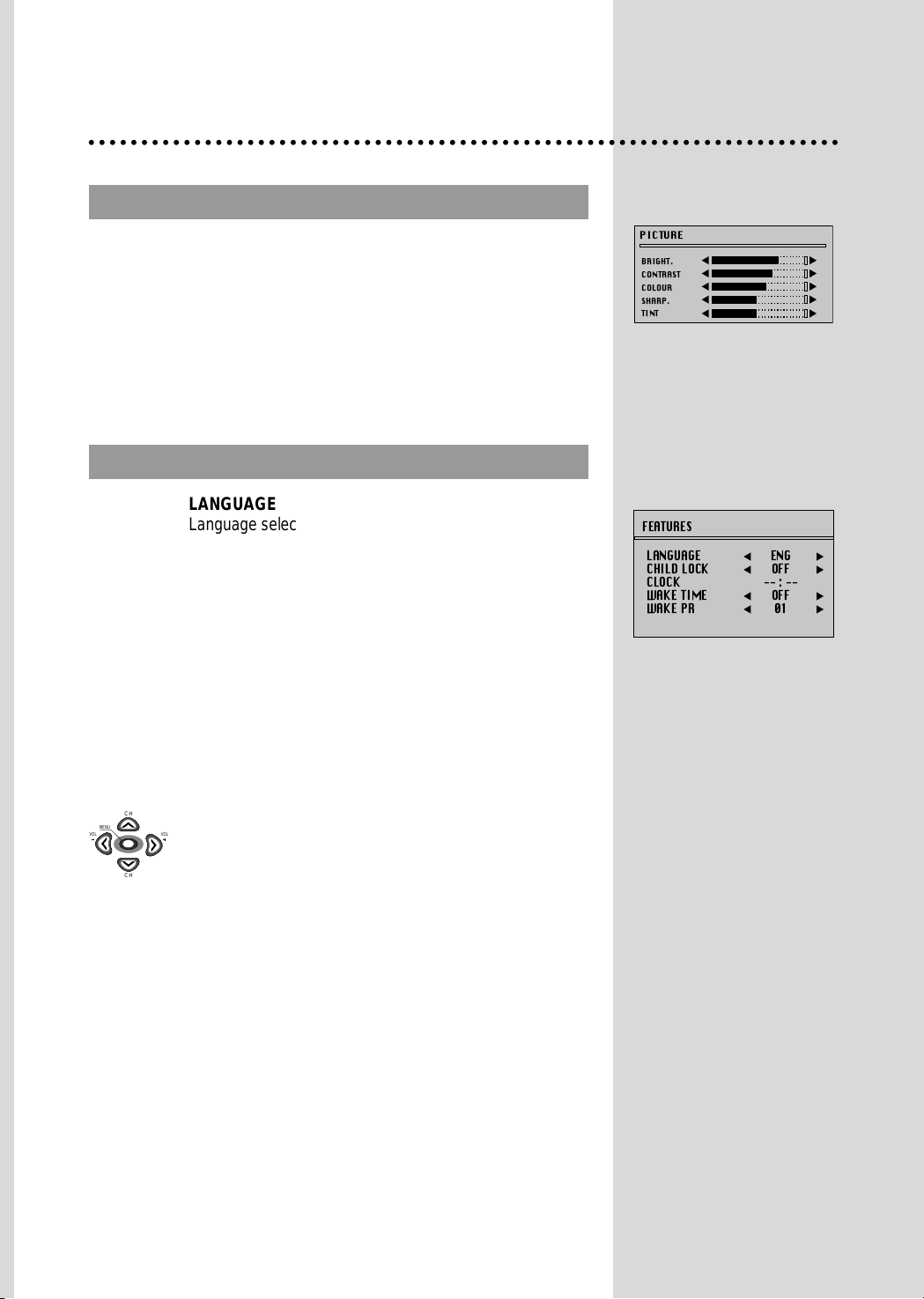

Menus 8
Teletext 14
Troubleshooting 16
Specifications 17

1

Important safeguards

WATER AND MOISTURE

Never install the set in the following places : In a wet
basement, bathroom. Do not place any container with
liquid on the set.

HEAT

Never place the set near heat sources.

VENTILATION

Do not cover the ventilation openings in the cabinet and
never place the set in a confined space such as a
bookcase or built-in unless proper ventilation is provided.
Leave a minimum 10cm gap all around the unit.

OBJECT ENTRY

Do not insert foreign objects, such as needles and coins,
in the ventilation openings.

LIGHTNING STRIKING

You should disconnect the set from the mains and the
aerial system during thunderstorms.

CLEANING

Unplug the set from the mains during cleaning.

AFTER MOVING THE SET

If the set is moved in a different direction, the MAIN
POWER button must be switched off for at least 15
minutes in order to take out a colour strain on the screen.

The appliance is not intended for use by young
children or infirm persons without supervision.

Young children should be supervised to ensure that
they do not play with the appliance.

2

Before Operation

INSERTING BATTERIES INTO THE REMOTE CONTROL UNIT.

Insert the batteries (two 1.5V, type AA)

MAINS CONNECTION

Plug the mains cable into the power socket with 240V, 50Hz AC.

AERIAL CONNECTION

When using an outdoor aerial, it is usually connected to the set by means
of 75 ohm.

SWITCHING ON AND OFF

Switching on

Switch the set on with the MAIN POWER button(POWER), and then
CH UP or DOWN button on the front of the set.
Or use the OPERATE button or the CH UP/DOWN button or one of
the NUMBER buttons on the remote control.

NOTE : When switching power on, full picture and sound shall

appear in 6-8 seconds. This is to ensure optimum picure
stabilisation.

Switching off

Press the OPERATE button( ), on the remote control to return the
set to its stand by mode.
If you don't use the set for an extended period of time, turn it off with
MAIN POWER button on the set.

CH

CH

OPERATE

MENU

SLEEP

VOL

CH-CALL

?

VOL

Battery options

3

TV AND A

TV AND AVV

RCA JACK A

RCA JACK A

V (BACK)

V (BACK)

Connecting external equipment

Use the TV/VIDEO button on the remote control or on the front of the
set to select one of the two options. Whenever the TV/VIDEO button
is pressed, the on-screen display will be changed as shown:
AV TV

A/V OUTPUT (RCA JACK)

This provides alternately the TV signal output of the selected channel,
or another AV input signal. If the TV set displayed RF signal, A/V
output is RF signal. And, if the TV set displayed AV input signal, A/V
output is AV input signal.
This is used to connect a VCR for recording or a monitor device for
displaying.

This is used to connect VCR or DVD player. Press TV/VIDEO button to change
from the TV mode to AV mode or vice versa.

ANT

IN

OUT

AUDIOVIDEO

VIDEO AUDIO

ANT

IN

OUT

AUDIOVIDEO

VIDEO AUDIO

(AV OUT)

(AV IN)

4

RCA JACK A

RCA JACK A

V (FRONT)

V (FRONT)

Connect the AV (Audio/Video) socket with an appropriate cable to
the corresponding socket of the external equipment. Select AV
mode by pressing the TV/VIDEO button.
Press the TV/VIDEO button to return to the TV mode.

HEADPHONE JACK

Insert the headphone plug(3,5mm) into the
headphone socket.
The sound from the speaker will be cut off.

NOTE:

NOTE: If two apparatus are connected, one to the front AV

Jack and the other to the rear RCA Jack AV(upper side), you
can play only one apparatus.
One of the them must be switched off.

CAMCORDER

VIDEO GAME

OR
