Nec MULTISYNC FP1370 user Manual

NEC Flat Professional Series

MultiSync

™

User’s Manual

950

1350

1370

You can

product online at

www.nectech.com/

productregistration

™

78135162.wpc 10/23/99, 2:31 PM1

Index

Warning 1 Contents 2 Quick Start 3-5 Controls 6-9 Recommended Use 10-11 Specifications 12-14 Features 15 Troubleshooting 16 References 17 Limited Warranty 18 TCO’99 19-20

Avertissement 22 Contenu 23 Mise en marche rapide 24-26 Commandes 27-30 Usage recommandé 31-32 Fiche technique 33-35 Fonctions 36 Dépannage 37 Références 38 Garantie limitée 39 TCO’99 40-41

Warnung 44 Lieferumfang 45 Quick Start 46-48 Bedienungselemente 49-52 Empfehlungen für die Verwendung 53-54 Technische Daten 55-57 Funktionen 58 Fehlerbehebung 59 Verweise 60 Beschränkte Gewährleistung 61 TCO’99 62-63

78135162.wpc 10/23/99, 2:31 PM2

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL

SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian

Interference-Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations

according to C.S.A. 22.2 #950.

FCC Information

Use the attached specified cables with the JC-1946UMW, color monitors so as not to interfere with radio and television reception. (1) Please use the supplied power cord and USB cable or equivalent to ensure FCC

compliance.

(2) Shielded signal cable.

Use of other cables and adapters may cause interference with radio and television reception.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

JC-2241UMW and JC-22W70

78135162.wpc 10/23/99, 2:31 PM3

Contents

ultiSync

950

1350

1370

User’s Manual

ultiSync

950

1350

1370

User’s Manual

NEC Flat Professional Series

You can register your product online at www.nectech.com/productregistration

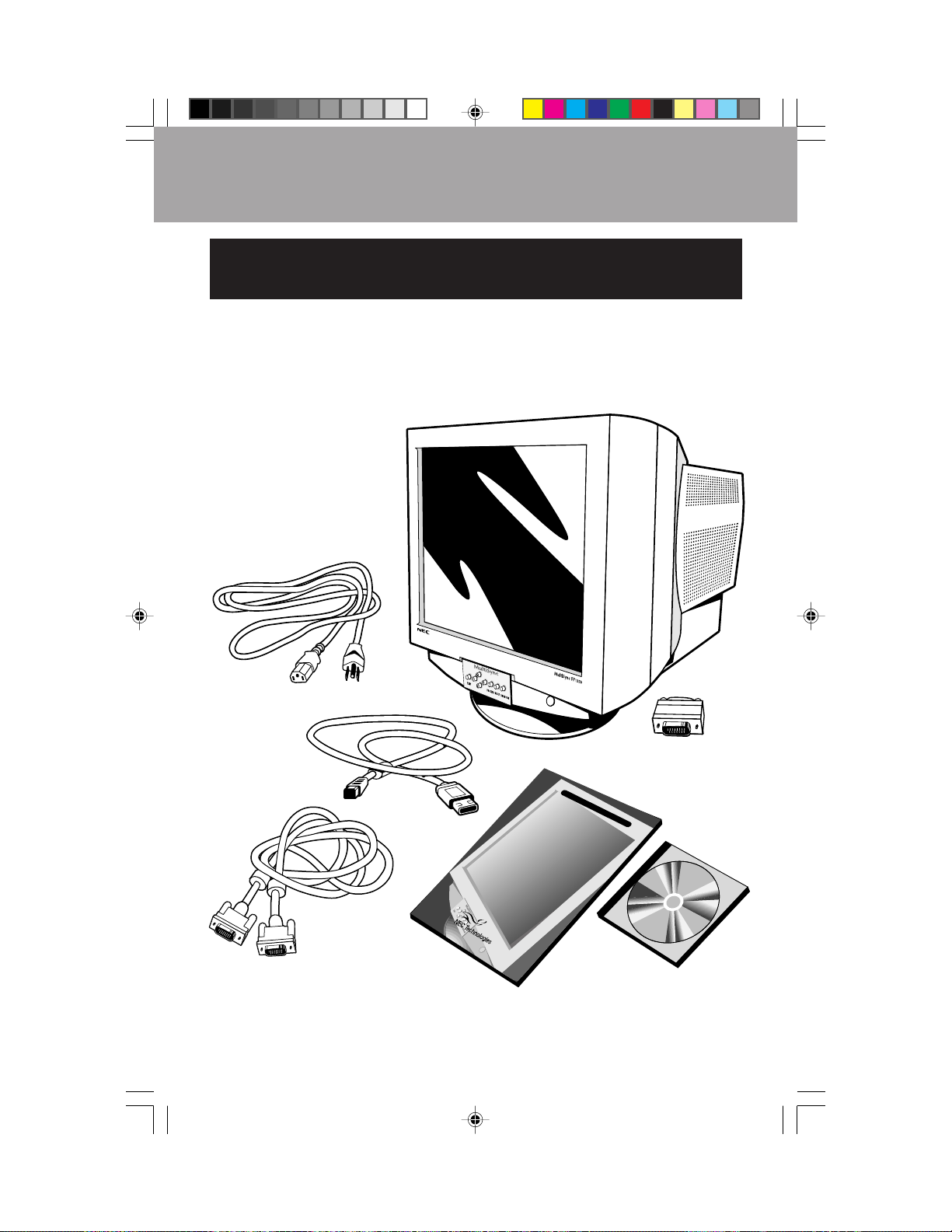

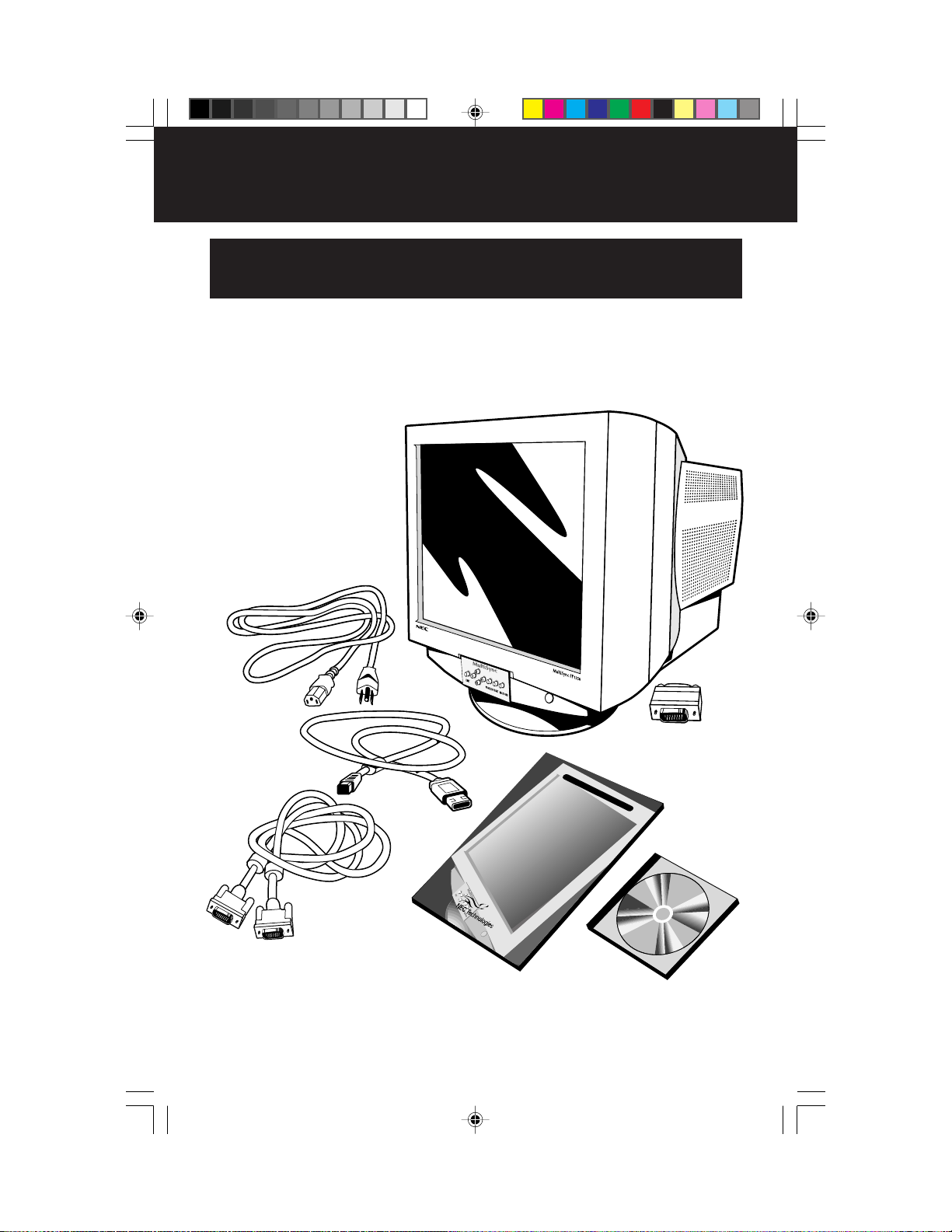

Your new NEC Technologies MultiSync® FP Series monitor box* should contain the following:

• MultiSync FP Series Monitor with tilt/swivel base MultiSync FP950™ (JC-1946UMW), MultiSync FP1350™ (JC-2241UMW) or MultiSync FP1370™ (JC-22W70)

• Power Cord

• Signal Cable

• USB Cable

• Monitor Control Software

• Macintosh Cable Adapter

• User’s Manual

Power Cord

Macintosh Cable Adapter

USB Cable

Signal Cable

User’s Manual

Monitor Control Software

* Remember to save your original box and packing material to transport

or ship the monitor.

78135162.wpc 10/23/99, 2:31 PM4

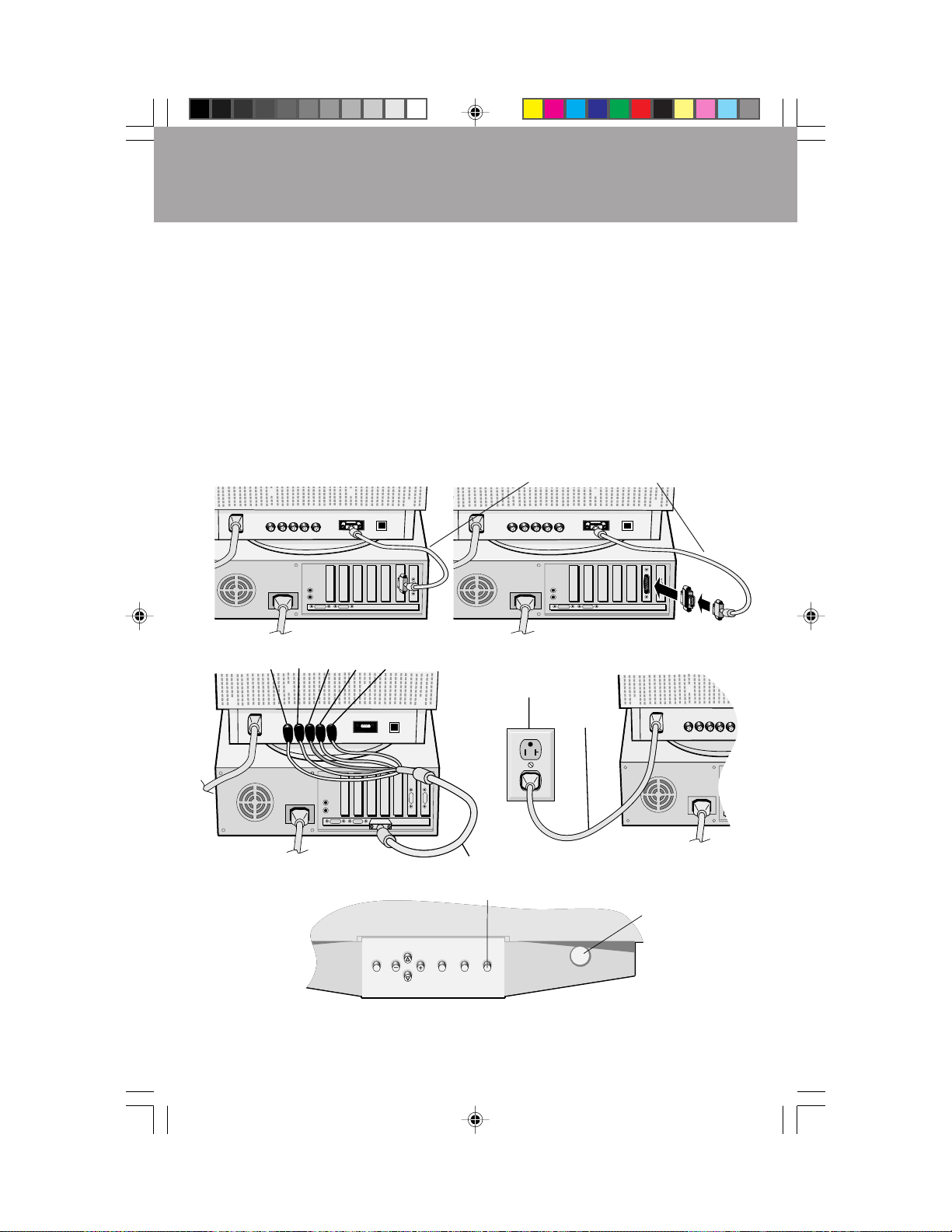

Quick Start

To attach the MultiSync® FP Series monitor to your system, follow these instructions:

1. Turn off the power to your computer.

If you are using the signal cable, continue to Step 2. If you are using a BNC cable, please skip to Step 3.

NOTE: BNC cables may be purchased at your local electronics store.

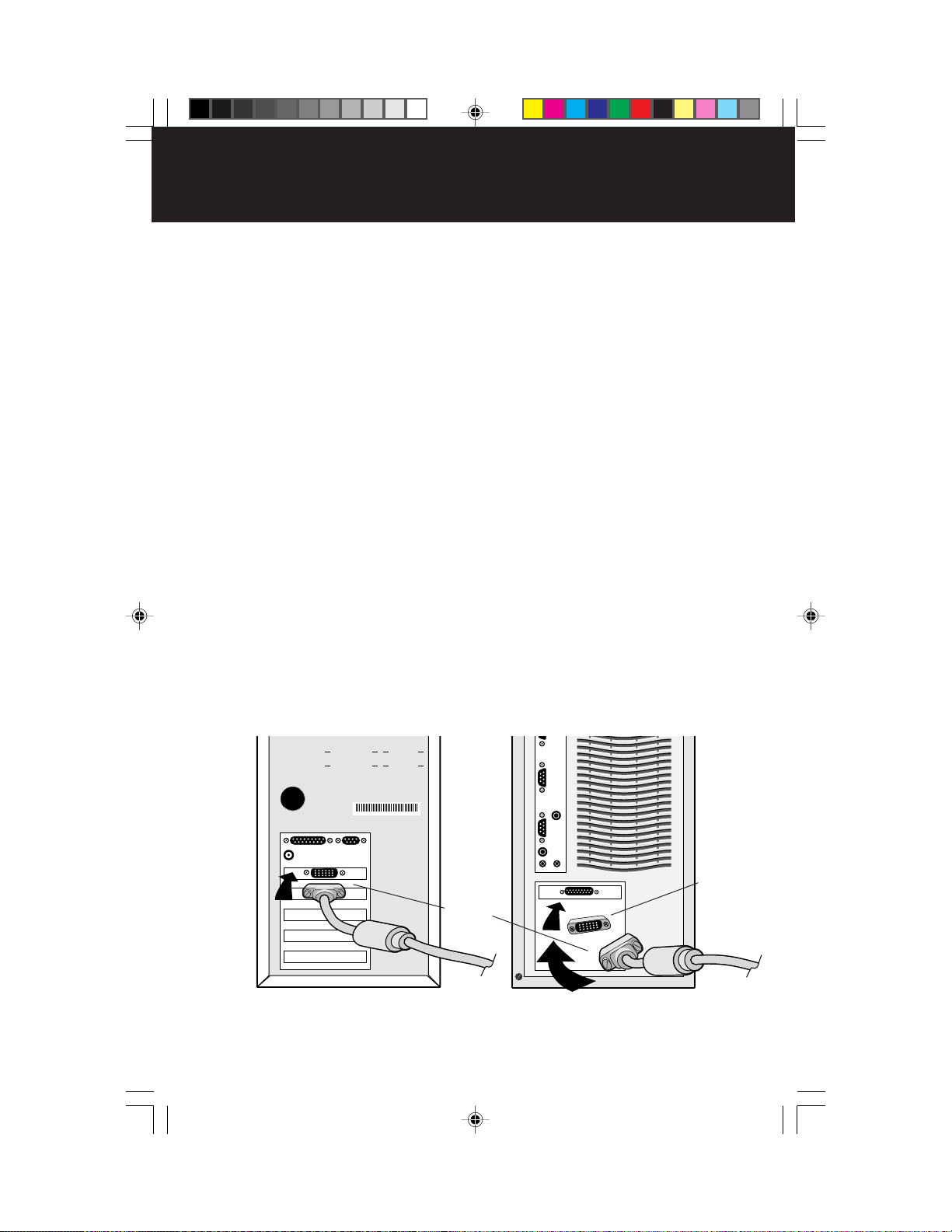

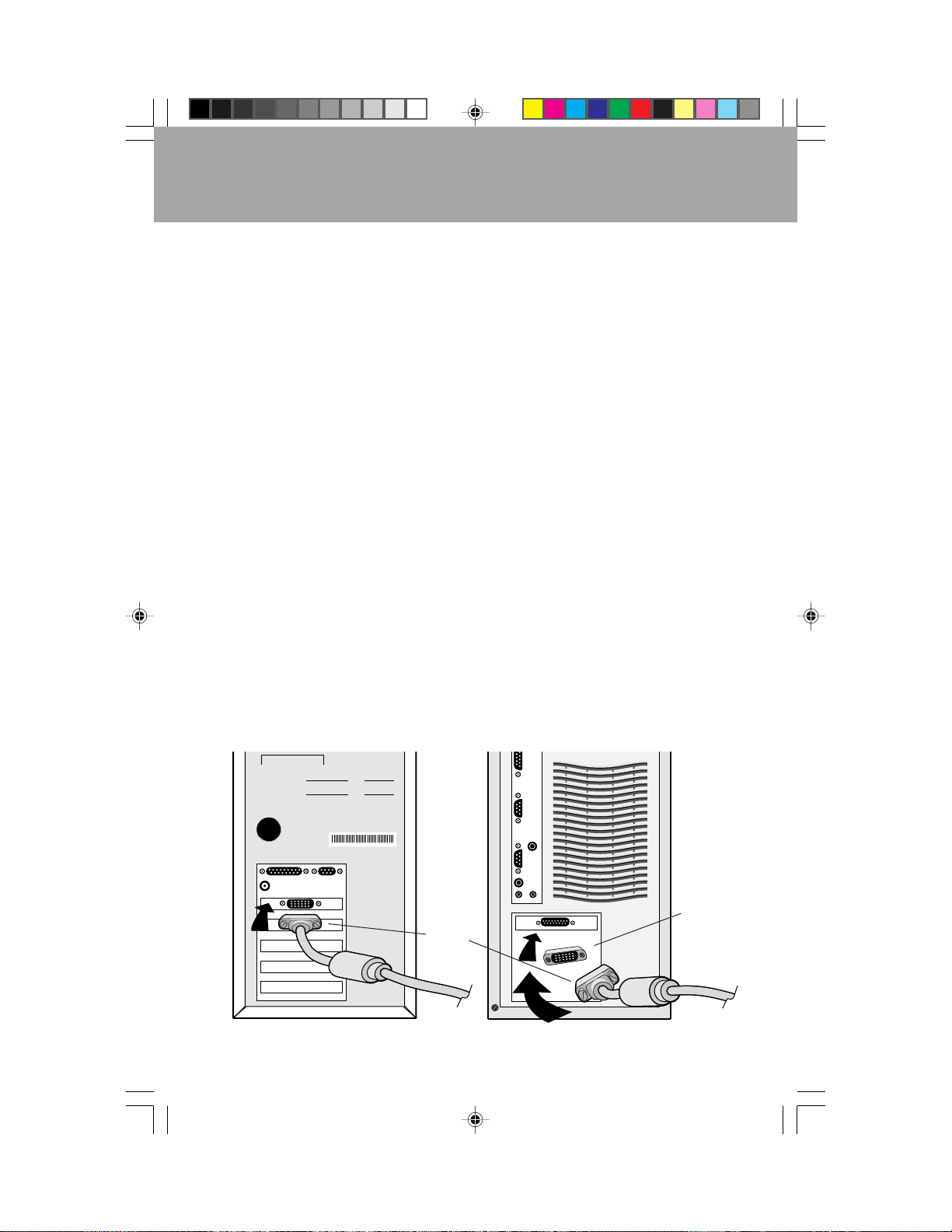

2. For the PC: Connect one end of the 15-pin mini D-SUB signal cable

to the connector of the display card in your system (Figure A.1) and the other end to the back of the monitor (Figure A.2). Tighten all screws. Proceed to Step 4.

For the Mac: Connect the Macintosh cable adapter to the computer (Figure B.1). Attach one end of the 15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure B.1) and the other end to the back of the monitor (Figure B.2). Tighten all screws. Proceed to Step 4.

Connect the BNC cable to the appropriate connectors on the back of the monitor. Connect the red BNC cable to the BNC connector on the monitor labeled R, the green BNC cable to the BNC connector labeled G (/Sync), the blue BNC cable to the BNC connector labeled B. If you have a fourth BNC connector (Composite Sync), connect it to the BNC connector on the monitor labeled HS/CS. If you have a fifth BNC connector (Vertical Sync), connect it to the BNC connector on the monitor labeled VS (Figure C.1).

NOTE: Incorrect cable connections may result in irregular operation or damage

display components.

Figure A.1

78135162.wpc 10/23/99, 2:31 PM5

15-pin mini D-SUB

Mac Adapter

Figure B.1

Quick Start cont.Start

Power

Cord

Power Outlet

RESET BNC/D-SUBPROCEEDEXIT

MultiSync

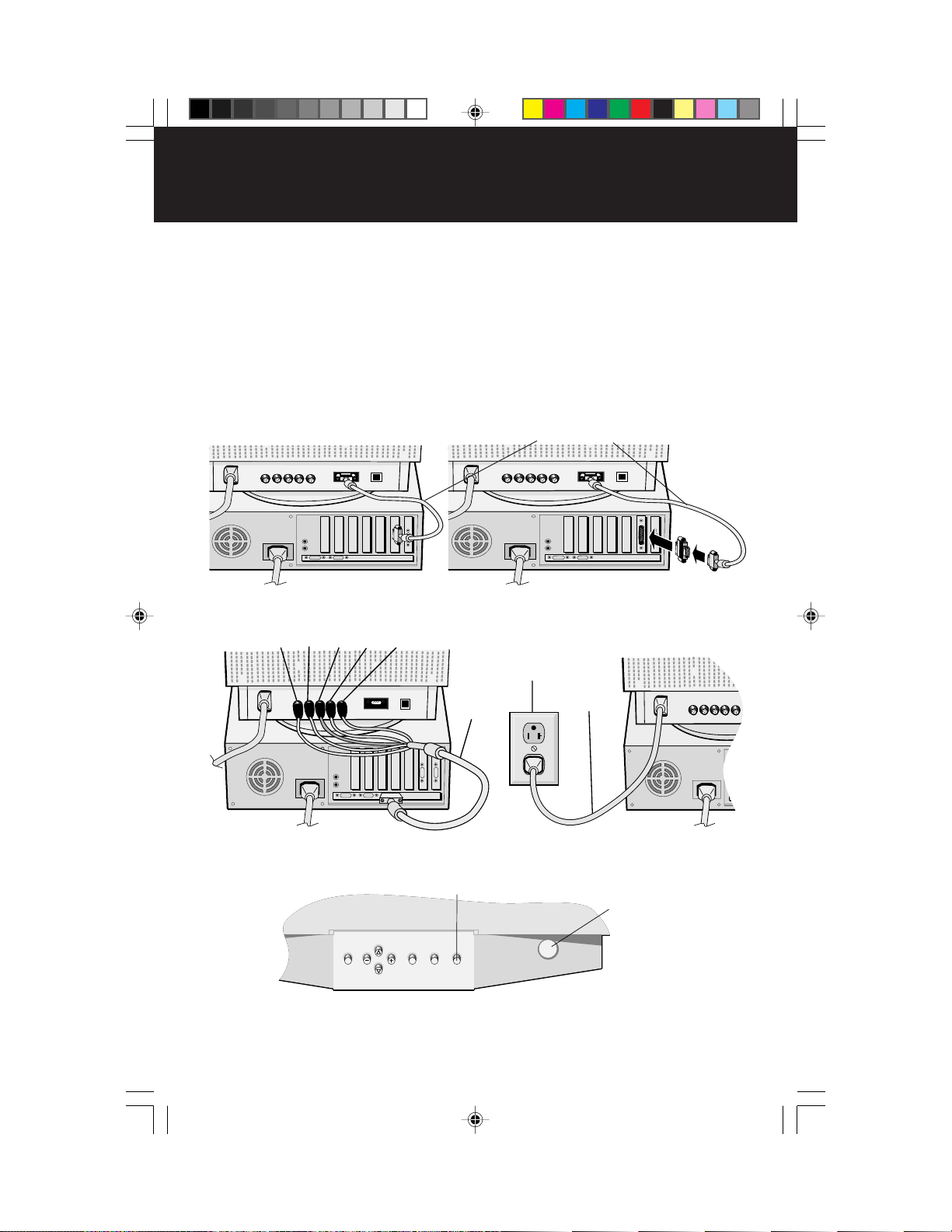

4. Connect one end of the power cord to the MultiSync® FP Series monitor and the other

end to the power outlet (Figure D.1).

5. Turn on the monitor (Figure E.1) and the computer.

6. The Factory Setting for your monitor is set for D-SUB installation. If you are using a

BNC cable connection, push the BNC/D-SUB button on the front of the monitor (Figure E.1) to switch settings.

G(/Sync)

HS/CS

BNC

Connector

15-pin mini D-SUB

Figure B.2Figure A.2

Figure C.1

Figure D.1

NOTE: For download information on the Windows®95/98 INF file for your MultiSync FP

monitor, refer to the References section of this user’s manual.

Series

NOTE: If you have any problems, please refer to the Troubleshooting section of

this User’s Manual.

BNC/D-SUB

Figure E.1

78135162.wpc 10/23/99, 2:31 PM6

Power Button

Quick Start cont.Start

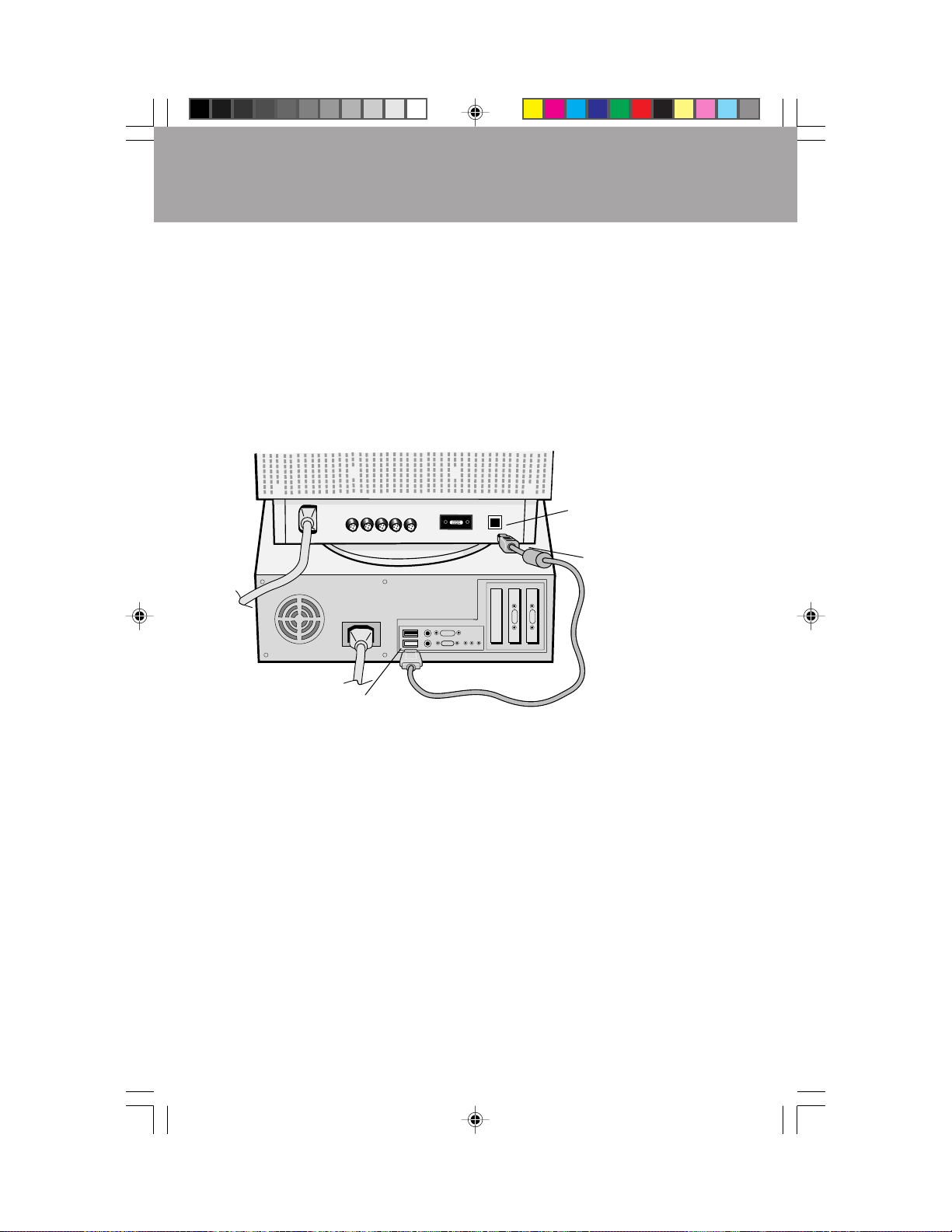

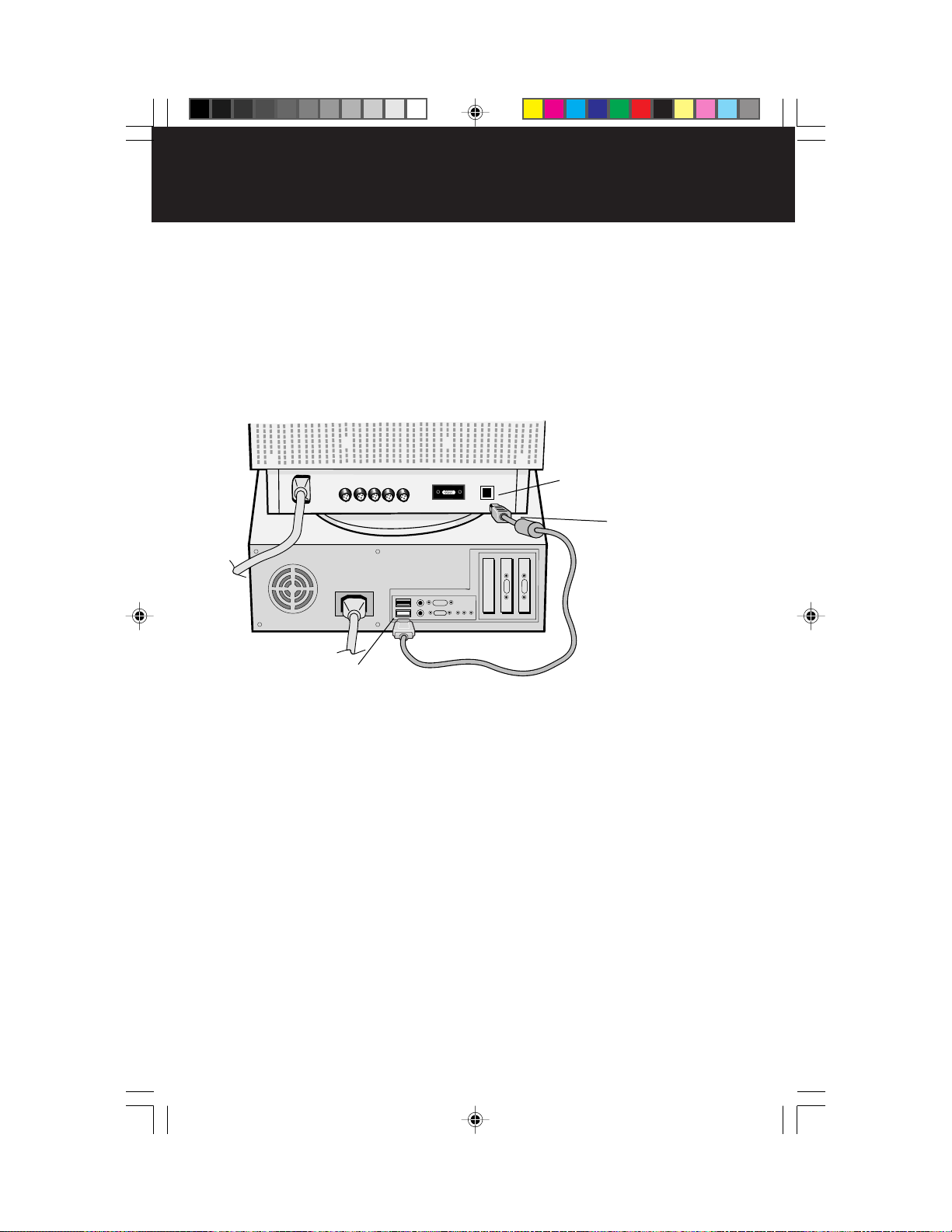

If your computer is equipped with USB and uses the Windows® 98 operating system and you want to operate the monitor’s user controls using your system, you can install USB support by using the following procedure. To attach the USB port on your MultiSync FP Series monitor to a USB port on your system:

1. Using the supplied USB cable, connect the USB Series B connector end to the USB

upstream port on the monitor (Figure 1).

2. Connect the other end of the supplied cable to the USB downstream port on the

computer (or to a USB Hub attached to the computer) (Figure 1).

3. Install the supplied Monitor Control Software.

USB upstream port

USB Series B connector end

USB downstream port

78135162.wpc 10/23/99, 2:31 PM7

Figure 1

Controls

OSM™ (On-Screen Manager) control buttons on the front of the monitor function as follows:

EXIT Exits the OSM menu. Exits to the OSM controls

CONTROL Moves the highlighted Moves the highlighted area / area up/down to select up/down to select one of the

CONTROL Moves the highlighted Moves the bar in the – or + –/+ area left/right to select direction to decrease or

Main Menu Sub-Menu

main menu.

one of the controls. controls.

one of the controls. increase the adjustment.

PROCEED Has no function. Only executes control

RESET Resets all the controls within Resets the highlighted control

the highlighted menu to the factory setting. to the factory setting.

NOTE: When RESET is pressed in the main and sub-menu, a warning

window will appear allowing you to cancel the reset function.

or enters sub, sub-menu.

When OSM controls are activated, icons are displayed at the top of the menu. If an arrow (➔) is displayed in a sub-menu, it indicates further choices are

available. To enter a sub, sub-menu, press PROCEED.

Brightness/Contrast Controls

Brightness: Adjusts the overall image and background screen brightness. Contrast: Adjusts the image brightness in relation to the background.

Degauss: Eliminates the buildup of stray magnetic fields which alter the correct

scan of the electron beams and affect the purity of the screen colors, focus and convergence. When activated, your screen image will jump and waver a bit as the screen is demagnetized.

Caution: Please allow a minimum of 20 minutes to elapse between uses of the Degauss Control.

Size and Position Controls

Auto Adjust: Automatically adjusts the horizontal and vertical size and position settings for applicable signal timings.

Left/Right: Moves the image horizontally (left or right). Down/Up: Moves the image vertically (up or down). Narrow/Wide: Decreases or increases the horizontal size of the image. Short/Tall: Decreases or increases the vertical size of the image.

78135162.wpc 10/23/99, 2:31 PM8

Controls cont.Start

Color Control/AccuColor® Control System

Color presets 1 through 5 selects the desired color setting. The bar is replaced by the color setting choice from 1 to 5. Each color setting is adjusted at the factory to the stated Kelvin. If a setting is adjusted, the name of the setting will change from Kelvin to Custom. Red, Green, Blue: NEC’s AccuColor Control System decreases or increases the monitor’s red, green or blue color guns depending upon which is selected. The change in color will appear on screen and the direction (decrease or increase) will be shown by the bars.

Geometry Controls

Geometry Controls Menu

The Geometry controls allow you to adjust the curvature or angle of the sides of your display. Sides In/Out (pincushion): Decreases or increases the curvature of the sides either inward or outward. Sides Left/Right (pincushion balance): Decreases or increases the curvature of the sides either to the left or right. Sides Tilt (parallelogram): Decreases or increases the tilt of the sides either to the left or right. Sides Align (trapezoidal): Decreases or increases the bottom of the screen to be the same as the top. Rotate (raster rotation): Rotates the entire display clockwise or counterclockwise.

Tools 1

Moiré Canceler: Moiré is a wavy pattern which can sometimes appear on the screen. The pattern is repetitive and superimposed as rippled images. When running certain applications, the wavy pattern is more evident than in others. To reduce moiré, adjust the ON/Level by using the –/+ CONTROL buttons.

Basic Convergence: Aligns all three colors (R,G,B) to form a single color (white). The purpose of this control is to ensure that a white line drawn on the screen is as crisp and clear as possible.

• Use the Horizontal control to adjust the alignment of the white lines in the up/down direction.

• Use the Vertical control to adjust the alignment of the white lines in the left/right direction.

Area Convergence: A small window will appear to indicate the area of adjustment — Top Horizontal, Top Vertical, Bottom Horizontal or Bottom Vertical.

Corner Correction: Allows you to adjust the geometry of the corners of your display

78135162.wpc 10/23/99, 2:31 PM9

— Top, Top Balance, Bottom or Bottom Balance.

Controls cont.

Linearity: This selection allows you to adjust the spacing of the area on the screen. The purpose of this control is to ensure that a one-inch circle is a true one-inch circle wherever it is on the screen. The best way to determine the vertical linearity is as follows:

• Draw equally spaced horizontal lines using a drawing application that has a ruler.

• Use the Vertical Balance control to adjust the lines near the top and bottom of your screen.

• Use the Vertical control to adjust the spacing between the lines near the center and top of

your screen.

GlobalSync® Control: Eliminates picture impurities that may result from the earth’s magnetic field. While in the sub-menus (GlobalSync, Top Left, Top Right, Bottom Left or Bottom Right), use the –/+ control buttons to fine tune the GlobalSync corrections.

Note: NEC recommends that you perform GlobalSync correction while running a

typical application such as a spreadsheet or text document.

Sharpness: Allows you to adjust the clarity of the image, based on the quality of the signal received from the computer.

• Use a full text document to make this adjustment.

• Cycle through the four sharpness settings and select the one that provides the

sharpest focus and contrast of the text.

Factory Preset: Selecting Factory Preset allows you a reset most OSM™ control settings back to the factory settings. A warning statement will appear to confirm that you do want to reset ALL settings. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

Tools 2

Language: OSM controls menus are available in seven languages. OSM Position: You can choose where you would like the OSM controls menu to

appear on your screen. Selecting OSM Position allows you to manually adjust the OSM controls menu left, right, up or down.

OSM Turn Off: The OSM controls menu will stay on as long as it is in use. In the OSM Turn Off sub-menu, you can select how long the monitor waits after the last touch of a button for the OSM controls menu to disappear. The preset choices are 10, 20, 30, 60 and 120 seconds.

SM Lock Out: This control completely locks out access to all OSM controls

functions except Brightness and Contrast. When attempting to activate OSM controls while in the lock out mode, a screen will appear indicating that OSM controls are locked out. To activate the OSM Lock Out function, press PROCEED, then press and hold down simultaneously. To deactivate the OSM Lock Out, press PROCEED, then press and hold down simultaneously.

78135162.wpc 10/23/99, 2:31 PM10

Controls cont.

IPM™ System Off Mode:

OTE: For standard systems and graphics boards, keep the factory setting

at ENABLE

EdgeLock™ Control: Operating your monitor at a non-standard timing may cause images to appear darker than normal or have color distortion. Use of the EdgeLock control will adjust images to their normal state.

Refresh Notifier: A message will advise you if the refresh rate of the signal being applied to the monitor by the computer is too low. For further information, please refer to your display card or system manual.

Information

Display Mode: Indicates the current mode and frequency setting of the monitor. Fitness Tips: The Fitness Tips provide you with helpful reminders to periodically

rest your eyes. You may select how frequently the reminders are displayed based upon your individual needs. Select an interval from 15, 30, 45, 60, 90 or 120 minutes for the tips to appear. When the tips appear, follow the advice of the tips and press EXIT to clear.

Monitor Info: Indicates the model and serial numbers of your monitor.

Enable: The IPM System works

normally and all stages of energy savings are utilized.

Disable: The Off Mode of the IPM

System is not used.

78135162.wpc 10/23/99, 2:31 PM11

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING THE MULTISYNC® FP Series COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous

voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

• Keep the monitor away from high capacity transformers, electric motors and other devices such as external speakers or fans, which may create strong magnetic fields.

• If possible, position the monitor so that it is facing the east to minimize the effects of the earth’s magnetic field.

•

Changing the direction of the monitor while it is powered on may cause image discoloration. To correct this, turn the monitor off for 20 minutes before powering it back on.

• When operating the MultiSync FP Series with its AC 220-240V worldwide power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country (type H05VV-F should be used except in UK).

• In UK, use a BS-approved power cord with molded plug and a black (5A) fuse installed within it with this equipment. If a power cord is not supplied with this equipment please contact your supplier.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• Allow adequate ventilation around the monitor so that heat can properly

dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system

CAUTION

from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

78135162.wpc 10/23/99, 2:31 PM12

Recommended Use cont.

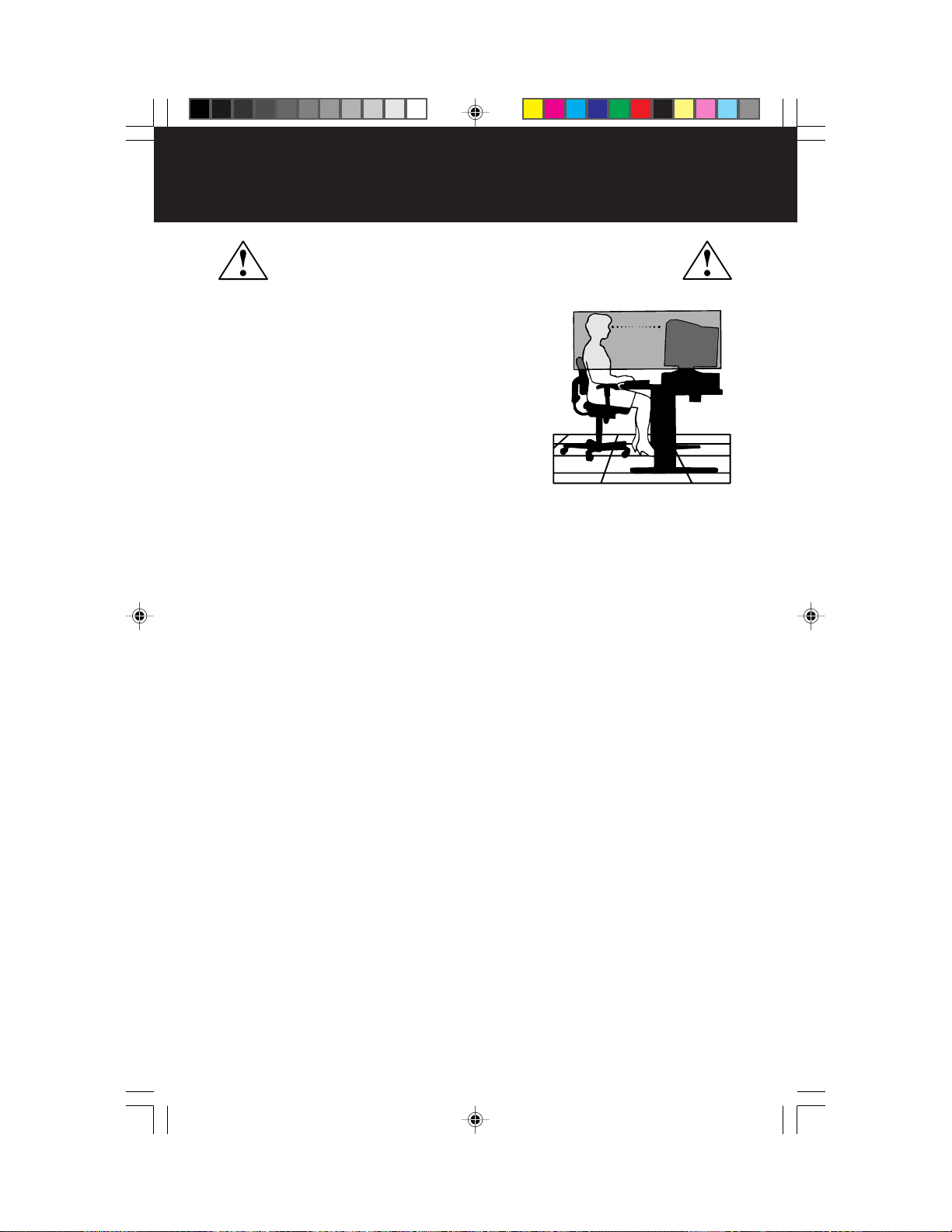

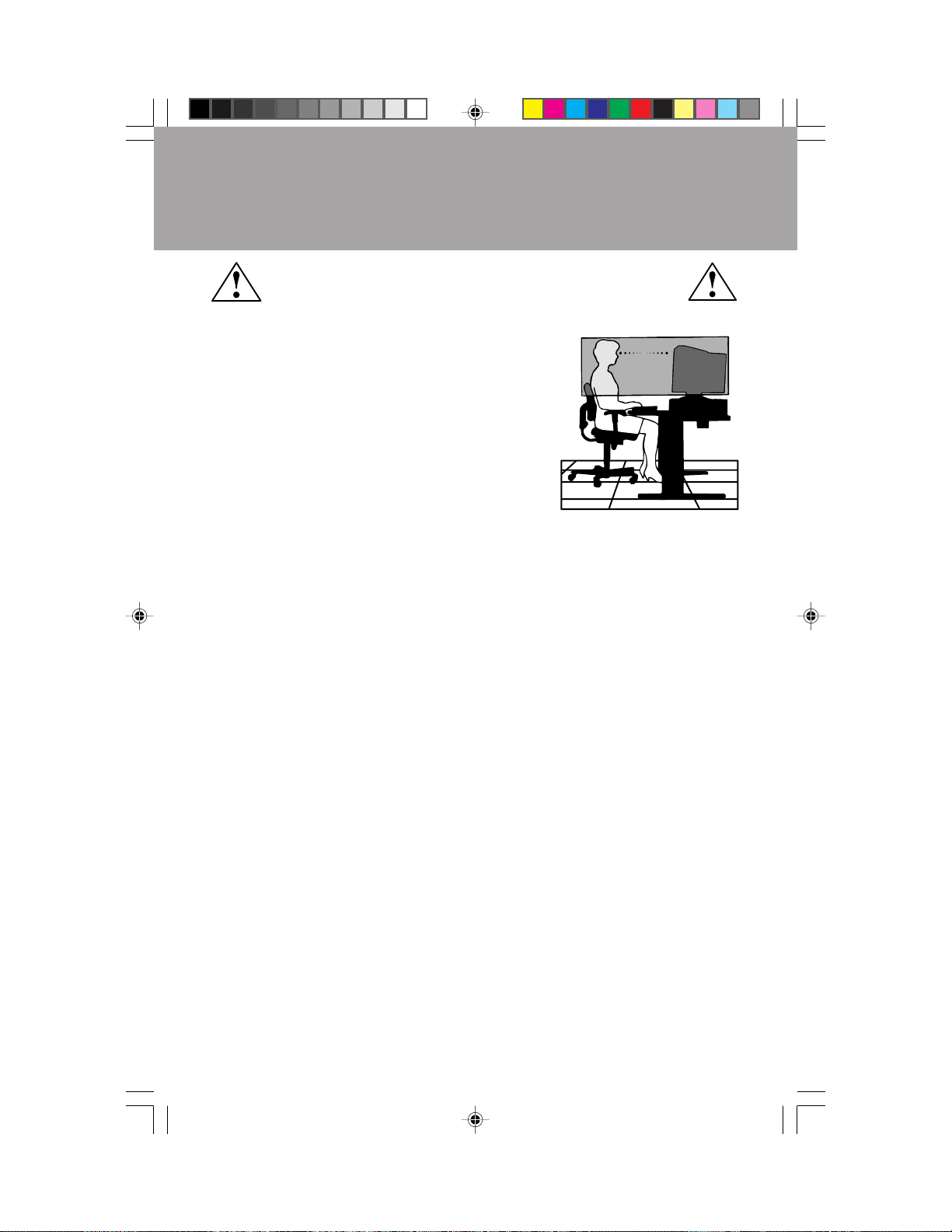

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

• Position your monitor no closer than 12 inches and no further away than 28 inches from your eyes. The optimal distance is 24 inches.

• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Clean your monitor regularly. Use a lint-free, non-abrasive cloth and a

non-alcohol, neutral, non-abrasive cleaning solution or glass cleaner to minimize dust.

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or

reference material) directly in front of you to minimize turning your head while you are typing.

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the background raster disappears

• Do not position the Contrast control to its maximum setting

• Use the preset Size and Position controls with standard signals

• Use the preset Color Setting and Sides Left/Right controls

• Use non-interlaced signals with a vertical refresh rate between 75-160Hz

• Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue due to insufficient contrast

For more detailed information on setting up a healthy work environment, call NEC at (800) 820-1230, NEC FastFacts document #900108 or write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.

™

information at (630) 467-4363 and request

78135162.wpc 10/23/99, 2:31 PM13

Specifications

Monitor MultiSync® FP950

™

Notes

Specifications Monitor

Picture Tube Diagonal: 19 inch/49.5 cm 90° deflection, 0.25 - 0.27 mm (variable)

Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms

Display Colors Analog input: Unlimited number of Colors Depends on display card used. Synchronization Horizontal: 31 kHz to 110 kHz Automatically

Range Vertical: 55 Hz to 160 Hz Automatically Resolutions Supported 640 x 480 @ 60 to 160 Hz

Resolution based on vertical frequencies only

Active Display Area Horizontal: (Factory Setting) Vertical:

Active Display Area (Full Scan)

Power Supply Current Rating 1.8A @ 100 Dimensions

Weight 26.0 kg

Environmental Considerations

Viewable Image Size: 18 inch/45.8 cm grille pitch, medium short persistence

horizontal and

Operating Temperature: +10°C to +35°C/+50°F to +90°F

Storage Temperature: -20°C to +60°C/-4°F to +140°F

Radius: 57800 mm phosphor, aperture grille CRT, multi-layered,

Sync: Separate sync. TTL Level

Horizontal sync. Positive/Negative Vertical sync. Positive/Negative Composite sync. (Positive/Negative) (TTL Level) Sync on Green video (Positive) 0.7 Vp-p and sync. (Negative) 0.3 Vp-p

800 x 600 @ 55 to 160 Hz 832 x 624 @ 55 to 160 Hz 1024 x 768 @ 55 to 136 Hz 1152 x 870 @ 55 to 120 Hz

1280 x 1024 @ 55 to 102 Hz ...................

1600 x 1200 @ 55 to 88 Hz 1792 x 1344 @ 55 to 78 Hz 1800 x 1440 @ 55 to 73 Hz 1856 x 1392 @ 55 to 75 Hz 1920 x 1440 @ 55 to 73 Hz

356 mm/14.0 inches Dependent upon signal timing used, 267 mm/10.5 inches and does not include border area.

366 mm/14.4 inches Dependent upon signal timing used, 275 mm/10.8 inches and does not include border area.

AC 100 – 120 V/220 - 240 V, 50/60 Hz

–

120 V / 0.8A@ 220-240 V

442 mm (W) x 456 mm (H) x 447 mm (D)

17.4 inches (W) x 18.0 inches (H) x 17.6 inches (D)

57.3 lbs

Humidity: 30% to 80%

Altitude: 3,000 m/10,000 Feet

Humidity: 10% to 90%

Altitude: 13,700 m/45,000 Feet

anti-static screen coating, semi-dark-tint screen, and OptiClear® screen surface.

Some systems may not support all modes listed.

NEC cites recommended resolution at 85 Hz for optimal display performance

78135162.wpc 10/23/99, 2:31 PM14

NOTE: Technical specifications are subject to change without notice.

Specifications cont.

Monitor MultiSync® FP1350

™

Notes

Specifications Monitor

Picture Tube Diagonal: 22 inch/55.3 cm 90° deflection, 0.25 - 0.27 mm (variable)

Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms

Display Colors Analog input: Unlimited number of Colors Depends on display card used. Synchronization Horizontal: 31 kHz to 115 kHz Automatically

Range Vertical: 55 Hz to 160 Hz Automatically Resolutions Supported 640 x 480 @ 60 to 160 Hz

Resolution based on vertical frequencies only

Active Display Area Horizontal: (Factory Setting) Vertical:

Active Display Area (Full Scan)

Power Supply Current Rating 2.3A @ 100 Dimensions

Weight 32.4 kg

Environmental Considerations

Viewable Image Size: 20 inch/50.8 cm grille pitch, medium short persistence

horizontal and

Operating Temperature: +10°C to +35°C/+50°F to +90°F

Storage Temperature: -20°C to +60°C/-4°F to +140°F

Radius: 57800 mm phosphor, aperture grille CRT, multi-layered,

Sync: Separate sync. TTL Level

Horizontal sync. Positive/Negative Vertical sync. Positive/Negative Composite sync. (Positive/Negative) (TTL Level) Sync on Green video (Positive) 0.7 Vp-p and sync. (Negative) 0.3 Vp-p

800 x 600 @ 55 to 160 Hz 832 x 624 @ 55 to 160 Hz 1024 x 768 @ 55 to 143 Hz 1152 x 870 @ 55 to 125 Hz 1280 x 1024 @ 55 to 107 Hz 1600 x 1200 @ 55 to 92 Hz 1792 x 1344 @ 55 to 81 Hz 1800 x 1440 @ 55 to 76 Hz 1856 x 1392 @ 55 to 78 Hz 1920 x 1440 @ 55 to 76 Hz

396 mm/15.6 inches Dependent upon signal timing used, 297 mm/11.7 inches and does not include border area.

406 mm/16.0 inches Dependent upon signal timing used, 305 mm/12.0 inches and does not include border area.

AC 100 – 120 V/220 - 240 V, 50/60 Hz

–

120 V / 1.0A @ 220-240 V

483 mm (W) x 501 mm (H) x 472 mm (D)

19.0 inches (W) x 19.7 inches (H) x 18.6 inches (D)

71.4 lbs

Humidity: 30% to 80%

Altitude: 3,000 m/10,000 Feet

Humidity: 10% to 90%

Altitude: 13,700 m/45,000 Feet

...................... NEC cites recommended resolution a

anti-static screen coating, semi-dark-tint screen, and OptiClear® screen surface.

Some systems may not support all modes listed.

85 Hz for optimal display performance

78135162.wpc 10/23/99, 2:31 PM15

NOTE: Technical specifications are subject to change without notice.

Specifications cont.

Monitor MultiSync® FP1370

™

Notes

Specifications Monitor

Picture Tube Diagonal: 22 inch/55.3 cm 90° deflection, 0.24 grille pitch, medium

Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms

Display Colors Analog input: Unlimited number of Colors Depends on display card used. Synchronization Horizontal: 31 kHz to 130 kHz Automatically

Range Vertical: 55 Hz to 160 Hz Automatically Resolutions Supported 640 x 480 @ 60 to 160 Hz

Resolution based on vertical frequencies only

Active Display Area Horizontal: (Factory Setting) Vertical:

Active Display Area (Full Scan)

Power Supply Current Rating 2.4A @ 100 Dimensions

Weight 32.4 kg

Environmental Considerations

Viewable Image Size: 20 inch/50.8 cm short persistence phosphor, aperture

horizontal and

Operating Temperature: +10°C to +35°C/+50°F to +90°F

Storage Temperature: -20°C to +60°C/-4°F to +140°F

Radius: 57800 mm grille CRT, multi-layered, anti-static screen

Sync: Separate sync. TTL Level

Horizontal sync. Positive/Negative Vertical sync. Positive/Negative Composite sync. (Positive/Negative) (TTL Level) Sync on Green video (Positive) 0.7 Vp-p and sync. (Negative) 0.3 Vp-p

800 x 600 @ 55 to 160 Hz 832 x 624 @ 55 to 160 Hz 1024 x 768 @ 55 to 154 Hz 1152 x 870 @ 55 to 137 Hz 1280 x 1024 @ 55 to 118 Hz 1600 x 1200 @ 55 to 102 Hz 1792 x 1344 @ 55 to 91 Hz 1800 x 1440 @ 55 to 85 Hz 1856 x 1392 @ 55 to 88 Hz 1920 x 1440 @ 55 to 85 Hz 2048 x 1536 @ 55 to 80 Hz

396 mm/15.6 inches Dependent upon signal timing used, 297 mm/11.7 inches and does not include border area.

406 mm/16.0 inches Dependent upon signal timing used, 305 mm/12.0 inches and does not include border area.

AC 100 – 120 V/220 - 240 V, 50/60 Hz

–

120 V / 1.1A @ 220-240 V

483 mm (W) x 501 mm (H) x 472 mm (D)

19.0 inches (W) x 19.7 inches (H) x 18.6 inches (D)

71.4 lbs

Humidity: 30% to 80%

Altitude: 3,000 m/10,000 Feet

Humidity: 10% to 90%

Altitude: 13,700 m/45,000 Feet

.................... NEC cites recommended resolution a

coating, semi-dark-tint screen, and OptiClear® screen surface.

Some systems may not support all modes listed.

85 Hz for optimal display performance

78135162.wpc 10/23/99, 2:31 PM16

NOTE: Technical specifications are subject to change without notice.

Features

Flat Aperture Grille CRT: Delivers an unparalleled viewing experience with a virtually on-screen is what you get on your printed output. The striped phosphor alignment of the CRT delivers superior vertical definition with improved brightness for more uniform image contrast.

OptiClear® Screen Surface: Reduces reflection and glare and increases contrast without sacrificing focus level, clarity or brightness.

Dual Dynamic Beam Focus: Provides precise, continuous focus adjustments of the electron beams resulting in optimum image quality, even to the far edges of the screen.

AccuColor® Control System: Allows you to change between five color settings on your display to match your personal preference.

OSM™ (On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.

ErgoDesign® Features: Enhance human ergonomics to improve the working environment, protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt/swivel base for preferred angle of vision and compliance with MPRII guidelines for lower emissions.

Plug and Play: The Microsoft® solution with the Windows®95/98 operating system facilitates setup and installation by allowing the monitor to send its capabilities (such as screen size and resolutions supported) directly to your computer, automatically optimizing display performance.

IPM™ (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Reduced Magnetic Field™ Technology: Reduces magnetic and alternating electric field emissions and static electricity, addressing ergonomic concerns regarding potential risks from extended computer monitor use.

Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required.

FullScan™ Capability: Allows you to use the entire screen area in most resolutions, significantly expanding image size.

GlobalSync®/Corner Purity Control: NEC’s unique design automatically eliminates picture impurities that may result from stray magnetic fields (including the earth’s permanent magnets, etc.) and now allows you to easily adjust impurities in the four corners of your monitor.

Auto Adjust: Allows you to easily and quickly adjust the suitable horizontal and vertical size and position settings.

Convergence Control: Allows you to adjust the horizontal and vertical convergence of the top and bottom area to ensure that a white line drawn on the screen is as crisp and clear as possible.

flat image, eliminating distortion and reducing glare so that what you see

78135162.wpc 10/23/99, 2:31 PM17

Troubleshooting

No picture

• Display card should be completely seated in its slot.

• Power Button and computer power switch should be in the ON position.

• Signal cable should be completely connected to display card/computer.

• Check connector for bent or pushed-in pins.

• Check that the BNC/D-SUB button is in the correct position.

Image is scrolling or unstable

• Signal cable should be completely attached to the computer.

• Check pin assignments and signal timings of the monitor and your display card with respect to recommended timings and pin assignments.

• If the Macintosh cable adapter is used, check for proper connection or make sure the display card is Macintosh compatible and that the card is properly seated in the computer.

LED on monitor is not lit

• Power Switch should be in the ON position and power cord should be connected.

Picture is fuzzy or color looks blotchy

• If the picture is fuzzy, adjust the Moiré Canceler control. If the color looks blotchy, adjust the Brightness, Contrast or GlobalSync® controls, or use the EdgeLock™ control to change modes.

• Access the Degauss Control through OSM™ controls. Activate the Degauss Control. CAUTION: A minimum interval of 20 minutes should elapse before the

Deguass Control is used a second time when not switching between modes.

Picture bounces or a wavy pattern is present in the picture

• Move electrical devices that may be causing electrical interference away from the monitor.

• See inside cover of User’s Manual for FCC information.

Edges of the display image are not square

• Use the OSM Geometry and Corner Correction Controls to straighten the edges.

• If possible, position the front of the monitor facing east.

Display image is not centered, too small, or too large

• Use the OSM Size and Position Controls to adjust the image.

(no green, orange, yellow color can be seen)

78135162.wpc 10/23/99, 2:31 PM18

References

• BBS (978) 742-8706

NEC Technologies’ Remote Bulletin Board System is an electronic service accessible with your system and a modem. Communication parameters are: 300/1200/2400/9600/14.4k/28.8k bps, no parity, 8-data bits, 1 stop bit

• Customer Service/ Technical Support (800) 632-4662

Fax (978) 742-7049

• Electronic Channels:

Internet e-mail: tech-support@nectech.com Internet ftp site: ftp.nectech.com World Wide Web: http://www.nectech.com Product Registration: http://www.nectech.com/productregistration Windows® 95/98 INF File: http://cssweb.nectech.com/common/drivers.htm

Then download the file NECMSINF.ZIP.

• FastFacts™ Information (630) 467-4363

INFORMATION DESCRIPTION DOCUMENT #

Glossary Definition of terms related 900203

to functions, features and installation of the MultiSync monitor

More Information Names and addresses of 900204

other groups involved in standards and features of the MultiSync monitor

Macintosh Connection Detailed information on 153006

connecting the MultiSync monitor to a Macintosh

Healthy Work Environment Detailed information on 900108

setting up a healthy work environment

• Literature & Sales Info (800) NEC-INFO [(800) 632-4636]

• MultiSync Fulfillment (800) 820-1230

[For software & accessories]

• TeleSales (800) 284-4484

78135162.wpc 10/23/99, 2:31 PM19

Limited Warranty

NEC Technologies, Inc. (hereinafter “NECTECH”), warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NECTECH’s sole option) any part of the enclosed unit which proves defective for a period of three (3) years from the date of first consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or units may be new or refurbished and will meet specifications of the original parts or unit.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NECTECH-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NECTECH. No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NECTECH to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product.

It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NECTECH to render the services provided hereunder in either the original package or a similar package affording an equal degree of protection. All Products returned to NECTECH for service MUST have prior approval, which may be obtained by calling 1-800-632-4662.

The Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NECTECH to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of fixed images for long periods of time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to the instructions contained in the User’s Manual. Any such conditions will void this warranty.

NECTECH SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NECTECH PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system configuration, software, the application, customer data, and operator control of the system, among other factors. While NECTECH Products are considered to be compatible with many systems, specific functional implementation by the customers of the Product may vary. Therefore, suitability of a Product for a specific purpose or application must be determined by consumer and is not warranted by NECTECH.

For the name of your nearest authorized NECTECH service facility, contact NECTECH at 1-800-632-4662.

78135162.wpc 10/23/99, 2:31 PM20

TCO’99

Congratulations! You have just purchased a TCO’99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Environmental Requirements

Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bio-

78135162.wpc 10/23/99, 2:31 PM21

+ 47 hidden pages
