Nec MultiSync FE770, MultiSync FE771SB user Manual
MultiSync® FE770TM/FE771
MSFE770cover.wpc 2/6/02, 4:42 PM1
SB
TM
Index
Warning.................................................................................................. 1
Contents ............................................................................................... 2
Quick Start ........................................................................................... 3
Controls ................................................................................................ 5
Recommended Use ............................................................................. 8
Specifications.................................................................................... 10
Features .............................................................................................. 12
Troubleshooting ................................................................................. 14
References .......................................................................................... 15
Limited Warranty .............................................................................. 16
TCO’95 .................................................................................................. 17
TCO’99 .................................................................................................. 19
Avertissement ................................................................................... 23
Contenu .............................................................................................. 24
Mise en marche rapide .................................................................... 25
Commandes ....................................................................................... 27
Usage recommandé.......................................................................... 30
Fiche technique ................................................................................ 32
Fonctions ............................................................................................ 34
Dépannage ......................................................................................... 36
Références ..........................................................................................37
Garantie limitée................................................................................ 38
TCO’95 ................................................................................................. 39
TCO’99 ..................................................................................................41
MSFE770cover.wpc 2/6/02, 4:42 PM2
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE
THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS
CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK • DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This
symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this
unit has been included. Therefore, it should be read carefully in order to avoid any problems.
Canadian Department of Communications Compliance Statement
DOC: This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations
according to C.S.A. C22.2 No. 950.
FCC Information
1.
Use the attached specified cables with the
radio and television reception.
(1)
Please use the supplied power cord or equivalent to ensure FCC compliance.
(2) Shielded captive type signal cable.
Use of other cables and adapters may cause intereference with radio and
television reception.
2.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult your dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
If necessary, the user should contact the dealer or an experienced radio/television
technician for additional suggestions. The user may find the following booklet, prepared
by the Federal Communications Commission, helpful: ”How to Identify and Resolve
Radio-TV Interference Problems.“ This booklet is available from the U.S. Government
Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.
MultiSync FE
color monitor so as not to interfere with
MSFE770Manual.wpc 2/6/02, 4:53 PM1
1

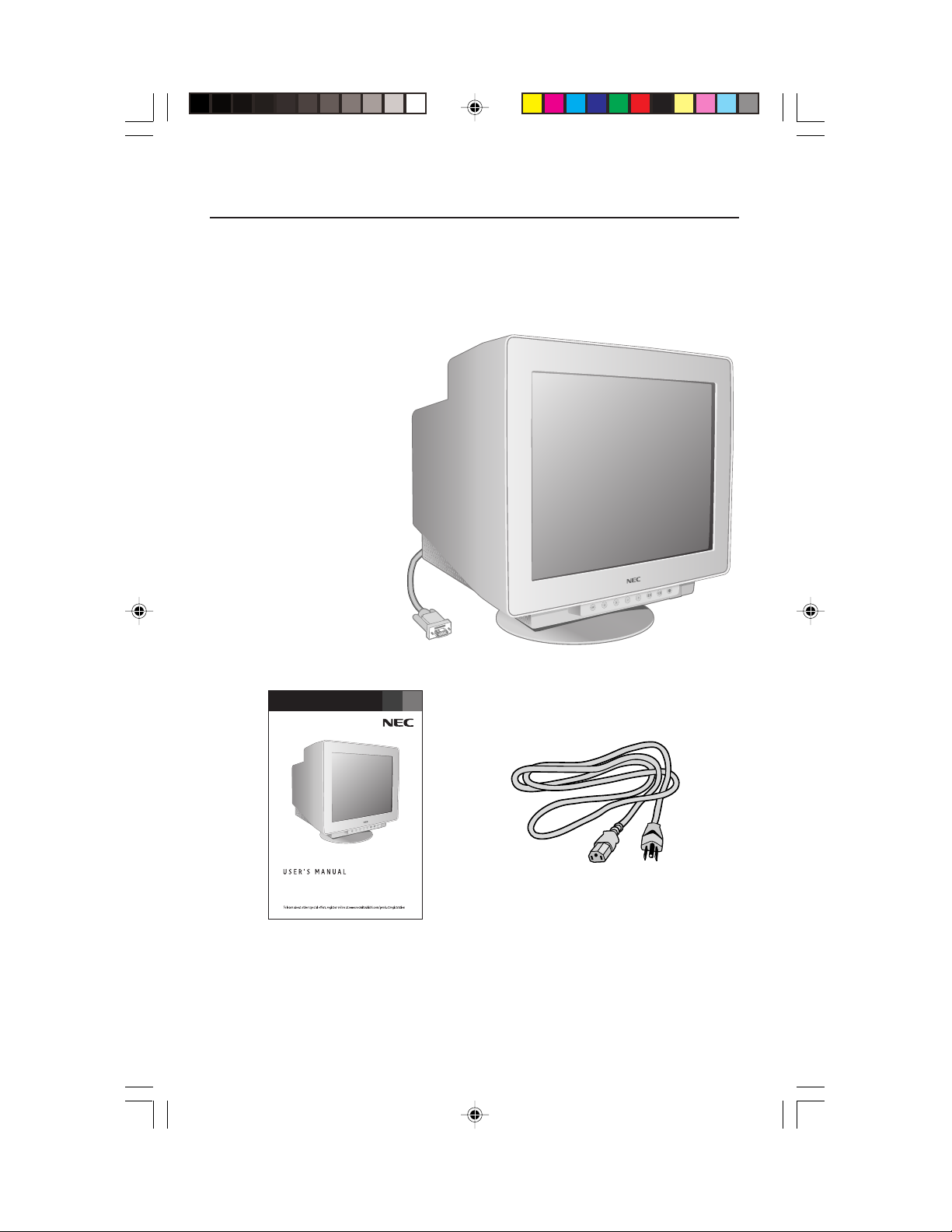

Contents
Your new NEC MultiSync® FE monitor box* should contain the
following:
• MultiSync FE Monitor with tilt/swivel base
• Power Cord
• Captive Signal Cable
• User’s Manual
Captive Signal Cable
®
MultiSync
* Remember to save your original box and packing material to transport or ship the monitor.
MSFE770Manual.wpc 2/6/02, 4:53 PM2
FE770TM/FE771
User’s Manual
SB
2
Power Cord
Quick Start
To attach the FE monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. If necessary, install the display card into your system. For more information,
refer to the display card manual.
3. For the PC: Connect the 15-pin mini D-SUB of the captive signal cable to the
connector of the display card in your system (Figure A.1). Tighten all screws.
For the Mac: Connect the MultiSync FE Macintosh cable adapter (not included)
to the monitor connector on the Macintosh (Figure B.1). Attach the 15-pin
mini D-SUB end of the captive signal cable to the MultiSync FE Macintosh
cable adapter on the computer (Figure B.1). Tighten all screws.
NOTE: To obtain the MultiSync FE Macintosh cable adapter, call
NEC-Mitsubishi Electronics Display of America, Inc. at (800) 632-4662.
4. For download information on the Windows® 95/98/Me/2000/XP INF file
for your MultiSync monitor, refer to the References section of this User’s
Manual.
5. Connect one end of the power cord to the MultiSync FE monitor and the other
end to the power outlet (Figure C.1).
6. Turn on the monitor (Figure D.1) and the computer.
NOTE: If you have any problems, please refer to the Troubleshooting section of
this User’s Manual.

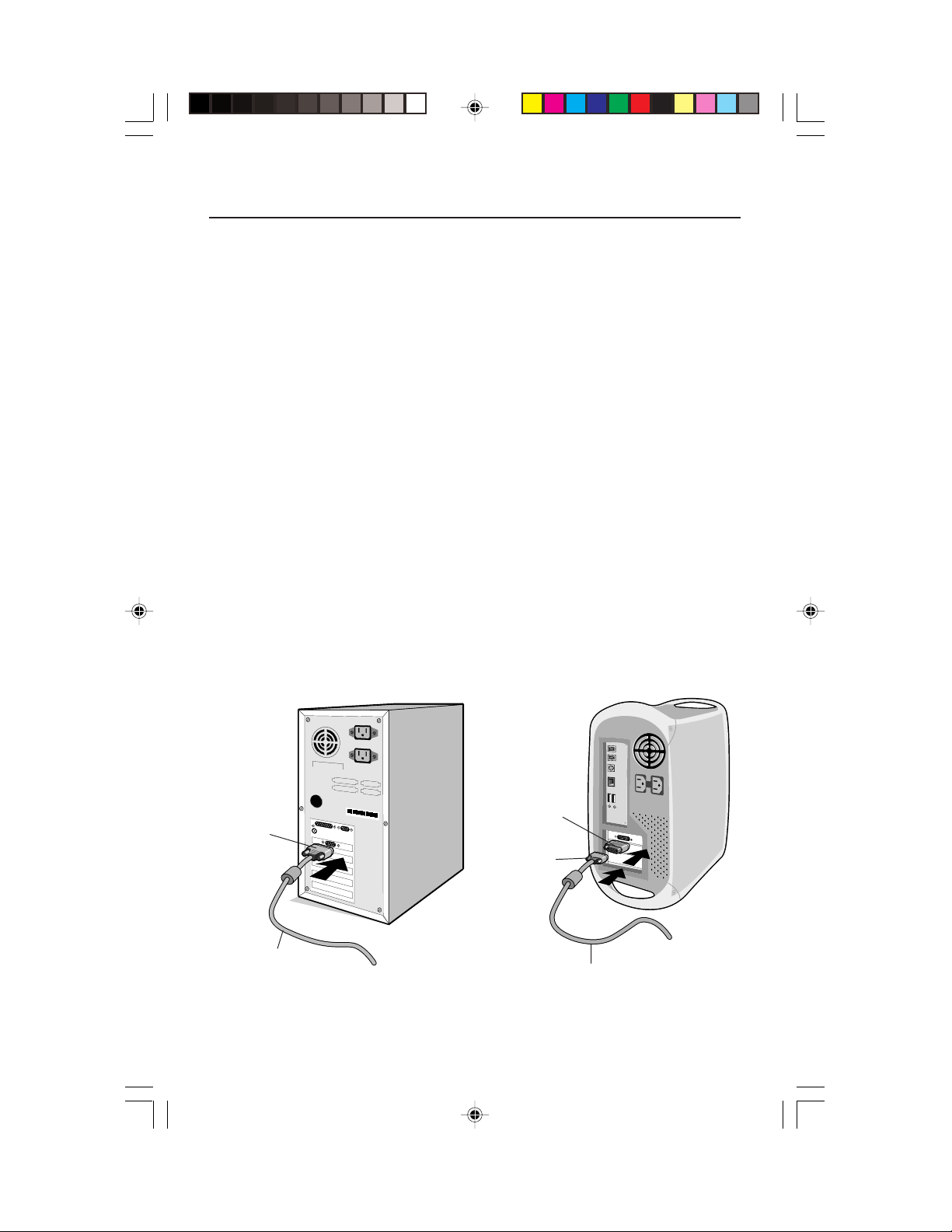

Figure A.1
15-pin
mini
D-SUB
Captive Signal Cable
MSFE770Manual.wpc 2/6/02, 4:53 PM3
Figure B.1
Mac Adapter
(Not Included)
Captive Signal Cable
3
Quick Start –continued

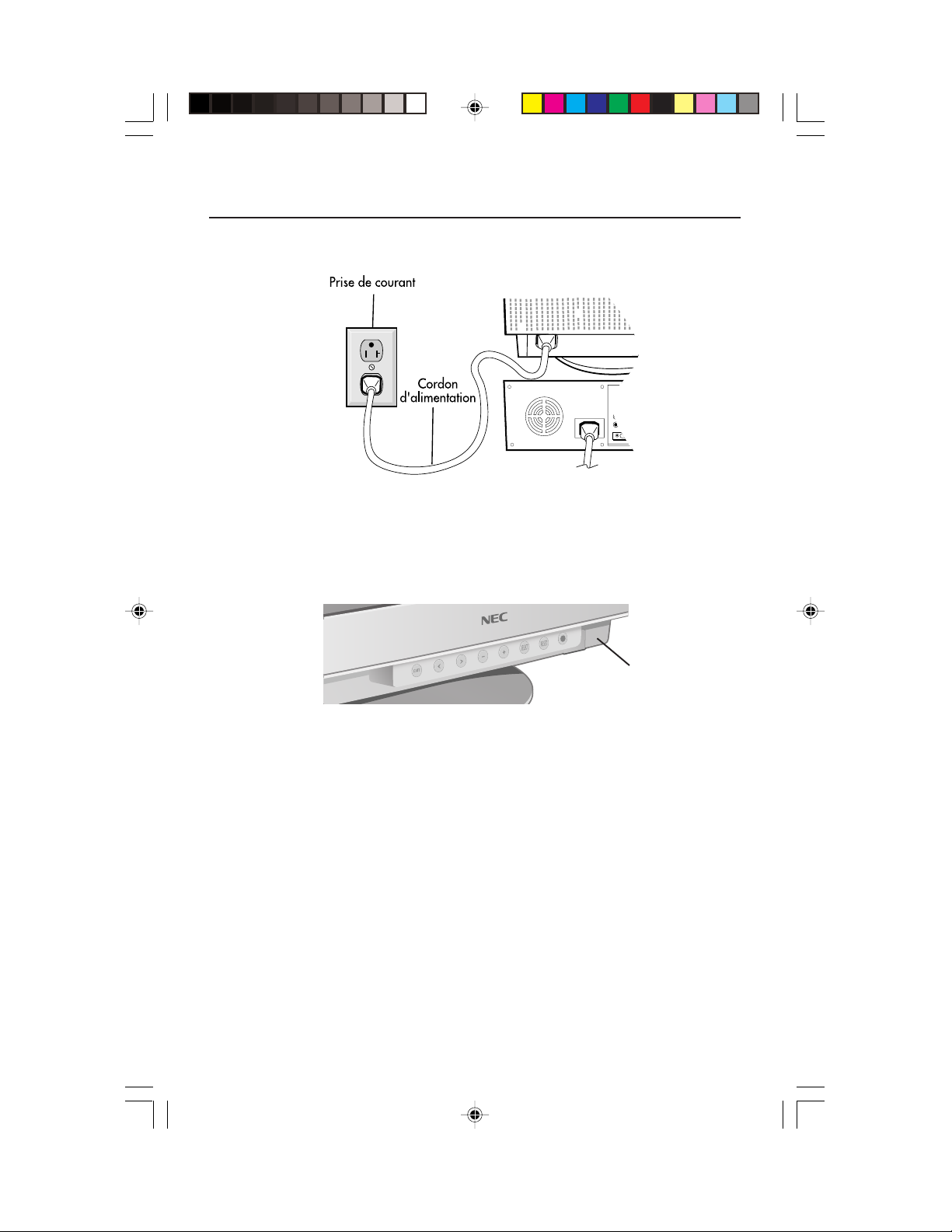

Figure C.1
MSFE770Manual.wpc 2/6/02, 4:53 PM4
Power Button
Figure D.1
4
Controls
OSM™ (On-Screen Manager) control buttons on the front of the monitor function
as follows:
EXIT Exits the OSM menu. Exits to the OSM controls
CONTROL Moves the highlighted Moves the highlighted area
/ area left/right to select left/right to select one of the
CONTROL Has no function. Moves the bar in the – or +
–/+ direction to decrease or
SELECT
SELECT/
SBMODE (FE771SB)
Main Menu Sub-Menu
main menu.
one of the sub-menus. controls.
increase the adjustment.
(FE770) Enters sub-menu. Has no function.
RESET Resets all the controls within Resets the highlighted control
NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear
NOTE: In SB MODE (SuperBright Mode, FE771SB only), ON and OFF is functional when
the highlighted menu to the factory setting.
to the factory setting.
allowing you to cancel the reset function.
the OSM is not displayed.
When OSM controls are activated, icons are displayed at the top of the menu.
If an arrow (➔) is displayed in a sub-menu, it indicates further choices are
available. To enter a sub, sub-menu, press PROCEED.
Brightness/Contrast Controls
Brightness: Adjusts the overall image and background screen brightness.
Contrast: Adjusts the image brightness in relation to the background.
Degauss: Eliminates the buildup of stray magnetic fields which alter the correct
scan of the electron beams and affect the purity of the screen colors, focus and
convergence. When activated, your screen image will jump and waver a bit as
the screen is demagnetized.
Caution: Please allow a minimum of 20 minutes to elapse between uses of the
Degauss Control.
Size and Position Controls
Left/Right: Moves the image horizontally (left or right).
Down/Up: Moves the image vertically (up or down).
Narrow/Wide: Decreases or increases the horizontal size of the image.
Short/Tall: Decreases or increases the vertical size of the image.
MSFE770Manual.wpc 2/6/02, 4:53 PM5
5
Controls –continued
Color Control/AccuColor® Control System
Color presets selects the desired color setting. The bar is replaced by the color
setting choice. Each color setting is adjusted at the factory to the stated Kelvin. If
a setting is adjusted, the name of the setting will change from Kelvin to Custom
except sRGB mode.
Red, Green, Blue: AccuColor Control System decreases or increases the
monitor's red, green or blue color guns depending upon which is selected. The
change in color will appear on screen and the direction (decrease or increase)
will be shown by the bars.
sRGB mode: sRGB mode provides the suitable color managed picture image. You
can not change Red, Green and Blue colors, brightness and contrast individually.
Color Temperature Adjustment: Adjusts the color temperature of the screen image.
Geometry Controls
Geometry Controls Menu
The Geometry controls allow you to adjust the curvature or angle of the sides of
your display.
Sides In/Out (pincushion): Decreases or increases the curvature of the sides either
inward or outward.
Sides Left/Right (pincushion balance): Decreases or increases the curvature of
the sides either to the left or right.
Sides Tilt (parallelogram): Decreases or increases the tilt of the sides either to the
left or right.
Sides Align (trapezoidal): Decreases or increases the bottom of the screen to be
the same as the top.
Rotate (raster rotation): Rotates the entire display clockwise or counterclockwise.
Tools 1
Moiré Canceler: Moiré is a wavy pattern which can sometimes appear on the screen.
The pattern is repetitive and superimposed as rippled images. When running certain
applications, the wavy pattern is more evident than in others. To reduce moiré, adjust
the level by using –/+ CONTROL buttons.
Tools 2
Language: OSM controls menus are available in 6 languages.
OSM Position: You can choose where you would like the OSM controls menu to
appear on your screen. Selecting OSM Position allows you to manually adjust the
OSM controls menu position from among Center, Top left, Top right, Bottom left
and Bottom right.
OSM Turn Off: The OSM controls menu will stay on as long as it is in use. In the
OSM Turn Off sub-menu, you can select how long the monitor waits after the last
touch of a button for the OSM controls menu to disappear. The preset choices
are 10 thru 120 seconds.
6
MSFE770Manual.wpc 2/6/02, 4:53 PM6
Controls –continued
O
SM Lock Out: This control completely locks out access to all OSM controls
functions except Brightness and Contrast. When attempting to activate OSM
controls while in the lock out mode, a screen will appear indicating that OSM
controls are locked out. To activate the OSM Lock Out function, press SELECT and
hold + down simultaneously. To deactivate the OSM Lock Out, press SELECT and
hold + down simultaneously.
IPM™ System Off Mode:
N
OTE: For standard systems and graphics boards, keep the factory setting
at ENABLE
Factory Preset: Selecting Factory Preset allows you a reset most OSM™ control
settings back to the factory settings. A warning statement will appear to confirm
that you do want to reset ALL settings. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.
Information
Display Mode: Indicates the current mode and frequency setting of the monitor.
Monitor Info: Indicates the model and serial numbers of your monitor.
Refresh Notifier: A message will advise you if the refresh rate of the signal being
applied to the monitor by the computer is too low. For further information, please
refer to your display card or system manual.
.
Enable: The IPM System works
normally and all stages of
energy savings are utilized.
Disable: The Off Mode of the IPM
System is not used.
MSFE770Manual.wpc 2/6/02, 4:53 PM7
7
Recommended Use
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE
FOLLOWING WHEN SETTING UP AND USING
THE MULTISYNC® FE COLOR MONITOR:
• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or
removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to
qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage
points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall,
causing serious damage to the monitor.
•
Keep the monitor away from high capacity transformers, electric motors and other devices such as
external speakers or fans, which may create strong magnetic fields.
• If possible, position the monitor so that it is facing the east to minimize the effects of the earth’s
magnetic field.
• Changing the direction of the monitor while it is powered on may cause image discoloration. To
correct this, turn the monitor off for 20 minutes before powering it back on.
• When operating the MultiSync FE with its AC 220-240V worldwide power supply, use a power
supply cord that matches the power supply voltage of the AC power outlet being used. The power
supply cord you use must have been approved by and comply with the safety standards of your
country. (Type H05VV-F should be used except in UK)
• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with
this monitor. If a power cord is not supplied with this monitor, please contact your supplier.
Cleaning Your Monitor
A special coating is provided on the glass (CRT) surface of this monitor to reduce a reflection and
static electricity on the glass surface. Due to the delicate coating on the glass surface, use a lint-free,
non-abrasive cloth (cotton or equivalent) and a non-alcohol, neutral, non-abrasive cleaning solution
to minimize dust. If the screen requires more than a light cleaning, apply a soft neutral detergent and
water directly to a soft cloth and use it upon wringing water, to clean the glass surface. Clean your
monitor regularly.
CAUTION:
Benzene, thinner, acid/alkaline detergent, alcohol detergent, detergent with abrasive powder,
detergent with anti-static agent, detergent for cleaning.
Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel
under the following conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating instructions.
CAUTION
The following agents will cause damage to the CRT when cleaning the glass surface:
• Allow adequate ventilation around the monitor so that heat can properly
dissipate. Do not block ventilated openings or place the monitor near a
radiator or other heat sources. Do not put anything on top of monitor.
• The power cable connector is the primary means of detaching the system
from the power supply. The monitor should be installed close to a power
outlet which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.
MSFE770Manual.wpc 2/6/02, 4:53 PM8
8

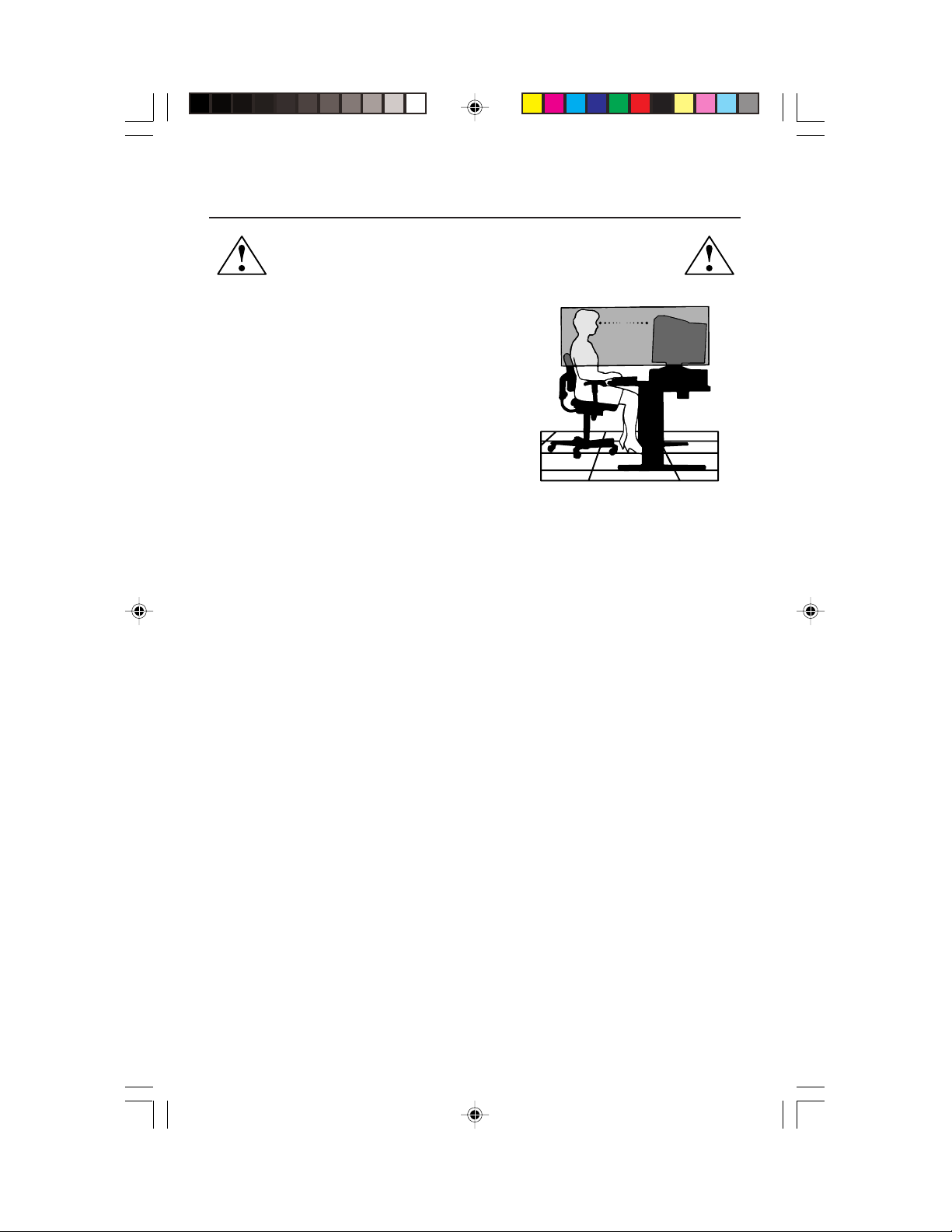

Recommended Use –continued
CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR
CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE
FOLLOWING WHEN YOU POSITION THE MONITOR:
• Adjust the monitor height so that the top of
the screen is at or slightly below eye level.
Your eyes should look slightly downward
when viewing the middle of the screen.
• Position your monitor no closer than 16 inches
and no further away than 24 inches from your
eyes. The optimal distance is 20 inches.
• Rest your eyes periodically by focusing on
an object at least 20 feet away. Blink often.
• Position the monitor at a 90° angle to
windows and other light sources to minimize
glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect
on your screen.
• If reflected light makes it hard for you to see your screen, use an anti-glare filter.
• Clean your monitor regularly. Use a lint-free, non-abrasive cloth and a
non-alcohol, neutral, non-abrasive cleaning solution or glass cleaner to
minimize dust.
• Adjust the monitor’s brightness and contrast controls to enhance readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen or
reference material) directly in front of you to minimize turning your head
while you are typing.
• Get regular eye checkups.
Ergonomics
To realize the maximum ergonomics benefits, we recommend the following:
• Adjust the Brightness until the background raster disappears
• Do not position the Contrast control to its maximum setting
• Use the preset Size and Position controls with standard signals
• Use the preset Color Setting and Sides Left/Right controls
• Use non-interlaced signals with a vertical refresh rate between 75-120Hz
• Do not use primary color blue on a dark background, as it is difficult to see
and may produce eye fatigue due to insufficient contrast
For more detailed information on setting up a healthy work environment, call NEC Mitsubishi Electronics Display of America at (888) NEC-MITS, NEC FastFacts
at (800) 366-0476 and request document #900108 or write the American National
Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSIHFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa
Monica, California 90406.
™
information
MSFE770Manual.wpc 2/6/02, 4:53 PM9
9
Specifications
Monitor MultiSync® FE770 Notes
Specifications Monitor
Picture Tube Diagonal: 17 inch 90° deflection, 0.21-0.25 mm variable
Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms
Display Colors Analog input: Unlimited number of Colors Depends on display card used.
Synchronization Horizontal: 30 kHz to 70 kHz Automatically
Range Vertical: 50 Hz to 120 Hz Automatically
Resolutions Supported 640 x 480 @ 60 to 120 Hz
Resolution based on
vertical frequencies only
Active Display Area Horizontal:
(Factory Setting) Vertical:
Active Display Area
(Full Scan)
Power Supply
Current Rating 1.5A @ 100-240 V
Dimensions
Weight 16.0 kg
Environmental Considerations
Viewable Image Size: 16 inch (horizontal) dot pitch, 0.24-0.28 mm variable
horizontal and
Operating Temperature: +5°C to +35°C / +50°F to +90°F
Storage Temperature: -20°C to +60°C / -4°F to +140°F
Radius: 50,000 mm (diagonal) dot pitch, medium short persistence
Sync: Separate sync. TTL Level
Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
Composite sync. (Positive/Negative) (TTL Level)
800 x 600 @ 50 to 110 Hz
832 x 624 @ 50 to 106 Hz
1024 x 768 @ 50 to 87 Hz .......................
1152 x 864 @ 50 to 77 Hz
1280 x 1024 @ 50 to 66 Hz
315 mm/12.4 inches Dependent upon signal timing used,
236 mm/9.3 inches and does not include border area.
325 mm/12.8 inches Dependent upon signal timing used,
243 mm/9.6 inches and does not include border area.
AC 100 – 240 V, 50-60 Hz
397 mm (W) x 386 mm (H) x 415 mm (D)
15.6 inches (W) x 15.2 inches (H) x 16.3 inches (D)
35.3 lbs
Humidity: 10% to 90%
Feet: 0 to 10,000 Feet
Humidity: 10% to 90%
Feet: 0 to 50,000 Feet
phosphor, multi-layered, anti-static screen
coating, semi-tint screen, Invar Shadow Mask
and OptiClear® screen.
Some systems may not support
all modes listed.
NEC-Mitsubishi Electronics Display cites
recommended resolution at 87 Hz for
optimal display performance.
MSFE770Manual.wpc 2/6/02, 4:53 PM10
NOTE: Technical specifications are subject to change without notice.
10
Specifications –continued
Monitor MultiSync® FE771
SB
Notes
Specifications Monitor
Picture Tube Diagonal: 17 inch 90° deflection, 0.25 mm grille pitch,
Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms
Display Colors Analog input: Unlimited number of Colors Depends on display card used.
Synchronization Horizontal: 30 kHz to 70 kHz Automatically
Range Vertical: 50 Hz to 120 Hz Automatically
Resolutions Supported 640 x 480 @ 60 to 120 Hz
Resolution based on
vertical frequencies only
Active Display Area Horizontal:
(Factory Setting) Vertical:
Active Display Area
(Full Scan)
Power Supply
Current Rating 1.5A @ 100-240 V
Dimensions
Weight 16.8 kg
Environmental Considerations
Viewable Image Size: 16 inch medium short persistence phosphor,
horizontal and
Operating Temperature: +5°C to +35°C / +50°F to +90°F
Storage Temperature: -20°C to +60°C / -4°F to +140°F
Radius: 50,000 mm aperture grille CRT, multi-layered,
Sync: Separate sync. TTL Level
Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
Composite sync. (Positive/Negative) (TTL Level)
800 x 600 @ 50 to 110 Hz
832 x 624 @ 50 to 106 Hz
1024 x 768 @ 50 to 87 Hz .......................
1152 x 864 @ 50 to 77 Hz
1280 x 1024 @ 50 to 66 Hz
315 mm/12.4 inches Dependent upon signal timing used,
236 mm/9.3 inches and does not include border area.
325 mm/12.8 inches Dependent upon signal timing used,
244 mm/9.6 inches and does not include border area.
AC 100 – 240 V, 50-60 Hz
397 mm (W) x 386 mm (H) x 415 mm (D)
15.6 inches (W) x 15.2 inches (H) x 16.3 inches (D)
37.0 lbs
Humidity: 10% to 90%
Feet: 0 to 10,000 Feet
Humidity: 10% to 90%
Feet: 0 to 50,000 Feet
anti-static screen coating, dark-tint screen
and OptiClear® screen.
Some systems may not support
all modes listed.
NEC-Mitsubishi Electronics Display cites
recommended resolution at 87 Hz for
optimal display performance.
MSFE770Manual.wpc 2/6/02, 4:53 PM11
NOTE: Technical specifications are subject to change without notice.
11
Features
ClearFlatTM Shadow Mask CRT
ence with a virtually flat image, eliminating distortion and reducing glare so that
what you see on-screen is as realistic and lifelike as what you see on your printed
output. The patented ClearFlat CRT also offers a high contrast screen with a fine
0.21-0.25mm horizontal dot pitch, delivering crisp, clean text and graphics.
SuperBrightTM Diamondtron® CRT
delivers an exceptional viewing experience with unprecedented brightness and
contrast and a virtually flat image that reduces distortion and glare so that what
you see on-screen is what you get on your printed output. The state-of-the-art
Mitsubishi PX-DBFTM electron gun and tight 0.25mm grille pitch delivers precise
focus for crisp, clear text and images.
SuperBrightTM Mode
level of the Diamondtron CRT doubles. This function enhances the crispness of
images for clarity-conscious applications such as graphics, animation and vide
OptiClear® Screen Surface: Further reduces reflection and glare and increases
contrast without sacrificing focus level, clarity or brightness.
Dual Dynamic Beam Focus: Provides precise, continuous focus adjustments of the
electron beams and optimum image quality, even to the far edges of the screen.
AccuColor® Control System with sRGB: Allows you to change between five color
settings on your display to match your personal preference. The sRGB-enabled
color matching setting found within AccuColor helps achieve a consistent color
environment with other sRGB-enabled hardware and software applications.
(FE771SB)
(FE770)
: With the simple touch of a button, the brightness
:
Delivers an outstanding viewing experi-
(FE771SB)
: This patented flat aperture grille CRT
On Screen Manager (OSMTM) Controls: Allows you to quickly and easily adjust
all elements of your screen image via simple to use on-screen menus.
ErgoDesign® Features: Enhances human ergonomics to improve the working
environment, protect the health of the user and save money. Examples include
OSM controls for quick and easy image adjustments, tilt/swivel base for preferred angle of vision, space-conscious cabinet design and compliance with
MPRII guidelines for lower emissions.
Plug and Play: The Microsoft® solution with the Windows® 95/98/Me/2000/XP
operating system facilitates setup and installation by allowing the monitor to send
its capabilities (such as screen size and resolutions supported) directly to your
computer, automatically optimizing display performance.
Intelligent Power Manager (IPM™) System: Provides innovative power-saving
methods that allow the monitor to shift to a lower power consumption level when
on but not in use, saving two-thirds of your monitor energy costs, reducing
emissions and lowering the air conditioning costs of the workplace.
12
MSFE770Manual.wpc 2/6/02, 4:53 PM12
Features –continued
Reduced Magnetic Field™ Technology: Reduces magnetic and alternating
electric field emissions and static electricity, addressing ergonomic concerns
regarding potential risks from extended computer monitor use.
Multiple Frequency Technology: Automatically adjusts monitor to the display
card’s scanning frequency, thus displaying the resolution required.
FullScan™ Capability: Allows you to use the entire screen area in most
resolutions, significantly expanding image size.
Warranty and Support: All NEC displays come with a three-year limited
warranty. Should you need any assistance with your NEC display you can utilize
our 24 hour / 7 day a week toll-free technical support. 1-888-NEC-MITS
Copyright 2002 by NEC-Mitsubishi Electronics Display of America, Inc.
MSFE770Manual.wpc 2/6/02, 4:53 PM13
13
Loading...
