MultiSync FE750+
User’s Manual
English-1
English
Declaration
Declaration of the Manufacturer
We hereby certify that the color monitor
MultiSync FE750+ (JC-17W41) is in compliance with
Council Directive 73/23/EEC:
- EN 60950
Council Directive 89/336/EEC:
- EN 55022
- EN 61000-3-2
- EN 61000-3-3
- EN 55024
(IEC-61000-4-2)
(IEC-61000-4-3)
(IEC-61000-4-4)
(IEC-61000-4-5)
(IEC-61000-4-6)
(IEC-61000-4-8)
(IEC-61000-4-11)
and marked with
NEC-Mitsubishi Electric Visual Systems Corporation
686-1, NISHIOI OI-MACHI
ASHIGARAKAMI-GUN
KANAGAWA 258-8533, JAPAN
English-2
ENERGY STAR® is a U.S. registered trademark. All other brands and product names are trademarks or
registered trademarks of their respective owners.
As an ENERGY STAR Partner, NEC-Mitsubishi has determined that this product meets the ENERGY STA R
guidelines for energy efficiency.
The ENERGY STA R emblem does not represent EPA endorsement of any product or service.
All other trademarks mentioned in this manual are the property of their respective owners.
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT
TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED
PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS
UNLESS THE PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE
COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION
TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE
POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY
DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT
THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may
have sufficient magnitude to cause electric shock. Therefore, it is
dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the
operation and maintenance of this unit has been included. Therefore, it
should be read carefully in order to avoid any problems.
CAUTION
WARNING
RISK OF ELECTRIC SHOCK • DO NOT OPEN
Safety Instruction
English-3
English
TCO’99
Congratulations! You have just purchased a
TCO’99 approved and labeled product! Your choice
has provided you with a product developed for
professional use. Your purchase has also contributed
to reducing the burden on the environment and also
to the further development of environmentally
adapted electronics products.
Why do we have environmentally labelled computers?
In many countries, environmental labelling has become an established
method for encouraging the adaptation of goods and services to the
environment. The main problem, as far as computers and other
electron-ics equipment are concerned, is that environmentally harmful
substances are used both in the products and during their manufacture.
Since it is not so far possible to satisfactorily recycle the majority of
electronics equipment, most of these potentially damaging substances
sooner or later enter nature.
There are also other characteristics of a computer, such as energy
consumption levels, that are important from the viewpoints of both the
work (internal) and natural (external) environments. Since all methods
of electricity generation have a negative effect on the environment (e.g.
acidic and climate-influencing emissions, radioactive waste), it is vital to
save energy. Electronics equipment in offices is often left running
continuously and thereby consumes a lot of energy.
What does labelling involve?
This product meets the requirements for the TCO’99 scheme which
provides for international and environmental labelling of personal
computers. The labelling scheme was developed as a joint effort by the
TCO (The Swedish Confederation of Professional Employees), Svenska
Naturskyddsforeningen (The Swedish Society for Nature Conservation)
and Statens Energimyndighet (The Swedish National Energy Administration).
Approval requirements cover a wide range of issues: environment,
ergonomics, usability, emission of electric and magnetic fields, energy
consumption and electrical and fire safety.
English-4
The environmental demands impose restrictions on the presence and
use of heavy metals, brominated and chlorinated flame retardants,
CFCs (freons) and chlorinated solvents, among other things. The
product must be prepared for recycling and the manufacturer is obliged
to have an environmental policy which must be adhered to in each
country where the company implements its operational policy.
The energy requirements include a demand that the computer and/or
display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to
reactivate the computer shall be reasonable for the user.
Labelled products must meet strict environmental demands, for
example, in respect of the reduction of electric and magnetic fields,
physical and visual ergonomics and good usability.
Below you will find a brief summary of the environmental requirements
met by this product. The complete environmental criteria document may
be ordered from:
TCO Development
SE-114 94 Stockholm, Sweden
Fax: +46 8 782 92 07
Email (Internet): development@tco.se
Current information regarding TCO’99 approved and labelled products
may also be obtained via the Internet, using the address:
http://www.tco-info.com/
Environmental requirements
Flame retardants
Flame retardants are present in printed circuit boards, cables, wires,
casings and housings. Their purpose is to prevent, or at least to delay
the spread of fire. Up to 30% of the plastic in a computer casing can
consist of flame retardant substances. Most flame retardants contain
bromine or chloride, and those flame retardants are chemically related
to another group of environmental toxins, PCBs. Both the flame
retardants containing bromine or chloride and the PCBs are suspected
of giving rise to severe health effects, including reproductive damage in
fish-eating birds and mammals, due to the bio-accumulative* processes.
Flame retardants have been found in human blood and researchers fear
that disturbances in foetus development may occur.
English-5
English
The relevant TCO’99 demand requires that plastic components weighing
more than 25 grams must not contain flame retardants with organically
bound bromine or chlorine. Flame retardants are allowed in the printed
circuit boards since no substitutes are available.
Cadmium**
Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the
nervous system and is toxic in high doses. The relevant TCO‘99
requirement states that batteries, the colour-generating layers of display
screens and the electrical or electronics components must not contain
any cadmium.
Mercury**
Mercury is sometimes found in batteries, relays and switches. It
damages the nervous system and is toxic in high doses. The relevant
TCO‘99 requirement states that batteries may not contain any Mercury.
It also demands that no mercury is present in any of the electrical or
electronics components associated with the labelled unit.
CFCs (freons)
The relevant TCO‘99 requirement states that neither CFCs nor HCFCs
may be used during the manufacturing and assembly of the product.
CFCs (freons) are sometimes used for washing printed circuit boards.
CFCs break down ozone and thereby damage the ozone layer in the
stratosphere, causing increased reception on Earth of ultraviolet light
with e. g. increased risks of skin cancer (malignant melanoma) as a
consequence.
Lead**
Lead can be found in picture tubes, display screens, solders and
capacitors. Lead damages the nervous system and in higher doses,
causes lead poisoning. The relevant TCO‘99 requirement permits the
inclusion of lead since no replacement has yet been developed.
*Bio-accumulative is defined as substances which accumulate within living
organisms.
**Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.
English-6
Contents

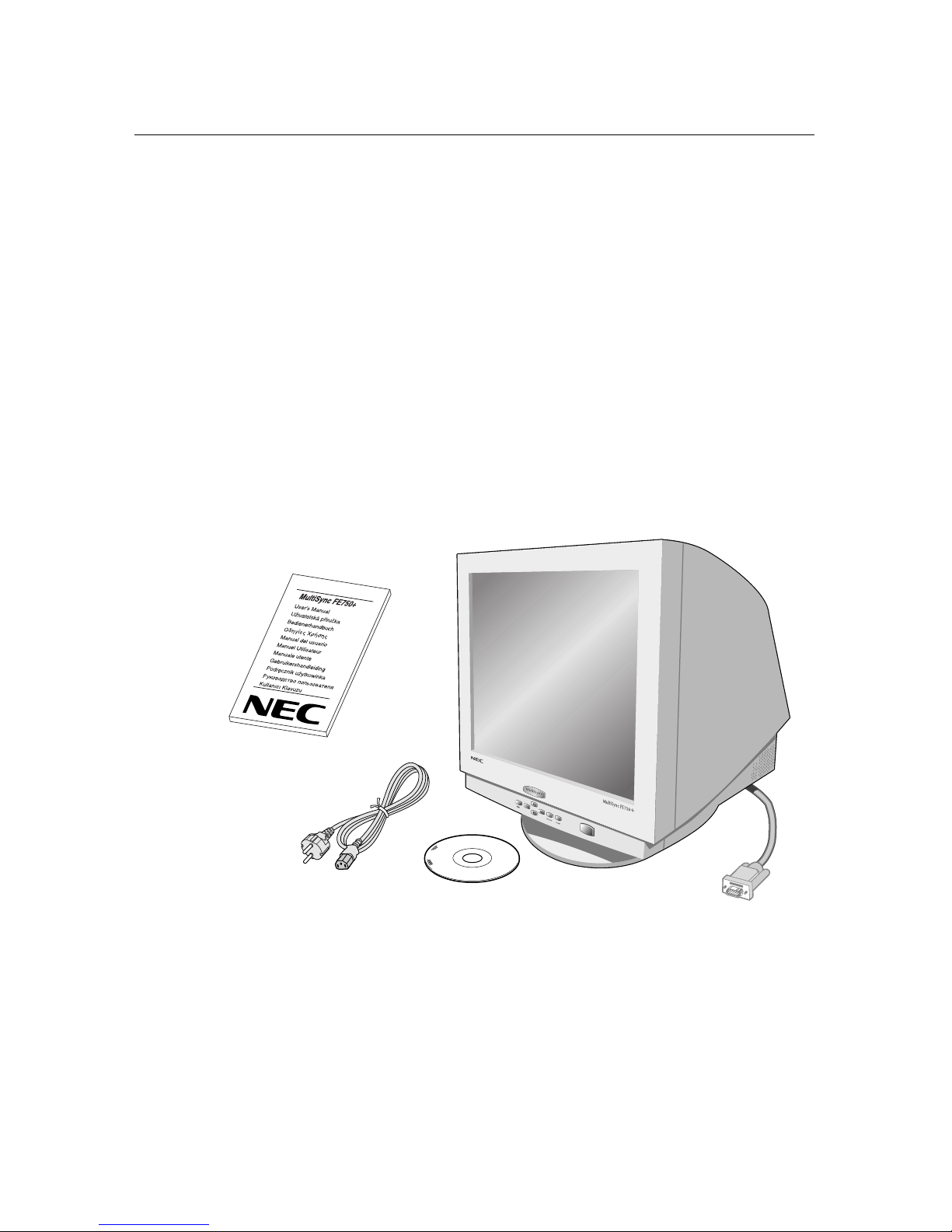

Your new MultiSync FE750+ monitor box* should contain the following:
• MultiSync FE750+ Monitor with tilt/swivel base
• Power cord
• Captive Signal Cable
• User’s Manual
• CD-ROM:
Includes complete User’s Manual in PDF format and Windows related
files (Inf file and color profile). To see the complete User’s Manual,
Acrobat Reader 4.0 must be installed at your PC.
* Remember to save your original box and packing material to
transport or ship the monitor.
Power Cord
Captive Signal Cable
User’s Manual
CD-ROM
English-7
English
Quick Start
To attach the MultiSync FE750+ monitor to your system, follow these
instructions:
1. Turn off the power to your computer.
2. If necessary, install the display card into your system. For more
information, refer to the display card manual.
3. For the PC: Connect the 15-pin mini D-SUB of the captive signal
cable to the connector of the display card in your system
(Figure A.1). Tighten all screws.
For the Mac: Connect the Macintosh cable adapter (not included) to
the monitor connector on the Macintosh (Figure B.1). Attach the
15-pin mini D-SUB end of the captive signal cable to the Macintosh
cable adapter on the computer (Figure B.1). Tighten all screws.
4. The Windows
®
95/98/2000 INF file for your MultiSync monitor can be
found on the CD-ROM, delivered with the monitor.

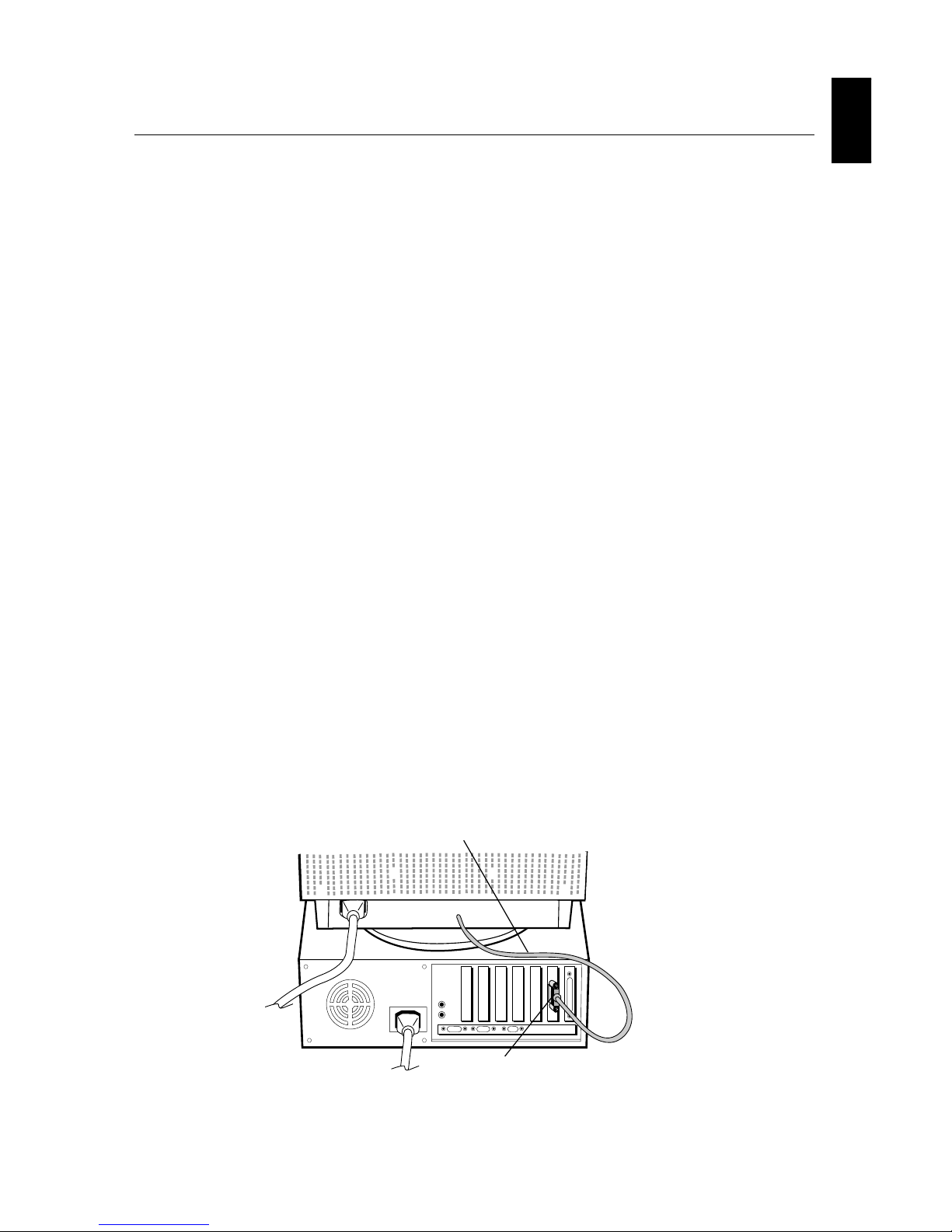

5. Connect one end of the power cord to the MultiSync FE750+ monitor
and the other end to the power outlet (Figure C.1).
6. Turn on the monitor (Figure D.1) and the computer.
NOTE: If you have any problems, please refer to the
Troubleshooting section of this User’s Manual.

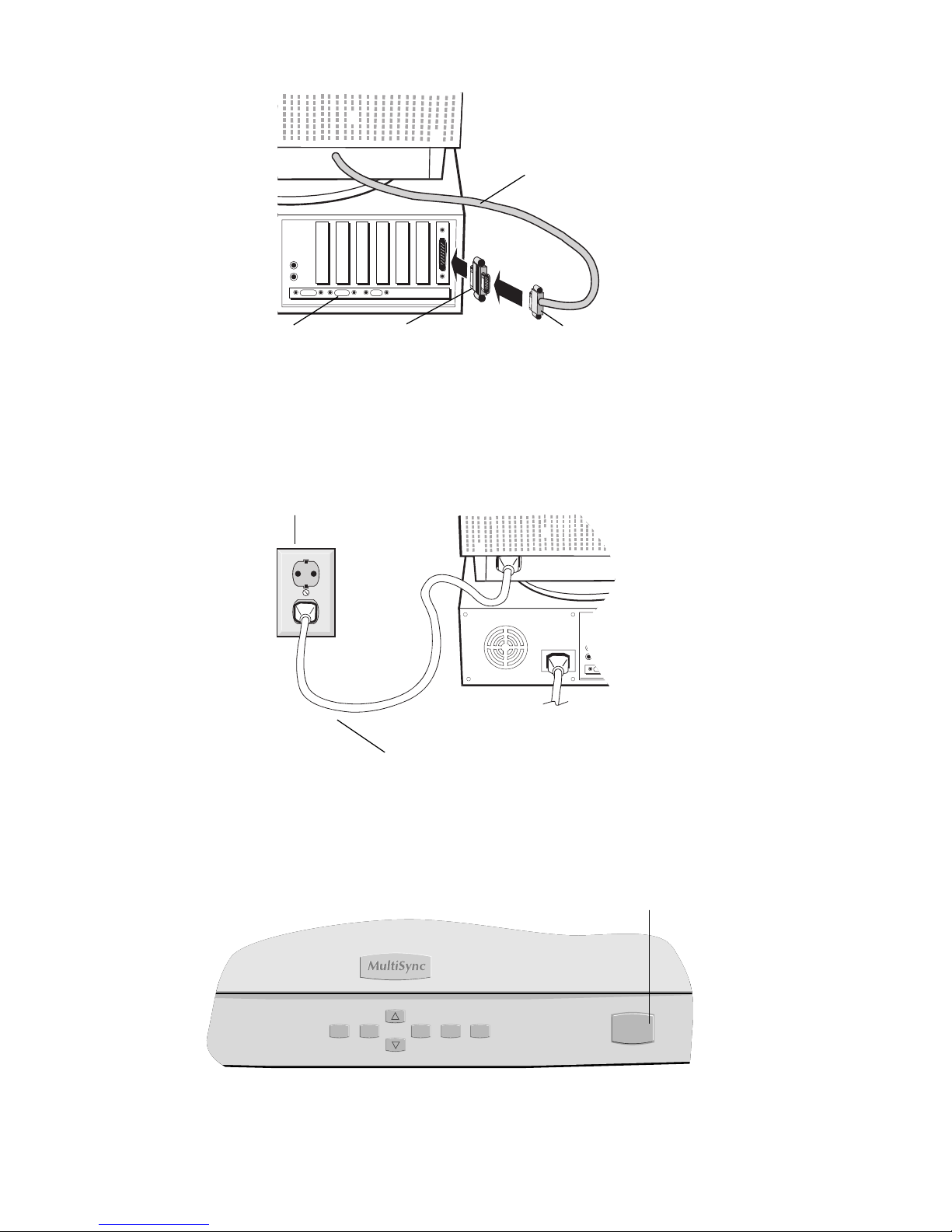

Captive Signal Cable
15-pin mini D-SUB
Figure A.1
English-8
Figure B.1
Figure C.1
15-pin mini D-SUB
Captive Signal Cable
Computer Mac Adapter
(not included)
Power Outlet
Power Cord
EXIT PROCEED RESET
+–
Power Button
Figure D.1
English-9
English
Controls
OSM (On-Screen Manager) control buttons on the front of the monitor
function as follows:
NOTE: When RESET is pressed in the main and sub-menu, a
warning window will appear allowing you to cancel the reset
function.
When OSM controls are activated, icons are displayed at the top of the
menu. If an arrow (→) is displayed in a sub-menu, it indicates further
choices are available. To enter a sub-menu, press PROCEED.
Brightness/Contrast Controls
Brightness: Adjusts the overall image and background screen
brightness.
Contrast: Adjusts the image brightness in relation to the background.
Degauss: Eliminates the build-up of stray magnetic fields which alter the
correct scan of the electron beams and affect the purity of the screen
colours, focus, and convergence. When activated, your screen image will
jump and waver a bit as the screen is demagnetised.
Sub-Menu
Exits to the OSM main menu.
Moves the highlighted area
up/down to select one of the
controls.
Moves the bar in the - or +
direction to decrease or
increase the adjustment.
Only executes control or
enters sub-menu.
Resets the highlighted control
to the factory setting.
EXIT
CONTROL ▲/▼
CONTROL -/+
PROCEED
RESET
Main Menu
Exits the OSM menu.
Moves the highlighted
area up/down to select
one of the controls.
Moves highlighted area
left/right to select one of
the controls.
Has no function.
Resets all the controls
within the highlighted
menu to the factory
setting.
English-10
Caution: Please allow a minimum of 20 minutes to elapse between
uses of the Degauss function.
Size and Position Controls
Left/Right: Moves the image horizontally (left or right).
Down/Up: Moves the image vertically (up or down).
Narrow/Wide: Decreases or increases the horizontal size of the image.
Short/Tall: Decreases or increases the vertical size of the image.
Color Control/Color Control System
Color presets 1 through 5 selects the desired color setting. The bar is
replaced by the color setting choice from 1 to 5. Each color setting is
adjusted at the factory to the stated Kelvin. If a setting is adjusted, the
name of the setting will change from Kelvin to Custom.
Red, Green, Blue: AccuColor Control System decreases or increases
the monitor’s red, green or blue color guns depending upon which is
selected. The change in color will appear on screen and the direction
(decrease or increase) will be shown by the bars.
sRGB Mode: sRGB mode provides the suitable color managed picture
image. You can not change Contrast, Brightness, Red, Green and Blue
colors individually.
Geometry Controls
Geometry Controls Menu
The Geometry controls allow you to adjust the curvature or angle of the
sides of your display.
Sides In/Out (pincushion): Decreases or increases the curvature of
the sides either inward or outward.
Sides Left/Right (pincushion balance): Decreases or increases the
curvature of the sides either to the left or right.
Sides Tilt (parallelogram): Decreases or increases the tilt of the sides
either to the left or right.
Sides Align (trapezoidal): Decreases or increases the bottom of the
screen to be the same as the top.
English-11
English
Rotate (raster rotation): Rotates the entire display clockwise or
counterclockwise.
Tools 1
Moiré Canceler: Moiré is a wavy pattern which can sometimes appear
on the screen. The pattern is repetitive and superimposed as rippled
images. When running certain applications, the wavy pattern is more
evident than in others. To reduce moiré, adjust the level by using –/+
control buttons.
Basic Convergence: Aligns all three colors (R,G,B) to form a single
color (white). The purpose of this control is to ensure that a white line
drawn on the screen is as crisp and clear as possible.
• Use the Horizontal control to adjust the alignment of the white lines in
the up/down direction.
• Use the Vertical control to adjust the alignment of the white lines in
the left/ right direction.
Corner Correction:Allows you to adjust the geometry of the corners of
your display – Top, Top Balance, Bottom or Bottom Balance.
Auto Save: The monitor automatically saves the last settings of the user
controls. You can turn this Auto Save feature off by selecting this menu
and changing the off position. When the off mode is selected, you will
prompted with the option to save or return to the previous setting once
you select a different control. If the save is not confirmed, the setting will
go back to the previous setting when OSM is turned off.
Factory Preset: Selecting Factory Preset allows you a reset most OSM
control settings back to the factory settings. A warning statement will
appear to confirm that you do want to reset ALL settings. Individual
settings can be reset by high-lighting the control to be reset and
pressing the RESET button.
Tools 2
Language: OSM controls menus are available in six languages.
OSM Position: You can choose where you would like the OSM controls
menu to appear on your screen. Selecting OSM Position allows you to
manually adjust the OSM controls menu position from among Center,
Top left, Top right, Bottom left and Bottom right.
English-12
OSM Turn Off: The OSM controls menu will stay on as long as it is in
use. In the OSM Turn Off sub-menu, you can select how long the
monitor waits after the last touch of a button for the OSM controls menu
to disappear. The preset choices are 10, 20, 30, 45, 60 and 120
seconds.
OSM Lock Out: This control completely locks out access to all OSM
controls functions except Brightness and Contrast. When attempting to
activate OSM controls while in the lock out mode, a screen will appear
indicating that OSM controls are locked out. To activate the OSM Lock
Out function, press PROCEED, then press ▲ and hold down
simultaneously. To deactivate the OSM Lock Out, press PROCEED, then
press ▲ and hold down simultaneously.
IPM System Off Mode:
Enable: The IPM System works normally and all stages of energy
savings are utilized.
Disable: The Off Mode of the IPM System is not used.
NOTE: For standard systems and graphics boards, keep the factory
setting at ENABLE.
EdgeLock Control: Operating your monitor at a non-standard timing
may cause images to appear darker than normal or have color
distortion. Use of the EdgeLock control will adjust images to their normal
state.
Information
Display Mode: Indicates the current mode and frequency setting of the
monitor.
Monitor Info: Indicates the model and serial numbers of your monitor.
Refresh Notifier: A message will advise you if the refresh rate of the
signal being applied to the monitor by the computer is too low. For
further information, please refer to your display card or system manual.
English-13
English
Recommended use
Safety Precautions and Maintenance:
FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE
FOLLOWING WHEN SETTING UP AND USING THE
MULTISYNC FE750+ COLOR MONITOR:
• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and
opening or removing covers may expose you to dangerous shock hazards or
other risks. Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch
danger-ous voltage points, which can be harmful or fatal or may cause electric
shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may
cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the
monitor may fall, causing serious damage to the monitor.
• Keep the monitor away from high capacity transformers, electric motors and
other devices such as external speakers or fans, which may create strong
magnetic fields.
• If possible, position the monitor so that it is facing the east to minimize the
effects of the earth’s magnetic field.
• Changing the direction of the monitor while it is powered on may cause image
discoloration. To correct this, turn the monitor off for 20 minutes before powering
it back on.
• When operating the MultiSync FE750+ with its AC 100-120/220-240V worldwide
power supply, use a power supply cord that matches the power supply voltage
of the AC power outlet being used. The power supply cord you use must have
been ap-proved by and comply with the safety standards of your country. (Type
H05VV-F should be used except in UK)
• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse
installed for use with this monitor. If a power cord is not supplied with this
monitor, please contact your supplier.
Immediately unplug your monitor from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating instructions.
English-14
• Allow adequate ventilation around the monitor so that heat can
properly dissipate. Do not block ventilated openings or place the
monitor near a radiator or other heat sources. Do not put
anything on top of monitor.
• The power cable connector is the primary means of detaching
the system from the power supply. The monitor should be
installed close to a power outlet which is easily accessible.
• Handle with care when transporting. Save packaging for
transporting.

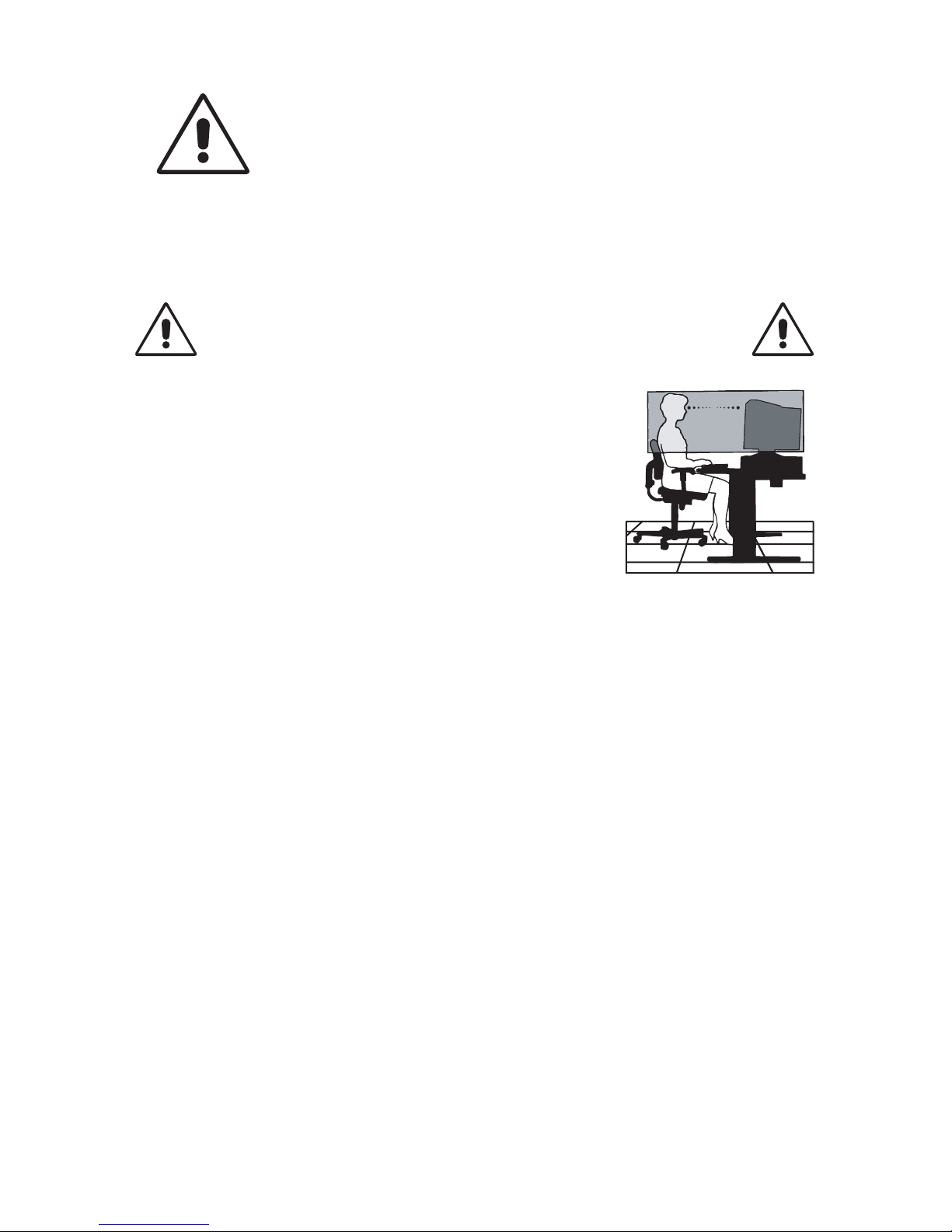

CORRECT PLACEMENT AND ADJUSTMENT OF THE
MONITOR CAN REDUCE EYE, SHOULDER AND NECK
FATIGUE. CHECK THE FOLLOWING WHEN YOU POSITION
THE MONITOR:
• Adjust the monitor height so that the top of the screen is
at or slightly below eye level. Your eyes should look
slightly downward when viewing the middle of the
screen.
• Position your monitor no closer than 16 inches and no
further away than 24 inches from your eyes. The optimal
distance is 20 inches.
• Rest your eyes periodically by focusing on an object at
least 20 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other light sources to
minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not
reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an anti-glare filter.
• Clean your monitor regularly. Use a lint-free, non-abrasive cloth and a non-
alcohol, neutral, non-abrasive cleaning solution or glass cleaner to minimize
dust.
• Adjust the monitor’s brightness and contrast controls to enhance readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen or reference
material) directly in front of you to minimize turning your head while you are
typing.
• Get regular eye checkups.
Ergonomics
To realize the maximum ergonomics benefits, we recommend the following:
• Adjust the Brightness until the background raster disappears
• Do not position the Contrast control to its maximum setting
• Use the preset Size and Position controls with standard signals
• Use the preset Color Setting and Sides Left/Right controls
• Use non-interlaced signals with a vertical refresh rate between 75-120Hz
• Do not use primary color blue on a dark background, as it is difficult to see and
may produce eye fatigue due to insufficient contrast
CAUTION
English-15
English
Unlimited number of Colours
31 kHz to 96 kHz
55 Hz to 160 Hz
640 x 480 @ 60 to 160 Hz
800 x 600 @ 55 to 146 Hz
832 x 624 @ 55 to 141 Hz
1024 x768 @ 55 to 116 Hz.....
1152 x 870 @ 55 to 103 Hz
1280 x 1024 @ 55 to 89 Hz
1600 x 1200 @ 55 to 76 Hz
315 mm/12.4 inches
236 mm/9.3 inches
AC 100-120/220-240 V @ 50/60 Hz
399(W) x 413(H) x 415(D) mm
19.0 kg
10 °C to +35 °C
30% to 80%
0 to 3000 m
-20 °C to +60 °C
10% to 90%
0 to 13500 m
1.3 A @ 100-120 V, 0.6 A @ 220-240 V
Monitor Specifications
Picture Tube Diagonal:
Viewable Image Size:
Display Colours Analog input:
Synchronization Range Horizontal:
Vertical:
Resolutions Supported
Resolution based on horizontal and
vertical frequencies only
Active Display Area Horizontal:
(Factory setting) Vertical:
Power Supply
Dimensions
Weight
Environmental Considerations
Operating Temperature:
Humidity:
Altitude:
Storage Temperature:
Humidity:
Altitude:
Input Signal Video:
Sync:
Current Rating
MultiSync FE750+
43 cm/17 inch
41 cm/16 inch
ANALOG 0.7 Vp-p/75 Ohms
Separate sync. TTL Level
Horizontal sync. (Positive/Negative; TTL Level)
Vertical sync. (Positive/Negative; TTL Level)
Composite sync. (Positive/Negative; TTL Level)
Notes
90° deflection, 0.25 mm grill
pitch, medium short
persistence phosphor,
aperture grille CRT,
multi-layered, anti-static
screen coating, dark-tint
screen and OptiClear
screen.
Depends on display card
used.
Automatically
Automatically
Some systems may not
support all modes listed.
NEC-Mitsubishi Electronics
Display cites recommended
resolution at 85 Hz for
optimal display performance.
Dependent upon signal
timing used, and does not
include border area.
Specifications
NOTE: Technical specifications are subject to change without
notice.
325 mm/12.8 inches
244 mm/9.6 inches
Active Display Area
(Full scan)
Dependent upon signal
timing used, and does not
include border area.
English-16
Features
Flat Aperture Grille CRT: Delivers an unparalleled viewing experience
with a virtually flat image, eliminating distortion and reducing glare so
that what you see on-screen is what you get on your printed output. The
striped phosphor alignment of the CRT delivers superior vertical
definition with improved bright-ness for more uniform image contrast.
OptiClear Screen Surface: Reduces reflection and glare and increases
contrast without sacrificing focus level, clarity or brightness. Along with
the flat square technology CRT, a high contrast screen with 0.25 mm
grille pitch delivers crisp, clean text and graphics.
Dual Dynamic Beam Focus: Provides precise, continuous focus
adjustments of the electron beams and optimum image quality, even to
the far edges of the screen.
Color Control System: Allows you to change between five color
settings on your display to match your personal preference.
OSM (On-Screen Manager) Controls: Allows you to quickly and easily
adjust all elements of your screen image via simple to use on-screen
menus.
ErgoDesign Features: Enhances human ergonomics to improve the
working environment, protect the health of the user and save money.
Examples include OSM controls for quick and easy image adjustments,
tilt/swivel base for pre-ferred angle of vision and compliance with MPRII
guidelines for lower emissions.
Plug and Play: The Microsoft
®
solution with the Windows® 95/98/2000
operating system facilitates setup and installation by allowing the
monitor to send its capabilities (such as screen size and resolutions
supported) directly to your computer, automatically optimizing display
performance.
IPM (Intelligent Power Manager) System: Provides innovative powersaving methods that allow the monitor to shift to a lower power
consumption level when on but not in use, saving two-thirds of your
monitor energy costs, reducing emissions and lowering the air
conditioning costs of the workplace.
English-17
English
Reduced Magnetic Field Technology: Reduces magnetic and
alternating electric field emissions and static electricity, addressing
ergonomic concerns regarding potential risks from extended computer
monitor use.
Multiple Frequency Technology: Automatically adjusts monitor to the
display card’s scanning frequency, thus displaying the resolution
required.
FullScan Capability: Allows you to use the entire screen area in most
resolutions, significantly expanding image size.
English-18
Troubleshooting
No picture
• Display card should be completely seated in its slot.
• Power Button and computer power switch should be in the ON
position.
• Signal cable should be completely connected to display card/
computer.
• Check connector for bent or pushed-in pins.
Image is scrolling or unstable
• Signal cable should be completely attached to the computer.
• Check pin assignments and signal timings of the monitor and your
display card with respect to recommended timings and pin
assignments.
• If the Macintosh cable adapter is used, check for proper connection
or make sure the display card is Macintosh compatible and that the
card is properly seated in the computer.
LED on monitor is not lit (no green or orange color can be seen)
• Power Switch should be in the ON position and power cord should be
connected.
Picture is fuzzy or color looks blotchy
• Adjust Brightness and Contrast Controls.
• Access the Degauss Control through OSM controls. Activate the
Degauss Control.
CAUTION: A minimum interval of 20 minutes should elapse before
the Deguass Control is used a second time when not
switching between modes.
Picture bounces or a wavy pattern is present in the picture
• Move electrical devices that may be causing electrical interference
away from the monitor.
Edges of the display image are not square
• Use the OSM Geometry Controls to straighten the edges.
• If possible, position the front of the monitor facing east.
Display image is not centered, too small, or too large
• Use the OSM Size and Position Controls to adjust the image.
English-19
English
Thin horizontal lines appear on your screen
• Thin horizontal lines are normal for an aperture grille CRT and are
not a malfunction. These are shadows from the damper wires used to
stabilize the aperture grille and are most noticeable when the
screen’s background is light (usually white).
Black vertical lines are visible on the screen
• Thin vertical black lines on one or both sides of the screen. This
minor condition is caused by grille element overlap which can occur
during shipping.
• Position an open white window over the affected area of the screen
and maximize the brightness and contrast controls. This will cause
localized heating of the overlap which will clear in a few minutes. Be
sure to readjust the brightness and contrast controls back to the
normal viewing level after this procedure.
Loading...
