USER'S MANUAL

MultiSync

FE1250+

To learn about other special offers, register online at www.necmitsubishi.com/ productregistration

FE1250Plus.wpc 12/6/00, 10:32 AM1

®

™

Index

Warning..................................................................................................1

Contents ............................................................................................... 2

Quick Start ........................................................................................... 3

Controls ................................................................................................ 5

Recommended Use ............................................................................. 9

Specifications..................................................................................... 11

Features ..............................................................................................12

Troubleshooting ................................................................................. 13

References ..........................................................................................14

Limited Warranty .............................................................................. 15

TCO’99 .................................................................................................. 16

Avertissement ....................................................................................21

Contenu .............................................................................................. 22

Mise en marche rapide .................................................................... 23

Commandes ....................................................................................... 25

Usage recommandé.......................................................................... 29

Fiche technique ................................................................................. 31

Fonctions ............................................................................................ 32

Dépannage ......................................................................................... 33

Références ......................................................................................... 34

Garantie limitée................................................................................ 35

TCO’99 ................................................................................................. 36

Warnung .............................................................................................. 41

Lieferumfang..................................................................................... 42

Quick Start ........................................................................................ 43

Bedienungselemente ....................................................................... 45

Empfehlungen für die Verwendung .............................................. 59

Technische Daten .............................................................................. 51

Funktionen ......................................................................................... 52

Fehlerbehebung ................................................................................ 53

Verweise ............................................................................................. 54

Beschränkte Gewährleistung ......................................................... 55

TCO’99 ................................................................................................. 56

FE1250Plus.wpc 12/6/00, 10:32 AM2

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE
THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS
CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK • DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This

symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause

electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this
unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-

Causing Equipment Regulations.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to

C.S.A. 22.2 #950.

FCC Information

1.

Use the attached specified cables with the
so as not to interfere with radio and television reception.
(1) Please use the supplied power cable or equivalent to ensure FCC compliance.
(2) Shielded signal cable.

Use of other cables and adapters may cause interference with radio and television reception.

2.

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional
suggestions. The user may find the following booklet, prepared by the Federal Communications Commis­sion, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from
the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

NSV1117STTKW color monitor

No user serviceable parts inside. Do not attempt to modify this equipment. If modified, your
authority to operate this equipment might be voided by FCC.

VCCI Statement

1

FE1250Plus.wpc 12/6/00, 10:32 AM3

Contents

Your new NEC MultiSync® FE1250+ monitor box* should contain
the following:

• MultiSync FE1250+ with tilt/swivel base

• Power Cord

• Signal Cable

• User’s Manual

Signal Cable

USER'S MANUAL

MultiSync

FE1250+

To learn about other special offers, register online at www.necmitsubishi.com/ productregistration

User’s Manual

* Remember to save your original box and packing material to transport or ship the monitor.

FE1250Plus.wpc 12/6/00, 10:32 AM4

®

™

2

Power Cord

Quick Start

To attach the MultiSync® FE1250+™ monitor to your system, follow
these instructions:

1. Turn off the power to your computer.

2. If necessary, install the display card into your system. For more information,
refer to the display card manual.

3. For the PC: Connect the 15-pin mini D-SUB of the signal cable to the
connector of the display card in your system (Figure A.1). Tighten all screws.

For the Mac: Connect the MultiSync FE1250+ Macintosh cable adapter (not
included) to the monitor connector on the Macintosh (Figure B.1). Attach the
15-pin mini D-SUB end of the signal cable to the MultiSync FE1250+
Macintosh cable adapter on the computer (Figure B.1). Tighten all screws.

NOTE: To obtain the MultiSync FE1250+ Macintosh cable adapter, call

NEC-Mitsubishi Electronics Display of America, Inc. at [phone].

4. For download information on the Windows® 95/98/2000 INF file for your
MultiSync monitor, refer to the References section of this User’s Manual.

5. Connect one end of the power cord to the MultiSync FE1250+ monitor and the
other end to the power outlet (Figure C.1).

6. Turn on the monitor (Figure D.1) and the computer.

NOTE: If you have any problems, please refer to the Troubleshooting section of

this User’s Manual.

FE1250Plus.wpc 12/6/00, 10:32 AM5

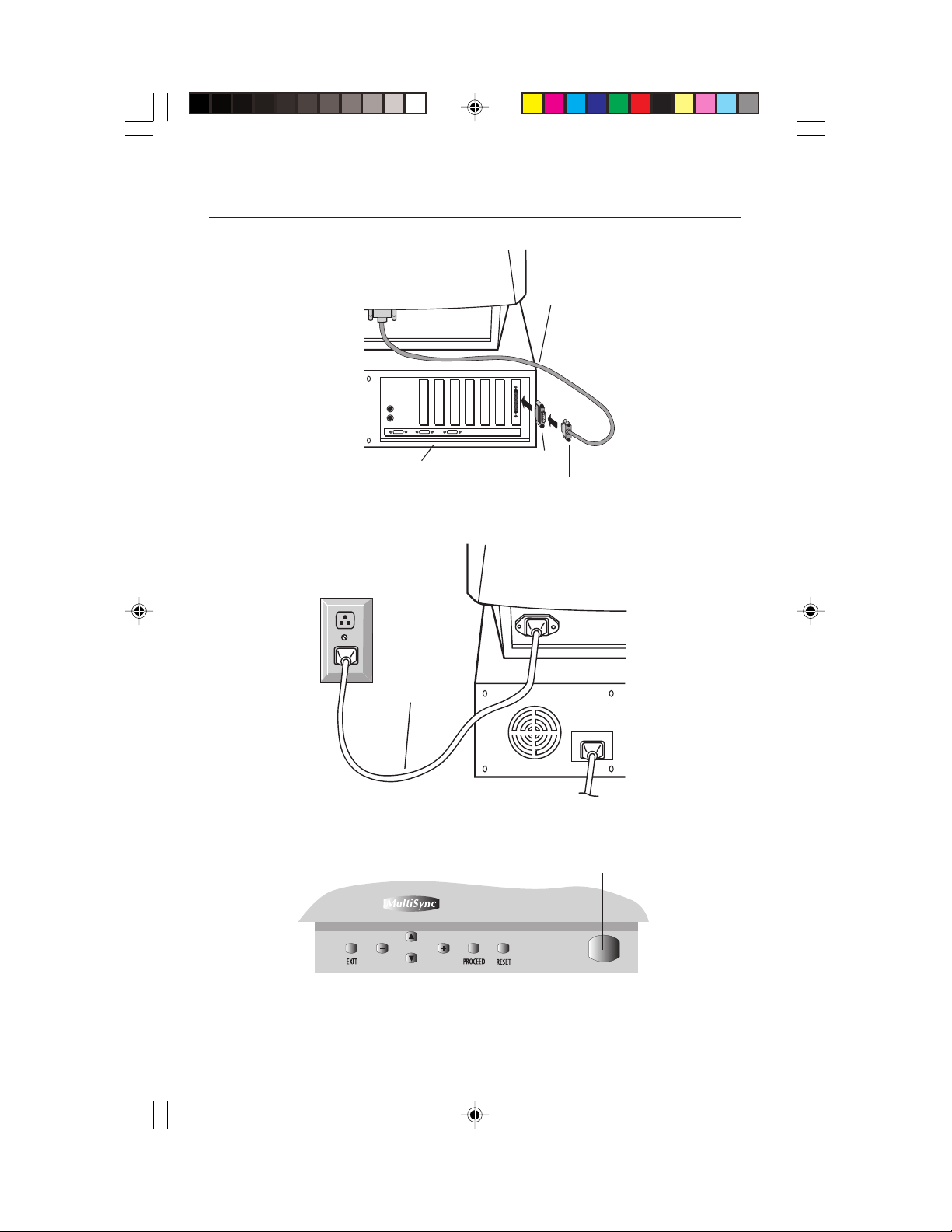

Detachable Signal Cable

15-pin mini D-DUB

Figure A.1

3

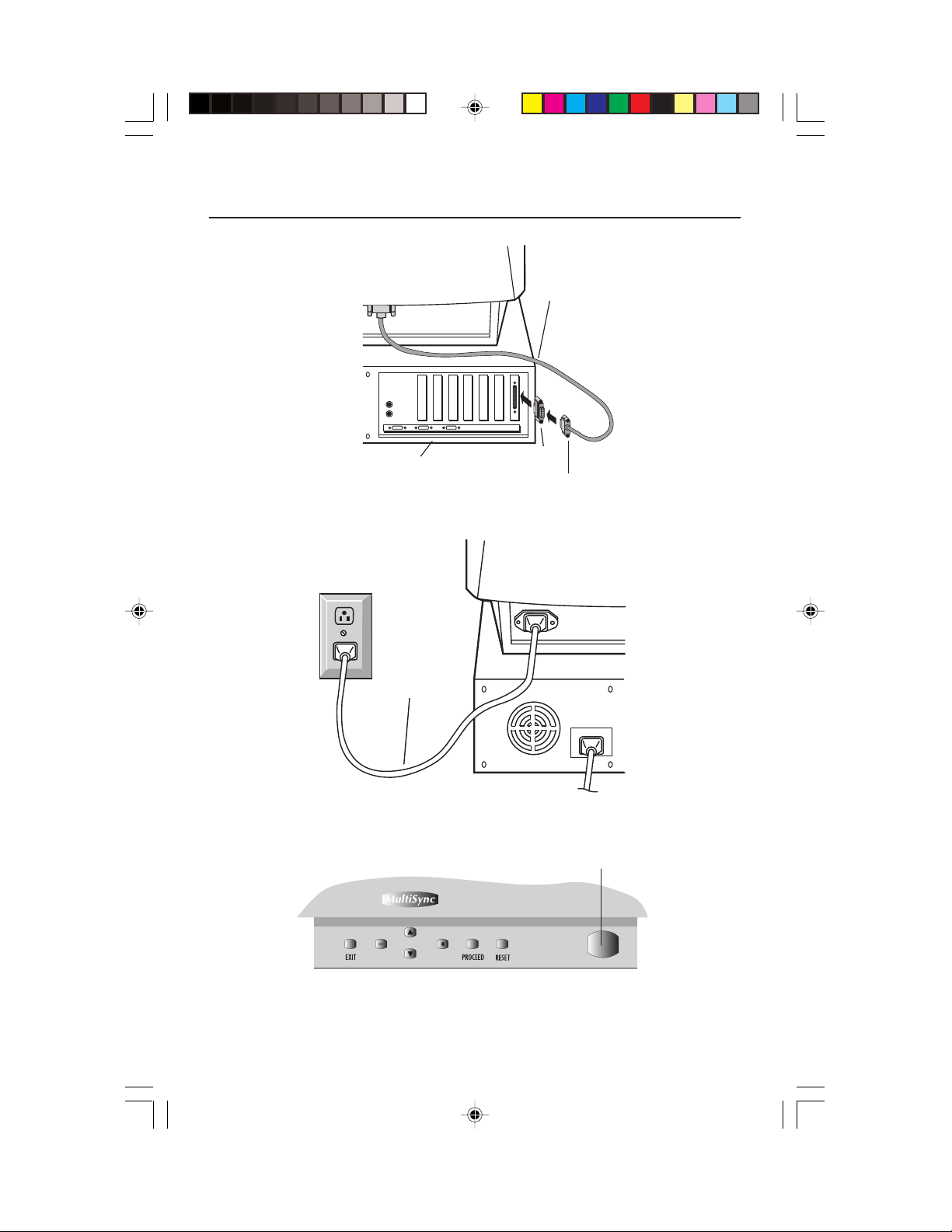

Quick Start –continued

Detachable Signal Cable

Computer

Power
Cord

Mac Adapter
(Not included)

15-pin mini D-SUB

Figure B.1

Figure C.1

Power Button

FE1250Plus.wpc 12/6/00, 10:32 AM6

Figure D.1

4

Controls

OSM™ (On-Screen Manager) control buttons on the front of the monitor function
as follows:

EXIT Exits the OSM menu. Exits to the OSM controls

CONTROL Moves the highlighted Moves the highlighted area
/ area up/down to select up/down to select one of the

CONTROL Moves the highlighted Moves the bar in the – or +
–/+ area left/right to select direction to decrease or

Main Menu Sub-Menu

main menu.

one of the controls. controls.

one of the controls. increase the adjustment.

PROCEED Has no function. Only executes control

RESET Resets all the controls within Resets the highlighted control

the highlighted menu to the factory setting.
to the factory setting.

NOTE: When RESET is pressed in the main and sub-menu, a warning

window will appear allowing you to cancel the reset function.

or enter sub-menu.

When OSM controls are activated, icons are displayed at the top of the menu.
If an arrow (➔) is displayed in a sub-menu, it indicates further choices are

available. To enter a sub-menu, press PROCEED.

Brightness/Contrast Controls

Brightness: Adjusts the overall image and background screen brightness.
Contrast: Adjusts the image brightness in relation to the background.

Degauss: Eliminates the buildup of stray magnetic fields which alter the correct

scan of the electron beams and affect the purity of the screen colors, focus and
convergence. When activated, your screen image will jump and waver a bit as
the screen is demagnetized.

Caution: Please allow a minimum of 20 minutes to elapse between uses of the
Degauss Control.

Size and Position Controls

Left/Right: Moves the image horizontally (left or right).
Down/Up: Moves the image vertically (up or down).
Narrow/Wide: Decreases or increases the horizontal size of the image.
Short/Tall: Decreases or increases the vertical size of the image.

FE1250Plus.wpc 12/6/00, 10:32 AM7

5

Controls –continued

Color Control/AccuColor® Control System

Color presets 1 through 5 selects the desired color setting. The bar is replaced
by the color setting choice from 1, 2, 3, 5. Each color setting is adjusted at the
factory to the stated Kelvin. If a setting is adjusted, the name of the setting will
change from Kelvin to Custom.
Red, Green, Blue: NEC’s AccuColor Control System decreases or increases the
monitor’s red, green or blue color guns depending upon which is selected. The
change in color will appear on screen and the direction (decrease or increase)
will be shown by the bars.

Geometry Controls

Geometry Controls Menu

The Geometry controls allow you to adjust the curvature or angle of the sides of
your display.
Sides In/Out (pincushion): Decreases or increases the curvature of the sides either
inward or outward.
Sides Left/Right (pincushion balance): Decreases or increases the curvature of
the sides either to the left or right.
Sides Tilt (parallelogram): Decreases or increases the tilt of the sides either to the
left or right.
Sides Align (trapezoidal): Decreases or increases the bottom of the screen to be
the same as the top.
Rotate (raster rotation): Rotates the entire display clockwise or counterclockwise.

Tools 1

Moiré Canceler: Moiré is a wavy pattern which can sometimes appear on the screen.
The pattern is repetitive and superimposed as rippled images. When running certain
applications, the wavy pattern is more evident than in others. To reduce moiré, adjust
the Level by using the –/+ CONTROL buttons.

Basic Convergence: Aligns all three colors (R,G,B) to form a single color (white).
The purpose of this control is to ensure that a white line drawn on the screen is as
crisp and clear as possible.

• Use the Horizontal control to adjust the alignment of the white lines in the up/down direction.

• Use the Vertical control to adjust the alignment of the white lines in the left/right direction.

Corner Correction: Allows you to adjust the geometry of the corners of your
display

FE1250Plus.wpc 12/6/00, 10:32 AM8

— Top, Top Balance, Bottom or Bottom Balance.

6

Controls –continued

Linearity: This selection allows you to adjust the spacing of the area on the screen. The
purpose of this control is to ensure that a one-inch circle is a true one-inch circle wherever
it is on the screen. The best way to determine the vertical linearity is as follows:

• Draw equally spaced horizontal lines using a drawing application that has a ruler.

• Use the Vertical Balance control to adjust the lines near the top and bottom of your screen.

• Use the Vertical control to adjust the spacing between the lines near the center and top of

your screen.

GlobalSync® Control: Eliminates picture impurities that may result from the
earth’s magnetic field. While in the sub-menus (Top Left, Top Right, Bottom Left or
Bottom Right), use the –/+ control buttons to fine tune the GlobalSync corrections.

Note: NEC recommends that you perform GlobalSync correction while running a

typical application such as a spreadsheet or text document.

Auto Save:

You can turn this Auto Save feature off by selecting this menu and changing the
off position. When the off mode is selected, you will prompted with the option to
save or return to the previous setting once you select a different control. If the
save is not confirmed, the setting will go back to previous setting when OSM turns off.

Factory Preset: Selecting Factory Preset allows you a reset most OSM™ control
settings back to the factory settings. A warning statement will appear to confirm
that you do want to reset ALL settings. Individual settings can be reset by high­lighting the control to be reset and pressing the RESET button.

The monitor automatically saves the last settings of the user controls.

Tools 2

Language: OSM controls menus are available in six languages.
OSM Position: You can choose where you would like the OSM controls menu to

appear on your screen. Selecting OSM Position allows you to manually adjust the
OSM controls menu left, right, up or down.

OSM Turn Off: The OSM controls menu will stay on as long as it is in use. In the
OSM Turn Off sub-menu, you can select how long the monitor waits after the last
touch of a button for the OSM controls menu to disappear. The preset choices
are 10, 20, 30, 45, 60 and 120 seconds.

O

SM Lock Out: This control completely locks out access to all OSM controls

functions except Brightness and Contrast. When attempting to activate OSM
controls while in the lock out mode, a screen will appear indicating that OSM
controls are locked out. To activate the OSM Lock Out function, press PROCEED,

then press and hold down simultaneously. To deactivate the OSM Lock Out,
press PROCEED, then press and hold down simultaneously.

7

FE1250Plus.wpc 12/6/00, 10:32 AM9

Controls –continued

IPM™ System Off Mode:

N

OTE: For standard systems and graphics boards, keep the factory setting

at ENABLE

EdgeLock™ Control: Operating your monitor at a non-standard timing may
cause images to appear darker than normal or have color distortion. Use of the
EdgeLock control will adjust images to their normal state.

Information

Display Mode: Indicates the current mode and frequency setting of the monitor.
Monitor Info: Indicates the model and serial numbers of your monitor.

Refresh Notifier: A message will advise you if the refresh rate of the signal being

applied to the monitor by the computer is too low. For further information, please
refer to your display card or system manual.

Enable: The IPM System works normally and all

stages of energy savings are utilized.

Disable: The Off Mode of the IPM System is not used.

FE1250Plus.wpc 12/6/00, 10:32 AM10

8

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING
THE MULTISYNC® FE1250+ COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable par5ts inside and

opening or removing covers may expose you to dangerous shock hazards or other
risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch danger-

ous voltage points, which can be harmful or fatal or may cause electric shock, fire
or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may

cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the

monitor may fall, causing serious damage to the monitor.

• Keep the monitor away from high capacity transformers, electric motors and other

devices such as external speakers or fans, which may create strong magnetic
fields.

• If possible, position the monitor so that it is facing the east to minimize the effects

of the earth’s magnetic field.

• Changing the direction of the monitor while it is powered on may cause image

discoloration. To correct this, turn the monitor off for 20 minutes before powering
it back on.

• When operating the MultiSync FE Series with its AC 220-240V worldwide power

supply, use a power supply cord that matches the power supply voltage of the AC
power outlet being used. The power supply cord you use must have been ap­proved by and comply with the safety standards of your country. (Type H05VV-F
should be used except in UK)

• In UK, use a BS-approved power cord with molded plug having a black (SA) fuse

installed for use with this monitor. If a power cord is not supplied with this monitor,
please contact your supplier.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified
service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• Allow adequate ventilation around the monitor so that heat can properly

dissipate. Do not block ventilated openings or place the monitor near a
radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system

CAUTION

from the power supply. The monitor should be installed close to a power
outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

9

FE1250Plus.wpc 12/6/00, 10:32 AM11

Recommended Use –continued

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• Adjust the monitor height so that the top of

the screen is at or slightly below eye level.
Your eyes should look slightly downward
when viewing the middle of the screen.

• Position your monitor no closer than 12 inches

and no further away than 28 inches from your
eyes. The optimal distance is 24 inches.

• Rest your eyes periodically by focusing on

an object at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to

windows and other light sources to minimize
glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect
on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Clean your monitor regularly. Use a lint-free, non-abrasive cloth and a

non-alcohol, neutral, non-abrasive cleaning solution or glass cleaner to
minimize dust.

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or

reference material) directly in front of you to minimize turning your head
while you are typing.

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the background raster disappears

• Do not position the Contrast control to its maximum setting

• Use the preset Size and Position controls with standard signals

• Use the preset Color Setting and Sides Left/Right controls

• Use non-interlaced signals with a vertical refresh rate between 75-160Hz

• Do not use primary color blue on a dark background, as it is difficult to see

and may produce eye fatigue due to insufficient contrast

For more detailed information on setting up a healthy work environment, call
NEC-Mitsubishi Electronics Display at [phone], NEC FastFacts
[phone] and request document #900108 or write the American National
Standard for Human Factors Engineering of Visual Display Terminal Workstations –
ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369,
Santa Monica, California 90406.

10

™

information at

FE1250Plus.wpc 12/6/00, 10:32 AM12

Specifications

Monitor MultiSync® FE1250+

™

Notes

Specifications Monitor

Picture Tube Diagonal: 22 inch/55 cm 90° deflection, 0.24 mm grille pitch,

Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms

Display Colors Analog input: Unlimited number of Colors Depends on display card used.
Synchronization Horizontal: 30 kHz to 110 kHz Automatically

Range Vertical: 50 Hz to 160 Hz Automatically

Resolutions Supported 640 x 480 @ 50 to 160 Hz

Resolution based on
vertical frequencies only

Active Display Area Horizontal:
(Factory Setting) Vertical:

Active Display Area

(Full Scan)

Power Supply
Current Rating 1.3A @ 100

Dimensions

Weight 29.7 kg

Environmental Considerations

Viewable Image Size: 20 inch/51cm medium short persistence phosphor,

horizontal and

Operating Temperature: +10°C to +35°C/+50°F to +90°F

Storage Temperature: -20°C to +60°C/-4°F to +140°F

Radius: 50000 mm aperture grille CRT, G-WARAS coating

Sync: Separate sync. TTL Level

Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
Composite sync. (Positive/Negative) (TTL Level)

800 x 600 @ 50 to 160 Hz
1024 x 768 @ 50 to 132 Hz
1280 x 1024 @ 50 to 101 Hz
1600 x 1200 @ 50 to 87 Hz
1800 x 1350 @ 50 to 77 Hz
1800 x 1440 @ 50 to 73 Hz
1856 x 1392 @ 50 to 75 Hz
1920 x 1440 @ 50 to 73 Hz

396 mm/15.6 inches Dependent upon signal timing used,
297 mm/11.7 inches and does not include border area.

406 mm/16.0 inches Dependent upon signal timing used,
305 mm/12.0 inches and does not include border area.

AC 100 – 120 V/220 - 240 V, 50/60 Hz

–

120 V / 0.6A @ 220-240 V

495 mm (W) x 493.5 mm (H) x 473 mm (D)

19.8 inches (W) x 19.7 inches (H) x 18.9 inches (D)

65.5 lbs

Humidity: 30% to 80%

Altitude: 3,000 m/10,000 Feet

Humidity: 10% to 90%

Altitude: 15,000 m/50,000 Feet

...................... NEC-Mitsubishi Electronics Display cites

Some systems may not support
all modes listed.

recommended resolution a 85 Hz for
optimal display performance.

FE1250Plus.wpc 12/6/00, 10:32 AM13

NOTE: Technical specifications are subject to change without notice.

11

Features

Flat Aperture Grille CRT: Delivers an unparalleled viewing experience with a
virtually
on-screen is what you get on your printed output. The striped phosphor alignment
of the CRT delivers superior vertical definition with improved brightness for more
uniform image contrast.

OptiClear® Screen Surface: Reduces reflection and glare and increases contrast
without sacrificing focus level, clarity or brightness.

Dual Dynamic Beam Focus: Provides precise, continuous focus adjustments of
the electron beams resulting in optimum image quality, even to the far edges of
the screen.

AccuColor® Control System: Allows you to change between five color settings on
your display to match your personal preference.

OSM™ (On-Screen Manager) Controls: Allow you to quickly and easily adjust all
elements of your screen image via simple to use on-screen menus.

ErgoDesign® Features: Enhance human ergonomics to improve the working
environment, protect the health of the user and save money. Examples include
OSM controls for quick and easy image adjustments, tilt/swivel base for pre­ferred angle of vision and compliance with MPRII guidelines for lower emissions.

Plug and Play: The Microsoft® solution with the Windows®95/98/2000 operat-
ing system facilitates setup and installation by allowing the monitor to send its
capabilities (such as screen size and resolutions supported) directly to your
computer, automatically optimizing display performance.

IPM™ (Intelligent Power Manager) System: Provides innovative power-saving
methods that allow the monitor to shift to a lower power consumption level when
on but not in use, saving two-thirds of your monitor energy costs, reducing
emissions and lowering the air conditioning costs of the workplace.

Reduced Magnetic Field™ Technology: Reduces magnetic and alternating electric
field emissions and static electricity, addressing ergonomic concerns regarding
potential risks from extended computer monitor use.

Multiple Frequency Technology: Automatically adjusts monitor to the display
card’s scanning frequency, thus displaying the resolution required.

FullScan™ Capability: Allows you to use the entire screen area in most resolu­tions, significantly expanding image size.

GlobalSync®/Corner Purity Control: Allows you to easily adjust impurities in the
four corners of your monitor.

GTF Auto Adjust: Allows you to easily and quickly adjust the suitable horizontal
and vertical size and position settings.

Convergence Control: Allows you to adjust the horizontal and vertical conver­gence of the entire area to ensure that a white line drawn on the screen is as
crisp and clear as possible.

flat image, eliminating distortion and reducing glare so that what you see

OSM Display Screen Copyright 2000

by NEC-Mitsubishi Electronics Display

FE1250Plus.wpc 12/6/00, 10:32 AM14

12

Troubleshooting

No picture

• Display card should be completely seated in its slot.

• Power Button and computer power switch should be in the ON position.

• Signal cable should be completely connected to display card/computer.

• Check connector for bent or pushed-in pins.

Image is scrolling or unstable

• Signal cable should be completely attached to the computer.

• Check pin assignments and signal timings of the monitor and your

display card with respect to recommended timings and pin assignments.

• If the Macintosh cable adapter is used, check for proper connection or
make sure the display card is Macintosh compatible and that the card is
properly seated in the computer.

LED on monitor is not lit

• Power Switch should be in the ON position and power cord should
be connected.

Picture is fuzzy or color looks blotchy

• If the picture is fuzzy, adjust the Moiré Canceler control. If the color looks
blotchy, adjust the Brightness, Contrast or GlobalSync® controls, or use the
EdgeLock™ control to change modes.

• Access the Degauss Control through OSM™ controls. Activate the
Degauss Control.
CAUTION: A minimum interval of 20 minutes should elapse before the

Deguass Control is used a second time when not switching
between modes.

Picture bounces or a wavy pattern is present
in the picture

• Move electrical devices that may be causing electrical interference away
from the monitor.

• See inside cover of User’s Manual for FCC information.

Edges of the display image are not square

• Use the OSM Geometry and Corner Correction Controls to straighten
the edges.

• If possible, position the front of the monitor facing east.

Display image is not centered, too small, or too large

• Use the OSM Size and Position Controls to adjust the image.

Thin lines appear on your screen

• Thin lines are normal for an aperture grille CRT and are not a malfunction.
These are shadows from the damper wires used to stabilize the aperture
grille and are most noticeable when the screen’s background is light
(usually white).

(no green, orange, yellow color can be seen)

FE1250Plus.wpc 12/6/00, 10:32 AM15

13

References

• BBS [phone]

NEC-Mitsubishi Electronics Display of America Remote Bulletin Board System is
an electronic service accessible with your system and a modem. Communica­tion parameters are: 300/1200/2400/9600/14.4k/28.8k/33.6k bps, no
parity, 8-data bits, 1 stop bit

• Customer Service/
Technical Support [phone]

Fax [phone]

• Electronic Channels:

Internet e-mail: [e-mail]
Internet ftp site: ftp.necmitsubishi.com
World Wide Web: http://www.necmitsubishi.com
Product Registration:
European Operations: http://www.nec-monitors.com
Windows® 95/98/2000 INF File:

• FastFacts™ Information [phone]

INFORMATION DESCRIPTION DOCUMENT #

Glossary Definition of terms related 900203

More Information Names and addresses of 900204

Macintosh Connection Detailed information on 153006

Healthy Work Environment Detailed information on 900108

• Literature & Sales Info (800) NEC-INFO [[phone]]

• MultiSync Fulfillment [phone]

• TeleSales [phone]

http://www.necmitsubishi.com/productregistration

http://support.necmitsubishi.com/software.htm
then download the file NECMSINF.ZIP

to functions, features and
installation of the
MultiSync® monitor

other groups involved in
standards and features of
the MultiSync monitor

connecting the MultiSync
monitor to a Macintosh

setting up a healthy work
environment

[For software & accessories]

FE1250Plus.wpc 12/6/00, 10:32 AM16

14

Limited Warranty

NEC-Mitsubishi Electronics Display of America, Inc. (hereinafter “NMD-A”) warrants this
Product to be free from defects in material and workmanship and, subject to the conditions set
forth below, agrees to repair or replace (at NMD-A’s sole option) any part of the enclosed unit
which proves defective for a period of three (3) years from the date of first consumer purchase.
Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or
refurbished and will meet specifications of the original parts or unit.

This warranty gives you specific legal rights and you may also have other rights, which vary
from state to state. This warranty is limited to the original purchaser of the Product and is not
transferable. This warranty covers only NMD-A-supplied components. Service required as a
result of third party components is not covered under this warranty. In order to be covered
under this warranty, the Product must have been purchased in the U.S.A. or Canada by the
original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by
NMD-A No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase
will be required by NMD-A to substantiate date of purchase. Such proof of purchase must be
an original bill of sale or receipt containing name and address of seller, purchaser, and the
serial number of the product.

It shall be your obligation and expense to have the Product shipped, freight prepaid, or
delivered to the authorized reseller from whom it was purchased or other facility authorized
by NMD-A to render the services provided hereunder in either the original package or a
similar package affording an equal degree of protection. All Products returned to NMD-A for
service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The
Product shall not have been previously altered, repaired, or serviced by anyone other than a
service facility authorized by NMD-A to render such service, the serial number of the product
shall not have been altered or removed. In order to be covered by this warranty the Product
shall not have been subjected to displaying of fixed images for long periods of time resulting
in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to
the instructions contained in the User’s Manual. Any such conditions will void this warranty.

NMD-A SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL,
OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NMD-A PRODUCT
OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL
OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE
LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAM­AGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

This Product is warranted in accordance with the terms of this limited warranty. Consumers
are cautioned that Product performance is affected by system configuration, software, the
application, customer data, and operator control of the system, among other factors. While
NMD-A Products are considered to be compatible with many systems, specific functional
implementation by the customers of the Product may vary. Therefore, suitability of a Product
for a specific purpose or application must be determined by consumer and is not warranted
by NMD-A.

For the name of your nearest authorized NEC-Mitsubishi Electronics Display service facility,
contact NEC-Mitsubishi Electronics Display at 1-800-632-4662.

FE1250Plus.wpc 12/6/00, 10:32 AM17

15

TCO’99

Congratulations! You have just purchased a TCO’99 approved and
labeled product! Your choice has provided you with a product devel­oped for professional use. Your purchase has also contributed to
reducing the burden on the environment and also to the further
development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encourag­ing the adaptation of goods and services to the environment. The main problem, as far as
computers and other electronics equipment are concerned, is that environmentally harmful
substances are used both in the products and during the manufacturing. Since it has not been
possible for the majority of electronics equipment to be recycled in a satisfactory way, most
of these potentially damaging substances sooner or later enter Nature.

There are also other characteristics of a computer, such as energy consumption levels, that are
important from the viewpoints of both the work (Internal) and natural (external) environments.
Since all methods of conventional electricity generation have a negative effect on the
environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to
conserve energy. Electronics equipment in offices consume an enormous amount of energy
since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’99 scheme which provides for international and
environmental labelling of personal computers. The labelling scheme was developed as a joint
effort by the TCO (The Swedish Confederation of Professional Employees), Svenska
Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet
(The Swedish National Energy Administration).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of
electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals,
brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other
things. The product must be prepared for recycling and the manufacturer is obliged to have an
environmental plan which must be adhered to in each country where the company implements its
operational policy. The energy requirements include a demand that the computer and/or display,
after a certain period of inactivity, shall reduce its power consumption to a lower level in one or
more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction
of electric and magnetic fields, physical and visual ergonomics and good usability.

Environmental Requirements

Flame retardants
Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn,
they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of
flame retardant substances. Most flame retardants contain bromine or chloride and these are
related to another group of environmental toxins, PCBs, which are suspected to give rise to severe
health effects, including reproductive damage in fisheating birds and mammals, due to the bio-

16

FE1250Plus.wpc 12/6/00, 10:32 AM18

TCO’99 –continued

accumulative* processes. Flame retardants have been found in human blood and researchers fear
that disturbances in foetus development may occur.

TCO’99 demand requires that plastic components weighing more than 25 grams must not contain
flame retardants with organically bound chlorine and bromine. Flame retardants are allowed in
the printed circuit boards since no substitutes are available.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the
nervous system and in higher doses, causes lead poisoning.

TCO’99 requirement permits the inclusion of lead since no replacement has yet been developed.

Cadmium**

Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain
computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO’99 requirement states that batteries, the colourgenerating layers of display screens and the
electrical or electronics components must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and switches, Mercury damages the nervous system
and is toxic in high doses.

TCO’99 requirement states that batteries may not contain any Mercury. It also demands that no
mercury is present in any of the electrical or electronics components associated with the display unit.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and
thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of
ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO’99 requirement; Neither CFCs nor HCFCs may be used during the manufacturing
and assembly of the product or its packaging.

*Bio-accumulative is defined as substances which accumulate within living organisms.
**Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit
SE-114 94 Stockholm
SWEDEN
FAX Number: [phone]
E-mail (Internet): [e-mail]

You may also obtain current information on TCO’99 approved and labelled products by
visiting their website at: http://www.tco-info.com/

17

FE1250Plus.wpc 12/6/00, 10:32 AM19

Declaration of the Manufacturer

We hereby certifiy that the color monitor
MultiSync® FE1250+TM (NSV1117STTKW)
is in compliance with Council Directive
73/23/EEC:
– EN 60950

Council Directive 89/336/EEC:

— EN 55022
— EN 61000-3-2
— EN 61000-3-3
— EN 55024

and marked with

NEC-Mitsubishi Electric Visual

Systems Corporation

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

Röntgenstrahlung

Die in diesem Gerät erzeugten Röntgenstrahlen sind durch die eigensichere Kathodenstrahlröhre
ausreichend abgeschirmt.
Unsachgemäße Eingriffe, insbesondere Verändern der Hochspannung oder Einbau eines
anderen Bildröhrentyps, können dazu führen, daß Röntgenstrahlung in erheblicher Stärke
auftritt. So veränderte Geräte entsprechen nicht mehr dieser Zulassung und dürfen nicht
betrieben werden.

18

FE1250Plus.wpc 12/6/00, 10:32 AM20
