NEC MultiSync 75F-3 Service Manual

MODELS MultiSync 75F-3

AccuSync 75F-3 (N0701-3)

COLOR MONITOR

SERVICE MANUAL

Better Service

Better Reputation

Better Profit

/MITSUBISHI

NEC-MITSUBISHI ELECTRIC VISUAL SYSTEMS

PRODUCT SAFETY CAUTION

1. When parts replacement is required for servicing, always use the manufacturer’s specified replacement.

2. Comply with all caution and safety-related notes on the product display chassis and picture tube.

3. When replacing the component, always be certain that all the components are put back in the place.

4. When servicing display monitor unit, it is required that the provided lead dress is used in the high voltage circuit area.

5. It is also recommended that shatter proof goggles are worn, when removing, installing and handling the picture tube. People not equipped with the proper precautionary measures mentioned should keep the picture tube away from body while handling.

6. As for a connector, pick and extract housing with fingers properly since a disconnection and improper contacts may occur, when wires of the connector are led.

7. Use a proper screwdriver. If you use screwdriver that does not fit, you may damage the screws.

W A R N I N G

The SERVICE PERSONNEL should have the appropriate technical training knowledge and experience necessary to :



Be familiar with specialized test equipment, and



Be careful to follow all safety procedures associated with high voltage CRT circuit designs to minimize danger to themselves and their coworkers.

To avoid electrical chocks, this equipment should be used with an appropriate power cord and be connected only to a properly grounded AC outlet

This equipment utilized a micro-gap power switch. Turn off the monitor by first pushing the front panel power switch. Next, remove the power cord from the AC outlet.

To prevent fire or shock hazards, do not expose this unit to rain or moisture

This symbol warns the personnel that un-insulated voltage within the unit may have sufficient magnitude to cause electric shock.

This symbol alerts the personnel that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

!

CONTENTS

Page No.

PRECAUTIONS .................................................................................................................... .. 1

SPECIFICA TIONS .................................................................................................................. 3

PIN ADJUSTMENT TABLE..................................................................................................... 4

CONTROLS ............................................................................................................................ 5

ON-SCREEN MANAGER(OSM)............................................................................................. 6

SERIAL NUMBER INFORMATION....................................................................................... 11

DISASSEMBLY..................................................................................................................... 12

ADJUSTMENT PROCEDURES ........................................................................................... 13

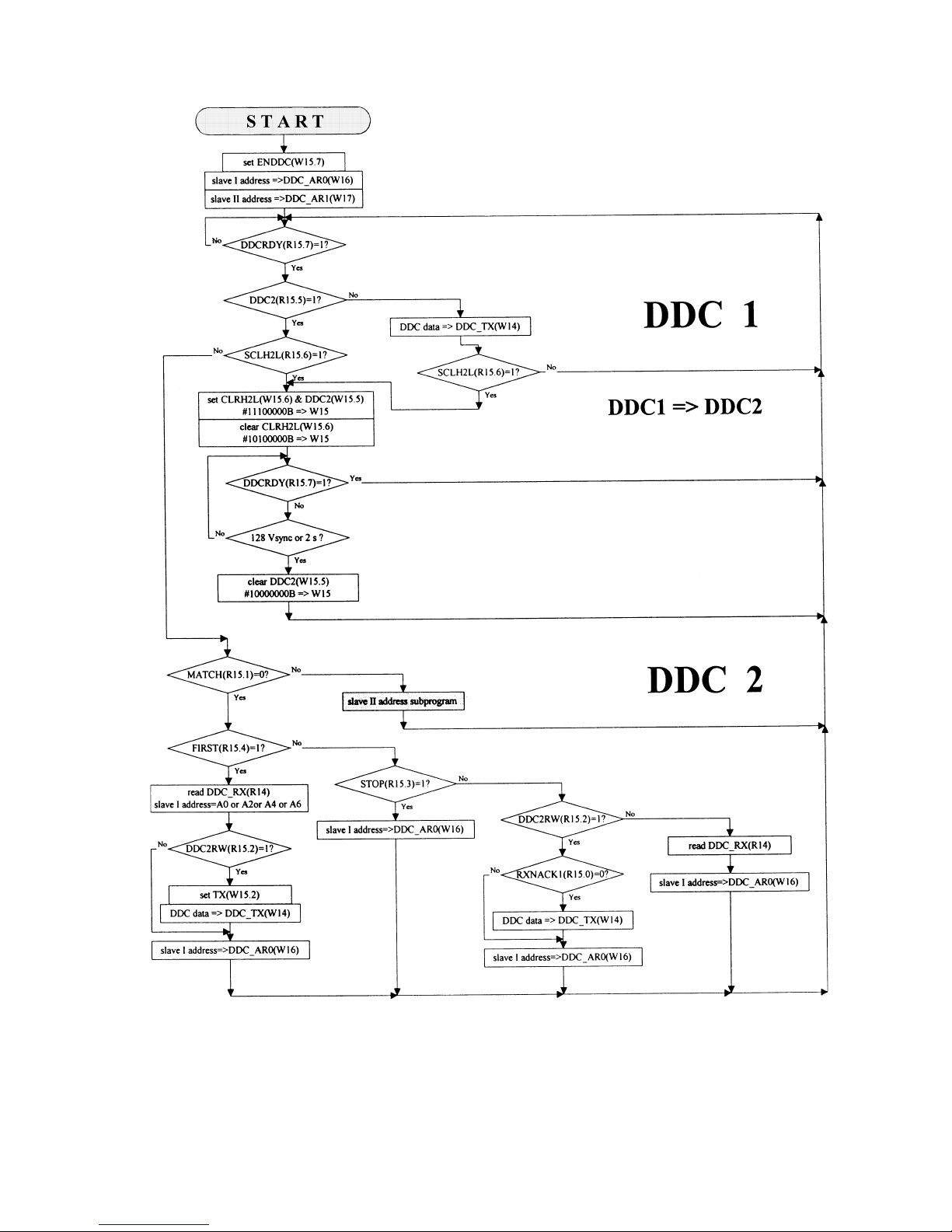

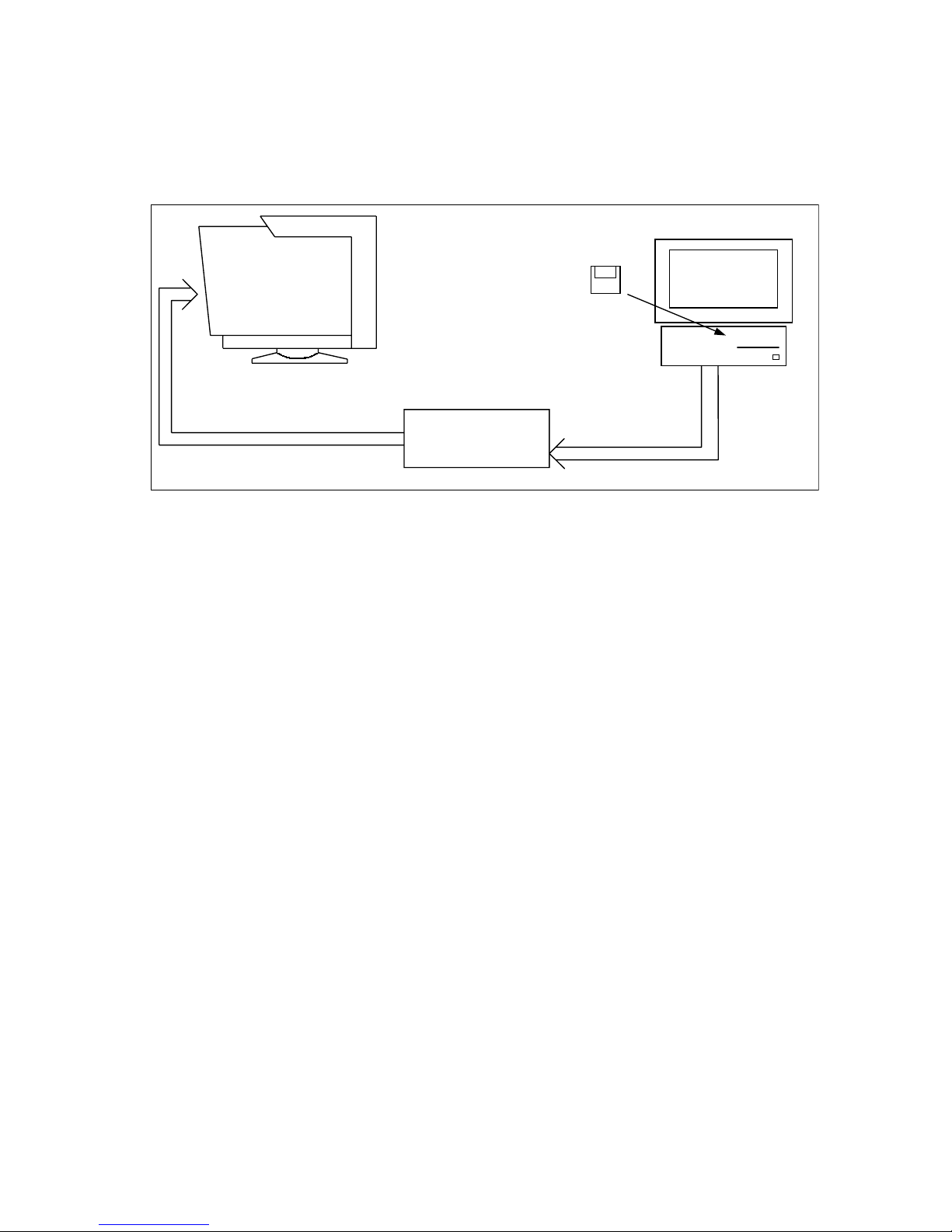

WRITE AND INSPECTION FOR PLUG AND PLAY COMMUNICATION............................. 26

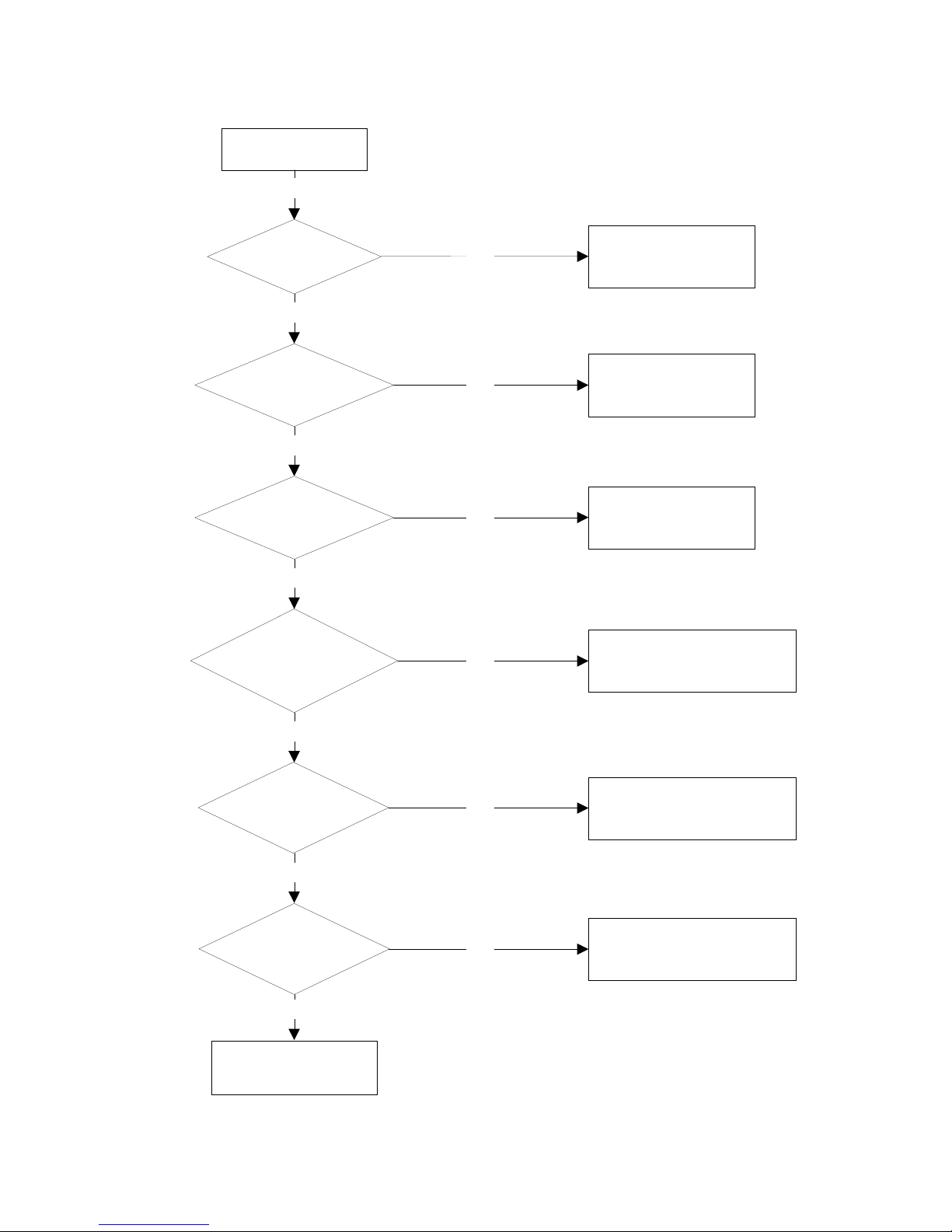

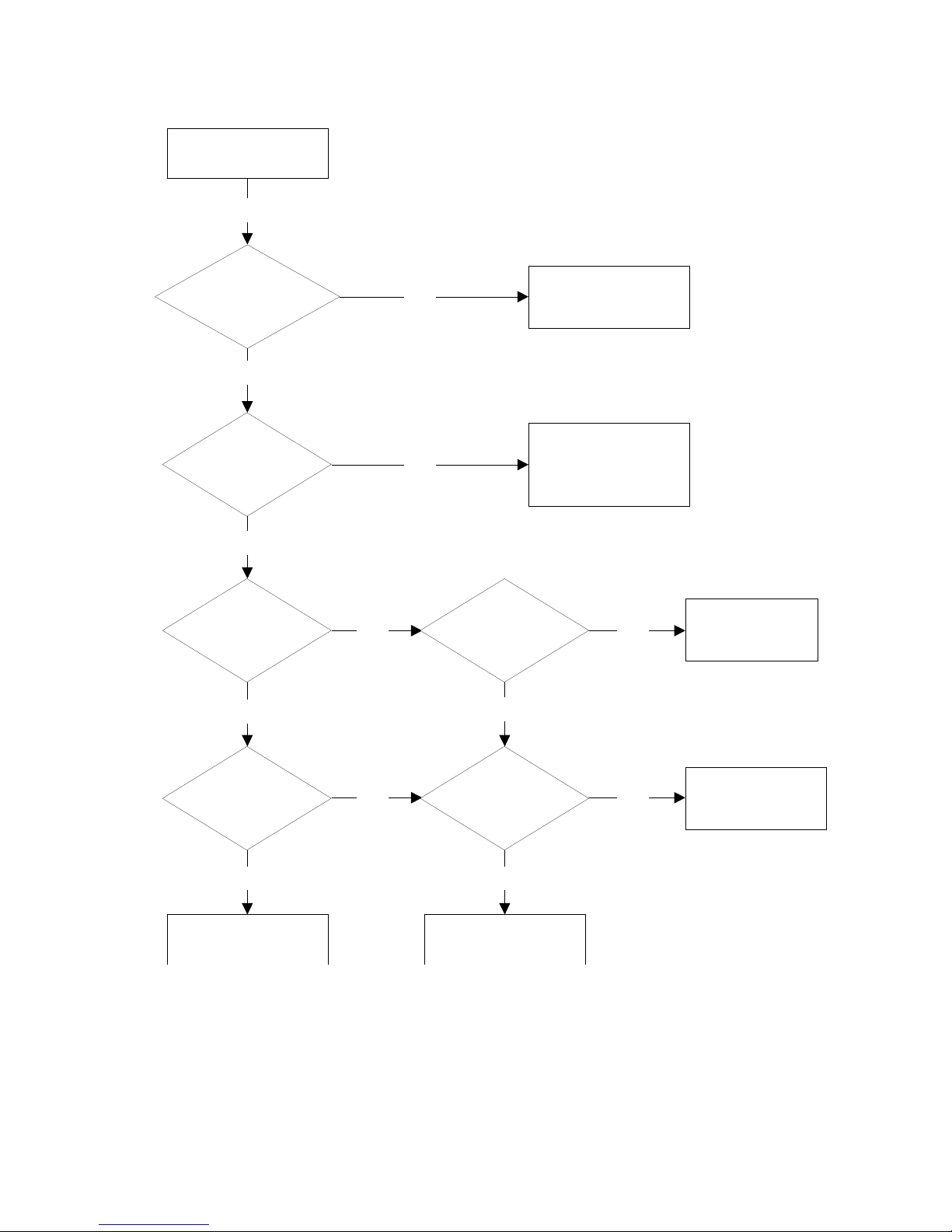

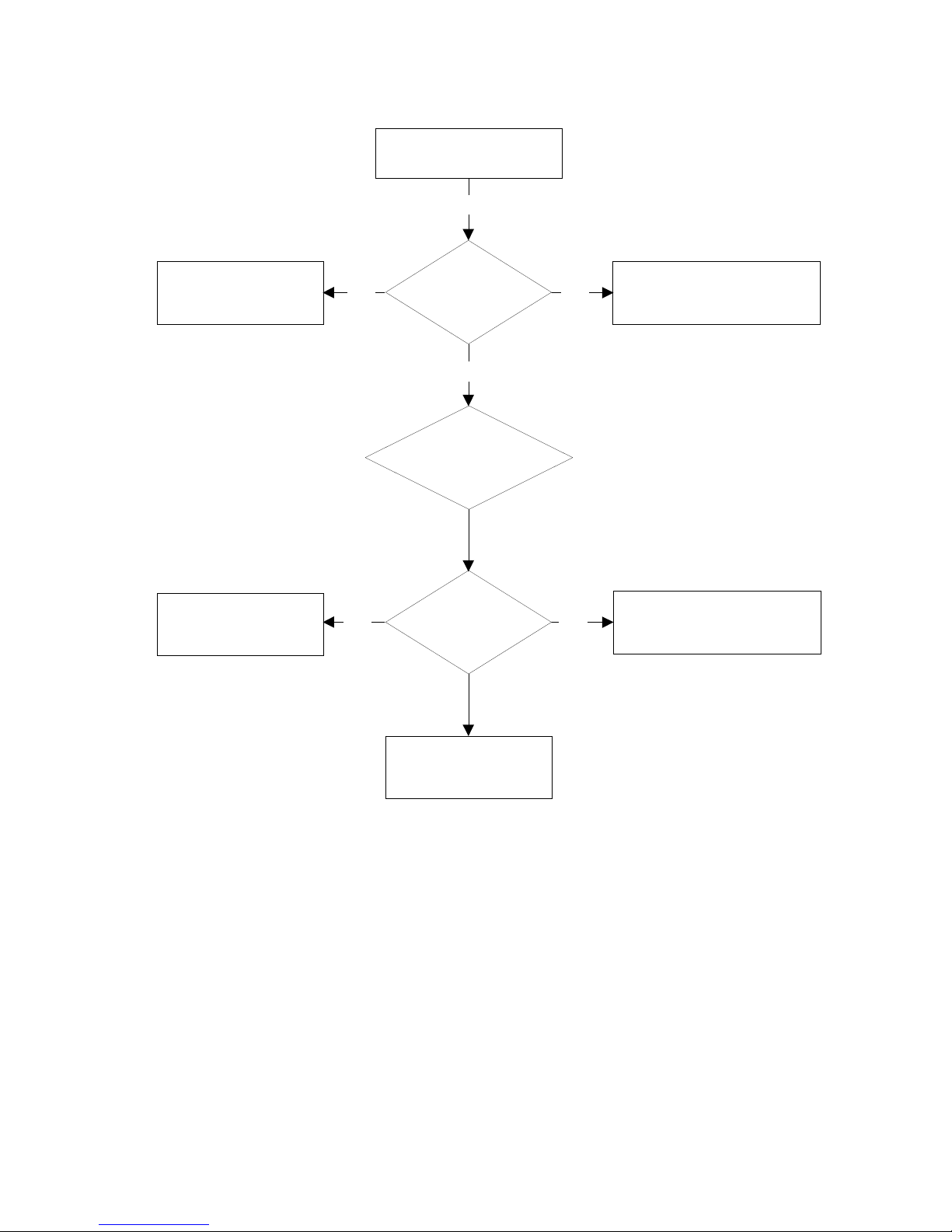

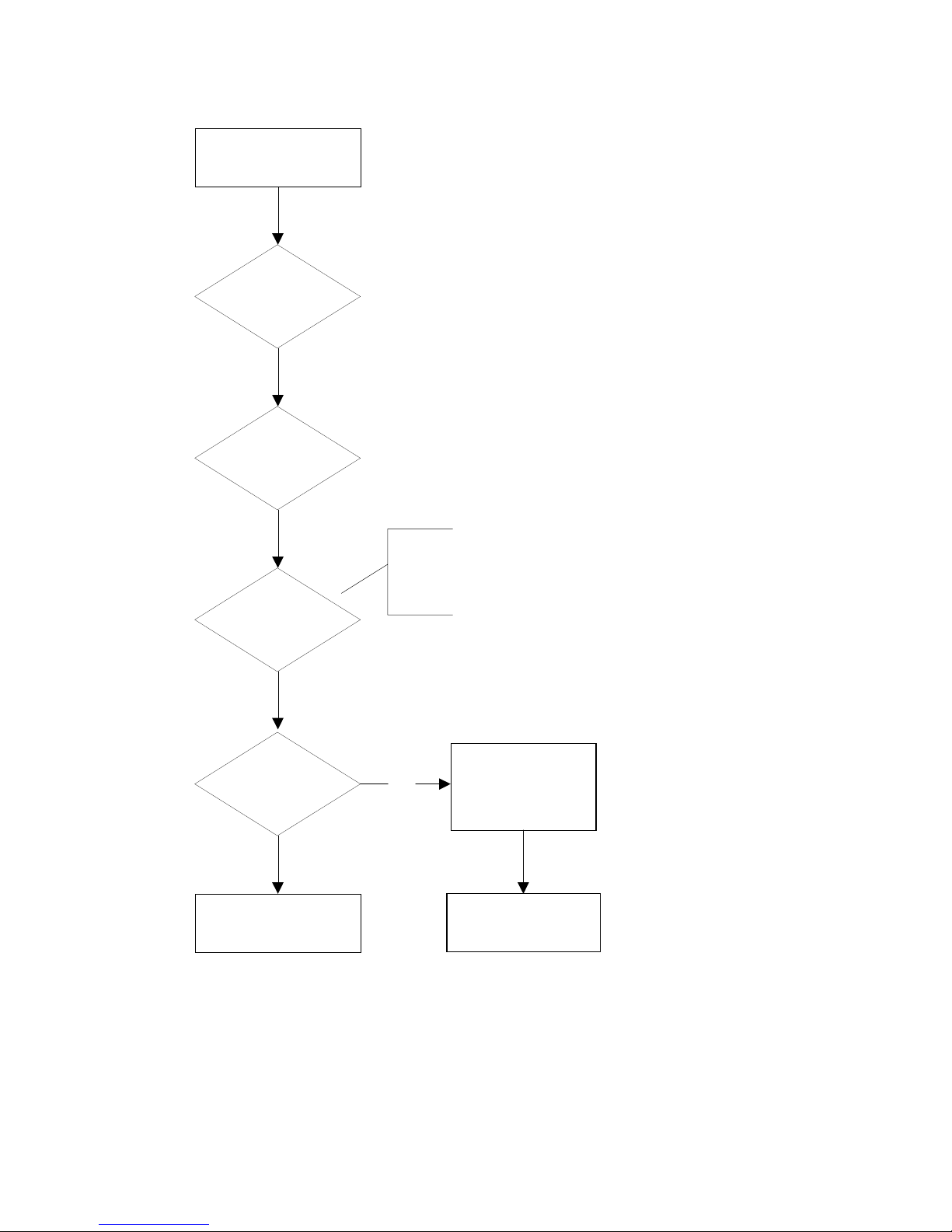

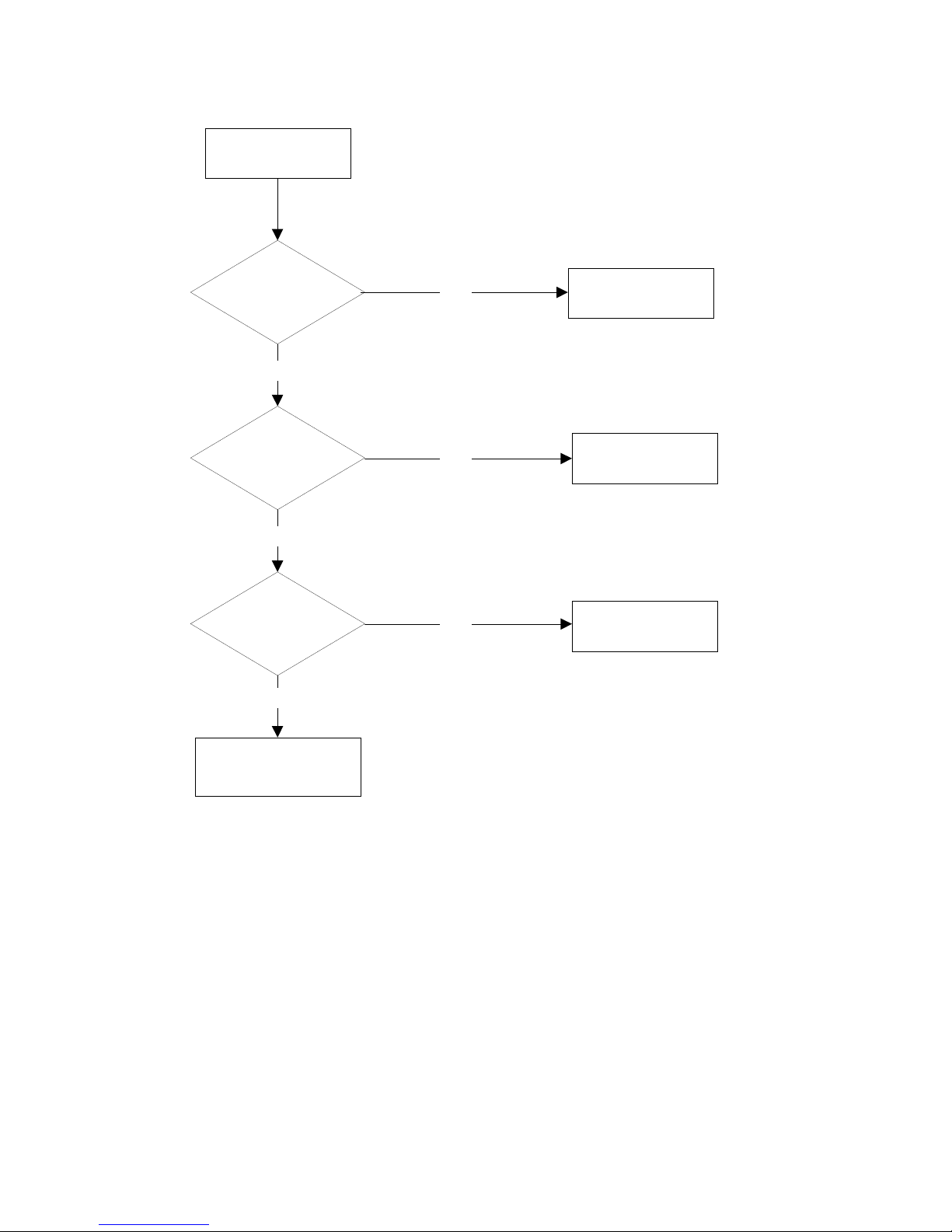

TROUBLE SHOOTING......................................................................................................... 29

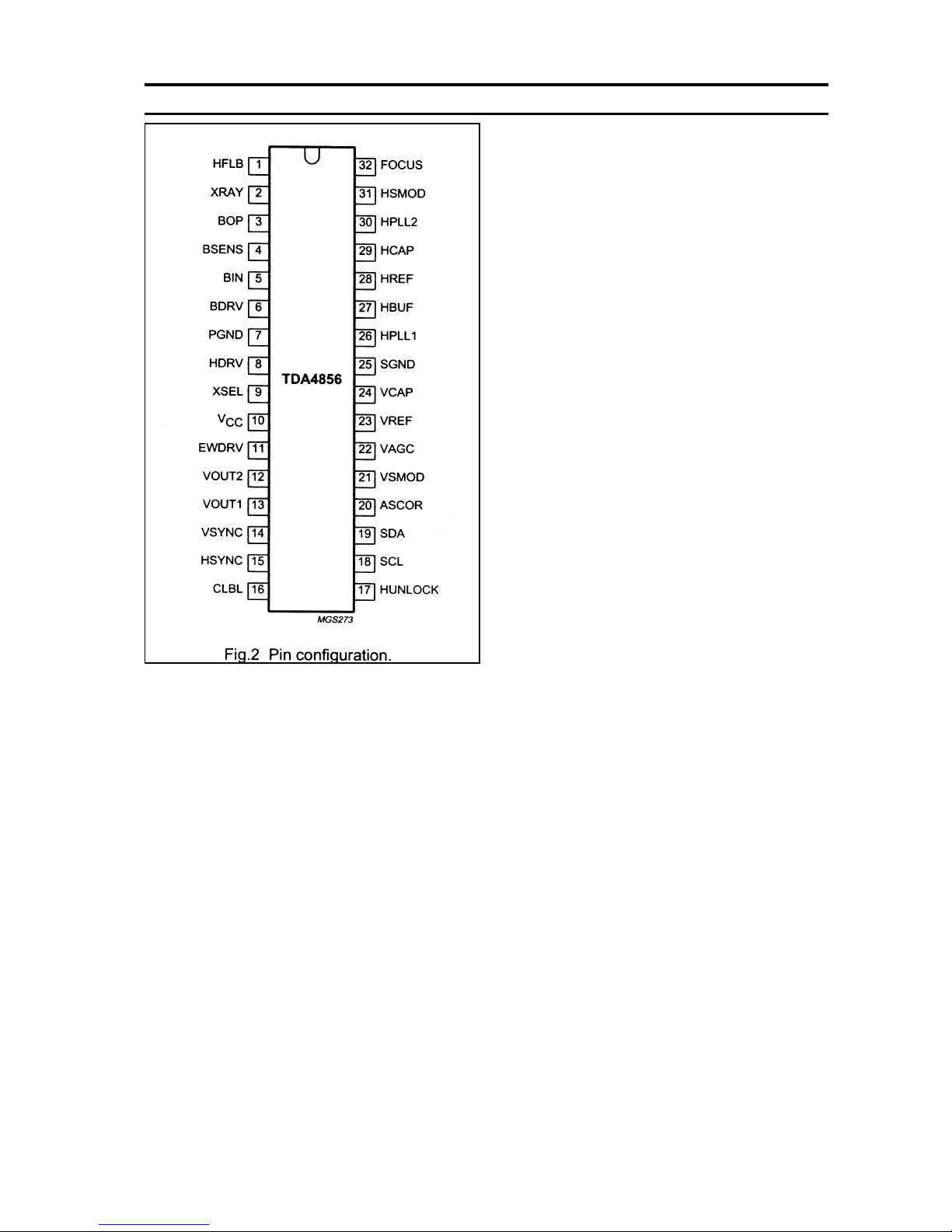

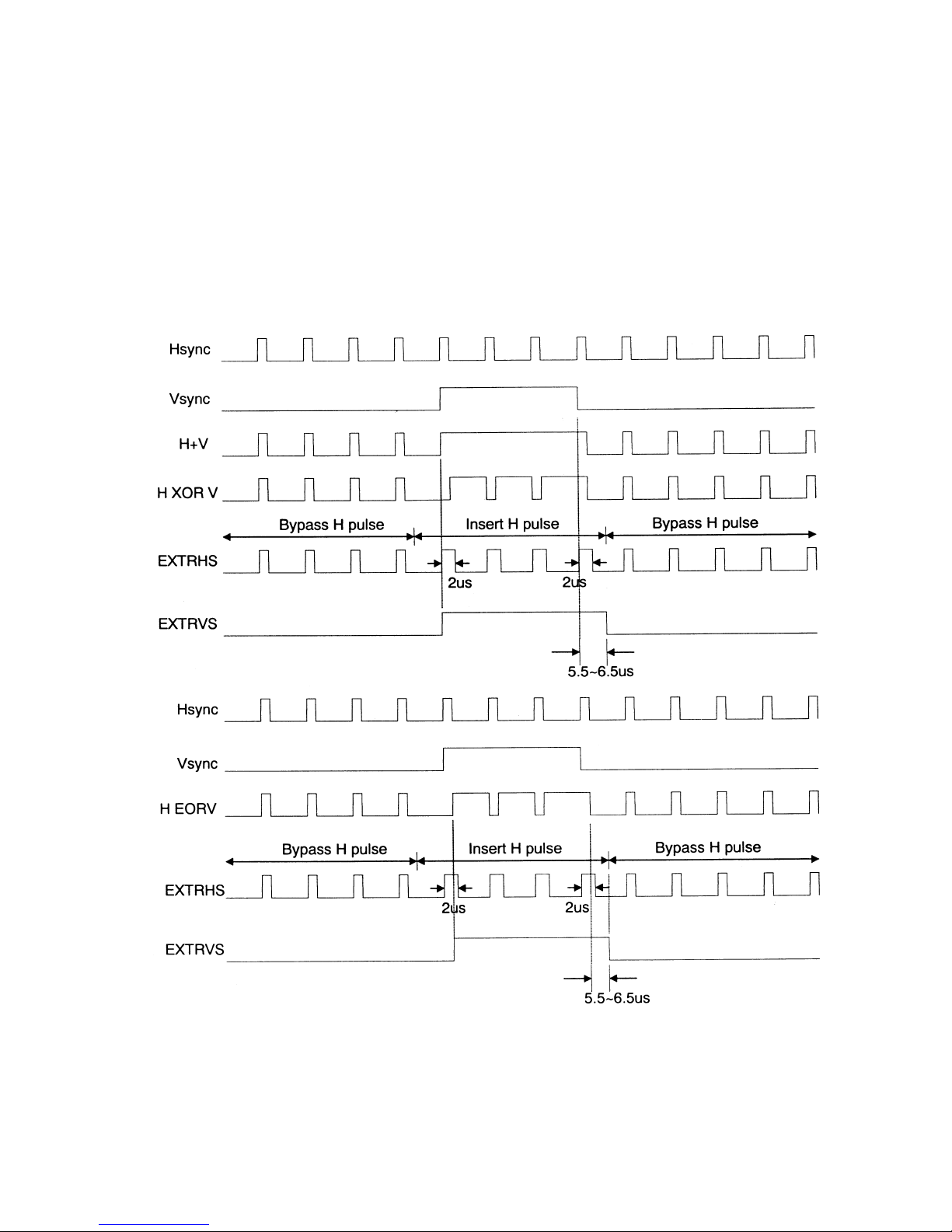

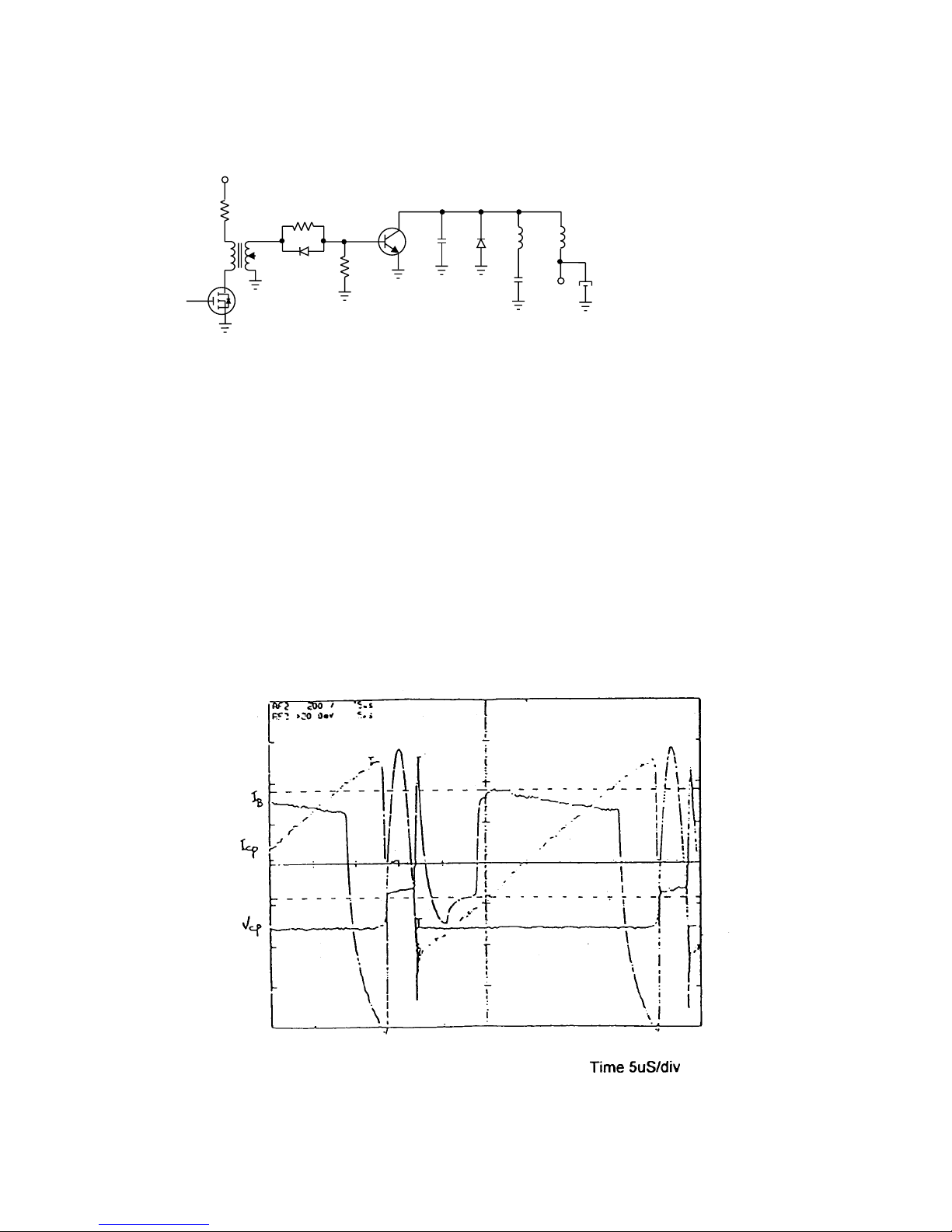

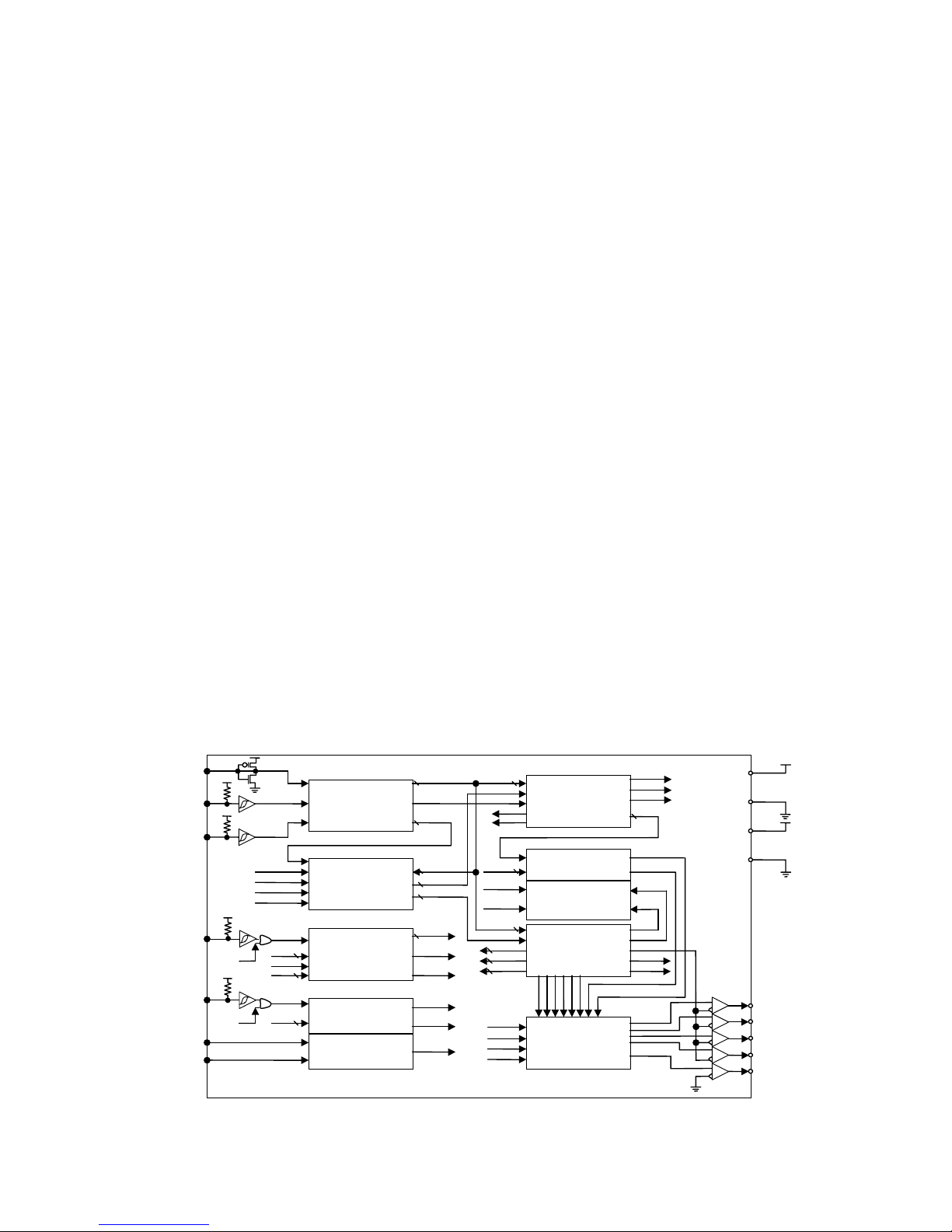

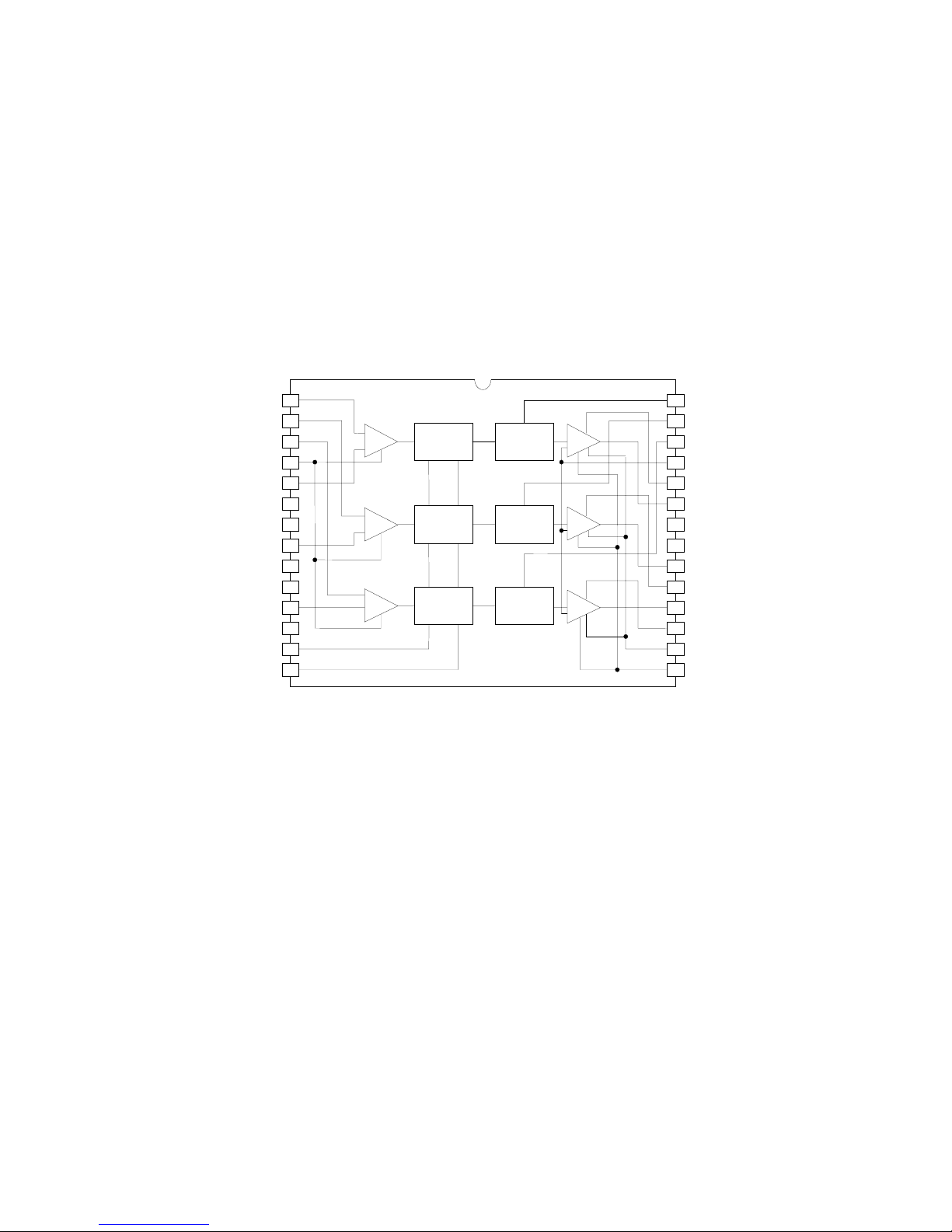

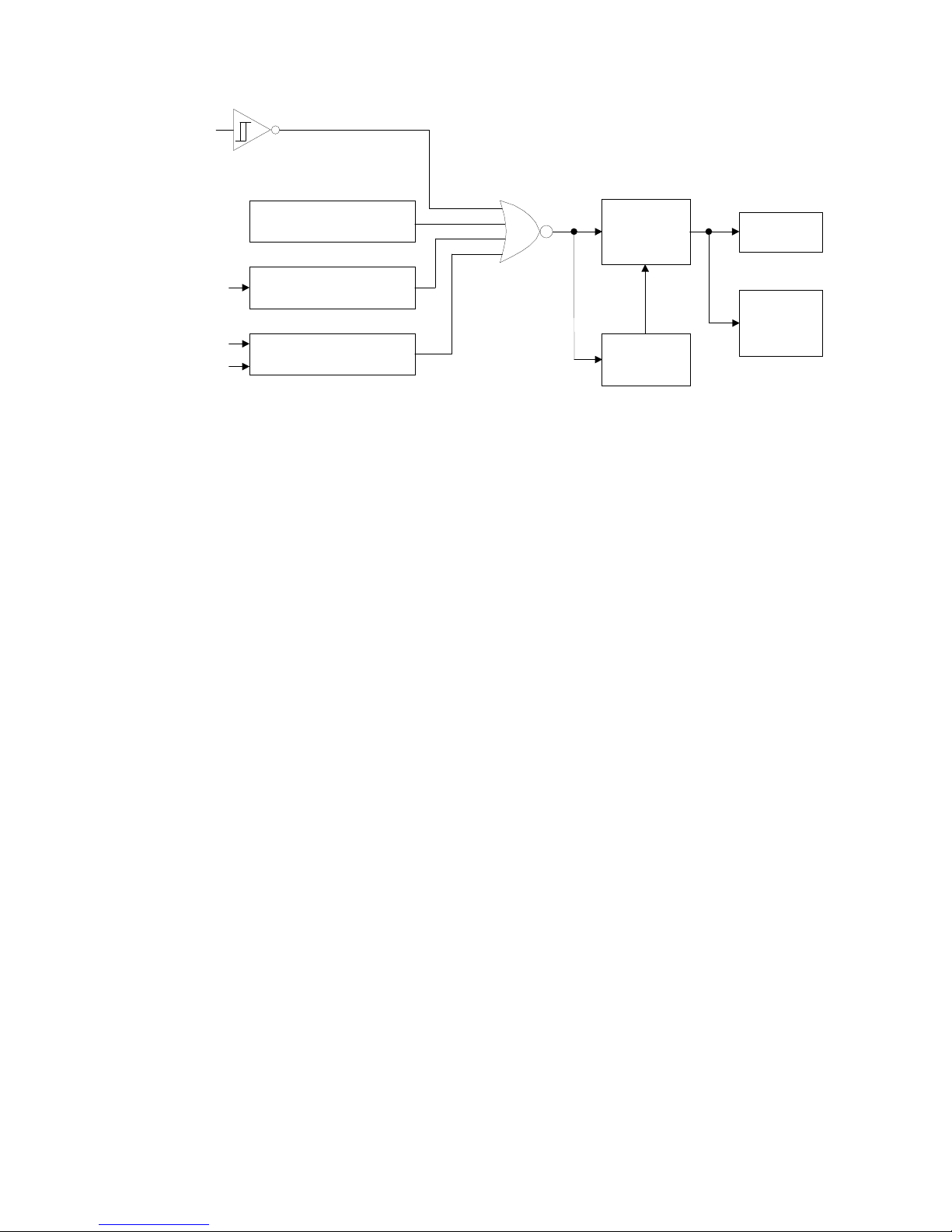

CIRCUIT DESCRIPTION...................................................................................................... 37

REPLACEMENT PARTS LIST.............................................................................................. 80

BLOCK DIAGRAMS.............................................................................................................. 98

Precautions

Follow these safety and servicing precautions to prevent damage and to protect against potential hazards such as electrical shock and X-rays.

1.1 Safety Precautions

1-1-1 Warnings

1. For safety purpose, do not attempt to modify the circuit board, and always disconnect the AC power before performing servicing on the monitor.

2. Operation of the monitor outside its cabinet or with the cover removed involves the risk of shock hazard. Repair work on the monitor should only be attempted by service personnel who are thoroughly familiar with all necessary safety precautions and procedures for working on high voltage equipment.

3. Do not lift the CRT by the neck. After completely discharging the high voltage anode, handle the CRT only when wearing shatterproof goggles. Try to keep the CRT away from the body during handling.

4. High voltage should always be kept at the rated value, no higher. Only when high voltage is excessive are X-rays capable of penetrating the shell of the CRT. Operation at high voltages may also cause failure of the CRT or high voltage circuitry.

5. The CRT is especially constructed to limit X-ray emission to 0.5mR/HR at 300 microamperes anode current. To ensure continued X-ray protection, replace the CRT with only the same or equivalent type as the original, and adjust the anode’s voltage to the designated maximum rating, never to exceed.

1-1-2 Safety Checks

Before returning the monitor to the user, perform the following safety checks:

1. Inspect to make certain that each lead dress is not pinched or that hardware is not lodged between the chassis and other metal parts in the monitor.

2. Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.

3. AC Leakage Current Check Always perform the AC Leakage Current Check on the exposed metal parts, including metal cabinets, screwheads and control shafts, as follows: a) Plug the AC line cord directly into a rated AC outlet. Do not use an isolation transformer during the

check.

b) Use an AC voltmeter with at least 5000 ohms per volt sensitivity as follows:

Connect a 1500 ohms, 10 watt resistor paralleled by a 0.15uF AC capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduct or electrical ground connected to earth ground, as shown in the Figure 1-1. Measure the AC voltage across the combination of resistor and capacitor.

1

0.15ufd

1500 ohm 10 watt

To exposed metal

Cabinet part

To known

Earth ground

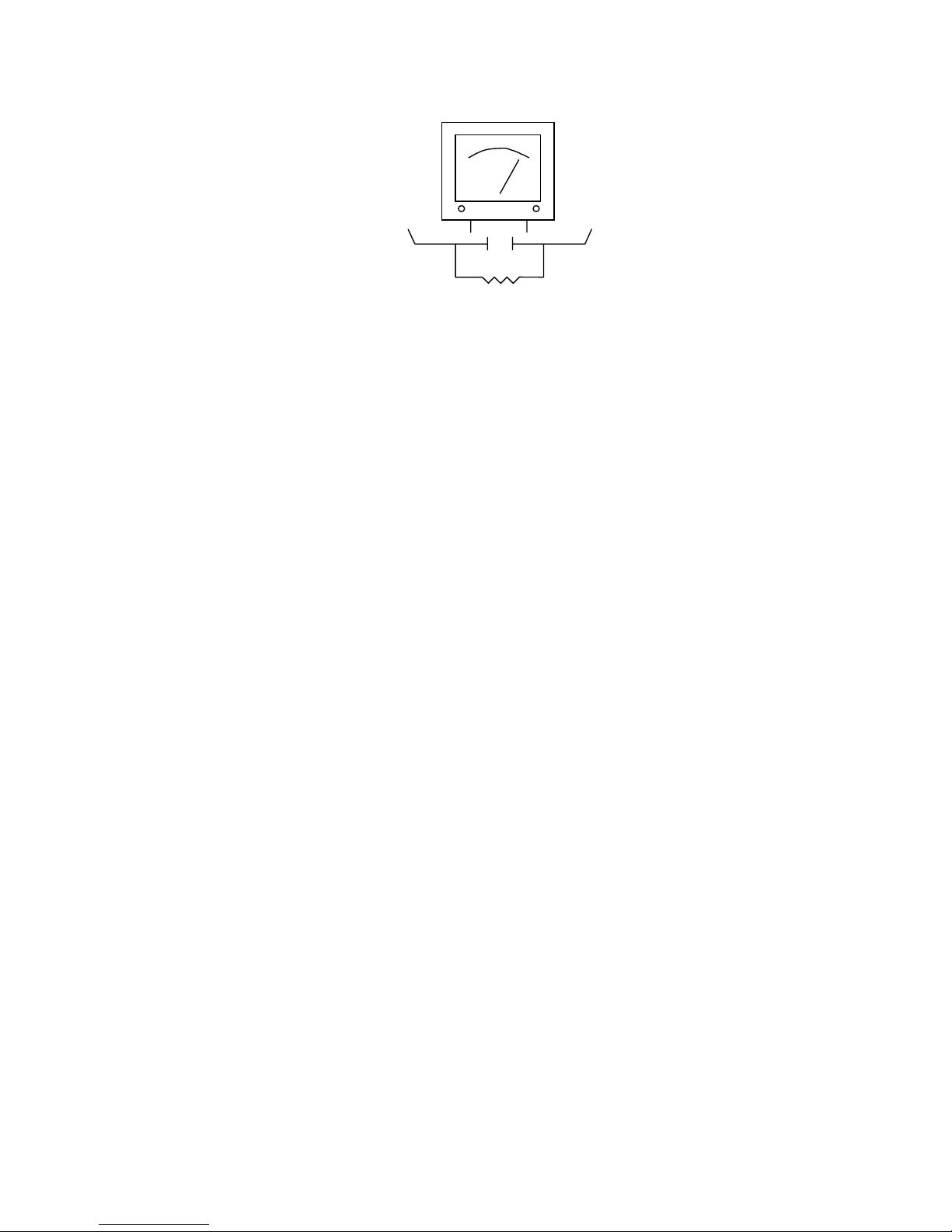

Figure 1-1. Set Up For AC Leakage Current Check

c) Reverse the AC plug at the AC outlet and repeat the steps for AC voltage measurements for each

exposed metal part.

d) Voltage reading must not exceed 0.3 volts RMS, equivalent to 0.2 milliampere AC. Any value ex-

ceeding this limits ill constitute a potential shock hazard and must be corrected immediately

1-1-1 Product Safety Notices

Many electrical and mechanical parts in this chassis have special safety-related characteristics which are often not evident from visual inspection. The protection afforded by them may not be obtained by replacing them with components rated for higher voltage, wattage, etc. Before replacing any of these components, consult the Recommended Spare Parts List given at the end of this manual. Any of the replacements that do not provide the same safety characteristics may result in shock, fire, X-ray emission or other hazards.

1.2 Servicing Precautions

Warning: An electrolytic capacitor installed with the wrong polarity might explode.

Caution: Before performing servicing covered by this service manual, read and follow the Safety Precau-

tions section of this manual.

Note: If unforeseen conflict between the following servicing precautions and of the safety precautions,

always follow the safety precautions

1. Follow closely the servicing precautions printed on the monitor cabinet and chassis.

2. Always unplug the AC power cord from the AC power source before removing or installing any component or assembly, disconnection PCB plugs or connectors and connecting a test component in parallel with a capacitor.

3. When replacing parts or circuit boards, clamp the lead wires around the unit before soldering.

4. When replacing a high wattage resistor (>0.5W metal oxide film resistor) in the circuit board, keep the resistor about 1 cm (1/2 inch) away from the circuit board.

5. Keep wires away from the high voltage or high temperature components.

6. Keep wires in their original positions so as to minimize interference.

7. Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; always remove the instrument’s ground lead last.

2

Monitor

Specifications

MultiSync 75F AccuSync 75F

Notes

Picture Tube

Diagonal:

Viewable Image Size:

43cm(17inch) 41cm(16inch)

90° deflection, 0.25mm trio dot pitch, medium short persistence phosphor, multi-layered, anti- static screen coating, semi-tint screen, Invar Shadow Mask and OptiClear screen.

(

AS75F: 0.24-0.28 mm variable(diagonal) flat dot pitch, 0.20-0.25 mm variable(horizontal) flat dot pitch.)

Input Signal Video:

Sync:

ANALOG 0.7Vp-p/75 Ohms Separate sync. TTL Level Horizontal sync. Positive/ Negative Vertical sync. Positive/Negative (MS75F: Composite sync. (Positive/Negative) (TTL Level)

Display Colors Analog input: Unlimited number of Colors Depends on display card used.

Synchronization Range

Horizontal:

Vertical:

31 kHz to 70 kHz 55 Hz to 120 Hz

Automatically Automatically

Resolutions Supported Resolution based on horizontal and vertical frequencies only

640 × 480 @ 60 to 120 Hz 800 × 600 @ 55 to 110 Hz 832 × 624 @ 55 to 106 Hz 1024 × 768 @ 55 to 87 Hz …… 1152 × 870 @ 55 to 77 Hz 1280 × 1024 @ 55 to 66 Hz

Some systems may not support all modes listed.

NEC-Mitsubishi Electronics Display cites recommended resolution at 85 Hz for optimal display performance.

Active Display Area

(

Factory Settin

g)

Horizontal:

Vertical:

310 mm/12.2 inches 232 mm/9.1 inches

Dependent upon signal timing used, and does not include border area.

Active Display Area (Full Scan)

325 mm/12.8 inches 243 mm/9.6 inches

Dependent upon signal timing used, and does not include border area.

Power Supply AC 100 - 240V, 50 - 60Hz

Current Rating 1.5A @ 100 - 240V

Dimensions 403(W) × 420(H) × 420(D) mm

15.9(W)

16.5(H)

16.5(D) inches

Weight (Net) 16.4 kg

36.8 lbs

Environmental Considerations

Operating Temperature:

Humidity:

Altitude:

Storage Temperature:

Humidity:

Altitude:

0° C to + 35° C 30% to 80% 0 to 3000 m

-20° C to + 60° C 10% to 90% 0 to 13700 m

Specifications

NOTE: Technical specifications are subject to change without notice.

3

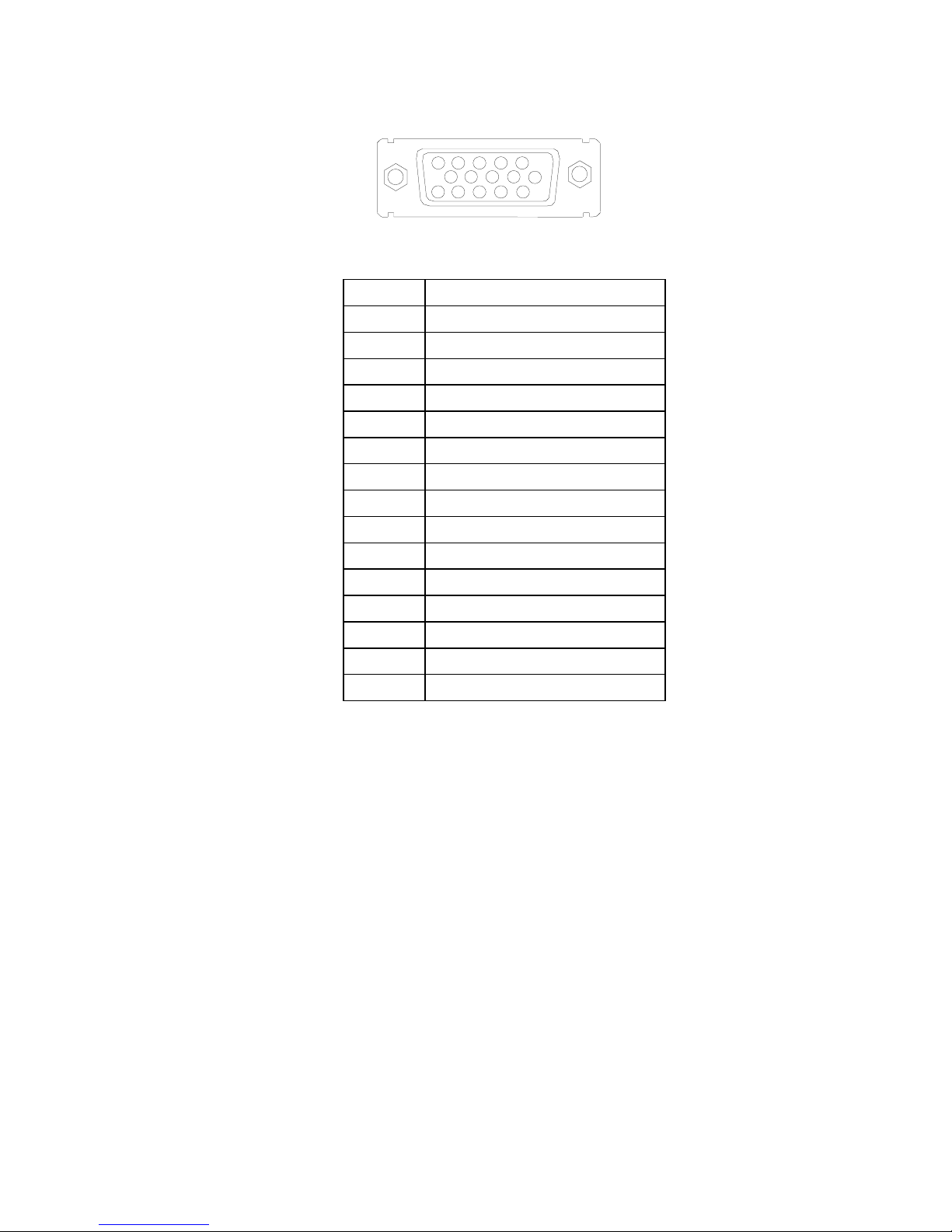

PIN ASSIGNMENT

1 2 3 4 5

6 7 8 9

10

11 12 13 14

15

PIN NO. Mini D-SUB-15P

1RED 2 GREEN 3BLUE 4 GROUND 5 GROUND 6 RED GROUND 7 GREEN GROUND 8 BLUE GROUND

9+5V in 10 GROUND 11 GROUND 12 SDA 13 H.SYNC. 14 V.SYNC. 15 SCL

4

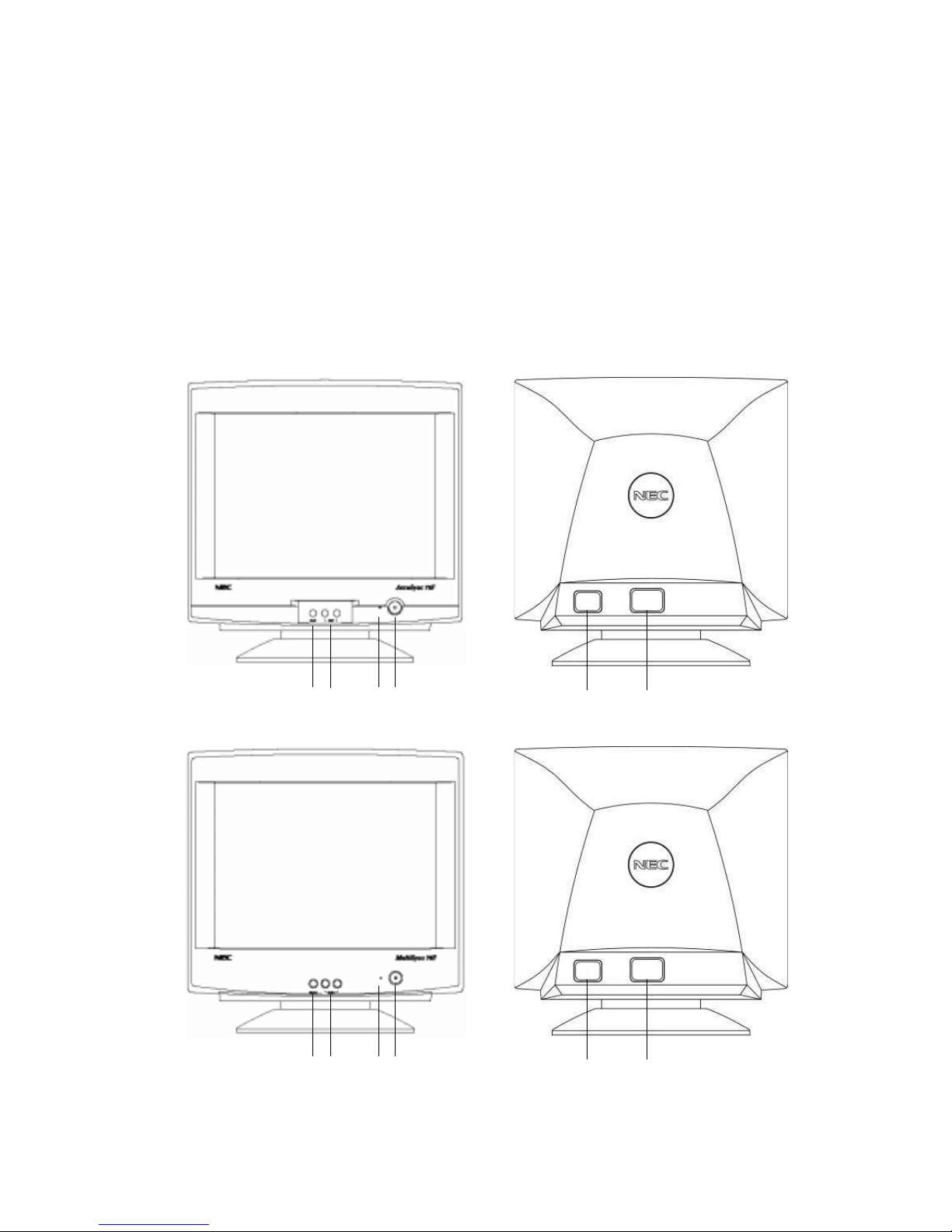

CONTROLS

 ”SELECT”: To display OSM windows, mode changes, or activate the degaussing or OSM window

color selection.

 CONTROL BUTTON (-,+): Without OSM — Adjust the contrast.

With OSM — Select icon and adjust.

 ”RESET”: Return the adjustment item to the factory setting.  Power indicator LED: The LED indicate Power management state.  POWER SWITCH: Push/push to turn the monitor on and off.  Power input: To connect with the power cord.  Signal input with the captive cable: To connect with personal computers’ analogue RGB output.

5



 

 



 

 

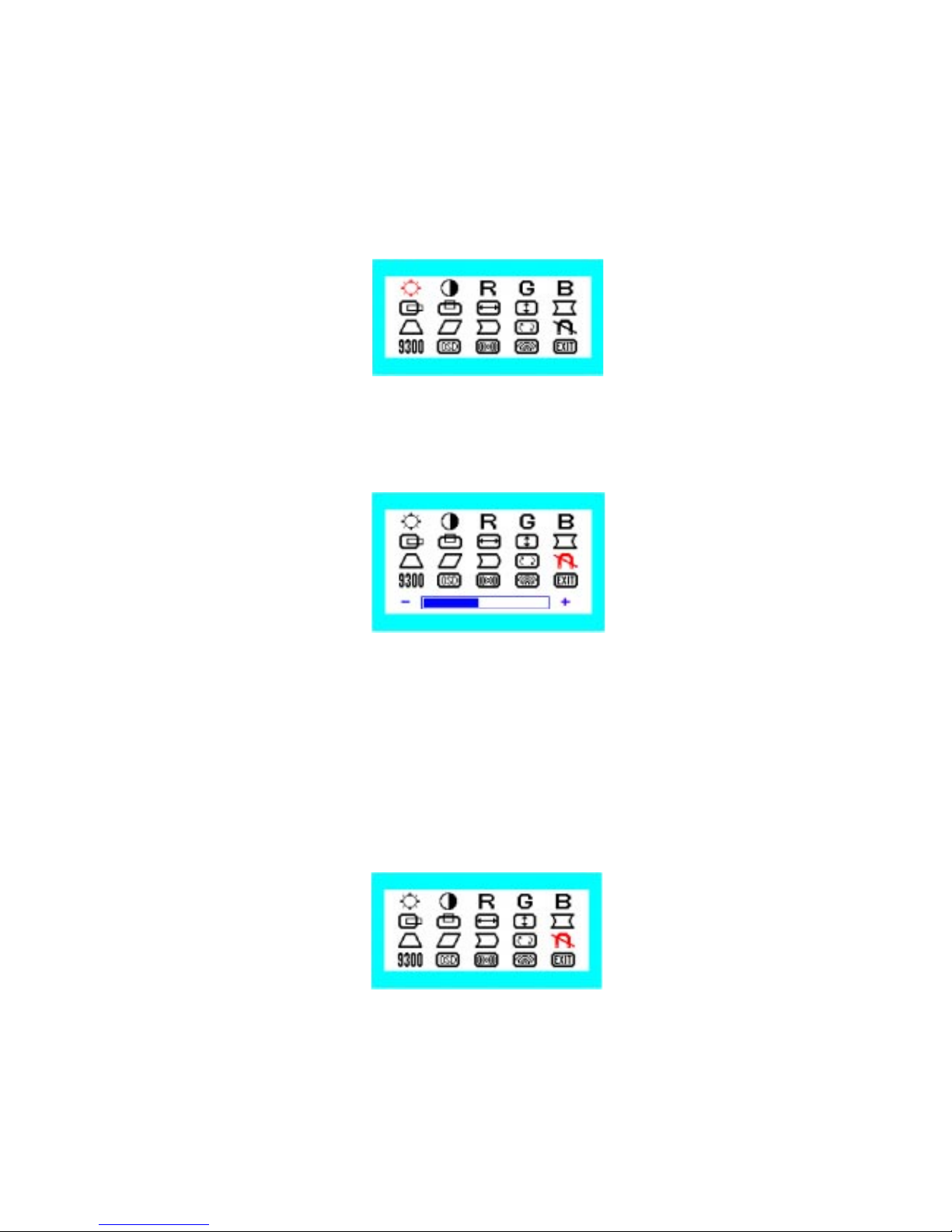

OSD OPERATION

l FUNCTION VALUE ADJUSTMENT

If OSD off, press UP key to increase Contrast value,

press DOWN key to decrease Contrast value. press SELECT key to display OSD and Brightness icon is active (Fig. 1)

Press UP key or DOWN key to select icon right or left and the selected icon display red color If selected icon is DAC out, press SELECT key will display DAC value bar (fig 2)

User can press UP key or DOWN key to adjust DAC value. Press SELECT key to close DAV value bar and UP key or DOWN key to select the other icon.

l SPECIAL FUNCTION OPERATION

1. Degauss Active If selected icon is degauss icon, press SELECT key to activate degauss (Fig. 3).

Fig. 1

Fig. 2

Fig. 3

6

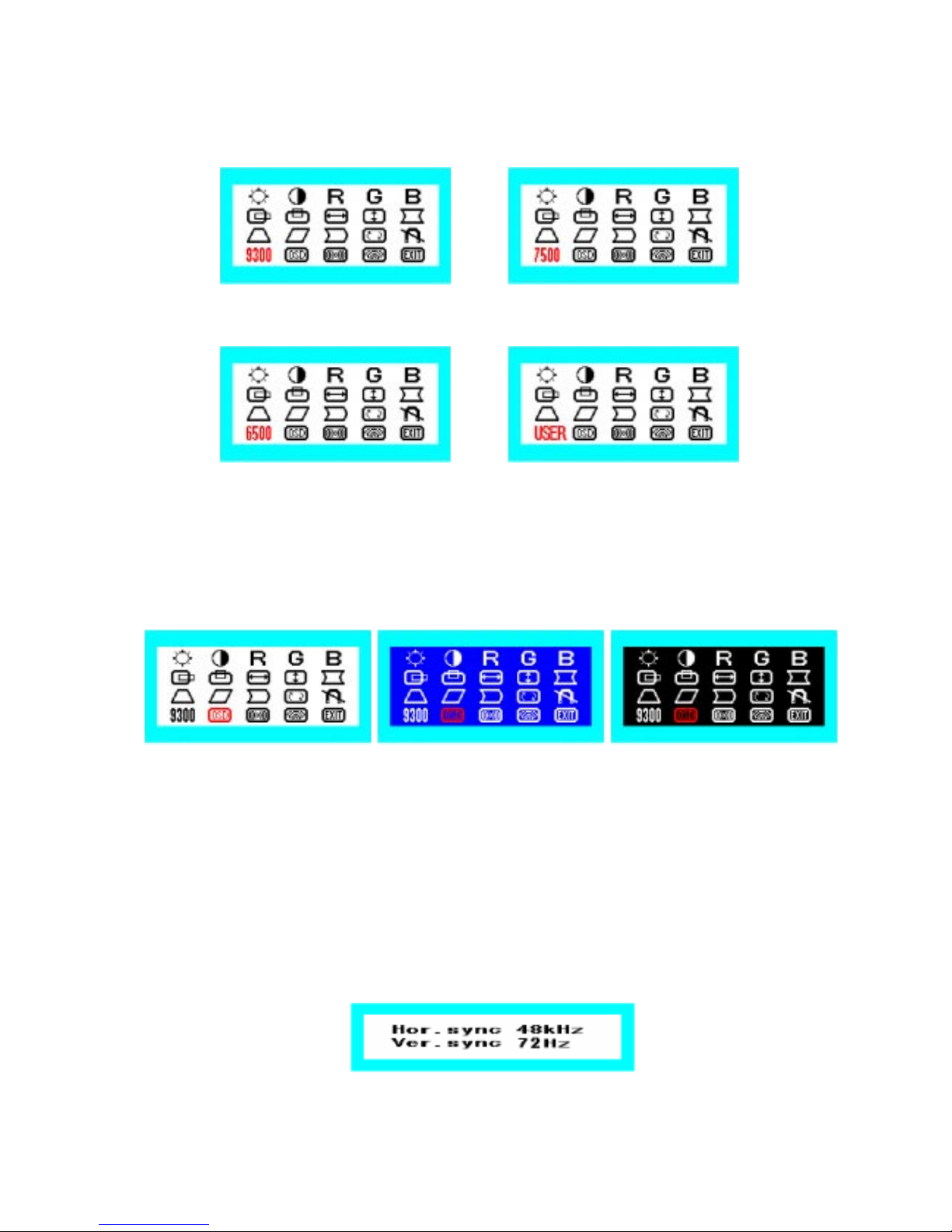

2. Color Temperature Select

If selected icon is 9300/7500/6500/user color icon, press SELECT key to select Color Temperature for 9300, 7500, 6500 or user defined (Fig 4 – 7).

3. OSD Color Select

If OSD icon is selected, press SELECT key to change OSD color, there are three kinds of OSD color can be selected (Fig. 8 – 10).

Background white blue black Action icon red red red Normal icon black white white Value bar blue yellow green

4. SYNC OSD Display

If EXIT icon is selected, press SELECT key to close OSD menu and then display sync information for 2 sec. This sync information will not be close until release SELECT key (Fig. 11).

Fig. 4 Fig. 5

Fig. 6 Fig. 7

Fig. 8 Fig.9 Fig. 10

Fig. 11

7

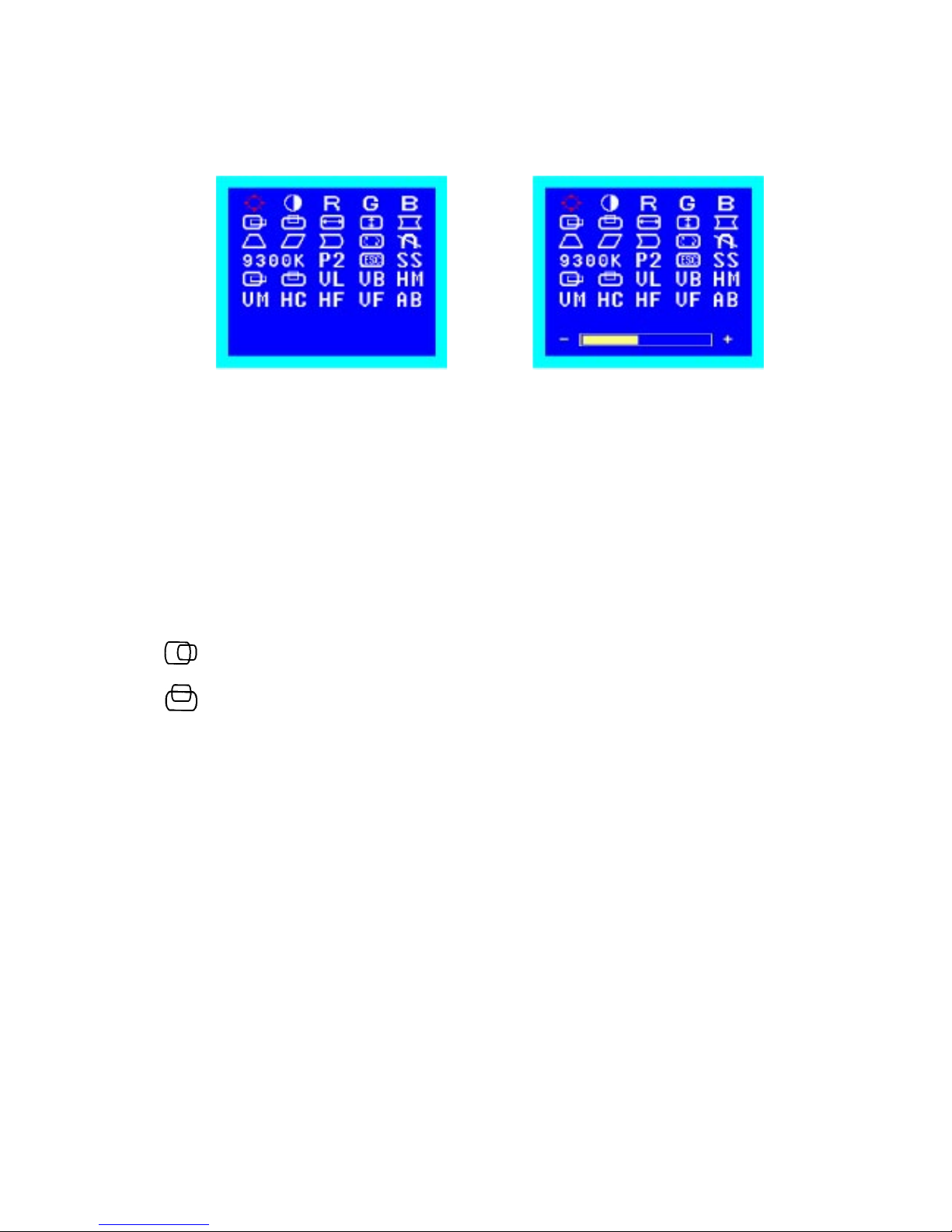

5. Factory mode

Press SELECT key + UP key and power on, system enter factory mode. OSD will display “FA” to indicate in factory mode (Fig. 12 – 13).

Operation of factory mode is same as normal mode except below 2 condition: a. Adjustment value is saved to user and factory area. b. R, G, B value are saved to current color temperature.

P2 Self Test Pattern Select

P1: Full White Pattern P2: Cross Hatch Pattern NP: No Pattern (Power Saving)

SS Sub Size Do not adjust.

OSD Position H

OSD Position V

VL Vertical Linearity IN

↔↔

↔ OUT

VB Vertical Linearity Balance Top

↔↔

↔Bottom

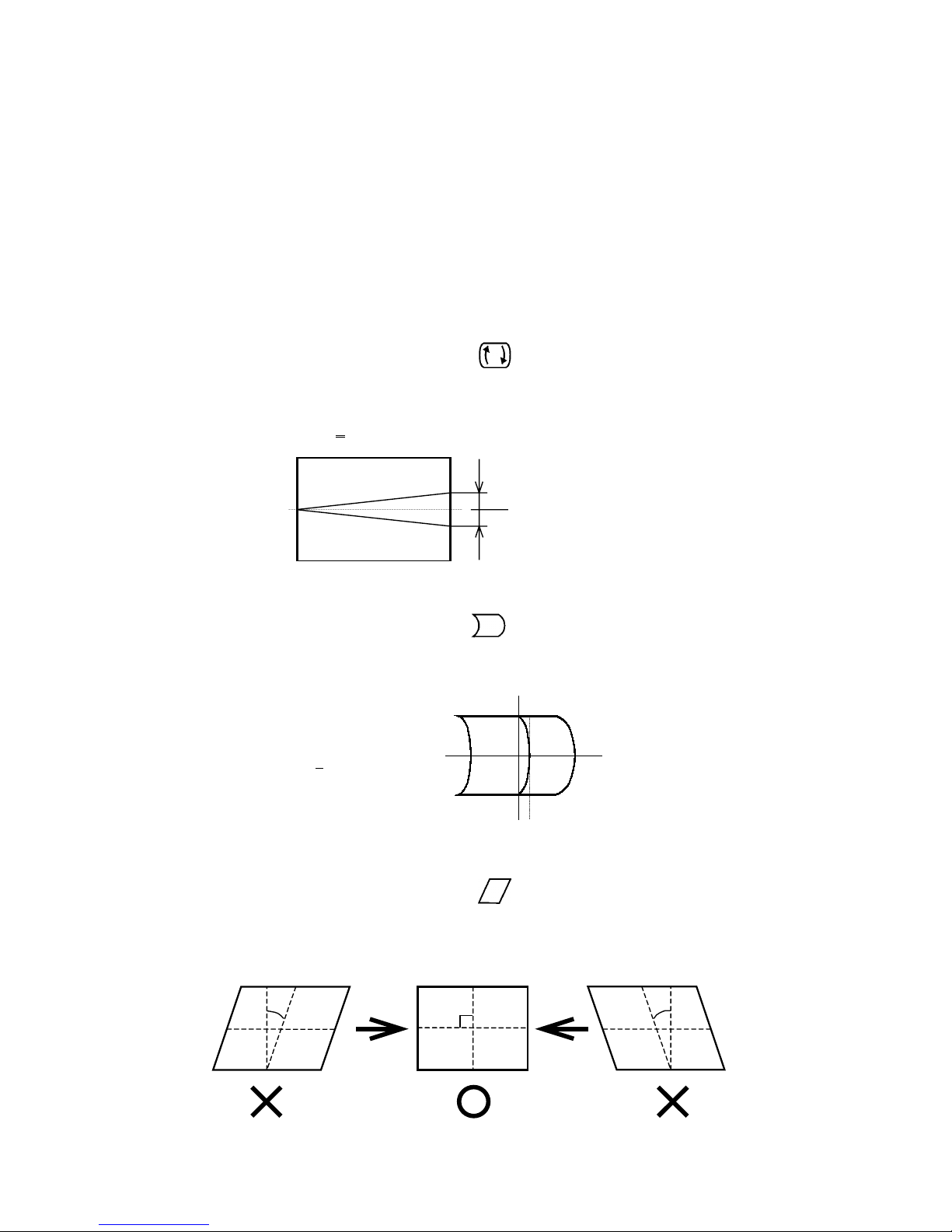

HM Horizontal Moire: Minimum VM Vertical Moire: Minimum HC Side Pin Corner HF Horizontal Dynamic Focus: Min VF Vertical Dynamic Focus: Max AB ABL Adjustment

8

Fig. 12 Fig. 13

Function explanation

OSD(On-screen Display) control buttons on the front of the monitor function as follows:

SELECT Enters and exits the OSD menu.

− / +− / +

− / + Selects one of the controls and increases or decreases the adjustment.

RESET Resets the highlighted control to the factory Setting.

Press -/+button at the same time for approximately 1 sec.

Brightness: Adjusts the overall image and background screen brightness.

Contrast: Adjusts the image brightness in relation to the background.

(Contrast control is also effective with “-, +” button even through OSD window is not visible.)

R Red Color Control: Adjust the red contrast of the display. G Green Color Control: Adjust the green contrast of the display. B Blue Color Control: Adjust the blue contrast of the display.

Horizontal position: Moves the image horizontally left or right.

Vertical position: Moves the image vertically up or down.

Horizontal size: Decreases or increases the horizontal size of the image.

Vertical size: Decreases or increases the vertical size of the image.

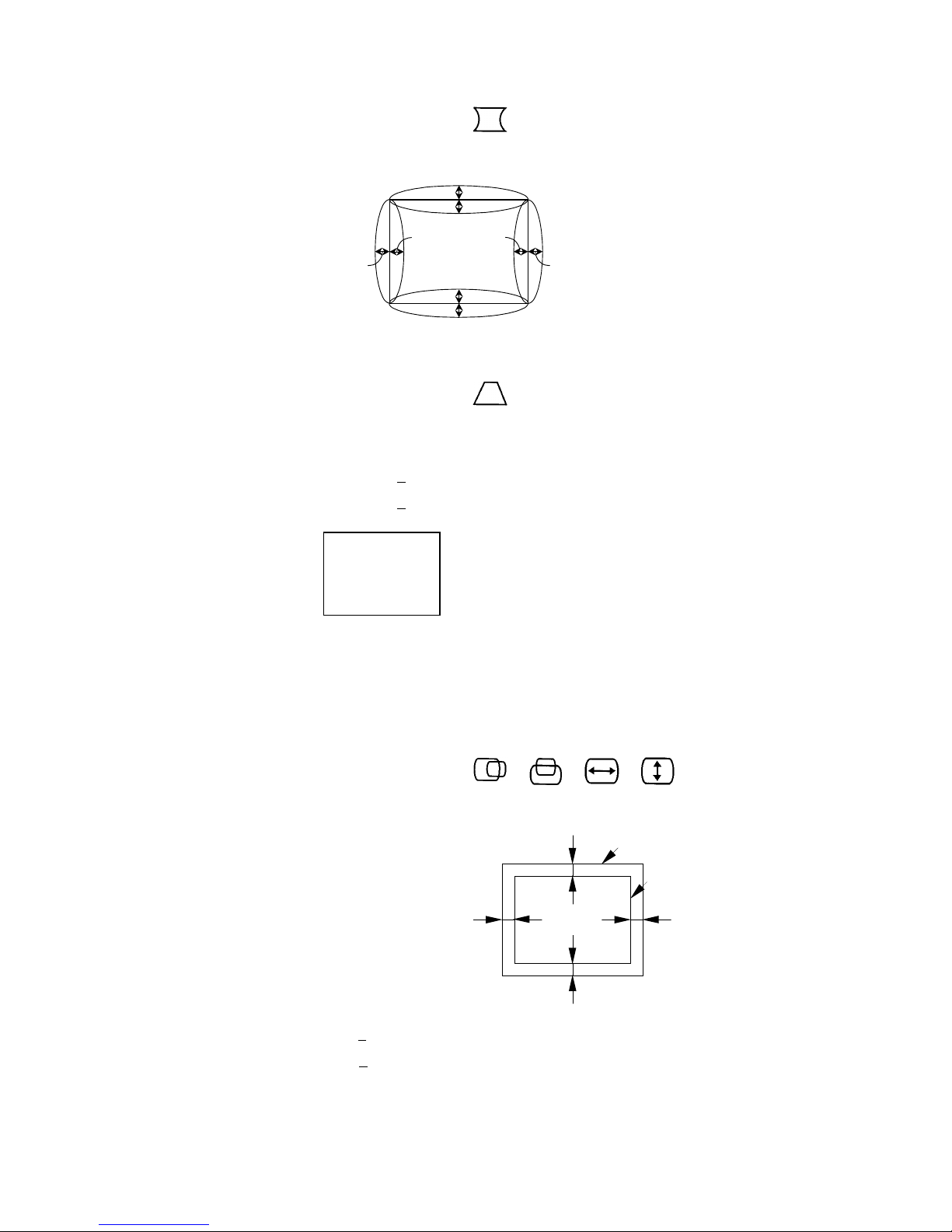

The Geometry controls allow you to adjust the curvature or angle of the sides of your display.

Pincushion/Barrel: Decreases or increases the curvature of the sides either inward or

outward.

Trapezoid: Decreases or increases the bottom of the screen to be the same as the top.

Parallelogram: Decreases or increases the tilt of the sides either to the left or right.

Bow (Pincushion Balance): Decreases or increases the curvature of the sides either left

or right.

Rotation: Rotate the image.

9

Degauss: Select the degauss icon on “Icon select window” and push “SELECT” button. It will eliminate the stray magnetic field and correct the scan of

the electron beam, which

affect the purity, focus, convergence.

Note: Allow a minimum interval of 20 minutes to elapse between uses of the degauss function.

9300K Color Temperature: Select the Color Temperature icon on “Icon Select Window” and

push “SELECT” button.

OSD: There are 3 background colors (Blue, Black, and white). These can be selected by “SELECT” button after the selection of “OSM” on “Icon select window”.

exit EXIT: To exit the OSM window. Select EXIT on “Icon select window”, then push “SELECT”

button. Note: If you do not push buttons within 10 seconds in OSD condition, the window will

automatically disappear.

Horizontal Moire Canceler: Reduces horizontal moire levels.

Vertical Moire Canceler: Reduces vertical moire levels.

10

SERIAL NUMBER INFORMATION

Refer to the serial number information shown below.

Ex.) SERIAL NUMBER LABEL

Manufactured Year : ( Last digit )

Manufactured Month : January to September 1 to 9 October X November Y December Z

Factory mark :

NPG CHINA “Y”

MODEL MS75F/AS75F

SERIAL No.

∗∗∗∗∗∗∗∗∗

00001 ~ on ward (Start from 00001 ~ when

month is changed.)

Control Code ··· J

1Y1X0000

11

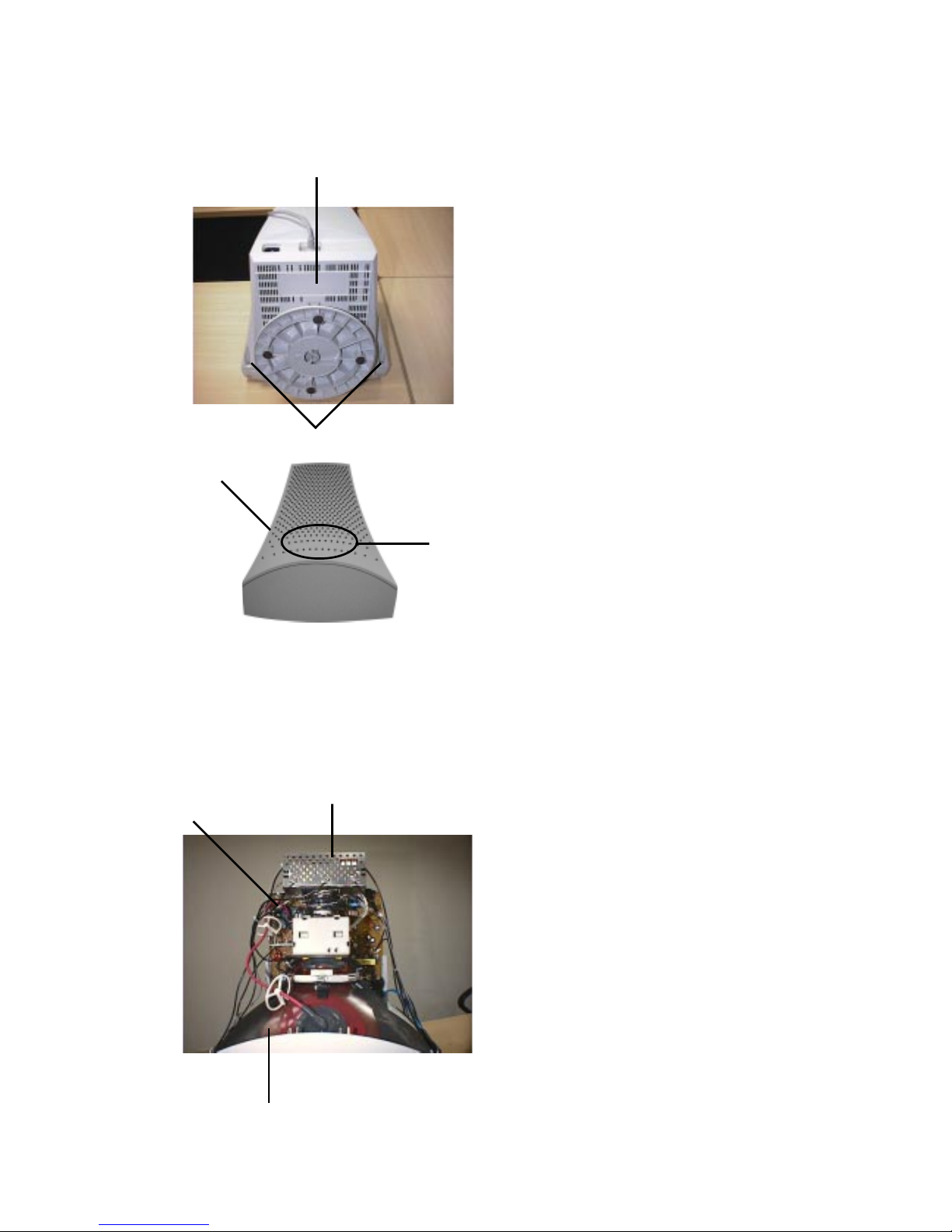

DISASSEMBLY

Cabinet Back

Hitting Position

Cabinet Back

Fig. 1

MAIN BOARD and CRT BOARD

12

Cabinet Back

Screw “b”

CRT BOARD ASSY

MAIN BOARD ASSY

CRT

1. Turn the monitor CRT face down on a clean static free surface to prevent scratching CRT face.

2. Remove the screw “b”.

3. Raise the signal cable vicinity of a cabinet back and lightly hit part (figure 1 reference) of a top of the cabinet back and remove the cabinet back.

1. Unsolder the GND wire from MAIN BOARD ASSY

2. Disconnect the connector “P201”, “P202”, “S204” and “S205” from the CRT BOARD ASSY

3. Disconnect the CRT BOARD ASSY from the CRT

4. Disconnect the connector “S301” and “P102” from the MAIN BOARD ASSY.

5. Remove the Anode Cap from the CRT.

NOTE:

Carefully discharge the CRT anode by shorting it to ground before removing Anode Cap.

6. Lift up the MAIN BOARD ASSY from the Cabinet Front ASSY.

TABLE OF CONTENTS

Page

(1) Adjustment & Inspection Tools ......................................................................................................... 14

(2) Timing Table ..................................................................................................................................... 14

(3) Definition for Normal Condition ........................................................................................................ 14

(4) Hot Key Operation............................................................................................................................ 14

(5) B+ Adjustment .................................................................................................................................. 15

(6) X-ray Test ......................................................................................................................................... 15

(7) H.V. B+ Adjustment.......................................................................................................................... 15

(8) H-Raster Center Adjustment ............................................................................................................ 15

(9) Pre-Adjustment................................................................................................................................. 15

(10) White Balance Adjustment ............................................................................................................. 15

(A) Setting........................................................................................................................................... 15

(B) Cut Off Adjustment........................................................................................................................ 16

(C) White Balance Adjustment (Factory Auto Adjustment) ................................................................ 16

(D) “sRGB MODE” White Balance Adjustment .................................................................................. 16

(11) Convergence Adjust ....................................................................................................................... 16

(12) Power Saving Function Inspection.................................................................................................16

(13) Geometry Adjustment..................................................................................................................... 17

(14) DDC 1/2B Writing and Inspection .................................................................................................. 17

(15) Setting Before Shipment ................................................................................................................ 18

(16) Adjustment Magnetic Field............................................................................................................. 18

(17) Timing Sheet .................................................................................................................................. 19

Reference

Distortion Adjustment............................................................................................................................. 23

Inspection of PnP communication and Writing EDID to EEPROM and inspection of PnP communication

............................................................................................................................................................... 26

ADJUSTMENT SPECIFICATIONS

13

AS75F/MS75F Adjustment Specifications Ver. 1.0

2001,10,3

(1) Adjustment & Inspection Tools:

(A) Color Analyzer (B) Signal Generator CHAROMA 2135 (C) Multi Meter (D) Hi-Voltage Probe (E) Convergence Meter (F) Demagnetizer Probe (G) Power Meter (H) Automatic Alignment System (I) DDC write & inspection system

(2) TIMING TABLE(Factory Mode -20 MODES)

(3) Definition for Normal Condition

(A) Input AC Voltage 110V/60HZ. (B) Warm up time minimum30 minutes.

(C) Full White Pattern. See (4)-(C) Aging Mode. (D) ALL VR’s Adjust Center Position. (E) Color temperature setting: 9300K (F) OSD I-CON [R], [G], [B] gain control bar center position in Factory Mode

(4) Hot Key Operation

(A) Factory Mode: SELECT Key + UP (+) Key if pressed when the power SW on.

(OSD Position Control Mode is in Factory Mode Menu)

(B) Auto Alignment mode and DDC 2B Writing/Inspection Mode: Down (-) Key if pressed when

the power SW on.

MODE RESOLUTION H-SYNC EREQ. V-SYNC FREQ H . POLARITY V . POLARITY

1 VGA350 31.5KHz 70Hz + 2 VGA400 31.5kHz 70Hz - + 3 VGA480 31.5KHz 60Hz - 4MAC¢º35K 35.0KHz 66Hz - 5 800*600(56) 35.2KHz 56Hz + + 6 8514A 35.5KHz 87Hz + + 7 640*480(75) 37.5KHz 75Hz - 8 EVGA400 37.8KHz 84Hz - +

9 800*600(60) 37.8KHz 60Hz + + 10 640*480 43.3KHz 85Hz - 11 800*600(75) 46.8KHz 75Hz + + 12 1024*768(60) 48.3KHz 60Hz - 13 MAC¢º49K 49.7KHz 74Hz - 14 800*600(85) 53.6KHz 85Hz + + 15 1024*768(70) 56.4KHz 70Hz - 16 1024*768(75) 60.0KHz 75Hz + + 17 640*480(120) 63.7KHz 120Hz - 18 1280*1024(60) 64.0KHz 60Hz + + 19 800*600(100) 64.0KHz 100Hz + + 20 1024*768(85) 68.6KHz 85Hz + +

14

(C) Auto Function Test Mode : UP (+) Key if pressed when the power SW on.

Mode 1: Out put the maximum and minimum value of DAC for each control if the video signal comes in.

Mode 2: Out put the Cross Hatch Pattern for 1 munites if the Signal Cable is not connected

(5) B+ Adjustment

(A) MODE: No. 12. (B) Pattern: Full white. (Brightness just cut off) (C) Adjust VR101 to make the cathode of D112 has 13.6V.

(D) Check other power source should be 82

+ 2V, 6.2V + 0.3V, 49V + 1.5V, -11.5V + 0.5V.

(6) X-RAY Test

(A) Mode: No.12 (B) Pattern: Normal Crosshatch (Brightness just cut off) (C) Test

Apply a resistor(39K, 1/4W, 1%) between TP1 and TP2 then power on, Monitor should be active in X-Ray protector.

(7) H. V. Confirmation

(A) Mode: No. 12 (B) Pattern: Full Black (Brightness just cut off)

(C) Check the high voltage is 25.5

+ 0.5kV.

(8) H-Raster Center Adjustment

(A) Mode: No. 18 (B) Pattern: Crosshatch Reverse (C) Adjust the Brightness Control that the background can be visible.

(D) Change VR301 to make the back ground should be center off the CRT.

(9) Pre-Adjustment

(A) Mode: No. 12 (B) Pattern: Crosshatch (C) Enter to Factory mode. Adjust H-phase, V-center, H-size, V-size, Pincushion, Trapezoid,

Bow, Parallelogram and rotation to make Picture Position Center and Picture Size 310*232mm.

(10)White Balance Adjustment

(A) Setting

Enter Factory Mode, Mode: No. 12, Pattern: Full White. Warm up 30 min. Make External Degauss. For SRGB adjust, please change mode to No.20.

15

(B) Cut Off Adjustment

1. Select the color Mode 9300K

2. Cut Off Adjustment: Video Signal Off (0.vp-p), Bright Control set to Mex., Adjust the G2, at the Brightness 1~1.5FL. (3.4~5.1 cd/m2)

3. Adjust VR210, VR230 and VR250 to make X=283, Y=297, with readjusting G2 to keep the brightness between 1~1.5FL (3.4~5.1 cd/m2).

(C) White Balance Adjustment (Factory Auto Adjustment)

1.9300K (Select the color Mode 9300K)

1) 50*50mm Green block Pattern, Brightness Control set to Max, Contrast Control set

to Max, Adjust [G] gain control to Y=45FL. (154 cd/m2)

2) Change Pattern to Full White, Brightness control set to Min.

3) Adjust [R] gain control, [B] gain control to X=283, Y=297 at the contrast control is

adjusted 15FL (52cd/m2).

4) Check the color tracking shall be X=283

+15, Y=297+15 between Y=5~25FT-L

(17~86cd/m2) condition.

2.7500K (Select the color Mode 7500K)

1) 50*50mm Green block Pattern, Brightness Control set to Max, Contrast Control set

to Max, Adjust [G] gain control to Y=42FL. (144 cd/m2)

2) Change Pattern to Full White, Brightness control set to Min.

3) Adjust [R] gain control, [B] gain control to X=300, Y=315 at the contrast control is

adjusted 15FL (52cd/m2).

3. Maximum Brightness Adjustment for 9300K and 7500K mode

1) Select 9300K mode.

2) Brightness control set to Max., Contrast control set to Max.

3) Adjust “AB” in Factory mode to Y=31FL (105cd/m2).

(D) “sRGB MODE” White Balance Adjustment (Select the color Mode sRGB)

1. Set “AB”(sRGB) to 150 counts of control bar. (Total 255)

2. Video Signal off (0 Vp-p), Contrast set to Max., Adjust Brightness to 0.1 cd/m2.

3. Change Pattern to 50*50 mm Green block, Adjust [G] gain control to Y=75 cd/m2 (22FL).

4. Change Pattern to 50*50 mm White block, Adjust [R] gain and [B] gain to X=313, Y=329.

5. Adjust contrast control to Y=88 cd/m2 (25.7FL).

(11) Convergence Adjust

(A) Mode: No. 12 (B) Pattern: Crosshatch. (C) Use the convergence meter to check whether the convergence is within spec.

Adjust the CPC Magnet to make the convergence within spec.

(12)Power Saving Function Inspection

(A) Mode: No. 12 (B) Pattern: Any Pattern

16

(C) Inspection

1. It should be into power off Mode when the both horizontal sync and vertical sync are disable after 4 sec. Check the LED color “Orange” and the power consumption must be less than 5W.

2. The picture should be recovered readable within 3 seconds when the both horizontal sync and vertical sync are enable. Check the LED color “Green”.

(13)Geometry Adjustment (Factory Auto Alignment)

(A) Power on with press (-) key. (B) Adjust H-size, V-size, H-phase, V-phase, Pincushion, and Trapezoid for all preset signals. (C) Adjustment data are automatically stored into the factory-preset memory after 1 sec.

Note: For the factory auto alignment, Mode No. 2, 3, 7, 9, 10, 11, 12, 14, 15, 16, 17, 19, 20 shall be adjusted. Other modes can be used the calculated average value.

(14)DDC 1/2B Writing and Inspection

(A) Power on with press (-) key. Any Mode, Any Pattern. (B) Connect the MICON Tech. DDC Read/Write System. (C) Scan bar code label and apply serial NO. to EDID Data.

17

EDID data Table

AS75F

0123456789ABCDEF

00 00 FF FF FF FF FF FF 00 38 A3 CF 5D 01 01 01 01 10 0A 0A 01 03 0C 21 18 78 EA 57 98 A4 52 46 97 24 20 11 48 4C FF EE 00 31 59 45 59 61 59 71 4A 81 40 30 01 01 01 01 01 01 EA 24 00 60 41 00 28 30 30 60 40 13 00 36 E8 10 00 00 1E 00 00 00 FD 00 37 78 1F 50 46 0B 00 0A 20 20 20 20 20 20 00 00 00 FC 00 41 60 63 63 75 53 79 6E 63 20 37 35 46 0A 00 00 00 FF 70 00 30 33 30 30 30 30 31 59 41 0A 20 20 20 00 3C

MS75F

0123456789ABCDEF

00 00 FF FF FF FF FF FF 00 38 A3 D1 5D 01 01 01 01 10 0A 0A 01 03 0C 21 18 78 EA 57 98 A4 52 46 97 24 20 11 48 4C FF EE 00 31 59 45 59 61 59 71 4A 81 40 30 01 01 01 01 01 01 EA 24 00 60 41 00 28 30 30 60 40 13 00 36 E8 10 00 00 1E 00 00 00 FD 00 37 78 1F 50 46 0B 00 0A 20 20 20 20 20 20 00 00 00 FC 00 4D 60 75 6C 74 69 53 79 6E 63 20 37 35 46 00 00 00 FF 70 00 30 33 30 30 30 30 31 59 41 0A 20 20 20 00 B5

Note: Week code, Year code, Serial No. depend on the Serial No. Label.

(15)Setting Before Shipment

Color Temp 9300K OSD Back Ground: Blue OSD Position: Center of the screen Contrast: Maximum Brightness: Preset H. V moire cancel function: Minimum Self test pattern: Cross Hatch Pattern for 1 munites, if the Signal Cable is not connected. (Select the “P2” in the “Factory Mode”)

(16)Adjustment Magnetic Field

Vertical: +40uT, Horizontal: +/-0uT(Neutral).

18

Preset Mode N o.

123456

Signal Nam e

VGA 350 VGA400 VGA480 MACII 800*600 8514/A

(35 K) (56 ) XGA

Resolution

640*350 640*400 640*480 640*480 800*600 1024*768

Dot Clock (MHz)

25.175 25.175 25.175 30.240 36.000 44.900

fh (kHz)

31.47 31.47 31.47 35.00 35.16 35.52

fv (Hz)

70.09 70.09 59.94 66.67 56.25 86.96

Total

(

dot

)

800 800 800 864 1024 1264

(uS)

31.78 31.78 31.78 28.57 28.44 28.15

Disp (dot)

640 640 640 640 800 1024

(uS)

25.42 25.42 25.42 21.16 22.22 22.81

Front (dot)

16 16 16 64 24 8

(uS)

0.64 0.64 0.64 2.12 0.67 0.18

S yn c Pu ls e (d o t)

96 96 96 64 72 176

(uS )

3.18 3.81 3.81 2.12 2.00 3.92

Back (dot)

48 48 48 96 128 56

(uS )

1.91 1.91 1.91 3.17 3.56 1.25

Total

(H)

449 449 525 525 625 408.5

(m S )

14.268 14.268 16.683 15.000 17.778 11.500

Disp (H)

350 400 480 480 600 384

(m S )

11.122 12.711 15.253 13.714 17.067 10.810

Front (H)

371210310

(m S )

1.176 0.381 0.318 0.086 0.028 0.000

Sync Pulse (H)

222324

(mS)

0.064 0.064 0.064 0.086 0.057 0.113

Back (H)

60 35 33 39 22 20

(mS)

1.907 1.112 1.049 1.114 0.626 0.563

Inte rla c e

NON NON NON NON NON YES

P ola rity (H /V )

POS/NEG NEG/POS NEG /NEG NEG/NEG POS/POS POS/POS

Com posite Sync

NEG

Com posite Video Character Font

7*9 7*9 7*9 7*9 7*9 7*9

Serration

OFF OFF OFF ON OFF OFF

EQP

OFF OFF OFF OFF OFF OFF

(17)TIMING SHEET

19

Rev1.0

Preset Mode N o.

789101112

Signal Nam e

640*480 EVG A400 800*600 640*480 800*600 10*7(60)

(75) (VESA) (60) (85) (75) (VESA)

Resolution

640*480 640*400 800*600 640*480 800*600 1024*768

Dot Clock (MHz)

31.500 31.5000 40.000 36.000 49.500 65.000

fh (kHz)

37.50 37.86 37.88 43.27 46.88 48.36

fv (Hz)

75.00 84.13 60.32 85.01 75.00 60.00

Total

(

dot

)

840 832 1056 832 1056 1344

(uS)

26.67 26.41 26.40 23.11 21.33 20.68

Disp (dot)

640 640 800 640 800 1024

(uS)

20.32 20.32 20.00 17.78 16.16 15.75

Front (dot)

16 24 40 56 16 24

(uS)

0.51 0.76 1.00 1.56 0.32 0.37

S yn c Pu ls e (dot)

64 40 128 56 80 136

(uS )

2.03 1.27 3.20 1.56 1.62 2.09

Back (dot)

120 128 88 80 160 160

(uS )

3.81 4.06 2.20 2.22 3.23 2.46

Total

(H)

500 450 628 509 625 806

(m S )

13.333 11.886 16.579 11.76 13.333 16.666

Disp (H)

480 400 600 480 600 768

(m S )

12.800 10.565 15.840 11.093 12.800 15.880

Front (H)

191113

(m S )

0.027 0.238 0.026 0.023 0.021 0.062

Sync Pulse (H)

334336

(mS)

0.080 0.079 0.106 0.069 0.064 0.124

Back (H)

16 38 23 25 21 29

(mS)

0.427 1.004 0.607 0.578 0.448 0.600

Inte rla c e

NON NON NON NON NON NON

P ola rity (H /V)

NEG/NEG NEG/POS POS/POS NEG/NEG POS/POS NEG/NEG

Com posite Sync Com posite Video Character Font

7*9 7*9 7*9 7*9 7*9 7*9

Serration

OFF OFF OFF OFF OFF OFF

EQP

OFF OFF OFF OFF OFF OFF

20

Preset Mode N o.

13 14 15 16

17

18

Signal Nam e

MAC II 800*600 10*7(70) 10*7(75)

640*480

12*10(60)

(49.7K) (85) (VESA) (VESA)

(120)

(VESA)

Resolution

832*624 800*600 1024*768 1024*768

640*480

1280*1024

Dot Clock (MHz)

57.286 56.250 75.000 78.750

55.00

108.000

fh (kHz)

49.73 53.67 56.48 60.02

63.66

63.98

fv (Hz)

74.55 85.06 70.07 75.03

120.1 1

60.02

Total

(

dot

)

1152 1048 1328 1312

864

1688

(uS)

20.11 18.63 17.71 16.66

15.71

15.63

Disp (dot)

832 800 1024 1024

640

1280

(uS)

14.52 14.22 13.65 13.00

1 1.645

11.85

Front (dot)

32 32 24 16

32

48

(uS)

0.56 0.57 0.32 0.20

0.582

0.44

S yn c Pu ls e (d o t)

64 64 136 96

96

11 2

(uS )

1.12 1.14 1.81 1.22

1.745

1.04

Back (dot)

224 152 144 176

96

248

(uS )

3.91 2.70 1.92 2.23

1.745

2.30

Total

(H)

667 631 806 800

530

1066

(m S )

13.413 11.756 14.272 13.328

8.325

16.661

Disp (H)

624 600 768 768

480

1024

(m S )

12.548 11.179 13.599 12.795

7.540

16.005

Front (H)

1131

8

1

(m S )

0.020 0.019 0.053 0.017

0.126

0.016

Sync Pulse (H)

3363

6

3

(mS)

0.060 0.056 0.106 0.050

0.094

0.047

Back (H)

39 27 29 28

36

38

(mS)

0.784 0.503 0.513 0.466

0.566

0.594

Inte rla c e

NON NON NON NON NON NON

P ola rity (H /V)

NEG/NEG POS/POS NEG/NEG POS/POS NEG/NEG POS/POS

Com posite Sync

NEG Com posite Video Character Font

7*9 7*9 7*9 7*9 7*9 7*9

Serration

ON OFF OFF OFF OFF OFF

EQP

OFF OFF OFF OFF OFF OFF

21

Preset Mode N o.

19

20

Signal Nam e

800*600

1024*768

(100)

(85 )

Resolution

800*600

1024*768

Dot Clock (MHz)

67.50

94.5

fh (kHz)

63.92

68.677

fv (Hz)

100.03

85

Total

(

dot

)

1056

1376

(uS)

15.64

14.561

Disp (dot)

800

1024

(uS)

1 1.852

10.836

Front (dot)

40

48

(uS)

0.593

0.508

S yn c Pu ls e (d o t)

80

96

(uS )

1.185

1.016

Back (dot)

136

208

(uS )

2.015

2.201

Total

(H)

639

808

(m S )

9.997

11.765

Disp (H)

600

768

(m S )

9.386

11.183

Front (H)

3

1

(m S )

0.047

0.015

Sync Pulse (H)

4

3

(mS)

0.063

0.044

Back (H)

32

36

(mS)

0.501

0.524

Inte rla c e

NON NON

P ola rity (H /V )

POS/POS POS/POS Com posite Sync Com posite Video Character Font

7*9 7*9

Serration

OFF OFF

EQP

OFF OFF

22

Distortion Adjustment

Factory Mode Setting *After completion of adjustment exit the factory mode and data will be saved. Signal : All signals Cross hatch Perform the adjust for signal No. 14 in step 6-1~3. Perform the adjust for above all signal in step 6-4,5.

1. Picture Tilt Adjustment (1) Receive signal 14 (Cross hatch). (2) When OSM MENU is displayed, Select the “ “ icon. (3) Make sure that the picture tilt meets the following standards.

X < ± 1.0mm

+X

-X

2. Pincushion Balance Adjustment (1) When OSM MENU is displayed, Select the “ “ icon. (2) Make sure that the Pincushion Balance meets the following standards.

AB

A – B < 0.5mm

3. Parallelogram distortion Adjustment (1) When OSM MENU is displayed, Select the “ “ icon. (2) Adjust “+”, “-“ SW so that the vertical line and horizontal line at the screen’s center fall at right

angles. (less than 90 ± 0.5 degree)

23

4. Side Pincushion Adjustment (1) When OSM MENU is displayed, Select the “ “ icon. (2) Make sure that the side pincushion distortion meets the following standards.

1.5mm

1.8mm

1.5mm

1.8mm

5. Trapezoid Distortion Adjustment (1) When OSM MENU is displayed, Select the “ “ icon. (2) Make sure that the trapezoid distortion meets the following standards.

(AB-CD) < 2mm (AC-BD) < 2mm

B

D

A

C

6. Preset Picture Size and Position Adjustment Factory Mode Setting

Signal: All Signals Cross hatch

*Perform the Preset Picture Size and Position Adjustment for above all signal. (1) When OSM MENU is displayed, Select the “ ”,” ”,” ”,” ” icon. (2) Adjust the picture size and position as listed below by “−”, “+” SW.

Picture size H : 310 ± 2mm V : 232 ± 2mm

Picture position H : (X

TOP−XBOTTOM

) < 3mm

V : (X

LEFT

−X

RIGHT

) < 3mm

Video

XRight

BezelXTop

XLeft

XBottom

24

7. Purity (1) Receive signal 14(Cross hatch pattern). (2) The CRT face should be facing east and degauss the entire unit by external degaussing coil. (3) Make sure the single color purity.

If not, readjust CPC magnet and touch up using correction magnets.

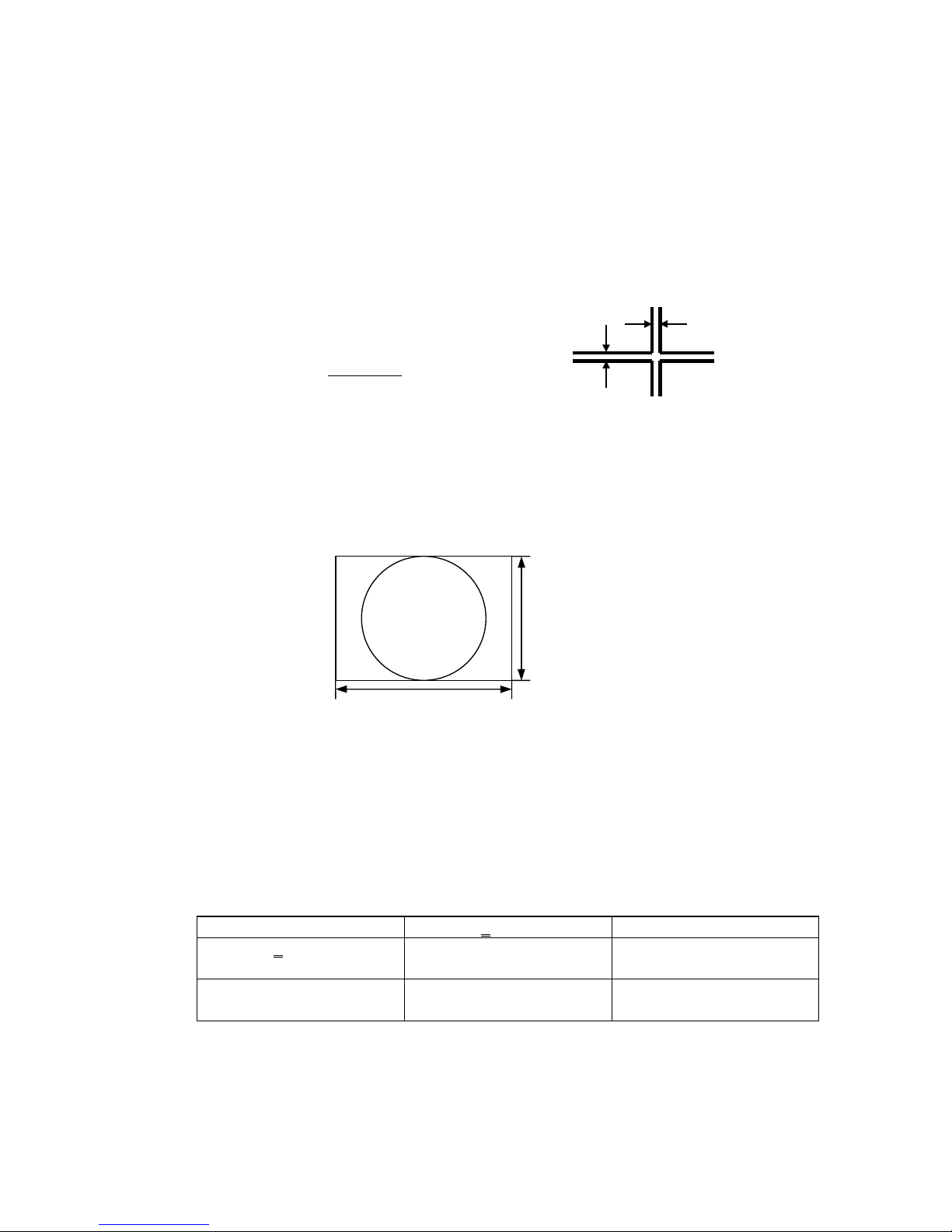

8. Convergence

CH : Convergence error of horizontal direction CV : Convergence error of vertical direction CS : Total direction of Convergence error

(Calculate by “√CH² + CV² ”

(1) Receive signal 14(Cross hatch pattern). (2) Measure convergence error., If it is out of spec, adjust static convergence by 4-pole magnets and

6-pole magnets.

C

H

C

V

A

B

310mm

232mm

A Zone (A circle 232 mm in the center of the CRT face center)

CH, CV: Within 0.35 mm CS: No rule

B Zone (Areas outside of zone A within the rectangle of 310 mm×232 mm)

Safety with the list below.

CH < 0.35 m m 0.35 mm < CH < 0.40 m m

CV < 0.35 m m OK Calculate CS and judge

Within 0.50 mm

→

OK

0.35 mm < CV < 0.40 mm Calculate CS and judge Within 0.50 mm

→

OK

Need to touch up

25

Write and Inspection for Plug and Play Communication

1. Construction of System

This system should be connected as shown below.

Monitor

Program Disk

PC

Signal Cable

Fixture

Power Cable

Note: PC clock speed should be below 266MHz. OS is PC-DOS.

Fixture Board can be connected directly to PC without Printer Cable.

2. EDID Write and Inspection Method

1) Run specified EDID write and Inspection program on PC-DOS mode. The monitor turns into the self test mode.

2) Run the specified EDID write and inspection program under PC-DOS mode.

3) Key in the serial No. or Scan serial No. bar code.

4) Press “Return” key to write the EDID data.

5) Press “F1” key to inspect DDC1 communication.

6) Press “F2” key to inspect DDC2 communication EDID DATA Format: Please refer the 3. EDID data File.

26

0123456789ABCDEF

00 00 FF FF FF FF FF FF 00 38 A3 D1 5D 01 01 01 01 10 0A 0A 01 03 0C 21 18 78 EA 57 98 A4 52 46 97 24

20 11 48 4C FF EE 00 31 59 45 59 61 59 71 4A 81 40 30 01 01 01 01 01 01 EA 24 00 60 41 00 28 30 30 60

40 13 00 36 E8 10 00 00 1E 00 00 00 FD 00 37 78 1F 50 46 0B 00 0A 20 20 20 20 20 20 00 00 00 FC 00 4D 60 75 6C 74 69 53 79 6E 63 20 37 35 46 00 00 00 FF

70 00 30 33 30 30 30 30 31 59 41 0A 20 20 20 00 B5

3. EDID DATA FILE (1) EDID Serial No. Format

MultiSync 75F Week of Manufacture (Month*4)

Year of Manufacture

0123456789ABCDEF

00 00 FF FF FF FF FF FF 00 38 A3 D1 5D 01 01 01 01 10 0A 0A 01 03 0C 21 18 78 EA 57 98 A4 52 46 97 24

20 11 48 4C FF EE 00 31 59 45 59 61 59 71 4A 81 40 30 01 01 01 01 01 01 EA 24 00 60 41 00 28 30 30 60

40 13 00 36 E8 10 00 00 1E 00 00 00 FD 00 37 78 1F 50 46 0B 00 0A 20 20 20 20 20 20 00 00 00 FC 00 4D 60 75 6C 74 69 53 79 6E 63 20 37 35 46 00 00 00 FF

70 00 30 33 30 30 30 30 31 59 41 0A 20 20 20 00 B5

Serial No Area 9bytes Check Sum

AccuSync 75F Week of Manufacture (Month*4)

Year of Manufacture

Serial No Area 9bytes Check Sum (2) Bar Code Format(code39)

MS75F

Digit 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Format *NNNNNNNN

___

YMSSSSSFR*

Example * N B 7 0 2 1 5 L

___

1X00001YJ*

27

*+Model Code + 3 spaces + Serial No. + *

AS75F

Digit 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

Format *NNNNNNNN

___

YMSSSSSFR*

Example * N A 7 0 2 1 6 L

__

_

1X00001YJ*

*+Model Code + 3 spaces + Serial No. + *

Serial No. Descriptions:

Y: Manufactured Year (Last digit) ex. 1 à 2001 M: Manufactured Month 1 ~ 9, X(October),

Y(Novenber), Z(December)

S: Serial No. ( 5digits) 00001 ~ onward

(restart when month is changed)

F: Factory Code: Y is NPG China Factory R: Product Revision code: start from J

EDID Code Input Procedure ex.

1) Scan Bar code (20 digits) NB70215L_ 1X00001YJ

2) Skip 11 digits then find the Serial No. 1X00001YJ

3) Make Year hex Code from Year digit 1 à 0Bh

4) Make Week hex Code from Month digit 10*4 = 40 à 28h

5) Change Serial No. to ASCII code 31h 58h 30h 30h 30h 30h 31h 59h 4Ah

6) Apply Serial No. Information to the default EDID code.

7) Download EDID from PC to Monitor.

8) DDC2B Inspection

28

TROUBLE SHOOTING

Refer to User’s Manual trouble shooting section before using this chart.

TABLE OF CONTENTS

Page

1. NO OPERATION, POWER LED FLASH....................................................................................... 30

2. NO OPERATION, POWER LED OFF ........................................................................................... 31

3. VIDEO NOISE, OUT OF SYNC..................................................................................................... 32

4. NO VIDEO ..................................................................................................................................... 33

5. NO RASTER .................................................................................................................................. 34

6. TROUBLE IN H.V SYNC ............................................................................................................... 35

7. PINCUSHION POOR.............................................................................................................. ....... 36

29

1. NO OPERATION, POWER LED FLASH

1. DC P/S O/P VOLTAGE SET AT 12V,CURRENT SET AT 600MA. POSITIVE CONNECT TO C330”+”. NEGATIVE CONNECT TO U302-pin 7.

2. SCOPE SET AT 10V/DIV, 10US/DIV, PROBE CONNECT TO Q319-GATE AND U302pin 6.

POWER LED FLASH

CHECK

U302

U302 PIN6

PULSE O/P

POWER SW

TURN OFF

FAILURE

U302, Q106

CHECK

U302 PIN 10 VCC

PIN 4 SAWTOOTH

PIN 8 5V

NO

POWER SW

TURN OFF

MULTIMETER TEST

Q307, U302

D110,D111,D112,D113

30

2. NO OPERATION, POWER LED OFF

1. DC P/S O/P VOLTAGE SET AT 17V,CURRENT SET AT 200MA. POSITIVE CONNECT TO C109”+”. NEGATIVE CONNECT TO C105”-“.

2. SCOPE SET AT 10V/DIV, 10US/DIV, PROBE CONNECT TO Q101-GATE AND C105”-“.

POWER SW

TURN OFF

CHECK

F101

CHECK

Q101

CHECK

U101

U101 PIN6

PULSE O/P

POWER SW

TURN ON

FAILURE

R114, R120, ZD101

CHECK

U101 PIN 7 VCC

PIN 4 SAWTOOTH

PIN 8, 5V

NO

31

3. VIDEO NOISE, UNSYNCHRONOUS

CHECK HORIZONTAL

FREQUENCY C114 TO GND

CHECK

Q319 G-S FREQUENCY

SYNCRONIZE

WITH H-SYNC

CHECK HORIZONTAL

FREQUENCY C359 TO GND

CHECK R30X, FBT

PIN6

NORMAL OPERATION

CHECK

Q101 G-S FREQUENCY

SYNCRONIZE

WITH H-SYNC

CHECK C114, R116

D109, R115, R117

YES

NONO

32

4. NO VIDEO

NO VIDEO

YES

CHECK

SCREEN CONTROL

CLOCKWISE

YES

CHECK

U201 PIN 5, 8, 11

SIGNAL LEVEL

YES

CHECK

U201 PIN 18, 20, 23

SIGNAL LEVEL

PROBLEM IN U201

CLAMP(PIN 15)

U201 12V VOLTAGE

YES

CHECK

U203 PIN 1, 3, 5

SIGNAL LEVEL

CHECK

CATHODE VIDEO

LEVEL

PROBLEM IN CRT

YES

PROBLEM IN

R220, R240, R260

NO

PROBLEM IN U203 12V, 77V VOLTAGE

NO

TROUBLE IN

R/G/B SIGNAL,

SIGNAL CABLE

NO

REFER TO

“NO RASTER”

ON PAGE

NO

33

5. NO RASTER

CHECK

U302 PIN 14, 15

H/V SYNC

NO RASTER

POWER SUPPLY

CHECK

B+

CHECK

U302 PIN 18, 19, 8

SYNC

CHECK T301 PIN 3 VOLTAGE 56V, 68V(AT H-FREQ.

31.5KHz)

PROBLEM IN

MCU U701

PROBLEM IN

U701, U302

PROBLEM IN U302, Q319, D335, L304 OR DEFLECTION YOKE

PROBLEM IN

Q307, Q308,T302,

D307, D308

CHECK Q307

COLLECTOR ABOUT

1050Vp-p

CHECK G1

VOLTAGE ABOUT

-45~65V

PROBLEM IN

Q305, Q306, ZD303

D318, T301, C344

PROBLEM IN G2 VOLTAGE

YES

NO

34

6. TROUBLE IN H. V SYNC

PROBLEM IN

HOR. OR VER. SYNC

CHECK

CONNECTOR S702

(PIN4, 5), SIGNAL

PROBLEM IN

SIGNAL CABLE

CHECK

U701(PIN 40,39)

H/V SYNC.

SIGNAL

PROBLEM IN

H/V SYNC LINE &

Q301, Q401

CHECK

U701(PIN 32,33)

H/V SYNC.

SIGNAL

CHECK

U701(PIN 5)

VOLTAGE

5V?

CHECK

U302 PIN 14, 15

CHECK

U701(PIN 8)

FREQ.8MHz

PROBLEM IN

U302

PROBLEM IN

U701

PROBLEM IN U203 12V, 77V VOLT AGE

PROBLEM IN

5V LINE

YES

NO

YES

YES YES

YES

NO

NO NO

NONO

35

7. POOR PINCUSHION

POOR

PINCUSHION

PARABOLA

WAVE

CHECK

U302 PIN 11

PARABOLA

CHECK

U302 PIN 14

SYNC INPUT

CHECK U701 (PIN 32)

OUTPUT

CHECK R390, U301

CHECK 12V & U302

CHECK U301,

Q316~Q318

NO

YES

36

CIRCUIT DESCRIPTION

TABLE OF CONTENTS

Page

1. Power supply circuit ........................................................................................................................ 38

2. MCU................................................................................................................................................. 41

3. Horizontal deflection signal processing/Vertical and geometrical compensation of the raster....... 57

4. Horizontal drive and power supply output....................................................................................... 69

5. Horizontal amplitude control............................................................................................................ 70

6. Blanking and spot killer ................................................................................................................... 71

7. Video amplifier system with on-screen display ............................................................................... 72

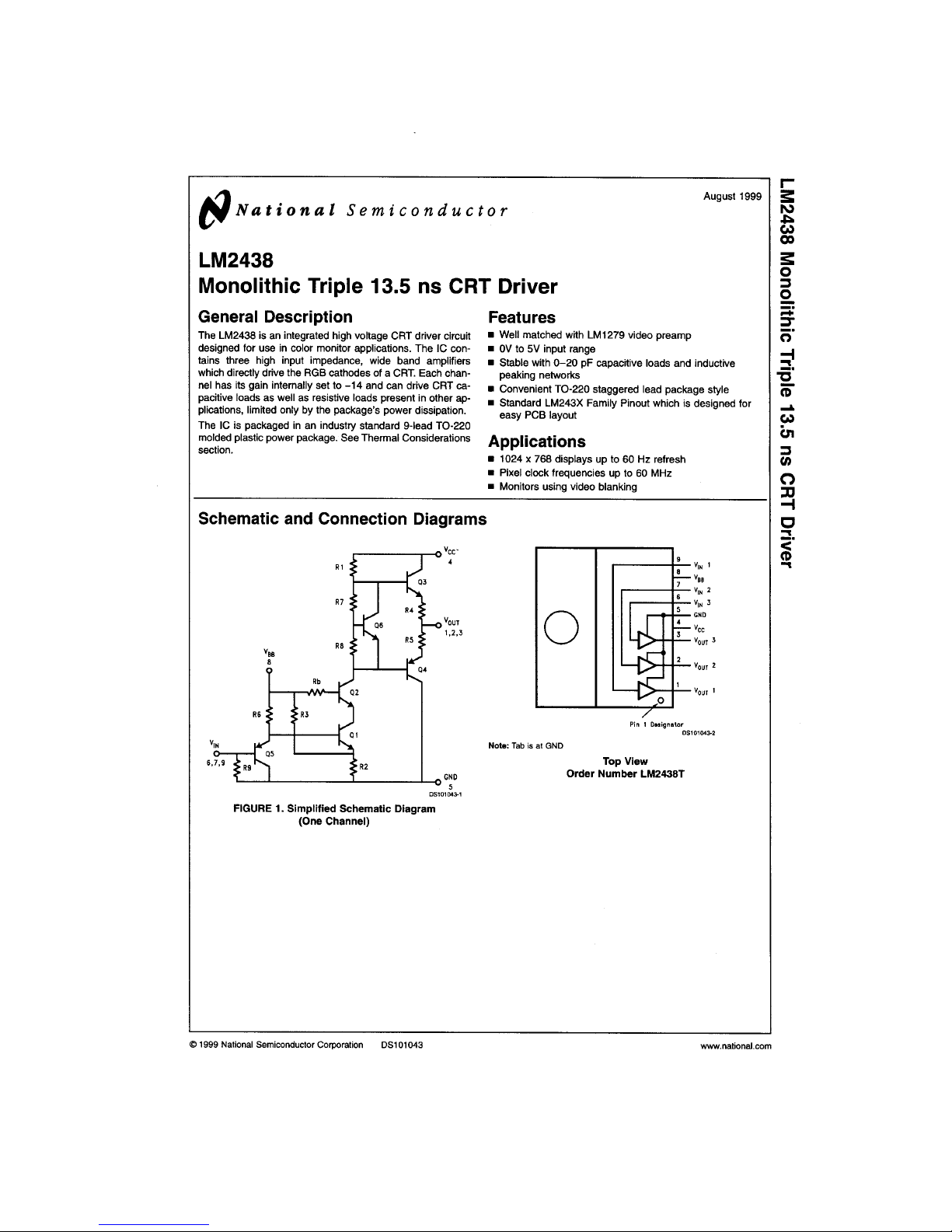

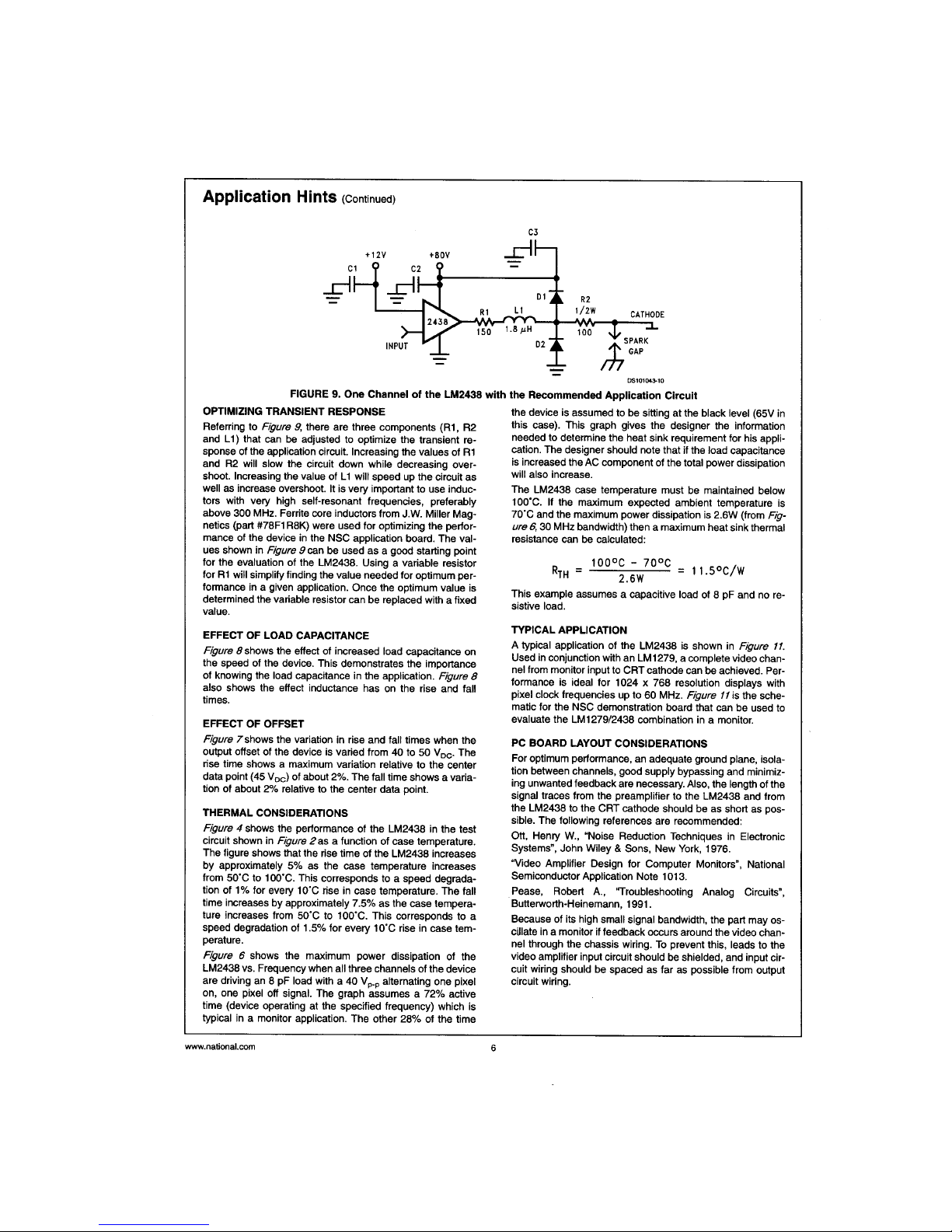

8. Monolithic triple 13.5nS CRT driver................................................................................................. 74

9. On screen display............................................................................................................................ 78

37

1. Power supply circuit

 Outline

This power supply unit adopts the switching mode technology, and is an off-line mode type unit that provided several different DC outputs. The scanning frequency is available in different values ranging from 31 kHz to 69 kHz. Moreover, it is capable to operate at an AC input voltage of 100V ~ 240V and an

AC frequency of 50-60 Hz±3Hz. The block diagram is the functional construction schematics, that shows the major functions of this power supply unit.

 Harmonics (OPTION)

L107 is a harmonic choke circuit that reduces the harmonic peak currents, for the purpose of fulfilling the requirement items of IEC 1000-3-2.

 EMI

The EMI circuit has a 2-stage construction, with the first stage consisting of the common mode choke unit and one X-capacitor, and the second stage consisting of the common mode choke unit and four Ycapacitors. R101 is the bleed resistor of the X-capacitor. When the power supply switch is turned OFF, this resistor carries out the emergency charging of the capacitor C101. The EMI is the circuit that prevents the monitor switching noise from being generated, there by minimizing the negative influence on the other electronic equipment.

 AC rectifier and smoothing capacitor

The AC input is rectified by means of the full-bridge rectifier, that consists of the diodes D101 to D104. The AC voltage is converted into the DC voltage by passing through the next stage, that consists of the smoothing capacitor C105. TH101 is a NTC thermistor for the power supply at the in-rush current limit.

 Degaussing circuit

The degaussing circuit consists of the PTC thermistor TH102, the degaussing coil and the relay RL101. The relay is controlled by means of the +12V control signal coming from the CPU.

 Transformer and energy induction

1) When the PWM controls IC KA3842A chip, a driving pulse is generated at the gate of the transistor Q101, and Q101 turns ON. The current returns from the “plus” (+) side of the energy-supplying capacitor C105 to the “minus” (-) side of the same capacitor C105, passing through the transformer Q101 D-S. During the ON cycle, the energy is stored in the transformer T101. The transistor Q101 turns OFF when the driving pulse disappears from Q101. As a result, all voltages of the dot ends of the winding flow to the positive direction and reach the fly-back rectifier. At that point of time, the diodes of the rectifier of the secondary side turn ON, a temporary energy is induced at the secondary side, and the ON cycle of the driving pulse is repeated.

38

2) The power supply MOS FET Q101 carries out the ON/OFF operation of the control unit, by means of U101 KA3842A. KA3842A is a PWM (pulse width modulation) IC chip, with 16 V starting voltage and 10 V cut-off voltage. The following list shows the pin layout of KA3842A pulse width modulation IC chip.

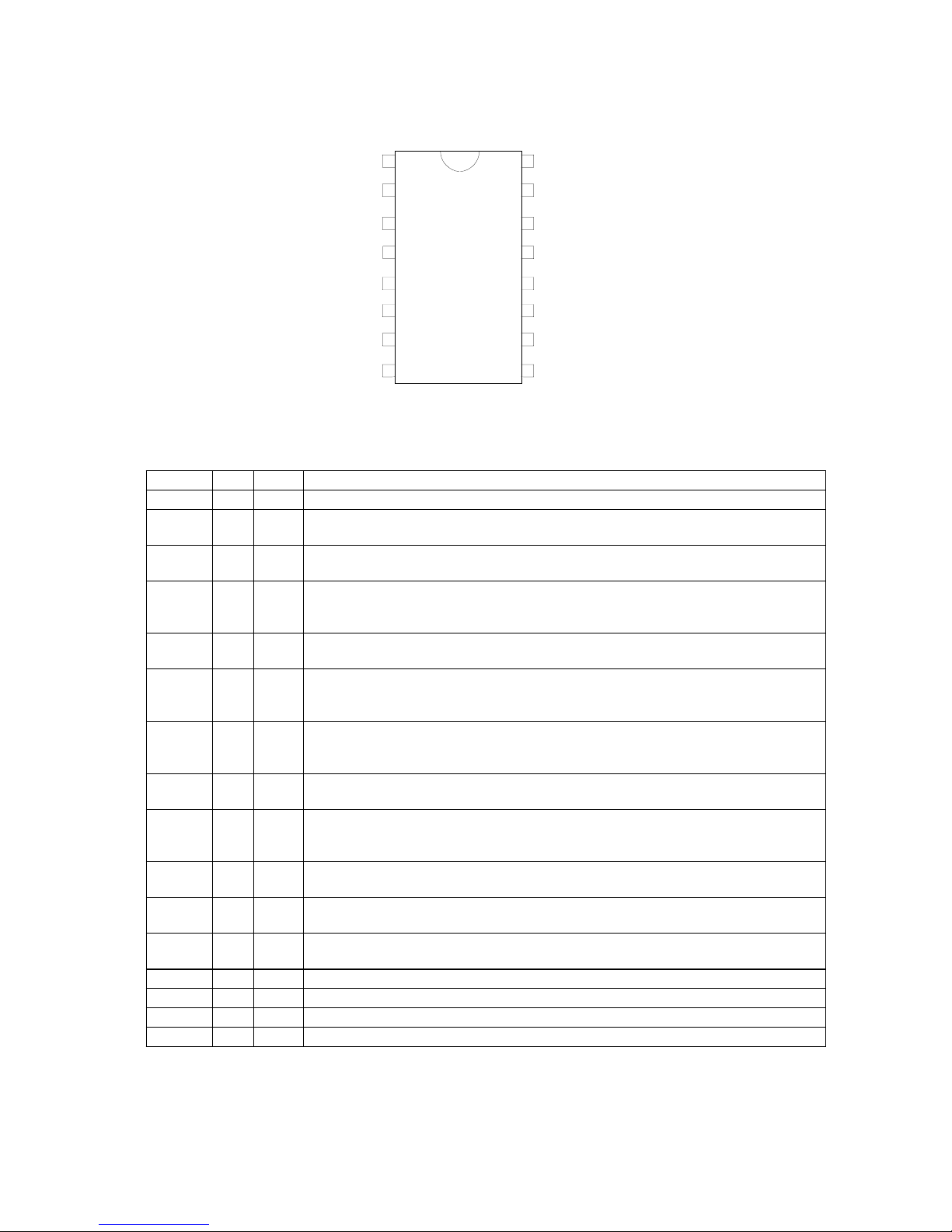

Pin 1: Feedback Pin 2: Compensation Pin 3: Current sensor Pin 4: Oscillator Pin 5: Ground (GND) Pin 6: Pulse output Pin 7: VCC Pin 8: VREF (5.1 V)

3) Overcurrent protection R1 11 is a sensor resistor, and it has the function of increasing the current of this loop when the output of the secondary side is either in the overloaded state or is insufficient. Since the current passing through the R1 11 sensor resistor has voltage dropping effect, the operation of the output pulse is stopped when a voltage lower than 1 Volt is detected at the pin number 3 of the KA3842A 3chip, and the switch of the power supply MOS FET is kept in the “break” state until the VCC voltage is charged up to 16 Volts, and the operation of U101 KA3842A is resumed. When it is not clearly known whether there is voltage shortage or not, however, this circuit repeats the ON/OFF switching, and the power supply LED lights up.

4) Starting circuit The resistor R122 and R123 and the transistor U103 and diode D131 and resistor R169 and zener diode ZD101 are for the starting operation. When the circuit starts its operation, the power supply transformer T101 supplies the auxiliary 12 Volt power to the control IC chip U101 via pins 6 and 7 of the winding transformer T101.

5) Synchronization circuit The synchronization signal is induced from the fly-back transformer (FBT), and carries out the synchronization with the power supply frequency. The frequency range is from 31 kHz to 70 kHz, and the component elements of the synchronization circuit are C114, R116, D109, R115 and R117.

6) Feedback circuit The feedback circuit loop induces the 12 V voltage through the pin 6 and the pin 7 of the power supply transformer. That voltage is connected with the pin 3 of the IC chip U101 by passing through U103, R122, R123 and passing next through R10A, VR101 and R151. This is a regular loop.

7) Snubber circuit The snubber circuit has the function of clamping the ON/OFF spikes of the power supply MOS-FET, and its component elements D105, C106, R106 make up a snubber that turns OFF the power supply MOS-FET.

8) Secondary rectifier and smoothing rectifier The secondary rectifier is a harmonic rectifier consisting of D111, C124 and R128, and it works as a snubber circuit as well. The capacitors C120 and C138 are the smoothing rectifier working on the 49 Volt DC output. There are also other DC outputs, such as 80 Volt (D110), 13.5 Volt (D112) and 6.3 V olt (D1 13).

39

 Power saving

Suspend mode : Every DC voltage operation of the CRT is turned OFF.

The color of the power LED101 switches from green to orange.

OFF mode : This is the mode in which the CPU control unit turns OFF the power supply, but

the power turns ON when the user touches the keyboard. The power LED switches to dark orange color.

1) When the power switch is turned ON when there is nothing being entered in the video cable. At that time, if the video is shifted from the free-run mode to the suspend mode, the transistor Q107 turns OFF and the operation returns to the OFF mode within a few seconds.

2)As for the sequence of steps that turn the operation to the OFF mode, if the keyboard is not touched for a given period of time that a preset in advance, the CPU outputs the LOW level signal to the transistor Q107, then Q105 turns OFF, the transistor Q108 and Q104 turns OFF. As a result the power is shut out at that state.

3) When the user touches the keyboard in the OFF mode, the operation is resumed, the video signals V-SYNC and H-SYNC turn ON the CPU via resistor R129 and R159, then the transistor Q105 and Q107 turn ON, the transistors Q104 and Q108 turn ON. As a result the operation returns to the ON state.

 DC/DC

The DC/DC voltage is DC 49 volts, and since the set-up voltage is variable from 62 volts to 160 volts,

it is variable depending on the horizontal synchronism. The frequency band is variable from 31 kHz to 69 kHz. The voltage is fed back from the fly-back transformer (FBT). The DC/DC output voltage is used as high-voltage input of FBT T301.

1) DC/DC is a step-up circuit, and consists mainly of the choke L304, the transistor Q319, the diode D335 and U302.

2) When the PWM controls U302 IC TDA4857, a driving pulse is generated at the gate of the transistor Q319, and the transistor Q319 turns ON. During the ON cycle, the energy is stored in the choke L304. The transistor Q319 turns OFF when the driving pulse disappears from the gate of the transistor Q319. As a result, the voltage at the dot terminal of the winding flows in the positive direction and goes to the fly-back rectifier. The energy stored in the choke L304 is entered in the FBT, passing through the choke L304, the diode D335 and the capacitor C307.

3) The feedback is detected by the FBT via diode D310, the capacitor C326, the resistor R349 the variable resistor VR302 and the fixed resistor R382, and is connected to the U302 pin 5. This is loop is the regular type one.

4) The frequency of the synchronization signal coming from video H-SYNC is variable from 31 kHz to 69 kHz. The circuit consists of the R30X.

5) The soft start circuit consists of the resistor R30P, the capacitor C309, the diode D303 and the Q326.

40

2. MCU

Monitor MCU Specification

Frequency Specification

H-freq. : 29.5K – 70KHz V-freq. : 43 – 160Hz Judge polarity only when frequency is 31.5 KHz and 37.8 KHz Support composite sync detection

System Architecture

1. MCU – Weltrend WT6232, 32K bytes ROM size

2. EEPROM – 24C08 series, 8K bit, with ID code for identify initialization.

3. OSD – Myson MTV016N-12

Input

1. Sync input – 2 pins for H-sync & V-sync frequency inverted input.

2. Key input – 2 pins for A/D key input (SELECT. UP, DOWN and RECALL).

3. Burn-in ID input – 1 pins for Burn-in ID input.

4. Reset input – low pulse for reset MCU

5. Crystal input – 2 pins using 8MHz crystal.

Output – MCU digital pin

1.Degauss – Active high pulse for 2.5 sec when in degauss. MCU will activate degauss while power on.

2.CS output – 3 pins (CS2, CS1, CS0) for CS control

H-sync CS2 CS1 CS0

H-sync < 33.25KHz 0 0 0

33.25KHz<H-sync<36.50KHz 0 1 0

36.50KHz<H-sync<40.50KHz 0 1 1

40.50KHz<H-sync<45.10KHz 1 0 0

45.10KHz<H-sync<51.60KHz 1 0 1

51.60KHz<H-sync<55.10KHz 1 1 0

55.10KHz<H-sync<62.15KHz 1 1 0

62.15KHz<H-sync 1 1 1 Mode change 0 0 0

41

3.Power saving – 2 pins (PMUS, PMUO) for power saving control – if Hf > 70KHz or Hf < 23KHz, enter power saving mode (suspend). – enter power saving mode after 3 sec when condition met. – enter suspend mode first for 3 sec before enter off mode if off mode condition met.

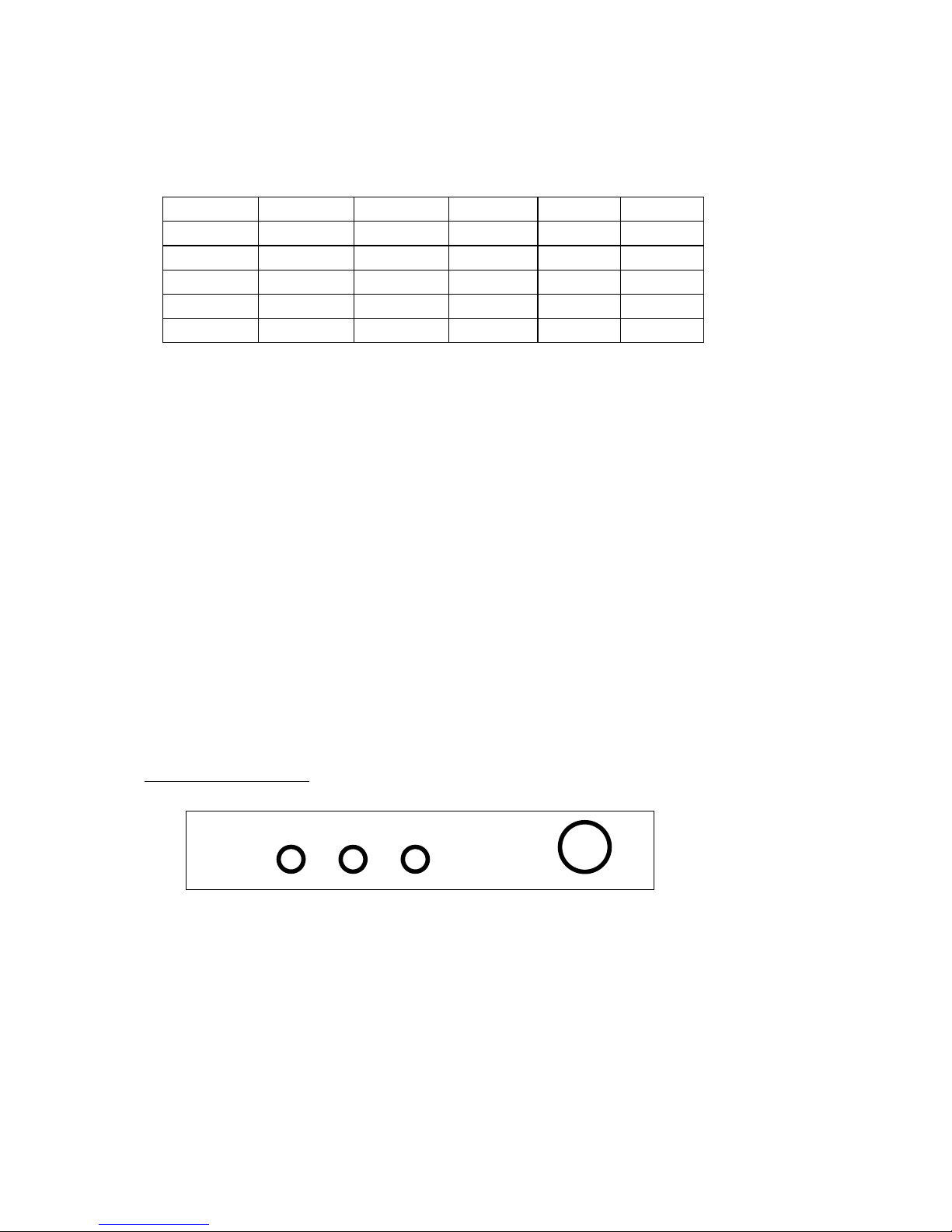

Mode H-sync freq. V-sync freq. Burn-in ID PMUS PMUO

Normal Yes Yes --- 1 1 Stand By No Yes --- 0 1 Suspend Yes No --- 0 1 Off No No Low 0 0 Burn-in No No High 1 1

SELECT (RESET) POWER

+–

4.Mute – 2 pins for screen mute

Mute1 – active low pulse for about 0.6 sec when mode change. Mute2 – active low pulse for about 1.0 sec when mode change, active with mute 1 simultaneously.

5.D/A – 14 pins (PWM output) are Brightness, Contrast, H-phase, H-size, V-center, V-size,

Pincushion, Trapezoid, Rotation, Parallel, Pin-balance, R-gain, G-gain and B-gain. – DAC value 255 means the maximum output volts except Parallel PWM. – All D/A except Rotation, Brightness, Contrast, R-gain G-gain B-gain are mode dependent

functions. – Parallel is voltage inverter function.

6.Sync output – 2 pins for H-sync and V-sync negative output, normal high.

7.DDC – 2 pins (DDC SDA/DDC SCL) for DDC1/DDC2B or auto alignment control. – In auto alignment mode, all keys and OSD are disabled.

8.SDA/SCL – 2 pins for EEPROM and OSD control.

9.WP – 1 pin, high for EEPROM write protect.

Control Panel Operation

1. Key arrangement – 3 keys for OSD control.

2. Hot key operation A. Factory Mode: SELECT Key + UP (+) Key if pressed when the power SW on. B. OSD Position Control Mode: DOWN (-) Key if pressed when the power SW on. C. Aging mode: Select key if pressed when the power SW on.

42

IIC interface

1. DDC1/DDC2B – VESA DDC1/DDC2B is supported.

2. Auto alignment – I²C auto alignment protocol is supported.

Timing Table

Total 24 modes.

1. Factory mode – 20 modes

‘*’ indicate do not care.

Mode Resolution H-sync. V-sync. H polarityV polarit

y

1 VGA 350 31.5KHz 70Hz + 2 VGA 400 31.5KHz 70Hz - + 3 VGA 480 31.5KHz 60Hz - 4 MACII 35k 35.0KHz 66Hz * * 5 800*600(56) 35.2KHz 56Hz * * 6 8514A 35.5KHz 87Hz * * 7 640*480(75) 37.5KHz 75Hz * * 8 EVGA 400 37.8KHz 84Hz - +

9 800*600(60) 37.8KHz 60Hz * * 10 640*480(85) 43.3KHz 85Hz * * 1 1 800*600(75) 46.8KHz 75Hz * * 12 1024*768(60) 48.3KHz 60Hz * * 13 MACII 49k 49.7KHz 74Hz * * 14 800*600(85) 53.6KHz 85Hz * * 15 1024*768(70) 56.4KHz 70Hz * * 16 1024*768(75) 60.0KHz 75Hz * * 17 640*480(120) 63.7KHz 120Hz * * 18 1280*1024(60) 64.0K Hz 60Hz * * 19 800*600(100) 64.0KHz 100Hz * * 20 1024*768(85) 68.6KHz 85Hz * *

‘*’ indicate do not care.

2. User mode – 4 modes – FIFO replacement is applied.

43

GENERAL DESCRIPTION

The WT62P1 is a microcontroller for digital controlled monitor with Universal Serial Bus (USB) interface. It contains an 8-bit CPU, 32K bytes flash memory, 512 bytes RAM, 14 PWMs, parallel I/Os, SYNC signal processor, timer, DDC1/2B interface, master/slave I²C interface, low speed USB device module, 6-bit A/ D converter and watch-dog timer.

FEATURES

* 8-bit 6502 compatible CPU with 6MHz operating frequency * 32768 bytes flash memory, 512 bytes SRAM * 12MHz crystal oscillator * 14 channels 8-bit PWM outputs * Sync signal processor with H+V separation, H/V frequency counter, H/V polarity detection/control and

clamp pulse output * Six free-running sync signal outputs (Horizontal frequency up to 106kHz) * Self-test pattern * DDC1/2B supported * Fast mode master/slave I²C interface (up to 400kHz) * Embedded USB function with endpoint 0 and endpoint 1 * Built-in 3.3V regulator for USB tranceiver * Watch-dog timer * Maximum 28 programmable I/O pins * One 8-bit programmable timer * 6-bit A/D converter with 4 selectable inputs * One external interrupt request input * Low VDD reset

ORDERING INFORMATION

44

Package Type Part Number

42-pin PDIP WT62P1-N42

42-pin Shrink PDIP WT62P1-K42

40-pin PDIP WT62P1-N40

28-pin skinny PDIP WT62P1-N28

44-pin SOP WT62P1-S44

PWM0

D+ PWM2 PWM1

RESET/3V3

VDD

GND

OSCO

OSCI

PB5/SDA2

PB4/SCL2

PB3/PAT

PB2

PB1/HFI

PB0/HFO

IRQ

PC7/SOGIN

PC6 PC5 PC4

PC3/AD3

WT62P1-N42 WT62P1-K42

42-pin PDIP

42-pin SPDIP

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21

PC1/AD1

PA0/SDA1

PA5/PWM11

PA7/PWM13/CLAMP

PD1/HOUT

DVIN HIN PWM3 PD5/PWM4 PD4/PWM5

PD3/PWM6 PD2/PWM7

PD0/VOUT

PA6/PWM12

PA4/PWM10 PA3/PWM9 PA2/PWM8 PA1/SCL1

PC0/AD0

PC2/AD2

42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22

PWM0

PWM2 PWM1

RESET/3V3

VDD

GND

OSCO

OSCI

PB5/SDA2

PB4/SCL2

PB3/PAT

PB2

PB1/HFI

PB0/HFO

IRQ

PC7/SOGIN

PC6 PC5 PC4

PC3/AD3

WT62P1-N40

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

PC1/AD1

PA0/SDA1

PA5/PWM11

PA7/PWM13/CLAMP

PD1/HOUT

VIN HIN PWM3 PD5/PWM4 PD4/PWM5

PD3/PWM6 PD2/PWM7

PD0/VOUT

PA6/PWM12

PA4/PWM10 PA3/PWM9 PA2/PWM8 PA1/SCL1

PC0/AD0

PC2/AD2

40 39 38 37 36

35 34 33 32 31 30 29 28 27 26 25 24 23 22 21

40-pin PDIP

PWM0

D+ PWM2 PWM1

RESET/3V3

VDD

GND

OSCO

OSCI

PB5/SDA2

PB4/SCL2

PB3/PAT

PB2

PB1/HFI

PB0/HFO

IRQ

PC7/SOGIN

PC6

WT62P1-S44

44-pin SOP

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

PA1/SCL1

PA6/PWM12

PD0/VOUT

PD2/PWM7

DVIN HIN PWM3 PD5/PWM4 PD4/PWM5

PD3/PWM6

PD1/HOUT

PA7/PWM13/CLAMP

PA5/PWM11 PA4/PWM10 PA3/PWM9 PA2/PWM8

PA0/SDA1

44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26

PC5

20 PC0/AD025

PC4 21 PC1/AD4124

PC3/AD3 22 PC2/AD223

PD0/VOUT

PA5/PWM11

PA6/PWM12

PA7/PWM13/CLAMP

PD1/HOUT

HIN VIN

RESET/3V3

VDD

GND

OSCO

OSCI

PB5/SDA2

PB4/SCL2

WT62P1-N28

28-pin Skinny PDIP

1 2 3 4 5 6 7 8 9 10 11 12 13 14

PC7

PC5

PC3/AD3

PA4/PWM10 PA3/PWM9 PA2/PWM8 PA1/SCL1 PA0/SDA1 PC0/AD0

PC1/AD1 PC2/AD2

PC4

PC6

IRQ

28 27 26 25 24 23

22 21 20 19 18 17 16 15

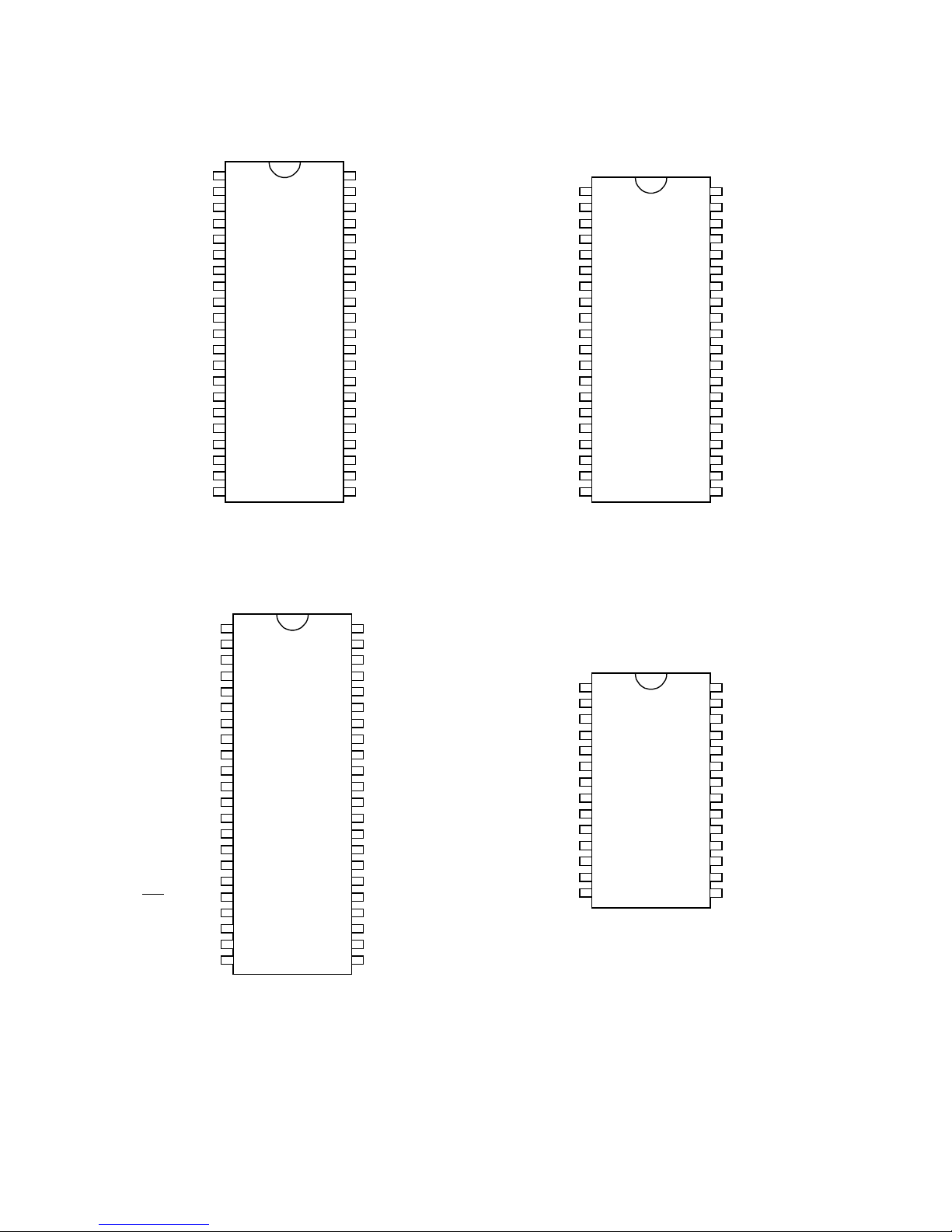

PIN CONFIGURATION

45

PIN DESCRIPTION

Pin No.

40 42 40 28

Pin Name I/O Descriptions

1 1 - - D+ O USB D+ signal. 2 2 1 - PWM2 O PWM2 output (10V open-drain). 3 3 2 - PWM1 O PWM1 output (5V open-drain). 4 4 3 - PWM0 I PWM0 output (5V open-drain). 5 5 4 8 /RESET/3V3 Reset input and +3.3V regulator output for USB tranceiver power supply. 6 6 5 9 VDD +5V power supply. 7 - - - NC O No Connection. 8 7 6 10 GND I Ground. 9 8 7 11 OSCO I/O 12MHz oscillator output.

10 9 8 12 OSCI I/O 12MHz oscillator input.

11 10 9 13 PB5/SDA2 I/O Port B5 or I²C interface data line. 12 11 10 14 PB4/SCL2 I/O Port B4 or I²C interface clock line. 13 12 11 - PB3/PAT I/O Port B3 or test pattern output. 14 13 12 - PB2 I/O Port B2. 15 14 13 - PB1/HFI I/O Port B1 or half frequency divider input. 16 15 14 - PB0/HFO I/O Port B0 or half frequency divider output. 17 16 15 15 /IRQ I/O Interrupt request input, A low level on this can generate interrupt. 18 17 16 16 PC7/SOGIN I/O Port C7 or Sync on Green input. 19 18 17 17 PC6 I/O Port C6. 20 19 18 18 PC5 I/O Port C5. 21 20 19 19 PC4 I/O Port C4. 22 21 20 20 PC3/AD3 I/O Port C3 or ADC input 3. 23 22 21 21 PC2/AD2 I/O Port C2 or ADC input 2. 24 23 22 22 PC1/AD1 I/O Port C1 or ADC input 1. 25 24 23 23 PC0/AD0 I/O Port C0 or ADC input 0. 26 25 24 24 PA0/SDA1 I/O Port A0 or DDC interface SDA pin. 27 26 25 25 PA1/SCL1 I/O Port A1 or DDC interface SCL pin. 28 27 26 26 PA2/PWM8 I/O Port A2 or PWM8 output. 29 28 27 27 PA3/PWM9 I/O Port A3 or PWM9 output. 30 29 28 28 PA4/PWM10 I/O Port A4 or PWM10 output. 31 30 29 1 PA5/PWM11 I/O Port A5 or PWM11 output. 32 31 30 2 PA6/PWM12 I/O Port A6 or PWM12 output. 33 32 31 3 PA7/PWM13/

CLAMP

I/O Port A7 or PWM13 output or clamp pulse output.

34 33 32 4 PD0/VOUT O Port D0 or Vsync output. 35 34 33 5 PD1/HOUT O Port D1 or Hsync output. 36 35 34 - PD2/PWM7 O Port D2 or PWM7 output. 37 36 35 - PD3/PWM6 O Port D3 or PWM6 output. 38 - - - NC O No Connection. 39 37 36 - PD4/PWM5 I Port D4 or PWM5 output. 40 38 37 - PD5/PWM4 I Port D5 or PWM4 output. 41 39 38 - PWM3 PWM3 output (10V open-drain) 42 40 39 6 HIN Hsync input. 43 41 40 7 VIN Vsync input. 44 42 - - D- USB D- signal

46

FUNCTIONAL DESCRIPTION CPU

8-bit 6502 compatible CPU operates at 6MHz. Address bus is 16-bit and data bus is 8-bit. The non-maskable interrupt (/NMI) of 6502 is modified to be maskable and is defined as INT0 with higher priority. The interrupt request (/IRQ) of 6501 is defined as INT1 with lower priority.

Please refer the 6502 reference menu for more detail.

RAM

512 bytes RAM. Address is located from $0080h to $00FFh and $0180h to $02FFh. RAM from $0200h to $027Fh and $0280h to $02FFh can be disabled individually to emulate different RAM size IC. (see Register $0FFFh)

ROM

32768 bytes flash memory for program. Address is located from $8000h to $FFFFh.

The following addresses are reserved for special purpose:

$FFFAh (low byte) and $FFFBh (high byte) : INT0 interrupt vector. $FFFCh (low byte) and $FFFDh (high byte) : program reset interrupt vector. $FFFEh (low byte) and $FFFFh (high byte) : INT1 interrupt vector.

System Reset

There are four reset sources of this controller. Fig. 1 shows the block diagram of reset logic.

$0000h

:

$003Fh

Registers

$0040h

:

$007Fh

Reserved

$0080h

:

$00FFh

128 bytes RAM

$0100h

:

$017Fh

Reserved

$0180h

:

$02FFh

384 bytes RAM

$0300h

:

$0FFEh

Reserved

$0FFFh Configuration Register

$1000h

:

$7FFFh

Reserved

$8000h

: : :

$FFFFh

Flash ROM

47

External Reset

A low level on the RESET/3.3V pin will generate reset.

Illegal address Reset

When the address bus of CPU goes to illegal address, a reset pulse will be generated. The illegal address is defined as $0040h~$007Fh, $0300h~$0FFEh and $1000h~$7FFFh.

Low VDD Voltage Reset

When VDD is below 3.9V, an internal reset signal is generated. The reset signal will last 2.048 ms after the voltage is higher than 3.9V.

Watchdog Timer Reset

If a time-out happens when watchdog timer is enabled, a reset pulse is generated. Please refer watchdog timer section for more information.

RESET/3V3

Watchdog Timer Reset

Low VDD Reset

Illegal Address Reset

2.048ms Timer

LATCH

CPU

Peripheral

Circuits

R

VDD

Address

6MHz

Fig. 1 Reset Signals

48

I/O Port

I/O Port A

Pin PA0 and PA1 are shared with DDC interface SDA1 and SCL1 When ENDDC bit is “0”, These two pins becomes I/O port. If PA0OE bit is set, Pin PA0 is an open-drain output. If PA0OE is cleared, Pin PA0 is an input pin with no internal pull-up resistor. The operation of PA1 is same as PA0. Fig. 2 Shows the structure of PA0.

Pin PA2 to PA6 are shared with PWM output. When corresponding EPWMx bit is “0”, the pin is I/O port. If PAxOE bit is set, it is a push-pull type output. If PAxOE bit is cleared, it is an input pin with internal pullup resistor. Pin PA7 is shared with PWM13 output and clamp pulse output. When both EPWM13 bit and ENCLP bit are “0”, this pin becomes I/O port. If PA7OE bit is set, it is a push-pull type output. If PA7OE bit is cleared, it is an input pin with internal pull-up resistor.

49

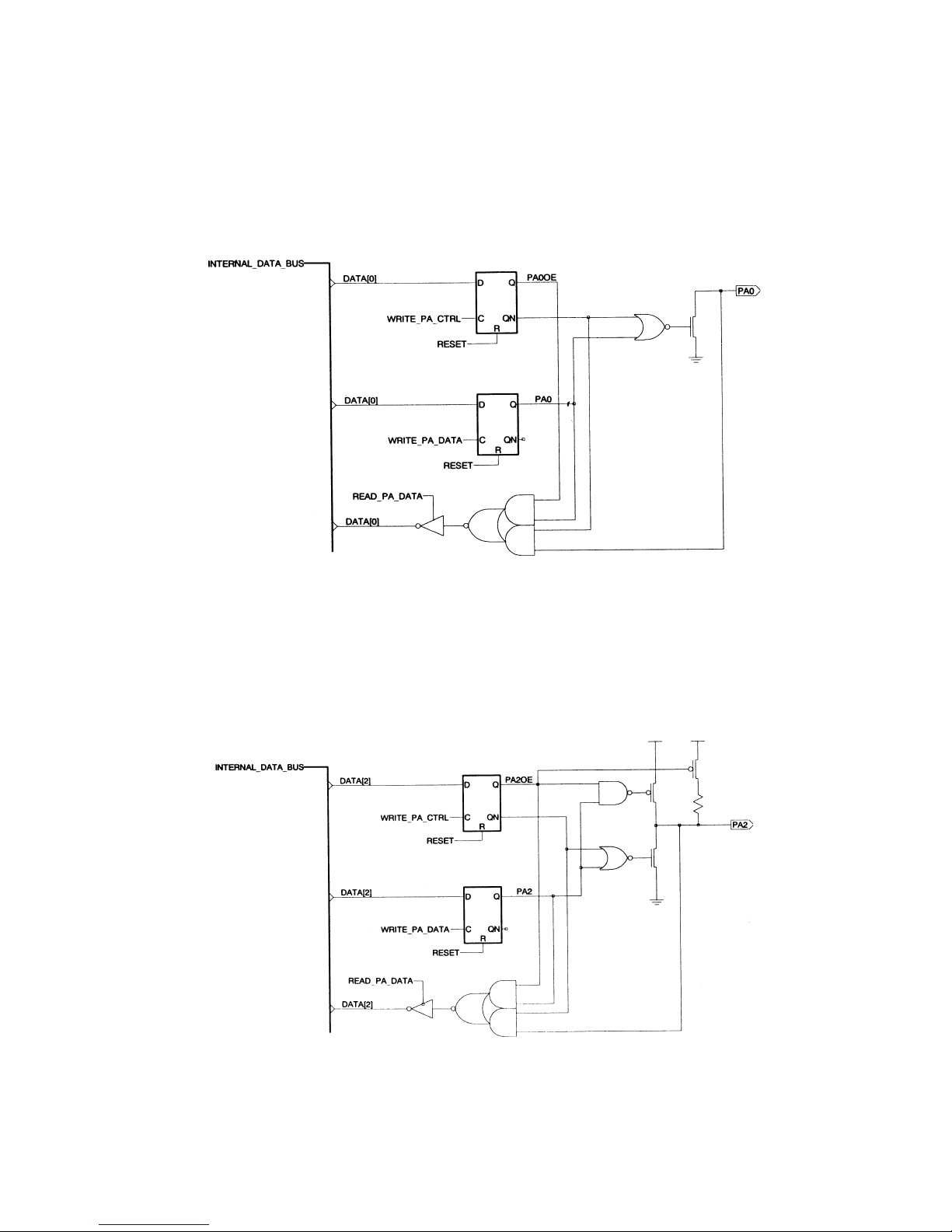

Fig.2 Structure of PA0 and PA1

Fig.3 Structure of PA2

SYNC Processor

The functional block diagram of SYNC Processor is shown in Fig. 4. It contains H and V polarity detection circuit, H and V frequency counter, composite sync signal separation circuit, free-running H and V sync signal generator, vedio signal generation circuit for burn-in test and clamp pulse generator.

Horizontal Polarity Detect

The horizontal polarity is detected by sampling HIN signal at 5.5~6.5us after rising and falling edge of HIN. If the result of sampling is low and lasts 192~256us with no change, the polarity is positive (HINPOL=1). If the result of sampling is high and lasts 192~256us with no change, the polarity is negative (HINPOL=0).

Vertical Polarity Detect

Vertical polarity is detected by sampling VIN level at 2.048ms after rising edge of VIN. If the level is low, the polarity is positive (VINPOL=1). If the level is high, the polarity is negative (VINPOL=0). But if SEPART bit is set, the VINPOL bit is “1” because the Vsync from composite signal separator is always positive polarity.

Output Polarity Control

The polarities of HOUT and VOUT are controlled by HOPOL and VOPOL bites. When the bit is set, the output polarity is positive. When the bit is cleared, the output polarity is negative.

50

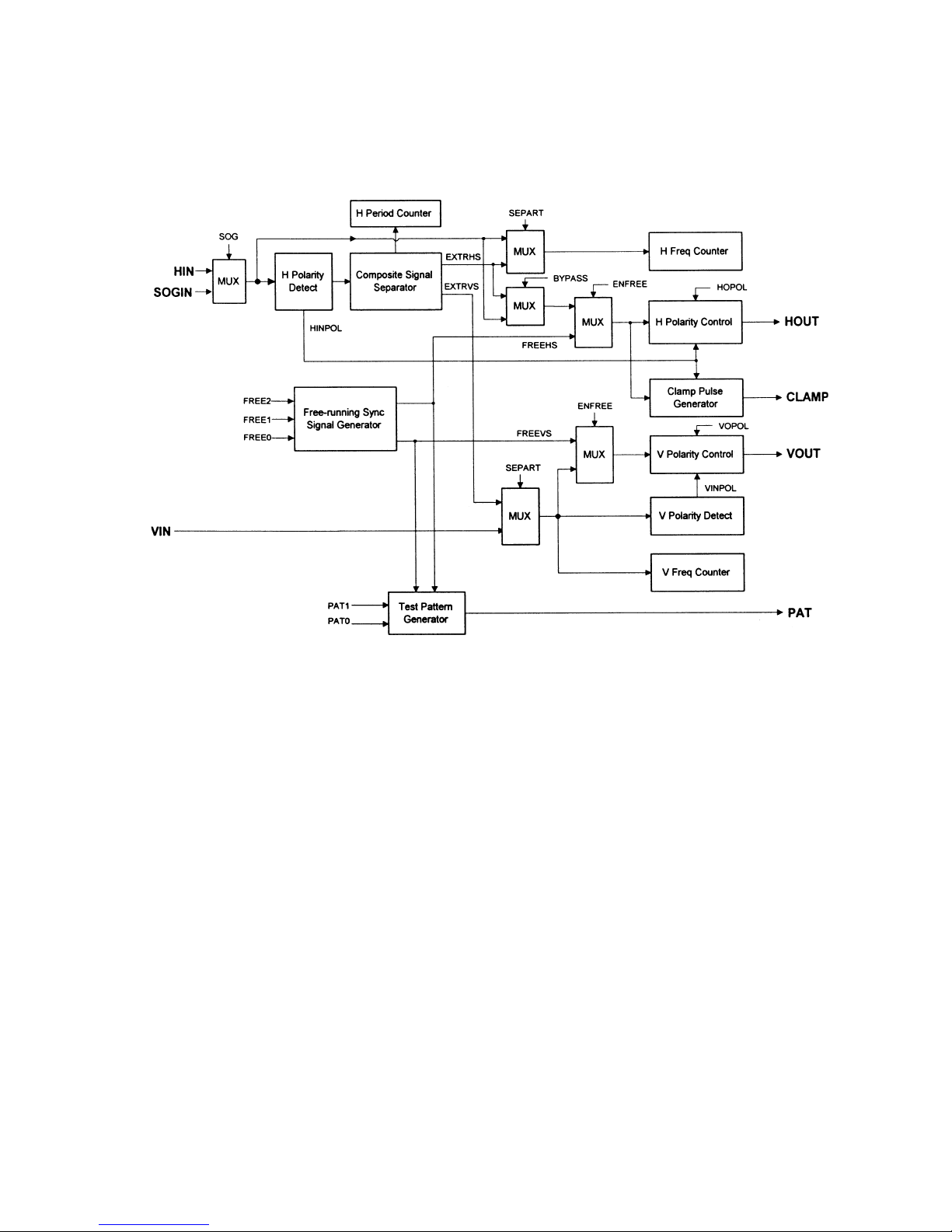

Fig.4 Block diagram of sync signal processor

51

Composite Sync Signal Separator

Composite sync signal separator extract Vsync signal from HIN or SOGIN input pin by filtering pulses which is less than 6us. The output Vsync signal will be widened about 5.5~6.5us. The output Hsync will be replaced by 2us pulse during Vsync pulse.

The composite sync signal separator can handle H+V and H exclusive OR V signals. Fig. 5 shows the timig relationship of the extracted H and V sync signals.

If Hsync output do not want to insert pseudo H pulses (EXTRHS signal) during Vsync pulse, set BYPASS bit can let HOUT pin output waveform same as Hsync input (Note: polarity can be controlled by HOPOL bit).

Fig.6 Timing relationship of composite sync signal separator

Free-running sync signal and self-test pattern The self-generated free run sync signals are output from HOUT and VOUT pins when ENFREE bit is set. Four kinds of standard VESA timings are selected by FREE1 and FREE0 bits. Self-test pattern signal is output form PAT pin when ENPAT bit is set. PAT1 and PAT0 bits select different self-test pattern.

52

X00 X01 010 011 110 111

F

H

Hot frequency 31.496kHz 48kHz 63.83kHz 81.25kHz 90.909kHz 106.195kHz

F

V

Ver frequency 59.993Hz 72.072Hz 59.878Hz 64.865Hz 84.8Hz 84.96Hz

T

HT

Hor total time 31.75us 20.833us 15.667us 12.333us 11us 9.417us

T

VT

Ver total time 16.669ms 13.875ms 16.7ms 15.417ms 11.792ms 11.771ms

T

HS

H sync time 3.833us 2.417us 1us 1.083us 1us 0.833us

T

HB

H Back porch + H Left border

2 us 1.417us 2.417us 1.833us 1.583us 1.417us

T

HF

H Front porch + H Right border

0.708us 1.125us 0.542us 0.375us 0.375us 0.292us

T

VS

V sync time 2 × T

HT

6 × T

HT

3 × T

HT

3 × T

HT

3 × T

HT

3 × T

HT

T

VB

V Back porch + V Top border

33 × T

HT

23 × T

HT

38 × T

HT

46 × T

HT

44 × T

HT

46 × T

HT

T

VF

V Front porch + V Bottom borde r

11 × T

HT

38 × T

HT

3 × T

HT

2 × T

HT

2 × T

HT

2 × T

HT

T

VIDEO

Video pulse width 41.67ns 41.67ns 41.67ns 41.67ns 41.67ns 41.67ns

PAT1 = 0, PAT0 = 0 PAT1 = 0, PAT0 = 1 PAT1 = 1, PAT0 = 0 PAT1 = 1, PAT0 = 1

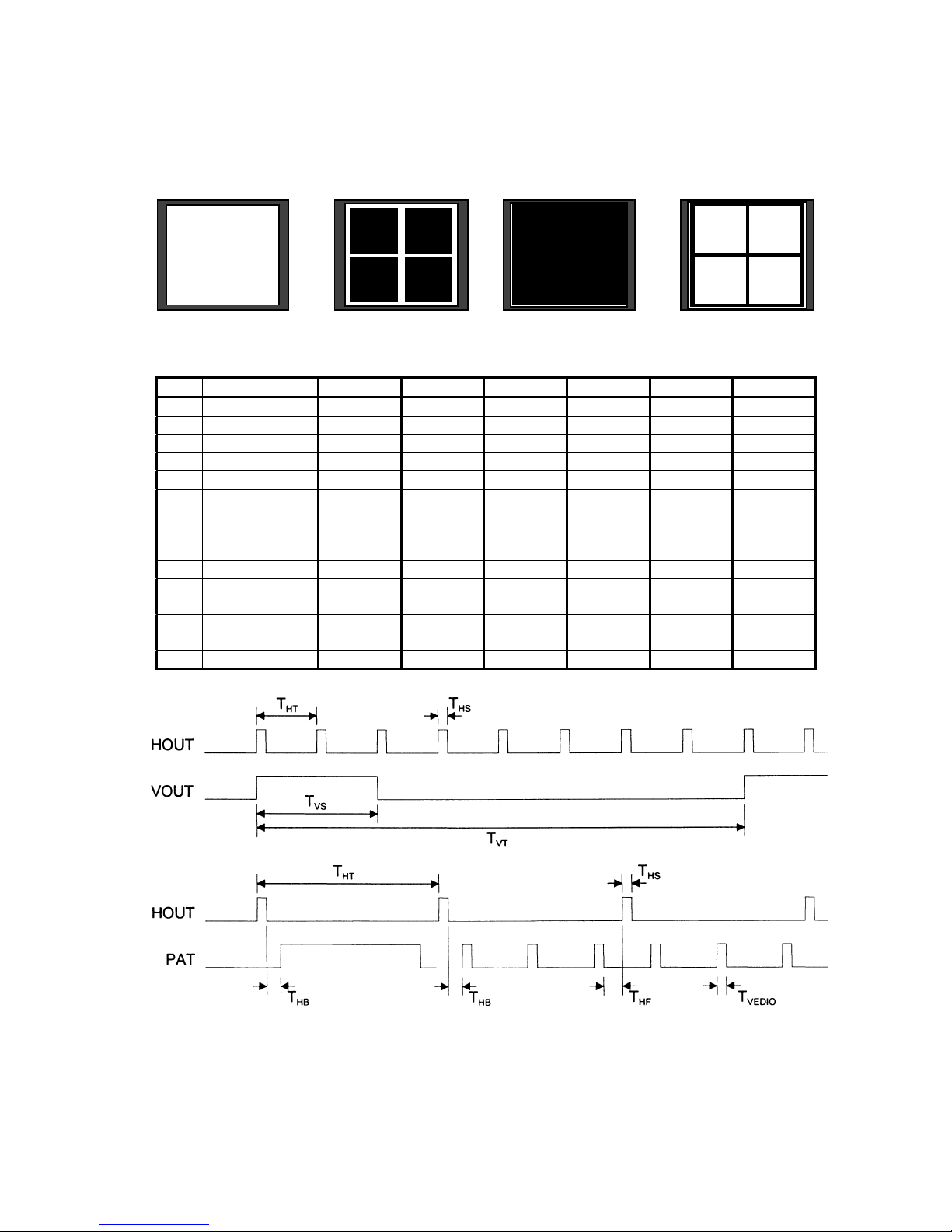

Fig. 7 Test Pattern

Fig.8 Free-running sync signal and test pattern timing

DDC Flow Chart

53

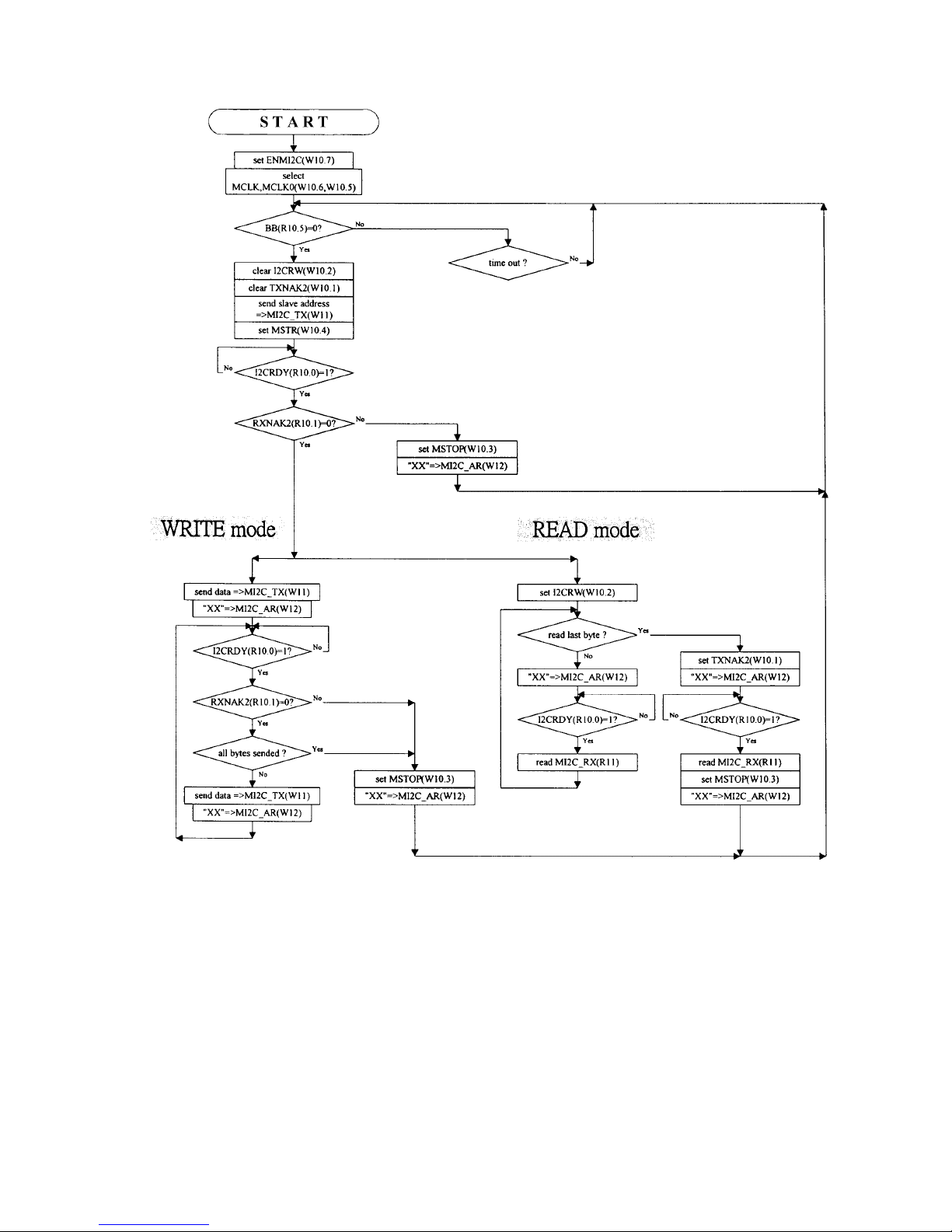

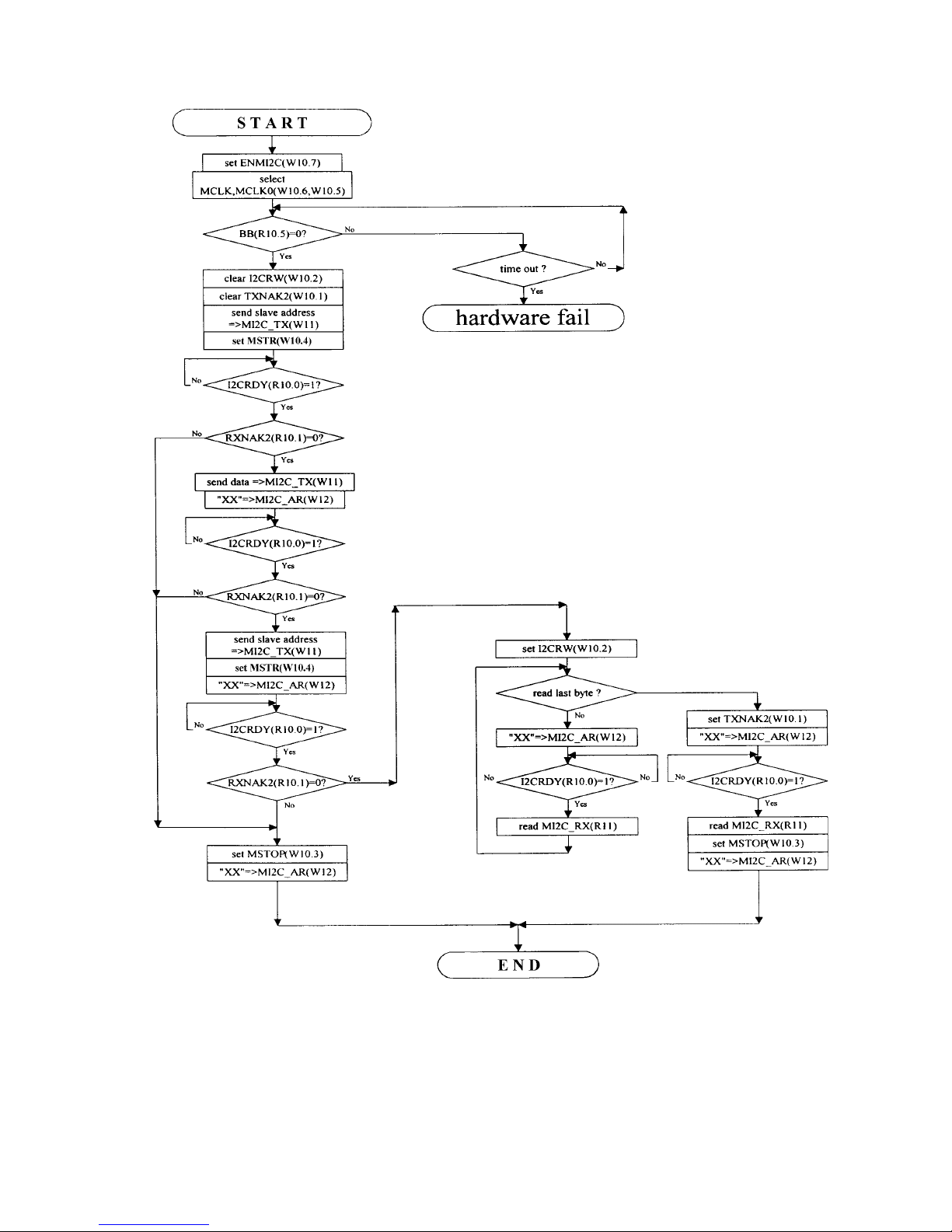

Master I²C Flow Chart

54

Master I²C (restart mode) Flow Chart

55

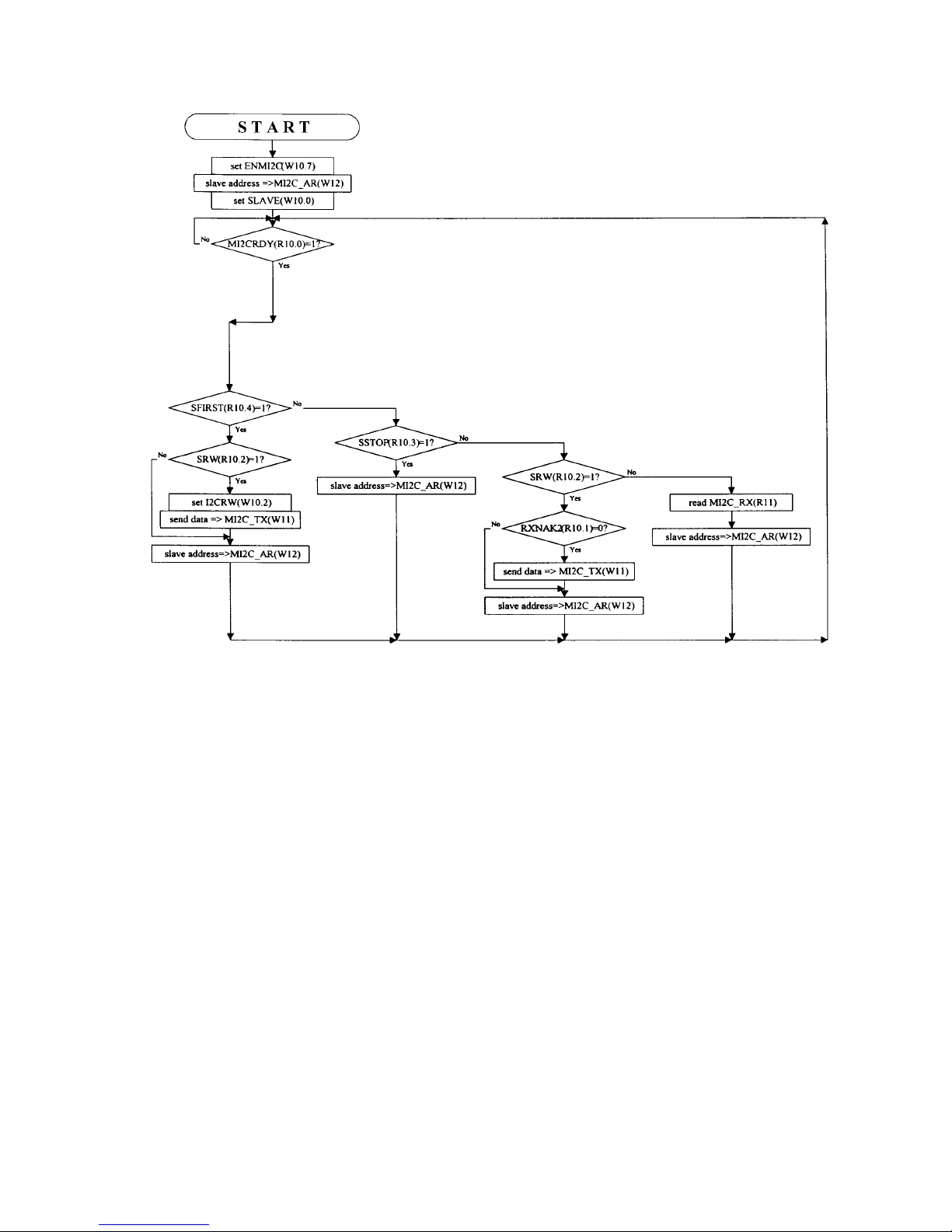

Slave I²C Flow Chart

56

3. Horizontal deflection signal processing / Vertical and geometrical compensation of the raster

57

FEATURES Concept features

§ Full horizotal plus vertical autosync capability

§ Extended horizontal frequency range from 15 to

130kHz

§ Comprehensive set of I²C-bus driven geometry adjustments and functions, including standby mode

§ Very good vertical linearity

§ Moire cancellation

§ Start-up and switch-off sequence for safe opera-

tion of all power components

§ X-ray protection

§ Power dip recognition

§ Flexible switched mode B+ supply function block

for feedback and feed forward converter

§ Internally stabilized voltage reference

§ Drive signal for focus amplifiers with combined

horizontal and vertical parabola waveforms

§ DC controllable inputs for Extremely High Tension (EHT) Compensation

§ SDIP32 Package

Synchronization

§ Can handle all sync signals (horizontal, vertical, composite and sync-on-video)

§ Output for video clamping (leading/trailing edge selectable by the I²C-bus), vertical blanking and protection blanking

§ Output for fast unlock status of horizontal synchronization and blanking on grid 1 of picture tube.

Horizontal section

§ I²C-bus controllable wide range linear picture position, pin unbalance and parallelogram correction via horizontal phase

§ Frequency-locked loop for smooth catching of horizontal frequency

§ Simple frequency preset of fmin and fmax by external resistors

§ Low jitter

§ Soft start for horizontal and B+ control drive

signals.

Vertical section

§ I²C-bus controllable vertical picture size, picture position, linearity (S-correction) and linearity balance

§ Output for the I²C-bus controllable vertical sawtooth and parabola (for pin unbalance and parallelogram)

§ Vertical picture size independent of frequency

§ Differential current outputs for DC coupling to

vertical booster

§ 50 to 160 Hz vertical autosync range.

East-West (EW) section

§ I²C-bus controllable output for horizontal pincushion, horizontal size, corner and trapezium correction

§ Optional tracking of EW drive waveform with line frequency selectable by the I²C-bus.

Focus section

§ I²C-bus controllable output for horizontal and vertical parabolas

§ Vertical parabola is independent of frequency and tracks with vertical adjustments

§ Horizontal parabola independent of frequency

§ Adjustable pre-correction of delay in focus output

stage.

I²C-bus autosync deflection controller for PC monitors TDA4857

BLOCK DIAGRAM

I²C-bus autosync deflection controller for PC monitors TDA4857

58

SYMBOL PIN DESCRIPTION

HFLB 1 horizontal flyback input XRAY 2 X-ray protection input BOP 3 B+ control OTA output BSENS 4 B+ control comparator input BIN 5 B+ control OTA input BDRV 6 B+ control driver output PGND 7 power ground HDRV 8 horizontal driver output XSEL 9 select input for X-ray reset Vcc 10 supply voltage EWDRV 11 EW waveform output VOUT2 12 vertical output 2 (ascending sawtooth) VOUT1 13 vertical output 1 (descending sawtooth) VSYNC 14 vertical synchronization input HSYNC 15 horizontal/composite synchronization input CLBL 16 video clamping pulse/vertical blanking output HUNLOCK 17 horizontal synchronization unlock/protection/vertical blanking output SCL 18 I²C-bus clock input SDA 19 I²C-bus data input/output ASCOR 20 output for asymmetric EW corrections VSMOD 21 input for EHT compensation (via vertical size) VAGC 22 external capacitor for vertical amplitude control VREF 23 external resistor for vertical oscillator VCAP 24 external capacitor for vertical oscillator SGND 25 signal ground HPLL1 26 external filter for PLL1 HBUF 27 buffered f/v voltage output HREF 28 reference current for horizontal oscillator HCAP 29 external capacitor for horizontal oscillator HPLL2 30 external filter for PLL2/soft start HSMOD 31 input for EHT compensation (via horizontal size) FOCUS 32 output for horizontal and vertical focus

PINNING

I²C-bus autosync deflection controller for PC monitors TDA4857

59

FUNCTIONAL DESCRIPTION

Horizontal sync separator and polarity correction

HSYNC (pin 15) is the input for horizontal synchronization signals, which can be DC-coupled TTL signals (horizontal or composite sync) and AC-coupled negative-going video sync signal. Video syncs are clamped to 1.28V and sliced at 1.4V. This results in a fixed absolute slicing level of 120 mV related to top sync.

For DC-coupled TTL signals the input clamping current is limited. The slicing level for TTL signals is 1.4 V.

The separated sync signal (either video or TTL) is integrated on an internal capacitor to detect and normalize the sync polarity.

Normalized horizontal sync pulses are used as input signals for the vertical sync integrator, the PLL1 phase detector and the frequency-locked loop.

Vertical sync integrator

Normalized composite sync signals from HSYNC are integrated on an internal capacitor in order to extract vertical sync pulses. The integration time is dependent on the horizontal oscillator reference current at HREF (pin 28). The integrator output directly triggers the vertical oscillator.

Vertical sync slicer and polarity correction

Vertical sync signals (TTL) applied to VSYNC (pin 14) are sliced at 1.4V. The output signal of the sync slicer is integrated on an internal capacitor to detect and normalize the sync polarity. The output signals of vertical sync integrator and sync normalizer are disjuncted before they are fed to the vertical oscillator.

Video clamping/vertical blanking generator

The video clamping/vertical blanking signal at CLBL (pin

16) is a two-level sandcastle pulse which is especially suit-

able for video ICs such as the TDA488x family, but also for direct applications in video output stages.

The upper level is the video clamping pulse, which is triggered by the horizontal sync pulse. Either the leading or trailing edge can be selected by setting control bit CLAMP via the I²C-bus. The width of the video clamping pulse is determined by an internal single-shot multivibrator.

The lower level of the sandcastle pulse is the vertical blanking pulse, which is derived directly from the internal oscillator waveform. It is started by the vertical sync and stopped with the start of the vertical scan. This results in optimum vertical blanking. Two different vertical blanking times are accessible, by control bit VBLK, via the I²C-bus.

Blanking will be activated continuously if one of the following conditions is true:

Soft start of horizontal and B+ drive [voltage at HPLL2 (pin 30) pulled down externally or by the I²C-bus] PLL1 is unlocked while frequency-locked loop is in search mode No horizontal flyback pulses at HFLB (pin 1) X-ray protection is activated Supply voltage at Vcc (pin 10) is low

Horizontal unlock blanking can be switched off, by control bit BLKDIS, via the I²C-bus while vertical blanking is maintained.

I²C-bus autosync deflection controller for PC monitors TDA4857

60

Frequency-locked loop

The frequency-locked loop can lock the horizontal oscillator over a wide frequency range. This is achieved by a combined search and PLL operation. The frequency range is preset by two external resistors and the

recommended maximum ratio is

1

6.5

f

max

=

This can, for instance, be a range from 15.625 to 90kHz with all tolerance included.

Without a horizontal sync signal the oscillator will be freerunning at f

min

. Any change of sync conditions is detected by the internal coincidence detector. A deviation of more than 4% between horizontal sync and oscillator frequency switches the horizontal section into search mode. This means that PLL1 control currents are switched off immediately. The internal frequency detector then starts tuning the oscillator. Very small DC currents at HPLL1 (pin

26) are used to perform this tuning with a well defined change rate. When coincidence between horizontal sync and oscillator frequency is detected, the search mode is first replaced by a soft-lock mode which lasts for the first part of the next vertical period. The soft-lock mode is then replaced by a normal PLL operation. This operation ensures smooth tuning and avoids fast changes of horizontal frequency during catching.

In this concept it is not allowed to load HPLL1. The frequency dependent voltage at this pin is fed internally to HBUF (pin 27) via a sample-and-hold and buffer stange. The sample-and-hold stage removes all disturbances caused by horizontal sync or composite vertical sync from the buffered voltage. An external resistor connected between pins HBUF and HREF defines the frequency range.

Out-of-lock indication (pin HUNLOCK)

Pin HUNLOCK is floating during search mode, or if a protection condition is true. All this can be detected by the microcontroller if a pull-up resistor is connected to its own supply voltage.

For an additional fast vertical blanking at grid 1 of the picture tube a 1 V signal referenced to ground is available at this output. The continuous protection blanking (see Section “Video clamping/vertical blanking generator”) is also available at this pin. Horizontal unlock blanking can be switched off, by control bit BLKDIS via the I²C-bus while vertical blanking is maintained.

I²C-bus autosync deflection controller for PC monitors TDA4857

Horizontal oscillator

The horizontal oscillator is of the relaxation type and requires a capacitor of 10 nF at HCAP (pin 29). For optimum jitter performance the value of 10 nF must not be changed.

The minimum oscillator frequency is determined by a resistor from HREF to ground. A resistor connected between pins HREF and HBUF defines the frequency range.

The reference current at pin HREF also defines the integration time constant of the vertical sync integration.

Calculation of line frequency range

The oscillator frequencies fmin and fmax must first be calculated. This is achieved by adding the spread of the relevant components to the highest and lowest sync frequencies f

sync(min)

and f

sync(max)

. The oscillator is driven by the

currents in R

HREF

and R

HBUF.

The following example is a 31.45 to 90 kHz application:

Thus the typical frequency range of the oscillator in this example is:

kHz 96.31.07ff

sync(max)max

=×=

kHz 28.4

1.09

f

sync(min)

min

==

The resistors R

HREF and RHBUF

par

can be calculated using

the following formulae:

[ ]

2.61Ù

kHz

2

min

f0.0012

min

f

kÙkHz78

HREF

R

=

×+

××

=

[ ]

726Ù

kHz

2

max

f0.0012

max

f

kÙkHz78

HBUFpar

R

=

×+

××

=

The resistor R

HBUF

par

os calculated as the value to RHREF

and RHBUF in parallel.

61

spread of for f

max

for f

min

IC ±3% ±5% C

HCAP

±2% ±2%

R

HREF

, R

HBUF

±2% ±2%

Total ±7% ±9%

Table 1 Calculation of total spread

62

I²C-bus autosync deflection controller for PC monitors TDA4857

The formulae for R

HBUF

also takes into account the voltage

swing across this resistor:

Ù 8050.8

HBUFpar

R

HREF

R

HBUFpar

R

HREF

R

HBUF

R =×

−

×

=

PLL1 phase detector

The phase detector is a standard type using switched current sources, which are independent of horizontal frequency. It compares the middle of horizontal sync with a fixed point on the oscillator sawtooth voltage. The PLL1 loop filter is connected to HPLL1 (pin 26).

See also Section “Horizontal position adjustment and corrections”.

Horizontal position adjustment and corrections

Alinear adjustment of the relative phase between the horizontal sync and the oscillator sawtooth (in PLL1 loop) is achieved via register HPOS. Once adjusted, the relative phase remains constant over the whole frequency range.

Correction of pin unbalance and parallelogram is achieved by modulating the phase between oscillator sawtooth and horizontal flyback (in loop PLL2) via registers HPARAL and HPINBAL. If those asymmetric EW corrections are performed in the deflection stage, both registers can be disconnected from the horizontal phase via control bit ACD. This does not change the output at pin ASCOR.

Horizontal moire cancellation

To achieve a cancellation of horizontal moire (also known as ‘video moire’), the horizontal frequency is divided-bytwo to achieve a modulation of the horizontal phase via PLL2. The amplitude is controlled by register HMOIRE. To avoid a visible structure on screen the polarity changes with half of the vertical frequency. Control bit MOD disables the moire cancellation function.

PLL2 phase detector

The PLL2 phase detector is similar to the PLL1 detector and compares the line flyback pulse at HFLB (pin 1) with the oscillator sawtooth voltage. The control currents are independent of the horizontal frequency. The PLL2 detector thus compensates for the delay in the external horizontal deflection circuit by adjusting the phase of the HDRV (pin 8) output pulse.

An external modulation of the PLL2 phase is not allowed, because this would disturb the pre-correction of the horizontal focus parabola.

Soft start and standby

If HPLL2 is pulled to ground, either by an external DC current or by resetting register SOFTST, the horizontal output pulses and B+ control driver pulses will be inhibited. This means that HDRV (pin 8) and BDRV (pin 6) are floating in this state. In both cases PLL2 and the frequency-lock loop are disabled, and CLBL (pin 16) provides a continuous blanking signal and HUNLOCK (pin 17) is floating.

This option can be used for soft start, protection and powerdown modes. When pin HPLL2 is released again, an automatic soft start sequence on the horizontal drive as well as on the B-drive output will be performed.

A soft start can only be performed if the supply voltage for the IC is a minimum of 8.6V.

The soft start timing is determined by the filter capacitor at HPLL2 (pin 30), which is charged with a constant current during soft start. In the beginning the horizontal driver stage generates very small output pulses. The width of these pulses increases with the voltage at HPLL2 until the final duty cycle is reached. The voltage at HPLL2 increases further and performs a soft start at BDRV (pin 6) as well. After BDRV has reached full duty cycle, the voltage at HPLL2 continues to rise until HPLL2 enters its normal operating range. The internal charge current is now disabled. Finally PLL2 and the frequency-locked loop are activated. If both functions reach normal operation, HUNLOCK (pin 17) switches from the floating status to normal vertical blanking, and continuous blanking at CLBL (pin 16) is removed.

Output stage for line drive pulses [HDRV (pin 8)]

An open-collector output stage allows direct drive of an inverting driver transistor because of a low saturation voltage of 0.3V at 20mA. T o protect the line deflection transistor, the output stage is disabled (floating) for a low supply voltage at Vcc.

The duty cycle of line drive pulses is slightly dependent on the actual horizontal frequency. This ensures optimum drive conditions over the whole frequency range.

X-ray protection

The X-ray protection input XRAY (pin 2) provides a voltage detector with a precise threshold. If the input voltage at XRAY exceeds this threshold for a certain time, then control bit SOFTST is reset, which switches the IC into protection mode. In this mode several pins are forced into defined states:

HUNLOCK (pin 17) is floating The capacitor connected to HPLL2 (pin 30) is discharged Horizontal output stage (HDRV) is floating B+ control driver stage (BDRV) is floating CLBL provides a continuous blanking signal.

There are two different methods of restarting ways the IC:

1. XSEL (pin 9) is opeb-circuit or connected to ground. The

control bit SOFTST must be set to logic 1 via the I²Cbus. Then the IC returns to normal operation via soft start.

2. XSEL (pin 9) is connected to Vcc via an external resistor.

The supply voltage of the IC must be switched off for a certain period of time, before the IC can be restarted again using the standard power-on procedure.

Vertical oscillator and amplitude control

This stage is designed for fast stabilization of vertical size after changes in sync frequency conditions. The free-running frequency f

fr(v)

is determined by the resis-

tor R

VREF connected to pin 23 and the capacitor CVCAP con-

nected to pin 24. The value of R

VREF is not only optimized

for noise and linearity performance in the whole vertical and EW section, but also influences several internal reference. Therefore the value of R

VREF must not be

changed. Capacitor C

VCAP should be used to select the free-

running frequency of the vertical oscillator in accordance with the following formula:

VCAP

C

VREF

R10.8

1

fr(V)

f

××

=

T o achieve a stabilized amplitude the free-running frequency ffr(v), without adjustment, should be at least 10% lower than the minimum trigger frequency. The contributions shown in Table 2 canbe assumed.

63

I²C-bus autosync deflection controller for PC monitors TDA4857

Cont ributing elements

Minimum frequency offset between f

fr(v)

and

lowest trigger frequency

10%

Spread of IC ±3% Spread of R

VREF

±1%

Spread of C

VCAP

±5%

Total 19%

Result for 50 to 160Hz application:

Hz 42

1.19

Hz 50

fr(V)

f ==

The AGC of the vertical oscillator can be disabled by setting control bit AGCDIS via the I²C-bus. Aprecise external current has to be injected into VCAP (pin 24) to obtain the correct vertical size. This special application mode can be used when the vertical sync pulses are serrated (shifted); this condition is found in some display modes, e.g. when using a 100Hz up converter for video signals.

Application hint: VAGC (pin 22) has a high input impedance during scan. Therefore, the pin must not be loaded externally otherwise non-linearities in the vertical output currents may occur due to the changing charge current during scan.

Adjustment of vertical size, VGA overscan and EHT compensation

There are four different ways to adjust the amplitude of the differential output currents at VOUT1 and VOUT2. 1 Register VGIN changes the vertical size without affect-

ing any other output signal of the IC. This adjustment is meant for factory alignments.

2 Register VSIZE changes not only the vertical size, but

also provides the correct tracking of all other related waveforms (see section”Tracking of vertical adjustments”). This register should be used for user adjustments.

3 For the VGA350 mode register VOVSCN can activate a

+17% step in vertical size.

4 VSMOD (pin 21) can be used for a DC controlled EHT

compensation of vertical size by correcting the differential output currents at VOUT1 and VOUT2. The EW waveforms, vertical focus, pin unbalance and parallelogram corrections are not affected by VSMOD.

Table 2 Calculation of f

fr(V)

total spread

I²C-bus autosync deflection controller for PC monitors TDA4857

64

Adjustment of vertical position, vertical linearity and vertical linearity balance

Register VOFFS provides a DC shift at the sawtooth outputs VOUT1 and VOUT2 (pin 13 and 12) without affecting any other output waveform. This adjustment is meant for factory alignments.

Register VPOS provides a DC shift at the sawtooth output VOUT1 and VOUT2 with correct tracking of all other related waveforms (see Section “Tracking of vertical adjustments”). This register should be used for user adjustments. Due to the tracking the whole picture moves vertically while maintaining the correct geometry.

Register VLIN is used to adjust the amount of the vertical S-correction in the output signal. This function can be switched off by control bit VSC.

Register VLINBAL is used to correct the unbalance of vertical S-correction in the output signal.

Tracking of vertical adjustments

The adjustments via registers VSIZE, VOVSCN and VPOS also affect the waveforms of horizontal pincushion, vertical linearity (S-correction), vertical linearity balance, focus parabola, pin unbalance and parallelogram correction. The result of this interaction is that no readjustment of these parameters is necessary after an user adjustment of vertical picture size and vertical picture position.

Adjustment of vertical moire cancellation

To achieve a cancellation of vertical moire (also known as ‘scan moire’) the vertical picture position can be modulated by half the vertical frequency. The amplitude of the modulation is controlled by register VMOIRE and can be switched off via control bit MOD.

Horizontal pincushion (including horizontal size, corner correction and trapezium correction)

EWDRV (pin 11) provides a complete EW drive waveform. The components horizontal pincushion, horizontal size, corner correction and trapezium correction are controlled by the registers HPIN, HSIZE, HCORT, HCORB and HTRAP.

The corner correction can be adjusted separately for the top (HCORT) and bottom (HCORB) part of the picture.

The pincushion (EW parabola) amplitude, corner and trapezium correction track with the vertical picture size (VSIZE) and also with the adjustment for vertical picture position (VPOS). The corner correction does not track with the horizontal pincushion (HPIN). Further the horizontal pincushion amplitude, corner and trapezium correction track with the horizontal picture size, which is adjusted via register HSIZE and the analog modulation input HSMOD. If the DC component in the EWDRV output signal is increased via HSIZE or Ihsmod, the pincushion, corner and trapezium component of the EWDRV output will be reduced by a factor of

14.4V

HSIZE

H

1

HEHT

V

HSIZE

V

1



 





 



−+

−

The value 14.4V is a virtual voltage for calculation only. The output pin can not reach this value, but the gain (and DC bias) of the external application should be such that the horizontal deflection is reduced to zero when EWDRV reaches 14.4V. HSMOD (pin 31) can be used for a DC controlled EHT compensation by correcting horizontal size, horizontal pincushion, corner and trapezium. The control range at this pin tracks with the actual value of HSIZE. For an increasing DC component V

HSIZE in the EWDRV output signal, the DC

component V

HEHT caused by IHSMOD will be reduced by a

factor of

14.4V

HSIZE

V

1−

as shown in the equation above.

The whole EWDRV voltage is calculated as follows: V

EWDRV = 1.2V + [VHSIZE + VHEHT × f(HSIZE)+(VHPIN +

VHCOR + VHTRAP) × g(HSIZE, HSMOD)]h(IHREF) where:

0.69

120ì2

HSMOD

I

HEHT

V ×=

14.4V

HSIZE

V

1f(HSIZE) −=

( )

14.4V

HSIZE

V

1

HEHT

V

HSIZE

V

1HSMODHSIZE,g



 





 



−+

−=

70kHzf

HREF

I

HREF

I

1)

HREF

h(I

=

−=

I²C-bus autosync deflection controller for PC monitors TDA4857

65

Two different modes of operation can be chosen for the EW output waveform via control bit FHMULT:

1. Mode 1

Horizontal size is controlled via register HSIZE and causes a DC shift at the EWDRV output. The complete waveform is also multiplied internally by a signal proportional to the line frequency [which is detected via the current at HREF (pin 28)]. This mode is to be used for driving EW diode modulator stage which require a voltage proportional to the line frequency.

2. Mode 2

The EW drive waveform does not track with the line frequency. This mode is to be used for driving EW modulators which require a voltage independent of the line frequency.

Output stage for asymmetric correction waveforms [ASCOR (pin 20)]

This output is designed as a voltage output for superimposed waveforms of vertical parabola and sawtooth. The amplitude and polarity of both signals can be change by registers HPARAL and HPINBAL via the I²C-bus.

Application hint: The TDA4856 offers two possibilities to control registers HPINBAL and HPARAL.

1. Control bit ACD = 1

The two registers now control the horizontal phase by means of internal modulation of the PLL2 horizontal phase control. The ASCOR output (pin 20) can be left unused, but it will always provide an output signal because the ASCOR output stage is not influenced by the control bit ACD.

2. Control bit ACD = 0

The internal modulation via PLL2 is disconnected. In order to obtain the required effect on the screen, pin ASCOR must now be fed to the DC amplifier which controls the DC shift of the horizontal deflection. This option is useful for applications which already use a DC shift transformer.

If the tube does not need HPINBAL and HPARAL, then pin ASCOR can be used for other purposes, i.e. for a simple dynamic convergence.

Dynamic focus section [FOCUS (pin 32)]

This section generates a complete drive signal for dynamic focus applications. The amplitude of the horizontal parabola is internally stabilized, thus it is independent of the horizontal frequency. The amplitude can be adjusted via register HFOCUS. Changing horizontal size may require a correction of HFOCUS. To compensate for the delay in external focus amplifiers a ‘pre-correction’ for the phase of the horizontal parabola has been implemented. The amount of this pre-correction can be adjusted via register HFOCAD. The amplitude of the vertical parabola is independent of frequency and tracks with all vertical adjustments. The amplitude can be adjusted via register VFOCUS.

FOCUS (pin 32) is designed as a voltage output for the superimposed vertical and horizontal parabolas.

B+ control function block

The B+ control function block of the TDA4856 consists of an Operational Transconductance Amplifier (OTA), a voltage comparator, a flip-flop and a discharge circuit. This configuration allows easy applications for differnet B+ control concepts. See also Application Note AN96052: “B+ converter Topologies for Horizontal Deflection and EHT with TDA4855/58”.

GENERAL DESCRIPTION

The non-inverting input of the OTA is connected internally to a high precision reference voltage. The inverting input is connected to BIN (pin 5). An internal clamping circuit limits the maximum positive output voltage of OTA. The output itself is connected to BOP (pin 3) and to the inverting input of the voltage comparator. The non-inverting input of the voltage comparator can be accessed via BSENS (pin 4).

B+ drive pulses are generated by an internal flip-flop and fed to BDRV (pin 6) via an open-collector output stage. This flip-flop is set at the rising edge of the signal at HDRV (pin 8). The falling edge of the output signal at BDRV has a defined delay of t

d(BDRV)

to the rising edge of the HDRV pulse. When the voltage at BSENS exceeds the voltage at BOP, the voltage comparator output resets the flip-flop and, therefore, the open-collector stage at BDRV is floating again.

I²C-bus autosync deflection controller for PC monitors TDA4857

66

An internal discharge circuit allows a well defined discharge of capacitors at BSENS. BDRV is active at a LOW-level output voltage (see Fig. 22), thus it requires an external inverting driver stage.

The B+ function block can be used for B+ deflection modulators in many different ways. Two popular application combinations are as follows:

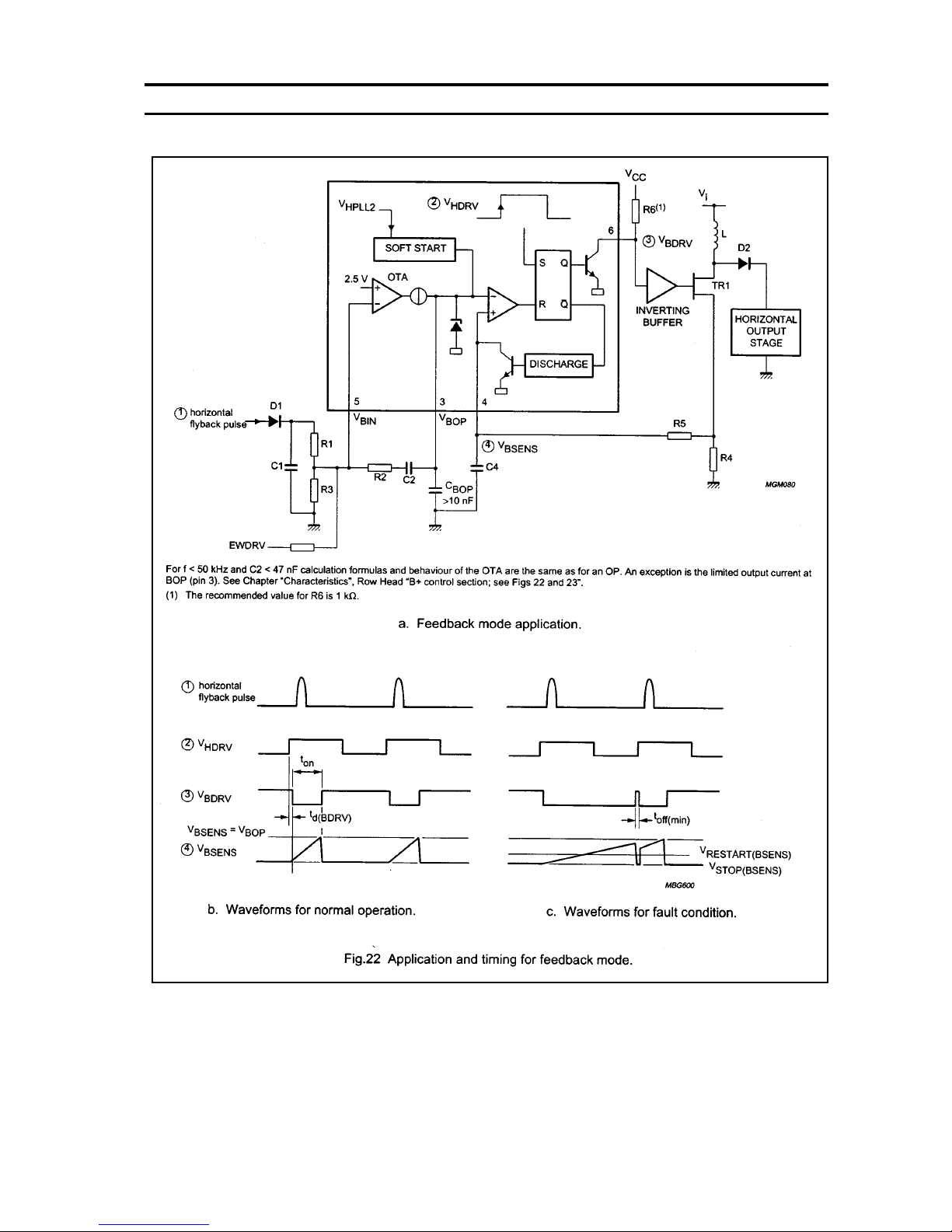

• Boost converter in feedback mode (see Fig. 22)

In this application the OTA is used as an error amplifier with a limited output voltage range. The flip-flop is set on the rising edge of the signal at HDRV. A reset will be generated when the voltage at BSENS, taken from the current sense resistor, exceeds the voltage at BOP. If no reset is generated within a line period, the rising edge of the next HDRV pulse forces the flip-flop to reset. The flip-flop is set immediately after the voltage at BSENS has dropped below the threshold voltage V

RESTART(BSENS).

• Buck converter in feed forward mode

This application uses an external RC combination at BSENS to provide a pulse width which is independent from the horizontal frequency. The capacitor is charged via an external resistor and discharged by the internal discharge circuit. For normal operation the discharge circuit is activated when the flip-flop is reset by the internal voltage comparator. The capacitor will now be discharged with a constant current until the internally controlled stop level V

STOP(BSENS) is reached. This level will

be maintained until the rising edge of the next HDRV pulse sets the flip-flop again and disables the discharge circuit. If no reset is generated within a line period, the rising edge of the next HDRV pulse automatically starts the discharge sequence and resets the flip-flop. When the voltage at BSENS reaches the threshold voltage VRESTAR T(BSENS), the discharge circuit will be disabled automatically and the flip-flop will be set immediately. This behaviour allows a definition of the maximum duty cycle of the B+ control drive pulse by the relationship of charge current to discharge current.

Supply voltage stabilizer, references, start-up procedures and protection functions

The TDA4857 provides an internal supply voltage stabilizer for excellent stabilization of all internal references. An internal gap reference, especially designed for low-noise, is the reference for the internal horizontal and vertical supply voltages. All internal reference currents and drive current for the vertical output stage are derived from this voltage via external resistors.

If eithr the supply voltage is below 8.3V or no data from the I²C-bus has been received after power-up, the internal soft start and protection functions fo not allow any of those outputs [HDRV, BDRV, VOUT1, VOUT2 and HUNLOCK] to be active.

For supply voltages below 8.3V the internal I²C-bus will not generated an acknowledge and the IC is in standby mode. This is because the internal protection circuit has generated a reset signal for the soft start register SOFTST. Above

8.3V data is accepted and all registers can be loaded. If the register SOFTST has received a set from the I²C-bus, the internal soft start procedure is released, which activates all above mentioned outputs.

If during normal operation the supply voltage has dropped below 8.1 V, the protection mode is activated and HUNLOCK (pin 17) changes to the protection status and is floating. This can be detected by the microcontroller.

This protection mode has been implemented in order to protect the deflection stages and the picture tube during start-up, shut-down and fault conditions. This protection mode can be activated as shown is Table 3.

I²C-bus autosync deflection controller for PC monitors TDA4857

67

When the protection mode is active, several pins of the TDA4857 are forced into a defined state:

HDRV (horizontal driver output) is floating BDRV (B+ control driver output) is floating HUNLOCK (indicates, that the frequency-to-voltage converter is out of lock) is floating (HIGH-level via external pull-up resistor) CLBL provides a continuous blanking signal The capacitor at HPLL2 is discharged.

If the soft start procedure is activated via the I²C-bus, all of these actions will be performed in a well defined sequence.

Power dip recognition

In standby mode the I²C-bus will only answer with an acknowledge, when data is sent to control register with subaddress 1AH. This register contains the standby and soft start control bit.

If the I²C-bus master transmits data to another register, an aknowledge is given after the chip address and the subaddress; an acknowledge is not given after the data. This indicates that only in soft start mode data can be stored into normal registers.

If the supply voltage dips under 8.1 V the TDA4857 leaves normal operation mode and changes into standby mode. The microcontroller can check this state by sending data into a register with the subaddress 0XH. The acknowledge will only be given on the data if the TDA4857 is active.

Due to this behavior the start-up of the TDA4857 is defined as follows. The first data that is transferred to the TDA4857 must be sent to the control register with subaddress 1AH. Any other subaddress will not lead to an acknowledge. This is a limitation in checking the I²C-busses of the monitor during start-up.

Table 3 Activation of protection mode

ACTIVATION RESET

Low supply voltage at pin10 increase supply voltage;

reload registers; soft start via I²C-bus

Power dip, below 8.1 V reload registers;

soft start via I²C-bus or via

supply voltage X-ray protection XRAY (pin 2) triggered

reload registers;

soft start via I²C-bus HPLL2 (pin 30) externally pulled to ground

release pin 30

I²C-bus autosync deflection controller for PC monitors TDA4857

68

APPLICATION INFORMATION

4. Horizontal drive and power supply output

Circuit Diagram

Description of the circuit:

69

VCC

T1

R2

D2

R1

Q2

R3

Q1

CT

D1

DR

CS

B+

C2

+

1) R1, T1 and Q2 compose the horizontal driving circuit, and the transistor Q1 generates a horizontal output through the driving signal.

IB1 = I

CPMAX

/ Q1h

feMIN

I

B2

¡Ü¡Ü

¡Ü 3I

B1

di/dt

¡Ü¡Ü

¡Ü 3.3 A/US

2) The resistor R2 corrects the current IB1, t he re si st or R3 work s as a damping r esi s tor and l eak resistor, and the diode D2 works as a disch arg ing devi ce and pola r body. As long as the transis tor Q 1 i s O FF, the discharge is accelerated and t he storage time (Tstg) is shortened.

3)H-OUT circuit waveform

D2

Q2

CT

D1

CS

B+

Q1

Cm

Csm

Lm

DY

Vm

+28V

H-Width

Q3

U1

+

-

Va

Vb1

I1

70

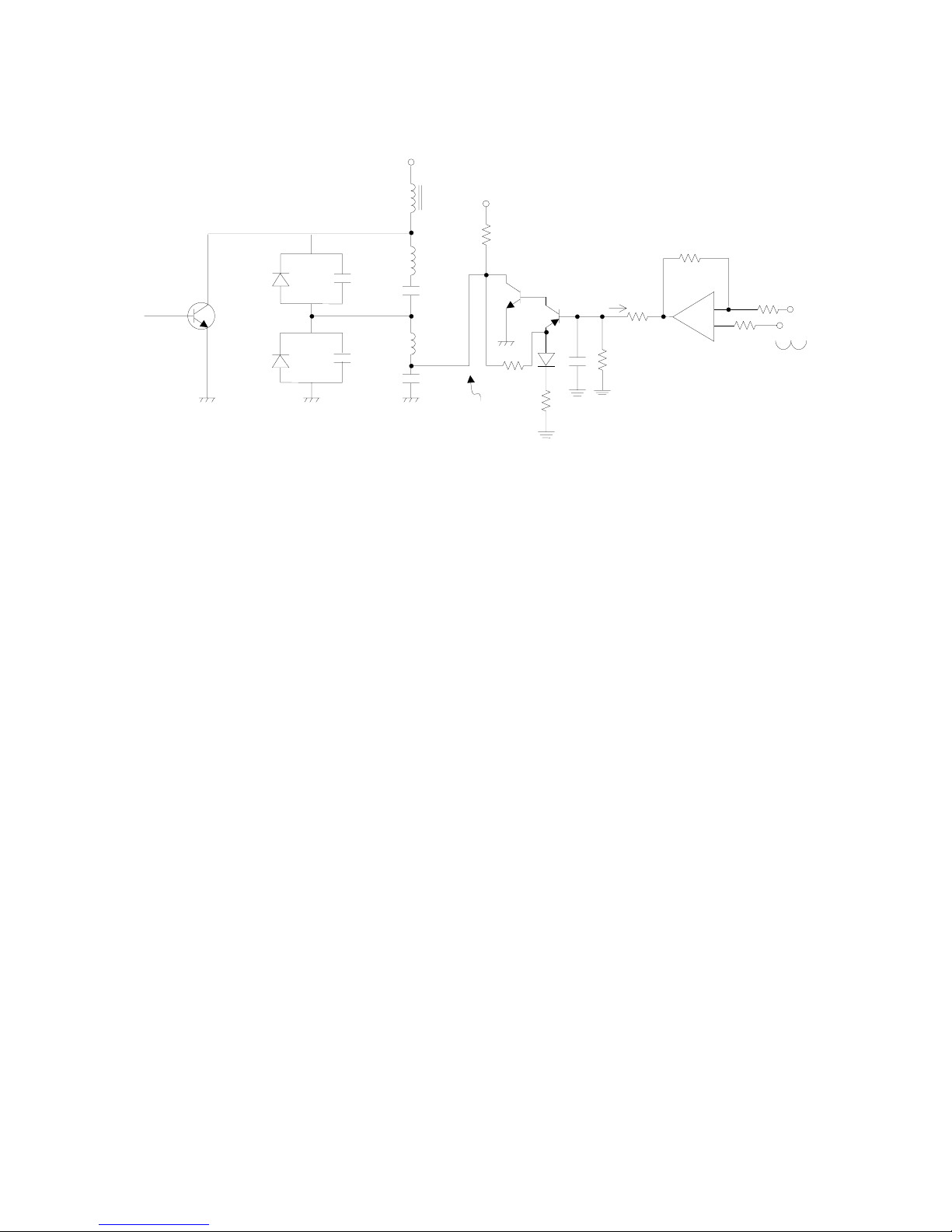

5. Horizontal amplitude control

Circuit Diagram

Description of the circuit:

1) The diodes D1 and D2 compose the bipolar modulation circuit, and have the function of controlling the currents of the oils DY(lpp) and Lm(lm) through voltage modulation carried out by utilizing VM.

B+ = Vm +Vcs Therefore, Vcs = (ly * Ly)/ts → ly = (Vcs * ts)/Ly, with B+ fixed. Such being the case, the horizontal width decreases when Vm ↑ → Vc ↓ → ly ↓ Inversely, the horizontal width decreases when Vm ↓ → Vcs ↑ → ly ↑ (B+ = (Vp*2Tr)/(π*Ts), Tr =

¡Ô¡Ô

¡ÔLyCt, Tm =

¡Ô¡Ô

¡ÔLmCm)

2) Q2, Q3 and U1 compose the control circuit of H-WIDTH. Of those devices, the transistor Q2 and Q3 compose the Darlington current amplifier, and on the other operational amplifier U1 compose the emitter-coupled circuit, t hat stabilize the voltage and control the cur rent.

3) The hor iz onta l wi dth broadens when Va ↑ → VbI ↓ → I1 ↑ → I2 ↑ → Vm ↓ →. An inference in the opposite sense is also possi bl e.

Test points for maintenance:

1) CT = 31 to 37 kHz = 3.2 us

48 to 64 kHz = 3.0 us Cm ÷ 2.8 us

2) VACENTER: 31 to 64 kHz

¡Ü¡Ü

¡Ü 1.91 to 4.06V

VMCENTER: 31 to 64 kHz

¡Ü¡Ü

¡Ü 11.6 to 27.4V

R6

V-SYNC

V-OUT

R3

D1

R1

C2

R2 R5

R12

Q5

Q1

D4

R4

D5

Q2

C3

G1

R11

R10

C4

ZD1

C5

V2

V1

V3

Q3

R7

D6

VCC

Q4

VE

R9

R8

MUTE

BRIGHT CONTER

+

Q6

71

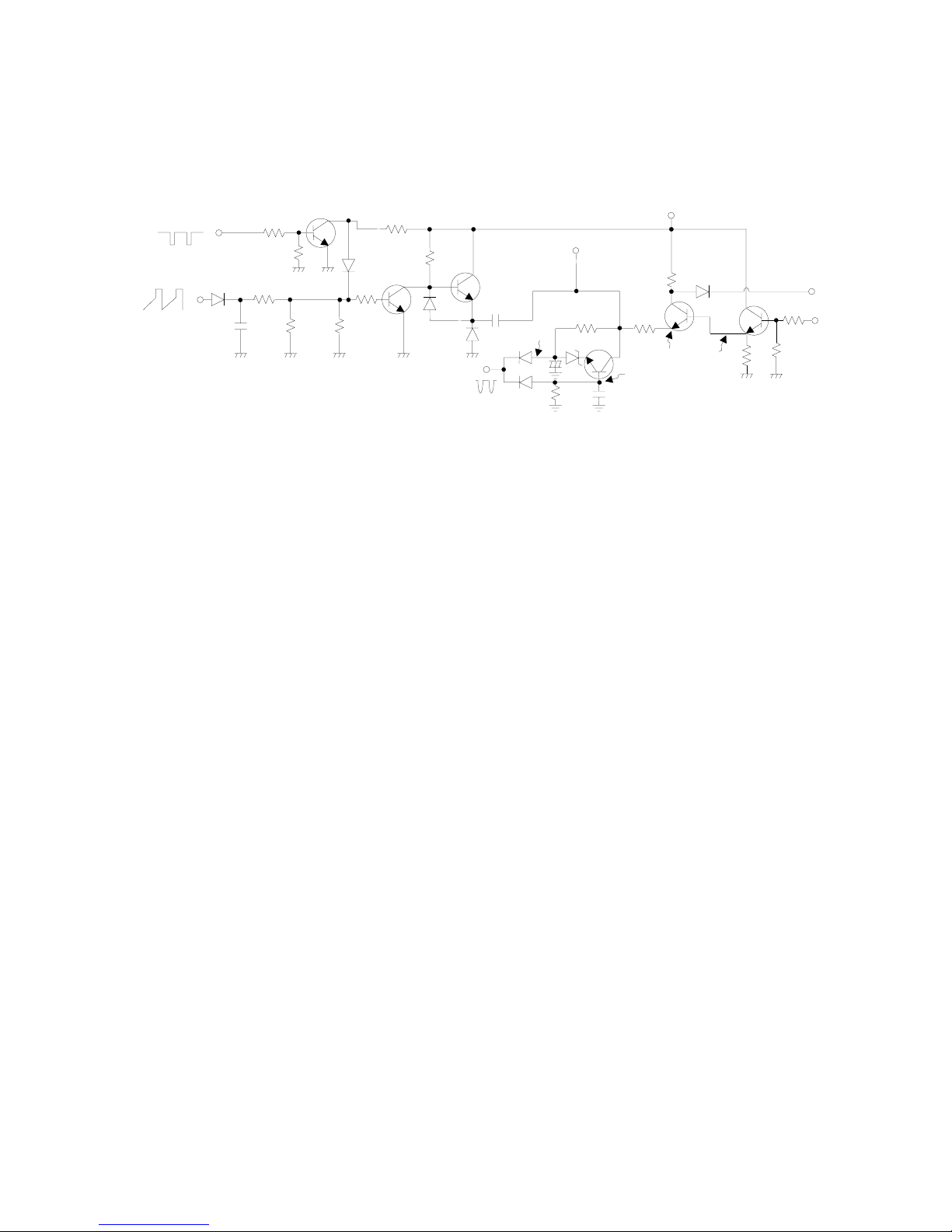

6. Blanking and spot killer

Circuit Diagram

Description of the circuit:

1) The vertical blanking circuit completes by Q1, Q2, Q3 and peripheral circuit. The vertical sync pulse applied to R3, R12 connected to Q5 base. Q5 is invert amplifier, then mixer with Q1 base together for compensate vertical retrace time of the blanking pulse.

2) The vertical amplifier output waveform through D1, C2, R1, R2 make waveform forming and

clamp. Then applied to Q1 base, the vertical blanking amplifier of the Q1, the output connected to buffer Q2, through C3 coupling to G1 control circuit. D4, D5 for over voltage protect.

3) The Q6 is spot killer protect circuit, in normal power on stage. V1 = V2 and ZD1, so Q6 off. The CRT G1 voltage is fixed at –45 ~ −67VDC with vertical blanking pulse 12Vpp VG1 = − (V × R11) / (R10 + R11), (V = V1 − V3). When power off the voltage V1 > V2, then Q6 turn on pulling VG1 to –180V to protect CRT.

4) When Mute set to lower the Q3 off G1 = −180V screen cut off no picture display, this mute circuit

makes active, at power ON/OFF and when mode change stage.

5) Q4 bias set up by MCU to control the VCE bias of Q3, then control G1 voltage output.

Test points for maintenance:

1) Check D1, R3 and Q1 collector

2) G1 voltage control range= −45 ~ −67VDC G1 off momentary voltage

¡Ü¡Ü

¡Ü−180VAC

Red OSD Input

Green OSD Input

Blue OSD Input

Video/OSD Switch

Red Video In

V

CC1

Ground

Green Video In

V

CC1

Ground

Blue Video In

V

REF

Video Contrast

OSD Contrast

1

2

3

4

5

6

7

8

9

10

11

12

13

14

28

27

26

25

24

23

22

21

20

19

18

17

16

15

Red Drive Adjust Green Drive Adjust Blue Drive Adjust RGB Cutoff Adjust Red Clamp Cap Red Video Out V

CC2

Ground Green Video Out

Green Clamp Cap Blue Video Out

Blue Clamp Cap Blank Gate

Clamp Gate

Contrast

Attenuation

Contrast

Attenuation

Contrast

Attenuation

Drive

Attenuation

Contrast

Attenuation

Contrast

Attenuation

Top View

-A1

-A2

72

7. Video amplifier system with on-screen display

LM1281 (U201)

Outstanding features: * Three-channel video amplifier bandwidth 85 MHz @ -3 dB (4 Vp-p output) * OSD TTL input, bandwidth 50 MHz * High-speed video/OSD changeover * High impedance DC contrast control above the 0-4V, 40dB range * High impedance DC OSD contrast control above the 0-4V, 40dB range

BLOCK AND CONNECTION DIAGRAM

Description of the functions

Figure 1 shows the block diagram of LM1281, in conformity with the pin layout of the IC. Every channel accepts both the video signal and the OSD signal at the input anplifier (A1). Also the video/OSD changeover signal passes either the video signal or the OSD signal through LM1281, or is connected with the input amplifier for control purposes. The next contrast adjustment block is a drive adjustment type one. The reference level for the DC return circuit is set by means of the RGB cutoff adjustment pin (PIN 25). Attention must be paid to the fact that the blank clamp gate is active when it is stuck at the LOW state. Under ordinary circumstances, these pins are controlled by means of the standard TTL signal.

RED OSD INPUT

GREEN OSD INPUT

BLUE OSD INPUT

OSD INPUT SELECT

RED VIDEO IN

GREEN VIDEO IN

BLUE VIDEO IN

VIDEO CONTRAST

RED DRIVE ADJ.

GREEN DRIVE A DJ.

BLUE DRIVE ADJ.

RGB CUTOFF ADJ.

RED VIDEO OUT**

GREEN VIDEO OUT**

BLUE VIDEO OUT**

BLANK GATE

CLAMP GATE

OSD CONTRAST

POT6

100K

POT5

100K

POT4

100K

POT2

100K

POT1

100K

POT3

100K

R21 47k

R19

430

R20

2.4k

L1

R17

2.4k

R16

2.4k

R18 430

430

R15

R17 100

R9 33

R10 50/75

R11 100k

R8 50/75

R7 33

R5 50/75

R6

R4

R3

R2

R1

*L1 is a Ferrite Bead

**50Ω Termination to be Used at Outputs TL/H/12355-12

C12

0.1µF

C11

0.1µF

C10

0.1µF

C8

0.1µF

V

CC

C9 10

µ

F

C6 100µF

C7

0.1µF

C4

C5

0.1µF

C3

J1

C13

0.1µF

C14

0.1µF

C15

0.1µF

C16 100µF

C17

0.1µF

C18

0.1µF

C19

0.1µF

C20

0.1µF

C21

0.1µF

C2

0.1µF

C1 100µF

V

CC

= + 12V

LM1281

TOP VIEW

1

2

3

4

5

6

7

8

9

10

11

12 13

14

28

27

26

25

24

23

22

21

20

19

18

17 16

15

73

Test Circuits

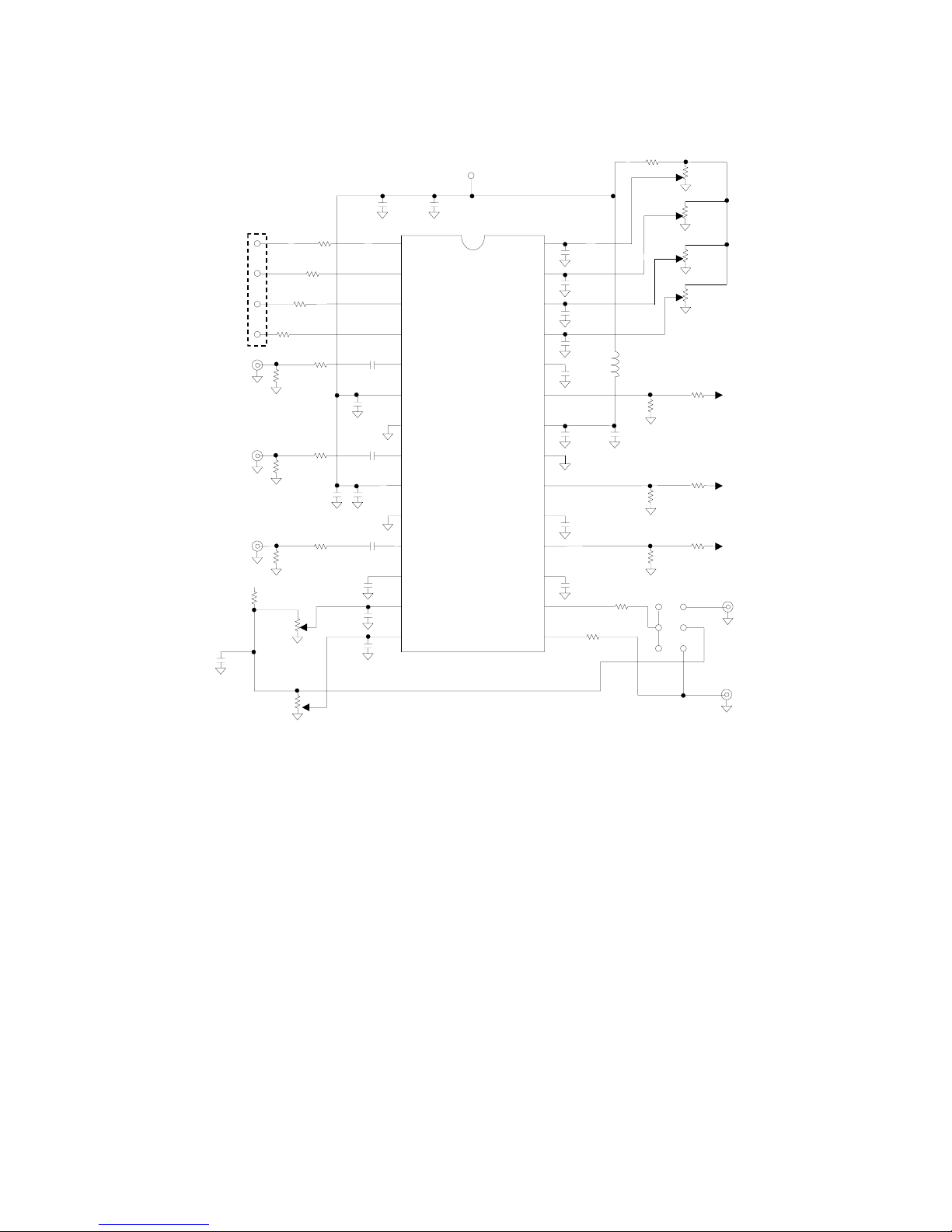

FIGURE 2 LM1281 OSD Video Preamp Demonstration Board Schematic

74

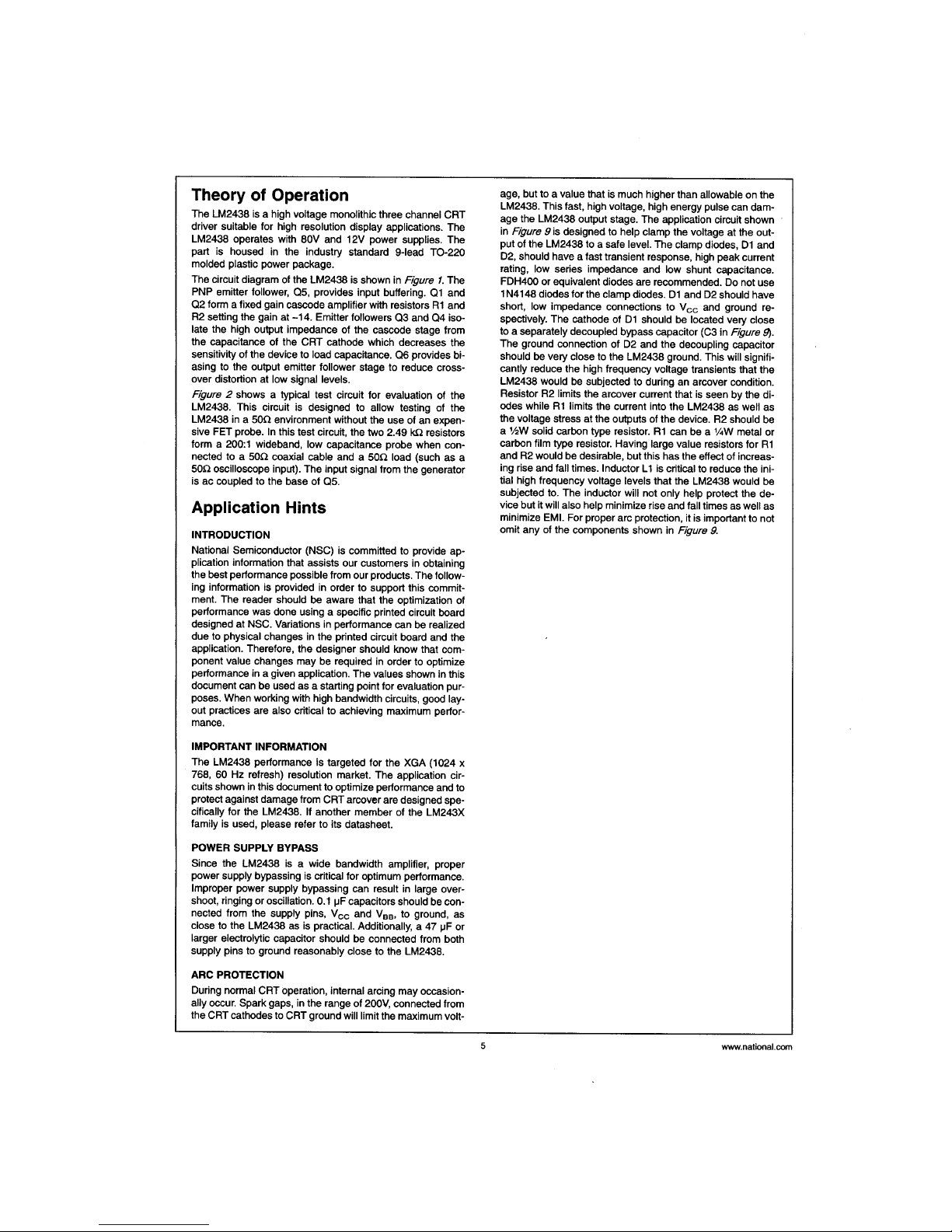

8. Monolithic triple 13.5nS CRT driver

75

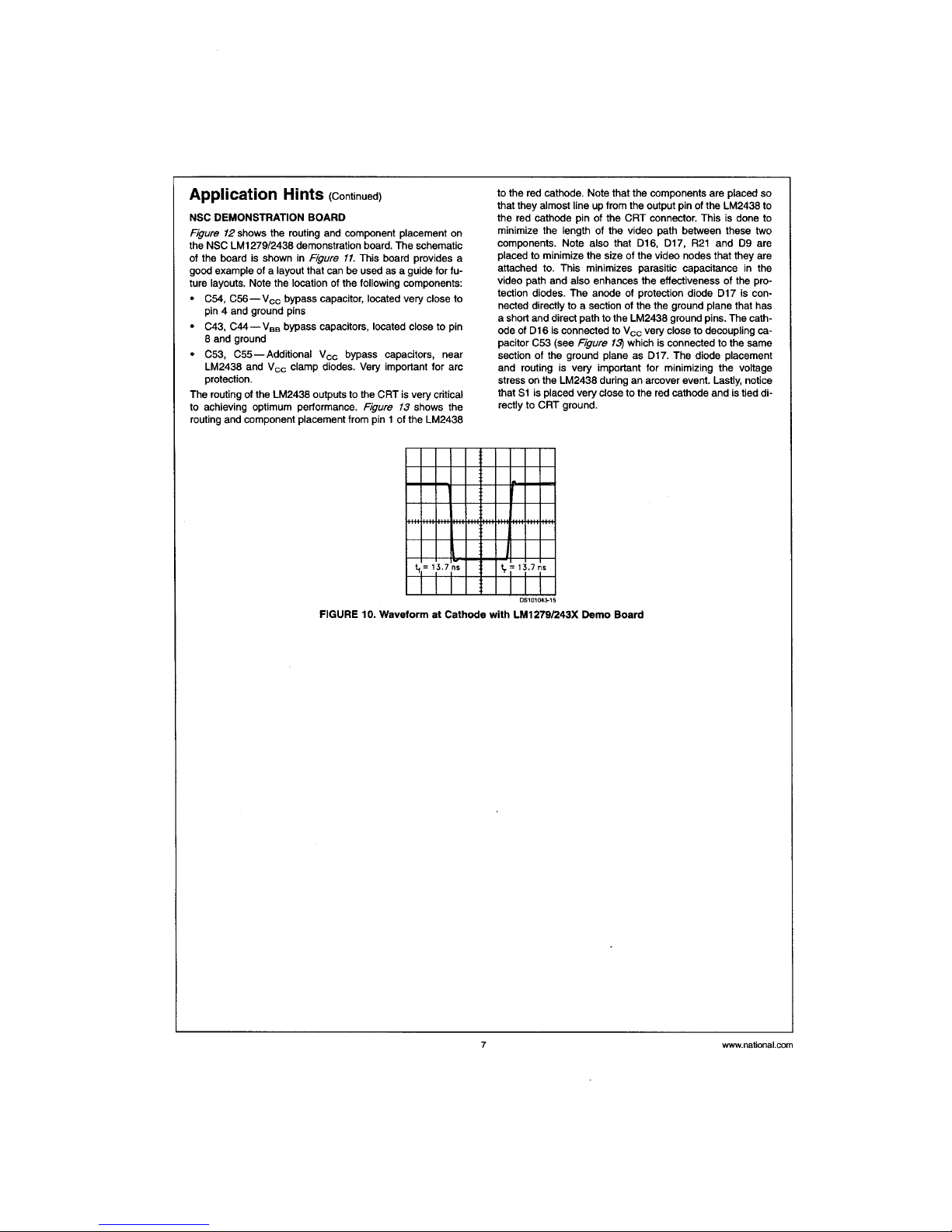

76

77

SERIAL DATA

INTERFACE

ADDRESS BUS

ADMINISTRATOR

VERTICAL

DISPLAY

CONTROL

COLOR

ENCODER

WINDOWS &

FRAME

CONTROL

DISPLAY & ROW

CONTROL

REGISTERS

HORIZONTAL

DISPLAY CONTROL

PHASE LOCK LOOP

CHARACTER ROM

LUMINANCE &

BORDGER

GENERATOR

ROUT GOUT

ROUT FBKG

HTONE

VSSA

VDO

VSS

VDDA

VCO

RP

HFLB

VFLB

SDA

SSB

SCK

VSP

HSP

CCS0 CCS1

DATA

VSP

HSP

CRADOR

CCS0

DATA

CCS1

DATA DAEN

RAEN CAEN

CWS

CHS

LPN

CWS

VCLKS

RCADDR DADDR WADDR

ARWDB

HDREN

VDREN

NRCW

LPN NROW

VDREN

VERTD

CH

HORD

CH

CHS

VERTD

HORD

ARWCB HDREN

VCLKX

BUNK

VCLKX

OSDENR

WRWGWB

CCS2

FBKGC

BLANK

SHADOW

BSEN

BORDER

LUMA

BUNK

7

5

8

2

55 9

5

8

5

3 8 7

7

8

7

78

9. On Screen Display

FEATURES

• Horizontal sync input may be up to 100 kHz.

• On-chip PLL circuitry up to 90MHz pixel rate for multi-sync operation.

• Programmable horizontal resolutions up to 1524 dots per display row.

• 538 bytes display registers to control full screen display.

• Full screen display consists of 10 (rows) by 24 (columns) characters.

• 12 × 18 dot matrix per character.

• 128 built-in characters and graphic symbols and character by character color selection.

• Maximum 8 color selectable per display row.

• Double character height and/or width control.

• Programmable positioning for display screen center.

• Bordering and shadowing effect for display.

• Programmable vertical character height (18 to 71 lines) for multi-sync operation.

• 4 programmable background windows with multi-level windowing effect.

• Software clear function for display frame buffer.

• Hsync and Vsync input polarity selectable.

• Auto detection for input edge distortion between Hsync and Vsync inputs.

• Half tone and fast blanking output.

• Software force blank function for display frame.

• Compatible with both SPI bus and I²C interface through pin selection.

• 16 pins PDIP package.

GENERAL DESCRIPTION

MTV016 is designed for use in monitor applications to display the built-in characters or symbols onto monitor screen. The display operation is by transferring data and control information in micro controller to RAM through a serial data interface. It can execute full screen display automatically and specific functions such as character bordering, shadowing, double height and width, font by font color control, frame positioning, frame size control by character height and horizontal display resolution, and windowing effect.

BLOCK DIAGRAM

79

1 2

3 4

5 6

7 89

10

11

12

13

14

15

16

MTV016-N

VSSA

VCO

RP

VDDA

HFLB

SSB SDA SCK

VSS ROUT

GOUT

BOUT

FBKG HTONE

VFLB VDD

Name I/O Pin# Function

VSSA - 1

Analog ground.

This ground pin is used to internal analog circuitry.

VCO I/O 2

Volta

g

e Cont rol O scilla tor.

This pin is u se d to c on tro l the in tern a l os cilla to r

frequency by DC voltage input from external low pass filter.

RP I/O 3

Bias Resistor.

The bias resistor is used to regulate the appropriate bias

curre nt for inte rn al o sc illato r to res onate at specific dot frequency.

VDDA - 4

Analog power supply.

Positive 5 V DC supply for internal analog circuitry.

And a 0.1uF decouplin

g

capacitor should be connected across to VDDA and

VSSA.

HFLB I 5

Horizontal input.

This pin is used to input the horizontal synchronizing

signal. It has an internal 100 kΩ pull-up resistor.

SSB I 6

Serial interface enable.

It is used to enable the serial data interface and is

also used to select I²C or SPI bus operation. If this pin is left floatin

g,

I²C bus

is enable. Otherwise the SPI bus is enabled.

SDA I 7

Serial data input.

The external data transfer through this pin to internal display registers and control registers. It has an internal 100 kΩ pull-u p resistor.

SCK I 8

Serial clock input.

The clock input pin is used to synchronize the data

transfer. It has an internal 100 kΩ pull-up resistor.

VDD - 9

Digital power supply.

Positive 5 V DC supply for internal digital circuitry

and a 0.1uF decouplin

g

capacitor should be connected across to VDD and

VSS.

VFLB I 10

Vertical input .

This pin is used to input the vertical synchronizing signal. It

has an internal pull-up resistor.

HTONE O 11

Half tone out

p

ut.

This pin is used to attenuate the external R

, G,

B amplifiers

gain for the transparent windowing effect.

FBKG O 12

Fast Blankin

g

output.

It is used to cut off the external R

, G,

B signals while

this chip is displaying characters or windows.

BOUT O 13

Blue color output.

It is a blue color video signal output.

GOUT O 14

Green color output.

It is a green color video signal output.

ROUT O 15

Red color output.

It is a red color video signal output.

VSS - 16

Digital ground.

This ground pin of internal digital circuitry.

1.0 CONNECTION DIAGRAM

(16 PINS PDIP 300 MIL PACKAGE)

2.0 PIN DESCRIPTIONS

80

Replacement Parts List

1) MultiSync 75F-3 The components specified for Model MS75F-3 Orion CRT. Note: The components identified by make are critical for safety.

Replace only with parts Number specified.

SYMBOL PART NO DESCRIPTION

*** DIODES ***

D107 D109 D10A E J044148 DIODE "T" 1N4148 D117 D119 D125 D126 D127 D129 D202 D203 D204 D205 D210 D211 D230 D231 D250 D251 D302 D304 D311 D313 D314 D315 D317 D319 D320 D323 D325 D327 D332 D333 D334 D336 D337 D340 D344 D601 D602 D604 D605 D60A D703 D704 D705 D112 D113 D118 80003551 DIODE 200V/1.6A RG2Z SANKEN

Ås¨¤

D110 D335 80003561 DIODE 600V/1.6A RG2A SANKEN

Ås¨¤

D308 80009541 DIODE FAGOR FUF5406

Ås¸}

(A+K)

D305 D306 D702 EJA05819 DIODE STKY/T 1A/40V 1N5819

D101 D102 D103 EJB20001 DIODE/A 3A 1N5406 D104 D111 80011291 DIODE/A 3A/400V RG4(

¥¦æ

) D307 80001171 DIODE/A 5TUZ47C (TOSHIBA) D316 80009261 DIODE/A RP3F(A+K) SANKEN D213 D214 D233 80000451 DIODE/T 1/2W 1SS83 D234 D253 D254

D106 D108 D131 EJAC0017 DIODE/T 1A 1N4936 D303 D310 D345 D701 D201 D301 D312 EJA C00 18 DIODE /T 1A 1N 493 7 D318 D321 D322 D324 D328 D329 D330 D331 D341 D403 D105 D116 D326 EJA20003 DIODE/T 1A BA159 LED701 80000131 LE D L-59GH/1GYC ZD104 EKA00603 ZEN DIODE 1/2W(T) 6B1 (HITACHI)

ZD101 EKA0180B

ZEN DIODE 1/2W(T) HZS 18-2 (HITACHI)

ZD102 EKA01201

ZEN DIODE 1/2W(T) HZS12A2 (HITACHI

)

ZD303 ZD701 ZD702 EKA00507 ZEN DIODE 1/2W(T) HZS5C2 (HITACHI

)

ZD7

4

ZD706 EKA00607 ZEN DIODE 1/2W(T) HZS6C2 (HITACHI

)

SYMBOL PART NO DESCRIPTION

*** TRANSFORMERS ***

T301 80009281 17" N0701F FBT T302 80000281 H.DRIVE X'FM 4.5mH EI-19 T303 80013361 N1701F D.F X'FM EI-19(1:9) T101 80011211 POWER X'FM ERL35 500uH FE700+

*** VARIABLE RESISTO RS ***

VR101 FF300201 V R CARBON 6mm ¥ß 200 ohm/B VR210 VR230 VR250 FF300203 VR CARBON 6mm ¥ß 20K/B VR

7 FF 310 104 VR CARBON 6mm ª× 100K

*** RELAYS & SWITC HES ***

RL1

1 80003751

RELAY 12V 6P GSA-SS-212DM(GOOD-SKY

)

RL

1 80010001

RELAY RUDH-SH-112D 400ohm (GOOD SKY

)

SW101 80012411 SW POWER 30V/0.3A

JPS1258DS(Favortron) SW701 SW 702 SW703 80000251 TACT SW 1P 100G+-50 SW301 80010621 WAFER 2 L×3P 2.54m m

*** COILS & FILTERS ***

L201 L202 HB000008 CHOKE COIL 100uH 8X10 L303 80015701 CHOKE COIL 120uH 18X 20 + BA SE L304 80001811 CHOKE CO IL 130uH 18 X2 0 + BA S E L103 80003681 CHOKE T50-26B 200uH G2,G4 WIRE HA030010 EMI FILTER COIL 20.45X10.2X 10

L301 80009291 H-CENTER CHOKE L101 80000111 LINE FILTER ET24 10mH MIN L102 HB000015 LINE FILTER UU10.5 1mH L302 80005311 LINEARITY CHOKE 30uH L307 80015691 N17

1F LINEARITY

IL FR RI

N

L203 L204 L205 HB013159 PACKING COIL /T 1.5uH K(EC24) J23 HB013100 PACKING COIL /T 10uH K(EC24)

*** PWB ASSY S ***

7C0215MO CRT BOARD ASSY 7M0215MO MAIN BOAR D AS SY

*** ELECTRICA L PAR TS & MISCELLA NEOUS PARTS ***

SOCKET 80001751 17" 29D NECK CRT SOCKET P101 JD512001 AC SOCKET 3P F101 80001521 FUSE 3.15A/250V 50T T3.15A FOR U701 JD010040 IC SOCKET 40P DEGUESSING COIL 80015641 MS 75 F-3 TCO DE G A US S ING

POWER CORD 80001651 POWER CORD 3P 1.8M EUROPE CABLE 80012051 SIGNAL CABLE 20276 1.5M FOR PC+5V TH1

1 80000801 THERMITR NTR K

4 1.mm

TH1

2 80005821 THERMISTOR PTCR 4.5ohm

X701 EM012004 X'TAL 49U 12MHz

SYMBOL PART NO DE SCRIPTION *** CRT & TUNER ***

CRT 80013331 CRT 17" ORION M41QEC200X021

*** ICS ***

U702 80009941 ATMEL E²ROM AT24C08B U101 DD002600 IC LINEAR KA3842A 8P U201 80000631 IC LM1281 U103 80000321 IC PHOTO COUBLE PS2561,TLP721F Q103 80003831 IC REGULATOR TL431 817B 4P

U401 80001041 IC T D A 81 72 (N .S,S G S ) U203 80003661 N.S VIDEO DRIVE IC LM2438 U701 80013001 N0701-2 VE MASK MCU U301 80010251 OP AMP LM358 / KIA358 U204 80015661 OSD IC MTV016N (V2)

U302 80012941 PHILIPS IC TDA 4857

*** TRANSISTOR ***

Q101 EF202500 FET N 2SK2545 TO -2 20 F TOS H IBA Q313 Q319 Q322 EF206301 FET N YTAF630 TO-220F Q308 EFA29610 TR 2SK2961 FET TOSHIBA Q201 EAA12133 TR NPN 2SC1213AC TO-92(T) Q105 Q107 Q110 EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.

)

Q113 Q302 Q306 Q320 Q323 Q324 Q401 Q601 Q603 Q605 Q606

Q303 EAA40020 TR NPN 2SC4002 TO-92(T) (SANYO) Q307 80005721 TR NPN 2SC5411(hfe) TO-3P Q321 Q327 EAA09456 TR N P N 2S C 94 5 P TO-92(T) (N.P.S.) Q318 80008141 TR NPN 2SD1763 TO-220F Q304 EAA04220 TR NPN BF422 TO-92(T) (T,P)

Q106 EAA23281

TR NPN KSC 2328A TO-92(T) (SAMSUNG

)

Q301 EAA23690 TR NPN PH2369 TO-92(T) (PHILIPS) Q310 Q604 EBA10157 TR PNP 2SA1015GR TO-92(T) (T.P.S.

)

Q325 Q326 Q701 EBA07336 TR PNP 2SA733P TO-92(T) (N.P.S.) Q702 Q703 Q112 EBA04230 TR PNP BF423 TO-92(T)(T.P.)

Q305 EBA04230 TR PNP BF423 TO-92(T)(T.P.) Q108 Q317 EBA09281 TR PNP KSA 928A TO-92(T)(SAMSUNG

)

Q104 EB307720 TR PNP KSB772 TO-126

SYMBOL PART NO DESCRIPTION

*** APPEARANCE PARTS ***

10100924 CABINET BACK(PC+ABS) 10101482 CABINET FRONT ASSY(PC+ABS) 10101491 CABINET FRONT(PC+ABS) 17000301 CUSHION PIECE(BACK) 17000291 CUSHION SHEET

17000451 CUSHION SHEET 11000331 REVOLVING STAND ASSY 11000251 REVOLVING STAND(B)(94HB) 11000361 REVOLVING STAND(B)(94HB) 11000261 REVOLVING STAND(T)(94HB)

*** PRINTED & PACKING MATERIALS ***

13201142 CARTON BOX MS75F-1(B Ver.) 19700025 INSTRUCTION CD-ROM MS75/95F-1 15000962

NAME PLATE INSTRUCTION MS75F-1(B Ver.

)

15500724

OWNERS MANUAL MS75F/95F-1(B Ver.)

13400521 POLYLON(B)CARTON

13400511 POLYLON(T)CARTON

*** RESISTORS ***

R156 FA330159 CARBON 1/2W(T) 5% 1.5ohm R325 FA330182 CA R B O N 1/2W (T) 5% 1.8K ohm R114 R120 FA330104 C A R B O N 1/2W (T) 5% 10 0Koh m R287 FA330101 CA R B O N 1/2W (T) 5% 10 0ohm R365 FA330154 CA R B O N 1/2W (T) 5% 15 0K ohm

R385 FA330150 CARBON 1/2W(T) 5% 15ohm R182 FA330102 CARBON 1/2W(T) 5% 1Kohm R367 R380 R381 FA330105 CARBON 1/2W(T) 5% 1Mohm R417 FA330229 CARBON 1/2W(T) 5% 2.2ohm R414 FA330331 CA R B O N 1/2W (T) 5% 33 0ohm

R30L FA330470 CARBON 1/2W(T) 5% 47ohm R308 FA330561 CA R B O N 1/2W (T) 5% 56 0ohm R101 FA330684 CA R B O N 1/2W (T) 5% 68 0K ohm R292 FA240101 CA R B O N 1/4W (T) 5% 10 0ohm R206 R725 FA240103 CA RBON 1/4W(T) 5% 10Kohm

R10A R31F FA240113 CARBON 1/4W(T) 5% 11Kohm R392 FA240154 CA R B O N 1/4W (T) 5% 15 0K ohm R220 R240 R260 FA240151 CARBON 1/4W(T) 5% 150ohm R163 R30U R31E FA240102 CARBON 1/4W(T) 5% 1Kohm R609 FA240222 CA R B O N 1/4W (T) 5% 2.2K ohm

R118 FA240203 CA R B O N 1/4W (T) 5% 20 Ko hm R393 FA240224 CA R B O N 1/4W (T) 5% 22 0K ohm

!

81

SYMBOL PART NO DESCRIPTION

R278 R280 R290 FA240223 CARBON 1/4W(T) 5% 22Kohm R30X R116 FA240271 CA R B O N 1/4W (T) 5% 27 0ohm R30T FA24033 2 CARBON 1/4W (T) 5% 3.3Koh m

R104 FA240330 CARBON 1/4W(T) 5% 33 ohm R108 R286 FA240334 CA RBON 1/4W(T) 5% 330Kohm R117 FA240390 CA R B O N 1/4W (T) 5% 39 ohm R343 R350 FA240472 CA RBON 1/4W(T) 5% 4.7Kohm R30H R30J FA240474 CARBON 1/4W(T) 5% 470Kohm

R107 FA240564 CA R B O N 1/4W (T) 5% 56 0K ohm R126 FA240681 CA R B O N 1/4W (T) 5% 68 0ohm R322 FA040122 CA R B O N 1/8W (T) 5% 1.2K ohm R387 FA040132 CA R B O N 1/8W (T) 5% 1.3K ohm R205 R338 R708 FA040152 CARBON 1/8W(T) 5% 1.5Kohm R714

R703 FA040182 CA R B O N 1/8W (T) 5% 1.8K ohm R155 R168 R31C FA040104 CARB ON 1/8W(T) 5% 100Kohm R327 R340 R373 R375 R202 R203 R208 FA040101 CARBON 1/8W(T) 5% 100ohm R209 R221 R241 R261 R306 R30N R30Y R31X R331 R332 R706 R707 R724 R727 R742 R743 R761 R762 R110 R122 R161 FA040103 CARBON 1/8W(T) 5% 10Kohm R167 R288 R293 R307 R30M R30Q R310 R318 R330 R345 R360 R368 R369 R377 R379 R601 R604 R612 R613 R709 R720 R736 R317 FA040106 CARBON 1/8W(T) 5% 10Mohm

R353 FA040154 CA R B O N 1/8W (T) 5% 15 0K ohm R154 R357 FA040153 CA RBON 1/8W(T) 5% 15Kohm R362 FA040150 CARBON 1/8W(T) 5% 15ohm R112 R123 R132 FA040102 CARB ON 1/8W(T) 5% 1Kohm R289 R301 R401 R603

SYMBOL PART NO DESCRIPTION

R159 R296 R315 FA040105 CARBON 1/8W(T) 5% 1Mohm R395

R608 FA040222 CA R B O N 1/8W (T) 5% 2.2K ohm R305 FA040225 CARBON 1/8W(T) 5% 2.2Mohm R374 FA040204 CA R B O N 1/8W (T) 5% 20 0K ohm R223 R243 R263 FA040224 CARBON 1/8W(T) 5% 220Kohm R30C R30E R339 R270 FA040221 CA R B O N 1/8W (T) 5% 22 0ohm

R127 R130 R611 FA040223 CARBON 1/8W(T) 5% 22Kohm R726 R30G FA040220 CARB ON 1/8W(T) 5% 22ohm R363 FA040244 CA R B O N 1/8W (T) 5% 24 0K ohm R364 FA040274 CA R B O N 1/8W (T) 5% 27 0K ohm R244 R264 FA040202 CA RBON 1/8W(T) 5% 2Kohm

R31P R731 FA040332 CARBON 1/8W(T) 5% 3.3Kohm R358 FA040334 CA R B O N 1/8W (T) 5% 33 0K ohm R102 R31H R31J FA040331 CARBON 1/8W(T) 5% 330ohm R715 R721 R219 R239 R259 FA040333 CARBON 1/8W(T) 5% 33Kohm R328 R211 R231 R251 FA040330 CARBON 1/8W(T) 5% 33ohm

R213 R233 R253 FA040391 CARBON 1/8W(T) 5% 390ohm R713 FA040393 CARBON 1/8W(T) 5% 39Kohm R224 R30V FA040302 CARBON 1/8W(T) 5% 3Kohm R119 R129 R148 FA04047 2 CARBON 1/8W (T) 5% 4.7Koh m R173 R204 R282 R291 R383 R391 R402 R403 R602 R605 R610 R701 R704 R710 R712 R716 R717 R718 R719 R722 R728 R729 R730 R733 R768 R769 R770 R739 R740 R771 FA040471 CARBON 1/8W(T) 5% 470ohm

JP1 R30P R359 FA040473 CARBON 1/8W(T) 5% 47Kohm VR201 VR202 R109 R115 FA040470 C A R B O N 1/8W (T) 5% 47 ohm R294 R295 FA040562 CA RBON 1/8W(T) 5% 5.6Kohm R390 R303 FA040561 CA R B O N 1/8W (T) 5% 56 0ohm

SYMBOL PART NO DESCRIPTION

R386 FA040623 CARBON 1/8W(T) 5% 62Kohm

R319 FA040683 CARBON 1/8W(T) 5% 68Kohm R201 FA040680 CARBON 1/8W(T) 5% 68ohm R113 R382 FA040752 C A R B O N 1/8W (T) 5% 7.5Koh m R212 R232 R252 FA040750 CARBON 1/8W(T) 5% 75ohm R336 FA040822 CA R B O N 1/8W (T) 5% 8.2K ohm

R284 FA040821 CA R B O N 1/8W (T) 5% 82 0ohm R150 R157 R175 80002031 FUSEABLE RES 1/2W(A)M 0.22ohm R297 FB910229 FUSIBLE MF RES 1/4W 2.2ohm J R31Q FB241181 ME TAL 1/4W(T) 1% 1.18Kohm R31U FB241202 M ETAL 1/4W(T) 1% 12Kohm

R389 FB241372 METAL 1/4W(T) 1% 13.7Kohm R366 FB241503 METAL 1/4W(T) 1% 150Kohm R149 FB241001 METAL 1/4W(T) 1% 1Kohm R410 R412 FB242501 M ETAL 1/4W(T) 1% 2.5Kohm R31R FB242701 M ETAL 1/4W(T) 1% 2.7Kohm

R361 FB242002 METAL 1/4W(T) 1% 20Kohm R31N FB242202 M ETAL 1/4W(T) 1% 22Kohm R344 FB242552 METAL 1/4W(T) 1% 25.5Kohm R711 FB243481 METAL 1/4W(T) 1% 3.48Kohm R31L FB244532 METAL 1/4W(T) 1% 45.3Kohm

J26 FB 244 702 METAL 1/4W(T) 1% 47 Koh m R158 FB240470 METAL 1/4W(T) 1% 47ohm R348 FB245541 METAL 1/4W(T) 1% 5.54Kohm R388 FB245490 METAL 1/4W(T) 1% 549ohm R349 FB245602 METAL 1/4W(T) 1% 56Kohm

R151 FB246242 METAL 1/4W(T) 1% 62.4Kohm R210 R230 R250 FB247509 METAL 1/4W(T) 1% 75ohm R411 R413 FB248201 M ETAL 1/4W(T) 1% 8.2Kohm R31T FB249312 METAL 1/4W(T) 1% 93.1Kohm R169 R313 R314 FB910010 METAL 1/4W(T) 5% 1ohm R351

R415 FB470119 MOF 1W/M(A) 5% 1.1ohm R128 R606 FB470100 M OF 1W /M(A) 5% 10ohm R160 FB470153 MOF 1W/M(A) 5% 15Kohm R421 FB470109 MOF 1W/M(A) 5% 1ohm R312 F B4 70 270 M O F 1 W /M(A ) 5% 27oh m

R422 FB470339 MOF 1W/M(A) 5% 3.3ohm

SYMBOL PART NO DESCRIPTION

R103 F B4 70 680 M O F 1 W /M(A ) 5% 68oh m R31A FB480100 M OF 1W/M(B ) 5% 10oh m R105 F B5 60 248 M O F 2 W /M(A ) 5% 0.24oh m R354 F B5 60 182 M O F 2 W /M(A ) 5% 1.8Koh m

R125 FB560103 MOF 2W/M(A) 5% 10Kohm R335 F B5 60 151 M O F 2 W /M(A ) 5% 150oh m R302 F B5 60 222 M O F 2 W /M(A ) 5% 2.2Koh m R316 F B5 60 331 M O F 2 W /M(A ) 5% 330oh m R106 FB570563 MOF 2W/M(B) 5% 56Kohm

R309 F B7 10 150 M O F 3 W /M(A ) 5% 15oh m R311 FB710109 MOF 3W/M(A) 5% 1ohm R304 80011181 RESISTOR FUSEABLE 1/2W/A(M)

22ohm R394 FC030508 WOUND RES 1W/(A) 5% 0.5ohm R111 FC110158 WOUND RES 2W(A) 5% 0.15ohm

*** CAPACITORS ***

C707 C708 G B610152 CERAMIC SL/T 100P/50V J C353 GB633152 CERAMIC SL/T 330P/50V J C705 C706 G B633052 CE RAMIC SL/T 33P/50V J

1 80011281 CERAMIC SPARK CAPS 1KV

+1500V~900V C276 C357 GB7102H3 CERAM IC Y5P(B)/T 1000P/1KV K

C275 C278 C287 GB7102F3 CERAMIC Y5P(B)/T 1000P/500V K C297 C605 GB710253 CERAMIC Y5P(B)/T 1000P/50V K C127 GB7101H3 CERAMIC Y5P(B)/T 100P/1KV K C334 GB7152H3 CERAMIC Y5P(B)/T 1500P/1KV K C124 C304 G B7331H3 CERAMIC Y5P(B)/T 330P/1KV K

C272 C341 G B74 71 F3 CERAMIC Y5 P (B)/T 470P /500V K C110 GB747153 CERAMIC Y5P(B)/T 470P/50V K C204 C205 C267 GB210458 CERAMIC Y5V/T 0.1u/50V Z C282 C283 C284 C346 C350 C702 C709 C106 GB8103F 5 CERAMIC Z5U(E)/T 0.01u/500V M C321 C310 C331 G B9103H8 CERAMIC Z5V(F)/T 0.01u/1KV Z

C112 C149 C201 GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C202 C203 C207 C231 C270 C280 C281 C291 C294 C299 C301 C409 C712 C724

82

SYMBOL PART NO DESCRIPTION

C277 GB9332H8 CERAMIC Z5V(F)/T 3300P/1KV Z

C120 C138 G AI10775 ELECT 105oC/A 100u/100V M TK C214 C234 C254 GA210575 ELEC T 105oC/T 1u/100V M C288 G AB 226 75 EL E CT 10 5oC /T 22u /100V M

C428 GA347485 ELECT 85oC/T 0.47u/250V M C122 GA310815 ELECT 85oC/T 1000u/10V M C372 C703 G A310725 E L E CT 85 o C/T 100u /16V M C308 C410 G A31 07 45 ELECT 85o C /T 100u/35 V M C113 C116 C143 GA 3106 55 ELECT 85oC/T 10u/50V M C150 C206 C210 C230 C250 C292 C293 C337 C338 C604 C711 C726 C727 C728

C336 C340 C352 G A310555 ELECT 85oC/T 1u/50V M C701 C710 C339 C704 G A322555 E LECT 85oC/T 2.2u/50V M C209 G A32 27 25 ELECT 85o C /T 220u/16 V M C109 GA322645 ELECT 85oC/T 22u/35V M C311 GA322655 ELECT 85oC/T 22u/50V M

C344 GA347585 ELECT 85oC/T 4.7u/250V M C309 GA347555 ELECT 85oC/T 4.7u/50V M C136 C330 G A347725 E L E CT 85 o C/T 470u /16V M C108 C137 C151 G A 3476 25 ELECT 85oC/T 47u/16V M C285 C289 C335 C725 C368 GA347635 ELECT 85oC/T 47u/25V M

C354 GA347645 ELECT 85oC/T 47u/35V M C313 GA347655 ELECT 85oC/T 47u/50V M C121 C408 GAH10825 E LECT CAP 105oC/T 1000u/16V M TK C119 GAH22675 ELEC T CA P 10 5o C/T 22u /100V M TK C156 GAH47555 ELEC T C A P 105o C /T 4.7u/50V M TK

C139 C404 GAH47725 E LECT CAP 105oC/T 470u/16V M TK C213 C233 C253 GA410575 ELEC T NP/T 1u/100V M C312 GF215252 ME F C A P B O X 0.0015u/50 V J C315 GF210252 ME F C A P B O X 0.001u/50V J C115 GF233262 MEF C A P B OX 0.0033 u/63V J

C366 GF256252 ME F C A P B O X 0.0056u/50 V J C362 GF282252 ME F C A P B O X 0.0082u/50 V J C365 GF210352 ME F C A P B O X 0.01u/50V J

SYMBOL PART NO DESCRIPTION

C360 GF215452 ME F C A P B O X 0.15u/50V J C314 GF210452 MEF CAP BOX 0.1u/50V J

C114 GF210462 MEF CAP BOX 0.1u/63V J C403 GF222452 ME F C A P B O X 0.22u/50V J C345 GFA10382 PLASTIC MPE/A 0.01u/250V J C329 GFA15482 PLASTIC MPE/A 0.15u/250V J C333 GFA10582 PLASTIC MPE/A 1u/250V J

C351 GFB15482 PLASTIC MPP/A 0.15u/250VJ C356 GFB30482 PLASTIC MPP/A 0.3u/250V J C325 GFB47482 PLASTIC MPP/A 0.47u/250V J C355 GFB75482 PLASTIC MPP/A 0.75u/250V J C332 GFD334E2 PLASTIC MPPS/A 0.33U/400V (PILKOR

)

C307 GFD47482 PLASTIC MPPS/A 0.47u/250V J

(MYLAR) C271 C347 C401 G E 2102 52 PLASTIC PE I/T 0.001u/50V J C40A C413 GE222252 PLASTIC PEI/T 0.0022u/50V J C111 C320 C407 GE233252 PLASTIC PEI/T 0.0033u/50V J C601 GE268252 PLASTIC PEI/T 0.0068u/50V J

C128 C142 C295 GE210352 PLASTIC PEI/T 0.01u/50V J C296 C327 C363 C603 C123 C348 G E222352 PLASTIC PEI/T 0.022u/50V J C316 C343 C364 G E 2473 52 PLASTIC PE I/T 0.047u/50V J C306 C317 C328 G E 2104 52 PLAS T IC P E I/T 0 .1u /5 0 V J C358 C361 C319 GED562M2 PLASTIC PP N /A 5600 P/800V J

C318 GFC622J2 PLASTIC PPS/A 6200P/2KV J C105 GKA227E5 POW ER ELECT 85oC 220u/400V M C101 GJ047400 SAFETY X-CAP 0.47u/275V M C102 GJC102E5 SAFETY Y-CAP/D 1000P/400V M C103 C104 C146 GJH102E5 SAFETY Y-CAP/S 1000P/400V M C154

83

The components specified for Model MS75F-3 Samsung CRT. Note: The components identified by make are critical for safety.

Replace only with parts Number specified.

SYMBOL PART NO DESCRIPTION *** CRT & TUNE R ***

CRT 80013481 CRT17"SAMAUNGM41QCJ761X172D FX

*** ICS ***

U702 80009941 ATMEL E²ROM AT24C08B U101 DD002600 IC LINEAR KA3842A 8P U201 80000631 IC LM1281 U103 80000321 IC PHOTO COUBLE PS2561,TLP721F Q103 80003831 IC REGULATOR TL431 817B 4P

U401 80001041 IC T D A 8 1 72 (N .S ,S G S ) U203 80003661 N.S VIDEO DRIVE IC LM2438 U701 80013001 N0701-2 VE MASK MCU U301 80010251 OP AMP LM358 / KIA358 U204 80015661 OS D IC MTV016N (V2)

U302 80012941 PHILIPS IC TDA 4857

*** TRANSISTOR ***

Q101 EF202500 FET N 2SK254 5 TO -220 F TOS H IBA Q313 Q319 Q322 EF206301 FET N YTAF630 TO-220F Q308 EFA29610 TR 2SK2961 FET TOSHIBA Q201 EAA12133 TR NPN 2SC1213AC TO-92(T) Q105 Q107 Q110 EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.

)

Q113 Q302 Q306 Q320 Q323 Q324 Q401 Q601 Q603 Q605 Q606

Q303 EAA40020 TR NPN 2SC4002 TO-92(T) (SANYO) Q307 80005721 TR NPN 2SC5411(hfe) TO-3P Q321 Q327 EAA09456 TR N P N 2 S C 94 5 P TO-92(T) (N.P.S.) Q318 80008141 TR NPN 2SD1763 TO-220F Q304 EAA04220 TR NPN BF422 TO-92(T) (T,P)

Q106 EAA23281

TR NPN KSC 2328A TO-92(T)(SAMSUNG

)

Q301 EAA23690 TR NPN PH2369 TO-92(T) (PHILIPS) Q310 Q604 EBA10157 TR PNP 2SA1015GR TO-92(T) (T.P.S.

)

Q325 Q326 Q701 EBA07336 TR PNP 2SA733P TO-92(T) (N.P.S.) Q702 Q703 Q112 EBA04230 TR PNP BF423 TO-92(T)(T.P.) Q305 EBA04230 TR PNP BF423 TO-92(T)(T.P.) Q108

Q

317 EBA09281 TR PNP KSA 928A TO-92(T)(SAMSUNG

)

Q104 EB307720 TR PNP KSB772 TO-126

SYMBOL PART NO DESCRIPTION

*** DIODES ***

D107 D109 D10A E J044148 DIODE "T" 1N4148 D117 D119 D125 D126 D127 D129 D202 D203 D204 D205 D210 D211 D230 D231 D250 D251 D302 D304 D311 D313 D314 D315 D317 D319 D320 D323 D325 D327 D332 D333 D334 D336 D337 D340 D344 D601 D602 D604 D605 D60A D703 D704 D705 D112 D113 D118 80003551 DIODE 200V/1.6A RG2Z SANKEN

Ås¨¤

D110 D335 80003561 DIODE 600V/1.6A RG2A SANKEN

Ås¨¤

D308 80009541 DIODE FAGOR FUF5406

Ås¸}

(A+K)

D305 D306 D702 EJA05819 DIODE STKY/T 1A/40V 1N5819

D101 D102 D103 EJB20001 DIODE/A 3A 1N5406 D104 D111 80011291 DIODE/A 3A/400V RG4(

¥¦æ

) D307 80001171 DIODE/A 5TUZ47C (TOSHIBA) D316 80009261 DIODE/A RP3F(A+K) SANKEN D213 D214 D233 80000451 DIODE/T 1/2W 1SS83 D234 D253 D254

D106 D108 D131 EJAC0017 DIODE/T 1A 1N4936 D303 D310 D345 D701 D201 D301 D312 EJA C00 18 DIODE /T 1A 1N 493 7 D318 D321 D322 D324 D328 D329 D330 D331 D341 D403 D105 D116 D326 EJA20003 DIODE/T 1A BA159 LED701 80000131 LE D L-59GH/1GYC ZD1

4 EKA00603 ZEN DIODE 1/2W(T) 6B1 (HITACHI)

ZD101 EKA0180B ZEN DIODE 1/2W(T) HZS 18-2(HITACHI

)

ZD102 EKA01201 ZEN DIODE 1/2W(T) HZS12A2(HITACHI

)

ZD303 ZD701 ZD702 EKA00507 ZEN DIODE 1/2W(T) HZS5C2 (HITACHI

)

ZD703 ZD704 ZD706 EKA00607 ZEN DIODE 1/2W(T) HZS6C2 (HITACHI

)

SYMBOL PART NO DESCRIPTION

*** TRANSFORMERS ***

T301 80009281 17" N0701F FBT T302 80000281 H.DRIVE X'FM 4.5mH EI-19 T303 80015651 N0701F D.F. X'FM EI-19(1:10) T101 80011211 POWER X'FM ERL35 500uH FE700+

*** VARIABLE RESISTO RS ***

VR101 FF300201 V R CARBON 6mm ¥ß 200 ohm/B VR210 VR230 VR250 FF300203 VR CARBON 6mm ¥ß 20K/B VR307 FF310104 V R CARBON 6mm ª× 100K

*** RELAYS & SWITC HES ***

RL1

1 80003751

RELAY 12V 6PGSA-SS-212DM(GOOD-SKY

)

RL301 80010001

RELAY RUDH-SH-112D400ohm(GOOD SKY

)

SW101 80012411

SW POWER 30V/0.3AJPS1258DS(Favortron

)

SW701 SW 702 SW703 80000251 TACT SW 1P 100G+-50 SW301 80010621 WAFER 2 L×3P 2.54m m

*** COILS & FILTERS ***

L201 L202 HB000008 CHOKE COIL 100uH 8X10 L303 L304 80001811 CH O K E CO IL 130uH 18 X2 0 + BA S E L103 80003681 CHOKE T50-26B 200uH G2,G4 WIRE HA030010 EMI FILTER COIL 20.45X10.2X 10 L301 80009291 H-CENTER CHOKE

L101 80000111 LINE FILTER ET24 10mH MIN L102 HB000015 LINE FILTER UU10.5 1mH L302 80011061 N0701F LINEARITY CHOKE 76uH L307 80010401 N0701F LINEARITY COIL L203 L204 L205 HB013159 PACKING COIL /T 1.5uH K(EC24)

J23 HB013100 PACKING COIL /T 10uH K(EC24)

*** PWB ASSY S ***

7C0215MS CRT BOARD ASSY

7M0215MS MA IN BOA RD ASSY

*** ELECTRICA L PAR TS & MISCELLA NEOUS PARTS ***

SOCKET 80001751 17" 29D NECK CRT SOCKET P101 JD512001 AC SOCKET 3P F101 80001521 FUSE 3.15A/250V 50T T3.15A FOR U701 JD010040 IC SOCKET 40P DEGUESSING COIL 80015641 MS 75 F-3 TCO DE G A US S ING

POWER CORD 80001651 POWER CORD 3P 1.8M EUROPE CABLE 80012051 SIGNAL CABLE 20276 1.5M FOR PC+5V TH101 80000801 THERMISTOR NTCR SCK054 13.3mm TH102 80005821 THERMISTOR PTCR 4.5ohm X701 EM012004 X'TAL 49U 12MHz

SYMBOL PART NO DESCRIPTION

*** APPEARANCE PARTS ***

10100924 CABINET BACK(PC+ABS) 10101482 CABINET FRONT ASSY(PC+ABS) 10101491 CABINET FRONT(PC+ABS) 17000301 CUSHION PIECE(BACK) 17000291 CUSHION SHEET

17000451 CUSHION SHEET 11000331 REVOLVING STAND ASSY 11000251 REVOLVING STAND(B)(94HB) 11000361 REVOLVING STAND(B)(94HB) 11000261 REVOLVING STAND(T)(94HB)

*** PRINTED & PACKING MATERIALS ***

13201142 CARTON BOX MS75F-1(B Ver.) 19700025 INSTRUCTION CD-ROM MS75/95F-1 15000962 NAME PLATE INSTRUCTION MS75F-

1(B Ver.)

15500724 OWNERS MANUAL MS75F/95F-1(B

Ver.)

13400521 POLYLON(B)CARTON

13400511 POLYLON(T)CARTON

*** RESISTORS ***

R156 FA330159 CARBON 1/2W(T) 5% 1.5ohm R325 FA330182 CA R B O N 1/2W (T) 5% 1.8K ohm R114 R120 FA330104 C A R B O N 1/2W (T) 5% 10 0Koh m R287 FA330101 CA R B O N 1/2W (T) 5% 10 0ohm R365 FA330154 CA R B O N 1/2W (T) 5% 15 0K ohm

R385 FA330150 CARBON 1/2W(T) 5% 15ohm R182 FA330102 CARBON 1/2W(T) 5% 1Kohm R367 R380 R381 FA330105 CARBON 1/2W(T) 5% 1Mohm R417 FA330229 CARBON 1/2W(T) 5% 2.2ohm R414 FA330331 CA R B O N 1/2W (T) 5% 33 0ohm

R30L FA330470 CARBON 1/2W(T) 5% 47ohm R308 FA330561 CA R B O N 1/2W (T) 5% 56 0ohm R101 FA330684 CA R B O N 1/2W (T) 5% 68 0K ohm R292 FA240101 CA R B O N 1/4W (T) 5% 10 0ohm R206 R725 FA240103 CA RBON 1/4W(T) 5% 10Kohm

R10A R31F FA240113 CARBON 1/4W(T) 5% 11Kohm R392 FA240154 CA R B O N 1/4W (T) 5% 15 0K ohm R220 R240 R260 FA240151 CARBON 1/4W(T) 5% 150ohm R163 R30U R31E FA240102 CARBON 1/4W(T) 5% 1Kohm R609 FA240222 CA R B O N 1/4W (T) 5% 2.2K ohm

R118 FA240203 CA R B O N 1/4W (T) 5% 20 Ko hm R393 FA240224 CA R B O N 1/4W (T) 5% 22 0K ohm

!

84

SYMBOL PART NO DESCRIPTION

R278 R280 R290 FA240223 CARBON 1/4W(T) 5% 22Kohm R30X R116 FA240271 CA R B O N 1/4W (T) 5% 27 0ohm R30T FA24033 2 CARBON 1/4W (T) 5% 3.3Koh m

R104 FA240330 CARBON 1/4W(T) 5% 33 ohm R108 R286 FA240334 CA RBON 1/4W(T) 5% 330Kohm R117 FA240390 CA R B O N 1/4W (T) 5% 39 ohm R343 R350 FA240472 CA RBON 1/4W(T) 5% 4.7Kohm R30H R30J FA240754 CARBON 1/4W(T) 5% 750Kohm

R107 FA240564 CA R B O N 1/4W (T) 5% 56 0K ohm R126 FA240681 CA R B O N 1/4W (T) 5% 68 0ohm R322 FA040122 CA R B O N 1/8W (T) 5% 1.2K ohm R387 FA040132 CA R B O N 1/8W (T) 5% 1.3K ohm R205 R338 R708 FA040152 CARBON 1/8W(T) 5% 1.5Kohm R714

R703 FA040182 CA R B O N 1/8W (T) 5% 1.8K ohm R155 R168 R31C FA040104 CARB ON 1/8W(T) 5% 100Kohm R327 R340 R373 R375 R202 R203 R208 FA040101 CARBON 1/8W(T) 5% 100ohm R209 R221 R241 R261 R306 R30N R30Y R31X R331 R332 R706 R707 R724 R727 R742 R743 R761 R762 R110 R122 R161 FA040103 CARBON 1/8W(T) 5% 10Kohm R167 R288 R293 R307 R30M R30Q R310 R318 R330 R345 R360 R368 R369 R377 R379 R601 R604 R612 R613 R709 R720 R736 R317 FA040106 CARBON 1/8W(T) 5% 10Mohm

R353 FA040154 CA R B O N 1/8W (T) 5% 15 0K ohm R154 R357 FA040153 CA RBON 1/8W(T) 5% 15Kohm R362 FA040150 CARBON 1/8W(T) 5% 15ohm R112 R123 R132 FA040102 CARB ON 1/8W(T) 5% 1Kohm R289 R301 R401 R603

SYMBOL PART NO DESCRIPTION

R159 R296 R315 FA040105 CARBON 1/8W(T) 5% 1Mohm R395

R608 FA040222 CA R B O N 1/8W (T) 5% 2.2K ohm R305 FA040225 CARBON 1/8W(T) 5% 2.2Mohm R374 FA040204 CA R B O N 1/8W (T) 5% 20 0K ohm R223 R243 R263 FA040224 CARBON 1/8W(T) 5% 220Kohm R30C R30E R339 R270 FA040221 CA R B O N 1/8W (T) 5% 22 0ohm

R127 R130 R611 FA040223 CARBON 1/8W(T) 5% 22Kohm R726 R30G FA040220 CARB ON 1/8W(T) 5% 22ohm R363 FA040244 CA R B O N 1/8W (T) 5% 24 0K ohm R364 FA040274 CA R B O N 1/8W (T) 5% 27 0K ohm R244 R264 FA040202 CA RBON 1/8W(T) 5% 2Kohm

R31P R731 FA040332 CARBON 1/8W(T) 5% 3.3Kohm R358 FA040334 CA R B O N 1/8W (T) 5% 33 0K ohm R102 R31H R31J FA040331 CARBON 1/8W(T) 5% 330ohm R715 R721 R219 R239 R259 FA040333 CARBON 1/8W(T) 5% 33Kohm R328 R211 R231 R251 FA040330 CARBON 1/8W(T) 5% 33ohm

R213 R233 R253 FA040391 CARBON 1/8W(T) 5% 390ohm R713 FA040393 CARBON 1/8W(T) 5% 39Kohm R224 R30V FA040302 CARBON 1/8W(T) 5% 3Kohm R119 R129 R148 FA04047 2 CARBON 1/8W (T) 5% 4.7Koh m R173 R204 R282 R291 R383 R391 R402 R403 R602 R605 R610 R701 R704 R710 R712 R716 R717 R718 R719 R722 R728 R729 R730 R733 R768 R769 R770 R739 R740 R771 FA040471 CARBON 1/8W(T) 5% 470ohm

JP1 R30P R359 FA040473 CARBON 1/8W(T) 5% 47Kohm VR201 VR202 R109 R115 FA040470 C A R B O N 1/8W (T) 5% 47 ohm R294 R295 R390 FA040562 CARBON 1/8W(T) 5% 5.6Kohm R303 FA040561 CA R B O N 1/8W (T) 5% 56 0ohm

SYMBOL PART NO DESCRIPTION

R386 FA040623 CARBON 1/8W(T) 5% 62Kohm

R319 FA040124 CA R B O N 1/8W (T) 5% 12 0K ohm R201 FA040680 CARBON 1/8W(T) 5% 68ohm R113 R382 FA040752 C A R B O N 1/8W (T) 5% 7.5Koh m R212 R232 R252 FA040750 CARBON 1/8W(T) 5% 75ohm R336 FA040822 CA R B O N 1/8W (T) 5% 8.2K ohm

R284 FA040821 CA R B O N 1/8W (T) 5% 82 0ohm R150 R157 R175 80002031 FUSEABLE RES 1/2W(A)M 0.22ohm R297 FB910229 FUSIBLE MF RES 1/4W 2.2ohm J R31Q FB241181 ME TAL 1/4W(T) 1% 1.18Kohm R31U FB241202 M ETAL 1/4W(T) 1% 12Kohm

R389 FB241372 METAL 1/4W(T) 1% 13.7Kohm R366 FB241693 METAL 1/4W(T) 1% 169Kohm R149 FB241001 METAL 1/4W(T) 1% 1Kohm R410 R412 FB242501 M ETAL 1/4W(T) 1% 2.5Kohm R31R FB242701 M ETAL 1/4W(T) 1% 2.7Kohm

R361 FB242002 METAL 1/4W(T) 1% 20Kohm R31N FB242202 M ETAL 1/4W(T) 1% 22Kohm R344 FB242552 METAL 1/4W(T) 1% 25.5Kohm R711 FB243481 METAL 1/4W(T) 1% 3.48Kohm R388 FB244300 METAL 1/4W(T) 1% 430ohm

J26 FB 244 702 METAL 1/4W(T) 1% 47 Koh m R158 FB240470 METAL 1/4W(T) 1% 47ohm R31L FB245102 METAL 1/4W(T) 1% 51Kohm R348 FB245541 METAL 1/4W(T) 1% 5.54Kohm R349 FB245602 METAL 1/4W(T) 1% 56Kohm

R151 FB246242 METAL 1/4W(T) 1% 62.4Kohm R210 R230 R250 FB247509 METAL 1/4W(T) 1% 75ohm R411 R413 FB248201 M ETAL 1/4W(T) 1% 8.2Kohm R31T FB241073 METAL 1/4W(T) 1% 107Kohm R169 R313 R314 FB910010 METAL 1/4W(T) 5% 1ohm R351

R415 FB470129 MOF 1W/M(A) 5% 1.2ohm R128 R606 FB470100 M OF 1W /M(A) 5% 10ohm R160 FB470153 MOF 1W/M(A) 5% 15Kohm R421 FB470109 MOF 1W/M(A) 5% 1ohm R312 F B4 70 270 M O F 1 W /M(A ) 5% 27oh m

R422 FB470339 MOF 1W/M(A) 5% 3.3ohm

SYMBOL PART NO DESCRIPTION

R103 F B4 70 680 M O F 1 W /M(A ) 5% 68oh m R31A FB480100 M OF 1W/M(B ) 5% 10oh m R105 F B5 60 248 M O F 2 W /M(A ) 5% 0.24oh m R354 F B5 60 182 M O F 2 W /M(A ) 5% 1.8Koh m

R125 FB560103 MOF 2W/M(A) 5% 10Kohm R335 F B5 60 151 M O F 2 W /M(A ) 5% 150oh m R302 F B5 60 222 M O F 2 W /M(A ) 5% 2.2Koh m R316 F B5 60 331 M O F 2 W /M(A ) 5% 330oh m R106 FB570563 MOF 2W/M(B) 5% 56Kohm

R309 F B7 10 150 M O F 3 W /M(A ) 5% 15oh m R311 FB710109 MOF 3W/M(A) 5% 1ohm R304 80011181 RESISTOR FUSEABLE 1/2W/A(M)

22ohm R394 FC030508 WOUND RES 1W/(A) 5% 0.5ohm R111 FC110158 WOUND RES 2W(A) 5% 0.15ohm

*** CAPACITORS ***

C707 C708 G B610152 CERAMIC SL/T 100P/50V J C353 GB633152 CERAMIC SL/T 330P/50V J C705 C706 G B633052 CE RAMIC SL/T 33P/50V J SG301 80011281 CERAMIC SPARK CAPS 1KV

+1500V~900V C276 C334 C357 GB7102H3 CERA MIC Y5P(B)/T 1000P/1KV K

C275 C278 C287 GB7102F3 CERAMIC Y5P(B)/T 1000P/500V K C297 C605 GB710253 CERAMIC Y5P(B)/T 1000P/50V K C127 GB7101H3 CERAMIC Y5P(B)/T 100P/1KV K C124 C304 G B7331H3 CERAMIC Y5P(B)/T 330P/1KV K C272 C341 G B74 71 F3 CERAMIC Y5 P (B)/T 470P /500V K

C110 GB747153 CERAMIC Y5P(B)/T 470P/50V K C204 C205 C267 GB210458 CERAMIC Y5V/T 0.1u/50V Z C282 C283 C284 C346 C350 C702 C709 C106 GB8103F 5 CERAMIC Z5U(E)/T 0.01u/500V M C321 C310 C331 G B9103H8 CERAMIC Z5V(F)/T 0.01u/1KV Z C112 C149 C201 GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C202 C203 C207 C231 C270 C280 C281 C291 C294 C299 C301 C409 C712 C724

85

SYMBOL PART NO DESCRIPTION

C277 GB9332H8 CERAMIC Z5V(F)/T 3300P/1KV Z

C120 C138 G AI10775 ELECT 105oC/A 100u/100V M TK C214 C234 C254 GA210575 ELEC T 105oC/T 1u/100V M C288 G AB 226 75 EL E CT 10 5oC /T 22u /100V M

C428 GA347485 ELECT 85oC/T 0.47u/250V M C122 GA310815 ELECT 85oC/T 1000u/10V M C372 C703 G A310725 E L E CT 85 o C/T 100u /16V M C308 C410 G A31 07 45 ELECT 85o C /T 100u/35 V M C113 C116 C143 GA 3106 55 ELECT 85oC/T 10u/50V M C150 C206 C210 C230 C250 C292 C293 C337 C338 C604 C711 C726 C727 C728

C336 C340 C352 G A310555 ELECT 85oC/T 1u/50V M C701 C710 C339 C704 G A322555 E LECT 85oC/T 2.2u/50V M C209 G A32 27 25 ELECT 85o C /T 220u/16 V M C109 GA322645 ELECT 85oC/T 22u/35V M C311 GA322655 ELECT 85oC/T 22u/50V M

C344 GA347585 ELECT 85oC/T 4.7u/250V M C309 GA347555 ELECT 85oC/T 4.7u/50V M C136 C330 G A347725 E L E CT 85 o C/T 470u /16V M C108 C137 C151 G A 3476 25 ELECT 85oC/T 47u/16V M C285 C289 C335 C725 C368 GA347635 ELECT 85oC/T 47u/25V M

C354 GA347645 ELECT 85oC/T 47u/35V M C313 GA347655 ELECT 85oC/T 47u/50V M C121 C408 GAH10825 E LECT CAP 105oC/T 1000u/16V M TK C119 GAH22675 ELEC T CA P 10 5o C/T 22u /100V M TK C156 GAH47555 ELEC T C A P 105o C /T 4.7u/50V M TK

C139 C404 GAH47725 E LECT CAP 105oC/T 470u/16V M TK C213 C233 C253 GA410575 ELEC T NP/T 1u/100V M C312 GF215252 ME F C A P B O X 0.0015u/50 V J C315 GF210252 ME F C A P B O X 0.001u/50V J C115 GF233262 MEF C A P B OX 0.0033 u/63V J

C366 GF256252 ME F C A P B O X 0.0056u/50 V J C362 GF282252 ME F C A P B O X 0.0082u/50 V J C365 GF210352 ME F C A P B O X 0.01u/50V J

SYMBOL PART NO DESCRIPTION

C360 GF215452 ME F C A P B O X 0.15u/50V J C314 GF210452 MEF CAP BOX 0.1u/50V J

C114 GF210462 MEF CAP BOX 0.1u/63V J C403 GF222452 ME F C A P B O X 0.22u/50V J C345 GFA22382 PLASTIC MPE/A 0.022u/250V J C329 GFA15482 PLASTIC MPE/A 0.15u/250V J C333 GFA10582 PLASTIC MPE/A 1u/250V J

C351 GFB15482 PLASTIC MPP/A 0.15u/250VJ C356 GFB30482 PLASTIC MPP/A 0.3u/250V J C325 GFB47482 PLASTIC MPP/A 0.47u/250V J C355 GFB75482 PLASTIC MPP/A 0.75u/250V J C332 GFD334E2 PLASTIC MPPS/A 0.33U/400V (PILKOR

)

C307 GFD47482 PLASTIC MPPS/A 0.47u/250V J

(MYLAR) C271 C347 C401 G E 2102 52 PLASTIC PE I/T 0.001u/50V J C40A C413 GE222252 PLASTIC PEI/T 0.0022u/50V J C111 C320 C407 GE233252 PLASTIC PEI/T 0.0033u/50V J C601 GE268252 PLASTIC PEI/T 0.0068u/50V J

C128 C142 C295 GE210352 PLASTIC PEI/T 0.01u/50V J C296 C327 C363 C603 C123 C348 G E222352 PLASTIC PEI/T 0.022u/50V J C316 C343 C364 G E 2473 52 PLASTIC PE I/T 0.047u/50V J C306 C317 C328 G E 2104 52 PLAS T IC P E I/T 0 .1u /5 0 V J C358 C361 C319 GED562M2 PLASTIC PP N /A 5600 P/800V J

C318 GFC622J2 PLASTIC PPS/A 6200P/2KV J C105 GKA227E5 POW ER ELECT 85oC 220u/400V M C101 GJ047400 SAFETY X-CAP 0.47u/275V M C102 GJC102E5 SAFETY Y-CAP/D 1000P/400V M C103 C104 C146 GJH102E5 SAFETY Y-CAP/S 1000P/400V M C154

86

The components specified for Model MS75F-3 LG CRT. Note: The components identified by make are critical for safety.

Replace only with parts Number specified.

SYMBOL PART NO DESCRIPTION *** CRT & TUNE R ***

CRT 80013321 CRT 17" LG M41QEE903X03

*** ICS ***

U702 80009941 ATMEL E²ROM AT24C08B U101 DD002600 IC LINEAR KA3842A 8P U201 80000631 IC LM1281 U103 80000321 IC PHOTO COUBLE PS2561,TLP721F Q103 80003831 IC REGULATOR TL431 817B 4P

U401 80001041 IC T D A 8 1 72 (N .S ,S G S ) U203 80003661 N.S VIDEO DRIVE IC LM2438 U701 80013001 N0701-2 VE MASK MCU U301 80010251 OP AMP LM358 / KIA358 U204 80015661 OS D IC MTV016N (V2)

U302 80012941 PHILIPS IC TDA 4857

*** TRANSISTOR ***

Q101 EF202500 FET N 2SK254 5 TO -220 F TOS H IBA Q313 Q319 Q322 EF206301 FET N YTAF630 TO-220F Q308 EFA29610 TR 2SK2961 FET TOSHIBA Q201 EAA12133 TR NPN 2SC1213AC TO-92(T) Q105 Q107 Q110 EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.

)

Q113 Q302 Q306 Q320 Q323 Q324 Q401 Q601 Q603 Q605 Q606

Q303 EAA40020 TR NPN 2SC4002 TO-92(T) (SANYO) Q307 80005721 TR NPN 2SC5411(hfe) TO-3P Q321 Q327 EAA09456 TR N P N 2 S C 94 5 P TO-92(T) (N.P.S.) Q318 80008141 TR NPN 2SD1763 TO-220F Q304 EAA04220 TR NPN BF422 TO-92(T) (T,P)

Q106 EAA23281 TR NPN KSC 2328A TO-92(T)

(SAMSUNG) Q301 EAA23690 TR NPN PH2369 TO-92(T) (PHILIPS) Q310 Q604 EBA10157 TR PNP 2SA1015GR TO-92(T) (T.P.S.

)

Q325 Q326 Q701 EBA07336 TR PNP 2SA733P TO-92(T) (N.P.S.) Q702 Q703 Q112 EBA04230 TR PNP BF423 TO-92(T)(T.P.) Q305 EBA04230 TR PNP BF423 TO-92(T)(T.P.) Q108 EBA09281 TR PNP KSA 928A TO-92(T)(SAMSUNG

)

Q317 EBA09281 TR PNP KSA 928A TO-92(T)(SAMSUNG

)

Q104 EB307720 TR PNP KSB772 TO-126

SYMBOL PART NO DESCRIPTION

*** DIODES ***

D107 D109 D10A E J044148 DIODE "T" 1N4148 D117 D119 D125 D126 D127 D129 D202 D203 D204 D205 D210 D211 D230 D231 D250 D251 D302 D304 D311 D313 D314 D315 D317 D319 D320 D323 D325 D327 D332 D333 D334 D336 D337 D340 D344 D601 D602 D604 D605 D60A D703 D704 D705 D112 D113 D118 80003551 DIODE 200V/1.6A RG2Z SANKEN

Ås¨¤

D110 D335 80003561 DIODE 600V/1.6A RG2A SANKEN

Ås¨¤

D308 80009541 DIODE FAGOR FUF5406

Ås¸}

(A+K)

D305 D306 D702 EJA05819 DIODE STKY/T 1A/40V 1N5819

D101 D102 D103 EJB20001 DIODE/A 3A 1N5406 D104 D111 80011291 DIODE/A 3A/400V RG4(

¥¦æ

) D307 80001171 DIODE/A 5TUZ47C (TOSHIBA) D316 80009261 DIODE/A RP3F(A+K) SANKEN D213 D214 D233 80000451 DIODE/T 1/2W 1SS83 D234 D253 D254

D106 D108 D131 EJAC0017 DIODE/T 1A 1N4936 D303 D310 D345 D701 D201 D301 D312 EJA C00 18 DIODE /T 1A 1N 493 7 D318 D321 D322 D324 D328 D329 D330 D331 D341 D403 D105 D116 D326 EJA20003 DIODE/T 1A BA159 LED701 80000131 LE D L-59GH/1GYC ZD1

4 EKA00603 ZEN DIODE 1/2W(T) 6B1 (HITACHI)

ZD101 EKA0180B ZEN DIODE 1/2W(T) HZS 18-2(HITACHI

)

ZD102 EKA01201 ZEN DIODE 1/2W(T) HZS12A2(HITACHI

)

ZD303 ZD701 ZD702 EKA00507 ZEN DIODE 1/2W(T) HZS5C2 (HITACHI

)

ZD703 ZD704 ZD706 EKA00607 ZEN DIODE 1/2W(T) HZS6C2 (HITACHI

)

SYMBOL PART NO DESCRIPTION

*** TRANSFORMERS ***

T301 80009281 17" N0701F FBT T302 80000281 H.DRIVE X'FM 4.5mH EI-19 T303 80013361 N1701F D.F X'FM EI-19(1:9) T101 80011211 POWER X'FM ERL35 500uH FE700+

*** VARIABLE RESISTORS ***

VR101 FF300201 VR CARBON 6mm ¥ß 200 ohm/B VR210 VR230 VR250 FF300203 VR CARBON 6mm ¥ß 20K/B VR307 FF310104 VR CARBON 6mm ª× 100K

*** RELAYS & SWITCHES ***

RL101 80003751

RELAY 12V 6P GSA-SS-212DM(GOOD-SKY

)

RL301 80010001

RELAY RUDH-SH-112D400ohm(GOOD SKY

)

SW101 80012411

SW POWER 30V/0.3AJPS1258DS(Favortron

)

SW701 SW702 SW703 80000251 TACT SW 1P 100G+-50 SW301 80010621 WAFER 2L× 3P 2.54mm

*** COILS & FILTERS ***

L201 L202 HB000008 CHOKE COIL 100Uh 8X10 L303 L304 80001811 CH O K E CO IL 13 0uH 18 X2 0 + B A SE L103 80003681 CHOKE T50-26B 200uH G2,G4 WIRE HA030010 EMI FILTER COIL 20.45X 10 .2X 10 L301 80009291 H-CENTER CHOKE

L101 80000111 LINE FILTER ET24 10 m H M IN L102 HB000015 LINE FILTER UU10.5 1mH L302 80015151 N0701F LINEARITY CHOKE 130uH L307 80010401 N0701F LINEARITY COIL L203 L204 L205 HB013159 PACKING COIL /T 1.5uH K(EC24)

J23 HB013100 PACKING COIL /T 10uH K(EC24)

*** PW B ASSYS ***

7C0215ML CRT BOARD ASSY 7M0215ML MA IN B OA R D AS SY

*** ELECTRICAL PARTS & MISCELLANE OUS PARTS ***

SOCKET 80001751 17" 29D NECK CRT SOCKET P101 JD512001 AC SOCKET 3P F101 80001521 FUSE 3.15A/250V 50T T3.15A FOR U701 JD010040 IC SOCKET 40P DEGUESSING COIL 80015641 MS 7 5 F-3 TC O DE GAUSSING

POWER CORD 80001651 POWER CORD 3P 1.8M EUROPE CABLE 80012051 SIGNAL CABLE 20276 1.5M FOR PC+5V TH101 80000801 THERMISTOR NTCR SCK054 13.3mm TH102 80005821 THERMISTOR PTCR 4.5ohm X701 EM012004 X'TAL 49U 12MHz

SYMBOL PART NO DESCRIPTION

*** APPEARANCE PARTS ***

10100924 CABINET BACK(PC+ABS) 10101482 CABINET FRONT ASSY(PC+ABS) 10101491 CABINET FRONT(PC+ABS) 17000301 CUSHION PIECE(BACK) 17000291 CUSHION SHEET

17000451 CUSHION SHEET 11000331 REVOLVING STAND ASSY 11000251 REVOLVING STAND(B)(94HB) 11000361 REVOLVING STAND(B)(94HB) 11000261 REVOLVING STAND(T)(94HB)

*** PRINTED & PACKING MATERIALS ***

13201142 CARTON BOX MS75F-1(B Ver.) 19700025 INSTRUCTION CD-ROM MS75/95F-1 15000962 NAME PLATE INSTRUCTION MS75F-

1(B Ver.)

15500724 OWNERS MANUAL MS75F/95F-1(B

Ver.)

13400521 POLYLON(B)CARTON

13400511 POLYLON(T)CARTON

*** RESISTORS ***

R156 FA330159 CARBON 1/2W(T) 5% 1.5ohm R325 FA330182 CA R B O N 1/2W (T) 5% 1.8K ohm R114 R120 FA330104 C A R B O N 1/2W (T) 5% 10 0Koh m R287 FA330101 CA R B O N 1/2W (T) 5% 10 0ohm R365 FA330154 CA R B O N 1/2W (T) 5% 15 0K ohm

R385 FA330150 CARBON 1/2W(T) 5% 15ohm R182 FA330102 CARBON 1/2W(T) 5% 1Kohm R367 R380 R381 FA330105 CARBON 1/2W(T) 5% 1Mohm R417 FA330229 CARBON 1/2W(T) 5% 2.2ohm R414 FA330331 CA R B O N 1/2W (T) 5% 33 0ohm

R30L FA330470 CARBON 1/2W(T) 5% 47ohm R308 FA330561 CA R B O N 1/2W (T) 5% 56 0ohm R101 FA330684 CA R B O N 1/2W (T) 5% 68 0K ohm R292 FA240101 CA R B O N 1/4W (T) 5% 10 0ohm R206 R725 FA240103 CA RBON 1/4W(T) 5% 10Kohm

R10A R31F FA240113 CARBON 1/4W(T) 5% 11Kohm R392 FA240154 CA R B O N 1/4W (T) 5% 15 0K ohm R220 R240 R260 FA240151 CARBON 1/4W(T) 5% 150ohm R163 R30U R31E FA240102 CARBON 1/4W(T) 5% 1Kohm R609 FA240222 CA R B O N 1/4W (T) 5% 2.2K ohm

R118 FA240203 CA R B O N 1/4W (T) 5% 20 Ko hm R393 FA240224 CA R B O N 1/4W (T) 5% 22 0K ohm

!

87

SYMBOL PART NO DESCRIPTION

R278 R280 R290 FA240223 CARBON 1/4W(T) 5% 22Kohm R30X R116 FA240271 CA R B O N 1/4W (T) 5% 27 0ohm R30T FA24033 2 CARBON 1/4W (T) 5% 3.3Koh m

R104 FA240330 CARBON 1/4W(T) 5% 33 ohm R108 R286 FA240334 CA RBON 1/4W(T) 5% 330Kohm R117 FA240390 CA R B O N 1/4W (T) 5% 39 ohm R343 R350 FA240472 CA RBON 1/4W(T) 5% 4.7Kohm R30H R30J FA240754 CARBON 1/4W(T) 5% 750Kohm

R107 FA240564 CA R B O N 1/4W (T) 5% 56 0K ohm R126 FA240681 CA R B O N 1/4W (T) 5% 68 0ohm R322 FA040122 CA R B O N 1/8W (T) 5% 1.2K ohm R387 FA040132 CA R B O N 1/8W (T) 5% 1.3K ohm R205 R338 R714 FA040152 CARBON 1/8W(T) 5% 1.5Kohm

R703 FA040182 CA R B O N 1/8W (T) 5% 1.8K ohm R155 R168 R31C FA040104 CARB ON 1/8W(T) 5% 100Kohm R327 R340 R373 R375 R202 R203 R208 FA040101 CARBON 1/8W(T) 5% 100ohm R209 R221 R241 R261 R306 R30N R30Y R31X R331 R332 R706 R707 R724 R727 R742 R743 R761 R762 R110 R122 R161 FA040103 CARBON 1/8W(T) 5% 10Kohm R167 R288 R293 R307 R30M R30Q R310 R318 R330 R345 R360 R368 R369 R377 R379 R601 R604 R612 R613 R709 R720 R736 R317 FA040106 CARBON 1/8W(T) 5% 10Mohm

R353 FA040154 CA R B O N 1/8W (T) 5% 15 0K ohm R154 R357 FA040153 CA RBON 1/8W(T) 5% 15Kohm R362 FA040150 CARBON 1/8W(T) 5% 15ohm R112 R123 R132 FA040102 CARB ON 1/8W(T) 5% 1Kohm R289 R301 R401 R603

SYMBOL PART NO DESCRIPTION

R159 R296 R315 FA040105 CARBON 1/8W(T) 5% 1Mohm R395

R608 R708 FA040222 CA RBON 1/8W(T) 5% 2.2Kohm R305 FA040225 CARBON 1/8W(T) 5% 2.2Mohm R374 FA040204 CA R B O N 1/8W (T) 5% 20 0K ohm R223 R243 R263 FA040224 CARBON 1/8W(T) 5% 220Kohm R30C R30E R339 R270 FA040221 CA R B O N 1/8W (T) 5% 22 0ohm

R127 R130 R611 FA040223 CARBON 1/8W(T) 5% 22Kohm R726 R30G FA040220 CARB ON 1/8W(T) 5% 22ohm R363 FA040244 CA R B O N 1/8W (T) 5% 24 0K ohm R364 FA040274 CA R B O N 1/8W (T) 5% 27 0K ohm R244 R264 FA040202 CA RBON 1/8W(T) 5% 2Kohm

R31P R731 FA040332 CARBON 1/8W(T) 5% 3.3Kohm R358 FA040334 CA R B O N 1/8W (T) 5% 33 0K ohm R102 R31H R31J FA040331 CARBON 1/8W(T) 5% 330ohm R715 R721 R219 R239 R259 FA040333 CARBON 1/8W(T) 5% 33Kohm R328 R211 R231 R251 FA040330 CARBON 1/8W(T) 5% 33ohm

R213 R233 R253 FA040391 CARBON 1/8W(T) 5% 390ohm R713 FA040393 CARBON 1/8W(T) 5% 39Kohm R224 R30V FA040302 CARBON 1/8W(T) 5% 3Kohm R119 R129 R148 FA04047 2 CARBON 1/8W (T) 5% 4.7Koh m R173 R204 R282 R291 R383 R391 R402 R403 R602 R605 R610 R701 R704 R710 R712 R716 R717 R718 R719 R722 R728 R729 R730 R733 R768 R769 R770 R739 R740 R771 FA040471 CARBON 1/8W(T) 5% 470ohm

JP1 R30P R359 FA040473 CARBON 1/8W(T) 5% 47Kohm VR201 VR202 R109 R115 FA040470 C A R B O N 1/8W (T) 5% 47 ohm R294 R295 R336 FA040562 CARBON 1/8W(T) 5% 5.6Kohm R390 R303 FA040561 CA R B O N 1/8W (T) 5% 56 0ohm

SYMBOL PART NO DESCRIPTION

R386 FA040623 CARBON 1/8W(T) 5% 62Kohm

R319 FA040683 CARBON 1/8W(T) 5% 68Kohm R201 FA040680 CARBON 1/8W(T) 5% 68ohm R113 R382 FA040752 C A R B O N 1/8W (T) 5% 7.5Koh m R212 R232 R252 FA040750 CARBON 1/8W(T) 5% 75ohm

R284 FA040821 CA R B O N 1/8W (T) 5% 82 0ohm R150 R157 R175 80002031 FUSEABLE RES 1/2W(A)M 0.22ohm R297 FB910229 FUSIBLE MF RES 1/4W 2.2ohm J R31Q FB241181 ME TAL 1/4W(T) 1% 1.18Kohm R31U FB241202 M ETAL 1/4W(T) 1% 12Kohm

R389 FB241372 METAL 1/4W(T) 1% 13.7Kohm R366 FB241503 METAL 1/4W(T) 1% 150Kohm R149 FB241001 METAL 1/4W(T) 1% 1Kohm R410 R412 FB242501 M ETAL 1/4W(T) 1% 2.5Kohm R31R FB242701 M ETAL 1/4W(T) 1% 2.7Kohm

R361 FB242002 METAL 1/4W(T) 1% 20Kohm R31N FB242202 M ETAL 1/4W(T) 1% 22Kohm R344 FB242552 METAL 1/4W(T) 1% 25.5Kohm R711 FB243481 METAL 1/4W(T) 1% 3.48Kohm R388 FB245490 METAL 1/4W(T) 1% 549ohm

J26 FB 244 702 METAL 1/4W(T) 1% 47 Koh m R158 FB240470 METAL 1/4W(T) 1% 47ohm R31L FB245102 METAL 1/4W(T) 1% 51Kohm R348 FB245541 METAL 1/4W(T) 1% 5.54Kohm R349 FB245602 METAL 1/4W(T) 1% 56Kohm

R151 FB246242 METAL 1/4W(T) 1% 62.4Kohm R210 R230 R250 FB247509 METAL 1/4W(T) 1% 75ohm R411 R413 FB248201 M ETAL 1/4W(T) 1% 8.2Kohm R31T FB241053 METAL 1/4W(T) 1% 105Kohm R169 R313 R314 FB910010 METAL 1/4W(T) 5% 1ohm R351

R415 FB470119 MOF 1W/M(A) 5% 1.1ohm R128 R606 FB470100 M OF 1W /M(A) 5% 10ohm R160 FB470153 MOF 1W/M(A) 5% 15Kohm R421 FB470109 MOF 1W/M(A) 5% 1ohm R312 F B4 70 270 M O F 1 W /M(A ) 5% 27oh m

R422 FB470339 MOF 1W/M(A) 5% 3.3ohm

SYMBOL PART NO DESCRIPTION

R103 F B4 70 680 M O F 1 W /M(A ) 5% 68oh m R31A FB480100 M OF 1W/M(B ) 5% 10oh m R105 F B5 60 248 M O F 2 W /M(A ) 5% 0.24oh m R354 F B5 60 182 M O F 2 W /M(A ) 5% 1.8Koh m

R125 FB560103 MOF 2W/M(A) 5% 10Kohm R335 F B5 60 151 M O F 2 W /M(A ) 5% 150oh m R302 F B5 60 222 M O F 2 W /M(A ) 5% 2.2Koh m R316 F B5 60 331 M O F 2 W /M(A ) 5% 330oh m R106 FB570563 MOF 2W/M(B) 5% 56Kohm

R309 F B7 10 150 M O F 3 W /M(A ) 5% 15oh m R311 FB710109 MOF 3W/M(A) 5% 1ohm R304 80011181 RESISTOR FUSEABLE 1/2W/A(M)

22ohm R394 FC030508 WOUND RES 1W/(A) 5% 0.5ohm R111 FC110158 WOUND RES 2W(A) 5% 0.15ohm

*** CAPACITORS ***

C707 C708 G B610152 CERAMIC SL/T 100P/50V J C353 GB633152 CERAMIC SL/T 330P/50V J C705 C706 G B633052 CE RAMIC SL/T 33P/50V J SG301 80011281 CERAMIC SPARK CAPS 1KV

+1500V~900V C276 C334 C357 GB7102H3 CERA MIC Y5P(B)/T 1000P/1KV K

C275 C278 C287 GB7102F3 CERAMIC Y5P(B)/T 1000P/500V K C297 C605 GB710253 CERAMIC Y5P(B)/T 1000P/50V K C127 GB7101H3 CERAMIC Y5P(B)/T 100P/1KV K C124 C304 G B7331H3 CERAMIC Y5P(B)/T 330P/1KV K C272 C341 G B74 71 F3 CERAMIC Y5 P (B)/T 470P /500V K

C110 GB747153 CERAMIC Y5P(B)/T 470P/50V K C204 C205 C267 GB210458 CERAMIC Y5V/T 0.1u/50V Z C282 C283 C284 C346 C350 C702 C709 C106 GB8103F 5 CERAMIC Z5U(E)/T 0.01u/500V M C321 C310 C331 G B9103H8 CERAMIC Z5V(F)/T 0.01u/1KV Z C112 C149 C201 GB910358 CERAMIC Z5V(F)/T 0.01u/50V Z C202 C203 C207 C231 C270 C280 C281 C291 C294 C299 C301 C409 C712 C724

88

SYMBOL PART NO DESCRIPTION

C277 GB9332H8 CERAMIC Z5V(F)/T 3300P/1KV Z

C120 C138 G AI10775 ELECT 105oC/A 100u/100V M TK C214 C234 C254 GA210575 ELEC T 105oC/T 1u/100V M C288 G AB 226 75 EL E CT 10 5oC /T 22u /100V M C428 GA347485 ELECT 85oC/T 0.47u/250V M

C122 GA310815 ELECT 85oC/T 1000u/10V M C372 C703 G A310725 E L E CT 85 o C/T 100u /16V M C308 C410 G A31 07 45 ELECT 85o C /T 100u/35 V M C113 C116 C143 GA 3106 55 ELECT 85oC/T 10u/50V M C150 C206 C210 C230 C250 C292 C293 C337 C338 C604 C711 C726 C727 C728 C336 C340 C352 G A310555 ELECT 85oC/T 1u/50V M C701 C710

C339 C704 G A322555 E LECT 85oC/T 2.2u/50V M C209 G A32 27 25 ELECT 85o C /T 220u/16 V M C109 GA322645 ELECT 85oC/T 22u/35V M C311 GA322655 ELECT 85oC/T 22u/50V M C344 GA347585 ELECT 85oC/T 4.7u/250V M

C309 GA347555 ELECT 85oC/T 4.7u/50V M C136 C330 G A347725 E L E CT 85 o C/T 470u /16V M C108 C137 C151 G A 3476 25 ELECT 85oC/T 47u/16V M C285 C289 C335 C725 C368 GA347635 ELECT 85oC/T 47u/25V M C354 GA347645 ELECT 85oC/T 47u/35V M

C313 GA347655 ELECT 85oC/T 47u/50V M C121 C408 GAH10825 E LECT CAP 105oC/T 1000u/16V M TK C119 GAH22675 ELEC T CA P 10 5o C/T 22u /100V M TK C156 GAH47555 ELEC T C A P 105o C /T 4.7u/50V M TK C139 C404 GAH47725 E LECT CAP 105oC/T 470u/16V M TK

C213 C233 C253 GA410575 ELEC T NP/T 1u/100V M C312 GF215252 ME F C A P B O X 0.0015u/50 V J C315 GF210252 ME F C A P B O X 0.001u/50V J C115 GF233262 MEF C A P B OX 0.0033 u/63V J C366 GF256252 ME F C A P B O X 0.0056u/50 V J

C362 GF282252 ME F C A P B O X 0.0082u/50 V J C365 GF210352 ME F C A P B O X 0.01u/50V J

SYMBOL PART NO DESCRIPTION

C360 GF215452 ME F C A P B O X 0.15u/50V J C314 GF210452 MEF CAP BOX 0.1u/50V J C114 GF210462 MEF CAP BOX 0.1u/63V J

C403 GF222452 ME F C A P B O X 0.22u/50V J C345 GFA10382 PLASTIC MPE/A 0.01u/250V J C329 GFA15482 PLASTIC MPE/A 0.15u/250V J C333 GFA10582 PLASTIC MPE/A 1u/250V J C351 GFB15482 PLASTIC MPP/A 0.15u/250VJ

C356 GFB30482 PLASTIC MPP/A 0.3u/250V J C325 GFB47482 PLASTIC MPP/A 0.47u/250V J C355 GFB75482 PLASTIC MPP/A 0.75u/250V J C332 GFD304E2 PLASTIC MPPS/A 0.3u/400V J (PILKOR

)

C307 GFD47482 PLASTIC MPPS/A 0.47u/250V J

(MYLAR)

C271 C347 C401 G E 2102 52 PLASTIC PE I/T 0.001u/50V J C40A C413 GE222252 PLASTIC PEI/T 0.0022u/50V J C111 C320 C407 GE233252 PLASTIC PEI/T 0.0033u/50V J C601 GE268252 PLASTIC PEI/T 0.0068u/50V J C128 C142 C295 GE210352 PLASTIC PEI/T 0.01u/50V J C296 C327 C363 C603

C123 C348 G E222352 PLASTIC PEI/T 0.022u/50V J C316 C343 C364 G E 2473 52 PLASTIC PE I/T 0.047u/50V J C306 C317 C328 G E 2104 52 PLAS T IC P E I/T 0 .1u /5 0 V J C358 C361 C319 GED562M2 PLASTIC PP N /A 5600 P/800V J C318 GFC622J2 PLASTIC PPS/A 6200P/2KV J

C105 GKA227E5 POW ER ELECT 85oC 220u/400V M C101 GJ047400 SAFETY X-CAP 0.47u/275V M C102 GJC102E5 SAFETY Y-CAP/D 1000P/400V M C103 C104 C146 GJH102E5 SAFETY Y-CAP/S 1000P/400V M C154

SYMBOL PART NO DESCRIPTION *** DIODES ***

D107 D109 D10A EJ044148 DIODE "T" 1N4148 D117 D119 D125 D126 D127 D129 D202 D203 D204 D205 D210 D211 D230 D231 D250 D251 D302 D304 D311 D313 D314 D315 D317 D319 D320 D323 D325 D327 D332 D333 D334 D336 D337 D340 D344 D601 D602 D604 D605 D60A D703 D704 D705 D112 D113 D118 80003551 DIODE 200V/1.6A RG2Z SANKEN

Ås¨¤

D110 D335 80003561 DIODE 600V/1.6A RG2A SANKEN

Ås¨¤

D308 80009541 DIODE FAGOR FUF5406

Ås¸}

(A+K)

D305 D306 D702 EJA05819 DIODE STKY/T 1A/40V 1N5819

D101 D102 D103 EJB20001 DIODE/A 3A 1N5406 D104 D111 80011291 DIODE/A 3A/400V RG4(

¥¦æ

) D307 80001171 DIODE/A 5TUZ47C (TOSHIBA) D316 80009261 DIODE/A RP3F(A+K) SANKEN D213 D214 D233 80000451 DIODE/T 1/2W 1SS83 D234 D253 D254

D106 D108 D131 EJAC0017 DIODE/T 1A 1N4936 D303 D310 D345 D701 D201 D301 D312 EJAC0018 DIODE/T 1A 1N4937 D318 D321 D322 D324 D328 D329 D330 D331 D341 D403 D105 D116 D326 EJA20003 DIODE/T 1A BA159 LED701 80000131 LED L-59GH/1GYC ZD104 EKA00603 ZEN DIODE 1/2W(T) 6B1 (HITACHI)

ZD101 EKA0180B ZEN DIODE 1/2W(T) HZS 18-2(HITACHI

)

ZD102 EKA01201 ZEN DIODE 1/2W(T) HZS12A2(HITACHI

)

89

SYMBOL PART NO DESCRIPTION *** CRT & TUNER ***

CRT 80013331 CRT 17" ORION M41QEC200XX021

*** ICS ***

U702 80009941 ATMEL E²ROM AT24C08B U101 DD002600 IC LINEAR KA3842A 8P U201 80000631 IC LM1281 U103 80000321 IC PHOTO COUBLE PS2561,TLP721F Q103 80003831 IC REGULATOR TL431 817B 4P

U401 80001041 IC TDA8172 (N.S,SGS) U203 80003661 N.S VIDEO DRIVE IC LM2438 U701 80013001 N0701-2 VE MASK MCU U301 80010251 OP AMP LM358 / KIA358 U204 80015661 OSD IC MTV016N (V2)

U302 80012941 PHILIPS IC TDA 4857

*** TRANSISTOR ***

Q101 EF202500 FET N 2SK254 5 TO -220F TOSHIBA Q313 Q319 Q322 EF206301 FET N YTAF630 TO-220F Q308 EFA29610 TR 2SK2961 FET TOSHIBA Q201 EAA12133 TR NPN 2SC1213AC TO-92(T) Q105 Q107 Q110 EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.

)

Q113 Q302 Q306 Q320 Q323 Q324 Q401 Q601 Q603 Q605 Q606

Q303 EAA40020 TR NPN 2SC4002 TO-92(T) (SANYO) Q307 80005721 TR NPN 2SC5411(hfe) TO-3P Q321 Q327 EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q318 80008141 TR NPN 2SD1763 TO-220F Q304 EAA04220 TR NPN BF422 TO-92(T) (T,P)

Q106 EAA23281 TR NPNKSC2328ATO-92(T)(SAMSUNG

)

Q301 EAA23690 TR NPN PH2369 TO-92(T) (PHILIPS) Q310 Q604 EBA10157 TR PNP 2SA1015GR TO-92(T) (T.P.S.

)

Q325 Q326 Q701 EBA07336 TR PNP 2SA733P TO-92(T) (N.P.S.) Q702 Q703 Q112 Q305 EBA04230 TR PNP BF423 TO-92(T)(T.P.)

Q108 Q317 EBA09281 TR PNP KSA 928A TO-92(T)(SAMSUNG

)

Q104 EB307720 TR PNP KSB772 TO-126

SYMBOL PART NO DESCRIPTION

ZD303 ZD701 ZD702 EKA00507 ZEN DIODE 1/2W(T) HZS5C2 (HITACHI

)

ZD703 ZD704 ZD706 EKA00607 ZEN DIODE 1/2W(T) HZS6C2 (HITACHI

)

*** TRANFRMER

***

T301 80009281 17" N0701F FBT T302 80000281 H.DRIVE X'FM 4.5mH EI-19 T303 80013361 N1701F D.F X'FM EI-19(1:9) T101 80011211 POWER X'FM ERL35 500uH FE700+

*** VARIABLE RESISTORS ***

VR101 FF300201 VR CARBON 6mm ¥ß 200 ohm/B VR210 VR230 VR250 FF300203 VR CARBON 6mm ¥ß 20K/B VR307 FF310104 VR CARBON 6mm ª× 100K

*** RELAYS & SWITCHES ***

RL101 80003751

RELAY 12V 6P GSA-SS-212DM(GOOD-SKY

)

RL301 80010001

RELAY RUDH-SH-112D400ohm(GOOD SKY

)

SW101 80012411

SW POWER30V/0.3A JPS1258DS(Favortron

)

SW701 SW702 SW703 80000251 TACT SW 1P 100G+-50 SW301 80010621 WAFER 2L×3P 2.54mm

*** IL

FILTER

***

L201 L202 HB000008 CHOKE COIL 100uH 8X10 L303 80015701 CHOKE COIL 120uH 18X20 + BASE L304 80001811 CHOKE COIL 130uH 18X20 + BASE L103 80003681 CHOKE T50-26B 200uH G2,G4 WIRE HA030010 EMI FILTER COIL 20.45X10.2X10

L301 80009291 H-CENTER CHOKE L101 80000111 LINE FILTER ET24 10mH MIN L102 HB000015 LINE FILTER UU10.5 1mH L302 80005311 LINEARITY CHOKE 30uH L307 80015691 N1701F LINEARITY FOR ORION CRT

L203 L204 L205 HB013159 PACKING COIL /T 1.5uH K(EC24) J23 HB013100 PACKING COIL /T 10uH K(EC24)

*** PWB ASSYS ***

7C0215MO CRT BOARD ASSY 7M0216MO MAIN BOARD ASSY

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

SOCKET 80001751 17" 29D NECK CRT SOCKET DEGUESSING COIL 80010551 17" N0701F MPRII DEGAUSSING P101 JD512001 AC SOCKET 3P F101 80001521 FUSE 3.15A/250V 50T T3.15A FOR U701 JD010040 IC SOCKET 40P

SYMBOL PART NO DESCRIPTION

POWER CORD 80001631

POWER CORD 3P1.8

¬ü³W

NON-SHIELDCOLORSG8508

CABLE 80012051 SIGNAL CABLE 2027 6 1 .5M FOR PC+5V TH101 80000801 THERMISTOR NTCR SCK054 13.3mm TH102 80005821 THERMISTOR PTCR 4.5ohm X701 EM012004 X'TAL 49U 12MHz

*** APPEARANCE PARTS ***

10100594 CABINET BACK 10101341 CABINET FRONT 10101332 CABINET FRONT ASSY 17000301 CUSHION PIECE(BACK) 17000291 CUSHION SHEET

17000451 CUSHION SHEET 1100033 1 REVOLVING STAND ASSY 1100025 1 REVOLVING STAND(B)(94HB) 1100036 1 REVOLVING STAND(B)(94HB) 1100036 2 REVOLVING STAND(B)(94HB)

1100026 1 REVOLVING STAND(T)(94HB) 1100026 2 REVOLVING STAND(T)(94HB)

*** PRINTED & PACKING MATERIALS ***

13201101 CARTON BOX (AS75F-1)

B/C LABEL 15000971 NAME PLATE INSTRUCTION (AS75F-1

)

15500712 OWNERS MANUAL (AS75F-3) 13400521 POLYLON(B)CARTON 13400511 POLYLON(T)CARTON

*** RESISTORS ***

R156 FA330159 CARBON 1/2W(T) 5% 1.5ohm R325 FA330182 CAR BON 1/2W(T) 5% 1.8Koh m R114 R120 FA330104 CARBON 1/2W(T) 5% 100Kohm R287 FA33010 1 CARBON 1/2W(T) 5% 100ohm R365 FA330154 CAR BON 1/2W(T) 5% 150Kohm

R385 FA330150 CAR BON 1/2W(T) 5% 15ohm R182 FA330102 CAR BON 1/2W(T) 5% 1Kohm R367 R380 R381 FA330105 CARBON 1/2W(T) 5% 1Mohm R417 FA330229 CARBON 1/2W(T) 5% 2.2ohm R414 FA330331 CAR BON 1/2W(T) 5% 330ohm

R30L FA330470 CAR BON 1/2W(T) 5% 47ohm R308 FA330561 CAR BON 1/2W(T) 5% 560ohm R101 FA330684 CAR BON 1/2W(T) 5% 680Kohm

The components specified for Model AS75F-3 ORION CRT. Note: The components identified by make are critical for safety.

Replace only with parts Number specified.

!

SYMBOL PART NO DESCRIPTION

J26 FB244702 METAL 1/4W(T) 1% 47Kohm R158 FB240470 METAL 1/4W(T) 1 % 47 ohm R348 FB245541 METAL 1/4W(T) 1% 5.54Kohm R388 FB245490 METAL 1/4W(T) 1% 549ohm R349 FB245602 METAL 1/4W(T) 1% 56Kohm

R151 FB246242 METAL 1/4W(T) 1% 62.4Kohm R210 R230 R250 FB247509 METAL 1/4W(T) 1% 75ohm R411 R413 FB248201 METAL 1/4W(T) 1% 8.2Kohm R31T FB249312 METAL 1/4W(T) 1% 93.1Kohm R169 R313 R314 FB910010 METAL 1/4W(T) 5% 1ohm R351

R415 FB470119 MOF 1W/M(A) 5% 1.1ohm R128 R606 FB470100 MOF 1W/M(A) 5% 10ohm R160 FB470153 MOF 1W/M(A) 5% 15Kohm R421 FB470109 MOF 1W/M(A) 5% 1ohm R312 FB470270 MOF 1W/M(A) 5% 27ohm

R422 FB470339 MOF 1W/M(A) 5% 3.3ohm R103 FB470680 MOF 1W/M(A) 5% 68ohm R31A FB480100 MOF 1W/M(B) 5% 10ohm R105 FB560248 MOF 2W/M(A) 5% 0.24ohm R354 FB560182 MOF 2W/M(A) 5% 1.8Kohm

R125 FB560103 MOF 2W/M(A) 5% 10Kohm R335 FB560151 MOF 2W/M(A) 5% 150ohm R302 FB560222 MOF 2W/M(A) 5% 2.2Kohm R316 FB560331 MOF 2W/M(A) 5% 330ohm R106 FB570563 MOF 2W/M(B) 5% 56Kohm

R309 FB710150 MOF 3W/M(A) 5% 15ohm R311 FB710109 MOF 3W/M(A) 5% 1ohm R304 80011181 RESISTOR FUSEABLE 1/2W/A(M)

22ohm R394 FC030508 WOUND RES 1W/(A) 5% 0.5ohm R111 FC110158 WOUND RES 2W(A) 5% 0.15ohm

*** CAPACITORS ***

C707 C708 GB61 0152 CERAMIC SL/T 100P/50 V J C353 GB633152 CERAMIC SL/T 330P/50V J C705 C706 GB633052 CE RAMIC SL/T 33P/50V J SG301 80011281

CERAMIC SPARK CAPS 1KV +1500V~900V

C276 C357 GB7102H3 CERAMIC Y5P(B)/T 1000P/1KV K

90

SYMBOL PART NO DESCRIPTION

R292 FA24010 1 CARBON 1/4W(T) 5% 100ohm R206 R725 FA240103 CARBON 1/4W(T) 5% 10Kohm

R10A R31F FA240113 CARBON 1/4W(T) 5% 11Kohm R392 FA240154 CAR BON 1/4W(T) 5% 150Kohm R220 R240 R260 FA240151 CARBON 1/4W(T) 5% 150ohm R163 R30U R31E FA240102 CARBON 1/4W(T) 5% 1Kohm R609 FA240222 CAR BON 1/4W(T) 5% 2.2Koh m

R118 FA240203 CARBON 1/4W(T) 5% 20Kohm R393 FA240224 CAR BON 1/4W(T) 5% 220Kohm R278 R280 R290 FA240223 CARBON 1/4W(T) 5% 22Kohm R30X R116 FA240271 CARBON 1/4W(T) 5% 270ohm R30T FA240332 CARBON 1/4 W(T) 5% 3.3Kohm

R104 FA240330 CARBON 1/4W(T) 5% 33 ohm R108 R286 FA240334 CARBON 1/4W(T) 5% 330Kohm R117 FA240390 CARBON 1/4W(T) 5% 39ohm R343 R350 FA240472 CARBON 1/4W(T) 5% 4.7Kohm R30H R30J FA240474 CARBON 1/4W(T) 5% 470K ohm

R107 FA240564 CAR BON 1/4W(T) 5% 560Kohm R126 FA240681 CAR BON 1/4W(T) 5% 680ohm R322 FA040122 CAR BON 1/8W(T) 5% 1.2Koh m R387 FA040132 CAR BON 1/8W(T) 5% 1.3Koh m R205 R338 R708 FA040152 CARBON 1/8W(T ) 5% 1.5Kohm R714

R703 FA040182 CAR BON 1/8W(T) 5% 1.8Koh m R155 R168 R31C FA040104 CARBON 1/8W(T) 5% 100Kohm R327 R340 R373 R375 R202 R203 R208 FA040101 CARBON 1/8W(T) 5% 100ohm R209 R221 R241 R261 R306 R30N R30Y R31X R331 R332 R706 R707 R724 R727 R742 R743 R761 R762 R317 FA040106 CARB ON 1/8W(T) 5% 10Mohm

SYMBOL PART NO DESCRIPTION

R110 R122 R161 FA040103 CARBON 1/8W(T) 5% 10Kohm R167 R288 R293 R307 R30M R30Q R310 R318 R330 R345 R360 R368 R369 R377 R379 R601 R604 R612 R613 R709 R720 R736

R353 FA040154 CAR BON 1/8W(T) 5% 150Kohm R154 R357 FA040153 CARBON 1/8W(T) 5% 15Kohm R362 FA040150 CAR BON 1/8W(T) 5% 15ohm R112 R123 R132 FA040102 CARBON 1/8W(T) 5% 1Kohm R289 R301 R401 R603 R159 R296 R315 FA040105 CARBON 1/8W(T) 5% 1Mohm R395

R608 FA040222 CAR BON 1/8W(T) 5% 2.2Koh m R305 FA040225 CARBON 1/8W(T) 5% 2.2Mohm R374 FA040204 CAR BON 1/8W(T) 5% 200Kohm R223 R243 R263 FA040224 CARBON 1/8W(T) 5% 220Kohm R30C R30E R339 R270 FA04022 1 CARBON 1/8W(T) 5% 220ohm

R127 R130 R611 FA040223 CARBON 1/8W(T) 5% 22Kohm R726 R30G FA040220 CARBON 1/8W(T) 5% 22ohm R363 FA040244 CAR BON 1/8W(T) 5% 240Kohm R364 FA040274 CAR BON 1/8W(T) 5% 270Kohm R244 R264 FA040202 CARBON 1/8W(T) 5% 2Kohm

R31P R731 FA040332 CARBON 1/8W(T) 5% 3.3Kohm R358 FA040334 CAR BON 1/8W(T) 5% 330Kohm R102 R31H R31J FA040331 CARBON 1/8W(T) 5% 330ohm R715 R721 R219 R239 R259 FA040333 CARBON 1/8W(T) 5% 33Kohm R328 R211 R231 R251 FA040330 CARBON 1/8W(T) 5% 33ohm

R213 R233 R253 FA040391 CARBON 1/8W(T) 5% 390ohm R713 FA040393 CARBON 1/8W(T) 5% 39Kohm

SYMBOL PART NO DESCRIPTION

R224 R30V FA040302 CARBON 1/8W(T) 5% 3Kohm

R119 R129 R148 FA040472 CARBON 1/8W(T) 5% 4.7Kohm R173 R204 R282 R291 R383 R391 R402 R403 R602 R605 R610 R701 R704 R710 R712 R716 R717 R718 R719 R722 R728 R729 R730 R733 R768 R769 R770 R739 R740 R771 FA040471 CARBON 1/8W(T) 5% 470ohm

JP1 R30P R359 FA040473 CARBON 1/8W(T) 5% 47Kohm VR201 VR202 R109 R115 FA040470 CARBON 1/8W(T) 5% 47ohm R294 R295 R390 FA040562 CARBON 1/8W(T ) 5% 5.6Kohm R303 FA040561 CAR BON 1/8W(T) 5% 560ohm R386 FA040623 CARBON 1/8W(T) 5% 62Kohm

R319 FA040683 CARBON 1/8W(T) 5% 68Kohm R201 FA040680 CARBON 1/8W(T) 5% 68ohm R113 R382 FA040752 CARBON 1/8W(T) 5% 7.5Kohm R212 R232 R252 FA040750 CARBON 1/8W(T) 5% 75ohm R336 FA040822 CAR BON 1/8W(T) 5% 8.2Koh m

R284 FA04082 1 CARBON 1/8W(T) 5% 820ohm R150 R157 R175 80002031 FUSEABLE RES 1/2W(A)M 0.22ohm R297 FB910229 FUSIBLE MF RES 1/4W 2.2ohm J R31Q FB241181 METAL 1/4W(T) 1% 1.18Kohm R31U FB241202 METAL 1/4W(T) 1% 12Kohm

R389 FB241372 METAL 1/4W(T) 1% 13.7Kohm R366 FB241503 METAL 1/4W(T) 1% 150Kohm R149 FB241001 METAL 1/4W(T) 1 % 1K ohm R410 R412 FB242501 METAL 1/4W(T) 1% 2.5Kohm R31R FB242701 METAL 1/4W(T) 1% 2.7Kohm

R361 FB242002 METAL 1/4W(T) 1% 20Kohm R31N FB242202 METAL 1/4W(T) 1% 22Kohm R344 FB242552 METAL 1/4W(T) 1% 25.5Kohm R711 FB243481 METAL 1/4W(T) 1% 3.48Kohm R31L FB244532 METAL 1/4W(T) 1% 45.3Kohm

91

SYMBOL PART NO DESCRIPTION

C275 C278 C287 GB7102F3 CERAMIC Y5P(B)/T 1000P/500V K C297

C605 GB710253 CERAMIC Y5P(B)/T 1000P/50V K C127 GB7101H3 CERAMIC Y5P (B)/T 100P/1KV K C334 GB7152H3 CERAMIC Y5P(B)/T 1500P/1KV K C124 C304 GB7331H3 CERAMIC Y5P(B)/T 330P/1KV K

C272 C341 GB7471F3 CERAMIC Y5P(B)/T 470P/500V K C110 GB747153 CERAMIC Y5P(B)/T 470P/50V K C204 C205 C267 GB210458 CERAMIC Y5V/T 0.1u/50V Z C282 C283 C284 C346 C350 C702 C709 C106 GB8103F5 CERAMIC Z5U(E)/T 0.01u/500V M C321 GB9103H8 CERAMIC Z5V(F)/T 0.01u/1KV Z

C310 C331 GB9103F8 CERAMIC Z5V(F)/T 0.01u/500V Z C112 C149 C201 GB910358 CE RAMIC Z5V(F)/T 0.01u/50V Z C202 C203 C207 C231 C270 C280 C281 C291 C294 C299 C301 C409 C712 C724 C277 GB9332H8 CERAMIC Z5V(F)/T 33 00 P/1K V Z C120 C138 GAI10775 ELECT 105oC/A 100u/100V M TK C214 C234 C254 GA210575 ELECT 105oC/T 1u/100V M

C288 GAB22675 ELEC T 105oC/T 22u/100V M C428 GA3474 85 ELECT 85oC/T 0.47u/250V M C122 GA310815 ELECT 85oC/T 1000u/10V M C372 C703 GA310725 ELECT 85oC/T 100u /16V M C308 C410 GA310745 ELECT 85oC/T 100u /35V M

C113 C116 C143 GA310655 ELECT 85oC/T 10u/50V M C150 C206 C210 C230 C250 C292 C293 C337 C338 C604 C711 C726 C727 C728 C336 C340 C352 GA310555 ELECT 85oC/T 1u/50V M C701 C710 C339 C704 GA322555 ELECT 85oC/T 2.2u/50V M

SYMBOL PART NO DESCRIPTION

C209 GA322725 ELECT 85oC/T 220u/16V M

C109 GA3226 45 ELECT 85oC/T 22u/35V M

C311 GA322655 ELECT 85oC/T 22u/50V M C344 GA347585 ELECT 85oC/T 4.7u/250V M C309 GA347555 ELECT 85oC/T 4.7u/50V M C136 C330 GA347725 ELECT 85oC/T 470u /16V M C108 C137 C151 GA347625 ELECT 85oC/T 47u/16V M C285 C289 C335 C725

C368 GA347635 ELECT 85oC/T 47u/25V M C354 GA347645 ELECT 85oC/T 47u/35V M C313 GA347655 ELECT 85oC/T 47u/50V M C121 C408 GAH10825 ELECT CAP 105oC/T 1000u/16V M TK C119 GAH22675 ELECT CAP 105oC/T 22u/100V M TK

C156 GAH47555 ELEC T CAP 105oC/T 4.7u/50V M TK C139 C404 GAH47725 ELECT CAP 105oC/T 470u/16V M TK C213 C233 C253 GA410575 ELECT NP/T 1u/100V M C312 GF215252 MEF CAP BOX 0.0015u/50V J C315 GF210252 MEF CAP BOX 0.001u/50V J

C115 GF233262 MEF CAP BOX 0.0033u/63V J C366 GF256252 MEF CAP BOX 0.0056u/50V J C362 GF282252 MEF CAP BOX 0.0082u/50V J C365 GF210352 MEF CAP BOX 0.01u/50V J C360 GF215452 MEF CAP BOX 0.15u/50V J

C314 GF210452 MEF CAP BOX 0.1u/50V J C114 GF210462 MEF CAP BOX 0.1u/63V J C403 GF222452 MEF CAP BOX 0.22u/50V J C345 GFA10382 PLASTIC MPE/A 0.01u/250V J C329 GFA15482 PLASTIC MPE/A 0.15u/250V J

C333 GFA10582 PLASTIC MPE/A 1u/250V J C351 GFB15482 PLASTIC MPP/A 0.15u/250VJ C356 GFB30482 PLASTIC MPP/A 0.3u/250V J C325 GFB47482 PLASTIC MPP/A 0.47u/250V J C355 GFB75482 PLASTIC MPP/A 0.75u/250V J

C332 GFD334E2 PLASTIC MPPS/A 0.33U/40 0V (PILKOR

)

SYMBOL PART NO DESCRIPTION

C307 GFD47482 PLASTIC MPPS/A 0.47u/250V J(MYLAR

)

C271 C347 C401 GE210252 PLASTIC PEI/T 0.001u/50V J C40A C413 GE222252 PLASTIC PEI/T 0.0022u/50V J C111 C320 C407 GE233252 PLASTIC PEI/T 0.0033u/50V J

C601 GE268252 PLASTIC PEI/T 0.0068u/50V J C128 C142 C295 GE210352 PLASTIC PEI/T 0.01u/50V J C296 C327 C363 C603 C123 C348 GE222352 PLASTIC PEI/T 0. 022u/50V J C316 C343 C364 GE247352 PLASTIC PEI/T 0.047u/50 V J C306 C317 C328 GE210452 PLASTIC PEI/T 0.1u/50V J C358 C361

C319 GED562M2 PLASTIC PPN/A 5600P/800V J C318 GFC622J2 PLASTIC PPS/A 6200P/2KV J C105 GKA227E5 POWER ELECT 85oC 220u/400V M C101 GJ047400 SAFETY X-CAP 0.47u/275V M C102 GJC102E5 SAFETY Y-CAP/D 1000P/400V M

C103 C104 C146 GJH102E5 SAFETY Y-CAP/S 1000P/400V M C154

SYMBOL PART NO DESCRIPTION

POWER CORD 80001631

POWER CORD 3P1.8

¬ü³W

NON-SHIELDCOLORSG8508

CABLE 80012051 SIGNAL CABLE 2027 6 1 .5M FOR PC+5V TH101 80000801 THERMISTOR NTCR SCK054 13.3mm TH102 80005821 THERMISTOR PTCR 4.5ohm X701 EM012004 X'TAL 49U 12MHz

*** APPEARANCE PARTS ***

10100594 CABINET BACK 10101341 CABINET FRONT 10101332 CABINET FRONT ASSY 17000301 CUSHION PIECE(BACK) 17000291 CUSHION SHEET

17000451 CUSHION SHEET 1100033 1 REVOLVING STAND ASSY 1100025 1 REVOLVING STAND(B)(94HB) 1100036 1 REVOLVING STAND(B)(94HB) 1100036 2 REVOLVING STAND(B)(94HB)

1100026 1 REVOLVING STAND(T)(94HB) 1100026 2 REVOLVING STAND(T)(94HB)

*** PRINTED & PACKING MATERIALS ***

13201101 CARTON BOX (AS75F-1)

B/C LABEL 15000971 NAME PLATE INSTRUCTION (AS75F-1

)

15500712 OWNERS MANUAL (AS75F-3) 13400521 POLYLON(B)CARTON 13400511 POLYLON(T)CARTON

*** RESISTORS ***

R156 FA330159 CARBON 1/2W(T) 5% 1.5ohm R325 FA330182 CAR BON 1/2W(T) 5% 1.8Koh m R114 R120 FA330104 CARBON 1/2W(T) 5% 100Kohm R287 FA33010 1 CARBON 1/2W(T) 5% 100ohm R365 FA330154 CAR BON 1/2W(T) 5% 150Kohm

R385 FA330150 CAR BON 1/2W(T) 5% 15ohm R182 FA330102 CAR BON 1/2W(T) 5% 1Kohm R367 R380 R381 FA330105 CARBON 1/2W(T) 5% 1Mohm R417 FA330229 CARBON 1/2W(T) 5% 2.2ohm R414 FA330331 CAR BON 1/2W(T) 5% 330ohm

R30L FA330470 CAR BON 1/2W(T) 5% 47ohm R308 FA330561 CAR BON 1/2W(T) 5% 560ohm R101 FA330684 CAR BON 1/2W(T) 5% 680Kohm

92

The components specified for Model AS75F-3 SAMSUNG CRT. Note: The components identified by make are critical for safety.

Replace only with parts Number specified.

SYMBOL PART NO DESCRIPTION *** CRT & TUNER ***

CRT 80013481

CRT 17" SAMSUNG M41QCJ761X172 DFX

*** ICS ***

U702 80009941 ATMEL E²ROM AT24C08B U101 DD002600 IC LINEAR KA3842A 8P U201 80000631 IC LM1281 U103 80000321 IC PHOTO COUBLE PS2561,TLP721F Q103 80003831 IC REGULATOR TL431 817B 4P

U401 80001041 IC TDA8172 (N.S,SGS) U203 80003661 N.S VIDEO DRIVE IC LM2438 U701 80013001 N0701-2 VE MASK MCU U301 80010251 OP AMP LM358 / KIA358 U204 80015661 OSD IC MTV016N (V2)

U302 80012941 PHILIPS IC TDA 4857

*** TRANSISTOR ***

Q101 EF202500 FET N 2SK254 5 TO -220F TOSHIBA Q313 Q319 Q322 EF206301 FET N YTAF630 TO-220F Q308 EFA29610 TR 2SK2961 FET TOSHIBA Q201 EAA12133 TR NPN 2SC1213AC TO-92(T) Q105 Q107 Q110 EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.

)

Q113 Q302 Q306 Q320 Q323 Q324 Q401 Q601 Q603 Q605 Q606

Q303 EAA40020 TR NPN 2SC4002 TO-92(T) (SANYO) Q307 80005721 TR NPN 2SC5411(hfe) TO-3P Q321 Q327 EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q318 80008141 TR NPN 2SD1763 TO-220F Q304 EAA04220 TR NPN BF422 TO-92(T) (T,P)

Q106 EAA23281

TR NPN KSC 2328A TO-92 (T) (SAMSUNG

)

Q301 EAA23690 TR NPN PH2369 TO-92(T) (PHILIPS) Q310 Q604 EBA10157 TR PNP 2SA1015GR TO-92(T) (T.P.S.

)

Q325 Q326 Q701 EBA07336 TR PNP 2SA733P TO-92(T) (N.P.S.) Q702 Q703 Q112 Q305 EBA04230 TR PNP BF423 TO-92(T)(T.P.)

Q108 Q317 EBA09281 TR PNP KSA 928A TO-92(T)(SAMSUNG

)

Q104 EB307720 TR PNP KSB772 TO-126

SYMBOL PART NO DESCRIPTION

*** DIODES ***

D107 D109 D10A EJ044148 DIODE "T" 1N4148 D117 D119 D125 D126 D127 D129 D202 D203 D204 D205 D210 D211 D230 D231 D250 D251 D302 D304 D311 D313 D314 D315 D317 D319 D320 D323 D325 D327 D332 D333 D334 D336 D337 D340 D344 D601 D602 D604 D605 D60A D703 D704 D705 D112 D113 D118 80003551 DIODE 200V/1.6A RG2Z SANKEN

Ås¨¤

D110 D335 80003561 DIODE 600V/1.6A RG2A SANKEN

Ås¨¤

D308 80009541 DIODE FAGOR FUF5406

Ås¸}

(A+K)

D305 D306 D702 EJA05819 DIODE STKY/T 1A/40V 1N5819

D101 D102 D103 EJB20001 DIODE/A 3A 1N5406 D104 D111 80011291 DIODE/A 3A/400V RG4(

¥¦æ

) D307 80001171 DIODE/A 5TUZ47C (TOSHIBA) D316 80009261 DIODE/A RP3F(A+K) SANKEN D213 D214 D233 80000451 DIODE/T 1/2W 1SS83 D234 D253 D254

D106 D108 D131 EJAC0017 DIODE/T 1A 1N4936 D303 D310 D345 D701 D201 D301 D312 EJAC0018 DIODE/T 1A 1N4937 D318 D321 D322 D324 D328 D329 D330 D331 D341 D403 D105 D116 D326 EJA20003 DIODE/T 1A BA159 LED701 80000131 LED L-59GH/1GYC ZD104 EKA00603 ZEN DIODE 1/2W(T) 6B1 (HITACHI)

ZD101 EKA0180B ZEN DIODE 1/2W(T) HZS 18-2(HITACHI

)

SYMBOL PART NO DESCRIPTION

ZD102 EKA01201 ZEN DIODE 1/2W(T) HZS12A2(HITACHI

)

ZD303 ZD701 ZD702 EKA00507 ZEN DIODE 1/2W(T) HZS5C2 (HITACHI

)

ZD703 ZD704 ZD706 EKA00607 ZEN DIODE 1/2W(T) HZS6C2 (HITACHI

)

*** TRANSFORMERS ***

T301 80009281 17" N0701F FBT T302 80000281 H.DRIVE X'FM 4.5mH EI-19 T303 80015651 N0701F D.F. X'FM EI-19(1:10) T101 80011211 POWER X'FM ERL35 500uH FE700+

*** VARIABLE RESISTORS ***

VR101 FF300201 VR CARBON 6mm ¥ß 200 ohm/B VR210 VR230 VR250 FF300203 VR CARBON 6mm ¥ß 20K/B VR307 FF310104 VR CARBON 6mm ª× 100K

*** RELAYS & SWITCHES ***

RL101 80003751

RELAY 12V 6P GSA-SS-212DM(GOOD-SKY

)

RL301 80010001

RELAY RUDH-SH-112D400ohm(GOOD SKY

)

SW101 80012411

SW POWER30V/0.3A JPS1258DS(Favortron

)

SW701 SW702 SW703 80000251 TACT SW 1P 100G+-50 SW301 80010621 WAFER 2L×3P 2.54mm

*** COILS & FILTERS ***

L201 L202 HB000008 CHOKE COIL 100uH 8X10 L303 L304 80001811 CHOKE COIL 130uH 18X2 0 + BASE L103 80003681 CHOKE T50-26B 200uH G2,G4 WIRE HA030010 EMI FILTER COIL 20.45X10.2X10 L301 80009291 H-CENTER CHOKE

L101 80000111 LINE FILTER ET24 10mH MIN L102 HB000015 LINE FILTER UU10.5 1mH L302 80011061 N0701F LIN COIL 76uH L307 80010401 N070 1F LINEARITY COIL L203 L204 L205 HB013159 PACKING COIL /T 1.5uH K(EC24)

J23 HB013100 PACKING COIL /T 10uH K(EC24)

*** PWB ASSYS ***

7C0215MS CRT BOARD ASSY

7M0216MS MAIN BOARD ASSY

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

SOCKET 80001751 17" 29D NECK CRT SOCKET DEGUESSING COIL 80010551 17" N0701F MPRII DEGAUSSING P101 JD512001 AC SOCKET 3P F101 80001521 FUSE 3.15A/250V 50T T3.15A FOR U701 JD010040 IC SOCKET 40P

!

93

SYMBOL PART NO DESCRIPTION

R292 FA24010 1 CARBON 1/4W(T) 5% 100ohm R206 R725 FA240103 CARBON 1/4W(T) 5% 10Kohm

R10A R31F FA240113 CARBON 1/4W(T) 5% 11Kohm R392 FA240154 CAR BON 1/4W(T) 5% 150Kohm R220 R240 R260 FA240151 CARBON 1/4W(T) 5% 150ohm R163 R30U R31E FA240102 CARBON 1/4W(T) 5% 1Kohm R609 FA240222 CAR BON 1/4W(T) 5% 2.2Koh m

R118 FA240203 CARBON 1/4W(T) 5% 20Kohm R393 FA240224 CAR BON 1/4W(T) 5% 220Kohm R278 R280 R290 FA240223 CARBON 1/4W(T) 5% 22Kohm R30X R116 FA240271 CARBON 1/4W(T) 5% 270ohm R30T FA240332 CARBON 1/4 W(T) 5% 3.3Kohm

R104 FA240330 CARBON 1/4W(T) 5% 33 ohm R108 R286 FA240334 CARBON 1/4W(T) 5% 330Kohm R117 FA240390 CARBON 1/4W(T) 5% 39ohm R343 R350 FA240472 CARBON 1/4W(T) 5% 4.7Kohm R107 FA240564 CAR BON 1/4W(T) 5% 560Kohm

R126 FA240681 CAR BON 1/4W(T) 5% 680ohm R30H R30J FA240754 CARBON 1/4W(T) 5% 750K ohm R322 FA040122 CAR BON 1/8W(T) 5% 1.2Koh m R387 FA040132 CAR BON 1/8W(T) 5% 1.3Koh m R205 R338 R708 FA040152 CARBON 1/8W(T ) 5% 1.5Kohm R714

R703 FA040182 CAR BON 1/8W(T) 5% 1.8Koh m R155 R168 R31C FA040104 CARBON 1/8W(T) 5% 100Kohm R327 R340 R373 R375 R202 R203 R208 FA040101 CARBON 1/8W(T) 5% 100ohm R209 R221 R241 R261 R306 R30N R30Y R31X R331 R332 R706 R707 R724 R727 R742 R743 R761 R762

SYMBOL PART NO DESCRIPTION

R110 R122 R161 FA040103 CARBON 1/8W(T) 5% 10Kohm R167 R288 R293 R307 R30M R30Q R310 R318 R330 R345 R360 R368 R369 R377 R379 R601 R604 R612 R613 R709 R720 R736 R317 FA040106 CARB ON 1/8W(T) 5% 10Mohm

R319 FA040124 CAR BON 1/8W(T) 5% 120Kohm R353 FA040154 CAR BON 1/8W(T) 5% 150Kohm R154 R357 FA040153 CARBON 1/8W(T) 5% 15Kohm R362 FA040150 CAR BON 1/8W(T) 5% 15ohm R112 R123 R132 FA040102 CARBON 1/8W(T) 5% 1Kohm R289 R301 R401 R603

R159 R296 R315 FA040105 CARBON 1/8W(T) 5% 1Mohm R395 R608 R708 FA040222 CARBON 1/8W(T) 5% 2.2Kohm R305 FA040225 CARBON 1/8W(T) 5% 2.2Mohm R374 FA040204 CAR BON 1/8W(T) 5% 200Kohm R223 R243 R263 FA040224 CARBON 1/8W(T) 5% 220Kohm R30C R30E R339

R270 FA04022 1 CARBON 1/8W(T) 5% 220ohm R127 R130 R611 FA040223 CARBON 1/8W(T) 5% 22Kohm R726 R30G FA040220 CARBON 1/8W(T) 5% 22ohm R363 FA040244 CAR BON 1/8W(T) 5% 240Kohm R364 FA040274 CAR BON 1/8W(T) 5% 270Kohm

R244 R264 FA040202 CARBON 1/8W(T) 5% 2Kohm R31P R731 FA040332 CARBON 1/8W(T) 5% 3.3Kohm R358 FA040334 CAR BON 1/8W(T) 5% 330Kohm R102 R31H R31J FA040331 CARBON 1/8W(T) 5% 330ohm R715 R721 R219 R239 R259 FA040333 CARBON 1/8W(T) 5% 33Kohm R328

SYMBOL PART NO DESCRIPTION

R211 R231 R251 FA040330 CARBON 1/8W(T) 5% 33ohm R213 R233 R253 FA040391 CARBON 1/8W(T) 5% 390ohm

R713 FA040393 CARBON 1/8W(T) 5% 39Kohm R224 R30V FA040302 CARBON 1/8W(T) 5% 3Kohm R119 R129 R148 FA040472 CARBON 1/8W(T) 5% 4.7Kohm R173 R204 R282 R291 R383 R391 R402 R403 R602 R605 R610 R701 R704 R710 R712 R716 R717 R718 R719 R722 R728 R729 R730 R733 R768 R769 R770

R739 R740 R771 FA040471 CARBON 1/8W(T) 5% 470ohm JP1 R30P R359 FA040473 CARBON 1/8W(T) 5% 47Kohm VR201 VR202 R109 R115 FA040470 CARBON 1/8W(T) 5% 47ohm R294 R295 R390 FA040562 CARBON 1/8W(T ) 5% 5.6Kohm R303 FA040561 CAR BON 1/8W(T) 5% 560ohm

R386 FA040623 CARBON 1/8W(T) 5% 62Kohm R201 FA040680 CARBON 1/8W(T) 5% 68ohm R113 R382 FA040752 CARBON 1/8W(T) 5% 7.5Kohm R212 R232 R252 FA040750 CARBON 1/8W(T) 5% 75ohm R336 FA040822 CAR BON 1/8W(T) 5% 8.2Koh m

R284 FA04082 1 CARBON 1/8W(T) 5% 820ohm R150 R157 R175 80002031 FUSEABLE RES 1/2W(A)M 0.22ohm R297 FB910229 FUSIBLE MF RES 1/4W 2.2ohm J R31Q FB241181 METAL 1/4W(T) 1% 1.18Kohm R31T FB241073 METAL 1/4W(T) 1% 107Kohm

R31U FB241202 METAL 1/4W(T) 1% 12Kohm R389 FB241372 METAL 1/4W(T) 1% 13.7Kohm R366 FB241693 METAL 1/4W(T) 1% 169Kohm R149 FB241001 METAL 1/4W(T) 1 % 1K ohm R410 R412 FB242501 METAL 1/4W(T) 1% 2.5Kohm

R31R FB242701 METAL 1/4W(T) 1% 2.7Kohm R361 FB242002 METAL 1/4W(T) 1% 20Kohm

SYMBOL PART NO DESCRIPTION

R31N FB242202 METAL 1/4W(T) 1% 22Kohm R344 FB242552 METAL 1/4W(T) 1% 25.5Kohm R711 FB243481 METAL 1/4W(T) 1% 3.48Kohm

R388 FB244300 METAL 1/4W(T) 1% 430ohm J26 FB244702 METAL 1/4W(T) 1% 47Kohm R158 FB240470 METAL 1/4W(T) 1 % 47 ohm R348 FB245541 METAL 1/4W(T) 1% 5.54Kohm R31L FB245102 METAL 1/4W(T) 1% 51Kohm

R349 FB245602 METAL 1/4W(T) 1% 56Kohm R151 FB246242 METAL 1/4W(T) 1% 62.4Kohm R210 R230 R250 FB247509 METAL 1/4W(T) 1% 75ohm R411 R413 FB248201 METAL 1/4W(T) 1% 8.2Kohm R169 R313 R314 FB910010 METAL 1/4W(T) 5% 1ohm R351

R415 FB470129 MOF 1W/M(A) 5% 1.2ohm R128 R606 FB470100 MOF 1W/M(A) 5% 10ohm R160 FB470153 MOF 1W/M(A) 5% 15Kohm R421 FB470109 MOF 1W/M(A) 5% 1ohm R312 FB470270 MOF 1W/M(A) 5% 27ohm

R422 FB470339 MOF 1W/M(A) 5% 3.3ohm R103 FB470680 MOF 1W/M(A) 5% 68ohm R31A FB480100 MOF 1W/M(B) 5% 10ohm R105 FB560248 MOF 2W/M(A) 5% 0.24ohm R354 FB560182 MOF 2W/M(A) 5% 1.8Kohm

R125 FB560103 MOF 2W/M(A) 5% 10Kohm R335 FB560151 MOF 2W/M(A) 5% 150ohm R302 FB560222 MOF 2W/M(A) 5% 2.2Kohm R316 FB560331 MOF 2W/M(A) 5% 330ohm R106 FB570563 MOF 2W/M(B) 5% 56Kohm

R309 FB710150 MOF 3W/M(A) 5% 15ohm R311 FB710109 MOF 3W/M(A) 5% 1ohm R304 80011181 RESISTOR FUSEABLE 1/2W/A(M)

22ohm

R394 FC030508 WOUND RES 1W/(A) 5% 0.5ohm R111 FC110158 WOUND RES 2W(A) 5% 0.15ohm

*** CAPACITORS ***

C707 C708 GB61 0152 CERAMIC SL/T 100P/50 V J

94

SYMBOL PART NO DESCRIPTION

C353 GB633152 CERAMIC SL/T 330P/50V J C705 C706 GB633052 CE RAMIC SL/T 33P/50V J SG301 80011281

CERAMIC SPARK CAPS 1KV +1500V~900V

C276 C334 C357 GB7102H3 CERAMIC Y5P(B)/T 1000P/1KV K

C275 C278 C287 GB7102F3 CERAMIC Y5P(B)/T 1000P/500V K C297 C605 GB710253 CERAMIC Y5P(B)/T 1000P/50V K C127 GB7101H3 CERAMIC Y5P (B)/T 100P/1KV K C124 C304 GB7331H3 CERAMIC Y5P(B)/T 330P/1KV K C272 C341 GB7471F3 CERAMIC Y5P(B)/T 470P/500V K

C110 GB747153 CERAMIC Y5P(B)/T 470P/50V K C204 C205 C267 GB210458 CERAMIC Y5V/T 0.1u/50V Z C282 C283 C284 C346 C350 C702 C709 C106 GB8103F5 CERAMIC Z5U(E)/T 0.01u/500V M C321 GB9103H8 CERAMIC Z5V(F)/T 0.01u/1KV Z C310 C331 GB9103F8 CERAMIC Z5V(F)/T 0.01u/500V Z

C112 C149 C201 GB910358 CE RAMIC Z5V(F)/T 0.01u/50V Z C202 C203 C207 C231 C270 C280 C281 C291 C294 C299 C301 C409 C712 C724 C277 GB9332H8 CERAMIC Z5V(F)/T 33 00 P/1K V Z C120 C138 GAI10775 ELECT 105oC/A 100u/100V M TK C214 C234 C254 GA210575 ELECT 105oC/T 1u/100V M C288 GAB22675 ELEC T 105oC/T 22u/100V M

C428 GA3474 85 ELECT 85oC/T 0.47u/250V M C122 GA310815 ELECT 85oC/T 1000u/10V M C372 C703 GA310725 ELECT 85oC/T 100u /16V M C308 C410 GA310745 ELECT 85oC/T 100u /35V M C113 C116 C143 GA310655 ELECT 85oC/T 10u/50V M C150 C206 C210 C230 C250 C292 C293 C337 C338 C604 C711 C726 C727 C728

SYMBOL PART NO DESCRIPTION

C336 C340 C352 GA310555 ELECT 85oC/T 1u/50V M C701 C710 C339 C704 GA322555 ELECT 85oC/T 2.2u/50V M C209 GA322725 ELECT 85oC/T 220u/16V M C109 GA3226 45 ELECT 85oC/T 22u/35V M C311 GA322655 ELECT 85oC/T 22u/50V M

C344 GA347585 ELECT 85oC/T 4.7u/250V M C309 GA347555 ELECT 85oC/T 4.7u/50V M C136 C330 GA347725 ELECT 85oC/T 470u /16V M C108 C137 C151 GA347625 ELECT 85oC/T 47u/16V M C285 C289 C335 C725 C368 GA347635 ELECT 85oC/T 47u/25V M

C354 GA347645 ELECT 85oC/T 47u/35V M C313 GA347655 ELECT 85oC/T 47u/50V M C121 C408 GAH10825 ELECT CAP 105oC/T 1000u/16V M TK C119 GAH22675 ELECT CAP 105oC/T 22u/100V M TK C156 GAH47555 ELEC T CAP 105oC/T 4.7u/50V M TK

C139 C404 GAH47725 ELECT CAP 105oC/T 470u/16V M TK C213 C233 C253 GA410575 ELECT NP/T 1u/100V M C312 GF215252 MEF CAP BOX 0.0015u/50V J C315 GF210252 MEF CAP BOX 0.001u/50V J C115 GF233262 MEF CAP BOX 0.0033u/63V J

C366 GF256252 MEF CAP BOX 0.0056u/50V J C362 GF282252 MEF CAP BOX 0.0082u/50V J C365 GF210352 MEF CAP BOX 0.01u/50V J C360 GF215452 MEF CAP BOX 0.15u/50V J C314 GF210452 MEF CAP BOX 0.1u/50V J

C114 GF210462 MEF CAP BOX 0.1u/63V J C403 GF222452 MEF CAP BOX 0.22u/50V J C345 GFA22382 PLASTIC MPE/A 0.022u/250V J C329 GFA15482 PLASTIC MPE/A 0.15u/250V J C333 GFA10582 PLASTIC MPE/A 1u/250V J

C351 GFB15482 PLASTIC MPP/A 0.15u/250VJ C356 GFB30482 PLASTIC MPP/A 0.3u/250V J C325 GFB47482 PLASTIC MPP/A 0.47u/250V J

SYMBOL PART NO DESCRIPTION

C355 GFB75482 PLASTIC MPP/A 0.75u/250V J C332 GFD334E2 PLASTIC MPPS/A 0.33U/40 0V (PILKOR

)

C307 GFD47482 PLASTIC MPPS/A 0.47u/250V J

(MYLAR)

C271 C347 C401 GE210252 PLASTIC PEI/T 0.001u/50V J C40A C413 GE222252 PLASTIC PEI/T 0.0022u/50V J C111 C320 C407 GE233252 PLASTIC PEI/T 0.0033u/50V J C601 GE268252 PLASTIC PEI/T 0.0068u/50V J

C128 C142 C295 GE210352 PLASTIC PEI/T 0.01u/50V J C296 C327 C363 C603 C123 C348 GE222352 PLASTIC PEI/T 0. 022u/50V J C316 C343 C364 GE247352 PLASTIC PEI/T 0.047u/50 V J C306 C317 C328 GE210452 PLASTIC PEI/T 0.1u/50V J C358 C361 C319 GED562M2 PLASTIC PPN/A 5600P/800V J

C318 GFC622J2 PLASTIC PPS/A 6200P/2KV J C105 GKA227E5 POWER ELECT 85oC 220u/400V M C101 GJ047400 SAFETY X-CAP 0.47u/275V M C102 GJC102E5 SAFETY Y-CAP/D 1000P/400V M C103 C104 C146 GJH102E5 SAFETY Y-CAP/S 1000P/400V M C154

SYMBOL PART NO DESCRIPTION

POWER CORD 80001631 POWER CORD 3P 1.8

¬ü³W

NON-

SHIELD COLOR SG8508 CABLE 80012051 SIGNAL CABLE 2027 6 1 .5M FOR PC+5V TH101 80000801 THERMISTOR NTCR SCK054 13.3mm

TH102 80005821 THERMISTOR PTCR 4.5ohm X701 EM012004 X'TAL 49U 12MHz

*** APPEARANCE PARTS ***

10100594 CABINET BACK 10101341 CABINET FRONT 10101332 CABINET FRONT ASSY 17000301 CUSHION PIECE(BACK) 17000291 CUSHION SHEET

17000451 CUSHION SHEET 1100033 1 REVOLVING STAND ASSY 1100025 1 REVOLVING STAND(B)(94HB) 1100036 1 REVOLVING STAND(B)(94HB) 1100036 2 REVOLVING STAND(B)(94HB)

1100026 1 REVOLVING STAND(T)(94HB) 1100026 2 REVOLVING STAND(T)(94HB)

*** PRINTED & PACKING MATERIALS ***

13201101 CARTON BOX (AS75F-1)

B/C LABEL 15000971 NAME PLATE INSTRUCTION (AS75F-1

)

15500712 OWNERS MANUAL (AS75F-3) 13400521 POLYLON(B)CARTON 13400511 POLYLON(T)CARTON

*** RESISTORS ***

R156 FA330159 CARBON 1/2W(T) 5% 1.5ohm R325 FA330182 CAR BON 1/2W(T) 5% 1.8Koh m R114 R120 FA330104 CARBON 1/2W(T) 5% 100Kohm R287 FA33010 1 CARBON 1/2W(T) 5% 100ohm R365 FA330154 CAR BON 1/2W(T) 5% 150Kohm

R385 FA330150 CAR BON 1/2W(T) 5% 15ohm R182 FA330102 CAR BON 1/2W(T) 5% 1Kohm R367 R380 R381 FA330105 CARBON 1/2W(T) 5% 1Mohm R417 FA330229 CARBON 1/2W(T) 5% 2.2ohm R414 FA330331 CAR BON 1/2W(T) 5% 330ohm

R30L FA330470 CAR BON 1/2W(T) 5% 47ohm R308 FA330561 CAR BON 1/2W(T) 5% 560ohm R101 FA330684 CAR BON 1/2W(T) 5% 680Kohm

95

The components specified for Model AS75F-3 LG CRT. Note: The components identified by make are critical for safety.

Replace only with parts Number specified.

SYMBOL PART NO DESCRIPTION *** CRT & TUNER ***

CRT 80013321 CRT 17" LG M41QEE903X04

*** ICS ***

U702 80009941 ATMEL E²ROM AT24C08B U101 DD002600 IC LINEAR KA3842A 8P U201 80000631 IC LM1281 U103 80000321 IC PHOTO COUBLE PS2561,TLP721F Q103 80003831 IC REGULATOR TL431 817B 4P

U401 80001041 IC TDA8172 (N.S,SGS) U203 80003661 N.S VIDEO DRIVE IC LM2438 U701 80013001 N0701-2 VE MASK MCU U301 80010251 OP AMP LM358 / KIA358 U204 80015661 OSD IC MTV016N (V2)

U302 80012941 PHILIPS IC TDA 4857

*** TRANSISTOR ***

Q101 EF202500 FET N 2SK254 5 TO -220F TOSHIBA Q313 Q319 Q322 EF206301 FET N YTAF630 TO-220F Q308 EFA29610 TR 2SK2961 FET TOSHIBA Q201 EAA12133 TR NPN 2SC1213AC TO-92(T) Q105 Q107 Q110 EAA18157 TR NPN 2SC1815GR TO-92(T) (T.P.S.

)

Q113 Q302 Q306 Q320 Q323 Q324 Q401 Q601 Q603 Q605 Q606

Q303 EAA40020 TR NPN 2SC4002 TO-92(T) (SANYO) Q307 80005721 TR NPN 2SC5411(hfe) TO-3P Q321 Q327 EAA09456 TR NPN 2SC945P TO-92(T) (N.P.S.) Q318 80008141 TR NPN 2SD1763 TO-220F Q304 EAA04220 TR NPN BF422 TO-92(T) (T,P)

Q106 EAA23281

TR NPN KSC 2328A TO-92(T) (SAMSUNG

)

Q301 EAA23690 TR NPN PH2369 TO-92(T) (PHILIPS) Q310 Q604 EBA10157 TR PNP 2SA1015GR TO-92(T) (T.P.S.

)

Q325 Q326 Q701 EBA07336 TR PNP 2SA733P TO-92(T) (N.P.S.) Q702 Q703 Q112 Q305 EBA04230 TR PNP BF423 TO-92(T)(T.P.)

Q108 Q317 EBA09281 TR PNP KSA 928A TO-92(T)(SAMSUNG

)

Q104 EB307720 TR PNP KSB772 TO-126

SYMBOL PART NO DESCRIPTION

*** DIODES ***

D107 D109 D10A EJ044148 DIODE "T" 1N4148 D117 D119 D125 D126 D127 D129 D202 D203 D204 D205 D210 D211 D230 D231 D250 D251 D302 D304 D311 D313 D314 D315 D317 D319 D320 D323 D325 D327 D332 D333 D334 D336 D337 D340 D344 D601 D602 D604 D605 D60A D703 D704 D705 D112 D113 D118 80003551 DIODE 200V/1.6A RG2Z SANKEN

Ås¨¤

D110 D335 80003561 DIODE 600V/1.6A RG2A SANKEN

Ås¨¤

D308 80009541 DIODE FAGOR FUF5406

Ås¸}

(A+K)

D305 D306 D702 EJA05819 DIODE STKY/T 1A/40V 1N5819

D101 D102 D103 EJB20001 DIODE/A 3A 1N5406 D104 D111 80011291 DIODE/A 3A/400V RG4(

¥¦æ

) D307 80001171 DIODE/A 5TUZ47C (TOSHIBA) D316 80009261 DIODE/A RP3F(A+K) SANKEN D213 D214 D233 80000451 DIODE/T 1/2W 1SS83 D234 D253 D254

D106 D108 D131 EJAC0017 DIODE/T 1A 1N4936 D303 D310 D345 D701 D201 D301 D312 EJAC0018 DIODE/T 1A 1N4937 D318 D321 D322 D324 D328 D329 D330 D331 D341 D403 D105 D116 D326 EJA20003 DIODE/T 1A BA159 LED701 80000131 LED L-59GH/1GYC ZD104 EKA00603 ZEN DIODE 1/2W(T) 6B1 (HITACHI)

ZD101 EKA0180B ZEN DIODE 1/2W(T) HZS 18-2(HITACHI

)

SYMBOL PART NO DESCRIPTION

ZD102 EKA01201 ZEN DIODE 1/2W(T) HZS12A2(HITACHI

)

ZD303 ZD701 ZD702 EKA00507 ZEN DIODE 1/2W(T) HZS5C2 (HITACHI

)

ZD703 ZD704 ZD706 EKA00607 ZEN DIODE 1/2W(T) HZS6C2 (HITACHI

)

*** TRANSFORMERS ***

T301 80009281 17" N0701F FBT T302 80000281 H.DRIVE X'FM 4.5mH EI-19 T303 80013361 N1701F D.F X'FM EI-19(1:9) T101 80011211 POWER X'FM ERL35 500uH FE700+

*** VARIABLE RESISTORS ***

VR101 FF300201 VR CARBON 6mm ¥ß 200 ohm/B VR210 VR230 VR250 FF300203 VR CARBON 6mm ¥ß 20K/B VR307 FF310104 VR CARBON 6mm ª× 100K

*** RELAYS & SWITCHES ***

RL101 80003751

RELAY 12V 6P GSA-SS-212DM(GOOD-SKY

)

RL301 80010001

RELAY RUDH-SH-112D400ohm(GOOD SKY

)

SW101 80012411

SW POWER 30V/0.3AJPS1258DS(Favortron

)

SW701 SW702 SW703 80000251 TACT SW 1P 100G+-50 SW301 80010621 WAFER 2L×3P 2.54mm

*** COILS & FILTERS ***

L201 L202 HB000008 CHOKE COIL 100uH 8X10 L303 L304 80001811 CHOKE COIL 130uH 18X2 0 + BASE L103 80003681 CHOKE T50-26B 200uH G2,G4 WIRE HA030010 EMI FILTER COIL 20.45X10.2X10 L301 80009291 H-CENTER CHOKE

L101 80000111 LINE FILTER ET24 10mH MIN L102 HB000015 LINE FILTER UU10.5 1mH L302 80015151 N0701F LINEARITY CHOKE 130uH L307 80010401 N070 1F LINEARITY COIL L203 L204 L205 HB013159 PACKING COIL /T 1.5uH K(EC24)

J23 HB013100 PACKING COIL /T 10uH K(EC24)

*** PWB ASSYS ***

7C0215ML CRT BOARD ASSY

7M0216ML MAIN BOARD ASSY

*** ELECTRICAL PARTS & MISCELLANEOUS PARTS ***

SOCKET 80001751 17" 29D NECK CRT SOCKET DEGUESSING COIL 80010551 17" N0701F MPRII DEGAUSSING P101 JD512001 AC SOCKET 3P F101 80001521 FUSE 3.15A/250V 50T T3.15A FOR U701 JD010040 IC SOCKET 40P

!

96

SYMBOL PART NO DESCRIPTION

R292 FA24010 1 CARBON 1/4W(T) 5% 100ohm R206 R725 FA240103 CARBON 1/4W(T) 5% 10Kohm

R10A R31F FA240113 CARBON 1/4W(T) 5% 11Kohm R392 FA240154 CAR BON 1/4W(T) 5% 150Kohm R220 R240 R260 FA240151 CARBON 1/4W(T) 5% 150ohm R163 R30U R31E FA240102 CARBON 1/4W(T) 5% 1Kohm R609 FA240222 CAR BON 1/4W(T) 5% 2.2Koh m

R118 FA240203 CARBON 1/4W(T) 5% 20Kohm R393 FA240224 CAR BON 1/4W(T) 5% 220Kohm R278 R280 R290 FA240223 CARBON 1/4W(T) 5% 22Kohm R30X R116 FA240271 CARBON 1/4W(T) 5% 270ohm R30T FA240332 CARBON 1/4 W(T) 5% 3.3Kohm

R104 FA240330 CARBON 1/4W(T) 5% 33 ohm R108 R286 FA240334 CARBON 1/4W(T) 5% 330Kohm R117 FA240390 CARBON 1/4W(T) 5% 39ohm R343 R350 FA240472 CARBON 1/4W(T) 5% 4.7Kohm R107 FA240564 CAR BON 1/4W(T) 5% 560Kohm

R126 FA240681 CAR BON 1/4W(T) 5% 680ohm R30H R30J FA240754 CARBON 1/4W(T) 5% 750K ohm R322 FA040122 CAR BON 1/8W(T) 5% 1.2Koh m R387 FA040132 CAR BON 1/8W(T) 5% 1.3Koh m R205 R338 R714 FA040152 CARBON 1/8W(T ) 5% 1.5Kohm

R703 FA040182 CAR BON 1/8W(T) 5% 1.8Koh m R155 R168 R31C FA040104 CARBON 1/8W(T) 5% 100Kohm R327 R340 R373 R375 R202 R203 R208 FA040101 CARBON 1/8W(T) 5% 100ohm R209 R221 R241 R261 R306 R30N R30Y R31X R331 R332 R706 R707 R724 R727 R742 R743 R761 R762

SYMBOL PART NO DESCRIPTION

R110 R122 R161 FA040103 CARBON 1/8W(T) 5% 10Kohm R167 R288 R293 R307 R30M R30Q R310 R318 R330 R345 R360 R368 R369 R377 R379 R601 R604 R612 R613 R709 R720 R736 R317 FA040106 CARB ON 1/8W(T) 5% 10Mohm

R353 FA040154 CAR BON 1/8W(T) 5% 150Kohm R154 R357 FA040153 CARBON 1/8W(T) 5% 15Kohm R362 FA040150 CAR BON 1/8W(T) 5% 15ohm R112 R123 R132 FA040102 CARBON 1/8W(T) 5% 1Kohm R289 R301 R401 R603 R159 R296 R315 FA040105 CARBON 1/8W(T) 5% 1Mohm R395

R608 R708 FA040222 CARBON 1/8W(T) 5% 2.2Kohm R305 FA040225 CARBON 1/8W(T) 5% 2.2Mohm R374 FA040204 CAR BON 1/8W(T) 5% 200Kohm R223 R243 R263 FA040224 CARBON 1/8W(T) 5% 220Kohm R30C R30E R339 R270 FA04022 1 CARBON 1/8W(T) 5% 220ohm

R127 R130 R611 FA040223 CARBON 1/8W(T) 5% 22Kohm R726 R30G FA040220 CARBON 1/8W(T) 5% 22ohm R363 FA040244 CAR BON 1/8W(T) 5% 240Kohm R364 FA040274 CAR BON 1/8W(T) 5% 270Kohm R244 R264 FA040202 CARBON 1/8W(T) 5% 2Kohm

R31P R731 FA040332 CARBON 1/8W(T) 5% 3.3Kohm R358 FA040334 CAR BON 1/8W(T) 5% 330Kohm R102 R31H R31J FA040331 CARBON 1/8W(T) 5% 330ohm R715 R721 R219 R239 R259 FA040333 CARBON 1/8W(T) 5% 33Kohm R328 R211 R231 R251 FA040330 CARBON 1/8W(T) 5% 33ohm

SYMBOL PART NO DESCRIPTION

R213 R233 R253 FA040391 CARBON 1/8W(T) 5% 390ohm

R713 FA040393 CARBON 1/8W(T) 5% 39Kohm R224 R30V FA040302 CARBON 1/8W(T) 5% 3Kohm R119 R129 R148 FA040472 CARBON 1/8W(T) 5% 4.7Kohm R173 R204 R282 R291 R383 R391 R402 R403 R602 R605 R610 R701 R704 R710 R712 R716 R717 R718 R719 R722 R728 R729 R730 R733 R768 R769 R770 R739 R740 R771 FA040471 CARBON 1/8W(T) 5% 470ohm

JP1 R30P R359 FA040473 CARBON 1/8W(T) 5% 47Kohm VR201 VR202 R109 R115 FA040470 CARBON 1/8W(T) 5% 47ohm R294 R295 R336 FA040562 CARBON 1/8W(T ) 5% 5.6Kohm R390 #N/A R303 FA040561 CAR BON 1/8W(T) 5% 560ohm R386 FA040623 CARBON 1/8W(T) 5% 62Kohm

R319 FA040683 CARBON 1/8W(T) 5% 68Kohm R201 FA040680 CARBON 1/8W(T) 5% 68ohm R113 R382 FA040752 CARBON 1/8W(T) 5% 7.5Kohm R212 R232 R252 FA040750 CARBON 1/8W(T) 5% 75ohm R284 FA04082 1 CARBON 1/8W(T) 5% 820ohm

R150 R157 R175 80002031 FUSEABLE RES 1/2W(A)M 0.22ohm R297 FB910229 FUSIBLE MF RES 1/4W 2.2ohm J R31Q FB241181 METAL 1/4W(T) 1% 1.18Kohm R31T FB241053 METAL 1/4W(T) 1% 105K R31U FB241202 METAL 1/4W(T) 1% 12Kohm

R389 FB241372 METAL 1/4W(T) 1% 13.7Kohm R366 FB241503 METAL 1/4W(T) 1% 150Kohm R149 FB241001 METAL 1/4W(T) 1 % 1K ohm R410 R412 FB242501 METAL 1/4W(T) 1% 2.5Kohm R31R FB242701 METAL 1/4W(T) 1% 2.7Kohm

R361 FB242002 METAL 1/4W(T) 1% 20Kohm

SYMBOL PART NO DESCRIPTION

R31N FB242202 METAL 1/4W(T) 1% 22Kohm R344 FB242552 METAL 1/4W(T) 1% 25.5Kohm R711 FB243481 METAL 1/4W(T) 1% 3.48Kohm J26 FB244702 METAL 1/4W(T) 1% 47Kohm

R158 FB240470 METAL 1/4W(T) 1 % 47 ohm R348 FB245541 METAL 1/4W(T) 1% 5.54Kohm R31L FB245102 METAL 1/4W(T) 1% 51Kohm R388 FB245490 METAL 1/4W(T) 1% 549ohm R349 FB245602 METAL 1/4W(T) 1% 56Kohm

R151 FB246242 METAL 1/4W(T) 1% 62.4Kohm R210 R230 R250 FB247509 METAL 1/4W(T) 1% 75ohm R411 R413 FB248201 METAL 1/4W(T) 1% 8.2Kohm R169 R313 R314 FB910010 METAL 1/4W(T) 5% 1ohm R351 R415 FB470119 MOF 1W/M(A) 5% 1.1ohm

R128 R606 FB470100 MOF 1W/M(A) 5% 10ohm R160 FB470153 MOF 1W/M(A) 5% 15Kohm R421 FB470109 MOF 1W/M(A) 5% 1ohm R312 FB470270 MOF 1W/M(A) 5% 27ohm R422 FB470339 MOF 1W/M(A) 5% 3.3ohm

R103 FB470680 MOF 1W/M(A) 5% 68ohm R31A FB480100 MOF 1W/M(B) 5% 10ohm R105 FB560248 MOF 2W/M(A) 5% 0.24ohm R354 FB560182 MOF 2W/M(A) 5% 1.8Kohm R125 FB560103 MOF 2W/M(A) 5% 10Kohm

R335 FB560151 MOF 2W/M(A) 5% 150ohm R302 FB560222 MOF 2W/M(A) 5% 2.2Kohm R316 FB560331 MOF 2W/M(A) 5% 330ohm R106 FB570563 MOF 2W/M(B) 5% 56Kohm R309 FB710150 MOF 3W/M(A) 5% 15ohm

R311 FB710109 MOF 3W/M(A) 5% 1ohm R304 80011181 RESISTOR FUSEABLE 1/2W/A(M)

22ohm

R394 FC030508 WOUND RES 1W/(A) 5% 0.5ohm R111 FC110158 WOUND RES 2W(A) 5% 0.15ohm

*** CAPACITORS ***

C707 C708 GB61 0152 CERAMIC SL/T 100P/50 V J

97

SYMBOL PART NO DESCRIPTION

C353 GB633152 CERAMIC SL/T 330P/50V J C705 C706 GB633052 CE RAMIC SL/T 33P/50V J SG301 80011281 CERAMIC SPARK CAPS 1KV

+1500V~900V

C276 C334 C357 GB7102H3 CERAMIC Y5P(B)/T 1000P/1KV K

C275 C278 C287 GB7102F3 CERAMIC Y5P(B)/T 1000P/500V K C297 C605 GB710253 CERAMIC Y5P(B)/T 1000P/50V K C127 GB7101H3 CERAMIC Y5P (B)/T 100P/1KV K C124 C304 GB7331H3 CERAMIC Y5P(B)/T 330P/1KV K C272 C341 GB7471F3 CERAMIC Y5P(B)/T 470P/500V K

C110 GB747153 CERAMIC Y5P(B)/T 470P/50V K C204 C205 C267 GB210458 CERAMIC Y5V/T 0.1u/50V Z C282 C283 C284 C346 C350 C702 C709 C106 GB8103F5 CERAMIC Z5U(E)/T 0.01u/500V M C321 GB9103H8 CERAMIC Z5V(F)/T 0.01u/1KV Z C310 C331 GB9103F8 CERAMIC Z5V(F)/T 0.01u/500V Z

C112 C149 C201 GB910358 CE RAMIC Z5V(F)/T 0.01u/50V Z C202 C203 C207 C231 C270 C280 C281 C291 C294 C299 C301 C409 C712 C724 C277 GB9332H8 CERAMIC Z5V(F)/T 33 00 P/1K V Z C120 C138 GAI10775 ELECT 105oC/A 100u/100V M TK C214 C234 C254 GA210575 ELECT 105oC/T 1u/100V M C288 GAB22675 ELEC T 105oC/T 22u/100V M

C428 GA3474 85 ELECT 85oC/T 0.47u/250V M C122 GA310815 ELECT 85oC/T 1000u/10V M C372 C703 GA310725 ELECT 85oC/T 100u /16V M C308 C410 GA310745 ELECT 85oC/T 100u /35V M C113 C116 C143 GA310655 ELECT 85oC/T 10u/50V M C150 C206 C210 C230 C250 C292 C293 C337 C338 C604 C711 C726 C727 C728

SYMBOL PART NO DESCRIPTION

C336 C340 C352 GA310555 ELECT 85oC/T 1u/50V M C701 C710 C339 C704 GA322555 ELECT 85oC/T 2.2u/50V M C209 GA322725 ELECT 85oC/T 220u/16V M C109 GA3226 45 ELECT 85oC/T 22u/35V M C311 GA322655 ELECT 85oC/T 22u/50V M

C344 GA347585 ELECT 85oC/T 4.7u/250V M C309 GA347555 ELECT 85oC/T 4.7u/50V M C136 C330 GA347725 ELECT 85oC/T 470u /16V M C108 C137 C151 GA347625 ELECT 85oC/T 47u/16V M C285 C289 C335 C725 C368 GA347635 ELECT 85oC/T 47u/25V M

C354 GA347645 ELECT 85oC/T 47u/35V M C313 GA347655 ELECT 85oC/T 47u/50V M C121 C408 GAH10825 ELECT CAP 105oC/T 1000u/16V M TK C119 GAH22675 ELECT CAP 105oC/T 22u/100V M TK C156 GAH47555 ELEC T CAP 105oC/T 4.7u/50V M TK

C139 C404 GAH47725 ELECT CAP 105oC/T 470u/16V M TK C213 C233 C253 GA410575 ELECT NP/T 1u/100V M C312 GF215252 MEF CAP BOX 0.0015u/50V J C315 GF210252 MEF CAP BOX 0.001u/50V J C115 GF233262 MEF CAP BOX 0.0033u/63V J

C366 GF256252 MEF CAP BOX 0.0056u/50V J C362 GF282252 MEF CAP BOX 0.0082u/50V J C365 GF210352 MEF CAP BOX 0.01u/50V J C360 GF215452 MEF CAP BOX 0.15u/50V J C314 GF210452 MEF CAP BOX 0.1u/50V J

C114 GF210462 MEF CAP BOX 0.1u/63V J C403 GF222452 MEF CAP BOX 0.22u/50V J C345 GFA10382 PLASTIC MPE/A 0.01u/250V J C329 GFA15482 PLASTIC MPE/A 0.15u/250V J C333 GFA10582 PLASTIC MPE/A 1u/250V J

C351 GFB15482 PLASTIC MPP/A 0.15u/250VJ C356 GFB30482 PLASTIC MPP/A 0.3u/250V J C325 GFB47482 PLASTIC MPP/A 0.47u/250V J

SYMBOL PART NO DESCRIPTION

C355 GFB75482 PLASTIC MPP/A 0.75u/250V J C332 GFD304E2 PLASTIC MPPS/A 0.3u/400V J (PILKOR

)

C307 GFD47482 PLASTIC MPPS/A 0.47u/250V J

(MYLAR)

C271 C347 C401 GE210252 PLASTIC PEI/T 0.001u/50V J C40A C413 GE222252 PLASTIC PEI/T 0.0022u/50V J C111 C320 C407 GE233252 PLASTIC PEI/T 0.0033u/50V J C601 GE268252 PLASTIC PEI/T 0.0068u/50V J

C128 C142 C295 GE210352 PLASTIC PEI/T 0.01u/50V J C296 C327 C363 C603 C123 C348 GE222352 PLASTIC PEI/T 0. 022u/50V J C316 C343 C364 GE247352 PLASTIC PEI/T 0.047u/50 V J C306 C317 C328 GE210452 PLASTIC PEI/T 0.1u/50V J C358 C361 C319 GED562M2 PLASTIC PPN/A 5600P/800V J

C318 GFC622J2 PLASTIC PPS/A 6200P/2KV J C105 GKA227E5 POWER ELECT 85oC 220u/400V M C101 GJ047400 SAFETY X-CAP 0.47u/275V M C102 GJC102E5 SAFETY Y-CAP/D 1000P/400V M C103 C104 C146 GJH102E5 SAFETY Y-CAP/S 1000P/400V M C154

NEC MultiSync 75F-3 Service Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
