Nec MT1040E, MT1045E User Guide

MultiSync MT840E/MT1040E/MT1045E LCD Projector User’s Manual

English

IMPORTANT INFORMATION

Precautions

Please read this manual carefully before using your NEC MultiSync MT840/MT1040/MT1045 Projector and keep the manual handy for future reference. Your serial number is located under the name plate label on the left side of your MultiSync MT840/MT1040/ MT1045. Record it here:

CAUTION

To turn off main power , be sure to remov e the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NO T OPEN THE CABINET. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED NEC SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided. The information should be read carefully to avoid problems.

W ARNING

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT’S GROUNDED PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THREE PRONGS CAN BE FULLY INSERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. ALL SERVICING MUST BE DONE BY QUALIFIED NEC SERVICE PERSONNEL.

CAUTION

LASER RADIATIONDO NOT STARE INTO BEAM

WAVE LENGTH: 650 nm (640-660 nm) MAX. OUTPUT: 1 mW CLASS II LASER PRODUCT

RF Interference

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Technologies in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class A digital device , pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a commercial installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at their own expense.

In UK, a BS approval power cable with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a po wer cable is not supplied with this equipment please contact your supplier.

DOC Compliance Notice

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

3. GSGV Acoustic Noise Information Ordinance:

The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.

E–2

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prev ent fire and shock. Please read them carefully and heed all warnings.

CAUTION

Do not unplug the power cable from the wall outlet under any one of the following circumstances. Doing so can cause damage to the projector:

Installation

1. For best results, use your projector in a darkened room.

2. Place the projector on a flat, level surface in a dry area away from dust and moisture.

3. Do not place your projector in direct sunlight, near heaters or heat radiating appliances.

4. Exposure to direct sunlight, smoke or steam can harm internal components.

5. Handle your projector carefully . Dropping or jarring can damage internal components.

6. Do not place heavy objects on top of the projector.

7. If you wish to have the projector installed on the ceiling: a. Do not attempt to install the projector yourself. b. The projector must be installed by qualified technicians

in order to ensure proper operation and reduce the risk of bodily injury.

c. In addition, the ceiling must be strong enough to support

the projector and the installation must be in accordance with any local building codes.

d. Please consult your dealer for more information.

Power Supply

1. The projector is designed to operate on a power supply of 100-120 or 200-240 V 50/60 Hz A C. Ensure that y our power supply fits this requirement before attempting to use your projector.

2. Handle the pow er cable carefully and a void e xcessive bending. A damaged cord can cause electric shock or fire.

3. If the projector is not to be used for an extended period of time, disconnect the plug from the power outlet.

* While the Hour Glass icon appears. * While the message "Please wait a little." appears. This mes-

sage will be displayed after the projector is turned off.

* Immediately after the power cable is plugged into the wall

outlet (the POWER indicator has not changed to a steady amber glow).

* Immediately after the cooling fan stops working (The cooling

fan continues to work for ONE minute after the projector is turned off with the POWER OFF button).

* While the POWER and the ST ATUS indicators are alternately

flashing.

Cleaning

1. Unplug the projector before cleaning.

2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

E–3

Lamp Replacement

• T o replace the lamp , f ollow all instructions provided on page E-33.

• Be sure to replace the lamp when the Status light comes on. If you continue to use the lamp after 2000 hours (1500 hours : MT1045) of use, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.

• Allow a minimum of ONE minute to elapse after turning off the projector. Then disconnect the power cable and allo w 60 minutes to cool the projector before replacing the lamp.

Fire and Shock Precautions

1. Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside y our projector. Allow at least 3 inches (10cm) of space between y our projector and a wall.

2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object remov ed by a qualified NEC service personnel.

3. Do not place any liquids on top of your projector.

• Do not look into the lens while the projector is on. Serious damage to your eyes could result.

• Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.

• Do not cover the lens with the supplied lens cap or equivalent while the projector is on. Doing so can lead to melting of the cap and possibly burning your hands due to the heat emitted from the light output.

• Do not look into the laser pointer while it is on and do not point the laser beam at another person. Serious injury could result.

E–4

TABLE OF CONTENTS

1. INTRODUCTION

Introduction to the MultiSync MT840/MT1040/MT1045 Projector

Getting Started ............................................................E-6

Getting to Know Your MultiSync MT840/MT1040/MT1045 Projector

Front Features.........................................................E-7

Rear Features ......................................................... E-7

Top Features ........................................................... E-8

Terminal Panel Features ......................................... E-9

Remote Control Features...................................... E-10

...E-6

.....E-7

2. INSTALLATION

Setting Up Your Projector........................................... E-12

Selecting a Location ..................................................E-12

Using a Tabletop or Cart ............................................ E-12

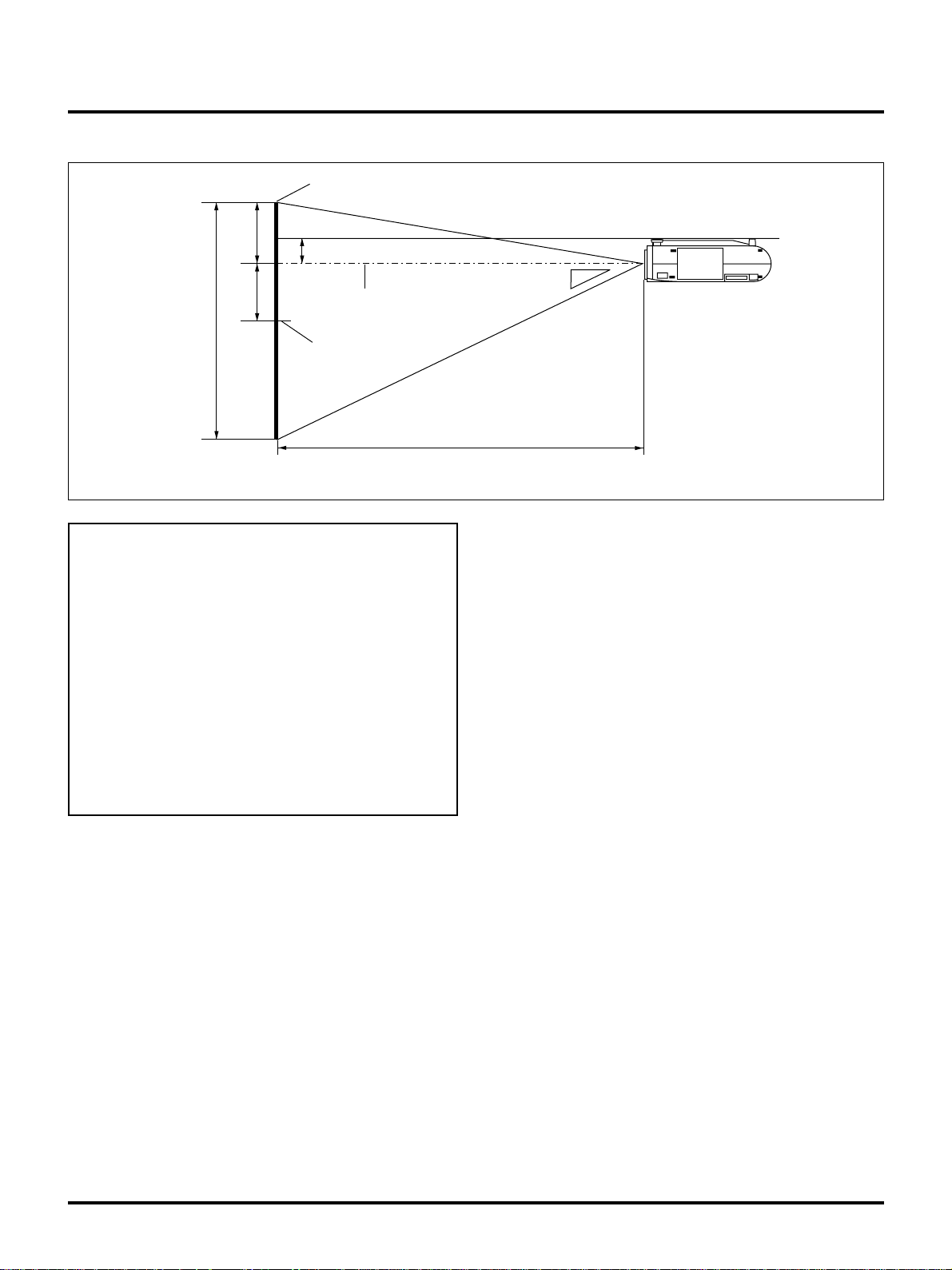

Distance Chart...........................................................E-13

Ceiling Installation ..................................................... E-14

Reflecting the Image.................................................. E-14

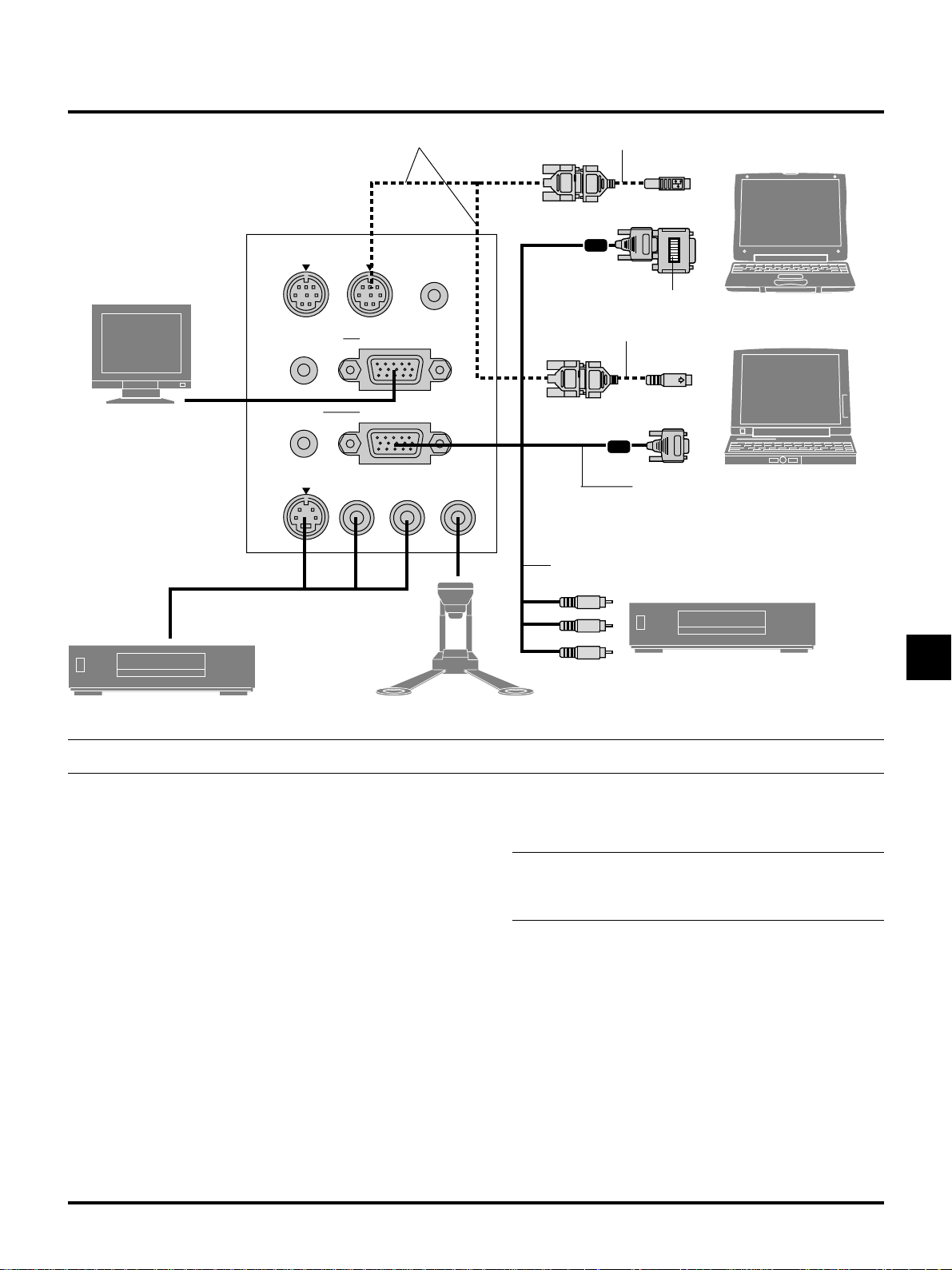

Wiring Diagram..........................................................E-15

3. OPERATION

General Controls ....................................................... E-17

Using the Menus........................................................ E-17

Using a USB Mouse ..................................................E-17

Menu Tree .................................................................. E-18

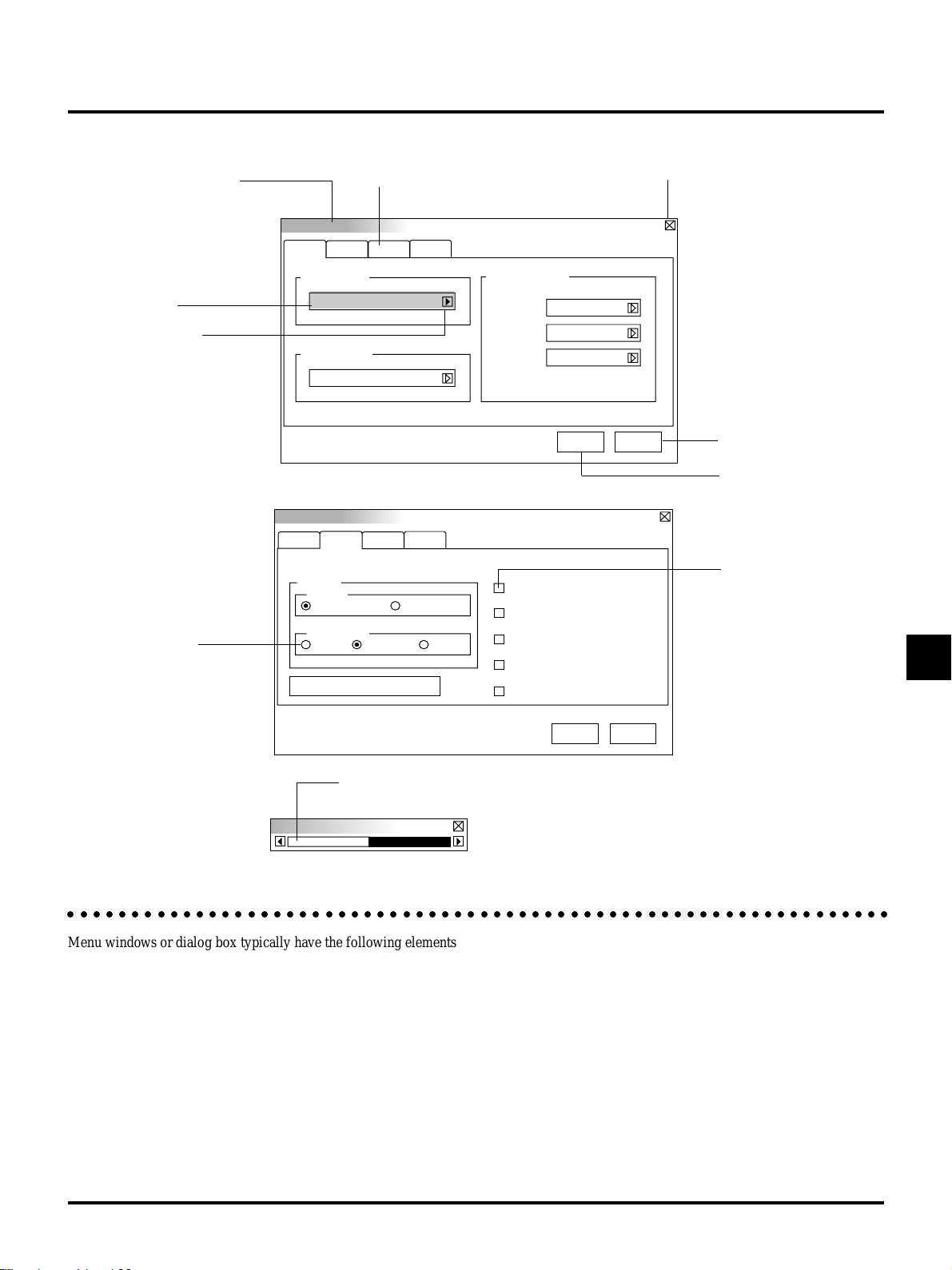

Menu Elements.......................................................... E-19

Menu Descriptions & Functions.................................E-20

Source Select ............................................................E-20

RGB ......................................................................E-20

Video/S-Video ....................................................... E-20

PC Card Viewer..................................................... E-20

Adjustments...............................................................E-20

Picture...................................................................E-20

Volume ..................................................................E-20

Image .................................................................... E-20

Auto Adjust .......................................................E-21

Position.............................................................E-21

Pixel Adjust.......................................................E-21

Resolution......................................................... E-21

Color Temperature ................................................ E-21

Keystone ............................................................... E-21

Factory Default...................................................... E-21

Image Options ...........................................................E-21

Image Mode .......................................................... E-21

Aspect Ratio ..................................................... E-21

Video Mode...........................................................E-22

Gamma.............................................................E-22

Noise Reduction ............................................... E-22

Color Matrix ......................................................E-22

Setup..................................................................... E-23

Orientation ........................................................ E-23

Background ......................................................E-23

Signal Select..................................................... E-23

Auto Start ......................................................... E-23

Power Management.......................................... E-23

Power Off Confirmation ....................................E-23

Mouse Settings.................................................E-23

Keystone Save..................................................E-23

Fan High Speed Mode...................................... E-23

Clear Lamp Hour Meter .................................... E-23

Remote Sensor................................................. E-24

S-Video Mode Select........................................E-24

PC Card Viewer Options...................................E-24

Capture Options ...............................................E-24

Tools ..........................................................................E-24

Capture .................................................................E-24

PC Card Files........................................................ E-25

ChalkBoard ...........................................................E-25

Help ...........................................................................E-25

Contents................................................................ E-25

Source Information................................................ E-25

Projector Information............................................. E-25

Using the PC Card Viewer Function .......................... E-26

Features................................................................E-26

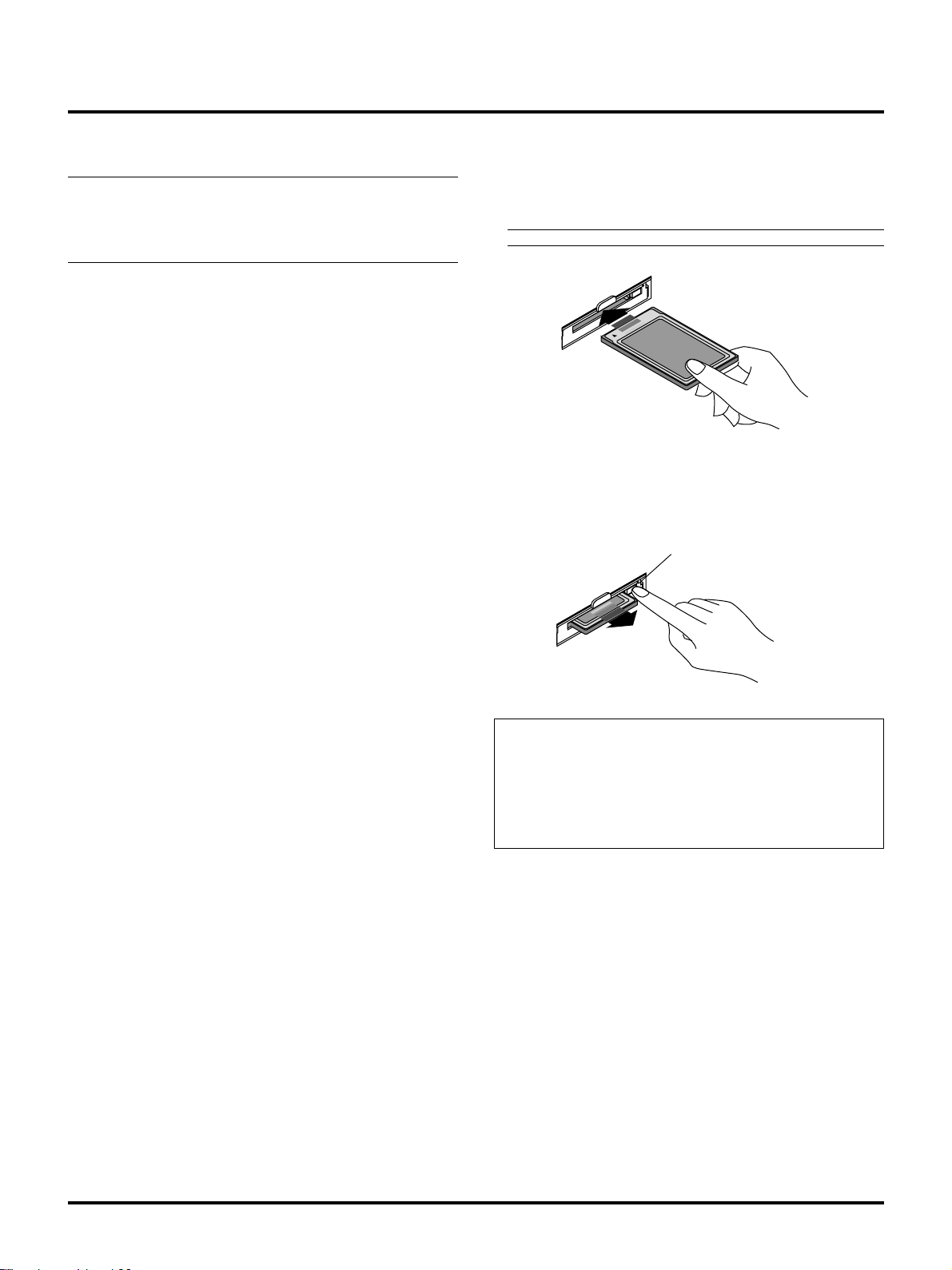

Inserting and Ejecting a PC Card .........................E-26

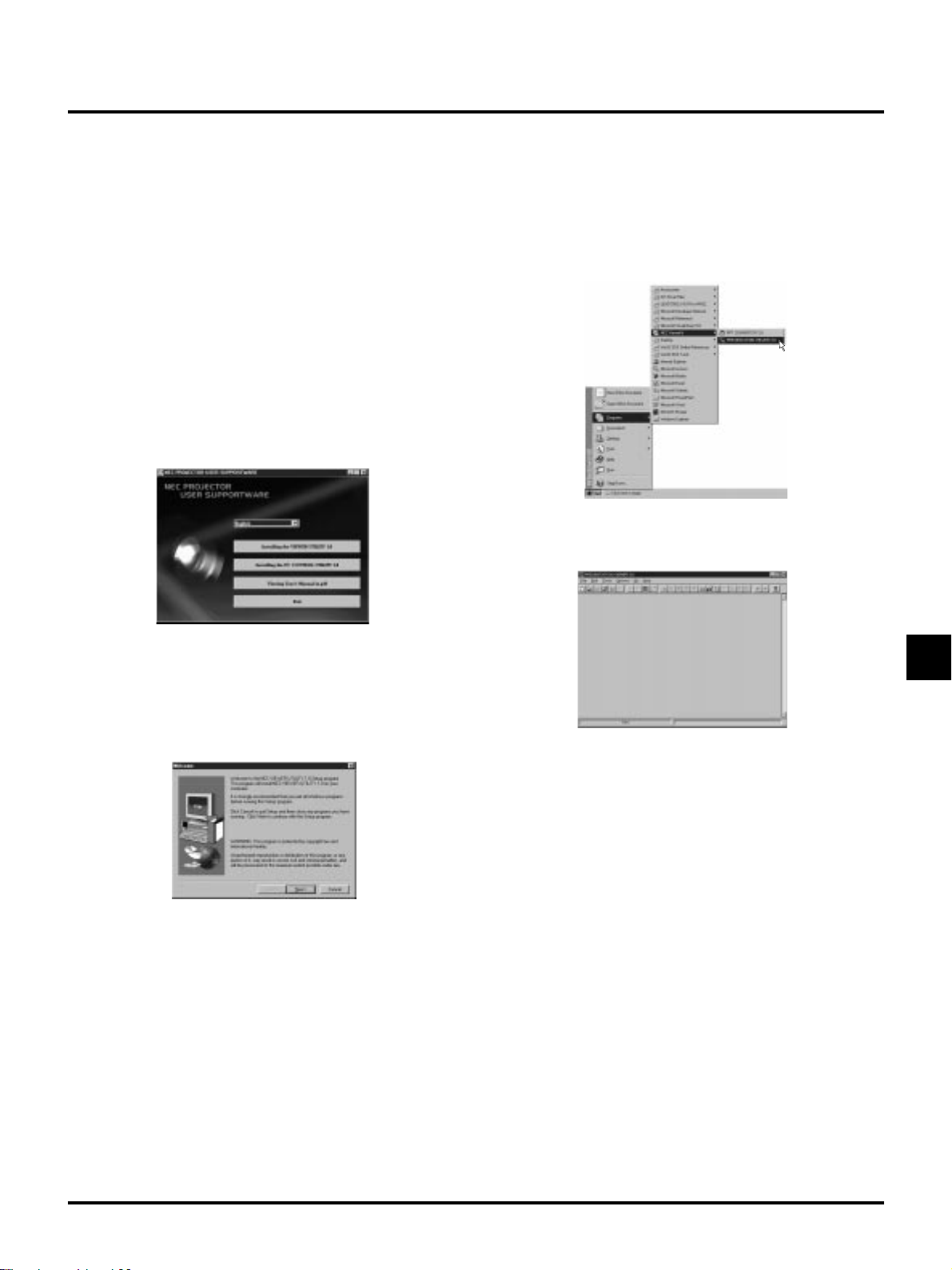

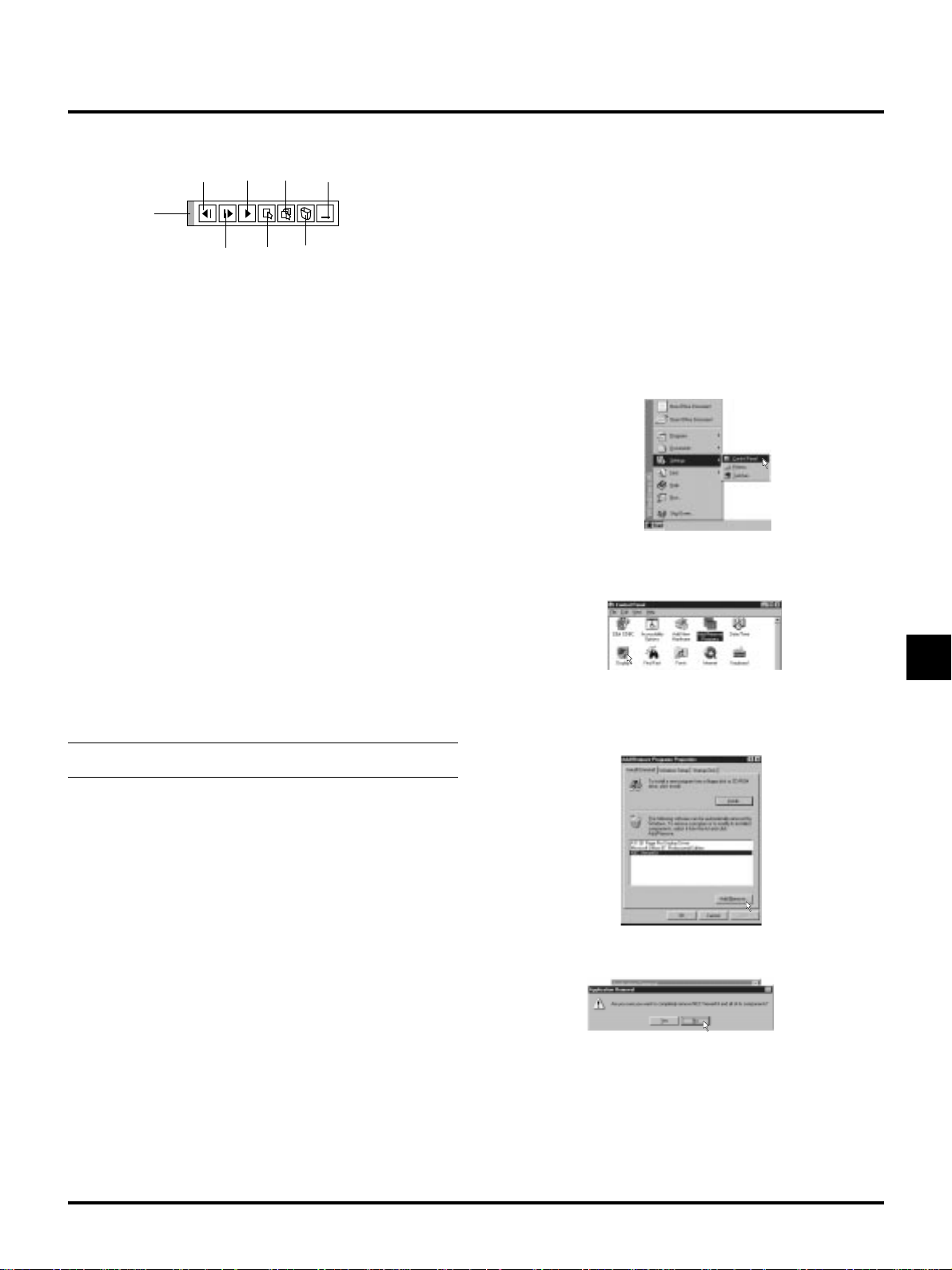

Installing the PC Card Viewer

Software................................................................E-27

Starting Up the PC Card Viewer Software

on your PC (PC Card Viewer Utility 1.0) ............. E-27

Operating the PC Card Viewer Function

from the Projector (playback)..............................E-28

Capturing Images Displayed on the Projector....... E-30

Viewing Digital Images.......................................... E-31

Uninstalling the PC Card Viewer Software............E-31

Terminology........................................................... E-32

4. MAINTENANCE

Replacing the Lamp................................................... E-33

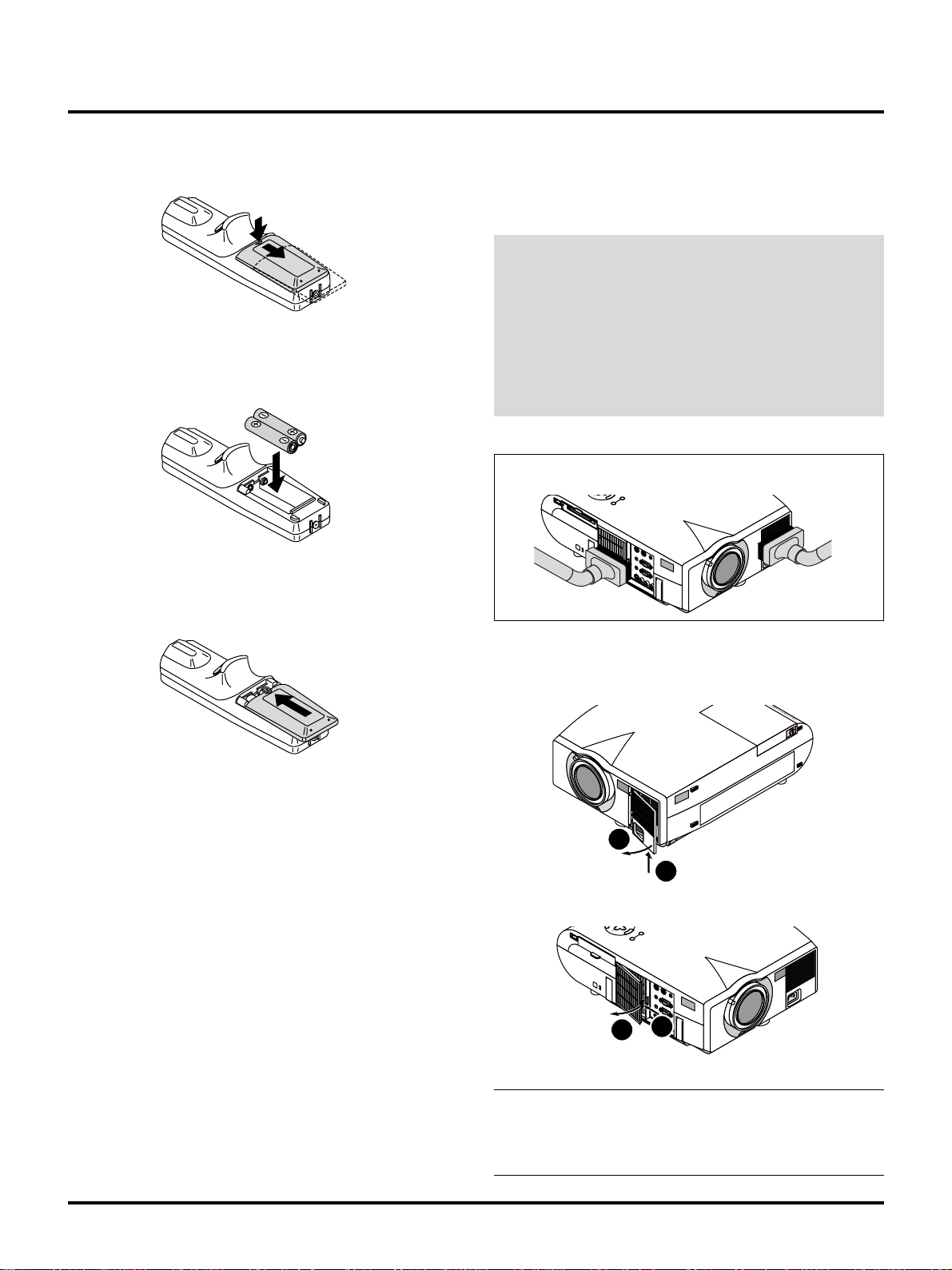

Remote Control Battery Installation...........................E-34

Cleaning or Replacing the Filters ..............................E-34

5. TROUBLESHOO TING

Status Light Messages ..............................................E-35

Common Problems & Solutions................................. E-35

Projector Options.......................................................E-22

Menu ..................................................................... E-22

Language ......................................................... E-22

Projector Pointer...............................................E-22

Source Display .................................................E-22

6. SPECIFICATIONS

Optical/Electrical/Mechanical..................................... E-37

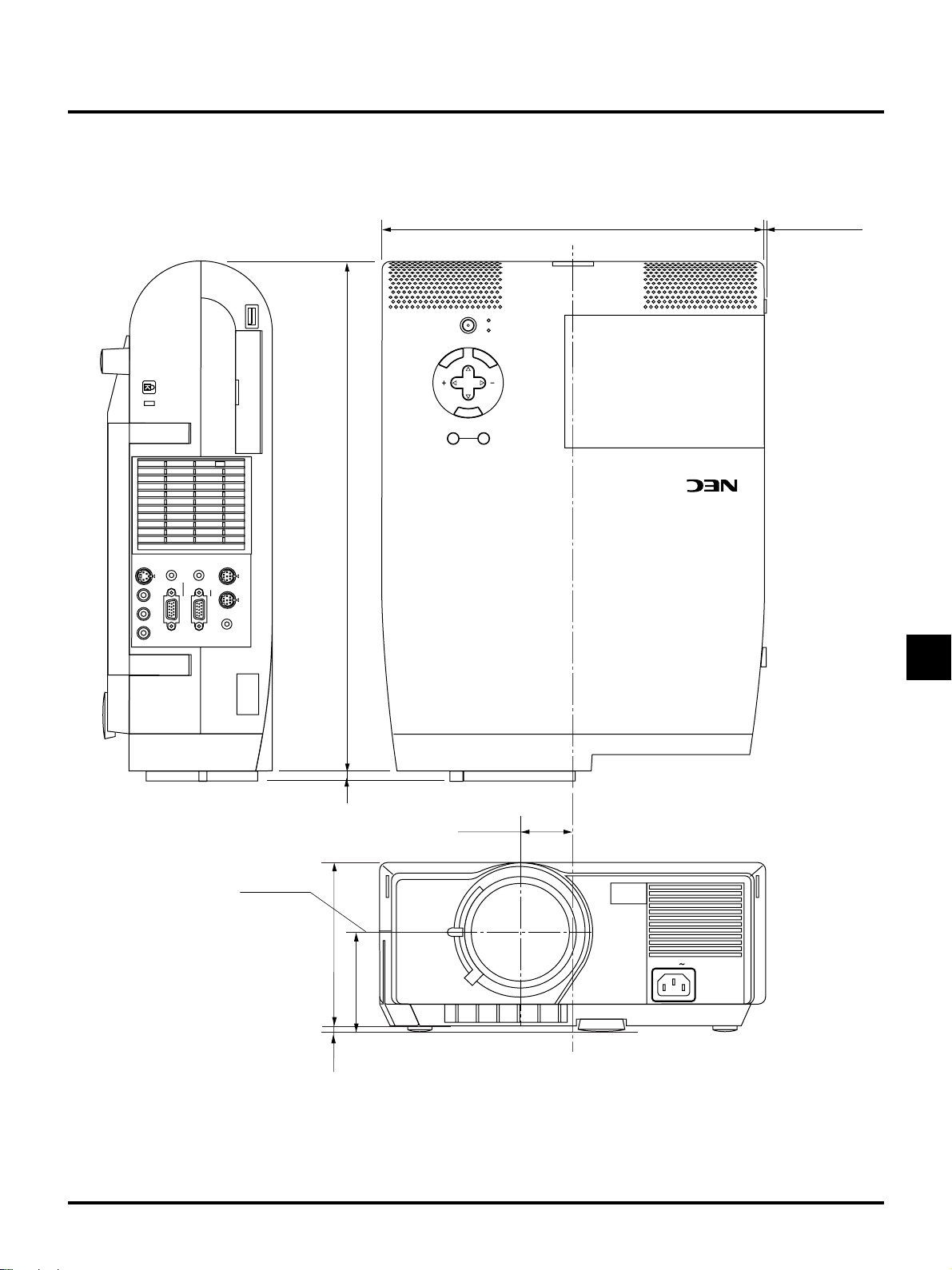

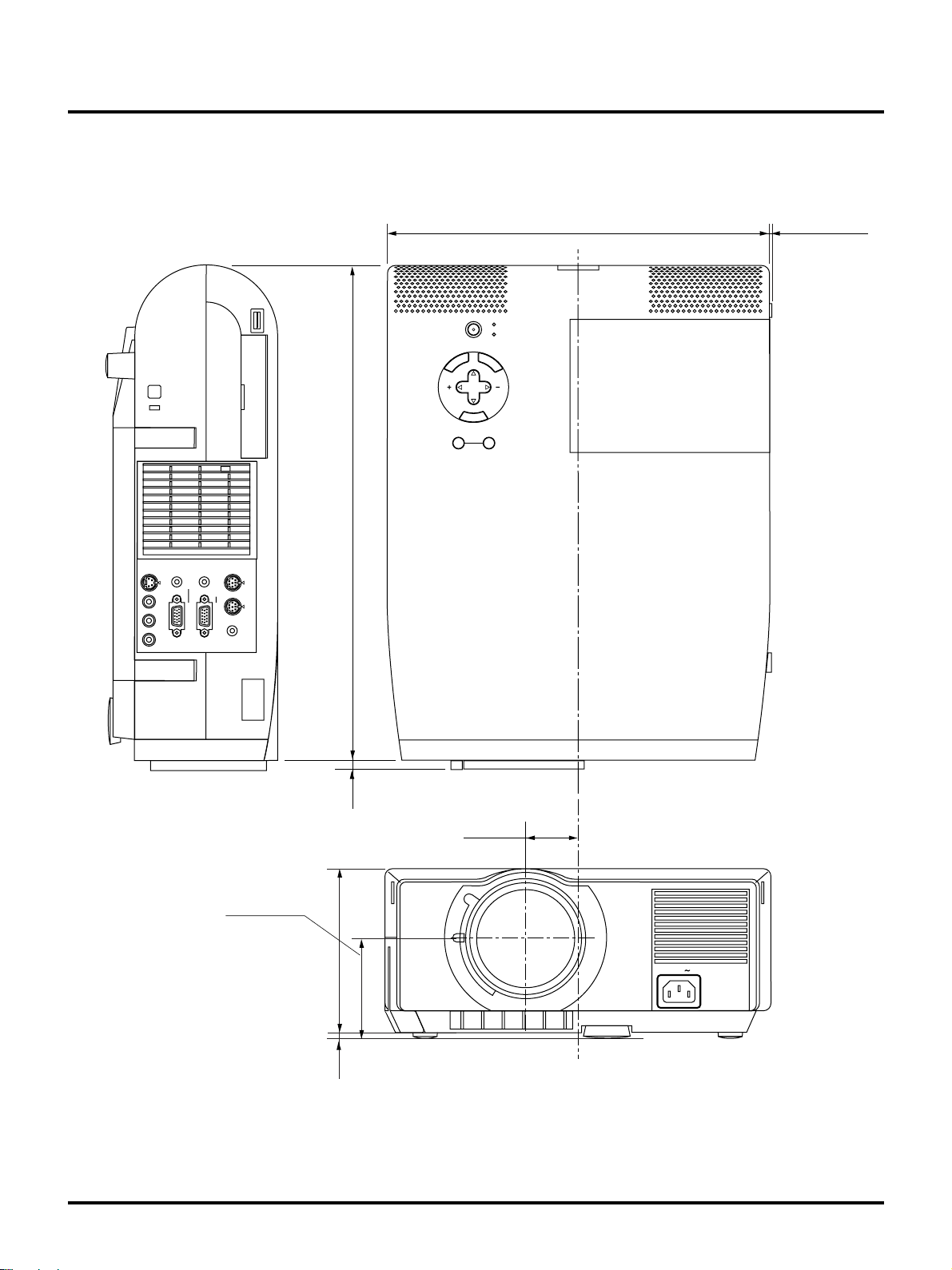

Cabinet Dimensions ..................................................E-38

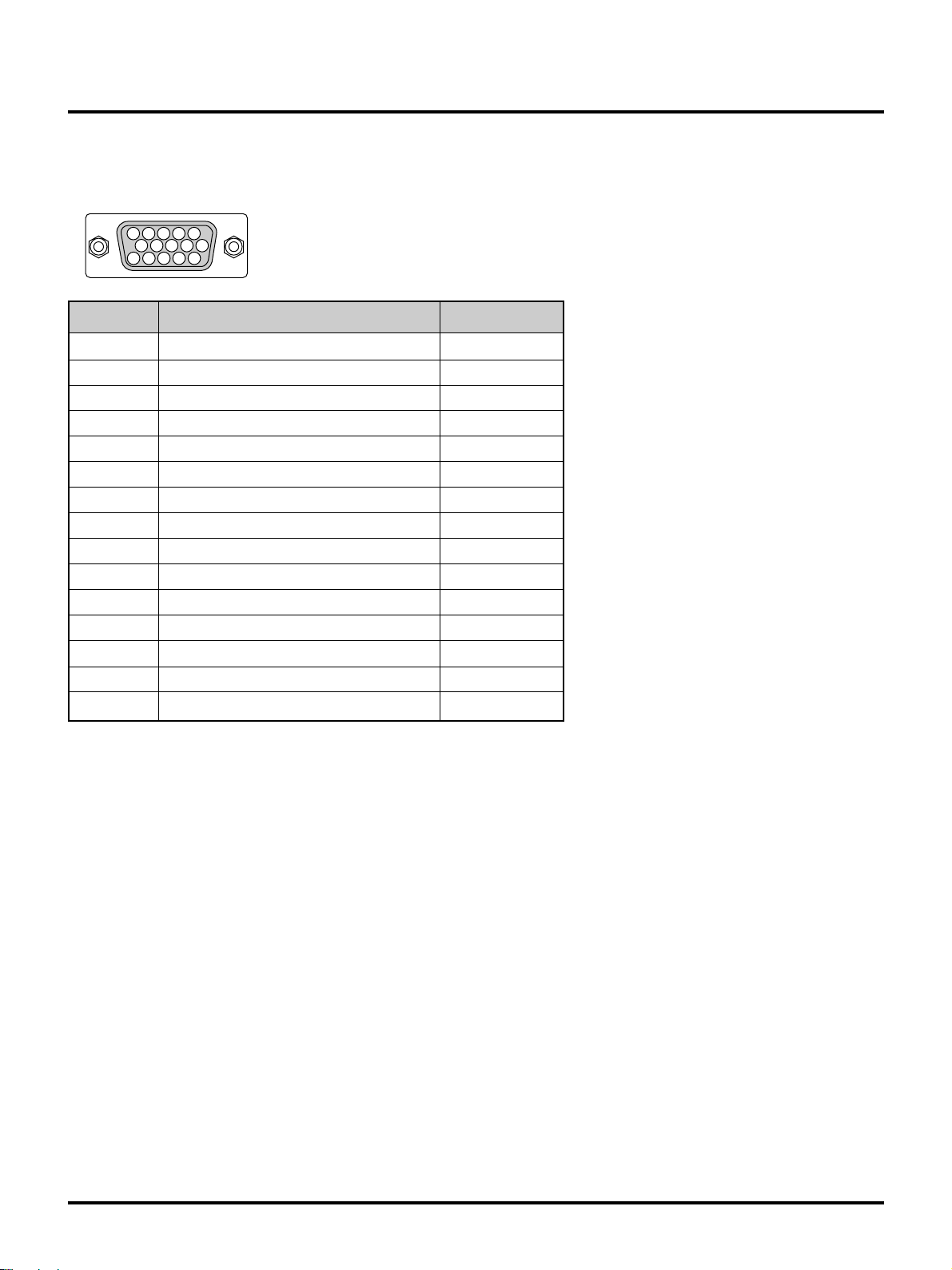

D-Sub Pin Assignments............................................. E-40

Timing Chart .............................................................. E-41

PC Control Codes...................................................... E-42

Cable Connection ...................................................... E-42

E–5

1. INTRODUCTION

Introduction to the MultiSync MT840/MT1040/MT1045 Projector

This section introduces you to your new MultiSync MT840 (SVGA)/ MT1040 and MT1045 (XGA) Projector describes the features and controls.

Congratulations on Your Purchase of The MultiSync MT840/ MT1040/MT1045 Projector

The MultiSync MT840/MT1040/MT1045 is one of the very best projectors available today . The MultiSync MT840/MT1040/MT1045 enables you to project precise images up to 300 inches across (measured diagonally) from your PC or Macintosh computer (desktop or notebook), VCR, D VD player , document camera, or even a laser disc player. You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen, and the projector can be permanently mounted on a ceiling*1. The remote control can be used wirelessly.

Features you’ll enjoy:

• Simple set up and operation.

• Hot air blown from the vents does not bother the audience during your presentation since the vents are located on the front.

• A high-performance 180 watt NSH (200W NSH : MT1045) lamp.

• The supplied wireless remote control that operates the projector from any angle.

• The manual zoom control enables you to adjust the image to be between 30 (0.76m) and 300 inches (7.6m) (measured diagonally).

• Keystone correction allows you to correct trapezoidal distortion so that the image is square.

• Y ou can choose between video modes depending on your source: “normal” for a typical picture, “natural” for true color reproduction.

• The built-in PC Card Viewer allows you to start your presentation even when a PC is not available at the site.

• The “Capture” enables you to use the entire picture as a background image or to create slides.

• An image can be projected from in front or behind a screen, and the projector can even be installed on the ceiling.

• NEC Technologies’ exclusive Advanced AccuBlend intelligent pixel blending technology - an extremely accurate image compression technology - offers a crisp image with SXGA (1280 x

1024) resolution*3 . You can select any point on the screen with the pointer and enlarge the selected area.

• Supports most IBM VGA, SVGA, XGA*2 , SXGA(with Advanced AccuBlend)*3, Macintosh, component signal (YCbCr / YPbPr) or any other RGB signals within a horizontal frequency range of 15 to 85 kHz and a vertical frequency range of 50 to 85 Hz. This includes NTSC, P AL, PAL60, SECAM and NTSC4.43 standard video signals.

NOTE: Composite video standards are as follows:

NTSC: U.S. TV standard for video in U.S. and Canada. PAL: TV standard used in Western Europe. PAL60: TV standard used for NTSC playback on PAL TVs. SECAM: TV standard used in France and Eastern Europe. NTSC4.43: TV standard used in Middle East countries.

• The supplied remote control can be used without a cable, and you can even use the remote control and mouse adapter to operate your PC or Macintosh mouse wirelessly from across the room with the built-in remote mouse receiver.

• You can control the projector with a PC using the PC Control port.

• The contemporary cabinet design is light, compact, easy to carry , and complements any office, boardroom or auditorium.

• Eight kinds of pointers are available for your presentation.

• USB terminal allows USB mouse operation*

*1 Do not attempt to mount the projector on a ceiling yourself.

The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury. In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. Please consult your dealer for more information.

*2 An XGA image (10242768) is conv erted into an 8002600 crisp

image with NEC technology’s Advanced AccuBlend on MT840.

*3 An SXGA image (128021024) is converted into a 10242768

crisp image with NEC technology’s Advanced AccuBlend on MT1040/MT1045.

*4 The USB terminal meets the USB1.0 specification and accepts a

USB mouse only.

Getting Started

The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to click through the CDROM and revie w the user’ s manual. T his may save you time later on. At the beginning of each section of the manual you’ll find an overview. If the section doesn’t apply, you can skip it.

E–6

Getting to Know Your MultiSync MT840/MT1040/MT1045 Projector

Front Features

Controls

USB (Mouse) Terminal

Zoom

PC Card Access Slot

Slot for Kensington MicroSaver Security System

Air-Filter

Terminal Panel

Rear Features

OFF

USB

Carrying Handle

POWER

STATUS

SELECT

SOURCE AUTO ADJUST

Remote Sensor

Air-Filter

AC Input

AC IN

Connect the supplied power cable’s three-pin plug here.

Lens

Adjustable Tilt Foot

Focus

Ventilation (outlet)

Remote Sensor

One-Touch Tilt Button

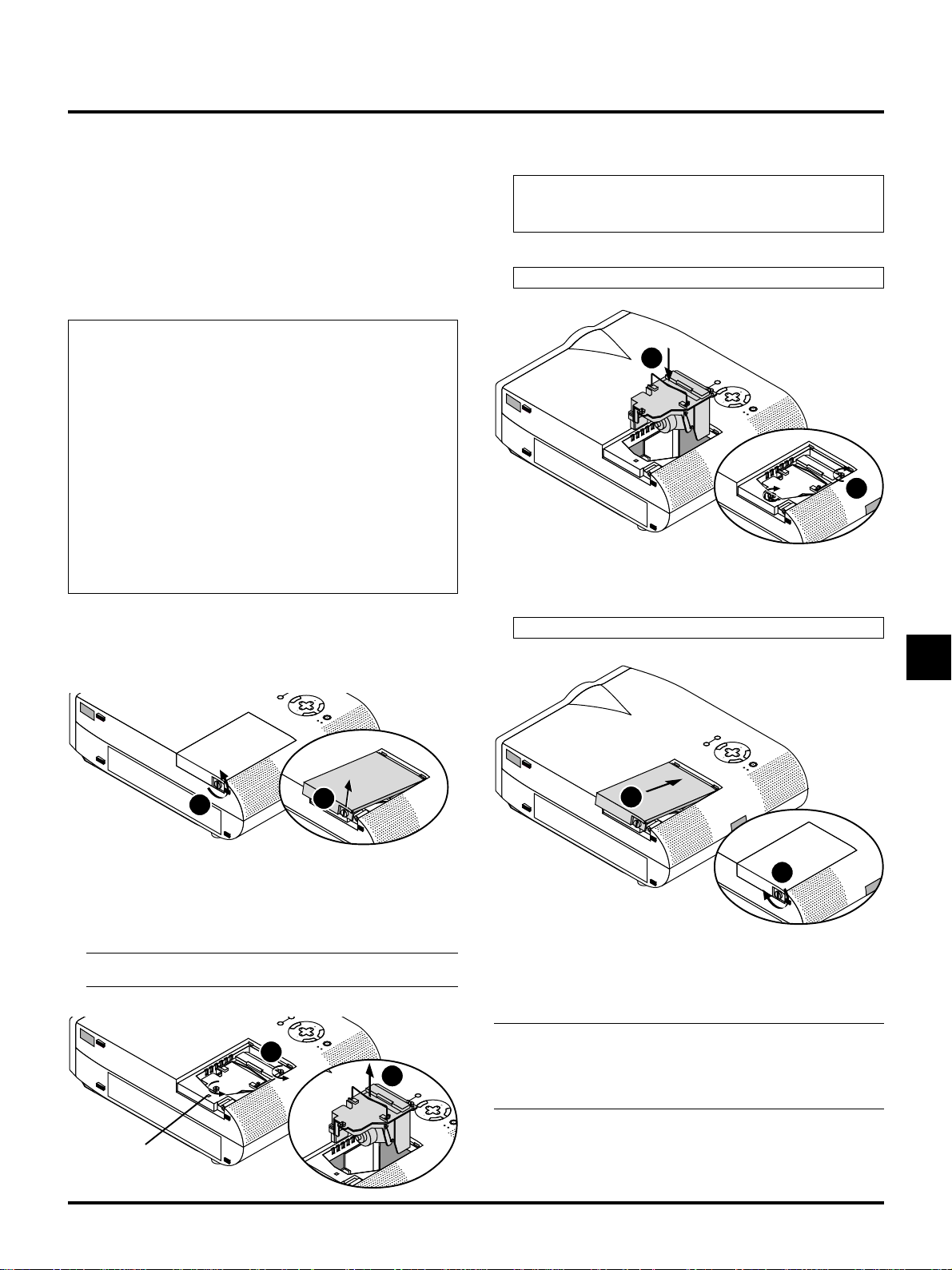

Lamp Cover

Lamp Cover Screw

E–7

Rear Foot

SOURCE AUTO ADJUST

SELECT

Built-In Stereo Speaker (1W)

OFF

STATUS

POWER

Rear Foot

Remote Sensor

Built-In Stereo Speaker (1W)

Top Features

SOURCE AUTO ADJUST

STATUS POWER

1 Source Button

Use this button to select a video source such as a PC, VCR, DVD player or PC Card Viewer (PC card installed).

2 Auto Adjust Button

Use this button to adjust Position-H/V and Pixel Clock/Phase for an optimal picture. Some signals may not be displayed correctly or take time to switch to another.

3 Menu Button

Displays the main menu for operation.

4 Select (▲▼§ ©) / (+) (–) Buttons

▲▼: Use these buttons to select the menu of the item you wish

to adjust.

§ ©: Use these buttons to change the level of a selected menu

item.

A press of the © button executes the selection. When no menus appear, these ▲▼ buttons work as a volume control. When the pointer is displayed, these § © ▲▼ buttons move the pointer.

5 Enter Button

Executes your menu selection and activates items selected from the menu.

SELECT

OFF

6 Cancel Button

Press this button to exit “Menus”. Press this button to return the adjustments to the last condition while you are in the adjustment or setting menu.

7 Status Indicator

When this is lit red continually, it’ s warning you that the pr ojection lamp has exceeded 2000 hours (1500 hours : MT1045) of service. After this light appears, it is advisable to replace the projection lamp as soon as possible. (See page E-33) In addition the message “LAMP USAGE XX HOURS” appears continually when the on-screen menu is not displayed. If this light blinks red rapidly, it indicates that the lamp co v er or f ilter co v er is not attached properly or the projector is overheated. See the Status Light Messages on page E-35 for more details.

8 Power Indicator

When this indicator is green, the projector is on; when the indicator is amber, it is in standby mode.

9 Power Button

Use this button to turn the power on and off when the power is supplied and the projector is in standby mode.

NOTE: To turn off the projector, press and hold this button for minimum of two seconds.

E–8

Terminal Panel Features

USB

SELECT

OFF

USB

Slot for Kensington MicroSaver Security System

1 USB (Mouse) Terminal

Connect a commercially available mouse that supports USB. You can operate the menu or Viewer with the USB mouse via this terminal. Note that this terminal is not used with a computer and that there may be some brands of USB mouse.

2 PC Card Access Slot

Insert a PC card here.

3 PC Card Access Indicator

Lights while accessing a PC card.

4 Eject Button

Press to eject a PC memory card.

5 PC Control Port (Mini DIN 8 Pin)

Use this port to connect your PC to control your projector. A cap is put on the port at the factory. Remo v e the cap when using the port.

6 Mouse Output Port (Mini DIN 8 Pin)

Use this port to operate your computer’s mouse functions from the remote control.

7 Remote Control Input Jack

Connect your remote control cable here for wired operation.

8 Audio Monitor Output Mini Jack

Connect additional external speakers here to listen to audio coming from your computer, Video or S- Video input.

9 RGB Monitor Output Connector (Mini D-Sub 15 pin)

You can use this connector to loop your computer image to an external monitor from the RGB input source.

UST

PC-CARD

PC CONTROL

AUDIO MONITOR OUTPUT

MOUSE OUTPUT

RGB OUTPUT

REMOTE CONTROL INPUT

AUDIO RGB INPUT

S-VIDEO

MONO

VIDEO

11 1312

10 RGB Audio Input Connector

This is where you connect RGB audio output from a computer or another RGB source.

RGB Input Connector(Mini D-Sub 15 pin)

Connect your PC or other RGB equipment. Use the signal cable that’s supplied to connect to a PC.

11 S-Video Input Port

Here is where you connect the S-Video input from an e xternal source like a VCR.

12 Left Channel/Mono Audio Input Jack (RCA)

This is the left channel audio input for stereo sound coming from video equipment or audio system. This also serves as your monaural audio input. (Video and S-video only)

Right Channel Audio Input Jack (RCA)

This is the right channel audio input for stereo sound. (Video and S-video only)

NOTE: When using two Video sources simultaneously, the Left Channel Audio Input jack is available for the S-Video source only and the Right Channel Audio Input jack is av ailable for the composite video source only.

13 Video Input

Connect a VCR, DVD player, laser disc player , or document camera here to project video.

14 Built-in Security Slot (

This security slot supports the MicroSaver® Security System. MicroSaver® is a registered trademark of Kensington Microware Inc. The logo is trademarked and owned by K ensington Microware Inc.

)

E–9

Remote Control Features

R-CLICK

HELP

PIC-MUTEPOINTER

MAGNIFY

SOURCE AUTO ADJ.

COMPUTER PROJECTOR

POWER

OFF ON

LASER

CANCEL

NOTE: If you are using a Macintosh computer, you can click either the right or left button to activate the mouse.

1 Source Button

Press to select a video source.

2 Auto Adjust Button

Use this button to adjust Position-H/V and Pixel Clock/Phase for an optimal picture. Some signals may not be displayed correctly, or in some cases it may take some time for a source to be switched to another.

3 Menu Button

Displays the main menu for operation.

4 Mouse (▲▼

▲▼: Use these buttons to select the menu of the item you wish

§ ©: Use these buttons to change the level of a selected menu

A press of the © button executes the selection. When no menus appear, these ▲▼ buttons work as a v olume control. For the Mouse button to work as the volume control for your computer , you must be in the Projector mode, which is indicated by lighting the Computer/Projector Select button. When the pointer is displayed, these § © ▲▼ buttons move the pointer.

NOTE: Works as a mouse for your projected computer image . This pad is also used to adjust position. This pad selects the submenu you want to adjust. After you make your on-screen menu selection, use this pad to adjust the level up or down.

5 Cancel/ Right Click Button

Press this button to exit “Menus”. Press this button to return the adjustments to the last condition while you are in the adjustment or setting menu.

6 Left Click / Enter Button

Use this button to enter your menu selection. It works the same as the “Enter” button on the cabinet.

7 Magnify Button

Use the (+) or (–) button to adjust the image size up to 400%. When the Pointer is displayed, the magnified image is displayed at the center of the Pointer. When the Pointer is not displayed, the magnified image is displayed at the center of the screen. When the image is magnified, the pointer is changed to the magnifying icon.

8 Pointer Button

Press this button to display one of the eight pointers; press again to hide the pointer. You can move your pointer icon to the area you want on the screen using the Mouse button.

to adjust.

item.

Remote Control

1 2

8 9

(Underneath)

Remote Jack

Connect your remote control cable here for wired operation.

E–10

9 Picture Mute Button

This button turns off the image and sound for a short period of time. Press again to restore the image and sound.

10 Help Button

Provides information about operation and adjustment procedures or the set information for the current menu or adjustment during menu operation. This also displays information how to use the Help.

11 Power On And Off

If power is applied, you can use this button to turn your projector on and off.

NOTE: To turn off the projector, press and hold the PO WER OFF button for a minimum of two seconds.

12 LED

Flashes when any button is pressed.

13 Computer/Projector Select

Use this button to switch between “Computer” and “Projector”. When “Computer” is selected, the remote control works as your computer mouse. In this mode only Mouse pad, Laser, R-Click and L-Click buttons are available. This button lights to indicates that you are in the Projector mode.

14 Laser Button

Press and hold this button to activate the laser pointer. When lit, you can use the laser to draw your audience’ s attention to a red dot that you can place on any object within 30 feet (10 m).

Operating Range

15 Laser Pointer

Beams a laser light when “Laser” button is pressed.

16 Infrared Transmitter

Direct the remote control toward the remote sensor on the projector cabinet.

NOTE: When either the Menu, Help or P ointer b utton is pr essed, the Computer/Projector Select button lights in red to indicate that your projector is in the Projector mode. If no buttons are pressed within 10 seconds, the light goes out and the Projector mode is canceled.

Remote Control Precautions

• Handle the remote control carefully.

• If the remote control gets wet, wipe it dry immediately.

• Avoid excessive heat and humidity.

• If you will not be using the remote control for a long time, remove the battery.

• Do not place the batteries upside down.

• Do not look into the laser pointer while it is on.

• Do not point the laser beam at a person.

E–11

2. INSTALLATION

This section describes how to set up your MultiSync MT840/MT1040/ MT1045 projector and how to connect video and audio sources.

Setting up Your Projector

Y our MultiSync MT840/MT1040/MT1045 Projector is simple to set up and use. But before you get started, you must first:

1. Determine the image size.

2. Set up a screen or select a non-glossy white wall onto which you can project your image.

Carrying the Projector: Always carry your projector by the handle. Ensure that the power cable and any other cables connecting to video sources are disconnected before moving the projector.

When moving the projector or when it is not in use, cover the lens

with the lens cap.

Carrying handle

AC IN

USB

OFF

/ ON

SELECT

POWER

STATUS

SOURCE AUTO ADJUST

2. Connect the power cable, remove the lens cap and turn the projector on. (If no input signal is available, the projector will display a background image.)

3. Ensure that the projector is square to the screen.

Top view

Screen

4. Move the projector left or right to center the image horizontally on the screen.

5. To center the image vertically, lift the front edge of the projector and press the One-Touch Tilt button on the front-left side of the projector to release the Front Adjustable foot.

Side view

Screen

Attaching the lens cap to the lens hood with the supplied string and rivet.

Rivet

Lens cap

String

Selecting a Location

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 30" (0.76 m) measured diagonally when the projector is roughly 4 feet (1.3 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when the projector is about 36.8 feet (11.2 m) from the wall or screen.

Using a Tabletop or Cart

1. Place your projector on a flat level surface at the optimal distance from the screen or wall so you realize the size image you want. (Avoid having bright room lighting or sun light directly on the screen or wall where you’ll be projecting the image.)

(There is approximately 5 degrees of up and down adjustment for the front of the projector.)

Adjusting the Tilt Foot

O / N O

ER W

STATUS

SELEC

RCE U SO

AC IN

Press and hold the Tilt button on the left side of the projector.

Lift the front edge of the projector to the height you want, and release the button to lock the

OFF / ON

POWER

STATUS

SELECT

AUTO ADJUST

SOURCE

AC IN

Adjustable Tilt Foot.

To fine-tune the image’s position vertically on the screen, rotate the foot. Each of the rear feet height can be changed up to 0.6” (4mm).

6. If the projected image does not appear square to the screen then use keystone correction for proper adjustment.

7. Adjust the size of the image using the Zoom ring on the lens.

E–12

Distance Chart

Screen T op

Screen Bottom

MT840

Throwing Distance (S)

Screen (inch)

Screen Size D Diagonal (inch) 30 40 60 80 100 120 150 180 200 240 300

Magnification K 23.1 30.8 46.2 61.5 76.9 92.3 115.4 138.5 153.9 184.6 230.8

Throwing Distance S Wide (inch) 42.2 57.0 86.5 116.1 145.6 175.2 219.6 263.9 293.5 352.6 441.3

Throwing Angle U Wide (degree) 10.4 10.2 10.1 10.1 10.0 10.0 10.0 10.0 10.0 9.9 9.9

V (inch) 18.0 24 36 48 60 72 90 108 120 144 180 Q (inch) 7.7 10.3 15.4 20.6 25.7 30.9 38.6 46.3 51.5 61.8 77.2 R (inch) 1.3 1.7 2.6 3.4 4.3 5.1 6.4 7.7 8.5 10.2 12.8 P (inch) 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9

Q+P (inch) 10.6 13.2 18.3 23.5 28.6 33.8 41.5 49.2 54.4 64.7 80.1

Screen center

Throwing Angle (U)

P=2.89”(73.5mm)

Lens Center

Width(H) (inch) 24 32 48 64 80 96 120 144 160 192 240 Width(V) (inch) 18 24 36 48 60 72 90 108 120 144 180

(mm) 1071.1 1446.5 2197.5 2948.4 3699.4 4450.4 5576.8 6703.2 7454.2 8956.1 11208.9

Tele (inch) 51.0 68.8 104.3 139.7 175.2 210.7 263.9 317.1 352.6 423.6 530.0

(mm) 1296.3 1746.9 2648.0 3549.2 4450.3 5351.4 6703.1 8054.8 8956.0 10758.2 13461.6

Tele (degree) 8.6 8.5 8.4 8.4 8.4 8.3 8.3 8.3 8.3 8.3 8.3

(mm) 457.2 609.6 914.4 1219.2 1524 1828.8 2286 2743.2 3048 3657.6 4572 (mm) 196.2 261.6 392.3 523.1 653.9 784.7 980.8 1177.0 1307.8 1569.3 1961.7 (mm) 32.4 43.2 64.9 86.5 108.1 129.7 162.2 194.6 216.2 259.5 324.3 (mm) 73.5 73.5 73.5 73.5 73.5 73.5 73.5 73.5 73.5 73.5 73.5 (mm) 269.7 335.1 465.8 596.6 727.4 858.2 1054.3 1250.5 1381.3 1642.8 2035.2

Projector foot

MT1040

Throwing Distance S Wide (inch) 41.8 56.5 85.8 115.1 144.5 173.8 217.8 261.8 291.1 349.8 437.8

MT1045

Throwing Distance S Wide (inch) 41.4 56.3 86.1 115.8 145.5 175.3 219.9 264.5 294.2 353.7 443.0

Screen Size D Diagonal (inch) 30 40 60 80 100 120 150 180 200 240 300

Magnification K 22.9 30.5 45.8 61.1 76.3 91.6 114.5 137.4 152.6 183.2 229.0

Throwing Angle U Wide (degree) 10.4 10.3 10.1 10.1 10.0 10.0 10.0 10.0 10.0 9.9 9.9

V (inch) 18.0 24 36 48 60 72 90 108 120 144 180 Q (inch) 7.7 10.2 15.3 20.4 25.5 30.6 38.3 46.0 51.1 61.3 76.6 R (inch) 1.3 1.8 2.7 3.6 4.5 5.4 6.7 8.0 8.9 10.7 13.4 P (inch) 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9

Q+P (inch) 10.6 13.1 18.2 23.3 28.4 33.5 41.2 48.9 54.0 64.2 79.5

Screen Size D Diagonal (inch) 30 40 60 80 100 120 150 180 200 240 300

Magnification K 22.9 30.5 45.8 61.1 76.3 91.6 114.5 137.4 152.6 183.2 229.0

Throwing Angle U Wide (degree) 10.5 10.3 10.1 10.0 10.0 9.9 9.9 9.9 9.8 9.8 9.8

V (inch) 18 24 36 48 60 72 90 108 120 144 180 Q (inch) 7.7 10.2 15.3 20.4 25.5 30.6 38.3 46.0 51.1 61.3 76.6 R (inch) 1.3 1.8 2.7 3.6 4.5 5.4 6.7 8.0 8.9 10.7 13.4 P (inch) 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9 2.9

Q+P (inch) 10.6 13.1 18.2 23.3 28.4 33.5 41.2 48.9 54.0 64.2 79.5

Width(H) (inch) 24 32 48 64 80 96 120 144 160 192 240 Width(V) (inch) 18 24 36 48 60 72 90 108 120 144 180

(mm) 1062.2 1434.7 2179.8 2924.8 3669.8 4414.9 5532.4 6650.0 7395.0 8885.1 11120.3

Tele (inch) 50.6 68.2 103.4 138.6 173.8 209.0 261.8 314.6 349.8 420.2 525.8

(mm) 1285.7 1732.7 2626.7 3520.8 4414.8 5308.9 6649.9 7991.0 8885.0 10673.1 13355.2

Tele (degree) 8.6 8.5 8.4 8.4 8.4 8.3 8.3 8.3 8.3 8.3 8.3

(mm) 457.2 609.6 914.4 1219.2 1524 1828.8 2286 2743.2 3048 3657.6 4572 (mm) 194.6 259.5 389.2 519.0 648.7 778.5 973.1 1167.7 1297.5 1557.0 1946.2 (mm) 34.0 45.3 68.0 90.6 113.3 135.9 169.9 203.9 226.5 271.8 339.8 (mm) 73.5 73.5 73.5 73.5 73.5 73.5 73.5 73.5 73.5 73.5 73.5 (mm) 268.1 333.0 462.7 592.5 722.2 852.0 1046.6 1241.2 1371.0 1630.5 2019.7

Width(H) (inch) 24 32 48 64 80 96 120 144 160 192 240 Width(V) (inch) 18 24 36 48 60 72 90 108 120 144 180

(mm) 1052.6 1430.3 2185.8 2941.2 3696.6 4452.1 5585.2 6718.4 7473.8 8984.7 11251.0

Tele (inch) 50.8 68.6 104.3 140.0 175.7 211.4 264.9 318.4 354.1 425.4 532.5

(mm) 1290.5 1743.7 2649.9 3556.2 4462.4 5368.7 6728.0 8087.4 8993.7 10806.2 13524.9

Tele (degree) 8.6 8.5 8.4 8.3 8.3 8.3 8.2 8.2 8.2 8.2 8.2

NOTE: Distances may vary +/–5%.

E–13

+ 29 hidden pages
