NEC LT85, LT150 User Manual
NEC
MultiSync LT150 / LT85 User's Manual
Micro-Portable Projector
MultiSync LT150/LT85
User’s Manual
Printed in Japan
7N8P0051
DECLARATION OF CONFORMITY
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
U.S. Responsible Party:
Address:
Tel. No.:
Type of Product:
Equipment Classification:
Models:
NEC Technologies, Inc.
1250 N. Arlington Heights Road
Itasca, Illinois 60143
(630) 467-5000
Projector
Class B Peripheral
LT150 and LT85
We hereby declare that the equipment specified above
conforms to the technical standards as specified in the FCC Rules.
LIMITED WARRANTY (USA and Canada only)
NEC MultiSync® Projector Products
NEC Technologies, Inc. (hereafter NECTECH) warrants this
product to be free from defects in material and workmanship
under the following terms.
HOW LONG IS THE WARRANTY?
MultiSync L T150 and LT85 projectors are covered by a (3) three
year parts and labor warranty. The InstaCare service program
that provides 72-hour repair and return is in effect for the first
two years of ownership. The InstaCare 24-hour replacement
service is available after the projector is registered. See the
enclosed warranty card for registration instructions. The lamp
is warranted for 1000 hours of operation time or six months,
whichever comes first.
WHO IS PROTECTED?
This warranty may be enforced only by the first purchaser.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as specified below, this warranty covers all defects in
material or workmanship in this product. The following are not
covered by the warranty:
1. An y product which is not distrib uted in the U.S.A. or Canada
by NECTECH or which is not purchased in the U.S.A. or
Canada from an authorized NECTECH dealer. For a listing
of authorized dealers please contact NECTECH at 800-836-
0655.
2. Any product on which the serial number has been defaced,
modified or removed.
NECTECH’S LIABILITY FOR ANY DEFECTIVE PRODUCT
IS LIMITED T O THE REPAIR OR REPLA CEMENT OF THE
PRODUCT AT OUR OPTION. REPLACEMENT PRODUCTS MAY BE NEW OR ‘LIKE NEW’.
3. NECTECH SHALL NOT BE LIABLE FOR : Damage, deterioration or malfunction resulting from:
a. Accident, misuse, abuse, neglect, fire, water, lightning or
other acts of nature, unauthorized product modification,
or failure to follo w instructions supplied with the product.
b. Repair or attempted repair by anyone not authorized by
NECTECH.
c. Any shipment of the product (claims must be presented
to the carrier).
d. Removal or installation of the product.
e. Any other cause which does not relate to a product de-
fect.
4. Cartons, carrying cases, batteries, external cabinets, CDROM, or any accessories used in connection with the product.
WHAT NEC WILL COVER
We will pay labor and material e xpenses f or co v ered items. But
we will not pay for the following:
1. Removal or installation charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls. These costs are the responsibility
of the NECTECH dealer from whom the product was purchased.
3. Payment of shipping charges.
HOW TO OBTAIN WARRANTY SERVICE
1. To obtain service on your product, consult the dealer from
whom you purchased the product.
2. Whenever warranty service is required, the original dated
invoice (or a copy) must be presented as proof of warranty
coverage. Please be prepared to describe or demonstrate
the problem to your dealer.
3. For the name of the nearest NECTECH authorized service
center, call NECTECH at 800-836-0655.
LIMITATION OF IMPLIED WARRANTIES
ALL IMPLIED W ARRANTIES , INCLUDING WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, ARE LIMITED IN DURATION TO THE LENGTH
OF THIS WARRANTY.
EXCLUSION OF DAMAGES
NECTECH’S LIABILITY FOR ANY DEFECTIVE PRODUCT IS
LIMITED TO THE REPAIR OR REPLACEMENT OF THE
PRODUCT AT OUR OPTION. NECTECH SHALL NOT BE LIABLE FOR:
1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THIS PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS
OF TIME, COMMERCIAL LOSS; OR
2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE. SOME STATES DO NOT
ALLOW LIMITA TIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.
HOW STATE LAW RELATES TO THE WARRANTY
This warranty gives you specific legal rights , and y ou may also
have other rights which vary from state to state.
FOR MORE INFORMATION, TELEPHONE 800-836-0655
NEC TECHNOLOGIES, INC.
1250 N. Arlington Heights Road, Suite 500
Itasca, Illinois 60143-1248
NOTE: All products returned to NECTECH for service MUST
have prior approv al. To get approval, call NEC Technologies at
800-836-0655.
MultiSync LT150/LT85
Micro-Portable Projector
User’s Manual
English
IMPORTANT INFORMATION
Precautions
Please read this manual carefully before using your NEC
MultiSync LT150/LT85 Projector and keep the manual
handy for future reference.
Your serial number is located on the bottom of your
MultiSync LT150/LT85. Record it here:
CAUTION
To turn off main power, be sure to remove the
plug from power outlet.
The power outlet socket should be installed
as near to the equipment as possible, and
should be easily accessible.
CAUTION
TO PREVENT SHOCK, DO NO T OPEN THE
CABINET.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED NEC
SERVICE PERSONNEL.
This symbol warns the user that uninsulated
voltage within the unit may be sufficient to
cause electrical shock. Therefore, it is dangerous to make any kind of contact with any
part inside of the unit.
This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided. The
information should be read carefully to avoid
problems.
W ARNING
TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
DO NOT USE THIS UNIT’S GROUNDED PLUG WITH AN
EXTENSION CORD OR IN AN OUTLET UNLESS ALL
THREE PRONGS CAN BE FULLY INSERTED.
DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. ALL SERVICING MUST BE
DONE BY QUALIFIED NEC SERVICE PERSONNEL.
RF Interference
WARNING
The Federal Communications Commission does not
allow any modifications or changes to the unit EXCEPT
those specified by NEC Technologies in this manual.
Failure to comply with this government regulation could
void your right to operate this equipment.
This equipment has been tested and found to comply
with the limits for a Class B digital device , pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver .
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help .
In UK, a BS approved power cable with moulded plug
has a Black (five Amps) fuse installed for use with this
equipment. If a po wer cable is not supplied with this equipment please contact your supplier.
DOC Compliance Notice
This Class B digital apparatus meets all requirements of
the Canadian Interference-Causing Equipment Regulations.
3. GSGV Acoustic Noise Information Ordinance:
The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.
• IBM is a registered trademark of International Business Machines
Corporation.
• Macintosh and PowerBook are registered trademarks of Apple
Computer, Inc.
• Other product and company names mentioned in this user's manual
may be the trademarks of their respective holders.
E–2
Important Safeguards
These safety instructions are to ensure the long life of
your projector and to prev ent fire and shock. Please read
them carefully and heed all warnings.
CAUTION
Do not unplug the power cable from the wall outlet under any
one of the following circumstances. Doing so can cause damage
to the projector:
Installation
1. For best results, use your projector in a darkened room.
2. Place the projector on a flat, level surf ace in a dry area away
from dust and moisture.
3. Do not place your projector in direct sunlight, near heaters
or heat radiating appliances.
4. Exposure to direct sunlight, smoke or steam can harm internal components.
5. Handle your projector carefully . Dropping or jarring can damage internal components.
6. Do not place heavy objects on top of the projector.
If you wish to have the projector installed on the ceiling:
7.
a. Do not attempt to install the projector yourself.
b. The projector must be installed by qualified technicians in order
to ensure proper operation and reduce the risk of bodily injury.
c. In addition, the ceiling must be strong enough to support the
projector and the installation must be in accordance with any
local building codes.
d. Please consult your dealer for more information.
Power Supply
1. The projector is designed to operate on a power supply of
100-120 or 200-240 V 50/60 Hz A C. Ensure that y our power
supply fits this requirement before attempting to use your
projector.
2. Handle the pow er cable carefully and a void e xcessive bending. A damaged cord can cause electric shock or fire.
3. If the projector is not to be used for an extended period of
time, disconnect the plug from the power outlet.
* While the Hour Glass icon appears.
* While the message "Please wait a little." appears. This mes-
sage will be displayed after the projector is turned off.
* Immediately after the power cable is plugged into the wall
outlet (the POWER indicator has not changed to a steady amber
glow).
* Immediately after the cooling fan stops working (The cooling
fan continues to work for 90 seconds after the projector is
turned off with the POWER button).
* While the POWER and the ST ATUS indicators are alternately
flashing.
E–3
Cleaning
1. Unplug the projector before cleaning.
2. Clean the cabinet periodically with a damp cloth. If heavily
soiled, use a mild detergent. Never use strong detergents
or solvents such as alcohol or thinner.
3. Use a blower or lens paper to clean the lens, and be careful
not to scratch or mar the lens.

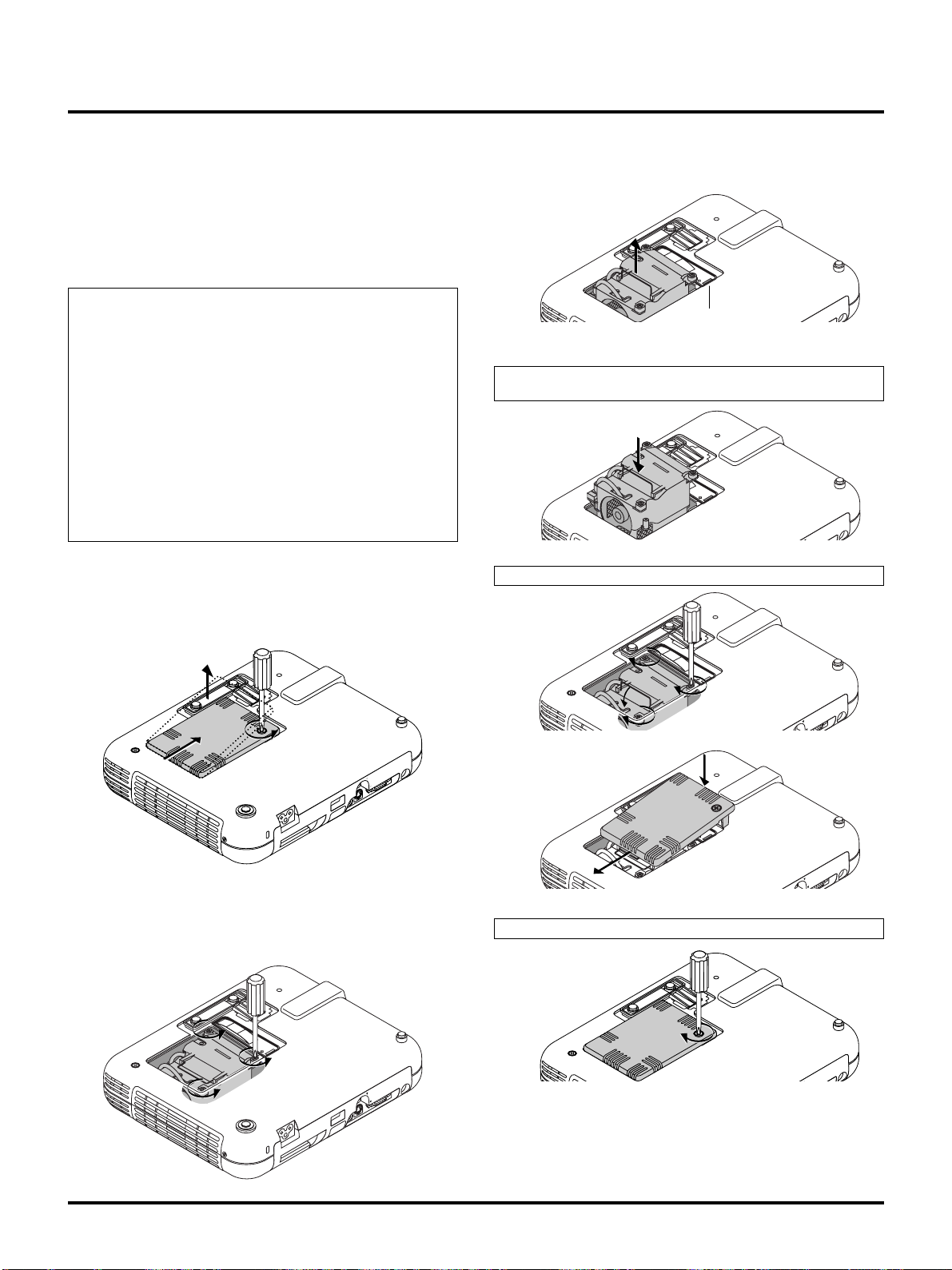

Lamp Replacement
• T o replace the lamp , f ollow all instructions provided on page
E-52.
• Be sure to replace the lamp when the message "Lamp Run-
ning Time is Over 1000 Hours!!" appears. If you continue
to use the lamp after the lamp has reached the end of its
usable life, the lamp bulb may shatter, and pieces of glass
may be scattered in the lamp case. Do not touch them as
the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.
• Allow a minimum of 90 seconds to elapse after turning off
the projector. Then disconnect the power cable and allo w 60
minutes to cool the projector before replacing the lamp.
Fire and Shock Precautions
1. Ensure that there is sufficient ventilation and that vents are
unobstructed to prevent the build-up of heat inside y our projector. Allow at least 3 inches (10 cm) of space between
your projector and a wall.
2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not
insert any metal objects such as a wire or screwdriver into
your projector. If something should fall into your projector,
disconnect it immediately and have the object remov ed by a
qualified NEC service personnel.
3. Do not place any liquids on top of your projector.
• Do not look into the lens while the projector is on. Serious
damage to your eyes could result.
• Keep any items such as magnifying glass out of the light
path of the projector. The light being projected from the lens
is extensive, therefore any kind of abnormal objects that
can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.
• Do not cover the lens with the supplied lens cap or equivalent while the projector is on. Doing so can lead to melting of
the cap and possibly burning your hands due to the heat
emitted from the light output.
E–4
TABLE OF CONTENTS
1. INTRODUCTION
Introduction to the MultiSync LT150/LT85 Projector
Getting Started ............................................................E-6
What’s in the Box .........................................................E-7
Getting to Know Your MultiSync LT150/LT85 Projector
Front / Side Features ..............................................E-8
Attaching the lens cap............................................. E-8
Rear / Side Features...............................................E-9
Top Features .........................................................E-10
Terminal Panel Features .......................................E-11
Remote Control Features...................................... E-12
Remote Control Battery Installation..................E-13
Operating Range .............................................. E-13
Remote Control Precautions ............................ E-13
Optional Presentation Remote Control (PR50KIT)
Remote Control Battery Installation..................E-16
Remote Control Precautions ............................ E-16
Using the Optional Remote Mouse Receiver ... E-17

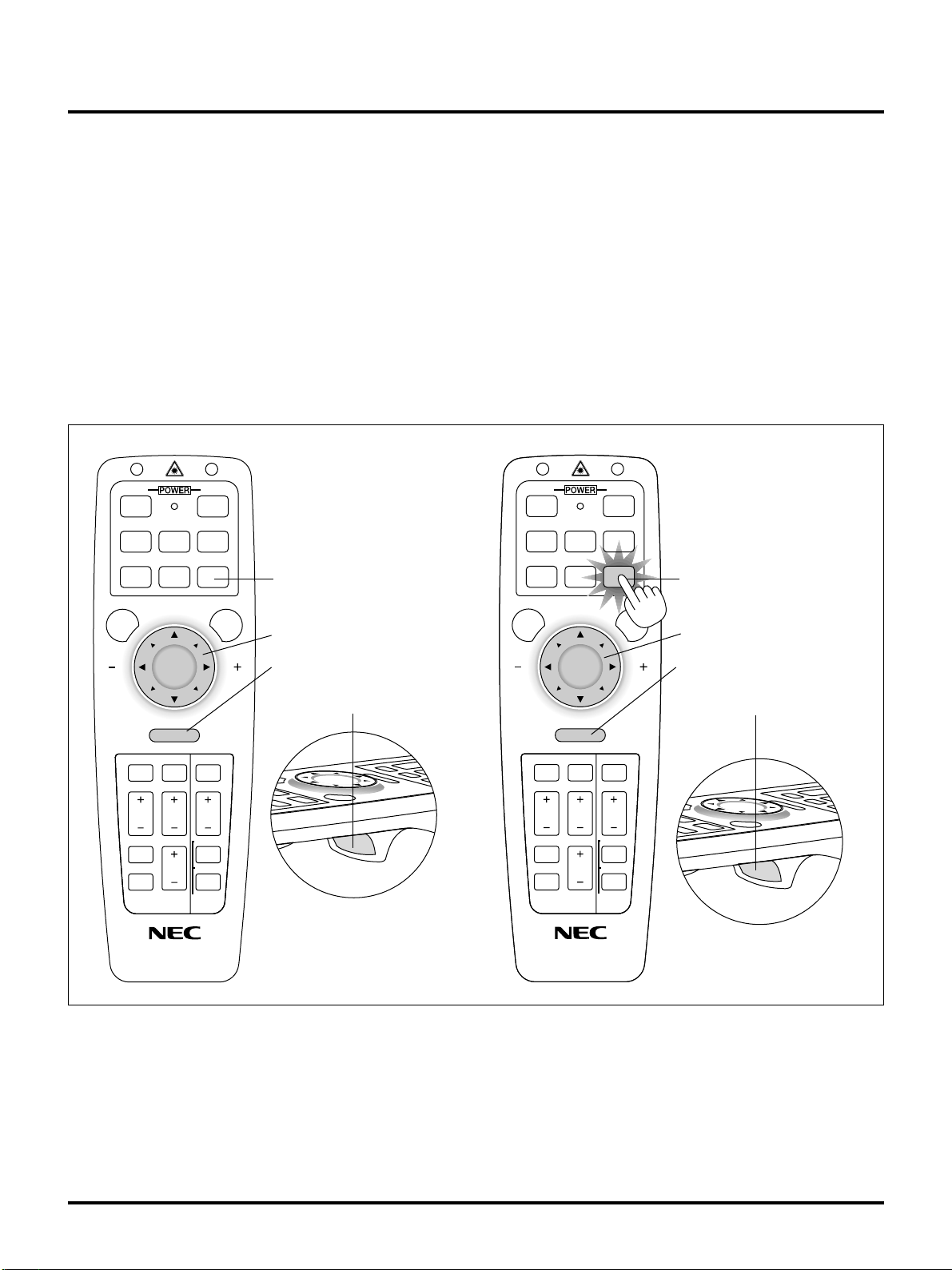

Switching Operation mode between mouse and projector
....................E-6
............E-8
............... E-14
..........E-18
2. INSTALLATION
Setting Up Your Projector...........................................E-19
Selecting a Location .................................................. E-19
Screen and Projection Distance ................................ E-19
Distance Chart...........................................................E-20
Reflecting the Image.................................................. E-20
Wiring Diagram..........................................................E-21
Connecting Y our PC .............................................. E-22
Connecting Your Macintosh Computer .................. E-23
Connecting Your DVD Player.................................E-24
Connecting Your VCR or Laser Disc Player ..........E-25
About Startup screen (Menu Language Select screen)
.....E-26
3. OPERATION

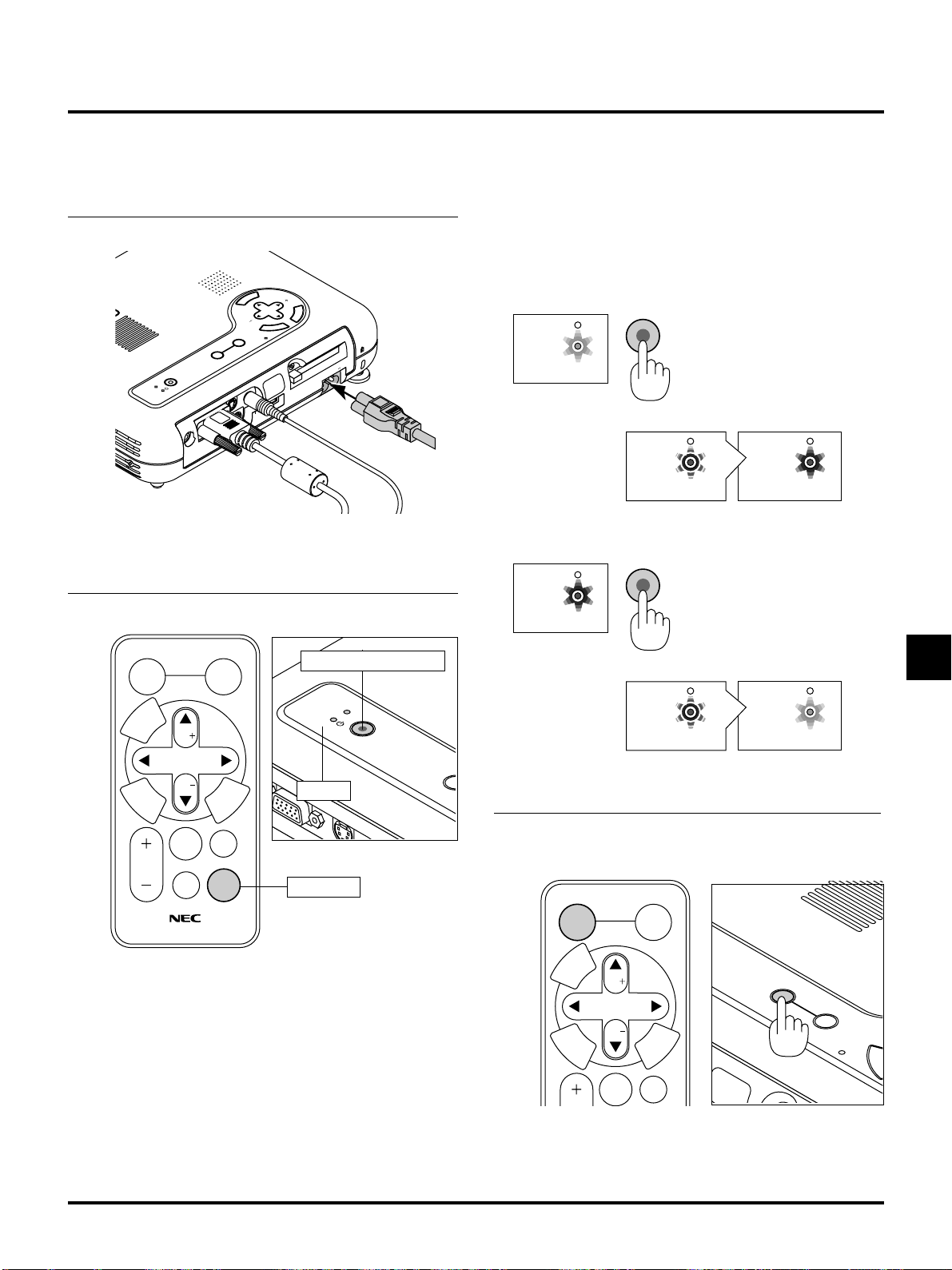

Connecting the Power Cable and Turn on the Projector
Basic Operation .........................................................E-30
Using the Menus........................................................ E-32
Menu Tree ..................................................................E-34
Menu Elements.......................................................... E-35
Menu Descriptions & Functions.................................E-36
Source Select ............................................................ E-36
RGB/Video/S-Video/PC Card Viewer
Picture ....................................................................... E-36
Brightness/Contrast/Color/Hue/Sharpness
Volume.......................................................................E-36
Image Options ........................................................... E-37
Keystone ............................................................... E-37
Color Temperature ................................................E-37
Gamma Correction................................................ E-37
Aspect Ratio.......................................................... E-37
Noise Reduction.................................................... E-38
Color Matrix........................................................... E-38
White Balance....................................................... E-38
Position/Clock .......................................................E-38
Resolution ............................................................. E-39
Factory Default...................................................... E-39
Projector Options....................................................... E-39
Menu ..................................................................... E-39
Menu Mode....................................................... E-40
Advanced Menu, Basic/Custom Menu .......... E-40
Language ......................................................... E-40
......... E-27
Projector Pointer...............................................E-40
Source Display .................................................E-40
Direct Button (Volume Bar and Keystone Bar) . E-40
Menu Display Time ........................................... E-40
Setup..................................................................... E-40
Orientation ........................................................ E-40
Background ......................................................E-40
Mouse...............................................................E-41
Button/Sensitivity........................................... E-41
PC Card Viewer Options................................... E-41
Capture Options ...............................................E-41
Signal Select..................................................... E-41
Auto Adjust (RGB only) ....................................E-41
Auto Start ......................................................... E-42
Power Management.......................................... E-42
Power Off Confirmation .................................... E-42
Keystone Save.................................................. E-42
White Segment ................................................. E-42
Clear Lamp Hour Meter .................................... E-42

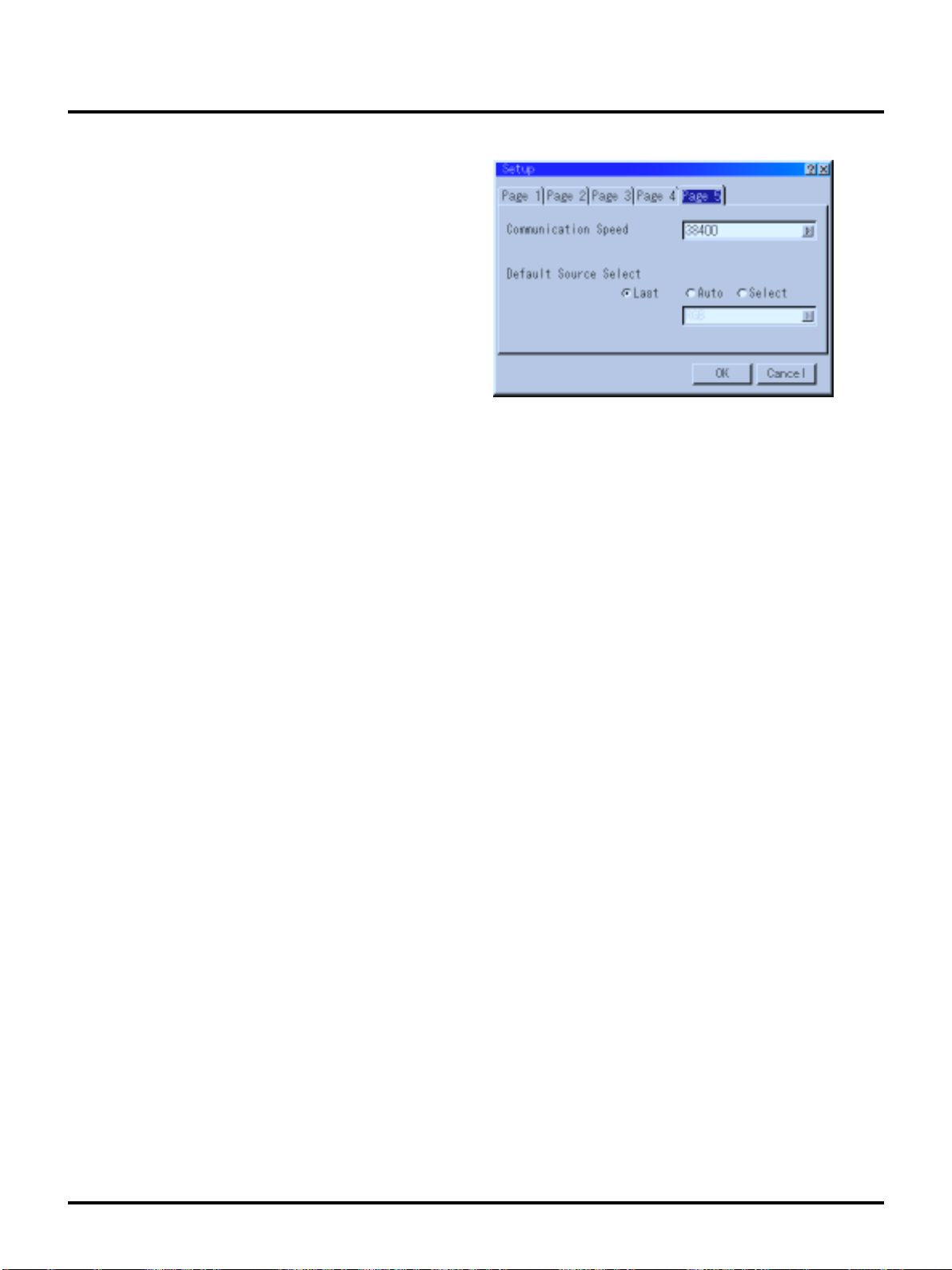

Communication Speed ..................................... E-42
Default Source Select.......................................E-42
Tools ..........................................................................E-43
Capture ................................................................. E-43
PC Card Files........................................................ E-43
Chalk Board ..........................................................E-44

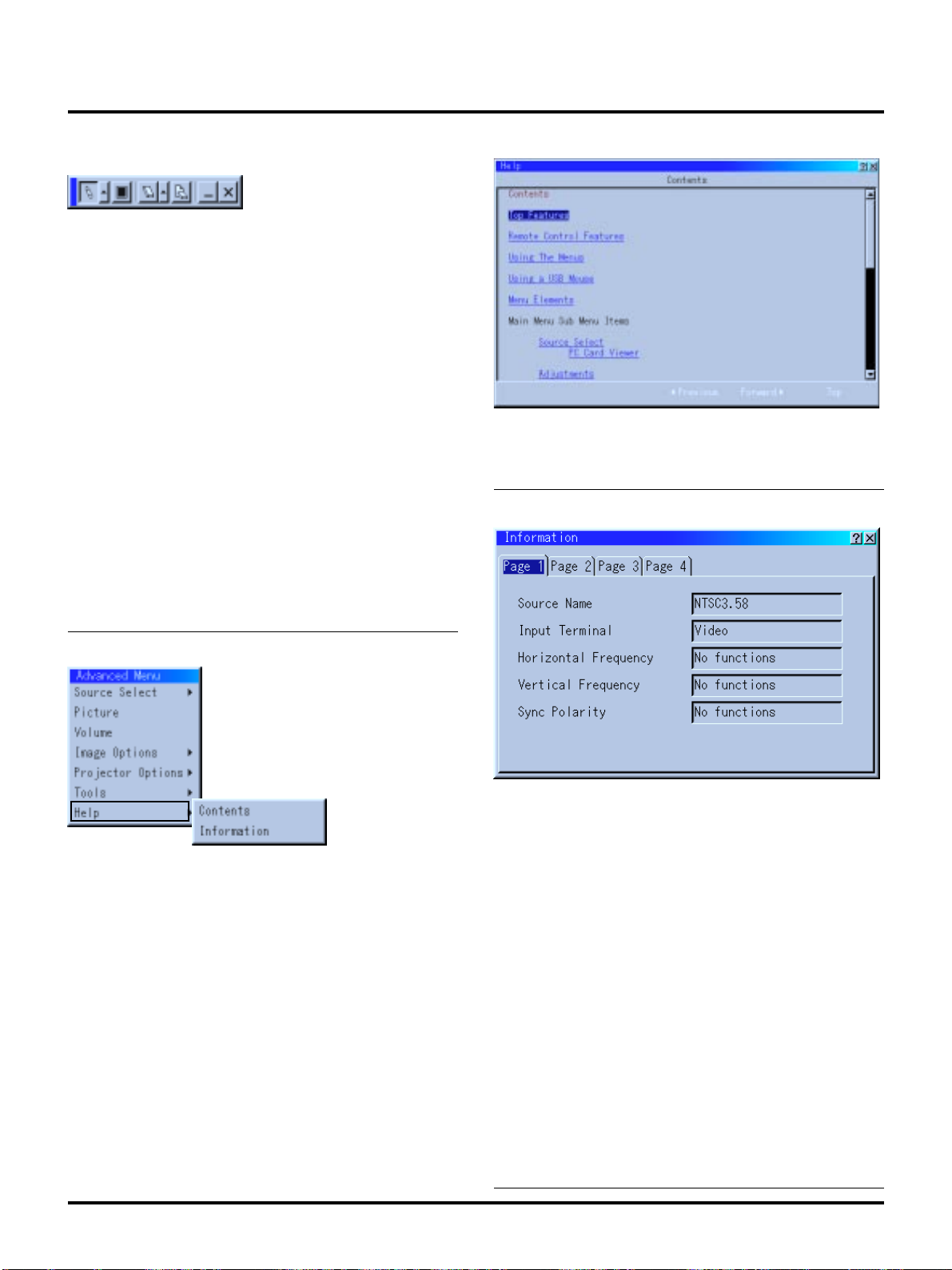

Help ........................................................................... E-44
Contents................................................................ E-44
Information ............................................................ E-44
Using the PC Card Viewer Function .......................... E-45
Features................................................................ E-45
Inserting and Ejecting a CompactFlash™ Card.... E-45
Installing the PC Card Viewer Software ................ E-46
Starting Up the PC Card Viewer Software on your PC
(PC Card Viewer Utility 1.0)
Operating the PC Card Viewer Function
from the Projector (playback)............................ E-47
Capturing Images Displayed on the Projector.......E-49
Viewing Digital Images.......................................... E-50
Uninstalling the PC Card Viewer Software............ E-50
Terminology........................................................... E-51
..................................E-46
4. MAINTENANCE
Replacing the Lamp................................................... E-52
5. TROUBLESHOO TING
Power / Status Light Messages .................................E-53
Common Problems & Solutions................................. E-53
6. SPECIFICATIONS
Optical/Electrical/Mechanical..................................... E-55
Cabinet Dimensions ..................................................E-56
D-Sub Pin Assignments............................................. E-57
Timing Chart ..............................................................E-58
PC Control Codes...................................................... E-59
Cable Connection ...................................................... E-59
CompactFlash is a trademark of San Disk Corporation.
E–5
1. INTRODUCTION
Introduction to the MultiSync LT150/LT85 Projector
This section introduces you to your new MultiSync LT150 (XGA)/
LT85 (SVGA) Projector and describes the features and controls.
Congratulations on Your Purchase of The MultiSync L T150/LT85
Projector
The MultiSync LT150/LT85 is one of the very best projectors available today. The MultiSync LT150/LT85 enables you to project precise images up to 200 inches across (measured diagonally) from your
PC or Macintosh computer (desktop or notebook), VCR, D VD player,
document camera, a laser disc player or PC Card Viewer.
You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen, and the projector can
be permanently mounted on a ceiling*1. The remote control can be
used wirelessly.
Features you’ll enjoy:
• Simple set up and operation.
• Hot air blown from the vents does not bother the audience during your presentation since the vents are located on the side.
• A high-performance DC130 watt lamp.
• The supplied card wireless remote control that operates the projector from the front and the rear.
• The image can be projected between 36 and 200 inches (measured diagonally).
• Keystone correction allows you to correct trapezoidal distortion
so that the image is square.
• Y ou can choose between video modes depending on your source:
"normal" for a typical picture, "natural" for true color reproduction.
• The built-in PC Card Viewer allows you to start your presentation even when a PC is not available at the site.
• The "Capture" enables you to capture the current projected image.
• An image can be projected from in front or behind a screen, and
the projector can even be installed on the ceiling.
• NEC Technologies’ exclusive Advanced AccuBlend intelligent
pixel blending technology - an extremely accurate image compression technology - offers a crisp image with UXGA (1600⳯
1200) resolution*3.
• Supports most IBM VGA, SV GA, XGA*2 , SXGA/UXGA(with
Advanced AccuBlend)*3, Macintosh, component signal (YCbCr
/ YPbPr) or any other RGB signals within a horizontal frequency
range of 15 to 100 kHz and a vertical frequency range of 50 to
117 Hz. This includes NTSC, PAL, PAL60, SECAM and
NTSC4.43 standard video signals.
NOTE:
Composite video standards are as follows:
NTSC: U.S. TV standard for video in U.S. and Canada.
PAL: TV standard used in Western Europe.
PAL60: TV standard used for NTSC playback on PAL TVs.
SECAM: TV standard used in France and Eastern Europe.
NTSC4.43: TV standard used in Middle East countries.
• The supplied card remote control can be used without a cable,
and you can even use the optional presentation remote control
and mouse adapter to operate your PC or Macintosh mouse
wirelessly from across the room with the built-in remote mouse
receiver.
• You can control the projector with a PC using the PC Control
port*4.
• USB terminal allows USB mouse operation *5.
• The contemporary cabinet design is light, compact, easy to carry,
and complements any office, boardroom or auditorium.
• Eight pointers are available for your presentation.
*1 Do not attempt to mount the projector on a ceiling yourself.
The projector must be installed by qualified technicians in order
to ensure proper operation and reduce the risk of bodily injury.
In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local
building codes. Please consult your dealer for more information.
*2 An XGA image (1024⳯768) is converted into an 800⳯600 crisp
image with NEC technology’s Advanced AccuBlend on LT85.
*3 A UXGA (1600⳯1200) and SXGA image (1280⳯1024) is con-
verted into a 1600⳯1200 and 1024⳯768 crisp image respectiv ery
with NEC technology’s Advanced AccuBlend on LT150.
*4 The PC Control Utility 1.0 is required. This program is included
on the supplied CD-ROM.
*5 The USB terminal meets the USB1.1 specification and accepts a
USB mouse only.
Getting Started
The fastest way to get started is to take your time and do everything
right the first time. Take a few minutes now to review the user’s
manual. This may save you time later on. At the beginning of each
section of the manual you’ll find an overview. If the section doesn’t
apply, you can skip it.
E–6
What's in the Box?
Make sure your box contains everything listed. If any pieces are missing, contact your dealer.
Please save the original box and packing materials if you ever need to ship your MultiSync LT150/LT85 Projector.
E
L
C
N
A
C
R
E
T
T
C
E
N
L
E
E
S
U
Lens cap
MAGNIFY
HELP
RD-366E
E
N
T
E
R
POINTER
POWER
MUTE
N
E
M
SOURCE
N
U
E
M
SELECT
V
o
l.
C
A
N
C
PIC.
A
U
T
A
O
D
V
E
J
o
.
l.
L
Card remote control
ADJUST
AUTO
PC CARD ACCESS
SOURCE
STAND BY
ON/
POWER
STATUS
Projector
String and rivet
Soft carrying case
Power cable
Quick
Connect
Guide
User's
Manual
RGB signal cable
CD-ROM
E–7
Getting to Know Your MultiSync LT150/LT85 Projector
Front/ Side Features
L
E
C
N
A
C
R
E
T
N
E
SELECT
U
Adjustable Tilt Foot
Focus Ring
N
E
M
AUTO
ADJUST
PC CARD ACCESS
SOURCE
STAND BY
ON/
Controls
POWER
STATUS
Ventilation (inlet)
Adjustable Tilt Foot Button
Lens
Remote Sensor
Lens Cap
Attaching the lens cap to the lens hood with the supplied string and rivet
1. Thread the string through the hole on the lens cap and then tie a knot in the string.
2. Use the rivet to attach the string to the bottom of the lens hood.
○○○○○○○○○○○○○○○○○○○○○○○○○
○○○○○○○○○○○○○○○○○○○○○○○○○
Attaching the lens cap
E–8
Rear/ Side Features
Monaural Speaker (0.5W)
A
U
D
IO
R
Remote Sensor
Terminals and PC card
AC Input
S
T
A
T
P
U
O
S
W
E
R
G
B
S
-V
ID
E
O
P
C
C
O
N
T
R
O
L
V
ID
E
Slot for Kensington
MicroSaver
Security System
O
N
S
/
T
A
N
D
B
Y
S
O
U
R
C
E
P
C
C
A
A
U
R
A
T
D
D
O
J
A
U
C
S
C
T
E
S
S
E
N
T
E
R
O
U
S
P
B
C
C
A
R
D
A
C
IN
M
E
N
U
S
E
L
E
C
T
C
A
N
C
E
L
Ventilation (inlet)
Ventilation (outlet)
Heated air is exhausted from here
Rear Foot
Spacer (black rubber)
Bottom
Rear Foot
Rotate to fine-adjust horizontally position
Lamp cover
Lamp cover screw
Rear Foot
(not adjustable)
NOTE: The projector has an internal temperature sensor. The sensor controls the speed of the fan to keep
constant temperature in the inside.
When the internal temperature rises, the built-in fan automatically runs at a high speed (high-speed mode).
During this time, the sound of exhaust may be heard.
This is not a malfunction. When the projector orientation is set to Rear Ceiling or Front Ceiling, the fan is
automatically fixed at the high-speed mode.
Spacer (black rubber)
To fine-adjust the height of the rear foot, remove
the spacer and rotate the rear foot to the desired
height.
Ventilation (inlet)
E–9
Top Features
STATUS
POWER
2
ON/
STAND BY
3
1
AUDIO
RGB
S-VIDEO
PC CONTROL
VIDEO
USB
1. Power Button (ON / STAND BY)
Use this button to turn the power on and off when the power is
supplied and the projector is in standby mode.
NOTE: To turn off the projector, press and hold this button for a minimum of
two seconds.
2. Status Indicator
When this is lit red continually, it's w arning you that the projection
lamp has exceeded 1000 hours of service. After this light appears,
it is advisable to replace the projection lamp as soon as possible.
(See page E-52). In addition the message "Lamp Running Time is
Over 1000 Hours!!" appears continually until the lamp is replaced.
If this light blinks red rapidly, it indicates that the lamp co ver is not
attached properly or the projector is overheated.
See the Power / Status Light Messages on page E-53 for more
details.
SOURCE
PC CARD
4
5
10
9
PC CARD ACCESS
AUTO
ADJUST
M
E
N
U
C
A
SELECT
N
C
E
L
E
N
T
E
R
6
7
8
5. Auto Adjust Button (RGB only)
Use this button to adjust Position-H/V and Pixel Clock/Phase for
an optimal picture. Some signals may not be displayed correctly or
take time to switch between sources.
6. PC Card Access Indicator
Lights while accessing a CompactFlash memory card.
7. Enter Button
Executes your menu selection and activates items selected from
the menu.
8. Cancel Button
Press this button to exit "Menus". Press this button to return the
adjustments to the last condition while you are in the adjustment
or setting menu.
3. Power Indicator ( )
When this indicator is green, the projector is on; when the indicator is orange, it is in standby mode.
4. Source Button
Use this button to select a video source such as a PC, VCR, DVD
player or PC Card Viewer (CompactFlash card).
Each time this button is pressed, the input source will change as
follows:
→ RGB → Video → S-Video → PC Card Viewer
If no input signal is present, the input will be skipped.
9. Select (▲▼䊴 䊳) / Volume (+) (–) Buttons
▲▼: Use these buttons to select the menu of the item you wish
to adjust.
When no menus appear, these buttons work as a volume
control.
䊴 䊳: Use these buttons to change the level of a selected menu
item.
A press of the 䊳 button executes the selection.
When the menus or the Viewer tool bar is not displayed,
these buttons can be used to select a slide, or to move the
cursor in Folder List or Slide List.
When the pointer is displayed, these ▲▼䊴 䊳 buttons move
the pointer.
10. Menu Button
Displays the menu.
E–10
Terminal Panel Features
US
PO
1
A
U
D
IO
R
WER
ON/
2
STAND BY
3
SOURCE
4
PC CARD ACCESS
G
B
S
-V
ID
E
O
P
C
C
O
N
T
R
O
L
V
ID
E
O
U
S
B
7
5
P
C
C
A
R
D
ADJUST
6
AUTO
M
E
N
U
C
A
SELECT
N
C
E
L
E
N
T
E
R
8
1. Audio Input Mini Jack (3.5 mm ∅)
This is where you connect audio output from your computer, VCR,
DVD player or laser disc player.
A commercially available audio cable is required.

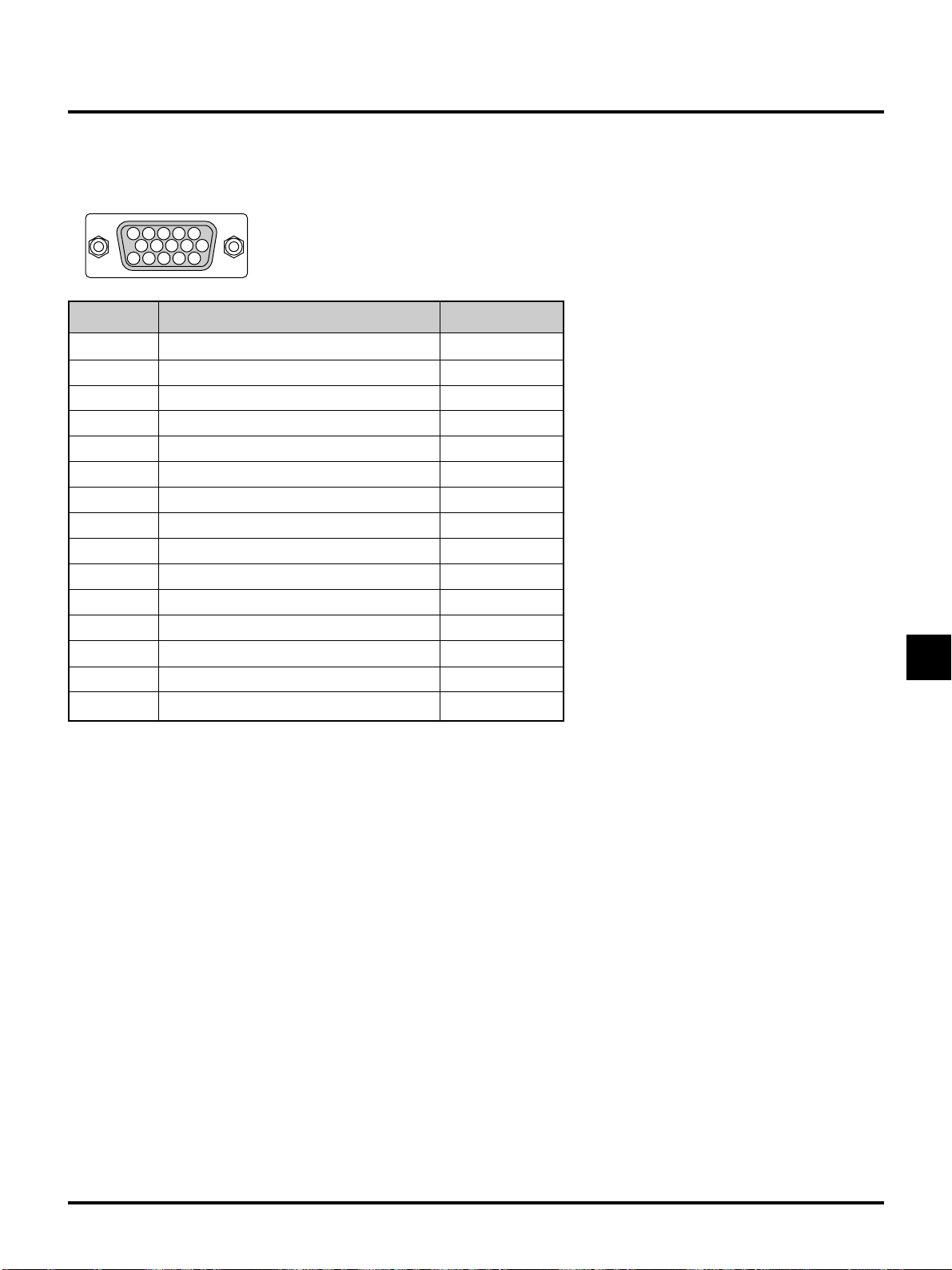

RGB Input/ Component Input Connector (Mini D-Sub 15 pin)
2.
Connect your PC or other RGB equipment such as IBM or compatible computers. Use the supplied RGB cable to connect to a PC.
Or connect a Macintosh computer here using the supplied RGB
cable. This also serves as a component input connector that allows
you to connect a component video output of component equipment such as a DVD player.
3. S-Video Input (Mini DIN 4 Pin)
Here is where you connect the S-Video input from an e xternal source
like a VCR.
NOTE: S-Video provides more vivid color and higher resolution than the
traditional composite video format.
4. Video Input (RCA)
Connect a VCR, D VD player, laser disc player, or document camera here to project video.
5. PC Card Eject Button
Press to eject a CompactFlash memory card.
AC IN
9
10
cluded in the supplied CD-ROM must be installed on your PC.
If you are writing your own program, typical PC control codes are
on page E-59.
A cap is put on the port at the factory . Remov e the cap when using
the port.
8. USB Terminal
Connect a commercially available mouse that supports USB. You
can operate the menu or PC Card Viewer with the USB mouse via
this terminal.
Note that this terminal is not used with a computer and that there
may be some brands of USB mouse that the projector does not
support.
9 AC Input
Connect the supplied power cable's three-pin plug here. When you
plug the other end into an active wall outlet, the PO WER indicator
turns orange and the projector is in standby mode.
6. PC Card Slot
Insert a CompactFlash memory card here.
7. PC Control Port (Mini DIN 8 Pin)
Use this port to connect your PC to control your projector via a
serial cable. This enables you to use your PC and serial communication protocol to control the projector. The NEC optional serial
cable is required to use this port. Also PC Control Utility 1.0 in-
10 Built-in Security Slot ( )
This security slot supports the MicroSaver® Security System.
MicroSaver® is a registered trademark of Kensington Microware
Inc.
The logo is trademarked and owned by Kensington Micro ware Inc.
E–11
Remote Control Features
2
3
4
5
6
1. Infrared Transmitter
Direct the remote control toward the remote sensor on the projector cabinet.
2. Auto Adjust Button (RGB only)
Press this to automatically adjust the vertical/horizontal position,
clock frequency/phase and resolution if the projected picture is not
centered, if there are vertical stripes on the picture or if the picture
is flickering.
3. Select (▲▼
▲▼: Use these buttons to select the menu of the item you wish
䊴 䊳: Use these buttons to change the level of a selected menu
4. Cancel Button
Press this button to exit "Menus". Press this button to return to the
previous menu without storing the current settings or adjustments
when you are in the submenu or adjustment screen.
5. Picture Mute Button
This button turns off an image and sound for a short period of time.
Press again to restore the image and sound.
NOTE: When the menu is displayed, a press of this button mutes an image
and sound without turning off the menu.
䊴 䊳) / Volume (+) (–) Buttons
to adjust.
When no menus appear, these buttons work as a volume
control.
item.
A press of the 䊳 button executes the selection.
When the menus or the Viewer tool bar is not displayed,
these buttons can be used to select a slide, or to move the
cursor in Folder List or Slide List.
When the pointer is displayed, these ▲▼䊴 䊳 buttons move
the pointer.
Supplied Remote Control
1
Vol.
Vol.
HELP
AUTO
ADJ.
E
C
N
A
C
PIC.
MUTE
POWER
L
12
11
10
9
SOURCE
U
N
E
M
E
N
T
E
R
MAGNIFY
SELECT
POINTER
8
RD-366E
7
9. Magnify Button (+) (–)
Use the (+) or (–) button to adjust the image size up to 400%.
When the pointer is displayed, the image is magnified about the
pointer as its center. When the pointer is not displayed, the image
is magnified about the screen center as its center.
When the image is magnified, the pointer is changed to the magnifying icon.
6. Power Button
If the power is applied and the projector is in standby mode, you
can use this button to turn your projector on and off.
NOTE: To turn off the projector, press and hold the POWER button for a
minimum of two seconds.
7. Help Button
Provides information about operation and adjustment procedures
or the set information for the current menu or adjustment during
menu operation.
8. Pointer Button
Press this button to display one of the eight pointers; press again to
hide the pointer. You can move your pointer icon to the area you
want on the screen using the Select button.
10. Enter Button
Press this button to execute the selected item. When this is pressed,
the adjustments and settings are saved, and the display is returned
to the menu.
11. Menu Button
Displays the menu for various settings and adjustments.
12. Source Button
Press this button to select a video source such as a PC, VCR, D VD
player or PC Card Viewer (CompactFlash card).
Each time this button is pressed, the input source will change as
follows:
→ RGB → Video → S-Video → PC Card Viewer
If no input signal is present, the input will be skipped.
E–12
Remote Control Battery Installation
M
n
O
2
-
L
i
C
E
L
L
3
V
O
L
T
S
J
A
P
A
N
H
C
R
2
0
2
5
30˚
7m
7m
30˚
30˚
30˚
Operating Range
NOTE: Remove the transparent insulation tape by pulling it before use.
Push the catch to the right and remove the battery holder.
1
Catch
Transparent insulation tape
Battery holder
For the first use:
2
1. Remove the transparent insulation tape.
2. Place the Lithium coin cell on the battery holder. Ensure
that the side with the mark “+” is up.
Transparent insulation tape
H
N
A
P
A
J
S
T
L
M
O
n
V
CR2025
O
3
2
-
L
L
i
L
C
E
The infrared signal operates by line-of-sight up to a distance of approximately 22 feet (7m) and within a 60-degree angle of the remote
sensor. The projector will not function if there are objects between
the remote control and the remote sensor on the projector or if strong
light falls on the remote sensor. A weak battery will also prevent the
projector from operating
This sample may be slightly different from actual range
Remote Control Precautions
• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• Do not place the battery upside down.
• Keep the coin cell battery out of reach of children so as not to
allow them to swallow the cell battery.
For battery change
Remove the old Lithium coin cell and install new one
(CR2025).
Ensure that the side with the mark “+” is up.
Push the battery holder back into the remote control until
3
you feel a click.
M
R
n
C
O
2
-
L
L
i
L
C
E
2025
CAUTION:
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended
by the manufacturer.
Dispose of used batteries according to your local regulations.
H
N
A
P
A
J
S
T
L
O
V
3
E–13
*
Optional Presentation Remote Control (PR50KIT)
The PR50KIT enables your NEC projector and presentation control
with the same remote.
NOTE: If you are using a Macintosh computer, you can click either the rightclick or left-click button to activate the mouse.
NOTE: If any one of the buttons is pressed and held for 60 seconds or more,
the button operations will cease to operate. This is not a malfunction, rather it
is a feature used to prolong battery power.
To cancel this feature, press any one of the buttons other than the Mouse
button.
1. Infrared Transmitter
Direct the remote control toward the remote sensor on the projector cabinet.
2. Laser Pointer
Beams a laser light when "Laser" button is pressed.
3. LED
Flashes when any button is pressed.
4. Power On Button
If the main power is applied, you can use this button to turn your
projector on.
1
5. Power Off Button
If the main power is applied, you can use this button to turn your
projector off.
NOTE: To turn off the projector, press and hold the POWER OFF button for
a minimum of two seconds.
6. Video Button
2
3
ONOFF
54
6
8
7
13*
14
VIDEO S-VIDEO
RGB 1
MENU LASER
AUTO ADJ.
RGB 2 P
J
10
11
9
12
Press this button to select an NTSC, PAL, SECAM or NTSC4.43
compatible video source from a VCR, D VD player, laser disc player
or document camera.
7. S-Video Button
Press this button to select an S-Video source from a VCR.
8. RGB 1 Button
Press this button to select a video source from computer or component equipment connected to your RGB port.
9. RGB 2 Button
Not available on this model.
10. Auto Adjust Button (RGB only)
Press this button to automatically adjust the vertical/horizontal position, clock frequency/phase and resolution if the projected picture is not centered, if there are vertical stripes on the picture or if
the picture is flickering.
R-CLICK/CANCEL
HELP
KEYSTONE
FREEZE
PIC-MUTE
POINTER
MAGNIFY
VOL.
PC CARD
SLIDE
FOLDER
SLIDE
LIST
11. PJ Button
Press this button to switch the Mouse, Cancel/Right Click, and
Enter/Left Click buttons between the Projector mode (lit red) and
the Computer mode. Press this button or any one of the Menu,
Help, Pointer, PC Card, Folder List or Slide List b uttons to switch
to the Projector mode and the PJ button lights red. To switch back
to the Computer mode, press the PJ button again.
12. Laser Button
Press and hold this button to activate the laser pointer. When lit,
you can use the laser to draw your audience's attention to a red dot
that you can place on any object.
13. Menu Button
Displays the menu for various settings and adjustments.
14. Mouse (▲▼䊴 䊳) / (+) (–) Button
When you are in the Computer mode, these buttons work as a computer mouse.
E–14
KEYSTONE
FREEZE
PIC-MUTE
HELP
POINTER
PC CARD
VIDEO S-VIDEO
AUTO ADJ.
RGB 1
MENU LASER
R-CLICK/CANCEL
RGB 2 P
J
ONOFF
MAGNIFY
VOL.
SLIDE
FOLDER
SLIDE
LIST
17*
18*
19
20
21
22
23
16
24*
25
26*
27*
When you are in the Projector mode, which is indicated by lighting
the PJ button:
▲▼: Use these buttons to select the menu of the item you wish to
adjust. When no menus appear, these buttons work as a volume control.
䊴 䊳: Use these buttons to change the level of a selected menu item.
A press of the 䊳 button executes the selection.
When the menus or the Viewer toolbar is not displayed, these buttons
can be used to select a slide, or to move the cursor in Folder List or
Slide List.
When the pointer is displayed, these ▲▼ 䊴 䊳 buttons move the pointer .
15. Enter / Left Click Button
When you are in the Computer mode, this button works as the
mouse left button.
When you are in the Projector mode, which is indicated by lighting the PJ button:
Use this button to enter your menu selection. It works the same
way as the "Enter" button on the cabinet or the card remote.
16. Cancel/ Right Click Button
When you are in the Computer mode, this button works as the
mouse right button.
When you are in the Projector mode, which is indicated by lighting the PJ button:
Press this button to exit "Menus". It works the same way as the
“Cancel” button on the cabinet or the card remote control.
15
17. Pointer Button
Press this button to display one of the eight pointers; press again to
hide the pointer. You can move your pointer icon to the area you
want on the screen using the Mouse button.
18. Help Button
Provides information about operation and adjustment procedures
or the set information for the current menu or adjustment during
menu operation.
19. Keystone (+) (–) Button
20. Magnify (+) (–) Button
21. Freeze Button
22. Picture Mute Button
23. Volume (+) (-) Button
Press the (+) or (–) button to correct the keystone (trapezoidal)
distortion, and make the image square.
Use this button to adjust the image size up to 400%.
When the pointer is displayed, the image is magnified about the
center of the pointer. When the pointer is not displayed, the image
is magnified about the center of the screen.
When the image is magnified, the pointer is changed to the magnifying icon.
This button will freeze a picture. Press again to resume motion.
This button turns off the image and sound for a short period of
time. Press again to restore the image and sound.
NOTE: When the menu is displayed, a press of this button mutes an image
and sound without turning off the menu.
Press (+) to increase the volume and (-) to decrease it.
24. PC Card Button
Press this button to select the PC Card Viewer source.
25. Slide (+) (-) Button
Press (+) to select the next folder or slide and (-) to select the previous folder or slide.
26. Folder List Button
Press this button to select PC Card Viewer source to display a list
of folders included in the CompactFlash memory card.
27. Slide List Button
Press this button to select PC Card Viewer source to display a list
of slides included in the CompactFlash memory card.
E–15
FR
EEZE
CAR
FY
P
IC
-
VOL.
M
U
TE
FOLDER
S
L
ID
E
L
IS
T
D
S
L
ID
E
28
28. Remote Jack
Not available on this model.
*NOTE: The default is the Computer mode, which allows you to use the Mouse,
R-Click/Cancel, and L-Click/Enter buttons as your computer mouse. When
the MENU, HELP, POINTER, SLIDE +/-, FOLDER LIST, or SLIDE LIST button is
pressed, the PJ button lights red to indicate that you are in the Projector mode.
If no buttons are pressed within 10 seconds, the light goes out and the Projector mode is canceled.
Operating Range for Optional Presentation Remote Control
When operating the projector:
7m
Remote Control Battery Installation
Press firmly and slide the battery cover off.
1
Remove both old batteries and install new ones (AA). Ensure
2
that you have the batteries' polarity (+/-) aligned correctly.
30˚
30˚
7m
30˚
30˚
Slip the cover back over the batteries until it snaps into place.
3
Do not mix different types of batteries or new and old batteries.
Remote Control Precautions
• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• If you will not be using the remote control for a long time, remove
the batteries.
• Do not place the batteries upside down.
• Do not look into the laser pointer while it is on.
• Do not point the laser beam at a person.
E–16
