Nec LT65 installation guide

Portable Projector

LT265/LT245

User’s Manual

Important Information

Safety Cautions

Precautions

Please read this manual carefully before using your NEC LT265/LT245 Projector and keep the manual handy for future
reference. Your serial number is located on the bottom of your projector. Record it here:

CAUTION

To turn off main power, be sure to remove the plug from power outlet.
The power outlet socket should be installed as near to the equipment as possible, and should be easily
accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED NEC SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical
shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this
unit has been provided.
The information should be read carefully to avoid problems.

WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
DO NOT USE THIS UNIT’S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS
CAN BE FULLY INSERTED.
DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. ALL SERVICING MUST
BE DONE BY QUALIFIED NEC SERVICE PERSONNEL.

DOC Compliance Notice (for Canada only)

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Acoustic Noise Information Ordinance-3. GSGV (for Germany only):

The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.

CAUTION

Do not look into the laser pointer while it is on and do not point the
laser beam at a person. Serious injury could result.

This label is underneath the remote control.

WARNING TO CALIFORNIA RESIDENTS:

Handling the cables supplied with this product, will expose you to lead, a chemical known to the State of California
to cause birth defects or other reproductive harm. Wash hands after handling.

Copyright © NEC Viewtechnology, Ltd. 2004

i

Important Information

RF Interference (for USA only)

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those
specified by NEC Solutions (America), Inc. in this manual. Failure to comply with this government regulation could
void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and can radi­ate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

For UK only: In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with
this equipment. If a power cable is not supplied with this equipment please contact your supplier.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them
carefully and heed all warnings.

Installation

1. For best results, use your projector in a darkened room.

2. Place the projector on a flat, level surface in a dry area away from dust and moisture.

3. Do not place your projector in direct sunlight, near heaters or heat radiating appliances.
Exposure to direct sunlight, smoke or steam can harm internal components.

4. To avoid premature lamp failure, do not tilt the front of the projector up or down by more than 7° from level.

5. Handle your projector carefully. Dropping or jarring can damage internal components.

6. Do not place heavy objects on top of the projector.

7. If you wish to have the projector installed on the ceiling:

a. Do not attempt to install the projector yourself.
b. The projector must be installed by qualified technicians in order to ensure proper operation and reduce the

risk of bodily injury.

c. In addition, the ceiling must be strong enough to support the projector and the installation must be in accor-

dance with any local building codes.

d. Please consult your dealer for more information.

ii

Important Information

Fire and Shock Precautions

1. Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside
your projector. Allow at least 4 inches (10 cm) of space between your projector and a wall.

2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector.
Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as

a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately
and have the object removed by a qualified NEC service personnel.

3. Do not place any liquids on top of your projector.

4. Do not look into the lens while the projector is on. Serious damage to your eyes could result.

5. Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the
lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can
cause unpredictable outcome such as fire or injury to the eyes.

6. Do not cover the lens with the supplied lens cap or equivalent while the projector is on. Doing so can lead to
melting of the cap and possibly burning your hands due to the heat emitted from the light output.

7. The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power
supply fits this requirement before attempting to use your projector.

8. Handle the power cable carefully and avoid excessive bending.
A damaged cord can cause electric shock or fire.

9. If the projector is not to be used for an extended period of time, disconnect the plug from the power outlet.

10. Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire.

11. Do not handle the power plug with wet hands.

12. When using a LAN cable:
For safety, do not connect to the connector for peripheral device wiring that might have excessive voltage.

CAUTION

• Do not try to touch the ventilation outlet on the front side as it can become heated while the projector is turned
on.

• Do not use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or
hanging on the wall can cause damage to the projector.

• Before putting the projector in the soft case, be sure to retract the feet. Failure to do so may cause the damage
to the projector.

• Do not send the projector in the soft case by parcel delivery service or cargo shipment. The projector inside
the soft case could be damaged.

• Select [High] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select
[Setup] → [Options] → [Fan Mode] → [High].)

• Do not unplug the power cable from the wall outlet under any one of the following circumstances.
Doing so can cause damage to the projector:

* While the projector's lamp lights.
* While the cooling fans are running. (The cooling fans continue to work for 90 seconds after the projector is

turned off).

* While the PC CARD Access Indicator lights. Doing so can damage your PC memory card.

iii

Important Information

Lamp Replacement

•To replace the lamp, follow all instructions provided on page 119.

• Be sure to replace the lamp when the message “The lamp has reached the end of its usable life. Please
replace the lamp.” appears. If you continue to use the lamp after the lamp has reached the end of its usable
life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the
pieces of glass may cause injury.

If this happens, contact your NEC dealer for lamp replacement.

• Allow a minimum of 90 seconds to elapse after turning off the projector. Then turn off the main power switch,
disconnect the power cable and allow 60 minutes to cool the projector before replacing the lamp.

iv

Table of Contents

Important Information ......................................................................... i

1. Introduction ......................................................................................1

 What's in the Box? ........................................................................................................ 2

 Introduction to the Projector ......................................................................................... 3

 Part Names of the Projector ......................................................................................... 5

Carrying the Projector ............................................................................................. 5

Top Features ........................................................................................................... 7

Te r minal Panel Features ......................................................................................... 8

 Part Names of the Remote Control ............................................................................ 10

2. Installation and Connections .................................................... 13

 Setting Up the Screen and the Projector .................................................................... 14

Selecting a Location.............................................................................................. 14

Throw Distance and Screen Size.......................................................................... 15

 Making Connections ................................................................................................... 17

Enabling the computer’s external display.............................................................. 17

Connecting Your PC or Macintosh Computer ........................................................ 17

To connect SCART output (RGB) ......................................................................... 18

Connecting an External Monitor ........................................................................... 19

Connecting Your DVD Player with Component Output .......................................... 20

Connecting Your VCR or Laser Disc Player .......................................................... 21

Connecting to a Network....................................................................................... 22

Inserting and Removing a PC Card ...................................................................... 24

Connecting the Supplied Power Cable ................................................................. 26

3. Projecting an Image (Basic Operation) ................................. 27

 Tur ning on the Projector ............................................................................................. 28

 Selecting a Source ..................................................................................................... 30

 Adjusting the Picture Size and Position ...................................................................... 31

 Correcting Keystone Distortion ................................................................................... 33

 Optimizing an RGB Image Automatically ................................................................... 35

 Tur ning Up or Down Volume ....................................................................................... 35

 Using the Laser Pointer .............................................................................................. 36

쐊 Tur ning off the Projector ............................................................................................. 37

쐎 After Use..................................................................................................................... 37

4. Convenient Features.................................................................... 38

 Tur ning Off the Image and Sound............................................................................... 39

 Freezing a Picture....................................................................................................... 39

 Using the Pointer ........................................................................................................ 39

 Enlarging and Moving a Picture.................................................................................. 40

 Getting Integrated Help .............................................................................................. 40

 Using a USB Mouse ................................................................................................... 41

 Using Remote Mouse Receiver .................................................................................. 42

v

Table of Contents

 Correcting Horizontal and Vertical Keystone Distortion (Cornerstone) ....................... 43

쐎 Making Freehand Drawings on a Projected Image (ChalkBoard) .............................. 46

쐅

Storing Images Displayed on the Projector on the PC card or USB Memory (Capture)

쐈 Preventing Unauthorized Use of the Projector ........................................................... 48

쐉 Using a USB Memory Device or USB Memory Card Reader ..................................... 53

씈 Operation Using an HTTP Browser ............................................................................ 54

씉 Using the Projector to Operate a Computer Connected on a Network

(Desktop Control Utility 1.0) .................................................................................. 57

.......... 47

5. Using the Viewer ........................................................................... 62

 Making the Most out of the Viewer Function............................................................... 63

 Operating the Viewer Function from the Projector (playback) .................................... 64

쐋 Changing Background Logo ....................................................................................... 70

6. Using On-Screen Menu ................................................................ 71

 Using the Menus......................................................................................................... 72

 Menu tree ................................................................................................................... 73

 Menu Elements........................................................................................................... 75

 Menu Descriptions & Functions [Source] ................................................................... 76

쐄 Menu Descriptions & Functions [Adjust] ..................................................................... 79

쐂 Menu Descriptions & Functions [Setup] ..................................................................... 90

쐆 Menu Descriptions & Functions [Information] ........................................................... 112

쐊 Menu Descriptions & Functions [Reset] ................................................................... 116

7. Maintenance ................................................................................. 117

 Cleaning the Cabinet ................................................................................................ 118

쐇 Cleaning the Lens..................................................................................................... 118

쐋 Replacing the Lamp.................................................................................................. 119

8. Appendix ........................................................................................ 122

 Troubleshooting ........................................................................................................ 123

 Specifications ........................................................................................................... 126

 Cabinet Dimensions ................................................................................................. 128

 Pin Assignments of D-Sub COMPUTER 1/2 Input Connector ................................. 129

 Compatible Input Signal List ..................................................................................... 130

 PC Control Codes and Cable Connection ................................................................ 131

 Using Software Keyboard ......................................................................................... 132

 Troubleshooting Check List ....................................................................................... 133

쐎 TravelCare Guide ...................................................................................................... 135

vi

1

Introduction

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

 What's in the Box? ....................................................... 2

 Introduction to the Projector ........................................ 3

 Part Names of the Projector ........................................ 5

Carrying the Projector ............................................................................................ 5

Top Features ........................................................................................................... 7

Te r minal Panel Features ......................................................................................... 8

 Part Names of the Remote Control ........................... 10

Battery Installation ................................................................................................ 12

Operating Range for Wireless Remote Control .................................................... 12

Remote Control Precautions ................................................................................ 12

1

 What's in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer.
Please save the original box and packing materials if you ever need to ship your Projector.

1. Introduction

Lens cap
(24FT9351)

Important

Information

Remote control
(7N900491)

Power cable
(7N080204) US
(7N080003) EU

Quick

Connect

Guide

Projector

Soft case
(24BS7114)

Batteries (AAA ⳯ 2) Remote mouse receiver

(7N900561)

RGB/VGA signal cable
(7N520032)

Software Utility

Installation Guide

For North America only

Registration card
Limited warranty

For Europe only

Guarantee policy

NEC

CD-ROM
User’s manual and User Supportware 2

• Security sticker

2

1. Introduction

 Introduction to the Projector

This section introduces you to the LT265/LT245 Projector and describes key features and controls.

Congratulations on Your Purchase of the LT265/LT245 Projector

The LT265/LT245 is a sophisticated XGA projector that produces an enhanced display. With the LT265/LT245 you will
be able to project images up to 500” (measured diagonally). Enjoy crisp and sharp large screen display from your PC,
workstation or Macintosh computer, DVD player, VCR, satellite hookup, HDTV source, ) and images from your digital
camera PC Card, compact flash memory or USB storage device. The LT265/LT245 provides for enhanced security
options to help deter projector theft and provides for full projector control through the PC control port (mini DIN 8Pin)
and LAN support. With input and output flexibility, long lamp life and a full function remote, the LT265/LT245 lets you
enjoy larger than life viewing from a compact and easy to setup and use projector.

Features you’ll enjoy on the LT265/LT245:

•Automatic vertical keystone correction for fast and easy application setup.

• 3D Reform™ enhanced image technology for increased projector placement versatility that provides for
horizontal, vertical and diagonal keystone correction.

• Built-in Wall Color Correction presets provide for adaptive color correction when projecting onto non-white
screen material (or a wall).

• USB memory or PC card interfaces provide for computer-free presentations.

• Enhanced smart security settings for password protection, cabinet control panel lock, menu lock and PC card
protection key to help prevent unauthorized access, adjustments and theft deterrence.

• High resolution display - up to UXGA compatible, XGA native resolution.

•Variable audio out control of external amplified speakers via the projector remote.

• Extensive user adjustable picture and color management settings.

• Display 16:9 or 4:3 aspect ratio sources and fill the screen.

• HDTV (1080i, 720p) and SDTV (480p/576p, 480i/576i) compatibility.

• Digital photo viewer to display larger than life images from your digital cameras PC card, compact flash card or
USB storage device.

• Integrated RJ-45 connector for wired networking capability.

• Wireless networking capable.
Present from anywhere in the room when using as a wireless LAN projector, no physical signal cable connec-

tion to a PC is required.
* The NEC optional wireless LAN card is required (NWL-100* See page 99.).

• Supplied User Supportware 2 CD-ROM containing five software utilities allowing you to make the most of your
NEC projector.

• The supplied wireless remote control and remote mouse receiver allows you to operate your PC mouse wireless
from across the room. The remote mouse receiver supports most PCs with USB interface.

• Easy set up, use and operation.

• Eco-mode lamp technology for increased lamp life, reduced energy consumption and overall total cost of
ownership savings.

• Built-in laser pointer on the supplied remote control allows you to draw your audience's attention in a presenta­tion.

3

1. Introduction

•Free downloadable Software Geometric Correction Tool 2.0.
Corrects the geometry of an image projected onto a cylindrical, spherical or corner screen via serial connection.
For additional information visit:
US : http://www.necvisualsystems.com
Europe : http://www.neceurope.com/
Global : http://www.nec-pj.com/

About this user's manual

The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to
review the user's manual. This may save you time later on. At the beginning of each section of the manual you'll find an
overview. If the section doesn't apply, you can skip it.

• IBM is a trademark or registered trademark of International Business Machines Corporation.

• Mac, Macintosh and PowerBook are trademarks of Apple Computer, Inc., registered in the U.S. and other
countries.

• Windows, Windows 98, Windows Me, Windows XP or Windows 2000 are trademarks or registered trademarks
of Microsoft Corporation.

• Digital Light Processing, DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments.

• Ulead is a trademark and/or registered trademark of Ulead Systems, Inc.

• Other product and company names mentioned in this user’s manual may be the trademarks or registered
trademarks of their respective holders.

4

 Part Names of the Projector

1. Introduction

Zoom Lever

(See page 32)

Focus Ring

(See page 32)

Remote Sensor

(See page 12)

Ventilation (outlet)

Heated air is exhausted

from here.

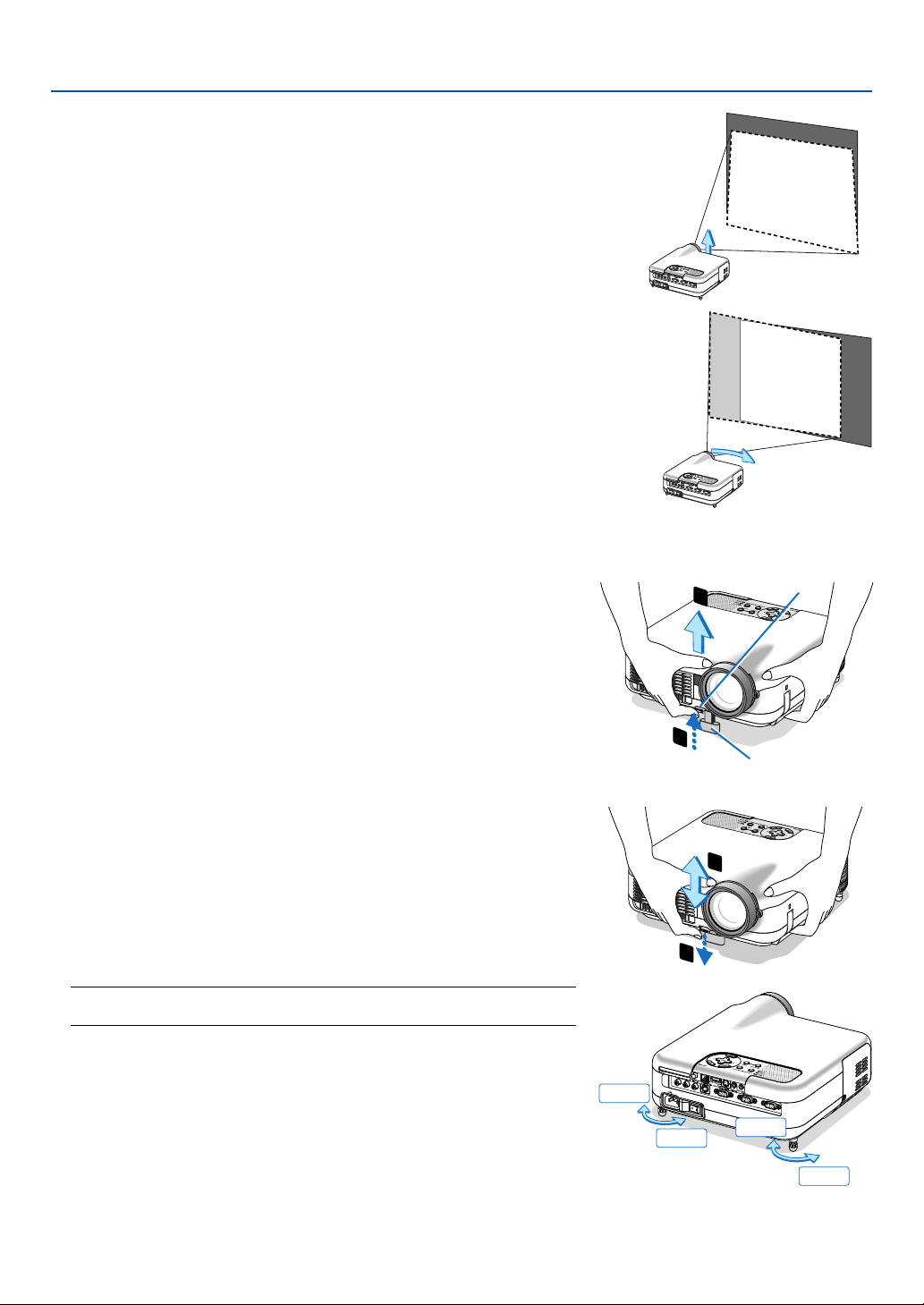

Adjustable Tilt Foot Lever

(See page 31)

Adjustable Tilt Foot

(See page 31)

Controls
(See page 7)

Built-in Security Slot ( )*

Ventilation (inlet)

Carrying Handle

Lens

Lens Cap

* This security slot supports the MicroSaver® Security System. MicroSaver® is a registered trademark of

Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.

Carrying the Projector

Always carry your projector by the handle.
Ensure that the power cable and any other cables connecting to video sources are disconnected before moving the
projector.
When moving the projector or when it is not in use, cover the lens with the lens cap.

5

1. Introduction

PC Card Eject Button

PC Card Slot

Remote Sensor

(See page 12)

Rear Foot

AC Input
Connect the supplied power cable's
three-pin plug here, and plug the other
end into an active wall outlet.
(See page 26)

Monaural Speaker (2W)

Lamp cover
(See page 119)

Ventilation (outlet)

Lamp cover screw

Rear Foot
Rotate to make the projector level.
(See page 31)

Main Power Switch
When you plug the supplied power cable into an active wall
outlet and turn on the Main Power switch, the POWER
indicator turns orange and the projector is in standby mode.
(See page 28)

6

Top Features

PC CARD

SOURCE

AUTO ADJUST

3D REFORM

LAMP

STATUS

POWERON/STAND BY

E

N

T

E

R

E

X

I

T

M

E

N

U

SELECT

2

11

3

6

8

4

109

5

12 1

7

1. Introduction

1. POWER Button (ON / STAND BY)

Use this button to turn the power on and off when the
main power is supplied and the projector is in standby
mode.

NOTE: To turn on the projector, press and hold this button
for a minimum of two seconds. To turn off the projector,
press this button twice.

2. STATUS Indicator

If this light blinks red rapidly, it indicates that an error
has occurred, the lamp cover is not attached properly
or the projector has overheated. If this light remains
orange, it indicates that you have pressed a cabinet
key while the Cabinet Button Lock is enabled. See the
Status Indicator section on page 123 for more details.

3. POWER Indicator (

)

When this indicator is green, the projector is on; when
this indicator is orange, it is in standby mode. See the
Power Indicator section on page 123 for more details.

4. SOURCE Button

Use this button to select a video source such as a PC,
VCR, DVD player or Viewer (PC card).
Press and release this button quickly to display the
Source List.

6. PC CARD Access Indicator

Lights while accessing a PC card.

7. ENTER Button

Executes your menu selection and activates items
selected from the menu.

8. EXIT Button

Pressing this button will return to the previous menu
with saving changes.
While you are in the main menu, pressing this button
will close the menu.

9. SELECT 왖왔왗왘 (+) (–) / Volume Buttons

왖왔 : Use these buttons to select the menu of the

item you wish to adjust.

왗왘 : Use these buttons to change the level of a

selected menu item. When no menus appear,
these buttons work as a volume control.

When the pointer is displayed, these 왖왔왗왘 buttons
move the pointer.

10. MENU Button

Displays the menu.

Each time this button is pressed for a minimum of ONE
second, the input source will change as follows:

Computer1 → Computer2 → Video → S-Video →
Viewer → Computer1 → ...

If no input signal is present, the input will be skipped.

5. AUTO ADJUST Button

Use this button to adjust an RGB source for an opti­mal picture (See page 35).

11. LAMP Indicator

If this light blinks red rapidly, it's warning you that the
projection lamp has exceeded 2000 hours (up to 4000
hours in Eco mode) of service. After this light appears,
replace the lamp as soon as possible. (See page 119).
If this is lit green continually, it indicates that the lamp
mode is set to Eco. See the Lamp Indicator section
on page 123 for more details.

12. 3D REFORM Button

Press this button to enter 3D Reform mode to correct
the keystone (trapezoidal) distortion, and make the
image square.

7

Te r minal Panel Features

13

PC CARD

R AUDIO IN L VIDEO IN

12

11 10

S-VIDEO IN

PC CONTROL

9

3 5

AUDIO OUT

USBLAN

COMPUTER 1 IN COMPUTER 2 IN

MONITOR OUTAUDIO IN

78 6 1 2 4

1. Introduction

1. COMPUTER 1 IN / Component Input Connector
(Mini D-Sub 15 Pin)

Connect your computer or other analog RGB equip­ment such as IBM compatible or Macintosh comput­ers. Use the supplied RGB/VGA signal cable to con­nect to your computer. This also serves as a compo­nent input connector that allows you to connect a com­ponent video output of component equipment such
as a DVD player. This connector also supports SCART
output signal. See page 18 for more details.

2. COMPUTER 2 IN / Component Input Connector
(Mini D-Sub 15 Pin)

This connector has the same function as the COM­PUTER 1 IN connector.

NOTE: The COMPUTER 2 IN does not support SCART
output signal and Plug & Play.

3. COMPUTER AUDIO IN Mini Jack (Stereo Mini)

This is where you connect audio output from your com­puter or DVD player. A commercially available audio
cable is required.

4. MONITOR OUT Connector (Mini D-Sub 15 Pin)

You can use this connector to loop your computer
image to an external monitor from the COMPUTER 1
or 2 input source.
The RGB analog signal set on “OUT Terminal” is out­put during Standby mode. See pages 19 and 109.

5. AUDIO OUT Mini Jack (Stereo Mini)

Connect an additional audio equipment here to listen
to audio coming from your computer, Video or S- Video
input.

• Output sound level can be adjusted in accordance

with the sound level of the internal speaker.

• When audio equipment is connected, the projec-

tor speaker is disabled.

• This jack cannot be used as a headphone jack.

6. S-VIDEO IN Connector (Mini DIN 4 Pin)

Here is where you connect the S-Video input from an
external source like a VCR.

NOTE: S-Video provides more vivid color and higher
resolution than the traditional composite video format.

7. VIDEO IN Connector (RCA)

Connect a VCR, DVD player, laser disc player, or docu­ment camera here to project video.

8. VIDEO AUDIO IN Jacks (RCA)

L: This is your left channel audio input for stereo

sound coming from the VIDEO source.

R: This is your right channel audio input for stereo

sound from the VIDEO source.

9. PC CONTROL Port (Mini DIN 8 Pin)

Use this port to connect your PC or control system to
control your projector via a serial cable. This enables
you to control the projector using serial communica­tion protocol. The NEC optional serial cable (CA03D)
is required to use this port. You can also control the
projector by using PC Control Utility 3.0 contained on
the supplied User Supportware 2 CD-ROM.
To do so you must first have PC Control Utility 3.0
installed on your PC. If you are writing your own pro­gram, typical PC control codes are on page 131.

10. USB Port (Type A)

Connect a commercially available USB memory de­vice or mouse that supports USB. You can operate
the menu or Viewer with the USB mouse via this port.
Note that this port should not be connected to a com­puter and that there may be some brands of USB
mouse that the projector does not support.

11. LAN Port (RJ-45)

This port is typically used for UTP Ethernet/Fast
Ethernet. Use this connector to control the projector
on a LAN. See page 22.

8

Te r minal Panel Features

12

11 10

S-VIDEO IN

PC CARD

13

R AUDIO IN L VIDEO IN

78 6 1 2 4

12. PC CARD Eject Button

Press to eject a PC card partially.

13. PC CARD Slot

Insert a PC memory card or NEC optional wireless
LAN card here.

9

3 5

USBLAN

COMPUTER 1 IN COMPUTER 2 IN

PC CONTROL

1. Introduction

AUDIO OUT

MONITOR OUTAUDIO IN

9

쐏 Part Names of the Remote Control

1. Introduction

9

11

13
15

16
18

21

22
24

23

1
2
4

OFF

MAGNIFY

5

POWER

LASER

POINTER

ON

PAGE

UP

DOWN

3

6

8
7

10

12

VIDEO

S-VIDEO

PIC-MUTE

VOLUME

FREEZE

COMPUTER

1

2

AUTO ADJ.

HELP

ASPECT

LAN

VIEWER

SLIDE


3D REFORM

17

20

26

27

19

28

1. Infrared Transmitter/Laser Pointer

Tr ansmits an infrared signal when any button other
than LASER is pressed.
Direct the remote control toward the remote sensor
on the projector cabinet.
Beams a laser light when the Laser button is pressed.

CAUTION:

* Do not look into the laser pointer while it is on.
* Do not point the laser beam at a person.

2. LED

Flashes when any button is pressed.

3. POWER ON Button

When the main power is on, you can use this button
to turn your projector on.

NOTE: To turn on the projector, press and hold the
POWER ON button for a minimum of two seconds.

4. POWER OFF Button

You can use this button to turn your projector off.
NOTE: To turn off the projector, press the POWER
OFF button twice.

29

5. MAGNIFY (+)(–) Buttons

25

Use these buttons to adjust the image size.
The image can be magnified about the center of the
screen up to 400%. See page 40.

14

6. LASER Button

Press and hold this button to activate the laser pointer.
When lit, you can use the laser to draw your audience's
attention to a red dot that you can place on any ob­ject.

7. POINTER Button

Press this button to display the projector pointer. You
can move your pointer icon to the area you want on
the screen using the Select button. See page 39.

8. PAGE UP/DOWN Buttons

Use these buttons to operate your computer with the
supplied remote mouse receiver. You can use these
buttons to scroll the viewing area of the window or to
move to the previous or next slide in PowerPoint on
your computer.

9. MENU Button

Displays the menu for various settings and adjust­ments.

10

1. Introduction

10. Select Button

This button is used for projector’s menu operation and
moving the magnified image.
This button also works as a computer mouse when
the supplied remote mouse receiver is connected with
your computer. See page 42.

11. ENTER Button

Executes your menu selection and activates items
selected from the menu.

12. EXIT Button

Returns to the previous menu.
While you are in the main menu, pressing this button
will close the menu.

13. R-CLICK Button

Works as the mouse right button when the supplied
remote mouse receiver is connected with your com­puter.

14. L-CLICK Button

Works as the mouse left button when the supplied
remote mouse receiver is connected with your com­puter.

15. VIDEO Button

Press this button to select a video source from a VCR,
DVD player, laser disc player or document camera.

23. FREEZE Button

This button will freeze a picture. Press again to re­sume motion. See page 39.

24. HELP Button

Provides the Information screen. See page 40.

25. ASPECT Button

Press this button to display the Aspect Ratio select
menu. See page 81.

26. VIEWER Button

Press this button to select the Viewer source. See page

64.

27. SLIDE +/- Buttons

Press (+) to select the next folder or slide and press
(–) to select the previous folder or slide.

28. PICTURE Button

Press to display the picture adjustment screen. Press­ing this button sequentially selects "Brightness" →
"Contrast" → "Color" → "Hue" → "Sharpness" → "Wall
Color". See pages 79 and 80.

29. 3D REFORM Button

Press this button to enter 3D Reform to correct the
keystone (trapezoidal) distortion, and make the im­age square. See pages 33 and 43.

16. S-VIDEO Button

Press this button to select an S-Video source from a
VCR.

17. COMPUTER 1 Button

Press this button to select COMPUTER 1 input.

18. COMPUTER 2 Button

Press this button to select COMPUTER 2 input.

19. AUTO ADJ. Button

Use this button to adjust an RGB source (COMPUTER
1 or 2) for an optimal picture. See page 35.

20. LAN Button

Press this button to select the LAN (Local Area Net­work) connection.

21. PIC-MUTE Button

This button turns off the image and sound for a short
period of time. Press again to restore the image and
sound. See page 39.

22. VOLUME +/– Buttons

Press (+) to increase the volume and (–) to decrease
it. See page 35.

11

Battery Installation

1. Introduction

1

Remove the battery cover.

NOTE: Do not pull the battery
cover by force. Doing so can
result in it coming off.

2

1

2

Remove both old batteries and
install new ones (AAA). Ensure
that you have the batteries' po­larity (+/ –) aligned correctly.

Operating Range for Wireless Remote Control

7m/22 feet

30°

30°

7m/22 feet

30°

30°

3

Slip the cover back over the bat­teries until it snaps into place.

NOTE: Do not mix different types of
batteries or new and old batteries.

2

1

Remote control

Remote sensor on projector cabinet

• The infrared signal operates by line-of-sight up to a distance of about 22 feet/7 m and within a 60-degree angle of
the remote sensor on the projector cabinet.

• The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls
on the sensor.
Weak batteries will also prevent the remote control from properly operating the projector.

Remote Control Precautions

• Handle the remote control carefully.

• If the remote control gets wet, wipe it dry immediately.

•Avoid excessive heat and humidity.

• If you will not be using the remote control for a long time, remove the batteries.

• Do not place the batteries upside down.

• Do not use new and old batteries together, or use different types of batteries together.

• Dispose of used batteries according to your local regulations.

12

2

Installation and Connections

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

 Setting Up the Screen and the Projector ................... 14

Selecting a Location ............................................................................................. 14

Throw Distance and Screen Size ......................................................................... 15

 Making Connections .................................................. 17

Enabling the computer’s external display ............................................................. 17

Connecting Your PC or Macintosh Computer ....................................................... 17

To connect SCART output (RGB)......................................................................... 18

Connecting an External Monitor ........................................................................... 19

Connecting Your DVD Player with Component Output ......................................... 20

Connecting Your VCR or Laser Disc Player .......................................................... 21

Connecting to a Network ...................................................................................... 22

Inserting and Removing a PC Card ...................................................................... 24

Connecting the Supplied Power Cable ................................................................. 26

13

2. Installation and Connections

This section describes how to set up your projector and how to connect PCs, video and audio sources.

1

But before you get started, you must first:

z Set up a screen and the projector.

x Connect your computer or video equip-

ment to the projector. See pages 17 -

25.

c Connect the supplied power cable. See

Your projector is simple to set up and use.

2

3

page 26.

NOTE: Ensure that the power cable and any
other cables are disconnected before moving
the projector. When moving the projector or
when it is not in use, cover the lens with the

To the wall outlet.

lens cap.

 Setting Up the Screen and the Projector

Selecting a Location

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is
approximately 30 inches (0.8 m) measured diagonally when the projector is roughly 51.2 inches (1.3 m) from the wall
or screen. The largest the image can be is 500 inches (12.7 m) when the projector is about 970 inches (24.6 m) from
the wall or screen. Use the drawing below as a guide.

609.6 (W) ⳯ 457.2 (H) / 240 (W) ⳯ 180 (H)

Screen size (Unit: cm/inch)

300"

Screen size

487.7 (W) ⳯ 365.8 (H) / 192 (W) ⳯ 144 (H)

240"

406.4 (W) ⳯ 304.8 (H) / 160 (W) ⳯ 120 (H)

365.8 (W) ⳯ 274.3 (H) / 144 (W) ⳯ 108 (H)

304.8 (W) ⳯ 228.6 (H) / 120 (W) ⳯ 90 (H)

243.8 (W) ⳯ 182.9 (H) / 96 (W) ⳯ 72 (H)

203.2 (W) ⳯ 152.4 (H) / 80 (W) ⳯ 60 (H)

162.6 (W) ⳯ 121.9 (H) / 64 (W) ⳯ 48 (H)

121.9 (W) ⳯ 91.4 (H) / 48 (W) ⳯ 36 (H)

81.3 (W) ⳯ 61.0 (H) / 32 (W) ⳯ 24 (H)

61.0 (W) ⳯ 45.7 (H) / 24 (W) ⳯ 18 (H)

Lens center

30"

1.3/50.8
(1.0/39.5)

40"

1.7/68.5
(1.4/53.3)

60"

120"

100"

80"

2.6/103.8
(2.1/80.9)

3.5/139.2 (2.8/108.6)

5.3/209.9 (4.2/163.8)

4.4/174.5 (3.5/136.2)

200"

180"

150"

6.7/262.9 (5.2/205.2)

8.9/351.3 (7.0/274.3)

8.0/315.9 (6.3/246.7)

Distance

13.4/528.0 (10.5/412.4)

10.7/422.0 (8.4/329.5)

Unit: m/inch

NOTE:

•Values in parentheses for LT245.

• The screen sizes above are intermediate values between tele (minimum display area) and wide (maximum display area). Image
size can be adjusted with the zoom adjustment up to a maximum of 10%.

•To avoid premature lamp failure, do not tilt the front of the projector up or down by more than 7° from level.

14

2. Installation and Connections

Throw Distance and Screen Size

The following shows the proper relative positions of the pro­jector and screen. Refer to the table to determine the posi­tion of installation.

Distance Chart

B = Vertical distance between lens center and screen cen-

ter
C = Throw distance
D = Vertical distance between lens center and bottom of

screen (top of screen for ceiling application)
α = Throw angle

NOTE: Distances may vary +/-5%.

LT265

Screen Size B C

Diagonal Width Height

inch

100
120
150
180
200
210
240
261
270
300
350
400
450
500

inch

120
144
160
168
192
209
216
240
280
320
360
400

inch

24

18

32

24

48

36

54

40

58

43

64

48
50

67
72

54

80

60
72

96

90
108
120
126
144
157
162
180
210
240
270
300

30
40
60
67
72
80
84
90

inch

12.6

16.8

25.2

28.1

30.2

33.6

35.3

37.8

42.0

50.4

63.0

75.6

84.0

88.2

100.8

109.7

113.5

126.1

147.1

168.1

189.1

210.1

Wide – Tele

inch

45.6 – 56.0

61.5 – 75.4

93.5 – 114.1

104.7 – 127.7

112.7 – 137.4

125.5 – 152.9

131.9 – 160.6

141.5 – 172.2

157.4 – 191.6

189.4 – 230.3

237.3 – 288.4

285.3 – 346.6

317.2 – 385.3

333.2 – 404.7

381.2 – 462.8

414.7 – 503.4

429.1 – 520.9

477.0 – 579.0

557.0 – 675.8

636.9 – 772.7

716.8 – 869.5

796.7 – 966.4

inch

10.1

10.8

12.0

14.4

18.0

21.6

24.0

25.2

28.8

31.4

32.5

36.1

42.1

48.1

54.1

60.1

D

3.6

4.8

7.2

8.0

8.6

9.6

α

Wide – Tele

degree

15.4 – 12.7

15.3 – 12.6

15.1 – 12.5

15.0 – 12.4

15.0 – 12.4

15.0 – 12.4

15.0 – 12.4

15.0 – 12.4

14.9 – 12.4

14.9 – 12.3

14.9 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

Screen Height

Screen Size B C

Diagonal Width Height

mm

inch

762

30

1016

40

1524

60

1702

67

1829

72

2032

80

2134

84

2286

90

2540

100

3048

120

3810

150

4572

180

5080

200

5334

210

6096

240

6629

261

6858

270

7620

300

8890

350

10160

400

11430

450

12700

500

10160

mm

610

813
1219
1361
1463
1626
1707
1829
2032
2438
3048
3658
4064
4267
4877
5304
5486
6096
7112
8128
9144

mm

1021
1097
1219
1280
1372
1524
1829
2286
2743
3048
3200
3658
3978
4115
4572
5334
6096
6858
7620

457
610
914

Screen Width

Throw Angle (움)

Wide – Tele

mm

1,157 – 1,423

320

1,563 – 1,915

427

2,375 – 2,899

640

2,659 – 3,243

714

2,862 – 3,489

768

3,187 – 3,883

853

3,349 – 4,080

896

3,593 – 4,375

960

3,999 – 4,867

1067

4,811 – 5,851

1280

6,028 – 7,327

1601

7,246 – 8,802

1921

8,058 – 9,786

2134

8,464 –10,278

2241

9,682 –11,754

2562

10,534 –12,787

2786

10,899 –13,230

2882

12,117 –14,706

3202

14,147 –17,166

3736

16,176 –19,626

4270

18,206 –22,086

4804

20,235 –24,545

5337

Screen Diagonal

Screen center

(B)

Lens Center

Throw Distance (C)

mm

mm

1069
1222
1375
1527

D

122
183
204
219
244
256
274
305
366
458
549
610
641
733
797
824
916

91

Screen Bottom

(D)

α

Wide – Tele

degree

15.4 – 12.7

15.3 – 12.6

15.1 – 12.5

15.0 – 12.4

15.0 – 12.4

15.0 – 12.4

15.0 – 12.4

15.0 – 12.4

14.9 – 12.4

14.9 – 12.3

14.9 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

14.8 – 12.3

LT245

Screen Size B C

Diagonal Width Height

inch

100
120
150
180
200
210
240
261
270
300
350
400
450
500

inch

inch
30
40
60
67
72
80
84
90

120
144
160
168
192
209
216
240
280
320
360
400

18

24
32

24

48

36
40

54
58

43

64

48
50

67
72

54

80

60
72

96

90
108
120
126
144
157
162
180
210
240
270
300

inch

12.5

16.7

25.1

28.1

30.2

33.5

35.2

37.7

41.9

50.3

62.9

75.5

83.9

88.1

100.7

109.5

113.3

125.9

146.9

167.9

188.9

209.9

Wide – Tele

inch

35.7 – 43.3

48.2 – 58.4

73.3 – 88.5

82.1 – 99.1

88.4 – 106.6

98.5 – 118.7

103.5 – 124.7

111.0 – 133.7

123.6 – 148.8

148.7 – 178.9

186.3 – 224.1

224.0 – 269.3

249.1 – 299.5

261.7 – 314.5

299.3 – 359.7

325.7 – 391.4

337.0 – 405.0

374.6 – 450.2

437.4 – 525.5

500.2 – 600.8

563.0 – 676.2

625.7 – 751.5

inch

10.0

10.7

11.9

14.3

17.9

21.5

23.9

25.1

28.7

31.2

32.3

35.9

41.9

47.9

53.9

59.9

D

3.5

4.7

7.1

8.0

8.6

9.5

α

Wide – Tele

degree

19.4 – 16.2

19.1 – 16.0

18.9 – 15.9

18.9 – 15.8

18.8 – 15.8

18.8 – 15.8

18.8 – 15.8

18.8 – 15.8

18.7 – 15.7

18.7 – 15.7

18.7 – 15.7

18.6 – 15.7

18.6 – 15.7

18.6 – 15.7

18.6 – 15.6

18.6 – 15.6

18.6 – 15.6

18.6 – 15.6

18.6 – 15.6

18.6 – 15.6

18.5 – 15.6

18.5 – 15.6

Screen Size B C

Diagonal Width Height

mm

inch

762

30

1016

40

1524

60

1702

67

1829

72

2032

80

2134

84

2286

90

2540

100

3048

120

3810

150

4572

180

5080

200

5334

210

6096

240

6629

261

6858

270

7620

300

8890

350

10160

400

11430

450

12700

500

10160

15

mm

610

813
1219
1361
1463
1626
1707
1829
2032
2438
3048
3658
4064
4267
4877
5304
5486
6096
7112
8128
9144

mm

457
610

914
1021
1097
1219
1280
1372
1524
1829
2286
2743
3048
3200
3658
3978
4115
4572
5334
6096
6858
7620

mm

319
425
639
713
766
852
894

958
1065
1278
1598
1918
2132
2238
2558
2782
2878
3198
3731
4264
4798
5331

Wide – Tele

mm

906 – 1,100
1,225 – 1,483
1,863 – 2,248
2,086 – 2,516
2,246 – 2,707
2,501 – 3,014
2,628 – 3,167
2,820 – 3,396
3,139 – 3,779
3,776 – 4,545
4,733 – 5,693
5,689 – 6,841
6,327 – 7,607
6,646 – 7,989
7,603 – 9,137
8,272 – 9,941
8,559 –10,286
9,516 –11,434

11,110 –13,348
12,705 –15,261
14,299 –17,175
15,893 –19,089

D

mm

120
181
203
218
242
254
273
303
364
455
547
608
638
729
793
821

912
1064
1216
1369
1521

90

α

Wide – Tele

degree

19.4 – 16.2

19.1 – 16.0

18.9 – 15.9

18.9 – 15.8

18.8 – 15.8

18.8 – 15.8

18.8 – 15.8

18.8 – 15.8

18.7 – 15.7

18.7 – 15.7

18.7 – 15.7

18.6 – 15.7

18.6 – 15.7

18.6 – 15.7

18.6 – 15.6

18.6 – 15.6

18.6 – 15.6

18.6 – 15.6

18.6 – 15.6

18.6 – 15.6

18.5 – 15.6

18.5 – 15.6

2. Installation and Connections

WARNING

* Installing your projector on the ceiling must be done

by a qualified technician. Contact your NEC dealer for
more information.

* Do not attempt to install the projector yourself.

• Only use your projector on a solid, level surface. If the
projector falls to the ground, you can be injured and
the projector severely damaged.

• Do not use the projector where temperatures vary
greatly. The projector must be used at temperatures
between 41˚F (5˚C) and 95˚F (35˚C).

• Do not expose the projector to moisture, dust, or
smoke. This will harm the screen image.

• Ensure that you have adequate ventilation around your
projector so heat can dissipate. Do not cover the vents
on the side or the front of the projector.

Reflecting the Image

Using a mirror to reflect your projector's image enables
you to enjoy a much larger image. Contact your NEC
dealer if you need a mirror system. If you're using a mir­ror system and your image is inverted, use the MENU
and SELECT buttons on your projector cabinet or your
remote control to correct the orientation. See page 98.

16

2. Installation and Connections

 Making Connections

NOTE: When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the
power to the notebook PC. In most cases signal cannot be output from RGB output unless the notebook PC is turned on after
connecting with the projector.
* If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power

management software.

Enabling the computer’s external display

Displaying an image on the notebook PC’s screen does not necessarily mean it outputs a signal to the projector.
When using a PC compatible laptop, a combination of function keys will enable/disable the external display.
Usually, the combination of the ‘Fn” key along with one of the 12 function keys gets the external display to come on
or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through
external display selections.

Connecting Your PC or Macintosh Computer

PC CARD

NOTE: For older Macintosh, use
a commercially available pin
adapter (not supplied) to
connect to your Mac's video
port.

PHONE

IBM PC or Compatibles (Desktop type)
or Macintosh (Desktop type)

USBLAN

PC CONTROL

COMPUTER 1 IN COMPUTER 2 IN

AUDIO IN

AUDIO OUT

COMPUTER 1 IN

R AUDIO IN L

VIDEO IN

S-VIDEO IN

AC IN

Audio cable (not supplied)

MONITOR OUTAUDIO IN

NOTE: The COMPUTER 1 IN connector
supports Plug & Play (DDC2).

COMPUTER 2 IN

RGB/VGA signal cable (supplied)
To mini D-Sub 15-pin connector on the projector. It is
recommended that you use a commercially available
distribution amplifier if connecting a signal cable longer
than the supplied one.

PHONE

IBM VGA or Compatibles (Notebook
type) or Macintosh (Notebook type)

Connecting your PC or Macintosh computer to your projector will enable you to project your computer's screen image
for an impressive presentation.

To connect to a PC or Macintosh, simply:

1. Turn off the power to your projector and computer.

2. Use the supplied RGB/VGA signal cable to connect your PC or Macintosh to the projector.

3. Connect the supplied power cable. See page 26.

4. Turn on the projector and the computer.

5. If the projector goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer
you've connected to the projector.

17

2. Installation and Connections

NOTE: The LT265/LT245 is not compatible with video decoded outputs of either the NEC ISS-6020 and ISS-6010 switchers.

NOTE: An image may not be displayed correctly when a Video or S-Video source is played back via a commercially available scan
converter.
This is because the projector will process a video signal as a computer signal at the default setting. In that case, do the following.
* When an image is displayed with the lower and upper black portion of the screen or a dark image is not displayed correctly:

Project an image to fill the screen and then press the AUTO ADJ button on the remote control or the AUTO ADJUST button on
the projector cabinet.

* When noise appears on the sides of the screen:

Use the Overscan feature to display the image correctly.
Be sure to change the Overscan to 0% before pressing the AUTO ADJ or AUTO ADJUST button, otherwise an image may be
displayed with its sides cut off.

To connect SCART output (RGB)

Projector

MONITOR OUTAUDIO IN

Video equipment such as DVD player

Female

COMPUTER 1 IN

PC CARD

R AUDIO IN L

VIDEO IN

S-VIDEO IN

AC IN

USBLAN

PC CONTROL

COMPUTER 1 IN COMPUTER 2 IN

AUDIO OUT

ADP-SC1

Commercially available SCART cable

Before connections: An exclusive SCART adapter (ADP-SC1) and a commercially available SCART cable are re­quired for this connection.

NOTE: Audio signal is not available for this connection.

1. Turn off the power to the projector and your video equipment.

2. Use the NEC ADP-SC1 SCART adapter and a commercially available SCART cable to connect the COMPUTER 1

IN connector of your projector and a SCART output (RGB) of your video equipment.

3. Connect the supplied power cable. See page 26.

4. Turn on the power to the projector and your video equipment.

5. Use the COMPUTER 1 button on the remote control to select the COMPUTER 1 IN connector.

6. Press the MENU button on the remote control to display the menu.

7. From the menu, select [Setup] → [Options] → [Signal Select] → [Computer 1] → [Scart].

SCART is a standard European audio-visual connector for TVs, VCRs and DVD players. It is also referred to as
Euro-connector.

NOTE: The ADP-SC1 SCART adapter is obtainable from your NEC dealer in Europe. Contact your NEC dealer in Europe for more
information.

18

Connecting an External Monitor

2. Installation and Connections

PC CARD

R AUDIO IN L

AC IN

RGB/VGA signal cable (supplied)

VIDEO IN

S-VIDEO IN

USBLAN

PC CONTROL

COMPUTER 1 IN COMPUTER 2 IN

AUDIO OUT

AUDIO IN

AUDIO OUT

MONITOR OUT

MONITOR OUT

Audio cable (not supplied)

AUDIO

IN

Audio cable (not supplied)

RGB/VGA signal cable (not supplied)

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog
image you're projecting.

To do so:

1. Turn off the power to your projector, monitor and computer.

2. Use an RGB/VGA signal cable to connect your monitor to the MONITOR OUT (Mini D-Sub 15 pin) connector on

your projector.

3. Connect the supplied power cable. See page 26.

4. Turn on the projector, monitor and the computer.

NOTE:

• The MONITOR OUT connector outputs an RGB signal during Standby mode.

• When the projector is in the standby mode, the image may not be correctly displayed while the cooling fans are running

immediately after turning on or off the power.

• Output sound level can be adjusted in accordance with the sound level.

• When audio equipment is connected, the projector speaker is disabled.

• Daisy chain connection is not possible.

19

Connecting Your DVD Player with Component Output

2. Installation and Connections

COMPUTER 1 IN

PC CARD

R AUDIO IN L

AC IN

Optional 15-pin - to - RCA (female)⳯3 cable
(ADP-CV1)

Component video RCA⳯3
cable (not supplied)

DVD player

YCbCr

L R

VIDEO IN

S-VIDEO IN

USBLAN

PC CONTROL

COMPUTER 1 IN COMPUTER 2 IN

AUDIO OUT

MONITOR OUTAUDIO IN

Audio Equipment

AUDIO IN

LR

Component

AUDIO OUT

Audio cable (not supplied)

You can connect your projector to a DVD player with component output or Video output. To do so, simply:

1. Turn off the power to your projector and DVD player.

2. If your DVD player has a component video (Y,Cb,Cr) output, use a commercially available component video cable

(RCA⳯3) and the optional 15-pin-to-RCA (female)⳯3 cable to connect your DVD player to the COMPUTER IN
connector on the projector.

For a DVD player without component video (Y,Cb,Cr) output, use an S-Video cable (not provided) to connect an S­Video output of the DVD player to the Video Input of the projector.

3. Connect the supplied power cable. See page 26.

4. Turn on the projector and DVD player.

A component signal will be automatically displayed. If not, from the menu, select [Setup] → [Options] → [Signal
Select] → [Computer 1 (or 2)] → [Component].

NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements.

20

Connecting Your VCR or Laser Disc Player

2. Installation and Connections

S-Video cable (not supplied)

Video cable (not supplied)

Audio equipment

AUDIO IN

LR

VIDEO IN

PC CARD

R AUDIO IN L VIDEO IN MONITOR OUT

S-VIDEO IN

AC IN

S-VIDEO IN

AUDIO OUT

USBLAN

PC CONTROL

COMPUTER 1 IN COMPUTER 2 IN

AUDIO IN

S-VIDEOVIDEO

VIDEO OUT

VCR/ Laser disc player

L R

AUDIO OUT

Audio cable (not supplied)

Use an RCA or S-Video cable (not provided) to connect the video and use RCA cables (not provided) to connect
the audio from your VCR, laser disc player or document camera to your projector.

To make these connections, simply:

1. Turn off the power to the projector and VCR, laser disc player or document camera.

2. Connect one end of an RCA cable to the video output (or one end of an S-Video cable to the S-Video output

connector) on the back of your VCR or laser disc player, connect the other end to the appropriate video input on
your projector. Connect one end of a pair RCA cables (not supplied) to the audio output on the back of your VCR or
laser disc player, connect the other end to your audio equipment or to the appropriate audio input on the projector.

3. Connect the supplied power cable. See page 26.

4. Turn on the projector and the VCR or laser disc player.

NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output
requirements.

NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via
a scan converter.

21

2. Installation and Connections

Connecting to a Network

The LT265/LT245 comes standard with a LAN port (RJ-45) which provides a LAN connection using a LAN cable.
Placing the optional wireless LAN card (NWL-100*) in the PC card slot of the projector also provides a wireless LAN
connection. To use a LAN connection, you are required to assign an IP address to the projector. For setting the LAN
mode, see page 99 (From the menu, select [Setup] → [Installation] → [LAN Mode])

With the LAN connection, two features are available: Projector control and Picture transmission.

Projector control feature

With the wired or wireless LAN connection, you can control (power on/off, input select, etc.) and receive information
from the projector over the network using a computer. The following two methods are available:

* Using the HTTP Server feature on the projector. See page 54.
* Using PC Control Utility 3.0 from the supplied User Supportware 2 CD-ROM.

Picture transmission feature

With the wired or wireless LAN connection, you can send images and slides from a personal computer to the projector
which then can be projected on the screen. The following two methods are available:

* Using Image Express Utility 2.0 from the supplied User Supportware 2 CD-ROM.
* Using Ulead Photo Explore 8.0 from the supplied User Supportware 2 CD-ROM.

With the USB mouse connected to the projector, you can also operate the desktop screen on your Windows PC
connected to the LAN or the wireless LAN.

* Using Desktop Control Utility 1.0 from the supplied User Supportware 2 CD-ROM.

NOTE: For information about the five software utilities (Image Express Utility 2.0, Desktop Control Utility 1.0, Ulead Photo
Explorer 8.0, Viewer PPT Converter and PC Control Utility 3.0) contained on the supplied Projector User Supportware 2.0 CD­ROM, see the supplied “NEC Software Utility Installation Guide”. See also each online help of the software utilities for information
about their functions and operations.

Example of LAN connection

(A) Example of wired LAN connection

Server

PC CARD

Hub

LAN cable (not supplied)

LAN

AUDIO OUT

VIDEO IN

S-VIDEO IN

PC CONTROL

USBLAN

COMPUTER 1 IN COMPUTER 2 IN

AUDIO IN

MONITOR OUT

R AUDIO IN L

AC IN

22

2. Installation and Connections

(B) Example of wireless LAN connection
(Network Type → Mode: Infrastructure)

Access Point

Wired LAN

To make connection with a wired LAN via an access point, you need to select the Infrastructure mode.
From the menu, select [Setup] → [Installation] → [LAN Mode] → [PC Card] → [Advanced] → [Network Type] →
[Infrastructure].

(C) Example of wireless LAN connection (Network Type → Mode: 802.11 Ad Hoc)

To enable direct communication (i.e., peer-to-peer) between personal computers and projectors, you need to
select the 802.11 Ad Hoc mode.
From the menu, select [Setup] → [Installation] → [LAN Mode] → [PC Card] → [Advanced] → [Network Type] →
[802.11 Ad Hoc].

The 802.11 Ad hoc mode complies with IEEE802.11 standard.

When in Ad Hoc mode, only 802.11b is available for communication method.
Data transmission speed in Ad Hoc mode is limited up to 11Mbps.

23

2. Installation and Connections

Inserting and Removing a PC Card

To insert the NEC optional wireless LAN card or a PC memory card (also referred to as PC card in this manual), follow
the steps below.

CAUTION:

* Direction for Inserting the PC Card

The PC card has a top and bottom and must be inserted into the PC card slot in a specific direction. It
cannot be inserted backwards or upside-down.

Attempting to force it into the slot in the wrong direction may break the internal pin and damage the card

slot. Refer to the PC card's operating instructions for the proper direction of insertion.
* Back up your PC card's data in case it will need to be restored.
*To prevent electrostatic discharge damage to the wireless LAN card, wear an anti-static wrist strap. If no

wrist strap is available, ground yourself by touching metal such as a door knob.

Inserting the PC Card

1. Turn off the main power switch before inserting the
PC card. (This step is needed only when the wireless
LAN card being inserted into the projector's PC
CARD slot)

2. Hold the PC card horizontally and insert it slowly into
the PC card slot with its top facing up.

The eject button pops out once the PC card is fully inserted.
Check that the PC card is fully inserted.

NOTE: Do not try to force the PC card into the slot or you may bend
the pins inside the slot.

PC card (not supplied)

Removing the PC Card

1. Make sure that the PC CARD access indicator is not lit. (This
step is needed only when the PC memory card being inserted
into the projector’s PC CARD slot.)

NOTE: The PC CARD access indicator lights while its data is being
accessed.

2. To remove the wireless LAN card, turn off the main power. (This
step is needed only when the wireless LAN card being inserted
into the projector's PC CARD slot)

3. Press the eject button. The PC card pops out a little. Grasp the
edges of the PC card and pull it out.

Eject button

24

2. Installation and Connections

PC Card Type

The PC Card slot accepts PCMCIA Type II only.

NOTE: The projector does not support NTFS formatted flash memory card or USB memory device.
Be sure to use a flash memory card or USB memory device formatted with the FAT32, FAT16 or FAT file system.
To format your flash memory card or USB memory device in your computer, refer to the document or help file that comes with
your Windows operating systems.

25

2. Installation and Connections

Connecting the Supplied Power Cable

Connect the supplied power cable to the projector.
First connect the supplied power cable's three-pin plug to the AC IN of the projector, and then connect the other plug
of the supplied power cable in the wall outlet.

→

To wall outlet

Make sure that the prongs are fully
inserted into both the AC IN and the
wall outlet.

CAUTION:
Do not unplug the power cable from the wall outlet under any one of the following circumstances.
Doing so can cause damage to the projector or PC card:

• While the projector's lamp is lighted.

• While the cooling fans are running. The cooling fans continue to work for 90 seconds after the projector is

turned off.

• While the PC CARD Access Indicator lights. Doing so can damage your PC memory card.

26

3

Projecting an Image

(Basic Operation)

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

 Tur ning on the Projector............................................. 28

쐇 Selecting a Source .................................................... 30

쐋 Adjusting the Picture Size and Position ..................... 31

쐏 Correcting Keystone Distortion .................................. 33

쐄 Optimizing an RGB Image Automatically ................. 35

쐂 Tur ning Up or Down Volume ...................................... 35

쐆 Using the Laser Pointer ............................................. 36

쐊 Tur ning off the Projector............................................. 37

쐎 After Use.................................................................... 37

27

3. Projecting an Image (Basic Operation)

This section describes how to turn on the projector and to project a picture onto the screen.

 Turning on the Projector

NOTE:

• The projector has two power switches: a main power switch and a POWER (ON/STAND BY) button (POWER ON and OFF on the

remote control).

䡬

• When plugging in or unplugging the supplied power cable, make sure that the main power switch is pushed to the off (

position. Failure to do so may cause damage to the projector.

• The projector has a feature to prevent itself from being used by unauthorized individuals. To use this feature, register a

keyword. See "Security" in "Setup" on page 48 for more details.

1. To turn on the main power to the projector, press the
Main Power switch to the on position ( I ).

• The POWER indicator will light orange.

See the Power Indicator section on page 123 for more
details.

LAMP

STATUS

POWER

)

2. Press the POWER (ON/STAND BY) button on the
projector cabinet or POWER ON button on the
remote control for a minimum of 2 seconds when the
power indicator turns a steady green, and the
projector is ready to use.

• After you turn on your projector, ensure that the

computer or video source is turned on and that your
lens cap is removed.

Standby

Steady orange

light

See page 123 for more details.

NOTE: When no signal is available, a blue, black or logo screen is displayed.

N

E

U

M

AUTO ADJUST

SOURCE

SELECT

E

N

T

T

I

3D REFORM

X

E

PC CARD

E

R

LAMP

STATUS

POWER

ON/STAND BY

Press this button for a

minimum of 2 seconds.

MAGNIFY

LAMP

STATUS

POWERON/STAND BY

Blinking for
one minute

LAMP

STATUS

POWER POWER

Blinking green

light

OFF

ON

POWER

LASER

PAGE

UP

POINTER

DOWN

N

U

E

M

R

E

T

N

E

R

K

-

C

C

I

L

Power On

LAMP

STATUS

Steady green

light

E

X

I

T

28

3. Projecting an Image (Basic Operation)

Note on Startup screen (Menu Language Select screen)

When you first turn on the projector, you will get the Startup menu. This menu gives you the opportunity to select one
of the 21 menu languages.

To select a menu language, follow these steps:

1. Use the SELECT 왖 or 왔 button to select one of the
21 languages for the menu.

N

E

2. Press the ENTER button to execute the selection.

3. To close the menu, press the EXIT button.

NOTE: Immediately after turning on the projector and
displaying an image, you cannot turn off the projector for 60
seconds.

After this has been done, you can proceed to the menu op­eration.
If you want, you can select the menu language later. See "Lan­guage" on page 91.

PC CARD

PC CARD

PC CARD

U

M

SOURCE

SELECT

E

N

T

E

R

E

N

E

U

M

SELECT

E

N

T

E

R

E

N

E

U

M

SELECT

E

N

T

E

R

AUTO ADJUST

LAMP

AUTO ADJUST

AUTO ADJUST

STATUS

POWERON/STAND BY

LAMP

STATUS

POWERON/STAND BY

LAMP

STATUS

POWERON/STAND BY

T

3D REFORM

I

X

SOURCE

T

3D REFORM

I

X

SOURCE

T

I

3D REFORM

X

E

MAGNIFY

MAGNIFY

OFF

MAGNIFY

R

E

T

N

E

OFF

ON

POWER

LASER

PAGE

UP

POINTER

DOWN

N

U

E

M

R

POWER

LASER

POINTER

M

R

POWER

LASER

POINTER

E

M

R

-

C

E

X

I

T

K

-

C

C

I

L

ON

PAGE

UP

DOWN

N

U

E

E

X

I

T

K

-

C

C

I

L

ON

PAGE

UP

DOWN

N

U

E

X

I

T

K

C

I

L

R

E

T

N

E

OFF

R

E

T

N

E

NOTE: Immediately after turning on the projector, screen flicker may occur. This is not a fault. Wait 3 to 5 minutes until the lamp
lighting is stabilized.

When the Lamp mode is set to Eco, the Lamp indicator will light green.

If one of the following things happens, the projector will not turn on.

• If the internal temperature of the projector is too high, the projector detects abnormal high temperature. In this

condition the projector will not turn on to protect the internal system. If this happens, wait for the projector's internal
components to cool down.

• When the lamp reaches its end of usable life, the projector will not turn on. If this happens, replace the lamp. See

page 119.

• If the lamp fails to light, and if the STATUS indicator flashes on and off in a cycle of six times, wait a full minute and

then turn on the power.

29

PC CARD

SOURCE

AUTO ADJUST

3D REFORM

LAMP

STATUS

POWERON/STAND BY

E

N

T

E

R

E

X

I

T

M

E

N

U

SELECT

 Selecting a Source

PC CARD

SOURCE

AUTO ADJUST

3D REFORM

LAMP

STATUS

POWERON/STAND BY

E

N

T

E

R

E

X

I

T

M

E

N

U

SELECT

Selecting the computer or video source

3. Projecting an Image (Basic Operation)

Using the Remote Control

Press any one of the COMPUTER 1/2, VIDEO, S-VIDEO, VIEWER or LAN but­tons.

Selecting from Source List

Press and quickly release the SOURCE button on the projector cabinet to display
the Source list. Each time the SOURCE button is pressed, the input source will
change as follows: “Computer 1/2”, “Video” (VCR or laser disc player), “S-Video”,
“Viewer” (slides on a PC card) or “LAN” (LAN port [RJ-45] or wireless LAN card).
To display the selected source, press the ENTER button.

Detecting the Signal Automatically

Press and hold the SOURCE button for a minimum of 1 second, the projector will
search for the next available input source. Each time you press and hold the
SOURCE button for a minimum of 1 second, the input source will change as
follows:

VIDEO

S-VIDEO

PIC-MUTE

VOLUME

FREEZE

R

-

C

C

I

L

COMPUTER

1

2

AUTO ADJ.

HELP

ASPECT

K

LAN

VIEWER

SLIDE


3D REFORM

Computer1 → Computer2 → Video → S-Video → Viewer → Computer1 → ...

If no input signal is present, the input will be skipped. When the input source you
wish to project is displayed, release the button.

30

3. Projecting an Image (Basic Operation)

 Adjusting the Picture Size and Position

Place your projector on a flat level surface and ensure that the projector is
square to the screen.
Lift the front edge of the projector to center the image vertically.

If the projected image does not appear square to the screen, use the Keystone
feature for proper adjustment. See pages 33 and 43.

Rotate the front of the projector right or left (to the right in this example) to
center the image horizontally on the screen.

Adjust the Tilt Foot

1. Lift the front edge of the projector.

2. Push up and hold the Adjustable Tilt Foot Button on the front of
the projector to extend the adjustable tilt feet.

Adjustable Tilt
Foot Button

1

3. Lower the front of the projector to the desired height.

4. Release the Adjustable Tilt Foot Button to lock the Adjustable tilt
foot.

There is approximately 7 degrees of up and down adjustment for
the front of the projector.

Adjusting the height of a projected image or changing projection
angle will run the Auto Keystone correction function to quickly
correct the vertical distortion. The "Keystone" screen will be
displayed.



For operating the "Keystone" screen, see "

Correcting Key-

stone Distortion" on page 33.

NOTE: Your "Keystone" correction data can be reset by pressing and holding the
3D REFORM button for a minimum of 2 seconds.

The rear foot height can be changed. Rotate the rear foot to the
desired height, but the vertical distance from the bottom to the
desk or floor should be 1” (25mm) to make the projector horizon­tal on the flat surface.

CAUTION

Do not use the tilt-foot for purposes other than originally intended.
Misuses such as gripping the tilt-foot or hanging on the wall can cause
damage to the projector.

Up

2

Adjustable Tilt Foot

3

4

Down

Up

Down

31

Zoom

Use the ZOOM lever to finely adjust the image size on the
screen.

Focus

Use the FOCUS ring to obtain the best focus.

3. Projecting an Image (Basic Operation)

32

3. Projecting an Image (Basic Operation)

 Correcting Keystone Distortion

Auto Keystone Correction

The Auto Keystone correction feature will correct vertical distortion of a projected image on the screen. No special
operation required. Just put the projector on a flat surface.

Manual Keystone Correction

You can also correct keystone distortion manually.
To do so:

1. Extend the Adjustable Tilt Foot to adjust the height of a projected
image. See page 31.

The Keystone screen will be displayed on the screen.

• If the Keystone screen disappears, press the 3D REFORM button

once to display the Keystone screen again.

Projected area

2. Align the left (or right) side of the screen with the left (or right)
side of the projected image.

• Use the shorter side of the projected image as the base.

• In the right example, use the left side as the base.

NOTE: When "Manual" is selected in "Keystone" from the menu, project an image
adjusting projector position so that the screen is smaller than the area of the
projected image. See page 90 for selecting "Manual" in "Keystone".

Screen frame

왗

3. Use the SELECT

Perform the keystone correction.

4. If the right and left sides of the projected image are not parallel to
each other, use the SELECT
the SELECT

Fine adjust so that both sides are parallel to each other.

or 왘 button to adjust “Horizontal”.

왔

button to select “Vertical” and use

왗왘

button.

33

Align left side

3. Projecting an Image (Basic Operation)

5. Repeat steps 3 and 4 to correct keystone distortion.

6. After completing Keystone correction, press the ENTER button.

The Keystone screen will disappear.

• To perform Keystone correction again, press the 3D REFORM button

to display the Keystone screen and repeat above steps 1 to 6.

NOTE:

•Turning on the projector will reset the previous correction setting values and correct distortion anew if the projection angle is

changed from the last use.

If the projection angle is the same as in the last use, the previous correction setting values are retained in the memory.

To use the previous correction setting values after changing projection angle, select "Manual" in "Keystone" from the menu. See
page 90.

•To reset the 3D Reform correction setting values, press and hold the 3D REFORM button for a minimum of 2 seconds.

→

• Each time the 3D REFORM button is pressed, the item will change as follows: Keystone

→

...

For information on “Cornerstone”, see “Correcting Horizontal and Vertical Keystone Distortion (Cornerstone) on page 43.

Cornerstone → None → Keystone

34

3. Projecting an Image (Basic Operation)

 Optimizing an RGB Image Automatically

Adjusting the Image Using Auto Adjust

Optimizing an RGB image automatically.
Press the Auto Adjust button to optimize an RGB image automatically.

[Poor picture]

VIDEO

S-VIDEO

PIC-MUTE

VOLUME

FREEZE

[Normal picture]

PC CARD

N

E

U

M

AUTO ADJUST

SOURCE

SELECT

E

N

T

T

I

E

R

3D REFORM

X

E

LAMP

STATUS

POWERON/STAND BY

R

-

C

L

COMPUTER

1

2

AUTO ADJ.

HELP

ASPECT

C

I

K

LAN

VIEWER

SLIDE


3D REFORM

Press the Auto Adjust button to fine-tune the computer image or to remove any vertical banding that might appear and
to reduce video noise, dot interference or cross talk (this is evident when part of your image appears to be shimmer­ing). This function adjusts the clock frequencies that eliminate the horizontal banding in the image. This function also
adjusts the clock phase to reduce video noise, dot interference or cross talk.
This adjustment may be necessary when you connect your computer for the first time.

NOTE:

• Some signals may not be displayed correctly or take time.

• The Auto Adjust function does not work for component or video signals.

• If the Auto Adjust operation cannot optimize the RGB signal, try to adjust Clock and Phase manually. See page 86.

 Turning Up or Down Volume

Sound level from the speaker and the AUDIO OUT
jack (Stereo mini) on the projector can be adjusted.

R

K

-

C

C

I

NOTE: When no menus appear, the SELECT 왗왘 buttons
on the projector cabinet work as a volume control.

Increase volume

Decrease volume

VIDEO

S-VIDEO

PIC-MUTE

VOLUME

FREEZE

L

COMPUTER

1

2

AUTO ADJ.

HELP

ASPECT

LAN

VIEWER

SLIDE


3D REFORM

35

3. Projecting an Image (Basic Operation)

쐆 Using the Laser Pointer

You can use the laser to draw your audience's attention to a red dot that you can place on any object.

CAUTION:

• Do not look into the laser pointer while it is on.

• Do not point the laser beam at a person.

• Do not allow children to use the laser pointer.

Press and hold the LASER button to activate the laser pointer.

LA

S

E

R

To disable the laser pointer, set the function switch to “Off”.
Decide whether to enable or disable the laser, then set the switch as necessary using the tip of a thin ball-point pen.
On this model, the other selector switch is not used.

ON

OFF

Laser enable/disable
switch

Not used

On: Enabled (the laser lights when the LASER button is pressed) [Factory default]
Off: Disabled (the laser does not light even when the LASER button is pressed)

Disable the laser when using in an environment in which the unit is accessible to children.

36

쐊 Turning off the Projector

To turn off the projector:

3. Projecting an Image (Basic Operation)

1. Press the POWER (ON/STAND BY) button on the projector
cabinet or the POWER OFF button on the remote control.
The "Power Off / Are you sure?" message will appear.

2. Press the ENTER button or the POWER (ON/STANDBY) or
the POWER OFF button again.

The power indicator will glow orange. After the projector turns
off, the cooling fans keep operating for 90 seconds (Cooling-off
time).

NOTE: Immediately after turning on the projector and displaying an
image, you cannot turn off the projector for 60 seconds.

3. Turn off the Main Power switch. The power indicator will go
out.

CAUTION
Do not unplug the power cable from the wall outlet or do
not turn off the main power under any one of the following
circumstances.
Doing so can cause damage to the projector or PC card:

• While the projector lamp is lighted.

• While the cooling fans are running. (The cooling fans

continue to work for 90 seconds after the projector is turned
off).

• While the PC CARD Access Indicator lights. Doing so can

damage your PC memory card.

PC CARD

PC CARD

OFF

ON

N

E

U

M

AUTO ADJUST

SOURCE

SELECT

E

N

T

T

I

M

SELECT

3D REFORM

X

E

N

E

U

SOURCE

T

I

3D REFORM

X

E

E

R

E

N

T

E

R

AUTO ADJUST

STATUS

LAMP

STATUS

POWERON/STAND BY

LAMP

POWERON/STAND BY

MAGNIFY

R

E

T

N

OFF

MAGNIFY

R

E

T

N

E

POWER

LASER

PAGE

UP

POINTER

DOWN

N

U

E

M

E

X

I

R

POWER

LASER

POINTER

E

M

R

-

C

T

K

-

C

C

I

L

ON

PAGE

UP

DOWN

N

U

E

X

I

T

K

C

I

L

E

쐎 After Use

Preparation: Make sure that the main power is turned off.

1. Unplug the power cable.

2. Disconnect any other cables.

3. Retract adjustable tilt feet if extended.

4. Cover the lens with the lens cap.

5. Put the projector and its accessories in the supplied soft case.

NOTE: Before putting the projector in the soft case, be sure to retract the feet. Failure to do so may cause the damage to the
projector.

37

4

Convenient Features

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

 Tur ning Off the Image and Sound .............................. 39

쐇 Freezing a Picture...................................................... 39

쐋 Using the Pointer ....................................................... 39

쐏 Enlarging and Moving a Picture................................. 40

쐄 Getting Integrated Help ............................................. 40

쐂 Using a USB Mouse .................................................. 41

쐆 Using Remote Mouse Receiver ................................. 42

쐊 Correcting Horizontal and

Vertical Keystone Distortion (Cornerstone) ...........43

쐎 Making Freehand Drawings

on a Projected Image (ChalkBoard) ...................... 46

쐅 Storing Images Displayed on the Projector

on the PC card or USB Memory (Capture) ............ 47

쐈 Preventing Unauthorized Use of the Projector .......... 48

쐉 Using a USB Memory Device or

USB Memory Card Reader.................................... 53

씈 Operation Using an HTTP Browser ........................... 54

씉 Using the Projector to Operate a Computer Connected

on a Network (Desktop Control Utility 1.0) ............ 57

38

4. Convenient Features

쐃 Turning Off the Image and Sound

Press the PIC-MUTE button to turn off the image and sound for a short period of time.
Press again to restore the image and sound.

쐇 Freezing a Picture

Press the FREEZE button to freeze a picture. Press again to resume motion.

NOTE: Pressing the MENU button will display the Capture menu that allows you to capture a
freezed image. See page 47 for more information.

쐋 Using the Pointer

You can use one of nine pointers to draw your
audience's attention to the portion of a projected im­age you want.

NOTE: You can select one pointer from the menu. See page

111.

Press the POINTER button to display the pointer.

R

K

-

C

C

I

L

LAN

VIDEO

COMPUTER

1

VIEWER

S-VIDEO

2

FREEZE

VIDEO

S-VIDEO

PIC-MUTE

VOLUME

FREEZE

MAGNIFY

SLIDE

AUTO ADJ.

HELP


ASPECT

3D REFORM

R

K

-

C

C

I

L

LAN

COMPUTER

1

VIEWER

2

SLIDE

AUTO ADJ.

HELP


ASPECT

3D REFORM

OFF

ON

POWER

LASER

PAGE

UP

POINTER

DOWN

N

U

E

M

R

E

T

N

E

E

X

I

T

PIC-MUTE

VOLUME

Press the Pointer button to
display the pointer.

Use the SELECT button to move the pointer.
Press the POINTER button again. The pointer will dis­appear.

39

OFF

ON

POWER

LASER

PAGE

MAGNIFY

UP

POINTER

DOWN

N

U

E

M

R

E

T

N

E

E

X

I

T

R

K

-

C

C

I

L

Use the Select button to
move the pointer.

쐏

Enlarging and Moving a Picture

You can enlarge the area you want up to 400 percent.

To do so:

4. Convenient Features

1. Press the POINTER button to display the
pointer.

2. Move the pointer to the area you want to
enlarge.

3. Enlarge the selected area.

When the MAGNIFY (+) button is pressed, the
image is magnified and the magnify icon will
be displayed. To magnify the selected area,
use the SELECT

왖왔왗왘

button to move the
magnify icon and press the MAGNIFY (+)
button.

OFF

MAGNIFY

R

E

T

N

E

OFF

MAGNIFY

R

E

T

N

OFF

MAGNIFY

R

E

T

N

E

ON

POWER

LASER

PAGE

UP

POINTER

DOWN

N

U

E

M

E

X

I

T

ON

POWER

LASER

PAGE

UP

POINTER

DOWN

N

U

E

M

E

X

I

R

-

C

POWER

LASER

POINTER

E

M

R

-

C

T

K

C

I

L

ON

PAGE

UP

DOWN

N

U

E

X

I

T

K

C

I

L

E

4. Return the image to the original size.

Press the MAGNIFY (-) button until the mag­nify icon changes to the pointer.

쐄 Getting Integrated Help

You get the contents about Help in English, German and
Japanese.

40

R

K

-

C

C

I

L

LAN

VIDEO

COMPUTER

1

VIEWER

S-VIDEO

2

FREEZE

AUTO ADJ.

HELP

ASPECT

SLIDE


3D REFORM

PIC-MUTE

VOLUME

Display Help

OFF

POWER

LASER

MAGNIFY

POINTER

N

U

E

M

R

E

T

N

E

R

K

-

C

C

I

L

OFF

POWER

LASER

MAGNIFY

POINTER

N

U

E

M

R

E

T

N

E

R

K

-

C

C

I

L

Exit Help

DOWN

DOWN

PAGE

ON

PAGE

UP

E

X

I

T

ON

UP

E

X

I

T

4. Convenient Features

쐂 Using a USB Mouse

Using a USB mouse gives you a smooth operation. A commercially
available USB mouse can be used.

PC CARD

R AUDIO IN L

VIDEO IN

AC IN

S-VIDEO IN

PC CONTROL

USBLAN

COMPUTER 1 IN

USB

AUDIO IN

AUDIO OUT

COMPUTER 2 IN

NOTE: There may be some brands of a USB mouse that the projector does
not support.

Operate the Menus using the USB mouse

Mouse Cursor

When connecting a USB mouse to the projector, you get a mouse cursor on the screen.
Unless you use your USB mouse within 10 seconds, the mouse cursor disappears.

NOTE: You can change the shape of the mouse cursor. To do so, select the menu → Setup → Tools → Mouse → Mouse
Pointer

Menu Display

Clicking with the right mouse button displays the menu.
To close the menu, click anywhere in the background.

Adjusting and Setting Display

You can select a menu item and click with the left mouse button to make adjustments and settings.

Using the middle button on the mouse

The projector supports the middle button on your mouse.
With the middle button you can do the following:

•You can use a scroll bar in the menu or the help.

•You can click the middle button to display or hide the Chalkboard toolbar.

MONITOR OUT

Example:

Click (or press and hold) the left mouse button on the 왗 or 왘 to adjust the brightness. Or click and drag the left
mouse button on the slide bar horizontally to adjust it.

To save the adjustments, click

. The display is closed.

• Click with the left mouse button to display a description of the selected menu item.

• Click and drag the title bar with the left mouse button to move the adjustment or setting dialog box.

41

4. Convenient Features

쐆 Using Remote Mouse Receiver

The remote mouse receiver enables you to operate your computer’s mouse functions from the remote control. It is a
great convenience for your computer-generated presentations.

Connecting the remote mouse receiver to your computer

If you wish to use the remote mouse function, connect the mouse receiver and computer.
The mouse receiver can be connected directly to the computer’s USB port (type A).

NOTE: Depending on the type of connection or OS installed on your computer, you may have to restart your computer or change
your computer settings.

Computer

Remote mouse receiver

To USB port of PC or Macintosh

When operating a computer via the remote mouse receiver

7m/22 feet

30˚

30˚

Remote sensor on the
remote mouse receiver

When connecting using the USB port

For PC, the mouse receiver can only be used with a Windows 98/Me/XP* or Windows 2000 operating system.

* NOTE: In Windows XP, if the mouse cursor will not move correctly, do the following:
Clear the Enhance pointer precision check box underneath the mouse speed slider in the Mouse Properties dialog box [Pointer
Options tab].

NOTE: Wait at least 5 seconds after disconnecting the mouse receiver before reconnecting it and vice versa. The computer may
not identify the mouse receiver if it is repeatedly connected and disconnected in rapid intervals.

Operating your computer’s mouse from the remote control

You can operate your computer's mouse from the remote control.

PA GE UP/DOWN Button: scrolls the viewing area of the window or to move to the previous or next slide in PowerPoint

on your computer.

Select Button: moves the mouse cursor on your computer.

MOUSE L-CLICK Button: works as the mouse left button.

MOUSE R-CLICK Button: works as the mouse right button.

NOTE: You can change the Pointer speed on the Mouse Properties dialog box on the Windows. For more information, see the
user documentation or online help supplied with your computer.

42

4. Convenient Features

쐊 Correcting Horizontal and Vertical Keystone Distortion (Cor­nerstone)

Use the 3D Reform feature to correct keystone (trapezoidal) distortion to make the top or bottom and the left or right
side of the screen longer or shorter so that the projected image is rectangular.

Cornerstone

1. Press and hold the 3D REFORM button for a minimum of 2 seconds to reset current adjustments.

Current adjusments for “Keystone” or “Cornerstone” will be cleared.

2. Project an image so that the screen is smaller than the area of the raster.

3. Pick up any one of the corners and align the corner of the image with a corner of the screen.

Projected image

The drawing shows the
upper right corner.

Screen

4. Press the 3D REFORM button on the remote control twice.

The Cornerstone adjustment screen is displayed.

5. Use the SELECT
projected image frame.

6. Press the ENTER button.

7. Use the SELECT

왖왔왗왘

왖왔왗왘

Screen

button to select one icon which points in the direction you wish to move the

button to move the projected image frame as shown on the example.

43

8. Press the ENTER button.

Screen

4. Convenient Features

9. Use the SELECT

왖왔왗왘

button to select another icon which points in the direction.

On the Cornerstone adjustment screen, select “Exit” or press the EXIT button on the remote control.

Screen

The confirmation screen is displayed.

10

.Press the SELECT 왗 or 왘 button to highlight the [OK] and press the ENTER button.

This completes the keystone correction.
Selecting “Cancel” will return to the adjustment screen without saving changes (Step 3).
Selecting "Reset" will return to the factory default.
Selecting "Undo" will exit without saving changes.

NOTE: To reset the 3D Reform correction setting values, press and hold the 3D REFORM button for a minimum of 2 seconds.

NOTE: During 3D Reform adjustment, "Aspect Ratio" and "Screen" may not be available. Should this happen, first reset the 3D
Reform data and then do each setting. Second repeat the 3D Reform adjustment. Changing Aspect Ratio and/or Screen setting
can limit 3D Reform in its adjustable range.

44

4. Convenient Features

The adjustable ranges for 3D Reform are as follows:

Horizontal Vertical
Cornerstone Max. +/– 35° approx.
Keystone LT265: Max. +/– 35° approx.

LT245: Max. +/– 30° approx.

* The following are conditions under which the maximum angle is achived:

• Image is projected in Wide (Zoom lever)

• Resolution is XGA

Higher resolution than XGA narrows the adjustable range.

• Menu items should be set as follows:

Aspect Ratio ...........4:3

Screen Type ........... 4:3

• Horizontal and Vertical are adjusted separately.
A combination of both adjustments narrows the adjustable range.

• When "4:3 Fill" is selected in Aspect Ratio, "Cornerstone" and "Horizontal Keystone" are not available.

NOTE:

• If the Cornerstone screen is unavailable (grayed), press and hold the 3D REFORM button for a minimum of 2 seconds to reset
the current correction data. The Cornerstone function becomes available.

•Turning on the projector will reset the previous correction setting values and correct distortion anew if the projection angle is
changed from the last use.

If the projection angle is the same as in the last use, the previous correction setting values are retained in the memory.

To use the previous correction setting values after changing projection angle, select "Manual" in "Keystone" from the menu. See
page 90.

Max. +/– 40° approx.

NOTE: The 3D Reform feature can cause an image to be slightly blurred because the correction is made electronically.

45

4. Convenient Features

쐎 Making Freehand Drawings on a Projected Image
(ChalkBoard)

The ChalkBoard feature allows you to write and draw messages on a projected image.

NOTE: The ChalkBoard feature is available only when a USB mouse is used.

To display the ChalkBoard tool bar, click the middle button on your mouse or select "ChalkBoard" from the menu.
The tool bar contains the following icons.







 Drag ................. Drags to move the tool bar.

 Pen ................... Left-click and drag to draw. Left-click or right-click the pen icon to display the pen palette containing four

lines of different thickness from which you can select a line you prefer by left-clicking.

 Color ................ Selects a color. Left-click to display the color palette from which you can select a color you prefer by left-

clicking.

 Capture............. Left-click to capture a drawing on the ChalkBoard screen and save it to your PC-card inserted into the PC

card slot of the projector.

 Eraser ............... Left-click and drag to erase part of a drawing. Left-click

palette containing four erasers of different thickness from which you can select an eraser you prefer by left­clicking.

 Clear ................. Left-click to clear the drawing completely from the ChalkBoard screen.

 Hide .................. Hides the tool bar by left-clicking. Right-clicking anywhere on the screen displays the ChalkBoard tool bar

again.

 Exit ................... Clears the complete drawing and exits the ChalkBoard.

or right-click the eraser icon to display the eraser

NOTE:

• The menu is not available while you display the ChalkBoard screen.

• Selecting another source or switching slides in the Viewer clears a drawing completely.

46

4. Convenient Features

쐅 Storing Images Displayed on the Projector on the PC card or
USB memory (Capture)

The Capture features allows you to capture an image from a source that is currently being displayed. The image is
saved as JPEG in the PC card or USB memory.

NOTE:

• Unless a PC card or USB memory is inserted into the PC Card slot or USB port of the projector, the Capture feature is not
available.

• The "Card Error" display means that the free space of the PC card or USB memory is insufficient for saving images. Make more
space available on the card by erasing unwanted images with your PC. The number of images that can be captured depends on
the size of the PC card.

• Be sure not to turn off the power or remove the PC card or USB memory while capturing an image. Doing so could cause a
loss of the data in the PC card or USB memory or damage to the card itself.

Preparations:

Insert the PC card into the PC card slot or USB memory into USB port of the projector.
Insert the PC card so that the end with the insertion direction arrow on the top goes in first.
* Press the eject button to eject the card.

1. Project the image you wish to store on the projector.

2. Press the FREEZE button on the remote contorol.

3. Press the MENU button to display the Capture menu.

Capture.................. Captures an image and save it as a JPEG file in a PC card or USB memory.

Drive...................... Select the PC Card or USB memory. You can capture an image and save it to your PC card or USB memory.

Exit ........................ Exits the Capture function. Another option to exit the Capture function is to press the MENU or EXIT button

on the remote control or projector cabinet.

NOTE:
Captured images with higher resolution than the projector's native resolution cannot be displayed correctly.

• File size of the captured image varies depending on the resolution of an input signal.

• An hourglass indicating that an image is being captured appears on the projector's display. Do not eject the PC card or turn off
the projector's power while this icon is displayed. Doing so will damage the PC card data. If the PC card data is damaged, use a
computer to repair the data.

47

4. Convenient Features

쐈 Preventing Unauthorized Use of the Projector

Assigning a keyword prevents the projector from being used by unauthorized individuals.

Assigning a Keyword for the first time

1. Press the MENU button.

The menu will be displayed.

2. Press the SELECT 왘 button to highlight the Setup submenu and press the ENTER button.

The page tab “Basic” will be highlighted.

3. Press the SELECT 왘 button twice to highlight the page tab “Security”.

48

4. Press the SELECT 왔 button four times to highlight “Security”.

5. Press the ENTER button to display the Security screen.

4. Convenient Features

6. Press the ENTER 왔 button once to highlight the Keyword entry box and press the ENTER button.

The Software keyboard will be displayed.

49

4. Convenient Features

7. Enter an alphanumeric keyword using the Software keyboard

For example, to enter “1234”, follow the steps 7-1 to 7-4 below.

NOTE:

• Please make a note of your keyword.

• Do not use spaces (SP) in your keyword.

7-1. Highlight the number “1” and press the ENTER button.

The asterisk “

7-2. Press the SELECT

The asterisk “

7-3. For “3” and “4”, use the same procedure as step 7-2.

The asterisk “

7-4. Press the SELECT

The Software keyboard will disappear.

8. Press the SELECT 왖 button once to highlight “Disable” and press the SELECT 왗 button to highlight

“Enable”.

쏄

” will be displayed in the Keyword entry box.

왘

button once to highlight “2” and press the ENTER button.

쏄쏄

” will be displayed in the Keyword entry box.

쏄쏄쏄쏄

” will be displayed in the Keyword entry box.

왔

button to highlight “OK” and press the ENTER button.

9. Press the SELECT 왔 button to highlight “OK” and press the ENTER button.

The confirmation screen will be displayed.

10

.Press the ENTER button.

The Security Function is now enabled.

NOTE: A PC card can be used as a protect key. You can skip the keyword entry by inserting a registered PC card when turning on
the projector. See page 96.

50

4. Convenient Features

Checking If Security is enabled

Tu rn off the projector and turn it back on to check if the Security function is enabled.

1. Press the POWER (ON/STANDBY) button.

The "Power Off / Are you sure?" message will appear.
Press the ENTER button or the POWER (ON/STANDBY) or the POWER OFF button again.
The lamp lights off and the POWER indicator flashes orange. Please wait until the POWER indicator changes

from flashing to steady light.

2. When the POWER indicator lights steady orange, push the Main POWER switch to the off position (O).

The projector will turn off.

3. Push the Main POWER switch to the on position (I).

The POWER indicator lights orange. The projector is in standby condition.

4. Press and hold the POWER (ON/STANDBY) button for a minimum of two seconds.

The projector will turn on. The “Projector is locked! Enter your keyword.” message will be displayed at the bottom
of the screen.

5. Press the MENU button.

The Keyword entry screen will be displayed

6. Press the ENTER button.

The Software keyboard will be displayed.

7. Use the same procedures as steps 1 to 7 described in the “Assigning a Keyword for the first time”

section to enter “1234”.

Each time one number is entered, an “
keyword is hidden.

8. After entering your keyword, highlight “OK” and press the ENTER button.

The Software keyboard will disappear. This will allow you to operate the projector.

쏄

” (asterisk) will appear. Keyword appears as asterisks so the real

51

4. Convenient Features

Disabling the Security

1. Press the MENU button.

The on-screen menu will be displayed.

NOTE: Immediately after the projector has been turned on and the “Projector is locked! Enter your keyword.” message is
displayed at the bottom of the screen, pressing the MENU button will display the Keyword entry will be displayed. At this
time, pressing the MENU button will display the on-screen menu.

2. Press the SELECT

The page tab “Basic” will be highlighted.

3. Press the SELECT

4. Press the SELECT

The Keyword entry screen will be displayed

5. Press the ENTER button.

The Software keyboard will be displayed.

6. Use the same procedures as steps 1 to 7 described in the “Assigning a Keyword for the first time”

section to enter “1234”.

Each time one number is entered, an “
keyword is hidden.

7. After entering your keyword, highlight “OK” and press the ENTER button.

The Software keyboard will disappear. The Security screen will be displayed.

왘

button to highlight “Setup” and press the ENTER button.

왘

button twice to highlight the page tab “Security”.

왔

button four times to highlight “Security” and press the ENTER button.

쏄

” (asterisk) will appear. Keyword appears as asterisks so the real

8. Highlight “Enable” and press the SELECT 왘 button to highlight “Disable”.

9. Press the SELECT 왔 button to highlight “OK” and press the ENTER button.

The Security Function is now disabled.

NOTE: Do not forget your keyword. However, if you forget your keyword, NEC or your dealer will provide you with your Release
Code.

52

4. Convenient Features

쐉

Using a USB Memory Device or USB Memory Card Reader

The projector is compatible with either a USB memory device or
USB memory card reader which supports the viewer and security
features.

•To use a USB memory device or USB memory card reader,

connect the device to the USB port (type A).

• Select one of the drive icons for your USB memory in a pane

on the left side of the Viewer window.

•To use a USB memory device as a Protect key for Security

function, select one from the Drive icons in the Security setting
screen. See page 95.

PC CARD

R AUDIO IN L

VIDEO IN

S-VIDEO IN

AC IN

NOTE:

• Some USB memory devices (brands) or USB memory card readers may not work.

• The projector does not support NTFS formatted flash memory card or USB memory device.
Be sure to use a flash memory card or USB memory device formatted with the FAT32, FAT16 or FAT file system.
To format your flash memory card or USB memory device in your computer, refer to the document or help file that comes with
your Windows.

•You cannot use a USB memory device and a USB memory card reader when connecting a USB mouse to the projector.

• Do not do the following while the USB memory device or USB memory card reader’s access indicator is lit or flashing (while
data is being accessed.) Doing so can damage your USB memory device or USB memory card reader in the reader. Back up
your data in case it will need to be restored.
* Pulling out the USB memory device or USB memory card reader from the USB port of the projector.
* Pulling out the memory card from the USB memory card reader
*Turning off the main power switch or unplugging the power cable.

• The drive for ”USB 1-4” is displayed only when the USB memory device or USB memory card reader is connected to the
projector. The drive for “USB 1-4” may be displayed differently from the one in the USB memory card reader.

• Some USB memory devices (brands) or USB memory card readers cannot be used as Protect key for the projector’s Security
function.

USBLAN

PC CONTROL

COMPUTER 1 IN COMPUTER 2 IN

AUDIO OUT

MONITOR OUTAUDIO IN

CAUTION: Do not insert a USB memory device or USB memory card reader into the LAN port (RJ-45). Doing so
can cause damage to the LAN port (RJ-45).

53

4. Convenient Features

씈 Operation Using an HTTP Browser

Overview

The use of HTTP server functions will allow control of the projector from a web browser without the installation of
special software. Please be sure to use “Microsoft Internet Explorer 4.x” or a higher version for the web browser. (This
device uses “JavaScript” and “Cookies” and the browser should be set to accept these functions. The setting method
will vary depending on the version of browser. Please refer to the help files and the other information provided in your
software.)

NOTE:
* The display’s or button’s response can be slowed down or operation may not be accepted depending the settings of your

network. Should this happen, consult your network administrator.

* The projector may not respond if its buttons are repeatedly pressed in rapid intervals. Should this happen, wait a moment and

repeat. If you still can’t get any response, turn off and back on the projector.
Access is gained to the HTTP server functions by specifying
http:// <the projector’s IP address> /index.html
in the entry column of the URL.

CAUTION:

Do not use the HTTP Server functions and PC Control Utility 3.0 included on the supplied CD-ROM. Using both at

the same time may result in a connection failure or slow response.

Preparation Before Use

Make network connections and set up the projector and confirm that it is complete before engaging in browser opera­tions. (See “Setting LAN Mode” on page 99.)
Operation with a browser that uses a proxy server may not be possible depending on the type of proxy server and the
setting method. Although the type of proxy server will be a factor, it is possible that items that have actually been set
will not be displayed depending on the effectiveness of the cache, and the contents set from the browser may not be
reflected in operation. It is recommended that a proxy server not be used unless it is unavoidable.

Handling of the Address for Operation via a Browser

Regarding the actual address that is entered for the address or entered to the URL column when operation of the
projector is via a browser, the host name can be used as it is when the host name corresponding to the IP address of
the projector has been registered to the domain name server by a network administrator, or the host name corre­sponding to the IP address of the projector has been set in the “HOSTS” file of the computer being used.

Example 1: When the host name of the projector has been set to “pj.nec.co.jp”,

http://pj.nec.co.jp/index.html
is specified for the address or the entry column of the URL.

Example 2: When the IP address of the projector is “192.168.73.1”, access is gained to the

HTTP server functions by specifying
http://192.168.73.1/index.html
for the address or the entry column of the URL.

54

Structure of the HTTP Server

4. Convenient Features

Power: This controls the power of the projector.

On ................... Power is switched on.

Off ................... Power is switched off.

Volume: This controls the volume of the projector.

왖 ..................... Increases the volume adjustment value.

왔 ..................... Decreases the volume adjustment value.

Mute: This controls the mute function of the projector.

Picture On ....... Mutes the video.

Picture Off ....... Cancels the video muting.

Sound On ........ Mutes the audio.

Sound Off ........ Cancels the audio muting.

OSD On .......... Mutes the on-screen display.

OSD Off .......... Cancels the muting of the on-screen display.

All On .............. Mutes each of the video, audio, and on-screen display functions.

All Off .............. Cancels the muting of each of the video, audio, and on-screen display functions.

Picture: Controls the video adjustment of the projector.

Brightness 왖 ... Increases the brightness adjustment value.

Brightness 왔 ... Decreases the brightness adjustment value.

Contrast 왖 ...... Increases the contrast adjustment value.

Contrast 왔 ...... Decreases the contrast adjustment value.

Color 왖 ........... Increases the color adjustment value.

Color 왔 ........... Decreases the color adjustment value.

Hue 왖 ............. Increases the hue adjustment value.

Hue 왔 ............. Decreases the hue adjustment value.

Sharpness 왖 ... Increases the sharpness adjustment value.

Sharpness 왔 ... Decreases the sharpness adjustment value.

• The functions that can be controlled will vary depending on the signal being input to the projector.

55

Source Select: This switches the input connector of the projector.

Computer1 ...... Switches to the COMPUTER 1 IN connector.

Computer2 ...... Switches to the COMPUTER 2 IN connector.

Video ............... Switches to the VIDEO IN connector.

S-Video ........... Switches to the S-VIDEO IN connector.

Viewer ............. Switches to the Viewer.

LAN ................. Switches to a LAN signal.

Projector Status: This displays the condition of the projector.

Remaining Lamp Time

Lamp Hour Meter ........Displays how many hours the lamp has been used.

Projector Usage .......... Displays how many hours the projector has been used.

Error Status ................. Displays the status of errors occurring within the projector.

Refresh ....................... Updates the display of the following conditions.

... Displays the remaining life of the lamp as a percentage.

4. Convenient Features

56

4. Convenient Features

씉 Using the Projector to Operate a Computer Connected on a
Network (Desktop Control Utility 1.0)

When Desktop Control Utility 1.0 on the included User Supportware 2 CD-ROM is installed on the computer, that
computer can be operated using the projector over a network.
For example, say you have a PowerPoint file on a computer in your office that you want to use for a presentation at a
meeting. If the computer in the office is connected by LAN to the projector in the meeting room, the projector can be
operated to project the image of the desktop of the computer (Windows 2000 or XP) in the office and display the
PowerPoint file during the meeting. This eliminates the need for taking the computer from the office to the meeting
room.

Meeting room

Office

Disclaimer

You can use the Desktop Control Utility 1.0 to operate a computer located in a separate room from the projector over
a network. This means there might be potential security risks that you may be exposed to which could cause damage
by unauthorized access or illegal use. We recommend you take some measures to prevent third parties from unautho­rized access to your data or information.
We share neither liability nor responsibility to any loss or damages arising from information leak or power down
without notice.

NOTE: In Windows operating system, click “Control Panel” → “Power Options” → ”System Standby” → ”Never”. This will
disconnect a LAN connection when the computer goes in standby mode.

NOTE: To use the Desktop Control Utility 1.0, you need to have a USB mouse inserted into the USB port of the projector.

57

4. Convenient Features

Operations on the Computer

1. Connect the computer to the LAN and make the required settings.

2. Install Desktop Control Utility 1.0 on the computer.

•For instructions on installation, refer to the included “NEC Software Utility Installation Guide”.

•For instructions on operating the software, see the Desktop Control Utility 1.0’s help file.

3. Prepare the documents to be presented at the meeting and save them on the computer.

4. Start up Desktop Control Utility 1.0.

The Startup password window appears.

Window at the first startup Window after entering your startup password

Important:

•Your startup password will be required each
time you start Desktop Control Utility 1.0.

• If you forget or lost your startup password,

5. Input the startup password and click “OK”.

The “Current password” input window appears.

install the program again.

NOTE: The "Current password" will be changed each time you start Desktop Control Utility 1.0.

6. Make a note of the password.

7. Click “OK”.

Desktop Control Utility 1.0 starts.

Go to the room where the projector is installed, taking the password you made a note in the previous Step [6].

58

4. Convenient Features

Operations on the projector – Connecting to the computer

1. Make the LAN settings on the projector.

Make the LAN settings at [Setup]

2. Connect a commercially available USB mouse to the projector. (See page 41)

3. Click anywhere on the screen with the USB mouse.

The menu appears.

4. Click “Source”, then click “LAN”.

The help message is displayed.

The message is displayed only when a password for Desktop Control Utility 1.0 is not assigned.

5. Follow the message to press the MENU button on the projector cabinet or the remote control.

The connections bar appears at the bottom left of the screen.

→

[Installation] → [LAN Mode] in the menu. (See page 99)

6. Click the password input icon .

7. Click “Entry”.

The password input window appears.

8. Click .

The character input window appears. (See page 132.)

59

4. Convenient Features

9. Input the password you made a note of in the previous Step [6] in “Operations on the Computer”.

10. Input the password and click “OK”.

The password input window is turned off.

11. Click the PC search icon

The PC search window appears.

12. Click “OK”.

The connection selection window appears.

•To search by inputting the IP address of the connected computer, click
“Input IP Address”, then click “OK”.

13. Click the computer to which you want to connect, then click “OK”.

The desktop of the connected computer appears.

.

on the PC Search window, click

NOTE: Once the desktop appears, the menu will no longer appear when the USB mouse is clicked. To display the menu while the
desktop is displayed, press the button on the projector itself or on the remote control.

Operations on the projector –Operating the desktop

A USB mouse connected to the projector can be used to operate the displayed desktop.
If the MENU button on the projector cabinet or the remote control is pressed while the desktop is displayed, an
additional operations bar appears at the bottom left of the screen.

햲햳햴햵

60

4. Convenient Features

The following operations are available only with buttons on the projector cabinet or the remote control.

Disconnect icon ................. Use to cut off communications with the computer.

햲

Shift icon ............................ Select this icon and press the ENTER button to set the shift lock mode. Select this icon and

햳

press the ENTER button again to cancel the shift lock mode.

Ctrl icon ............................. Select this icon and press the ENTER button to set the control lock mode. Select this icon

햴

and press the ENTER button again to cancel the control lock mode.

햵

Esc icon ............................. Use to do the same operation as when the “Esc” button on the computer is pressed. Use it

for example to stop a PowerPoint slideshow.

Operations on the projector – Disconnecting communication

1. Press the MENU button while the desktop is displayed.

The additional operations bar appears at the bottom left of the screen.

2. Select the disconnect icon and press the ENTER button.

The connections bar appears at the bottom left of the screen.

To reconnect the communication, click the PC search icon and repeat steps 12 and 13 in the previous page.

NOTE: Disconnection is possible by clicking the projector icon and then "Disconnect" on the task bar.

Operations on the projector – Exiting the desktop operation

Exiting the desktop operation using the taskbar in Windows.

1. Click the projector icon on the taskbar while the desktop is displayed.

The pop-up menu appears.

2. Click “Exit”.

Desktop Control Utility 1.0 quits

3. Click anywhere on the screen.

The connections bar appears at the bottom left of the screen.

4. Click again anywhere on the screen.

The menu appears.

5. Click "Source" and then click any other source than "LAN".

The menu turns off.

61

5

Using the Viewer

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

 Making the Most out of the Viewer Function.............. 63

 Operating the Viewer Function from

the Projector (playback) ......................................... 64

쐋 Changing Background Logo ...................................... 70

62

5. Using the Viewer

 Making the Most out of the Viewer Function

Features

You can view presentation data, capture and play images on the projector. A PC card is used to view presentation data
prepared on the computer and to capture and play images projected with the projector.
The Viewer feature allows you to view slides stored on a PC memory card (referred to as PC card in this manual) or
USB memory on the projector. Even if no computer is available, presentations can be conducted simply with the
projector. This feature is convenient for holding presentations at meetings and in offices, as well as for playing images
taken on digital cameras.

NOTE:

1

•To use the Viewer, first you need to create presentation materials on your PC (JPEG, BMP, GIF*

, PNG*1, Index*2 files).
For creating presentation materials using the Ulead Photo Explore 8.0, see the supplied "NEC Software Utility Installation Guide"
or On-line help in Ulead Photo Explorer 8.0.

1

Both PNG and GIF format support non-interlaced images only.

*

2

*

“Index” file is a file created using the Ulead Photo Explore 8.0 contained on the supplied NEC User Supportware 2 CD-ROM.
See the supplied“NEC Software Utility Installation Guide” for installing the Ulead Photo Explore 8.0 on your computer.

Easy to use

• Presentations can be started immediately simply by inserting a PC card or USB memory (not supplied)

• Easy slide switching

• Remote control operation

•Jumping to a list of slides or any specific slide

Simple utility software (for computer)

• Ulead Photo Explore 8.0SE Basic operable on Windows XP/Windows 2000.

• Slides can be created by capturing the currently displayed image.

• Control screen for displaying lists of slides and editing.
* Microsoft, Windows and PowerPoint are registered trademarks of Microsoft Corporation.

63

5. Using the Viewer

 Operating the Viewer Function from the Projector (playback)

This section describes the operation for showing slides created using the Viewer function with the projector. It is also
possible to make slides directly from the images projected with the projector.

Projecting slides (Viewer)

Preparation: Use the Capture feature to store graphic files (JPEG, BMP, non-interlaced GIF or non-interlaced PNG
files) in a PC card or USB memory inserted into the projector’s slot. Or store JPEG or BMP files in a PC card or USB
memory inserted into your PC.

1. Insert a PC card into the PC card slot or USB memory into the USB port of the projector.

2. Press the VIEWER button on the remote control or select the “Viewer” from the source list.

An image stored in the PC card or USB memory will be displayed.

3. Press the MENU button to display the Viewer menu.

The Viewer menu will appear when you press the MENU button on the remote control or the projector cabinet.

The Viewer menu includes the following commands:

Play ................... Plays back automatically or manually depending on the setting in Options. This allows you to move on to the

next slide when "Manual Play" is selected in the “Play Mode”.

Stop ................... This allows you to stop Auto Play while you are playing back and to resume playing from the selected slide

or folder when "Auto Play" is selected in the “Play Mode”.

Thumbnails........ Displays a list of thumbnails of Graphic files stored in the PC card inserted into the projector.

Delete ................ Deletes a captured slide(s) or all the captured slides in the Capture - specific folder.

Logo .................. Replace the default background logo with another logo in JPEG, BMP, non-interlaced GIF or non-interlaced

PNG format.

Options .............. Displays the Viewer setting options.

4. Select “Play” and then press the ENTER button to display the first slide or to start playing slides auto­matically.

64

Viewer Window Elements

Highlight

List of folders

Slot 1

_CAP_
_RESTORE
RECYCLED

Number of files

3 Fichiers

0000.jpg 0001.jpg 0002.jpg

5. Using the Viewer

Thumbnail/file name

?

Scroll bar

Cursor (orange)

Information

1/3 0000.jpg 60KB

sélection : ENTER

Highlight .................................. Indicates the selected folder or drive.

List of folders .......................... Indicates folders contained on a PC card or USB memory.

Information .............................. Indicates information of the selected file or folder.

Folder: folder name, creation date (month/day/year), creation time (hour/minute).
File: slide number/number of displayable slides in a folder, file name, creation date (month/day/

year), creation time (hour/minute), file size.

Number of files........................ Indicates number of displayable slides in the selected folder. The maximum number of images

recognized as slides within one directory is about 1000.

Thumbnail/file name ................ Indicates thumbnails and names contained in a folder.

Cursor ..................................... Indicates the selected slide.

Scroll bar ................................. Used to view folders or files not visible in the window.

65

5. Using the Viewer

Setting Option for Viewer

Play Mode:

Manual .................. Views a slide manually when the Viewer source is selected.

Auto ...................... Plays back slides automatically when the Viewer source is selected.

Interval:

Specifies interval time between 5 and 300 seconds.

Start:

Specifies start screen when the Viewer source is selected.

Show Thumbnails:

Selecting the Viewer source will display a list of thumbnails of graphic files stored in the PC card or USB memory
when “On” is selected.

“On”

3 Fichiers

0000.jpg 0001.jpg 0002.jpg

sélection : ENTER

dossier :

EXIT

Slot 1

_CAP_
_RESTORE
RECYCLED

1/3 0000.jpg 60KB

“Off”

3 Fichiers

0000.jpg 0001.bmp 0002.jpg

sélection : ENTER dossier :

EXIT

?

Slot 1

_CAP_
_RESTORE
RECYCLED

1/3 0000.jpg 60KB

Sort:

Rearranges the slides or thumbnails by name, extension, date or size.

NOTE: This setting is not available for the following folders:
* The "__CAP__" folder for captured images
* Folders created with the "Output Viewer" feature of Ulead Photo Explorer 8.0 or with Viewer PPT Converter 3.0

OK/Cancel:

To close the Options menu with saving changes, select "OK" and press the ENTER button.
To close the Options menu without saving changes, select "Cancel" and press the ENTER button.

?

66

5. Using the Viewer

Exiting Viewer

To exit Viewer, switch to another input such as Computer 1, Computer 2, Video, S-Video or LAN.

*To switch to another input, there are two ways:
* Press the COMPUTER 1, COMPUTER 2, VIDEO, S-VIDEO or LAN button on the remote control.
* Press the MENU button on the remote control to display the Viewer menu. Press the MENU button again to

display the main menu and select the input from the "Source" submenu.

With this function it is possible to switch directly to a slide when the picture of a VCR or computer is being projected.
Example: When conducting presentations using a combination of slides and moving pictures from a VCR, etc., it is
possible to switch from a Viewer slide to the video picture then back to the Viewer slide simply by using the Viewer
button.

NOTE: Even if you switch the current Viewer source to another source, the current slide is retained. When you return back to the
Viewer, you will get the slide that has been retained.

Viewing Digital Images

Digital images can be played with the Viewer if the following conditions are met:

• If the image can be stored on an MS-DOS format PC card.

• If the image can be stored in a format supported by the Viewer. With the Viewer, images on the card are

searched for in directories and images in JPEG, BMP, non-interlaced GIF or non-interlaced PNG format are
recognized as slides.

NOTE: The maximum number of images recognized as slides within one directory is about 1000.

67

5. Using the Viewer

Deleting Captured Images

Using the Delete command on the Viewer menu allows you to delete captured images.

To delete captured images:

Preparation: Make sure that the PC card is inserted into the PC card slot or USB memory into the USB port of the
projector.

1. Press the VIEWER button on the remote control to display an image.

2. Press the MENU button to display the Viewer menu.

3. Use the 왔 button to select “Thumbnails” and then press the ENTER button.

The Thumbnail screen will be displayed.

Slot 1

_CAP_
_RESTORE
RECYCLED

1/3 0000.jpg 60KB

3 Fichiers

0000.jpg 0001.jpg 0002.jpg

sélection : ENTER

dossier :

EXIT

?

NOTE: To change highlight from the Thumbnails screen (pane on the right) to a directory tree (pane on the left) , press the EXIT
button. To return highlight to the Thumbnails screen, press the ENTER button.

4. Use the

왖왔왗왘

buttons to select an image you wish to delete.

5. Press the MENU button to display the Viewer menu.

6. Use the 왔 button to select “Delete” and then press the ENTER button.

A confirmation message will be displayed.

7. Use the 왗 button to select “Yes” and then press the ENTER button.

This completes deleting.

68

5. Using the Viewer

To delete all the captured images:

1. Repeat steps 1 to 3 in the above described procedure.

2. Press the EXIT button to select the “__CAP__” folder in the directory (pane on the left).

Slot 1

__CAP__
_RESTORE
RECYCLED

1/3 0000.jpg 60KB

3 Fichiers

0000.jpg 0001.jpg 0002.jpg

sélection : ENTER dossier : EXIT

?

3. Press the MENU button to display the Viewer menu.

4. Use the

왔

button to select “Delete” and then press the ENTER button.

A confirmation message will be displayed.

5. Use the

왗

button to select “Yes” and then press the ENTER button.

This completes deleting.

NOTE: The vacant "__CAP__" folder stays even after you delete all the captured images.

69

5. Using the Viewer

 Changing Background Logo

You can change the default background logo using the Viewer feature.

NOTE: File size must be 256KB or less. File formats other than JPEG, BMP, non-interlaced GIF or non-interlaced PNG are not
available.

Preparation:

Use the Capture feature to store JPEG or BMP files in a PC card inserted into the projector’s slot or USB memory
into projector’s USB port. Or store JPEG, BMP, non-interlaced GIF or non-interlaced PNG files in a PC card or
USB memory inserted into your PC’s slot or USB port and insert the PC card into the projector’s slot or USB
memory into the projector’s USB port.

1. Press the VIEWER button on the remote control to display an image.

2. Press the MENU button to display the Viewer menu.

3. Use the 왔 button to select “Thumbnails” and then press the ENTER button.

The Thumbnail screen will be displayed.

Slot 1

_CAP_
_RESTORE
RECYCLED

1/3 0000.jpg 60KB

3 Fichiers

0000.jpg 0001.jpg 0002.jpg

sélection : ENTER

dossier :

EXIT

?

NOTE: To change highlight from the Thumbnails screen (right window) to a directory tree (left window) , press the EXIT button.
To return highlight to the Thumbnails screen, press the ENTER button.

4. Use

왖왔왗왘

button to select a file (slide) for your background logo.

5. Press the MENU button to display the Viewer menu.

6. Use the 왔 button to select "Logo" and then press the ENTER button.

A confirmation dialog box will be displayed.

7. Use the 왗 button to select “Yes” and press the ENTER button. This completes changing a logo for the

background.

* Once you have changed the background from the NEC logo to another, you cannot return the logo to back-

ground even by using “Reset”. To put the NEC logo back in the background logo, repeat the above steps. The
NEC logo file is included on the supplied User Supportware 2 CD-ROM (/Logo/nec_b_x.jpg).

70

6

Using On-Screen Menu

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

 Using the Menus........................................................ 72

 Menu tree .................................................................. 73

 Menu Elements.......................................................... 75

 Menu Descriptions & Functions [Source] .................. 76

 Menu Descriptions & Functions [Adjust] .................... 79

 Menu Descriptions & Functions [Setup] .................... 90

 Menu Descriptions & Functions [Information] .......... 112

 Menu Descriptions & Functions [Reset] .................. 116

71

6. Using On-Screen Menu

 Using the Menus

1. Press the MENU button on the remote control or the projector cabinet to display the menu.

Submenu

NOTE: The commands such as 왗왘, ENTER, EXIT in the gray bar show available buttons for your operation.

2. Press the SELECT

3. Press the ENTER button on the remote control or the projector cabinet to highlight the top item or the

first tab.

4. Use the SELECT

to adjust or set.

You can use the SELECT 왗왘 buttons on the remote control or the projector cabinet to select the tab you
want.

NOTE: You can select a tab only when the tab color is orange.

왗왘

buttons on the remote control the projector cabinet to display the submenu.

왖왔

buttons on the remote control or the projector cabinet to select the item you want

Submenu window

Main menu

Currently available
buttons

5. Press the ENTER button on the remote control or the projector cabinet to display the submenu window.

6. Adjust the level or turn the selected item on or off by using the SELECT

control or the projector cabinet.

Changes are stored until you adjust it again.

7. Repeat steps 2 -6 to adjust an additional item, or press the EXIT button on the remote control or the

projector cabinet to quit the menu display.

NOTE: When a menu or message is displayed, several lines of information may be lost, depending on the signal or settings.

왖왔왗왘

buttons on the remote

72

6. Using On-Screen Menu

 Menu tree

Menu Item

Source Computer1, Computer2, Video, S-Video, Viewer, LAN, Entry List
Adjust Basic Brightness

Contrast

Color

Hue

Sharpness

Wall Color Off, Blackboard, Light yellow, Light green, Light blue, Sky blue, Light rose, Pink

Aspect Ratio 4:3 4:3, Letterbox, Wide Screen, Crop

16:9 4:3 Window, Letterbox, Wide Screen, 4:3 Fill
Volume
Reset

Picture Preset 1 to 5
Management Detail Settings Reference Presentation, Video, Movie,

Gamma Correction
Color Temperature
White Peaking
Black Expansion On, Off
White Balance Brightness RGB, Contrast RGB
Color Correction Red, Green, Blue,Yellow, Magenta,

Signal Type RGB, Component
Video Filter Off, Less, More

Image Options Clock

Phase
Horizontal Position
Vertical Position
Blanking Top, Bottom, Left, Right
Resolution Auto, Native
Overscan 0%, 5%, 10%

Video Noise Reduction Off, Low, Medium, High

Color Matrix HDTV, SDTV
3D Y/C Separation Off, On
Vertical Enhancer Off, 1, 2, 3
I/P Converter Deinterlace(Auto/Still), Interlace

Setup Basic Keystone Auto, Manual

Cornerstone
Lamp mode Normal, Eco
Menu Mode Basic Menu, Advanced Menu
Language English, Deutsch, Français, Italiano, Español, Svenska, Suomi, Norsk,

Nederlands, Türkçe, Polski, , , Magyar, Português,

, , Dansk, , ,

Cestina

Menu Menu Color Select Color1 to 5, Monochrome

Display Select Source: On, Off / Message: On, Off
Menu Display Time Manual, Auto 5 sec, Auto 15 sec, Auto 45 sec
Background Blue, Black, Logo

Security Cabinet Button Unlock, Lock

Password (Menu) Entry, Delete
Password (Logo) Entry, Delete
Security Enable, Disable, Keyword, Use Protect Key, Drive, Read, Register, Delete

Basic menu items are indicated by
shaded area.

Graphic, sRGB
Dynamic, Natural, Black Detail
5000, 6500, 7200, 7800, 8500, 9300

Cyan, Color Gain

73

6. Using On-Screen Menu

Menu Item

Setup Installation Orientation Desktop Front, Ceiling Rear, Desktop Rear, Ceiling Front

Screen Screen Type: 4:3, 16:9 / Position
LAN Mode Built-in

PC Card Advanced: Network Type, Wep

Domain

Mail
Projector Name
Communication Speed 4800, 9600, 19200, 38400

Options Auto Adjust Off, Normal, Fine

Auto Start Off, On
Power Management Off, On
Fan Mode Auto, High
Default Source Select Last, Auto, Select (Computer1/2, Video, S-Video, Viewer, LAN)
Signal Select Computer1 RGB/Component, RGB, Componet, Scart

Computer2 RGB/Component, RGB, Componet

Video Auto, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM

S-Video Auto, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM
OUT Terminal Last, Computer1, Computer2

Tools ChalkBoard

Off Timer Off, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00
Mouse Mouse Pointer: Pointer 1 to 9 / Button: Right Hand, Left Hand /

Sensitivity: Fast, Medium, Slow
Pointer Pointer 1 to 9

Information Usage Time Remaining Lamp Time, Lamp Hour Meter, Projector Usage

Source Page1 Input Terminal, Signal Type, Video Type, Source Name, Entry No.
Source Page2 Horizontal Frequency, Vertical Frequency, Sync Type, Sync Polarity, Interlace
LAN Built-in IP Address, Subnet Mask, Gateway, MAC Address
LAN PC Card IP Address, Subnet Mask, Gateway, MAC Address
LAN Wireless SSID, Mode, WEP, Channel, Signal Level
Version Firmware, Data

Reset Current Signal, All Data, All Data (Including Entry List), Clear Lamp Hour Meter

74

 Menu Elements

Highlight

Ta b

6. Using On-Screen Menu

Slide bar

Close button

Radio button

Check box

OK button

Menu windows or dialog boxes typically have the following elements:

Highlight................ Indicates the selected menu or item.

Solid triangle ......... Indicates further choices are available. A highlighted triangle indicates the item is active.

Tab ........................ Indicates a group of features in a dialog box. Selecting on any tab brings its page to the front.

Radio button ......... Use this round button to select an option in a dialog box.

Check box ............. Place a checkmark in the square box to turn the option On.

Slide bar ................ Indicates settings or the direction of adjustment.

OK button .............. Press to confirm your setting. You will return to the previous menu.

Cancel button ........ Press to cancel your setting. You will return to the previous menu.

Close button .......... Click to close the window and saving changes. (USB mouse only)

Help button ........... Indicates that help about that feature is available (USB mouse only). Press the HELP button on the remote

control to display help.

Cancel button

Help button

Solid triangle

75

6. Using On-Screen Menu

쐏 Menu Descriptions & Functions [Source]

Computer 1 and 2

Selects the computer connected to your Computer 1 or Computer 2 input connector signal.

NOTE: An optional component cable (Component V or ADP-CV1 cable) is needed for a component signal.

Video

Selects what is connected to your Video input-VCR, laser disc player, DVD player or document camera.

S-Video

Selects what is connected to your S-Video input-VCR, DVD player, or laser disc player.

NOTE: A frame may freeze for a brief period of time when a video is played back in fast-forward or fast-rewind with a Video or S­Video source.

Viewer

This feature enables you to make presentations using a PC card that contains captured images and slides created
with the exclusive Photo Explore 8.0 for NEC contained on the CD-ROM. See the supplied NEC Software Utility
Installation Guide for installing the Photo Explore 8.0 for NEC.
See page 62 for viewing slides.

LAN

Selects a signal from the LAN port (RJ-45) or the NEC optional wireless LAN card plugged into the projector's card
slot.

76

6. Using On-Screen Menu

Entry List

Use the SELECT 왖왔 buttons on your remote control or the projector cabinet to select the signal and press the
ENTER button on the remote control or the projector cabinet to display the Entry Edit Command screen.

Entering the Currently Projected Signal into the Entry List

1. Display the Entry List.

2. Use the SELECT
press the ENTER button on the remote control or the projector cabinet to display the Entry Edit Com­mand screen.

3. Use the SELECT

왖

or 왔 button on your remote control or the projector cabinet to select any number and

왗

or 왘 button to select "Store" and press the ENTER button.

Using the Entry List

Making any adjustments to the current picture will automatically register its adjustments to the Entry List. The regis­tered signal can be loaded any time from the Entry List.

NOTE: Up to 100 presets can be registered except settings on the Picture.

77

6. Using On-Screen Menu

Entry Edit Command

You can edit signals on the Entry List.

Load ...................... Enables you to select a signal from the list.

Store ..................... Enables you to store the currently projected signal.

Cut ........................ Enables you to remove a selected signal from the list and place it on the "clipboard" in the projector.

Copy ...................... Enables you to copy a selected signal from the list and place it on the "clipboard" in the projector.

Paste ..................... Enables you to paste the signal placed on the "clipboard" to any other line of the list.

Edit ........................ Enables you to change source names.

Source Name:

Enter a signal name. Up to 18 alphanumeric characters can be used.

Input Terminal:

Change the input terminal.

Lock:

Set so that the selected signal cannot be deleted when "All Delete" is executed. After executing "Lock", the
changes cannot be saved.

Skip:

Set so that the selected signal will be skipped during auto search.
When complete, select OK and press ENTER. To exit without storing the setting, select Cancel. Select "Source

Name" and press ENTER to display the Source Name Edit window. You can change source name on this
window. Press 왔 to display the software keyboard, which you can enter alphanumeric characters. See page

132 for the key function of the software keyboard.

All Delete ............... This feature enables you to delete all the registered signals in the Entry List.

The following buttons are not available for the currently projecting signals:

1) The Cut and Paste buttons on the Entry Edit Command screen

2) The Input Terminal button on the Entry Edit screen

NOTE: When all the signals in the Entry List are deleted, the currently projected signal will be also deleted except locked signals.

78

쐄 Menu Descriptions & Functions [Adjust]

Basic

6. Using On-Screen Menu

[Brightness]

Adjusts the brightness level or the back raster intensity.

[Contrast]

Adjusts the intensity of the image according to the incoming signal.

[Color]

Increases or decreases the color saturation level (not valid for RGB).

79

6. Using On-Screen Menu

[Hue]

Varies the color level from +/- green to +/-blue. The red level is used as reference. This adjustment is only valid for
Video, Component and TV standard inputs (not valid for RGB).

[Sharpness]

Controls the detail of the image for Video (Not valid for RGB).

Using the Wall Color Correction [Wall Color]

This function allows for quick adaptive color correction in applications where the screen material is not white.
The following eight options are available.

• OFF • Blackboard

• Light yellow • Light green

• Light blue • Sky blue

• Light rose • Pink

80

6. Using On-Screen Menu

Selecting Aspect Ratio [Aspect Ratio] (not available for Viewer)

Screen Type 4:3 Screen Type 16:9

Aspect Ratio allows you to select the best Aspect mode to display your source image.
When screen type 4:3 is selected for the source, the following selections will display:

4:3 .........................Standard 4:3 aspect

Letter Box .............. Reduced to display the true aspect with black borders on top and bottom

Wide Screen .......... Left & Right stretched with black borders on top and bottom

Crop ...................... Left & Right stretched. Left & Right sides cut. Available for 4:3 only.

When screen type 16:9 is selected for the source, the following selections will display:

4:3 Window ........... Reduced to display the true aspect with black borders on right and left

Letter Box .............. Standard 16:9 aspect

Wide Screen .......... Left and right stretched to display the true aspect

4:3 Fill ................... Stretched to display in 16:9 aspect ratio

NOTE: You can adjust image position vertically for a source with black borders on top and bottom. See page 98 for setting image
position.
Copyright
Please note that using this projector for the purpose of commercial gain or the attraction of public attention in a venue such as a
coffee shop or hotel and employing compression or expansion of the screen image with a "Aspect Ratio" or "Screen" setting may
raise concern about the infringement of copyrights which are protected by copyright law.

NOTE: During 3D Reform adjustment, "Aspect Ratio" may not be available.
Should this happen, first reset the 3D Reform data and then do setting again. Second repeat the 3D Reform adjustment.
Changing the aspect ratio can limit 3D Reform in its adjustable range.

Input
Signal

Screen
Type

4:3 Screen

16:9 Screen

4:3 Window

4:3

4:3 Letterbox

4:3 Fill

Letterbox

Letterbox

Squeeze

Wide Screen

Wide Screen

Crop

81

6. Using On-Screen Menu

Controlling Volume [Volume]

You can adjust the volume level of the projector speakers and AUDIO OUT (Stereo Mini Jack).

Reset

To reset the settings for “Basic”, select “Reset” and press the ENTER button.
The message "The setting values on page will be reset. Are you sure?” will be displayed.
Select “Yes” and press the ENTER button. To return without storing settings, select “No” and press the ENTER button.

Picture Management

[Preset]

This option allows you to adjust neutral tint for yellow, cyan or magenta. There are 5 factory presets optimized for
various types of images, you can set user adjustable settings.

82

[Detail Settings]

This will provide you with three pages of menus that provide more detailed settings.

[Page1]

6. Using On-Screen Menu

Selecting Reference Setting [Reference]
This feature allows you to use color correction or gamma values as reference data to optimize for various types of
images. You can select one of the following five settings.

Presentation ...... Recommended for making a presentation using a PowerPoint file.

Video ................. Recommended for regular picture such as TV program.

Movie ................ Recommended for movies.

Graphic .............. Recommended for graphics.

sRGB ................. Standard color values.

Selecting Gamma Correction Mode [Gamma Correction]

Each mode is recommended for:

Dynamic ............ Creates a high-contrast picture.

Natural ............... Natural reproduction of the picture.

Black Detail ........ Emphasizes detail in dark areas of the picture.

Adjusting Color Temperature [Color Temperature]

This feature adjusts the color temperature using the slide bar. The range is between 5000K and 9300K.

83

6. Using On-Screen Menu

NOTE:
* When "Presentation" is selected in "Reference", this function is not available.
* When "White Balance" settings has been changed, the color temperature value on screen does not reflect the real color

temperature.

Adjusting Brightness of White Area [White Peaking]

Adjust the brightness of the white areas by using the slide bar. As the picture becomes dim, it looks more natural.

[Black Expansion]

Automatically minimizes blacks that appear more like shades of gray to provide a true black and white image. The
"On" is the factory preset.

NOTE: This feature is not available for Scart, 480p, 576p, HDTV and RGB signals.

[Page 2]

Adjusting White Balance [White Balance]

This allows you to adjust the white balance. Brightness for each color (RGB) is used to adjust the black level of the
screen; Contrast for each color (RGB) to adjust the white level of the screen.

[Page 3]

Selecting Color Correction [Color Correction]

Adjusts red, green, blue, yellow, magenta and cyan each independently to correct the tint of the whole screen.

84

6. Using On-Screen Menu

Selecting Signal Type [Signal Type]

Select either the computer signal type or the component signal type.

RGB ....................... Computer signal

Component............ Component signals such as Y/Cb/Cr, Y/Pb/Pr

NOTE: This feature is available on the computer signal only. If you do not get a better picture even when you set "Signal Select" to
"Component" in Setup, set this to "Component".

Selecting Video Filter Level [Video Filter] (not available for Video, Viewer and LAN)

This function reduces video noise.

Off ......................... The filter is removed.

Less ...................... The low-pass filter is applied partially.

More...................... The low-pass filter is applied fully.

85

6. Using On-Screen Menu

Image Options

Adjusting Clock and Phase [Clock/Phase]

This allows you to manually adjust Clock and Phase.

Clock ..................... Use this item to fine tune the computer image or to remove any vertical banding that might appear. This

function adjusts the clock frequencies that eliminate the horizontal banding in the image.
This adjustment may be necessary when you connect your computer for the first time.

Phase .................... Use this item to adjust the clock phase or to reduce video noise, dot interference or cross talk. (This is

evident when part of your image appears to be shimmering.)
Use "Phase" only after the "Clock" is complete.

Adjusting Horizontal/Vertical Position [Horizontal/Vertical Position]

Adjusts the image location horizontally and vertically.

Masking Unwanted Area [Blanking]

This feature allows you to mask any unwanted area of the screen image.
Adjust the Top, Bottom, Left or Right blanking with the SELECT 왗 or 왘 button.

86

6. Using On-Screen Menu

Selecting Resolution [Resolution]

This allows you to activate or deactivate the Advanced AccuBlend feature.

Auto ...................... Turns on the Advanced AccuBlend feature. The projector automatically reduces or enlarges the current

image to fit the full screen.

Native .................... Turns off the Advanced AccuBlend feature. The projector displays the current image in its true resolution.

See "Auto Adjust" on page 107 for turning on or off the Auto Adjust feature.

NOTE:
* When "Resolution" is set to "Native", "Overscan", "3D Reform", "Aspect Ratio" and "Screen" are not available.
* While you are displaying an image with the projector's native resolution or higher, "Resolution" is not available.

Selecting Overscan Percentage [Overscan]

Select overscan percentage (0%, 5% and 10%) for signal.

87

6. Using On-Screen Menu

Video

Selecting Noise Reduction Level [Noise Reduction]

(not available for COMPUTER1/2, Viewer and LAN; available for TV standard inputs)

Select one of the three levels for reducing video noise: Low, Medium or High.

NOTE: The lower the Noise Reduction level, the better the image quality by way of higher video bandwidth.

Selecting Color Matrix [Color Matrix]

(not available for COMPUTER1/2, Viewer and LAN; available for TV standard inputs)

Select an appropriate color matrix for your input signal, either HDTV or SDTV.

Turning On/Off 3 Dimension Separation [3D Y/C Separation]

This function turns on or off the 3 dimensional separation feature.

NOTE: This feature is available for NTSC3.58 of Video signal only.

88

6. Using On-Screen Menu

Setting Vertical Edges [Vertical Enhancer]

This function enhances the vertical edges around objects in the image.

NOTE: This function is not available for an RGB and Component signal.

Selecting Interlace or Deinterlace [I/P Converter]

This function allows you to select between "Interlace" and "Deinterlace".

Deinterlace (Auto) ....... The projector automatically determines a still or moving image to display a clear picture. If selecting

"Deinterlace (Auto)" causes excess jitter or artifacts, select "Interlace".

Deinterlace (Still) ......... Select when a still image is displayed. When this option is selected for a moving image, jitter or artifacts

can be seen.

Interlace ...................... Select when a moving image is displayed. This will eliminate jitter and artifacts in a moving image.

89

쐂 Menu Descriptions & Functions [Setup]

Basic

6. Using On-Screen Menu

Selecting Keystone Mode [Keystone]

This feature allows you to correct keystone distortion manually or automatically.
Selecting this item will display the Keystone setting menu.

Auto ...................... This feature allows the projector to detect its tilt and correct vertical distortion automatically.

Manual .................. You can correct vertical distortion manually from the menu.

Changes will be saved even when you turn off the projector.

Adjust .................... You can display the Keystone screen. See page 33 for more details.

NOTE: When "Cornerstone" is selected, "Adjust" is not available.

90

Selecting Cornerstone Mode [Cornerstone]

This option allows you to correct trapezoidal distortion.
Selecting this item will display the Cornerstone adjustment screen.
See page 43 for more details.

NOTE: When "Keystone" is selected, "Cornerstone" is not available.

Setting Lamp Mode to Normal or Eco [Lamp Mode]

6. Using On-Screen Menu

This feature enables you to select two brightness modes of the lamp: Normal and Eco modes. The lamp life can be
extended up to 4000 hours by using the Eco mode. Selecting Eco mode decreases fan noise compared to in Normal
mode.

Normal Mode ........ This is the default setting (100% Brightness).

Eco Mode .............. Select this mode to increase the lamp life (80% Brightness).

Selecting Menu Mode [Menu Mode]

This feature allows you to select two menu modes: Basic Menu and Advanced Menu.

Basic Menu ........... This is the basic menu that contains minimum essentials of menus and commands.

Advanced Menu..... This is the menu that contains all the available menus and commands.

Selecting Menu Language [Language]

You can choose one of 21 languages for on-screen instructions.

91

Menu

Selecting Menu Color [Menu Color Select]

6. Using On-Screen Menu

You can choose a color for the menu.

Turning On / Off Source Display and Message [Display Select]

Source ................... This option turns on or off input name display such as Computer 1/2, Video, and No Input to be displayed in

the top right corner of the screen.

Message ................ This option turns on and off messages. Even though selecting “Off”, the following message will appear.

* “The lamp has reached the end of its usable life. Please replace the lamp.” Press the EXIT button and the

message will disappear.

* “Projector is locked” When unlocking the projector security, the message will disappear.

92

6. Using On-Screen Menu

Selecting Menu Display Time [Menu Display Time]

This option allows you to select how long the projector waits after the last touch of a button to turn off the menu. The
preset choices are "Manual", "Auto 5 sec", "Auto 15 sec", and "Auto 45 sec". The "Auto 45 sec" is the factory preset.

Manual .................. The menu can be turned off manually.

Auto 5 sec ............. The menu will automatically be turned off in 5 seconds if no buttons are pressed within 5 seconds.

Auto 15 sec ........... The menu will automatically be turned off in 15 seconds if no buttons are pressed within 15 seconds.

Auto 45 sec ........... The menu will automatically be turned off in 45 seconds if no buttons are pressed within 45 seconds.

Selecting a Color or Logo for Background [Background]

Use this feature to display a blue/black screen or logo when no signal is available. The default background is blue. You
can change the logo screen using the Viewer feature. See pages 70.

Security

Disabling the Cabinet Buttons [Cabinet Button]

This option turns on or off the Cabinet Button Lock function.

NOTE:

• This Cabinet Button Lock does not affect the remote control functions.

• When the cabinet buttons are locked, pressing and holding the EXIT button for about 10 seconds will change the setting to

unlock.

93
