Page 1

Portable Projector

LT180

User’s Manual

Page 2

IMPORTANT INFORMATION

Safety Cautions

Precautions

Please read this manual carefully before using your NEC LT180 Projector and keep the manual handy for future reference. Your serial number is located on the bottom of your projector. Record it here:

CAUTION

To turn off main power, be sure to remove the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided. The information should be read carefully to avoid problems.

WARNING

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT’S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS CAN BE FULLY INSERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLT AGE COMPONENTS INSIDE. ALL SERVICING MUST BE DONE BY QUALIFIED SERVICE PERSONNEL.

DOC Compliance Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Acoustic Noise Information Ordinance-3. GSGV:

The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.

WARNING TO CALIFORNIA RESIDENTS:

Handling the cables supplied with this product will expose you to lead, a chemical known to the State of California to cause birth defects or other reproductive harm. Wash hands after handling.

CAUTION

Do not put the projector on its side when the lamp is turned on. Doing so may cause damage to the projector.

E-i

Page 3

IMPORTANT INFORMATION

RF Interference

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Solutions (America), Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cable is not supplied with this equipment please contact your supplier.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

1. For best results, use your projector in a darkened room.

2. Place the projector on a flat, level surface in a dry area away from dust and moisture. T o avoid premature lamp failure, do not tilt the front of the projector up or down by more than 15˚ from level.

3. Do not place your projector in direct sunlight, near heaters or heat radiating appliances.

4. Exposure to direct sunlight, smoke or steam can harm internal components.

5. Handle your projector carefully. Dropping or jarring can damage internal components.

6. Do not place heavy objects on top of the projector.

7. If you wish to have the projector installed on the ceiling:

a. Do not attempt to install the projector yourself. b. The projector must be installed by qualified technicians in order to ensure proper operation and reduce

the risk of bodily injury.

c. In addition, the ceiling must be strong enough to support the projector and the installation must be in

accordance with any local building codes.

d. Please consult your dealer for more information.

E-ii

Page 4

IMPORTANT INFORMATION

Fire and Shock Precautions

1. Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 4 inches (10 cm) of space between your projector and a wall.

2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such

as a wire or screwdriver into your projector. If something should fall into your projector , disconnect it immediately and have the object removed by a qualified service personnel.

3. Do not place any liquids on top of your projector.

4. Do not look into the lens while the projector is on. Serious damage to your eyes could result.

5. Keep any items such as magnifying glass out of the light path of the projector . The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.

6. Do not cover the lens with the supplied lens cap or equivalent while the projector is on. Doing so can lead to melting of the cap and possibly burning your hands due to the heat emitted from the light output.

7. Do not place any objects, which are easily affected by heat, in front of the projector lens or a projector exhaust vent. Doing so could lead to the object melting or getting your hands burned from the heat that is emitted from the light output and exhaust.

8. The projector is designed to operate on a power supply of 100-240 V 50/60 Hz AC. Ensure that your power supply fits this requirement before attempting to use your projector.

9. Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or fire.

10. If the projector is not to be used for an extended period of time, disconnect the plug from the power outlet.

11. Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire.

12. Do not handle the power plug with wet hands.

CAUTION

1. Do not try to touch the ventilation outlet on the right and rear side (when seen from the front) as it can become heated while the projector is turned on.

2. Do not use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or hanging on the wall can cause damage to the projector. Before putting the projector in the soft case, be sure to retract the feet. Failure to do so may cause damage to the projector.

3. When carrying the projector, heed the following:

• Ensure that the power cable and any other cables are disconnected before moving the projector.

• Cover the lens with the supplied lens cap so as not to scratch the lens surface.

4. Do not send the projector in the soft case by parcel delivery service or cargo shipment. The projector inside the soft case could be damaged.

5. Select “High” in the Fan mode if you continue to use the projector for consecutive days. (From the menu, select [Advanced] → [Fan Mode] → [High].)

6. Do not unplug the power cable from the wall outlet under any one of the following circumstances. Doing so can cause damage to the projector:

* While the projector is turned on. * While the cooling fans are running. (The cooling fans continue to work for 60 seconds after the projector

is turned off).

7. If you accidentally turn off the main power by disconnecting the power cable or press the main power switch during cooling down, wait 10 minutes and then turn on the projector to resume. This is to protect the lamp.

E-iii

Page 5

IMPORTANT INFORMATION

NT IN

TER

VIDEO

Cr/Pr

Cb/Pb

L/m

ono

AUD

Lamp Replacement

• To replace the lamp, follow all instructions provided on page E-44.

• Be sure to replace the lamp when the message "The lamp has reached the end of its usable life. Please

replace the lamp." appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury.

If this happens, contact your dealer for lamp replacement.

• Allow a minimum of 60 seconds to elapse after turning off the projector. Then turn off the main power switch, disconnect the power cable and allow 60 minutes to cool the projector before replacing the lamp.

What’s in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your Projector.

Projector

T C

E L

E S

. J D

A T U A

ON/STAND BY

POWER

STATUS

LAMP

Remote control (7N900601) Batteries (AAA ⳯ 2)

Lens cap

Power cable (US: 7N080213)

RGB/VGA signal cable (7N520032)

(EU: 7N080007)

Guide

Setup

Quick

Band (use for bundling cables) (24B17871)

Important

Information

Quick Setup Guide Important Information

Soft case (24BS7471)

For North America only

Registration card Limited warranty

For Europe only

CD-ROM User’s manual

Shoulder belt

E-iv

Guarantee policy

Page 6

TABLE OF CONTENTS

IMPORTANT INFORMATION ................................................................................................... E-i

Safety Cautions .......................................................................................................................................................................................... E-i

What’s in the Box? .................................................................................................................................................................................... E-iv

1. INTRODUCTION ............................................................................................................. E-1

Introduction to the Projector ..................................................................................................................................................................... E-1

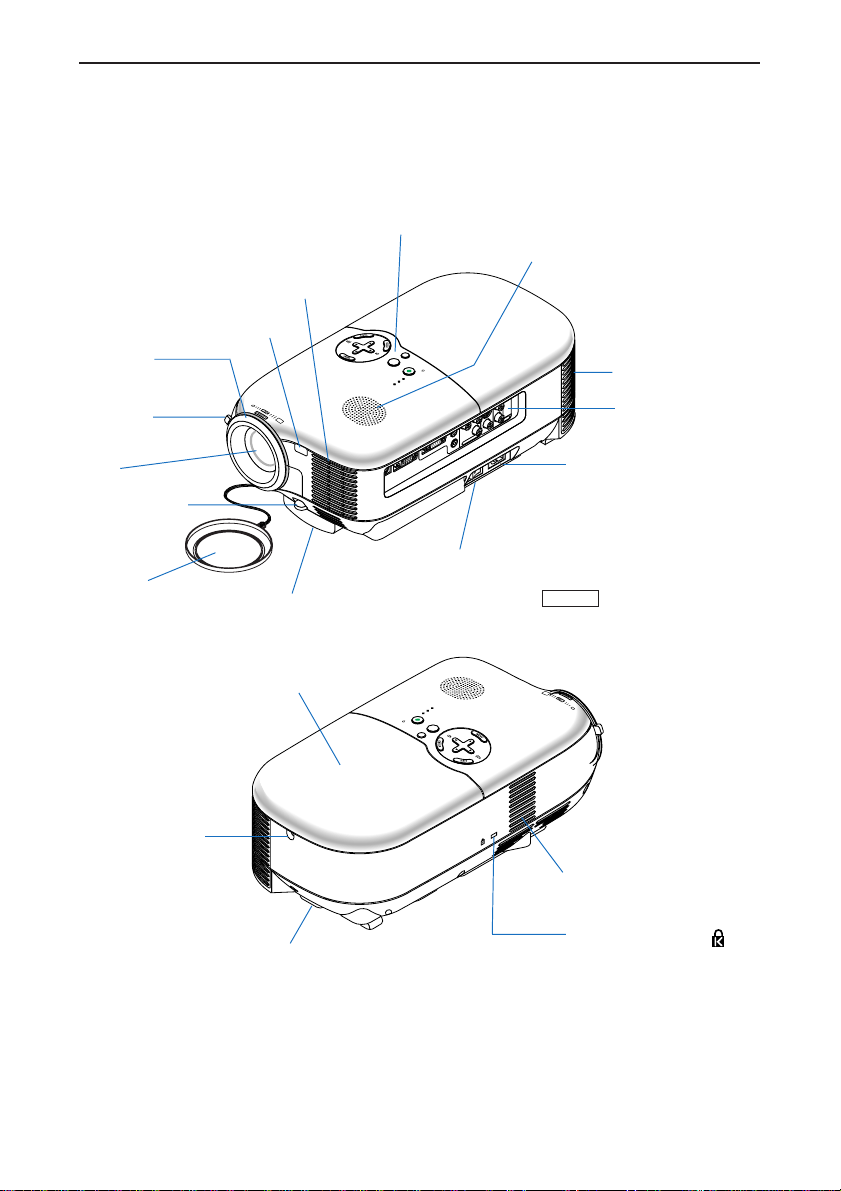

Part Names of the Projector ...................................................................................................................................................................... E-3

Top Features .................................................................................................................................................................................... E-4

Terminal Panel Features .................................................................................................................................................................. E-5

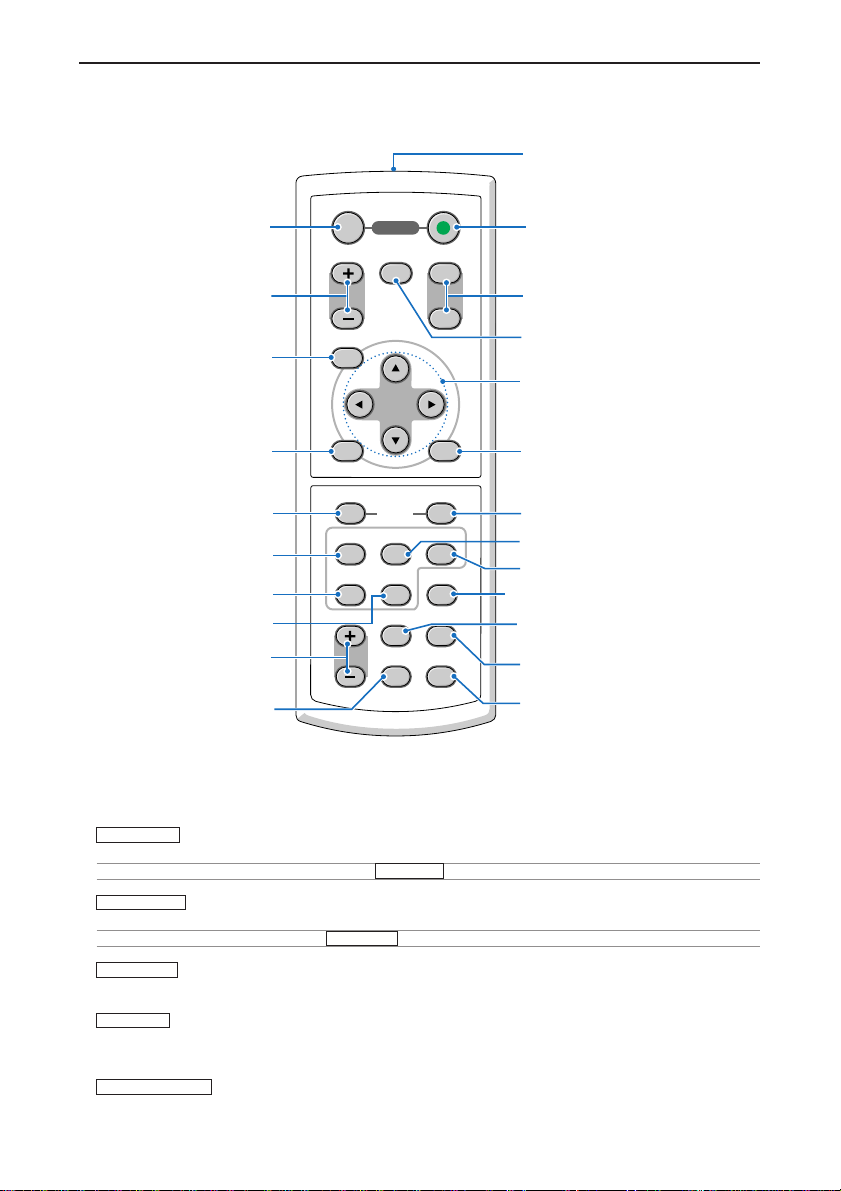

Part Names of the Remote Control ........................................................................................................................................................... E-6

2. INSTALLATION AND CONNECTIONS ..................................................................................... E-10

Setting Up the Screen and the Projector ................................................................................................................................................. E-11

Selecting a Location ...................................................................................................................................................................... E-11

Throw Distance and Screen Size ................................................................................................................................................... E-12

Making Connections ............................................................................................................................................................................... E-14

Connecting Your PC or Macintosh Computer ................................................................................................................................ E-14

To connect SCART output (RGB) ................................................................................................................................................... E-15

Connecting an External Monitor .................................................................................................................................................... E-16

Connecting Your DVD Player ......................................................................................................................................................... E-17

Connecting Your VCR or Laser Disc Player ................................................................................................................................... E-18

Connecting the Supplied Power Cable ........................................................................................................................................... E-19

3. PROJECTING AN IMAGE (BASIC OPERATION).......................................................................... E-20

Turning on the Projector ......................................................................................................................................................................... E-20

Selecting a Source .................................................................................................................................................................................. E-22

Adjusting the Picture Size and Position .................................................................................................................................................. E-22

Correcting the Vertical Keystone Distortion ............................................................................................................................................ E-25

Optimizing an RGB Image Automatically ................................................................................................................................................. E-26

Turning Up or Down Volume ................................................................................................................................................................... E-26

Turning off the Projector ......................................................................................................................................................................... E-27

After Use ................................................................................................................................................................................................. E-28

4. CONVENIENT FEATURES ................................................................................................. E-29

Turning Off the Image and Sound ........................................................................................................................................................... E-29

Freezing a Picture ................................................................................................................................................................................... E-29

Reducing Video Noise (Noise Reduction) ............................................................................................................................................... E-29

Getting the Information on Lamp Usage and Projector Usage ................................................................................................................ E-30

5. USING ON-SCREEN MENU ................................................................................................ E-31

Using the Menus ..................................................................................................................................................................................... E-31

List of Menu Items .................................................................................................................................................................................. E-33

Menu Descriptions & Functions .............................................................................................................................................................. E-34

Picture ........................................................................................................................................................................................... E-34

Adjustment .................................................................................................................................................................................... E-34

Image ............................................................................................................................................................................................ E-35

Setup ............................................................................................................................................................................................. E-37

Advanced ....................................................................................................................................................................................... E-38

Information ................................................................................................................................................................................... E-42

Reset ............................................................................................................................................................................................. E-43

6. MAINTENANCE ............................................................................................................ E-44

Replacing the Lamp ................................................................................................................................................................................ E-44

Cleaning the Cabinet and the Lens .......................................................................................................................................................... E-47

7. TROUBLESHOOTING ....................................................................................................... E-48

8. SPECIFICATIONS .......................................................................................................... E-52

E-v

Page 7

TABLE OF CONTENTS

9. APPENDIX ................................................................................................................. E-54

Cabinet Dimensions ................................................................................................................................................................................ E-54

Pin Assignments of COMPUTER IN (D-Sub RGB) Connector ................................................................................................................. E-55

PC Control Codes and Cable Connection ................................................................................................................................................ E-56

Compatible Input Signal List ................................................................................................................................................................... E-57

Troubleshooting Check List ..................................................................................................................................................................... E-58

TravelCare Guide ..................................................................................................................................................................................... E-60

E-vi

Page 8

1. INTRODUCTION

Introduction to the Projector

This section introduces you to your new NEC LT180 Projector and describes its features and controls.

Congratulations on Your Purchase of The LT180 Projector

The LT180 is one of the very best projectors available today. The LT180 enables you to project precise images up to 200 inches (measured diagonally) from your PC or Macintosh computer (desktop or notebook), VCR, DVD player, document camera, or a laser disc player. You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen, and the projector can be permanently mounted on a ceiling*1. The remote control can be used wirelessly.

Features you’ll enjoy on the LT180 projector:

• 4:3 native screen display

• Exceptionally quiet – as low as 34dB fan noise in Eco-Mode

• High resolution images – 1024⳯768 display

• HDTV (1080i, 720p) and SDTV (576p, 480p) compatibility

• Adjustable rear foot for enhanced projector placement and alignment to the screen

• Eco-Mode™ technology – increases lamp life by up to 50% and reduces noise level to <34dB

• 3 video inputs – 1 component, 1 S-Video and 1 video for multiple video source connectivity

• 1 monitor out – 1 RGB and 1 stereo mini jack for audio connectivity

• Integrated deinterlace video processing technology

• Display popular wide screen and full screen aspect ratios – 16:9 and 4:3

• Built in speaker for an integrated audio solution

• Easy set up and operation

• High performance long life lamp for low total operating costs

• Wireless remote control operation

• Multiple video mode selections depending on your source

• Control the unit with a PC using the PC Control port

• NEC’ s exclusive intelligent scaling and pixel blending technology provides for extremely accurate image

compression up to HDTV (1920⳯1080) and SXGA+ (1400⳯1050) display resolution*

• Supports most IBM VGA, SVGA, XGA, Macintosh, component signal (YCbCr/YPbPr) or other RGB signals

within a horizontal frequency range of 24 to 100 kHz and a vertical frequency range of 50 to 85 Hz. This includes NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL60 and SECAM standard video signals

NOTE: Composite video standards are as follows: NTSC: U.S. TV standard for video in U.S. and Canada. PAL: TV standard used in Western Europe. PAL-N: TV standard used in Argentine, Paraguay and Uruguay. PAL-M: TV standard used in Brazil. PAL60: TV standard used for NTSC playback on PAL TVs. SECAM: TV standard used in France and Eastern Europe. NTSC4.43: TV standard used in Middle East countries.

*1Do not attempt to mount the projector on a ceiling yourself.

The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.

In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. Please consult your dealer for more information.

HDTV 1080i (1920⳯1080), HDTV 720p (1280⳯720) and SXGA+ (1400⳯1050) are displayed with NECs intelligent scaling technology.

E-1

Page 9

1. INTRODUCTION

About this user's manual

The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to review the user's manual. This may save you time later on. At the beginning of each section of the manual you'll find an overview. If the section doesn't apply, you can skip it.

• Digital Light Processing and DLP are trademarks of Texas Instruments.

• IBM is a trademark or registered trademark of International Business Machines Corporation.

• Mac and PowerBook are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.

• Other product and company names mentioned in this user’s manual may be the trademarks or registered

trademarks of their respective holders.

E-2

Page 10

Part Names of the Projector

Controls (See page E-4)

Ventilation (inlet)

1. INTRODUCTION

Speaker

Remote Sensor (See page E-9) Focus ring

(See page E-25)

Zoom lever (See page E-24)

Lens

Adjustable Tilt Foot Lever (See page E-24)

Lens Cap

Adjustable Tilt Foot (See page E-24)

Lamp Cover (See page E-45)

Lamp Cover Screw (See page E-45)

. J D

U A

Ventilation (outlet)

T erminal Panel (See page E-5)

AC Input Connect the supplied power cable's two-pin plug here, and plug the other end into an active wall outlet. (See page E-19)

Main Power Switch When you plug the supplied power cable into an active wall outlet and turn on the Main Power, the POWER indicator turns orange and the projector is in standby mode. (See page E-20)

SOURCE

A U

J .

SELECT

Ventilation (inlet)

Adjustable Rear Foot

Built-in Security Slot ( ) *

(See page E-23)

* This security slot supports the MicroSaver® Security System. MicroSaver® is a registered trademark of Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.

E-3

Page 11

Top Features

1. INTRODUCTION

LAMP

1. ON/STAND BY button ( )

Use this button to turn the power on and off when the main power is supplied and the projector is in standby mode. To turn on the projector, press and hold this button for a minimum of two seconds. To turn off the projector, press this button twice.

2. POWER indicator (LED)

When this indicator is green, the projector is on; when this indicator is orange, it is in standby mode. See the power Indicator section on page E-48 for more details.

3. STATUS indicator (LED)

If this light blinks red rapidly, it indicates that an error has occurred, the lamp cover is not attached properly or the projector has overheated. If this light remains orange, it indicates that you have pressed a cabinet key while the Cabinet Button is locked. See the Status Indicator section on page E-48 for more details.

4. LAMP indicator (LED)

If this light blinks red rapidly, it’s warning you that the lamp has reached the end of its usable life. After this light appears, replace the lamp as soon as possible (See page E-44). See the Lamp Indicator section on page E-

48 for more details.

5. SOURCE button

This button will allow you to select a video source such as a PC, VCR or DVD player. Press and quickly release this button to display the Source list. Each time this button is pressed, each source name will be highlighted in sequence. Highlighting a source name for 2 seconds without pressing the ENTER button will display the selected source.

6. AUTO ADJ. button

Use this button to adjust an RGB source for an optimal picture (See page E-26).

7. MENU button

Displays the menu.

8. SELECT 왖왔왗왘 / volume +/- buttons

왖왔 : Use these buttons to select the menu of the item you wish to adjust. 왗왘 : Use these buttons to change the level of a selected menu item. When no menus appear, these buttons

work as a volume control.

9. ENTER button

Executes your menu selection and activates items selected from the menu.

10. EXIT button

Pressing this button will return to the previous menu. While you are in the main menu, pressing this button will close the menu.

STATUS POWER

SOURCE

ON/STAND BY

AUTO

ADJ.

SELECT

E-4

Page 12

1. INTRODUCTION

Terminal Panel Features

9 6 85413

S-VIDEO IN

AUDIO IN

VIDEO INAUDIO IN

PC CONTROL

AUDIO OUT

Cb/Pb

COMPUTER INMONITOR OUT

Cr/Pr

COMPONENT IN

2 7

1. COMPUTER IN / Component Input Connector (Mini D-Sub 15 Pin)

Connect your computer or other analog RGB equipment such as IBM compatible or Macintosh computers. Use the supplied RGB/VGA cable to connect to your computer. This also serves as a component input connector that allows you to connect a component video output of component equipment such as a DVD player (optional adapter ADP-CV1 required).

2. AUDIO IN mini jack (Stereo Mini)

This is where you connect the audio output from your computer or DVD player when connected to the COMPUTER IN or COMPONENT IN.

3. MONITOR OUT Connector (Mini D-Sub 15 Pin)

You can use this connector to loop your computer image to an external monitor from the RGB input source. This connector outputs RGB signal in standby mode.

4. AUDIO OUT Mini Jack (Stereo Mini)

You can use this jack to output sound from the currently selected source (COMPUTER, COMPONENT, VIDEO or S-VIDEO). Output sound level can be adjusted in accordance with the sound level of the internal speaker. Note that this cannot be used as a headphone jack. (When audio equipment is connected, the projector speaker is disabled.) When a cable mini-plug is inserted into this jack, both the right and left audio signals are not mixed, but separate. For example, when a cable mini-plug is inserted into the left AUDIO IN jack only, only left sound is output.

5. COMPONENT IN (Y, Cb/Pb, Cr/Pr) connectors (RCA)

Connect component video outputs (Y/Cb/Cr, Y/Pb/Pr) here from external equipment such as a DVD player.

6. S-VIDEO IN connector (Mini DIN 4 Pin)

Here is where you connect the S-Video output from an external source like a VCR.

NOTE: S-Video provides more vivid color and higher resolution than the traditional composite video format.

7. VIDEO IN connector (RCA)

Connect a VCR, DVD player, laser disc player, or document camera here to project video.

8. AUDIO IN jacks L & R (RCA)

These are your left and right channel audio inputs for stereo sound from a Video or S-Video source.

9. PC CONTROL Port (Mini DIN 8 Pin)

Use this port to connect a PC or control system. This enables you to control the projector using serial communication protocol. If you are writing your own program, typical PC control codes are on page E-56.

E-5

Page 13

Part Names of the Remote Control

1. INTRODUCTION

14 16

OFF

KEYSTONE PAGE

PIC-MUTE

ENTER

L-CLICK

COMPUTER

VIDEO

COMPONENT

S-VIDEO

VOLUME

POWER

DOWN

EXIT

R-CLICK

MOUSE

AUTO ADJ.

NOISE RED.

ASPECT HELP

FREEZEPICTURE

12 15 17

1. Infrared Transmitter

Direct the remote control toward the remote sensor on the projector cabinet.

2. POWER ON Button

When the main power is on, you can use this button to turn your projector on.

NOTE: To turn on the projector, press and hold the POWER ON button for a minimum of two seconds.

3. POWER OFF Button

You can use this button to turn your projector off.

NOTE: To turn off the projector, press the POWER OFF button twice.

4. KEYSTONE (+) (–) Button

Press this button to correct the keystone (trapezoidal) distortion, and make the image square. See page E-25.

5. PIC-MUTE Button

This button turns off the image and sound for a short period of time. Press again to restore the image and sound.

6. PAGE UP/DOWN Button

Not available on this model.

E-6

Page 14

1. INTRODUCTION

7. MENU Button

Displays the menu for various settings and adjustments.

8. SELECT 왖왔왗왘 Button

왖왔 : Use these buttons to select the menu of the item you wish to adjust. 왗왘 : Use these buttons to change the level of a selected menu item.

9. ENTER Button

Use this button to enter your menu selection. It works the same as the ENTER button on the cabinet. See page E-4.

10. EXIT Button It works the same as the EXIT button on the cabinet. See page E-4.

11. MOUSE L-CLICK Button Not available on this model.

12. MOUSE R-CLICK Button Not available on this model.

13. VIDEO Button Press this button to select a video source connected to the VIDEO input.

14. S-VIDEO Button Press this button to select an S-Video source connected to the S-VIDEO input.

15. COMPUTER Button Press this button to select a video source from computer or component equipment connected to your COMPUTER IN port.

16. COMPONENT Button Press this button to select a video source from component equipment connected to the COMPONENT input.

17. AUTO ADJ. Button Use this button to adjust an RGB source for an optimal picture. See page E-26.

18. NOISE RED. Button This button will turn on the noise reduction feature to reduce video noise.

19. VOLUME (+) (–) Button Press (+) to increase the volume and (–) to decrease it.

20. ASPECT Button Press this button once to display the Aspect Ratio select menu. Continue pressing to change aspect ratios. See page E-36.

21. PICTURE Button Press this button to display the Picture menu. Each time this button is pressed, the option will be changed. See page E-34.

22. HELP Button Provides the information about the status of the projector.

23. FREEZE Button This button will freeze a picture. Press again to resume motion.

E-7

Page 15

Battery Installation

Press firmly and slide the battery cover off.

Remove both old batteries and install new ones

(AAA). Ensure that you have the batteries' polarity (+/–) aligned correctly.

Slip the cover back over the batteries until it snaps

into place. Do not mix different types of batteries or new and old batteries.

1. INTRODUCTION

Remote Control Precautions

• Handle the remote control carefully.

• If the remote control gets wet, wipe it dry immediately.

• Avoid excessive heat and humidity.

• If you will not be using the remote control for a long time, remove the batteries.

• Do not place the batteries upside down.

• Do not use new and old batteries together, or use different types of batteries together.

• Dispose of used batteries according to your local regulations.

E-8

Page 16

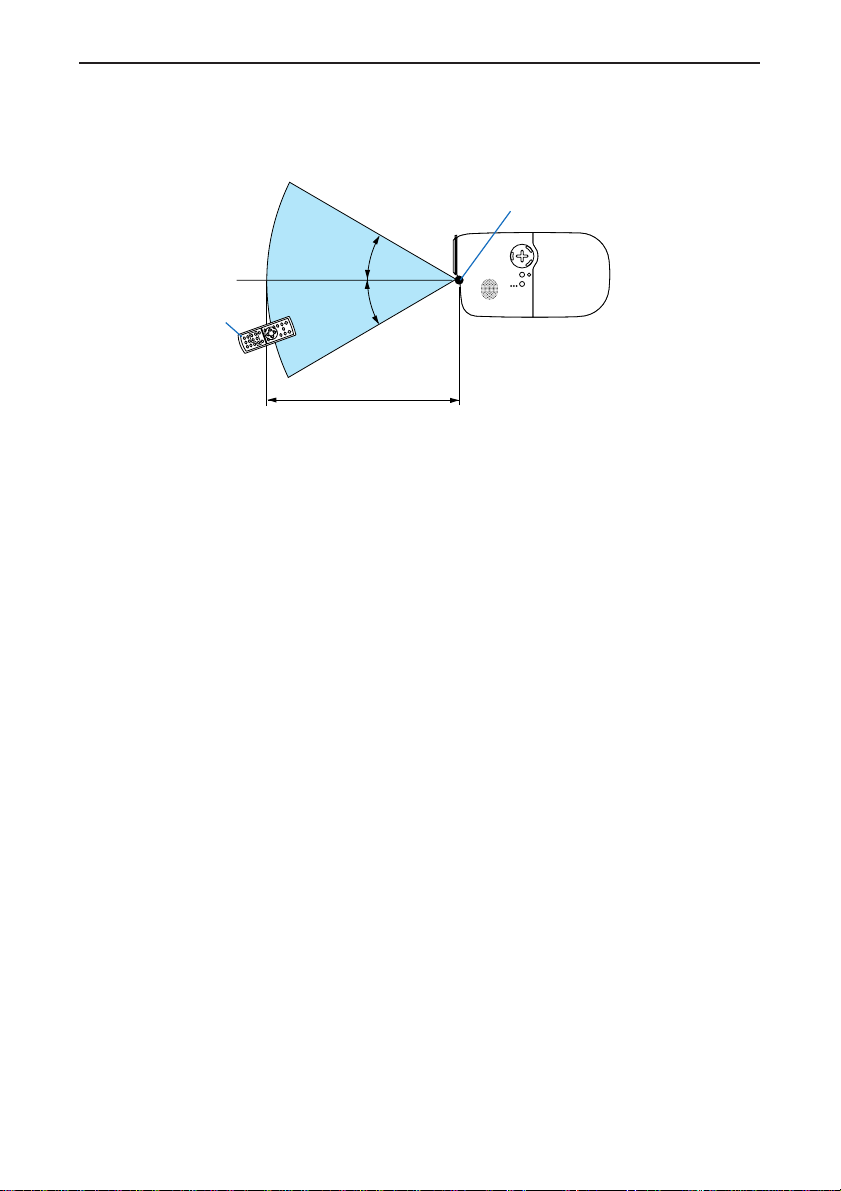

Operating Range for Wireless Remote Control

Remote sensor on projector cabinet

30º

1. INTRODUCTION

Remote control

• The infrared signal operates by line-of-sight up to a distance of about 22 feet/7 m and within a 60-degree

angle of the remote sensor on the projector cabinet.

• The projector will not respond if there are objects between the remote control and the sensor, or if strong light

falls on the sensor. Weak batteries will also prevent the remote control from properly operating the projector.

30º

7m/22 feet

E-9

Page 17

2. INSTALLATION AND CONNECTIONS

This section describes how to set up your projector and how to connect PCs, video and audio sources.

L A M

S T P

T U

S E R

O N / S T A

N D B Y

S E L

E C T

Y our projector is simple to set up and use. But before you get started, you must first:

Set up a screen and the projector.

Connect your video equipment or computer to the projector. See page E-14 to E-18.

Connect the supplied power cable. See page E-19.

NOTE: Ensure that the power cable and any other cables are disconnected before moving the projector. When moving the projector or when it is not in use, cover the lens with the lens cap.

E-10

Page 18

2. INSTALLATION AND CONNECTIONS

Setting Up the Screen and the Projector

Selecting a Location

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 30" (0.76 m) measured diagonally when the projector is roughly 0.9 m/35 inches from the wall or screen. The largest the image can be is 200" (5.0 m) when the projector is roughly 6.1 m/241 inches from the wall or screen. Use the drawing below as a guide.

Screen size (Unit: cm/inch)

406.4(W )X304.8(H

101.6(W

81.3(W

61.0(W

203.2(W

162.6(W

121.9(W

)X61.0(H

45.7(H

Lens center

243.8(W

)X121.9(H

91.4(H

76.2(H

)/32(W

)/24(W

304.8(W

)X182.9(H

152.4(H

)/64(W

)/48(W

)/40(W

24(H

18(H

365.8(W

228.6(H

)/96(W

)/80(W

36(H

30(H

)

)X60(H

48(H

)

)X274.3(H

)/120(W

)X72(H

)

40"

30"

)

60"

50"

)/160(W

)/144(W

90(H

)

80"

120(H

)X108(H

100"

120"

)

150"

Screen Size

200"

180"

0.9/34.5"

1.2/46.7"

1.5/58.9"

1.8/71.0"

2.4/95.4"

3.0/119.7"

3.7/144.0"

Distance (Unit: m/inch)

4.6/180.5"

5.5/217.0"

6.1/241.3"

NOTE: The distances are indicated by intermediate values between tele and wide. Use as a rule of thumb.

E-11

Page 19

2. INSTALLATION AND CONNECTIONS

Throw Distance and Screen Size

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation.

Distance Chart

Screen Width

Screen Diagonal

Screen Height

Lens Center

Throw Angle (α)

Screen center

(B)

(D)

Screen Bottom

Throw Distance (C)

Diagonal Width Height

inch

100 120 150 180 200

inch

762.0

24.0

1016.0

32.0

1270.0

40.0

1524.0

48.0

1701.8

53.6

1828.8

57.6

2133.6

67.2

2286.0

72.0

2540.0

80.0

3048.0

96.0

3810.0

120.0

4572.0

144.0

5080.0

160.0

609.6

812.8

1016.0

1219.2

1361.4

1463.0

1706.9

1828.8

2032.0

2438.4

3048.0

3657.6

4064.0

inch

18.0

24.0

30.0

36.0

40.2

43.2

50.4

54.0

60.0

72.0

90.0

108.0

120.0

wide tele wide tele wide tele

inch

457.2

609.6

762.0

914.4

1021.1

1097.3

1280.2

1371.6

1524.0

1828.8

2286.0

2743.2

3048.0

7.1

9.5

11.9

14.3

15.9

17.1

20.0

21.4

23.8

28.5

35.7

42.8

47.6

181.4

241.8

302.2

362.6

404.9

435.1

507.6

543.8

604.2

725.0

906.2

1087.4

1208.2

7.2

9.6

11.9

14.3

16.0

17.2

20.1

21.5

23.9

28.7

35.8

43.0

47.8

182.1

242.8

303.5

364.2

406.7

437.1

509.9

546.3

607.0

728.4

910.5

1092.6

1214.0

31.4

42.5

53.6

64.8

72.5

78.1

91.5

98.1

109.2

131.5

164.8

198.2

220.4

797.7

1080.1

1362.6

1645.0

1842.7

1984.0

2322.9

2492.4

2774.8

3339.7

4187.1

5034.4

5599.3

37.7

50.9

64.1

77.3

86.5

93.1

109.0

116.9

130.1

156.5

196.1

235.8

262.2

957.2

1292.6

1628.0

1963.4

2198.2

2365.9

2768.3

2969.6

3305.0

3975.8

4982.0

5988.2

6658.9

wide tele

inch

-1.8

-45.2

-2.4

-60.2

-3.0

-75.3

-3.6

-90.3

-4.0

-100.9

-4.3

-108.4

-5.0

-126.4

-5.3

-135.5

-5.9

-150.5

-7.1

-180.6

-8.9

-225.7

-10.7

-270.9

-11.9

-301.0

inch

-1.8

-2.4

-3.0

-3.6

-4.0

-4.3

-5.0

-5.4

-6.0

-7.2

-8.9

-10.7

-11.9

-45.5

-60.2

-75.8

-90.9

-101.5

-109.1

-127.3

-136.4

-151.5

-181.8

-227.3

-272.7

-303.0

B = Vertical distance between lens center and screen center C = Throw distance D = Vertical distance between lens center and bottom of screen for desktop (top of screen for ceiling) α = Throw angle

NOTE: Distances may vary +/-5%.

E-12

degree

12.8

12.6

12.5

12.4

12.3

12.2

αScreen Size (4:3) B C

degree

10.8

10.6

10.5

10.4

10.3

Page 20

2. INSTALLATION AND CONNECTIONS

WARNING * Installing your projector on the ceiling must be done by a qualified technician. Contact your NEC

dealer for more information.

* Do not attempt to install the projector yourself.

• Only use your projector on a solid, level surface. If the projector falls to the ground, you can be injured and the projector severely damaged.

• Do not use the projector where temperatures vary greatly. The projector must be used at temperatures between 41˚F (5˚C) and 95˚F (35˚C).

• Do not expose the projector to moisture, dust, or smoke. This will harm the screen image.

• Ensure that you have adequate ventilation around your projector so heat can dissipate. Do not cover the

vents on the side or the front of the projector.

Rear Projection Applications

The projector has the ability to be used in a rear projection application. When used with a third party mirror and frame system, rear projection allows you to achieve a larger image size in less distance than a traditional front projection installation. If space constraints exist, please contact your authorized NEC reseller regarding a rear projection solution. Refer to page E-38 on how to change the projector orientation for use in a rear projection application.

E-13

Page 21

2. INSTALLATION AND CONNECTIONS

Making Connections

Connecting Your PC or Macintosh Computer

NOTE: When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the power to the notebook PC. In most cases signal cannot be output from RGB output unless the notebook PC is turned on after connecting with the projector. * If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power

management software.

COMPUTER IN

PC CONTROL

RGB/VGA signal cable (supplied) T o mini D-Sub 15-pin connector on the projector. It is recommended that you use a commercially available distribution amplifier if connecting a signal cable longer than the one supplied.

NOTE: For older Macintosh, use a commercially available pin adapter (not supplied) to connect to your Mac's video port.

MONITOR OUT

COMPUTER IN

AUDIO IN

AUDIO OUT

S-VIDEO IN

Cb/Pb

Cr/Pr

COMPONENT IN

VIDEO INAUDIO IN

AUDIO IN

AC IN

Audio cable (not supplied)

PHONE

IBM PC or Compatibles (Desktop type) or Macintosh (Desktop type)

IBM VGA or Compatibles (Notebook type) or Macintosh (Notebook type)

Connecting your PC or Macintosh computer to your projector will enable you to project your computer's screen image for an impressive presentation. To connect to a PC or Macintosh, simply:

1. Turn off the power to your projector and computer.

2. Use the supplied RGB/VGA signal cable to connect your PC or Macintosh to the projector.

3. Turn on the projector and the computer.

4. If the projector goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you've connected to the projector.

E-14

Page 22

2. INSTALLATION AND CONNECTIONS

To connect SCART output (RGB)

Projector

COMPUTER IN

Video equipment such as DVD player

PC CONTROL

MONITOR OUT

COMPUTER IN

AUDIO OUT

AUDIO IN

Female

Commercially available SCART cable

Before connections: An exclusive SCART adapter (ADP-SC1) and a commercially available SCART cable are required for this connection.

NOTE: Audio signal is not available for this connection.

1. Turn off the power to the projector and your video equipment.

2. Use the NEC ADP-SC1 SCART adapter and a commercially available SCART cable to connect the COMPUTER input of your projector and a SCART output (RGB) of your video equipment.

3. Connect the supplied power cable. See page E-19.

4. Turn on the power to the projector and your video equipment.

5. Use the SOURCE button on the projector cabinet to select the COMPUTER input.

6. Press the MENU button on the projector cabinet to display the menu.

7. From the menu, select [Advanced]

→

[Signal Select] → [Computer] → [Scart]. SCART is a standard European audio-visual connector for TVs, VCRs and DVD players. It is also referred to as Euro-connector.

Cb/Pb

Cr/Pr

COMPONENT IN

VIDEO IN

AC IN

ADP-SC1

S-VIDEO IN

AUDIO IN

NOTE: The ADP-SC1 SCART adapter is obtainable from your NEC dealer in Europe. Contact your NEC dealer in Europe for more information.

E-15

Page 23

Connecting an External Monitor

2. INSTALLATION AND CONNECTIONS

MONITOR OUT

PC CONTROL

MONITOR OUT

COMPUTER IN

AUDIO OUT

Cb/Pb

Cr/Pr

COMPONENT IN

S-VIDEO IN

AUDIO IN

VIDEO INAUDIO IN

AC IN

Audio cable (not supplied)

RGB/VGA signal cable (not supplied)

RGB/VGA signal cable (supplied)

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog image you're projecting.

To do so:

1. Turn off the power to your projector, monitor and computer.

2. Use an RGB/VGA cable to connect your monitor to the MONITOR OUT (Mini D-Sub 15 pin) connector on your projector.

3. Connect the supplied power cable. See page E-19.

4. Turn on the projector, monitor and the computer.

NOTE: Daisy chain connection is not possible.

E-16

Page 24

Connecting Your DVD Player

Audio cable (not supplied)

Audio Equipment

PC CONTROL

AUDIO IN

COMPUTER IN

MONITOR OUT

2. INSTALLATION AND CONNECTIONS

COMPONENT IN

AUDIO OUT

DVD player

S-VIDEO IN

Cb/Pb

Cr/Pr

COMPONENT IN

VIDEO INAUDIO IN

AUDIO IN

AC IN

Component video RCA (not supplied)

⳯

3 cable

AUDIO IN

L R

AUDIO OUT

YCbCr

COMPONENT OUT

Audio cable (not supplied)

You can connect your projector to a DVD player with component output or Video output. To do so, simply:

1. Turn off the power to your projector and DVD player.

2. If your DVD player has the component video (Y,Cb,Cr) output, use a component video cable (RCA

⳯

3) to connect your DVD player to the COMPONENT IN connectors on the projector. For a DVD player without component video (Y,Cb,Cr) output, use the S-Video cable to connect the S-Video output of the DVD player to the S-VIDEO Input of the projector. Use an audio cable to connect the audio from your DVD player to your audio equipment (if your DVD player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3. Turn on the projector and DVD player.

NOTE: Refer to your DVD player’s owner’s manual for more information about your DVD player’s video output requirements.

E-17

Page 25

Connecting Your VCR or Laser Disc Player

2. INSTALLATION AND CONNECTIONS

S-Video cable (not supplied)

VCR/ Laser disc player

L R

AUDIO OUT

S-VIDEO IN

MONITOR OUT

PC CONTROL

VIDEO IN

S-VIDEO VIDEO

VIDEO OUT

AUDIO OUT

Cb/Pb

COMPUTER IN

Cr/Pr

COMPONENT IN

Audio cable (not supplied)

VIDEO INAUDIO IN

AUDIO IN

S-VIDEO IN

AUDIO IN

AC IN

Video cable (not supplied)

Audio equipment

AUDIO IN

Use S-Video or RCA cables to connect your VCR, laser disc player or document camera to your projector. To make these connections, simply:

1. Turn off the power to the projector and VCR, laser disc player or document camera.

2. Connect one end of your RCA or S-Video cable to the video output connector on the back of your VCR or laser disc player, connect the other end to the VIDEO IN or S-VIDEO IN on your projector . Use an audio cable to connect the audio from your VCR or laser disc player to your audio equipment (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3. Turn on the projector and the VCR or laser disc player.

NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output requirements.

NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via a scan converter.

E-18

Page 26

2. INSTALLATION AND CONNECTIONS

CONTROL

COMPONENT IN

COMPUTER IN

VIDEO IN

AUDIO IN

S-VIDEO IN

Cr/Pr

Cb/Pb

L/mono

AUDIO IN

MONITOR OUT

AC IN

Connecting the Supplied Power Cable

Connect the supplied power cable to the projector. First connect the supplied power cable's two-pin plug to the AC IN of the projector, and then connect the other plug of the supplied power cable in the wall outlet.

CAUTION

Do not unplug the power cable from the wall outlet under any one of the following circumstances. Doing so can cause damage to the projector:

* While the projector is turned on. * While the cooling fans are running. (The cooling fans continue to work for 60 seconds after the projector

is turned off).

E-19

Page 27

CONTROL

S-VIDEO IN

3. PROJECTING AN IMAGE (BASIC OPERATION)

This section describes how to turn on the projector and to project a picture onto the screen.

Turning on the Projector

NOTE:

• The projector has two power switches: a main power switch and an ON/STAND BY button.

• When plugging in or unplugging the supplied power cable, make sure that the main power switch is pushed to the off (O)

position. Failure to do so may cause damage to the projector.

To turn on the main power to the projector, press the Main Power switch to the on ( I ) position. The POWER indicator will light orange.

Before you turn on your projector, ensure that the computer or video source is turned on and that your lens cap is removed. Only after you press the ON/STAND BY button on the projector cabinet or POWER ON button on the remote control for a minimum of 2 seconds will the POWER indicator turn to green and the projector become ready to use.

LAMP STATUS

POWER

Remote controlCabinet controls

LAMP STATUS POWER

ON/STAND BY

SOURCE

AUTO

OFF

KEYSTONE PAGE

SELECT

ADJ.

POWER

PIC-MUTE

DOWN

Standby Blinking Power On

LAMP

STATUS

POWER

Steady orange light Blinking green

LAMP STATUS

POWER POWER

Steady green

light

See page E-48 for more details.

NOTE: The POWER and STATUS (LED) indicators blinking green at the same time indicates the main power was interrupted during previous operation. Wait for 60 seconds (cooling period) to see if the lamp turns on by itself.

E-20

Page 28

3. PROJECTING AN IMAGE (BASIC OPERATION)

Note on Startup screen (Menu Language Select screen)

When you first turn on the projector, you will get the Startup screen. This screen gives you the opportunity to select one of the 9 menu languages. To select a menu language, follow these steps:

1. Use the SELECT 왖 or 왔 button to select one of the 9 languages for the menu.

Remote controlCabinet controls

LAMP STATUS POWER

ON/STAND BY

SOURCE

SELECT

AUTO ADJ.

ENTER

L-CLICK

EXIT

R-CLICK

2. Press the ENTER button to execute the selection.

Remote controlCabinet controls

LAMP STATUS POWER

ON/STAND BY

SOURCE

SELECT

AUTO

ADJ.

ENTER

L-CLICK

VIDEO

MOUSE

EXIT

R-CLICK

AUTO ADJ.COMPUTER

After this has been done, you can proceed to the menu operation. If you want, you can select the menu language later. See "Language" on page E-37.

NOTE: Immediately after turning on the projector, screen flicker may occur. This is not a fault. Wait 3 to 5 minutes until the lamp lighting is stabilized.

When the Lamp mode is set to Eco, the LAMP indicator will light green. If one of the following things happens, the projector will not turn on.

* If the internal temperature of the projector is too high, the projector detects abnormal high temperature. In this

condition the projector will not turn on to protect the internal system. If this happens, wait for the projector's internal components to cool down.

* When the lamp reaches its end of usable life, the projector will not turn on. If this happens, replace the lamp. * If the lamp fails to light, and if the ST A TUS indicator flashes on and of f in a cycle of six times, wait a full minute

and then turn on the power.

E-21

Page 29

3. PROJECTING AN IMAGE (BASIC OPERATION)

Selecting a Source

Selecting the computer or video source

Using the cabinet buttons

LAMP STATUS POWER

SOURCE

ON/STAND BY

SELECT

AUTO

ADJ.

Press and quickly release the SOURCE button on the projector cabinet to display the Source list. Each time the SOURCE button is pressed, each source name will be highlighted in sequence.

Using the Remote Control

VIDEO

AUTO ADJ.

COMPUTER

NOISE RED.

COMPONENT

S-VIDEO

VOLUME

ASPECT HELP

FREEZEPICTURE

Press any one of the VIDEO , S-VIDEO , COMPUTER or COMPONENT buttons.

NOTE: If no input signal is available, the projector will display a blue background (factory preset).

Press the SOURCE button.

Adjusting the Picture Size and Position

Place your projector on a flat level surface and ensure that the projector is square to the screen. Lift the front edge of the projector to center the image vertically.

* If the projected image does not appear square to the screen then use the Keystone feature for proper adjust-

ment. See page E-25.

E-22

Page 30

3. PROJECTING AN IMAGE (BASIC OPERATION)

Move the projector left to center the image horizontally on the screen.

Using the Adjustable Rear Foot

The adjustable rear foot provides the projector with a horizontal tilt adjustment. If the projector is placed on an uneven surface, keep the projector level by pushing down the left or right rear part of the top cabinet with both hands.

NOTE: A spacer is attached to the adjustable rear foot to provide stability. Remove the spacer before using the adjustable rear foot.

Save the spacer to use when replacing the lamp as it will keep the projector from tilting in the process (See page E-44).

Adjustable Rear Foot

CAUTION: Use care in handling the adjustable rear foot to avoid possible injury to fingers or hands. Using the adjustable rear foot could pinch fingers or hands between the projector bottom and the adjustable rear foot.

E-23

Page 31

S-VIDE

O IN

3. PROJECTING AN IMAGE (BASIC OPERATION)

Adjusting the Tilt Foot

1. Lift the front edge of the projector.

C E L

E S

. J D O A T U A

E C R U

D N A

T S / N

R E

W O

P U T

A T S

M A L

Adjustable Tilt Foot Lever

Adjustable Tilt Foot

2. Push up the Adjustable Tilt Foot Lever on the front side of the projector to extend the adjustable tilt foot (maximum height).

3. Push down the Adjustable Tilt Foot Lever.

4. Lower the front of the projector to the desired height and release the Adjustable Tilt Foot Lever to lock the Adjustable tilt foot. There is approximately 10 degrees of tilt “UP” adjustment for the front of the projector.

T C

E L E

. J

A T U A

E C

R U O

D N

A T S

/ N O

E W

P U T A T

S P M A

CAUTION

Do not use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or hanging on the wall can cause damage to the projector.

Zoom

Use the Zoom lever to finely adjust the image size on the screen.

E-24

Page 32

KEYSTONE PAGE

OFF

POWER

PIC-MUTE

DOWN

3. PROJECTING AN IMAGE (BASIC OPERATION)

Focus

Use the Focus ring to obtain the best focus.

Correcting the Vertical Keystone Distortion

The Keystone correction feature will correct the vertical distortion of a projected image on the screen.

NOTE: Keystone angle can be corrected between 15 degrees upward and 15 degrees downward of projector tilt from level.

To correct keystone distortion using the KEYSTONE +/- button:

1. Press the KEYSTONE +/- button once to display the slide bar for adjustment.

2. Press the KEYSTONE + or - to correct the keystone distortion.

Y ou can also correct keystone distortion by using the menu.

1. Press the MENU button to display the menu.

2. Use the SELECT

NOTE: When this option is highlighted, pressing the ENTER button will display its slide bar for adjustment.

3. Press the SELECT

NOTE: You can save changes by using “Keystone Save” feature when you turn off the projector. See page E-35.

or H to select “Image” and then “Keystone”.

or E to correct the keystone distortion.

E-25

Page 33

3. PROJECTING AN IMAGE (BASIC OPERATION)

Optimizing an RGB Image Automatically

Adjusting the Image Using Auto Adjust

Optimizing an RGB image automatically Press the AUTO ADJ. button to optimize an RGB image automatically.

Remote controlCabinet controls

VIDEO

AUTO ADJ.

S-VIDEO

VOLUME

COMPUTER

NOISE RED.

COMPONENT

ASPECT HELP

FREEZEPICTURE

LAMP STATUS POWER

ON/STAND BY

SOURCE

SELECT

AUTO ADJ.

[Poor picture]

[Normal picture]

Press the AUTO ADJ. button to fine-tune the computer image or to remove any vertical banding that might appear and to reduce video noise, dot interference or cross talk (this is evident when part of your image appears to be shimmering). This function adjusts the clock frequencies that eliminate the horizontal banding in the image. This function also adjusts the clock phase to reduce video noise, dot interference or cross talk. (This is evident when part of your image appears to be shimmering.) This adjustment may be necessary when you connect your computer for the first time.

NOTE:

• Some signals may not be displayed correctly or take time.

• The Auto Adjust function does not work for component and video signals.

• If the Auto Adjust operation cannot optimize the RGB signal, try to adjust Clock and Phase manually. See page E-37.

Turning Up or Down Volume

Sound level from the speaker can be adjusted.

Remote controlCabinet controls

VIDEO

AUTO ADJ.

LAMP STATUS POWER

ON/STAND BY

SOURCE

increase volumedecrease volume

SELECT

AUTO ADJ.

increase volume

decrease volume

S-VIDEO

VOLUME

COMPUTER

NOISE RED.

COMPONENT

ASPECT HELP

FREEZEPICTURE

NOTE: When no menus appear, the SELECT 왗 and 왘 buttons on the projector cabinet work as a volume control.

E-26

Page 34

3. PROJECTING AN IMAGE (BASIC OPERATION)

Turning off the Projector

To turn off the projector:

First, press the ON/STAND BY button on the projector cabinet or the POWER OFF button on the remote control. The “Power Off / Are you sure?” message will appear.

Remote controlCabinet controls

LAMP STATUS POWER

ON/STAND BY

SOURCE

OFF

KEYSTONE PAGE

SELECT

AUTO ADJ.

POWER

PIC-MUTE

DOWN

Second, press the ENTER button or press the ON/STAND BY or the POWER OFF button again. The POWER indicator will glow orange. After the projector turns off, the cooling fans keep operating for 60 seconds (Cooling-off time). Immediately after turning on the projector and displaying an image, you cannot turn off the projector for 60 seconds. Third, turn off the Main Power switch. The POWER indicator will go out.

Power On Fan running Standby

LAMP

STATUS

POWER

Steady green light Blinking orange

LAMP STATUS POWER

light

LAMP STATUS POWER

Steady orange

light

NOTE: To avoid premature lamp failure, wait at least 5 minutes before turning on or off the projector.

CAUTION Do not unplug the power cable from the wall outlet or do not turn off the main power under any one of the following circumstances. Doing so can cause damage to the projector:

• While the projector is turned on.

• While the cooling fans are running. (The cooling fans continue to work for 60 seconds after the projec-

tor is turned off).

E-27

Page 35

3. PROJECTING AN IMAGE (BASIC OPERATION)

After Use

Preparation: Make sure that the projector’s main power is off.

1. Unplug the power cable.

2. Disconnect any other cables.

3. Retract adjustable tilt foot if extended.

4. Cover the lens with the lens cap.

5. Put the projector and its accessories in the supplied soft case.

E-28

Page 36

4. CONVENIENT FEATURES

Turning Off the Image and Sound

Press the PIC-MUTE button to turn off the image and sound for a short period of time. Press again to restore the image and sound.

OFF

KEYSTONE PAGE

POWER

PIC-MUTE

DOWN

Freezing a Picture

Press the FREEZE button to freeze a picture. Press again to resume motion.

VIDEO

AUTO ADJ.

COMPUTER

NOISE RED.

COMPONENT

S-VIDEO

VOLUME

ASPECT HELP

FREEZEPICTURE

Reducing Video Noise (Noise Reduction)

You can reduce video noise by using the NOISE RED. button on the remote control. To reduce video noise, press the NOISE RED. button to turn on the Noise Reduction feature. You can also reduce video noise by using the menu. See page E-34.

VIDEO

AUTO ADJ.

COMPUTER

NOISE RED.

COMPONENT

S-VIDEO

VOLUME

ASPECT HELP

FREEZEPICTURE

E-29

Page 37

4. CONVENIENT FEATURES

Getting the Information on Lamp Usage and Projector Usage

You can view various information such as status of the remaining lamp time, lamp hour meter and projector usage.

VIDEO

AUTO ADJ.

COMPUTER

NOISE RED.

COMPONENT

S-VIDEO

VOLUME

ASPECT HELP

FREEZEPICTURE

E-30

Page 38

5. USING ON-SCREEN MENU

Using the Menus

NOTE: The on-screen menu may not be displayed correctly while interlaced motion video image is projected.

1. Press the MENU button on the remote control or projector cabinet to display the main menu.

SOURCE

SELECT

AUTO

ADJ.

2. Press the SELECT item you want to adjust or set.

buttons on the remote control or the projector cabinet to highlight the menu for the

SOURCE

SELECT

AUTO ADJ.

Highlight Indicates the selected menu or item.

3. Press the ENTER button on the remote control or the projector cabinet to select a submenu or item.

SOURCE

SELECT

AUTO ADJ.

4. Use the SELECT GH buttons on the remote control or the projector cabinet to select the item you want to adjust or set.

SOURCE

SELECT

AUTO ADJ.

E-31

Page 39

5. USING ON-SCREEN MENU

5. Adjusting the level of a selected item or selecting an item.

Slide bar

Solid triangle

SELECT

AUTO ADJ.

Return key symbol

Radio button

For Adjusting items (Slide bar)

Slide bar ........ Indicates settings or the direction of adjustment.

• Use the SELECT 왗왘 buttons to adjust the item.

For Selecting items (Solid triangle)

Solid triangle .. Indicates further choices are available. A highlighted triangle indicates the item is active.

• Use the SELECT 왗왘 buttons to select the item.

For Selecting items (Return key symbol, Radio button)

Return key symbol ........ Indicates further choices are available.

Radio button ................. Use this round button to select an option in a dialog box.

1) Press the ENTER button. The selected item will be displayed.

2) Use the SELECT 왖왔 buttons to highlight the item you want to set. Changes are stored until you adjust it again.

Press the EXIT button to return to the previous screen.

6. Repeat steps 2-5 to adjust an additional item, or press the EXIT button several times to close the menu.

SOURCE

SELECT

AUTO ADJ.

NOTE: Menu windows have the following elements.





Source ............................................... Indicates the currently selected source.



Off Timer remaining time ................... Indicates the remaining countdown time when the Off Timer is preset.



Key symbol

........................................

Indicates the Cabinet Button is locked.

E-32

Page 40

5. USING ON-SCREEN MENU

List of Menu Items


Brightness Contrast Sharpness Color Hue Noise Reduction Off, On T elecine Off, Auto

Adjustment

Wall Color Off, Blackboard, Light yellow, Light green, Light blue, Sky blue, Light rose, Color Management Presentation, Video, Movie, Graphic, sRGB

Gamma Correction Dynamic, Natural, Black Detail Color T emperature White Peaking


Keystone Keystone Save Off, On Aspect Ratio Normal, Cinema, Native Cinema Position Position/Clock

Horizontal Vertical Clock Phase

Setup

Off Timer Off, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00 Lamp Mode Normal, Eco Language Page-1: English, Deutsch, Français, Italiano, Español, Português, Nederlands

Menu Color Select Color, Monochrome Menu Display Time Manual, Auto 5 sec, Auto 15sec, Auto 45 sec Background Blue, Black Orientation Desktop Front, Ceiling Rear, Desktop Rear, Ceiling Front Communication Speed 4800, 9600, 19200, 38400

Advanced

Security Off, On Cabinet Button Unlock, Lock Fan Mode Auto, High Power Management Off, 0:05, 0:10, 0:20, 0:30 Signal Select

Computer RGB/Component, Scart Video Auto, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM S-Video Auto, NTSC3.58, NTSC4.43, PAL, PAL-M, PAL-N, PAL60, SECAM

Information

Page 1 Remaining Lamp Time, Lamp Hour Meter, Projector Usage Page 2 Horizontal Frequency, V ertical Frequency, Sync Polarity , Video Type, Sync Type,

Page 3 BIOS Version, Firmware Version, Data Version

Reset

Factory Default Current Signal Clear Lamp Hour Meter

NOTE: Some menu items may not be available depending on the input source.

Pink

Page-2: Svenska, Norsk, Suomi, Page-3:

Interlace

All Data

, , , , , Dansk

, Magyar, Polski, Türkçe

Cestina

E-33

Page 41

5. USING ON-SCREEN MENU

Menu Descriptions & Functions


You can adjust brightness, contrast, sharpness, color, hue, noise reduction and Telecine.

NOTE: When one of Brightness, Contrast, Sharpness, Color or Hue is highlighted, pressing the ENTER button will display its slide bar for adjustment.

Brightness...... Adjusts the brightness level or the black level of the image.

Contrast ......... Adjusts the intensity of the image according to the incoming signal (White level of the image).

Sharpness ..... Controls the detail of the image for Video.

Color .............. Increases or decreases the color saturation level (not valid for RGB).

Hue ................ Varies the color level from +/- green to +/-blue. The red level is used as reference. This

Noise Reduction ....

Telecine ......... Use 3:2 pull down correction to eliminate jitter and artifacts in video.

Adjustment

adjustment is only valid for Video and Component inputs (not valid for RGB). Turn on or off the noise reduction feature. To reduce video noise, select On.

NOTE:

• This feature is not available for 480p, 576p, 720p and non-1080i HDTV and RGB signals

• Noise reduction set to off gives best image quality by way of higher bandwidth. Noise reduction set to

on softens the image.

Auto: For film source such as a DVD player. Off: For signals other than film sources.

NOTE: This feature is not available for 480p, 576p, 720p and non-1080i HDTV and RGB signals

You can adjust Wall Color, Color Management, Gamma Correction, Color Temperature and White Peaking.

Selecting Wall Color Correction Mode [Wall Color]

This function allows for quick adaptive color correction in applications where the screen material is not white. The following eight options are available: Off, Blackboard, Light yellow, Light green, Light blue, Sky blue, Light rose and Pink.

E-34

Page 42

5. USING ON-SCREEN MENU

Adjusting Color Management [Color Management]

This option allows you to adjust neutral tint for yellow, cyan or magenta. There are 5 factory presets optimized for various types of images, you can set user adjustable settings.

Presentation .. Recommended for making a presentation using a PowerPoint file.

Video ............. Recommended for standard video such as a TV program.

Movie ............. Recommended for film based video such as a movie (DVD or HDTV).

Graphic .......... Recommended for viewing accurate colors in graphics.

sRGB ............. Standard color values.

Selecting Gamma Correction Mode [Gamma Correction]

Each mode is recommended for:

Dynamic......... Creates a high-contrast picture.

Natural ........... Natural reproduction of the picture.

Black Detail.... Emphasizes detail in dark areas of the picture.

Adjusting Color Temperature [Color Temperature]

This option allows you to adjust the color temperature using the slide bar. Move the slide bar to the right to increase the color temperature for a bluish image; to the left to decrease it for a reddish image.

NOTE: The adjustable range may vary depending on White Peaking adjustment.

Adjusting White Peaking [White Peaking]

This allows you to adjust the drive level of the white areas. As the picture becomes dim, it looks more natural.

NOTE: When this option is highlighted, pressing the ENTER button will display its slide bar for adjustment.


Correcting Vertical Keystone Distortion Manually [Keystone]

Y ou can correct vertical distortion manually.

NOTE: When this option is highlighted, pressing the ENTER button will display its slide bar for adjustment.

Saving Vertical Keystone Correction [Keystone Save]

This option enables you to save your current keystone settings.

Off .................. Does not save current keystone correction settings

On .................. Saves current keystone correction settings

Saving your change once affects all sources. The changes are saved when the projector is off.

E-35

Page 43

5. USING ON-SCREEN MENU

Selecting Aspect Ratio [Aspect Ratio]

Aspect Ratio allows you to select the best Aspect mode to display your source image. You can also display the Aspect Ratio window by pressing the ASPECT button on the remote control. (See page E-7).

When 4:3 is selected from the source (i.e. DVD player), the following selections will display:

When 16:9 is selected from the source (i.e. DVD player), the following selections will display:

Native (RGB only): Turns off the Advanced AccuBlend feature. The projector displays the current image in its true resolution.

NOTE:

• When you are displaying an RGB image with a higher resolution than the projector's native resolution, the image will be

displayed in "Normal" even if "Native" is selected. (Advanced Accublend will be incorporated) Only when displaying an RGB image with a lower resolution than the projector's native resolution, will the image be able to be displayed in its true resolution "Native".

• When "Normal" is selected, an HDTV (1080i/720p) signal will be shown in its true aspect, as is the case when selecting

"Cinema".

• You can adjust the image position for Cinema aspect. See “Cinema Position” for setting the image position.

Please note that using this projector for the purpose of commercial gain or the attraction of public attention in a venue such as a coffee shop or hotel and employing compression or expansion of the screen image with a "Aspect Ratio" setting may raise concern about the infringement of copyrights which are protected by copyright law.

Adjusting the Vertical Position of Image [Cinema Position] (for Cinema only)

This feature adjusts the vertical position of the image when viewing video with Cinema aspect ratio selected. When “Cinema” is selected in “Aspect Ratio”, the image is displayed with black borders on the top and bottom. You can adjust the vertical position between top and bottom.

Normal

Standard

4:3 Aspect

Normal

16:9 image

displayed in 4:3

mode

Cinema Native

Left and right

stretched

Cinema

Left and right

stretched to display

the true aspect

NOTE: This option is available only when “Cinema” is selected in Aspect Ratio.

E-36

Page 44

5. USING ON-SCREEN MENU

Adjusting Horizontal/Vertical Position, Clock and Phase [Position/Clock]

You can adjust the image manually for position and stability; “Horizontal”, “Vertical”, “Clock” and “Phase”. [Horizontal/Vertical]

Adjusts the image location horizontally and vertically. [Clock] (available for RGB signal only)

Use this item to fine tune the computer image or to remove any vertical banding that might appear. This function adjusts the clock frequencies that eliminate the horizontal banding in the image. This adjustment may be necessary when you connect your computer for the first time.

[Phase] (available for RGB signal only) Use this item to adjust the clock phase or to reduce video noise, dot interference or cross talk. (This is evident when part of your image appears to be shimmering.) Use “Phase” only after the “Clock” is complete.

Setup

Setting Off Timer [Off Timer]

You can use the Off Timer feature to turn off the projector automatically at a preset time. Eight preset times can be selected:Off, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00 and 16:00.

Selecting Lamp Mode [Lamp Mode]

This feature enables you to select two brightness modes of the lamp: Normal and Eco modes. The lamp life can be extended by using the Eco mode. Normal Mode ...

Eco Mode ...... Select this mode to increase the lamp life and reduce fan noise (80% Brightness).

Selecting Menu Language [Language]

You can choose one of 20 languages for the on-screen menu.

Selecting Menu Color [Menu Color Select]

You can choose between two color modes for menu color: color and monochrome.

Selecting Menu Display Time [Menu Display Time]

This option allows you to select how long the projector waits after the last touch of a button to turn off the menu. The preset choices are “Manual”, “Auto 5 sec”, “Auto 15 sec”, and “Auto 45 sec”. The “Auto 45 sec” is the factory preset.

Selecting a Color for Background [Background]

Use this feature to display a blue/black screen when no signal is available.

This is the default setting (100% Brightness).

E-37

Page 45

5. USING ON-SCREEN MENU

Selecting Projector Orientation [Orientation]

This sets your image for your type of projection application. The options are: desktop front projection, ceiling rear projection, desktop rear projection, and ceiling front projection.

Selecting Communication Speed [Communication Speed]

This feature sets the baud rate of the PC Control port (Mini DIN 8 Pin). It supports data rates from 4800 to 38400 bps. The default is 38400 bps. Select the appropriate baud rate for your equipment to be connected (depending on the equipment, a lower baud rate may be recommended for long cable runs).

Advanced

Preventing the Unauthorized use of the projector [Security]

A keyword can be set for your projector to avoid operation by an unauthorized user using the Menu. When a keyword is set, turning on the projector will display the Keyword input screen. Unless the correct keyword is entered, the projector cannot project an image.

T o enable the Security function:

1. Select [Advanced] → [Security] and press the ENTER button.

The Off/On menu will be displayed.

E-38

Page 46

2. Select “On” and press the ENTER button.

The [Keyword] screen will be displayed.

3. Type in a combination of the four SELECT

NOTE: A keyword must be four to 10 digits in length.

The [Confirm Keyword] screen will be displayed.

4 Type in the same combination of SELECT

5. USING ON-SCREEN MENU

왖왔왗왘

buttons and press the ENTER button.

왖왔왗왘

buttons and press the ENTER button.

The confirmation screen will be displayed.

5. Select “Yes” and press the ENTER button.

The Security function has been enabled.

E-39

Page 47

To disable the Security function:

1. Select [Advanced] → [Security] and press the ENTER button.

The Off/On menu will be displayed.

2. Select “Off” and press the ENTER button.

5. USING ON-SCREEN MENU

The Keyword confirmation screen will be displayed.

3. Type in your keyword and press the ENTER button. When the correct keyword is entered, the Security function will be disabled.

When the Security function is enabled and the projector is turned on, the projector will display a blue background. T o display an image at this time, press the MENU button to display the Keyword input screen.

Type in the correct keyword and press the ENTER button. The projector will display an image.

E-40

Page 48

5. USING ON-SCREEN MENU

NOTE:

• The security disable mode is maintained until the main power is turned off (by setting the main power switch to “O” or unplugging the power cable).

• If you forget your keyword, contact your dealer. Your dealer will provide you with your keyword in exchange for your request code. Your request code is displayed in the Keyword Confirmation screen. In this example “K992-45L8-JNGJ- 4XU9-1YAT-EEA2” is a request code.

Disabling the Cabinet Buttons [Cabinet Button]

This option turns on or off the Key Lock function for cabinet buttons.

NOTE:

• The Cabinet Buttons setting will not affect the remote control or PC Control Functions.

• When the cabinet buttons are disabled, pressing and holding the EXIT button for about 10 seconds will change the

setting to enable.

Enabling Fan Speed Mode [Fan Mode]

This option allows you to select two modes for fan speed: Auto mode and High speed mode.

Auto ............... The built-in fans automatically run at a variable speed according to the internal temperature.

High ............... The built-in fans run at a fixed high speed.

When you wish to cool down the temperature inside the projector quickly, select “High”.

NOTE: It is recommended that you select High speed mode if you continue to use the projector for consecutive days.

Enabling Power Management [Power Management]

When this option is selected you can enable the projector to automatically turn off (at the selected time) if there is no signal received by any input.

Selecting Signal Format [Signal Select]

[Computer] Normally select “RGB/Component” and the projector automatically detects a component signal. Select “Scart” for the European Scart signal.

[Video & S-Video System Select] This feature enables you to select composite video standards automatically or manually. Normally select “Auto” and the projector will automatically detect the video standard. In the case where the projector has difficulty detecting the video standard, select the appropriate video standard from the menu. This must be done for Video and S-Video respectively .

E-41

Page 49

Information

5. USING ON-SCREEN MENU

Displays the status of the current signal and lamp usage. This item has three pages. The information included is as follows:

[Page 1]

Remaining Lamp Time (%)* Lamp Hour Meter (H) Projector Usage (H) * The progress indicator shows the percentage

of remaining bulb life. The value informs you of the amount of lamp usage. When the remaining lamp time reaches 0, the Remaining Lamp Time bar indicator changes from 0% to 100 Hours and starts counting down. If the remaining lamp time reaches 0 hours, the projector will not turn on regardless of whether the lamp mode is set to Normal or Eco.

[Page 2]

Horizontal Frequency Vertical Frequency Sync Polarity Video Type Sync Type Interlace

[Page 3]

BIOS Version Firmware Version Data Version

E-42

Page 50

5. USING ON-SCREEN MENU

Reset

Returning to Factory Default [Factory Default]

The Factory Default feature allows you to change adjustments and settings to the factory preset for a (all) source (s) except the following:

[Current Signal]

Resets the adjustments for the current signal to the factory preset levels. All the items in “Picture”, “Adjustment (except “Wall Color”)” and “Image (except “Keystone” and “Keystone Save”)” can be reset.

[All Data]

Reset all the adjustments and settings for all the signals to the factory preset. All items can be reset except Language, Background, Communication Speed, Security, Remaining Lamp Time, Lamp Hour Meter, and Projector Usage. To reset the lamp usage time, see “Clear Lamp Hour Meter”.

Clearing Lamp Hour Meter [Clear Lamp Hour Meter]

Resets the lamp clock back to zero. Selecting this option displays submenu for a confirmation.

NOTE: The projector will turn off and go into standby mode after 2100 hours (up to 3100 hours in Eco mode) of service. If this happens, press the HELP button on the remote control for ten seconds to reset the lamp clock back to zero. Do this only after replacing the lamp.

E-43

Page 51

6. MAINTENANCE

This section describes the simple maintenance procedures you should follow to replace the lamp and clean the projector cabinet.

Replacing the Lamp

After your lamp has been operating for 2000 hours (up to 3000 hours in Eco mode) or longer, the LAMP indicator in the cabinet will blink red and the message "The lamp has reached the end of its usable life. Please replace the lamp." will appear. Even though the lamp may still be working, replace it at 2000 (up to 3000 hours in Eco mode) hours to maintain optimal projector performance.

CAUTION

• DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. T urn the projector off, wait 60 seconds, turn off the main power switch and then disconnect the power cable. Allow at least one hour for the lamp to cool before handling.

• DO NOT REMOVE ANY SCREWS except the lamp cover screw and two lamp case screws. You could receive an electric shock.

• Do not break the glass on the lamp housing. Keep finger prints off the glass surface on the lamp housing. Leaving finger prints in the glass sur-

face might cause an unwanted shadow and poor picture quality.

• The projector will turn off and go into standby mode after 2100 (up to 3100 hours in Eco mode) hours of service. If this happens, be sure to replace the lamp. If you continue to use the lamp after 2000 hours (up to 3000 hours in Eco mode) of use, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.

To replace the lamp:

Preparation:

Be sure to insert the included spacer between the rear foot and the projector’s bottom to prevent the projector from accidentally tilting when inserting the lamp house.

Spacer

Remove the spacer after replacing the lamp.

E-44

Page 52

6. MAINTENANCE

SELECT

L A

P S T

A T

U S

O W

E R

O N

/ S

T A N

B Y

A U T

A D

J .

S O

R C

ELE

A M

P S T

A T U

P O

E R

O N

/ S T

A N

D B

A U T

A D

J .

S O

U R

C E

1. Loosen the lamp cover screw until the screwdriver goes into a freewheeling condition and remove the lamp cover. The lamp cover screw is not removable.

A M

T A

T U

S O W

O N

/ S

T A

A U T

O D J .

2. Loosen the two screws securing the lamp housing until the screwdriver goes into a freewheeling condition. The two screws are not removable.

Remove the lamp housing by holding it.

NOTE: There is an interlock on this case to prevent the risk of electrical shock. Do not attempt to circumvent this interlock.

Interlock

A M

P S T

A T U

E R

N / S

T A

C E

A U

J .

LE C

E-45

Page 53

SELECT

L A

M P

T A

T U

P O

W E

O N

/ S T

A N

D B

U T O

A D

J .

S O

U R

S E

L E

C T

L A

P S T

A T

U S

P O

W E

O N

/ S

T A N

B Y

A U

T O

A D J .

S O

R C

3. Insert a new lamp housing until the lamp housing is plugged into the socket. Secure it in place with the two screws.

Be sure to tighten the screws.

CAUTION

• Do not use a lamp other than the replacement lamp (LH02LP).

Order this from your dealer.

(쏄) Push here.

L A

P S T

A T

W E

N / S T

A N

A U

O D J .

SELECT

6. MAINTENANCE

Socket

Guide rail

NOTE:

• Align the lamp housing with the guide rail. Make sure the lamp housing plug goes to the socket correctly.

• If both screws are not tightened securely, an image may not be displayed correctly. In this case, apply firm pressure to the portion of asterisk (쏄) in the above drawing to seat the lamp housing into the case.

4. Reattach the lamp cover. Tighten the lamp cover screw.

Be sure to tighten the screw.

A M

T A

T U

S O W

O N

/ S

T A

O U

J .

SELECT

hours.

→

[Reset] → [Clear Lamp Hour Meter] to reset the lamp usage

5. After you install a new lamp, select the menu

NOTE: When the lamp exceeds 2100 hours (up to 3100 hours in Eco mode) of service, the projector cannot turn on and the menu is not displayed. If this happens, press the HELP button on the remote control for a minimum of 10 seconds while in standby mode. When the lamp time clock is reset to zero, the LAMP indicator goes out.

E-46

Page 54

COMPONENT IN

COMPUTER IN

VIDEO IN

AUDIO IN

-V

Cr/Pr

Cb/Pb

L/mono

AUDIO IN

MONITOR OUT

AC IN

6. MAINTENANCE

Cleaning the Cabinet and the Lens

L AM

P S T A

S O W

N /S

TAN

. J

A T U

Y B

N A T

S /

N O

E W

P U T

A T

S P M

A L

1. Turn off the projector before cleaning.

2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

. J

B D N

A T

N O

W O

P U T

A T

S P M

A L

O D J .

E-47

Page 55

7. TROUBLESHOOTING

This section helps you resolve problems you may encounter while setting up or using the projector.

Power Indicator

Indicator Condition

Blinking light

Steady light

Status Indicator

Blinking light

Steady light

Green

Orange

Green Orange

Indicator Condition

Red

Green Orange

Off

0.5 sec On,

0.5 sec Off

2.5 sec On,

0.5 sec Off

0.5 sec On,

0.5 sec Off

Off

1 cycle (0.5 sec On,

2.5 sec Off) 2 cycle (0.5 sec On,

0.5 sec Off) 4 cycle (0.5 sec On,

0.5 sec Off) 6 cycle (0.5 sec On,

0.5 sec Off)

Projector Condition Note

The main power is off. The projector is getting ready to turn on. Off Timer is enabled.

The projector is cooling down.

The projector is turned on. The projector is in Standby.

Projector Condition Note

Normal Lamp cover error or lamp housing error

Temperature error

Fan error

Lamp error

Re-firing the lamp Cabinet button locked

–

Wait for a moment.

–

Wait for a moment.

– –

–

Replace the lamp cover or lamp housing correctly.

The projector is overheated. Move the projector to a cooler location. Fans will not work correctly.

Lamp fails to light. Wait a full minute and then turn on again.

The projector is re-firing. You have pressed cabinet button when Cabinet Button is locked.

Lamp Indicator

Indicator Condition

Blinking light

Steady light

Red

Green

Off

Projector Condition Note

Normal Lamp has reached its end of life. Lamp replacement message will be displayed. Lamp has been used beyond its limit. The projector will not turn on until the lamp is replaced. Lamp mode is set to Eco mode.

–

Replace the lamp.

–

E-48

Page 56

Common Problems & Solutions

7. TROUBLESHOOTING

Check These ItemsProblem

Does not turn on

Lamp does not turn on; POWER and STATUS LEDs are blinking green at the same time

Will turn off

No picture

• Check that the power cable is plugged in and that the power button on the projector cabinet or the remote control is on. See pages E-19 and E-20.

• Ensure that the lamp cover or lamp housing is installed correctly. See page

E-46.

• Check to see if the projector has overheated or the lamp has reached the end of its usable life. If there is insufficient ventilation around the projector or if the room where you’re presenting is particularly warm, move the projector to a cooler location.

• The lamp may fail to light. Wait a full minute and then turn on the power again.

• The lamp has reached the end of its usable life. Replace the lamp.

• Wait for 60 seconds (cooling period)to see if the lamp turns on by itself.

POWER and STATUS LEDs blinking green at the same time indicates the main power was interrupted during previous operation.

• Ensure that the Power Management is off. See page E-41.

• Use the VIDEO, S-VIDEO, COMPUTER or COMPONENT button on the re-

mote control or the SOURCE button on the cabinet to select your source (Video, S-Video, Component or Computer). See page E-22.

• Ensure your cables are connected properly.

• Use menus to adjust the brightness and contrast. See page E-34.

• Reset the settings or adjustments to factory preset levels using “Reset” in

the menu. See page E-43.

• Enter your registered keyword if the Security function is enabled. See page

E-38.

• When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the power to the notebook PC. In most cases signal cannot be output from RGB output unless the notebook PC is turned on after connecting with the projector. * If the screen goes blank while using your remote control, it may be the

result of the computer’s screensaver or power management software.

* For more detailed, see page E-51.

Image isn’t square to the screen

Color tone or hue is unusual

• Reposition the projector to improve its angle to the screen. See pages E-22 and E-23.

• Use the Keystone correction function to correct the trapezoid distortion. See page E-25.

• Check if an appropriate color is selected in “Wall Color”. If so, select an appropriate option. See page E-34.

• Adjust “Hue” in “Picture”. See page E-34.

E-49

Page 57

7. TROUBLESHOOTING

Check These ItemsProblem

Picture is blurred

Image is scrolling vertically, horizontally or both

Remote control does not work

Indicator is lit or blinking

Cross color in RGB mode

• Remove the lens cap.

• Adjust the focus. See page E-25.

• Reposition the projector to improve its angle to the screen. See pages E-22

and E-23.

• Ensure that the distance between the projector and screen is within the adjustment range of the lens. See pages E-11 and E-12.

• Condensation may form on the lens if the projector is cold, brought into a warm place and is then turned on. Should this happen, let the projector stand until there is no condensation on the lens.

• Use the VIDEO, S-VIDEO, COMPUTER or COMPONENT button on the remote control or the SOURCE button on the cabinet to select the source you want to input.

• Adjust the computer image manually with the Horizontal /Vertical Position. See page E-37.

• Connect a source the projector supports. See Compatible Input Signal List on page E-57.

• Install new batteries. See page E-8.

• Make sure there are no obstacles between you and the projector.

• Stand within 22 feet (7 m) of the projector. See page E-9.

• See the Power/Status/Lamp Indicator on page E-48.

• Press the AUTO ADJ. button on the projector cabinet or the remote control.

See page E-26.

• Adjust the computer image manually with the Clock and Phase in “Image” of the menu. See page E-37.

E-50

Page 58

7. TROUBLESHOOTING

If there is no picture, or the picture is not displayed correctly.

• Power on process for the projector and the PC. Be sure to connect the RGB cable between the projector and the computer before turning on the computer. There are some notebook PCs, which do not output signal unless there is a projector or monitor connected first.

NOTE: You can check the horizontal frequency of the current signal in the projector’s menu under Information. If it reads “0 kHz”, this means there is no signal being output from the computer. See page E-42 or go to next step.

• Enabling the computer’s external display. Displaying an image on the notebook PC’s screen does not necessarily mean it outputs a signal to the projector. When using a PC compatible laptop, a combination of function keys will enable/disable the external display. Usually, the combination of the ‘Fn” key along with one of the 12 function keys gets the external display to come on or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through external display selections.

• Non-standard signal output from the computer If the output signal from a notebook PC is not an industry standard, the projected image may not be displayed correctly. Should this happen, deactivate the notebook PC’s LCD screen when the projector display is in use. Each notebook PC has a different way of deactivate/reactivate the local LCD screens as described in the previous step. Refer to your computer’s documentation for detailed information.

• Image displayed is incorrect when using a Macintosh When using a Macintosh with the projector, set the DIPswitch of the Mac adapter (not supplied with the projector) according to your resolution. After setting, restart your Macintosh for the changes to take affect. For setting display modes other than those supported by your Macintosh and the projector, changing the DIP switch on a Mac adapter may bounce an image slightly or may display nothing. Should this happen, set the DIP switch to the 13" fixed mode and then restart your Macintosh. After that, restore the DIP switches to a displayable mode and then restart the Macintosh again.

NOTE: A Video Adapter cable manufactured by Apple Computer is needed for a PowerBook which does not have a mini DSub 15-pin connector.

• Mirroring on a PowerBook * When using the projector with a Macintosh PowerBook, output may not be set to 1024 x 768 unless “mirror-

ing” is off on our PowerBook. Refer to owner’s manual supplied with your Macintosh computer for mirroring.

• Folders or icons are hidden on the Macintosh screen Folders or icons may not be seen on the screen. Should this happen, select [View] → [Arrange] from the Apple menu and arrange icons.

E-51

Page 59

8. SPECIFICATIONS

This section provides technical information about the LT180 Projector's performance.

Model Number LT180

Optical

DMD Single Chip Digital Micromirror Device (DMD) Resolution 1024⳯768 pixels* up to 1080i with scaling technology Lens Manual zoom and focus

Lamp 210W DC (168W Eco mode) Image Size 30" - 200" diagonal Projection Distance 31.4" - 220.4" (wide) / 37.7" - 262.2" (tele)

Projection Angle 12.2° - 12.8° (wide) / 10.3° - 10.8° (tele)

Electrical

Inputs 1 VGA (Mini D-Sub 15 Pin), 1 S-Video (Mini DIN 4 Pin), Video (RCA),

Outputs 1RGB (Mini D-Sub 15 Pin), 1 Stereo Mini Audio Video Compatibility NTSC, NTSC4.43, PAL, PAL-60, PAL-N, PAL-M, SECAM, Component:1080i,

Scan Rate Horizontal: 15 kHz to 100 kHz (RGB: 24 kHz or over) / Vertical: 50 Hz to 85 Hz Color Reproduction 16.7 million colors simultaneously, Full color Horizontal Resolution NTSC / NTSC4.43/PAL / YCbCr: 540 TV lines

External Control IR, RS232C Sync Compatibility Separate Sync / Composite Sync / Sync on G Built-in Speaker 1W (Monaural) Power Requirement 100 - 240V AC, 50 / 60 Hz Input Current 3.2 - 1.5A Power Consumption 280W in Lamp Normal mode

F2.0 - 2.48 f=19.7 mm - 23.0 mm

0.80 m - 5.60 m (wide) / 0.96 m - 6.66 m (tele)

1 Component (Y, Cb/Pb, Cr/Pr), 1 Stereo Mini Audio, 1 Audio L/R (RCA), 1 PC Control (Mini DIN 8 Pin)

720p, 576p, 480p, 576i, 480i

SECAM: 300 TV lines RGB: 1024 dots (H)⳯768 dots (V)

220W in Lamp Eco mode

7.0W in Standby mode

* Effective pixels are more than 99.99%

E-52

Page 60

8. SPECIFICATIONS

Mechanical

Installation Orientation Desktop/Front, Desktop/Rear, Ceiling/Front, Ceiling/Rear Dimensions 7.4" (W)⳯4.4" (H)⳯13.3" (D)

Net Weight 6.4 lbs / 2.9 kg Environmental Considerations

Regulations UL/C-UL Approved (UL 60950, CSA 60950)

For additional information visit: US : http://www.necvisualsystems.com Europe : http://www.neceurope.com/ Global : http://www.nec-pj.com/

The specifications are subject to change without notice.

187mm (W)⳯113mm (H)⳯337mm (D) (not including protrusions)

Operational Temperatures: 41°F to 95°F (5°C to 35°C), 20% to 80% humidity (non-condensing) Storage Temperatures: 14°F to 122°F (-10°C to 50°C), 20% to 80% humidity (non-condensing)

Meets DOC Canada Class B requirements Meets FCC Class B requirements Meets AS/NZS CISPR 22 Class B Meets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3) Meets Low Voltage Directive (EN60950, TÜV GS Approved)

E-53

Page 61

9. APPENDIX

Cabinet Dimensions

9. APPENDIX

S-VIDEO IN

AUDIO IN R

VIDEO INAUDIO IN

ADJ,

AUTO

SELECT

ON/STAND BY

SOURCE

POWER STATUS LAMP

Cb/Pb

AUDIO OUT

Cr/Pr

COMPUTER IN

COMPONENT IN

AC IN

4.4"/113.0

5.24"/133.2

MONITOR OUT

PC CONTROL

FOCUS

7.36"/187.0

2.07"/52.5

0.33"/8.5 13.27"/337.0

3.11"/79.0

Unit = inch/mm

E-54

Page 62

9. APPENDIX

Pin Assignments of COMPUTER IN (D-Sub RGB) Connector

Mini D-Sub 15 Pin Connector

14131211

9876

4321

Signal Level Video signal : 0.7Vp-p (Analog) Sync signal : TTL level

Pin No. RGB Signal (Analog) YCbCr Signal

1 Red Cr 2 Green or Sync on Green Y 3 Blue Cb 4 Ground 5 Ground 6 Red Ground Cr Ground 7 Green Ground Y Ground 8 Blue Ground Cb Ground

9 No Connection 10 Sync Signal Ground 11 SCART Sync 12 Bi-directional DATA (SDA) 13 Horizontal Sync or Composite Sync 14 Vertical Sync 15 Data Clock

E-55

Page 63

9. APPENDIX

PC Control Codes and Cable Connection

PC Control codes

Function Code Data

POWER ON 02H 00H 00H 00H 00H 02H

POWER OFF 02H 01H 00H 00H 00H 03H

INPUT SELECT COMPUTER 02H 03H 00H 00H 02H 01H 01H 09H

INPUT SELECT COMPONENT 02H 03H 00H 00H 02H 01H 11H 19H

INPUT SELECT VIDEO 02H 03H 00H 00H 02H 01H 06H 0EH

INPUT SELECT S-VIDEO 02H 03H 00H 00H 02H 01H 0BH 13H

PICTURE MUTE ON 02H 10H 00H 00H 00H 12H

PICTURE MUTE OFF 02H 11H 00H 00H 00H 13H

SOUND MUTE ON 02H 12H 00H 00H 00H 14H

SOUND MUTE OFF 02H 13H 00H 00H 00H 15H

ON SCREEN MUTE ON 02H 14H 00H 00H 00H 16H

ON SCREEN MUTE OFF 02H 15H 00H 00H 00H 17H

NOTE: Contact your local dealer for a full list of the PC Contorol Codes if needed.

Cable Connection

Communication Protocol

Baud rate ........................................................ 38400 bps

Data length ..................................................... 8 bits

Parity .............................................................. No parity

Stop bit .......................................................... One bit

X on/off .......................................................... None

Communications procedure ........................... Full duplex

NOTE: Depending on the equipment, a lower baud rate may be recommended for long cable runs.

PC Control Connector (Mini DIN-8P)

To RxD of PC

54 3

NOTE: Pins 2, 3, 5, 6 and 8 are used inside the projector.

To TxD of PCTo GND of PC

E-56

Page 64

Compatible Input Signal List

Horizontal: 15 kHz to 100 kHz (RGB: 24 kHz or over) Vertical: 50 Hz to 85 Hz

Signal

NTSC PAL PAL60 SECAM VESA IBM MAC MAC MAC VESA VESA IBM VESA VESA VESA VESA VESA VESA MAC VESA VESA MAC VESA VESA VESA SUN VESA VESA MAC SXGA+ SDTV(480p)(525p) SDTV(576p)(625p) HDTV (1080i)(1125i) HDTV (1080i)(1125i) HDTV (720p)(750p) HDTV (720p)(750p) DVD YCbCr DVD YCbCr

Images in above list are displayed with scaling technology.

Resolution

( Dots )

– – – –

640 480 640 480 640 480 640 480 640 480 640 480 640 480 640 480 640 480 800 600 800 600 800 600 800 600 800 600

832 624 1024 768 1024 768 1024 768 1024 768 1024 768 1152 864 1152 900 1280 960 1280 1024 1280 1024 1400 1050

–– ––

1920 1080 1920 1080 1280 720 1280 720

–– ––

Frequency H.

( kHz )

15.734

15.625

15.734

15.625

31.47

34.97 35

37.86

37.5

39.375

43.269

35.16

37.879

48.077

46.88

53.674

49.725

48.363

56.476

60.241

60.023

68.677

67.5

61.796 60

63.981

69.89

–

31.47

31.25

33.75

28.125 45

37.5

15.734

15.625

9. APPENDIX

Refresh Rate

( Hz )

60 50 60 50

59.94 60 60

66.67

72.81 75 75

85.01

56.25

60.32

72.19 75

85.06

74.55 60

70.07

74.93

75.03 85 75

65.95 60

60.02

65.18

–

59.94 Progressive 50 Progressive

60 Interlaced

50 Interlaced 60 Progressive 50 Progressive

59.94 Interlaced 50 Interlaced

NOTE: Some composite sync signals may not be displayed correctly. Signals other than those specified in the table above may not be displayed correctly. If this should happen, change the refresh rate or resolution on your PC. Refer to Display Properties help section of your PC for procedures.

E-57

Page 65

9. APPENDIX

Troubleshooting Check List

Before contacting your dealer or service personnel, check the following list to be sure repairs are needed also by referring to the “Troubleshooting” section in your user’s manual. This checklist below will help us solve your problem more efficiently. * Print the following pages.

Frequency of occurrence 䡺 always 䡺 sometimes (How often?_____________________) 䡺 other (__________________) Power

No power (POWER indicator does not light green) See also “Sta- tus Indicator (STATUS)”.

Power cable's plug is fully inserted into the wall outlet. Main power switch is pressed to the ON position. Lamp cover is installed correctly . Lamp Hour Meter (lamp operation hours) was cleared after

lamp replacement. No power even though you press and hold the POWER button

for a minimum of 2 seconds.

Video and Audio

No image is displayed from your PC or video equipment to the projector.

Still no image even though you connect the projector to the PC first, then start the PC.

Enabling your notebook PC’s signal output to the projector.

• A combination of function keys will enable/disable the external display. Usually, the combination of the “Fn” key along with one of the 12 function keys turns the external display on or off.

No image (blue background, logo, no display). Still no image even though you press the AUTO ADJUST but-

ton. Still no image even though you carry out “Reset” in the

projector’s menu. Signal cable's plug is fully inserted into the input connector A message appears on the screen.

( _____________________________________________ ) The source connected to the projector is active and available. Still no image even though you adjust the brightness and/or

the contrast. Input source's resolution and frequency are supported by the

projector.

Image is too dark.

Remains unchanged even though you adjust the brightness and/or the contrast.

Image is distorted.

Image appears to be trapezoidal (unchanged even though you carry out the “Keystone" or “3D Reform” adjustment).

Other

Remote control does not work.

No obstacles between the sensor of the projector and the remote control.

Projector is placed near a fluorescent light that can disturb the infrared remote controls.

One or more remote sensors are enabled (only models with the Remote Sensor Selection function).

Batteries are new and are not reversed in installation. If present on the remote control, projector selector switch is

not used.

Shut down during operation.

Power cable's plug is fully inserted into the wall outlet. Lamp cover is installed correctly . Power Management is turned off (only models with the Power

Management function). Sleep Timer is turned off (only models with the Sleep Timer

function ).

Parts of the image are lost.

Still unchanged even though you press the AUTO ADJUST button.

Still unchanged even though you carry out “Reset” in the projector’s menu.

Image is shifted in the vertical or horizontal direction.

Horizontal and vertical positions are correctly adjusted on a computer signal.

Input source's resolution and frequency are supported by the projector.

Some pixels are lost.

Image is flickering.

Still unchanged even though you press the AUTO ADJUST button.

Still unchanged even though you carry out “Reset” in the projector’s menu.

Image shows flickering or color drift on a computer signal.

Image appears blurry or out of focus.

Still unchanged even though you checked the signal’s resolution on PC and changed it to projector’s native resolution.

Still unchanged even though you adjusted the focus.

No sound.

Audio cable is correctly connected to the audio input of the projector.

Still unchanged even though you adjusted the volume level. AUDIO OUT is connected to your audio equipment (only mod-

els with the AUDIO OUT connector).

Buttons on the projector cabinet do not work ( only models with the Key Lock function).

Cabinet Button Lock is not turned on or is disabled in the menu. Still unchanged even though you press and hold the EXIT but-

ton for a minimum of 10 seconds.

E-58

Page 66

In the space below please describe your problem in detail.

Information on application and environment where your projector is used

9. APPENDIX

Projector

Model number: Serial No.: Date of purchase: Lamp operating time (hours): Lamp Mode: 䡺 Normal 䡺 Eco Information on input signal:

Horizontal synch frequency [ ] kHz Vertical synch frequency [ ] Hz Synch polarity H 䡺 (+) 䡺 (—)

V 䡺 (+) 䡺 (—)

Synch type 䡺 Separate 䡺 Composite

STATUS Indicator:

Steady light 䡺 Orange 䡺 Green Flashing light [ ] cycles

Remote control model number:

Projector

Signal cable

NEC standard or other manufacturer’s cable?

Model number: Length: inch/m

Distribution amplifier

Model number:

Switcher

Model number:

Adapter

Model number:

䡺 Sync on Green

DVD player

Installation environment

Screen size: inch Screen type: 䡺 White matte 䡺 Beads 䡺 Polarization

䡺 Wide angle 䡺 High contrast Throw distance: feet/inch/m Orientation: 䡺 Ceiling mount 䡺 Desktop Power outlet connection:

䡺 Connected directly to wall outlet 䡺 Connected to power cord extender or other (the num-

ber of connected equipment______________)

䡺 Connected to a power cord reel or other (the number

of connected equipment______________)

Computer

Manufacturer:

Model number:

Notebook PC 䡺 / Desktop 䡺

Native resolution:

Refresh rate:

Video adapter:

Other:

Video equipment

VCR, DVD player, Video camera, Video game or other

Manufacturer:

Model number:

E-59

Page 67

9. APPENDIX

TravelCare Guide

TravelCare - a service for international travelers

This product is eligible for "TravelCare", NEC's unique international warranty . Please note that TravelCare coverage differs in part from coverage under the warranty included with the product.

Services offered with TravelCare

This warranty allows customers to receive service on their product at the NEC and NEC-designated service stations in the countries listed herein when temporarily traveling internationally for business or pleasure. For details on services offered by the different service stations, please refer to the "List of TravelCare Outlets" below.

1 Repair services

The product will be repaired and delivered within 10 business days, not including shipping time. During the term of warranty, the cost of maintenance parts, labor costs for repairs and shipping costs within the service station's coverage area are covered by the warranty.

2 Replacement product rental service

If the customer desires, he or she can rent a replacement product while the original product is being repaired. Fee: US$200 for 12 days This fee must be paid at the local service station in cash or credit card. The $200 rental fee is non-refundable even if the customer rents it less than 12 days before returning. The replacement product will be delivered within 3 business days. If the customer did not return the replacement product within 12 days, the customer will be charged the price of the unit. If the customer returned the replacement product in a faulty or damaged condition, the repair cost will be charged to the customer. Note that this service is not offered in all countries and regions. Please refer to the "List of TravelCare Outlets". In addition, this replacement product rental service is not offered after the product's warranty has expired.

Term of warranty

a. Upon presentation of the warranty or receipt received upon purchase:

Valid for the term indicated on the warranty or the normal term of warranty for the country of purchase.

b. When only the product is brought in:

Valid for a period of within 14 months of the date of manufacture indicated by the serial number attached to the product.

2 When a product whose term of warranty is expired is brought in:

Repairs will be offered for a fee. In this case the customer is not eligible for the replacement product rental service.

3 In the following cases, repairs may be charged, even if the product's warranty is still in effect:

1) If the term of warranty, model name, serial number and name of the store of purchase are not indicated on the warranty or have been altered.

2) Problems or damage caused by dropping or shocks during shipment or movement by the customer or by improper handling by the customers.

3) Problems or damage caused by improper usage or unwarrantable alterations or repairs by the customer.

4) Problems or damage caused by fire, salt damage, gas damage, earthquakes, lightning damage, storm or flood damage or other natural disasters or such external factors as dust, cigarette smoke, abnormal voltage, etc.

5) Problems or damage caused by use in hot or humid places, in vehicles, boats or ships, etc.

6) Problems or damage caused by expendable supplies or devices connected to the product other than those designated by NEC.

7) Problems caused by natural consumption, wear or deterioration of parts under normal usage conditions.

8) Problems or damage to lamps and other expendable supplies, included parts or optional parts.

9) Other conditions stipulated in the warranty included with the product also apply.

E-60

Page 68

9. APPENDIX

NOTE: The product can be used overseas with voltages of 100 to 120V and 200 to 240V by using a power cable suited for the standards and power source voltage of the country in which the product is being used.

List of TravelCare Outlets

This list applies as of December 1, 2004. For the most up-to-date information, please refer to the websites of the service stations in the various countries on the List of TravelCare Outlets or to the NEC website at http://www.nec-pj.com.

In Europe

NEC Europe, Ltd. / European Technical Centre

Address: Unit G, Stafford Park 12, Telford TF3 3BJ, U.K. Telephone: +44 1952 237000 Fax Line: +44 1952 237006 Email Address: AFR@uk.neceur.com WEB Address: http://www.neceur.com

(Regions Covered) EU: Austria*, Belgium*, Denmark*, Finland*, France*, Germany*,

Greece*, Ireland*, Italy*, Luxembourg*, The Netherlands*, Portugal*, Spain*, Sweden* and the United Kingdom*

EEA: Norway*, Iceland and Liechtenstein

In North America

NEC Solutions (America), Inc.

Address: 1250 N. Arlington Heights Road, Suite 400 Telephone: +1 800 836 0655

Fax Line: +1 800 356 2415 Email Address: vsd.tech-support@necsam.com WEB Address: http://www.necvisualsystems.com

(Regions Covered) U.S.A. *, Canada*

In Oceania

NEC Australia Pty., Ltd.

Address: New South Wales;

Victoria; South Australia; Queensland;

Western Australia; Telephone: 131 632 (from domestic) Fax Line: +61 8 8375 5757

Email Address: lee.gramola@nec.com.au WEB Address: http://www.nec.com.au

(Regions Covered) Australia*, New Zealand

Itasca, Illinois 60143, U.S.A.

184 Milperra Road, Reversby 2212 480 Princess Hwy Noble Park 3174 84A Richmond Road, Keswick 5035 116 Ipswich Road, Woollongabba 4102 45 Sarich Court Osborne Park 6017 +61 8 8375 5706 (from overseas)

E-61

Page 69

In Asia and Middle East

NEC Viewtechnology, Ltd.

Address: 686-1, Nishioi, Oi-Machi, Ashigarakami-Gun, Telephone: +81 465 85 2369

Fax Line: +81 465 85 2393 Email Address: support_pjweb@nevt.nec.co.jp WEB Address: http://www.nec-pj.com

(Regions Covered) Japan*

NEC Hong Kong Ltd.

Address: 11th Floor, Tower B, New Mandarin Plaza, 14

Telephone: +852 2369 0335 Fax Line: +852 2795 6618 Email Address: esmond_au@nechk.nec.com.hk WEB Address: http://www.nec.com.hk

(Regions Covered) Hong Kong

NEC T aiwan Ltd.

Address: 7F, No.167, SEC.2, Nan King East Road, Taipei, Telephone: +886 2 8500 1734

Fax Line: +886 2 8500 1420 Email Address: nickliao@nec.com.tw WEB Address: http://www.nec.com.tw

(Regions Covered) Taiwan

NEC Solutions Asia Pacific Pte. Ltd

Address: 401 Commonwealth Drive, #07-02, Haw Par Telephone: +65 6 273 8333

Fax Line: +65 6 274 2226 Email Address: tehgh@rsc.ap.nec.com.sg WEB Address: http://www.nec.com.sg/ap

(Regions Covered) Singapore

NEC Systems Integration Malaysia Sdn Bhd

Address: Telephone: +6 03 2164 1199

Fax Line: +6 03 2160 3900 Email Address: necare@nsm.nec.co.jp WEB Address: http://www.necmalaysia.com.my

(Regions Covered) Malaysia

Kanagawa 258-0017, Japan

Science Museum Road, Tsim Sha Tsui East, Kowloon, Hong Kong

Taiwan, R.O.C.

Technocentre, Singapore 149598

Ground Floor, Menara TA One, 22, Jalan P. Ramlee, 50250 Kuala Lumpur, Malaysia

9. APPENDIX

E-62

Page 70

Tele Service Co., Ltd.

Address: 2nd Fl., Ire B/D. #2, 4Ga, Yangpyeng-Dong,

Youngdeungpo-Gu, Seoul, Korea 150-967 Telephone: +82 2 2163 4193 Fax Line: +82 2 2163 4196 Email Address: moneybear@hyosung.com

(Regions Covered) South Korea

Lenso Communication Co., Ltd.

Address: 292 Lenso House 4, 1st Floor, Srinakarin Road,

Huamark, Bangkapi, Bangkok 10240, Thailand Telephone: +66 2 375 2425 Fax Line: +66 2 375 2434 Email Address: pattara@lenso.com WEB Address: http://www.lenso.com

(Regions Covered) Thailand

ABBA Electronics L.L.C.

Address: Tariq Bin Ziyad Road, P.O.Box 327, Dubai,

United Arab Emirates Telephone: +971 4 371800 Fax Line: +971 4 364283 Email Address: ABBA@emirates.net.ae

(Regions Covered) United Arab Emirates

Samir Photographic Supplies

Address: P.O.Box 599, Jeddah 21421, Saudi Arabia Telephone: +966 2 6828219 Fax Line: +966 2 6830820 Email Address: vartkes@samir-photo.com

(Regions Covered) Saudi Arabia

9. APPENDIX

NOTE: In countries designated with an asterisk(*), replacement product rental service are offered.

E-63

Page 71

9. APPENDIX

Date: / / ,

TO: NEC or NEC's Authorized Service Station: FM:

(Company & Name with signature)

Dear Sir (s), I would like to apply your TravelCare Service Program based on attached registration and qualification sheet and agree with your following conditions, and also the Service fee will be charged to my credit card account, if I don't return the Loan units within the specified period. I also confirm following information is correct. Regards.

P-1/ ,

Application Sheet for TravelCare Service Program

Country, product purchased :

User's Company Name :

User's Company Address : Phone No., Fax No. :

User's Name :

User's Address :

Phone No., Fax No. :

Local Contact office :

Local Contact office Address :

Phone No., Fax No. :

User's Model Name :

Date of Purchase :

Serial No. on cabinet :

Problem of units per User :

Required Service : (1) Repair and Return (2) Loan unit

Requested period of Loan unit :

Payment method : (1) Credit Card (2) Travelers Cheque (3) Cash

In Case of Credit Card : Card No. w/Valid Date :

E-64

Page 72

9. APPENDIX

Condition of your TravelCare Service Program

Enduser is requested to understand following condition of TravelCare Service Program and complete the necessary information on the application sheet.

1. Service Options:

There are 3 types of "Service" available. Enduser has to understand following condition and is required to fill in the Application Sheet.

1) Repair and Return: The 'Faulty unit' is sent or collected from the customer. It is repaired and returned within 10 days to the

customer, excluding transport time. There may have a case, repair and return can't be done by NEC Authorized Service Station, because of

shortage of spare parts due to same model is not sold in the territory.

2) Repair and Return with Loan: (This service is limited to some Service Stations) This service is offered to the Enduser, who cannot wait until their unit is repaired. The customer can borrow a unit for $200 up to 12 days. Customer then sends in inoperable unit to nearest

NEC Authorized Service Station for service. In order to prevent collection problem, Enduser is required to fill in Application Sheet.

Enduser needs to confirm the availability of the Service to NEC Authorized Service Stations.

3) Loan Only: For this service, NEC Authorized Service Station supplies the customer with a loan unit for US$200 up to 12

days. Customer keeps the inoperable unit and when customer returns home, customer arranges to have the projector serviced in the home country.

2. Warranty Exclusions:

This program does not apply if the Projector's serial number has been defaced, modified or removed. If, in the judgement of NEC Authorized Service Station or its agent the defects or failures result from any cause other than fair wear and tear or NEC neglect, or fault including the following without limitation:

1) Accidents, transportation, neglect, misuse, abuse, water, dust, smoke or default of or by the Customer its employees or agents or any third party;

2) Failure or fluctuation of electrical power, electrical circuitry , air conditioning, humidity control or other environmental conditions such as use it in smoking area;

3) Any fault in the attachments or associated products or components (whether or not supplied by NEC or its agents which do not form part of the Product covered by this warranty);

4) Any act of God, fire, flood, war, act of violence or any similar occurrence;

5) Any attempt by any person other than any person authorized by NEC to adjust, modify, repair, install or service the product.

6) Any Cross-border charges such as, duty, insurance, tax etc.

3. Charges for Warranty Exclusions and Out of Warranty Case:

In case faulty unit is under warranty exclusions case or under Out of Warranty period, NEC Authorized Service Station will Inform estimation of actual service cost to the Enduser with reason.

4. Dead on Arrival (DOA):

Enduser must take this issue up with their original supplier in the country of purchase. NEC Authorized Service Station will repair the DOA unit as a Warranty repair, but will not exchange DOA unit with new units.

E-65

Page 73

9. APPENDIX

5. Loan Service Charges and Conditions:

Upon acceptance of this NEC Projector, Customer agrees to assume liability for this loan unit. The current cost of use of this loan unit is $200.00 USD for 12 calendar days.

If Customer does not return the unit within the 12 calendar days, Customer will be charged the next highest cost up to and including the full list price to Credit Cards, which price will be informed by NEC Authorized Service Stations. Please see the attached listing of contacts for each country to arrange for pickup of the loan unit.

If you return to their country of origin with the loan unit, you will be charged additional freight to return the unit to the loaning country.

Thank you for your understanding of this program.

E-66

NEC LT180 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

IMPORTANT INFORMATION

Safety Cautions

What’s in the Box?

TABLE OF CONTENTS

1. INTRODUCTION

Introduction to the Projector

Part Names of the Projector

Top Features

Terminal Panel Features

Part Names of the Remote Control

Battery Installation

Remote Control Precautions

Operating Range for Wireless Remote Control

2. INSTALLATION AND CONNECTIONS

Setting Up the Screen and the Projector

Selecting a Location

Throw Distance and Screen Size

Distance Chart

Rear Projection Applications

Making Connections

Connecting Your PC or Macintosh Computer

To connect SCART output (RGB)

Connecting an External Monitor

Connecting Your DVD Player

Connecting Your VCR or Laser Disc Player

Connecting the Supplied Power Cable

3. PROJECTING AN IMAGE (BASIC OPERATION)

Turning on the Projector

Note on Startup screen (Menu Language Select screen)

Selecting a Source

Adjusting the Picture Size and Position

Correcting the Vertical Keystone Distortion

Optimizing an RGB Image Automatically

Turning Up or Down Volume

Turning off the Projector

After Use

4. CONVENIENT FEATURES

Turning Off the Image and Sound

Freezing a Picture

Reducing Video Noise (Noise Reduction)

Getting the Information on Lamp Usage and Projector Usage

5. USING ON-SCREEN MENU

Using the Menus

List of Menu Items

Menu Descriptions & Functions


Adjustment

Selecting Wall Color Correction Mode [Wall Color]

Adjusting Color Management [Color Management]

Selecting Gamma Correction Mode [Gamma Correction]

Adjusting Color Temperature [Color Temperature]

Adjusting White Peaking [White Peaking]


Correcting Vertical Keystone Distortion Manually [Keystone]

Saving Vertical Keystone Correction [Keystone Save]

Selecting Aspect Ratio [Aspect Ratio]

Adjusting the Vertical Position of Image [Cinema Position] (for Cinema only)

Adjusting Horizontal/Vertical Position, Clock and Phase [Position/Clock]

Setup

Setting Off Timer [Off Timer]

Selecting Lamp Mode [Lamp Mode]

Selecting Menu Language [Language]

Selecting Menu Color [Menu Color Select]

Selecting Menu Display Time [Menu Display Time]

Selecting a Color for Background [Background]

Selecting Projector Orientation [Orientation]

Selecting Communication Speed [Communication Speed]

Advanced

Preventing the Unauthorized use of the projector [Security]

Disabling the Cabinet Buttons [Cabinet Button]

Enabling Fan Speed Mode [Fan Mode]

Enabling Power Management [Power Management]

Selecting Signal Format [Signal Select]

Information

Reset

Returning to Factory Default [Factory Default]
