LCD Projector

LT158/LT157

User’s Manual

LIMITED WARRANTY

Except as specified below, the warranty that may be provided by the dealer covers all defects in material or workmanship in this product. The following are not covered by the warranty:

1.Any product on which the serial number has been defaced, modified or removed.

2.Damage, deterioration or malfunction resulting from;

a.Accident, misuse, abuse, neglect, fire, water, dust, smoke, lightning or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

b.Repair or attempted repair by non-authorized persons.

c.Any shipment of product (claim must be presented to the carrier).

d.Removal or installation of the product.

e.Any other causes which do not relate to a product defect.

3.Cartons, carrying cases, batteries, external cabinets, CDROM, or any accessories used in connection with the product.

4.Removal or installation charges.

5.Cost of initial technical adjustments (set-up), including adjustment of user controls. These costs are the responsibility of the dealer from whom the product was purchased.

6.Payment of shipping charges.

GARANTIE LIMITEE

Mis à part les point indiqués ci-dessous, la garantie pouvant être couverte par le revendeur comporte l'ensemble des défauts se rapportant au matériel ou aux travaux d'assemblage sur ce produit. Les points suivants ne sont pas couverts par la garantie:

1.Les produits dont les numéro de série a été effacé, modifié ou retiré.

2.Dommages, dégâts ou dysfonctionnement suite à;

a.Un accident, mauvaise utilisation, abus, négligences, incendies, dégats dûs aux eaux, à la poussière, à la fumée, aux éclairs ou autres phénomènes naturels, à une modification non autorisée du produit, ou à la non-conformité aux instructions fournies avec le produit.

b.Réparation ou tentative de réparation par des personnes non autorisées.

c.Toute expédition du produit (les plaintes doivent être adressées à la société de frêt).

d.Démontage ou installation du produit.

e.Toute autre cause ne se rapportant pas à un défaut du produit.

3.Les cartons, boîtes, piles, caissons externes, CDROM, ou tout autre accessoire utilisé avec ce poduit.

4.Prix de démontage ou d'installation.

5.Coût des réglages techniques de base (mise au point), incluant les réglages des commandes utilisateurs. Ces coûts sont placés sous la responsabilité du revendeur auprès duquel le produit a été acheté.

6.Paiement des frais de transport.

BESCHRÄNKTE GARANTIE

Außer in den unten beschriebenen Fällen deckt die vom Händler unter Umständen gewährte Garantie alle Materialoder Herstellungsfehler dieses Produktes ab. In den folgenden Fällen wird keine Garantie gewährt:

1.Wenn die Seriennummer des Produktes unleserlich gemacht, geändert oder entfernt worden ist.

2.Bei einer Beschädigung, Beeinträchtigung oder Funktionsstörung, die aus folgenden Fällen resultiert:

a.Unfall, falscher Gebrauch, Missbrauch, Fahrlässigkeit, Feuer, Wasser, Staub, Rauch, Blitzeinschlag oder andere Naturereignisse, nicht autorisierte Veränderungen des Produktes oder die Missachtung der dem Produkt beigefügten Anleitung.

b.Reparatur oder der Versuch einer Reparatur durch nicht autorisierte Personen.

c.Jeglicher Transport des Produktes (die Haftung liegt in diesem Fall bei der den Transport durchführenden Person).

d.Entfernung oder Installation des Produktes.

e.Jegliche andere Ursachen, die nicht mit einem Defekt dieses Produktes zusammenhängen.

3.Verwendung von Kartons, Transportkisten, Batterien, Außengehäusen, CD-ROMs oder anderem Zubehör zusammen mit diesem Produkt.

4.Entfernungsoder Installationsforderungen und –kosten.

5.Kosten der technischen Anfangseinstellungen (Setup), einschließlich der Einstellungen der Benutzersteuerungen. Diese Kosten sind vom Händler zu tragen, von dem das Produkt erworben wurde.

6.Bezahlung von Transportkosten.

GARANZIA LIMITATA

A parte la specificazione seguente, la graanzia che potrebbe essere fornita dal rivenditore copre tutti i difetti di materiali o nella lavorazione in questo prodotto. I seguenti non sono coperti dalla garanzia :

1.Ogni prodotto che ha il numero seriale difettoso, modificato o rimosso.

2.Danni, deterioramento o malfunzionamento risultanti da;

a.Incidenti, abuso, cattivo uso, negligenza, fuoco, acqua,polvere,fumo,fulmini o altri atti naturali di tipo naturale, modifiche inautorizzate del prodotto, o errori nel seguire le istruzioni fornite con il prodotto.

b.Riparazioni o tentativi di riparazioni effettuati da persono non autorizzate.

c.Qualsiasi trasporto del prodotto (i reclami devono essere presentati dal corriere).

d.Rimozione o installazione del prodotto.

e.ogni altra causa non relativa ad un deficit del prodotto.

3.Cartoni, scatole di trasporto, batterie, armadietti esterni, CDROM, o qualsiasi altro accessorio annesso al prodotto.

4.Carichi di rimozione o installazione.

5.Costi di aggiustamenti tecnici iniziali (set-up), includendo i comandi di regolazione. Il rivenditore dal quale avete acquistato il prodotto è responsabile di ciò.

6.Pagamento delle spese di consegna.

GARANTÍA LIMITADA

A excepción de lo que se especifica abajo, la garantía que puede ser suministrada por el distribuidor cubre todos los defectos en material o elaboración en este producto. Lo siguiente no es cubierto por la garantía:

1.Cualquier producto en el cual el número serial haya sido desfigurado, modificado o removido.

2.Daños, deterioro o malfuncionamiento resultado de;

a.Accidente, mal manejo, abuso, negligencia, fuego, agua, polvo, humo, relámpagos u otros fenómenos naturales, modificaciones del producto sin autorización, fallas en el seguimiento de las instrucciones suministradas con el producto.

b.Reparación o intentos de reparación por personas no autorizadas.

c.Cualquier envío del producto (el reclamo debe presentarse al transportador).

d.Remoción o instalación del producto.

e.Cualquier otra causa que no este relacionada con un defecto del producto.

3.Cartones, estuches de transporte, pilas, gabinetes externos, CDROM, o cualquier accesorio utilizado en conexión con el producto.

4.Costos por instalación o remoción.

5.Costo de los ajustes técnicos iniciales (configuración), incluyendo el ajuste de los controles de usuario. Estos costos son responsabilidad del distribuidor donde se adquirió el producto.

6.Pago de los costos de envío.

BEGRÄNSAD GARANTI

Garantin som ges av återförsäljaren täcker alla brister i material och utförande med undantag av vad som anges nedan. Följande täcks inte av garantin:

1.Produkter vars serienummer har blivit oläsligt, modifierats eller tagits bort.

2.Skador, försämring eller felfunktion som beror på:

a.Olyckor, fel bruk, missbruk, vanskötsel, brand, vatten, rök, stoft, åska eller annan orsak som beror på naturen, icke auktoriserad modifikation av produkten samt underlåtenhet att följa anvisningarna som lämnas med produkten.

b.Reparationer eller försök på reparation av icke auktoriserade personer.

c.Transportskador (dessa bör riktas till transportföretaget).

d.Avmontering eller installation av produkten.

e.Övriga orsaker som inte har något samband med produktens fel.

3.Förpackningslådor, bärväskor, batterier, externa höljen, CD-ROM- skivor samt andra tillbehör som används tillsammans med produkten.

4.Avmonteringsoch installationskostnader.

5.Kostnader för tekniska justeringar (inställning), inklusive justering av användarreglagen. Dessa kostnader är återförsäljarens ansvar där produkten köpts.

6.Betalning för transportkostnader.

LIMITED WARRANTY (USA and Canada only)

NEC SOLUTIONS’ PROJECTOR PRODUCTS

NEC Solutions, Inc. (hereafter NEC Solutions) warrants this product to be free from defects in material and workmanship under the following terms.

HOW LONG IS THE WARRANTY

NEC Solutions’ LT158 and LT157 projector is covered by a three

(3) year parts and labor limited warranty from the date of the first customer purchase. The lamp is warranted for 1500 hours of operating time or six months, whichever comes first.

WHO IS PROTECTED

This warranty may be enforced only by the first purchaser, and is not transferable.

WHAT IS COVERED AND WHAT IS NOT COVERED

Except as specified below, this warranty covers all defects in material or workmanship in this product.

NEC SOLUTIONS’ LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT AT NEC SOLUTIONS’ OPTION. REPLACEMENT PRODUCTS MAY BE NEW OR ‘LIKE NEW’. The following are not covered by the limited warranty and NEC Solutions shall not be liable for:

1.Any product which is not distributed in the U.S.A. or Canada by NEC Solutions or which is not purchased, installed, and operated in the U.S.A or Canada.

2.Any product on which the serial number has been defaced, modified or removed.

3.Normal decrease in lamp light output over time.

4.Damage, deterioration or malfunction resulting from:

a.Accident, misuse, abuse, neglect, improper ventilation, fire, dust, smoke, water, lightning or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

b.Repair or attempted repair by anyone other than a NEC Solutions authorized service center.

c.Any shipment of the product (claims must be presented to the carrier).

d.Removal or installation of the product.

e.Any other cause which does not relate to a product defect.

f.Use of the product beyond normal operating conditions. Normal operating conditions are defined as product use not in excess of 5 hours per day and 260 days per year.

5.Cartons, carrying cases, shipping cases, batteries, external cabinets, magnetic tapes, or any accessories used in connection with the product.

6.Service required as a result of third party components.

WHAT NEC SOLUTIONS WILL PAY FOR

NEC Solutions will pay labor and material expenses for covered items, but NEC Solutions will not pay for the following:

1.Removal or installation charges.

2.Costs of technical adjustments, set-up, maintenance, or adjustment of user controls.

3.Payment of shipping and related charges incurred in returning the product for warranty repair.

HOW YOU CAN GET WARRANTY SERVICE

1.To obtain service on your product, consult the dealer from whom you purchased the product.

2.Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage. In order to obtain warranty service, you may be required to describe and demonstrate the problem to your dealer or to NEC Solutions.

3.All products returned to NEC Solutions for service MUST have prior approval. To receive approval or for the name of the nearest NEC Solutions authorized service center, call NEC Solutions at 800-836-0655.

4.It shall be your obligation and expense to ship the product, freight prepaid, or to deliver it to a NEC Solutions authorized service center, in either the original package or a similar package affording an equal degree of protection.

5.In the event a product is returned to NEC Solutions for warranty service, and it is determined that there is no product defect or that the product condition is not covered by this limited warranty, a diagnostic service fee may be charged to the customer.

LIMITATION OF IMPLIED WARRANTIES

EXCEPT AS EXPRESSLY SET FORTH IN THIS LIMITED WARRANTY, NEC SOLUTIONS MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS AND DURATION OF THIS LIMITED WARRANTY.

EXCLUSION OF DAMAGES

NEC SOLUTIONS’ LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT AT NEC SOLUTIONS’ OPTION. NEC SOLUTIONS SHALL NOT BE LIABLE FOR:

1.DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THIS PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, COMMERCIAL LOSS; OR

2.ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

HOW STATE LAW RELATES TO THE WARRANTY

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

FOR MORE INFORMATION, CONTACT:

NEC SOLUTIONS, INC.

1250 N. Arlington Heights Road, Suite 500 Itasca, Illinois 60143-1248

TELEPHONE 800-836-0655 www.necvisualsystems.com

Customers are cautioned that product performance is affected by system configuration, software, the application, customer data, and operator control, among other factors. While NEC Solutions’ products are considered to be compatible with many systems, the specific functional implementation by the customers of the product may vary. Therefore, the suitability of a product for a specific purpose or application must be determined by the customer and is not warranted by NEC Solutions.

Printed in Japan

7N8P1401

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions.

(1) This device may

not cause harmful interference, and (2) this device must accept any interference received, including interference that may

cause undesired operation.

U.S. Responsible Party:

NEC Solutions, Inc.

Address:

1250 N. Arlington Heights Road



Itasca, Illinois 60143

Tel. No.:

(630) 467-5000







Type of Product:



LCD Projector

Equipment Classification:

Class B Peripheral

Models:



LT158 and LT157

We hereby declare that the equipment specified above

conforms to the technical standards as specified in the FCC Rules.

LT158/LT157

LCD Projector

User’s Manual

English

/

RETNE

AC

CN

E

L

UNEM

E – 1

IMPORTANT INFORMATION

Precautions

Please read this manual carefully before using your NEC LT158/LT157 Projector and keep the manual handy for future reference.

Your serial number is located under the name plate label on the bottom of your LT158/LT157. Record it here:

C A U T I O N

This label is located on the back of the remote control.

CAUTION

To turn off main power, be sure to remove the plug from power outlet.

The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED NEC SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided.The information should be read carefully to avoid problems.

WARNING

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

DO NOT USE THIS UNIT’S GROUNDED PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THREE PRONGS CAN BE FULLY INSERTED.

DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. ALL SERVICING MUST BE DONE BY QUALIFIED NEC SERVICE PERSONNEL.

DOC Compliance Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

3. GSGV Acoustic Noise Information Ordinance:

The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.

RF Interference

WARNING

The Federal Communications Commission does not allow any

modifications or changes to the unit EXCEPT those specified by NEC Solutions, Inc. in this manual. Failure to comply with this gov-

ernment regulation could void your right to operate this equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio / TV technician for help.

In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cable is not supplied with this equipment please contact your supplier.

IBM is a registered trademark of International Business Machines Corporation.

Macintosh and PowerBook are registered trademarks of Apple Computer, Inc.

Other product and company names mentioned in this user's manual may be the trademarks of their respective holders.

E – 2

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

1.For best results, use your projector in a darkened room.

2.Place the projector on a flat, level surface in a dry area away from dust and moisture.

3.Do not place your projector in direct sunlight, near heaters or heat radiating appliances.

4.Exposure to direct sunlight, smoke or steam can harm internal components.

5.Handle your projector carefully. Dropping or jarring can damage internal components.

6.Do not place heavy objects on top of the projector.

7.If you wish to have the projector installed on the ceiling:

a.Do not attempt to install the projector yourself.

b.The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury.

c.In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes.

d.Please consult your dealer for more information.

Power Supply

1.The projector is designed to operate on a power supply of 100-120 or 200-240 V 50/60 Hz AC. Ensure that your power supply fits this requirement before attempting to use your projector.

2.Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or fire.

3.If the projector is not to be used for an extended period of time, disconnect the plug from the power outlet.

Cleaning

1.Unplug the projector before cleaning.

2.Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3.Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

CAUTION

Do not unplug the power cable from the wall outlet under any one of the following circumstances. Doing so can cause damage to the projector:

While the Hour Glass icon appears.

While the message "Please wait a moment." appears. This message will be displayed after the projector is turned off.

Immediately after the power cable is plugged into the wall outlet (the POWER indicator has not changed to a steady orange glow).

Immediately after the cooling fan stops working (The cooling fan continues to work for ONE minute after the projector is turned off with the POWER button).

While the POWER and the STATUS indicators are alternately flashing.

CAUTION

Do not put the projector on its side when the lamp is turned on. Doing so may cause damage to the projector.

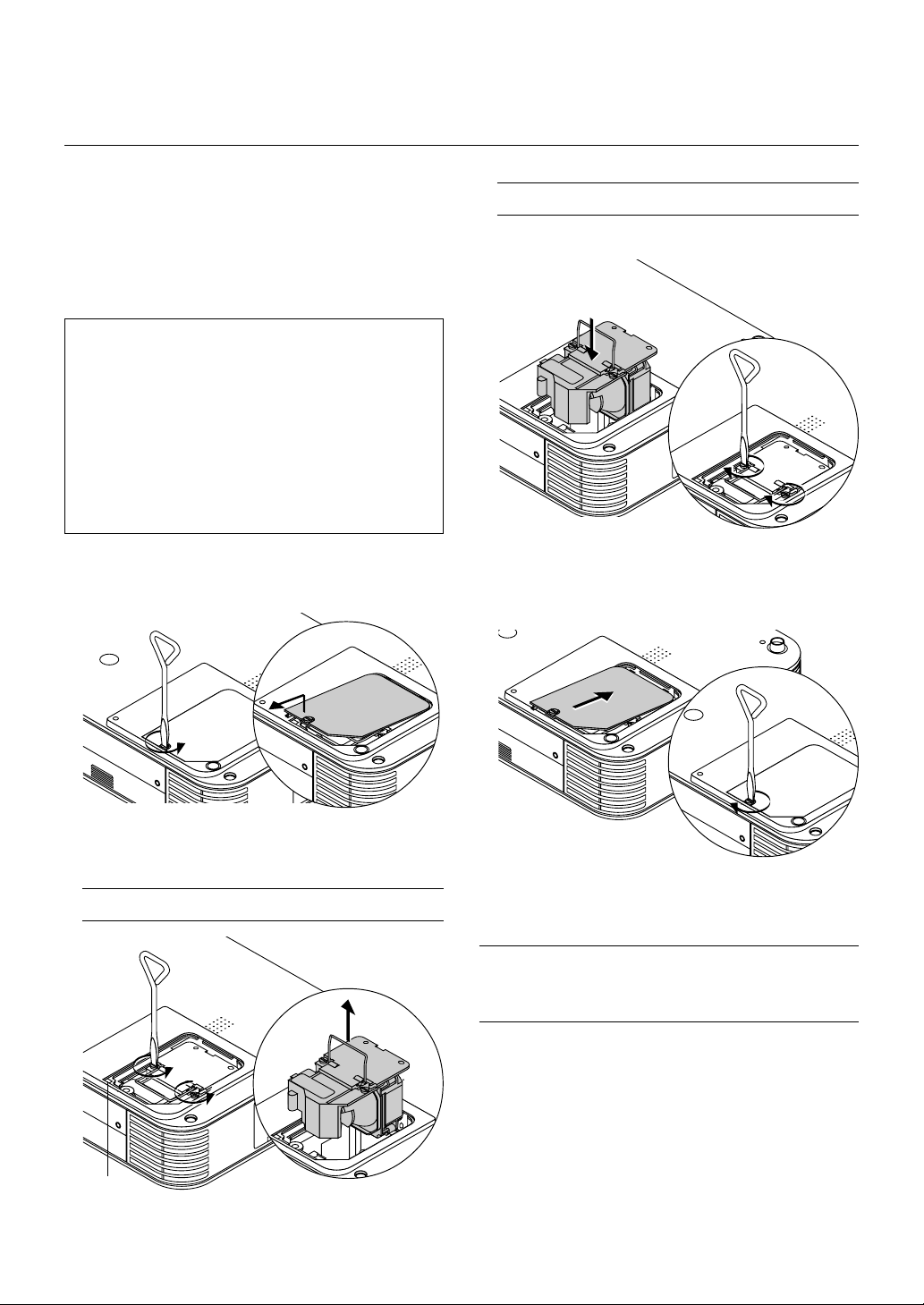

Lamp Replacement

To replace the lamp, follow all instructions provided on page E-48.

Be sure to replace the lamp when the message "The Lamp has reached the end of its usable life. Please replace the lamp." appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.

Allow a minimum of ONE minute to elapse after turning off the projector. Then disconnect the power cable and allow 60 minutes to cool the projector before replacing the lamp.

Fire and Shock Precautions

1.Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 3 inches (10 cm) of space between your projector and a wall.

2.Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified NEC service personnel.

3.Do not place any liquids on top of your projector.

Do not look into the lens while the projector is on. Serious damage to your eyes could result.

Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.

Do not cover the lens with the supplied lens cap or equivalent while the projector is on. Doing so can lead to melting of the cap and possibly burning your hands due to the heat emitted from the light output.

Do not look into the laser pointer while it is on and do not point the laser beam at another person. Serious injury could result.

E – 3

TABLE OF CONTENTS

1. INTRODUCTION

Introduction to the LT158/LT157 Projector ..........................................

E-5

Getting Started .............................................................................

E-5

What's in the Box .........................................................................

E-6

Getting to Know Your LT158/LT157 Projector ......................................

E-7

Front / Side Features .............................................................

E-7

Attaching the lens cap ...........................................................

E-7

Rear / Side Features ..............................................................

E-8

Top Features ..........................................................................

E-9

Terminal Panel Features ......................................................

E-10

Remote Control Features ....................................................

E-11

Operating Range ...........................................................

E-13

Remote Control Battery Installation ..............................

E-13

Setting the function switch .............................................

E-13

Remote Control Precautions .........................................

E-13

Using Remote Mouse Receiver .....................................

E-14

Switching operation mode between computer and projector ...

E-15

2. INSTALLATION

Setting Up Your Projector ...........................................................

E-16

Selecting a Location ...................................................................

E-16

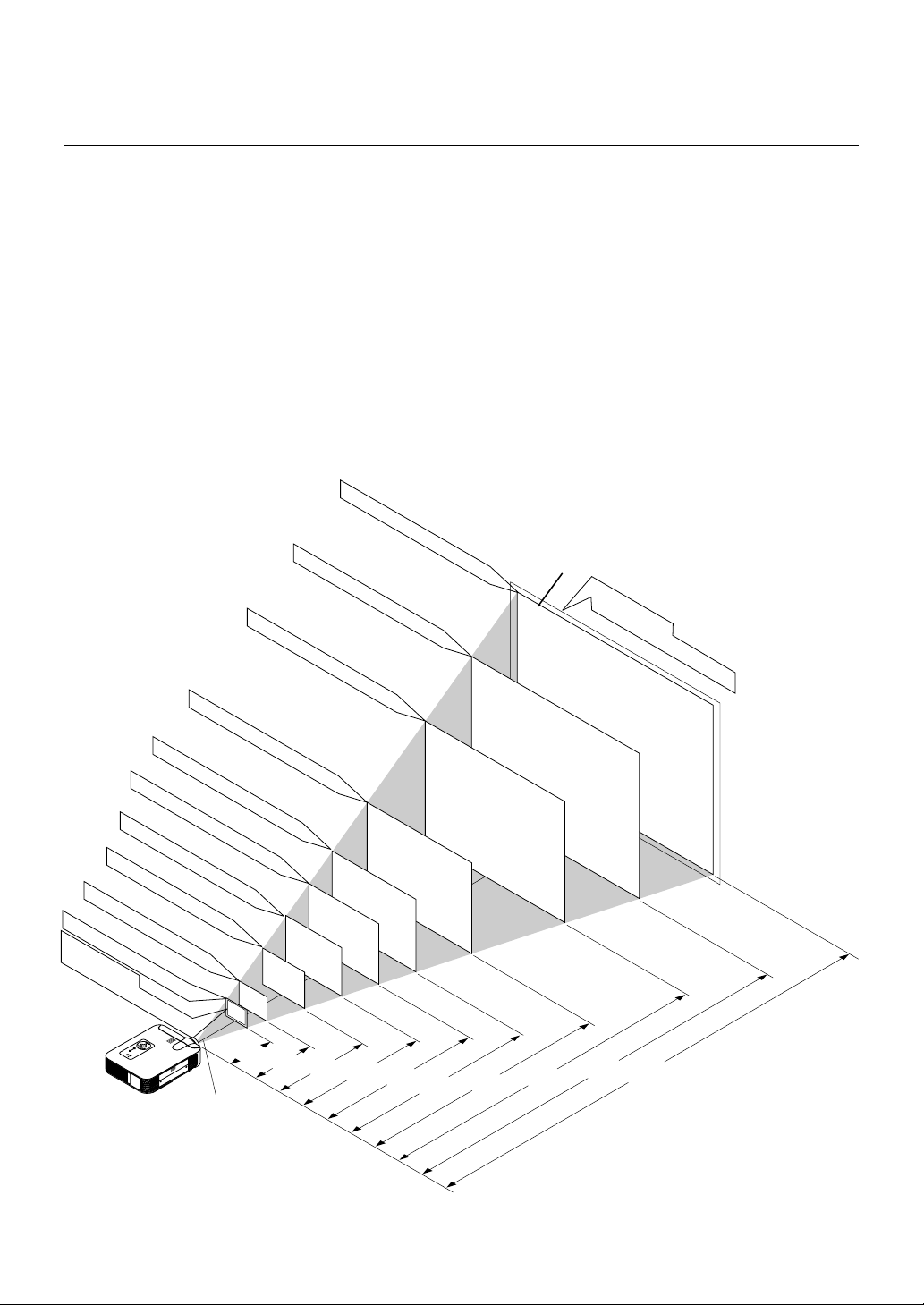

Screen and Projection Distance .................................................

E-16

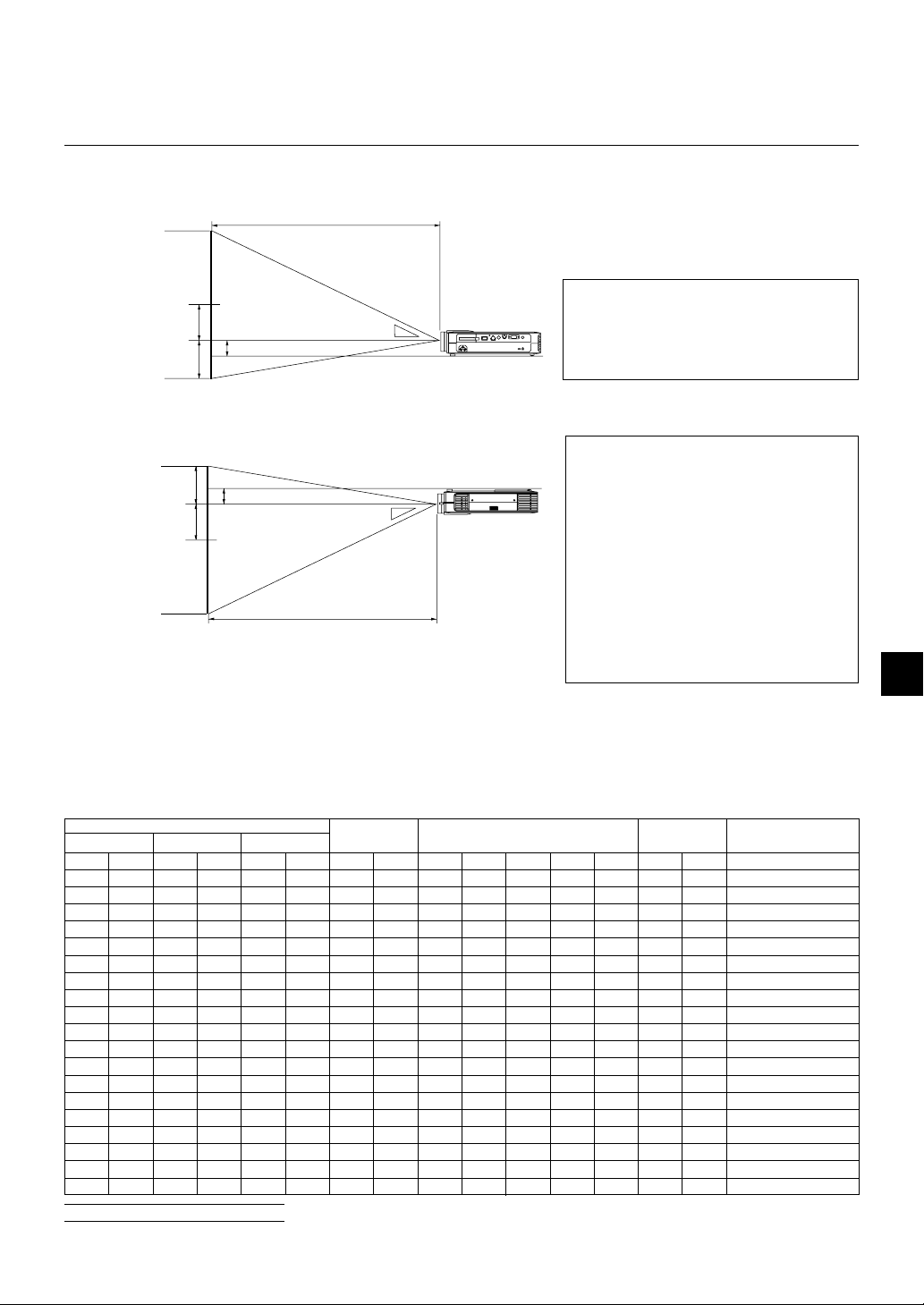

Distance Chart ...........................................................................

E-17

Reflecting the Image ..................................................................

E-17

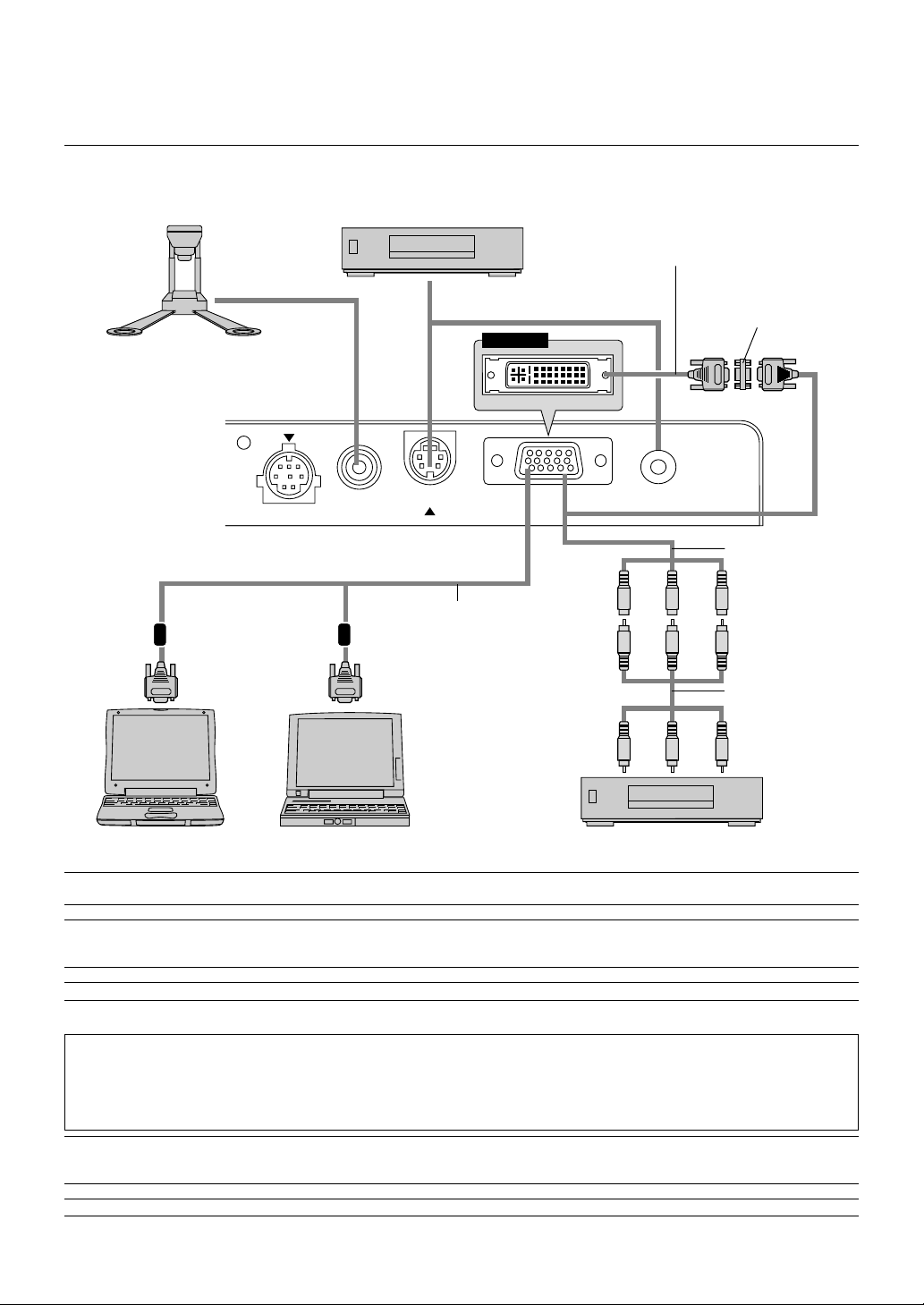

Wiring Diagram ..........................................................................

E-18

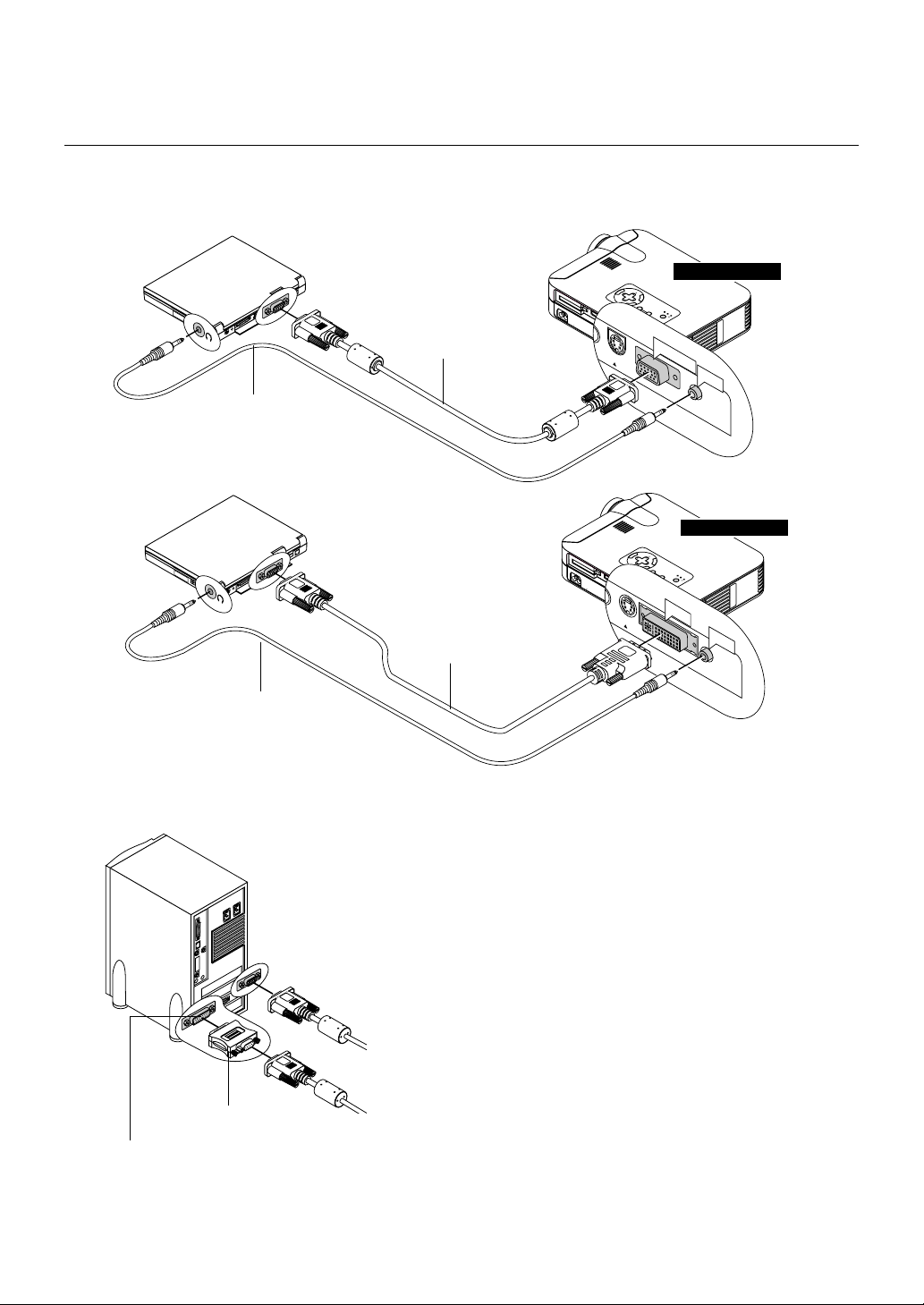

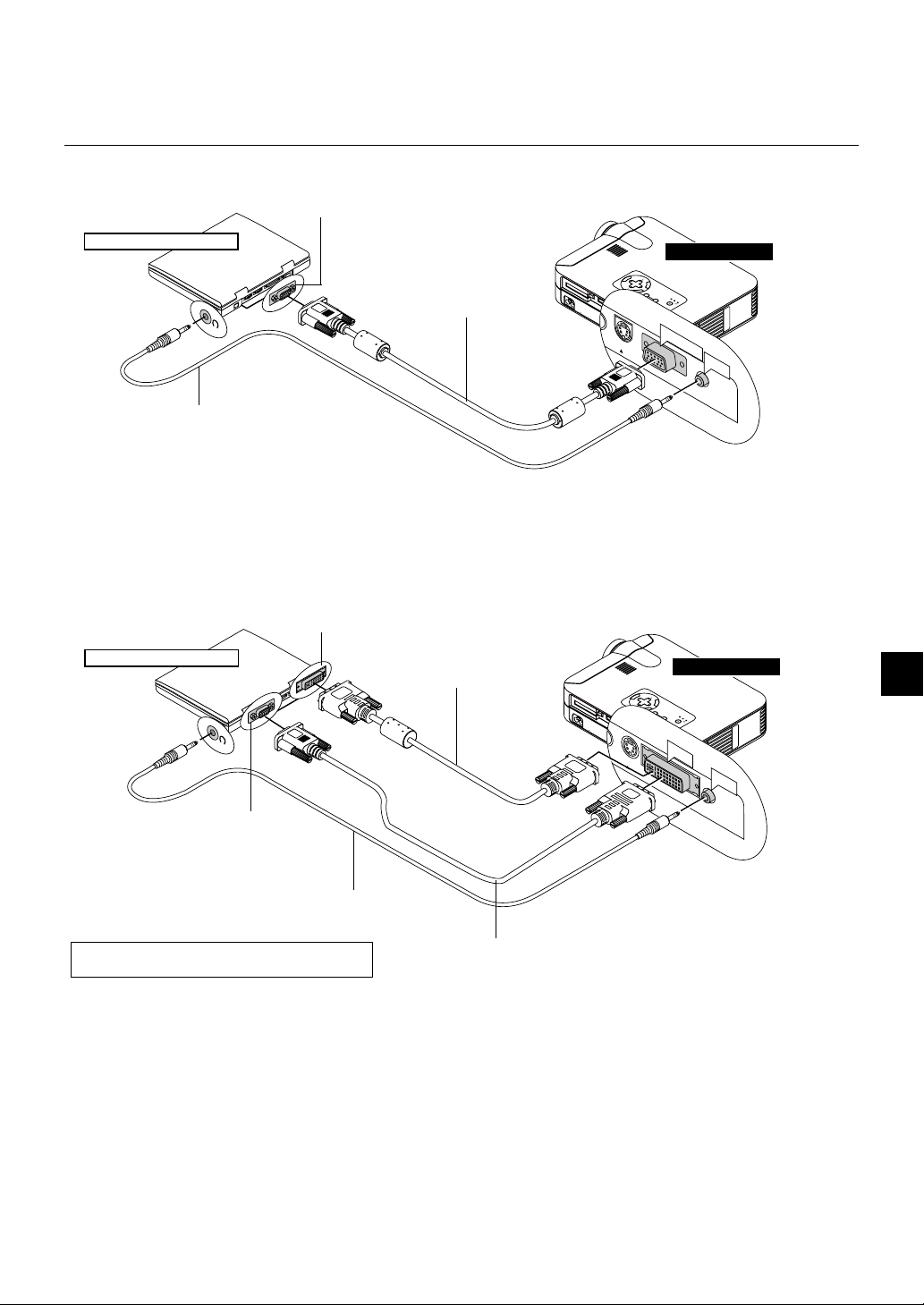

Connecting Your PC .............................................................

E-19

Connecting Your Macintosh Computer .................................

E-20

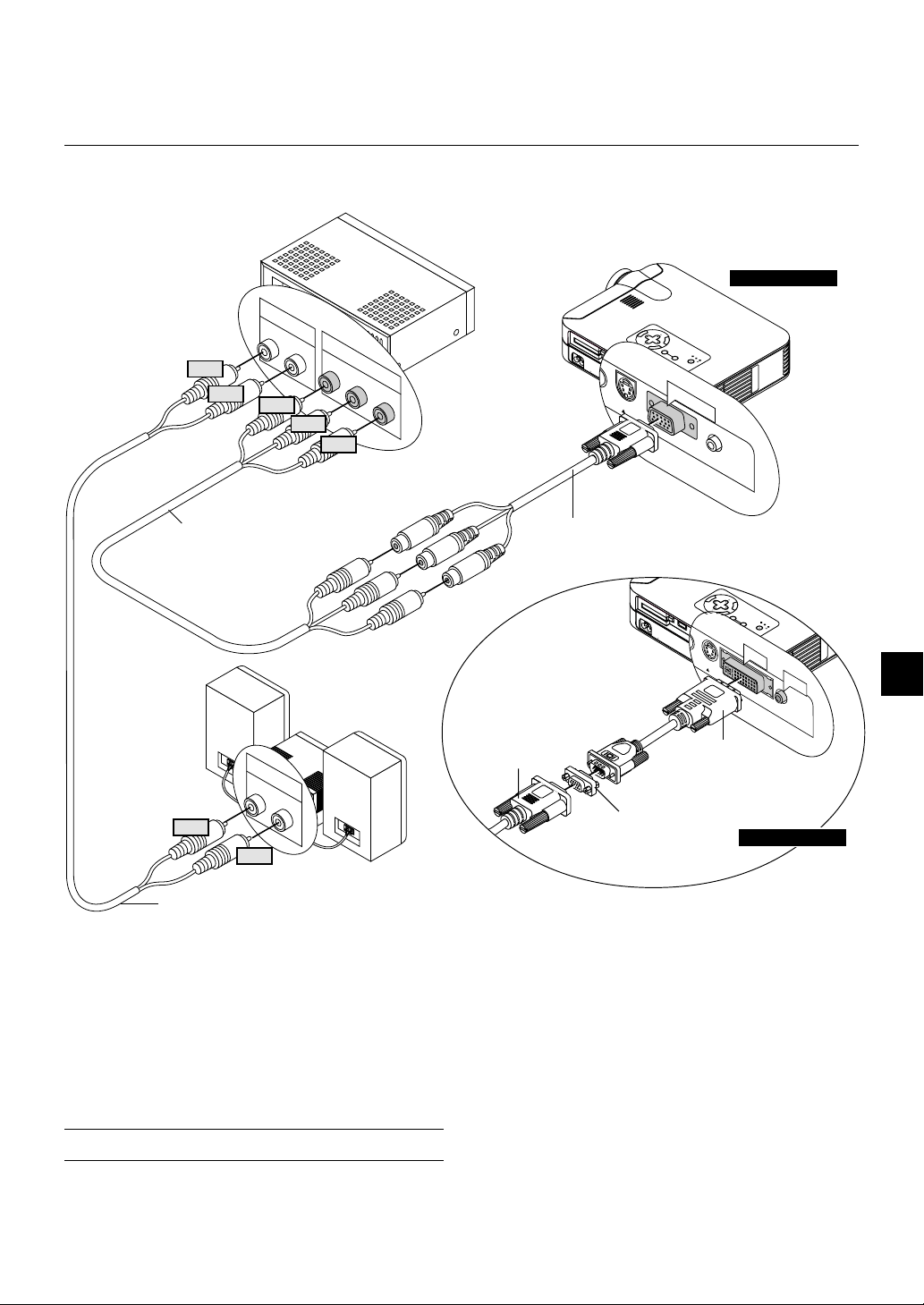

Connecting Your DVD Player ...............................................

E-21

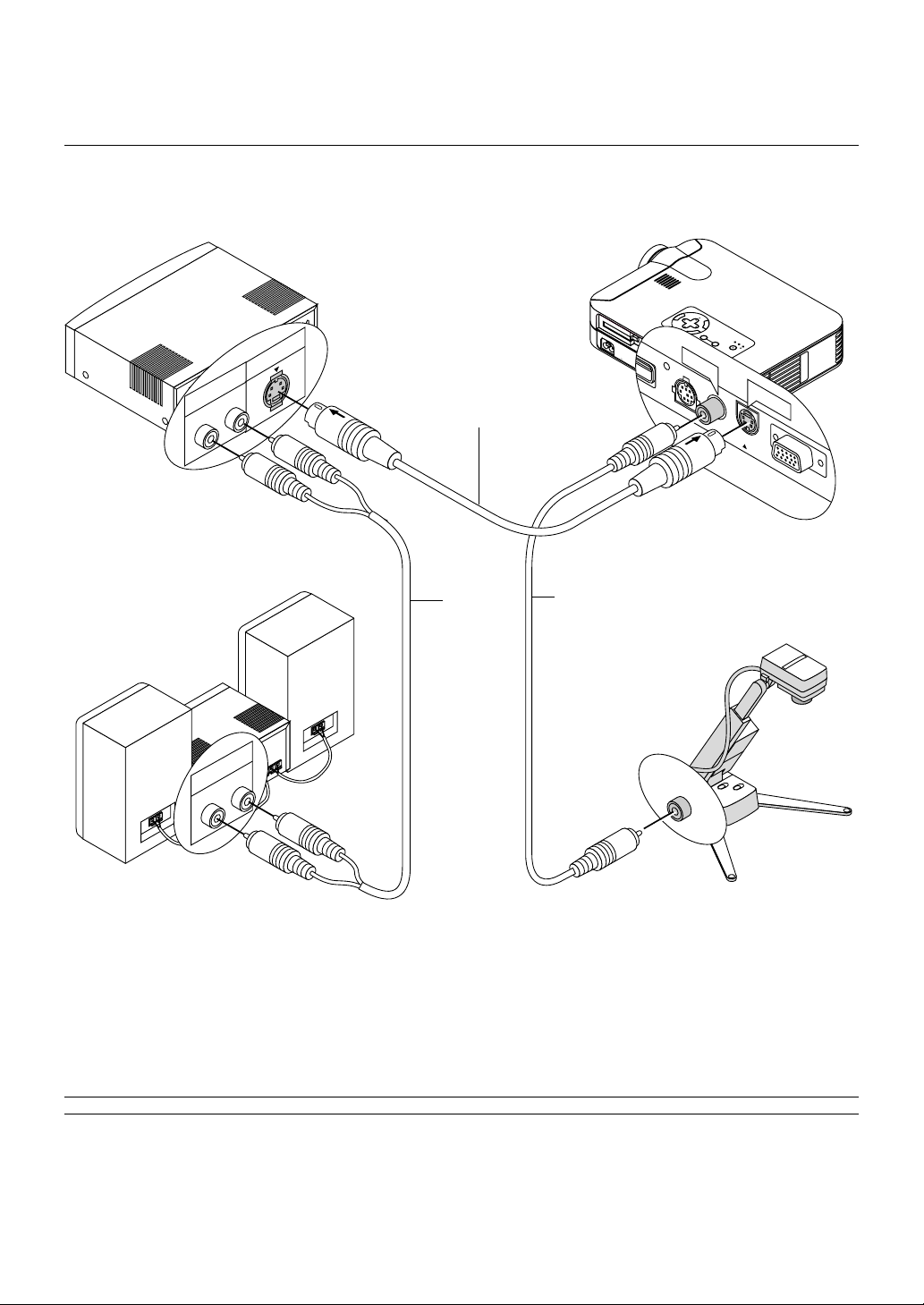

Connecting Your VCR or Laser Disc Player .........................

E-22

About Startup screen (Menu Language Select screen) .............

E-23

3. OPERATION

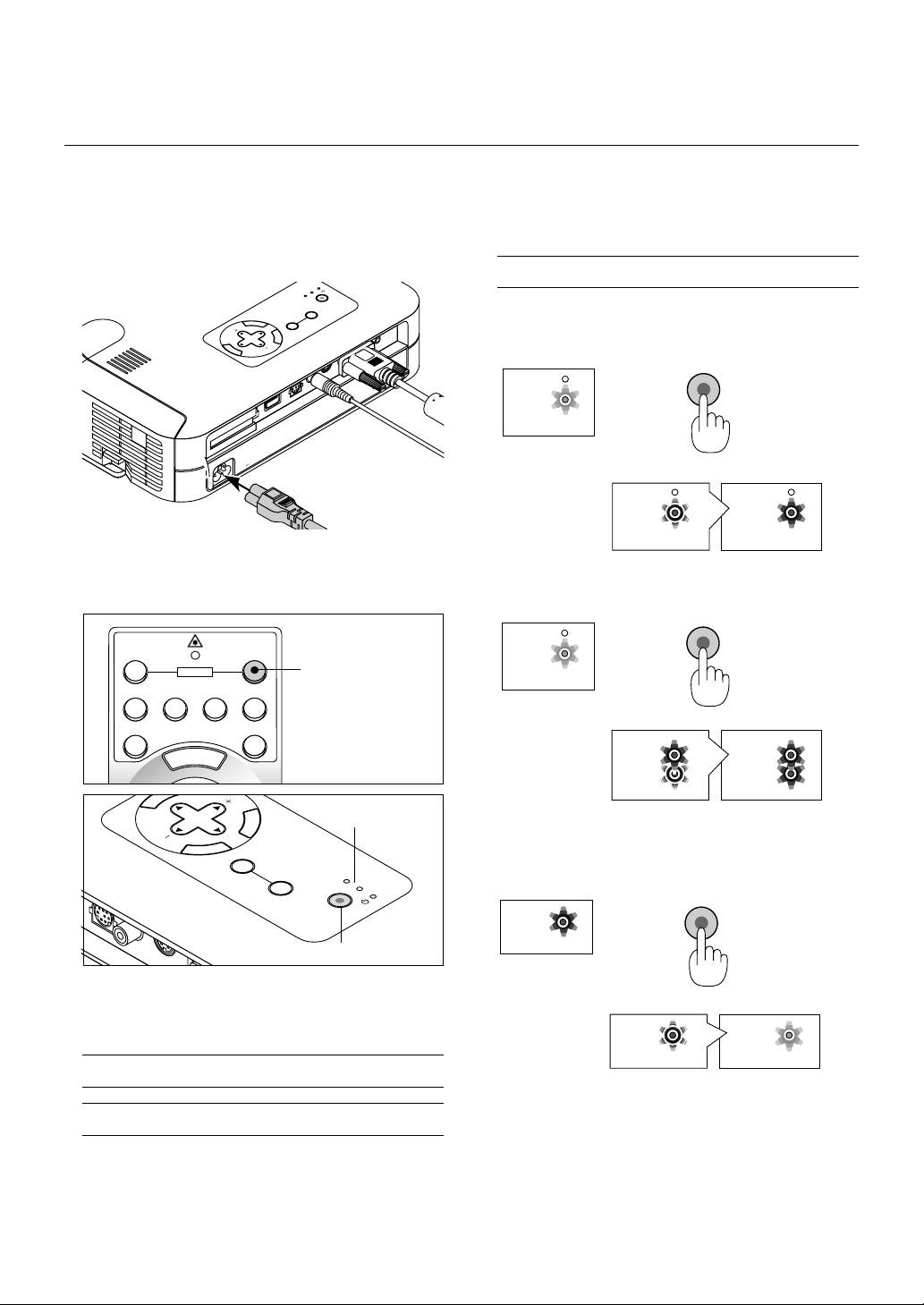

Connecting the Power Cable and Turning on the Projector ........

E-24

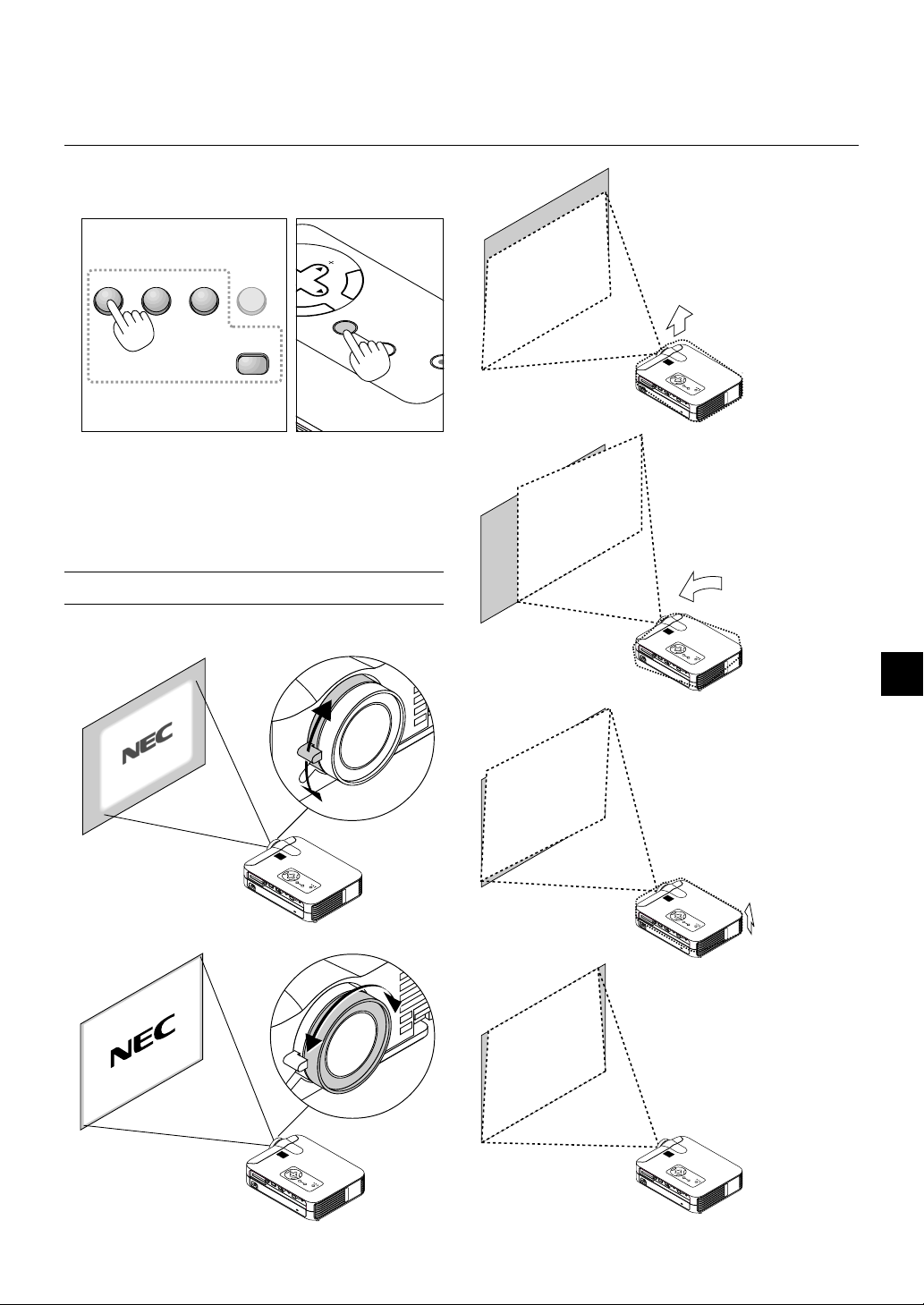

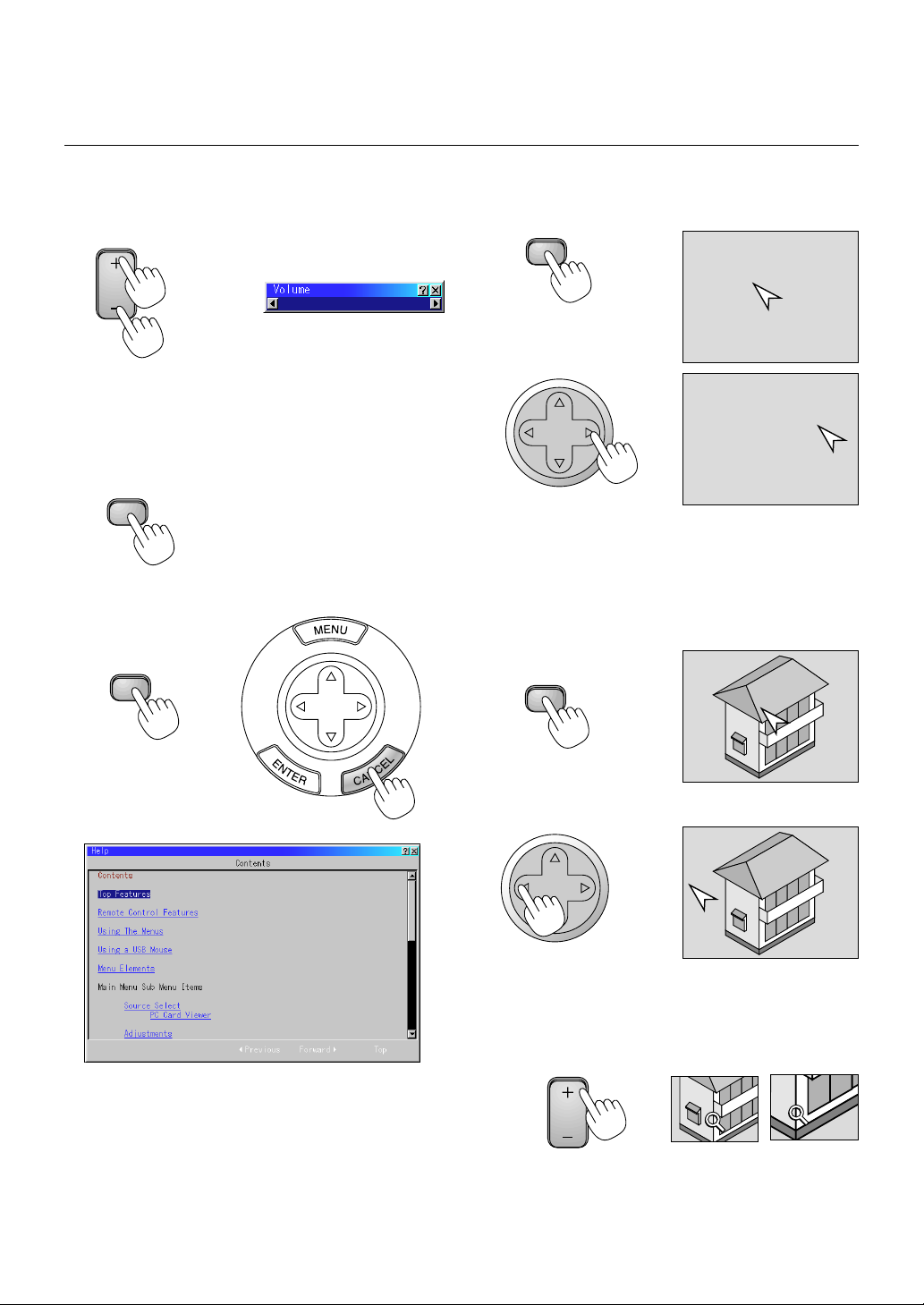

Basic Operation .........................................................................

E-27

Using the Menus ........................................................................

E-29

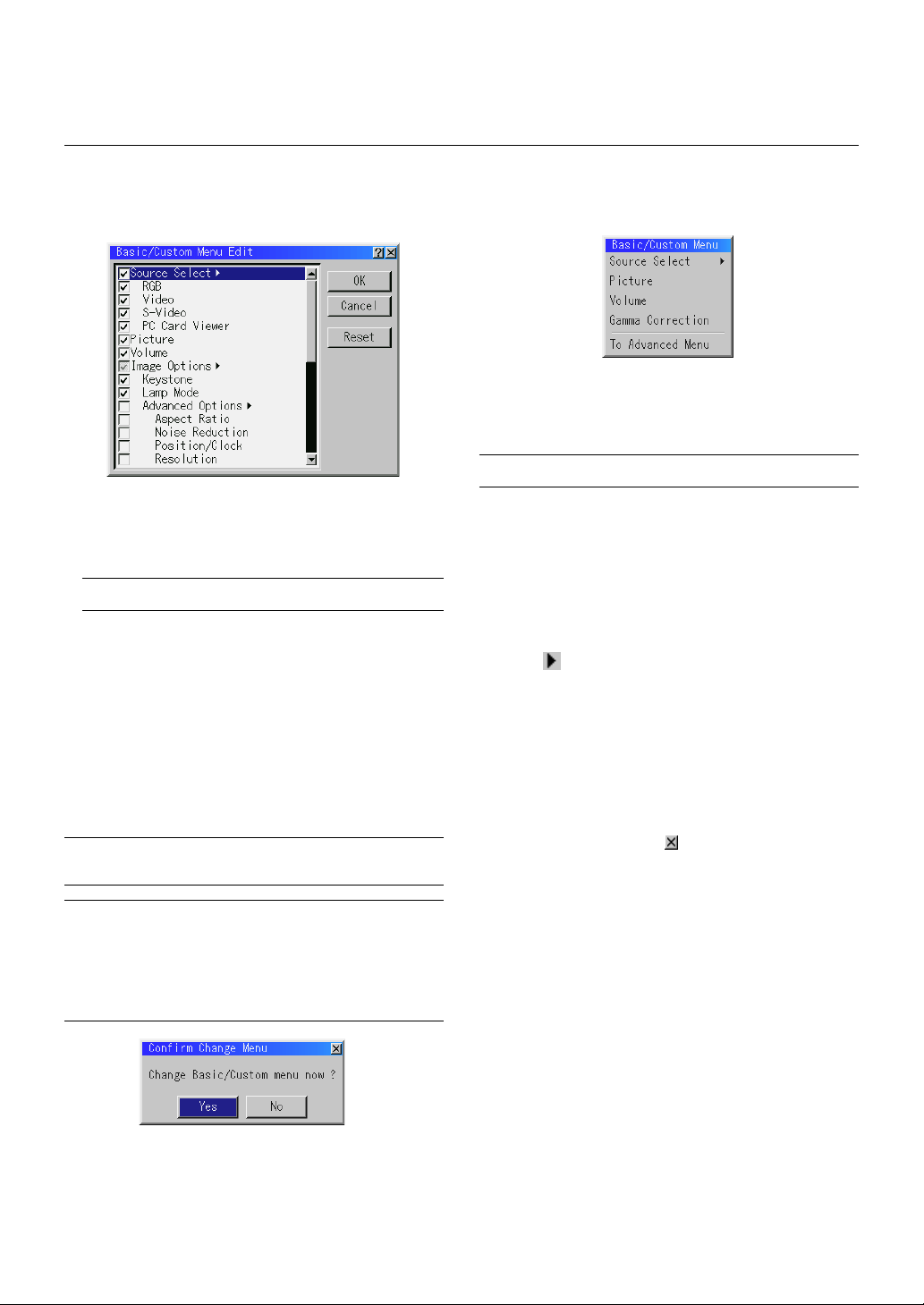

Customizing Basic/Custom Menu ........................................

E-29

Using a USB Mouse ...................................................................

E-30

Menu Tree ..................................................................................

E-31

Menu Elements ..........................................................................

E-32

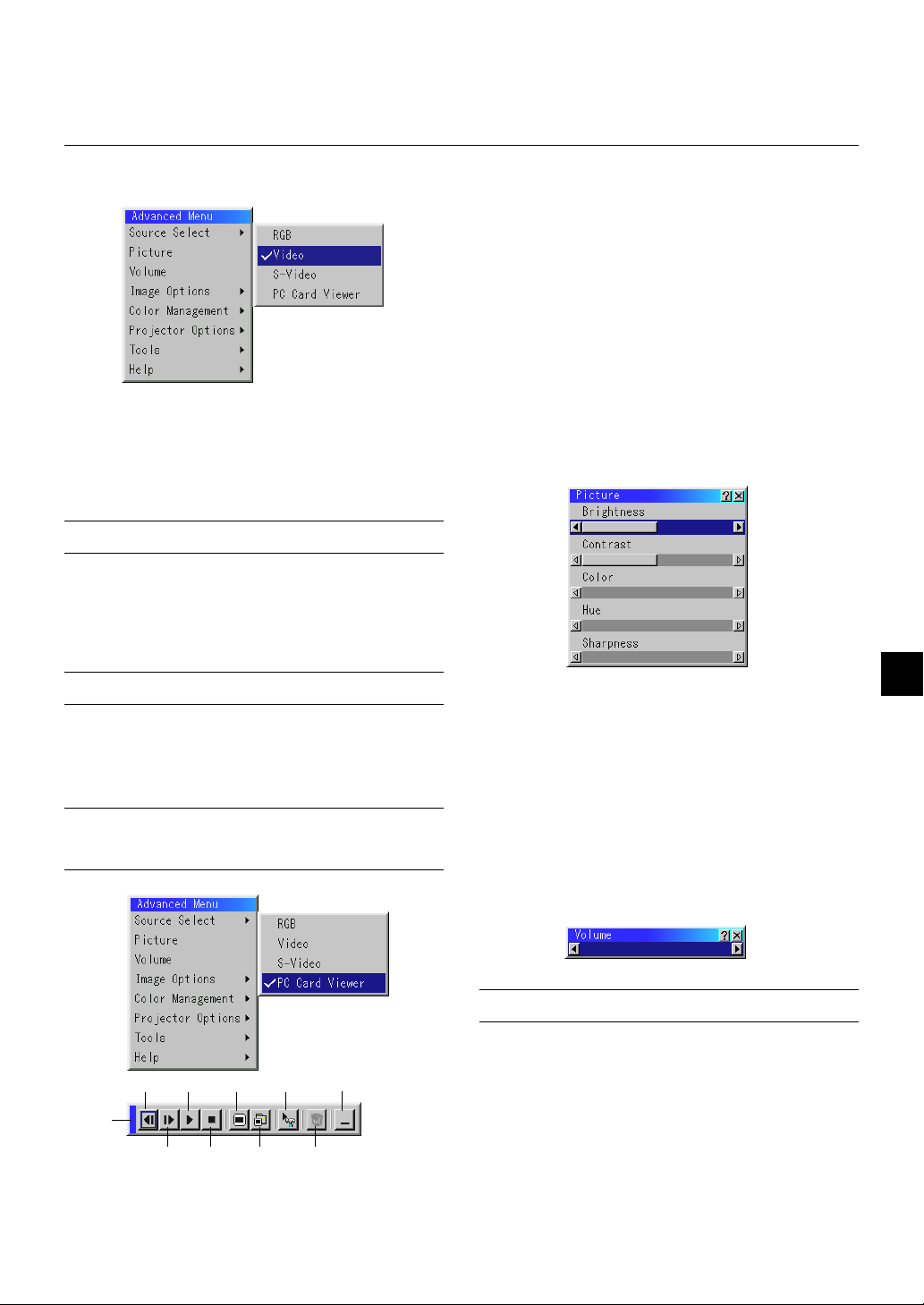

Menu Descriptions & Functions .................................................

E-33

Source Select .............................................................................

E-33

RGB (DVI on LT158 only)/Video/S-Video/PC Card Viewer



Picture ........................................................................................

E-33

Brightness/Contrast/Color/Hue/Sharpness



Volume .......................................................................................

E-33

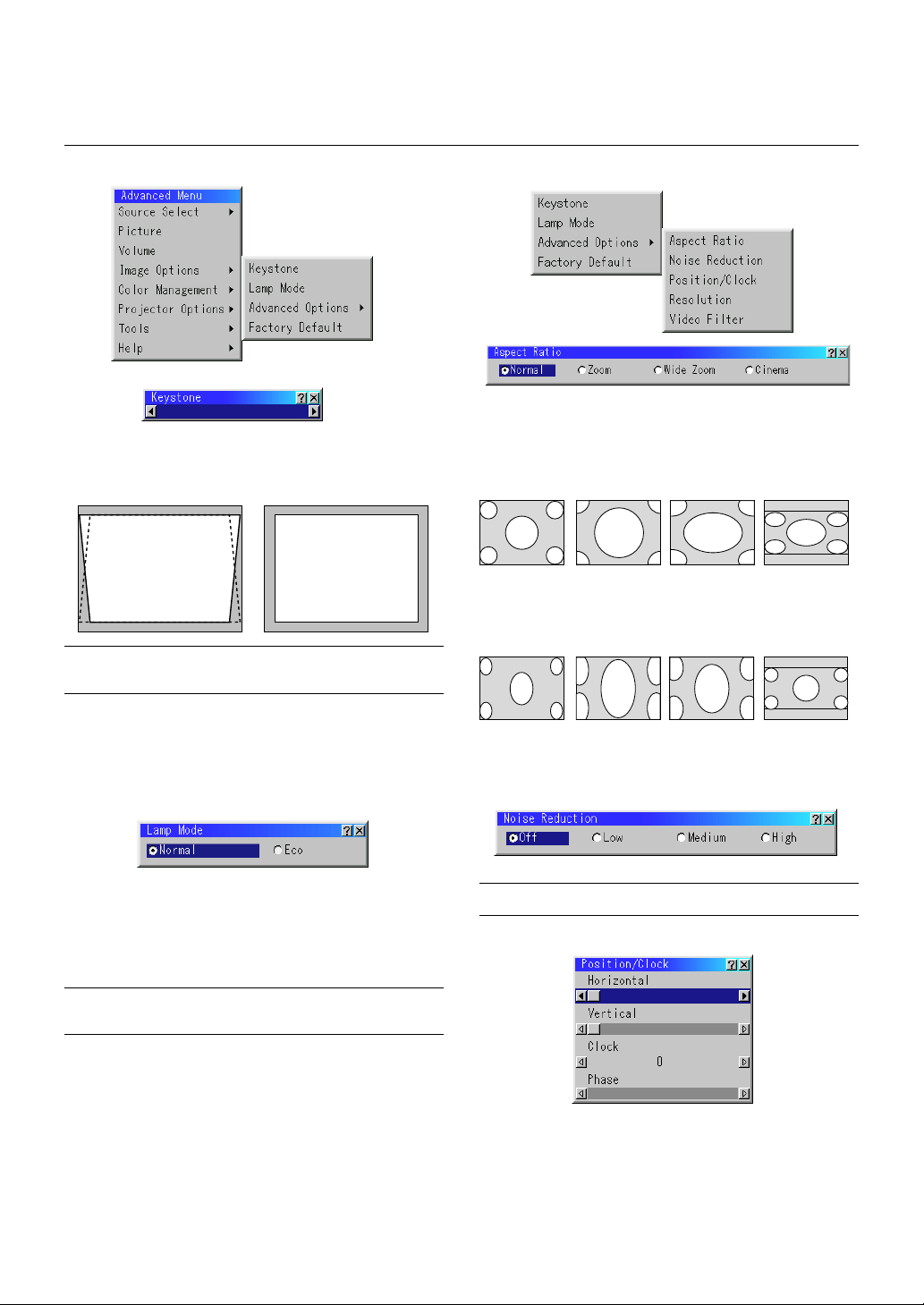

Image Options ............................................................................

E-34

Keystone ..............................................................................

E-34

Lamp Mode ..........................................................................

E-34

Aspect Ratio ........................................................................

E-34

Noise Reduction ..................................................................

E-34

Position/Clock ......................................................................

E-34

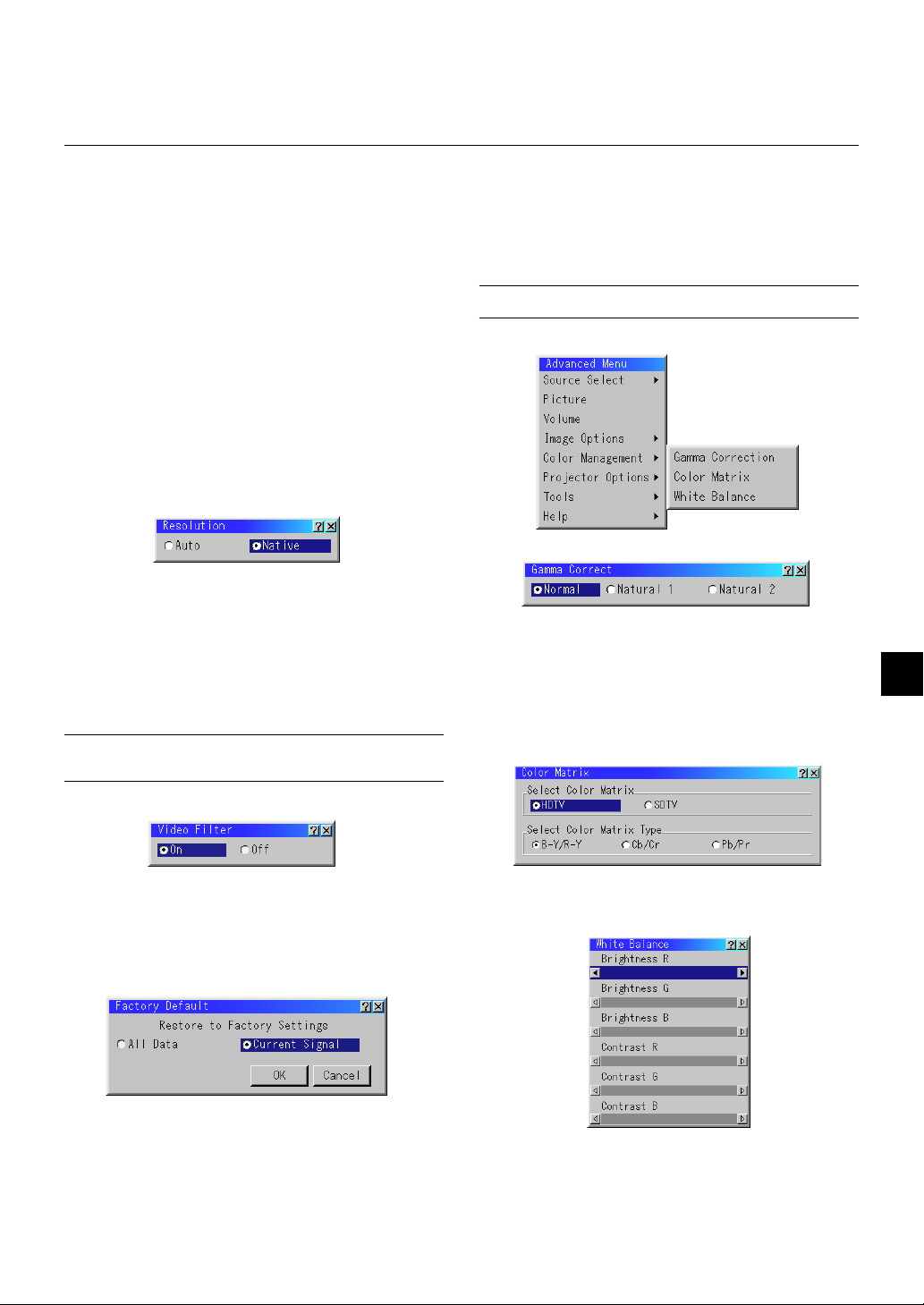

Resolution ............................................................................

E-35

Video Filter ..........................................................................

E-35

Factory Default ....................................................................

E-35

Color Management ....................................................................

E-35

Gamma Correction ..............................................................

E-35

Color Matrix .........................................................................

E-35

White Balance .....................................................................

E-35

Projector Options .......................................................................

E-36

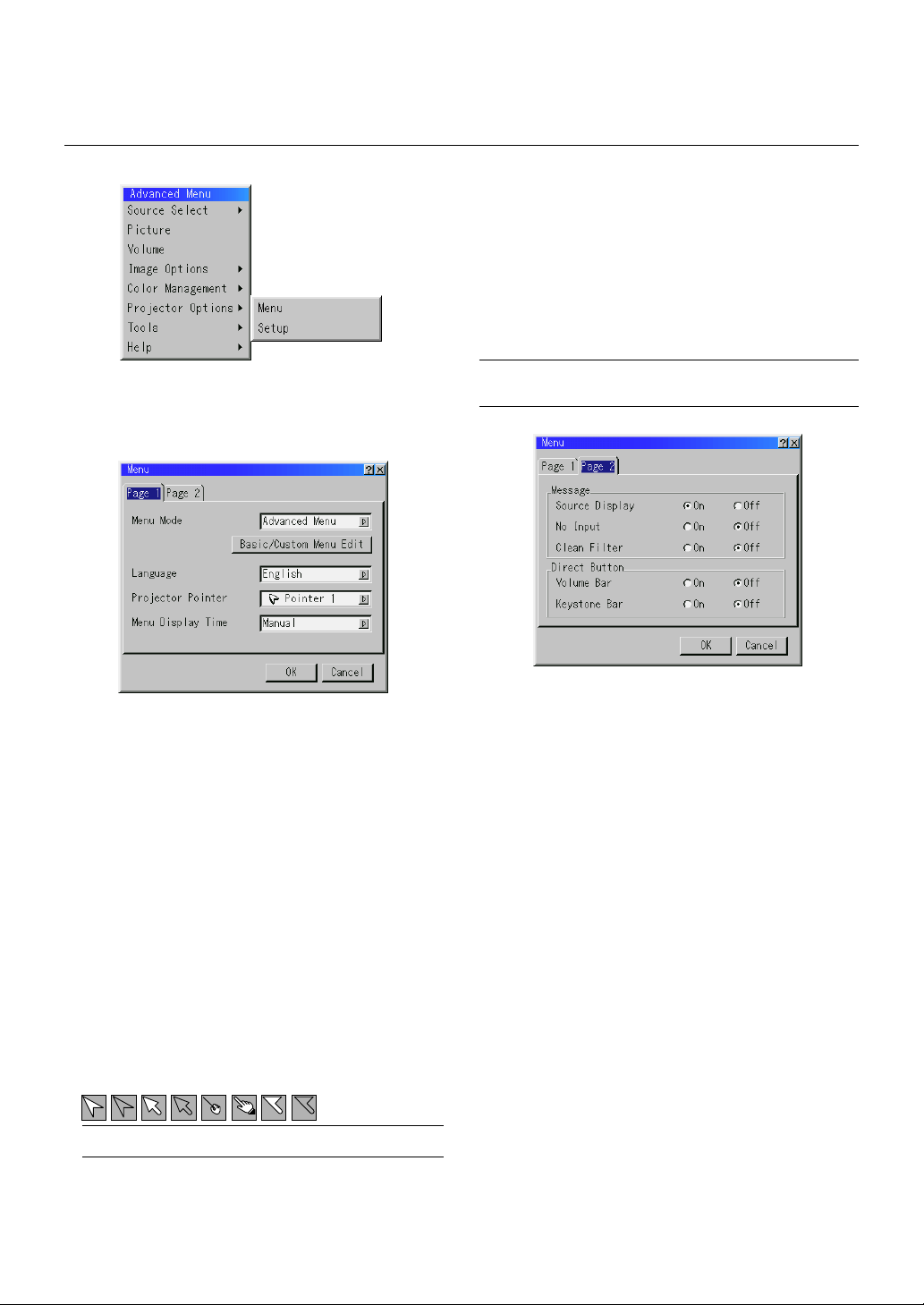

Menu ....................................................................................

E-36

Menu Mode ...................................................................

E-36

Advanced Menu, Basic/Custom Menu ......................

E-36

Language ......................................................................

E-36

Projector Pointer ............................................................

E-36

Menu Display Time ........................................................

E-36

Message ........................................................................

E-36

Direct Button .................................................................

E-36

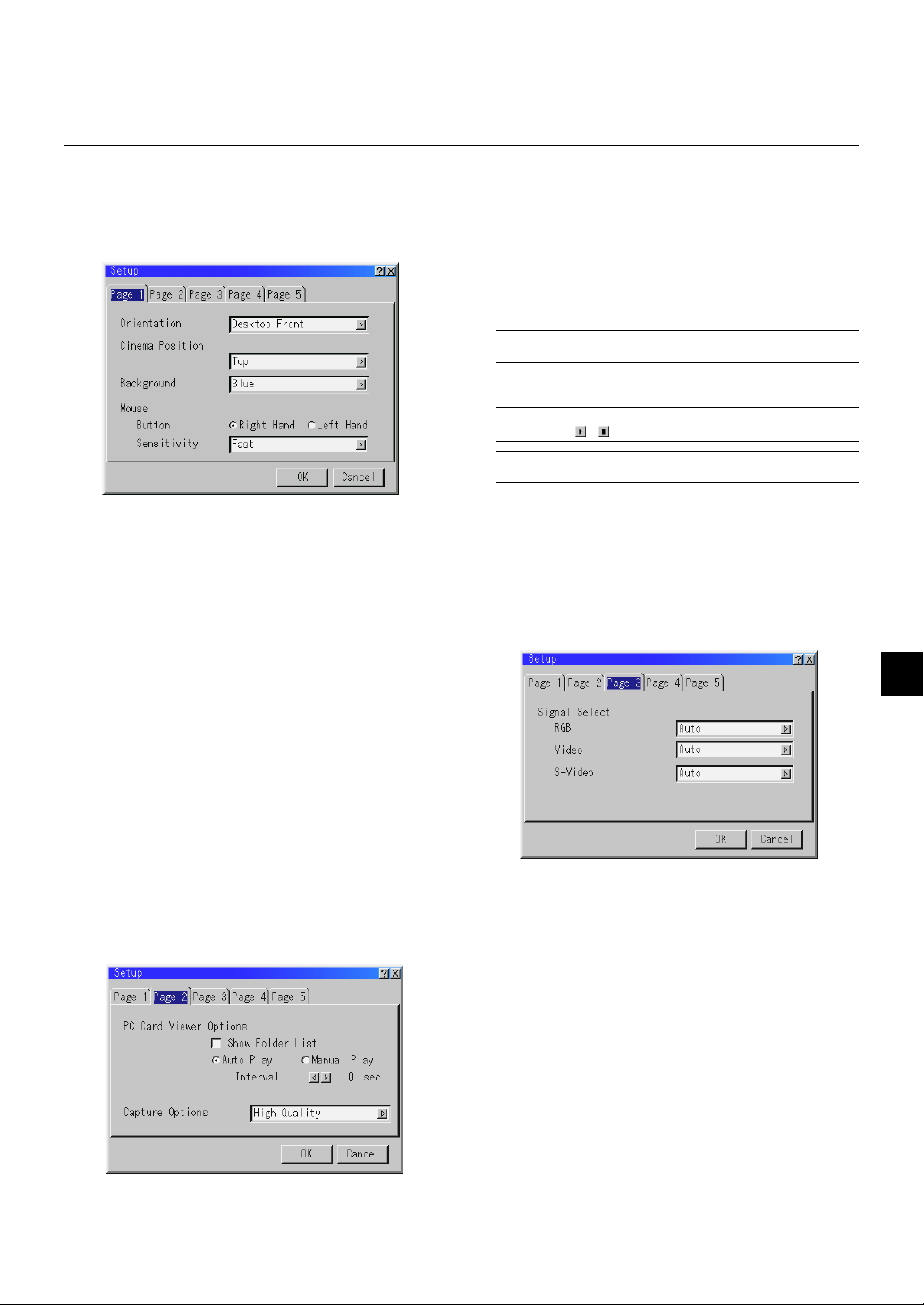

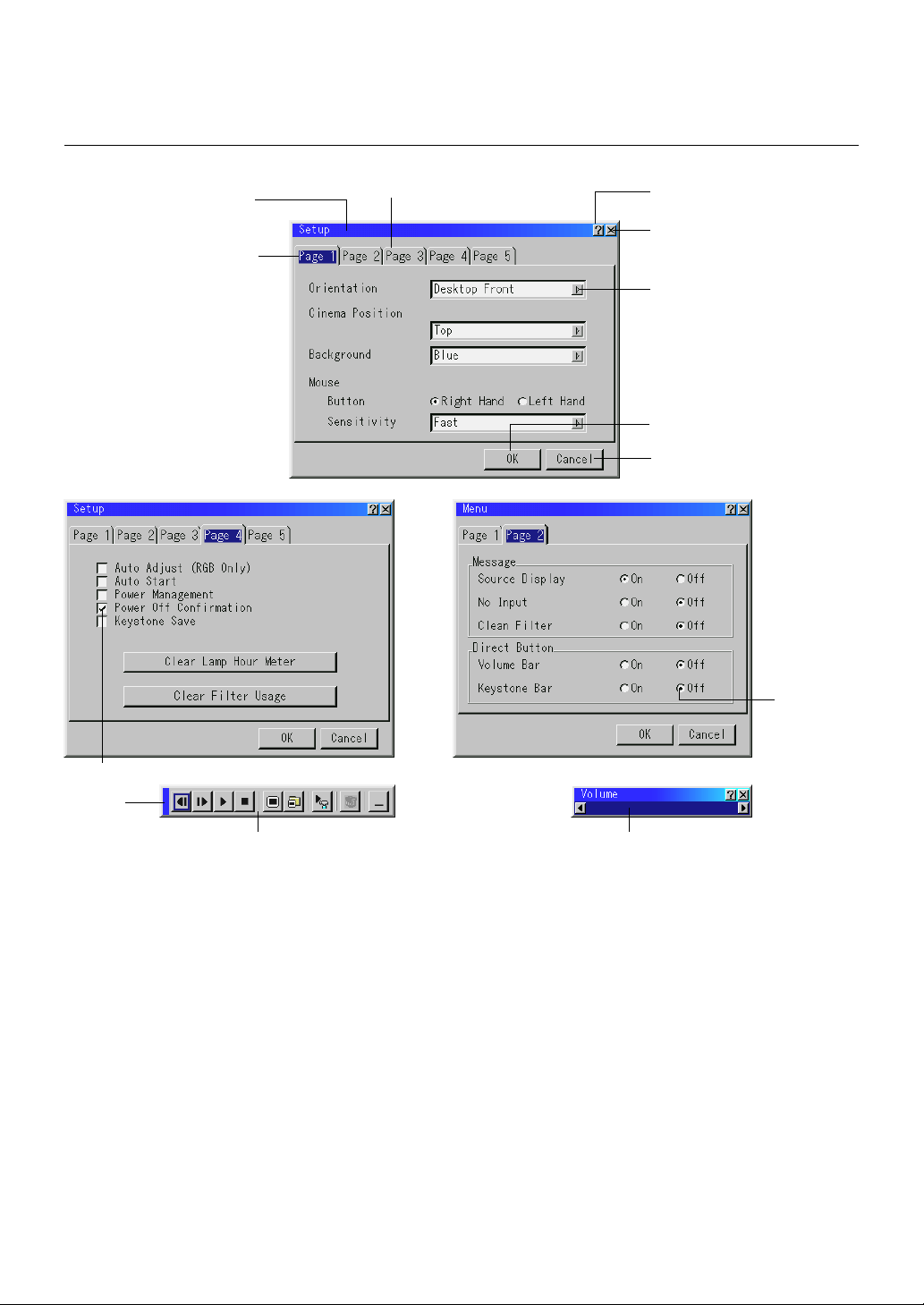

Setup ...................................................................................

E-37

Orientation .....................................................................

E-37

Cinema Position ............................................................

E-37

Background ...................................................................

E-37

Mouse Settings .............................................................

E-37

Button/Sensitivity .......................................................

E-37

PC Card Viewer Options ...............................................

E-37

Capture Options ............................................................

E-37

Signal Select .................................................................

E-37

Auto Adjust (RGB only) .................................................

E-38

Auto Start ......................................................................

E-38

Power Management ......................................................

E-38

Power Off Confirmation .................................................

E-38

Keystone Save ..............................................................

E-38

Clear Lamp Hour Meter .................................................

E-38

Clear Filter Usage .........................................................

E-38

Communication Speed ..................................................

E-38

Default Source Select ....................................................

E-38

Control Panel Key Lock .................................................

E-38

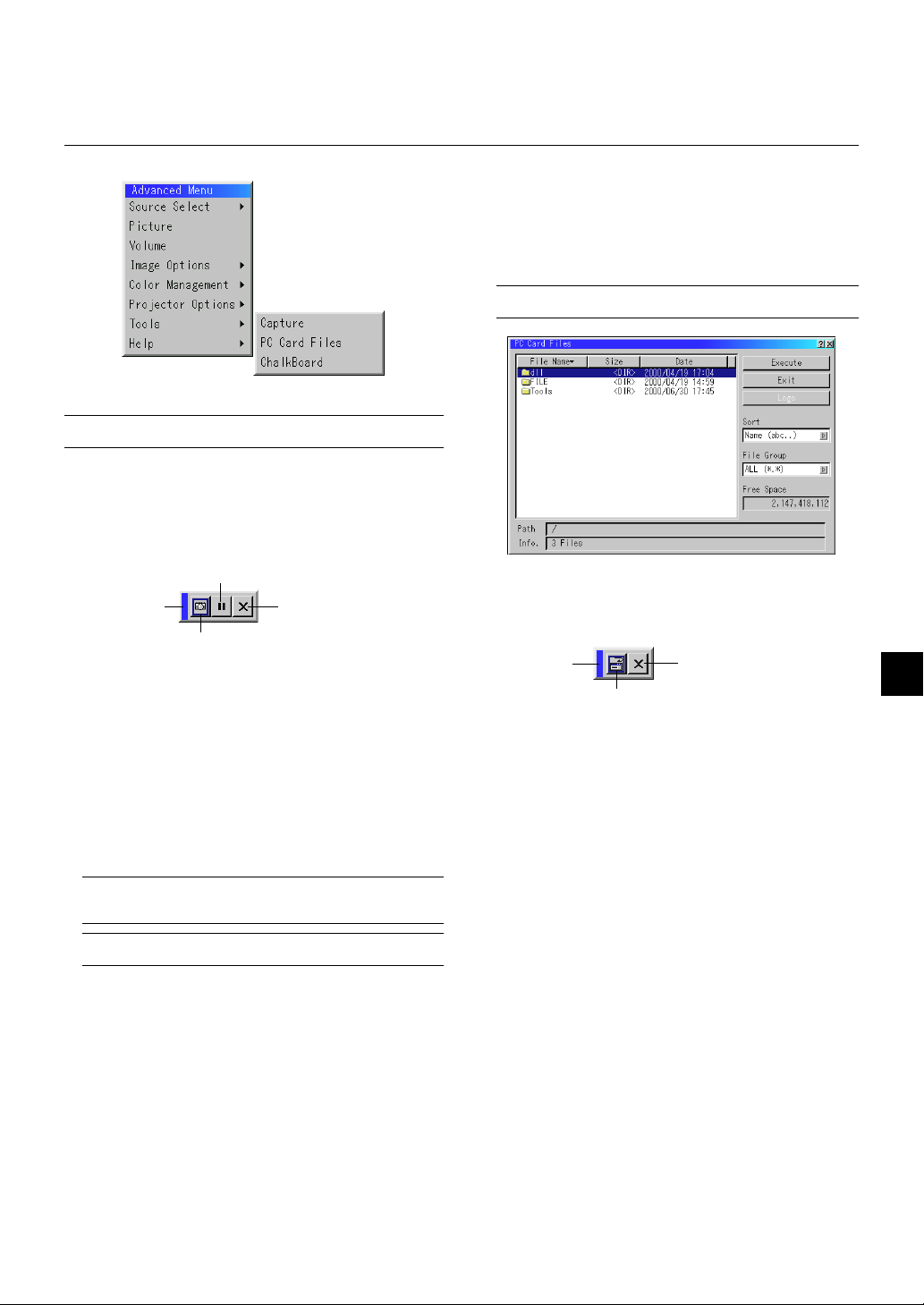

Tools ...........................................................................................

E-39

Capture ................................................................................

E-39

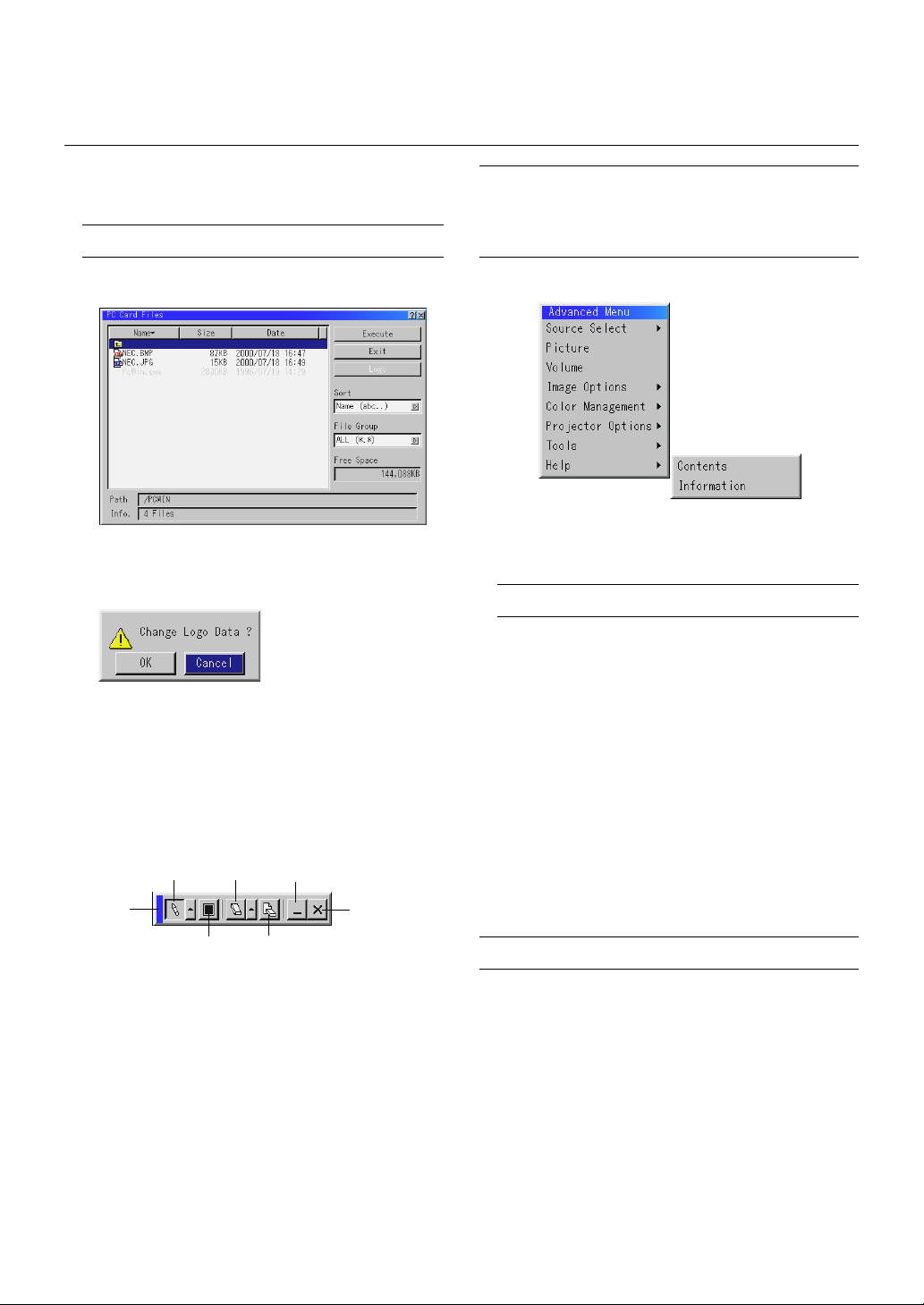

PC Card Files ......................................................................

E-39

Changing Background Logo ..........................................

E-40

Chalk Board .........................................................................

E-40

Help ............................................................................................

E-40

Contents ..............................................................................

E-40

Information ...........................................................................

E-40

Using the PC Card Viewer Function ...........................................

E-41

Features ...............................................................................

E-41

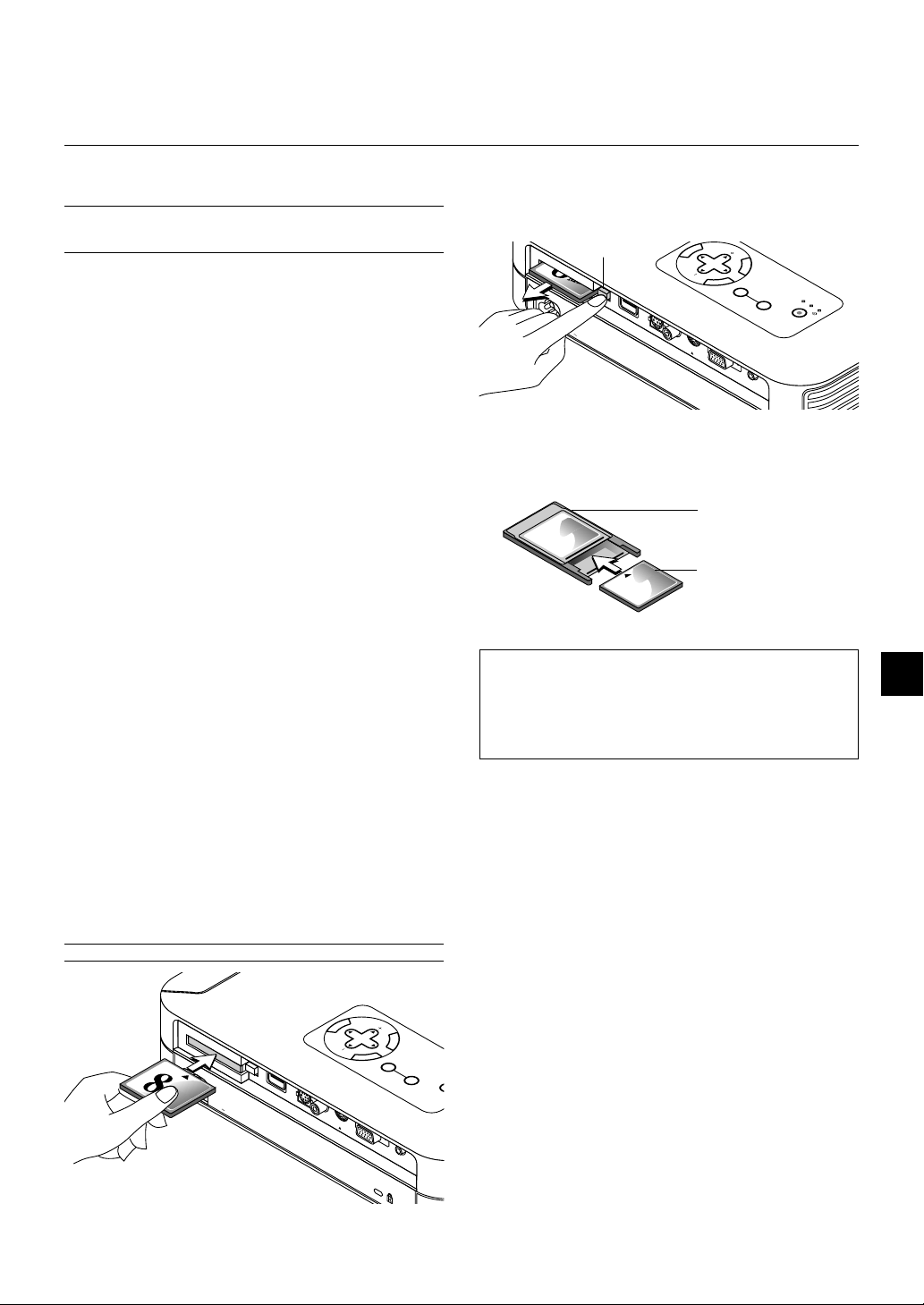

Inserting and Ejecting a CompactFlash™ Card ..................

E-41

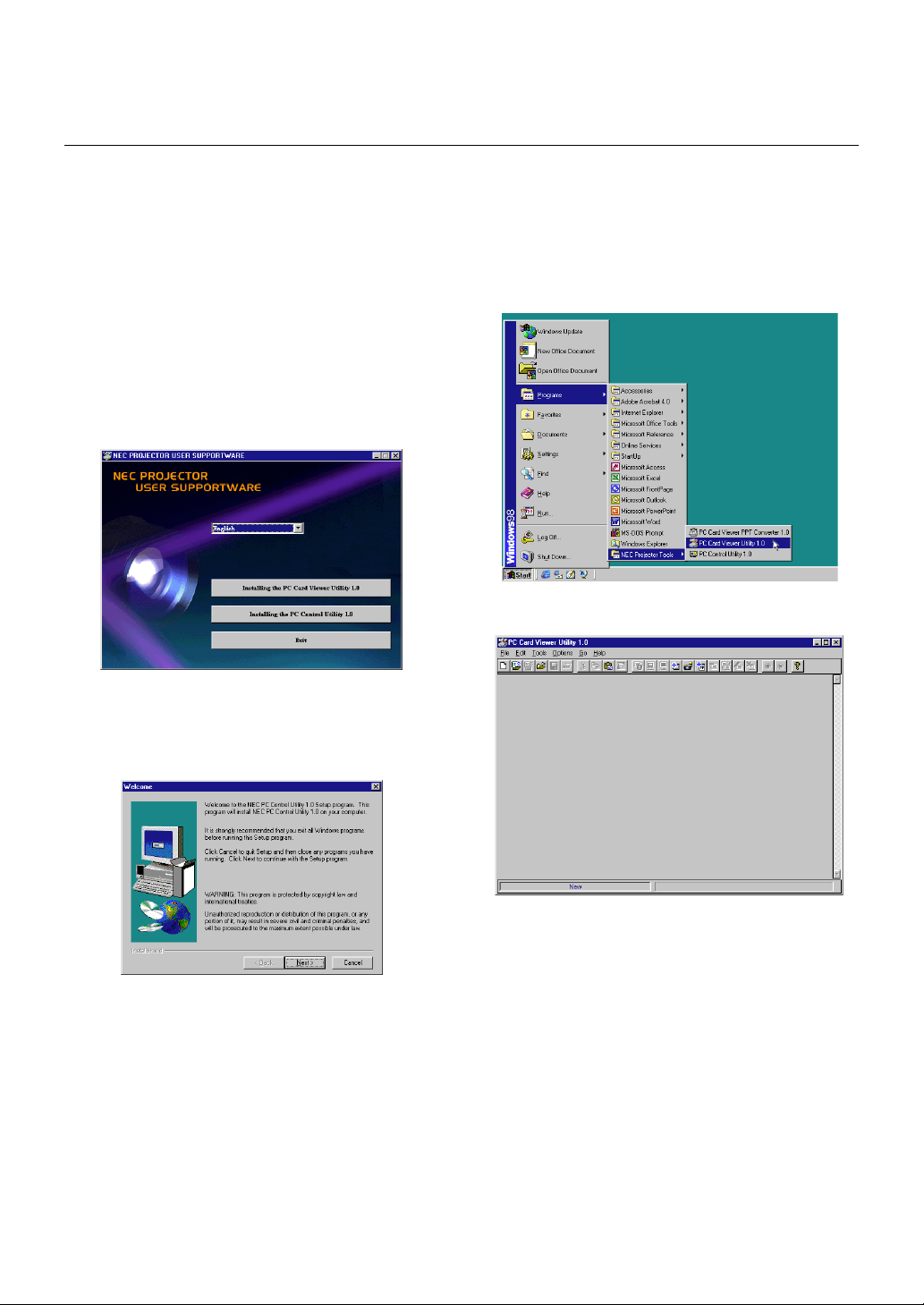

Installing the PC Card Viewer Software ...............................

E-42

Starting Up the PC Card Viewer Software on your PC



(PC Card Viewer Utility 1.0) .......

E-42

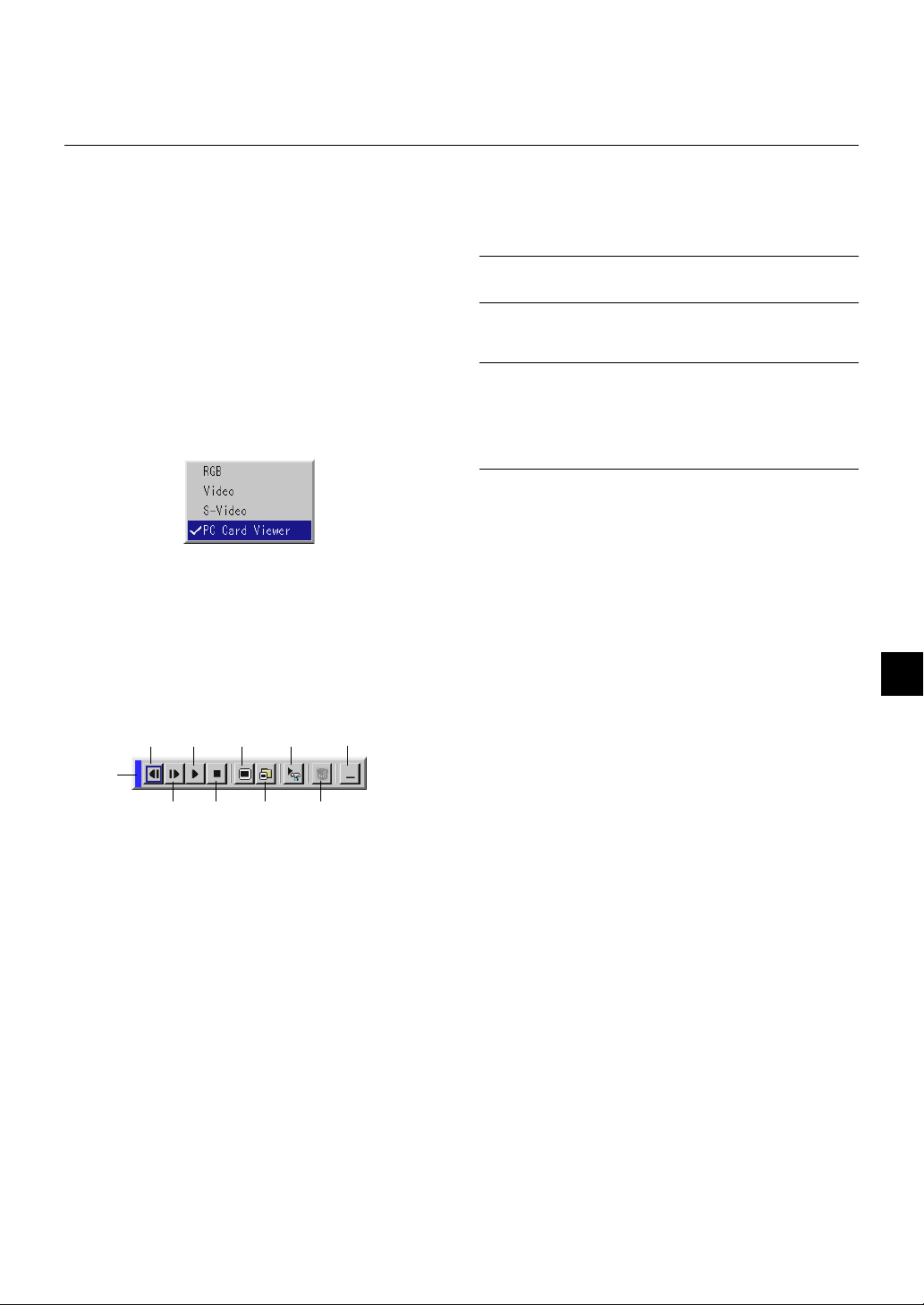

Operating the PC Card Viewer Function from the Projector



(playback) ..................................

E-43

Capturing Images Displayed on the Projector .....................

E-45

Viewing Digital Images ........................................................

E-45

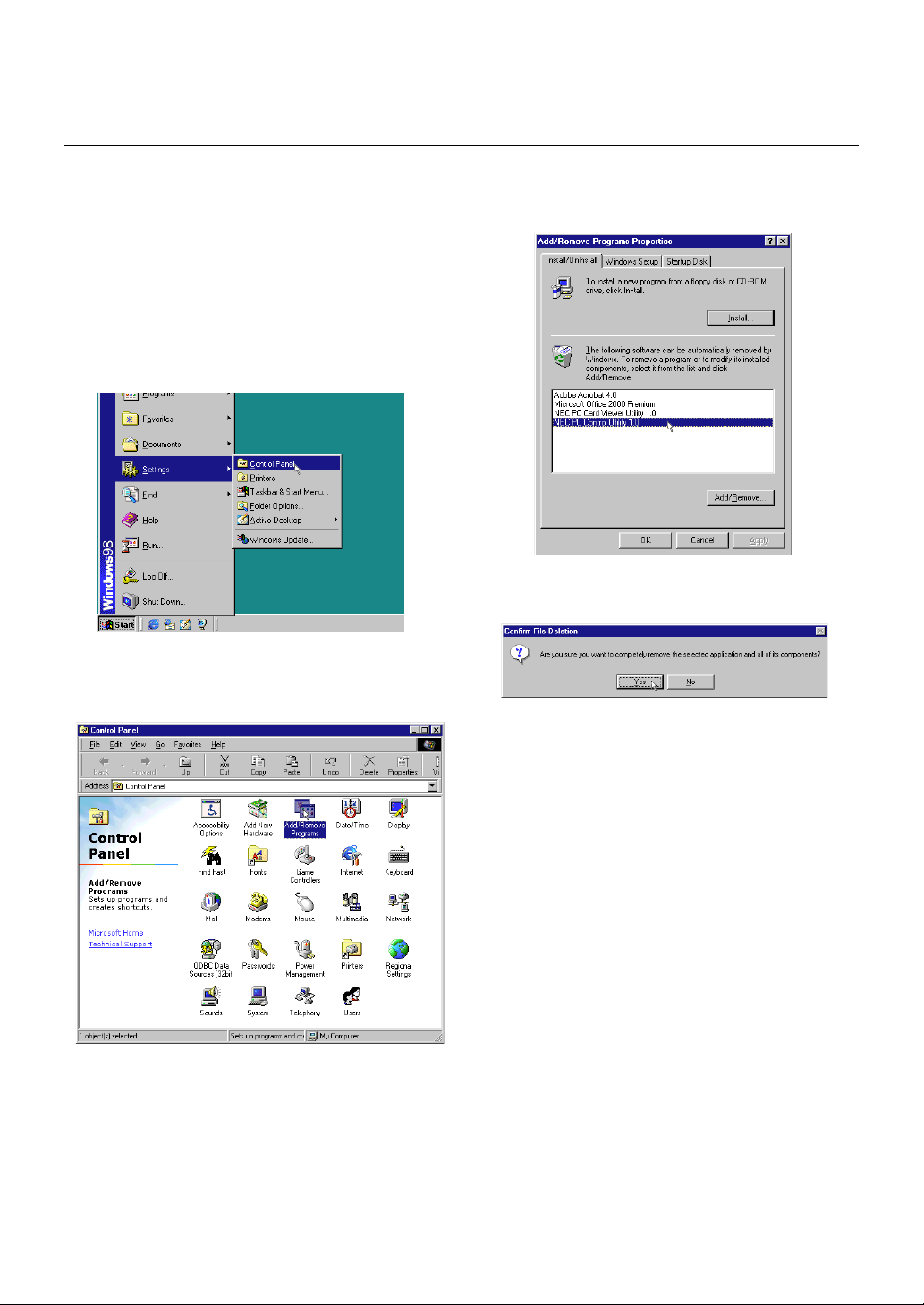

Uninstalling the PC Card Viewer Software ..........................

E-46

Terminology .........................................................................

E-47

4. MAINTENANCE

Replacing the Lamp ...................................................................

E-48

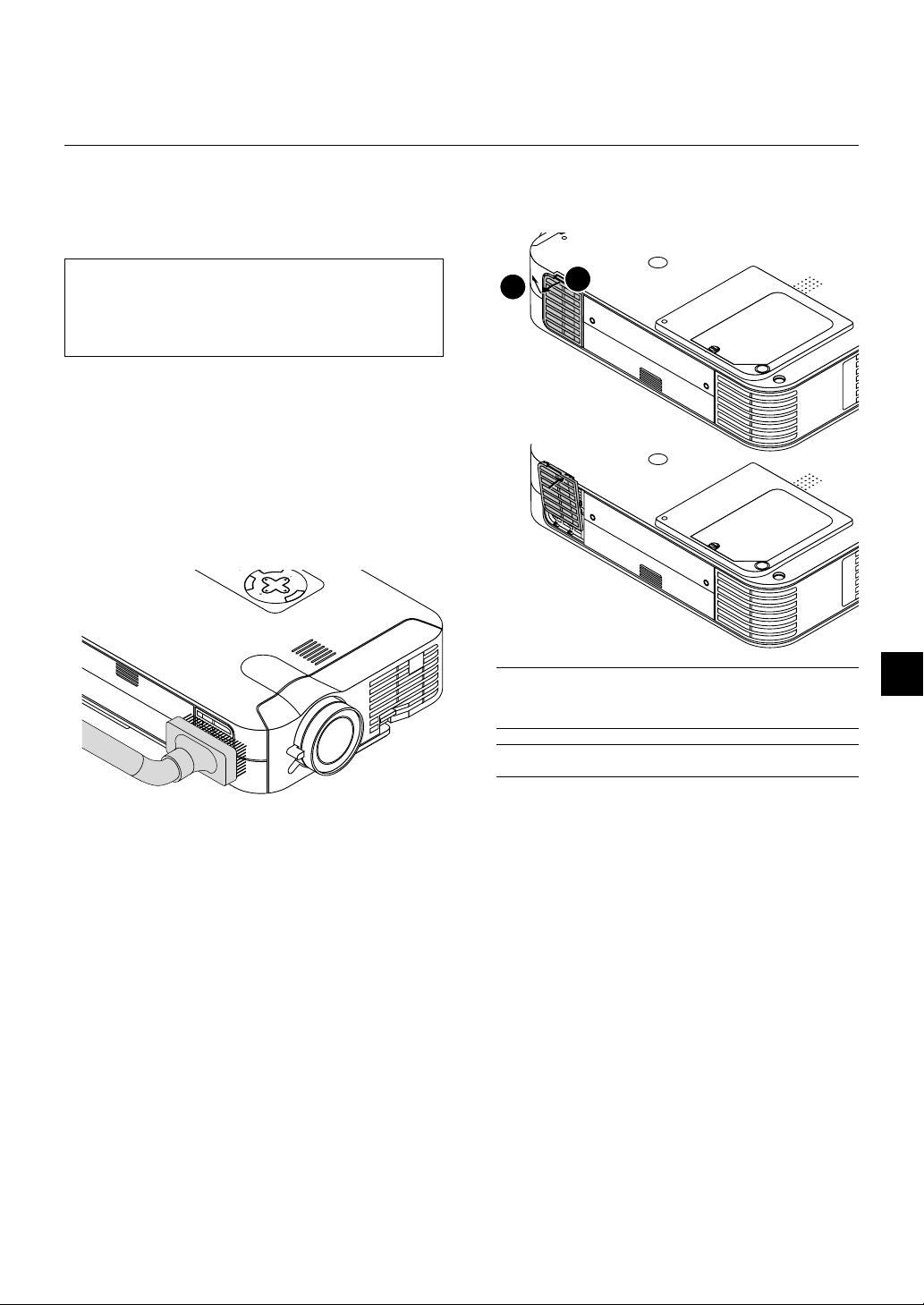

Cleaning or Replacing the Filters ...............................................

E-49

5. TROUBLESHOOTING

Power / Status Light Messages ..................................................

E-50

Common Problems & Solutions .................................................

E-50

6. SPECIFICATIONS

Optical/Electrical/Mechanical .....................................................

E-52

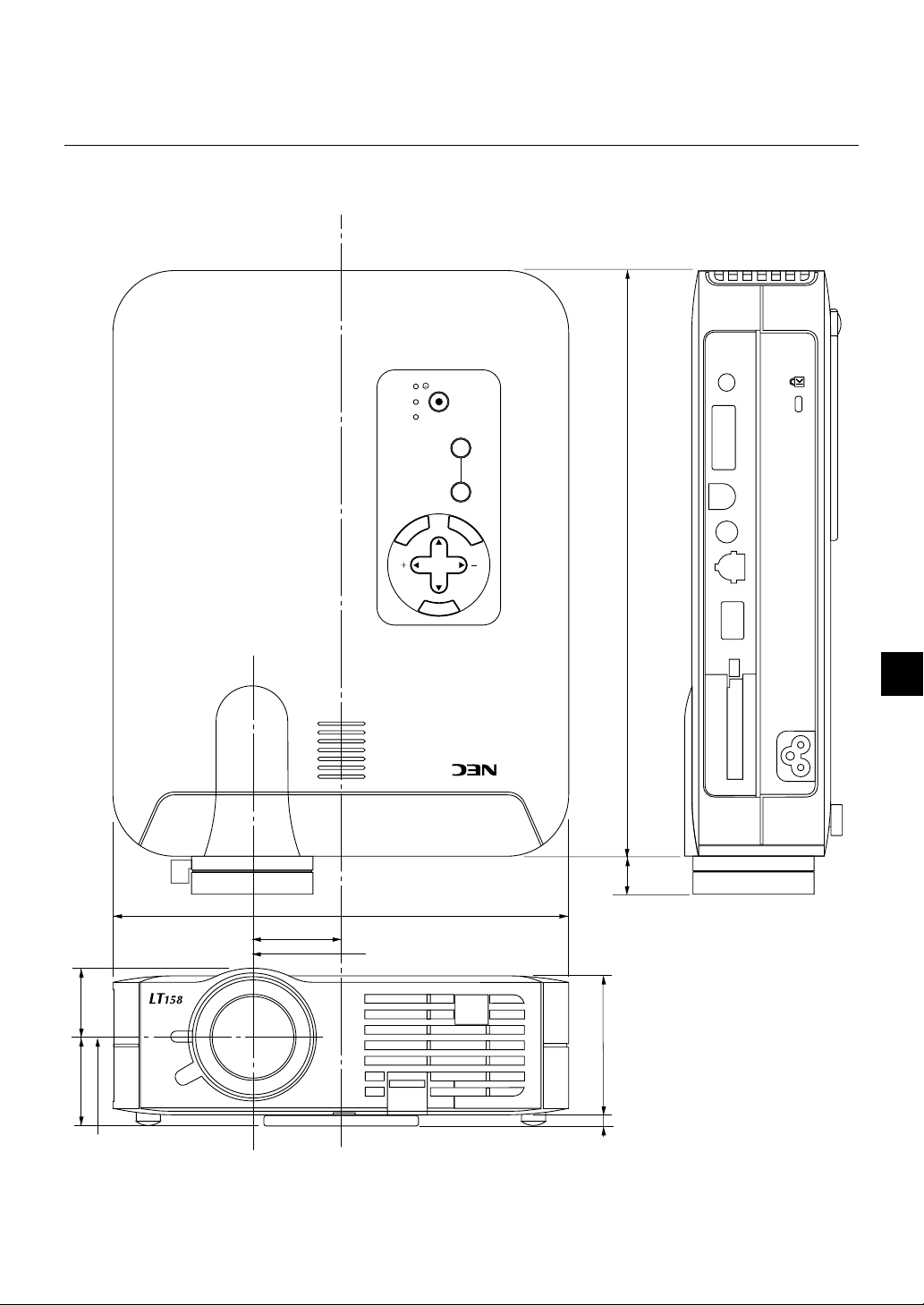

Cabinet Dimensions ...................................................................

E-53

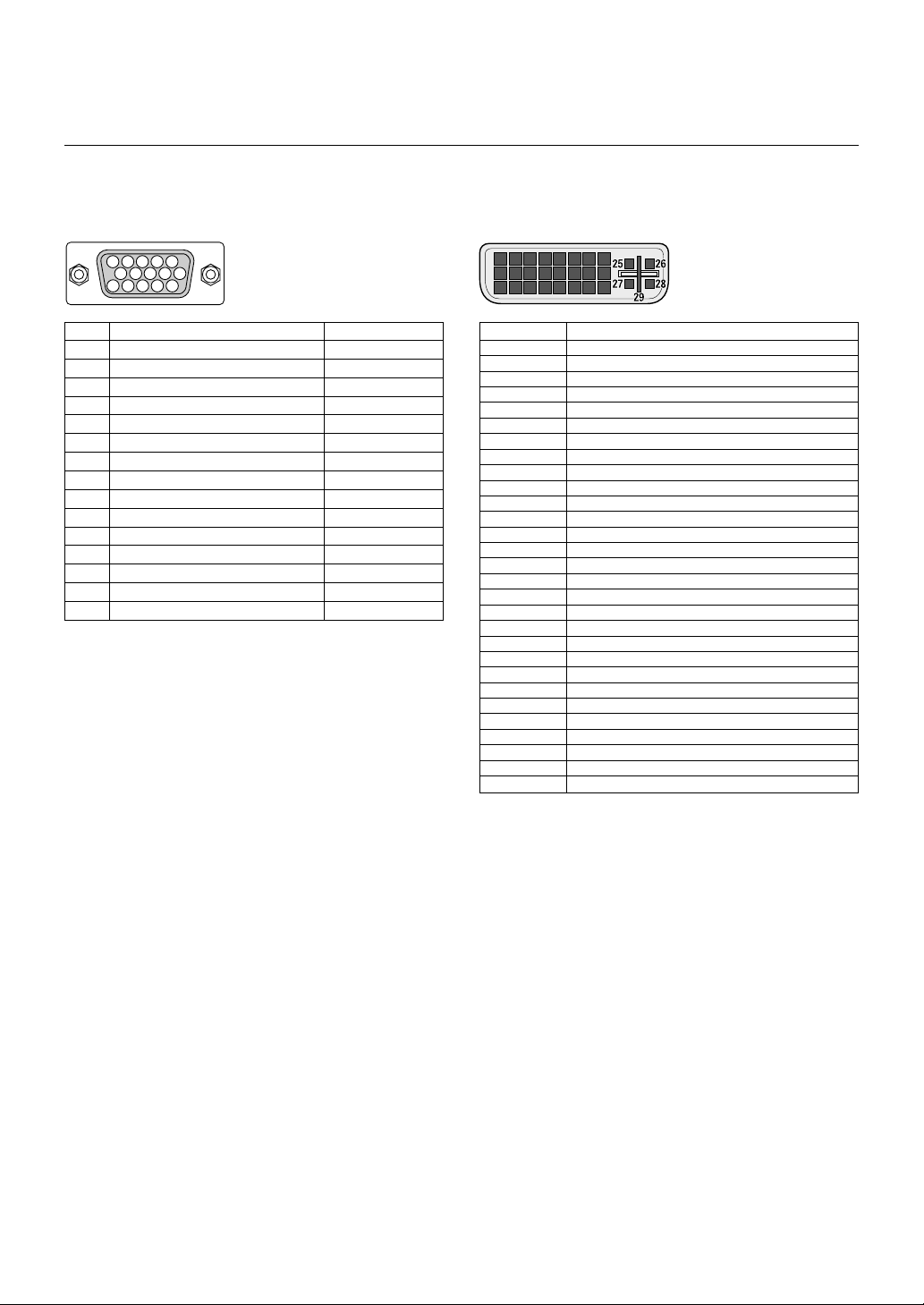

D-Sub Pin Assignments (LT157) ................................................

E-54

DVI Pin Assignments (LT158) ....................................................

E-54

Compatible Input Signal List ......................................................

E-55

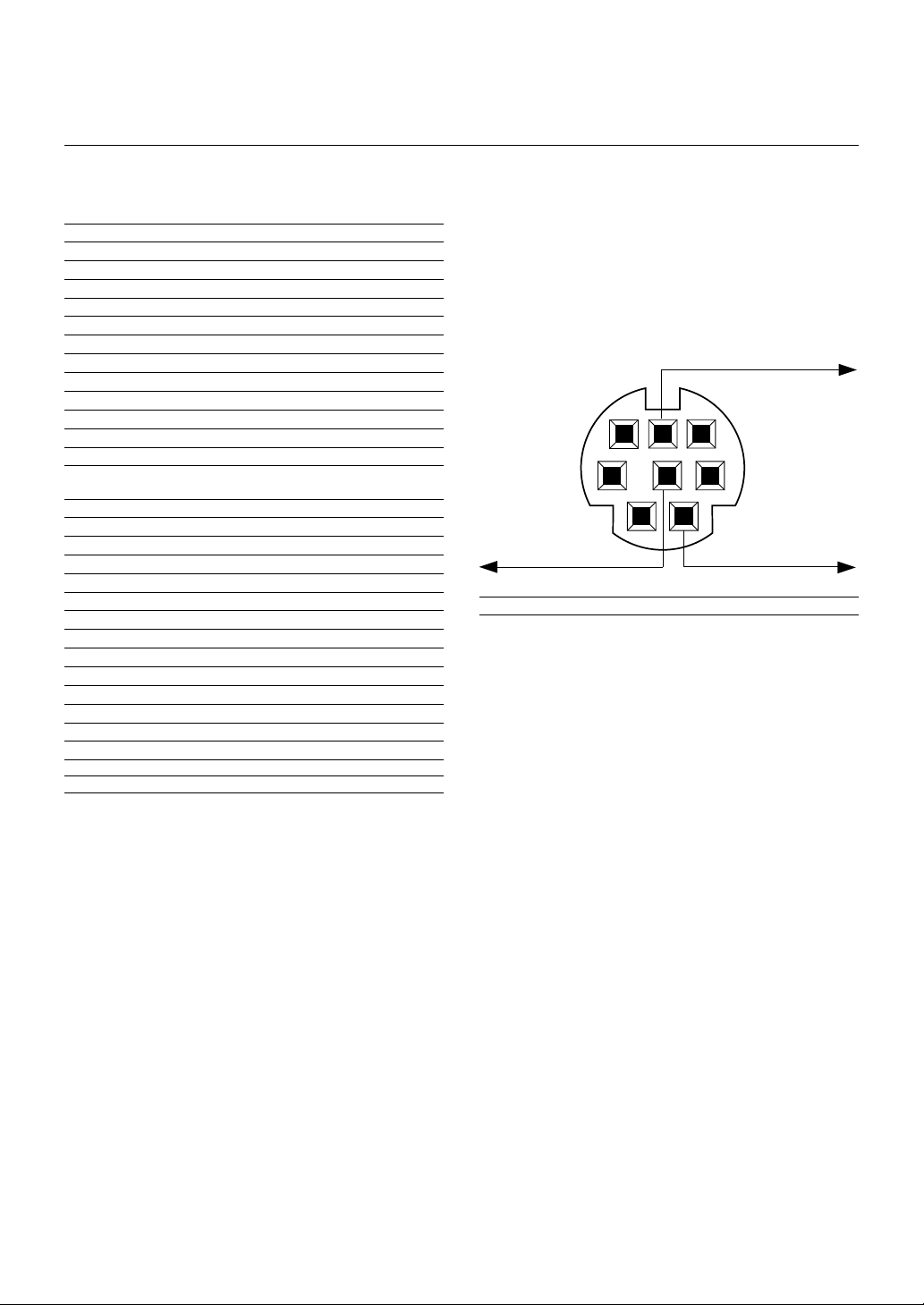

PC Control Codes ......................................................................

E-56

Cable Connection .......................................................................

E-56

CompactFlash is trademark of San Disk Corporation.

E – 4

1. INTRODUCTION

Introduction to the LT158/LT157 Projector

This section introduces you to your new LT158 (XGA/DVI) / LT157 (XGA) Projector and describes the features and controls.

Congratulations on Your Purchase of The LT158/ LT157 Projector

The LT158/LT157 is one of the very best projectors available today. The LT158/LT157 enables you to project precise images up to 300 inches (measured diagonally) from your PC or Macintosh computer (desktop or notebook), VCR, DVD player, document camera, a laser disc player or PC Card Viewer.

You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen, and the projector can be permanently mounted on a ceiling*1. The remote control can be used wirelessly.

Features you’ll enjoy:

Simple set up and operation.

A high-performance 130 watt NSH lamp.

The supplied wireless remote control operates the projector from the front side or rear.

The image can be projected between 25 and 300 inches (measured diagonally).

Keystone correction allows you to correct trapezoidal distortion so that the image is square.

You can choose between video modes depending on your source: "normal" for a typical picture, "natural" for true color reproduction.

The built-in PC Card Viewer allows you to start your presentation even when a PC is not available at the site.

The "Capture" enables you to capture the current projected image.

An image can be projected from in front or behind a screen, and the projector can even be installed on the ceiling.

NEC Technologies’ exclusive Advanced AccuBlend intelligent pixel blending technology - an extremely accurate image compression technology - offers a crisp image with UXGA (1600 1200) resolution*2.

Supports most IBM VGA, SVGA, XGA, SXGA/UXGA(with Advanced AccuBlend)*2, Macintosh, component signal (YCbCr / YPbPr) or any other RGB signals within a horizontal frequency range of 15 to 100 kHz and a vertical frequency range of 50 to 120 Hz. This includes NTSC, PAL, PAL-N*3, PAL-M*3, PAL60, SECAM and NTSC4.43 standard video signals.

NOTE: Composite video standards are as follows: NTSC: U.S. TV standard for video in U.S. and Canada. PAL: TV standard used in Western Europe.

PAL-N: TV standard used in Argentine, Paraguay and Uruguay. PAL-M: TV standard used in Brazil.

PAL60: TV standard used for NTSC playback on PAL TVs. SECAM: TV standard used in France and Eastern Europe. NTSC4.43: TV standard used in Middle East countries.

The supplied remote control can be used without a cable, and you can even use the remote control and mouse adapter to operate your PC or Macintosh mouse wirelessly from across the room with the built-in remote mouse receiver.

You can control the projector with a PC using the PC Control port*4.

USB terminal allows USB mouse operation *5.

The contemporary cabinet design is light, compact, easy to carry, and complements any office, boardroom or auditorium.

Eight pointers are available for your presentation.

*1 Do not attempt to mount the projector on a ceiling yourself.

The projector must be installed by qualified technicians in order to ensure proper operation and reduce the risk of bodily injury. In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. Please consult your dealer for more information.

*2 A UXGA (1600 1200) and an SXGA (1280 1024) image are converted to an XGA(1024 768) crisp image with NEC technology’s Advanced AccuBlend. This applies only to analog RGB signal.

*3 LT158 only.

*4 The PC Control Utility 1.0 is required. This program is included on the supplied CD-ROM.

*5 The USB terminal meets the USB1.1 specification and accepts a USB mouse only.

Getting Started

The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to review the user’s manual. This may save you time later on. At the beginning of each section of the manual you’ll find an overview. If the section doesn’t apply, you can skip it.

E – 5

What's in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer.

Please save the original box and packing materials if you ever need to ship your LT158/LT157 Projector.

/

RETNE

C

E

L

NEC LT158/LT157 projector

LT158 only

DVI-A – VGA signal cable

DVI-D – DVI-D signal cable

LT157 only

Power cable

RGB signal cable

(15-Pin Mini D-Sub To 15-Pin Mini D-Sub connector)



Quick



Connect



Guide



User's



Manual

CD-ROM

Soft



Lens cap

Batteries (AA 2)

String and rivet





OFF









VIDEO





AUTO

ADJ.

S-

POWER





VIDEO









RGB1

ON









RGB2







LASER



SELE

CT

PJ





FOCUS

ZOO





HELP

M







KEYSTONE

POINTER



SHIFT



MAGNIFY

PC

CARD







FREEZE



SLIDE











PIC-

VOL.







MUTE

FOLDER







SLIDE









LIST







Remote mouse receiver

PS/2 adapter

E – 6

Getting to Know Your LT158/LT157 Projector

Front/Side Features





STAND/ON







BY



POWER



ADJUSTAUTO



STATUS

PC



ACCESS





CARD



SOURCE







R







ETNE





AC

SELECT





L





N







C







E



NEM

U

Air Filter

Zoom lever

Controls

Built-In Monaural Speaker (0.5W)

Lens

Remote Sensor

Ventilation (inlet)

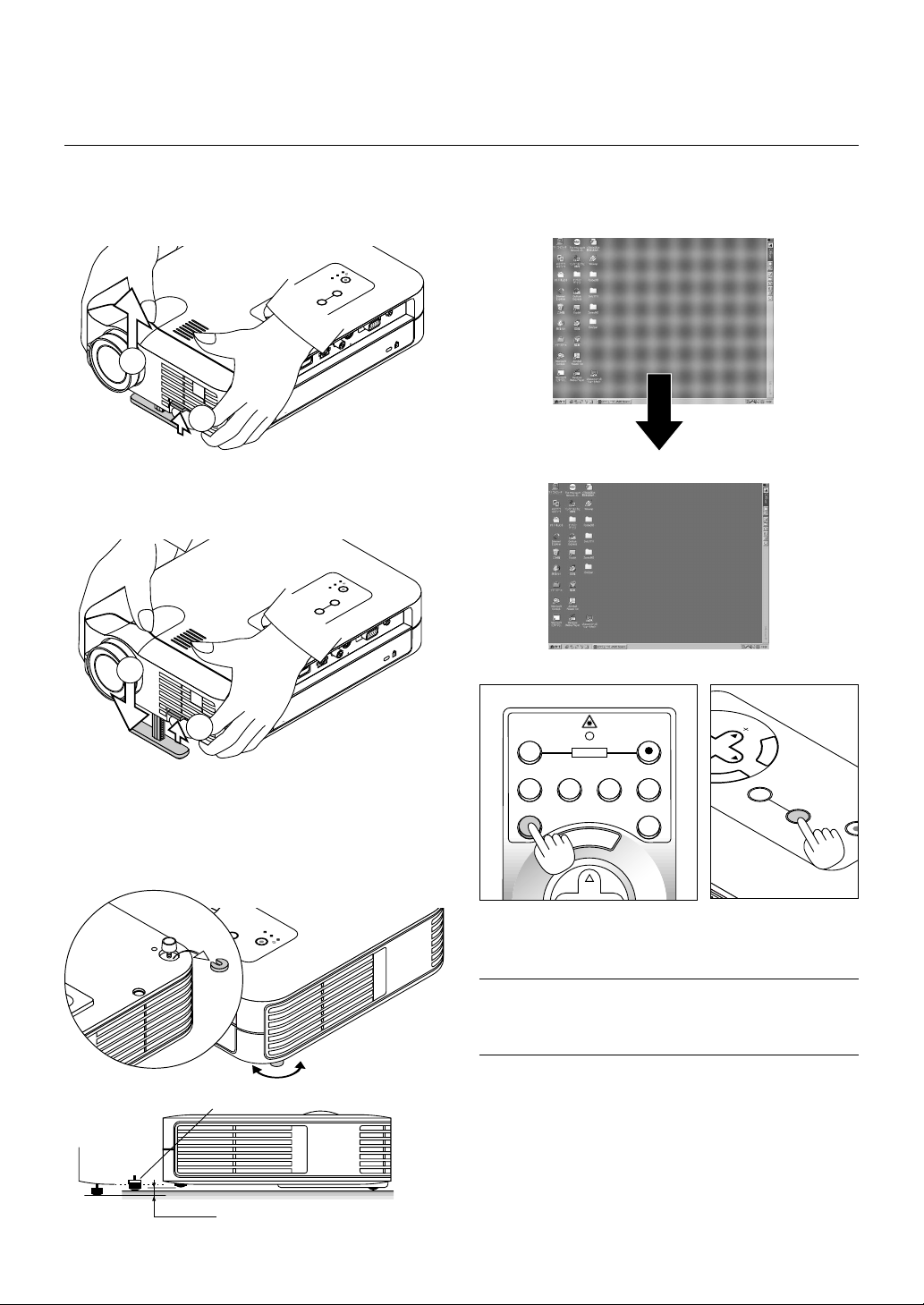

One-touch Tilt Button

Adjustable Tilt Foot

Focus ring

Lens cap

Attaching the lens cap to the bottom with the supplied string and rivet

1. Thread the string through the hole on the

2. Use the rivet to attach the string to the bottom of the projector.

lens cap and then tie a knot in the string.



E – 7

Rear/Side Features

AC Input

Connect the supplied power cable’s threepin plug here.



U



N

E

M



SELECT

ENTER

CARD

USB

AC

IN



S-

VIDEO

Terminal Panel

L



E



C



N

C

A

URCE





D







AR





TO

ST

C SS



PC CE

S



AU JU

AC

TU



AD



TA

ER





S









W







PO



/

BY







D







ON

AN







ST







AUDIO

Slot for Kensington Micro saver Security System

Bottom

Lamp cover

Lamp cover screw

Ventilation (inlet)

Remote Sensor

Ventilation (outlet)

Rear Foot

Rear Foot

Rotate to fine-adjust horizontally position

Spacer (black rubber)

To fine-adjust the height of the rear foot, remove the spacer and rotate the rear foot to the desired height.

E – 8

Top Features

4

CARD

USB



U











N









E









M

SELECT













N









L











E











C









C

A

8

9















1

AUTO



PC CARD









ACCESS

2

ADJUST



STATUS





POWER







3



BY



5





STAND





/





CONTROL

ON





6

7

10

S



1.Menu Button

Displays the menu.

2.Select ▲▼ / Volume (+) (-) Buttons

▲▼: Use these buttons to select the menu of the item you wish to adjust.

When no menus appear, these buttons work as a volume control.

: Use these buttons to change the level of a selected menu item. A press of the button executes the selection.

When the menus or the Viewer tool bar is not displayed, these buttons can be used to select a slide, or to move the cursor in Folder List or Slide List.

When the pointer is displayed, these ▲▼ buttons move the pointer.

3. Enter Button

Executes your menu selection and activates items selected from the menu.

4. Cancel Button

Press this button to exit "Menus". Press this button to return the adjustments to the last condition while you are in the adjustment or setting menu.

5. Source Button

Use this button to select a video source such as a PC, VCR, DVD player or PC Card Viewer (CompactFlash card).

Each time this button is pressed, the input source will change as follows:

→ RGB [“DVI (DIGITAL) → DVI (ANALOG)” on LT158] → Video PC Card Viewer ← S-Video ←

If no input signal is present, the input will be skipped.

6. Auto Adjust Button (RGB only)

Use this button to adjust Position-H/V and Pixel Clock/Phase for an optimal picture. Some signals may not be displayed correctly or take time to switch between sources.

7. Power Button (ON / STAND BY)

Use this button to turn the power on and off when the power is supplied and the projector is in standby mode.

NOTE: To turn off the projector, press and hold this button for a minimum of two seconds.

8. PC Card Access Indicator

Lights while accessing a CompactFlash memory card.

9. Status Indicator

When this is lit red continually, it's warning you that the projection lamp has exceeded 1500 hours (2500 hours in Eco mode) of service. After this light appears, it is advisable to replace the projection lamp as soon as possible. (See page E-48). In addition the message "The lamp has reached the end of its usable life. Please replace the lamp." appears continually until the lamp is replaced.

If this light blinks red rapidly, it indicates that the lamp cover is not attached properly or the projector is overheated.

See the Power / Status Light Messages on page E-50 for more details.

10. Power Indicator ( )

When this indicator is green, the projector is on; when the indicator is orange, it is in standby mode.

E – 9

Terminal Panel Features

8

7

6

CAR

5

D

4





USB

AC

IN



9

1. Audio Input Mini Jack (3.5 mm )

This is where you connect audio output from your computer, VCR, DVD player or laser disc player.

A commercially available audio cable is required.

2.RGB Input/ Component Input Connector (Mini D-Sub 15 pin)

Connect your PC or other RGB equipment. Use the supplied RGB cable to connect to a PC. Or connect a Macintosh computer here using the supplied RGB cable. This also serves as a component input connector that allows you to connect a component video output of component equipment such as a DVD player (optional cable required).

For LT158: DVI Connector (DVI 29-pin)

This connector can accept a digital or analog signal input from a computer with a DVI connector.

If you connect a mini D-sub 15 pin connector of a computer, attach the supplied DVI-A–VGA adapter to this connector.

3.S-Video Input (Mini DIN 4 Pin)

Here is where you connect the S-Video input from an external source like a VCR.

NOTE: S-Video provides more vivid color and higher resolution than the traditional composite video format.

4. Video Input (RCA)

Connect a VCR, DVD player, laser disc player, or document camera here to project video.

5. PC Control Port (Mini DIN 8 Pin)

Use this port to connect your PC to control your projector via a serial cable. This enables you to use your PC and serial communication protocol to control the projector. The NEC optional serial cable is required to use this port. Also PC Control Utility 1.0 included in the supplied CDROM must be installed on your PC.

If you are writing your own program, typical PC control codes are on page E-56.

A cap is put on the port at the factory. Remove the cap when using the port.



U









N







E







M

SELECT













N







L









E









C







C

A







SOURCE



N

R





E TE





3

LT158





2

S-



VIDEO





AUDIO

1

CARD ACCESS STATUS POWER

Slot for Kensington

10



MicroSaver Security System

6 USB Terminal

Connect a commercially available mouse that supports USB. You can operate the menu or PC Card Viewer with the USB mouse via this terminal.

Note that this terminal is not used with a computer and that there may be some brands of USB mouse that the projector does not support.

7. PC Card Eject Button

Press to eject a CompactFlash memory card.

8. PC Card Slot

Insert a CompactFlash memory card here.

9. AC Input

Connect the supplied power cable's three-pin plug here. When you plug the other end into an active wall outlet, the POWER indicator turns orange and the projector is in standby mode.

10 Built-in Security Slot ( )

This security slot supports the MicroSaver® Security System. MicroSaver® is a registered trademark of Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.

E – 10

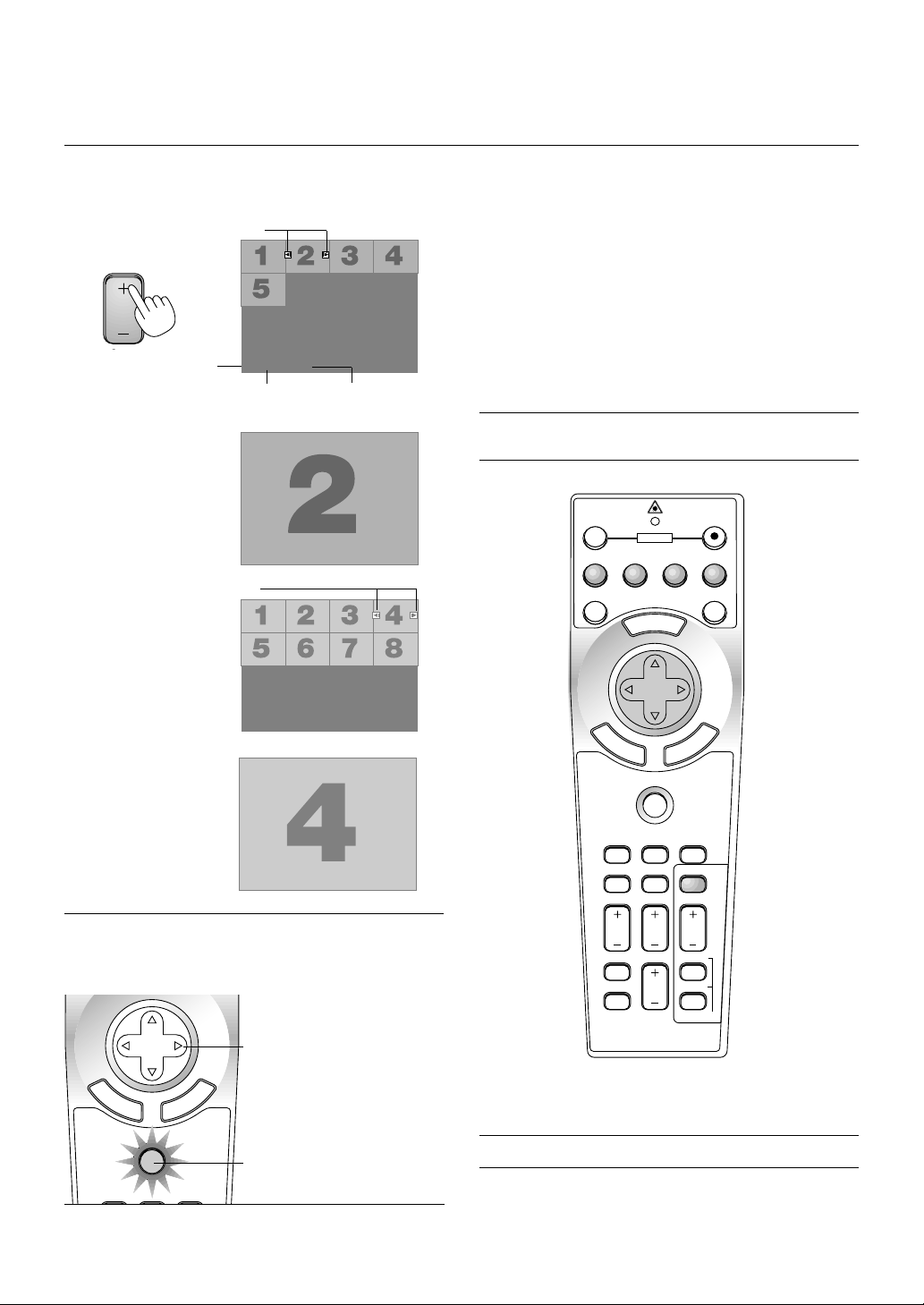

Remote Control Features

NOTE: If you are using a Macintosh computer, you can click either the rightclick or left-click button to activate the mouse.













T

















ISL













FOLDER

SLIDE























E







.









LS





LO

MUTE-





CARD



ID





V



PIC



PC



MAGNIFY





FREEZE

T

IFH















TS







M



POINTER







S







E











O





NO

YE











PL











OZ





K













EH















SU









JP







CO















F



















T













C

LE













ES



R













ES













AL









2B













GR













1B



.J









G





NO





R

DA

OT







OE







RE

W

IDV

UA









OP

OE













IDV











F













FO





3

1

2

1. Infrared Transmitter

Direct the remote control toward the remote sensor on the projector cabinet.

2. Laser Pointer

Beams a laser light when "Laser" button is pressed.

3. Remote Jack

Not available on this model.

6

4

5



OFF

ON

8



POWER



9

VIDEO

S-VIDEO RGB1

RGB2

7







10



AUTO ADJ.



LASER



11

12



MENU

13











SELECT



14













15

E







L

16



N







E





T

E





C





R



N







A









C













PJ





4. LED

Flashes when any button is pressed.

5. Power ON Button

If the main power is applied, you can use this button to turn your projector on.

6. Power OFF Button

If the main power is applied, you can use this button to turn your projector off.

NOTE: To turn off the projector, press and hold the POWER OFF button for a minimum of two seconds.

7. VIDEO Button

Press this button to select an NTSC, PAL, SECAM or NTSC4.43 compatible video source from a VCR, DVD player, laser disc player or document camera.

8. S-VIDEO Button

Press this button to select an S-Video source from a VCR.

9. RGB 1 Button

Press this button to select a video source from a computer or component equipment connected to your RGB port (DVI digital on LT158).

10. RGB 2 Button

Not available on the LT157.

For LT158:

Press this button to select a DVI analog signal from a computer.

11. AUTO ADJ Button

Use this button to adjust an RGB source for an optimal picture. Some signals may not be displayed correctly or take time to switch between sources.

12. LASER Button

Press and hold this button to activate the laser pointer. When lit, you can use the laser to draw your audience's attention to a red dot that you can place on any object.

13. MENU Button

Displays the menu for various settings and adjustments.

14. SELECT (▲▼ ) (Mouse) Button

When you are in the Computer mode, these buttons work as a computer mouse.

When you are in the Projector mode, which is indicated by lighting the PJ button:

▲▼: Use these buttons to select the menu of the item you wish to adjust.

: Use these buttons to change the level of a selected menu item. A press of the button executes the selection.

When the pointer is displayed, these ▲▼ buttons move the pointer.

15. ENTER (Left Click) Button

When you are in the Computer mode, this button works as the mouse left button.

When this button is pressed and held for a minimum of 1.5 seconds, the drag mode is set.

When you are in the Projector mode, which is indicated by lighting the PJ button:

Use this button to enter your menu selection. It works the same way as the "Enter" button on the cabinet.

16. CANCEL (Right Click) Button

When you are in the Computer mode, this button works as the mouse right button.

When you are in the Projector mode, which is indicated by lighting the PJ button:

Press this button to exit "Menus". It works the same way as the “Cancel” button on the cabinet.

E – 11





PJ

17

22





19









FOCUS

ZOOM

SHIFT

18

HELP

POINTER

20



PC CARD

21





28



KEYSTONE MAGNIFY

SLIDE

23





29

24

FREEZE

VOLUME

FOLDER

25

PIC-MUTE



30





SLIDE

26





31

LIST

27

17. PJ Button

Press this button to switch the Select, Cancel, and Enter buttons between the Projector mode (lit red) and the Computer mode. Press this button or any one of the Power ON/OFF, Menu, Help, Pointer, Magnify, PC Card, Folder List or Slide List buttons to switch to the Projector mode and the PJ button lights red. To switch back to the Computer mode, press the PJ button again.

18. FOCUS Button

Not available on this model.

19. ZOOM Button

Not available on this model.

20. SHIFT Button

Not available on this model.

21. HELP Button

Provides information about operation and adjustment procedures or the set information for the current menu or adjustment during menu operation.

22. POINTER Button

Press this button to display one of the eight pointers; press again to hide the pointer. You can move your pointer icon to the area you want on the screen using the Select button.

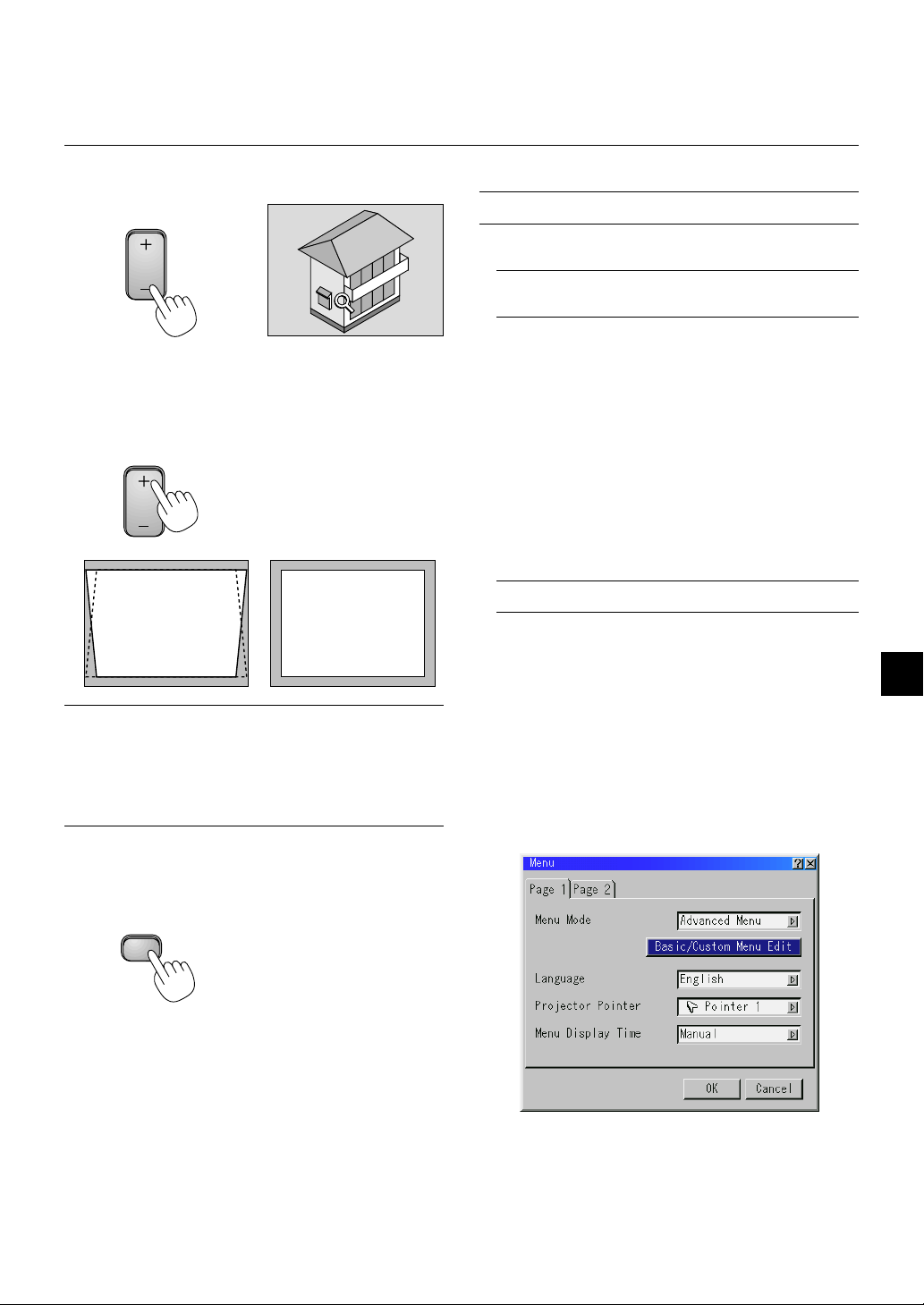

23. KEYSTONE (+) (–) Button

Press the (+) or (–) button to correct the keystone (trapezoidal) distortion, and make the image square.

24. MAGNIFY (+) (–) Button

Use this button to adjust the image size up to 400%.

When the pointer is displayed, the image is magnified about the center of the pointer. When the pointer is not displayed, the image is magnified about the center of the screen.

When the image is magnified, the pointer is changed to the magnifying icon.

25. FREEZE Button

This button will freeze a picture. Press again to resume motion.

26. PICTURE MUTE Button

This button turns off the image and sound for a short period of time. Press again to restore the image and sound.

NOTE: When the menu is displayed, a press of this button mutes an image and sound without turning off the menu.

27. VOLUME (+) (–) Button

Press (+) to increase the volume and (–) to decrease it.

28. PC CARD Button

Press this button to select the PC Card Viewer source.

29. SLIDE (+) (–) Button

Press (+) to select the next folder or slide and (–) to select the previous folder or slide.

30. FOLDER LIST Button

Press this button to select PC Card Viewer source to display a list of folders included in a CompactFlash card.

31. SLIDE LIST Button

Press this button to select PC Card Viewer source to display a list of slides included in a CompactFlash card.

*NOTE: The default is the Computer mode, which allows you to use the Select, Cancel, and Enter buttons as your computer mouse. When the POWER ON/ OFF, MENU, HELP, POINTER, MAGNIFY, PC CARD, FOLDER LIST, or SLIDE LIST button is pressed, the PJ button lights red to indicate that you are in the Projector mode. If no buttons are pressed within 10 seconds, the light goes out and the Projector mode is canceled.

E – 12

Operating Range



7m



7m



30˚

30˚

30˚



30˚



Remote Control Battery Installation

1. Press firmly and slide the battery cover off.

2.Remove both old batteries and install new ones (AA). Ensure that you have the batteries' polarity (+/–) aligned correctly.

Setting the function switch

OFF ON

There are two switches on the bottom of the battery case: an applicable projector selector switch (1) and laser enable/disable switch (2). Check the projector being used and decide whether to enable or disable laser, then set these switches as necessary using the tip of a thin ball-point pen.

On this model, an applicable projector selector switch (1) is not used.

Switch (2)

On: Enabled (the laser lights when the LASER button is pressed) [Factory default]

Off: Disabled (the laser does not light even when the LASER button is pressed)

Disable the laser when using in an environment in which the unit is accessible to children.

3. Slip the cover back over the batteries until it snaps into place.

Do not mix different types of batteries or new and old batteries.

Note on Remote Control Operation:

Pressing and holding the Select (▲, ▼, , )/ Mouse button while installing new batteries may cause malfunction or no operation. Should this happen, remove the batteries and then install them again without touching the Select/Mouse button.

Remote Control Precautions

Handle the remote control carefully.

If the remote control gets wet, wipe it dry immediately.

Avoid excessive heat and humidity.

If you will not be using the remote control for a long time, remove the batteries.

Do not place the batteries upside down.

Do not look into the laser pointer while it is on.

Do not point the laser beam at a person.

E – 13

Using Remote Mouse Receiver

The remote mouse receiver enables you to operate your computer’s mouse functions from the remote control (Computer mode). It is a great convenience for clicking through your computer-generated presentations.To return to the Projector mode, press the PJ button (lit red).

Connecting the remote mouse receiver to your computer

If you wish to use the remote mouse function, connect the mouse receiver and computer.

The mouse receiver can be connected directly to the computer using the USB terminal.

To connect it to the computer using the mouse (PS/2) terminal, do so using the PS/2 adapter.

NOTE: Depending on the type of connection or OS installed on your computer, you may have to restart your computer or change your computer settings.

Computer

Remote mouse receiver

To USB port of PC or

Macintosh

To Mouse (PS/2)

port of PC

Atach the supplied

PS/2 Adapter

When connecting using the USB terminal

For PC, the mouse receiver can only be used with a Windows 98, Windows ME or Windows 2000 operating system.

NOTE:

Wait at least 5 seconds after disconnecting the mouse receiver before reconnecting it and vice versa. The computer may not identify the mouse receiver if it is repeatedly connected and disconnected in rapid intervals.

When using the PS/2 adapter, be sure to attach the PS/2 adapter to the remote mouse receiver first. Do not connect or disconnect the USB connector of the remote mouse receiver with the PS/2 adapter on the mouse (PS/2) port of your PC. Doing so can result in your PC failing to detect the remote mouse receiver.

When operating a computer via the remote mouse receiver

7m

30˚

30˚

Remote sensor on the remote mouse receiver

E – 14

Switching operation mode between computer and projector

The three shaded buttons shown on the drawing work as a computer mouse in the Computer mode.

In the Computer mode the PJ button is not lit.

When the MENU button is pressed, the PJ button lights red to indicate that you are in the Projector mode, which allows the projector menu operation using the three buttons.

When the POINTER button is pressed, the PJ button lights red to indicate that you are in the Projector mode and that the SELECT ▲, ▼, , button works as a moving button for the POINTER or magnified image.

If no buttons are pressed within 10 seconds, the PJ button's light goes out to indicate that you are in the Computer mode. To enable the projector menu operation again, press the PJ button to light red. To move the pointer or a magnified image again, turn off the pointer and then turn on the pointer (press the POINTER button two times).

When the PJ button is lit, if you want to use the mouse function immediately, press the PJ button to return to the Computer mode (not lit).

OFF

ON

OFF

ON

POWER



POWER



VIDEO S-VIDEO RGB1

RGB2

VIDEO S-VIDEO RGB1

RGB2

AUTO ADJ.

LASER

AUTO ADJ.

LASER

MENU



MENU





Works as a mouse for your



SELECT

computer.

SELECT

E









L

N









E

T

E







C

R



N



A







C





PJ

FOCUS ZOOM SHIFT

Works as a right-click button for your computer.

Not lit

Works as a left-click button for your computer.

E

N

T

E

R

PJ



L



E



C



N

A

C



HELP POINTER PC CARD

HELP POINTER PC CARD

Works as the Select button on the projector.

Works as the Cancel button on the projector.

Lit red

Works as the Enter button on the projector.

KEYSTONE

MAGNIFY

SLIDE

KEYSTONE

MAGNIFY

SLIDE

FREEZE

VOLUME

FOLDER

FREEZE

VOLUME

FOLDER

PIC-MUTE



SLIDE

PIC-MUTE



SLIDE





LIST





LIST

During Computer mode:

During Computer mode by pressing the ENTER button for 1.5 seconds or more then releasing, the drag mode is set and the drag operation can be performed simply by pressing the SELECT (▲, ▼, , ) (mouse) button. To cancel the drag mode, press the ENTER (left click) button again or press the CANCEL (right click) button.

E – 15

2. INSTALLATION

This section describes how to set up your LT158/LT157 projector and how to connect video and audio sources.

Setting up Your Projector

Your LT158/LT157 Projector is simple to set up and use. But before you get started, you must first:

1.Determine the image size.

2.Set up a screen or select a non-glossy white wall onto which you can project your image.

Ensure that the power cable and any other cables connecting to video sources are disconnected before moving the projector. When moving the projector or when it is not in use, cover the lens with the lens cap.

Selecting a Location

The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is approximately 25" (0.6 m) measured diagonally when the projector is roughly 3.9 feet (1.2 m) from the wall or screen. The largest the image can be is 300" (7.6 m) when the projector is about 40.4 feet (12.3 m) from the wall or screen.

Screen and Projection Distance

The following shows the proper relative positions of the projector and screen. Refer to the table to determine the position of installation.

Throw distance



















































Screen

size























































































569.





(Unit:





















































































0

(W)





cm/























































































X

426.



























































































7

(H)/ inch)























































































































































































224







































































487.























(W)





























































































































































































X

168



































































7

(W)























(H)









































































X



































































































365.



































































































8

(H)/







































































406.























192

(W)





























































































X

144

































































4

(W)





























(H)

































































X

304.



































































































8

(H)/



































































































160

(W)





















240"











































































































































































X























































304.







































120

(H)











































































































































8

(W)

































































































X

228.







































200"



























243.

























6

(H)/















































































































































































120

(W)





























































8

(W)



















































































































X





































































X





























90











































203.

















182.

























(H)





























































9(H)





































































2

(W)





















/































































































96

(W)





































































X

152.











































































































X

72

















































162.



















4





80















(H)















150"









































(H)/





































































6

(W)





















(W)











































































































































121.











X

121.

















X

60

(H)



































































9

(H)/































120"

































9

(W)









































































































64

(W)

































































X

91.









































































81.

















(H)















X

48





































































4



















(H)











100"































3

X





















/



(W)













































































48



























































(W)



61.



















X



























































61.































36



































































0

(H)





















(H)

















































0

















































80"







































X















/























































































32









































































(W)

45.















(W)



































































TELE:

























































































7(H)



















X24































































50.



25"







/























(H)















60"







































8











24











































































(W)









(W)











































































X

38.







































































































X

18













































































1

(H)/













(H)















40"

















































































































































20

(W)













































































































7"







































































X

15















2











































































(H)

























































































































































































































































Screen

280"

W





IDE:



609.



300"

6





(W)





X

457.







2

(H)/







240

(W)







X







180

(H)







.9



.2/3

.6

1



.7/5



1

Lens

center



.5



.8







.4

.4

6/8

.8







.8/35

2

.6/11







.5

.3/40

.



5/14





.0/29

10

12



3

.7

.0



.









4

.4/17

.7/22

9











6













5









/feet) :m (Unit Distance

E – 16

Distance Chart













Throw Distance (C)



Screen Top











































Screen Center

B=Vertical distance between lens center and













screen center



B













Throw Angle (α)

C=Throw distance

Lens Center



D=Vertical distance between lens center and



1.6” (40.3mm)



D



screen bottom (screen top for ceiling installa-















Projector Foot

tion)

Screen Bottom













Ceiling Installation









Screen Top

















WARNING













Projector Foot

• Installing your projector on the ceiling must be



D











done by a qualified technician. Contact your NEC











1.6” (40.3mm)





dealer for more information.









Lens Center

















Throw Angle (α)

* Do not attempt to install the projector yourself.



B



















• Only use your projector on a solid, level surface.

















Screen Center















If the projector falls to the ground, you can be in-































jured and the projector severely damaged.



















• Do not use the projector where temperatures vary



















greatly. The projector must be used at tempera-

Screen Bottom

















tures between 41˚F (5˚C) and 95˚F (35˚C).













• Do not expose the projector to moisture, dust, or

























Throw Distance (C)

smoke. This will harm the screen image.



















• Ensure that you have adequate ventilation around



















your projector so heat can dissipate. Do not cover



















the vents on the side or the front of the projector.





















If your projector is mounted on the ceiling and your image is upside down, use the “Menu” and “Select” buttons on your projector cabinet or ▲▼ button on your remote control to correct the orientation. (See page E-37.)

Reflecting the Image

Using a mirror to reflect your projector’s image enables you to enjoy a much larger image. Contact your NEC dealer if you need a mirror. If you’re using a mirror and your image is inverted, use the “Menu” and “Select” buttons on your projector cabinet or ▲▼ buttons on your remote control to correct the orientation. (See page E-37.)

















































Screen Size





B









C









D



α



Diagonal

Width

Height









wide





tele







wide



tele

inch

mm

inch

mm

inch

mm

inch



mm

inch



mm

-

inch



mm

inch



mm

degree

-

degree

25

635

20

508

15

381

6



152

-



-

-

46



1166

-2



-39

-

-

7.4

30

762

24

610

18

457

7



182

46



1165

-

56



1413

-2



-47

8.9

-

7.3

40

1016

32

813

24

610

10



243

62



1576

-

75



1906

-2



-62

8.8

-

7.3

60

1524

48

1219

36

914

14



364

94



2398

-

114



2891

-4



-93

8.6

-

7.2

67

1702

54

1361

40

1021

16



406

106



2685

-

127



3236

-4



-104

8.6

-

7.2

72

1829

58

1463

43

1097

17



437

114



2890

-

137



3482

-4



-112

8.6

-

7.1

80

2032

64

1626

48

1219

19



485

127



3219

-

153



3877

-5



-124

8.6

-

7.1

84

2134

67

1707

50

1280

20



509

133



3383

-

160



4074

-5



-131

8.6

-

7.1

90

2286

72

1829

54

1372

21



546

143



3630

-

172



4369

-6



-140

8.6

-

7.1

100

2540

80

2032

60

1524

24



607

159



4040

-

191



4862

-6



-155

8.5

-

7.1

120

3048

96

2438

72

1829

29



728

191



4862

-

230



5848

-7



-187

8.5

-

7.1

150

3810

120

3048

90

2286

36



910

240



6094

-

288



7326

-9



-233

8.5

-

7.1

180

4572

144

3658

108

2743

43



1092

288



7326

-

347



8804

-11



-280

8.5

-

7.1

200

5080

160

4064

120

3048

48



1213

321



8148

-

385



9790

-12



-311

8.5

-

7.1

210

5334

168

4267

126

3200

50



1274

337



8558

-

405



10283

-13



-327

8.5

-

7.1

240

6096

192

4877

144

3658

57



1456

385



9790

-

463



11761

-15



-373

8.5

-

7.1

261

6629

209

5304

157

3978

62



1577

418



10612

-

502



12746

-16



-404

8.5

-

7.1

270

6858

216

5486

162

4115

64



1638

434



11023

-

-



-

-17



-420

8.5

-

-

300

7620

240

6096

180

4572

72



1820

482



12255

-

-



-

-18



-466

8.4

-

-













































NOTE: Distances may vary +/–5%.

E – 17

Wiring Diagram

VCR, DVD Player or

LaserDisc Player

DVI-A – VGA signal cable (supplied)

To video, S-video, and audio

Gender changer

inputs on the projector.

mini D-sub 15-pin F – 15-pin F (not supplied)

LT158

Document Camera

DVI

VIDEO S-VIDEO

RGB

AUDIO

PC CONTROL

Optional 15-pin-to-RCA (female) 3 cable (ADP-CV1)

RGB Signal cable (supplied)

To mini D-Sub 15-pin connector on the projector. It is recommended that you use a commercially available distribution amplifier if connecting a signal cable longer than the one supplied.

For LT158:

DVI-D – DVI-D signal cable (supplied) or DVI-A – VGA signal cable (supplied)

To DVI connector on the projector.

Component Video cable RCA 3 (not supplied)







































































































































































































































































































































































































































































































































































Macintosh or Compatibles

IBM VGA or Compatibles

DVD Player (with component output)

(Desktop type or notebook type)

(Desktop type or notebook type)















NOTE: When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the power to the notebook PC. In most cases signal cannot be output from RGB output unless the notebook PC is turned on after connecting with the projector.

NOTE:

*If the screen goes blank while using your remote control, it may be the result of the computer’s screen-saver or power management software.

*If you accidentally hit the POWER button on the remote control, wait 60 seconds and then press the POWER button again to resume.

NOTE: If using video, S-video, or audio cables, the cables should be 3 m (9.8 feet) or shorter.

For LT158:

When Viewing a DVI Digital Signal:

To project a DVI digital signal, be sure to connect the PC and the projector using the supplied DVI-D signal cable before turning on your PC or projector. Turn on the projector first and select DVI (DIGITAL) from the source menu before turning on your PC.

Failure to do so many not activate the digital output of the graphics card resulting in no picture being displayed. Should this happen, restart your PC. Do not disconnect the supplied DVI-D signal cable while the projector is running. If the signal cable has been disconnected and then re-connected, an image may not be correctly displayed. Should this happen, restart your PC.

NOTE: Some personal computers or video cards may not display images correctly on the LT158.

To connect a DVI connector on your computer to LT158, attach the supplied DVI-D – DVI-D signal cable to the DVI connector on the projector. If you use a separately sold DVI cable, images may not be correctly displayed.

NOTE: The DVI connector can accept a maximum resolution of 1024x768(XGA) when a DVI (DIGITAL) input is selected.

E – 18

Connecting Your PC

IBM VGA or Compatibles

Mini D-Sub 15 pin connector

RGB signal cable (supplied)

To mini D-Sub 15-pin connector on the projector. It is recommended that you use a commercially available distribution amplifier if connecting a signal cable longer than the one supplied .

Audio cable (not supplied)

LT157

CARD

AC IN

RGB

INPUT





AUDIO







AUDIO

Connecting your PC to your LT157 (XGA) projector will enable you to project your computer’s screen image for an impressive presentation.

To connect to a PC, simply:

1.Turn off the power to your projector and computer.

2.Use the supplied signal cable to connect your PC to the projector.

3.Turn on the projector and the computer.

4.If the projector goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you’ve connected to the projector.

DVI connector

IBM VGA or Compatibles

Mini D-Sub 15 pin connector

DVI-D – DVI-D signal cable (supplied)

To DVI connector on the projector.

CARD

AC IN

EO

S-V

LT158

DVI

AUDIO

A

UD

IO

Audio cable (not supplied)

Connection Option when using DVI output.

DVI-A – VGA signal cable

(supplied)

Connection Option when using mini D-Sub 15 pin output.







Connecting Your PC with a DVI Connector

You can connect your PC with a DVI output to your LT158 (XGA) projector.

When connecting a PC with a D-sub 15 pin analog connector, attach the supplied DVI-A – VGA signal cable to the D-sub 15 pin connector of your PC.

To connect to a PC, simply:

1.Turn off the power to your projector and computer.

2.Use the supplied DVI-D–DVI-D signal cable to connect a DVI connector of your PC to the projector.

To connect a PC with a mini D-sub 15 pinmini D-sub 15 pin connector, attach the supplied DVI-A – VGA signal cable to the DVI connector on the projector.

3.Turn on the projector and the computer.

4.If the projector goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you’ve connected to the projector.

E – 19

Connecting Your Macintosh Computer

Macintosh (Notebook type)

CARD

AC IN

RGB signal cable (supplied)

Audio cable (not supplied)

LT157

RGB

INPUT





AUDIO







AUDIO

CARD

AC IN

EO

S-VI

DVI-A – VGA signal cable (supplied)

Audio cable (not supplied)

LT158

DVI

AUDIO

A

UDI

O

Macintosh (Desktop type)

To connect to a Macintosh, simply:



1. Turn off the power to your projector and your Macintosh computer.



2. Use the supplied signal cable to connect your Macintosh computer to the



projector.



3. Turn on the projector and the Macintosh computer.

For LT158:

When connecting a Macintosh with a mini D-sub 15 pin analog connector, attach the supplied DVI-A – VGA signal cable to the DVI connector on the projector.

Pin adapter for Macintosh (not supplied)

For older Macintosh, use a commercially available pin adapter to connect to your Mac's video port.

E – 20

Connecting Your DVD Player

DVD player

A









U









D







R

IO







L

C













om

Red



Y



Cponent









b

White







Cr

Y











Cb











Cr



Component video cable

RCA 3 (not supplied)

AC IN

E



RGB



O

S-



INPUT







V







ID







E







O





AUDIO

Optional 15-pin-to-RCA (female) 3 cable (ADP-CV1)

Audio Equipment

A



U



D

R

IO

L



Red

White

Audio cable (not supplied)

You can connect your projector to a DVD player with component outputs or Video output. To do so, simply:

1.Turn off the power to your projector and DVD player.

2.If your DVD player has the component video (Y/Cb/Cr) output, use a commercially available component video cable (RCA 3) and the optional 15-pin-to-RCA (female) 3 cable to connect your DVD player to the RGB INPUT connector on the projector.

For a DVD player without component video (Y/Cb/Cr) outputs, use common RCA cables (not provided) to connect a composite VIDEO output of the DVD player to the Video Input of the projector.

3.Turn on the projector and DVD player.

NOTE: Refer to your DVD player’s owner’s manual for more information about your DVD player’s video output requirements,

Optional 15-pin-to- RCA (female) 3 cable

(ADP-CV1)

CARD

USB

E



DVI-

O



D

V

S-

IDE





O



AUDIO

AUDIO

DVI-A – VGA signal cable (supplied)

Gender changer mini D-Sub 15p F

– 15p F LT158

(not supplied)

For LT158:

Attach the supplied DVI-A–VGA cable to the DVI connector on your projector.

To connect a DVD player (component), a commercially available gender changer (Mini D-Sub 15p F-15p F) is required as well as ADPCV1.

E – 21

Connecting Your VCR or Laser Disc Player

VCR/ Laser disc player

S

-VIDEO



AUDIO

L

R

S-video cable (not supplied)

AC IN

USB

VIDEO

P

O

S-

VIDEO

S-VIDEO

Audio equipment

AUDIOL R

Audio cable

Video cable

(not supplied)

(not supplied)

Document camera

VIDEO

Use common RCA cables (not provided) to connect your VCR, laser disc player or document camera to your projector.

To make these connections, simply:

1.Turn off the power to the projector and VCR, laser disc player or document camera.

2.Connect one end of your RCA cable to the video output connector on the back of your VCR or laser disc player, connect the other end to the Video input on your projector. Use an audio cable (not supplied) to connect the audio from your VCR or laser disc player to your audio equipment (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3.Turn on the projector and the VCR or laser disc player.

NOTE: Refer to your VCR or laser disc player owner’s manual for more information about your equipment’s video output requirements.

E – 22

About Startup screen

(Menu Language Select screen)

When you first turn on the projector, you will get the Startup screen. This screen gives you the opportunity to select one of the seven menu languages: English, German, French, Itilan, Spanish,Swedish and Japanese.

To select a menu language, follow these steps:

1.Use the Select or button to select one of the seven languages for the menu.

2.Press the Enter button to execute the selection.

3.The Basic/Custom menu will be displayed in the language you have selected.

To close the menu, press the Cancel button.

After this has been done, you can proceed to the advanced menu operation.

If you want, you can select the menu language later. See “Language” on page E-36.

E – 23

3. OPERATION

Connecting the Power Cable and Turning on the Projector

Before you turn on your projector, ensure that the computer or video source is turned on and that your lens cap is removed.

1. Connect the supplied power cable to the projector.













R



















SU

EW

OP











D

SS













TA















RA

EC

TS















C



CA



















CP



















T





YB

DN











S





/N

AT









O

UJD





S









TUA

A





O







EC





















RU



















LECNAC

OS









































R



















TC

E



















N



















EL

T



















E



















ES



















UN



















AUDIO

EM



































S-VIDEO



















VIDEO











PC

CONTROL













C CARD









































USB

















AC

IN







































Plug the supplied power cable in the wall outlet. The projector will go into its standby mode and the power indicator will glow orange.

2. Turn on and off the Projector

OFF





ON







POWER



Power ON button

VIDEO S-VIDEO RGB1

RGB2



AUTO ADJ.





LASER







MENU









N







E









M















SELECT

L

Indicator







E







C







N









C

A











AUTO

PC CARD









ACCESS









ADJUST

STATUS











POWER









/

BY

P







ON









STAND

O







Power ON/STAND BY button

S-















V











IDE







To turn on the projector:

Only after you press the “On” button on the remote control (“ON/ STAND BY” button on the projector cabinet) will the power indicator turn to green and the projector become ready to use.

NOTE: To turn the projector on by plugging in the power cable, use the menu and enable the “Auto Start” feature. (See page E-38.)

NOTE: Immediately after turning on the projector, screen flicker may occur. This is not a fault. Wait 3 to 5 minutes until the lamp lighting is stabilized.

To turn off the projector:

First press the “off” button on the remote control (“ON/STAND BY” button on the projector cabinet) for a minimum of two seconds. The power indicator will glow orange. After the projector turns off, the cooling fans keep operating for one minute.

NOTE: Do not disconnect the power cable during this time. Then, unplug the power cable. The power indicator will go out.

Status of indicator light: turn on

Normal mode:

stand by

STATUS

ON/



POWER

STAND BY



steady orange light







STATUS

STATUS



POWER

POWER



flashing green light

steady green light



for one minute



Eco mode:





stand by





STATUS

ON/



POWER

STAND BY



steady orange light







STATUS

STATUS



POWER

POWER



flashing green light

steady green light



for one minute

(Eco mode)



(Normal mode)



Status of indicator light: turn off



ON







ON/

Press a minimum

POWER

STAND BY

of two seconds.





steady green light







cooling down

stand by



POWER

POWER



change to flashing

steady orange light



green light



E – 24

3.Adjust a Projected Image

Select the Computer or Video Source

VIDEO

S-VIDEO

RGB1

RGB2

ELECT

L





C















E















N













C

A















AUTO









PC CARD





ADJUST





























/

BY













STAND













ON



Press the Source button on the remote control or the projector cabinet to select “Video” (VCR, document camera, or laser disc player), S- Video”, “RGB” (computer or DVD with component output) [ “DVI digital” , “DVI analog” (computer with DVI output: LT158 only)] or “PC Card Viewer” (slides on a CompactFlash card) to display the image.

Or press the “Menu” button on the remote control or the cabinet and use the menu to select your video source: “Video”, “S-Video”, “RGB (DVI on LT158)” or “PC Card Viewer”.

NOTE: If no input signal is available, the projector will display a blue background (factory preset).

Adjust the Image Size and the Focus

Use the Zoom lever to fine adjust the image size on the screen

Use the Focus ring to obtain the best focus.

Place your projector on a flat level surface and ensure that the projector is square to the screen.

Lift the front edge of the projector to center the image vertically.

Move the projector left to center the image horizontally on the screen.

Rotate the rear foot to make the image square to the screen.

Use keystone correction for proper adjustment.

E – 25

Adjust the Tilt Foot

1.Lift the front edge of the projector.

2.Press the Tilt button on the front of the projector to extend the adjustable tilt foot (maximum height).

Adjust the Image Using Auto Adjust

The Auto Adjust function automatically optimizes the image in RGB mode.

[Poor picture]

1

2













R



















SU

EW











D

SSE

TAT















RAC



CC

S

















CP A



















TS







YB

DN











UJ

























/N ATS











OTUADA







O







EC





















RU

















LE CNAC

OS





















R

















T



E

















CELES

















UN





















EM





































S-VID

EO



































VID

EO

































NTR

OL

















CO















ARD

PC















C C





















USB















AC

IN







































AUD

IO



3. Press and hold the Tilt button.

[Normal picture]

4. Lower the front of the projector to the desired height and release the button to lock the Adjustable tilt foot.

There is approximately 10 degrees of up and down adjustment for the front of the projector.

















R



















SU

EW



















OP













D

SSE

TAT

















RAC

CC

S



















CP

A





















TS





YB

DN

















JU





/N TAS















TOUADA





O











EC























RU





















LEC NAC

OS













































R





















T

E





















CELES



















UN

EM















AUDIO





















S-VIDEO



4















VIDEO















TRO

L



































PC

CON















C CARD























USB















3



AC

IN





































Do not use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or hanging on the wall can cause damage to the projector.

To fine-adjust the height of the rear foot, remove the spacer (black rubber) and rotate the rear foot to the desired height.

*If the projected image does not appear square to the screen then use keystone correction for proper adjustment.

/

AUDIO

Down

Up

Spacer

OFF





ON



C







ELECT











L











E



POWER



C

AN











VIDEO

S-VIDEO

RGB1

RGB2





AUTO ADJ.





LASER



AUTO







ADJUST



MENU







Press the Auto Adjust button to adjust Position-H/V and Pixel Clock/ Phase for an optimal picture. Some signals may not be displayed correctly or take time to switch between sources.

NOTE: For LT158

*The horizontal and vertical position adjustments to DVI digital signal are not stored in memory on LT158.

*The Pixel Clock and Phase items are not available for a DVI digital signal on LT158 (these adjustments are not necessary for this type of signal).

max.

min.



16mm

E – 26

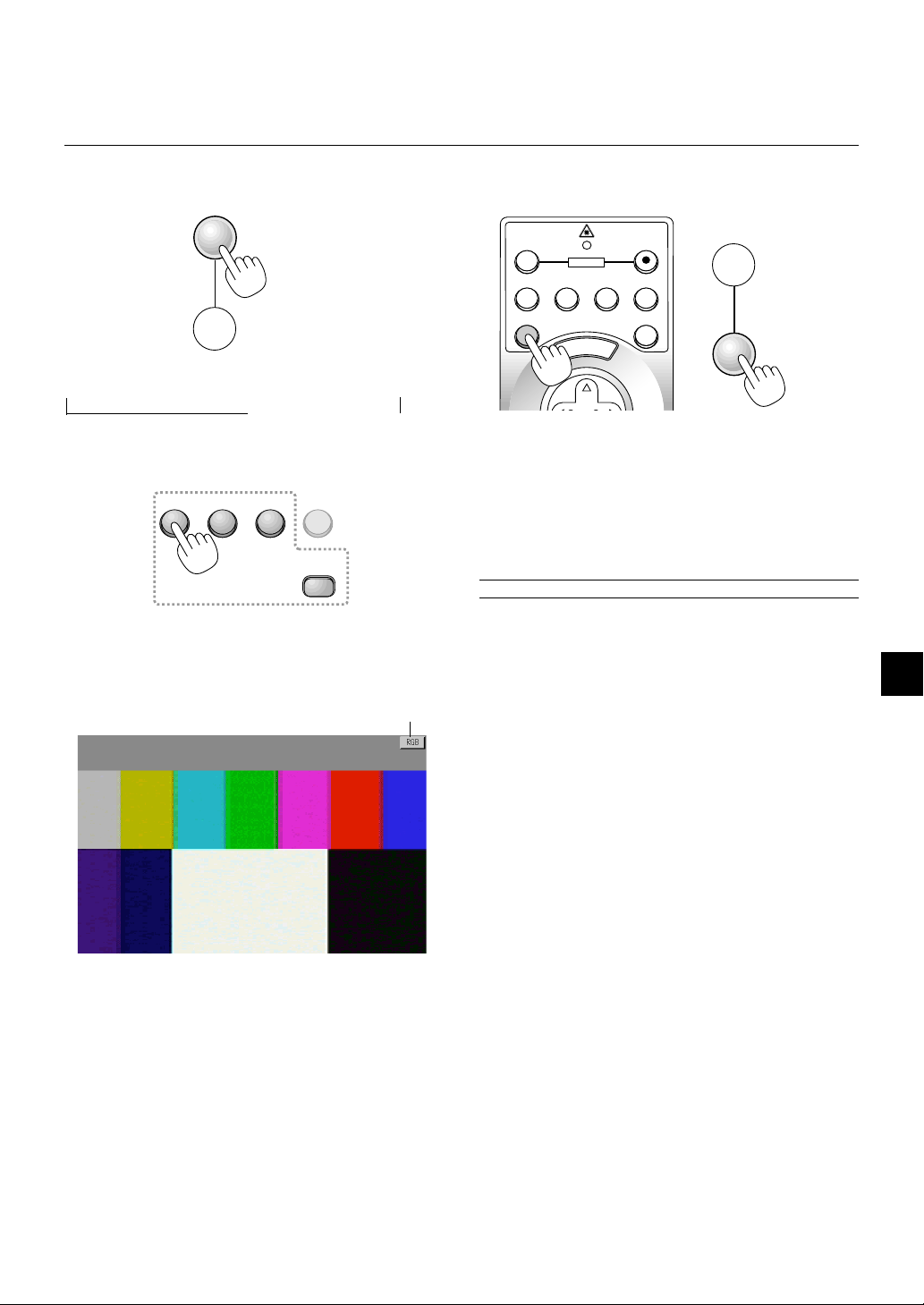

Basic Operation

Selecting the computer or video source:

SOURCE

AUTO

ADJUST

Each time the Source button is pressed, the input source will change as follows:

→ RGB [“DVI (DIGITAL) → DVI (ANALOG)” on LT158] → Video PC Card Viewer ← S-Video ←

If no input signal is present, the input will be skipped.

VIDEO S-VIDEO RGB1 RGB2

PC CARD

On LT158:

Press the RGB 1 button on the remote control to select DVI digital signal and the RGB 2 button for DVI analog signal.

Source display

Optimizing RGB image automatically

Press the Auto Adjust button to optimize an RGB image automatically.

OFF ON

POWER

SOURCE

VIDEO S-VIDEO RGB1

RGB2

AUTO ADJ.

LASER

MENU

AUTO



ADJUST

Press the Auto Adjust button to fine-tune the computer image or to remove any vertical banding that might appear and to reduce video noise, dot interference or cross talk (this is evident when part of your image appears to be shimmering). This function adjusts the clock frequencies that eliminate the horizontal banding in the image. This function also adjusts the clock phase to reduce video noise, dot interference or cross talk. (This is evident when part of your image appears to be shimmering.)

This adjustment may be necessary when you connect your computer for the first time.

NOTE: The Auto Adjust function does not work for component signal.

E – 27

Volume control:

Sound level from the speaker on the projector can be adjusted.

VOLUME

increase volume

Volume bar

decrease volume

Turning off picture and sound:

Press the Picture Mute button to turn off the image and sound for a short period of time. Press again to restore the image and sound.

PIC-MUTE

Getting Help about how to operate the projector:

You get the contents about Help.

HELP

SELECT

Display Help

Exit Help

Using Pointer

You can use one of eight pointers to draw your audience's attention to the portion of a projected image you want.

POINTER

Press the Pointer button to display the pointer.

SELECT

Use the Select button to move the pointer.

Enlarging and Moving a Picture

You can enlarge the area you want up to 400 percent.

To do so:

1. Press the Pointer button to display the pointer.

POINTER

2. Move the pointer to the area you want to enlarge.

3.Enlarge the selected area.

When the Magnify (+) button is pressed, the pointer is changed to a magnifying glass. To move the magnifying glass, use the Seltct button.

MAGNIFY

E – 28

4. Return the image to the original size.

MAGNIFY

Correcting Keystone distortion

Press (+) or (-) to correct keystone (trapezoidal) distortion to make the top or bottom of the screen longer or shorter so that the projected image is rectangular.

KEYSTONE

Keystone distortion

Normal

NOTE: The maximum keystone angle that can be corrected is 40 degrees upward and 20 degrees downward with the projector placed horizontally on the ground plane.

Depending on the type of graphics being used, the picture may get blurred or keystone correction may not be possible when excessive keystone correction is used.

The idea is, the closer you are to native resolution, the better image you will see.

Freezing a picture

Press the Freeze button to freeze a picture. Press again to resume motion.

FREEZE

Using the Menus

NOTE: The on-screen menu may not be displayed correctly while interlaced motion video image is projected.

1.Press the “Menu” button on the remote control or projector cabinet to display the Main Menu.

NOTE: When using a USB mouse, click the mouse button to display the main menu. For other operations, do the same way as you use your PC mouse.

2.Press the ▲▼ buttons on the remote control or the projector cabinet to highlight the menu for the item you want to adjust or set.

3.Press the button or the “Enter” button on the projector cabinet or the “Left Click” button on the remote control to select a submenu or item.

4.Adjust the level or turn the selected item on or off by using “Select” or buttons on the cabinet, or the “Mouse button” on the remote control. The on-screen slide bar will show you the amount of increase or decrease.

5.Changes are stored until you adjust it again.

ENTER ......... Stores the setting or adjustments.

CANCEL .......... Return to the previous screen without storing settings or adjustments.

NOTE: You can close the main and sub menus simultaneously by pressing the PJ button to cancel the Projector mode.

6.Repeat steps 2-5 to adjust an additional item, or press “Cancel” on the projector cabinet or the remote control to quit the menu display.

Customizing Basic/Custom Menu

The Basic/Custom menu can be customized to meet your requirements. Selecting a menu item from the “Basic/Custom Menu Edit” list, allows you to custom tailor the menu items to your needs.

1.Select “Basic/Custom Menu Edit” to display the “Basic/Custom Menu Edit” screen.

E – 29

2.Use the or button to highlight your selection and press the Enter button to place a check mark next to an option. This action enables that feature.

Press the Enter button again to clear the check box.

An item “To Advanced Menu” will be added to the bottom of the Basic/ Custom Menu.

Selecting this item and pressing the “Enter” button will display the “Advanced Menu” features.

If you select an item with a solid triangle and press the Enter button on the remote control or the projector cabinet, you can enable all the items within that submenu.

Also you can turn on an item within the submenu without placing a check mark on the main menu item.

NOTE: Up to 12 main menu items (within Basic/Custom Menu Edit, not including submenu items) can be selected.

3.In order for the changes to take effect, use the or button on the remote control or the projector cabinet to highlight “OK”, then press the Enter button. To cancel the changes, use the or buttons to highlight “Cancel” and press the “Enter” button. To return to the factory default, select “Reset” then press the “Enter” button.

The default Basic/Custom Menu items are:

Source Select (RGB [DVI (DIGITAL) / DVI (ANALOG) on LT158], Video, S-Video and PC Card Viewer), Picture, Volume, Image Options (Keystone), Projector Options (Menu and Setup), Tools (Capture, PC Card Files and ChalkBoard) and Help (Contents and Information)

NOTE: Once you have selected OK on the Basic/Custom Menu Edit screen, you cannot cancel the changes on the Menu screen. However, you can re-edit the menu items over again as described in the steps above.

NOTE: If the “Advanced Menu” item has been selected on the Menu mode, you get the “Confirmation Change Menu” upon completion of “Basic/Custom Menu” editing. In this case, selecting “Yes” then “Enter” will close all the menus and apply the changes from the Advanced menu to the Basic/Custom Menu. If you select “No” then “Enter” functions, then all menu items will return to the Advanced menu, but your changes will still be available within the “Basic/Custom Menu” selection. To display the previously tailored Basic/Custom Menu, select “Basic/Custom Menu” from the “Menu Mode”.

Using a USB Mouse

Using a USB mouse gives you a smooth operation. A commercially available USB mouse is required.

NOTE: There may be some brands of USB mouse that the projector does not support.

Operate the Menus using the USB mouse:

Mouse Cursor:

When connecting a USB mouse to the projector, you get a mouse cursor on the screen.

Unless you use your USB mouse within 10 seconds, the mouse cursor disappears.

Menu Display:

Clicking with a mouse button displays the main menu. Clicking displays the pull-down menu.

To close the menu, click anywhere in the background.

Adjusting and Setting Display:

You can select a menu item and click with a mouse button to make adjustments and setting.

Examples:

Click (or press and hold) the mouse button or to adjust the brightness.

Or click and drag the mouse button on the slide bar horizontally to adjust it.

To save the adjustments, click . The display is closed.

If you click anywhere in the background while displaying adjustment and setting menu or dialog box, you will get the main menu at the clicking point.

E – 30

Menu Tree

Advanced Menu

Source Select


Volume

Image Options

Color Management

Projector Options

Tools

Help

NOTE:

1)When menu items are not available, they are indicated in white.

2)For LT158: When DVI (DIGITAL) is selected, making any adjustment executes the Auto Adjust feature. The AUTO ADJUST button on the remote control is also available. You can adjust the horizontal and the vertical position for DVI digital signal but cannot save those adjustments.

RGB*1

Video

S-Video

PC Card Viewer

Keystone

Lamp Mode

Advanced Options

Factory Default

Gamma Correction

Color Matrix

White Balance

Menu

Setup

Capture

PC Card Files

ChalkBoard

Contents

Information

Brightness/Contrast/Color/Hue/Sharpness

Volume











Normal/Eco











Aspect Ratio

Normal/Zoom/Wide Zoom/Cinema



Noise Reduction

Off/Low/Medium/High



Position/Clock

Horizontal/Vertical/Clock/Phase



Resolution

Auto/Native

Video Filter

On / Off



All Data/Current Signal

Normal/Natural 1/Natural 2

Select Color Matrix HDTV/SDTV

Select Color Matrix Type B-Y/R-Y,Cb/Cr,Pb/Pr

Brightness R/G/B, Contrast R/G/B

Page 1 Menu Mode(Advanced Menu, Basic/Custom Menu) Basic/Custom Menu Edit

Language (English/German/French/Italian/Spanish/Swedish/Japanese) Projector Pointer (Pointer 1-8)

Menu Display Time (Manual/Auto 5 sec/Auto 15 sec/Auto 45 sec) Page 2 Message Source Display (On/Off)

No input (On/Off) Clean Filter (On/Off)

Direct Button Volume Bar (On/Off)

Keystone Bar (On/Off)

Page 1 Orientation (Desktop Front/Ceiling Rear/Desktop Rear/Ceiling Front) Cinema Position (Top/Center/Bottom)

Background (Blue/Black/Logo) Mouse Button(Right Hand/Left Hand)

Sensitivity(Fast/Medium/Slow)

Page 2 PC Card Viewer Options Show Folder List (Auto Play/Manual Play) Interval (5-300 sec)

Capture Options (High Quality/Normal/High Compression) Page 3 Signal Select RGB*2 (Auto/RGB/Component)

Video (Auto/NTSC3.58/NTSC4.43/PAL/PAL-M*3/PAL-N*3/PAL60/SECAM) S-Video (Auto/NTSC3.58/NTSC4.43/PAL/PAL-M*3/PAL-N*3/PAL60/SECAM)

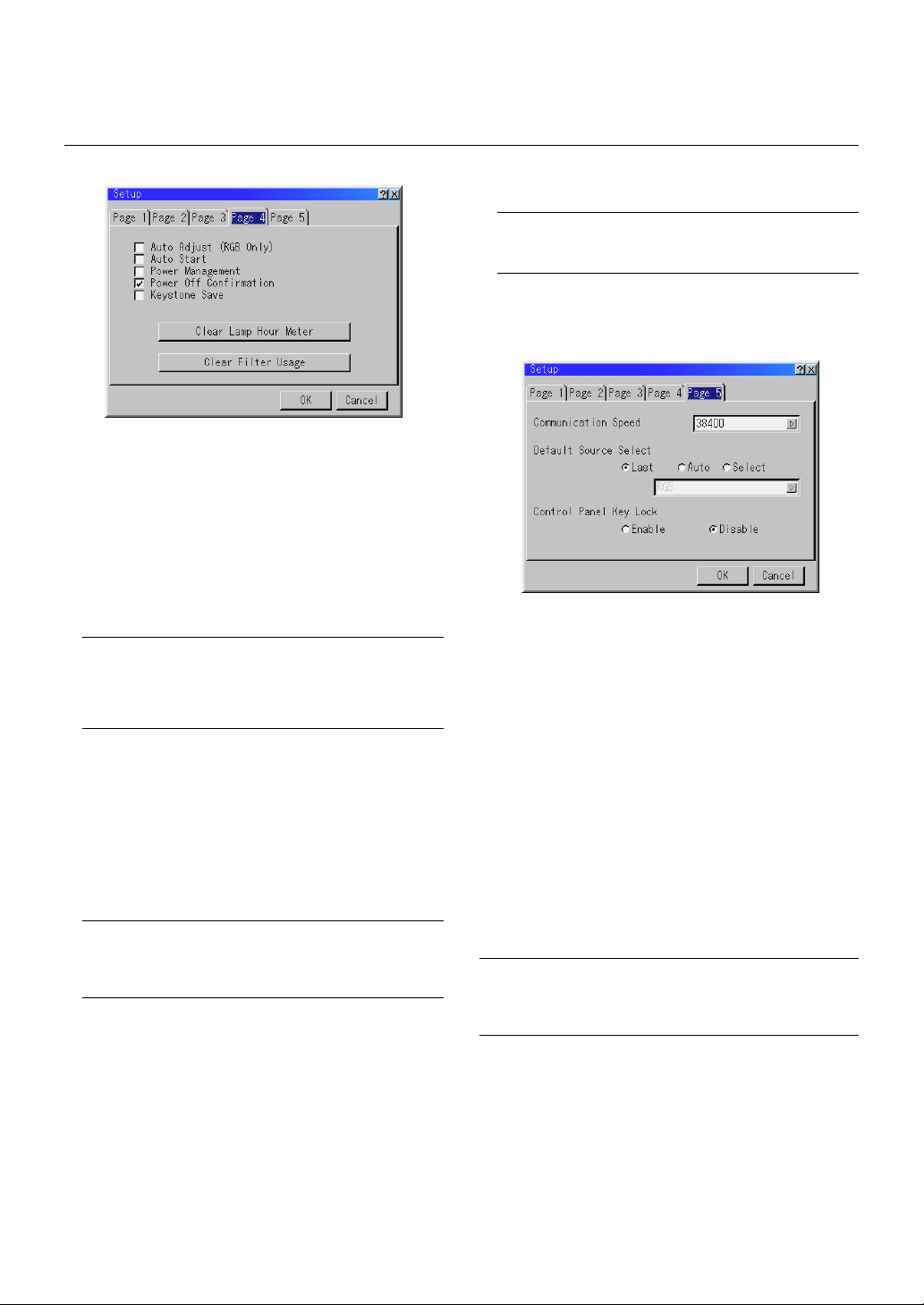

Page 4 Auto Adjust (RGB Only) Auto Start

Power Management Power Off Confirmation Keystone Save

Clear Lamp Hour Meter Clear Filter Usage

Page 5 Communication Speed(4800/9600/19200/38400)

Default Source Select(Last/Auto/Select) (RGB*4/Video/S-Video/PC Card Viewer)

Control Panel Key Lock (Enable/Disable)

Contents



Page1

Source Name/Input Terminal/Horizontal Frequency/Vertical Frequency/Sync Polarity

Page2

Signal Type/Video Type/Sync Type/Interlace/Resolution

Page3

Aspect Ratio/Gamma Correction/Noise Reduction/Color Matrix/Matrix Type

Page4

Remaining Lamp Time/Lamp Hour Meter/Filter Usage/Projector Usage





NOTE:

*1 On LT158, "DVI (DIGITAL)" and "DVI (ANALOG)" are displayed in the Source Select submenu. *2 On LT158, "DVI (ANALOG)" is displayed in the Signal Select on Page 3.

*3 LT158 Only.

*4 On LT158, "DVI (DIGITAL)" and "DVI (ANALOG)" can be also selected.

E – 31

Menu Elements

Title bar







Tab







Help Button



















Close Button

Highlight























































Solid triangle































































OK Button

Cancel Button

Radio button

Check box

Drag

Tool bar

Slide bar

Menu windows or dialog boxes typically have the following elements:

Title bar:

Indicates the menu title.

Highlight:

Indicates the selected menu or item.

Solid triangle:

Indicates further choices are available. A highlighted triangle indicates the item is active.

Tab:

Indicates a group of features in a dialog box. Selecting on any tab brings its page to the front.

Radio button:

Use this round button to select an option in a dialog box.

Check box:

Place a checkmark in the square box to turn the option On.

Slide bar:

Indicates settings or the direction of adjustment.

OK button:

Press to confirm your setting. You will return to the previous menu.

Cancel button: Press to cancel your setting. You will return to the previous menu.

Close button:

Click to close the window with saving changes. (USB mouse only)

Help button:

Indicates that help about that feature is available (USB mouse only). Press the Help button on the remote control to display help.

Toolbar:

Contains several icons for specific tasks. It is also referred to as "launcher".

Drag:

Point the mouse here, and click and drag to move a toolbar.

E – 32

Menu Descriptions & Functions

Source Select

Enables you to select a video source such as a VCR, DVD player, laser disc player, computer or document camera depending on what is connected to your inputs.

Press the "Select" button on the projector cabinet or ▲▼ buttons on your remote control to highlight the menu for the item you want to adjust.

RGB (DVI on LT158 only)

Selects the computer connected to your RGB, DVI-digital, DVI-analog or component signal.

NOTE: An optional component cable (Component V or ADP-CV1 cable) is needed for a component signal.

Video

Selects what is connected to your Video input-VCR, laser disc player, DVD player or document camera.

S-Video

Selects what is connected to your S-Video input-VCR, DVD player, or laser disc player.

NOTE: A frame may freeze for a brief period of time when a video is played back in fast-forward or fast-rewind with a Video or S-Video source.

PC Card Viewer

This feature enables you to make presentations using a CompactFlash card that contains captured images and slides created with the exclusive PC Card Viewer Utility contained in the CD-ROM. See page E-42 for installing the PC Card Viewer Utility. The starting screen for the PC Card Viewer varies depending on the settings of the Setup's Page 2. See Setup on page E-37.

NOTE: Even if you switch the current PC Card Viewer source to another source, the current slide is retained. When you return back to the PC Card Viewer, you will get the slide that has been retained. A launcher will appear when you press the MENU button.

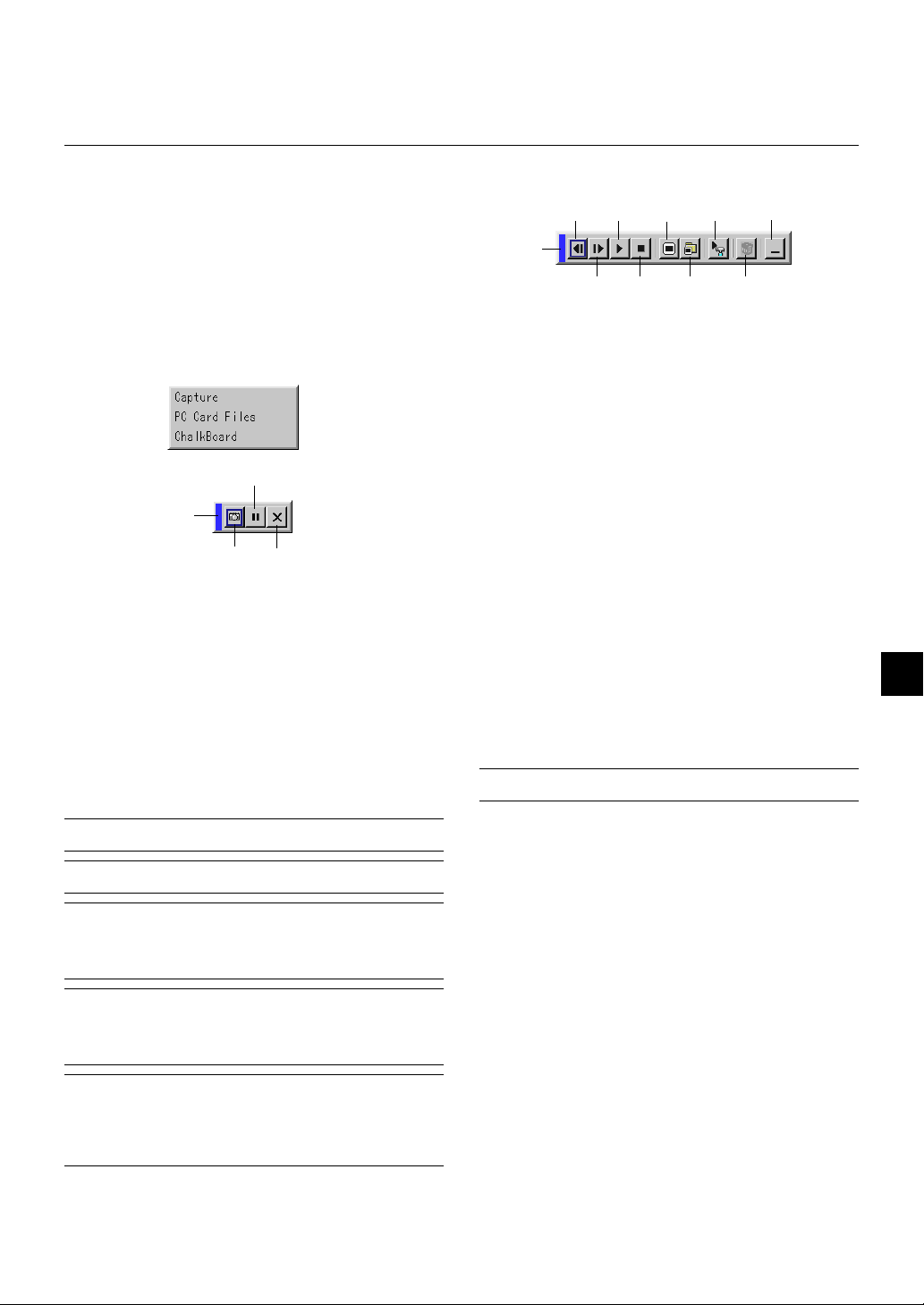

Prev Play Jump Setup

View

Drag

Next Stop Select Delete

A press of the MENU button displays the toolbar; a press of the MENU button again displays the Menu and hereafter each press of the MENU button switches displaying between the Menu and the toolbar.

The launcher is a tool bar including the following buttons:

Drag .............

Drags to move the tool bar. (for USB mouse operation only)

Prev .............

Returns to the previous slide or folder.

Next .............

Advances to the next slide or folder.

Play ..............

Plays back automatically or manually depending on the set-



ting on PC Card Viewer Options of the menu. This allows you



to move on to the next slide when "Manual Play" is selected.

Stop .............

Stops Auto Play while you are playing back and to resume



playing from the selected slide or folder when "Auto Play" is



selected.

Jump ...........

Displays a list of slides while you are playing back.

Select ...........

Displays a list of folders while you are playing back.

Setup ...........

Displays the PC Card Viewer Options dialog box on Page 2 of



the Setup dialog box.

Delete ...........

Deletes a captured slide(s) or all the captured slides in the



selected folder.

View .............

Hides the tool bar while you are playing back. Clicking with



the right button of a mouse shows it again.


Provides access to controls for your image. Use ▲▼ buttons on the projector cabinet or the remote control to highlight the menu for the item you want to adjust.

Brightness ...

Adjusts the brightness level or the back raster intensity.

Contrast .......

Adjusts the intensity of the image according to the incoming



signal. (not valid for DVI digital on LT158)

Color ............

Increases or decreases the color saturation level (not valid



for RGB).

Hue ..............

Varies the color level from +/- green to +/-blue. The red level



is used as reference. This adjustment is only valid for Video



and Component inputs (not valid for RGB).

Sharpness ....

Controls the detail of the image for Video (Not valid for RGB



and Component).

Volume

Adjusts the sound level of the projector.

NOTE: You can also display the volume bar without opening the menu. See "Volume Bar (Direct Button)"on page E-36 for more details.

E – 33

Image Options

Keystone

This feature corrects the keystone (trapezoidal) distortion to make the top of the screen longer or shorter to be the same as the bottom. Use the or buttons on the slide bar to correct the keystone (trapezoidal) distortion.

















Keystone distortion





Normal















































NOTE: The maximum keystone angle that can be corrected is 40 degrees upward and 20 degrees downward with the projector placed horizontally on the ground plane.

Depending on the type of graphics being used, the picture may get blurred or keystone correction may not be possible when excessive keystone correction is used.

The idea is, the closer you are to native resolution, the better image you will see.

Lamp Mode

This feature enables you to select two brightness modes of the lamp: Normal and Eco modes. The lamp life can be extended up to 2000 hours by using the Eco mode.

Normal Mode ..............

This is the default setting.

Eco Mode ....................

Select this mode to increase the lamp life.

NOTE: If you have selected the Eco mode, the lamp lights in Normal mode for one minute after the projector is turned on. After one minute the lamp will change to Eco mode.

Aspect Ratio

Aspect Ratio allows you to select the best Aspect mode to display your source image.

When 4:3 is selected from the source (i.e. DVD player), the following selections will display:

Normal



Zoom

Wide Zoom

Cinema











































Standard

All 4 sides

Left and right

Left and right

4:3 Aspect

stretched

stretched

stretched

When 16:9 is selected from the source (i.e. DVD player), the following selections will display:

Normal



Zoom



Wide Zoom

Cinema











































16:9 image

All 4 sides

Left and right

Left and right

displayed

stretched

stretched

stretched to

in 4:3 mode





display the true







aspect

Noise Reduction

You can select three levels of video noise reduction.

NOTE: The lower the Noise Reduction level, the better the image quality by way of higher video bandwidth.

Position/ Clock (when Auto Adjust is off)

This allows you to manually adjust the image horizontally and vertically, and adjust Clock and Phase.

E – 34

Horizontal/Vertical Position

.................... Adjusts the image location horizontally and vertically using the and buttons.

This adjustment is made automatically when the Auto Adjust is turned on.

Clock ............ Use this item to fine tune the computer image or to remove any vertical banding that might appear. This function adjusts the clock frequencies that eliminate the horizontal banding in the image. Press the and buttons until the banding disappears.

This adjustment may be necessary when you connect your computer for the first time. This adjustment is made automatically when the Auto Adjust is turned on.

Phase ........... Use this item to adjust the clock phase or to reduce video noise, dot interference or cross talk. (This is evident when part of your image appears to be shimmering.) Use the and buttons to adjust the image.

See "Auto Adjust (RGB Only) on page E-38 for turning on or off the Auto Adjust feature.

Use "Phase" only after the "Clock" is complete.

This adjustment is made automatically when the Auto Adjust is turned on.

Resolution (when Auto Adjust is off)

This allows you to activate or deactivate the Advanced AccuBlend feature.

Auto .............

Turns on the Advanced AccuBlend feature. The projector au-



tomatically reduces or enlarges the current image to fit the



full screen.

Native ...........

Turns off the Advanced AccuBlend feature. The projector dis-



plays the current image in its true resolution.

See "Auto Adjust (RGB Only) on page E-38 for turning on or off the Auto Adjust feature.

NOTE: While you are displaying an image with higher resolution than the projector's native resolution, even when you are in the Native mode, the image is displayed full screen using the Advanced AccuBlend feature.

Video Filter (when Auto Adjust is off)

This function reduces video noise.

On ................

The low-pass filter is applied.

Off ................

The filter is removed.

Screen adjustments are possible even when the filter is On.

Factory Default

Changes all adjustments and setting to the factory preset for each source individually except Remaining Lamp Time, Lamp Hour Meter, Filter Usage, Projector Usage, Language and Communication Speed. (To reset the lamp usage time, see "Clear Lamp Hour Meter" on page E-38.)

All Data ...............

Reset all the adjustments and settings for all the signals



to the factory preset.

Current Signal .....

Resets the adjustments for the current signal to the fac-



tory preset levels.

All the items in ”Picture”, ”Advanced Options” and “Color Management” can be reset.

NOTE: The Volume, Keystone, Lamp Mode and all the items in the Projector Options can be reset only when "All Data" is selected.

Color Management

Gamma Correction

Use the or button to choose "Normal" when in a lighted room and "Natural 1&2" when in a darkened room. "Natural 1" for better flesh tone; "Natural 2" for true reproduction of middle tones.

Each mode is recommended for :

Normal .........

For the regular picture

Natural 1 ......

For true color reproduction of natural tones

Natural 2 ......

For dark portions of a picture

Color Matrix



First select an appropriate color matrix to fit your component signal for HDTV or SDTV.Then select an appropriate matrix type from B-Y/R-Y, Cb/Cr or Pb/Pr.

White Balance

This allows you to adjust the white balance. Brightness for each color (RGB)is used to adjust the black level of the screen;

Contrast for each color (RGB) to adjust the white level of the screen. First use the ▲ or ▼ buttons to select R, G, or B for the brightness and the contrast. Next use the or buttons to adjust the level.

E – 35

Projector Options

Menu

Allows you to set preferences for the on-screen menu.

Press “OK” to save your changes for all the features of Page1 and Page2.

[Page1]

Menu Mode:

This feature allows you to select two menu modes: Advanced Menu and Basic/Custom Menu.

Advanced Menu .......... This is the menu that contains all the available menus and commands.

Basic/Custom Menu .... This is the menu that you can customize using the Basic/Custom Menu Edit to fit your needs.

The factory default Basic/Custom menu includes:

Source Select (RGB [DVI (DIGITAL) / DVI (ANALOG) on LT158], Video, S- Video and PC Card Viewer), Picture, Volume, Image Options (Keystone), Projector Options (Menu and Setup), Tools (Capture, PC Card Files and ChalkBoad) and Help (Contents and Information). See page E-29 for instructions about how to customize the Basic/Custom Menu.

Language:

You can choose one of seven languages for on-screen instructions. The options are: English, German, French, Italian, Spanish, Swedish and Japanese.

Projector Pointer:

This enables you to select from eight different Pointer icons for the "Pointer" button on your remote control.

After moving your Pointer icon to the area you want on the screen, press the Magnify button on the remote control to enlarge the selected area on the screen. See page E-28 for more details.

NOTE: There may be cases where the Pointer function is not available (ex. a non-interlace signal at 15kHz such as video game.)

Menu Display Time :

This option allows you to select how long the projector waits after the last touch of a button to turn off the menu.

The preset choices are "Manual", "Auto 5 sec", "Auto 15 sec", and "Auto 45 sec". The "Auto 45 sec" is the factory preset.

Manual ......... The menu can be turned off manually.

Auto 5 sec .... The menu will automatically be turned off in 5 seconds if no buttons are pressed within 5 seconds.

Auto 15 sec .. The menu will automatically be turned off in 15 seconds if no buttons are pressed within 15 seconds.

Auto 45 sec .. The menu will automatically be turned off in 45 seconds if no buttons are pressed within 45 seconds.

NOTE: If no buttons on the remote control are pressed within 10 seconds, the PJ button’s light goes out to indicate that you are in the Computer mode. To enable the projector menu operation again, press the PJ button again to light red.

[Page2]

Message:

You can choose the desired information to be displayed on the screen.

On ................

The message will be displayed.

Off ................

The message will not be displayed.

Source Display: You can turn on and off the information for input name such as VIDEO and RGB.

When this option is on, the current input will be displayed each time you switch sources or turn on the projector.

No Input: This option turns on or off the "No Input" message to be displayed in the top right corner on the screen.

Clean Filter: This option turns on or off the "Please clean the filters" message each time you turn on the projector if the projector has been used in excess of 100 hours of use.

To reset the filter usage, see page E-38.

Direct Button:

Volume Bar: This option turns on or off the volume bar when you adjust the sound volume using VOLUME +/– button on the remote control.

On ................

You can increase or decrease the sound volume with the vol-



ume bar on screen.

Off ................

You can increase or decrease the sound volume without hav-



ing to use the volume bar.

Keystone Bar: This option turns on or off the keystone bar when you adjust the keystone using KEYSTONE +/– button on the remote control.

On ................

You can increase or decrease the level with the keystone bar



on screen.

Off ................

You can increase or decrease the level without having to use



the keystone bar.

E – 36

Setup

Enables you to set operating options.

Press "OK" to save your changes for all the features of Page1, Page2, Page3, Page 4 and Page5.

[Page1]

Orientation:

This reorients your image for your type of projection.

The options are: desktop front projection, ceiling rear projection, desktop rear projection, and ceiling front projection.

Cinema Position:

This feature selects the vertical position of the image when viewing video with Cinema aspect ratio selected.

When Cinema aspect ratio is selected on earlier models, the image is displayed with black borders on the top and bottom.

You can select the vertical position among three options:

Top ..........

Image position is at the top with a black border on bottom.

Center .....

Image position is at the center with black borders on top and



bottom.

Bottom ....

Image position is at the bottom with a black border on top.

Background:

Use this feature to display a blue/ black screen or logo when no signal is available. The default background is blue. You can change the logo screen using the PC Card Files feature. See page E-40.

Mouse Settings:

This option lets you to change your USB mouse settings. The mouse settings feature is available for USB mouse only. Choose the settings you want:

Mouse Button .............

"Right Hand" or "Left Hand"

Mouse Sensitivity .......

"Fast", "Medium" or "Slow"

[Page2] PC Card Viewer Options

Show Folder List:

If this option is checked, when PC Card Viewer input is selected on the projector, the folder lists will be displayed and allows you to select the presentation from a CompactFlash card.

Auto Play:

If this option is checked, any given slide will start to play automatically.

Auto Play Interval:

You can specify interval time between 5 and 300 seconds.

NOTE: The Auto Play Interval time set on the PC Card Viewer Utility overrides the one set here.

Manual Play:

Views a slide manually when PC Card Viewer input is selected.

NOTE: The Auto Play and Manual Play options determine the behavior of the Play/Stop [ / ] icon on the Viewer toolbar.

NOTE: If you check "Auto Play" and select "PC Card Viewer" on the projector, the slides will automatically start to play back from any given slide.

Capture Options: (available for JPEG only)

These options are used for the Capture function that you can select from Tools. You have three options for JPEG compression quality: High quality, Normal and High Compression.

High Quality .............

Gives quality of JPEG a priority.



Normal .....................

Gives normal JPEG quality.



High Compression ...

Gives compression a priority.



[Page3] Signal Select

















RGB on LT157, DVI (ANALOG) on LT158:

Allows you to choose "RGB" for an RGB source such as a computer, or "Component" for a component video source such as a DVD player. Normally select "Auto" and the projector automatically detects a component signal. However there may be some component signals that the projector is unable to detect. If this is the case, select "Component".

VIDEO and S-VIDEO:

This feature enables you to select composite video standards manually. Normally select "Auto".

Select the video standard from the pull-down menu. This must be done for Video and S-Video separately.

E – 37

[Page4]

Auto Adjust (RGB Only):

When "Auto Adjust" is set to "On", the projector automatically determines the best resolution for the current RGB input signal to project an image using NEC's Advanced AccuBlend Intelligent Pixel Blending Technology.

The image can be automatically adjusted for position and stability; "Horizontal Position", "Vertical Position", "Clock" and "Phase."

On ................

Automatically adjusts image "Horizontal Position", "Vertical



Position", "Clock" and "Phase".

Off ................

User can adjust the image display functions ("Horizontal Po-



sition", "Vertical Position", "Clock" and "Phase") manually.

NOTE: For LT158

This feature is not available for DVI (DIGITAL) signal.

If you make any adjustment to DVI digital signal, the Auto Adjust feature automatically adjusts position and stability; Horizontal and Vertical Position, and Resolution. However, the horizontal and vertical adjustments will not be stored in memory.

Auto Start:

Turns the projector on automatically when the power cable is inserted into an active power outlet. This eliminates the need to always use the "Power" button on the remote control or projector cabinet.

Power Management:

When this option is on and there is no RGB input for five minutes or more, the projector will automatically turn itself off.

Power Off Confirmation:

This option determines whether a confirmation dialog for turning off the projector will appear or not.

NOTE: When the confirmation message is displayed, you must be in the Projector mode to operate your projector using the remote control. If not, press the PJ button on the remote control to change your projector to the Projector mode. The button lights to indicate that you are in the Projector mode.

Keystone Save:

This option enables you to save your current keystone settings. Saving your change once affects all sources.The changes are saved when you turn off the projector.

Clear Lamp Hour Meter:

Resets the lamp clock back to zero. Pressing this button appears a confirmation dialog box. To reset the lamp usage hour, press "OK".

NOTE: The projector will turn off and go into standby mode after 1600 hours (up to 2600 hours in Eco mode) of service. If this happens, press the "Help" button on the remote control for ten seconds to reset the lamp clock back to zero. Do this only after replacing the lamp.

Clear Filter Usage:

Resets the filter usage back to zero. Pressing this button appears a confirmation dialog box. To reset the filter usage hour, press "OK".

[Page5]

Communication Speed:

This feature sets the baud rate of the PC Control port (Mini DIN 8 Pin). It supports data rates from 4800 to 38400 bps.

The default is 38400 bps. Select the appropriate baud rate for your equipment to be connected (depending on the equipment, a lower baud rate may be recommended for long cable runs).

Default Source Select:

You can set the projector to default to any one of its inputs each time the projector is turned on.

Last ..............

Sets the projector to default to the previous or last active



input each time the projector is turned on.

Auto .............

Searches for an active source in order of RGB* → Video →



S-Video → PC Card Viewer → RGB and displays the first



found source.

Select ...........

Displays the selected source input every time the projector is



started up. Select an input from the pull-down menu.

* "DVI (DIGITAL) → DVI (ANALOG)" on LT158.

Control Panel Key Lock:

This option turns on or off the Control Panel Key Lock function.

NOTE:

*This Control Panel Key Lock does not affect the remote control and the PC Control functions.

*When the cabinet buttons are disabled, pressing and holding the CANCEL button for about 10 seconds will change the setting to enabled.

E – 38

Tools

Provides tools for capturing images, displaying files in a CompactFlash Card and drawing.

NOTE: The "Capture" and "PC Card Files" features are required for a CompactFlash card.

Capture:

Allows you to capture an image from a source that is currently being displayed. The image is saved as JPEG in the CompactFlash card.

When you select Capture from the menu, you will get a tool bar.You can capture an image directly using the tool bar when the menu is not displayed.





Freeze

Drag









Exit













Capture

The tool bar includes the following buttons:

Drag .............

Drags to move the tool bar. (for USB mouse operation only)

Capture ........

Captures an image and save it as a JPEG file in a CompactFlash



card.

Freeze ..........

Freezes and unfreezes images.

Exit ...............

Exits the Capture function.

Unless a CompactFlash card is inserted into the PC Card slot of the projector, the Capture feature is not available.

The "Card Error" display means that the free space of the CompactFlash card is insufficient for saving images. Make more space available on the card by erasing unwanted images with your PC. The number of images that can be captured depends on the size of the CompactFlash card.

NOTE: Be sure not to turn off the power or remove the CompactFlash card while capturing an image. Doing so could cause a loss of the data in the CompactFlash card or damage to the card itself.

NOTE: Captured images with higher resolution than the projector's native resolution cannot be displayed correctly.

PC Card Files:

Displays a list of all the files stored in the CompactFlash card so that you can select a file you want to display. You can also sort files by file name or date, or display the file.

Although a list of all the files in the CompactFlash card is displayed, you can view files in idx, text, HTML, JPEG and BMP format only. Selecting BMP and JPEG files automatically switches to the PC Card Viewer source.

NOTE: When an image with a resolution of XGA (1024 768) or higher is projected, the PC Card Files screen may not be correctly displayed.

Selecting "Execute" displays the file you selected.

When you select a JPEG or BMP file and press the Enter button on the remote or the cabinet, or “Execute” on the above, you will get a toolbar. This toolbar is used to return to the PC Card Files screen.



Drag







Close

































Return











Drag .............

Drags to move the tool bar. (for USB mouse operation only)



Return ..........

Returns to the PC Card Files screen.



Close ............

Close the toolbar.





E – 39

Changing Background Logo:

The Logo button allows you to select a background logo from graphic files on a CompactFlash card and change the background to the new background logo.

NOTE: File size must be 64KB or less. Other file formats than JPEG and BMP are not available.

1.Use the or button to select a JPEG or BMP file for your background logo.

2.Use the and then button to select “Logo”.

3.Press the Enter on the remote control or the cabinet. You will get the confirmation dialog box.

4.Select “OK” and press the Enter button. This completes changing a logo for the background.

*Once you have changed the background from the NEC logo to another, you cannot return the logo to background even by using Factory Default. To do so, repeat the above steps. The NEC logo file is included on the supplied CD-ROM (/logo/nec_b_x.jpg).

ChalkBoard: (available only when using with USB mouse) Provides the tool bar for producing freehand drawings.





Pen



Eraser



View

Drag





















Exit

































































Color

Clear

Drag .............

Drags to move the tool bar. (for USB mouse operation only)

Pen ..............

Left-click and drag to draw. Left-click [▲] or right-click the



pen icon to display the pen palette containing four lines of



different thickness from which you can select a line you pre-



fer by left-clicking.











Color ............

Selects a color. Left-click to display the color palette from



which you can select a color you prefer by left-clicking.

Eraser ..........

Left-click and drag to erase part of a drawing. Left-click [▲]



or right-click the eraser icon to display the eraser palette con-



taining four eraser of different thickness from which you can



select an eraser you prefer by left-clicking.

Clear ............

Left-click to clear the drawing completely from the ChalkBoard



screen.

















View .............

Hides the tool bar by left-clicking. Right-clicking anywhere



on the screen displays the ChalkBoard tool bar again.

Exit ...............

Clears the complete drawing and exits the ChalkBoard.

NOTE:

*The ChalkBoard feature is available only when a USB mouse is used. Freehand drawings cannot be saved or captured.

*The menu is not available while you display the ChalkBoard screen.

*The Capture function is not available on ChalkBoard screen.

*Switching slides clears a drawing completely.

Help

Contents:

Provides an online help about how to use the menus. An underlined link means that you can move to an adjustment item directly. Selecting the underlined link and pressing ENTER moves to the corresponding adjustment item.

NOTE: The Help Menu may not be displayed correctly when a UXGA signal is displayed.

Information:

Displays the status of the current signal, and the lamp and the projector usage hours.

This dialog box has four pages.

The information included are as follows:

[Page 1]

[Page 2]

Source Name

Signal Type

Input Terminal

Video Type

Horizontal Frequency

Sync Type

Vertical Frequency

Interlace

Sync Polarity

Resolution

[Page 3]

[Page 4]

Aspect Ratio

Remaining Lamp Time (%)

Gamma Correction

Lamp Hour Meter (H)

Noise Reduction

Filter Usage (H)

Color Matrix

Projector Usage (H)

Matrix Type



NOTE: The progress indicator shows the percentage of remaining bulb life. The value informs you of the amount of lamp and projector usage respectively.

Remaining Lamp Time Display:

When the remaining lamp time reaches 0, the Remaining Lamp Time bar indicator changes from 0% to 100 Hours and starts counting down.

If the remaining lamp time reaches 0 hours, the projector will not turn on regardless of whether the lamp mode is set to Normal or Eco.

E – 40

Using the PC Card Viewer function

NOTE: When using the supplied software (CD-ROM)

The software is designed to use with a personal computer only. Do not play the software on CD player. Doing so could cause damage to speakers.

Features

The Viewer feature allows slides stored on a CompactFlash memory card (referred to as CompactFlash card in this manual) to be displayed on the projector. Even if no computer is available, presentations can be conducted simply with the projector. This feature is convenient for holding presentations at meetings and in offices, as well as for playing images taken on digital cameras.

Easy to use

Presentations can be started immediately simply by inserting a CompactFlash card (not supplied)

Easy slide switching

Remote control operation

Jumping to list of slides or any specific slide

High quality images

High resolution up to 1024 768 dots

24-bit full color playback

Viewing of digital camera images

Simple utility software (for computer)

PC Card Viewer Utility operable on Windows 95 / 98 / Me / NT4.0 (SP3 or later) / 2000

Slides can be created by capturing the currently displayed image

Control screen for displaying lists of slides and editing

PC Card Viewer PPT Converter 1.0 [Add-In Version] converts files created with Microsoft PowerPoint 95/97/2000 (hereafter referred to as PowerPoint) into indexes playable with PC Card Viewer

*Microsoft, Windows and PowerPoint are registered trademarks of Microsoft Corporation.

Inserting and Ejecting a CompactFlash Card

A CompactFlash card is used to view presentation data prepared on the computer and to capture and play images projected with the projector.

Inserting the CompactFlash Card

Hold the CompactFlash card horizontally and insert it slowly into the card slot with its top facing up.

The eject button pops out once the CompactFlash card is fully inserted.

Check that the CompactFlash card is fully inserted.

NOTE: Do not try to force the CompactFlash card into the slot.

CARD

USB

AC

IN



MENU

ELECT

S

ENTER

O

S-VIDE

O

L



E



C



N

C

A

URCE

TO

ST

AU JU



AD





/



BY



D

ON

N

STA



AUDIO

Ejecting the CompactFlash Card

Press the eject button. The CompactFlash card pops out a little. Grasp the edges of the CompactFlash card and pull it out. Do not eject the CompactFlash card while its data is being accessed.

Eject button

CARD

USB

MENU

SELECT

S-

VIDEO

L

E

C

AN







D







AR





TO

ST

C

SS



PC CE

S



AU JU

AC



TU



AD





A

ER





ST











W









PO



/

BY









D









ON

AN









ST









AUDIO

Install the CompactFlash card on a card adapter when using on your PC.

Set the ComapctFlash card in the direction shown in the diagram and insert it into the card adapter.

-Card



Card adapter



(not supplied)

Adapter



PC









CompactFlash card



MB

(not supplied)







8



Direction for Inserting the CompactFlash Card

The CompactFlash card has a top and bottom and must be inserted into the PC card slot in a specific direction. It cannot be inserted backwards or upside-down. Attempting to force it into the slot in the wrong direction may break the internal pin and damage the card slot. Refer to the CompactFlash card's operating instructions for the proper direction of insertion.

CompactFlash Card Type

The PC Card slot accepts CompactFlash only.

E – 41

Installing the PC Card Viewer Software

Before Installing

Perform the following before installing the PC Card Viewer software:

If Windows is already started, exit all applications. Installation may not be performed properly if any applications are running.

Installation

Install the viewer software as described below.

To quit installation before it is completed, press the "Cancel" button then follow the instructions in the dialog box.

1.Start up Windows.

2.Insert the CD-ROM into the CD-ROM drive.

The auto CD play function automatically starts the CD-ROM's program and the contents screen appears.

*The auto CD play function operates if the "Auto insert notification" box in the computer's CD-ROM control panel is checked. (The box is checked by default.)

3.Click [Installing the PC Card Viewer Utility 1.0] The setup dialog appears.

* Follow the instructions in the setup dialog to complete the installation.

For instructions on uninstalling the PC Card Viewer software, see page E-46.

Starting Up the PC Card Viewer Software on your PC

(PC Card Viewer Utility 1.0)

Use the PC Card Viewer Utility 1.0 for creating viewer slides. To start the PC Card Viewer software:

*Select [Start]-[Programs]-[NEC Projector Tools]-[PC Card Viewer Utility 1.0].

Refer to online help for instructions on using the PC Card Viewer software.

Contents of the English version PC Card Viewer software (PC Card Viewer Utility 1.0)

This is the software used for creating PC Card Viewer slides. In this manual it is referred to as the "PC Card Viewer software".

PC Card Viewer PPT Converter 1.0

This is an application that converts files created with Microsoft PowerPoint 95/97/2000 into indexes so that they can be played directly with the PC Card Viewer Utility 1.0.

PC Card Viewer PPT Converter is installed automatically when you install the PC Card Viewer Utility.

To start PC Card Viewer PPT Converter:

* Select PC Card Viewer PPT Converter from NEC Projector Tools.

Basic Operation of the PC Card Viewer Software

PC Card Viewer Utility is an application for editing documents, converting them into slides and storing them on CompactFlash cards as playback data (indexes) for presentations using projectors.

E – 42

Operating the PC Card Viewer Function from the Projector (playback)

This section describes the operation for showing slides of presentation documents created using the PC Card Viewer function with the projector.

It is also possible to make slides directly from the images projected with the projector.

Projecting slides

1.Insert a CompactFlash card into the card slot.

Insert the CompactFlash card with the side with the insertion direction arrow on the top.

*Press the eject button to eject the card.

2.Select the “PC Card Viewer” from the Source Select menu.

3. Project slides.

Checking “Show Folder List”, means that selecting PC Card Viewer input displays a list of the folders in the CompactFlash card and if “Auto Play” is checked the projector automatically starts to play slides at the first slide of the folder you have selected.

A tool bar will appear when you press the MENU button on the remote control or the projector cabinet or clicking with the right button of a mouse.

Prev Play Jump Setup

View

Drag

Next Stop Select Delete

The tool bar includes the following buttons:

Drag ..........

Drags to move the tool bar (for USB mouse operation only).

Prev ..........

Returns to the previous slide or folder. Or this lets you play



slides back in reverse.

Next ..........

Advances to the next slide or folder. Or this lets you play



slides back.

Play ...........

Plays back automatically or manually depending on the set-



ting on PC Card Viewer Options of the menu. This allows you



to move on to the next slide when “Manual Play” is selected.

Stop ..........

This allows you to stop Auto Play while you are playing back



and to resume playing from the selected slide or folder when



“Auto Play” is selected.

Jump .........

Displays a list of slides while you are playing back.

Select ........

Displays a list of folders while you are playing back.

Setup ........

Displays the PC Card Viewer Options dialog box on Page 2 of



the Setup dialog box.

Delete ........

Deletes a captured slide(s) or all the captured slides in the



Capture – specific folder.

View ..........

Hides the tool bar while you are playing back. Pressing the



MENU button or clicking with the right button of a mouse



shows it again.

NOTE: If no CompactFlash card is inserted in the PC CARD slot, there is no signal, and a black, blue or logo background is displayed, depending on the setting.

Playback is stopped when SLIDE +/– on the remote control or / button on the cabinet is pressed in Auto Play mode.

NOTE: Up to 12 indexes can be displayed on the list of folders. The folder in the right bottom is always a folder exclusively for captured images, but is only displayed when images have been captured. To display the list of folders when there are 13 or more indexes stored on the CompactFlash card, select "Edit index" from the PC Card Viewer software's "File" menu and move the index you want to display to within 12 indexes from the top of the folder index. For details on indexes, refer to the PC Card Viewer software's help folder.

E – 43

When the tool bar is not displayed:

Press the FOLDER LIST button on the remote control to display folders from a CompactFlash card in the projector’s PC Card slot.

Multi cursor (blue marks)







Folder

Folder

Folder

Folder

SLIDE







Folder







Current folder number



02 : 0001 / 0008















Current slide

number

Number of all slides











in folder

Use the SLIDE +/- button to advance to the next folder or return to the previous folder.

Folder

Slide(Table) cursor (green marks)

Slide

Slide

Slide



Slide















Slide

Slide

Slide



Slide













02 : 0004 / 0008

Use the SLIDE +/- button to advance to the next slide or return to the previous slide.

Slide

NOTE: You can also use the and button on the remote control to select folders or slides.

If you use the and button on the remote control for PC Card Viewer operation, press the PJ button to switch to the Projector mode and the PJ button lights red.

SELECT Works as the Select button on the projector.

E







L

N







E

T

E





C

R



N



A





C



PJ

Lit red

FOCUS

SHIFT

Auto Play Mode

If the “Auto Play” option is selected in “PC Card Viewer Options” of the menu, any given slide will start to play automatically. You can also specify Auto Play Intervals between 5 and 300 seconds.

Switching to Slides Directly from Other Input Modes

With this function it is possible to switch directly to a slide when the picture of a VCR or computer is being projected.

Example:

When conducting presentations using a combination of slides and moving pictures from a VCR, etc., it is possible to switch from a PC Card Viewer slide to the video picture then back to the PC Card Viewer slide simply by using a source button and PC CARD button.

NOTE: Even if you switch the current PC Card Viewer source to another source, the current slide is retained. When you return back to the PC Card Viewer, you will get the slide that has been retained.

OFF

ON

POWER



VIDEO S-VIDEO RGB1

RGB2

AUTO ADJ.

LASER

MENU



SELECT

E







L

N







E

T

E





C

R



N



A





C



PJ

FOCUS

ZOOM

SHIFT

HELP

POINTER

PC CARD

KEYSTONE

MAGNIFY

SLIDE

FREEZE

VOLUME

FOLDER

PIC-MUTE



SLIDE





LIST

NOTE: The CompactFlash card editing operation cannot be performed from the projector. Do so using the PC Card Viewer software.

E – 44

Capturing Images Displayed on the Projector

Storing images displayed on the projector on the CompactFlash card

Preparations:

Insert the CompactFlash card into the card slot.

Insert the CompactFlash card (side with the insertion direction arrow) facing the top of the projector.

* Press the eject button to eject the card.

1.Project the image you wish to store on the projector.

2.Select the “Capture” from the Tools menu.

Freeze

Drag

Capture Exit

3. A tool bar will appear.

The tool bar includes the following buttons:

Drag .............

Drags to move the tool bar (for USB mouse operation only).

Capture ........

Captures an image and save it as a JPEG file in a CompactFlash



card.

Freeze ..........

Freezes and unfreezes images.

Exit ...............

Exits the Capture function. Another option to exit the Capture



function is to press MENU or CANCEL button on the remote



control or projector cabinet.

NOTE: You can compress a captured file (JPEG) using the Capture Options in the Setup dialog. See page E-37.

NOTE: Captured images with higher resolution than the projector's native resolution cannot be displayed correctly.

NOTE:

File size of the captured image varies depending on the resolution of an input signal.

Since an image data is compressed with the JPEG format, the image is slightly degraded.

NOTE: An hourglass indicating that an image is being captured appears on the projector's display. Do not eject the CompactFlash card or turn off the projector's power while this icon is displayed. Doing so will damage the CompactFlash card data. If the CompactFlash card data is damaged, use a computer to repair the data.

NOTE: The folder in the right bottom is always a folder exclusively for captured images. To display the list of folders when there are 13 or more indexes stored on the CompactFlash card, select "Edit index" from the PC Card Viewer software's "File" menu and move the index you want to display to within 12 indexes from the top of the folder index. For details on indexes, refer to the PC Card Viewer software's help file.

Deleting Captured Images

Prev Play Jump Setup

View

Drag

Next Stop Select Delete

Using the Delete button on the tool bar for PC Card Viewer can delete captured images.

To delete captured images:

1.Select PC Card Viewer.

2.Use button to select the Capture folder in the right bottom of the screen.

3.Press the MENU button to display the tool bar.

4.Use the or button to select the Delete icon and press the ENTER button or click with a mouse button.

Viewing Digital Images

Digital images can be played with the PC Card Viewer if the following conditions are met:

If the image can be stored on an MS-DOS format CompactFlash card

If the image can be stored in a format supported by the PC Card Viewer.

With the PC Card Viewer, images on the card are searched for in directories and images in JPEG or BMP format are recognized as slides.

Searchable directories are directories within two steps from the root directory, and searchable images are images within the first 12 files in the directory. Only file and slide switching are possible.

NOTE: The maximum number of images recognized as slides within one directory is 128.

E – 45

Uninstalling the PC Card Viewer Software

Even if you do not know the PC Card Viewer software's file names or where they are stored, the PC Card Viewer software files can be easily removed from the system using the "Install/Uninstall Applications" control panel in Windows. (Normally there is no need to perform this operation.)

Uninstalling the software

Use the procedure described below to uninstall the PC Card Viewer software files.

1. From the "Start" menu, select "Settings" then "Control Panel".

2.In the "Control Panel" dialog box, double-click on "Add/Remove Programs".

3.In the "Add/Remove Programs Properties" dialog box, click the "Install/Uninstall" tab, then select "PC Card Viewer Utility 1.0" from the list of applications and click on "Add/Remove".

4. In the "Confirm File Deletion" dialog box, click "Yes".

5.Once the application is uninstalled, click on "OK" in the "Remove Program From Your Computer" dialog box.

E – 46

Terminology

PC card

This is the name of a card currently being standardized by the Japan Electronic Industry Association (JEIDA) and PCMCIA



(Personal Computer Memory Card Interface Association) of the United States.

ATA card

A type of PC card. ATA was originally a type of interface between computers and fixed disk devices. The ATA card is a standard



card-type recording medium.

CompactFlash

CompactFlash card is a small removable card conforming to ATA specifications. It is one-fourth the volume of a PCMCIA card.

TYPE (I, II and III) PCMCIA 2.1 PC cards are divided into three types according to their thickness: Type I (3.3 mm), Type II (5.0 mm) and Type III (10.5 mm).

BMP

A type of image format. The standard Windows Bit Map format used for MS-DOS/Windows-compatible computers.



JPEG

A type of image format. "JPEG" is the abbreviation of Joint Photographic Experts Group. JPEG compression offers efficient





data storage. The data not required for displaying the image is identified and deleted. Since the data is deleted, JPEG





algorithms are said to be irreversible. This means that once the image is compressed, the decompressed image it is not the





same as the original image.















E – 47

4. MAINTENANCE

This section describes the simple maintenance procedures you should follow to replace the lamp and clean the filter.

Replacing the Lamp

After your lamp has been operating for 1500 hours (2500 hours : Eco mode) or longer, the “Status” light in the cabinet will go on and the message will appear. Even though the lamp may still be working, replace it at 1500 (2500 hours : Eco mode) hours to maintain optimal projector performance.

CAUTION

DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off, wait a full minute, and then disconnect the power cable. Allow at least one hour for the lamp to cool before handling.

DO NOT REMOVE ANY SCREWS except the lamp cover screw and two lamp housing screws. You could receive an electric shock.

The projector will turn off and go into stand by mode after 1600 (2600 hours : Eco mode) hours of service. If this happens, be sure to replace the lamp. If you continue to use the lamp after 1500 hours (2500 hours : Eco mode) of use, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp housing. Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.

To replace the lamp:

1.Loosen the lamp cover screw until the screwdriver goes into a freewheeling condition and remove the lamp cover. The lamp cover screw is not removable.

2.Loosen the two screws securing the lamp housing until the screwdriver goes into a freewheeling condition. The two screws are not removable.

Remove the lamp housing by pulling out the handle.

NOTE: There is an interlock on this case to prevent the risk of electrical shock. Do not attempt to circumvent this interlock.

Interlock

3.Insert a new lamp housing .

CAUTION: Do not use a lamp other than the NEC replacement lamp (LT57LP). Order this from your NEC dealer.

Secure it in place with the two screws.

Be sure to tighten the screws.

4.Reattach the lamp cover.

Tighten the lamp cover screw.

Be sure to tighten the screw.

5.After you install a new lamp, select [Menu] [Projector Options] [Setup][Page 4][Clear Lamp Hour Meter] to reset the lamp usage hours.

NOTE: When the lamp exceeds 1600 hours (2600 hours : Eco mode) of service, the projector cannot turn on and the message is not displayed. If this happens, press the Help button on the remote control for a minimum of 10 seconds while in standby mode. When the lamp time clock is reset to zero, the STATUS indicator goes out.

E – 48

Cleaning or Replacing the Filters

The air-filter sponge keeps the inside of the LT158/LT157 Projector free from dust or dirt and should be cleaned after every 100 hours of operation (more often in dusty conditions). If the filter is dirty or clogged, your projector may overheat.

CAUTION

Turn off the power and unplug the projector before replacing the filter.

Only clean the outside of the filter cover with a vacuum cleaner.

Do not attempt to operate the projector without a filter cover.

Your projector will not operate unless the filter cover is installed correctly.

To clean the air-filter:

When “Clean Filter” option is turned on, the “Please clean the filter” message will be displayed each time the project or is turned on after it has been used in excess of 100 hours. Should this message appear, clean the filter.

The message can be turned on or off using the “Menu” - “Filter Clean Message” option on the Setup menu. See page E-36.

After cleaning the filter and resetting the filter usage time to zero, the message will not be displayed.

See page E-38 for resetting the filter usage time.

Vacuum the filter-through the filter cover.

RETNE

NA

C



C



E



L

NEM

U

To replace the air-filter:

1.Remove the filter cover by pushing down on the catch of the cover until you feel it detach.

2 1

2.Reinstall the new filter cover.

NOTE: Do not detach the sponge from the filter cover. Do not wash the filter cover with soap and water. Soap and water will damage the the filter membrane. Before replacing the filter cover, remove dust and dirt from the projector cabinet. Keep out dust and during filter replacement.

NOTE: When you replace the lamp, it is also wise to replace the filter. The filter comes in the same package with your replacement lamp.

E – 49

5. TROUBLESHOOTING

This section helps you resolve problems you may encounter while setting up or using the projector.

Power/ Status Light Messages

Condition

Power Indicator

Status Indicator

Note

Standby

Steady orange









Cooling down

Blinking green

Blinks green for 60 seconds









Lamp in Normal mode

Steady green









Lamp in Eco mode

Steady green

Steady green









Re-firing the lamp

Steady green

Blinking orange

The projector retries 3 times at an inter-







val of 15 sec for max. 45 sec)

One minute after lamp is turned on

Blinking green

No light in Normal mode /Steady





green in Eco mode











Lamp has reached its end of life

Steady green

Steady red

Message appears on screen during 1500-1600

(Normal: 1500 hours or over)





hours(2500-2600 hours: Eco mode) of lamp

(Eco: 2500 hours or over)





usage. The projector reaches its end of life.







Please replace the lamp as soon as possible

Lamp life has reached its end of life

Steady orange

Steady red

The projector is in standby mode and can-

(Normal: 1600 hours or over)





not be turned on.

(Eco: 2600 hours or over)















Lamp or filter cover error (2 locations)

Steady orange

Blinking red (1 sec interval)

The projector is in standby mode and can-







not be turned on.









Temperature error

Steady orange

Blinking red (4 sec interval)

The projector is in standby mode and can-







not be turned on.









Fan error

Steady orange

Blinking red (8 sec interval)

The projector is in standby mode and can-







not be turned on.

Lamp error

Steady orange

Blinking red (12 sec interval)

The projector is in standby mode and can-







not be turned on.









Common Problems & Solutions

Problem

Check These Items

Does not turn on

• Check that the power cable is plugged in and that the power button on the projector cabinet or the remote



control is on.



• Ensure that the lamp cover or filter cover is installed correctly. See page E-48 and E-49.



• Check to see if the projector has overheated or the lamp usage exceeds 1600 hours (up to 2600 hours in Eco



mode). If there is insufficient ventilation around the projector or if the room where you’re presenting is particu-



larly warm, move the projector to a cooler location.

No picture

• Use the menu to select your source (Video, S-Video, RGB (DVI digital or DVI analog on LT158) or PC Card



Viewer). See pages E-18 and E-33.



• Ensure your cables are connected properly.



• Use menus to adjust the brightness and contrast. See page E-33.



• Remove the lens cap.



• Reset the settings or adjustments to factory preset levels using the Factory Default on the Image Options



Menu in Advanced menu. See page E-35.





Image isn’t square to the

• Reposition the projector to improve its angle to the screen. See page E-25.

screen

• Use the Keystone to correct the trapezoid distortion. See page E-29 or E-34.





Picture is blurred

• Adjust the focus. See page E-25.



• Reposition the projector to improve its angle to the screen. See page E-25.



• Ensure that the distance between the projector and screen is within the adjustment range of the lens. See



page E-16.





Image is scrolling vertically,

• Use menus or a source button on the remote control or the cabinet to select the source you want to input.

horizontally or both







Remote control does not

• Install new batteries. See page E-13.

work

• Make sure there are no obstacles between you and the projector.



• Stand within 22 feet (7 m) of the projector. See page E-13.



• Make sure that you are in the Projector mode or the PJ button lights in red. If not, press the PJ button.





Status indicator is lit or blink-

• See the Power/ Status Light messages above.

ing







Cross color in RGB mode

• If Auto Adjust is off, turn it on. If Auto Adjust is on, turn it off and balance the image with the Position and Clock



Adjust on the Image Options Menu. See page E-35 or E-38.





E – 50

When using the PC Card Viewer function

Condition

Status

No picture

• Is “PC Card Viewer” selected from the Source menu?



• Is the CompactFlash card seated in the PC CARD slot completely?



• Is slide data stored in the CompactFlash card?



• Have the contents of the CompactFlash card been destroyed?





Part of a slide is not displayed

• While an image with over 1024 768 dots is projected, several lines of information will be lost. Use the



supplied software to change the image to 1024 768 dots in size.





Contents of CompactFlash

• Use a computer, etc., to repair the data.

Card are damaged







For more information contact your dealer.

E – 51

6. SPECIFICATIONS

This section provides technical information about the LT158/LT157 Projector’s performance.

Model Number

LT158/LT157



Optical





LCD Panel

0.9” p-Si TFT active-matrix,

1024 768 dots



With Micro Lens Array



Lens

Manual zoom, manual focus





F1.7 – 2.1 f=36.5 – 43.7 mm



Lamp

130W NSH lamp (110W in Eco mode)



The lamp, under normal operating conditions, is warranted for 1500 hours of operation time within 6 months.

Image Size

25 – 300 inches (0.64 – 7.62 m) diagonal

Projection Distance

3.9 – 40.35 ft (1.2 - 12.3 m)



Electrical





Inputs

Video (NTSC / PAL / PAL-N* / PAL-M* / PAL60 / SECAM / NTSC4.43)



Horizontal Frequency : 15 – 100 kHz (RGB : 24 kHz or over)



Vertical Frequency : 50 – 120 Hz



DVI 29 pin* : RGB digital (Max resolution: XGA), TMDS specification



(functions as DVI analog input)

Video Bandwidth

RGB: 80 MHz



Color

Reproduction Full color, 16.7 million colors simultaneously.

Horizontal Resolution

500 TV lines : NTSC, PAL, NTSC4.43, Y/Cb/Cr (550 TV lines : LT158 only)



350 TV lines : SECAM





RGB 1024 dots horizontal, 768 dots vertical

Power Requirement

100 – 120 / 200 – 240 VAC, 50 / 60 Hz

Input Current

2.2 A (100 – 120 VAC) / 1.0A (200 – 240 VAC)

Mechanical





Dimensions

8.1" (W) 2.5" (H) 10.5" (D) / 207mm (W) 63mm (H) 266mm (D) (not including lens and feet)

Net Weight

4.9 lbs / 2.2 kg



Environmental Considerations

Operational Temperatures:

41˚ – 95˚F (5˚ to 35˚C), 20 – 80% humidity (non-condensing)



Storage Temperatures:

14˚ – 122˚F (-10˚ to 50˚C), 20 – 80% humidity (non-condensing)

Regulations

UL Approved (UL 1950, CSA 950)



Meets DOC Canada Class B requirements



Meets FCC Class B requirements



Meets AS/NZS3548 Class B





Meets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3)



Meets Low Voltage Directive (EN60950, TUV GS Approved)

* LT158 only

For additional information visit:

US: http://www.necvisualsystems.com

Europe: http://www.nec-europe.com/

Global: http://www.nec-pj.com/

LCD panels are inherently susceptible to pixel defects.

For additional information regarding pixel data, please contact your local NEC sales office.

The specifications are subject to change without notice.

E – 52

Cabinet Dimensions

LT158/LT157

POWER









STATUS





STANDBY







/ON











ACCESS









PCCARD















ADJUST











AUTO











SOURCE











C

R

ET





A



N







C







N

L

E







E







SELECT











UNEM







207 (8.15")



40.35 (1.59")



Lens center

(1.59") 31.2 (1.23")

63 (2.5")

40.3

5 (0.2")



Lens center

266 (10.47")

19.7

(0.78")

Unit = mm (inch)

E – 53

D-Sub Pin Assignments

Mini D-Sub 15 Pin Connector

LT157

5

4

3

2

1



Signal Level



6

Video signal : 0.7Vp-p (Analog)

10

9

8

7

Sync signal : TTL level

15

14

13

12

11









Pin No.

RGB Signal (Analog)



YCbCr Signal

1

Red









Cr

2

Green or Sync on Green

Y

3

Blue









Cb

4

Ground









5

Ground









6

Red Ground



Cr Ground

7

Green Ground



Y Ground

8

Blue Ground



Cb Ground

9

No Connection





10

Sync Signal Ground





11

Ground









12

Bi-directional DATA (SDA)



13

Horizontal Sync or Composite Sync



14

Vertical Sync





15

Data Clock





DVI Pin Assignments

DVI connector

LT158

1 2 3 4 5 6 7 8 9 10111213141516 1718192021222324

Pin No.

Signal (Digital)

1

T.M.D.S Data 2 -

2

T.M.D.S Data 2 +

3

T.M.D.S Data 2 Shield

4

No connection

5

No connection

6

DDC Clock

7

DDC Data

8

Analog Vertical Sync

9

T.M.D.S Data 1 -

10

T.M.D.S Data 1 +

11

T.M.D.S Data 1 Shield

12

No connection

13

No connection

14

+5V Power

15

Ground

16

Hot Plug Detect

17

T.M.D.S Data 0 -

18

T.M.D.S Data 0 +

19

T.M.D.S Data 0 Shield

20

No connection

21

No connection

22

T.M.D.S Clock Shield

23

T.M.D.S Clock +

24

T.M.D.S Clock -

25

Analog Red

26

Analog Green

27

Analog Blue

28

Analog Horizontal Sync

29

Analog Ground

E – 54

Compatible Input Signal List



Signal

Resolution

Frequency H.

Refresh Rate

Dot Clock









( Dots )

( kHz )

( Hz )



( MHz )





























NTSC



15.734

60









PAL



15.625

50











SECAM



15.625

50











VESA

640

480

31.47

59.94



25.175







IBM

640

480

31.47

60





25.175







MAC

640

480

31.47

60





25.175







MAC

640

480

34.97

66.67



31.334







MAC

640

480

35

66.67



30.24







VESA

640

480

37.86

72.81



31.5







VESA

640

480

37.5

75





31.5







IBM

640

480

39.375

75





31.49







VESA

640

480

43.269

85.01



36







IBM

720

350

31.469

70.09



28.322







VESA

720

400

37.927

85.04



35.5







IBM

720

350

39.44

87.85



35.5







IBM

720

400

39.44

87.85



35.5







VESA

800

600

35.16

56.25



36







VESA

800

600

37.879

60.32



40







VESA

800

600

48.077

72.19



50







VESA

800

600

46.88

75





49.5







VESA

800

600

53.674

85.06



56.25







MAC

832

624

49.725

74.55



57.283







VESA

1024

768

35.5

43

Interlaced

44.9







VESA

1024

768

48.363

60





65







VESA

1024

768

56.476

70.07



75







MAC

1024

768

60.241

74.93



80













VESA

1024

768

60.023

75.03



78.75







VESA

1024

768

68.677

85





94.5





#

VESA

1152

864

67.5

75





108





#

MAC

1152

870

68.681

75.06



100





#

SUN

1152

900

61.796

65.95



92.94





#

SGI

1152

900

71.736

76.05



105.6





#

VESA

1280

960

60

60





108





#

VESA

1280

1024

63.981

60.02



108





#

MAC

1280

1024

69.89

65.2



118.5





#

HP

1280

1024

78.125

72.01



135





#

SUN

1280

1024

81.13

76.11



135





#

VESA

1280

1024

79.976

75.03



135





#

VESA

1280

1024

91.146

85.02



157.5





#

HDTV (1080i)(1125i)

1920

1080

33.75

60

Interlace

74.25





#

HDTV (1080i)(1125i)

1920

1080

28.13

50

Interlace

74.25





#

HDTV (720p)(750p)

1280

720

45

60

Progressive

74.25





#

SDTV (480p)(525p)



31.47

59.94

Progressive

27





#

VESA

1600

1200

75.0

60





162





#

VESA

1600

1200

81.3

65





175.5





#

VESA

1600

1200

87.5

70





189





#

VESA

1600

1200

93.75

75





202.5







DVD YCbCr



15.734

59.94

Interlaced







DVD YCbCr



15.625

50

Interlaced





#: Images in above flagged with # are compressed with Advanced AccuBlend.

NOTE1: Some composite sync signals may not be displayed correctly.

NOTE2: Signals other than those specified in the table above may not be displayed correctly. If this should happen, change the refresh rate or resolution on your PC. Refer to Display Properties help section of your PC for procedures.

NOTE3: UXGA can be supported for separate sync signal only.

NOTE4: DVI digital signal can support a maximum resolution of XGA@85Hz.

E – 55

To GND of PC

PC Control Codes

LT157

Function

Code Data











POWER ON

02H

00H

00H

00H

00H

02H



















POWER OFF

02H

01H

00H

00H

00H

03H



















INPUT SELECT RGB

02H

03H

00H

00H

02H

01H

01H 09H

















INPUT SELECT VIDEO

02H

03H

00H

00H

02H

01H

06H 0EH

















INPUT SELECT S-VIDEO

02H

03H

00H

00H

02H

01H

0BH 13H

















INPUT SELECT PC CARD VIEWER

02H

03H

00H

00H

02H

01H

1FH 27H

PICTURE MUTE ON

02H

10H

00H

00H

00H

12H



PICTURE MUTE OFF

02H

11H

00H

00H

00H

13H



SOUND MUTE ON

02H

12H

00H

00H

00H

14H



















SOUND MUTE OFF

02H

13H

00H

00H

00H

15H



















ON SCREEN MUTE ON

02H

14H

00H

00H

00H

16H



















ON SCREEN MUTE OFF

02H

15H

00H

00H

00H

17H



















LT158

Function

Code Data











POWER ON

02H

00H

00H

00H

00H

02H



















POWER OFF

02H

01H

00H

00H

00H

03H



















INPUT SELECT DVI (DIGITAL)

02H

03H

00H

00H

02H

01H

1AH 22H

















INPUT SELECT DVI (ANALOG)

02H

03H

00H

00H

02H

01H

01H 09H

















INPUT SELECT VIDEO

02H

03H

00H

00H

02H

01H

06H 0EH

















INPUT SELECT S-VIDEO

02H

03H

00H

00H

02H

01H

0BH 13H

















INPUT SELECT PC CARD VIEWER

02H

03H

00H

00H

02H

01H

1FH 27H

















PICTURE MUTE ON

02H

10H

00H

00H

00H

12H



















PICTURE MUTE OFF

02H

11H

00H

00H

00H

13H



















SOUND MUTE ON

02H

12H

00H

00H

00H

14H



















SOUND MUTE OFF

02H

13H

00H

00H

00H

15H



ON SCREEN MUTE ON

02H

14H

00H

00H

00H

16H



ON SCREEN MUTE OFF

02H

15H

00H

00H

00H

17H



















NOTE: Contact your local dealer for a full list of the PC Control Codes if needed.

Cable Connection

Communication Protocol

Baud rate:

38400 bps

Data length:

8 bits

Parity:

No parity

Stop bit:

One bit

X on/off:

None

Communications

Full duplex

procedure:



PC Control Connector (DIN-8P)

To RxD of PC



8

7

6







5



4

3





2

1

To TxD of PC

NOTE: Pins 2, 3, 5, 6 and 8 are used inside the projector.

E – 56

Printed in Japan

7N8P1211
