NEC LCD72XM, LCD92XM User Manual

AccuSync LCD72XM
AccuSync LCD92XM

User’s Manual

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT
USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS
THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK • DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit
has been included. Therefore, it should be read carefully in order to avoid any problems.

Caution:

When operating the AccuSync LCD72XM/AccuSync LCD92XM with a 220-240V AC power source in Europe, use the power
cord provided with the monitor.

In the UK, a BS approved power cord with a moulded plug has a Black (five Amps) fuse installed for use with this equipment.
If a power cord is not supplied with this equipment please contact your supplier.

For all other cases, use a power cord that matches the AC voltage of the power outlet and has been approved by and
complies with the safety standard of your particular country.

English

Declaration

Declaration of the Manufacturer

We hereby certify that the colour monitor AccuSync
LCD72XM (L174F1)/AccuSync LCD92XM (L194F2)
is in compliance with

Council Directive 73/23/EEC:

– EN 60950-1

Council Directive 89/336/EEC:

– EN 55022
– EN 61000-3-2
– EN 61000-3-3
– EN 55024

As an ENERGY STAR Partner, NEC Display Solutions of America, Inc. has determined that this product meets the ENERGY STAR
guidelines for energy efficiency. ENERGY STAR is a U.S. registered mark. The ENERGY STAR emblem does not represent EPA
endorsement of any product or service.
ErgoDesign is a registered trademark of NEC Display Solutions, Ltd. in Austria, Benelux, Denmark, France, Germany, Italy,
Norway, Spain, Sweden, U.K..
IBM PC/XT/AT, PS/2, MCGA, VGA, 8514/A and XGA are registered trademarks of International Business Machines
Corporation.
Apple and Macintosh are registered trademarks of Apple Computer Inc.
Microsoft and Windows are registered trademarks of the Microsoft Corporation.
NEC is a registered trademark of NEC Corporation.
All other trademarks or registered trademarks are property of their respective owners.

and marked with

NEC Display Solutions, Ltd.

4-13-23, Shibaura,

Minato-Ku

Tokyo 108-0023, Japan

English-1

For the Customer to use in U.S.A. or Canada

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouiller du Canada.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CSA C22.2 No. 60950-1.

Ce produit porte la marque ‘C-UL’ et se conforme aux règlements de sûrele Canadiens selon CAN/CSA C22.2 No. 60950-1.

FCC Information

1. Use the attached specified cables with the AccuSync LCD72XM/AccuSync LCD92XM colour monitor so as not to
interfere with radio and television reception.

(1) The power supply cord you use must have been approved by and comply with the safety standards of U.S.A.,

and meet the following condition.

Power supply cord Non shield type, 3-conductor
Length 1.8 m
Plug shape

U.S.A

(2) Please use the supplied shielded video signal cable. Use of other cables and adapters may cause interference

with radio and television reception.

2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional
suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful:
“How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government
Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Declaration of Conformity

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.

U.S. Responsible Party: NEC Display Solutions of America, Inc.
Address: 500 Park Blvd, Suite 1100

Itasca, Illinois 60143

Tel. No.: [phone]

Type of Product: Display Monitor

Equipment Classification: Class B Peripheral

Model: AccuSync LCD72XM (L174F1)/AccuSync LCD92XM (L194F2)

We hereby declare that the equipment specified above conforms

to the technical standards as specified in the FCC Rules.

English-2

Contents

Your new NEC AccuSync LCD monitor box* should contain the following:

• AccuSync LCD monitor with tilt base • DVI-D Cable (LCD92XM only)

• Audio Cable

• Power Cord

• Video Signal Cable

• User’s Manual

• CD-ROM

• Base Stand

• Cable Holder

DVI-D Cable

(LCD92XM only)

CD-ROMCable Holder

English

User’s Manual

*

Remember to save your original box and packing material to transport or ship the monitor.

Audio Cable Power Cord

Video Signal Cable

Base Stand AccuSync LCD monitor

(base stand not connected)

Quick Start

To attach the Base to the LCD Stand:

1. Insert the front of the LCD stand into the holes in the front of the Base (Figure S.1).

2. Next, position the locking tabs on the back side of the LCD stand with the holes on the Base. Lower the Stand in place until

locking tabs are secure (Figure S.1).

To attach the Cable Holder:

1. Insert the tabs of Cable Holder into the hole of Stand neck (Figure S.1).

NOTE: Please confirm that the tabs are completely secure.

Stand

Locking Tabs

Base

Figure S.1

To attach the AccuSync LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. For the PC or MAC with DVI digital output: Connect the DVI-D signal cable (included with LCD92XM only) to the

connector of the display card in your system (Figure B.1). Tighten all screws.

For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your
system (Figure A.1). Tighten all screws.

For the Mac: Connect the MultiSync Macintosh cable adapter (not included) to the computer. Attach the 15-pin mini
D-SUB signal cable to the MultiSync Macintosh cable adapter (Figure A.2). Tighten all screws.

NOTE: Some Macintosh systems do not require a Macintosh cable adapter.

Cable Holder

Figure A.1

English-3

Macintosh Cable
Adapter (not included)

Figure A.2

3. Connect the 15-pin mini D-SUB of the video signal cable and Audio Cable to the appropriate connector on the back of the

monitor (Figure B.1). Connect the Headphone (not included) to the appropriate connector at the front of the monitor
(Figure C.1).

4. Connect one end of the power cord to the monitor and the other end to the power outlet. Place the Video Signal Cable and

power cord to the Cable holder (Figure B.1).

NOTE: Adjust position of cable that place under the Cable holder to avoid damage for cable or monitor.

NOTE: Please refer to Caution section of this manual for proper selection of power cord.

5. Turn on the monitor with the front power button and the computer (Figure C.1).

AUDIO INPUT

DVI-D (Input2)

D-Sub (Input1)

Power Button

Cable holder

Headphone

Connect to
Computer audio output

Figure B.1

6. No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings.

For further adjustments, use the following OSM controls:

• Auto Adjust Contrast

• Auto Adjust

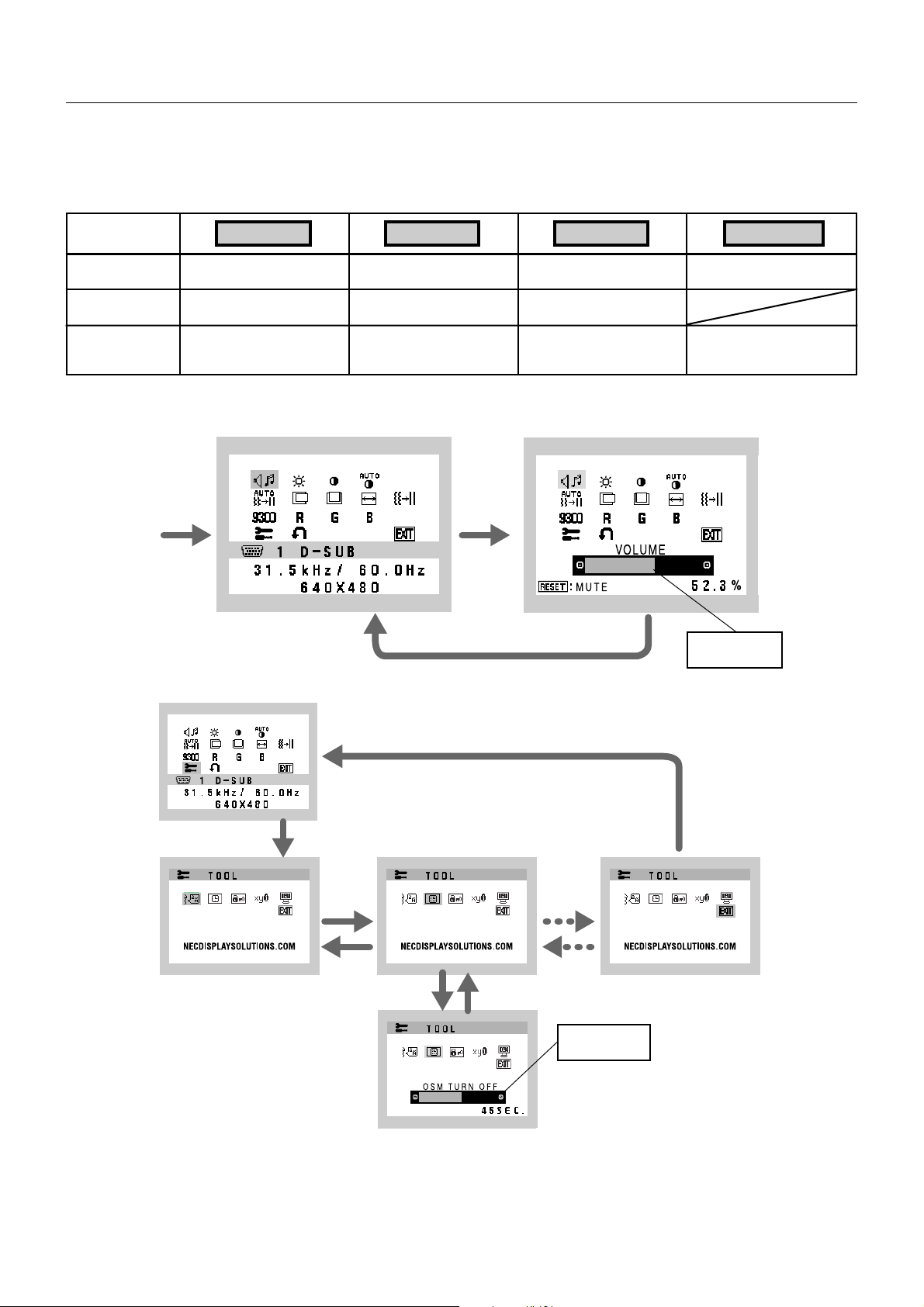

Refer to the Controls section of this User’s Manual for a full description of these OSM controls.

NOTE: If you have any problem, please refer to the Troubleshooting section of this

User’s Manual.

Figure C.1

Tilt

Grasp both sides of the monitor screen with your hands and adjust the tilt as desired
(Figure TS.1).

Remove Monitor Stand for Mounting

To prepare the monitor for alternative mounting purposes:

1. Disconnect all cables.

2. Place monitor face down on a non-abrasive surface (Figure R.1).

3. Remove the 4 screws connecting the monitor to the stand and remove the stand as indicated (Figure R.2).

The monitor is now ready for mounting in an alternative manner.

4. Connect the AC cord and signal cable to the back of the monitor (Figure R.3).

5. Reverse this process to re-attach stand.

NOTE: Use only VESA-compatible alternative mounting method.

Figure TS.1

NOTE: Handle with care when removing monitor stand.

English-4

Non-abrasive surface

English

Figure R.1

Figure R.2 Figure R.3

Removing the Base

NOTE: Always remove the Base when shipping the LCD.

1. Place monitor face down on a non-abrasive surface (Figure R.1).

2. While using your thumbs, press the bottom tabs upward to unlock.

3. Press the top tabs down to unlock and pull off the stand.

Connecting a Flexible Arm

This LCD monitor is designed for use with a flexible arm.

Please use the attached screws (4pcs) as shown in the picture when installing. To meet the safety requirements, the monitor
must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor.

The LCD monitor shall only be used with an approved arm (e.g. GS mark).

Replace screws

Thickness of Bracket

(Arm) 2.0 ~ 3.2 mm

Specifications

4-SCREWS (M4)
(MAX depth: 8.5 mm)

If use other
screw, check
depth of hole.

Tighten all screws

100 mm*

100 mm*

* (LCD72XM/LCD92XM)

Weight of LCD assembly: 4.3 kg - LCD72XM (MAX)

5.5 kg - LCD92XM (MAX)
