NEC LCD6520P User Guide
User’s Manual
MultiSync LCD6520L
(For use in Landscape position only)
MultiSync LCD6520P
(For use in Portrait position only)
Index
Declaration of conformity ............................................................................................................................. English-1
Important Information ................................................................................................................................... English-2
Warning, Caution................................................................................................................................ English-2
Declaration ................................................................................................................................................... English-2
Safety Precautions, Maintenance & Recommended Use ............................................................................ English-3
Contents (LCD6520L) .................................................................................................................................. English-4
Installation (LCD6520L) ............................................................................................................................... English-5
Contents (LCD6520P) .................................................................................................................................. English-8
Installation (LCD6520P) ...............................................................................................................................English-9
Parts Name and Functions .......................................................................................................................... English-12
Control Panel...................................................................................................................................... English-12

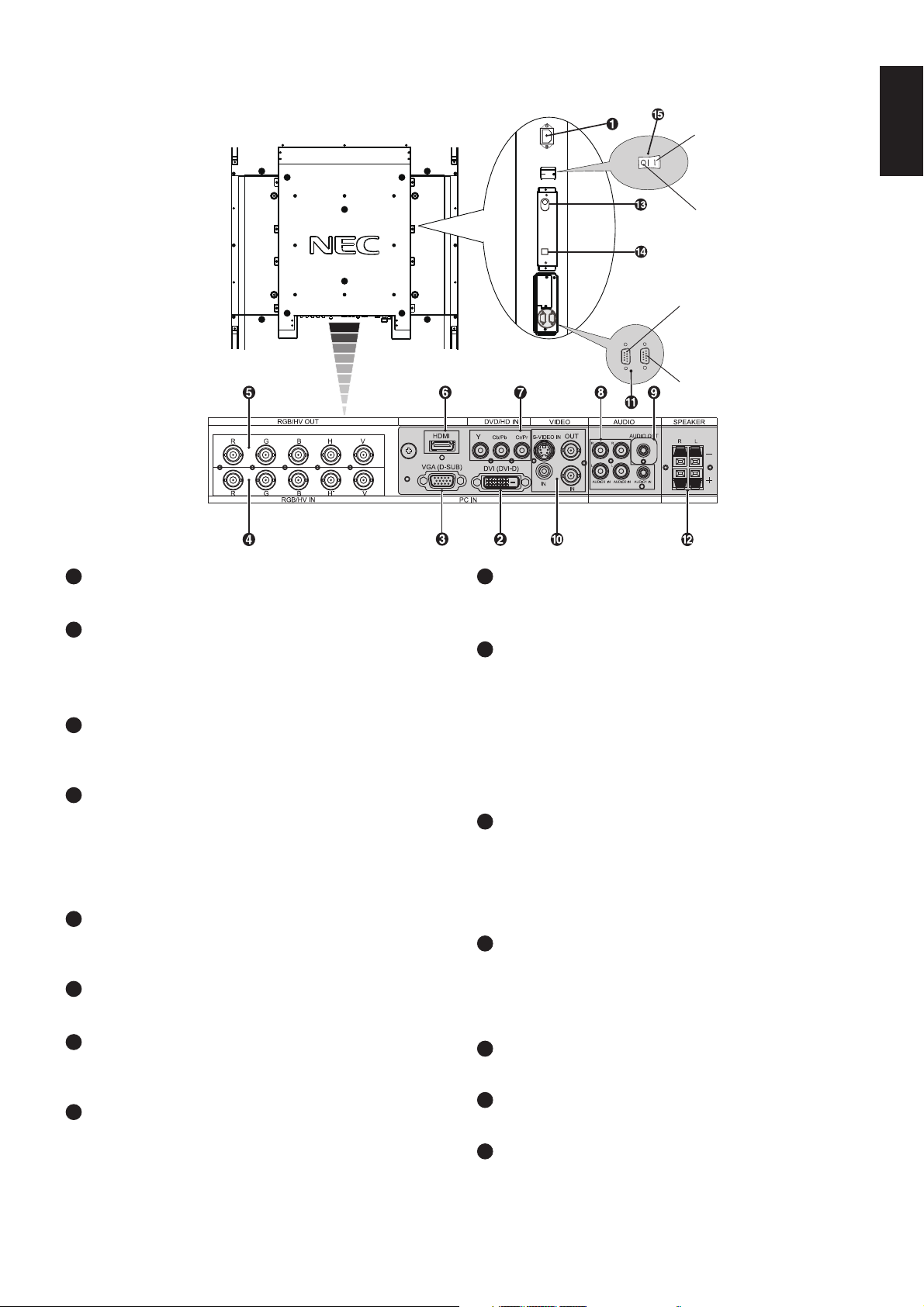

Terminal Panel.................................................................................................................................... English-13

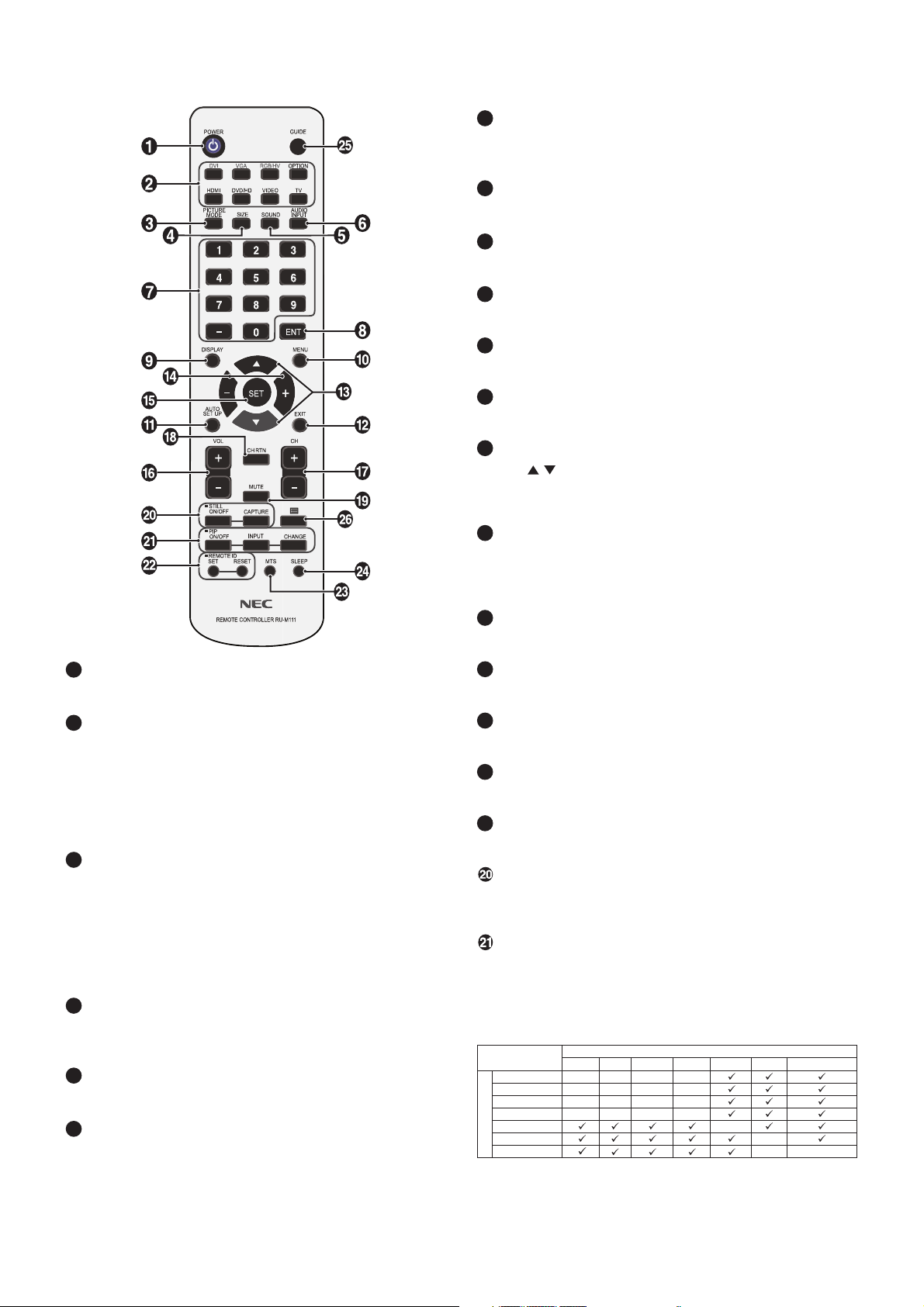

Wireless Remote Control ................................................................................................................... English-14

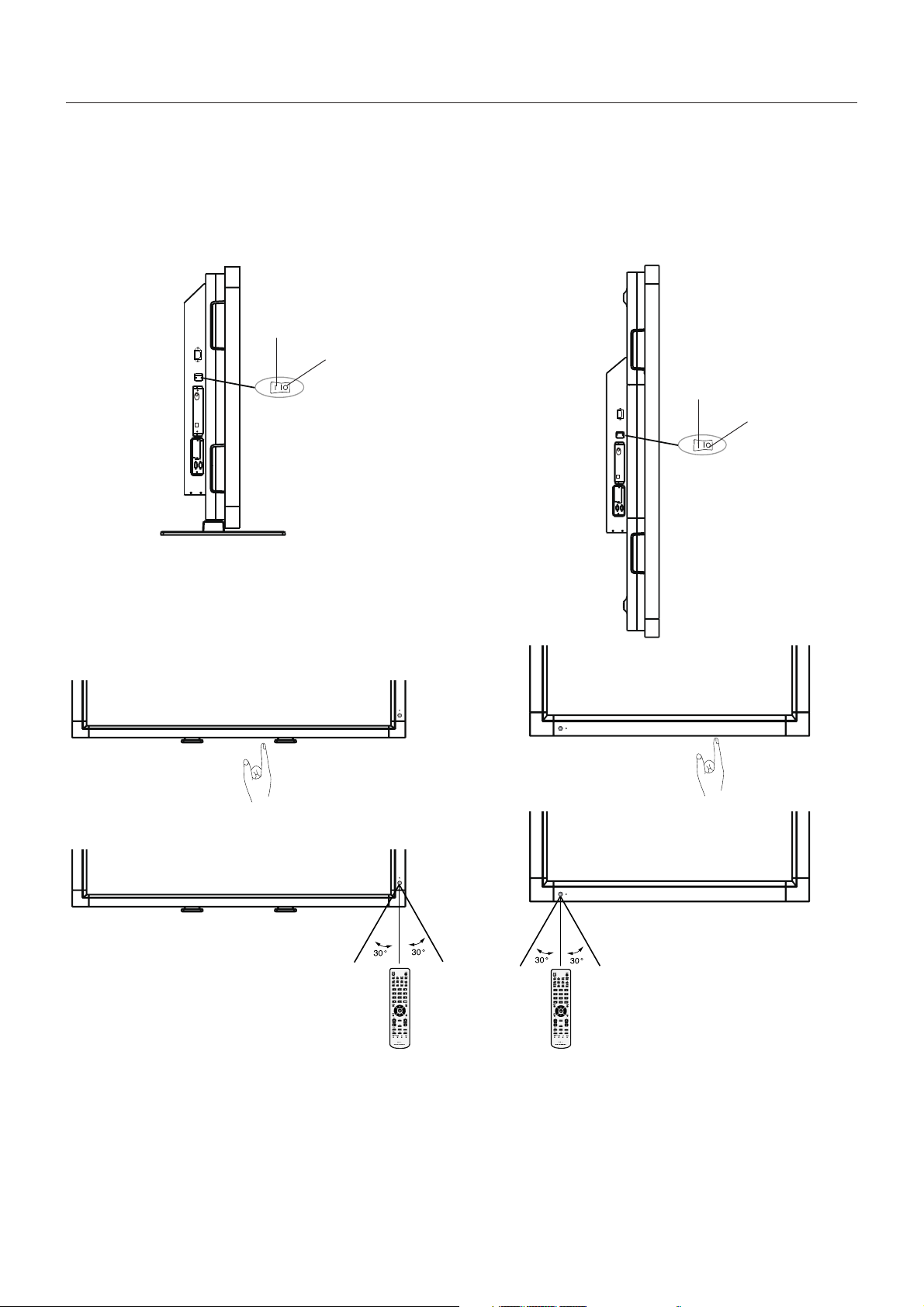

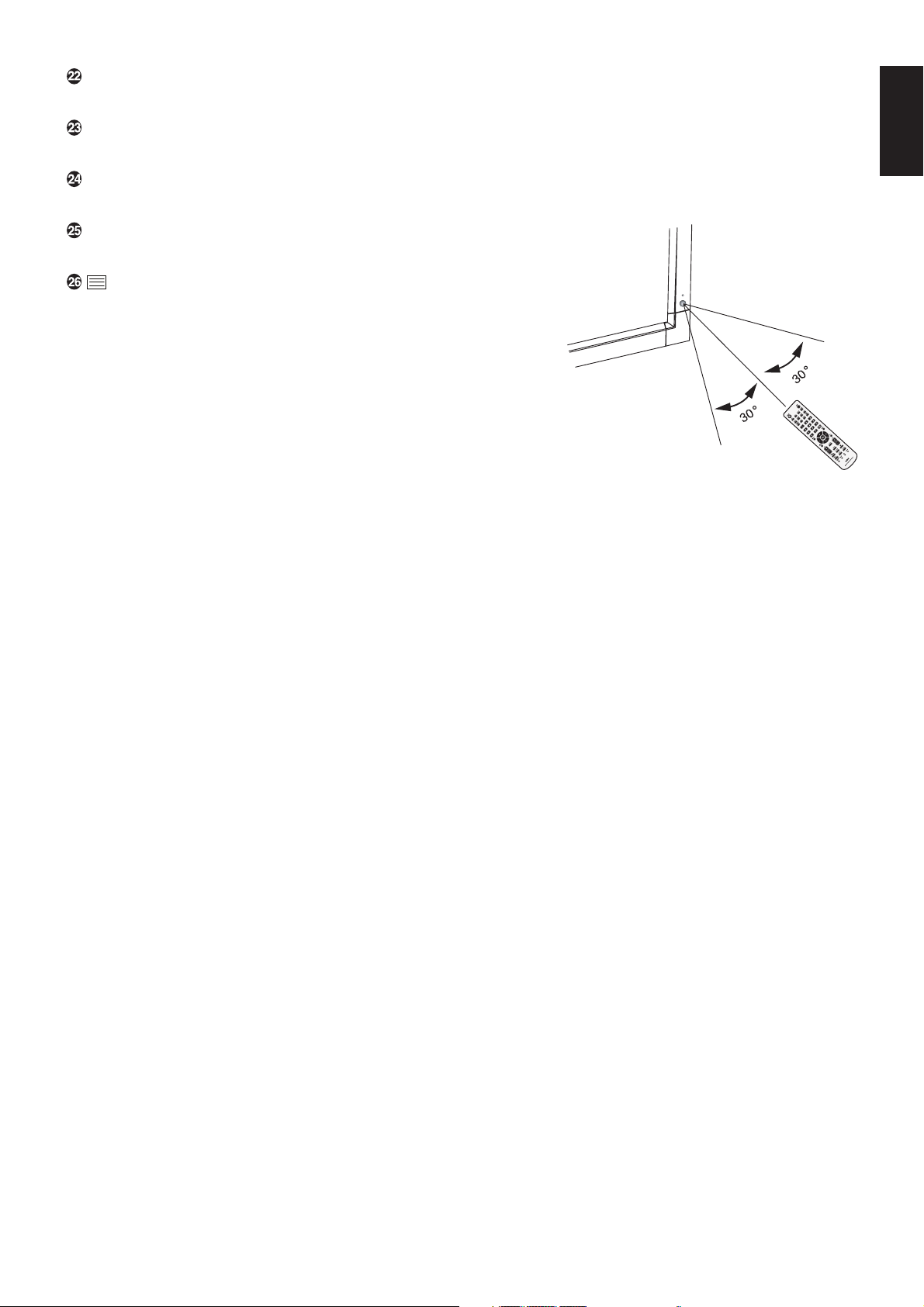

Operating Range for the Remote Control........................................................................................... English-15
Handling the remote control ........................................................................................................... English-15
Setup.............................................................................................................................................................English-16
Connections ................................................................................................................................................. English-18

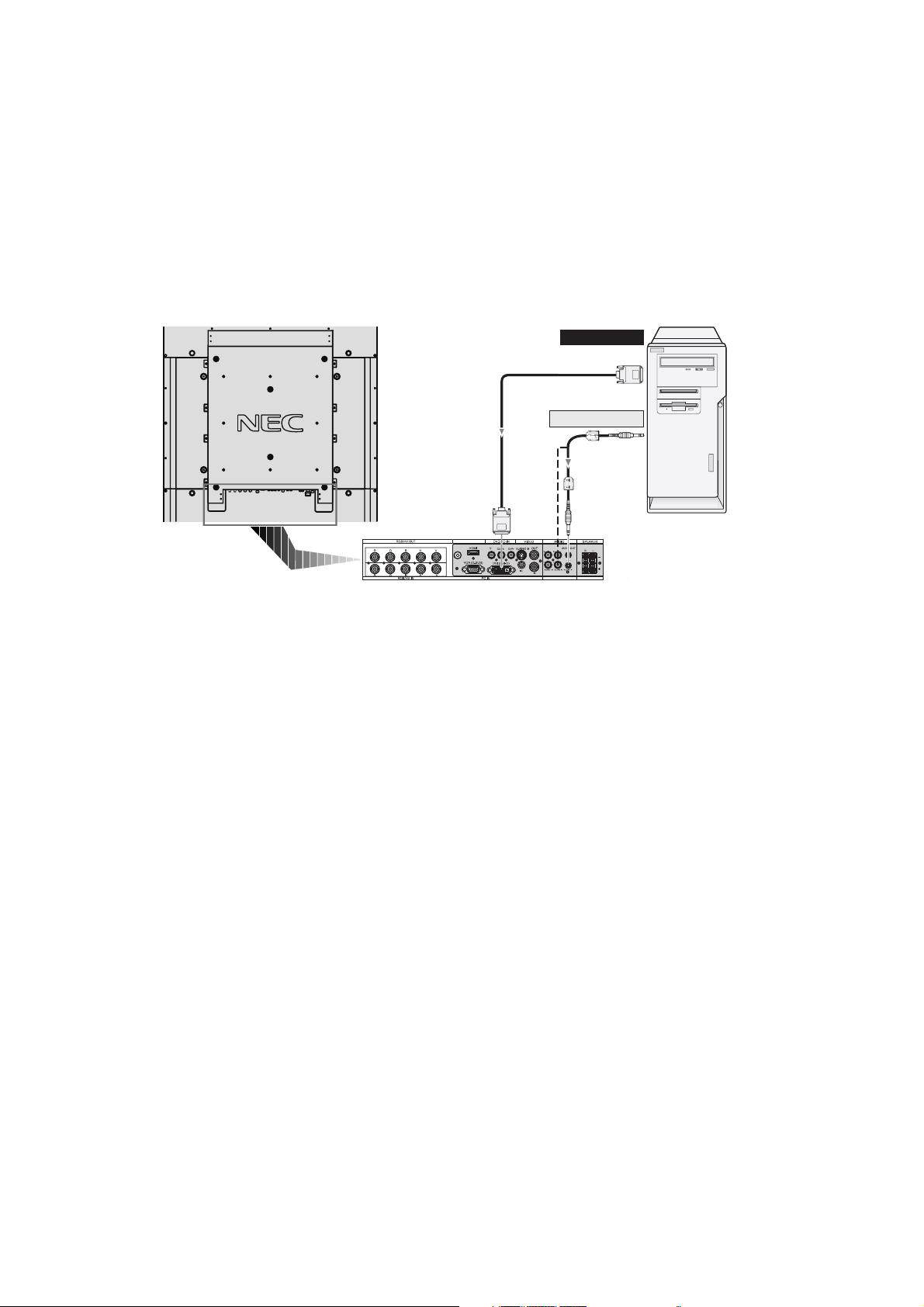

Connecting a Personal Computer ...................................................................................................... English-18
Connect the LCD Monitor to a Personal Computer ........................................................................ English-18

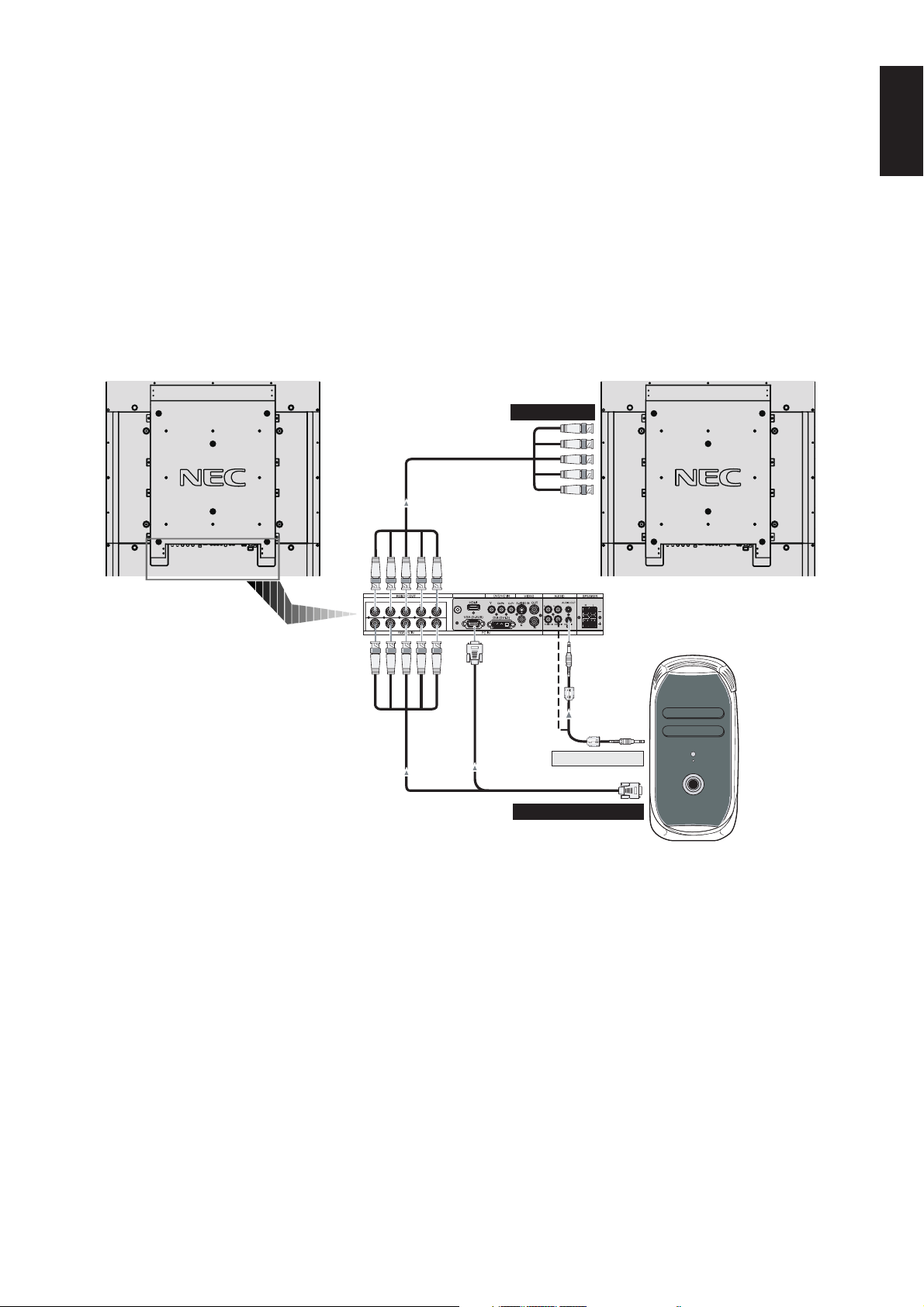

Connecting to a Macintosh Computer ................................................................................................ English-19
Connect the LCD Monitor to Macintosh ......................................................................................... English-19
Connecting with Digital Interface Equipment...................................................................................... English-20
Connect the LCD Monitor to a Computer with a Digital Output ...................................................... English-20

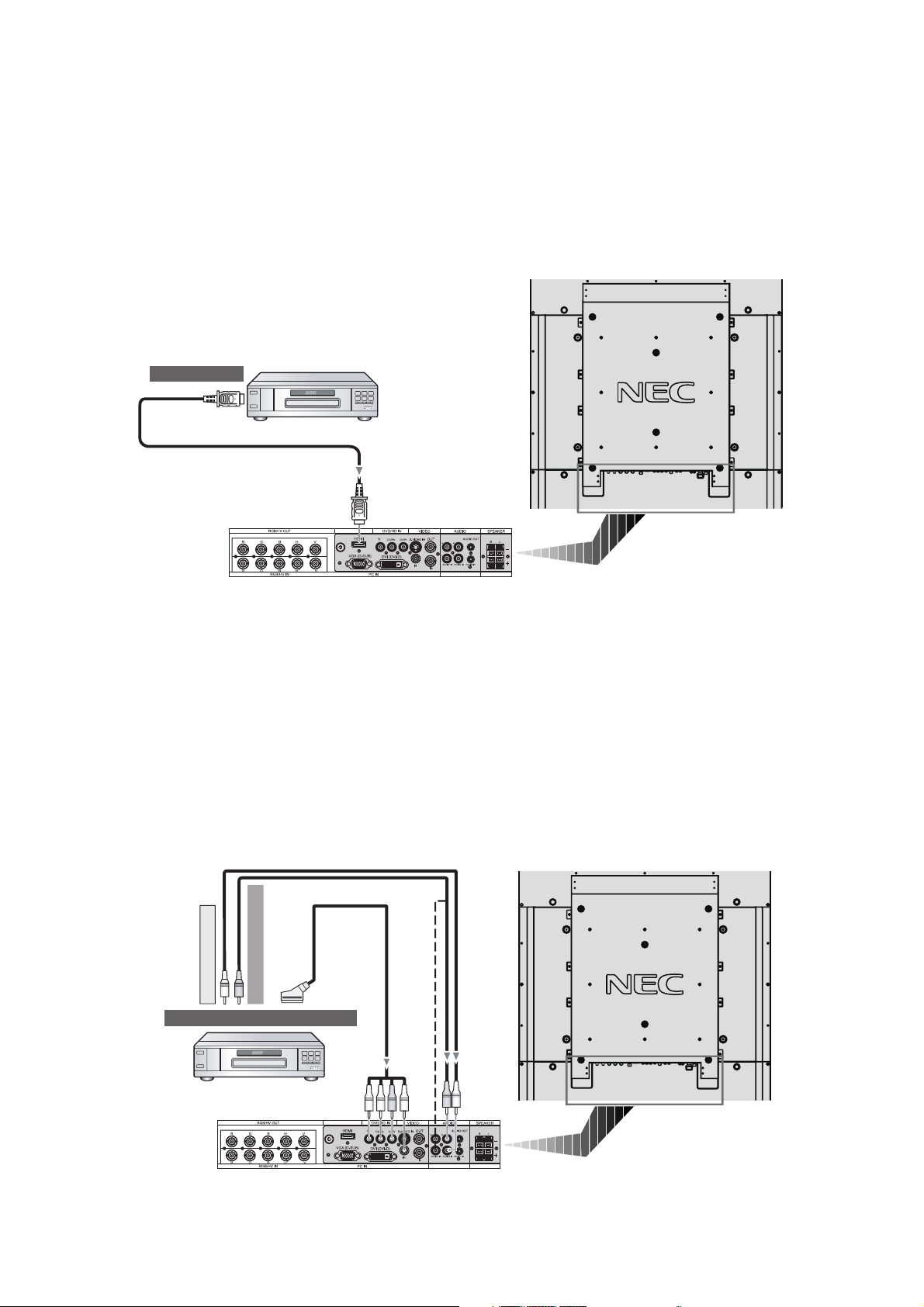

Connecting a DVD Player with component out .................................................................................. English-21
Connect the LCD Monitor to a DVD Player .................................................................................... English-21
Connecting a DVD Player with HDMI out ........................................................................................... English-22
Connect the LCD Monitor to a DVD Player .................................................................................... English-22
Connecting a DVD Player with SCART out ........................................................................................ English-22
Connect the LCD Monitor to a DVD Player .................................................................................... English-22
Connecting to a Stereo Amplifier........................................................................................................ English-23
Connect the LCD Monitor to a Stereo Amplifier ............................................................................. English-23
Basic Operation ........................................................................................................................................... English-24
Power ON and OFF Modes ................................................................................................................ English-24
Power Indicator .................................................................................................................................. English-25
Using Power Management ................................................................................................................. English-25
Selecting a video source .................................................................................................................... English-25

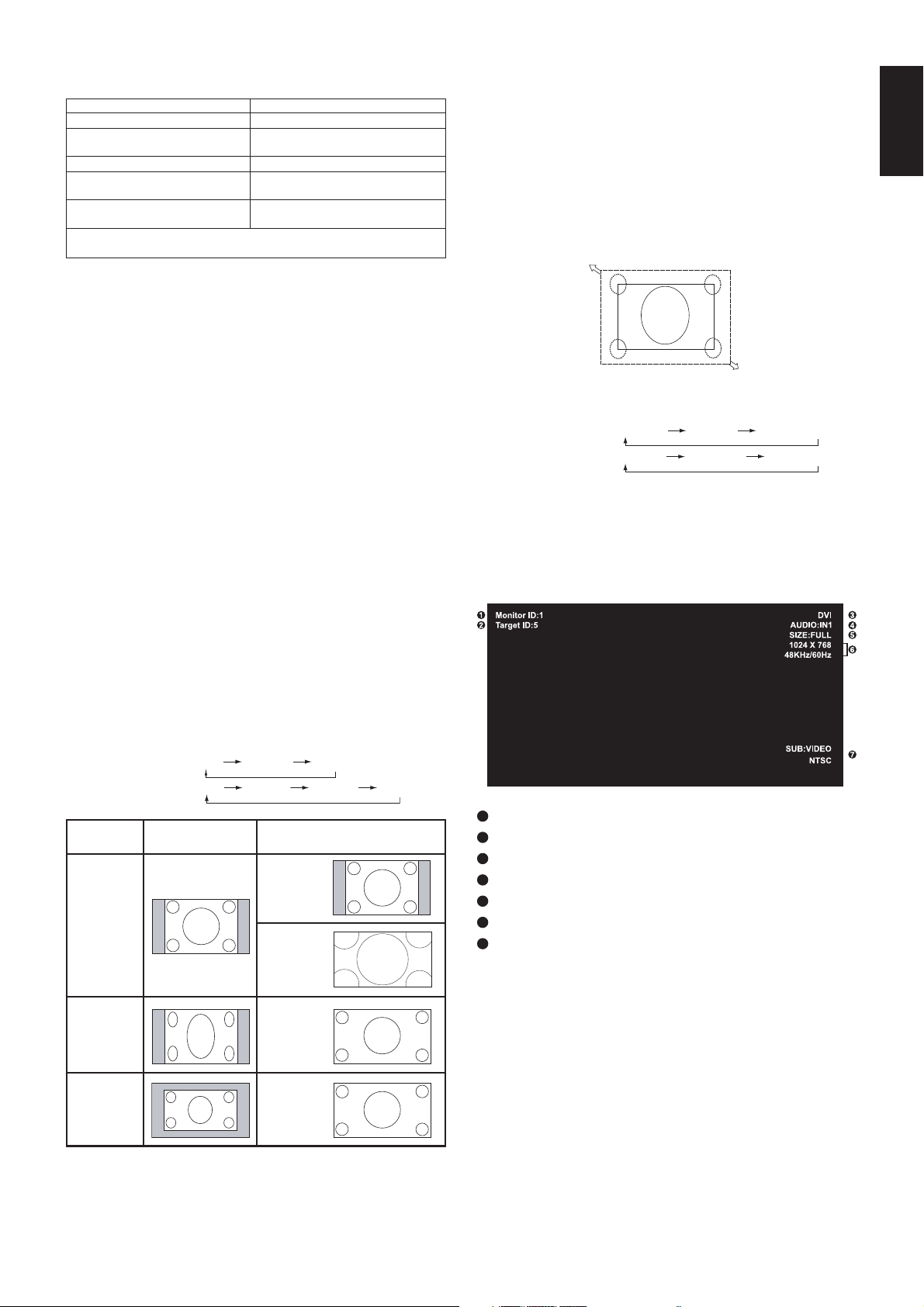

Picture Size ........................................................................................................................................ English-25
Picture Mode ...................................................................................................................................... English-25
Information OSD................................................................................................................................. English-25

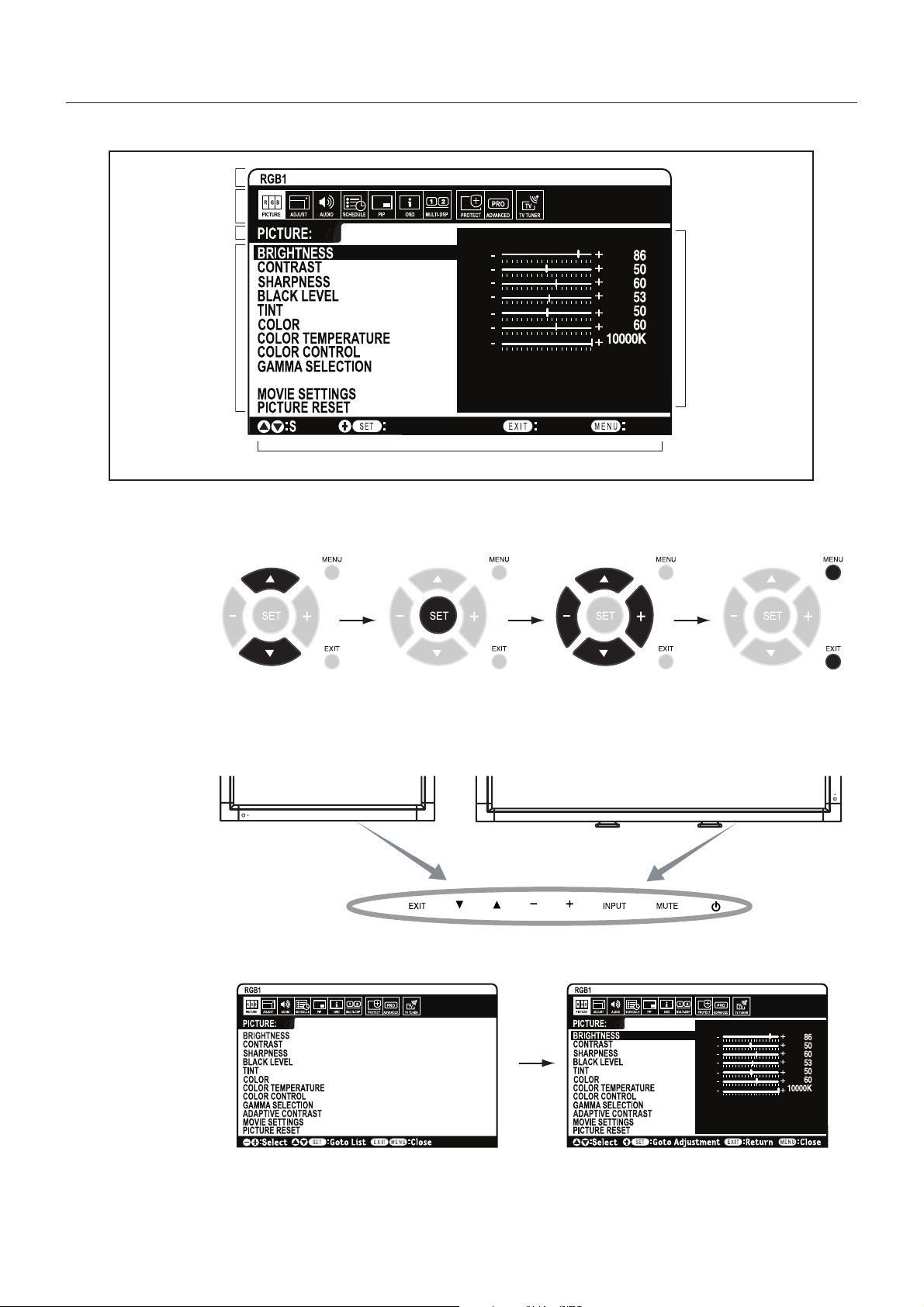

OSD (On-Screen-Display) Controls ............................................................................................................. English-26
PICTURE............................................................................................................................................ English-27
ADJUST ............................................................................................................................................. English-27
AUDIO ................................................................................................................................................ English-28
SCHEDULE ........................................................................................................................................ English-28
PIP...................................................................................................................................................... English-29
OSD.................................................................................................................................................... English-29

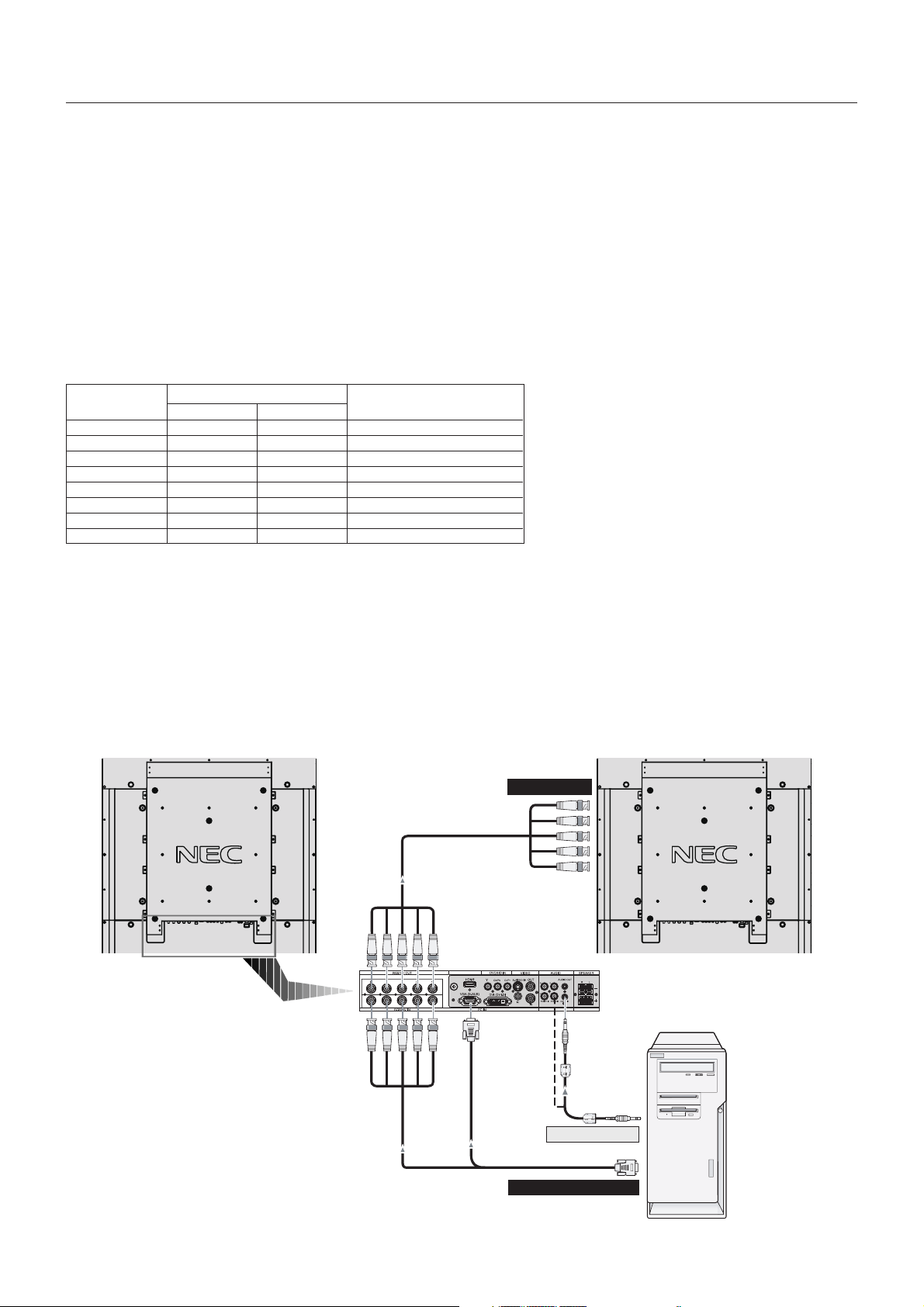

MULTI DISPLAY .................................................................................................................................English-30
DISPLAY PROTECTION .................................................................................................................... English-30
ADVANCED OPTION ......................................................................................................................... English-31
Connecting to a TV (For U.S. - LCD6520L Only) ............................................................................... English-33

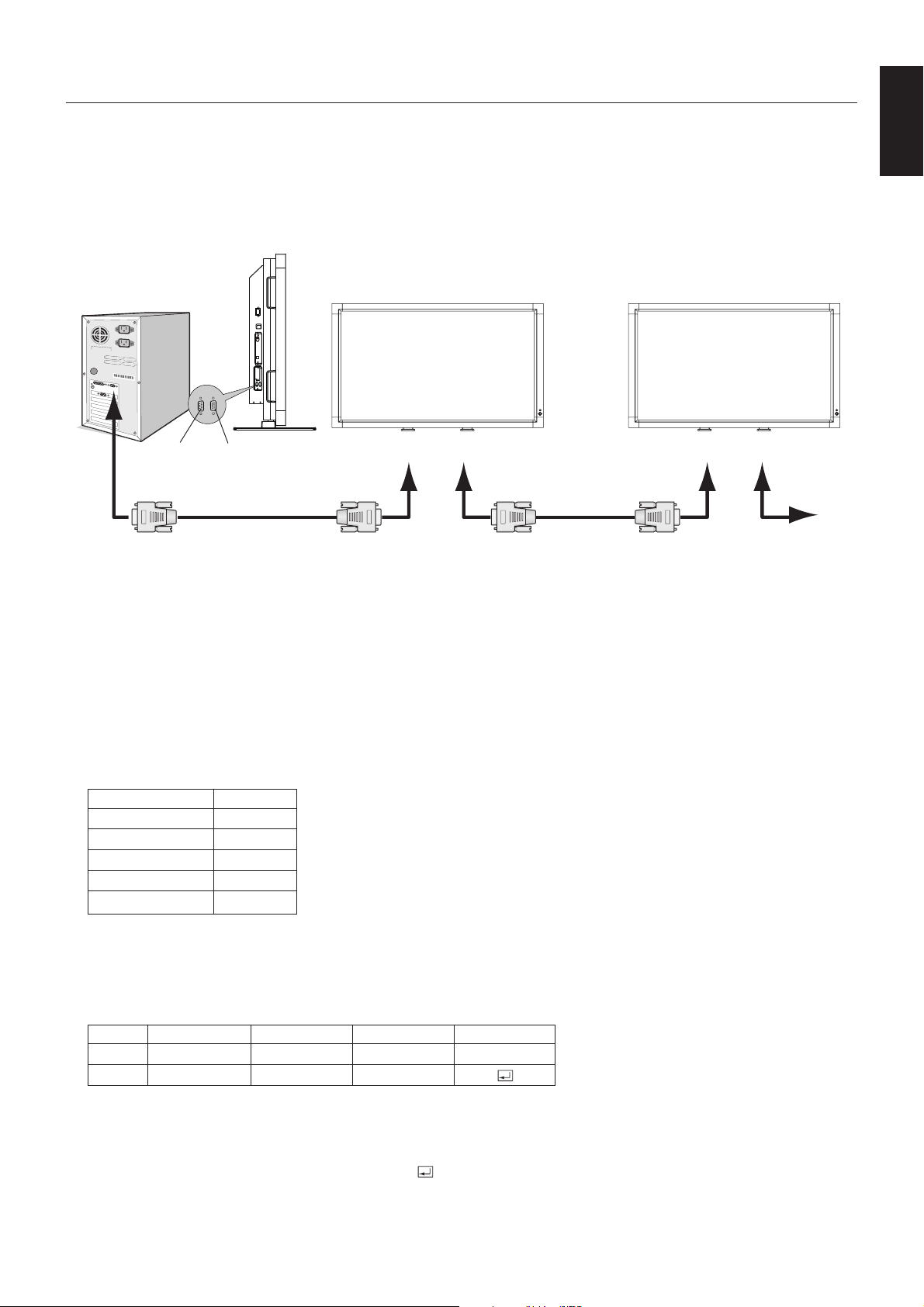

Controlling the LCD monitor via RS-232C Remote Control ......................................................................... English-37
Features ....................................................................................................................................................... English-39
Troubleshooting ........................................................................................................................................... English-40
Specifications - LCD6520L .......................................................................................................................... English-41
Specifications - LCD6520P .......................................................................................................................... English-42

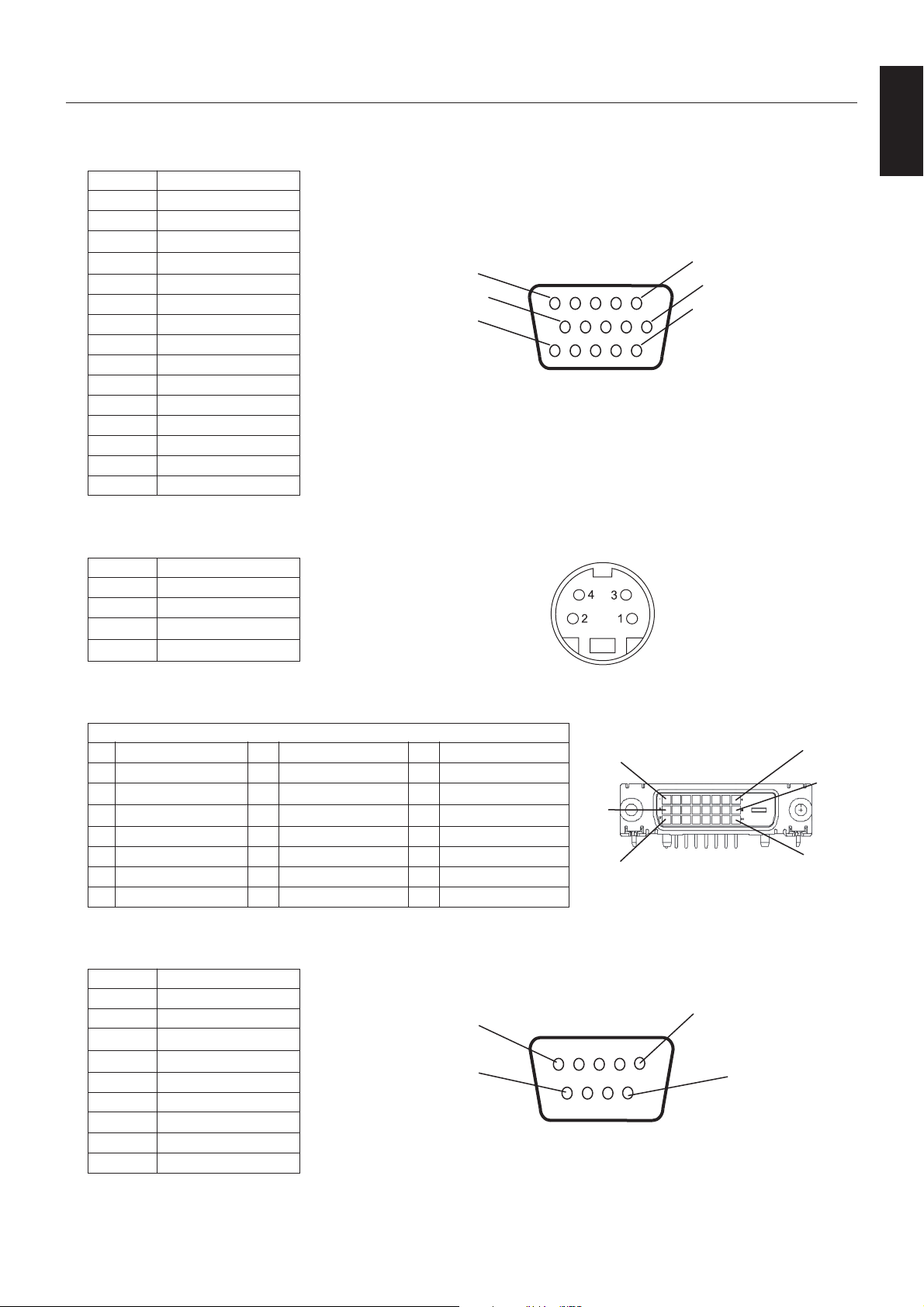

Pin Assignment ............................................................................................................................................English-43
Manufacturer’s Recycling and Energy Information ...................................................................................... English-44
Declaration of conformity
For USA
FCC Information
1. Use the attached specified cables with the MultiSync LCD6520L/MultiSync LCD6520P color display so as not to interfere with
radio and television reception.
(1) Please use the supplied power cord or equivalent to ensure FCC compliance.
(2) Please use the supplied shielded video signal cable.
Use of other cables and adapters may cause interference with radio and television reception.
2. This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is
operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required
to correct the interference at his own expense.
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions.
The user may find the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify
and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Office, Washington,
D.C., 20402, Stock No. 004-000-00345-4.
For Canada
Canadian Department of Communications Compliance Statement
DOC: This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No. 60950-1.
English
Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation.
OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland.
All other brands and product names are trademarks or registered trademarks of their respective owners.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.
English-1
Important Information
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT
USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS
THE PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM
WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE
POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit
has been included. Therefore, it should be read carefully in order to avoid any problems.
CAUTION: Please use the power cord provided with this display in accordance with the table below. If a power cord is not
supplied with this equipment, please contact your supplier. For all other cases, please use a power cord that matches the
AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.
Plug Type North America
European
Continental
U.K. Chinese Japanese
Plug Shape
Region
Voltage
*When operating the MultiSync LCD6520L/MultiSync LCD6520P monitor with its AC 125-240V power supply, use a power
supply cord that matches the power supply voltage of the AC power outlet being used.
NOTE: This product can only be serviced in the country where it was purchased.
U.S.A./Canada
120* 230 220 100230110*
Taiwan
U.K. China JapanEU (except U.K.)
Declaration
Declaration of the Manufacturer
We hereby certify that the color monitor MultiSync
LCD6520L (L657TA)/MultiSync LCD6520P (L657TB)
is in compliance with
Council Directive 2006/95/EC:
– EN 60950-1
Council Directive 2004/108/EC:
– EN 55022
– EN 61000-3-2
– EN 61000-3-3
– EN 55024
and marked with
NEC Display Solutions, Ltd.
4-13-23, Shibaura,
Minato-Ku
Tokyo 108-0023, Japan
Warning
This is a class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
English-2
Safety Precautions, Maintenance & Recommended Use
FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE
FOLLOWING WHEN SETTING UP AND USING
THE MULTI-FUNCTION MONITOR:
• DO NOT OPEN THE MONITOR. There are no user
serviceable parts inside and opening or removing covers
may expose you to dangerous shock hazards or other risks.
Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor
near water.
• Do not insert objects of any kind into the cabinet slots, as
they may touch dangerous voltage points, which can be
harmful or fatal or may cause electric shock, fire or
equipment failure.
• Do not place any heavy objects on the power cord.
Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart,
stand or table, as the monitor may fall, causing serious
damage to the monitor.
• The power supply cord you use must have been approved
by and comply with the safety standards of your country.
(Type H05VV-F 3G 1mm
• In UK, use a BS-approved power cord with molded plug
having a black (13A) fuse installed for use with this monitor.
• Do not place any objects onto the monitor and do not use
the monitor outdoors.
The lamps in this product contain mercury. Please
•
2
should be used in Europe)
dispose according to state, local or federal law.
• Do not bend, crimp or otherwise damage the power cord.
• If glass is broken, handle with care.
• Do not cover vent on monitor.
• Do not use monitor in high temperature, humid, dusty, or
oily areas.
• If monitor or glass is broken, do not come in contact with the
liquid crystal and handle with care.
• Allow adequate ventilation around the monitor, so that heat
can properly dissipate. Do not block ventilated openings or
place the monitor near a radiator or other heat sources.
Do not put anything on top of the monitor.
• The power cable connector is the primary means of
detaching the system from the power supply. The monitor
should be installed close to a power outlet, which is easily
accessible.
• Handle with care when transporting. Save packaging for
transporting.
• LCD6520L must be installed in a landscape orientation only.
It cannot be installed in a portrait orientation.
• LCD6520P must be installed in a portrait orientation only.
It cannot be installed in a landscape orientation.
• Please clean the holes of back cabinet to reject dirt and
dust at least once a year because of set reliability.
• If using the cooling fan continuously, it’s recommended to
wipe holes a minimum of once a month.
Immediately unplug your monitor from the wall outlet and refer
servicing to qualified service personnel under the following
conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the
monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following
operating instructions.
Recommended Use
• For optimum performance, allow 20 minutes for warm-up.
• Rest your eyes periodically by focusing on an object at least
5 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other
light sources to minimize glare and reflections.
• Clean the LCD monitor surface with a lint-free, non-abrasive
cloth. Avoid using any cleaning solution or glass cleaner!
• Adjust the monitor’s brightness, contrast and sharpness
controls to enhance readability.
•Avoid displaying fixed patterns on the monitor for long
periods of time to avoid image persistence (after image
effects).
• Get regular eye checkups.
Ergonomics
To realize the maximum ergonomic benefits, we recommend
the following:
• Use the preset Size and Position controls with standard
signals.
• Use the preset Color Setting.
• Use non-interlaced signals.
• Do not use primary color blue on a dark background, as it is
difficult to see and may produce eye fatigue due to
insufficient contrast.
Cleaning the LCD Panel
• When the liquid crystal panel is stained with dust or dirt,
please wipe with soft cloth gently.
• Please do not rub the LCD panel with hard material.
• Please do not apply pressure to the LCD surface.
• Please do not use OA cleaner it will cause deterioration or
discolor on the LCD surface.
Cleaning the Cabinet
• Unplug the power supply
• Gently wipe the cabinet with a soft cloth
•To clean the cabinet, dampen the cloth with a neutral
detergent and water, wipe the cabinet and follow with a dry
cloth.
NOTE: The surface of the cabinet is composed of many types
of plastic. DO NOT clean with benzene thinner, alkaline
detergent, alcoholic system detergent, glass cleaner,
wax, polish cleaner, soap powder, or insecticide.
Rubber or vinyl should not be in contact with the cabinet
for an extended period of time. These types of fluids
and materials can cause the paint to deteriorate, crack
or peel.
English
English-3
Contents (LCD6520L)
Your new MultiSync LCD6520L monitor box* should contain the following:
• LCD monitor
• Power Cord
•Video Signal Cable
• User’s Manual
•Wireless Remote Control and AA Batteries
• Main switch cover
• Clamp x 3
Video Signal Cable
(Mini D-SUB 15 pin to
Mini D-SUB 15 pin)
• Screw (M4 x 10) x 4
• CD-ROM
• Stand x 2
• Thumbscrew for stand x 2
• Eyebolt x 2
•Washer x 2
Stand x 2
CD-ROM
Eyebolt x 2
Power Cord*
1
Screw (M4 x 10) x 4
User’s Manual
User’s Manual
Clamp x 3
Wireless Remote Control
and AA Batteries
Thumbscrew for stand x 2
Washer x 2
Main switch cover
*1Type and number of power cords included will depend on the where the LCD monitor is to be shipped. When more than
one power cord is included, please use a power cord that matches the AC voltage of the power outlet and has been
approved by and complies with the safety standard of your particular country.
* Install the stands at the time of unpacking if the display will be used with the stand.
* Remember to save your original box and packing material to transport or ship the monitor.
English-4
Installation (LCD6520L)
This device cannot be used or installed without the Tabletop
Stand or other mounting accessory for support. For proper
installation it is strongly recommended to use a trained,
NEC authorized service person. Failure to follow NEC
standard mounting procedures could result in damage to the
equipment or injury to the user or installer. Product warranty
does not cover damage caused by improper installation.
Failure to follow these recommendations could result in
voiding the warranty.
Mounting
DO NOT mount the monitor yourself. Please ask dealer. For
proper installation it is strongly recommended to use a
trained, qualified technician. Please inspect the location
where the unit is to be mounted. Mounting on wall or ceiling
is the customer’s responsibility. Not all walls or ceilings are
capable of supporting the weight of the unit. Product
warranty does not cover damage caused by improper
installation, remodelling, or natural disasters. Failure to
comply with these recommendations could result in voiding
the warranty.
DO NOT block ventilated openings with mounting
accessories or other accessories.
For NEC Qualified Personnel:
To insure safe installation, use two or more brackets to
mount the unit. Mount the unit to at least two points on the
installation location.
Please note the following when mounting
on wall or ceiling
• When using mounting accessories other than those that
are NEC approved, they must comply with the VESA-
compatible (FDMlv1) mounting method.
• NEC strongly recommends
using size M8 screws
(15 mm + thickness of
bracket in length). If using
screws longer than 15 mm,
check the depth of the hole.
(Recommended Fasten
Force: 1125 - 1375N•cm)
NEC recommends mounting
interfaces that comply with
UL1678 standard in North
America.
• Prior to mounting, inspect the installation location to
insure that it is strong enough to support the weight of
the unit so that the unit will be safe from harm.
• Refer to the instructions included with the mounting
equipment for detailed information.
Unit
15 mm
Screw length should equal
depth of hole (15 mm) + the
thickness of mounting bracket.
Mounting
Bracket
Screw
Thickness
of Bracket
Orientation
• DO NOT use this monitor in the portrait position.
Doing so may cause failure and void the warranty.
Mounting location
• The ceiling and wall must be strong enough to support
the monitor and mounting accessories.
• DO NOT install in locations where a door or gate can hit
the unit.
• DO NOT install in areas where the unit will be subjected
to strong vibrations and dust.
• DO NOT install near where the main power supply
enters the building.
• Do not install in where people can easily grab and hang
onto the unit or the mounting apparatus.
• When mounting in a recessed area, as in a wall, leave at
least 4 inches (10cm) of space between the monitor and
the wall for proper ventilation.
• Allow adequate ventilation or provide air conditioning
around the monitor, so that heat can properly dissipate
away from the unit and mounting apparatus.
Mounting on ceiling
• Ensure that the ceiling is sturdy enough to support the
weight of the unit and the mounting apparatus over time,
against earthquakes, unexpected vibrations, and other
external forces.
• Be sure the unit is mounted to a solid structure within the
ceiling, such as a support beam. Secure the monitor
using bolts, spring lock washers, washer and nut.
• DO NOT mount to areas that have no supporting internal
structure. DO NOT use wood screws or anchor screws
for mounting. DO NOT mount the unit to trim or to
hanging fixtures.
Maintenance
• Periodically check for loose screws, gaps, distortions, or
other problems that may occur with the mounting
apparatus. If a problem is detected, please refer to
qualified personnel for service.
• Regularly check the mounting location for signs of
damage or weakness that may occur over time.
English
English-5
Attaching Mounting Accessories
The display is designed for use with the VESA mounting
system.
1. Attach eyebolts for mounting
This model is equipped with attachable eyebolts to aid in
mounting.
• Place the washer over the threads of the eyebolt.
• Screw the eyebolts into eyebolt holes as shown in the
picture.
• Be sure eyebolts are secure.
• In order to move the monitor into position, use a lifting
device attached to the eyebolts.
DO NOT mount the monitor using only the eyebolts.
Use an approved mounting accessory.
Eyebolt
Hole
2. Attach Mounting Accessories
Mounting accessories can be attached while the monitor
is on the Tabletop Stand in the upright position (Figure 1).
Be careful to avoid tipping monitor when attaching
accessories. After accessories are attached, stand can
be removed.
Eyebolt
Washer
VESA Mounting Interface
Protective Sheet
Table
Tabletop Stand
Figure 2
3. Installing and removing stand
CAUTION: Installing and removing the stand must be done
by four or more people.
How to install stand
1. Please turn monitor off.
2. Place stand onto monitor with the long ends of the feet in
front of the monitor.
3. After inserting stand in guide block, fasten thumbscrews
on both sides of the monitor.
How to remove the stand
1. Spread the protective sheet on a flat surface, such as a
desk.
2. Place monitor on the protective sheet.
3. Remove thumbscrews with a screwdriver or with your
fingers and place them in a safe place for reuse.
Thumbscrews
Tabletop Stand
Figure 1
Mounting accessories can be attached with the monitor in
the face down position. To avoid damaging the screen face,
place the protective sheet on the table underneath the LCD
(Figure 2). The protective sheet was wrapped around the
LCD in the original packaging. Make sure there is nothing
on the table that can damage the monitor.
When using mounting accessories other than NEC
compliant and approved, they must comply with the VESAcompatible mounting method. NEC strongly recommends
using screws M8 size and 15 mm in length. If using screws
longer than 15 mm, check the depth of the hole.
(Recommended Fasten Force: 1125-1375N•cm)
NEC recommends using a mounting interface that complies
with UL1678 standard in North America.
Stand
NOTE: Place stand onto monitor so that the long end of
the feet are in the front.
CAUTION: Handle with care when mounting LCD monitor
stand and avoid pinching your fingers.
English-6
4. Ventilation Requirements
When mounting in an enclosed space or recessed area,
leave adequate room between the monitor and the
enclosure to allow heat to disperse, as shown below.
5. Prevent Tipping
When using the display with the Tabletop Stand fasten the
LCD to a wall using a cord or chain that can support the
weight of the monitor in order to prevent the monitor from
falling. Fasten the cord or chain to the monitor using the
provided clamp and screw.
500mm
Screw Holes
6. To prevent the main power switch from
being used
To attach main power switch cover: Insert the tab on the
switch cover into the slot on the display next to the main
power switch. Secure into place using 1 screw.
NOTE: With the main power switch cover in place, the
main power switch cannot be turned off. Remove
main power switch cover in order to switch off the
display.
See “Parts Name and Functions” on page 12.
English
Cord or chain
Clamp
Screw
Before attaching the LCD monitor to the wall, make sure
that the wall can support the weight of the monitor.
Be sure to remove the cord or chain from the wall before
moving the LCD.
English-7
Contents (LCD6520P)
Your new MultiSync LCD6520P monitor box* should contain the following:
• LCD monitor
• Power Cord
•Video Signal Cable
• User’s Manual
•Wireless Remote Control and AA Batteries
• Main switch cover
• Clamp
• Screw (M4 x 10) x 2
• CD-ROM
• Eyebolt x 2
•Washer x 2
Video Signal Cable
(Mini D-SUB 15 pin to
Mini D-SUB 15 pin)
Power Cord*
1
Washer x 2
Screw (M4 x 10) x 2
Wireless Remote Control
and AA Batteries
Clamp
CD-ROM
Eyebolt x 2
User’s Manual
Main switch cover
*1Type and number of power cords included will depend on the where the LCD monitor is to be shipped. When more than
one power cord is included, please use a power cord that matches the AC voltage of the power outlet and has been
approved by and complies with the safety standard of your particular country.
* Remember to save your original box and packing material to transport or ship the monitor.
*Temporary stand must be removed before installation.
English-8
Temporary stand
User’s Manual
Installation (LCD6520P)
This device cannot be used or installed without mounting
accessory for support. For proper installation it is strongly
recommended to use a trained, NEC authorized service
person. Failure to follow NEC standard mounting procedures
could result in damage to the equipment or injury to the user
or installer. Product warranty does not cover damage caused
by improper installation. Failure to follow these
recommendations could result in voiding the warranty.
Mounting
DO NOT mount the monitor yourself. Please ask dealer. For
proper installation it is strongly recommended to use a
trained, qualified technician. Please inspect the location
where the unit is to be mounted. Mounting on wall or ceiling
is the customer’s responsibility. Not all walls or ceilings are
capable of supporting the weight of the unit. Product
warranty does not cover damage caused by improper
installation, remodelling, or natural disasters. Failure to
comply with these recommendations could result in voiding
the warranty.
DO NOT block ventilated openings with mounting
accessories or other accessories.
For NEC Qualified Personnel:
To insure safe installation, use two or more brackets to
mount the unit. Mount the unit to at least two points on the
installation location.
Please note the following when mounting
on wall or ceiling
• When using mounting accessories other than those that
are NEC approved, they must comply with the VESA-
compatible (FDMlv1) mounting method.
• NEC strongly recommends
using size M8 screws
(15 mm + thickness of
bracket in length). If using
screws longer than 15 mm,
check the depth of the hole.
(Recommended Fasten
Force: 1125 - 1375N•cm)
NEC recommends mounting
interfaces that comply with
UL1678 standard in North
America.
• Prior to mounting, inspect the installation location to
insure that it is strong enough to support the weight of
the unit so that the unit will be safe from harm.
• Refer to the instructions included with the mounting
equipment for detailed information.
Unit
15 mm
Screw length should equal
depth of hole (15 mm) + the
thickness of mounting bracket.
Mounting
Bracket
Screw
Thickness
of Bracket
Orientation
• DO NOT use this monitor in the landscape position.
Doing so may cause failure and void the warranty.
• LCD6520P can not rotate a displayed image from
Landscape to Portrait. Content must be created for use
in portrait mode.
Mounting location
• The ceiling and wall must be strong enough to support
the monitor and mounting accessories.
• DO NOT install in locations where a door or gate can hit
the unit.
• DO NOT install in areas where the unit will be subjected
to strong vibrations and dust.
• DO NOT install near where the main power supply
enters the building.
• Do not install in where people can easily grab and hang
onto the unit or the mounting apparatus.
• When mounting in a recessed area, as in a wall, leave at
least 4 inches (10cm) of space between the monitor and
the wall for proper ventilation.
• Allow adequate ventilation or provide air conditioning
around the monitor, so that heat can properly dissipate
away from the unit and mounting apparatus.
Mounting on ceiling
• Ensure that the ceiling is sturdy enough to support the
weight of the unit and the mounting apparatus over time,
against earthquakes, unexpected vibrations, and other
external forces.
• Be sure the unit is mounted to a solid structure within the
ceiling, such as a support beam. Secure the monitor
using bolts, spring lock washers, washer and nut.
• DO NOT mount to areas that have no supporting internal
structure. DO NOT use wood screws or anchor screws
for mounting. DO NOT mount the unit to trim or to
hanging fixtures.
Maintenance
• Periodically check for loose screws, gaps, distortions, or
other problems that may occur with the mounting
apparatus. If a problem is detected, please refer to
qualified personnel for service.
• Regularly check the mounting location for signs of
damage or weakness that may occur over time.
English
English-9
Attaching Mounting Accessories
For shipping purposes, the LCD6520P is shipped with a
temporary stand.
This stand must be removed before installation.
In order to remove the monitor from the temporary
stand and to aid in mounting, a lifting device must be
used in conjunction with the attachable eyebolts.
1. Attach eyebolts
This model is equipped with attachable eyebolts to aid in
mounting.
• Place the washer over the threads of the eyebolt.
• Screw the eyebolts into eyebolt holes as shown in the
picture.
• Be sure eyebolts are secure.
• In order to move the monitor into position, use a lifting
device attached to the eyebolts.
DO NOT mount the monitor using only the eyebolts.
Use an approved mounting accessory.
Eyebolt
Hole
Eyebolt
Washer
3. Attach Mounting Accessories
The display is designed for use with the VESA mounting
system.
When using mounting accessories other than NEC
compliant and approved, they must comply with the VESAcompatible mounting method. NEC strongly recommends
using screws M8 size and 15 mm in length. If using screws
longer than 15 mm, check the depth of the hole.
(Recommended Fasten Force: 1125 - 1375N•cm)
NEC recommends using a mounting interface that complies
with UL1678 standard in North America.
VESA Mounting
Interface
2. Removing the Temporary Stand
1. To remove stand, unscrew the screws indicated in the
picture.
Screws
2. Using a lifting device, raise the monitor off of the stand.
NOTE: Do not use the temporary stand holes for
permanent stand installation. These holes are for
shipping purposes only.
4. Ventilation Requirements
When mounting in an enclosed space or recessed area,
leave adequate room between the monitor and the
enclosure to allow heat to disperse, as shown below.
English-10

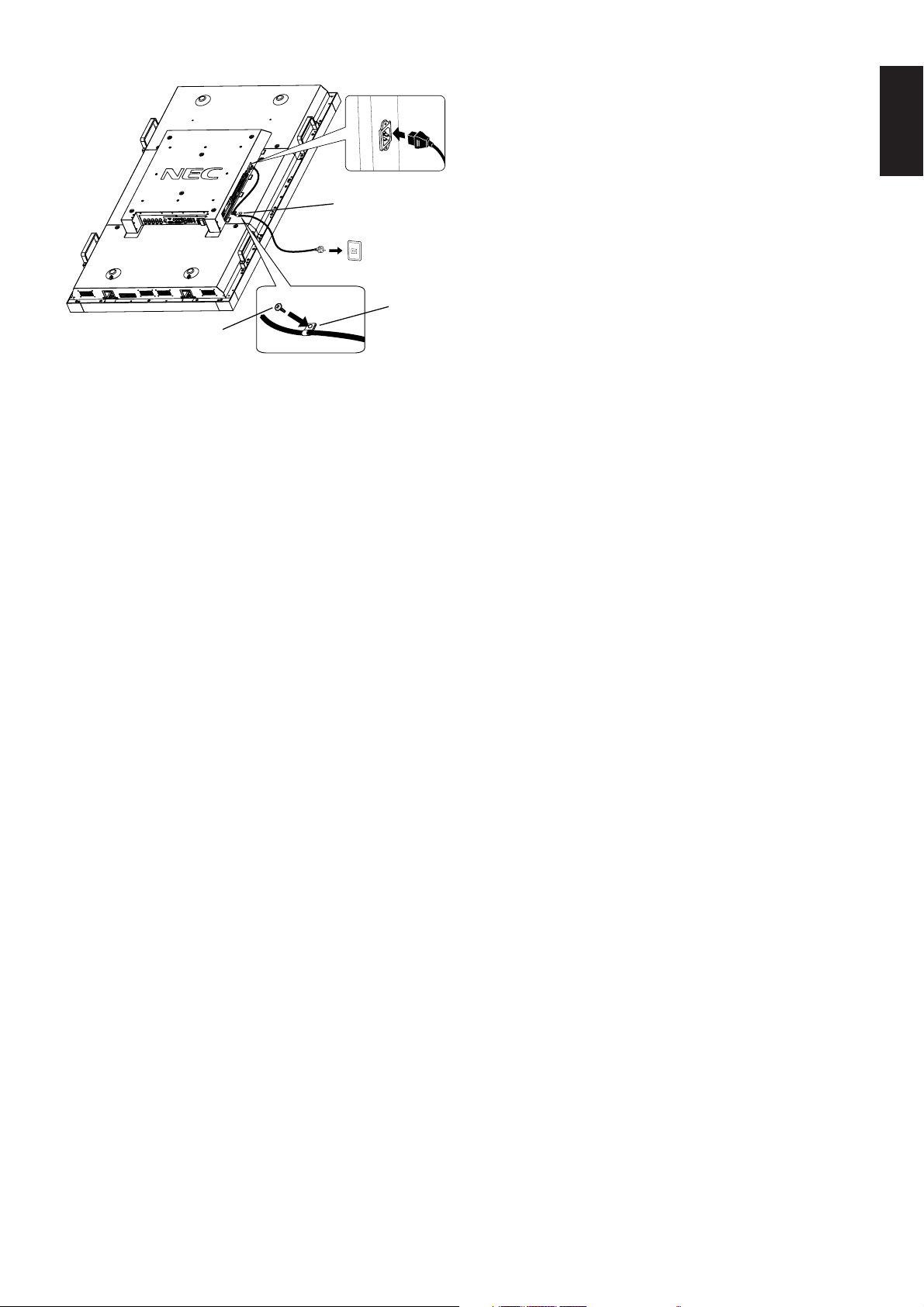

5. To prevent the main power switch from
being used
To attach main power switch cover: Insert the tab on the
switch cover into the slot on the display next to the main
power switch. Secure into place using 1 screw.
NOTE: With the main power switch cover in place, the
main power switch cannot be turned off. Remove
main power switch cover in order to switch off the
display.
See “Parts Name and Functions” on page 12.
English
English-11
Parts Name and Functions
Control Panel
1
POWER button ( )
Switches the power on/off. See also page 24.
MUTE button
2
Switches the audio mute ON/OFF.
INPUT button
3
Acts as SET button within OSD menu. (Toggle switches
between [DVI], [VGA], [RGB/HV], [HDMI], [DVD/HD],
[VIDEO], [S-VIDEO] or [TV]*). [S-VIDEO] is enabled by
selecting the “SEPARATE” mode in the OSD or by having
the “S-VIDEO” cable connected with the “S-VIDEO” signal
present and selecting “PRIORITY” MODE. See page 31.
PLUS (+) button
4
Acts as (+) button to increase the adjustment with OSD menu.
Increases the audio output level when the OSD menu is
turned off.
MINUS (-) button
5
Acts as (-) button to decrease the adjustment with OSD menu.
Decreases the audio output level when the OSD menu is
turned off.
UP ( ) button
6
Activates the OSD menu when the OSD menu is turned-off.
Acts as button to move the highlighted area up to select
adjustment items within OSD menu.
7
DOWN ( ) button
Activates the OSD menu when the OSD menu is turned-off.
Acts as button to move the highlighted area down to
select adjustment items within OSD menu.
EXIT button
8
Activates the OSD menu when the OSD menu is turned-off.
Acts as EXIT button within the OSD to move to previous
menu.
Remote control sensor and Power Indicator
9
Receives the signal from the remote control (when using the
wireless remote control). See also page 15.
Glows green when the LCD monitor is in active mode*.
Glows amber when the LCD is in POWER OFF (standby)
mode. Blinks amber when the monitor is in Power Save
Mode. Green and Amber blink alternately while in Power
Standby mode with the “SCHEDULE SETTINGS” function
enabled. When a component failure is detected within the
monitor, the indicator will blink red.
* If “OFF” is selected in “POWER INDICATOR” (see page 30),
LED will not light when the LCD monitor is in active mode.
Control Key Lock Mode
This control completely locks out access to all Control Key
functions. To activate the control key lock function, press both
and and hold down simultaneously for more than
3 seconds. To resume user mode, press both and and
hold simultaneously for more than 3 seconds.
*: The product you purchased may not have this feature.
