NEC LCD4000e User Manual
English
Français
Index
Important Information .......................................................................................................................... English-2
Safety Precautions, Maintenance, & Recommended Use................................................................ English-3
Contents .................................................................................................................................................... English-4
Attaching LCD Options ............................................................................................................................ English-5
Parts Name and Functions
Control Panel ............................................................................................................................ English-6
Terminal Panel .......................................................................................................................... English-7
Wireless Remote Control ........................................................................................................ English-8
Operating Range for the Remote Control .......................................................................... English-9
Handling the Remote Control ............................................................................................... English-9
Setup Procedure ...................................................................................................................................... English-10
Connections
Wiring Diagram ..................................................................................................................... English-11
Connecting the LCD Monitor to a PC ............................................................................... English-12
Connecting to a Macintosh Computer............................................................................. English-13
Connecting to a Computer with a Digital Output ......................................................... English-14
Connecting to a VCR or Laser Disc Player....................................................................... English-15
Connecting to a DVD Player ............................................................................................... English-16
Connecting to a Stereo Amplifier .................................................................................... English-17
Basic Operation
Power On and Off modes ......................................................................................................... English-18
Power Indicator........................................................................................................................ English-19
When Using Power Management Function.......................................................................... English-19
Selecting a video source ........................................................................................................ English-19
Picture Size ............................................................................................................................... English-19
Picture Mode ............................................................................................................................. English-19
OSM Information ...................................................................................................................... English-19
OSM (On-Screen-Manager) Controls
Computer ................................................................................................................................... English-20
DVD & HD .................................................................................................................................... English-24
AV INPUT .................................................................................................................................... English-26
Using the LCD with a Personal Computer (PC) .................................................................................. English-29
Features ..................................................................................................................................................... English-31
Troubleshooting ....................................................................................................................................... English-32
References ................................................................................................................................................ English-33
Specifications ........................................................................................................................................... English-34
Limited Warranty..................................................................................................................................... English-35
English
English-1
Important Information
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S
POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION
CAUTION:TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM WALL SOCKET. TO FULLY
DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE
COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is
dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore,
it should be read carefully in order to avoid any problems.
Canadian Department of Communications Compliance Statement
DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations according to CAN/CSA C22.2 No.
60950.
FCC Information
1.
Use the attached specified cables with the LCD4000e (L403FU) color monitor so as not to interfere with radio and television reception.
(1)
Please use the supplied power cord or equivalent to ensure FCC compliance.
(2) Please use the supplied shielded video signal cable, 15-pin mini D-SUB to 15-pin mini D-SUB.
(3) Please attach the ferrite cores on the Audio Cable and S-VIDEO Cable. Please see page 11 of this manual.
2.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult your dealer or an experienced radio/TV technician for help.
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The
user may find the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve
Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402,
Stock No. 004-000-00345-4.
English-2
Safety Precautions, Maintenance & Recommended Use
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE FOLLOWING
WHEN SETTING UP AND USING THE LCD4000e LCD COLOR MONITOR:
• DO NOT OPEN THE MONITOR. There are no user serviceable
parts inside and opening or removing covers may expose you
to dangerous shock hazards or other risks. Refer all servicing to
qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor
near water.
• Do not insert objects of any kind into the cabinet slots, as they
may touch dangerous voltage points, which can be harmful or
fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to
the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or
table, as the monitor may fall, causing serious damage to the
monitor.
• When operating the LCD4000e monitor with its AC 220-240V
power supply, use a power supply cord that matches the power
supply voltage of the AC power outlet being used. The power
supply cord you use must have been approved by and comply
with the safety standards of your country. (Type H05VV-F 3G
2
1mm
should be used in Europe)
• In UK, use a BS-approved power cord with molded plug having
a black (13A) fuse installed for use with this monitor. If a power
cord is not supplied with this monitor, please contact your supplier.
• Do not place any objects onto the monitor and do not use the
monitor outdoors.
• The inside of the fluorescent tube located within the LCD
monitor contains mercury. Please follow the bylaws or rules of
your municipality to dispose of the tube properly.
• Do not bend power cord.
• Do not use monitor in high temperature, humid, dusty, or oily
areas.
• If glass is broken, handle with care.
• Do not cover vent on monitor.
• If monitor or glass is broken, do not come in contact with the
liquid crystal and handle with care.
• Allow adequate ventilation around the monitor so that heat can
properly dissipate. Do not block ventilated openings or place
the monitor near a radiator or other heat sources. Do not put
anything on top of monitor.
• The power cable connector is the primary means of detaching
the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.
• Handle with care when transporting. Save packaging for
transporting.
• Keep the holes on the back of the LCD clean of dirt and dust.
It is recommended to wipe holes with a soft cloth a minimum of
once per year.
CAUTION
Immediately unplug your monitor from the wall outlet and refer
servicing to qualified service personnel under the following
conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the
monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating
instructions.
Recommended Use
CAUTION
CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR
CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE
FOLLOWING WHEN YOU POSITION THE MONITOR:
• For optimum performance, allow 20 minutes for warm-up.
• Rest your eyes periodically by focusing on an object at least 20
feet away. Blink often.
• Position the monitor at a 90˚ angle to windows and other light
sources to minimize glare and reflections.
• Clean the LCD monitor surface with a lint-free, nonabrasive cloth.
Avoid using any cleaning solution or glass cleaner.
• Adjust the monitor’s brightness and contrast controls to enhance
readability.
• Avoid displaying fixed patterns on the monitor for long periods
of time to avoid image persistence (afterimage effects).
• Get regular eye checkups.
• The lamp of backlight contains mercury. Please handle it appropriately in case of disposal.
Ergonomics
To realize the maximum ergonomics benefits, we recommend the
following:
• Use the preset Size and Position controls with standard
signals
• Use the preset Color Setting
• Use non-interlaced signals with a vertical refresh rate between
58-62Hz
• Do not use primary color blue on a dark background, as it is
difficult to see and may produce eye fatigue to insufficient contrast
For more detailed information on setting up a healthy work
environment, write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSIHFS Standard No. 100-1988 – The Human Factors Society, Inc.
P.O. Box 1369, Santa Monica, California 90406.
English
English-3
Contents

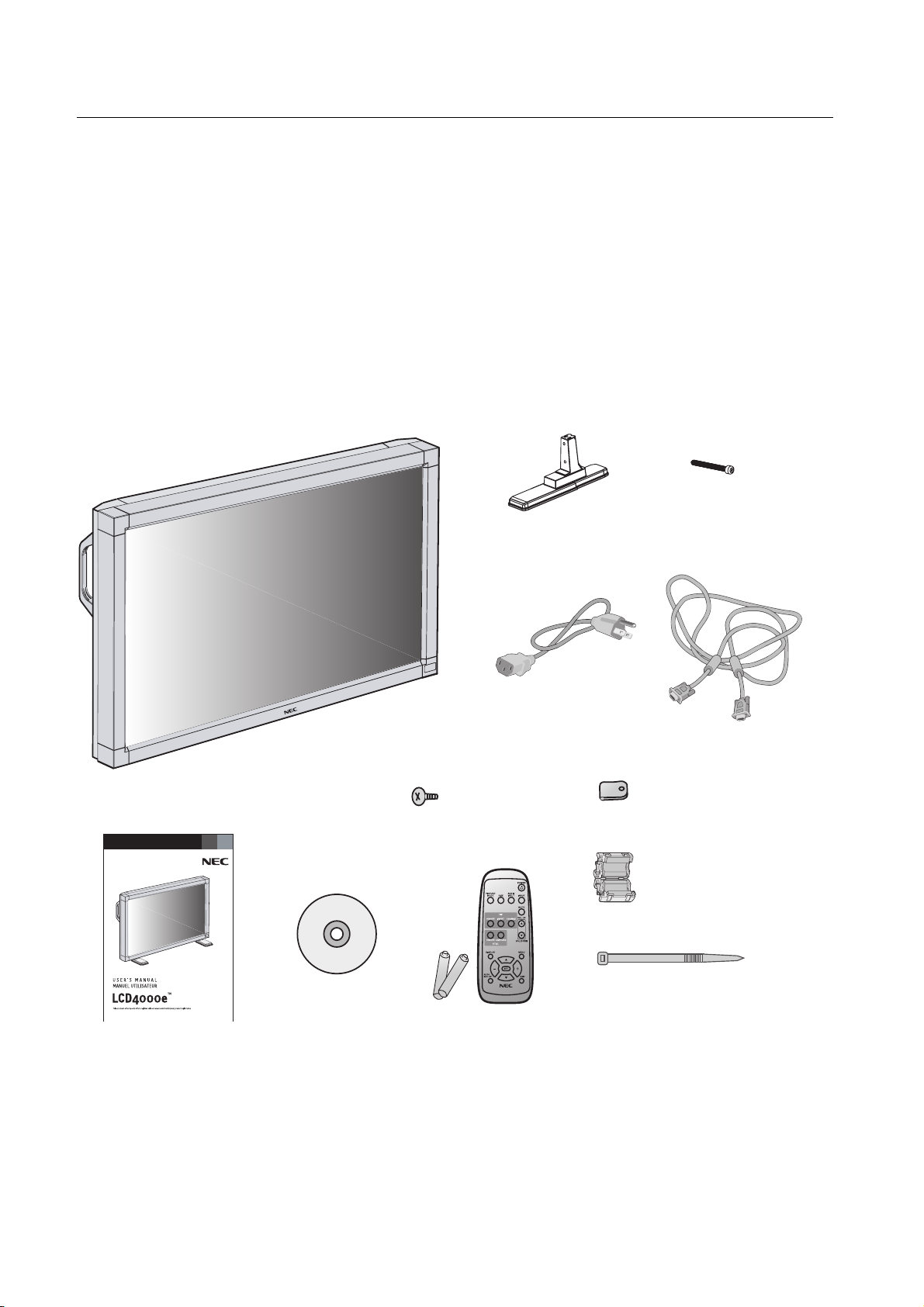

Your new LCD4000e™ monitor box* should contain the following:
• LCD monitor • CD-ROM
• Power Cord (3m) • Band x 3
• Video Signal Cable – SC-B113 (4m) • Ferrite Core x 4
• User’s Manual • Stand for the Independence x 2
• Wireless Remote Control and AA Batteries • Screw (M5 x 40) x 4
• Clamper x 2
• Screw (M4 x 10) x 2
Stand for the
Independence x 2
Screw (M5 x 40)
for stand x 4
Power Cord
Screw (M4 x 10 ) x 2
REMOTE
CONTROLLER RU-M104
User’s Manual
CD-ROM
Wireless Remote Control
and AA Batteries
*Install an attached stand at the time of unpacking when it uses with the stand.
*Remember to save your original box and packing material to transport or ship the monitor.
Video Signal Cable
(D-SUB to D-SUB Cable)
Clamper x 2
Ferrite Core
Band x 3
x 4
The following components are available to use with the LCD4000e. To obtain the optional components and additional
information, contact Customer Service at (800) 632-4662.
• Macintosh Cable Adapter
• External Speakers
English-4
t
Attaching LCD Options
You can attach mounting accessories to the LCD monitor in one of
the following two ways:
1. In the upright position
2. Lay the screen face down
Protective Shee
Ventilation Requirements for enclosure
mounting
To allow heat to disperse, leave space between surrounding
objects as shown in the diagram to the right.
English
*
*Ambient temperature should be less than 40 deg C
Tab le
Tabletop Stand
To avoid damaging the screen face, place the protective sheet on
the table to lay the LCD on. The protective sheet was wrapped
around the LCD in the original packaging.
This device cannot be used or installed without the Tabletop Stand
or other mounting accessory. For proper installation it is strongly
recommended to use a trained, NEC authorized service person.
Failure to follow NEC standard mounting procedures could result in
damage to the equipment or injury to the user or installer. Product
warranty does not cover damage caused by improper installation.
Failure to follow these recommendations could result in voiding your
warranty.
To avoid falling down
Fasten the LCD monitor to a wall using a cord or chain which is
sufficient to support the weight of the LCD monitor (approx. 28kg).
Screw Holes
Cord or Chain
Clamper
Before moving the LCD monitor, the cord or chain should be removed.
Screw
When using mounting accessories, other than NEC compliant and
approved, they must be VESA
strongly recommends using screws M6 size and 8mm in length. If
using screws longer than 8mm, check the depth of the hole.
(Recommended Fastern Force: 274 ~ 362N•cm)
NEC recommends using mounting interface that comply with UL1678
standard in North America.
®
-compatible mounting method. NEC
English-5
Parts Name and Functions
Control Panel
9
10
EXIT MUTEINPUT
8 1234
1
POWER button ( )
Switches the power on/off. See also page 18.
2
MUTE button
Switches the audio mute ON/OFF.
3
INPUT button
Acts as SET button with OSM menu.
Selects the signal connected with the RGB input connector. (Toggle
switches between [RGB1], [RGB2], [RGB3], [DVD/HD], or
[VIDEO].)
4
PLUS (+) button
Acts as (+) button to increase the adjustment with OSM menu.
Increase the audio output level when the OSM menu is turned off.
5
67
Button Location
7
DOWN ( ) button
Activates the OSM menu when the OSM menu is turned-off.
Acts as button to move the highlighted area down to select the
adjustment with OSM menu.
8
EXIT button
Activates the OSM menu when the OSM menu is turned-off.
Acts as EXIT button to move to previous menu with OSM menu.
Remote control sensor and Power indicator
9
Receives the signal from the remote control (when using the
wireless remote control). See also page 8.
Glows green when the LCD monitor is in active and glows red
when the LCD is in POWER OFF mode. When the LCD is in
power save mode, it will glow both green and red.
5
MINUS (-) button
Acts as (-) button to decrease the adjustment with OSM menu.
Decrease the audio output level when the OSM menu is turned
off.
6
UP ( ) button
Activates the OSM menu when the OSM menu is turned-off.
Acts as button to move the highlighted area up to select the
adjustment with OSM menu.
Main Power Switch
10
Seesaw Switch for the main power on/off.
Control Key Lock Mode
This control completely locks out access to all Control Key
functions after three (3) seconds.
To activate the control key lock function, press both of “ “ and
“ “ and hold down simultaneously.
To resume back to user mode, press both “ “ and “ “ and hold
simultaneously for three (3) seconds.
English-6
Parts Name and Functions –continued
Terminal Panel
English
1
AC IN connector
Connects with the supplied power cord.
2
RGB 1 IN (DVI-D)
To input digital RGB signals from a computer having a digital RGB
output.
* This connector does not support analog input.
3
RGB 2 IN (mini D-Sub 15 pin)
To input a analog RGB signals from a personal computer or other
RGB equipment.
4
RGB 3 DVD/HD [R/Cr/Pr, G/Y, B/Cb/Pb, H, V] (BNC)
IN connector:
other RGB equipment. Also for connecting equipment such as a
DVD player or HDTV laser disc player. A Sync-on-Green signal
can be connected to the G/Y connector.
5
RGB OUT connector (BNC)
To output the signal from the RGB 2 or RGB 3 DVD/HD IN
connector.
To input the analog RGB signals or signals from
6
AUDIO IN 1,2,3
To input audio signal from external equipment such as a computer, VCR or DVD player.
7
AUDIO OUT
To output the audio signal from the AUDIO IN 3 jack.
8
VIDEO INPUT CONNECTOR
VIDEO IN connector (BNC and RCA): To input a composite
video signal. BNC and RCA are not available at the same time.
(Use only one input).
VIDEO OUT connector (BNC): To output the composite video
signal from the VIDEO IN connector.
S-VIDEO IN connector (DIN 4 pin): To input the S-video (Y/C
separate signal).
9
EXTERNAL CONTROL (mini D-Sub 9 pin) RS-232
IN connector: Use when operating the LCD monitor from the
RGB equipment like a computer.
10
EXTERNAL SPEAKER TERMINAL
To output the audio signal from AUDIO 1, 2 or 3 jack.
English-7
Parts Name and Functions –continued
Wireless Remote Control
VOLUME UP button
7
Increase the audio output level.
VOLUME DOWN button
8
Decrease the audio output level.
9
PIP (Picture In Picture) button
ON/OFF button: Toggle switches between PIP-ON/
POP-ON/OFF.
INPUT button: Select the ‘picture in picture’ input signal.
CHANGE button: Replaces to the main picture and sub
picture.
Sub Picture
REMOTE
CONTROLLER RU-M104
1
POWER button
Switches the power on/off.
* If Power Indicator is not glowing, then no controls will work.
2
INPUT button
Selects from input signal, [RGB1], [RGB2], [RGB3], [DVD/
HD], [VIDEO].
AUDIO INPUT button
3
Selects from input audio signal, [AUDIO1], [AUDIO2],
[AUDIO3]
4
SIZE button
Selects picture size, [FULL], [NORMAL], [WIDE]. See page 19.
5
PICTURE MODE button
Selects from picture mode, [HIBRIGHT], [STANDARD], [sRGB],
[CINEMA].
HIBRIGHT: for moving image such as DVD
STANDARD: for images
sRGB: for text based images
CINEMA: for movies. See page 19.
MUTE button
6
To on/off the mute function.
RGB2RGB1
1BGR
2BGR
3BGR
Main Picture
OEDIV
Note: The aspect ratio of PIP synchronizes with a setup in the Main Picture.
10
STILL button
ON/OFF button: To on/off the still picture mode.
CAPTURE button: Capture the new picture.
11
DISPLAY button
To on/off the OSM information. See page 19.
AUTO SETUP button
12
To enter the auto setup menu. See page 22.
13
MENU button
To on/off the menu mode.
UP button
14
Acts as button to move the highlighted area up to select the
adjustment with OSM menu.
Small screen which adjusted “PIP” mode moves up.
15
DOWN button
Acts as button to move the highlighted area down to select
the adjustment with OSM menu.
Small screen which adjusted “PIP” mode moves down.
MINUS button decrease
16
Acts as (-) button to decrease the adjustment with OSM menu.
Small screen which adjusted “PIP” mode moves left.
PLUS button increase
17
Acts as (+) button to increase the adjustment with OSM menu.
Small screen which adjusted “PIP” mode moves right.
18
SET button
Acts as SET button with OSM menu.
19
EXIT button
Turn to previous menu with OSM menu.
___
___ _
___ _
_____
DH/DVD
_
RGB3 DVD/HD VIDEO
✓✓
✓✓
✓
✓
__
English-8
Parts Name and Functions –continued
Operating Range for the Remote Control
Point the top of the remote control toward the LCD monitor's remote
sensor during button operation.
Use the remote control within a distance of about 7 m/23 ft. from
the front of the LCD monitor's remote control sensor and at a horizontal and vertical angle of within 30° within a distance of about 3
m/10 ft.
30o30
o
Caution
The remote control system may not function when direct sunlight or
strong illumination strikes the remote control sensor of the LCD monitor, or when there is an object in the path.
Handling the remote control
* Other than to install the batteries, do not open the remote.
Do not allow water or other liquid to splash onto the remote
*
control. If the remote control gets wet, wipe it dry immediately.
* Avoid exposure to heat and steam.
English
REMOTE
CONTROLLER RU-M104
English-9
Setup Procedure
1. Determine the installation location
CAUTION
Installing your LCD display must be done by a qualified technician.
Contact your dealer for more information.
CAUTION
MOVING OR INSTALLING THE LCD MONITOR MUST BE DONE
BY TWO OR MORE PEOPLE. Failure to follow this caution may
result in injury if the LCD monitor falls.
IMPORTANT
Lay the protective sheet, which was wrapped around the LCD monitor when it was packaged, beneath the LCD monitor so as not to
scratch the panel.
2. Install the remote control batteries
The remote control is powered by 1.5V AA batteries. To install or
replace batteries:
1. Press and slide to open the cover.
2. Align the batteries according to the (+) and (–) indications inside the case.
3. Replace the cover.
1
Remove the cover
CAUTION
Incorrect usage of batteries can result in leaks or bursting. NEC
recommends the following battery use:
• Place "AA" size batteries matching the + and - signs on each
battery to the + and - signs of the battery compartment.
• Do not mix battery brands.
• Do not combine new and old batteries. This can cause a shorten
life or liquid leakage of batteries.
• Remove dead batteries immediately to prevent battery acid from
leaking into the battery compartment. Don't touch exposed battery acid, it cause damage to your skin.
NOTE: If you do not intend to use the Remote Control for a
long period, remove the batteries.
2
Insert the batteries Replace the cover
3
3. Connect external equipment (See page 11-17)
• To protect the connected equipment, turn off the main power
before making connections.
• Refer to your equipment user manual.
4. Connect the supplied power cord
• The equipment should be installed close to a power outlet and
should be easily accessible.
• Fully insert the prongs into the power outlet socket. Loose connection may cause image degradation.
NOTE: If you use this monitor at AC 220-240V, please refer
to “Safety Precautions, Maintenance & Recommended Use”
section of this manual for proper selection of AC power cord.
5. Switch on the power of all the attached
external equipment
When connected with a computer, switch on the power of the computer first.
6. Operate the attached external equipment
Display the signal on the external equipment you wish.
7. Adjust the sound
Make adjustments when adjustment of the volume is required.
8. Adjust the screen (See pages 20-28)
Make adjustments when adjustment of the screen display
position.
9. Adjust the image (See page 20-28)
Make adjustments when picture adjustment such as the brightness
or contrast is required.
10. When monitor is installed in the portrait
position
• Remove the stand (feet).
• Turn monitor counter-clockwise, so the right edge of the LCD is
at the top.
11. When installing the monitor to a wall
How to remove the stand
1. Spread the protective sheet on the flat surface, such as a desk.
2. Place monitor on the protective sheet.
3. Remove 2 screws by screwdriver and place them in a safe
place for reuse.
How to install stand
1. Please turn monitor off.
2. Insert claws of monitor to stand holes until clicks.
3. Fasten 2 screws(M5 x 40mm) on both sides of the monitor.
Torque 280 ~ 300N•cm.
Hole of stand
Claw of Monitor
Screw M5 x 40
Stand
English-10
Connections
Before making connections:
* First turn off the power of all the attached equipment and make connections.
* Refer to the user manual included with each separate piece of equipment.
Wiring Diagram
Wiring Diagram
English
Attaching the Ferrite Core
Attach the Ferrite Core to PC Audio Cable and S-VIDEO Cable.
Use of the cable without mounting the ferrite core will result in the
occurrence of noise.
• For PC Audio Cable
Open the ferrite core and clamp
1
it on the PC Audio cable.
Ferrite Core
2
Close the ferrite core.
• For S-VIDEO Cable
Open the ferrite core and clamp
1
it on the S-VIDEO Cable.
Ferrite Core
2
Close the ferrite core.
Mounting Position of Ferrite Core
Attach the Ferrite Core to the both ends of PC Audio Cable.
Ferrite Core
To AUDIO 1 of monitor
Band Band
Attach the Ferrite Core to the end of S-VIDEO Cable. Only S-VIDEO IN side of
monitor.
Ferrite Core
To S-VIDEO IN
of monitor
Band
Ferrite Core
To S-VIDEO out of VCR
or Laser disk player
To connector of PC
English-11
Connections –continued
Connecting the LCD Monitor to a PC
Connecting your computer to your LCD monitor will enable you to display your computer's screen image.
Some video cards may not display an image correctly.
• To connect the RGB 2 IN connector (mini D-sub 15 pin) on the LCD monitor, use the provided RGB signal cable (mini D-sub 15 pin to
mini D-sub 15 pin).
• To connect the RGB 3 DVD/HD IN connector (BNC) on the LCD monitor, use a signal cable (mini D-sub 15 pin to BNC x 5). Select RGB
3 from the INPUT button.
When connecting one or more LCD monitors, use the RGB OUT connector (BNC).
• The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select AUDIO 1, 2 or 3 from the AUDIO INPUT button.
English-12
Connections –continued
Connecting to a Macintosh® Computer
Connecting your Macintosh® computer to your LCD monitor will enable you to display your computer's screen image. Some video cards or
drivers may not display images correctly.
• To connect the RGB 2 IN connector (mini D-sub 15 pin) on the LCD monitor, use the provided RGB signal cable (mini D-sub 15 pin to
mini D-sub 15 pin).
For older Macintosh
NOTE: To obtain the Macintosh cable adapter call NEC-Mitsubishi Electronics Display of America, Inc. at (800) 632-4662
• To connect the RGB 3 DVD/HD IN connector (BNC) on the LCD monitor, use the signal cable available separately (mini D-sub 15 pin to
BNC x 5).
• If you use with a Macintosh PowerBook, set "Mirroring" to off.
Refer to your Macintosh's owner's manual for more information about your computer's video output requirements and any special
identification or configuring your monitor's image and monitor may require.
• The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select AUDIO 1, 2 or 3 from the AUDIO INPUT button.
®
computers, use Macintosh cable adapter to connect to your Macintosh's video port.
English
English-13
Connections –continued
Connecting to a Computer with a Digital Output
Connections can be made with equipment that is equipped with a digital interface compliant with the DVI (Digital Visual Interface)
standard.
• The RGB 1 IN connector also accepts a DVI-D cable.
• Input TMDS signals conforming to DVI standards.
• To maintain display quality, use a cable recommended by DVI standards.
• The AUDIO IN 1, 2 and 3 can be used for audio input. For connection, select AUDIO 1, 2 or 3 from the AUDIO INPUT button.
English-14
Connections –continued
Connecting to a VCR or Laser Disc Player
Connecting your VCR or laser disc player to your LCD monitor will enable you to display your VCR or laser disc player video.
Refer to your VCR or laser disc player owner's manual for more information.
• Video signals can be connected to either the VIDEO IN [RCA or BNC] or the S-VIDEO IN connector.
NOTE: If S-VIDEO and RCA are both connected, S-VIDEO will have priority.
• Video output will be from the OUT connector that has been set here.
• When connecting one or more LCD monitors, use the VIDEO OUT connectors (BNC).
• The AUDIO IN 2 and 3 can be both used for audio input. For connection, select [AUDIO 2] or [AUDIO 3] from the AUDIO INPUT
button.
English
English-15
Connections –continued
Connecting to a DVD Player
Connecting your DVD player to your LCD monitor will enable you to display your DVD video.
Refer to your DVD player owner’s manual for more information.
• To connect the RGB 3 DVD/HD In connector (BNC) on the LCD monitor, use a separately available BNC connector cable. You will need
a BNC-to-RCA adapter to connect a DVD player with an RCA pin jack to the BNC connector cable (not provided).
Some DVD players may have different connectors, such as Cr/Pr, Y and Cb/Pb.
Select [DVD/HD] input mode from the INPUT button.
When connecting one or more LCD monitors, use the RGB 3 OUT connectors (BNC).
The AUDIO IN 2 and 3 (both RCA) can be used for audio input. For connection, select [AUDIO 2] or [AUDIO 3] from the AUDIO
INPUT button.
English-16
Connections –continued
Connecting to a Stereo Amplifier
You can connect your stereo amplifier to your LCD monitor. Refer to your amplifier owner's manual for more information.
• Turn on the LCD monitor and the amplifier only after all hookups have been made.
• Use an RCA cable to connect the AUDIO OUT connector (RCA) on the LCD monitor and the audio input on the amplifier.
• Do not reverse the audio left and right jacks.
• The AUDIO IN 3 used for audio input.
• The AUDIO OUT jack outputs sound for the AUDIO IN 3 only.
English
English-17
Basic Operation –Power ON and OFF Modes
The LCD monitor power indicator will turn green while powered on or red in off mode. The monitor can be powered on or off using the
following three options:
1. Pressing the power button.
NOTE: Before operating the remote control, be sure to turn
on the Main Power Switch on the LCD monitor.
Power Button
2. Using the remote control
NOTE: Before operating the remote control, be sure to turn
on the Main Power Switch on the LCD monitor.
Main Power Switch
REMOTE
CONTROLLER RU-M104
3. Pressing the Main Power Switch.
NOTE: When the Main Power Switch is used to power off
the LCD, the remote control and the power switch will not
activate the on mode. Be sure to turn the Main Power Switch
to the on mode before using these two options.
English-18
V
e
y
Basic Operation –continued
Power Indicator
Power Indicator
Status
Power ON Green
Power OFF Red
Power Standby Red and Green
When Using Power Management Function
The LCD monitor follows the VESA approved DPMS Power Management function.
The power management function is an energy saving function that
automatically reduces the power consumption of the display when
the keyboard or the mouse has not been used for a fixed period of
time.
Selecting a Video Source
To view a video source:
Use the input button to set [VIDEO].
Use the COLOR SYSTEM menu to set, [AUTO], [NTSC], [PAL],
[SECAM], [PAL60], [4.43NTSC] in according to your video format.
Picture Size
RGB 1, 2, 3
DVD/HD, VIDEO
FULL* NORMAL
WIDE FULL NORMAL
RGB1, 2, 3
RGB2
1024 x 768
48kHz 60Hz
AUDIO : 1
SCREEN SIZE : FULL
DVD/HD
DVD/HD
AUDIO : 3
SCREEN SIZE : WIDE
IDEO
VIDEO<S>
NTSC
AUDIO : 3
SCREEN SIZE : NORMAL
PIP or POP
Main:RGB2
Sub:VIDEO<S>
RGB2
1024 x 768
48kHz 60Hz
AUDIO : 1
VIDEO<S>
NTSC
SCREEN SIZE : FULL
OSM Information
Video Input mode
)
Input signal Information
Audio input mode
Picture Size mode
Video Input mode
Audio input mode
Picture Size mode
Video Input mode
Input Signal Color System mod
Audio input mode
Picture Size mode
Main picture Information
Sub picture Information
)
Main picture Information
English
FULL NORMAL WIDE
*NOTE: FULL onl
in W-XGA (1280 x 768) in RGB 1, 2, 3
Picture Mode
RGB 1, 2, 3
DVD/HD, VIDEO
HIBRIGHT sRGB STANDARD
HIBRIGHT CINEMA STANDARD
English-19
OSM® (On-Screen Manager) Controls –Computer
Remote Control
Control Panel
OSM screen
Press UP or DOWN button
to select sub-menu
SET
Press UP or DOWN button
to select
UP or DOWN button INPUT button
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:
SEL EXIT:PRE SET:NEXT MENU:END
Press SET Press MENU or EXIT
Press UP or DOWN, and PLUS or
MINUS button to select function,
button to decide
or control which you like
SET
Press INPUT button to
decide
INPUT
SET
Press UP or DOWN button to
select
BRIGHTNESS
:
SEL EXIT:PRE MENU:END
Press INPUT button to
decide
SET
INPUT
Main-Menu
Sub-Menu
BRIGHTNESS
CONTRAST
*:INPUT RGB2/3 only
SHARPNESS
*:INPUT RGB2/3 only
BLACK LEVEL
*:INPUT RGB2/3 only
COLOR CONTROL
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:
SEL EXIT:PRE SET:NEXT MENU:END
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:
SEL EXIT:PRE SET:NEXT MENU:END
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:
SEL EXIT:PRE SET:NEXT MENU:END
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:
SEL EXIT:PRE SET:NEXT MENU:END
BRIGHTNESS
CONTRAST
SHARPNESS
BLACK LEVEL
COLOR CONTROL
COLOR TEMPERATURE
PICTURE RESET
:
SEL EXIT:PRE SET:NEXT MENU:END
BRIGHTNESS
-
:
SEL EXIT:PRE MENU:END
CONTRAST
-
:
SEL EXIT:PRE MENU:END
SHARPNESS
-
:
SEL EXIT:PRE MENU:END
BLACK LEVEL
-
:
SEL EXIT:PRE MENU:END
COLOR CONTROL
R
Y
G
C
B
M
S
:
SEL EXIT:PRE MENU:END
SCREEN
AUDIO
PICTURE IN PICTURE
CONFIGURATION 1
CONFIGURATION 2
:
SEL EXIT:PRE SET:NEXT MENU:END
Adjusts the overall image and background screen
50
brightness.
+
Press + button to increase brightness.
Press - button to decrease brightness.
Adjusts the image brightness in relation to the
50
background
+
Press + button to increase contrast.
Press - button to decrease contrast.
This function is digitally capable to keep crisp
50
image at any timings. It is adjustable to get a
distinct image or a soft one as you prefer and set
+
independently for each timing.
Press + button to increase sharpness.
Press - button to decrease sharpness.
Press + button to increase black level.
50
0
0
0
0
0
0
0
Press - button to decrease black level.
+
R, Y, G, C, B, M, S: Increases or decreases Red, Yellow, Green,
Cyan, Blue, Magenta and Saturation depending upon which is
selected. The change in color will appear on screen and the
direction (increase or decrease) will be shown by the color bars.
English-20
Loading...
