NEC Display Solutions of America, Inc.
LCD3215 Installation Guide
32” LCD Display Rev 1.2
Contents:
Product Description and Notes Page 1
Tilt Angle and Rotation
Ventilation Requirements
Display Dimensions
Front, Top & Right Side Page 3
Rear & Bottom
Display Dimensions w/Optional Speakers and Stand
Optional Table Top Stand Dimensions
Optional Speaker Dimensions
Optional Wall Mount Kit Dimensions
Control Codes
Product Description
Type: LCD Display Screen Surface: Anti-Reflective
Resolution: 1366 x 768 Dimensions: 31.1”(W) x 18.8”(H) x 5.2”(D)
Aspect Ratio: 16:9 Weight: 28.9 lbs
FCC: Class B
Power Consumption: 140W (max) BTU’s: 478 BTU/hour
Notes
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to
be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally to
fill the screen using the menus (see “Aspect Modes” in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.
Tilt Angle and Rotation
Below are the maximum angles that the monitor can be tilted in the landscape position only.
Landscape 20deg
Page 1
Page 2
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Max. 20 deg
www.necdisplay.com
LCD3215 Page 1 of 9
NEC Display Solutions of America, Inc.
LCD3215 Installation Guide
32” LCD Display Rev 1.2
Ventilation Requirements (all models)
Dimensions below are minimum required for proper ventilation.
WALL
100mm
4”
100mm
4”
Landscape
5 to 40°C
41 to 104°F
Portrait
5 to 35°C
41 to 95°F
WALL
4”
WALL
100mm
4”
100mm
4”
NOTE: The ventilation space should not be covered or closed off at the front of the opening. If for some reason the
opening needs to be covered, other means of ventilation will need to be incorporated into the design. Contact NEC for
100mm
design review and recommendations.
www.necdisplay.com
LCD3215 Page 2 of 9
NEC Display Solutions of America, Inc.
LCD3215 Installation Guide
32” LCD Display Rev 1.2
Display dimensions
(PANEL DISPLAY AREA)
(PANEL DISPLAY AREA)
IR
www.necdisplay.com
LCD3215 Page 3 of 9
NEC Display Solutions of America, Inc.
LCD3215 Installation Guide
32” LCD Display Rev 1.2
Display dimensions (cont.)
for MOUNT UNIT
4-M6 Depth 11mm
www.necdisplay.com
100mm MOUNTING HOLE PATTERN
Control Panel
LCD3215 Page 4 of 9
Power Switch
NEC Display Solutions of America, Inc.
LCD3215 Installation Guide
32” LCD Display Rev 1.2
Display Dimensions with optional speakers and stand
www.necdisplay.com
LCD3215 Page 5 of 9
NEC Display Solutions of America, Inc.
LCD3215 Installation Guide
32” LCD Display Rev 1.2
Optional Table Top Stand Dimensions (ST-3215)
Optional Table Top Stand
ST-3215
www.necdisplay.com
LCD3215 Page 6 of 9
NEC Display Solutions of America, Inc.
LCD3215 Installation Guide
32” LCD Display Rev 1.2
Optional Speaker Dimensions (SP-3215)
Optional Speakers
SP-3215
www.necdisplay.com
LCD3215 Page 7 of 9
NEC Display Solutions of America, Inc.
LCD3215 Installation Guide
32” LCD Display Rev 1.2

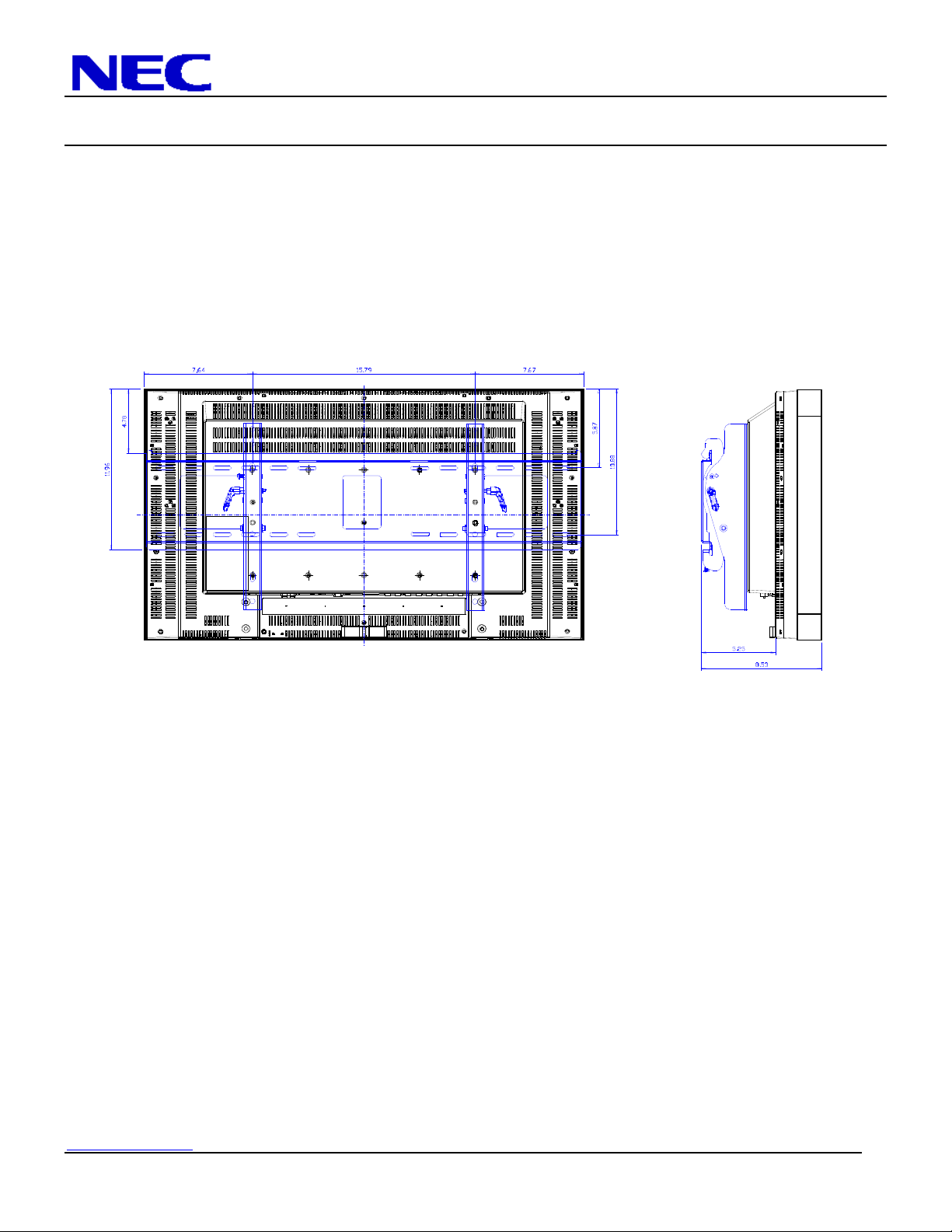

Optional Wall Mount Kit Dimensions (WMK3260-L)
www.necdisplay.com
LCD3215 Page 8 of 9
NEC Display Solutions of America, Inc.
LCD3215 Installation Guide
32” LCD Display Rev 1.2
Control Codes
Function Code Data
POWER ON 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 31 03 73 0D
OFF 01 30 41 30 41 30 43 02 43 32 30 33 44 36 30 30 30 34 03 76 0D
INPUT SWITCH VGA (15pin HD) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 31 03 73 0D
RGBHV 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 32 03 70 0D
DVI 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 33 03 71 0D
VIDEO (Composite) 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 35 03 77 0D
DVD/HD 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 43 03 01 0D
S-Video 01 30 41 30 45 30 41 02 30 30 36 30 30 30 30 37 03 75 0D
AUDIO MUTE ON 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 31 03 09 0D
OFF 01 30 41 30 45 30 41 02 30 30 38 44 30 30 30 32 03 0A 0D
PICTURE MODE sRGB 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 31 03 07 0D
HIBRIGHT 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 33 03 05 0D
STANDARD 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 34 03 02 0D
CINEMA 01 30 41 30 45 30 41 02 30 32 31 41 30 30 30 35 03 03 0D
FULL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 32 03 73 0D
WIDE 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 33 03 72 0D
ZOOM 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 34 03 75 0D
AUTO SETUP EXECUTE 01 30 41 30 45 30 41 02 30 30 31 45 30 30 30 31 03 01 0D
AUTO 01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 32 03 74 0D
NOTE: Contact your NEC rep for codes not listed.
NOTE: Use a cross/reverse/null modem cable.
Cable Connection
Communication Protocol:
Interface: RS-232C Parity: None
Communication: Asynchronous Stop Bit: 1 bit
Baud Rate: 9600 bps Communication Code: He x
Data Length: 8 bits
PC Control Connector (D-Sub 9P)
SCREEN MODE: NORMAL 01 30 41 30 45 30 41 02 30 32 37 30 30 30 30 31 03 70 0D
FILM MODE OFF 01 30 41 30 45 30 41 02 30 30 30 32 30 30 30 31 03 77 0D
NOTE: If so desired, jumper “Request to send” and “Clear to Send” together on both ends of the cable to simplify cable connection.
These connections are not required. The only connections required are pins 2 (RxD), 3 (TxD) and 5 (GND).
www.necdisplay.com
LCD3215 Page 9 of 9
