NEC LCD2010X User Manual

NEC LCD SeriesNEC LCD Series

MultiSync

™

LCD2010X

2010X.wpc 7/13/00, 5:01 PM1

product online at

www.necmitsubishi.com/

productregistration

Index

Warning .................................................................................. 1

Contents ................................................................................... 2

Quick Start ............................................................................ 3-7

Controls .............................................................................. 8-11

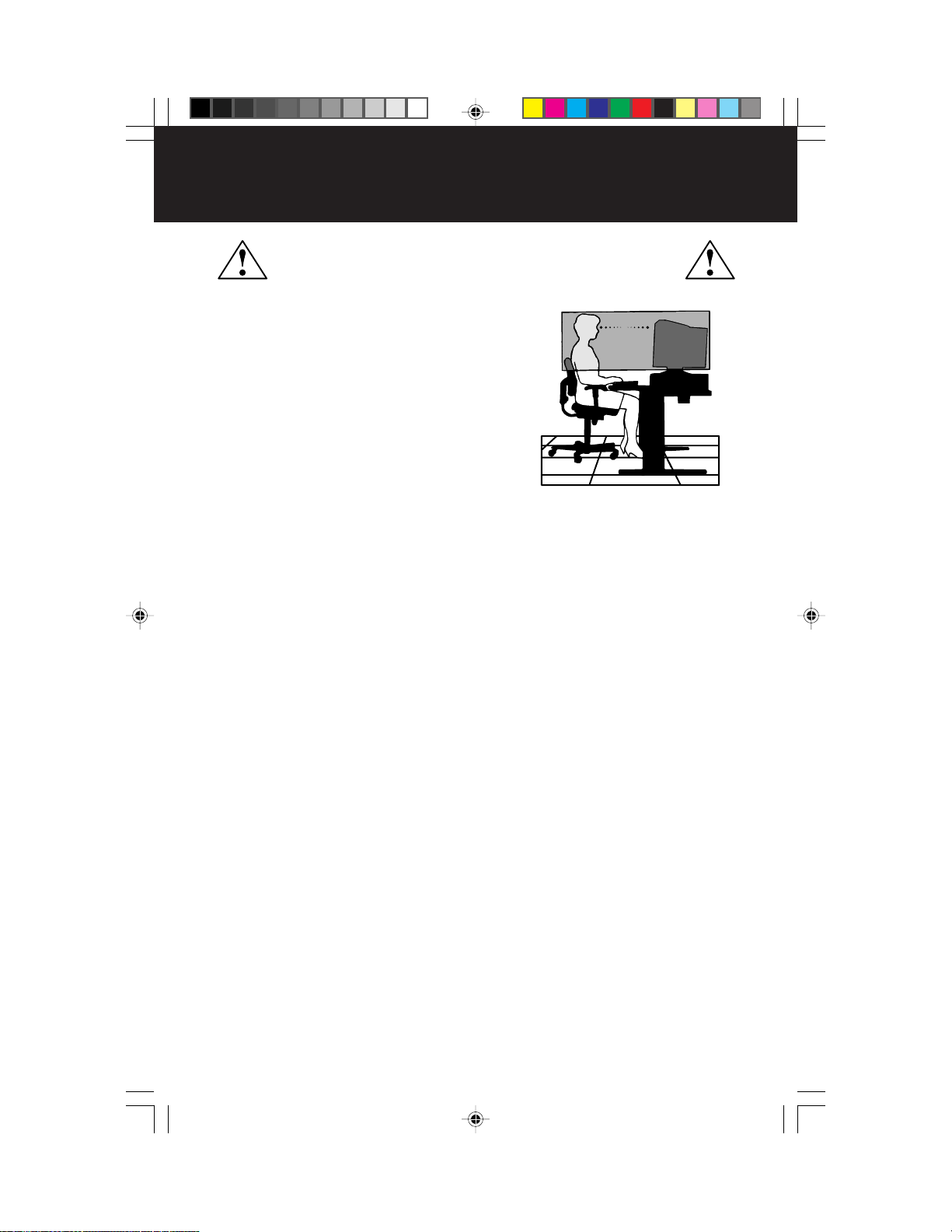

Recommended Use............................................................. 12-13

Specifications ......................................................................... 14

Features ............................................................................ 15-16

Troubleshooting ...................................................................... 17

References .............................................................................. 18

Limited Warranty .................................................................... 19

TCO’95 ............................................................................ 20-21

TCO’99 ............................................................................ 22-23

Avertissement ......................................................................... 25

Contenu ................................................................................. 26

Mise en marche rapide ...................................................... 27-31

Commandes ...................................................................... 32-35

Usage recommandé ........................................................... 36-37

Fiche technique ....................................................................... 38

Fonctions........................................................................... 39-40

Dépannage ....................................................................... 41-42

Références .............................................................................. 43

Garantie limitée ...................................................................... 44

TCO’95 ............................................................................ 45-46

TCO’99 ............................................................................ 47-48

Warnung ............................................................................... 51

Lieferumfang .......................................................................... 52

Quick Start ........................................................................ 53-57

Bedienungselemente........................................................... 58-61

Empfehlungen für die Verwendung ...................................... 62-63

Technische Daten .................................................................... 64

Funktionen ........................................................................ 65-66

Fehlerbehebung ...................................................................... 67

Verweise ................................................................................ 68

Beschränkte Gewährleistung .................................................... 69

TCO’95 ............................................................................ 70-71

TCO’99 ............................................................................ 72-73

2010X.wpc 7/13/00, 5:01 PM2

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED. REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM

WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET.DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This

symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause

electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Canadian Department of Communications Compliance Statement

DOC: This Class B digital apparatus meets all requirements of the Canadian Interference-

Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel brouiller du Canada.

C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations

according to C.S.A. C22.2 No. 950. Ce produit porte la marque ‘C-UL’ et se conforme aux règlements de sûrele Canadiens selon CAN/CSA C22.2 No. 950.

FCC Information

Use the attached specified cables with the LH-20S01 and LH-20S01-BK color monitor so as not to interfere with radio and television reception. (1)

Please use the supplied power cord or equivalent to ensure FCC compliance. (2) Please use the supplied shielded shielded video signal cable, 15-pin mini D-SUB to DVI cable or DVI-D to DVI-D cable.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver

is connected.

• Consult your dealer or an experienced radio/TV technician for help.

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.

2010X.wpc 7/13/00, 5:01 PM3

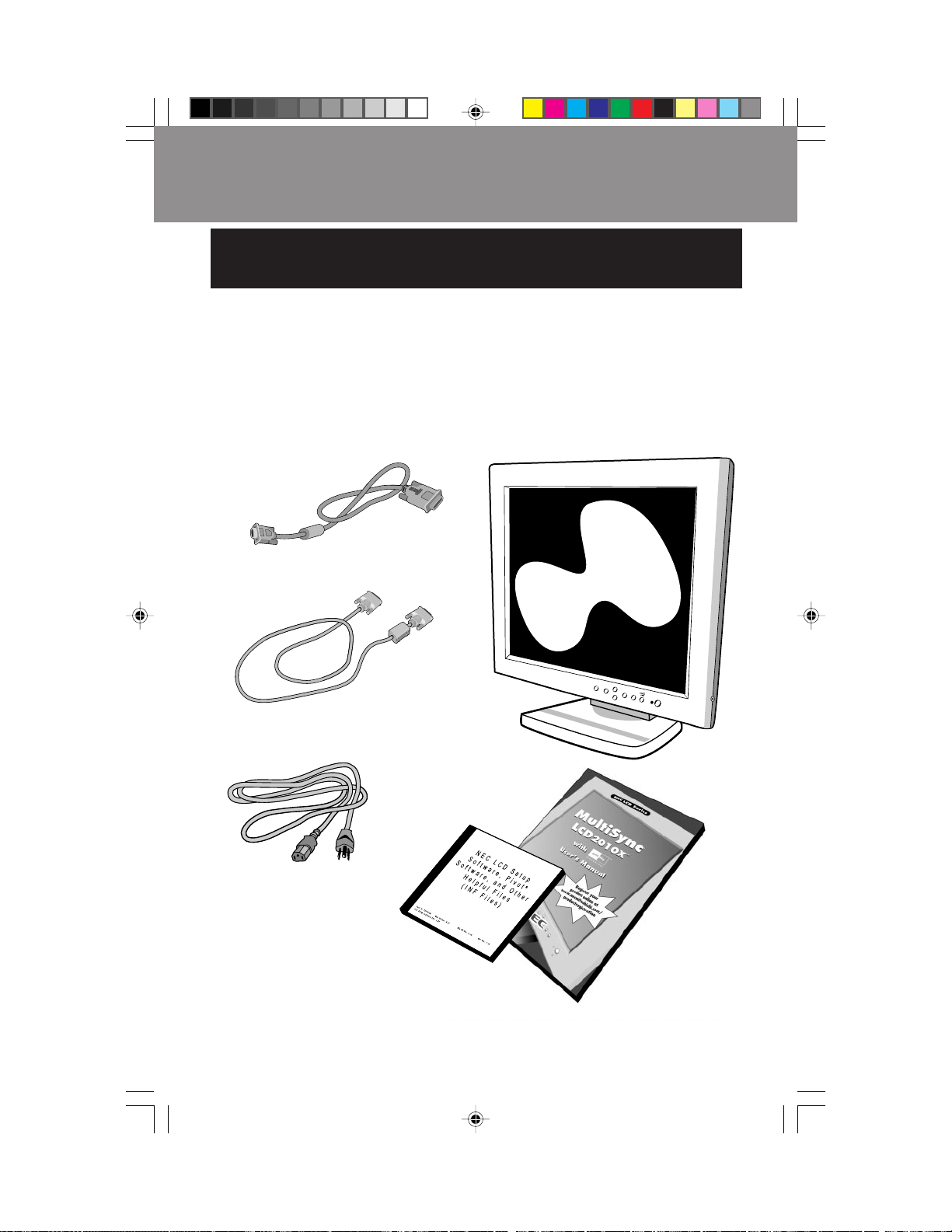

Contents

You can register your product online at

www.necmitsubishi.com/productregistration

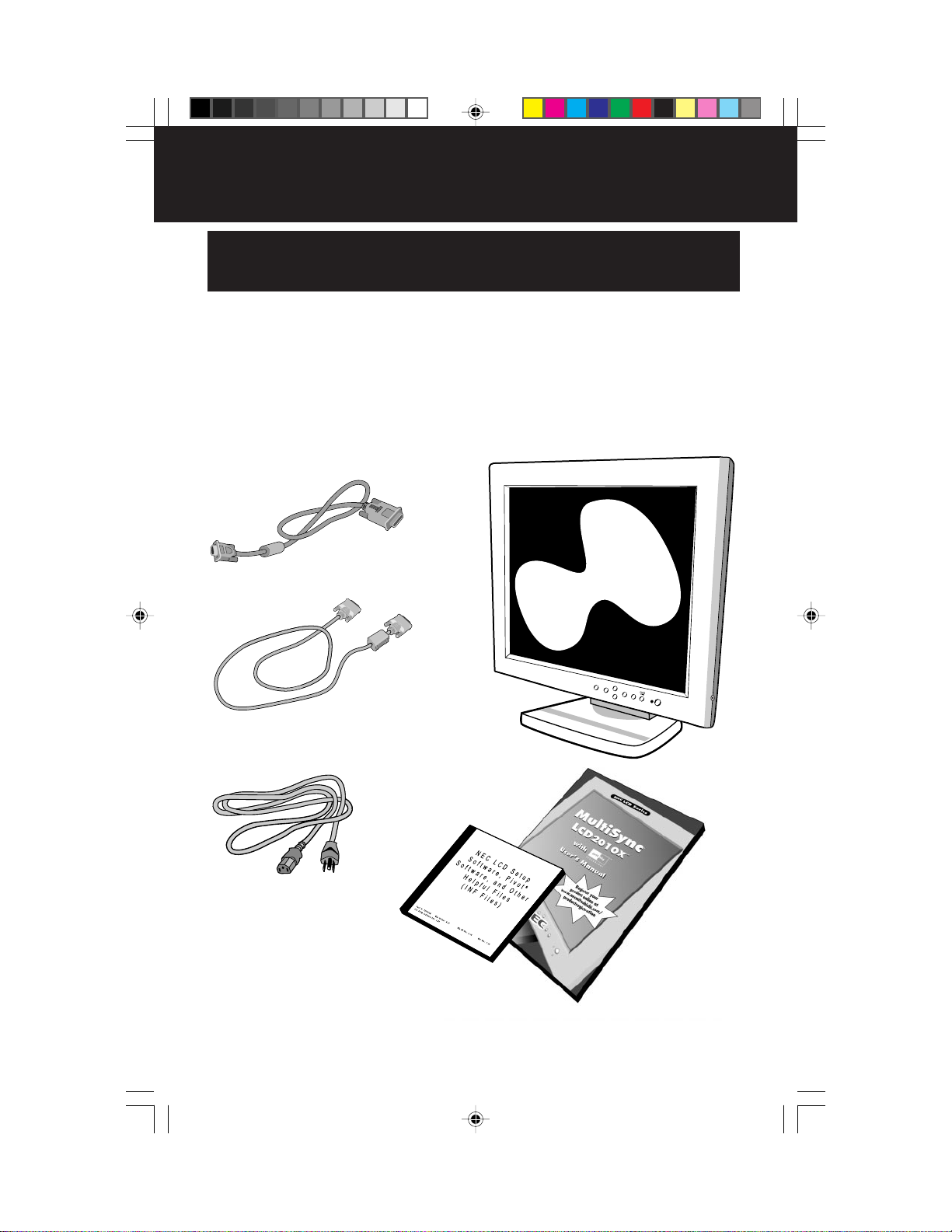

Your new NEC-Mitsubishi MultiSync® Monitor box* should contain the following:

• MultiSync Monitor with tilt/ swivel/pivot stand MultiSync LCD

• Power Cord

• User’s Manual

Video signal cable with 15-pin mini D-SUB to DVI cable

2010X

™

• Video Signal Cable (15-pin mini D-SUB male to DVI)

•

Video Signal Cable (DVI-D to DVI-D cable)

• NEC LCD Setup Software, Pivot Software and other helpful files

Video signal cable with DVI-D to DVI-D cable.

Power Cord

* Remember to save your original

box and packing material to transport or ship the monitor.

2010X.wpc 7/13/00, 5:01 PM4

CD Software

MultiSync LCD

2010X monitor

User’s Manual

Quick Start

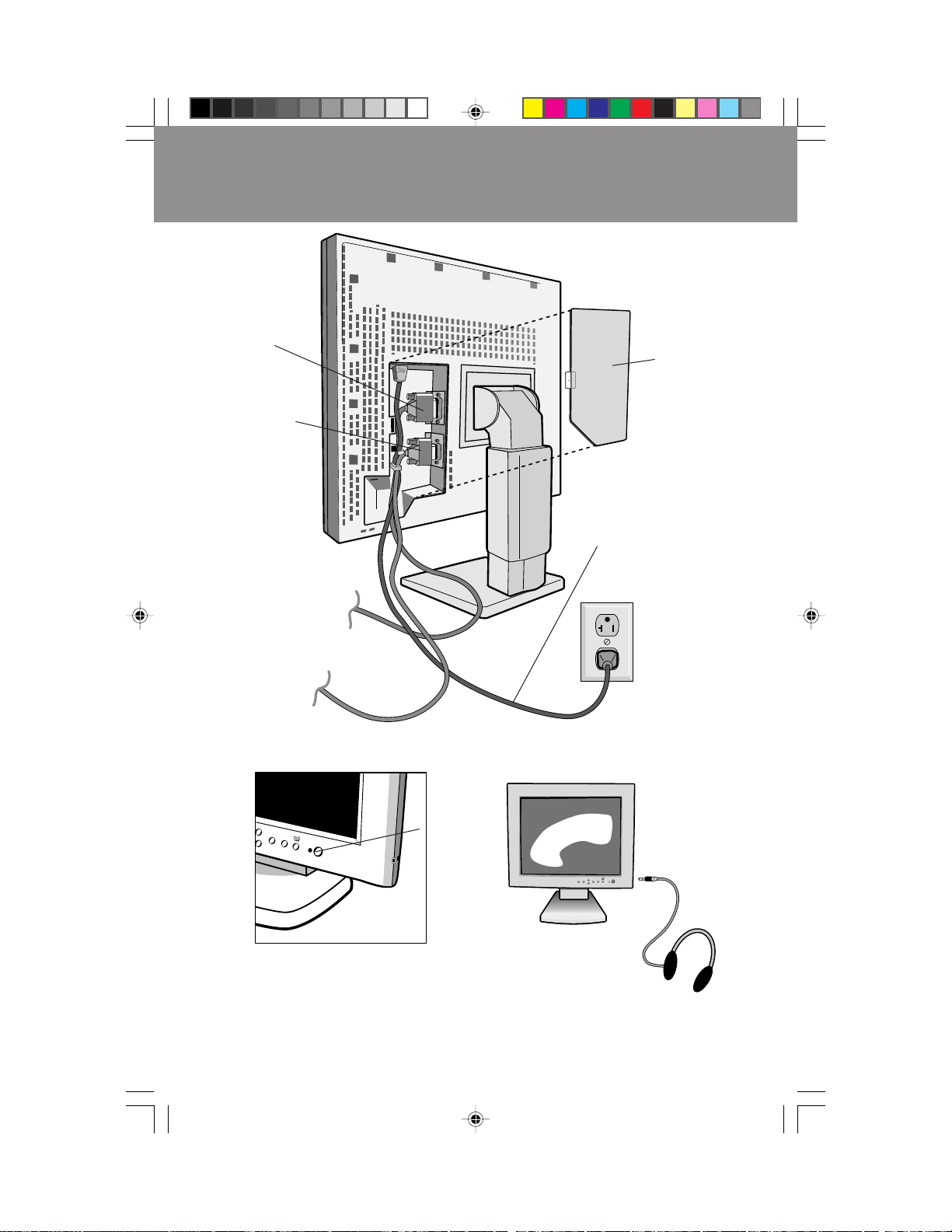

To attach the MultiSync® LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

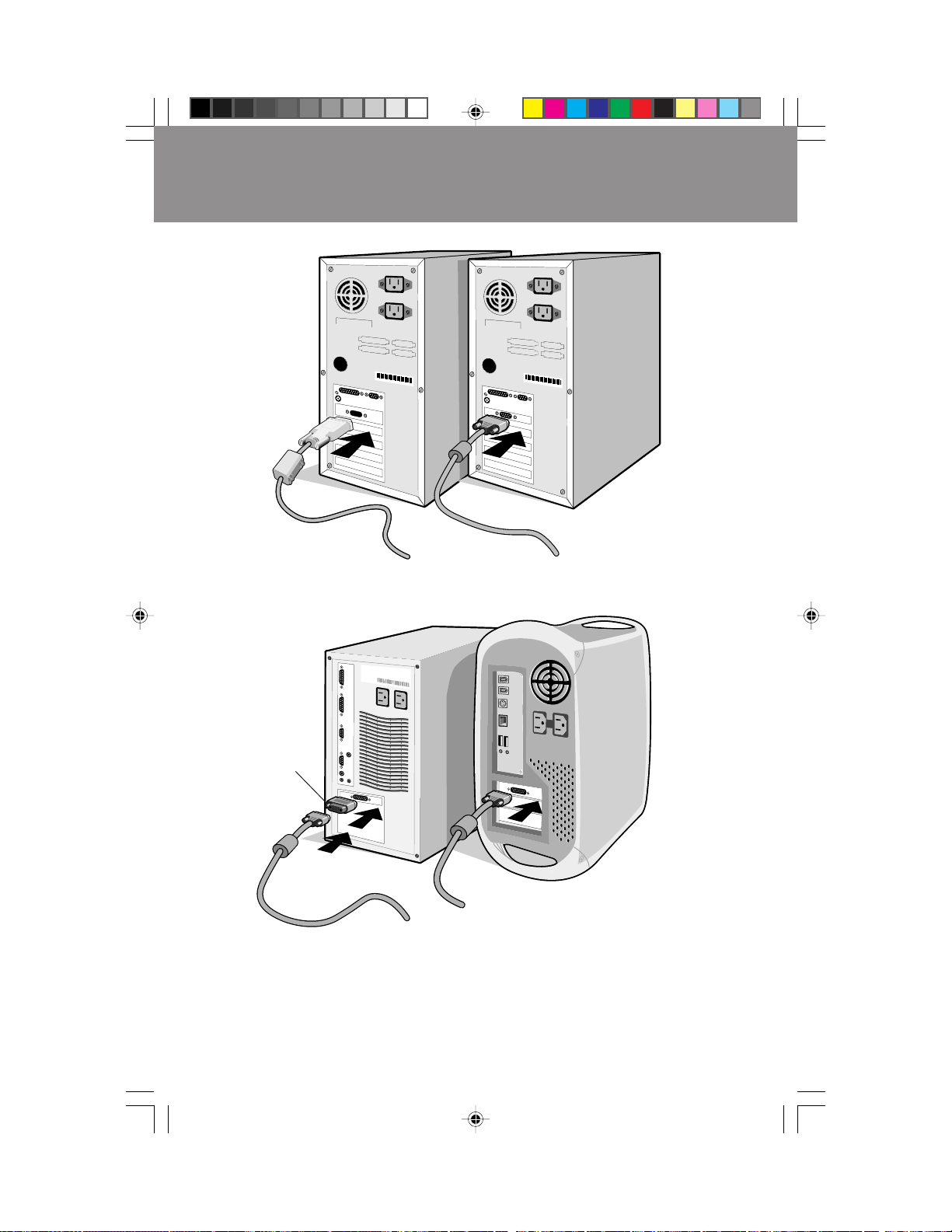

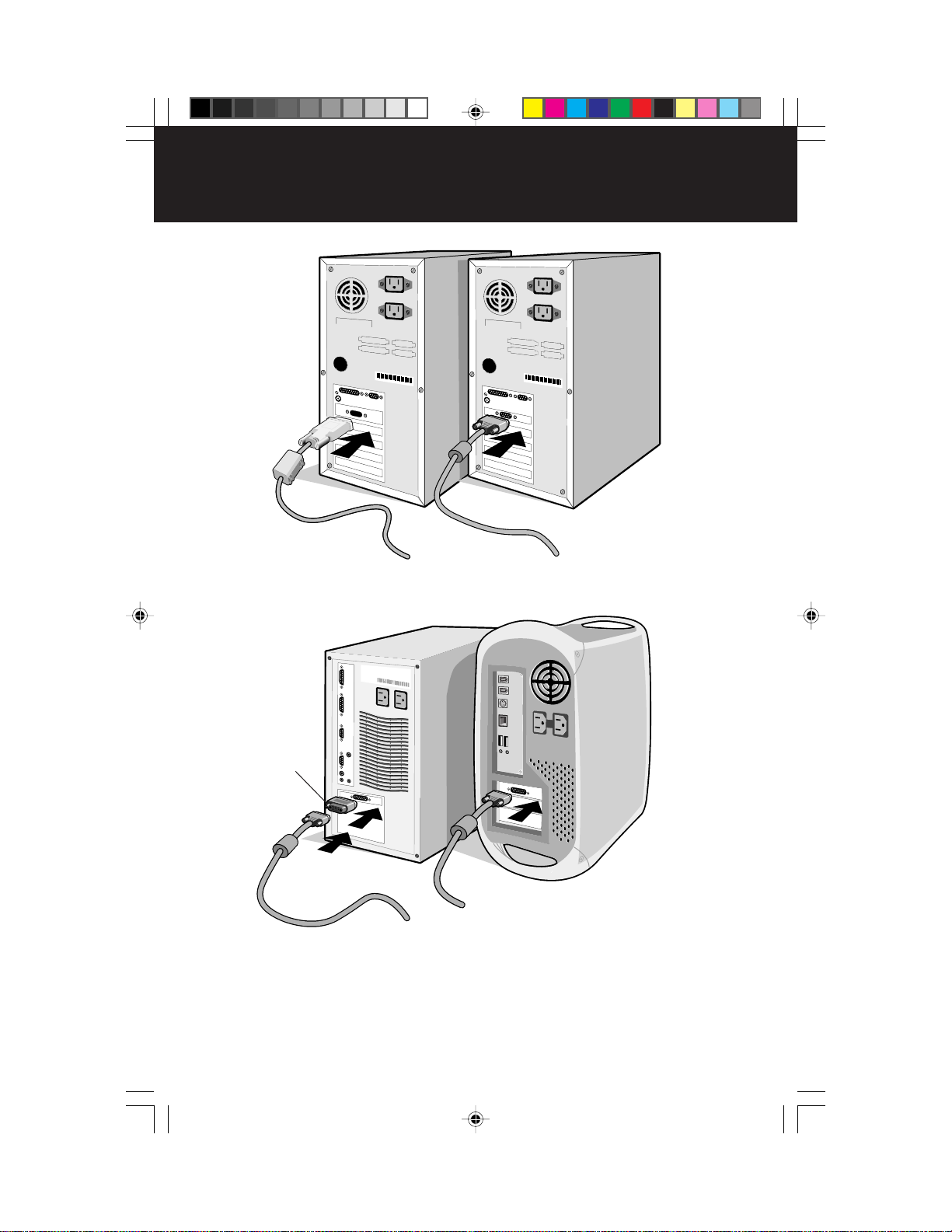

2. For the PC with DVI digital output: Connect the DVI signal cable to the connector of the

display card in your system (Figure A.1). Tighten all screws. For the PC with Analog output: Connect the 15-pin mini D-SUB to DVI signal cable to

the connector of the display card in your system (Figure A.2). To connect a secondary PC with analog output, connect the 15-pin mini D-SUB to 15-pin

mini D-SUB signal cable (not included) to the connector of the display card in your system. For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then

attach the 15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter

(Figure B.1).

NOTE: Some Macintosh systems do not require a Macintosh cable adapter. NOTE: To obtain the MultiSync Macintosh cable adapter call NEC-Mitsubishi Electronics Display of

America, Inc. at (800) 820-1230

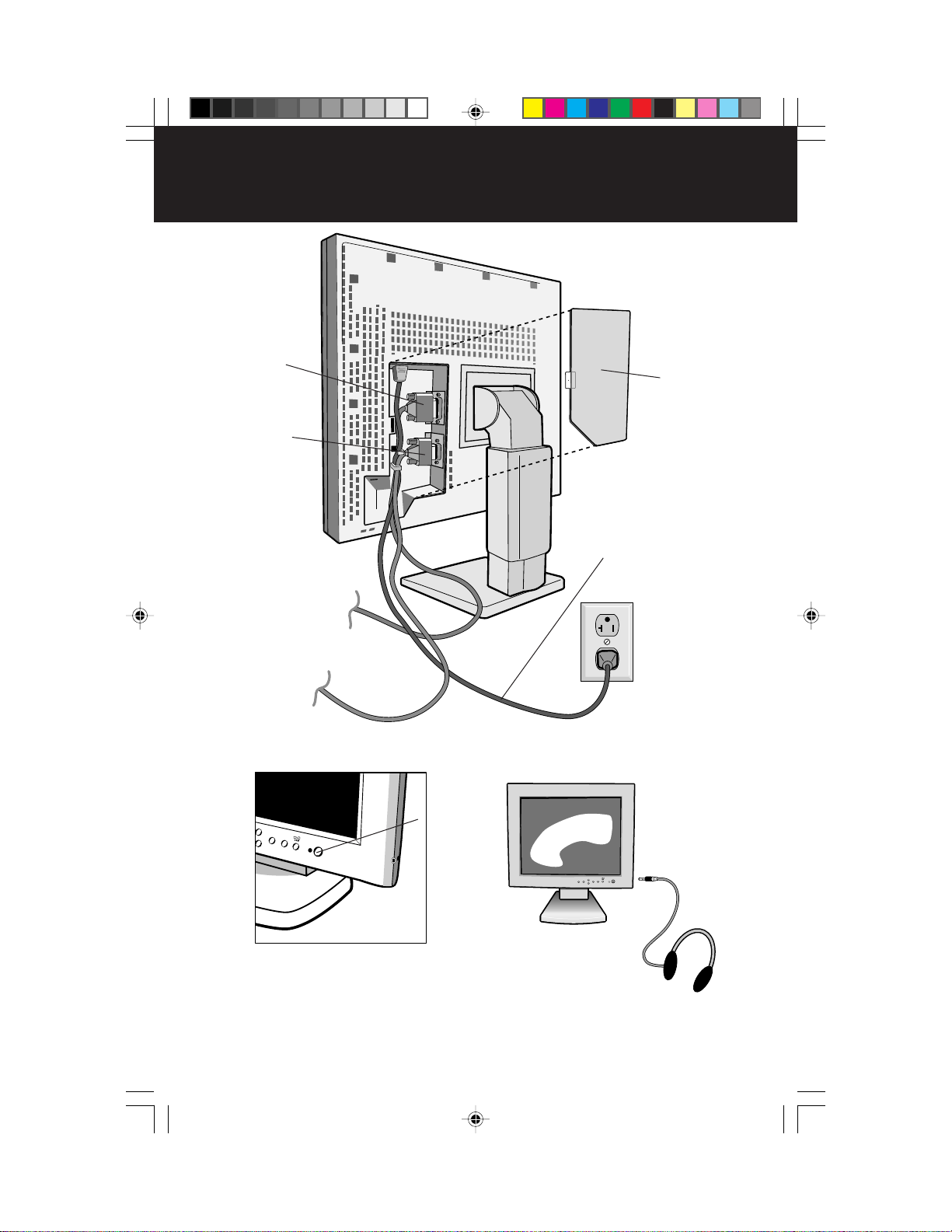

3. Remove connector cover. Connect the DVI signal cable to the connector on the back of the monitor. Connect the 15-pin mini D-SUB signal cable (not included) to the connector on the back of the monitor. Place the video signal cable (Figure C.1).

NOTE: Incorrect cable connections may result in irregular operation, damage display quality/

components of LCD module and/or shorten the module’s life.

4. Connect one end of the power cord to the AC inlet on the back of the monitor and the other end to the power outlet (Figure C.1).

5. Turn on the monitor (Figure D.1) and the computer.

6. To complete the setup of your MultiSync LCD monitor, use the following OSM controls:

• Auto Adjust Contrast (Analog input only)

• Auto Adjust (Analog input only) Refer to the Controls section of this User ’s Manual for a full description of these OSM

controls.

NOTE: For download information on the Windows® 95/98 INF file for your MultiSync LCD2010X

monitor, refer to the References section of this User’s Manual.

NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual. NOTE: Refer to User ’s Manual in the NEC LCD Setup Software CD case for installation and operation

of this software.

Using headphones

1. Connect the audio cable to “Line-in” on the back of the monitor and the other end to the “Audio out” terminal of the computer. Replace connector cover.

2. Headphones may be connected to the “Headphones” output on the right side of the monitor (Figure E.1). Headphones can be purchased from your local electronics store.

™

2010X.wpc 7/13/00, 5:01 PM5

Quick Start cont.

Figure A.1 Figure A.2

Macintosh Cable Adapter (not included)

2010X.wpc 7/13/00, 5:01 PM6

Note: Some Macintosh

systems do not require a

Mactintosh cable adapter

Figure B.1

Quick Start cont.

DVI

Mini

D-SUB

Connector

Cover

Power Cord

Figure D.1

2010X.wpc 7/13/00, 5:01 PM7

Figure C.1

Power Button

Figure E.1

Controls

Quick Start cont.

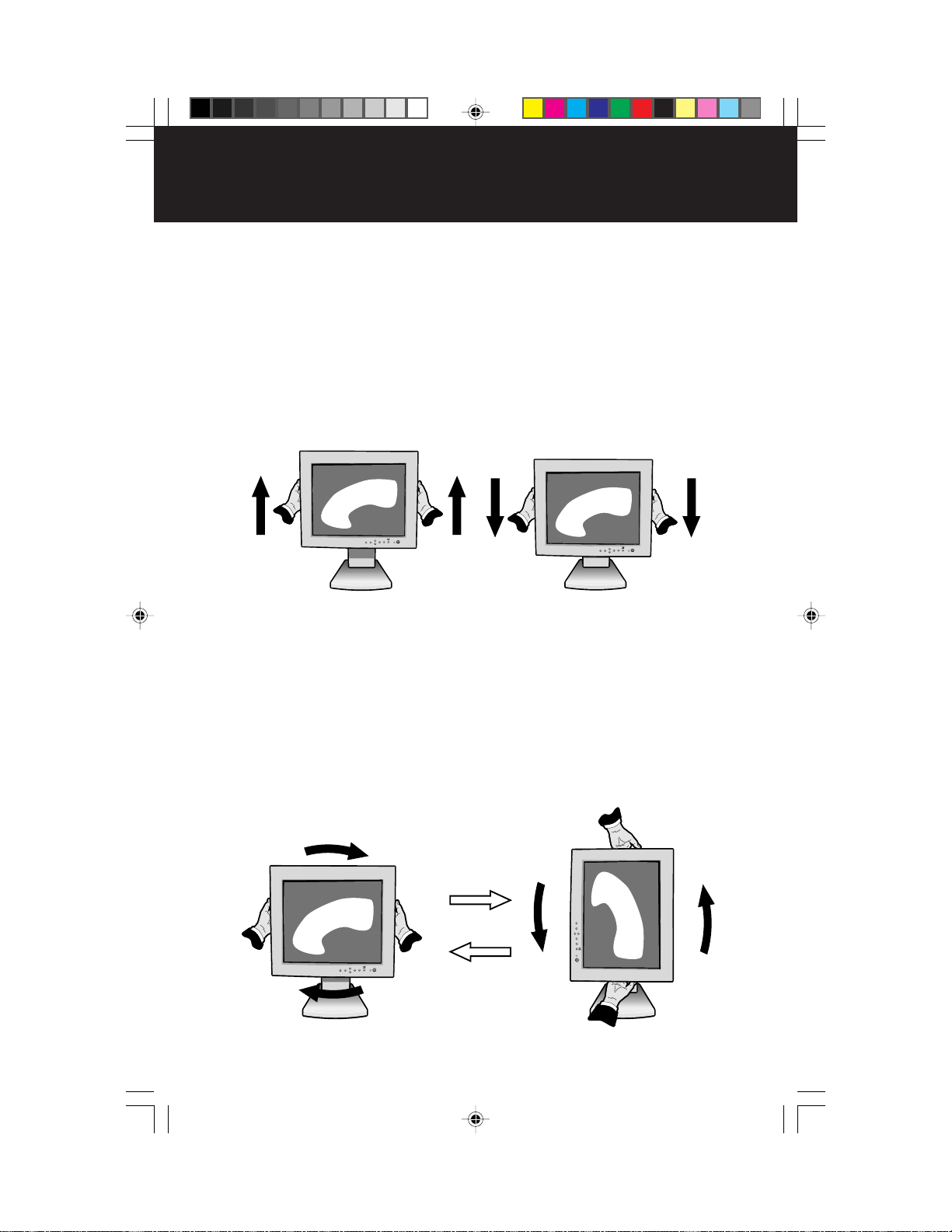

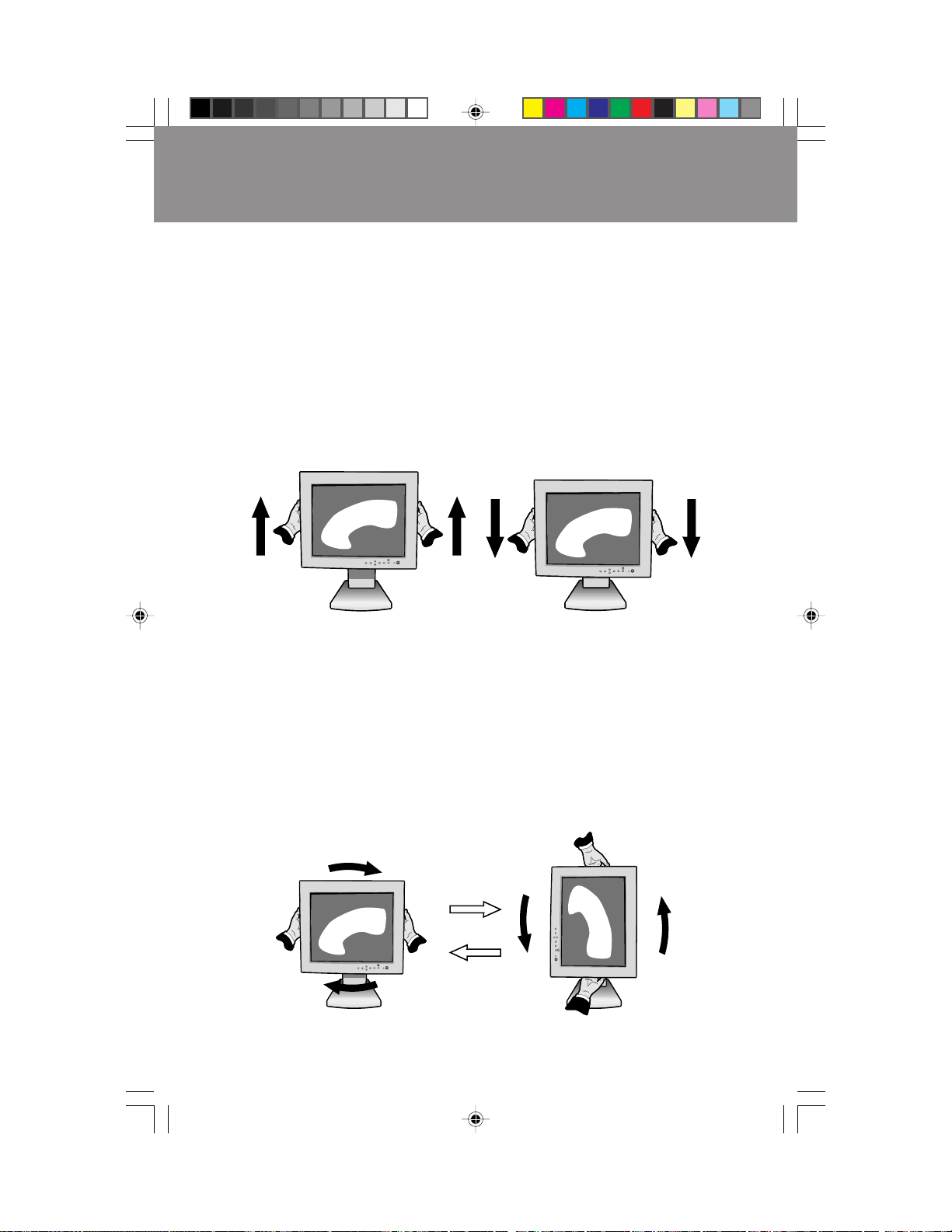

Raise and Lower Monitor Screen

The monitor may be raised or lowered in either Portrait or Landscape mode. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).

Figure RL.1

Screen Rotation

Before rotating, the screen must be raised to the highest level to avoid knocking the screen on the desk or pinching your fingers. To raise the screen, place hands on each side of the monitor and lift up to the highest position (Figure RL.1).

To rotate screen, place hands on each side of the monitor screen and turn clockwise from Landscape to Portrait or counter-clockwise from Portrait to Landscape (Figure R.1).

To toggle the orientation of the OSM modes, press the RESET button while OSM menu is off.

™

menu between Landscape and Portrait

2010X.wpc 7/13/00, 5:01 PM8

Figure R.1

Quick Start cont.

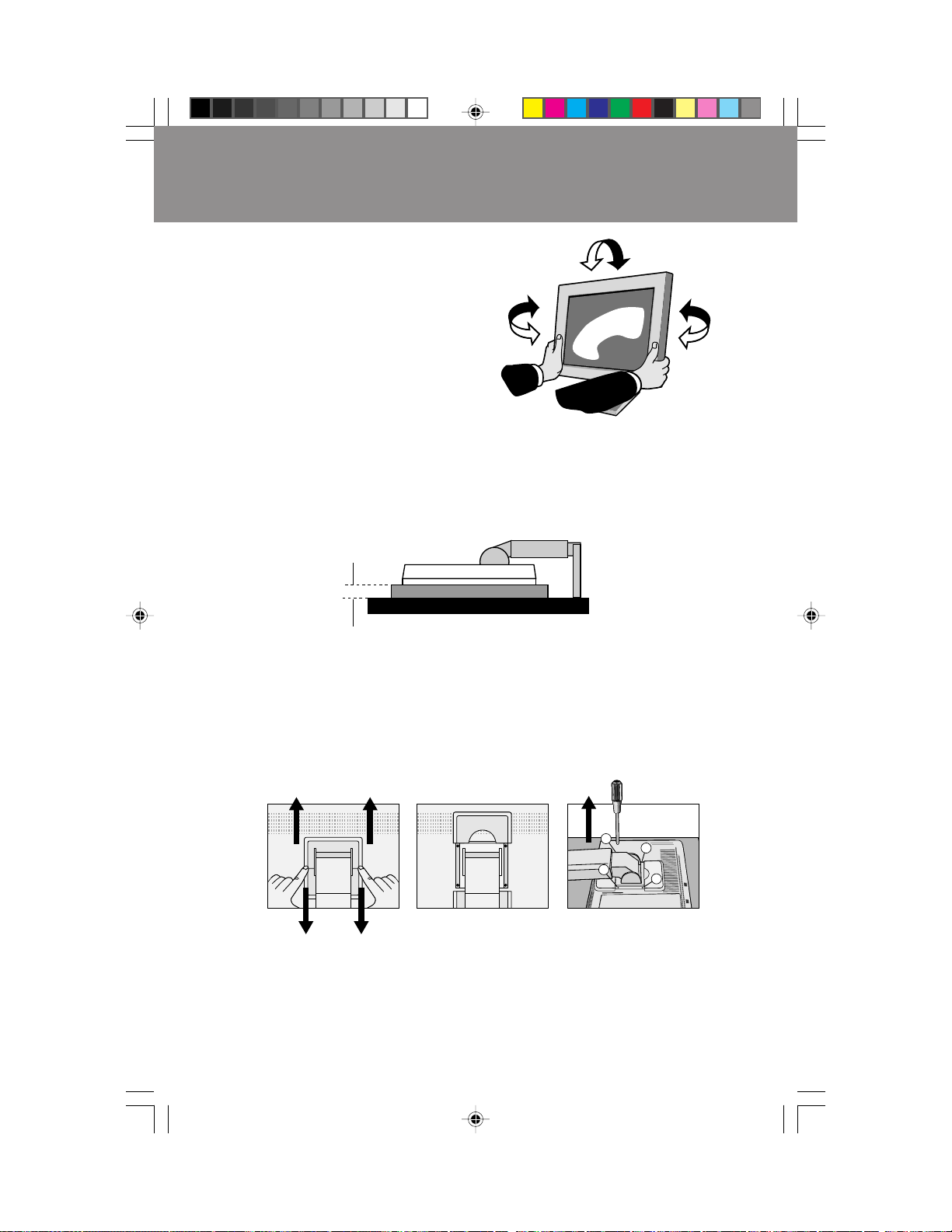

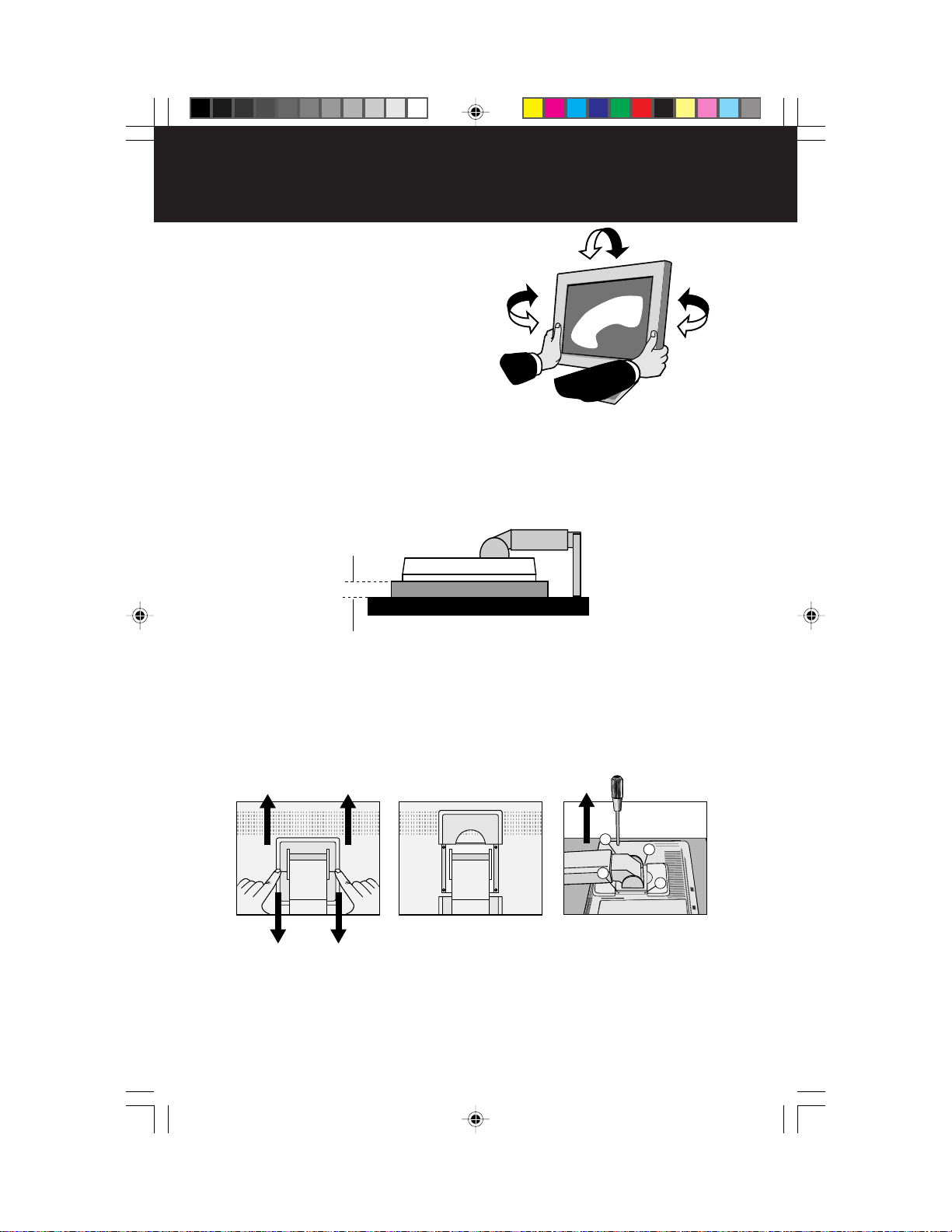

Tilt and Swivel

Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place hands on each side of

the monitor and lift up to the highest position (Figure RL.1).

3. Place monitor face down on a non-abrasive surface. (Place the screen on a 2-inch platform so that the stand is parallel with the surface.) (Figure S.1)

2-in

Figure S.1

Figure TS.1

4. Remove the stand cover by sliding the top/bottom pieces off the stand (Figure S.2). Remove the 4 screws connecting the monitor to the stand and lift off the stand assembly (Figure S.3). The monitor is now ready for mounting in an alternate manner.

5. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method.

Figure S.2 and Figure S.3

Caution: This LCD monitor is designed for use with a flexible arm, therefore it is delivered without stand.

To fulfil the safety requirements the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor. The LCD monitor shall only be used with an approved arm (e.g. GS mark).

2010X.wpc 7/13/00, 5:01 PM9

Controls

OSM™ (On-Screen Manager) control buttons on the front of the monitor function as follows:

To access OSM menu, press any of the control buttons ( , , , ) or the PROCEED button.

To mute sound function, press the EXIT button. To rotate OSM between Landscape and Portrait modes, press the RESET button.

To change DVI/D-SUB signal input, press the PROCEED button. NOTE: OSM menu must be closed in order to rotate.

Main Menu Sub-Menu

EXIT Exits the OSM controls. Exits to the OSM main

CONTROL / Moves the highlighted Moves the highlighted

area up/down to select area up/down to select one of the controls. one of the controls.

CONTROL / Moves the highlighted area Moves the bar left/

left/right to select control right to increase or menus. decrease the adjustment.

PROCEED Has no function Activates Auto Adjust feature.

RESET Resets the highlighted Resets the highlighted

control menu to the factory control to the factory setting. setting.

menu.

In Tools and Information Mode, opens additional window.

NOTE: When RESET is pressed in the main and sub-menu, a warning window allowing you to cancel the RESET function by pressing the EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO ADJUST (Analog input only)

Adjusts the image displayed for non-standard video inputs.

Auto Adjust (Analog input only)

Automatically adjusts the Image Position and H. Size settings and Fine settings.

Position Controls (Analog input only)

LEFT / RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN / UP

Controls Vertical Image Position within the display area of the LCD.

2010X.wpc 7/13/00, 5:01 PM10

will appear

Controls cont.

AUTO ADJUST

Automatically sets the Horizontal and Vertical Image Position within the display area of the LCD.

Image Adjust Controls (Analog Input Only)

H.SIZE

Adjusts the horizontal size by increasing or decreasing this setting.

FINE

Improves focus, clarity and image stability by increasing or decreasing this setting.

AUTO ADJUST

Automatically adjusts H. SIZE and FINE settings.

AccuColor® Control Systems

Five color presets select the desired color setting. Each color setting is adjusted at the factory. R,G,B: Increases or decreases Red, Green or Blue color depending upon which is selected. The change in color will appear on screen and the direction (increase or decrease) will be shown by the color bars.

Tools 1

SMOOTHING: Select one of three image sharpness settings. This function is only valid when the expanded display function (expansion function)is on.

TEXT MODE: Use this to display text clearly. NORMAL: This sharpness is between TEXT and GRAPHIC MODE. GRAPHIC MODE: This mode is suited for images and photographs.

EXPANSION MODE: Sets the zoom method.

FULL SCREEN: The image is expanded to 1280 x 1024, regardless of the

resolution.

KEEP ASPECT: The image is expanded without changing the aspect ratio. EXPANSION OFF: The image is not expanded. CUSTOM (DIGITAL INPUT ONLY): Select one of four expansion rates. In

this mode the resolution may be low and there may be blank areas. This mode is for use with special video cards.

VIDEO DETECT: Selects the method of video detection when more than one computer is connected.

NONE: The Monitor will not search the other video input port unless the monitor is turned on.

FIRST DETECT: The video input has to be switched to “FIRST DETECT” mode. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically. The monitor will not look for other video signals while the current video source is present.

2010X.wpc 7/13/00, 5:01 PM11

Controls cont.ols

LAST DETECT:

mode. and a new secondary source is supplied to the monitor, then the monitor will automatically switch to the new video source. When current video input signal is not present, then the monitor searches for a video signal from the other video input port. If the video signal is present in the other port, then the monitor switches the video source input port to the new found video source automatically. The monitor will not look for other video signals while the current video source is present.

DVI SELECTION: This function selects the DVI input mode. When the DVI selection has been changed, you must restart your computer.

DIGITAL: DVI digital input is available. ANALOG: DVI analog input is available.

SOUND: Adjusts the volume of the earphones jack.

The video input has to be switched to the “LAST DETECT”

When the monitor is displaying a signal from the current source

Tools 2

LANGUAGE: OSM™ control menus are available in seven languages. OSM POSITION: You can choose where you would like the OSM control

image to appear on your screen. Selecting OSM Location allows you to manually adjust the position of the OSM control menu left, right, up or down.

OSM TURN OFF: The OSM control menu will stay on as long as it is use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset chocies are 10, 20, 30, 60 and 120 seconds.

OSM LOCK OUT: This control completely locks out access to all OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out. To activate the OSM Lock Out function, press PROCEED, then simultaneously. To de-activate the OSM Lock Out, press PROCEED, then and hold down simultaneously.

FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. The RESET button will need to be held down for several seconds to take effect. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

RESOLUTION NOTIFIER: This optimal resolution is 1280 x 1024. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1280 x 1024.

and hold down

2010X.wpc 7/13/00, 5:01 PM12

Controls cont.ols

Information

DISPLAY MODE: Provides information about the current resolution display and technical data including the preset timing being used and the horizontal and vertical frequencies.

MONITOR INFO: Indicates the model and serial numbers of your monitor.

OSM™ Warning

NO SIGNAL: This function gives a warning when there is no signal present. After power is turned on or when there is a change of input signal or video is inactive, the No Signal window will appear. The PROCEED button opens the DVI SELECTION CONTROL, as indicated in the section for DVI selection.

RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn’t have proper resolution, the Resolution Notifier window will open. This function can be disabled in the TOOL menu.

OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn’t have proper timing, the Out Of Range menu will appear. The PROCEED button opens the DVI SELECTION CONTROL, as indicated in the section for DVI selection.

NOTE: If “ CHANGE DVI SELECTION” is displayed,switch to DVI SELECTION.

2010X.wpc 7/13/00, 5:01 PM13

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE MULTISYNC® LCD COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and

opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous

voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause

shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor

may fall, causing serious damage to the monitor.

• The power cable connector is the primary means of detaching the system from the power

supply. The monitor should be installed close to a power outlet that is easily accessible.

• When operating the MultiSync LCD monitor with its AC220-240V worldwide power supply,

use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used except in UK)

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the fluorescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your local municipality to dispose of this tube properly.

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet is damaged.

• If the monitor does not operate normally by following operating instructions.

• Allow adequate ventilation around the monitor so that heat can properly

dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system

from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

CAUTION

• Use caution when carrying the monitor,as the compact stand may extend automatically.

• Handle with care when transporting. Save packaging for transporting.

• Do not bend power cord.

• Do not use monitor in high temperatured, humid, dusty, or oily areas.

• Do not cover vent on monitor.

• If monitor is broken, do not come in contact with the liquid crystal.

2010X.wpc 7/13/00, 5:01 PM14

Recommended Use cont.

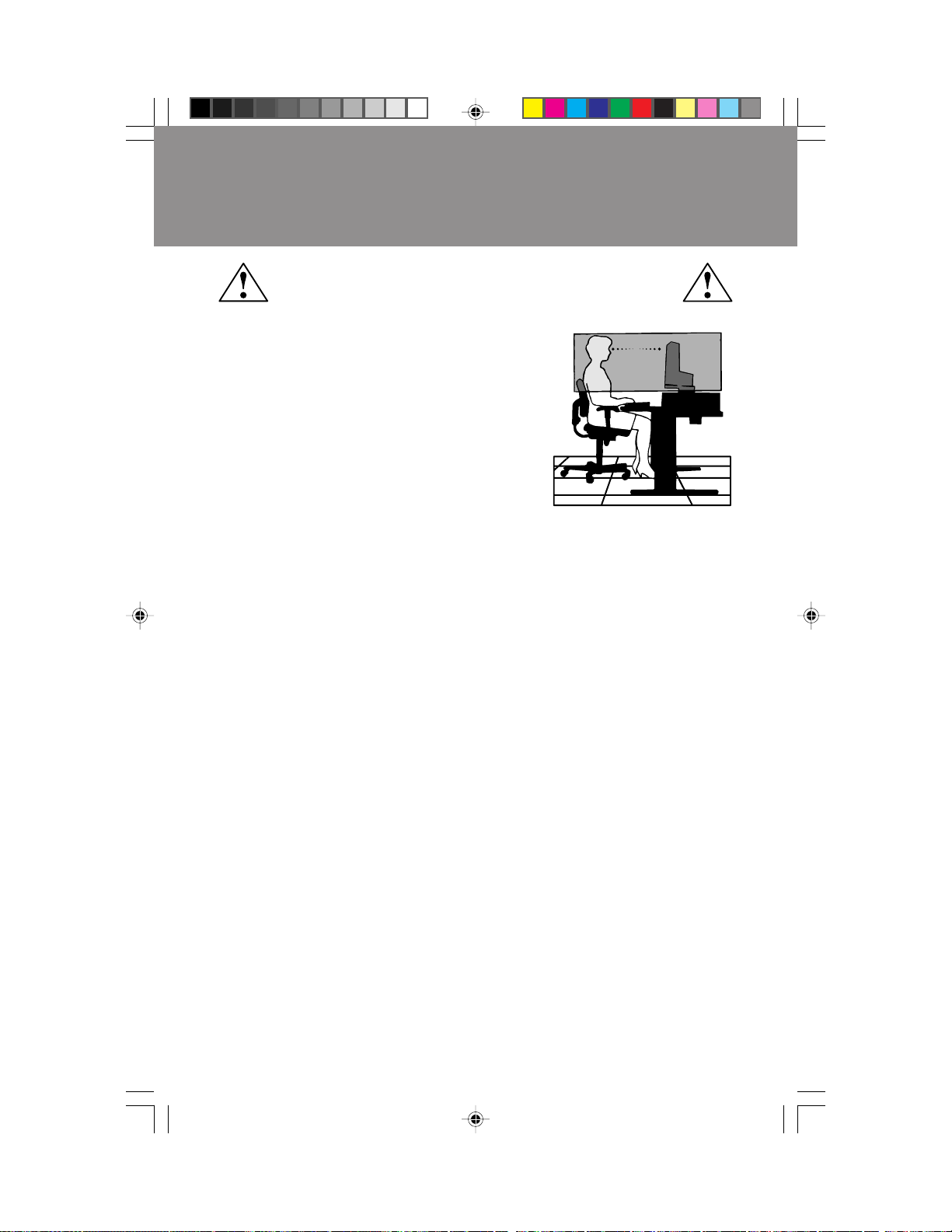

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for

warm-up.

• Adjust the monitor height so that the top of the

screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

•

Position your monitor no closer than 16 inches and no further away than 28 inches optimal distance is 23 inches for the MultiSync LCD2010X™.

• Rest your eyes periodically by focusing on an object

at least 20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize

glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using

any cleaning solution or glass cleaner!

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or reference

material) directly in front of you to minimize turning your head while you are typing.

• Avoid displaying fixed patterns on the monitor for long periods of time to avoid

image persistence (after-image effects).

• Get regular eye checkups. Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

• Adjust the Brightness until the bachground raster disappears

• Do not position the Contrast control to its maximum setting

• Use the preset Size and Position controls with standard signals

• Use the preset Color Setting

• Use non-interlaced signals with a vertical refresh rate between 60-75Hz

• Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast

For more detailed information on setting up a healthy work environment, call NEC at (800) 820-1230, NEC FastFacts™ information at (630) 467-4363 and request document #900108 or write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.

from your eyes. The

2010X.wpc 7/13/00, 5:01 PM15

Specifications

Monitor MultiSync® LCD2010X Specifications Monitor

LCD Module Diagonal: 20.1 inch Active matrix; thin film transistor (TFT)

Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms Digital Input: TMDS

Display Colors Analog input: 16,777,216 Synchronization Range : Horizontal: 31.0 kHz to 82 kHz Automatically

Resolutions Supported Landscape: 720 x 400*

Active Display Landscape: Horizontal: Area Vertical:

Power Supply Current Rating 0.7A @ 100 Dimensions Landscape:

Weight14.2 kg

Environmental Considerations

*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear

choppy or lines may appear to be bold. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done. When the interpolated resolution is not an exact multiple of the native resolution, the mathematical interpolation necessary may cause some lines to appear thicker than others.

The number of colors that can be displayed decreases.

NOTE: Technical specifications are subject to change without notice.

Viewable Image Size: 20.1 inch liquid crystal display (LCD); 0.31 mm dot

Native Resolution (Pixel Count): Landscape: 1280 x 1024

Portrait: 1024 x 1280 luminence; 250:1 contrast ratio, typical

Sync: Separate sync. TTL Level

Horizontal sync. Positive/Negative Vertical sync. Positive/Negative Composite sync. (Positive/Negative) (TTL Level) Sync on Green video (Positve) 0.7 Vp-p and sync. Negative 0.3 Vp-p

Vertical: 56.0 Hz to 85 Hz Automatically

: VGA text

640 x 480* 800 x 600* 832 x 624* 1024 x 768* 1152 x 900* 1280 x 960*

Portrait: 480 x 640*

Portrait: Horizontal: 319 mm/12.6 inches

Vertical: 399 mm/15.7 inches

1280 x 1024 @ 60Hz to 75Hz ..................

600 x 800*1 @ 56Hz to 85Hz 624 x 832* 768 x 1024* 960 x 1280*

1024 x 1280 @ 60Hz to 75Hz ..................

399 mm/15.7 inches 319 mm/12.6 inches

@ 60Hz to 85Hz

@ 56Hz to 85Hz

@ 75Hz

@ 60Hz to 85Hz

1*2

@ 66Hz (SUN)

1*2

@ 60Hz to 75Hz

@ 60Hz to 85Hz

@ 75Hz

@ 60Hz to 85Hz

1*2

@ 60Hz to 75Hz

AC 100 – 120 V/220 – 240 V @ 50/60 Hz

–

120 V/0.3A @ 220 – 240 V

498 mm (W) x 501 mm (H) x 246 mm (D)

Portrait:

Height Adjustment:

19.6 inches (W) x 19.7 inches (H) x 9.6 inches (D) 418 mm (W) x 541 mm (H) x 246 mm (D)

16.5 inches (W) x 21.3 inches (H) x 9.6 inches (D) 70 mm/2.8 inches

31.3 lbs

Operating Temperature: 5°C to +35°C/41°F to 95°F

Storage Temperature: -10°C to +60°C/14°F to 140°F

Humidity: 30% to 80%

Feet: 0 to 10,000 Feet

Humidity: 10% to 85%

Feet: 0 to 45,000 Feet

™

Notes

pitch; XtraView™ technology; 250cd/m2 white

™

Depends on display card and timing used.

NEC cites recommended resolution at

60Hz

for optimal display and color performance.

NEC cites recommended resolution at 60Hz f

or optimal display and color performance.

2010X.wpc 7/13/00, 5:01 PM16

Features

ambix™ Technology: Dual input technology allowing both analog and digital inputs off of one connector (DVI-I) as well as additional legacy analog support off of a traditional 15pin VGA connector. Provides traditional MultiSync well as TMDS™-based (Transition Minimized Differential Signaling) digital compatibility for digital inputs. TMDS-based digital interfaces include DVI-D,DFP and P&D.

DVI-I: The integrated interface ratified by the Digital Display Working Group (DDWG) that allows both digital and analog connectors off of one port. The “I” stands for integration for both digital and analog, The digital portion is TMDS-based.

DVI-D: The digital-only subset of DVI ratified by the Digital Display Working Group (DDWG) for digital connections between computers and displays. As a digital-only connector, analog support is not provided off a DVI-D connector. As a TMDS-based digital only connection, only a simple adapter is necessary for compatibility between DVI-D and other TMDS-based digital connectors such as DFP and P&D.

DFP (Digital Flat Panel): An all-digital interface for flat panel monitors which is signal compatible with DVI. As a TMDS-based digital only connection, only a simple adapter is necessary for compatibility between DFP and other TMDS-based digital connectors such as DVI and P&D.

P&D (Plug and Display): The VESA standard for digital flat panel monitor interfaces. It is more robust than DFP since it allows for other options off a signal connector (options like USB, analog video and IEEE-1394-995). The VESA committe has recognized that DFP is a subset of P&D. As a TMDS-based connector (for the digital input pins), only a simple adapter is necessary for compatibility between P&D and other TMDS-based digital connector such as DVI and DFP.

NuCycle™ Plastic: A special silicone compound for PC resin, being extremely flameretardant, safe and environmentally friendly.

XtraView

Wide Viewing Angle Technology: Allows the user to be able to see the monitor

from any angle (160 degrees) from any orientation — Portrait or Landscape. Provides full 160° viewing angles either up, down,left or right.

Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another.

AccuColor

Control System: Allows you to adjust the colors on your screen and customize

the color accuracy of your monitor to a variety of standards.

™

OSM

(On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements

of your screen image via simple to use on-screen menus.

ErgoDesign

Features: Enhance human ergonomics to improve the working environment,

protect the health of the user and save money. Examples include OSM controls for quick and easy image adjustments, tilt/swivel pivot stand for preferred angle of viewing, small footprint and compliance with MPRII and TCO guidelines for lower emissions.

Pivoting Stand: Allows users to adjust the monitor to the orientation that best fits their application, either Landscape orientation for wide documents, or portrait orientation for the ability to preview a full page on one screen at one time. The Portrait orientation is also perfect for full screen video conferencing.

Plug and Play: The Microsoft

solution with the Windows® 95/98 operating system

facilitates setup and installation by allowing screen size and resolutions supported)

directly to your computer, automatically optimizing

display performance.

technology compatibility for analog as

the monitor to send its capabilities (such as

2010X.wpc 7/13/00, 5:01 PM17

Features cont.

IPM™ (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required.

FullScan

significantly expanding image size. VESA Standard Mounting Interface: Allows users to connect their MultiSync monitor to

any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device.

DVI/D-SUB: Offers dual inputs, allowing you to connect the monitor to one system via a included DVI cable and to another system via a standard D-Sub cable (nit included). You can easily switch between computers with a touch of a button on the up-front control panel.

™

Capability: Allows you to use the entire screen area in most resolutions,

2010X.wpc 7/13/00, 5:01 PM18

Troubleshooting

No picture

• The signal cable should be completely connected to the display card/computer.

• The display card should be completely seated in its slot.

• Power Button and computer power switch should be in the ON position.

• Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

• Check the monitor and your display card with respect to compatibility and recommended settings.

• Check the signal cable connector for bent or pushed-in pins. Check that the DVI/D-SUB button is in the correct position.

•

Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor, or simultaneously press the RESET and Power buttons.

Image persistence

• Image persistence is when a “ghost” of an image remains on the screen even after the monitor has been turned off. Unlike CRT monitors, LCD monitors’ image persistence is not permanent. To alleviate image persistence, turn the monitor off for as long as an image was displayed. If an image was on the monitor for one hour and a ”ghost” of that image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC recommends using a screen saver at regular intervals whenever the screen is idle.

Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.

• Use the OSM increasing or decreasing the Fine control. When the display mode is changed, the OSM Image Adjust settings may need to be re-adjusted.

• Check the monitor and your display card with respect to compatibility and recommended signal timings.

• If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate.

LED on monitor is not lit

• Power Button should be in the ON position and power cord should be connected.

• Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).

Display image is not sized properly

• Use the OSM Image Adjust controls to increase or decrease the H. Size.

• Check to make sure that a supported mode and signal timing has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode or refresh rate.)

No Video

• If no vieo is present on the screen, turn the Power button off and on again.

™

Image Adjust controls to focus and adjust display by

(no green or amber color can be seen)

2010X.wpc 7/13/00, 5:01 PM19

References

• BBS (978) 742-8706

NEC-Mitsubishi Remote Bulletin Board System is an electronic service accessible with your system and a modem. Communication parameters are: 300/1200/2400/9600/14.4k/28.8k/33.6k bps, no parity, 8-data bits, 1 stop bit

• Customer Service/ Technical Support (800) 632-4662

Fax (978) 742-7049

• Electronic Channels:

NEC-Mitsubishi Remote Bulletin Board System Internet e-mail: tech-support@necmitsubishi.com Internet ftp site: ftp.necmitsubishi.com World Wide Web: http://www.necmitsubishi.com Product Registration: http://www.necmitsubishi.com/productregistration Windows® 95/98 INF File: http://cssweb.necmitsubishi.com/common/

drivers.htm then download the file NECMSINF.ZIP

• FastFacts™ Information (630) 467-4363

INFORMATION DESCRIPTION DOCUMENT #

Glossary Definition of terms related 900203

to functions, features and installation of the MultiSync

More Information Names and addresses of 900204

other groups involved in standards and features of the MultiSync monitor

Macintosh Connection Detailed information on 153006

connecting the MultiSync monitor to a Macintosh

Healthy Work Environment Detailed information on 900108

setting up a healthy work environment

• Literature & Sales Info (800) NEC-INFO [(800) 632-4636]

• MultiSync Fulfillment (800) 820-1230

[For software & accessories]

• TeleSales (800) 284-4484

monitor

2010X.wpc 7/13/00, 5:01 PM20

Limited Warranty

NEC-Mitsubishi Electronics Display of America, Inc. (hereinafter “NEC-MITSUBISHI”) warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NEC-MITSUBISHI’s sole option) any part of the enclosed unit which proves defective for a period of three (3) years from the date of first consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or refurbished and will meet specifications of the original parts or unit.

This warranty gives you specific legal rights and you may also have other rights, which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NEC-MITSUBISHI-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NECMITSUBISHI No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NEC-MITSUBISHI to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product.

It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NECMITSUBISHI to render the services provided hereunder in either the original package or a similar package affording an equal degree of protection. All Products returned to NEC-MITSUBISHI for service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NEC-MITSUBISHI to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of fixed images for long periods of time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to the instructions contained in the User’s Manual. Any such conditions will void this warranty.

NEC-MITSUBISHI SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NEC-MITSUBISHI PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system configuration, software, the application, customer data, and operator control of the system, among other factors. While NEC-MITSUBISHI Products are considered to be compatible with many systems, specific functional implementation by the customers of the Product may vary. Therefore, suitability of a Product for a specific purpose or application must be determined by consumer and is not warranted by NEC-MITSUBISHI.

For the name of your nearest authorized NEC-MITSUBISHI service facility, contact NEC-MITSUBISHI at 1-800-632-4662.

2010X.wpc 7/13/00, 5:01 PM21

TCO’95

LH-20S01-BK

Congratulations! You have just purchased a TCO’95 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also, to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’95 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).

The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety.

The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

TCO’95 is a co-operative project between TCO (The Swedish Confederation of Professional Employees), Naturskyddsforeningen (The Swedish Society for Nature Conservation) and NUTEK (The National Board for Industrial and Technical Development in Sweden).

Environmental Requirements

Brominated flame retardants Brominated flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. These are related to another group of environmental toxins, PCBs, which are suspected to give rise to similar harm, including

2010X.wpc 7/13/00, 5:01 PM22

TCO’95 cont.

reproductive damage in fisheating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

TCO’95 demand requires that plastic components weighing more than 25 grams must not contain organically bound chlorine and bromine.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning.

TCO’95 requirement permits the inclusion of lead since no replacement has yet been developed.

Cadmium**

Cadmium is present in rechargeable batteries and in the colourgenerating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses.

TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million) of cadmium. The colourgenerating layers of display screens must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays, switches, and back-light systems, Mercury damages the nervous system and is toxic in high doses.

TCO’95 requirement states that batteries may not contain more than 25 ppm (parts per million) of mercury. It also demands that no mercury is present in any of the electrical or electronics components concerned with the display unit, except the back-light system.

CFCs (freons)

CFCs (freons) are sometimes used for washing printed circuit boards and in the manufacturing of expanded foam for packaging. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on Earth of ultraviolet light with consequent increased risks of skin cancer (malignant melanoma).

The relevant TCO’95 requirement; Neither CFCs nor HCFCs may be used during the manufacturing of the product or its packaging.

*Bio-accumulative is defined as substances which accumulate within living organisms. **Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

To obtain complete information on the environmental criteria document, order from:

TCO Development Unit SE-114 94 Stockholm SWEDEN FAX Number: +46 8 782 92 07

E-mail (Internet): development@tco.se

You may also obtain current information on TCO’95 approved and labelled products by visiting their website at: http://www.tco-info.com/

2010X.wpc 7/13/00, 5:01 PM23

TCO’99

LH-20S01

Congratulations! You have just purchased a TCO’99 approved and labeled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during the manufacturing. Since it has not been possible for the majority of electronics equipment to be recycled in a satisfactory way, most of these potentially damaging substances sooner or later enter Nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (Internal) and natural (external) environments. Since all methods of conventional electricity generation have a negative effect on the environment (acidic and climate-influencing emissions, radioactive waste, etc.), it is vital to conserve energy. Electronics equipment in offices consume an enormous amount of energy since they are often left running continuously.

What does labelling involve?

This product meets the requirements for the TCO’99 scheme which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National Energy Administration). The requirements cover a wide range of issues: environment, ergonomics, usability, emission of electrical and magnetic fields, energy consumption and electrical and fire safety. The environmental demands concern restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental plan which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user. Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability.

Environmental Requirements

Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. In turn, they delay the spread of fire. Up to thirty percent of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride and these are related to another group of environmental toxins, PCBs, which are suspected to give rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur.

2010X.wpc 7/13/00, 5:01 PM24

+ 54 hidden pages

NEC LCD2010X User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
