MultiSync LCD1990FXTM (L195RW) color monitor
-
If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may find the following booklet, prepared by the Federal Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference Problems.“ This booklet is available from the U.S. Government Printing Office, Washington, D.C., 20402, Stock No. 004-000-00345-4.
1
Contents
Your new NEC MultiSync® LCD monitor box* should contain the following:
• MultiSync LCD1990FX™ monitor with tilt/swivel/pivot/adjustable stand
• Power Cord
• Video Signal Cable (DVI-D to DVI-D cable)
• Video Signal Cable (mini D-SUB 15 pin to mini D-SUB 15 pin)
• User’s Manual
• Cable cover
• Screws (4) (for mounting the monitor to a flexible arm -
see page 8)
DVI-D to DVI-D cable
Power Cord
Mini D-SUB cable
User’s Manual
* Remember to save your original box and packing material to transport or ship the monitor.
Cable Cover
Screws (4)
2
Quick Start
To attach the MultiSync® LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For use with the PC or MAC with DVI digital output: Connect the DVI
signal cable to the connector of the display card in your system (Figure A.1). Tighten all screws.
For a PC with Analog output:Connect the 15-pin mini D-SUB signal cable to the
connector of the display card in your system (Figure A.2). Tighten all screws.
For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to the MultiSync
Macintosh cable adapter (Figure B.1).Tighten all screws.
Figure A.1
NOTE: Some Macintosh systems do not require a Macintosh cable adapter. NOTE: To obtain the MultiSync Macintosh cable adapter call
NEC Display Solutions of America, Inc. (800) 632-4662.
3. Place hands on each side of the monitor. Tilt the LCD panel backwards to a
30-degree angle and lift up to the highest position. Connect all cables to appropriate connectors (Figure 4).
4. To keep the cables neatly organized, place them into the cable
management system that is built into the stand. Place the power cable into the specific hooks as indicated. (Figure 5). Place the DVI cable and the 15-pin mini D-Sub cable into the hooks as indi-
cated (Figure 5).
When using the monitor in Portrait mode, place the DVI cable and the 15-pin
mini D-Sub cable into the hooks as indicated (Figure 6).
5. Cables should rest flat against the stand.
Make sure to leave enough slack in the cables so that the Tilt and the Raise and Lower functions of the monitor are not impeded.
Figure A.2
3
Macintosh Adapter
(not included)
Figure B.1
Highest Stand Position
30 Tilt
Quick Start – continued
power card
(DC out for optional NEC products such as the Soundbar attachment. Do not use thisconnector unless specified.)
Figure 4
6. Hold all of the cables firmly and place the cable cover onto the stand (Figure 7).
7. Slide the Cable Cover back into its correct position (Figure 8). Connect the power cord to power outlet.
NOTE: Please refer to the Recommended Use section of this manual for
proper selection of power cord.
8. The vacation switch on the back side of the monitor near the AC inlet must be in the ON position for the monitor to function (Figure 9). Turn on the monitor using the front power button, then turn on the computer.
NOTE: The Vacation Switch is a true on/off switch. If this
switch is in the OFF position, the monitor cannot be turned on using the front button.
DO NOT turn the vacation switch ON/OFF repeatedly.
9. For Analog input only: Upon initial setup, the No-Touch Auto Adjust feature automatically adjusts the monitor to the optimal settings that are needed for most signal timings. For further adjustments, refer to the Controls section of this Userʼs Manual for a full description of the OSM controls.
For download information on the Windows
®
95/98/Me/2000/XP INF file for
your monitor, visit www.necdisplay.com/support.
Figure 5
NOTE: If you have any problems, please refer to the Troubleshooting section of this Userʼs Manual.
4
Quick Start – continued
OFF Position
ON Position
Figure 6
Figure 8
NOTE: The Vacation Switch is a true on/off switch. If
this switch is in the OFF position, the monitor
cannot be turned on using the front button.
Figure 7
Figure 9
Power Button
Raising and Lowering Monitor Screen
The monitor screen may be raised or lowered while in either Portrait or Landscape mode. To raise or lower the screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).
NOTE: Handle with care when raising or lowering the monitor screen.
Figure RL.1
5
Quick Start – continued
Screen Rotation
Before rotating, the screen must be raised to the highest level to avoid accidentally damaging the screen and to avoid pinching fingers. To raise the screen, place hands on each side of the monitor and lift up to the highest position (Figure RL.1).
To rotate screen, place hands on each side of the monitor screen and turn clock wise from Landscape to Portrait or counter-clockwise from Portrait to Landscape (Figure R.1).
Note: To toggle the orientation of the OSM menu between Landscape and Portrait modes, refer to the “Controls” section of this userʼs manual.
Figure R.1
-
Tilt
Grasp top and bottom sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).
Figure TS.1
NOTE: Handle with care when tilting and swiveling the monitor screen.
Swivel
Grasp both sides of the monitor screen with your hands and adjust the swivel as desired (Figure TS.2).
Figure TS.2
6
Quick Start – continued
1
2
UP
SLIDE
Remove Stand for Mounting
The stand can be removed in order to mount the monitor using an alternate, VESA approved, mounting method.
1. Disconnect all cables.
2. Place hands on each side and raise the monitor up to the highest position (see Raising and Lowering Monitor Screen page 5).
3.
Place monitor face down on a nonabrasive surface (Figure S.1).
4. Place one hand around the base and one hand on the Quick Release Lever. Move the Quick Release Lever in the direction indicated by the arrows (Figure S.2) .
5. Lift up the bottom of the stand to unhook it from the monitor (Figure S.3). The monitor can now be mounted using and alternate method.
Reverse the process to reattach stand. NOTE: Use only VESA-compatible alternative mounting method. (100mm pitch) NOTE: Handle with care when removing monitor stand.
(Figure S.1)
(Figure S.3)
1. Pull lever towards stand.
2. Slide lever to the right.
(Figure S.2)
7
Quick Start – continued

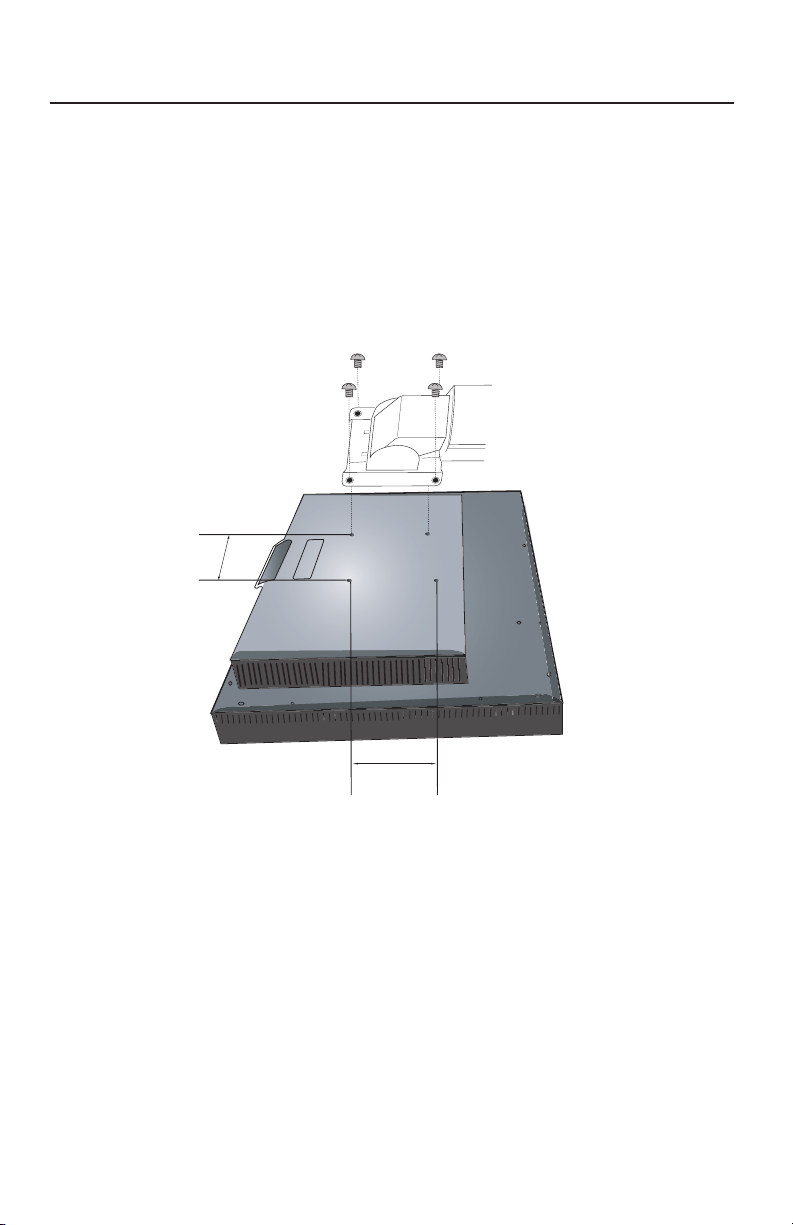

Flexible Arm Installation
This LCD monitor is designed for use with a flexible arm. To mount the monitor to a flexible arm:
1. Remove the stand (see Remove Monitor Stand for Mounting page 7).
2. Use the 4 screws that are included to attach the arm to the monitor
(Figure F.1).
100mm
100mm
(Figure F.1)
CAUTION: Use ONLY the 4 screws that are included when mounting to avoid damag-
ing the monitor and the stand or arm. For safety requirements, the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm (e.g. GS mark).
8
Controls
OSM® (On-Screen Manager) control buttons, located on the front of the monitor, function as follows:
To access OSM menu, press any of the following control buttons: EXIT, LEFT, RIGHT, UP, or DOWN.
To change the input source signal when the OSM is closed, press the SELECT button.
8
7
Landscape
1 2 3 4 5 6
1 AMBIBRIGHT SENSOR Detects the level of ambient lighting allowing the monitor
to make adjustments to various settings resulting in a more comfortable viewing experience. Do not cover this sensor.
2 POWER Turns the monitor on and off. 3 LED Indicates that the power is on.
Can be changed between blue and green in the Advanced OSM Control menu.
4 INPUT/SELECT Enters the OSM Control menu. Enters OSM sub menus.
Changes the input source when not in the OSM Control
menu. 5 EXIT Exits the OSM sub menu. Exits OSM Control menu. 6 LEFT/RIGHT Navigates to the left or right through the OSM Control
menu. 7 UP/DOWN Navigates up or down through the OSM Control menu. 8 RESET/ROTATE OSM Resets the OSM back to factory settings.
Pressing when the OSM is not showing rotates the OSM
Control menu between portrait and landscape mode.* 9 KEY GUIDE The Key Guide appears on screen when the OSM control
menu is accessed. The Key Guide will rotate when the OSM
control menu is rotated.
9
Portrait
*The “LEFT/RIGHT” and “UP/DOWN” buttons functionality is interchangeable depending on the orientation (landscape/portrait) of the OSM.
9
Controls – continued
Brightness/Contrast Controls
BRIGHTNESS: Adjusts the overall image and background screen brightness. CONTRAST: Adjusts the image brightness in relation to the background. AUTO CONTRAST (Analog input only): Adjusts the image displayed for
non-standard video inputs. ECO MODE: Decreases the amount of power consumed by reducing the
brightness level. 1: Decreases the brightness by 25%. 2: Decreases the brightness by 50%. CUSTOM: Decreases the brightness level as determined by
the user. Refer to the Advanced OSM menu for custom setting instructions. AUTO BRIGHTNESS: OFF: Auto Brightness does not function. ON:Adjusts the brightness automatically by detecting the brightness level of your
environment and adjusting the monitor accordingly with the best BRIGHTNESS setting (see page 28 for AmbiBright™ explanation), making the viewing experience more comfortable.
NOTE: Do not cover the AmbiBright sensor. BLACK LEVEL:
Auto Adjust (Analog input only) AUTO ADJUST:
Adjusts the black level.
Automatically adjusts the Image Position, H. Size, and Fine settings.
10
Controls – continued
Image Controls LEFT / RIGHT (Analog input only):
LCDʼs display area.
Controls Horizontal Image Position within the
DOWN / UP (Analog input only): Controls Vertical Image Position within the
display area
.
LCDʼs
H.SIZE (V.SIZE) (Analog input only): Increases or decreases the horizontal (or vertical) size.
If the “Auto Adjust function” does not provide a satisfactory picture, further tuning can be performed manually using the “H. Size (or V. Size)” function (dot clock). To manually adjust the monitor, a Moiré test pattern should be used. This function may alter the width of the picture. Use Left/Right Menu to center the image on the screen. If the H. Size (or V. Size) is set incorrectly, the screen would show vertical banding, like the drawing on the left. The image should be clear.
Incorrect Adjustment
FINE
(Analog input only):
provide a
satisfactory picture, further
“Fine” function. Adjusting For Fine adjustment, a
Moiré test pattern should be used. If the Fine setting is
If the “Auto Adjust” and the “H.Size” functions do not
tuning can be performed using the
this setting improves focus, clarity and image stability.
Correct Adjustment
incorrect, the screen would show horizontal banding like the drawing on the left. The image should be clear.
Incorrect Adjustment
Correct Adjustment
11
Controls – continued
AccuColor® Control Systems
AccuColor Control Systems: Six color presets select the desired color setting (sRGB and NATIVE color presets are standard and cannot be changed).
R,G,B: Increases or decreases Red, Green or Blue color depending upon which is
selected. The change in color will appear on screen and the direction (increase or
decrease) will be shown by the bars. NATIVE: Original color presented by the LCD panel that is unadjustable. sRGB: sRGB mode dramatically improves the color fidelity in the desktop
environment by a single standard RGB color space. With this color supported environment, the operator could easily and confidently communicate color without further color management overhead in the most common situations.
Tools
DVI SELECTION: This function selects the DVI input mode. If the DVI selections changes, you must restart the computer.
DIGITAL: DVI digital input is available. ANALOG: DVI analog input is available.
DVI Input mode on the monitor must be set to DIGITAL in the DVI SELECTION menu. To set the DVI SELECTION to “DIGITAL” press the SELECT button then CONTROL button when the DVI signal cable is connected to the DVI-I connector of the monitor. Otherwise the MAC may not turn on.
NOTE: Depending on the type of PC/Video card or the type of video signal cable used, the DVI SELECTION function may not operate.
VIDEO DETECT: Selects the method of video detection when more than one video input source is connected is connected to the monitor.
FIRST: If “FIRST” is selected as the VIDEO DETECT option, the monitor displays the signal from the first input port. If there is no signal present at the first input port, then the monitor will search for a signal from the next input port. If a new input signal is connected to another of the monitorʼs input ports while the monitor is in FIRST mode, the monitor DOES NOT automatically SWITCH to the new source.
NONE: The monitor will only search other input ports while the power is on.
NOTE: When using a MAC with digital output: before turning on the MAC, the
12
Controls – continued
OFF TIMER: of time passes. Before powering off, a message will appear on the screen asking the user if they want to delay the turn off time by 60 minutes. Press any OSM button to delay the turn off time.
IPM: The Intelligent Power Manager allows the monitor to enter into a power saving mode after a period of inactivity. The IPM has two settings.
STANDARD: Monitor enters power save mode automatically when the input
signal is lost. OPTION: Monitor enters power save mode automatically when the amount of
surrounding light goes below the level that is determined by the user. The level can be determined in Tag 5 of the Advanced OSM Control menu.
When in power save mode, the LED on the front of the monitor become dark
green or blue. While in power save mode, push any of the front buttons, except for POWER and SELECT to return to normal operation. When the amount of surrounding light returns to normal levels, the monitor will automatically return to normal mode.
HOT KEY: When this function is activated, the brightness and contrast of the monitor can be adjusted without entering the OSM menu. The “Left” or “Right” buttons adjust the brightness level. The “Down” or Up” buttons adjust the contrast level.
Monitor will automatically power down after a user-determined length
FACTORY PRESET: Selecting the factory preset allows the user to reset most of the OSM control settings back to the factory settings. Individual settings can be reset by highlighting the control that needs to be reset, and pressing the RESET button.
MENU Tools
LANGUAGE: OSM control menus are available in eight languages.
OSM LEFT/RIGHT: You can choose the location where the OSM appears on your screen. The LEFT/RIGHT submenu moves the OSM horizontally.
OSM DOWN/UP: You can choose the location where the OSM appears on your screen. The DOWN/UP submenu moves the OSM vertically.
13
Controls – continued
OSM TURN OFF: The OSM control menu will stay on as long as it is use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a 10-120 seconds, in 5 second increments.
OSM LOCK OUT: This control completely locks out access to some of or to all of the OSM control functions. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out.
There are four ways to use OSM LOCK OUT function:
button to shut off the OSM control menu. Time can be set between
1. OSM LOCK OUT with BRIGHTNESS and CONTRAST control: This mode locks all OSM functions except for BRIGHTNESS and CONTRAST.
To activate, press the SELECT and “Up” buttons simultaneously, while in the OSM menu.
To deactivate, press the SELECT and “Up” buttons simultaneously, while in the OSM menu
2. OSM LOCK OUT with no control: This mode prevents access to all OSM functions.
To activate, press the SELECT and “Right” buttons simultaneously. To deactivate, press the SELECT and “Right” buttons simultaneously,
while in the OSM menu.
3. OSM LOCK OUT with BRIGHTNESS (only) control: This mode locks all OSM functions except for BRIGHTNESS.
To activate, press the SELECT, “Left” and "Down" buttons simultaneously, while in the OSM menu.
To deactivate, press SELECT, then “Left” and "Down" buttons simultaneously while in the OSM menu.
4. CUSTOM: refer to the Advanced OSM Menu. RESOLUTION NOTIFIER: The Resolution Notifier warns the user if the input signal
to the monitor is set at something other than the optimized resolution of 1280 x 1024. If the monitor detects a signal that is not at the optimized resolution then, after 45 seconds, a warning message will appear on the screen. When the Resolution Notifier is ON, the warning will appear every 45 seconds. The Resolution Notifier can be turned OFF in the OSM. The factory default for the Resolution Notifier is ON.
14
Controls – continued
Information
Provides information about the current resolution being displayed by the monitor. Also provides technical information including which preset timing is being used as well as the horizontal and vertical frequencies.
OSM WARNINGS: OSM Warning menus alert the user when there are problems with the input signal. These warnings will disappear when the Exit button is pressed.
NO SIGNAL: This warning appears when there is no Horizontal or Vertical Sync. After power is turned on or when there is a change of input signal, the No Signal window will appear.
RESOLUTION NOTIFIER: This warning appears when the monitor detects a resolution other than the optimized resolution. For the example, if the optimized resolution for the monitor is 1280 x 1024 and a signal using a resolution of 1024 x 768 is detected, the “Resolution Notifier” warning will appear.
OUT OF RANGE: This warns if the input signal is out of the optimized resolution and refresh rate range that is used by monitor.
Note: It is possible to change the DVI selection or to change the IPM settings
while the “NO SIGNAL” or “OUT OF RANGE” messages are displayed.
For advanced user menu items see “Advanced OSM Controls”.
15
Advanced OSM Controls
In addition to the standard On Screen Menu (OSM), the Advanced OSM Control menu allows the user to have much more control over regular OSM functions as well as access to functions not available in the standard OSM.
To use the advanced menu
• Turn off your monitor using the front "POWER" button.
• Turn on your monitor by pushing the “POWER” and “SELECT” button simultaneously for at least one second. Then press one of the following front OSM buttons: EXIT, LEFT, RIGHT, UP, or DOWN.
• You will see the Advanced OSM Control menu. This menu is larger than the standart OSM and has numbered tags instead of icons.
• To exit the Advanced OSM, turn off and restart your monitor in the normal way.
To adjust the setting, use the buttons on the front panel to highlight desired tag and press "SELECT". Use the buttons to make the adjustment. Once the setting is at the
desired level press "SELECT" and then "EXIT" to go back to the previous menu.
Tag 1 Brightness Adjusts the overall image and background screen brightness.
Tag 2
Contrast Adjusts the image brightness and contrast in relation to the
Auto Contrast (Analog input only)
Auto Black Level Analog input only)
ECO Mode Decreases the amount of power consumed by reducing the
ECO Mode Custom
Auto Brightness OFF: Auto Brightness does not function.
Black Level Adjusts the black level. AUTO ADJUST
(Analog input only)
background. Adjusts the image displayed for non-standard video inputs.
Adjusts the black level for non-standard video inputs.
brightness level.
1: Decreases the brightness by 25%.
2: Decreases the brightness by 50%.
CUSTOM: Decreases the brightness level as determined by the user.
Allows the user to set a preferred brightness level when ECO Mode is in use.
ON: Adjusts the brightness automatically by detecting the brightness level of your environment and adjusting the monitor accordingly with the best BRIGHTNESS setting (see page 28 for AmbiBright explanation), making the viewing experience more comfortable. NOTE: Do not cover AmbiBright sensor.
Automatically adjusts the Image Position, H. Size, and Fine settings.
16
Advanced OSM Controls – continued
Tag 3 H. POSITION
Tag 4
(Analog input only) V. POSITION
(Analog input only) H. SIZE
(Analog input only)
FINE (Analog input only)
VIDEO EQ (Analog input only)
SYNC THRESHOLD (Analog input only)
COLOR CONTROL
Sets Horizontal Image Position within the display area of the LCD. Press “Left” or “Right” to adjust.
Sets Vertical Image Position within the display area of the LCD. Press “Left” or “Right” to adjust.
Increases or decreases the horizontal (or vertical) size. If the “Auto Adjust function” does not give a satisfactory picture, further tuning can be performed manually using the “H. Size (or V. Size)” function (dot clock). To manually adjust the monitor, a Moiré test pattern should be used. This function may alter the width of the picture. Use Left/Right Menu to center the image on the screen. (see page 11).
If the “Auto Adjust” and the “H.Size” functions do not give a satisfactory picture, further tuning can be performed using the
“Fine” function. Increasing or decreasing this setting improves
focus, clarity and image stability. (see page 11)
Optimize the shape (Tailing) of RED, GREEN and BLUE signal. Level:0-7
Adjusts the slice level of a synchronization signal.Adjusts the sensitivity of the separate or composite input signals. Try this option if the FINE adjustment does not successfully eliminate the noise.
AccuColor Control Systems: Six color presets select the desired color setting (sRGB and NATIVE color presets are standard and cannot be changed). R,G,B: Increases or decreases Red, Green or Blue color de­pending upon which is selected.
NATIVE: Original color presented by the LCD panel that is unadjustable. sRGB: sRGB mode dramatically improves the color fidelity in the desktop environment by a single standard RGB color space. With this color supported environment, the operator could easily and confidently communicate color without further color management overhead in the most common situations.
17
Advanced OSM Controls – continued
Tag 5 DVI SELECTION This function selects the DVI input mode. If the DVI selection
VIDEO DETECT Selects the method of video detection when more than one
OFF TIMER Monitor will automatically power after a user-determined length
IPM
(Intelligent Power
Manager)
IPM SETTING Adjusts the luminance value for IPM.
changes, you must restart your computer. DIGITAL: DVI digital input is available. ANALOG: DVI analog input is available.
video input is connected.
FIRST: If “FIRST” is selected as the VIDEO DETECT option, the monitor displays the signal from the first input port. If there is no signal present at the first input port, then the monitor will search for a signal from the next input port. If a new input signal is connected to another of the monitor’s input ports while the monitor is in FIRST mode, the monitor will not switch automatically to the new source.
NONE: The monitor will only search other input ports while the power is on.
of time passes. Before powering off, a message will appear on the screen asking the user if they want to delay the turn off time by 60 minutes. Press any OSM button to delay the turn off time.
The Intelligent Power Manager allows the monitor to enter into
a power saving mode after a period of inactivity. The IPM has two settings. STANDARD: Monitor enters power save mode automatically when the input signal is lost. OPTION: Monitor enters power save mode automatically when the amount of surrounding light goes below the level that is determined by the user.
18
Advanced OSM Controls – continued
Tag 5 LED BRIGHTNESS Controls the brightness of the LED on the front of the
LED COLOR The LED on the front can be blue or green.
SCREEN SAVER
MOTION
HOT KEY When this function is activated, the brightness and contrast of
FACTORY PRESET Selecting the factory preset allows the user to reset most of the
Tag 6
LANGUAGE OSM control menus are available in eight languages. Press
OSM H.POSITION You can choose where you would like the OSM control image
OSM V.POSITION You can choose where you would like the OSM control image
OSM TURN OFF The OSM control menu will stay on as long as it is in use.
OSM LOCK OUT This control completely locks out access to all OSM control
monitor.
Use the SCREEN SAVER to reduce the risk of image persistence.
The screen image moves periodically in 4 directions to reduce
the risk of image persistence. The SCREEN SAVER can be set to move the screen image in intervals ranging from 10 to 900 seconds, in 10-second increments.
the monitor can be adjusted without entering the OSM menu by
using the front buttons. The “Left” or “Right” buttons adjust the brightness level. The “Down” or Up” buttons adjust the contrast level.
OSM control settings back to the factory settings.
Individual settings can be reset by highlighting the control need-
ing to be reset, and pressing the RESET button.
“Left” or “Right” to select.
to appear on your screen. Selecting OSM Position allows you
to manually adjust the location of the OSM control menu left, or
right.
to appear on your screen. Selecting OSM Position allows you
to manually adjust the location of the OSM control menu up, or
down.
You can select how long the monitor waits after the last touch of
a button to shut off the OSM control menu. The preset choices
are 10-120 seconds by 5 seconds increments. Press “Left” or
“Right” to select.
functions. When attempting to activate OSM controls while in
the Lock Out mode, a screen will appear indicating the OSM
controls are locked out. There are four ways to use OSM LOCK OUT function: 1: OSM LOCK OUT with BRIGHTNESS and CONTRAST
control: This mode locks all OSM functions except for
BRIGHTNESS and CONTRAST.
To activate, press the SELECT and “Up” buttons
simultaneously, while in the OSM menu.
To deactivate, press the SELECT and “Up” buttons
simultaneously, while in the OSM menu
.
19
Advanced OSM Controls – continued
Tag 6
continued
Tag 7 INFORMATION Provides information about the current display resolution Techni
OSM LOCKOUT
continued
SIGNAL INFORMATION
RESOLUTION NOTIFIER
2: OSM LOCK OUT with no control: This mode prevents access to all OSM functions. To activate, press the SELECT and “Right” buttons simultaneously. To deactivate, press the SELECT and “Right” buttons simultaneously, while in the OSM menu.
3: OSM LOCK OUT with BRIGHTNESS (only) control: This mode locks all OSM functions except for BRIGHTNESS. To activate, press the SELECT, “Left” and “Down” buttons simultaneously, while in the OSM menu. To deactivate, press SELECT, “Left” and “Down” buttons simultaneously, while in the OSM menu. 4: CUSTOM: Press RESET and EXIT to enter the CUSTOM Menu. Select ENABLE or DISABLE for: POWER KEY, INPUT SEL, BRIGHTNESS, CONTRAST, ECO MODE,WARNING. To Deactivate the OSM Lock Out function, press RESET and EXIT to bring up the LOCK OUT warning. Press SELECT, SELECT, <, >, <, >, EXIT.
Signal information can be displayed in the corner of the screen.
Signal information is either “ON/OFF”. The Resolution Notifier warns the user if the input to the monitor
is set to something other than the optimized resolution of
1280 x 1024. If the monitor detects a signal that is not at the
optimized resolution, after 45 seconds a warning message will appear on the screen. The Resolution Notifier is set to ON by default.
cal data, including the preset timing currently being used and
the horizontal and vertical frequencies is also displayed.
-
20
Using the Auto Brightness function
The brightness of the LCD screen can be set to increase or decrease depending on the
amount of ambient light within the room. If the room is bright, the monitor becomes correspondingly bright. If the room is dim, then the monitor will dim accordingly. The purpose of this function is to make the viewing experience more comfortable to the eye in a variety of lighting conditions.
The Auto Brightness function is set to OFF by default.
SETUP
Use the following procedure to determine the Brightness Range that the monitor will use when the Auto Brightness function is activated.
1. Set the BRIGHT level. This is the brightness level that the monitor will go up to when the ambient light level is highest. Make sure the room is at its brightest when setting this level.
Select “ON” in the AUTO BRIGHTNESS menu. (Figure 1) Then use the front buttons to move the cursor up to the BRIGHTNESS setting. Choose the desired brightness level. (Figure 2).
2. Set the DARK level. This is the level of brightness that the monitor will go down to when the ambient light level is low. Make sure the room is at its darkest when setting this level.
Then use the front buttons to move the cursor up to the BRIGHTNESS setting. Choose the desired brightness level. (Figure 3).
Figure 1
Figure 2
Figure 3
21

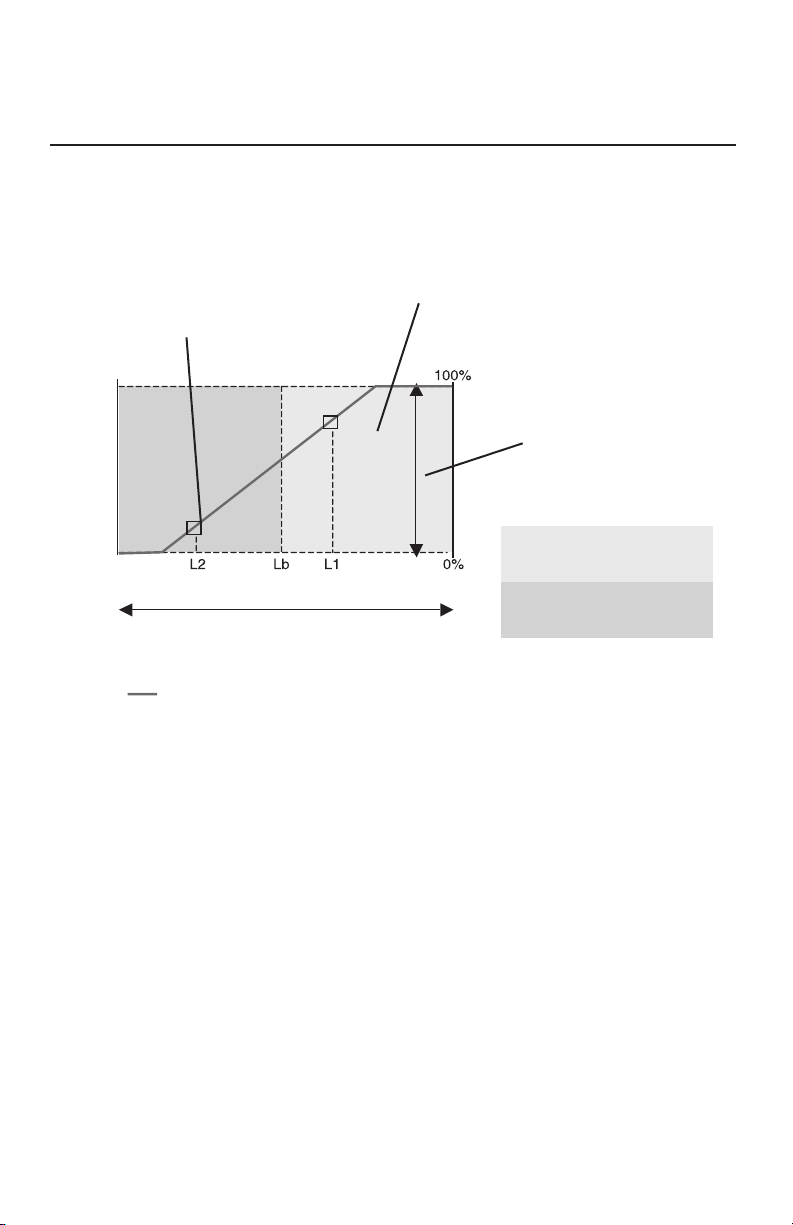

lighting level of room
Bright Ambient Lighting Conditions
Dim Ambient Lighting Conditions
Screen Brightness value using the Auto Brightness function
Using the Auto Brightness function - cont.
When the “Auto Brightness” function is enabled, the Brightness level of the screen changes
automatically according to the lighting conditions of the room. (Figure 4).
BRIGHTNESS level set BRIGHTNESS level set for the monitor to use when ambient lighting level is low.
for the monitor to use
when ambient lighting
level is high.
BRIGHTNESS range
Figure 4
Lb : Border between bright and dim lighting conditions; set at factory L1 : BRIGHTNESS level set for the monitor to use when ambient lighting level is high (L1>Lb) L2 : BRIGHTNESS level set for the monitor to use when ambient lighting level is low (L2<Lb)
L1 and L2 are the brightness levels set by the user to compensate for changes in ambient lighting.
22
Recommended Use
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE
FOLLOWING WHEN SETTING UP AND USING
THE MULTISYNC® LCD COLOR MONITOR:
• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.
• When operating the MultiSync LCD monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe)
• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.
• Do not place any objects onto the monitor and do not use the monitor outdoors.
• The inside of the fluorescent tube located within the LCD monitor contains mercury. Please follow the bylaws or rules of your municipality to dispose of the tube properly.
• Do not bend power cord.
• Do not use monitor in very hot, humid, dusty, or oily areas.
• Do not cover vents on monitor.
• If monitor or glass is broken, handle with care. Do not come in contact with the liquid crystal.
Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
CAUTION
• Handle with care when transporting. Save packaging for transporting.
Image Persistence
Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitorsʼ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided. To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image. NOTE: As with all personal display devices, NEC DISPLAY SOLUTIONS recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.
• If the monitor does not operate normally by following operating instructions.
• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.
• The power cable connector is the primary means of detaching the system from the
supply. The monitor should be installed close to a power outlet which is easily accessible.
power
23
Recommended Use – continued
CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR
CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK
THE FOLLOWING WHEN YOU POSITION THE MONITOR:
• For optimum performance, allow 20 minutes for warm-up.
• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.
Position your monitor no closer than 16 inches and no further away than 28 inches from your eyes. The optimal distance is 20 inches.
• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.
• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an antiglare filter.
• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!
• Adjust the monitorʼs brightness and contrast controls to enhance readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.
• Avoid displaying fixed patterns on the monitor for long periods of time to avoid image persistence (after-image effects).
• Get regular eye checkups.
24
Recommended Use – continued
Ergonomics
To realize the maximum ergonomics benefits, we recommend the following:
• Adjust the Brightness until the background raster disappears.
• Do not position the Contrast control to its maximum setting.
• Use the preset Size and Position controls with standard signals.
• Use the preset Color Setting.
• Use non-interlaced signals with a vertical refresh rate more than 60Hz.
• Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast.
For more detailed information on setting up a healthy work environment, write the American National Standard for Human Factors Engineering of Visual Dis­play Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.
Cleaning the LCD Panel
• When the liquid crystal panel becomes dusty or dirty, wipe gently with a soft cloth.
• Do not rub the LCD panel with hard or coarse material.
• Do not apply pressure to the LCD surface.
• Do not use OA cleaner as it will cause deterioration or discolor the LCD surface.
Cleaning the Cabinet
• Unplug the power supply.
• Gently wipe the cabinet with a soft cloth.
• Dampen a cloth with a neutral detergent and water, wipe the cabinet and then dry with a soft cloth.
NOTE: Many plastics are used on the surface of the cabinet. DO NOT clean
with benzene, thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Do not place rubber or vinyl against the cabinet for long periods. These types of fluids and fabrics can cause the paint to deteriorate, crack, or peel.
25
Specifications
Monitor MultiSync® Specifications LCD1990FX Notes
LCD Module Diagonal: 19,0 inch Active matrix; thin film transistor (TFT) Viewable Image Size: 19,0 inch liquid crystal display(LCD); 0.294 mm dot
Native Resolution (Pixel Count): 1280x1024 pitch; 250cd/m technology; 800:1 contrast ratio, typical
Input Signal Video: ANALOG 0.7 Vp-p/75 Ohms Digital Input: DVI Sync: Separate sync. TTL Level Positive/Negative Composite sync. Positive/Negative Sync on Green (Video 0.7Vp-p and Sync Negative 0.3V p-p)
Display Colors 16,777,216 Dependant on display card used. Synchronization Horizontal: 31.5 kHz to 81.1 kHz Automatically
Range Vertical: 56.0 Hz to 75.0 Hz Automatically Viewing Angle Left/Right: ± 89˚ (CR>10)
Up/Down: ± 89˚ (CR>10) Image Formation Time 18ms (Typ.) 14ms (Gray to Gray Typ) Resolutions Supported 720 x 400*1 at 70 Hz to 75 Hz Some systems may not support
640 x 480*1 at 60 Hz to 75 Hz all modes listed. 800 x 600*1 at 56 Hz to 75 Hz 832 x 624*1 at 75 Hz 1024 x 768*1 at 60 Hz to 75 Hz NEC DISPLAY SOLUTIONS cites 1152 x 870*1 at 75 Hz recommended resolution at 60Hz for optimal
1280 x 1024 at 60 Hz to 75 Hz ................ display performance.
Active Display Area Landscape : Horiz. : 376 mm/14.8 inches Vert. : 301 mm/11.9 inches Portrait : Horiz. : 301 mm/11.9 inches Vert. : 376 mm/14.8 inches
Power Supply 100 - 240 V ~ 50/60 Hz Current Rating 1.0 – 0.5A (with option) Dimensions Landscape: 402.3 mm (W) x 410.7-560.7 mm (H) x 247.3 mm (D)
15.8 inches (W) x 14.4 - 19.5 inches (H) x 9.7 inches (D) Portrait: 330.3 mm (W) x 446.7 - 596.7 mm (H) x 247.3 mm (D)
13.0 inches (W) x 16.9 - 21.0 inches (H) x 9.7 inches (D) Height Adjustment: 150 mm / 5.9 inches (Landscape)
Weight 8.5 kg
18.7 lbs Environmental Considerations
Operating Temperature: 5°C to 35°C/41°F to 95°F Humidity: 30% to 80% Altitude: 0 to 10,000 Feet Storage Temperature: -10°C to 60°C/14°F to 140°F Humidity: 10% to 85% Altitude: 0 to 40,000 Feet
*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technolo gies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.
NOTE: Technical specifications are subject to change without notice.
2
white luminance; XtraView+™
-
26
Features
Ambix Technology: Dual input technology allowing both analog and digital inputs off of one connector (DVI-I) as well as additional legacy analog support off of a traditional 15-pin mini D-SUB connector. Provides traditional MultiSync technology compatibility for analog as well as TMDS.-based (Transition Minimized Differential Signaling) digital compatibility for digital inputs. TMDS-based digital interfaces include DVI-D,DFP and P&D.
DVI-I: The integrated interface ratified by the Digital Display Working Group (DDWG) that allows both digital and analog connectors off of one port. The “I” stands for integration for both digital and analog, The digital portion is DVI-based.
DVI-D: The digital-only subset of DVI ratified by the Digital Display Working Group (DDWG) for digital connections between computers and displays. As a digital-only connector, analog support is not provided off a DVI-D connector. As a DVI-based digital only connection, only a simple adapter is necessary for compatibility between DVI-D and other DVI-based digital connectors such as DFP and P&D.
DFP (Digital Flat Panel): An all-digital interface for flat panel monitors which is signal compatible with DVI. As a DVI-based digital only connection, only a simple adapter is necessary for compatibility between DFP and other DVI-based digital connectors such as DVI and P&D.
P&D (Plug and Display): The VESA standard for digital flat panel monitor interfaces. It is more robust than DFP since it allows for other options off a signal connector (options like USB, analog video and IEEE-1394-995). The VESA committee has recognized that DFP is a subset of P&D. As a DVI-based connector (for the digital input pins), only a simple adapter is necessary for compatibility between P&D and other DVI-based digital connector such as DVI and DFP.
Pivoting Stand: Allows users to adjust the monitor to the orientation that best fits their application, either Landscape orientation for wide documents, or Portrait orientation for the ability to preview a full page on one screen at one time. The Portrait orientation is also perfect for full screen video conferencing.
Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitorʼs small footprint and low weight allow it to be moved or transported easily from one location to another.
AccuColor® Control System:
ize the color accuracy of the monitor to a variety of color standards. OSM® (On-Screen Manager) Controls: Allow you to quickly and easily adjust all ele-
ments of your screen image via simple to use on-screen menus.
ErgoDesign
ment, protect the health of the user and save money. Examples include quick and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions
Plug and Play: The Microsoft® solution with the Windows®95/98/2000/Me/XP operating system facilitates setup and installation by allowing as screen size and resolutions supported) display performance.
®
Features: Enhanced human ergonomics to improve the working environ-
Allows the user to adjust the colors on the screen and custom-
OSM controls for
.
the monitor to send its capabilities (such
directly to your computer, automatically optimizing
27
Features – continued
®
IPM
(Intelligent Power Manager) System: Provides innovative power-saving
methods that allow the monitor to lower the power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.
Multiple Frequency Technology: Automatically adjusts monitor to the display cardʼs scanning frequency, thus displaying the resolution required.
FullScan® Capability: Allows you to use the entire screen area in most resolutions,
significantly expanding image size. XtraView+™ Wide Viewing Angle Technology: Allows the user to be able to
see the monitor from any angle (178 degrees) from any orientation — Portrait or Landscape. Provides full 178° viewing angles either up, down, left or right.
VESA Standard Mounting Interface: Allows users to connect their MultiSync moni­tor to any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device.
Ultra-thin-frame design: Allows you to view more of your ideas and less of the monitor bezel, while freeing up more horizontal and vertical desktop space for multiple-monitor applications.
NaViSet™ software: Offers an expanded and intuitive graphical interface, allow­ing you to more easily adjust OSM display settings via mouse and keyboard.
No Touch Auto Adjust™: automatically adjusts your optimal image settings upon initial power-on.
Rapid Response™: Delivers virtually uninterrupted, undistorted viewing of full­motion video applications.
sRGB Color Control: A new optimized color management standard which allows for color matching on computer displays and other peripherals. The sRGB, which is based on the calibrated color space, allows for optimal color representation and backward compatibility with other common color standards.
Adjustable stand with pivot capability: Adds flexibility to your viewing prefer ences.
Quick Release stand: Allows fast removal of the stand. AmbiBright™ technology: Automatically adjusts the backlight level depending
on the level of ambient lighting.
-
28
Loading...
+ 77 hidden pages
