Contents

Your new NEC MultiSync® LCD monitor box* should contain the following:

• MultiSync LCD1970GX monitor with height adjustable stand

• Power Cord • User’s Manual

• USB Cable • Cable Management Cover

• Video Signal Cable (mini D-SUB 15 pin to mini D-SUB 15 pin)

• Video Signal Cable (DVI-D to DVI-D)

Cable Management Cover

Power Cord

USB Cable

DVI-D Cable

Mini D-SUB Cable

User’s Manual

*Remember to save your original box and packing material to transport or ship the monitor.

15503781-LCD1970GX(A)-content 1/20/2005, 8:38 PMPage 2 Adobe PageMaker 6.5C/PPC

Display Setup

To attach the MultiSync® LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

For the PC or MAC with DVI digital output

connector of the display card in your system (Figure 1). Tighten all screws.

For the PC with Analog output

connector of the display card in your system (Figure 2). Tighten all screws.

For MAC setup

15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure 3). Tighten all screws.

NOTE: To obtain the MultiSync Macintosh cable adapter, call NEC-Mitsubishi Electronics Display of America, Inc. at (800) 632-4662.

3. Place hands on each side of the monitor, tilt the LCD panel 30-degrees. Lift LCD panel up to the highest position (Figure 4).

4. Connect all cables to the appropriate connectors (Figure 4). Using the USB cable,

connect the B type connector to the USB upstream port on the right side of the monitor and A type connector to the downstream port on the computer (Figure 4-1). If you can use the cord from the USB device, use one of the downstream ports on the side of the monitor. NOTE: If connecting both DVI and D-sub cable, the DVI cable must be connected along side the rib on the power cord side (Figure 4).

5. For successful cable management, it is suggested the cables be placed in this order:

power cable and DVI cable (Figure 5).

6. Place DVI cable and power cable into the specific hooks indicated in (Figure 6).

7. Place the D-Sub and the USB cable into the specific hooks indicated in (Figure 7).

8. Make sure all cables are resting flat against the stand (Figure 7).

9. Hold all cables firmly and place the cable cover onto the stand (Figure 8). To remove

the cable cover, lift the cover off as shown in (Figure 9).

10. Connect the power cord to the power outlet (Figure 11).

NOTE: If you have difficulty removing the cable cover, please push the cover up (towards the top of the monitor) in order to unhook the cover from the stand, then remove, as shown in (Figure 10). Handle with care when removing cable cover. NOTE: If you use this monitor at AC125-240V, please refer to Recommended Use section of this manual for proper selection of power cord.

11. The vacation switch on the back side of the monitor must be turned on (Figure 11).

Turn on the monitor with the front power button and the computer.

NOTE: The vacation switch is a true on/off switch. If this switch is in the OFF position, the monitor cannot be turned on using the front button. DO NOT switch on/off repeatedly.

12. Analog input only: No-Touch Auto Adjust automatically adjusts the monitor to optimal

settings upon initial setup most of the time. For further adjustments, use the following

OSM

• Auto Adjust Contrast • Auto Adjust Refer to the Controls section of this User ’s Manual for a full description of these

OSM controls.

NOTE: For download information on the Windows

your monitor, refer to the References section of this User’s Manual.

NOTE: If you have any problems, please refer to the Troubleshooting section of this

User’s Manual.

: Connect the Macintosh cable adapter to the computer, then attach the

controls:

: Connect the 15-pin mini D-SUB signal cable to the

: Connect the DVI signal cable to the

95/98/Me/2000/XP INF file for

15503782-LCD1970GX(A)-content 2/2/2005, 7:50 PMPage 3 Adobe PageMaker 6.5C/PPC

Display Setup –continued

Figure 1 Figure 2 Figure 3

DVI Signal Cable

Power cord

Figure 4

Highest Stand Position

DC-OUT

NEC optional product atttachment. Do not use this connector unless specified.

Figure 5

30˚ Tilt

Input1(DVI)

DVI Cable

Macintosh Cable Adapter (not included)

Note: Some Macintosh systems do not require a Macintosh Cable Adapter

A Type

B Type

Figure 4-1

Input2(

D-Sub)

USB

Figure 6

D-SUB Cable

USB Cable

DVI Cable

Power Cable

(Top)

(Bottom)

15503781-LCD1970GX(A)-content 12/21/2004, 7:44 PMPage 4 Adobe PageMaker 6.5C/PPC

Display Setup –continued

Figure 7

Figure 9Figure 8

Figure 11

Vacation

Switch

Power Button

15503781-LCD1970GX(A)-content 1/20/2005, 8:38 PMPage 5 Adobe PageMaker 6.5C/PPC

Figure 10

OFF Position

ON Position

Display Setup –continued

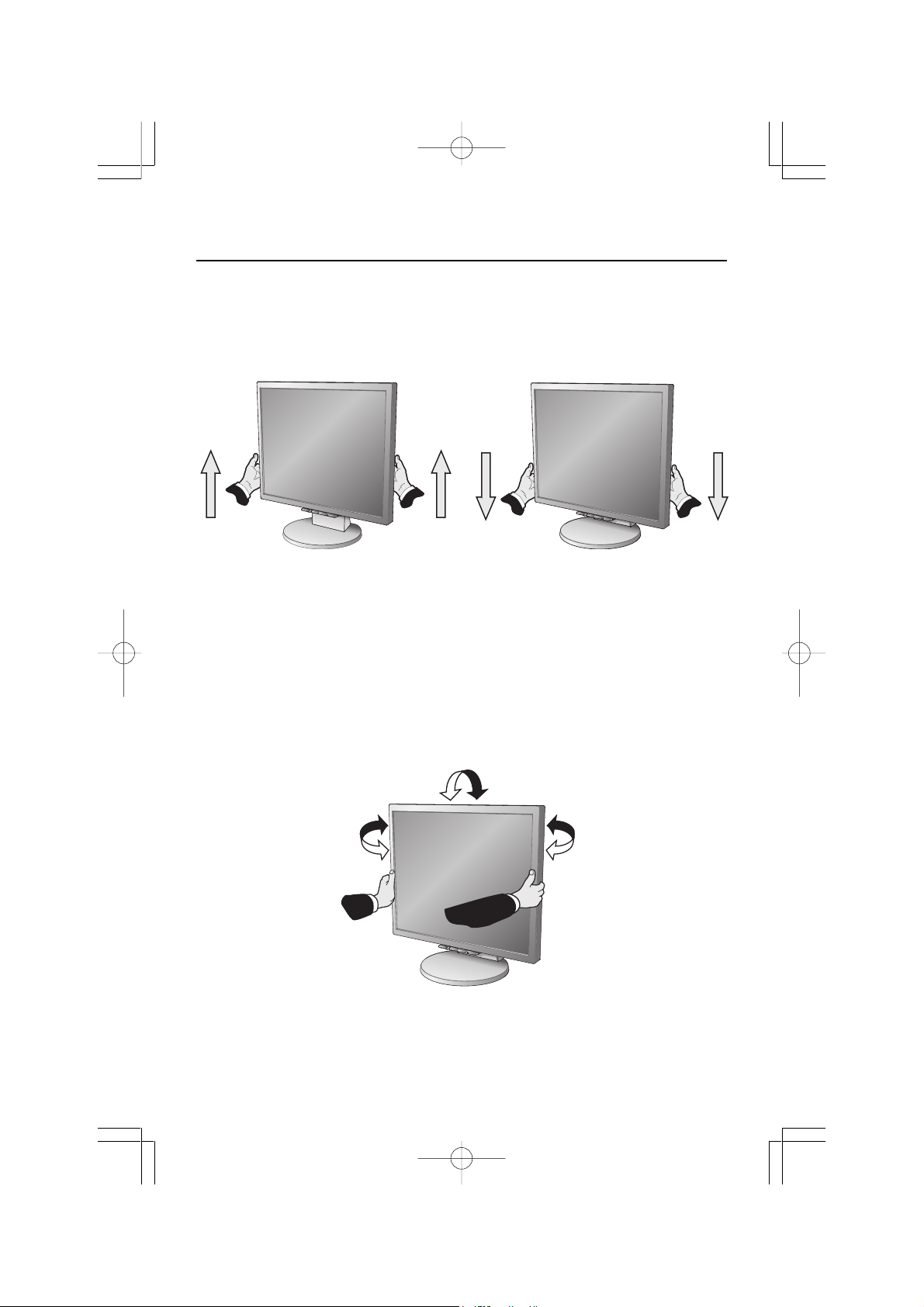

Raise and Lower Monitor Screen

The monitor may be raised or lowered. To raise or lower screen, place hands on each side of the monitor and lift or lower to the desired height (Figure RL.1).

NOTE: Handle with care when raising or lowering the monitor screen.

Figure RL.1

Tilt and Swivel

Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired

NOTE: Handle with care when tilting and swiveling the monitor screen.

(Figure TS.1)

Figure TS.1

15503781-LCD1970GX(A)-content 12/21/2004, 7:44 PMPage 6 Adobe PageMaker 6.5C/PPC

Mounting

Remove Monitor Stand for Mounting

To prepare the monitor for an alternate mounting method:

1. Place hands on each side of the monitor and lift up to the highest position. Remove

the cable cover (Figure M.1).

NOTE: If you have difficulty removing the cable cover, please

2. Disconnect all cables.

3. Place monitor face down on a non-abrasive surface (Figure M.2).

NOTE: Handle with care when the monitor is facing down to avoid damage to the

4. Remove the 2 screws connecting the stand to the monitor (Figure M.2).

5. Lift up the stand to unlatch the upper hooks and remove the stand (Figure M.3).

6. Remove the 2 screws on the top of the monitor (Figure M.4). The monitor is now

8. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method.

push the cover up (towards the top of the monitor) in order to unhook the cover from the stand, then remove, as shown in (Figure). Handle with care when removing cable cover.

front buttons.

ready for mounting in an alternate manner. Connect the cables to the back of the monitor.

Handle with care when removing stand.

Figure M.1

Figure

Figure M.2

Figure M.3

15503781-LCD1970GX(A)-content 1/20/2005, 8:38 PMPage 7 Adobe PageMaker 6.5C/PPC

Figure M.4

Flexible Arm Installation

This LCD monitor is designed for use with a flexible arm. To mount the monitor to a flexible arm:

1. Follow the instructions on how Remove Monitor Stand for Mounting to

remove the stand.

2. Use the 4 screws that were removed from the stand to attach the arm to the

monitor (Figure F.1).

NOTE

: The LCD monitor should only be used with an approved arm (e.g. GS mark). To

meet the safety requirements, the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor.

Figure F.1

100mm

4 Screws (4M) (Max Depth: 8.5mm)

Thickness of Bracket (Arm)

2.0~3.2mm

100mm

Weight of LCD assembly:

4.9kg MAX

15503781-LCD1970GX(A)-content 12/24/2004, 5:37 PMPage 8 Adobe PageMaker 6.5C/PPC

Controls

OSM® (On-Screen Manager) control buttons on the front of the monitor function as follows:

To access OSM menu, press any of the control buttons (MENU/EXIT, Left, Right, Down, Up). To change signal input, press the SELECT button.

To change DV MODE, press the RESET/DV MODE button. NOTE: OSM must be closed in order to change signal input.

Button Menu

MENU/EXIT Exits the OSM controls.

Exits to the OSM main menu.

Left/Right Moves the highlighted area left/right to select control menus.

Moves the bar left/right to increase or decrease the adjustment.

Down/Up SELECT/1 2 RESET/DV MODE Resets the highlighted control menu to the factory setting.

NOTE: When RESET is pressed in the main and sub-menu, a warning window will appear allowing you to cancel the RESET function by pressing the MENU/EXIT button.

Brightness/Contrast Controls

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

DV MODE

Allows you to select the suitable setting for Movie, Picture, etc.

AUTO Contrast

Adjusts the image displayed to optimal settings.

Auto Adjust

Automatically adjusts the Image Position, H. Size and Fine settings.

Image Controls

LEFT / RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN / UP

Controls Vertical Image Position within the display area of the LCD.

H.SIZE

Adjusts this setting to increase or decrease the horizontal size.

FINE

Adjusts this setting to

Moves the highlighted area down/up to select one of the controls. Active Auto Adjust function. Enter the OSM sub menu.

(Analog input only)

improve focus, clarity and image stability.

15503781-LCD1970GX(A)-content 12/24/2004, 5:37 PMPage 9 Adobe PageMaker 6.5C/PPC

Controls –continued

AccuColor® Control Systems

AccuColor® Control Systems: Six color presets select the desired color setting (sRGB and NATIVE color presets are standard and cannot be changed). R,G,B: Increases or decreases Red, Green or Blue color depending upon which is selected. The change in color will appear on screen and the direction (increase or decrease) will be shown by the bars.

NATIVE: sRGB: sRGB mode dramatically improves the color fidelity in the desktop

environment by using a single standard RGB color space. With this color supported environment, the operator could easily and confidently communicate color without further color management overhead in the most common situations.

Tools

OFF TIMER: Monitor will automatically power-down when the end user has selected a predetermined amount of time. HOT KEY: You can adjust the brightness and contrast directly. When this function is set to ON, you can adjust the brightness with up or down control while the OSM menu is off. FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. The RESET button will need to be held down for several seconds to take effect. Individual settings can be reset by highlighting the control to be reset and pressing the RESET button.

Menu Tools

LANGUAGE: OSM® control menus are available in eight languages. OSM LEFT/RIGHT: You can choose where you would like the OSM control

image to appear horizontally on your screen. OSM DOWN/UP: You can choose where you would like the OSM control image to appear vertically on your screen. OSM TURN OFF: The OSM control menu will stay on as long as it is in use. In the OSM Turn Off submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. OSM LOCK OUT: This control completely locks out access to all OSM control functions except Brightness and Contrast. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM controls are locked out. To activate the OSM Lock Out function, press SELECT, then right control button and hold down simultaneously. To deactivate the OSM Lock Out, press SELECT, then left control button and hold down simultaneously while in the OSM menu. RESOLUTION NOTIFIER: This optimal resolution is 1280 x 1024. If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at 1280 x 1024.

Information

The Information menu indicates the current input, display resolution, horizontal and vertical frequency, and polarity settings of the monitor. The model and serial numbers of your monitor are also indicated.

Original color presented by the LCD panel that is unadjustable.

left or right control

and contrast with

15503781-LCD1970GX(A)-content 12/21/2004, 7:45 PMPage 10 Adobe PageMaker 6.5C/PPC

Controls –continued

OSM® Warning: OSM Warning menus disappear with Exit button. NO SIGNAL: This function gives a warning when there is no signal present. After

power is tuned on or when there is a change of input signal or video is inactive, the No Signal window will appear. RESOLUTION NOTIFIER: This function gives a warning if the monitor is using a resolution other than the optimized resolution. After power is turned on or when there is a change of input signal or the video signal doesn’t have proper resolution, the Resolution Notifier window will open. This function can be disabled in the Menu Tools.

OUT OF RANGE: This function gives a recommendation of the optimized resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn’t have proper timing, the Out Of Range menu will appear.

15503782-LCD1970GX(A)-content 2/2/2005, 7:50 PMPage 11 Adobe PageMaker 6.5C/PPC

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE

THE FOLLOWING WHEN SETTING UP AND USING

THE MULTISYNC

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or

removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualified service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage

points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall,

causing serious damage to the monitor.

• When operating the MultiSync LCD monitor with its AC 125-240V power supply, use a power

supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use

with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the flourescent tube located within the LCD monitor contains mercury.

Please follow the bylaws or rules of your municipality to dispose of the tube properly.

• Do not bend power cord.

• Do not use monitor in high temperatured, humid, dusty, or oily areas.

• Do not cover vent on monitor.

Immediately unplug your monitor from the wall outlet and refer servicing to qualified service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• If glass is broken, handle with care.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

CAUTION

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the power supply. The monitor should be installed close to a power outlet which is easily accessible.

• Handle with care when transporting. Save packaging for transporting.

LCD COLOR MONITOR:

Image Persistence

Please be aware that LCD Technology may experience a phenomenon known as Image Persistence. Image Persistence occurs when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

As with all personal display devices, NEC-Mitsubishi Electronics Display recommends displaying moving images and using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

15503782-LCD1970GX(A)-content 2/2/2005, 7:50 PMPage 12 Adobe PageMaker 6.5C/PPC

Recommended Use –continued

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for

warm-up.

•

Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

•

Position your monitor no closer than 16 inches and no further away than 28 inches from your eyes. The optimal distance is 20 inches.

• Rest your eyes periodically by focusing on an object at least

20 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light

sources to minimize glare and reflections. Adjust the monitor tilt so that ceiling lights do not reflect on your screen.

• If reflected light makes it hard for you to see your screen, use an anti-glare filter.

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or

reference material) directly in front of you to minimize turning your head while you are typing.

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics benefits, we recommend the following:

•

Use the preset Size and Position controls with standard signals

•

Use the preset Color Setting

•

Use non-interlaced signals with a vertical refresh rate between 60-75Hz

•

Do not use primary color blue on a dark background, as it is difficult to see and may produce eye fatigue to insufficient contrast.

For more detailed information on setting up a healthy work environment, write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.

Cleaning the LCD Panel

To r emove dust and dirt from the surface of the LCD panel, wipe gently with a soft cloth. Do not rub the LCD panel with rough material. Do not press on the surface of the LCD panel. Do not use OA cleaner, which can cause deterioration or discoloration on the surface of the LCD panel.

Cleaning the cabinet

•

Unplug the power supply.

•

Use a soft cloth.

•

Dampen the cloth with a mild detergent mixed with water, wipe the cabinet and dry with a soft cloth.

NOTE: Many plastics are used on the cabinet surface. DO NOT clean with benzene, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Do not touch the cabinet with rubber or vinyl for a prolonged period. These types of fluids and fabrics can cause the paint to deteriorate, crack, or peel.

15503781-LCD1970GX(A)-content 12/21/2004, 7:45 PMPage 13 Adobe PageMaker 6.5C/PPC

+ 33 hidden pages
