NEC LCD1960NX User Manual
MultiSync® LCD1960NX
TM
Index
Warning .................................................................................................................... 1
Contents ................................................................................................................. 2
Quick Start............................................................................................................. 3
Controls ...................................................................................................................7
Recommended Use .............................................................................................. 10
Specifications .......................................................................................................12
Features .................................................................................................................13
Troubleshooting .................................................................................................. 14
References.............................................................................................................15
Limited Warranty .................................................................................................16
TCO’99 ..................................................................................................................... 17
TCO’03 ....................................................................................................................20
Avertissement ..................................................................................................... 23
Contenu ................................................................................................................. 24
Mise en marche rapide ...................................................................................... 25
Commandes .......................................................................................................... 30
Usage recommandé ............................................................................................ 33
Fiche technique ................................................................................................... 35
Fonctions .............................................................................................................. 36
Dépannage ............................................................................................................ 37
Références ........................................................................................................... 38
Garantie limitée .................................................................................................. 39
TCO’99 .................................................................................................................... 40
TCO’03 ....................................................................................................................42
WARNING
TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE
THIS UNIT'S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS
CAN BE FULLY INSERTED.
REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING
TO QUALIFIED SERVICE PERSONNEL.
CAUTION
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM
WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER
CORD FROM THE AC OUTLET.DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This
symbol warns user that uninsulated voltage within the unit may have sufficient magnitude to cause
electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.
This symbol alerts the user that important literature concerning the operation and maintenance of this
unit has been included. Therefore, it should be read carefully in order to avoid any problems.
Canadian Department of Communications Compliance Statement
DOC: This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
C-UL: Bears the C-UL Mark and is in compliance with Canadian Safety Regulations
according to
CAN/CSA C22.2 No. 60950.
FCC Information
1.
Use the attached specified cables with the
so as not to interfere with radio and television reception.
(1)
Please use the supplied power cord or equivalent to ensure FCC compliance.
(2) Please use the supplied shielded video signal cable.
Use of other cables and adapters may cause interference with radio and
television reception.
MultiSync LCD1960NXTM
(L192R9) color monitor
2.
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy, and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
• Consult your dealer or an experienced radio/TV technician for help.
If necessary, the user should contact the dealer or an experienced radio/television technician
for additional suggestions. The user may find the following booklet, prepared by the Federal
Communications Commission, helpful: ”How to Identify and Resolve Radio-TV Interference
Problems.“ This booklet is available from the U.S. Government Printing Office, Washington,
D.C., 20402, Stock No. 004-000-00345-4.
1
LCD1960NX050603.p65 5/21/03, 1:06 PM1

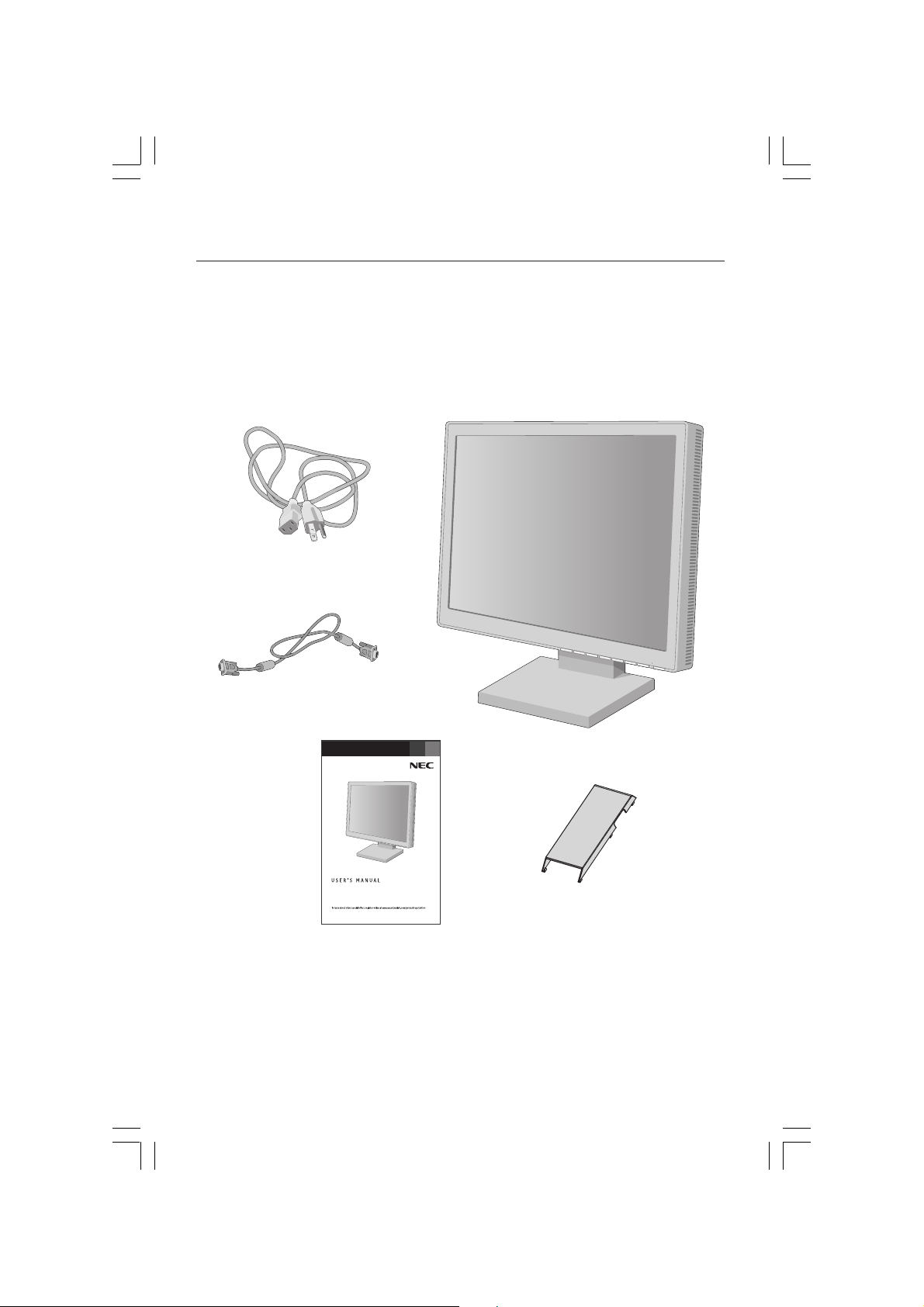

Contents
Your new NEC MultiSync® LCD monitor box* should contain the
following:
• MultiSync LCD1960NX™ monitor with height adjustable base
• Power Cord
• Video Signal Cable
• User’s Manual
Power Cord
Video Signal Cable
LCD1960NX
TM
MultiSync
®
Cable Management Cover
User’s Manual
*Remember to save your original box and packing material to transport or ship the monitor.
2
LCD1960NX050603.p65 5/21/03, 1:06 PM2

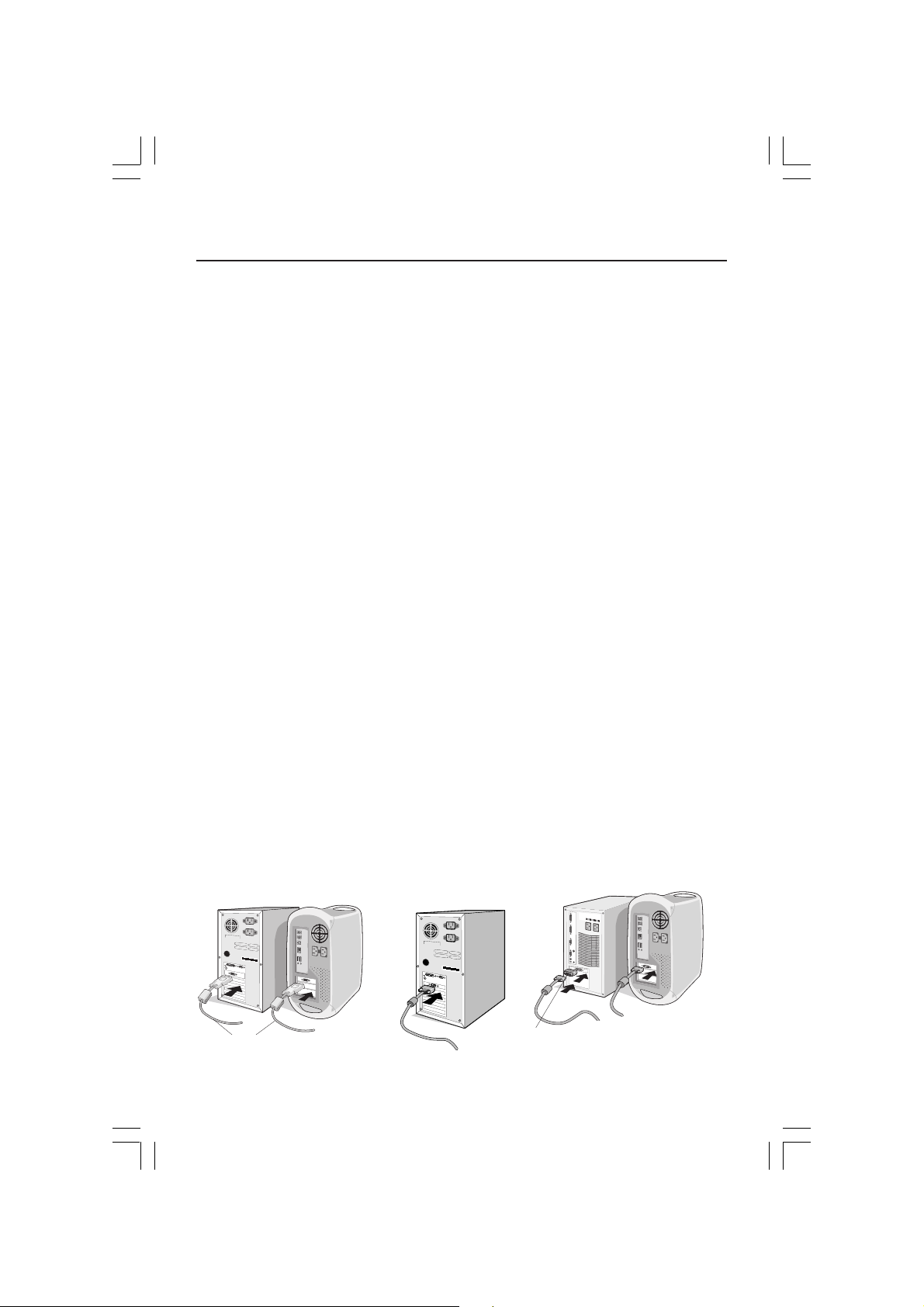

Quick Start
To attach the MultiSync® LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2.
For the PC or MAC with DVI digital output: Connect the DVI signal cable (not included)
to the connector of the display card in your system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the
connector of the display card in your system (Figure A.2). Tighten all screws.
For the MAC: Connect the MultiSync Macintosh cable adapter to the computer, then
attach the 15-pin mini D-SUB signal cable to the MultiSync Macintosh cable adapter
(Figure B.1). Tighten all screws.
NOTE: To obtain the MultiSync LCD1960NX
Mitsubishi Electronics Display of America, Inc. at (800) 632-4662.
3. Remove the cable cover. Connect the 15-pin mini D-SUB of the video signal cable and
DVI signal cable (not included) to the appropriate connector on the back of the
monitor (Figure C.1).
4. Connect one end of the power cord to the monitor and the other end to the power
outlet. Place the Video Signal Cable and power cord under Cable cover (Figure C.1).
Replace cable cover.
NOTE: Adjust position of cable that place under cable cover, to avoid damage for cable
or monitor.
NOTE: If you use this monitor at AC125-240V, please refer to Recommended Use
section of this manual for proper selection of power cord.
5. The vacation switch on the left side of the monitor must be turned on (Figure D.1).
Turn on the monitor with the front power button and the computer.
NOTE: The vacation switch is a true on/off switch. If this switch is on the OFF position,
the monitor cannot be turned on using the front button. DO NOT switch on/off
repeatedly.
6. Analog input only: No-Touch Auto Adjust automatically adjusts the monitor to optimal
settings upon initial setup for most timings. For further adjustments, use the following
®
OSM
controls:
• Auto Adjust Contrast
• Auto Adjust
Refer to the Controls section of this User ’s Manual for a full description of these
OSM controls.
NOTE: For download information on the Windows® 95/98/Me/2000/XP INF file for your MultiSync
LCD1960NX monitor, refer to the References section of this User’s Manual.
NOTE: If you have any problems, please refer to the Troubleshooting section of this User’s Manual.
Figure A.1
TM
Macintosh cable adapter, call NEC-
Figure A.2
Figure B.1
DVI signal cable
(not included)
LCD1960NX050603.p65 5/21/03, 1:06 PM3
Macintosh Cable
Adapter (not include)
3
Note: Some Macintosh
systems do not require
a Macintosh Cable Adapter

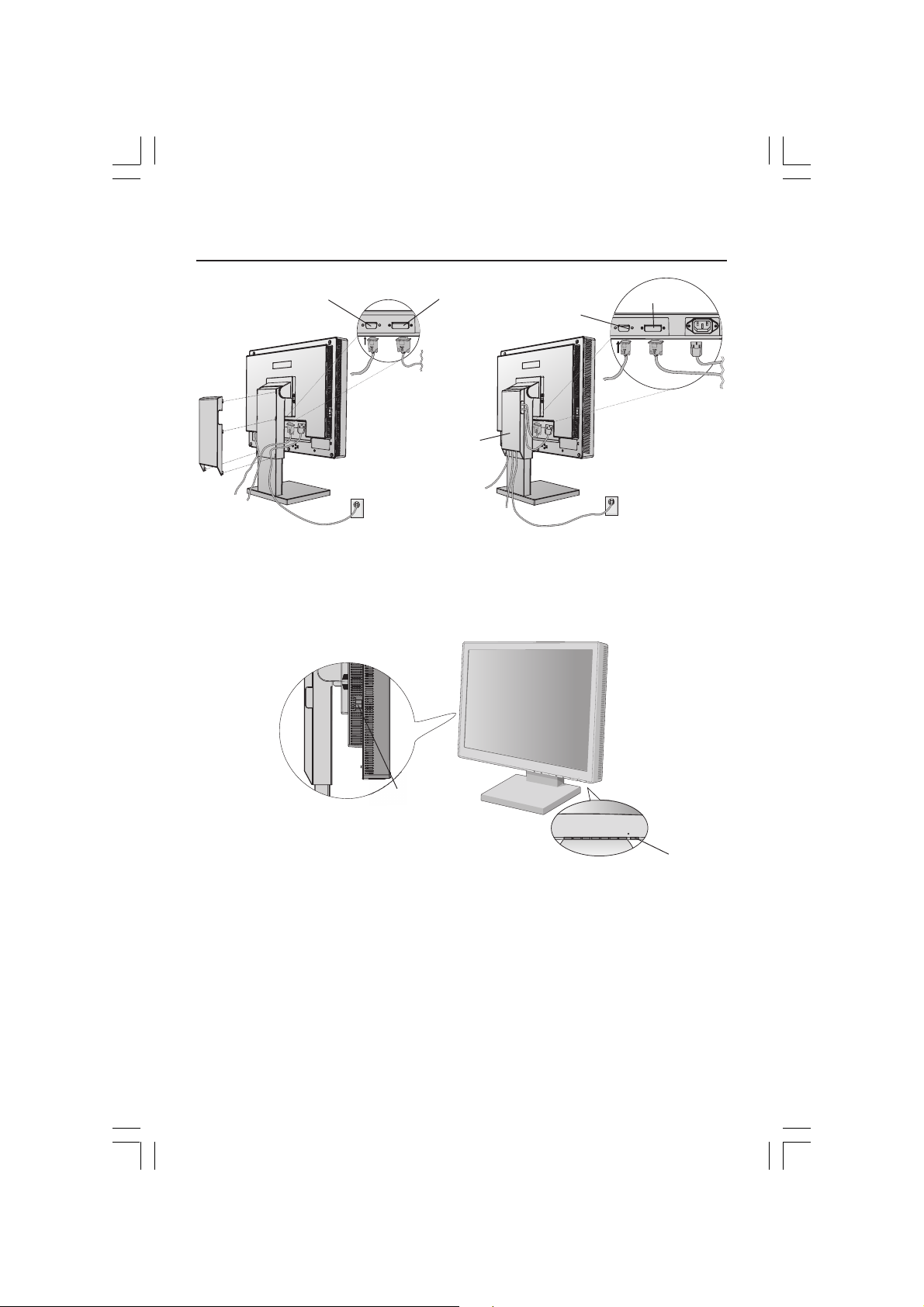

Quick Start –continued
Input1 (D-Sub)
Input2 (DVI)
Cable cover
Figure C.1
Input1 (D-Sub)
Input2 (DVI)
LCD1960NX050603.p65 5/21/03, 1:06 PM4
vacation
switch
Figure D.1
power button
4
Quick Start –continued

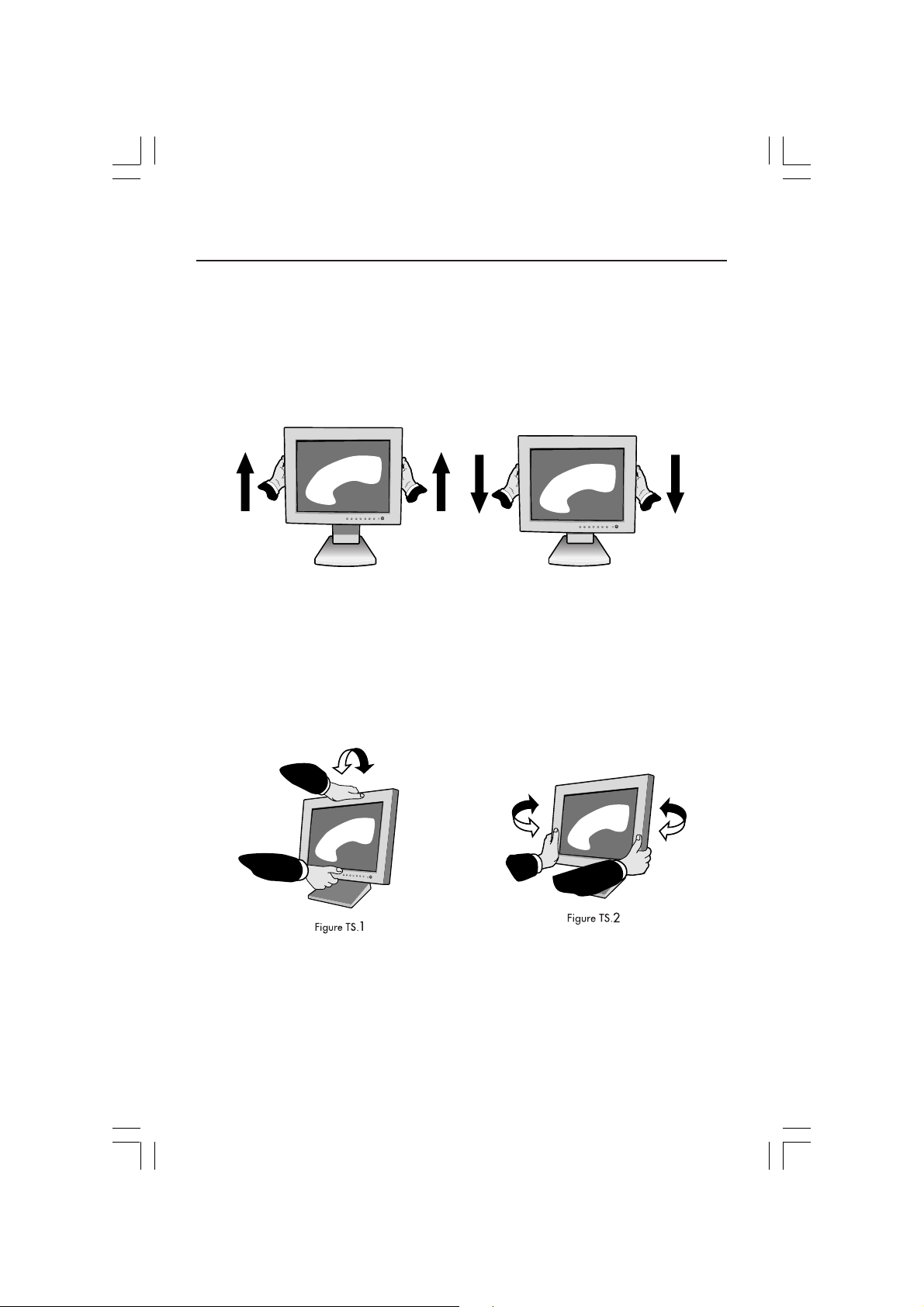

Raise and Lower Monitor Screen
The monitor may be raised or lowered in either Portrait or Landscape mode.
To raise or lower screen, place hands on each side of the monitor and lift or
lower to the desired height (Figure RL.1).
NOTE: Handle with care when raising or lowering the monitor screen.
Figure RL.1
Tilt
Grasp top and bottom sides of the monitor
screen with your hands and adjust the tilt
as desired (Figure TS.1).
NOTE: Handle with care when tilting the monitor screen.
Swivel
Grasp both sides of the monitor screen
with your hands and adjust the swivel
as desired (Figure TS.2).
5
LCD1960NX050603.p65 5/21/03, 1:06 PM5
Quick Start –continued

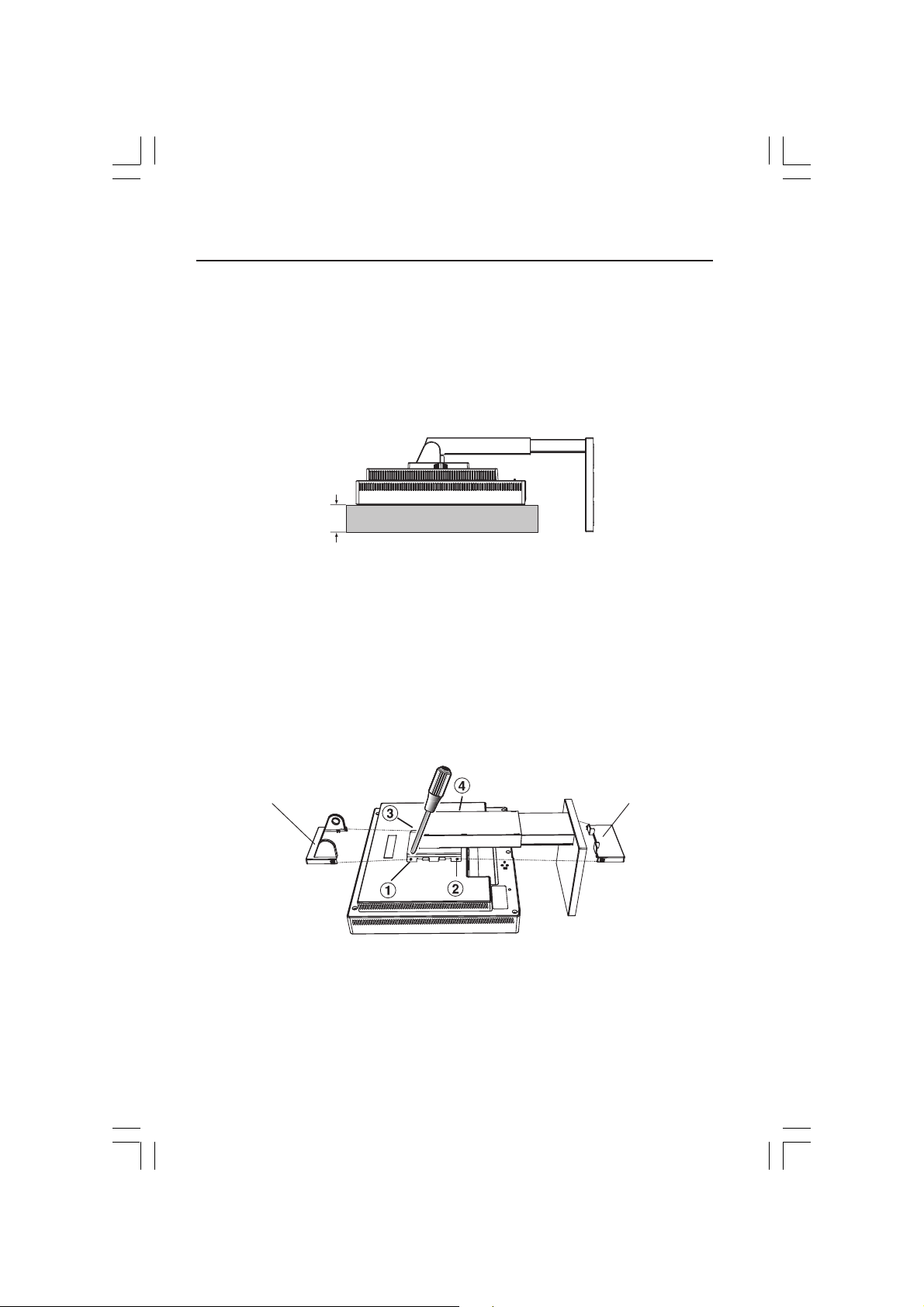

Remove Monitor Stand for Mounting
To prepare the monitor for alternate mounting purposes:
1.Disconnect all cables.
2.Place hands on each side of the monitor and lift up to the highest position.
3.Place monitor face down on a non-abrasive surface. (Place the screen on a 55 mm/
2.2 inch platform so that the stand is parallel with the surface.) (Figure S.1)
55 mm
Figure S.1
4.Remove the stand cover by sliding the top/bottom pieces off the stand (Figure S.2).
5.Remove the 4 screws connecting the monitor to the stand and lift off the stand
assembly (Figure S.2). The monitor is now ready for mounting in an alternate manner.
6.Reverse this process to reattach stand.
NOTE: Use only VESA-compatible alternative mounting method. (100 mm pitch)
Stand cover top
Figure S.2
Caution: Please use the attached screws (4 pcs) when mounting. To fulfil the safety
requirements the monitor must be mounted to an arm which guaranties the
necessary stability under consideration of the weight of the monitor. The
LCD monitor shall only be used with an approved arm (e.g. GS mark).
6
LCD1960NX050603.p65 5/21/03, 1:06 PM6
Stand cover bottom
Controls
OSM® (On-Screen Manager) control buttons on the front of the
monitor function as follows:
To access OSM menu, press any of the control buttons ( <, >, –, +,
To change signal input, press the SELECT button.
NOTE: OSM must be closed in order to change signal input.
Menu
EXIT Exits the OSM controls.
Exits to the OSM main menu.
< / > Moves the highlighted area left/right to select control menus.
Moves the highlighted area up/down to select one of the controls.
–/+
SELECT
RESET Resets the highlighted control menu to the factory setting.
Moves the bar left/right to increase or decrease the adjustment.
Active Auto Adjust function. Enter the OSM controls. Enter the OSM sub menu.
EXIT
).
NOTE: When RESET is pressed in the main and sub-menu, a warning window
allowing you to cancel the RESET function by pressing the EXIT button.
Brightness/Contrast Controls
BRIGHTNESS
Adjusts the overall image and background screen brightness.
CONTRAST
Adjusts the image brightness in relation to the background.
AUTO
AUTO (Analog input only)
Adjusts the image displayed for non-standard video inputs.
Auto Adjust (Analog input only)
Automatically adjusts the Image Position and H. Size settings and Fine settings.
Image Controls (Analog input only)
LEFT / RIGHT
Controls Horizontal Image Position within the display area of the LCD.
DOWN / UP
Controls Vertical Image Position within the display area of the LCD.
H.SIZE
Adjusts the horizontal size by increasing or decreasing this setting.
FINE
Improves focus, clarity and image stability by increasing or decreasing this setting.
AccuColor® Control Systems
Six color presets select the desired color setting (sRGB and NATIVE color presets are
standard and cannot be changed). R,G,B: Increases or decreases Red, Green or
Blue color depending upon which is selected. The change in color will appear on
screen and the direction (increase or decrease) will be shown by the bars. NATIVE:
Original color presented by the LCD panel that is unadjustable. sRGB: sRGB mode
dramatically improves the color fidelity in the desktop environment by a single
standard RGB color space. With this color supported environment, the operator
could easily and confidently communicate color without further color management
overhead in the most common situations.
7
will appear
LCD1960NX050603.p65 5/21/03, 1:07 PM7
Controls –continued
Tools
LANGUAGE: OSM® control menus are available in seven languages.
OSM Position: You can choose where you would like the OSM control
image to appear on your screen. Selecting OSM Location allows you to
manually adjust the position of the OSM control menu left, right, down or up.
OSM TURN OFF: The OSM control menu will stay on as long as it is in use. In
the OSM Turn Off submenu, you can select how long the monitor waits after
the last touch of a button to shut off the OSM control menu. The preset choices
are 10, 20, 30, 45, 60 and 120 seconds.
OSM LOCK OUT: This control completely locks out access to all OSM control
functions without Brightness and Contrast. When attempting to activate
OSM controls while in the Lock Out mode, a screen will appear indicating
the OSM controls are locked out. To activate the OSM Lock Out function,
press SELECT, then “+” key and hold down simultaneously. To de-activate the
OSM Lock Out, press SELECT, then “+” key and hold down simultaneously.
RESOLUTION NOTIFIER: This optimal resolution is 1280 x 1024. If ON is
selected, a message will appear on the screen after 30 seconds, notifying you
that the resolution is not at 1280 x 1024.
HOT KEY: You can adjust the brightness and contrast directly. When this
function is set to ON, you can adjust the brightness with
or - key, while the OSM menu is off.
OFF TIMER: Monitor will automatically power-down when the end user has
selected a pre-determined amount of time.
FACTORY PRESET: Selecting Factory Preset allows you to reset all OSM control
settings back to the factory settings. The RESET button will need to be held
down for several seconds to take effect. Individual settings can be reset by
highlighting the control to be reset and pressing the RESET button.
Information
DISPLAY MODE: Indicates the current display resolution and frequency setting
of the monitor.
MONITOR INFO.: Indicates the model and serial numbers of your monitor.
OSM® Warning: OSM Warning menus disappear with Exit button.
NO SIGNAL: This function gives a warning when there is no signal present.
After power is turned on or when there is a change of input signal or video
is inactive, the No Signal window will appear.
RESOLUTION NOTIFIER: This function gives a warning of use with optimized resolution. After power is turned on or when there is a change of
input signal or the video signal doesn’t have proper resolution, the
Resolution Notifier window will open. This function can be disabled in
the TOOL menu.
OUT OF RANGE: This function gives a recommendation of the optimized
resolution and refresh rate. After the power is turned on or there is a
change of input signal or the video signal doesn’t have proper timing, the
Out Of Range menu will appear.
< or >
, contrast with +
LCD1960NX050603.p65 5/21/03, 1:07 PM8
8
Recommended Use
Safety Precautions and Maintenance
FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE
FOLLOWING WHEN SETTING UP AND USING
THE MULTISYNC® LCD COLOR MONITOR:
• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or
removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to
qualified service personnel.
• Do not spill any liquids into the cabinet or use your monitor near water.
• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage
points, which can be harmful or fatal or may cause electric shock, fire or equipment failure.
• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or fire.
• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall,
causing serious damage to the monitor.
• When operating the MultiSync LCD monitor with its AC 125-240V power supply, use a power
supply cord that matches the power supply voltage of the AC power outlet being used. The power
supply cord you use must have been approved by and comply with the safety standards of your
country. (Type H05VV-F should be used in Europe)
• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use
with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.
• Do not place any objects onto the monitor and do not use the monitor outdoors.
• The inside of the flourescent tube located within the LCD monitor contains mercury.
Please follow the bylaws or rules of your municipality to dispose of the tube properly.
Immediately unplug your monitor from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
• When the power supply cord or plug is damaged.
• If liquid has been spilled, or objects have fallen into the monitor.
• If the monitor has been exposed to rain or water.
• If the monitor has been dropped or the cabinet damaged.
• If the monitor does not operate normally by following operating instructions.
• Do not bend power cord.
• Do not use monitor in high temperatured, humid, dusty, or oily areas.
• If glass is broken, handle with care.
• Do not cover vent on monitor.
• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.
• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do
not block ventilated openings or place the monitor near a radiator or other heat
sources. Do not put anything on top of monitor.
• The power cable connector is the primary means of detaching the system from the
CAUTION
Image Persistence
Image persistence is when a residual or “ghost” image of a previous image remains visible on the
screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images
being displayed for a long period of time should be avoided.
To alleviate image persistence, turn off the monitor for as long as the previous image was displayed.
For example, if an image was on the monitor for one hour and a residual image remains, the monitor
should be turned off for one hour to erase the image.
NOTE: As with all personal display devices, NEC-Mitsubishi Electronics Display recommends using a
moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when
not in use.
power supply. The monitor should be installed close to a power outlet which is easily accessible.
• Handle with care when transporting. Save packaging for transporting.
9
LCD1960NX050603.p65 5/21/03, 1:07 PM9

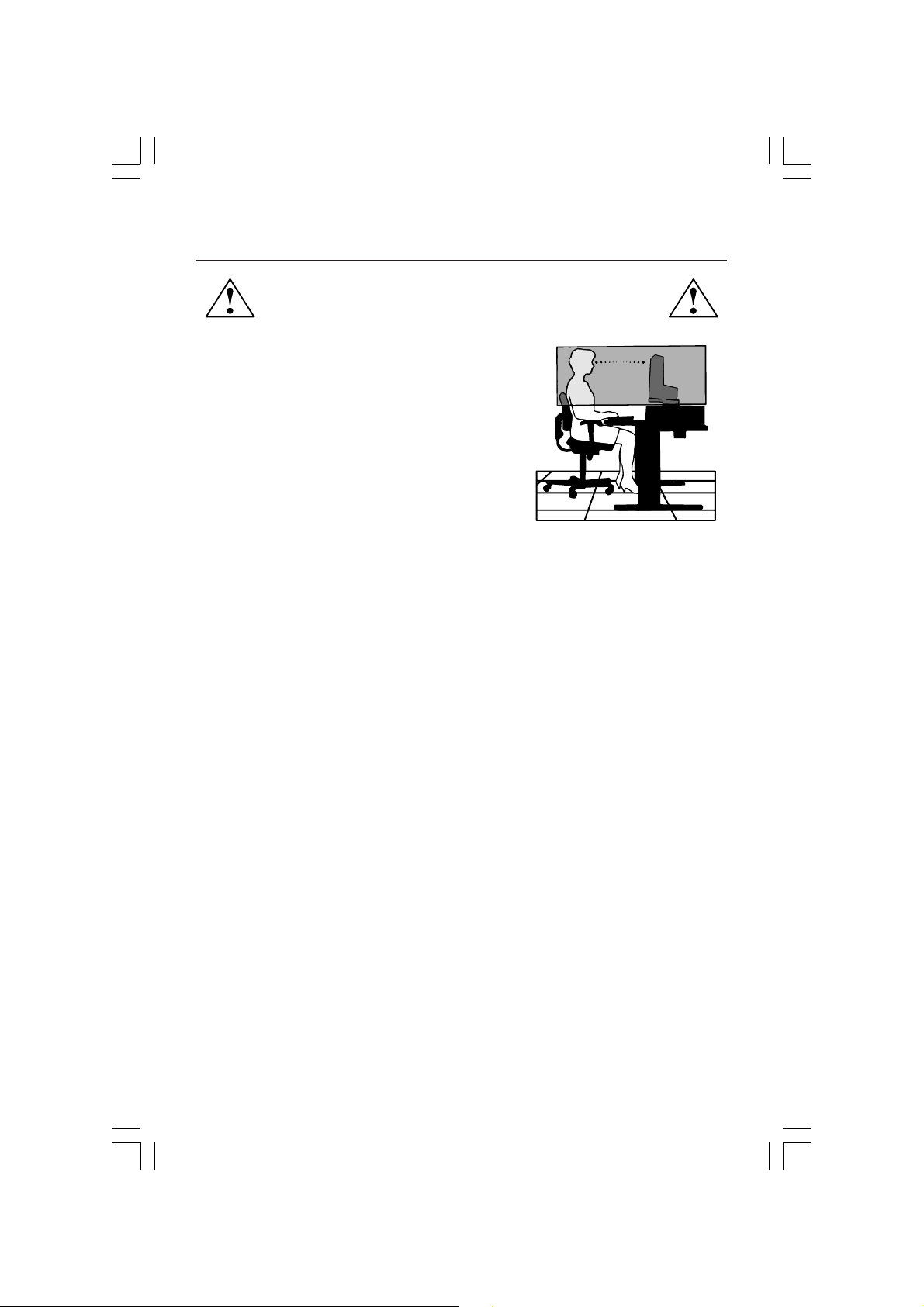

Recommended Use –continued
CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR
CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE
FOLLOWING WHEN YOU POSITION THE MONITOR:
• For optimum performance, allow 20 minutes for
warm-up.
•
Adjust the monitor height so that the top of the screen is at
or slightly below eye level. Your eyes should look slightly
downward when viewing the middle of the screen.
•
Position your monitor no closer than 16 inches and no
further away than 28 inches from your eyes. The
optimal distance is 20 inches.
• Rest your eyes periodically by focusing on an object at
least 20 feet away. Blink often.
• Position the monitor at a 90° angle to windows and
other light sources to minimize glare and reflections.
Adjust the monitor tilt so that ceiling lights do not reflect on your screen.
• If reflected light makes it hard for you to see your screen, use an anti-glare filter.
• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any
cleaning solution or glass cleaner!
• Adjust the monitor’s brightness and contrast controls to enhance readability.
• Use a document holder placed close to the screen.
• Position whatever you are looking at most of the time (the screen or
reference material) directly in front of you to minimize turning your head
while you are typing.
• Avoid displaying fixed patterns on the monitor for long periods of time to avoid image
persistence (after-image effects).
• Get regular eye checkups.
Ergonomics
To realize the maximum ergonomics benefits, we recommend the following:
•
Use the preset Size and Position controls with standard signals
•
Use the preset Color Setting
•
Use non-interlaced signals with a vertical refresh rate between 60-75Hz
•
Do not use primary color blue on a dark background, as it is difficult to see and
may produce eye fatigue to insufficient contrast.
For more detailed information on setting up a healthy work environment, write the
American National Standard for Human Factors Engineering of Visual Display Terminal
Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc.
P.O. Box 1369, Santa Monica, California 90406.
10
LCD1960NX050603.p65 5/21/03, 1:07 PM10
Specifications
Monitor MultiSync® LCD1960NX
™
Notes
Specifications Monitor
LCD Module Diagonal : 19.0 inch Active matrix; thin film transistor (TFT)
Input Signal Video : ANALOG 0.7 Vp-p/75 Ohms Digital Input: DVI
Display Colors 16,777,216 Dependent on display card used.
Maximum Left/Right : 85°/85°
Viewing Angles Up/Down : 85°/85°
Synchronization Horizontal : 31.5 kHz to 81.1 kHz (Analog) Automatically
Range 31.5 kHz to 69.0 kHz (Digital) Automatically
Resolutions Supported 720 x 400*
Active Display Area Horizontal : 376.3 mm/14.8 inches
Power Supply 100 – 240 V ~ 50/60 Hz
Current Rating 0.75 – 0.4A
Dimensions 416.3 mm (W) x 388.7-498.7 mm (H) x 190 mm (D)
Weight 7.8 kg
Environmental Considerations
Viewable Image Size : 19.0 inch liquid crystal display (LCD); 0.294 mm dot
Native Resolution (Pixel Count) : 1280 x 1024 pitch; 250cd/m
Sync : Separate sync. TTL Level
Horizontal sync. Positive/Negative
Vertical sync. Positive/Negative
Vertical : 56.0 Hz to 75.0 Hz Automatically
Vertical : 301.1 mm/11.9 inches
Operating Temperature : 5°C to 35°C/41°F to 95°F
Humidity : 30% to 80%
Feet : 0 to 12,000 Feet
Storage Temperature : -10°C to 60°C/14°F to 140°F
Humidity : 10% to 85%
Feet : 0 to 40,000 Feet
1
640 x 480*1 @ 60 Hz to 75 Hz
800 x 600*
832 x 624*
1024 x 768 @ 60 Hz to 75 Hz
1152 x 864 @ 75 Hz
1280 x 1024 @ 60 Hz to 75 Hz (Analog)
1280 x 1024 @ 60 Hz (Digital)
16.4 inches (W) x 15.3-19.6 inches (H) x 7.5 inches (D)
17.2 lbs
:VGA text
1
@ 56 Hz to 75 Hz
1
@ 75 Hz
600:1 contrast ratio, typical
Some systems may not support all modes listed.
.......
NEC-Mitsubishi Electronics Display cites
recommended resolution at 60 Hz for
optimal display performance.
2
white luminence;
*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is
normal and necessary for all current flat panel technologies when displaying non-native resolutions full screen. In flat panel technologies, each
dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.
NOTE: Technical specifications are subject to change without notice.
11
LCD1960NX050603.p65 5/21/03, 1:07 PM11
Features
Reduced Footprint: Provides the ideal solution for environments requiring superior image
quality but with size and weight limitations. The monitor’s small footprint and low weight
allow it to be moved or transported easily from one location to another.
AccuColor® Control Systems: Six color presets select the desired color setting (sRGB and
NATIVE color presets are standard and cannot be changed). R,G,B: Increases or decreases Red, Green or Blue color depending upon which is selected. The change in color
will appear on screen and the direction (increase or decrease) will be shown by the bars.
NATIVE:
OSM
of your screen image via simple to use on-screen menus.
No-Touch Auto Adjust (Analog input only): No-Touch Auto Adjust automatically adjusts
the monitor to optimal settings upon initial setup.
ErgoDesign
protect the health of the user and save money. Examples include
and easy image adjustments, tilt base for preferred angle of vision, small footprint and
compliance with MPRII and TCO guidelines for lower emissions
Plug and Play: The Microsoft
ing system facilitates setup and installation by allowing
(such as screen size and resolutions supported)
optimizing display performance.
IPM® (Intelligent Power Manager) System: Provides innovative power-saving methods that
allow the monitor to shift to a lower power consumption level when on but not in use,
saving two-thirds of your monitor energy costs, reducing emissions and lowering the air
conditioning costs of the workplace.
Multiple Frequency Technology: Automatically adjusts monitor to the display card’s
scanning frequency, thus displaying the resolution required.
FullScan
significantly expanding image size.
VESA Standard Mounting Interface: Allows users to connect their MultiSync
any VESA standard third party mounting arm or bracket. Allows for the monitor to be
mounted on a wall or an arm using any third party compliant device.
Original color presented by the LCD panel that is unadjustable.
®
(On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements
®
Features: Enhance human ergonomics to improve the working environment,
OSM controls for quick
.
®
solution with the Windows®95/98/Me/2000/XP operat-
the monitor to send its capabilities
directly to your computer, automatically
®
Capability: Allows you to use the entire screen area in most resolutions,
®
monitor to
OSM Display Screen Copyright 2003 by
NEC-Mitsubishi Electronics Display of America, Inc.
LCD1960NX050603.p65 5/21/03, 1:07 PM12
12
Loading...
