Contents

Your new NEC LCD monitor box* should contain the following:

• LCD monitor

• Power Cord

• User’s Manual

• Base Stand

• Cable Holder

Power Cord

LCD Monitor (Stand not connected)

User’s Manual

*Remembertosaveyouroriginalboxandpackingmaterialtotransportorshipthemonitor.

Cable Holder

Quick Start

To attach the Base to the LCD Stand:

1. Insert the front of the LCD Stand into the holes in the front of the Base (Figure 1).

2. Attach the Base to the Stand. The locking tab on the Base should ﬁt into the hole on the back of the Stand.

3. Attach the Cable Holder onto the Base (Figure 2). Insert the hooks on the Cable Holder into the holes at the back of the Stand and slide the Cable Holder downward into

place.

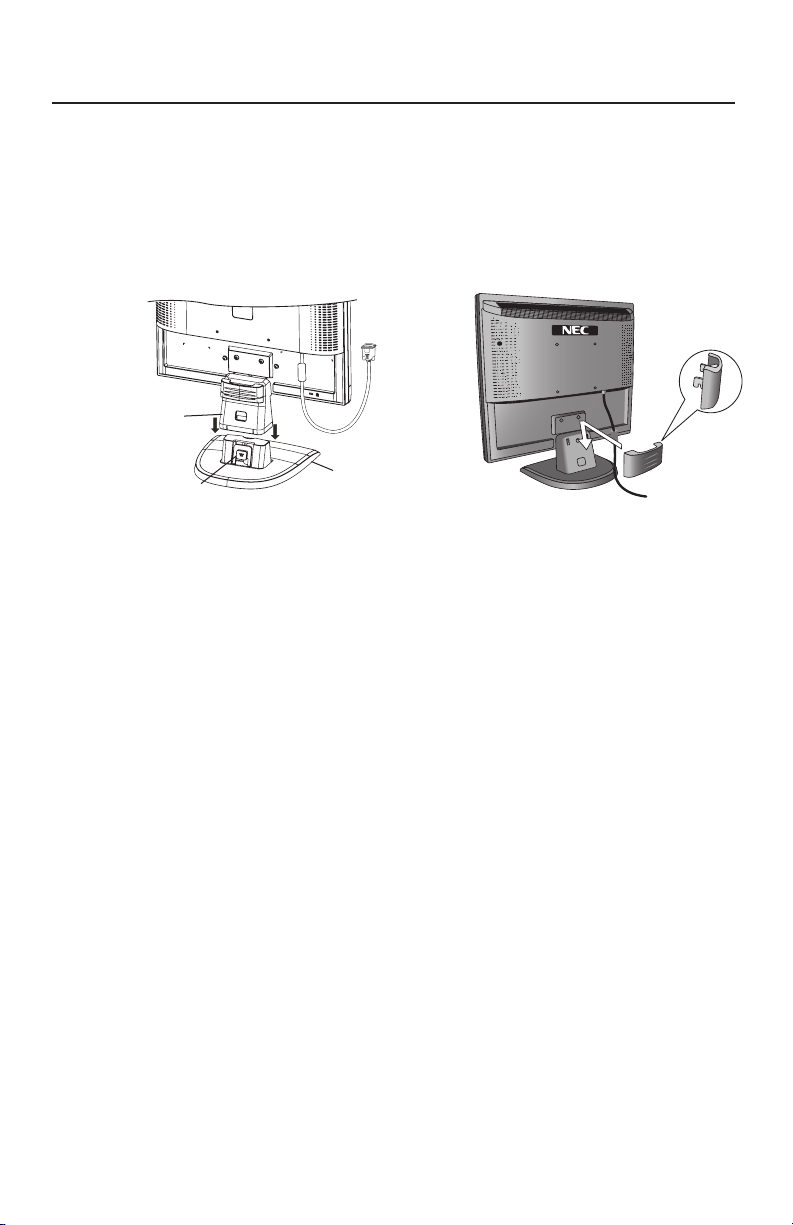

Figure 1

Stand

Locking Tab

Front Base

Figure 2

To attach the LCD monitor to your system, follow these instructions:

1. Turn off the power to your computer.

2. For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the

connector of the display card in your system (Figure A.1). Tighten all screws.

For the MAC: Connect the Macintosh cable adapter to the computer, then attach the

15-pin mini D-SUB signal cable to the Macintosh cable adapter (Figure A.2). Tighten all screws.

NOTE: To obtain the Macintosh cable adapter, call NEC Display Solutions of America, Inc. at (800) 632-4662.

3. Connect one end of the power cord to the LCD and the other end to the power outlet.

Place the video signal cable and power cord between the cable holder (Figure B.1).

NOTE: Adjust the position of cables between the holder to avoid damage. NOTE: If you use this monitor at AC125-240V, please refer to Recommended Use

section of this manual for proper selection of power cord.

4. Turn on the monitor with the front power button and the computer. (Figure C.1)

5. No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup for most timings. For further adjustments, use the following OSM® controls:

• Auto Adjust Contrast • Auto Adjust Refer to the Controls section of this User’s Manual for a full description of these OSM controls. NOTE: For download information on the Windows® 95/98/Me/2000/XP INF ﬁle for

your monitor, refer to the References section of this User’s Manual. NOTE: If you have any problems, please refer to the Troubleshooting section of this

User’s Manual.

Quick Start –continued

Power Cable

Figure A.1

Figure A.2

Macintosh Cable

Adapter

(not included)

Note: Some Macintosh systems do not require a Macintosh Cable Adapter

Figure C.1

Figure B.1

Power button

Quick Start –continued

Tilt

Grasp both sides of the monitor screen with your hands and adjust the tilt as desired (Figure TS.1).

NOTE: Handle with care when tilting the monitor screen.

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:

1. Disconnect all cables.

2. Place monitor face down on a nonabrasive surface (Figure R.1).

3. Remove the 3 screws connecting the monitor to the stand and slide the

stand off from the LCD (Figure R.1).

The monitor is now ready for mounting in an alternate manner.

Connect the AC cord to the back of the monitor (Figure R.2).

5. Reverse this process to reattach stand.

NOTE: Use only VESA-compatible alternative mounting method. NOTE: Handle with care when removing monitor stand.

Figure R.1

Figure TS.1

non-abrasive

surface

Figure R.2

Quick Start –continued

Removing the Base

Note: Always remove the Base when shipping the LCD.

Place monitor face down on a non-abrasive

surface.

2. While using your thumbs, press the bottom tabs upward to unlock.

3. Press the top tabs down to unlock and pull off the stand.

Connecting a Flexible Arm

This LCD monitor is designed for use with a ﬂexible arm. Please use the attached screws (4pcs) as shown in the picture when installing.

To meet the safety requirements, the monitor must be mounted to an arm which guaranties the necessary stability under consideration of the weight of the monitor. The LCD monitor should only be used with an approved arm (e.g. GS mark).

4 x 12 mm with lock washer and ﬂat washer

12 mm

Speciﬁcations

4-SCREWS (M4) (MAX depth: 8.5 mm)

100 mm

Thickness of Bracket (Arm) 2.0~3.2 mm

100 mm

Weight of LCD assembly:

3.6 kg - LCD17V (MAX)

4.9 kg - LCD19V (MAX)

Tighten all

screws.

Controls

OSM® (On-Screen Manager) control buttons on the front of the monitor function as follows:

1. Basic key function

Button

OSM Off

OSM On

(Icon selection stage)

OSM On

(Adjustment stage)

OSM displayed

Go to Adjustment stage

Go to Icon selection stage

2. OSM structure

Main Menu (Icon Select, Analog Input)

Press

“SELECT”

key

SELECT

– +

Shortcut to bright adjust window

Cursor moves left

Adjust value decrease or

Cursor for adjust moves left

Press

“SELECT”

key

Press “SELECT” key

Shortcut to contrast adjust window

Cursor moves right

Adjust value increase or

Cursor for adjust moves right

Main Menu (Adjust)

AUTO / RESET

“Auto Adjust” function

Reset operation

Adjust by using

“–“ or “ +”.

Press “SELECT”

key

Sub Menu (Icon Select)

Press

“–“ or “ +”

Press

“–“ or “ +”

Press “SELECT” key

Adjust by using

“–“ or “ +”.

Sub Menu (Adjust)

Controls –continued

BRIGHTNESS

Adjusts the overall image and background screen brightness.

CONTRAST

Adjusts the image brightness in relation to the background.

AUTO CONTRAST

Adjusts the image displayed for non-standard video inputs.

AUTO ADJUST

Automatically adjusts the Image Position, H. Size and Fine setting.

LEFT/RIGHT

Controls Horizontal Image Position within the display area of the LCD.

DOWN/UP

Controls Vertical Image Position within the display area of the LCD.

H. SIZE

Adjusts the horizontal size by increasing or decreasing this setting.

FINE

Improves focus, clarity and image stability by increasing or decreasing this setting.

COLOR CONTROL SYSTEMS

Four color presets (9300/7500/6500/USER) select the desired color setting.

COLOR RED

Increase or decreases Red. The change will appear on screen.

COLOR GREEN

Increase or decreases Green. The change will appear on screen.

COLOR BLUE

Increase or decreases Blue. The change will appear on screen.

TOOL

Selecting TOOL allows you to get into the sub menu.

FACTORY PRESET

Selecting Factory Preset allows you to reset all OSM control settings back to the factory settings. The “RESET” button will need to be held down for several seconds to tage effect. Individual settings can be reset by highlighting the control to be reset and pressing the “RESET” button.

Controls –continued

EXIT

Selecting EXIT allows you exit OSM menu/sub menu.

LANGUAGE

OSM control menus are available in eight languages.

OSM TURN OFF

The OSM control menu will stay on as long as it is in use. In the OSM Turn OFF submenu, you can select how long the monitor waits after the last touch of a button to shut off the OSM control menu. The preset choices are 10 - 120 seconds in 5 second intervals.

OSM LOCK OUT

This control completely locks out access to all OSM control functions without Brightness and Contrast. When attempting to activate OSM controls while in the Lock Out mode, a screen will appear indicating the OSM are locked out. To activate the OSM Lock Out function, press “AUTO / RESET“, then “+“ key and hold down simultaneously. To deactivate the OSM Lock Out, press “AUTO / RESET“, then “+“ key and hold down simultaneously.

RESOLUTION NOTIFIER

If ON is selected, a message will appear on the screen after 30 seconds, notifying you that the resolution is not at optimal resolution.

MONITOR INFO

Indicates the model and serial numbers of your monitor.

OSM® Warning: OSM Warning menus disappear with SELECT button.

NO SIGNAL: This function gives a warning when there is no signal present.

After power is turned on or when there is a change of input signal or video is inactive, the No Signal window will appear.

RESOLUTION NOTIFIER: This function gives a warning of use with optimized

resolution. After power is turned on or when there is a change of input signal or the video signal doesn’t have proper resolution, the Resolution Notiﬁer window will open. This function can be disabled in the TOOL menu.

OUT OF RANGE: This function gives a recommendation of the optimized

resolution and refresh rate. After the power is turned on or there is a change of input signal or the video signal doesn’t have proper timing, the Out Of

Range menu will appear.

Recommended Use

Safety Precautions and Maintenance

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE LCD COLOR MONITOR:

• DO NOT OPEN THE MONITOR. There are no user serviceable parts inside and opening or

removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualiﬁed service personnel.

• Do not spill any liquids into the cabinet or use your monitor near water.

• Do not insert objects of any kind into the cabinet slots, as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, ﬁre or equipment failure.

• Do not place any heavy objects on the power cord. Damage to the cord may cause shock or ﬁre.

• Do not place this product on a sloping or unstable cart, stand or table, as the monitor may fall, causing serious damage to the monitor.

• When operating the LCD monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply voltage of the AC power outlet being used. The power supply cord you use must have been approved by and comply with the safety standards of your country. (Type H05VV-F should be used in Europe)

• In UK, use a BS-approved power cord with molded plug having a black (5A) fuse installed for use with this monitor. If a power cord is not supplied with this monitor, please contact your supplier.

• Do not place any objects onto the monitor and do not use the monitor outdoors.

• The inside of the ﬂuorescent tube located within the LCD monitor contains mercury.

Please follow the bylaws or rules of your municipality to dispose of the tube properly.

• Do not bend power cord.

• Do not use monitor in high temperature, humid, dusty, or oily areas.

• If glass is broken, handle with care.

• Do not cover vent on monitor.

Immediately unplug your monitor from the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions:

• When the power supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If the monitor does not operate normally by following operating instructions.

• If monitor or glass is broken, do not come in contact with the liquid crystal and handle with care.

• Allow adequate ventilation around the monitor so that heat can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of monitor.

• The power cable connector is the primary means of detaching the system from the

CAUTION

• Handle with care when transporting. Save packaging for transporting.

Image Persistence

Image persistence is when a residual or “ghost” image of a previous image remains visible on the screen. Unlike CRT monitors, LCD monitors’ image persistence is not permanent, but constant images being displayed for a long period of time should be avoided.

To alleviate image persistence, turn off the monitor for as long as the previous image was displayed. For example, if an image was on the monitor for one hour and a residual image remains, the monitor should be turned off for one hour to erase the image.

NOTE: As with all personal display devices, NEC Display Solution of America, Inc. recommends using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor

when not in use.

power supply. The monitor should be installed close to a power outlet which is easily accessible.

Recommended Use –continued

CORRECT PLACEMENT AND ADJUSTMENT OF THE MONITOR

CAN REDUCE EYE, SHOULDER AND NECK FATIGUE. CHECK THE

FOLLOWING WHEN YOU POSITION THE MONITOR:

• For optimum performance, allow 20 minutes for warm-up.

• Adjust the monitor height so that the top of the screen is at or slightly below eye level. Your eyes should look slightly downward when viewing the middle of the screen.

• Position your monitor no closer than 16 inches and no further away than 28 inches from your eyes. The optimal distance is 20 inches.

• Rest your eyes periodically by focusing on an object at least 20 feet away. Blink often.

•

Position the monitor at a 90° angle to windows and other light sources to minimize glare and reﬂections. Adjust the monitor tilt so that ceiling lights do not reﬂect on your screen.

• If reﬂected light makes it hard for you to see your screen, use an antiglare ﬁlter.

• Adjust the monitor’s brightness and contrast controls to enhance readability.

• Use a document holder placed close to the screen.

• Position whatever you are looking at most of the time (the screen or reference material) directly in front of you to minimize turning your head while you are typing.

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomics beneﬁts, we recommend the following:

•

Use the preset Size and Position controls with standard signals

•

Use the preset Color Setting

•

Use non-interlaced signals with a vertical refresh rate between 60-75Hz

•

Do not use primary color blue on a dark background, as it is difﬁcult to see and may produce eye fatigue to insufﬁcient contrast.

Cleaning the LCD Panel

• When the liquid crystal panel becomes dusty or dirty, wipe grntly with a soft cloth.

• Do not rub the LCD panel with coarse or hard material.

• Do not apply pressure to the LCD surface

• Do not use OA cleaner as it will cause deterioration or discoloration to the LCD surface.

Cleaning the Cabinet

• Unplug the power supply.

• Dampen a soft cloth with water and a neutral detergent. Gently wipe the cabinet then dry gently with a soft cloth.

NOTE: Many plastics are used on the surface of the cabinet. DO NOT clean with benzene,

thinner, alkaline detergent, alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Do not touch rubber or vinyl to the cabinet for a long period of time. These type of ﬂuids and fanrics can cause the paint to deteriorate crack or peel.

For more detailed information on setting up a healthy work environment, write the American National Standard for Human Factors Engineering of Visual Display Terminal Workstations – ANSI-HFS Standard No. 100-1988 – The Human Factors Society, Inc. P.O. Box 1369, Santa Monica, California 90406.

Specications

Monitor Speciﬁcations LCD17V Notes

LCD Module Diagonal:

Input Signal Video:

Display Colors Analog input: 16,200,000 Depending on display card used.

Maximum Viewing Angles Left/right:

Synchronization Range Horizontal:

Resolutions Supported 720 x 400*1 : VGA text

Active Display Area Horizontal:

Power Supply 100-240 V ~ 50/60 Hz

Current Rating 0.7 - 0.35 A/100-240V

Dimensions 368.0mm (W) x 381.5mm (H) x 205.0mm (D)

Weight 4.0kg

Environmental Considerations

Viewable Image Size:

Native Resolution

(Pixel Count):

Up/Down:

640 x 480*1 at 60 Hz to 75 Hz 800 x 600*1 at 56 Hz to 75 Hz 832 x 624*1 at 75 Hz 1024 x 768*1 at 60 Hz to 75 Hz 1152 x 864*1 at 70 Hz 1152 x 870*1 at 75 Hz 1280 x 960*1 at 60 Hz to 75 Hz

1280 x 1024 at 60 Hz to 75 Hz........

Operating Temp.:

Humidity:

Storage Temperature:

Humidity:

17.0 inch

1280 x 1024

ANALOG 0.7 Vp-p/75 Ohms

Sync:

Separate sync TTL Level (Positive/Negative) Horizontal sync Positive/Negative Vertical sync Positive/Negative

70°/70° (CR>10) 50°/60° (CR>10)

31.5 kHz to 81.1 kHz

Vertical:

56 Hz to 76 Hz

338mm/13.3 inches

Vertical:

270mm/10.6 inches

1.5A/100-240V (for Mexico)

14.5 inches (W) x 15.0 inches (H) x 8.1 inches (D)

8.8lbs

5°C to 35°C/41°F to 95°F 10% to 80%

Altitude:

0 to 10,000 Feet

-10°C to +60°C/14°F to 140°F 10% to 85%

Altitude:

0 to 40,000 Feet

Active matrix; thin ﬁlm transistor (TFT) liquid crystal display (LCD);

0.264 mm dot pitch; 270cd/m2 white luminence; 500:1 contrast ratio, typical

Automatically Automatically

Some systems may not support all modes listed.

NEC DISPLAY SOLUTIONS cites recommended resolution at 60 Hz for optimal display performance.

*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is

normal and necessary for all current ﬂat panel technologies when displaying non-native resolutions full screen. In ﬂat panel technologies, each dot on the screen is actually one pixel, so to expand resolutions to full screen, an interpolation of the resolution must be done.

NOTE: Technical speciﬁcations are subject to change without notice.

Specications –continued

Monitor Speciﬁcations LCD19V Notes

LCD Module Diagonal:

Input Signal Video:

Display Colors Analog input: 16,200,000 Depending on display card used.

Maximum Viewing Angles Left/right:

Synchronization Range Horizontal:

Resolutions Supported 720 x 400*1 : VGA text

Active Display Area Horizontal:

Power Supply 100-240 V ~ 50/60 Hz

Current Rating 0.75 - 0.4 A/100-240V

Dimensions 405.5mm (W) x 405.5mm (H) x 205.0mm (D)

Weight 5.3kg

Environmental Considerations

Viewable Image Size:

Native Resolution

(Pixel Count):

Up/Down:

640 x 480*1 at 60 Hz to 75 Hz 800 x 600*1 at 56 Hz to 75 Hz 832 x 624*1 at 75 Hz 1024 x 768*1 at 60 Hz to 75 Hz 1152 x 864*1 at 70 Hz 1152 x 870*1 at 75 Hz 1280 x 960*1 at 60 Hz to 75 Hz

1280 x 1024 at 60 Hz to 75 Hz........

Operating Temp.:

Humidity:

Storage Temperature:

Humidity:

19.0 inch

1280 x 1024

ANALOG 0.7 Vp-p/75 Ohms

Sync:

Separate sync TTL Level (Positive/Negative) Horizontal sync Positive/Negative Vertical sync Positive/Negative

70°/70° (CR>10) 65°/60° (CR>10)

31.5 kHz to 81.1 kHz

Vertical:

56 Hz to 76 Hz

376mm/14.8 inches

Vertical:

301mm/11.9 inches

1.5A/100-240V (for Mexico)

16.0 inches (W) x 16.0 inches(W) x 8.1 inches (D)

11.7 lbs

5°C to 35°C/41°F to 95°F 10% to 80%

Altitude:

0 to 10,000 Feet

-10°C to +60°C/14°F to 140°F 10% to 85%

Altitude:

0 to 40,000 Feet

Active matrix; thin ﬁlm transistor (TFT) liquid crystal display (LCD);

0.294 mm dot pitch; 270cd/m2 white luminence; 550:1 contrast ratio, typical

Automatically Automatically

Some systems may not support all modes listed.

NEC DISPLAY SOLUTIONS cites recommended resolution at 60 Hz for optimal display performance.

*1 Interpolated Resolutions: When resolutions are shown that are lower than the pixel count of the LCD module, text may appear different. This is

NOTE: Technical speciﬁcations are subject to change without notice.

Features

Reduced Footprint: Provides the ideal solution for environments requiring superior image quality but with size and weight limitations. The monitor’s small footprint and low weight allow it to be moved or transported easily from one location to another.

AccuColor® Control Systems: Allows you to adjust the colors on your screen and customize the color accuracy of your monitor to a variety of standards.

OSM® (On-Screen Manager) Controls: Allow you to quickly and easily adjust all elements of your screen image via simple to use on-screen menus.

NaViSet™ Software: NaViSet offers an expanded and intuitive graphical interface, allowing you to more easily adjust OSM display settings via mouse and keyboard.

No-touch Auto Adjust™: No-touch Auto Adjust automatically adjusts the monitor to optimal settings upon initial setup.

ErgoDesign® Features: Enhance human ergonomics to improve the working environment, protect the health of the user and save money. Examples include and easy image adjustments, tilt base for preferred angle of vision, small footprint and compliance with MPRII and TCO guidelines for lower emissions

Plug and Play: The Microsoft® solution with the Windows®95/98/Me/2000/XP operat- ing system facilitates setup and installation by allowing (such as screen size and resolutions supported) optimizing display performance.

IPM® (Intelligent Power Manager) System: Provides innovative power-saving methods that allow the monitor to shift to a lower power consumption level when on but not in use, saving two-thirds of your monitor energy costs, reducing emissions and lowering the air conditioning costs of the workplace.

Multiple Frequency Technology: Automatically adjusts monitor to the display card’s scanning frequency, thus displaying the resolution required.

FullScan® Capability: Allows you to use the entire screen area in most resolutions, signiﬁcantly expanding image size.

VESA® Standard Mounting Interface: Allows users to connect their monitor to any VESA standard third party mounting arm or bracket. Allows for the monitor to be mounted on a wall or an arm using any third party compliant device.

directly to your computer, automatically

the monitor to send its capabilities

OSM controls for quick

NEC Display Solutions of America, Inc.

Troubleshooting

No picture

•

The signal cable should be completely connected to the display card/computer.

• The display card should be completely seated in its slot.

• Front Power Switch and computer power switch should be in the ON position.

•

Check to make sure that a supported mode has been selected on the display card or system

being used. (Please consult display card or system manual to change graphics mode.)

• Check the monitor and your display card with respect to compatibility and recommended settings.

• Check the signal input.

Power Button does not respond

• Unplug the power cord of the monitor from the AC outlet to turn off and reset the monitor.

Image Persistence

•

NOTE: As with all personal display devices, NEC Display Solutions of America, Inc.

recommends displaying moving images or using a moving screen saver at regular intervals whenever the screen is idle or turning off the monitor when not in use.

Image is unstable, unfocused or swimming is apparent

• Signal cable should be completely attached to the computer.

• Use the OSM Image Adjust controls to focus and adjust display by increasing or decreasing the FINE control. When the display mode is changed, the OSM Image Adjust settings may need to be readjusted.

• Check the monitor and your display card with respect to compatibility and recommended signal timings.

•

If your text is garbled, change the video mode to non-interlace and use 60Hz refresh rate.

LED on monitor is not lit (no green or amber color can be seen)

• Power Switch should be in the ON position and power cord should be connected.

Display image is not sized properly

• Use the OSM Image Adjust controls to increase or decrease the H.SIZE.

•

Check to make sure that a supported mode has been selected on the display card or system being used. (Please consult display card or system manual to change graphics mode.)

No Video

• If no video is present on the screen, turn the Power button off and on again.

• Make certain the computer is not in a power-saving mode (touch the keyboard or mouse).

References

NEC Monitor Customer Service & Support

Customer Service and Technical Support: Fax: (800) 695-3044

Parts and Accessories/Macintosh

Cable Adapter: (800) 632-4662 Warranty Information: www.necdisplay.com

Online Technical Support www.necdisplay.com

Sales and Product Information

Sales Information Line: (888) 632-6487 Canadian Customers: (866) 771-0266, Ext#: 4037 Government Sales: (800) 284-6320 Government Sales email: gov@necdisplay.com

Electronic Channels

World Wide Web: www.necdisplay.com Product Registration: www.necdisplay.com European Operations:

Drivers and Downloads www.necdisplay.com

(800) 632-4662

www.nec-display-solutions.com

Limited Warranty

NEC Display Solutions of America, Inc. (hereinafter “NEC DISPLAY SOLUTIONS”) warrants this Product to be free from defects in material and workmanship and, subject to the conditions set forth below, agrees to repair or replace (at NEC DISPLAY SOLUTIONS’ sole option) any part of the enclosed unit which proves defective for a period of one (1) years from the date of ﬁrst consumer purchase. Spare parts are warranted for ninety (90) days. Replacement parts or unit may be new or refurbished and will meet speciﬁcations of the original parts or unit.

This warranty gives you speciﬁc legal rights and you may also have other rights, which vary from state to state. This warranty is limited to the original purchaser of the Product and is not transferable. This warranty covers only NEC DISPLAY SOLUTIONS-supplied components. Service required as a result of third party components is not covered under this warranty. In order to be covered under this warranty, the Product must have been purchased in the U.S.A. or Canada by the original purchaser. This warranty only covers Product distribution in the U.S.A. or Canada by NEC DISPLAY SOLUTIONS No warranty service is provided outside of the U.S.A. or Canada. Proof of Purchase will be required by NEC DISPLAY SOLUTIONS to substantiate date of purchase. Such proof of purchase must be an original bill of sale or receipt containing name and address of seller, purchaser, and the serial number of the product.

It shall be your obligation and expense to have the Product shipped, freight prepaid, or delivered to the authorized reseller from whom it was purchased or other facility authorized by NEC DISPLAY SOLUTIONS to render the services provided hereunder in either the original package or a similar package affording an equal degree of protection. All Products returned to NEC DISPLAY SOLUTIONS for service MUST have prior approval, which may be obtained by calling 1-800-632-4662. The Product shall not have been previously altered, repaired, or serviced by anyone other than a service facility authorized by NEC DISPLAY SOLUTIONS to render such service, the serial number of the product shall not have been altered or removed. In order to be covered by this warranty the Product shall not have been subjected to displaying of ﬁxed images for long periods of time resulting in image persistence (afterimage effects), accident, misuse or abuse or operated contrary to the instructions contained in the User’s Manual. Any such conditions will void this warranty.

NEC DISPLAY SOLUTIONS SHALL NOT BE LIABLE FOR DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, OR OTHER TYPES OF DAMAGES RESULTING FROM THE USE OF ANY NEC DISPLAY SOLUTIONS PRODUCT OTHER THAN THE LIABILITY STATED ABOVE. THESE WARRANTIES ARE IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. SOME STATES DO NOT ALLOW THE EXCLUSION OF IMPLIED WARRANTIES OR THE LIMITATION OR EXCLUSION OF LIABILITY FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES SO THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.

This Product is warranted in accordance with the terms of this limited warranty. Consumers are cautioned that Product performance is affected by system conﬁguration, software, the application, customer data, and operator control of the system, among other factors. While NEC DISPLAY SOLUTIONS Products are considered to be compatible with many systems, speciﬁc functional implementation by the customers of the Product may vary. Therefore, suitability of a Product for a speciﬁc purpose or application must be determined by consumer and is not warranted by NEC DISPLAY SOLUTIONS.

For the name of your nearest authorized NEC Display Solutions of America, Inc. service facility, contact NEC Display Solutions of America, Inc. at 1-800-632-4662.

TCO’03

Congratulations!

The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.

Some of the features of the TCO’03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution, reﬂectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneﬁcial both for the user and the environment

• Electrical safety

Emissions

• Electromagnetic ﬁelds

• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certiﬁed environmental management system such as EMAS or ISO 14 001

• Restrictions on: – chlorinated and brominated ﬂame retardants and polymers – heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in co-operation with scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO has been involved in inﬂuencing the development of IT equipment in a more user-friendly direction. Our labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all over the world.

For more information, please visit

www.tcodevelopment.com

Manufacturer’s Recycling and Energy Information

NEC DISPLAY SOLUTIONS is strongly committed to environmental protection and sees recycling as one of the company’s top priorities in trying to minimize the burden placed on the environment. We are engaged in developing environmentally-friendly products, and always strive to help deﬁne and comply with the latest independent standards from agencies such as ISO (International Organization for Standardization) and TCO (Swedish Trades Union). For more information, and for help in recycling your old NEC monitors, please visit our website at: USA: http://www.necdisplay.com Europe: http://www.nec-display-solutions.com Japan: http://www.nec-display.com

Country-speciﬁc recycling programs can also be found at: Sweden - http://www.el-retur.se Germany - http://www.recyclingpartner.de/ Holland - http://www.mirec.nl/ Japan - http://www.diarcs.com/

Energy saving: This monitor features an advanced energy saving capability. When a VESA Display Power Management Signaling (DPMS) Standard signal is sent to the monitor, the Energy Saving mode is activated. The monitor enters a single Energy Saving mode.

LCD17V™

Mode Power Consumption LED Color

Normal Operation Approx. 36W Green

Energy Saving Mode Less than 2W Amber

Off Mode Less than 1W Unlit

LCD19V™

Mode Power Consumption LED Color

Normal Operation Approx. 37W Green

Energy Saving Mode Less than 2W Amber

Off Mode Less than 1W Unlit

+ 47 hidden pages
