NEC GT5000 User Manual

GT5000

LCD Projector User’s Manual

LIMITED WARRANTY (USA and Canada only)

NEC SOLUTIONS’ PROJECTOR PRODUCTS

NEC Solutions (America), Inc. (hereafter NEC Solutions) warrants this product to be free from defects in material and workmanship under the following terms.

HOW LONG IS THE WARRANTY

NEC Solutions’ GT5000 projector is covered by a three (3) year limited parts and labor warranty from the date of the first customer purchase. The lamp when used under normal normal operating conditions is warranted for 1000 hours or six months, whichever comes first.

WHO IS PROTECTED

This warranty may be enforced only by the first purchaser, and is not transferable.

WHAT IS COVERED AND WHAT IS NOT COVERED

Except as specified below, this warranty covers all defects in material or workmanship in this product.

NEC SOLUTIONS’ LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT AT NEC SOLUTIONS’ OPTION. REPLACEMENT PRODUCTS MAY BE NEW OR ‘LIKE NEW’. The following are not covered by the limited warranty and NEC Solutions shall not be liable for:

1. Any product which is not distributed in the U.S.A. or Canada by NEC Solutions or which is not purchased, installed, and operated in the U.S.A or Canada.

2. Any product on which the serial number has been defaced, modified or removed.

3. Normal decrease in lamp light output over time.

4. Damage, deterioration or malfunction resulting from: a. Accident, misuse, abuse, neglect, improper ventilation, fire,

dust, smoke, water, lightning or other acts of nature, unauthorized product modification, or failure to follow instructions supplied with the product.

b. Repair or attempted repair by anyone other than a NEC

Solutions authorized service center.

c. Any shipment of the product (claims must be presented to

the carrier). d. Removal or installation of the product. e. Any other cause which does not relate to a product defect. f. Use of the product beyond normal operating conditions.

Normal operating conditions are defined as product use

not in excess of 8 hours per day and 260 days per year.

5. Cartons, carrying cases, shipping cases, batteries, external cabinets, magnetic tapes, or any accessories used in connection with the product.

6. Service required as a result of third party components.

WHAT NEC SOLUTIONS WILL PAY FOR

NEC Solutions will pay labor and material expenses for covered items, but NEC Solutions will not pay for the following:

1. Removal or installation charges.

2. Costs of technical adjustments, set-up, maintenance, or adjustment of user controls.

3. Payment of shipping and related charges incurred in returning the product for warranty repair.

HOW YOU CAN GET WARRANTY SERVICE

1. To obtain service on your product, consult the dealer from whom you purchased the product. Whenever warranty service is required, the original dated invoice

2. (or a copy) must be presented as proof of warranty coverage. In order to obtain warranty service, you may be required to describe and demonstrate the problem to your dealer or to NEC Solutions.

3. All products returned to NEC Solutions for service MUST have prior approval. To receive approval or for the name of the nearest NEC Solutions authorized service center, call NEC Solutions at 800-836-0655.

4. It shall be your obligation and expense to ship the product, freight prepaid, or to deliver it to a NEC Solutions authorized service center, in either the original package or a similar package affording an equal degree of protection. In the event a product is returned to NEC Solutions for warranty

5. service, and it is determined that there is no product defect or that the product condition is not covered by this limited warranty, a diagnostic service fee may be charged to the customer.

LIMITATION OF IMPLIED WARRANTIES

EXCEPT AS EXPRESSLY SET FORTH IN THIS LIMITED WARRANTY, NEC SOLUTIONS MAKES NO OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. ANY IMPLIED WARRANTIES THAT MAY BE IMPOSED BY LAW ARE LIMITED TO THE TERMS AND DURATION OF THIS LIMITED WARRANTY.

EXCLUSION OF DAMAGES

NEC SOLUTIONS’ LIABILITY FOR ANY DEFECTIVE PRODUCT IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE PRODUCT AT NEC SOLUTIONS’ OPTION. NEC SOLUTIONS SHALL NOT BE LIABLE FOR:

1. DAMAGE TO OTHER PROPERTY CAUSED BY ANY DEFECTS IN THIS PRODUCT, DAMAGES BASED UPON INCONVENIENCE, LOSS OF USE OF THE PRODUCT, LOSS OF TIME, COMMERCIAL LOSS; OR

2. ANY OTHER DAMAGES, WHETHER INCIDENTAL, CONSEQUENTIAL OR OTHERWISE.

HOW STATE LAW RELATES TO THE WARRANTY

SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

FOR MORE INFORMATION, CONTACT:

NEC SOLUTIONS (AMERICA), INC. 1250 N. Arlington Heights Road, Suite 500 Itasca, Illinois 60143-1248 TELEPHONE 800-836-0655

www.necvisualsystems.com

Customers are cautioned that product performance is affected by system configuration, software, the application, customer data, and operator control, among other factors. While NEC Solutions’ products are considered to be compatible with many systems, the specific functional implementation by the customers of the product may vary. Therefore, the suitability of a product for a specific purpose or application must be determined by the customer and is not warranted by NEC Solutions.

Printed in Japan

Important Information

Precautions

Please read this manual carefully before using your NEC GT5000 Projector and keep the manual handy for future reference. Your serial number is located on the bottom of your GT5000. Record it here:

CAUTION

To turn off main power, be sure to remove the plug from power outlet. The power outlet socket should be installed as near to the equipment as possible, and should be easily accessible.

CAUTION

TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED NEC SERVICE PERSONNEL.

This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.

This symbol alerts the user that important information concerning the operation and maintenance of this unit has been provided. The information should be read carefully to avoid problems.

WARNING

TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. DO NOT USE THIS UNIT’S GROUNDED PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THREE PRONGS CAN BE FULLY INSERTED. DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. ALL SERVICING MUST BE DONE BY QUALIFIED NEC SERVICE PERSONNEL.

DOC Compliance Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.

3. GSGV Acoustic Noise Information Ordinance:

The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.

In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with this equipment. If a power cable is not supplied with this equipment please contact your supplier.

• IBM is a registered trademark of International Business Machines Corporation.

• Macintosh and PowerBook are registered trademarks of Apple Computer, Inc.

• Other product and company names mentioned in this user's manual may be the trademarks of their respective holders.

RF Interference

WARNING

The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those specified by NEC Solutions, Inc. in this manual. Failure to comply with this government regulation could void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

Important Safeguards

These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them carefully and heed all warnings.

Installation

1. For best results, use your projector in a darkened room.

2. Place the projector on a flat, level surface in a dry area away from dust and moisture. To avoid premature lamp failure, do not tilt the front of the projector up or down by more than 45° from level.

3. Do not place your projector in direct sunlight, near heaters or heat radiating appliances.

4. Exposure to direct sunlight, smoke or steam can harm internal components.

5. Handle your projector carefully. Do not hold the lens hood and the terminal covers. Dropping or jarring can damage internal components.

6. Do not place heavy objects on top of the projector.

7. If you wish to have the projector installed on the ceiling:

a. Do not attempt to install the projector yourself.

b. The projector must be installed by qualified technicians in or-

der to ensure proper operation and reduce the risk of bodily injury.

c. In addition, the ceiling must be strong enough to support the

projector and the installation must be in accordance with any local building codes.

d. Please consult your dealer for more information.

To Dealer or Installer:

To prevent the projector from falling, install it in a place and fasten it in a way with sufficient strength to support the combined weight (24.0 kg/53.0 lbs) of the projector (18.4 kg/40.6 lbs), the lens (2.0 kg/4.4 lbs) and the ceiling mount(3.2 kg/7.1 lbs) for an extended period of time as well as to withstand earthquakes.

Important Information

Power Supply

1. The projector is designed to operate on a power supply of 100120 or 200-240 V 50/60 Hz AC. Ensure that your power supply fits this requirement before attempting to use your projector.

2. Handle the power cable carefully and avoid excessive bending. A damaged cord can cause electric shock or fire.

3. If the projector is not to be used for an extended period of time, disconnect the plug from the power outlet.

4. Do not touch the power plug with wet hand. Doing so can cause electrical shock or fire.

5. Do not touch the power plug during a thunder storm. Doing so can cause electrical shock or fire.

Cleaning

1. Unplug the projector before cleaning.

2. Clean the cabinet periodically with a damp cloth. If heavily soiled,

use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful not to

scratch or mar the lens.

CAUTION

Do not unplug the power cable from the wall outlet under any one of the following circumstances. Doing so can cause damage to the projector:

• While the message "Please wait a moment." appears. This mes-

sage will be displayed after the projector is turned off.

• Immediately after the power cable is plugged into the wall outlet

(the POWER indicator has not changed to a steady orange glow).

• Immediately after the cooling fan stops working (The cooling fan

continues to work for 90 seconds after the projector is turned off with the POWER button).

CAUTION

• Do not try to touch the ventilation outlets as they can become heated

while the projector is turned on.

• Do not put the projector on its side when the lamp is turned on.

Doing so may cause damage to the projector.

• Before shipping this projector, remove the lens and attach the lens

hood cap.

The Lens Shift mechanism may encounter damage caused by improper handling during transportation.

• Do not eject a PC card or LAN card while its data is being ac-

cessed. Doing so can damage your PC card or LAN card data.

• The projector must be operated with two lamp housings installed regardless of whether or not the lamp is active. Failure to do so may degrade the performance of the projector such as screen flicker or loss of lamp life. If one lamp has reached the end of its usable life, replace it with a new one as soon as possible.

Fire and Shock Precautions

1. Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside your projector. Allow at least 3 inches (10 cm) of space between your projector and a wall. Allow at least 12 inches (30cm) of space between the outlets on the left side (when viewed from the front) and the wall.

2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector. Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately and have the object removed by a qualified NEC service personnel.

3. Do not place any liquids on top of your projector.

4. When using a LAN cable:

For safety, do not connect to the connector for peripheral device wiring that might have excessive Voltage.

CAUTION

• Do not look into the lens while the projector is on. Serious damage to your eyes could result.

•Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can cause unpredictable outcome such as fire or injury to the eyes.

• Do not cover the lens with the supplied lens hood cap or equivalent while the projector is on. Doing so can lead to melting of the cap and possibly burning your hands due to the heat emitted from the light output.

Lamp Replacement

•To replace the lamp, follow all instructions provided on page 9-2.

• Be sure to replace the lamp when the message "The Lamp has reached the end of its usable life. Please replace the lamp." appears. If you continue to use the lamp after the lamp has reached the end of its usable life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.

• Allow a minimum of 90 seconds to elapse after turning off the projector. Then turn off the main power and disconnect the power cable and allow 60 minutes to cool the projector before replacing the lamp.

iii

Table of Contents

1. Introduction

z What's in the Box? .................................................................... 1-2

x Introduction to the Projector ................................................... 1-3

c Getting to Know Your Projector ............................................... 1-4

Attaching the lens hood cap to the lens hood with the supplied

string and rivet ............................................................................ 1-6

Carrying the Projector ................................................................. 1-6

Top Features ............................................................................... 1-7

Te r minal Panel Features ............................................................. 1-8

v Remote Control Features ....................................................... 1-10

Remote Control Precautions ..................................................... 1-12

Remote Control Battery Installation .......................................... 1-12

Operating Range for Wireless Remote Control ........................ 1-12

Using the Remote Control in Wired Operation ......................... 1-13

2. Installation

z Setting Up Your Projector ........................................................ 2-2

Screen Size and Projection Distance ......................................... 2-2

x Lens Shift Adjustable Range ................................................... 2-4

c Optional Lens Installation ....................................................... 2-6

v Making Connections ................................................................ 2-8

Connecting Your PC or Macintosh .............................................. 2-8

To connect Scart Output ............................................................. 2-9

Connecting an External Monitor ................................................. 2-9

Connecting Your DVD Player .................................................... 2-10

Connecting Your VCR or Laser Disc Player .............................. 2-11

Connecting the Supplied Power Cable ..................................... 2-11

3. Projecting an Image (Basic Operation)

z Turning on the Projector .......................................................... 3-2

x Selecting a Source ................................................................... 3-3

c Adjusting the Picture Size and Position ................................. 3-3

v Correcting the Horizontal and Vertical Keystone Distortion (3D

Reform) ..................................................................................... 3-4

b Optimizing RGB Picture Automatically .................................. 3-6

n Turning Up or Down Volume .................................................... 3-6

m Turning off the Projector .......................................................... 3-7

4. Convenient Features

z Turning Off the Image and Sound ........................................... 4-2

x Enlarging and Moving a Picture .............................................. 4-2

c Getting the On-line Help and Information .............................. 4-2

v Using a USB Mouse ................................................................. 4-3

b Using a USB HUB Function ..................................................... 4-3

n Changing Background Logo ................................................... 4-4

m Making Freehand Drawings on

, Projected Image (ChalkBoard) ................................................ 4-4

. Lens Memory ............................................................................ 4-5

5. Using the Viewer

z Making the Most out of the Viewer Function ......................... 5-2

x Operating the Viewer Function from the Projector (playback) 5-

6. Using the Projector in a Network

z End User License Agreement ................................................. 6-2

x Introduction ............................................................................... 6-3

c Supported Projectors ............................................................... 6-4

v Equipment Connections and Settings .................................... 6-5

b Software Installation ................................................................ 6-6

n Starting/Exiting the Software .................................................. 6-7

m Troubleshooting ........................................................................ 6-8

Setting Up for Double Stacking in Link Mode

z Stacking and Connecting the Projectors ............................... 7-2

x Adjusting and Registering Signals to Be Projected .............. 7-5

c Adjusting the Lens Shift, Zoom and Focus to Clearly Display

all projected patterns .............................................................. 7-5

v Link Mode Setting .................................................................... 7-5

b List of Menu Items Available in Link Mode ............................ 7-6

8. Using On-Screen Menu

z Basic Menu Operation .............................................................. 8-2

x List of Direct Button Combinations ........................................ 8-3

c Menu tree................................................................................... 8-4

v Menu Descriptions & Functions .............................................. 8-7

Adjust (Source) ........................................................................... 8-8

Picture ................................................................................. 8-8

Video Adjust ........................................................................ 8-8

Picture Management ........................................................... 8-9

Image Options ................................................................... 8-10

Option Adjust ..................................................................... 8-10

Lens Memory ..................................................................... 8-11

Signal Type ........................................................................ 8-11

Sound ....................................................................................... 8-11

Ref. Adjust ................................................................................ 8-12

Using 3D Reform ............................................................... 8-12

Screen Type ....................................................................... 8-12

Reference White Balance .................................................. 8-12

Reference Color Correction ............................................... 8-12

Reference Lens Memory ................................................... 8-13

Factory Default ......................................................................... 8-13

Projector Options ...................................................................... 8-13

Menu ................................................................................. 8-13

Setup ................................................................................. 8-15

Lamp Settings ................................................................... 8-18

Link Mode .......................................................................... 8-18

LAN Mode ......................................................................... 8-19

Setting a Password............................................................ 8-22

Security ............................................................................. 8-23

Tools ......................................................................................... 8-24

Timer ................................................................................. 8-24

Using Capture ................................................................... 8-26

Using PC Card Files .......................................................... 8-26

Using ChalkBoard ............................................................. 8-26

Help .......................................................................................... 8-26

Contents ............................................................................ 8-26

Source Information ............................................................ 8-26

Projector Information ......................................................... 8-27

Test Pattern ............................................................................... 8-27

9. Maintenancez Replacing the Lamp ......... 9-2

z Replacing or Cleaning the Filter ............................................. 9-3

x Cleaning the Cabinet and the Lens ......................................... 9-4

10. Appendix

USB Memory Device or USB Memory Card Reader Support ........

x Troubleshooting ...................................................................... 10-3

c Specifications ......................................................................... 10-5

v Cabinet Dimensions ............................................................... 10-7

b Pin Assignments of D-Sub RGB Input Connector ............... 10-7

n Compatible Input Signal List ................................................. 10-8

m REMOTE 1 Connector ............................................................ 10-9

, PC Control Codes and Cable Connection .......................... 10-10

Cable Connection ................................................................... 10-10

PC Control Connector (D-SUB 9P) ......................................... 10-10

. Using Software Keyboard .................................................... 10-10

⁄0 Operation Using an HTTP Browser ..................................... 10-11

10-2

Introduction

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

z What's in the Box? ....................................................1-2

x Introduction to the Projector ..................................... 1-3

c Getting to Know Your Projector ................................. 1-4

Attaching the lens hood cap to the lens hood with the supplied string and rivet . 1-6

Carrying the Projector ......................................................................................... 1-6

Top Features ........................................................................................................ 1-7

Te rminal Panel Features ...................................................................................... 1-8

v Remote Control Features ....................................... 1-10

Remote Control Precautions ............................................................................. 1-12

Remote Control Battery Installation ................................................................... 1-12

Operating Range for Wireless Remote Control ................................................. 1-12

Using the Remote Control in Wired Operation .................................................. 1-13

z What's in the Box?

Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Please save the original box and packing materials if you ever need to ship your Projector.

NOTE: Lenses are optional. Order lenses from your NEC dealer.

Te rminal cover (Left and Right)

Lens hood cap

(024F37661)

String

(024C04531)

rivet

Remote control batteries (AAA⳯2)

E R

N D

JU S T

Projector

O C U

C C A

R D

LENS SHIFT

A M P

P IG H

T U S

S E

E C T

O N

S T

3 D

R E F

O R

U T O

(024C04541)

(079646633)

1. Introduction

and

Power cable for Europe (AC 230V)

(07N080003)

User’s Manual

(07N950192)

Remote cable

(073499391)

Power cable for North America (AC 120V)

(07N080207)

User Supportware

(07N950107)

Power cable for Japan (AC 100V)

(07N080107)

Important

Information

Documents (Japanese and English)

1-2

1. Introduction

x Introduction to the Projector

This chapter introduces you to the GT5000 high end fixed installation projector and describes key features and controls.

Congratulations on Your Purchase of the GT5000 projector

The GT5000 is our most sophisticated three panel, dual lamp XGA LCD projector. With the GT5000 you will be able to project images up to 500” (measured diagonally) from your DVD player, VCR, satellite hookup, HDTV source, PC, Workstation or Macintosh computer (desktop or notebook) and images from you digital camera PC Card or compact flash memory. The GT5000 incorporates integrated networking access through the RJ45 input or provides for wireless network connectivity from an optional wireless network PC card. With extensive input and output panels, optional long life lamp, full suite of quick-change lenses and a full function remote, the GT5000 will let you immerse yourself in large screen viewing.

Features you’ll enjoy on the GT5000:

• Integrated RJ45 connector for wired networking ability

•Two optional modular card slots allow for future projector growth with the ability to add additional input or output cards

• Dual PC card slots provide for optional wireless/wired network connectivity or PC Card usage

• Email projector error status information to selected individuals

•Power Horizontal and Vertical lens shift for optical display corrections

• Lens memory controls lens attributes (zoom, focus, shift) depending on input resolution and input selected for fast and easy source transitions

• NEC designed and developed SweetVisionTM technology for enhanced video image display, more vibrant colors and blacks richer with detail

• 3D Reform enhanced image technology for increased projector versatility that provides for horizontal, vertical and diagonal keystone correction (allows for positioning the projector in off center locations in the room and still get aligned images)

• Display 16:9 or 4:3 information and fill the screen

• HDTV (1080p, 1080i, 720p) and SDTV (576p, 576i, 480p, 480i) compatibility

• Intelligent lamp technology offers up to six user lamp settings to maximize light output or lamp life and provide for built in redundancy

• Smart security settings for password protection, control panel lock, menu lock and PC card protection key to help prevent unauthorized access and adjustments to the projector

•ADA508 and Executive Order 13221 Federal Government compliance *

• NEC 3D 10-bit video decoder for expanded black levels and adaptive gamma correction

• High performance optional long life lamp for low total operating costs

• Digital photo viewer to display larger than life images from your digital cameras PC card or compact flash card

• Double stackable for built in redundancy and high light output requirements

• Built in 5W⳯2 speakers for an integrated audio solution

•Two timer settings - On/Off with programming or Sleep timer that counts down at selected intervals

• 12V low voltage Screen Trigger output

• Easy set up and operation

• Eco-mode™ lamp technology for increased lamp life and energy savings

•VORTEX Technology Plus™ for uncompromising display of video and data. Improves white level, color accuracy, dynamic range, and display of varying levels of black in an image

• Wireless remote control operation

• External control via RS232, USB or Network

• NEC’s exclusive Advanced AccuBlend intelligent pixel blending technology provides for extremely accurate image compression and HDTV (1920⳯1080) display resolution*2.

• Supports most IBM VGA, SVGA, XGA, Macintosh, component signal (YCbCr/YPbPr) or other RGB signals within a horizontal frequency range of 15 to 100 kHz and a vertical frequency range of 48 to 120 Hz. This includes NTSC, NTSC4.43, PAL, PAL-M, PAL-N, PAL60 and SECAM standard video signals

NOTE: Composite video standards are as follows: NTSC: U.S. TV standard for video in U.S. and Canada.

NTSC4.43: TV standard used in Middle East countries. PAL: TV standard used in Western Europe. PAL-M: TV standard used in Brazil. PAL-N: TV standard used in Argentine, Paraguay and Uruguay. PAL60: TV standard used for NTSC playback on PAL TVs.

SECAM: TV standard used in France and Eastern Europe.

*1The GT5000 meets ADA508 compliance, the latest American

government regulation which provides for closed captioning, including a menu system that can be viewed by colorblind users. This model also meets Executive Order 13221 requirement for standby operation, which consumes less than 1 watt.

*2HDTV 1080P (1920⳯1080), HDTV 1080i (1920⳯1080) and

HDTV 720 p (1280⳯720) are displayed with NECs Advanced AccuBlend technology.

1-3

c Getting to Know Your Projector

A U D

I O

A U D

I O

A U

D IO

O U

R / C

G / Y

B / C

H / H V

L / M

O N O

L / M

O N O

L / M

O N O

L / M O

N O

L O

T 1

O P

T I O

N 2

D V I

G B O

U T

G B

R G B

I D

E O

- V ID

E O

U S B

C C A

R D

P C

C O

N T

R O

I N

U T

S C

T R

I G G

E R

R E M

O T

E 2

R E M

O T

E 1

L A

A C

I N

SOURCE

N/STAND BY A

1. Introduction

Controls

Te rminal panel (Left)

Y B

AUTO ADJUST

3D A

A L

SELECT

A L

2 D

DOWN

LENS SHIFT

LEFT RIGHT

FOCUS ZOOM

Built-in Security Slot (

Remote sensor

Carrying handle

Lens (optional)

Lens hood

A U

U T

L/MO

A U

RGB 1

L/MONO

DVI

L O

RGB 2

S L

VIDEO

L/MONO

U T

S-VIDEO

B /

C b

Te rminal panel (Right)

U S

(

M O

U S

E /H

U B

)

U S

(

P C

)

P C

A R

P C

T R

O L

I N

A N

1 E R

R E

O T

I N

A C

I N

Air filter (Right)

Lens hood cap

AC INPUT Connect the supplied power cable’s three-pin plug here.

*NOTE: Slot for Kensington MicroSaver Security System This security slot supports the MicroSaver

Security System.

Foot (four) Rotate to fine-adjust the height of each foot (max. 0.6”/15mm).

Speaker 5W (Stereo)

MicroSaver® is a registered trademark of Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.

Lamp cover 1 (Right)

Attaching and Removing the Terminal Covers

To remove the terminal cover, push and hold the latch. To attach the terminal cover, align the protrusions inside and push it until you feel it click into place.

1-4

Depression for foot (4 locations)

D 1

P C C

D 2

1. Introduction

L E

N S

H IF

RIG

P 1

LEC

3D RE

FO A TU

R M

AUTO ADJUST N /

Speaker 5W (Stereo)

Remote sensor

LAN

REMOTE 1

PC CARD

OUT

)

(

USB

)

PC CONTROL

MOUSE/HUB

(

USB

OUT

SC TRIGGER REMOTE 2

Remote sensor

Ventilation (outlet)

Air filter (Left)

Lamp cover 2 (Left)

Ventilation (outlet)

Air filter (Right)

AC IN

Ventilation (inlet)

Remote sensor

DVI

AUDIO

SLOT 1 SLOT 2

RGB 1

L/MONO

R/Cr

AUDIO

G/Y

AUDIO OUT

B/Cb

RGB 2

H/ HV

L/MONO

RGB OUT

VIDEO S-VIDEO

L/MONO

1-5

Attaching the lens hood cap to the lens hood with the supplied string and rivet

1. Thread the string through the hole on the lens hood cap.

Lens hood cap

String

2. Use the rivet to attach the string to the bottom of the projector.

1. Introduction

DVI

AUDIO

OPTION 1 OPTION 2

RGB 1

L/MONO

R/Cr

AUDIO

G/Y

L/MONO

AUDIO OUT

B/Cb

RGB 2

H/HV

RGB OUT

L/MONO

VIDEO S-VIDEO

L/MONO

Rivet

Carrying the Projector

Always carry your projector by the handle. Ensure that the power cable and any other cables connecting to video sources are disconnected before moving the projector. When moving the projector or when it is not in use, cover the lens with the lens hood cap.

CAUTION: Do not put the projector on its side when the lamp is on. Doing so may cause damage to the projector.

FOCUS ZOOM

LEFT RIGHT

DOWN

LENS SHIFT

STATUSPC CARD 2PC CARD 1 LAMP 1 LAMP 2 POWER

SELECT

ON/STAND BY

3D REFORM

3D A

AUTO ADJUST

1-6

Top Features

FOCUS ZOOM

LEFT RIGHT

LENS SHIFT

DOWN

SELECT

STATUSPC CARD 2PC CARD 1 LAMP 1 LAMP 2 POWER

61314 118912

3D A

3D REFORM

ON/STAND BY

1. Introduction

AUTO ADJUST

1. POWER Button (ON / STAND BY)( )

Use this button to turn the power on and off when the main power is supplied and the projector is in standby mode or idle mode.

NOTE: To turn on or off the projector, press and hold this button for a minimum of two seconds.

2. POWER Indicator

When this indicator is green, the projector is on; when this indicator is orange, it is in standby or idle mode. See the Power Indicator section on page 10-3 for more details.

3. STATUS Indicator

If this light blinks red rapidly, it indicates that an error has occurred, the lamp cover is not attached properly or the projector has overheated. If this light remains orange, it indicates that you have pressed a cabinet key while the Control Panel Key Lock is enabled. See the Status Indicator section on page 103 for more details.

4. LAMP Indicator 1/2

If this light blinks red rapidly, it's warning you that the lamp has reached the end of its usable life. After this light appears, replace the lamp as soon as possible (See page 9-2). See the Lamp Indicator section on page 10-3 for more details.

5. PC CARD Access Indicator 1/2

Lights while accessing a PC card.

6. 3D REFORM Button

Press this button to enter 3D Reform mode to correct the keystone (trapezoidal) distortion, and make the image square. Press to toggle between Cornerstone and Keystone adjustment mode.

NOTE: Pressing and holding this button for a minimum of 2 seconds will reset 3D Reform correction setting values to zero.

2354

7. AUTO ADJUST Button

Use this button to adjust Position-H/V and Pixel Clock/Phase for an optimal picture. See page 3-6.

8. MENU Button

Displays the menu.

9. SELECT 왖왔왗왘 (+) (–) / Volume Buttons

왖왔 : Use these buttons to select the menu of the item you

wish to adjust. When no menus appear, these buttons work as a volume control.

왗왘 : Use these buttons to change the level of a selected menu

item. A press of the 왘 button executes the selection. When the menus or the Viewer tool bar is not displayed, these buttons can be used to select a slide, or to move the cursor in Folder List or Slide List.

10. ENTER Button

Executes your menu selection and activates items selected from the menu.

11. CANCEL Button

Press this button to exit "Menus". Press this button to return the adjustments to the last condition while you are in the adjustment or setting menu.

12. LENS SHIFT 왖왔왗왘 Button

Adjust the lens offset by shifting the projected image position horizontally and / or vertically.

13. ZOOM Button (+/-)

Zoom the lens in and out.

14. FOCUS Button (+/-)

Adjust the lens focus.

1-7

1. Introduction

Terminal Panel Features

DVI

AUDIO OUT

L/MONO

RGB 2

RGB OUT

VIDEO S-VIDEO

L/MONO

AUDIO

RGB 1

L/MONO

AUDIO

R/Cr

G/Y

B/Cb

SLOT 1 SLOT 2

1. RGB 1 Connectors [R/Cr, G/Y, B/Cb, H/V, V] (BNC) Connect R,G,B,H (Horizontal sync) and V (Vertical sync) outputs of external equipment. If using a component with a combined sync (SYNC) output, connect it to the H/V terminal. When using luminance and colordifference signals of HDTV and DVD, connect Pr/Cr to the R, Y to the G and Pb/Cb to the B input of the projector.

DVI AUDIO Input Mini Jack (Stereo Mini) This is where you connect the audio output from your computer when connected to the DVI input. A commercially available audio cable is required.

4. RGB OUT Connector (Mini D-Sub 15 Pin)

You can use this connector to loop your computer image to an external monitor from the RGB 1 or 2 input source.

5. VIDEO IN Connector (BNC) Connect a VCR, DVD player, laser disc player, or document

camera here to project video.

VIDEO AUDIO Input Jacks R/L (RCA) These are your left and right channel audio inputs for stereo sound from a Video source.

6. S-VIDEO IN Connector (Mini DIN 4 Pin) Here is where you connect the S-Video input from an external source like a VCR.

NOTE: S-Video provides more vivid color and higher resolution than the traditional composite video format.

S-VIDEO AUDIO Input Jacks R/L (RCA) These are your left and right channel audio inputs for stereo sound from an S-Video source.

7. AUDIO OUT Jacks R/L (RCA) You can use this connector to output sound from the currently selected input source (RGB 1, RGB 2, DVI (DIGITAL), Video or S-Video). Output sound level can be adjusted in accordance with the sound level of the internal speaker.

8. Slot 1/2 For optional RGB, SDI or DVI board.

RGB 1 Audio Input Jacks (RCA) L/MONO: This is your left channel audio input for stereo sound coming from the RGB Input 1 source. This also serves as your monaural audio input.

R: This is your right channel audio input for stereo sound from the RGB Input 1 source.

2. RGB 2 Connector (Mini D-sub 15 Pin) Connect your computer or other analog RGB equipment such as IBM compatible or Macintosh computers. This also serves as a component input connector that allows you to connect a component video output of component equipment such as a DVD player. This connector also supports SCART output signal. See page 2-9 for more details.

RGB 2 Audio Iput Mini Jack (Stereo Mini) This is where you connect audio output from your computer or DVD player connected to the RGB2 input. A commercially available audio cable is required.

3. DVI IN Connector (DVI-D 24 Pin) This connector can be used to accept digital signal output from a computer with a DVI connector.

1-8

1. Introduction

Terminal Panel Features

12 3

USB (MOUSE/HUB)USB (PC)PC CARD

PC CONTROL

OUT

SC TRIGGER REMOTE 2

LAN

REMOTE 1

AC IN

OUT

10 11

1. USB Port [MOUSE/HUB] (Type A) Connect a USB mouse. You can operate the menu or Viewer with a USB mouse via this port.

• A USB-supported scanner or PC peripheral can be connected to this port. (USB Hub Function. See page 4-3)

2. USB Port [PC] (Type B) Connect this port to the USB port (type A) of your PC using a USB cable. This port also serves as a PC Control port by using Dynamic Image Utility 2.0 included on the supplied CD-ROM.

3. PC CARD Slot 1/2 Insert a PC card, commercially available flash memory card or NEC optional wireless LAN card here. There are two slots: Slot 1 and Slot 2.

4. PC CARD Eject Button 1/2 Press to eject a PC card partially. Each slot has its own eject button: 1 and 2.

5. PC CONTROL Connectors (Mini D-Sub 9 pin) For system expansion such as PC-Control using Dynamic Image Utility included on the supplied User Supportware CDROM or RS232C control from an external control system.

6. SC. TRIGGER Mini Jack When the projector is powered ON the screen trigger output sends a low voltage trigger to the screen controller and the screen will go down. When the projector is powered OFF the screen trigger stops sending a low voltage trigger to the screen controller and the screen will go up.

NOTE: To use this feature, you must turn on the Screen Trigger function. See page 8-17.

Stereo mini cable (not supplied)

NOTE: Screen controllers are supplied and supported by screen manufacturers.

NOTE: Do not use this jack for anything other than intended use. Connecting wired remote control to the SC. TRIGGER Mini Jack causes damage to the remote control.

7. LAN Port (RJ-45) This port is typically used for UTP Ethernet/Fast Ethernet. Use this connector to control the projector on a LAN.

8. REMOTE 1 (Mini D-Sub 15 Pin) This terminal allows external control of the projector by use of contact closure. See page 10-9.

9. REMOTE 2 Mini Jacks (IN/OUT) IN: wired remote control input.

OUT: for daisy-chaining multiple projectors and operating them with the same remote control. To do so, connect to a second projector’ s IN terminal to relay the input at the IN terminal of the first projector until all the projectors are connected.

10. Main Power Switch When you plug the supplied power cable into an active wall outlet and turn on the Main Power switch, the POWER indicator turns orange and the projector is in standby mode. See page 3-2.

11. AC IN Connect the supplied power cable’s three-pin plug here. Three types of power cable are supplied with this projector: three-pin type for U. S. A. and Canada. Two-pin type for Europe and Japan.

Tip (12V)

Ring (0V)

Sleave (ground. 0V)

IN: connect to the external equipment such as a PC or control system.

OUT: for daisy-chaining multiple projectors and operating them with the same external equipment. To do so, connect to a second projector’ s IN terminal to relay the input at the IN terminal of the first projector until all the projectors are connected.

1-9

1. Introduction

v Remote Control Features

POWER

OFF

6 7


ABC DEF

ADJUST

WHITE BAL.

123

JKL MNO PQR

456

STU

VWX YZ/

UNDO CANCEL

TEST

13 17

21 22

POSITION AUTOPIXEL

LENS

SHUTTER


KEYSTONE AMPLITUDE ENTRYLIST

MUTE

SOUND OSD

R G B

MAGNIFY

FOCUS ZOOM

LENS

CTL

ADDRESS

ENTER


PROJECTOR

GHI

HELPINFO.

11 1

1 1

1. POWER ON Press and hold this button for a minimum of two seconds to turn on the projector when the main power is supplied and the projector is in standby mode or idle mode.

2. POWER OFF Press and hold this button for a minimum of two seconds to turn off the projector.

3. MENU Press to display the main menu. While pressing and holding CTL, press this button to display the Remote Control ID dialog box to specify the remote control ID. See page 7-2.

4. ENTER Executes the menu selection and activates items selected from the menu. When the slider or dialog box is displayed: Pressing this button confirms adjustments/setting and returns to the previous menu display.

5. Select (Up/Down/Left/Right) 왖왔: Use these buttons to select the menu of the item you

wish to adjust. When no menus appear, these buttons work as a volume control.

왗왘: Use these buttons to change the level of a selected

menu item. A press of the 왘 button executes the selection.

Pressing and holding CTL, then pressing 왗 button works as a Back Space key in the entry screen. Pressing and holding CTL, then pressing this button moves the menu, slider, toolbar or dialog box.

6. ADJUST WHITE BAL. Press to display the Picture Management screen.

7. ADJUST PICTURE Press to display the Picture adjustment screen. Pressing this button sequentially selects adjustment screens.

8. IMAGE/PROJECTOR Press to display the Image Option screen. Pressing this button sequentially selects Image Options screens. While pressing and holding CTL, pressing this button rotates Projector Options screens.

9. Source / Input Press to select input or to name a signal.

1 Selects RGB 1 input. 2 Selects RGB 2 input. 3 Selects DVI (DIGITAL) input. 4 Selects VIDEO input. 5 Selects S-VIDEO input. 6 Selects Viewer input 7 Selects LAN input 8 Selects OPTION SLOT 1* (available for optional SDI board) 9 Selects OPTION SLOT 2* (available for optional SDI board) 0 Sequentially selects: RGB1 (VIDEO) → RGB1 (S-VIDEO)

* This button toggles between input 1 and 2.

NOTE: While pressing and holding CTL, pressing this button switches to the selected signal found in the Entry List.

1-10

1. Introduction

10. UNDO Press to return the adjustments and settings to the previous condition. While pressing and holding CTL, pressing this button clears the entire menus or adjustment/setting screen. At this time the adjustments/settings are stored in memory except the items on the setting screen with "OK" and "Cancel" buttons such as the Menu and the Setup screen.

11. CANCEL Press to exit the menu. Press this button with CTL to return to the previous menu without closing adjustment/setting screen while the menus appear. This feature allows you to adjust or set several items concurrently.

12. INFO Displays the "Source Information" or "Projector Information" window. This button toggles between these two windows. While pressing and holding CTL, pressing this button stores lens position settings.

13. TEST Press to display the test pattern. Pressing this button sequentially selects test patterns.

14. HELP Provides online help.

15. PIXEL Displays the Position/Clock screen to adjust the clock and phase.

16. AUTO (RGB only) Press to adjust Position-H/V and Pixel Clock for an optimal picture.

17. POSITION Press to display the Position screen; press again to display the Blanking screen. While pressing and holding CTL, pressing this button displays the Lens Shift adjustment screen.

22. AMPLITUDE (G) Service personnel only. When the test pattern is displayed, while pressing and holding CTL, pressing this button displays a green test pattern.

23. ENTRY LIST (B) Press to display the Entry List screen. Pressing and holding CTL and then ENTRY LIST buttons simultaneously, enters a signal in the Entry List when you are not displaying a test pattern. When the test pattern is displayed, while pressing and holding CTL, pressing this button displays a blue test pattern.

24. FOCUS (+/–) While pressing and holding CTL, pressing this button allows you to adjust the lens focus.

25. MAGNIFY/ZOOM (+/–) Magnify the size of a target portion. While pressing and holding CTL, pressing this button allows you to zoom the lens in and out.

26. CTL Used in conjunction with other buttons, similar to a shift key on a computer.


ENTER

ADDRESS

POWER

OFF

DEF

WHITE BAL.

TURE

ADJUST

27 28

27. Remote Jack Connect your remote cable here for wired operation.

18. MUTE SOUND Tu r ns off the sound for a short period of time. Press again to restore the sound.

19. MUTE OSD Press to turn off the on-screen display. Press again to restore the on-screen display.

NOTE: You can also turn off the on-screen display forcibly by pressing and holding CTL and then pressing MUTE OSD (Forced On-Screen Mute Mode) ; doing this again restores it. In this case any adjustment will still change the projector's memory settings. This mode is available even when input is switched to another or the power is turned off the main power.

20. MUTE PICTURE Press to turn off the picture for a short period of time. Press again to restore the picture.

21. KEYSTONE (R) Press to display the Keystone Correction (3D Reform) screen. This button toggles between “Cornerstone” and “Keystone”. When the test pattern is displayed, while pressing and holding CTL, pressing this button displays a red test pattern.

NOTE: Pressing and holding this button for a minimum of two seconds will reset 3D Reform correction setting values to zero.

28. Infrared Transmitter Direct the remote control toward the remote sensor on the projector cabinet.

1-11

1. Introduction

Remote Control Precautions

• The remote control system may not function when direct sunlight or strong illumination strikes the remote control sensor of the main unit, or when there is an obstacle in the path.

• When remote control buttons are pressed and held, projector’s function keys may not operate.

• Do not subject to strong shock.

• Do not allow water or other liquid to splash on the remote control. If the remote control gets wet, wipe it dry immediately.

•Avoid exposure to heat and steam.

• Remove the batteries from the remote control when the remote control is not going to be used for a long period.

Remote Control Battery Installation

Installing the Remote Control Batteries When it comes time to replace the batteries, two "AAA" type will be required.

1. Press and open the cover.

Operating Range for Wireless Remote Control

The infrared signal operates by line-of-sight up to a distance of approximately 7m (20 feet) and a 60 degree angle of the remote sensor. The projector will not function if there are objects between the remote sensor and the remote control or if strong light falls on the remote sensor. Weak batteries will also prevent the projector from operating properly.

Side View

Remote sensors on the projector cabinet

30˚

2. Align and insert the batteries according to the (+) and (-) indications inside the case.

3. Replace the cover.

Remote control

NOTE: You cannot operate the projector using the remote control if:

• The remote control ID is not set to [None].

• The remote ID is not the same as the projector ID. See page 7-2 for setting remote ID and projector ID.

1-12

Using the Remote Control in Wired Operation

Connect one end of the supplied remote cable to the REMOTE 2 IN mini jack and the other end to the remote jack on the remote control.

NOTE: Do not use this jack for anything other than intended use. Connecting the wired remote control to the SC. TRIGGER Mini Jack causes damage to the remote control.

1. Introduction

L/MONO

AUDIO OUT

VIDEO S-VIDEO

AUDIO

DVI

RGB 1

SLOT 1 SLOT 2

L/MONO

AUDIO

RGB 2

R/Cr

G/Y

RGB OUT

B/Cb

H/ HV

L/MONORL/MONO

USB (MOUSE/HUB)USB (PC)PC CARD

PC CONTROL

OUT

SC TRIGGER REMOTE 2

LAN

REMOTE 2 IN

REMOTE 1

OUT

AC IN

Te rminal panel (Right)

LENS

SHUTTER

POSITION AUTOPIXEL

KEYSTONE AMPLITUDE ENTRYLIST PICTURE

FOCUS ZOOM

CTL

R G B

SOUND OSD

MUTE

LENS

MAGNIFY


TEST

ABC DEF

STU

OFF

JKL MNO PQR

456

123

ADJUST

WHITE BAL.

UNDO CANCEL

HELPINFO.

POWER

VWX YZ/


PROJECTOR

ENTER

ADDRESS

GHI

Remote cable (supplied)

1-13

Installation

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

z Setting Up Your Projector.......................................... 2-2

Screen Size and Projection Distance .................................................................. 2-2

x Lens Shift Adjustable Range ....................................2-4

c Optional Lens Installation .........................................2-6

v Making Connections .................................................2-8

Connecting Your PC or Macintosh ....................................................................... 2-8

To connect Scart Output ................................................................................. 2-9

Connecting an External Monitor .......................................................................... 2-9

Connecting Your DVD Player ............................................................................. 2-10

Connecting Your VCR or Laser Disc Player ....................................................... 2-11

Connecting the Supplied Power Cable .............................................................. 2-11

2-1

This chapter describes how to set up your projector and how to connect video and audio sources.

z Setting Up Your Projector

Your Projector is simple to set up and use. But before you get started, you must first:

2. Installation

1. Determine the image size

2. Set up a screen or select a non-glossy white wall onto which you can project your image.

3. Install the optional lens to the projector.

Screen Size and Projection Distance

Applicable lens and throw distance/ List of screen sizes

List of Screen Sizes

Height

Screen size (Diagonal)

Width

Formulas: Screen width H (m)= Screen size⳯4/5⳯0.0254

4. Connect the supplied power cable.

5. Set up the projector.

6. Connect a PC, VCR, DVD player, or other equipment.

7. Make settings or adjustments on the projector.

Screen size Width (H) Height (V)

40" 0.8 31.5 0.6 23.6 60" 1.2 47.2 0.9 35.4

80" 1.6 63.0 1.2 47.2 100" 2.0 78.7 1.5 59.1 120" 2.4 94.5 1.8 70.9 150" 3.0 118.1 2.3 90.6 200" 4.1 161.4 3.0 118.1 250" 5.1 200.8 3.8 149.6 300" 6.1 240.2 4.6 181.1 400" 8.1 318.9 6.1 240.2 500" 10.2 401.6 7.6 299.2

Screen height V (m)= Screen size⳯3/5⳯0.0254 Screen width H (inch)= Screen size⳯4/5 Screen height V (inch)= Screen size⳯3/5

m inch m inch

Table of Throw Distances and Screen Sizes for Optional Lenses

GT19ZL GT20ZL GT24ZLB GT34ZLB

1.7-2.2

(m) (inches)

1.30 - 1.74

1.99 - 2.65

2.23 - 2.97

2.40 - 3.19

2.68 - 3.56

2.82 - 3.74

3.02 - 4.01

3.37 - 4.47

4.06 - 5.38

5.10 - 6.74

6.14 - 8.11

6.83 - 9.02

7.17 - 9.47

8.21 -10.84

8.56 -11.29

9.25 -12.20

10.28 -13.57 –– ––

51.0 - 68.4

78.3 - 104.2

87.8 - 116.7

94.6 - 125.7

105.5 - 140.0

110.9 - 147.2

119.1 - 158.0

132.7 - 175.9

159.9 - 211.7

200.7 - 265.4

241.6 - 319.2

268.8 - 355.0

282.4 - 372.9

323.2 - 426.7

336.8 - 444.6

364.0 - 480.4

404.9 - 534.1 –– ––

2.0-2.6

(m) (inches)

1.53 - 2.03

2.34 - 3.10

2.62 - 3.47

2.83 - 3.74

3.15 - 4.16

3.32 - 4.38

3.56 - 4.70

3.97 - 5.23

4.78 - 6.30

6.00 - 7.90

7.22 - 9.50

8.04 -10.56

8.44 -11.10

9.66 -12.69

10.07 -13.23

10.88 -14.29

12.10 -15.89 –– ––

40" 60" 67" 72" 80" 84"

90" 100" 120" 150" 180" 200" 210" 240" 250" 270" 300" 400" 500"

GT10RLB

1.0 (inches)

(m)

0.76

30.0

1.17

46.1

1.31

51.7

1.41

55.7

1.58

62.1

1.66

65.3

1.78

70.2

1.99

78.2

2.39

94.2

3.01

118.3

3.62

142.4

4.02

158.5

4.23

166.5

4.84

190.6

5.04

198.6

––

GT13ZLB

1.2-1.5

(m) (inches)

0.91 - 1.15

1.40 - 1.75

1.57 - 1.97

1.70 - 2.12

1.89 - 2.36

1.99 - 2.48

2.14 - 2.66

2.38 - 2.96

2.87 - 3.57

3.60 - 4.48

4.33 - 5.38

4.82 - 5.99

5.07 - 6.29

5.80 - 7.20

6.04 - 7.50

6.53 - 8.11

7.27 - 9.01

112.9 - 140.5

141.8 - 176.2

170.6 - 212.0

189.9 - 235.8

199.5 - 247.7

228.4 - 283.4

238.0 - 295.4

257.2 - 319.2

286.1 - 354.9 –– ––

36.0 - 45.2

55.2 - 69.0

62.0 - 77.4

66.8 - 83.3

74.5 - 92.9

78.3 - 97.6

84.1 - 104.8

93.7 - 116.7

–– ––

2-2

60.1 - 80.0

92.1 - 122.0

103.3 - 136.7

111.3 - 147.2

124.1 - 164.0

130.6 - 172.4

140.2 - 185.0

156.2 - 205.9

188.2 - 247.9

236.3 - 310.9

284.3 - 373.9

316.3 - 415.8

332.4 - 436.8

380.4 - 499.8

396.4 - 520.8

428.5 - 562.8

476.5 - 625.7 –– ––

2.2-3.2

(m) (inches)

––

2.58 - 3.86

2.90 - 4.32

3.12 - 4.66

3.48 - 5.19

3.66 - 5.45

3.93 - 5.85

4.38 - 6.52

5.28 - 7.84

6.64 - 9.83

7.99 -11.83

8.89 -13.15

9.34 -13.82

10.69 -15.81

11.14 -16.47

12.04 -17.80

13.40 -19.79

17.90 -26.43 ––

––

101.6 - 152.0

114.0 - 170.3

122.9 - 183.3

137.1 - 204.3

144.2 - 214.7

154.8 - 230.4

172.6 - 256.5

208.0 - 308.8

261.3 - 387.2

314.5 - 465.6

350.0 - 517.9

367.7 - 544.0

421.0 - 622.4

438.7 - 648.6

474.2 - 700.8

527.4 - 779.2 1,040.6

704.9 -

––

3.2-4.8

(m) (inches)

–– –– –– ––

5.10 - 7.81

5.36 - 8.21

5.76 - 8.81

6.41 - 9.81

7.73 -11.81

9.71 -14.80

11.69 -17.80

13.01 -19.79

13.67 -20.79

15.64 -23.79

16.30 -24.78

17.62 -26.78

19.60 -29.78

26.19 -39.76

32.79 -49.74

–– –– –– ––

200.6 - 307.6

211.0 - 323.3

226.6 - 346.9

252.5 - 386.2

304.5 - 464.8

382.3 - 582.7

460.2 - 700.6

512.1 - 779.2

538.1 - 818.5

615.9 - 936.5

641.9 - 975.8 1,054.4

693.8 -

771.7 -

1,172.3

1,565.3

1,031.2

1,958.4

1,290.8

GT24ZLB (H⳯2.2) -(H⳯3.2)

GT19ZL (H⳯1.7) -(H⳯2.2)

GT10RLB (H⳯1.0)

GT13ZLB (H⳯1.2) -(H⳯1.5)

GT20ZL (H⳯2.0) -(H⳯2.6)

Throw distance

GT34ZLB (H⳯3.2) -(H⳯4.8)

For screen sizes between 40" and 500" not indicated on the above table, use formulas below. Projection Distance= Screen Width (H) ⳯ Lens Magnification Throw distance for GT10RLB (m/inch)=H ⳯ 1.0 Distance from 0.8m to 5.0m/31.5" to 196.9" Throw distance for GT13ZLB (m/inch)=H ⳯ 1.2 through H ⳯ 1.5 Distance from 1.0m to 9.0m/39.37" to 354.3" Throw distance for GT19ZL (m/inch)=H ⳯ 1.7 through H ⳯ 2.2 Distance from 1.4m to 13.5m/55.12" to 531.5" Throw distance for GT20ZL (m/inch)=H ⳯ 2.0 through H ⳯ 2.6 Distance from 1.7m to 15.8m/66.93" to 622" Throw distance for GT24ZLB (m/inch)=H ⳯ 2.2 through H ⳯ 3.2 Distance from 2.6m to 26.4m/102.4" to 1039" Throw distance for GT34ZLB (m/inch)=H ⳯ 3.2 through H ⳯ 4.8 Distance from 5.1m to 49.7m/200.8" to 1957"

2. Installation

NOTE: Distances may vary +/-5%.

NOTE: Lens shift is not available on GT10RLB(Short throw fixed-focus lens). GT10RLB should be used only for “zero degree/no-offset” applications.

NOTE: When using the projector with either the GT13ZLB or GT13ZL lens, it is recommended to select "Dual" in the Lamp Settings menu. This will provide the best performance when operating the projector.

2-3

2. Installation

x Lens Shift Adjustable Range

Lens Shift Range for Desktop and Ceiling Mount Application The diagram below shows the location of the image position in the lens. The lens can be shifted within the shaded area as shown using the normal projection position as a starting point.

Maximum Possible Range for GT20ZL:

Up: 0.5 V Down: 0.5 V Right: 0.32 H Left: 0.32 H (H: width of projected image, V: height of projected image)

NOTE: If lens is shifted in two directions combined, maximum range in either direction cannot be obtained due to rounded off area near edge of lens. (example: shift up and right) See diagram below.

Desktop/Front Vertical

Ceiling/Front Vertical

Normal position

Normal projection position

Normal position

0.5V

0.32H

0.32H 0.32H

0.32H

0.5V

Normal position

WARNING

* Installing your projector on the ceiling must be done by a qualified

technician. Contact your NEC dealer for more information.

* Do not attempt to install the projector yourself.

•To avoid premature lamp failure, do not tilt the front of the projector up or down by more than 45° from level.

• Only use your projector on a solid, level surface. If the projector falls to the ground, you can be injured and the projector severely damaged.

• Do not use the projector where temperatures vary greatly. The projector must be used at temperatures between 32°F (0°C) and 95°F (35°C).

• Do not expose the projector to moisture, dust, or smoke. This will harm the screen image.

• Ensure that you have adequate ventilation around your projector so heat can dissipate. Do not cover the vents on the side or the front of the projector.

Horizontal

Range of lens shift range on GT20ZL

Ver tical: 11.30° to 8.18° Horizontal: 9.67° to 7.00°

When performing the lens shift both vertically and horizontally, the angle on some corners may become narrower than the abovementioned one.

2-4

2. Installation

Lens Shift Adjustable Range

Maximum Possible Range for GT13ZLB/GT19ZL/GT24ZLB/GT34ZLB:

Values in parentheses for GT13ZLB. Up: 0.39V (0.32V) Down: 0.39V (0.32V) Right: 0.24H (0.19H) Left: 0.24H (0.19H) (H: width of projected image, V: height of projected image)

NOTE: If lens is shifted in two directions combined, maximum range in either direction cannot be obtained due to rounded off area near edge of lens. (example: shift up and right) See diagram below.

Desktop/Front Vertical

Ceiling/Front Vertical

Normal position

Normal projection position

Normal position

0.39V (0.32)

0.24H

(0.19H)

0.24H

(0.19H)

0.24H

(0.19H)

Normal position

0.39V

(0.32V)

0.39V

(0.32V)

WARNING

* Installing your projector on the ceiling must be done by a qualified

technician. Contact your NEC dealer for more information.

* Do not attempt to install the projector yourself.

•To avoid premature lamp failure, do not tilt the front of the projector up or down by more than 45° from level.

• Only use your projector on a solid, level surface. If the projector falls to the ground, you can be injured and the projector severely damaged.

• Do not use the projector where temperatures vary greatly. The projector must be used at temperatures between 32°F (0°C) and 95°F (35°C).

• Do not expose the projector to moisture, dust, or smoke. This will harm the screen image.

• Ensure that you have adequate ventilation around your projector so heat can dissipate. Do not cover the vents on the side or the front of the projector.

Horizontal

Range of lens shift range on GT13ZLB, GT19ZL, GT24ZLB and GT34ZLB

GT13ZLB Vertical: 12.05° to 9.22°

Horizontal: 9.59° to 7.32°

GT19ZL Vertical: 10.39° to 7.49°

Horizontal: 8.56° to 6.15°

GT24ZLB Vertical: 8.06° to 5.14°

Horizontal: 6.63° to 4.22°

GT34ZLB Vertical: 5.33° to 3.42°

Horizontal: 3.29° to 2.81° When performing the lens shift both vertically and horizontally, the angle on some corners may become narrower than the abovementioned one.

2-5

2. Installation

c Optional Lens Installation

This section describes how to install the lens.

Before installation

* Determine the optional lens to be used to obtain a desired projection distance. There are six optional lenses available:

GT13ZLB, GT19ZL, GT20ZL, GT24ZLB and GT34ZLB (Zoom lens)

GT10RLB (Short throw fixed-focus lens)

* Press the power button (ON/STAND BY) on the projector or POWER OFF button on the remote control for a minimum of two seconds to turn off the

power, wait 90 seconds for the cooling fan to stop, turn off the main power switch then disconnect the power cable.

Check that the projector has cooled off sufficiently before proceeding.

CAUTION

* The projector and lens contain high-precision parts. Do not induce shock to the projector or the lens.

* Do not touch the lens surface. Doing so can degrade the optical performance.

Preparation: Tools needed for installation:

A hexagonal driver and dust-protective sheets are supplied with the optional lens.

1. Remove the lens hood cap and lens hood.

q Remove the lens hood cap. w Loosen and remove the 2 screws on the lens hood using the hexagonal driver. e Remove the lens hood by pushing down and pulling the top toward you.

-VIDEO

B /C

/ M

N O

L /

M O

N O

Lens hood

Lens hood cap

S B

(

M O

SE/HU

)

U S

(

)

R D

C O

1 N T

R OL

L A

U T

O T

1 E R

E M

O T

U T

C IN

2. Attach a dust-protective sheet.

q Remove the shipping tape on the back of the lens hood. w Insert the dust-protective sheet included with your optional lens. Be careful not to fold the sheet.

Hole

Align the holes on the right.

Shipping tape

Insert the dust-protective sheet with the aluminum side up while bending it.

2-6

3. Mount the lens unit on the projector and connect the extension cable attached to the projector.

q Remove the lens cap from the rear end of the lens unit.

NOTE: Leave the front lens cap for protection while mounting the lens unit.

w Insert the lens unit so that the 4 screws on the lens unit are properly lined up with the 4 holes on the lens mount. e Secure the 4 screws using the hexagonal driver. r Insert the connector of the lens unit fully into the socket of the extension cable attached to the projector.

NOTE: The GT13ZL, GT19ZL, GT24ZL and GT34ZL optional lenses have one connector. The B type lenses (GT13ZLB, GT24ZLB and GT34ZLB) and GT20ZL have two connectors. To insert the connector into the 4-pin socket on the right side.

U D

IO O

U T

L/M

ONO

S L

L/MO

G B

U T

/ Y

V ID

S-V

B /

H/H

L/MONO

AUD

IO OUT

A U

L/MONO

B 1

SLOT 1

L/MONO

U D

G B

LOT

R /C

GB OUT

-V

B /C

H/HV

L/MONO

O T

O U

2. Installation

REMOTE 2

OUT

AC IN

Lens shift defection switch

CAUTION: There is a lens shift detection switch for the moving gears of the lens shift motors used to reduce the risk of pinching fingers. Do not defeat this feature.

4. Reinstall the lens hood.

q Remove the front lens cap from the lens unit. w Insert the lens hood so that the grooves on the 4 corners of the lens hood

are properly lined up with the 4 catches on the projector. e Secure the 2 screws using the hexagonal driver. This completes installation. If necessary, put the lens hood cap on the lens hood.

A U

D I

U T

AUDIO

L /

B 1

N O

S L

AUDIO

/ M

B 2

R/Cr

B O

VID

/ M

O N O

G/Y

-V

B/Cb

/ H

/ M O N

S B

(

MOUSE/HUB

)

U S

(

)

C A

P C

R O

I N

L A

R E

M O

T E

I N

C I

AUDIO OUT

A U

I O

SLOT 1 SLOT 2

G B

R R /C

RGB OUT

V ID

E O

H /H

/M O

N O

/ M

O N O

USB

(

O U

E /H

U B

)

USB

(

)

PC CARD

PC CONTROL

LAN

OUT

REMOTE 1

SC TRIGGER

REMOTE 2

OUT

AC IN

2-7

2. Installation

v Making Connections

NOTE: When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the power to the notebook PC. In most cases signal cannot be output from RGB output unless the notebook PC is turned on after connecting with the projector.

* If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power management software. * If you accidentally hit the POWER button on the remote control, wait 90 seconds and then press the POWER button again to resume.

When Viewing a DVI Digital Signal:

To project a DVI digital signal, be sure to connect the PC and the projector using a DVI-D signal cable (not supplied) before turning on your PC or projector. Turn on the projector first and select DVI (DIGITAL) from the source menu before turning on your PC. Failure to do so may not activate the digital output of the graphics card resulting in no picture being displayed. Should this happen, restart your PC. Do not disconnect the DVI-D signal cable while the projector is running. If the signal cable has been disconnected and then re-connected, an image may not be correctly displayed. Should this happen, restart your PC.

NOTE:

• Use the DVI-D cable compliant with DDWG (Digital Display Working Group) DVI (Digital Visual Interface) revision 1.0 standard. The DVI-D cable should be within 5 m (196") long.

• The DVI (DIGITAL) connector accepts VGA (640x480), SVGA (800x600), 1152x864, XGA (1024x768) and SXGA (1280x1024 @ up to 60Hz).

Connecting Your PC or Macintosh Computer

DVI

USB A USB B PC CARD

PC CONTROL

OUT

SC TRIGGER REMOTE 2

LAN

REMOTE 1

OUT

AC IN

Audio cable (not supplied)

RGB 2

AUDIO OUT

L/MONO

VIDEO S-VIDEO

DVI

AUDIO

RGB 1

SLOT 1 SLOT 2

L/MONO

AUDIO

RGB 2

R/Cr

RGB 1

G/Y

RGB OUT

B/Cb

L/MONORL/MONO

RGB signal cable (not supplied) To mini D-Sub 15-pin connector on the projector.

PHONE

IBM VGA or Compatibles (Notebook type) or Macintosh (Notebook type)

Connecting your PC or Macintosh computer to your projector will enable you to project your computer's screen image for an impressive presentation. To connect to a PC or Macintosh, simply:

1. Turn off the power to your projector and computer.

2. Use a commercially available signal cable to connect your PC or Macintosh to the projector.

3. Turn on the projector and the computer.

4. If the projector goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer you've connected to the projector.

BNC⳯5 cable (not supplied)

Audio cable (not supplied)

IBM PC or Compatibles (Desktop type) or Macintosh (Desktop type)

PHONE

DVI-D cable with ferrite core (not supplied)

Audio cable (not supplied)

NOTE: For older Macintosh, use a commercially available pin adapter (not supplied) to connect to your Mac's video port.

Connecting to RGB 1 IN connectors (BNC)

Use a BNC⳯5 cable (not supplied) to connect your PC and the RGB 1 IN connectors on your projector.

Connecting to RGB2 IN connector (D-Sub 15 Pin)

Use an RGB signal cable (not supplied) to connect your PC and the RGB2 IN connector on your projector.

Connecting Your PC with a DVI Connector

Use a DVI-D signal cable (not supplied) to connect a DVI connector of your PC to the projector.

NOTE: The GT5000 is not compatible with video decoded outputs of NEC ISS6020 and ISS-6010 switcher.

2-8

To connect SCART output (RGB)

Before connections: An exclusive SCART adapter (ADP-SC1) and a commercially available SCART cable are required for this connection.

NOTE:

• Audio signal is not available for this connection.

• The RGB 1 IN connector does not support Plug & Play.

Video equipment such as DVD player

Commercially available SCART cable

RGB 2

Female

DVI

AUDIO

AUDIO OUT

RGB 1

SLOT 1 SLOT 2

L/MONO

AUDIO

RGB 2

R/Cr

G/Y

RGB OUT

B/Cb

VIDEO S-VIDEO

H/ HV

L/MONORL/MONO

ADP-SC1

Projector

USB A USB B PC CARD

PC CONTROL

OUT

SC TRIGGER REMOTE 2

To RGB 2 IN

LAN

REMOTE 1

OUT

AC IN

2. Installation

1. Turn off the power to the projector and your video equipment.

2. Use the NEC ADP-SC1 SCART adapter and a commercially available SCART cable to connect the RGB 2 input of your projector and a SCART output (RGB) of your video equipment.

3. Turn on the power to the projector and your video equipment.

4. Use the RGB 2 button on the remote control to select the RGB 2 input.

5. Press the MENU button on the remote control to display the menu.

6. From the Advanced menu, select [Projector Options] → [Setup]

→

[Page 3] → [Signal Select RGB2] → [Scart]. SCART is a standard European audio-visual connector for TVs, VCRs and DVD players. It is also referred to as Euro-connector.

NOTE: The ADP-SC1 SCART adapter is obtainable from your NEC dealer in Europe. Contact your NEC dealer in Europe for more information.

Connecting an External Monitor

RGB signal cable (not supplied) To mini D-Sub 15-pin connector on the projector.

PHONE

AUDIO OUT

RGB 1

L/MONO

AUDIO

RGB 2

R/Cr

G/Y

RGB OUT

B/Cb

VIDEO S-VIDEO

H/ HV

RGB OUT

L/MONORL/MONO

Audio cable (not supplied)

AUDIO

SLOT 1 SLOT 2

DVI

USB A USB B PC CARD

PC CONTROL

OUT

SC TRIGGER REMOTE 2

LAN

REMOTE 1

OUT

AC IN

Audio cable (not supplied)

LINE IN

RGB signal cable (not supplied) To mini D-Sub 15-pin connector on the projector.

You can connect a separate, external monitor to your projector to simultaneously view on a monitor the RGB analog image you're projecting. To do so:

1. Turn off the power to your projector, monitor and computer.

2. Use a 15-pin cable to connect your monitor to the RGB OUT (Mini D-Sub 15 pin) connector on your projector.

3. Turn on the projector, monitor and the computer.

NOTE:

• The RGB OUT connector outputs RGB signal during idle mode (See page 8-15). When the projector goes into idle mode, the image on an external monitor disappears for a moment. Note that the RGB OUT connector will not output RGB signal during Standby mode.

• When the projector is in the Idle mode, the image may not be correctly displayed while the cooling fans are running immediately after turning on or off the power. Note that the RGB OUT connector will not output RGB signal during Standby mode.

• Daisy chain connection is not possible.

2-9

Connecting Your DVD Player

Optional 15-pin-to-RCA

⳯

(female)

3 cable (ADP-CV1)

Audio cable (not supplied)

RGB 2

L/MONO

AUDIO OUT

RGB 2

RGB OUT

VIDEO S-VIDEO

L/MONORL/MONO

2. Installation

DVI

AUDIO

RGB 1

SLOT 1 SLOT 2

RGB 1

L/MONO

AUDIO

R/Cr

G/Y

B/Cb

H/ HV

RCA(female)-to-BNC(male) adapter (not supplied)

Component video RCA⳯3 cable (not supplied)

USB A USB B PC CARD

PC CONTROL

OUT

SC TRIGGER REMOTE 2

LAN

REMOTE 1

OUT

AC IN

DVD player

AUDIO OUT

YCbCr

Component

You can connect your projector to a DVD player with component output or Video output. To do so, simply:

1. Turn off the power to your projector and DVD player.

2. If your DVD player has the component video (Y,Cb,Cr) output, use a commercially available component video cable (RCAX3) and the optional 15-pin-to-RCA (female)⳯3 cable to connect your DVD player to the RGB 1 IN or 2 IN connector on the projector.

Audio Equipment

AUDIO IN

Audio cable (not supplied)

For a DVD player without a component video (Y,Cb,Cr) output, use an S-Video cable (not supplied) to connect an S-Video output of the DVD player to the S-Video input of the projector. Use an appropriate type of audio cable (not supplied) to connect the desired type of audio from your DVD player to your audio equipment.

3. Turn on the projector and DVD player.

NOTE: Refer to your DVD player's owner's manual for more information about your DVD player's video output requirements,

2-10

Connecting Your VCR or Laser Disc Player

AUDIO OUT

RGB 1

L/MONO

AUDIO

RGB 2

R/Cr

G/Y

RGB OUT

VIDEO

VIDEO S-VIDEO

B/Cb

H/ HV

L/MONORL/MONO

DVI

AUDIO

SLOT 1 SLOT 2

S-VIDEO

USB A USB B PC CARD

PC CONTROL

OUT

SC TRIGGER REMOTE 2

2. Installation

LAN

REMOTE 1

OUT

AC IN

Audio cable (not supplied)

VCR/ Laser disc player

L R

AUDIO OUT

S-VIDEO VIDEO

VIDEO OUT

Use common RCA cables (not provided) to connect your VCR, laser disc player or document camera to your projector. To make these connections, simply:

1. Turn off the power to the projector and VCR, laser disc player or document camera.

2. Connect one end of an RCA cable (not supplied) to the video output connector on the back of your VCR or laser disc player, connect the other end to the Video input on your projector (an RCA to BNC adapter is necessary). Use an audio cable (not supplied) to connect the audio from your VCR or laser disc player to your audio equipment (if your VCR or laser disc player has this capability). Be careful to keep your right and left channel connections correct for stereo sound.

3. Turn on the projector and the VCR or laser disc player.

Video cable (not supplied)

S-video cable (not supplied)

Audio equipment

AUDIO IN

Audio cable (not supplied)

NOTE: Refer to your VCR or laser disc player owner's manual for more information about your equipment's video output requirements.

NOTE: An image may not be displayed correctly when a Video or S-Video source is played back in fast-forward or fast-rewind via a scan converter.

Connecting the Supplied Power Cable

Connect the supplied power cable to the projector. First connect the supplied power cable's three-pin plug to the AC IN of the projector, and then connect the other plug of the supplied power cable in the wall outlet.

2-11

AUDIO OUT

A U

RGB 1

IO / M O N

DVI

SLO

T 1 SLO

RGB 2

T 2

RGB O

G /Y

VIDEO

S-VIDEO

B / C

H /H

L /

M O N O

V L /M

USB

(

M O

U S E /H

U B

)

USB

(

P C

)

PC CARD

PC CO

NTROL

LAN

OUT

REM

OTE 1

RIGGER

REM

OTE 2

OUT

AC IN

Projecting an Image

(Basic Operation)

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

z Tur ning on the Projector............................................3-2

x Selecting a Source ................................................... 3-3

c Adjusting the Picture Size and Position ....................3-3

v Correcting the Horizontal and

Ver tical Keystone Distortion (3D Reform) ................ 3-4

b Optimizing RGB Picture Automatically ..................... 3-6

n Tur ning Up or Down Volume ..................................... 3-6

m Tur ning off the Projector............................................3-7

3. Projecting an Image

3D REFORM

3D A

SELECT

STATUSLAMP 2 POWER

ON/STAND BY

AUTO ADJUST

3D REFORM

3D A

SELECT

STATUSLAMP 2 POWER

ON/STAND BY

AUTO ADJUST

This chapter describes how to turn on the projector and to project a picture onto the screen.

z Turning on the Projector

NOTE:

• When plugging in or unplugging the supplied power cable, make sure that the main power switch is pushed to the off[O] position. Failure to do so may cause damage to the projector.

• The projector has two power switches: main power switch and POWER button (POWER ON and OFF on the remote control)

• The projector has a feature to prevent itself from being used by unauthorized individuals. To use this feature, register your PC card as a protect key. See "Security" in "Projector Options" on page 8-23 for more details.

To turn on the main power to the projector, press the Main Power switch to the ON position ( I ).

POWER

Flashing for 1 minute.

POWER POWER

Flashing green light

3D A

3D REFORM

AUTO ADJUST

ON/STAND BY

3D A

3D REFORM

AUTO ADJUST

ON/STAND BY

Steady light

Steady green light

Standby

POWER

ON/STAND BY

Steady orange light

Before you turn on your projector, ensure that the computer or video source is turned on and that your lens hood cap is removed. Only after you press the ON/STAND BY button on the projector cabinet or POWER ON button on the remote control for a minimum of 2 seconds will the power indicator turn to green and the projector become ready to use.

SELECT

STATUSLAMP 2

NOTE: You cannot turn off the projector for 60 seconds immediately after turning on the projector.

Note on Startup screen (Menu Language Select screen)

When you first turn on the projector, you will get the Startup screen. This screen gives you the opportunity to select one of the seven menu languages: English, German, French, Italian, Spanish, Swedish and Japanese. To select a menu language, follow these steps:

1. Use the SELECT 왖 or 왔 button to select one of the seven languages

for the menu.

SELECT

STATUSLAMP 2 POWER

2. Press the ENTER button to execute the selection.

3. The Basic menu will be displayed in the language you have selected.

To close the menu, press the CANCEL button.

After this has been done, you can proceed to the advanced menu operation. If you want, you can select the menu language later. See "Language" on page 8-13.

NOTE: To turn the projector on by plugging in the power cable, first turn on the Main Power switch to ON and use the menu and enable the "Auto Start" feature. (See page 8-16.) Immediately after turning on the projector, screen flicker may occur. This is not a fault. Wait 3 to 5 minutes until the lamp lighting is stabilized.

• If one of the following things happens, the projector will not turn on.

* If the internal temperature of the projector is too high, the projector

detects abnormal high temperature. In this condition the projector will not turn on to protect the internal system. If this happens, wait for the projector's internal components to cool down.

* When the lamp reaches its end of usable life, the projector will not turn

on. If this happens, replace the lamp.

* If the lamp fails to light, and if the LAMP indicator 1 or 2 flashes on and

off in a cycle of six times, wait a full minute and then turn on the power.

3-2

3. Projecting an Image

x Selecting a Source

Selecting the computer or video source

Using the Remote Control

POWER

OFF


ABC DEF

123

JKL MNO PQR

456

STU

TEST

POSITION AUTOPIXEL

LENS

SHUTTER


KEYSTONE AMPLITUDE ENTRYLIST

FOCUS ZOOM

ADJUST

WHITE BAL.

VWX YZ /

UNDO CANCEL

MUTE

SOUND OSD

R G B

MAGNIFY

LENS

CTL

ADDRESS

ENTER


PROJECTOR

GHI

HELPINFO.

Press the Source/Number button (0-9) to select input.

1 ...... RGB 1 input

2 ...... RGB 2 input

3 ...... DVI (DIGITAL) input

4 ...... VIDEO input

5 ...... S-VIDEO input

6 ...... Viewer

7 ...... LAN

8 ...... SLOT 1

9 ...... SLOT 2

0 ...... Sequentially selects:

RGB1 (VIDEO) → RGB2 (S-VIDEO) →

RGB1 (VIDEO) ........

c Adjusting the Picture Size and Position

1. Turn on the projector

2. Select your type of projector orientation. Desktop front, ceiling rear, desktop rear, and ceiling front.

3. Display the test pattern by pressing the TEST button on the remote control or using the menu.

TEST

4. Adjust the image position and the image size.

NOTE: If no input signal is available, the projector will display a blue background (factory preset).

Using the menu

You can also select the computer or video source using the menu.

POWER

SELECT

STATUSLAMP 2 POWER

3D A

3D REFORM

ON/STAND BY

AUTO ADJUST

OFF

ADDRESS

ENTER

(1) Press and hold the CTL button and press the POSITION button to

display the Lens Shift adjustment screen.

Use the SELECT button on the remote control or the LENS SHIFT button on the projector cabinet to move the image horizontally and vertically.

To close the Lens Shift adjustment screen, press the CANCEL button. See pages 2-4 and 2-5 for “Lens Shift Adjustable Range”.

POSITION

LENS

CTL

3-3

3. Projecting an Image

(2) Press and hold the CTL and press the ZOOM + or - button to adjust

the image size. You can also adjust the image size by using the ZOOM + or - button on the projector cabinet.

MAGNIFY

FOCUS ZOOM

LENS

CTL

(3) Press and hold the CTL button and press the FOCUS + or - button

to obtain the best focus. You can also adjust the focus by using the FOCUS + or - button on the projector cabinet.

FOCUS ZOOM

LENS

CTL

MAGNIFY

Preparation (Recommended): Warm up the projector for about 60 minutes.

Adjusting the Focus

1. Practice focusing Use the FOCUS (+) or (-) button on the projector or the remote control to increase or decrease the focus values to verify the accuracy of focusing.

2. Try optimizing defocus Use the FOCUS button (-) to decrease the focus values until pixel patterns are too blurry to be visible.

3. Obtain correct focus Use the FOCUS button (+) to obtain the best focus. Do not use the FOCUS (-) button at this time.

Finally store the adjustments in memory.

If you adjust beyond the best focus point, go back to step 2 and repeat the procedures. Always adjust the focus from the negative direction towards the positive direction.

v Correcting the Horizontal and Vertical Keystone Distortion (3D Reform)

Use the 3D Reform feature to correct keystone (trapezoidal) distortion to make the top or bottom and the left or right side of the screen longer or shorter so that the projected image is rectangular. In the following description, 3D Reform (Cornerstone) correction can be done with the USB mouse, remote control or cabinet buttons.

When using the USB mouse connected to the projector

Preparation: Connect the USB mouse to the projector. See page 4-3.

1. Project an image so that the screen is smaller than the area of the raster.

2. Pick up any one of the corners and align the corner of the screen with the one of the image. (The drawing shows the upper right corner.)

Projected image

Tips on Adjusting Focus

Optimum focus adjustments can be achieved on the projector by paying special attention in a few areas. Focus adjustment after the projector has warned up to normal operating temperature is better than doing so when the projector is cold. Lens mechanism interacts differently when adjusting focus from one direction to the other. For this reason final focus adjustments should be done in a specific direction.

For optimum focus, follow the steps below. For the zoom and the lens shift adjustment, perform the normal procedures.

Screen

3-4

3. Projecting an Image

3. Press the 3D REFORM button on the remote control. The Cornerstone adjustment screen is displayed. The Cornerstone adjustment screen will disappear when you move the USB mouse cursor.

4. Point to one of the remaining 3 corners and left-click on it.

Left-click on the corner.

Screen

5. Do the above step 4 for the other two corners so that the projected area becomes smaller than the screen.

Screen

When using the remote control or cabinet buttons:

1. Project an image so that the screen is smaller than the area of the raster.

2. Pick up any one of the corners and align the corner of the screen with the one of the image.

Projected image

Screen

(The drawing shows the upper right corner.)

3. Press the 3D REFORM button on the projector or the KEYSTONE button on the remote control.

Left-click on each corner.

6. To complete the procedure, right-click anywhere on the screen. The confirmation screen is displayed.

7. Left-click on "OK". This completes the Cornerstone adjustment.

*To return the Cornerstone adjustment to the default settings, left-click

on "Reset" in Step 7.

You can save your Cornerstone changes. The changes are saved when you turn off the projector. To do so, select [Projector Options] → [Setup] → [Page 4]. Select the 3D Reform Save check box. This is not selected at the time of shipment.

* There are limitations of shapes which can be corrected using the Cornerstone adjustment. When adjusting the Cornerstone beyond these limits, you will get the message "Out of adjustment range!" and no correction can be done. Should this happen, do the Cornerstone adjustment again within the allowable range. * Due to limitations of accuracy within internal processes, there may be some discrepancy of positions between the mouse cursor and corrected shape or one corner and the other 3 corners.

The Cornerstone adjustment screen is displayed.

NOTE: Press the 3D REFORM button to toggle between "Cornerstone" and "Keystone."

4. Use the SELECT direction you wish to move the projected image frame.

5. Press the ENTER button.

6. Use the SELECT shown on the example.

7. Press the ENTER button.

왖왔왗왘

button to select one icon which points in the

Screen

왖왔왗왘

button to move the projected image frame as

Screen

3-5

3. Projecting an Image

JKL MNO PQR

8. Use the SELECT

왖왔왗왘

button to select another icon which points in

the direction.

Screen

On the Cornerstone adjustment screen, select “Exit” and then “OK”, or press the CANCEL button on the remote control.

The confirmation screen is displayed.

9. Press the SELECT

왗

or 왘 button to highlight the [OK] and press the

ENTER button.

This completes the keystone correction. Selecting “Cancel” will return to the adjustment screen without saving changes (Step 3). Selecting "Reset" will return to the factory default. Selecting "Undo" will exit without saving changes.

NOTE: To return the 3D Reform correction setting values to the factory default, press and hold the 3D REFORM button on the projector cabinet or the KEYSTONE button on the remote control for a minimum of 2 seconds.

NOTE: During 3D Reform adjustment, "Aspect Ratio" and "Screen" may not be available. Should this happen, first reset the 3D Reform data and then do each setting. Second repeat the 3D Reform adjustment. Changing Aspect Ratio and/or Screen setting can limit 3D Reform in its adjustable range.

The adjustable ranges for 3D Reform are as follows:

Horizontal ........... Max ±30° approx.

Ver tical ............... Max ±40° approx.

* The following are conditions at the above maximum angle when all of

the following are met

• Image is projected in Wide (Zoom)

• The lens is positioned at the center (when not, adjustable range increases or decreases)

• Resolution is XGA

Higher resolution than XGA limits 3D Reform in its adjustable range.

• Menu items should be set as follows:

Aspect Ratio ............................... 4:3

Screen Type ................................ 4:3

• Horizontal and Vertical are adjusted separately.

A combination of both adjustments limits 3D Reform in its adjustable range.

• When “Native” is selected in “Resolution”, “3D Reform” is not available.

b Optimizing RGB Picture Automatically

Adjusting the Image Using Auto Adjust

Optimizing RGB image automatically Press the Auto Adjust button to optimize an RGB image automatically.

[Poor picture]

3D A

3D REFORM

SELECT

AMP 2 POWER

STATUS

456

STU

AUTO ADJUST

ON/STAND BY

VWX YZ/

UNDO CANCEL

[Normal picture]

TEST HELPINFO.

POSITION AUTOPIXEL

LENS

Press the AUTO ADJUST or AUTO button to fine-tune the computer image or to remove any vertical banding that might appear and to reduce video noise, dot interference or cross talk (this is evident when part of your image appears to be shimmering). This function adjusts the clock frequencies that eliminate the horizontal banding in the image. This function also adjusts the clock phase to reduce video noise, dot interference or cross talk. (This is evident when part of your image appears to be shimmering.) This adjustment may be necessary when you connect your computer for the first time.

NOTE:

• Some signals may not be displayed correctly or take time.

• The Auto Adjust function does not work for component and video signal.

• If the Auto Adjust operation cannot optimize the RGB signal, try to adjust Clock and Phase manually. See page 8-10.

n Turning Up or Down Volume

Sound level from the speaker and the AUDIO OUT jack (RCA) on the projector can be adjusted.

NOTE: The SELECT 왖 or 왔 button works as a volume control only when no menu appears.

Volume bar

increase volume

decrease volume

NOTE: The volume bar can be displayed by selecting “Sound” from “Basic Menu” or “Advanced Menu”.

3-6

m Turning off the Projector

To turn off the projector:

First press the POWER (ON/STAND BY) button on the projector cabinet or the POWER OFF button on the remote control for a minimum of two seconds. The POWER indicator will glow orange. After the projector turns off, the cooling fans keep operating for 90 seconds (Cooling-off time). Second, turn off the Main Power switch. The power indicator will go out. Last unplug the power cable.

POWER

OFF

ADDRESS

ENTER

3. Projecting an Image

Power on

POWER

Steady green light

ON/STAND BY

Fan working

POWER POWER

Flashing orange light

Standby

Steady orange light

NOTE: You cannot turn off the projector for 1 minute immediately after turning on the projector.

CAUTION Do not unplug the power cable from the wall outlet or do not turn off the main power under any one of the following circumstances. Doing so can cause damage to the projector:

• While the Hour Glass icon appears.

• While the message "Please wait a moment." appears. This message will be displayed after the projector is turned off.

• While the cooling fans are running. (The cooling fans continue to work for 90 seconds after the projector is turned off).

• While accessing a PC card or LAN card. (The PC Card Access indicator lights.)

3-7

Convenient Features

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

z Tur ning Off the Image and Sound............................. 4-2

x Enlarging and Moving a Picture................................ 4-2

c Getting the On-line Help and Information ................. 4-2

v Using a USB Mouse .................................................4-3

b Using a USB HUB Function...................................... 4-3

n Changing Background Logo ..................................... 4-4

m Making Freehand Drawings on

a Projected Image (ChalkBoard) ..............................4-4

, Lens Memory ............................................................4-5

4. Convenient Features

z Turning Off the Image and Sound

Press the MUTE PICTURE button to turn off the image and sound for a short period of time. Press again to restore the image and sound.

MUTE

PICTURE SOUND OSD

Press the MUTE SOUND button to turn off the sound for a short period of time. Press again to restore the sound.

MUTE

PICTURE SOUND OSD

Press the MUTE OSD button to turn off the on-screen display. Press again to restore the on-screen display.

MUTE

PICTURE SOUND OSD

x Enlarging and Moving a Picture

You can enlarge the area you want up to 400 percent. To do so:

Press the MAGNIFY button.

Enlarge the selected area. When the MAGNIFY (+) button is pressed, the image is magnified. To move the magnified image, use the SELECT button.

MAGNIFY

ZOOM

Return the image to the original size.

MAGNIFY

ZOOM

Getting the On-line Help and Information

You get the contents about Help.

HELP

SELECT

Display Help

Exit Help

You get the source and projector information.

INFO.

Press this button once to display “Source Information” and press twice to display “Projector Information”. Press third time to close it.

4-2

4. Convenient Features

v Using the USB Mouse

Using a commercially available USB mouse gives you smooth operation.

USB(MOUSE/HUB

AUDIO

AUDIO OUT

VIDEO S-VIDEO

L/MONO

RGB OUT

DVI

RGB 1

OPTION 1 OPTION 2

L/MONO

AUDIO

RGB 2

R/Cr

G/Y

B/Cb

H/HV

L/MONORL/MONO

NOTE: There may be some brands of USB mouse that the projector does not support.

Operate the Projector Menus using the USB mouse

Mouse Cursor

When connecting a USB mouse to the projector, you get a mouse cursor on the screen. Unless you use your USB mouse within 10 seconds, the mouse cursor disappears.

Menu Display

Clicking with a mouse button displays the menu. Clicking 왘 displays the pull-down menu. To close the menu, click anywhere in the background.

Adjusting and Setting Display

You can select a menu item and click with a mouse button to make adjustments and setting.

)

USB (MOUSE/HUB)USB (PC)PC CARD

PC CONTROL

OUT

SC TRIGGER REMOTE 2

LAN

REMOTE 1

OUT

AC IN

Operate the PC mouse using the USB mouse

)

LAN

REMOTE 1

OUT

AC IN

AUDIO OUT

VIDEO S-VIDEO

AUDIO

DVI

RGB 1

OPTION 1 OPTION 2

L/MONO

AUDIO

RGB 2

R/Cr

G/Y

RGB OUT

B/Cb

H/HV

L/MONORL/MONO

USB (MOUSE/HUB)USB (PC)PC CARD

PC CONTROL

OUT

SC TRIGGER REMOTE 2

USB(PC

NOTE: You can select the operation mode of the USB mouse connected to the USB port of the projector.

b Using the USB HUB Function

When using the projector with a PC via the supplied USB cable, both the USB port(type A) on the projector can be connected to a USB-supported scanner or other USB-supported device. (USB Hub Function)

Example: When connecting a PC and a scanner to each USB port respec-

tively

AUDIO OUT

L/MONO

AUDIO

RGB 2

R/Cr

G/Y

RGB OUT

B/Cb

VIDEO S-VIDEO

H/HV

L/MONORL/MONO

AUDIO

DVI

RGB 1

OPTION 1 OPTION 2

L/MONO

USB(MOUSE/HUB

)

USB (MOUSE/HUB)USB (PC)PC CARD

PC CONTROL

OUT

SC TRIGGER REMOTE 2

USB(PC

LAN

REMOTE 1

OUT

AC IN

)

Examples

Click (or press and hold) the mouse button 왗 or 왘 to adjust the brightness. Or click and drag the mouse button on the slide bar horizontally to adjust it.

To save the adjustments, click . This closes the menu. If you click anywhere in the background while displaying an adjustment and setting menu or dialog box, you will go to the main menu after clicking with the mouse.

Clicking displays help.

Using the Middle Button/Wheel on a Mouse (when available)

The projector supports the middle button/wheel on a mouse. With the middle button/wheel you can use a scroll bar or click the middle button/wheel to display or hide the Chalkboard toolbar.

An example of how a scanned image is projected

1. Install the Dynamic Image Utility on your PC.

NOTE: The Dynamic Image Utility is contained on the supplied CD-ROM. See “6- b Software Installation” for the installation procedure.

2. Use your scanner to scan an image.

NOTE: A scanner driver must be installed on your PC before use.

3. Load the scanned image on your PC using the Dynamic Image Utility.

4. Transmit the scanned image from your PC to the projector via the USB cable and project the image on the screen.

NOTE:

• The USB HUB function is effective only when “Auto” is selected in Operation Mode Select.

• The PCs using the USB Host Controller may not be available.

• When connecting a USB hub to the USB port (type B) on the projector, be sure to use a USB hub capable of supplying 500mA per port of downstream current.

4-3

4. Convenient Features

n Changing Background Logo

You can change the default background logo using the PC Card Files feature.

NOTE: File size must be 256KB or less. Other file formats than JPEG and BMP are not available.

1. From the menu, select [Tools] → [PC Card Files] to display a list of all the files stored in the PC card so that you can select a file you want to use as a background logo.

2. The Logo button allows you to select a background logo from graphic files on a PC card and change to it as the background logo.

3. Use the SELECT background logo.

4. Use the SELECT

5. Press the ENTER button on the remote control or the cabinet. You will get the confirmation dialog box.

6. Select "OK" and press the ENTER button. This completes changing a logo for the background.

왖

or 왔 button to select a JPEG or BMP file for your

왘

and then 왔 button to select "Logo".

m Making Freehand Drawings on a Projected Image (ChalkBoard)

The ChalkBoard feature allows you to write and draw messages on a projected image.

NOTE: The ChalkBoard feature is available only when a USB mouse is used.

From the menu, select [Tools] → [ChalkBoard] to display the ChalkBoard tool bar that contains the following icons.

NOTE: You can also display the ChalkBoard tool bar by clicking the scroll button on your USB mouse.

Pen

Pen .............. Left-click and drag to draw. Left-click [왖] or right-click the

pen icon to display the pen palette containing four lines of different thickness from which you can select a line you prefer by left-clicking.

Color ........... Selects a color. Left-click to display the color palette from

which you can select a color you prefer by left-clicking.

Capture ....... Left click to capture and save freehand drawings in the PC

card.

Eraser ......... Left-click and drag to erase part of a drawing. Left-click [왖]

or right-click the eraser icon to display the eraser palette containing four eraser of different thickness from which you can select an eraser you prefer by left-clicking.

Clear ........... Left-click to clear the drawing completely from the

ChalkBoard screen.

Drive ............ Switches between PC Card slot.

Hide ............. Hides the tool bar by left-clicking. Right-clicking anywhere

on the screen displays the ChalkBoard tool bar again.

Exit .............. Clears the complete drawing and exits the ChalkBoard.

Eraser Drive

Capture

Exit

ClearColor

Hide

* Once you have changed the background from the NEC logo to an-

other, you cannot return the logo to background even by using Factory Default. To do so, repeat the above steps. The NEC logo file is included on the supplied CD-ROM NEC Projector User Supportware (/Logo/nec_bb_x.jpg).

NOTE:

• The menu is not available while you display the ChalkBoard screen.

• Switching slides clears a drawing completely.

4-4

, Lens Memory

This function serves to store the adjusted value when using the Shift, Focus, and Zoom buttons of the projector or the remote control.

Reference memory:

Reference Point ....... Adjusted settings are stored in memory as a

reference common to all the input sources. If no setting is stored in Custom Point, the adjusted settings in Reference Point will be applied.

Custom memory:

Custom Point ........... Adjusted settings are stored in memory for

each input signal.

Usage Example When you wish to display on a screen having a 4:3 aspect ratio an NTSC or other 4:3 aspect ratio signal and an SXGA or other 5:4 aspect ratio signal:

4. Convenient Features

Perform shift, focus, and zoom adjustments to set the vertical screen size of the vertically tall 5:4 aspect ratio signal to standard. Both 4:3 apsect ratio signals and 5:4 aspect ratio signals can now be displayed. Note that with these shift, focus, and zoom adjustments, the 4:3 aspect ratio signal will become smaller on the screen. To eliminate this size reduction, adjust the shift, focus and zoom to the optimum condition for each of the 4:3 aspect ratio signal and the 5:4 aspect ratio signal. Memory (storage) of each of these values will permit projection at an optimum condition upon signal switching.

1. Perform Zoom, Focus and Lens Shift adjustments and store them in memory using “Set Custom Point”. Another way to store your adjustments is to use the CTL and INFO buttons on the remote control.

2. When “Yes” is selected for “Use Point on Signal Change”, the adjustment is applied to the signal you switched.

NOTE: The Lens Memory function is not available in Link mode.

NOTE: The other optional lenses than GT10RLB, GT13ZLB, GT20ZL, GT24ZLB and GT34ZLB do not support Lens Memory function. (On GT10RLB focus can be stored in memory)

You cannot store settings for zoom and focus on the following lenses: GT13ZL, GT19ZL, GT24ZL and GT34ZL.

Picture Mute during Lens Shift? To turn off the image and sound during lens shift, select "Yes".

NOTE: This option is only available when "Yes" is selected for "Use Point on Signal Change?".

4-5

Using the Viewer

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

z Making the Most out of the Viewer Function .............5-2

x Operating the Viewer Function from the Projector

(playback).................................................................5-3

5-1

PC CARD

5. Using the Viewer

NOTE:

•To use the Viewer, first you need to create presentation materials on your PC

using the Dynamic Image Utility 2.0 contained on the supplied NEC Projector User Supportware CD-ROM. For installation, see “6-

Software Installation”. For creating presentation materials, see the Slide show function on the on-line manual of the Dynamic Image Utility 2.0.

• Selecting Viewer sets the audio input for DVI input.

Making the Most out of the Viewer Function

Features

You can view presentation data, capture, and play images on the projector. A PC card is used to view presentation data prepared on the computer and to capture and play images projected with the projector. The Viewer feature allows you to view slides stored on a PC memory card (referred to as PC card in this manual) on the projector. Even if no computer is available, presentations can be conducted simply with the projector. This feature is convenient for holding presentations at meetings and in offices, as well as for playing images taken on digital cameras.

Easy to use

• Presentations can be started immediately simply by inserting a PC card (not supplied)

• Easy slide switching

• Remote control operation

•Jumping to list of slides or any specific slide

High quality images

• High resolution up to 1024 x 768 dots

• 24-bit full color playback

• Viewing of digital camera images

Inserting and Removing a PC Card

NOTE:

• Do not try to force the PC card into the slot.

NOTE: When using two PC cards, do not insert both PC cards into the two PC card slots simultaneously. Doing so may cause projector malfunction such as shutting down. Each PC card must be inserted slowly one at a time.

Inserting the PC Card

• Hold the PC card horizontally and insert it slowly into PC card slot 1 or 2 with its top facing up.

PC card (not supplied)

USB

(

MOUSE/HUB

)

USB

(

)

PC CARD

PC CONTROL

LAN

OUT

REMOTE 1

SC TRIGGER

REMOTE 2

OUT

AC IN

Removing the PC Card

Press the eject button slowly. The eject button card pops out a little. Press the eject button slowly again. Grasp the edges of the PC card and pull it out. Push and insert the eject button fully until it stops.

Simple utility software (for computer)

• Dynamic Image Utility 2.0 operable on Windows 98/Me/XP/2000

• Slides can be created by capturing the currently displayed image

• Control screen for displaying lists of slides and editing

* Microsoft, Windows and PowerPoint are registered trademarks of

Microsoft Corporation.

(

)

(

)

C CA

C C

TE 1

TE 2

C IN

Eject button

NOTE: Do not eject the PC card while its data is being accessed.

Direction for Inserting the PC Card

The PC card has a top and bottom and must be inserted into the PC card slot in a specific direction. It cannot be inserted backwards or upside-down. Attempting to force it into the slot in the wrong direction may break the internal pin and damage the card slot. Refer to the PC card's operating instructions for the proper direction of insertion.

PC Card Type

The PC Card slot accepts PCMCIA Type II only.

5-2

Folder

02 : 0001 / 0008

Folder Folder Folder

Folder

Slide Slide Slide Slide

02 : 0004 / 0008

5. Using the Viewer

3D REFORM

3D A

SELECT

STATUSLAMP 2 POWER

ON/STAND BY

AUTO ADJUST

x Operating the Viewer Function from the Projector (playback)

This section describes the operation for showing slides of presentation documents created using the Viewer function with the projector. It is also possible to make slides directly from the images projected with the projector.

Projecting slides (Viewer)

1. Insert a PC card into the PC card slot.

Insert the PC card so that the end with the insertion direction arrow on the top goes in first.

* Press the eject button to eject the card.

2. Select the "Viewer" from the Source Select menu.

3. Project slides.

Checking "Show Folder List", means that selecting Viewer input displays a list of the folders in the PC card and if "Auto Play" is checked the projector automatically starts to play slides at the first slide of the folder you have selected.

A tool bar will appear when you press the MENU button on the remote control or the projector cabinet or clicking with the right button of a mouse.

Prev Play Jump Drive

Delete

When the tool bar is not displayed:

You can use the 왗 and 왘 button on the cabinet to select folders or slides.

Multi cursor (blue marks)

Current folder number

Current slide

Number of all slides in folder

number

Use the SELECT 왗 or 왘 button to advance to the next folder or return to the previous folder.

Next Stop Select

Setup

The tool bar includes the following buttons:

Prev .......... Returns to the previous slide or folder. Or this lets

you play slides back in reverse.

Next .......... Advances to the next slide or folder. Or this lets you

play slides back.

Play .......... Plays back automatically or manually depending on

the setting on Viewer Options of the menu. This allows you to move on to the next slide when "Manual Play" is selected.

Stop .......... This allows you to stop Auto Play while you are play-

ing back and to resume playing from the selected slide or folder when "Auto Play" is selected.

Jump ........ Displays a list of slides while you are playing back.

Select ....... Displays a list of folders while you are playing back.

Drive ......... Switches between PC Card slot.

Setup ........ Displays the Viewer Options dialog box on Page 2 of

the Setup dialog box.

Delete ....... Deletes a captured slide(s) or all the captured slides

in the Capture - specific folder.

View ......... Hides the tool bar while you are playing back. Press-

ing the MENU button or clicking with the right button of a mouse shows it again.

NOTE: If no memory card is inserted in the PC CARD slot, there is no signal, and a black, blue or logo background is displayed, depending on the setting. Playback is stopped when 왗왘 button on the cabinet is pressed in Auto Play mode. Up to 12 indexes can be displayed on the list of folders. The folder in the right bottom is always a folder exclusively for captured images, but is only displayed when images have been captured.

View

STATUSLAMP 2 POWER

3D REFORM

ON/STAND B

Folder

SELECT

Use the SELECT 왗 or 왘 button to advance to the next slide or return to the previous slide.

Slide(Table) cursor (green marks)

5-3

5. Using the Viewer

Auto Play Mode

If the "Auto Play" option is selected in "Viewer Options" of the menu, any given slide will start to play automatically. You can also specify Auto Play Interval between 5 and 300 seconds.

Switching to Slides Directly from Other Input Modes

With this function it is possible to switch directly to a slide when the picture of a VCR or computer is being projected. Example: When conducting presentations using a combination of slides and moving pictures from a VCR, etc., it is possible to switch from a Viewer slide to the video picture then back to the Viewer slide simply by using the SELECT button.

NOTE: Even if you switch the current Viewer source to another source, the current slide is retained. When you return back to the Viewer, you will get the slide that has been retained.

The PC card editing operation cannot be performed from the projector. Do so using the Dynamic Image Utility 2.0 software.

Viewing Digital Images

Digital images can be played with the Viewer if the following conditions are met:

• If the image can be stored on an MS-DOS format PC card

• If the image can be stored in a format supported by the Viewer. With the Viewer, images on the card are searched for in directories and images in JPEG or BMP format are recognized as slides. Searchable directories are directories within two steps from the root directory, and searchable images are images within the first 12 files in the directory. Only file and slide switching are possible.

NOTE: The maximum number of images recognized as slides within one directory is 128.

Storing Images Displayed on the Projector on the PC card (Capture)

The Capture features allows you to capture an image from a source that is currently being displayed. The image is saved as JPEG in the PC card. When you select Capture from the menu, you will get a tool bar. You can capture an image directly using the tool bar when the menu is not displayed.

NOTE: * Unless a PC card is inserted into the PC Card slot of the projector, the Capture

feature is not available.

* The "Card Error" display means that the free space of the PC card is insufficient

for saving images. Make more space available on the card by erasing unwanted images with your PC. The number of images that can be captured depends on the size of the PC card.

Preparations:

Insert the PC card into the card slot.

Insert the PC card so that the end with the insertion direction arrow on the top goes in first. * Press the eject button to eject the card.

1. Project the image you wish to store on the projector.

2. Select the "Capture" from the Tools menu.

3. A tool bar will appear. Capture

Freeze

Exit

Drive

The tool bar includes the following buttons:

Capture .... Captures an image and save it as a JPEG file on a

PC card.

Freeze ...... Freezes and unfreezes images.

Drive ......... Switches between PC Card slot.

Exit ........... Exits the Capture function. Another option to exit the

Capture function is to press MENU or CANCEL button on the remote control or projector cabinet.

NOTE: You can compress a captured file (JPEG) using the Capture Options in the Setup dialog. See page 8-15.

Captured images with higher resolution than the projector's native resolution cannot be displayed correctly.

• File size of the captured image varies depending on the resolution of an input

signal.

• An hourglass indicating that an image is being captured appears on the projector's

display. Do not eject the PC card or turn off the projector's power while this icon is displayed. Doing so will damage the PC card data. If the PC card data is damaged, use a computer to repair the data.

5-4

Deleting Captured Images

Using the Delete button on the tool bar for Viewer can delete captured images.

5. Using the Viewer

Setup

Delete

View

Prev Play Jump Drive

Next Stop Select

To delete captured images:

1. Select Viewer and display a folder list of captured images.

2. Use

3. Press the MENU button to display the tool bar.

4. Use the

button to select the Capture folder “Cap” in the right bottom of

the screen.

왗

button or click with a mouse button.

or 왘 button to select the Delete icon and press the ENTER

Using the PC Card Files Fucntion (PC Card Files)

The PC Card Files function allows you to display a list of all the files stored in the PC card so that you can select a file you want to display. You can also sort files by file name or date, or display the file. Although a list of all the files in the PC card is displayed, you can view files in idx, text, HTML, JPEG and BMP format only. Selecting BMP and JPEG files automatically switches to the Viewer source. See also page 5-3.

NOTE: This option is not available for selection unless a PC card is inserted properly.

Selecting "Execute" displays the file you selected. When you select a JPEG or BMP file and press the ENTER button on the remote or the cabinet, or "Execute" on the above, you will get a toolbar. This toolbar is used to return to the PC Card Files screen.

Return

Return ......... Returns to the PC Card Files screen.

Close ........... Close the toolbar.

5-5

Using the Projector in a Network

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

z End User License Agreement................................... 6-2

x Introduction ...............................................................6-3

c Supported Projectors ................................................6-4

v Equipment Connections and Settings ...................... 6-5

b Software Installation .................................................6-6

n Starting/Exiting the Software ....................................6-7

m Troubleshooting ........................................................ 6-8

6-1

6. Using the Projector in a Network

Be sure to read this before using the accompanying software.

z END USER LICENSE AGREEMENT

PLEASE READ THIS SOFTWARE LICENSE AGREEMENT ("LICENSE") CAREFULLY BEFORE PRESSING THE "Yes" BUTTON BELOW. BY PRESSING "Yes", YOU ARE AGREEING TO BE BOUND BY THE TERMS OF THIS LICENSE. IF YOU DO NOT AGREE TO THE TERMS OF THIS LICENSE, PRESS "No" AND (IF APPLICABLE) RETURN THIS SOFTWARE TO THE PLACE WHERE YOU OBTAINED IT FOR A REFUND.

NEC Viewtechnology,Ltd.("NECVT") grants you ("User") a license to use the NEC PROJECTOR USER SUPPORTWARE ("Software") provided with this End User License Agreement ("EULA"). User assumes responsibility for the selection, adoption use and the result of use of the Software to achieve its intended result.

1. Term

1) EULA will become effective upon User's agreement to the terms of EULA and shall remain in force until User terminates it by returning or destroying the Software and its related documents.

2) Notwithstanding the foregoing NECVT may terminate EULA at any time upon User failing to abide by any terms of EULA. Upon the termination of the EULA by NECVT, the license granted to User shall be terminated automatically. User agrees to destroy the Software together with all copies of it upon such termination.

2. License

User use the Software on personal computers only for operating NECVT's projector supplied with the Software or other projector to be specified by NECVT("Projector")

6. Limitations of Warranty

1) Except as expressly specified herein, the Software is provided "as is" without warranty of any kind, including but not limited to implied warranties for fitness for a particular purpose, merchantability, title and non-infringement of any third party rights.

2) If User finds a material defect, which effects to the proper operation of the Software, in the media of the Software, NECVT will replace such defective media at no charge, if such media is returned to distributor from which such User purchased it within 1 month from such purchase and if NECVT determines that such defect is due to NECVT.

7. Limitations of Liability

In no event shall NECVT be responsible for any indirect, consequential or special damages or lost profits even if NECVT has been advised of the possibility of such damages, and/or for any claim for compensation or damage by any third party to User.

8. Others

1) The validity, interpretation, construction and performance of EULA shall be governed by the laws of Japan.

2) User shall not export the Software to any country to which such export would be prohibited by any applicable laws.

3. Replication, modification and merger of the Software

1) User may make copies of the Software and related documentation to the extent necessary for using the Projector. User agrees to reproduce the NECVT's copyright notice and other notice on any such copies.

2) User may not use, copy, modify, or otherwise dispose of the Software, except as expressly permitted in EULA.

3) No provision in EULA shall be construed to assign and/or transfer any intellectual property right in the Software to User.

4. Transfer of the Software

1) User may transfer the Software to any third party, provided always that:

a) User must transfer, with the Software, to such third party EULA

and all the related

documentation with all copies thereof, and must not retain any

copy thereof.

b) Such third party has agreed to the terms and conditions of

EULA.

2) Except as otherwise expressly permitted above, User may not sublicense, assign, transfer or otherwise dispose of the license for the Software.

5. Reverse Engineering

User may not reverse engineer, decompile, and/or disassemble the Software, except and only to the extent that such activity is expressly permitted by applicable law notwithstanding this limitation.

6-2

6. Using the Projector in a Network

x Introduction

Thank you for your purchase of the NEC portable projector (hereafter referred to as "unit" or "projector"). This projector is connected to a personal computer or other equipment and clearly projects text or graphics to a screen.

This projector is supplied with convenient software that allows presentations to be made more simply and effectively. This guide gives an overview and describes the use of the accompanying software (contained in the CD-ROM that is supplied with this projector). Look over this guide in conjunction with the Help functions of the software programs.

Contents of the Supplied CD-ROM

The supplied CD-ROM contains the following software programs:

• Dynamic Image Utility 2.0

• Viewer PPT Converter 2.0

• Image Express Utility 1.0

Please see the Help functions of the software programs for information about their functions and operation.

What Can Be Accomplished with the Supplied Software

Dynamic Image Utility 2.0

• Converts PowerPoint files, JPEG images, and other files and creates slides that can be displayed with the viewer function of the projector.

• Captures portions of the image from the screens of word processors, spreadsheets, browsers, and other programs for use in presentations.

• By saving the created slides on a flash memory card (*1) and inserting the card into the PC Card slot of the projector, the slides can be projected to the screen without connecting a personal computer.

• The connection of personal computers and projectors by means of a network environment (*2) or connection with USB cable (*3) or serial cable allows the following uses. (In a network environment or USB cable connection (*3) , support of multiple units is permitted.)

*1: Please purchase a commercially available PCMCIA Type 2 (ATA

specification) flash memory card.

*2: Please check the network environment on the next page.

*3: USB cable connection is supported by the MT1065, MT1060,

MT860 and GT5000 only.

Information about Upgrading this Software

Please see the service page for NEC projectors (http://www.necpj.com/) for information about software upgrades of NEC Projector User Supportware (i.e., Dynamic Image Utility, Viewer PPT Converter, and Image Express Utility).

Projector "Easy Connection" Settings

Software that can abbreviate the troublesome LAN settings that are used when connecting the PC and projector via a wireless LAN can be downloaded from our website at no charge. After you have installed the software from the supplied CD-ROM to your PC, visit our website to update the information.

•From the Advanced menu, select [Projector Options] → [LAN Mode] → [Status] → [Advanced] → [Network Type] → [Mode] → [Easy Connec- tion] on the projector. (No setting for IP address and channel are required.)

• Before executing Easy Connection using Image Express Utility, visit our website to check the information.

• Easy Connection is available on Windows 2000 and XP.

• Easy Connection is available only when both PC and projector use the NEC optional wireless cards.

• Easy Connection is not available on Dynamic Image Utility included on the supplied CD-ROM.

(1) Images and slides can be sent from the personal computer to the

projector and then projected to the screen. When using Microsoft PowerPoint 2000/2002, slides can be sent synchronized with the slide show page feed.

(2) A personal computer can be used to switch the projector power

on/off, control the adjustment of image quality and other settings, and to display the remaining lamp life.

Viewer PPT Converter 2.0

• Converts files created with Microsoft PowerPoint 95/97/2000/2002 to an independent index format with a simple operation to enable direct playback with the viewer function of the projector.

• When using Microsoft PowerPoint 2000/2002, Viewer PPT Converter 2.0 can be started from PowerPoint (by means of add-in registration to PowerPoint).

Image Express Utility 1.0

• Using a network environment (*2), this program enables the screen image displayed by the personal computer to be sent to the projector and then projected to a screen.

•Two methods are available for sending the screen image to the projector. "Continuous Transmit" automatically sends the screen image of the personal computer at a fixed interval. "Single Frame Tr ansmit" sends the screen image by clicking the screen button (or pressing a key).

6-3

c Supported Projectors

The following NEC projectors will be supported: GT5000, MT1065/MT1060/MT860, LT260/LT240/LT220

Operating Environment

6. Using the Projector in a Network

Supported Equipment

CPU

Memory

Network Environment

(when used)

Supported OS

Resolution

Screen Colors

IBM PC/AT compatible computers

• CD-ROM drive a requirement (at time of installation)

Pentium MMX processor or higher a requirement

Pentium III 800 MHz or higher recommended

For Windows XP

• 128 MB or more a requirement

• 192 MB or more recommended

For other operating systems

• 64 MB or more a requirement

• 128 MB or more recommended

쏄 More memory may be necessary when other applications are run at the same time.

A LAN that supports TCP/IP or a wireless LAN environment is a requirement.

• For information on supported LAN cards, visit:

http://www.nec-pj.com/ (In US: http://www.necvisualsystems.com)

• For wireless LAN connection, use NEC optional wireless LAN card (SWL-2100N-N*).

* Last digit of the model code varies depending on which country you live in. For more information,

visit the above Website.

Windows 98

Windows 98 SecondEdition

Windows Me

Windows 2000 Professional

Windows XP HomeEdition

Windows XP Professional

* Microsoft Internet Explorer 5.01 or higher is required for the aforementioned environments.

* Does not support Windows power-saving function.

1024 dots x 768 lines recommended

( 800 dots x 600 lines recommended for LT220 and MT860)

High Color (15 bit, 16 bit)

True Color (24 bit, 32 bit)

6-4

6. Using the Projector in a Network

v Equipment Connections and Settings

When Using a Network Environment

What Can Be Accomplished

• Using Image Express Utility 1.0, the screen image displayed by the personal computer can be sent to the projector and then projected to a screen.

• Using Dynamic Image Utility 2.0, a picture or slide can be sent to the projector and then projected to a screen.

• Using the projector control function of Dynamic Image Utility 2.0 allows operations to be performed from the personal computer which include switching the projector power on/off, signal selection, and adjustment of the picture quality.

Equipment to Be Prepared

• Projector (This unit) • Personal computer (with LAN card)

• LAN cable (not supplied) or wireless LAN card (optional)

Settings at the Projector Side

Preparation:

(1) Connect a LAN cable (not supplied) to the LAN port (RJ-45) of the

projector.

(For the use of an optional wireless LAN card, insert the wireless LAN card into the PC CARD slot 1 or 2 of the projector.)

(2) Switch on the projector power and project to the screen. (chapter 3)

(3) Switch to the advanced menu.

1. Press the MENU button. The menu will be displayed.

2. Use the SELECT 왔 button to align the cursor with [Projector Options], then press the ENTER button. The sub menu will be displayed.

3. Use the SELECT 왔 button to align the cursor with [LAN Mode], then press the ENTER button. The LAN mode setting screen will be displayed.

4. Set the various items. See "Setting LAN Mode" on page 8-19 for information about the various items.

[For Connections with USB Cable]

Equipment to Be Prepared

• Projector (This unit)

•Personal computer

• USB cable (included with the projector)

Connection at the Projector Side

Plug the B type connector of the USB cable to the USB port [PC] (type B).

NOTE: When switching the power of the projector on/off with the projector control function, please set [Projector Options] “On”.

→

[Setup] → [Page 4] → [Idle Mode] to

Connection at the Personal Computer Side

Plug the A type connector of the USB cable to the USB port [PC] (type A).

[For Connections with Serial Cable]

Equipment to Be Prepared

• Projector (This unit)

•Personal computer

• Serial cable (Optional CA03D for LT260/LT240/LT220 and a commercially available RS-232C cross cable for MT1065/MT1060/MT860/ GT5000)

Connection at the Projector Side

Plug the serial cable into the PC CONTROL connector. (“Terminal Panel Features” and “PC Control Connector” on pages 1-9 and 10-10)

Connection at the Personal Computer Side

Plug the serial cable into the (RS-232C) serial connector.

NOTE: When switching the power of the projector on/off with the projector control function, please set [Projector Options] → [Setup] → [Page 4] → [Idle Mode] to "On".

Settings at the Personal Computer Side

Perform the regular LAN connections settings according to the instruction manual of the LAN card (adapter). There are no special settings to be made in the connections with the projector.

When Making Connections with Serial Cable or USB Cable(*)

* USB cable connection is supported by the MT1065, MT1060, MT860

and GT5000 only.

What Can Be Accomplished

• Using Dynamic Image Utility 2.0, a picture or slide can be sent to the projector and then projected to a screen.

6-5

6. Using the Projector in a Network

b Software Installation

NOTE

• Windows 98 operations will be described in examples given here.

• When using Windows 2000, please perform software installation/uninstalling with

"Administrators" authority. When using Windows XP, perform with "Computer Administrator" authority.

Installation

Dynamic Image Utility 2.0, Viewer PPT Converter 2.0, and Image Express Utility 1.0 will all be installed together. The various programs cannot be installed individually.

Preparation: Start Windows. If Windows has already been started, please exit all running application software. The installation may not be completed properly unless all software has been exited.

1. Place the supplied CD-ROM in the CD-ROM drive. The "Welcome" screen will appear.

Reference

Should the "Welcome" screen not appear...

1) Click [Start].

2) Click [Run (R)]. The [Run] screen will appear.

3) Enter the CD-ROM drive name (e.g., "Q: \") and then "SETUP.EXE" to [Open (O)].

4) Click [OK]. The "Welcome" screen will appear.

7. Now, follow the operations described in the screen messages. When the uninstall procedure is completed, there will be a return to the "Add/Remove Programs Properties" screen.

8. Click [OK]. There will be a return to the "Control Panel" screen

2. Click [Next >] at the "Welcome" screen. The "End User License Agreement" screen will appear.

• Please carefully read the contents of the "End User License Agreement".

3. If you agree, click [Yes].

• If you do not agree, please click [No] and exit the installer.

4. Now, follow the operations described in the screen messages.

• Please remove the CD-ROM from the CD-ROM drive when the installation is completed.

Reference

•To cancel the installation of the supplied software part way through the installation, click [Cancel] and follow the instructions of the dialog box.

Uninstalling

Dynamic Image Utility 2.0, Viewer PPT Converter 2.0, and Image Express Utility 1.0 will all be uninstalled together. The various programs cannot be uninstalled individually.

1. Click [Start].

2. Click [Settings] R [Control Panel]. The "Control Panel" screen will be displayed.

3. Double click [Add/Remove Programs]. The "Add/Remove Programs Properties" screen will appear.

4. Click "NEC Projector User Supportware" from the list.

5. Click [Add/Remove. . . ]. The "Confirm File Deletion" screen will appear.

6. Check the message and click [Yes].

6-6

6. Using the Projector in a Network

n Starting/Exiting the Software

Dynamic Image Utility 2.0

Start the Software

Preparation: Install the software on the personal computer from the supplied CD-ROM. (Page 6-6) The software cannot be started from the supplied CD-ROM.

From the [Start] menu click [Program] → [NEC Projector User Supportware] → [Dynamic Image Utility 2.0]. Dynamic Image Utility 2.0 will start.

Reference

• By selecting a PowerPoint file with Dynamic Image Utility 2.0 and clicking [Tools] → [Converting PowerPoint file], the function equivalent to Viewer PPT Converter 2.0 can be executed.

• Image Express Utility 1.0 can be started by clicking [Tools] → [Image Express Utility 1.0 Start] of Dynamic Image Utility 2.0.

Display Help

Preparation: Please start Dynamic Image Utility 2.0.

1. Click [Help]. The [Help] menu will appear.

2. Click [Help]. The [Help] screen will appear.

Exit the Software

1. Click [File]. The [File] menu will appear.

2. Click [Exit]. Dynamic Image Utility 2.0 will close.

Exit the Software

1. Click [Exit]. Viewer PPT Converter 2.0 will close.

Image Express Utility 1.0

Start the Software

Preparation: Install the software on the personal computer from the supplied CD-ROM. (Page 6-6) The software cannot be started from the supplied CD-ROM.

1. From the [Start] menu click [Program] → [NEC Projector User Supportware] Image Express Utility 1.0 will start.

Reference

• Image Express Utility 1.0 can also be started from the [Tools] R

→

[Image Express Utility 1.0].

[Image Express Utility 1.0 Start] menu of Dynamic Image Utility

2.0.

Display Help

Preparation: Please start Image Express Utility 1.0.

1. Click the [ ] or [ ] icon of the Windows screen task tray. The main menu of Image Express Utility 1.0 will appear.

2. Click [Help] . The Help screen will appear.

Exit the Software

1. Click the [ ] or [ ] icon of the Windows screen task tray. The main menu of Image Express Utility 1.0 will appear.

2. Click [Exit]. Image Express Utility 1.0 will close.

Viewer PPT Converter 2.0

Start the Software

Preparation:

(1) Check that Microsoft PowerPoint has been installed. Viewer PPT Con-

verter 2.0 cannot be used unless PowerPoint has been installed.

(2) Install the software on the personal computer from the supplied CD-

ROM. (Page 6-6)

The software cannot be started from the supplied CD-ROM.

1. From the [Start] menu click [Program] → [NEC Projector User Supportware] → [Viewer PPT Converter 2.0]. Dynamic Image Utility 2.0 will start.

Reference

•A function equivalent to Viewer PPT Converter 2.0 can also be executed from the Dynamic Image Utility 2.0 [Tools] PowerPoint file] menu.

• Viewer PPT Converter 2.0 can also be started from the Microsoft PowerPoint 2000/2002 [Tools]

→

[Output Viewer] menu.

→

[NEC Projector User Supportware]

→

[Converting

Display Help

Preparation: Please start Viewer PPT Converter 2.0.

1. Click [Help]. The [Help] menu will appear.

6-7

6. Using the Projector in a Network

m Troubleshooting

In this section, the software names have been abbreviated as follows: Dynamic Image Utility 2.0 to DIU 2.0, Viewer PPT Converter 2.0 to PPTC 2.0, and Image Express Utility 1.0 to IEU 1.0.

<Problem> Installation does not complete normally.

Check Points

When using Windows 2000, did you log on with "Administrators" authority? When using Windows XP, did you log on with "Computer Administrator" authority?

When using Windows 2000 or Windows XP, log on with the authority described at the left and then install.

Countermeasures

Has Microsoft PowerPoint 2000/2002 been installed on the personal computer to which this projector software is being installed? When this projector software is installed on a personal computer that does not have PowerPoint 2000/2002 installed, a message to the effect of "Error in the automatic registration of PPTViewer2.dll" will appear part way through the installation.

<Problem> Viewer PPT Converter 2.0 does not function. (PPTC 2.0)

Check Points

Has Microsoft PowerPoint been installed on the personal computer?

<Problem> When using the projector control function, the projector power does not switch on. (DIU 2.0)

Check Points

Are the personal computer and the projector connected by a serial cable? Or, are the personal computer and the projector connected by a LAN?

When the personal computer and the projector are connected with a LAN, is the projector in the idle mode?

When the message described at the left appears part way through the installation, add-in registration will not be made to PowerPoint; however, the installation of this projector software will be completed normally. To have add-in registration made to PowerPoint, please install this projector software to a personal computer on which PowerPoint 2000/2002 has been installed.

Countermeasures

Install PowerPoint on the personal computer. Or, install Viewer PPT Converter 2.0 on a personal computer on which PowerPoint has been installed.

Countermeasures

Connect the personal computer and the projector with an serial cable or USB cable. Or, check the LAN port (RJ-45) of the projector. Purchase the optional wireless LAN card for wireless LAN connection.

In the [Projector Options]씮[Setup] menu of the projector, place checkmark in “Idle Mode”. Connect a power cable to the power outlet and set the main power switch to "I (On)".

<Problem> You want to delete the PowerPoint add-in registration. (PPTC 2.0)

Check Points

Installing this projector software when Microsoft PowerPoint 2000/2002 has already been installed on the personal computer, will result in the automatic registration of the add-in to PowerPoint.

Please see the PowerPoint Help function for the method of deleting PowerPoint add-in registrations. The PowerPoint add-in registration will not be deleted even when this projector software is uninstalled.

6-8

Countermeasures

6. Using the Projector in a Network

<Problem> Projection to the screen is not possible when using the LAN environment. (DIU 2.0, IEU 1.0)

Check Points

Have LAN cards (i.e., adapters) been put into both the personal computer and the projector?

Have the LAN settings (for both the personal computer and the projector) been completed?

Are a wired LAN and a wireless LAN being used simultaneously with the same personal computer?

Image Express Utility 1.0 does not support the following: (1) Software using Direct X (2) MS-DOS screens (3) Microsoft Office assistant (4) IME (5) Moving pictures

<Problem> Operation of this projector software becomes unstable. (DIU 2.0, IEU 1.0)

Check Points

When the network settings of the projector or personal computer are changed while this projector software (i.e., Dynamic Image Utility 2.0 or Image Express Utility 1.0) is starting or running, the operation of the projector software may become unstable.

Put LAN cards (i.e., adapters) into both the personal computer and the projector.

Perform the LAN settings for both the personal computer and the projector.

Please cancel either one of the LAN connections. When a builtin type is used, set it to "not used" under Properties.

Please restart the projector and the personal computer. When changes are to be made to the network settings, exit the projector software before making the changes.

Countermeasures

An application error occurs under Image Express Utility 1.0 when the screen resolution is changed during Continuous Transmit.

<Problem> The colors become strange when Windows is set to 256 colors. (IEU 1.0)

Check Points

Image Express Utility 1.0 does not support 256 colors. Please set the Windows number of colors setting to High Color

When changes are to be made to the screen resolution, exit Image Express Utility 1.0 before making the changes.

Countermeasures

(15 bit) or higher.

6-9

<Problem> The projector cannot be found with "General search". (IEU 1.0)

Check Points Countermeasures

Are the wireless LAN settings appropriate? Are the channel numbers for the personal computer and the projector set to the same number? When WEP (encryption) has been set, has the same value been set for both the personal computer and the projector?

Please check the access points, the personal computer setting values and the projector [LAN Mode] setting values. When using the infrastructure or 802.11 Ad Hoc, please set to the same character string since SSID distinguishes between upper and lower case characters.

6. Using the Projector in a Network

Are radio communication conditions satisfactory? Check whether there are obstacles located between the

Are the TCP/IP settings (e.g., IP address, sub net mask, etc.) of the personal computer and the projector correct?

Are more than one network interface cards (NIC) being used with the same computer?

<Problem> Sometimes it takes a long time for screen transmission from the personal computer to the projector. (IEU 1.0)

Check Points

•Transmission time may be long depending on the image pattern.

• When screens are sent to multiple projectors simultaneously, a larger number of projectors will result in longer transmission times.

• The transmission time may vary depending on the network environment.

• The transmission time may vary depending on the performance of the personal computer as well as other application software that is running at the same time.

access point and the personal computer. Try moving the personal computer closer to the access point.

Check whether the network settings are within the same segment.

Set only the network interface card (NIC) that is connected to the projector to "Valid". For a network card that is not connected to the projector, click the network card name under "Control Panel" 씮 "System" 씮 "Device Manager" 씮 "Network Adapter" and then click [Properties (R)] and set the device usage to "Not used".

Countermeasures

Transmission time will be longer when the resolution of the personal computer and that of the projector differ since there will be an increase in resolution conversion processing.

<Problem> Cannot follow the screen switching processing of the PowerPoint slide show, etc. (IEU 2.0)

Check Points

Smooth screen switching processing or animation effects cannot be followed because in Image Express Utility 1.0, the screen condition of the personal computer is sent to the projector at a fixed time interval.

We recommend that the resolution of the personal computer and that of the projector be set to the same setting value. The resolution of MT1065, MT1060, LT260 and LT240 are 1024 x 768 dots. The resolution of LT220 and MT860 are 800 x 600 dots.

Countermeasures

Use the software with " the PowerPoint screen switching effects, animation effects, and other settings set to "None".

6-10

Setting Up for Double Stacking in

Link Mode

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

z Stacking and Connecting the Projectors .................. 7-2

Adjusting and Registering Signals to Be Projected ...........

c Adjusting the Lens Shift, Zoom and Focus to Clearly

Display all projected patterns................................ 7-5

v Link Mode Setting .....................................................7-5

b List of Menu Items Available in Link Mode................ 7-6

7-5

7-1

7. Setting Up for Double Stacking in Link Mode

z Stacking and Connecting the Projectors

NOTE: Up to two units can be gravity stacked without external support. In some cases, however, two images will not align on the screen correctly. This will become more apparent when displaying small text and detailed graphics.

Master projector

Slave projector

CAUTION: To prevent the projectors from falling, install them in a place and fasten them in a way with sufficient strength to support the two projectors. The projector with a lens weighs 21 kg/46.3 lbs.

z-1. Assigning Projector IDs

You can operate multiple projectors with the same remote control. To do so:

z-1-1. Select [Projector Options] → [Link Mode] → [Settings] →

[Projector ID] a-nd assign an ID number to each projector. See also page 8-18.

z-1-3. On the remote control specify the ID number of the pro-

jector to be adjusted. Press and hold the CTL and press MENU (ADDRESS) button to enter the ID number. You can operate the projector assigned the same ID number as the remote control.

NOTE: Specifying "None" for projector ID allows you to operate multiple projectors concurrently. However, some projectors may not synchronize to the other projectors.

z-1-2. Select the same communication speed for both the pro-

jector.

NOTE: Do not turn on [Master] or [Slave] at this time.

7-2

Throw Distances for Optional Lenses

Master projector

Slave projector

Recommended Throw Distances for Double Stack

7. Setting Up for Double Stacking in Link Mode

Screen center

Throw Distance

Screen Size

(inch)

100 120 150 200 240 300 350 400 450 500

NOTE:

• The optional lenses for GT5000 have different geometrical distortions in wide zoom and tele. Select the best zoom position for stacking where the geometrical distortion is as small as possible.

• The optional lens GT10RLB does not support stacking.

GT13ZLB GT20ZL GT24ZLB GT34ZLB

40 60 80

0.94

1.43

1.92

2.40

2.89

3.62

4.84

5.82

7.28

Throw Distance (m)

GT19ZL

1.61

2.44

3.27

4.10

4.93

6.18

8.25

9.91

12.40

2.03

3.05

4.07

5.09

6.11

7.63

10.18

12.21

15.27

2.92

3.93

4.93

5.93

7.44

9.95

11.96

14.97

17.48

19.99

6.21

7.78

9.35

11.70

15.62

18.76

23.46

27.38

31.30

35.22

39.14

Screen Size

(inch)

40 60

80 100 120 150 200 240 300 350 400 450 500

GT13ZLB GT20ZL GT24ZLB GT34ZLB

37.0

56.2

75.4

94.6

113.9

142.7

190.7

229.1

286.8

Throw Distance (inch)

GT19ZL

63.6

96.2

128.9

161.6

194.3

243.3

325.0

390.3

488.4

80.1

120.2

160.2

200.3

240.4

300.5

400.7

480.9

601.1

115.0

154.5

194.1

233.6

292.9

391.7

470.8

589.3

688.2

787.0

244.6

306.3

368.0

460.6

615.0

738.4

923.6

1078.0

1232.3

1386.6

1541.0

For double stacking, follow the instructions described below.

z-2. Stacking the Projectors

Place the projectors at the proper height for best screen to projector relationship. Make sure that all projectors have the same display orientation.

7-3

7. Setting Up for Double Stacking in Link Mode

z-3. Hookup z-3-1. Use commercially available RGB signal cables to connect the RGB output of the master projector to the RGB input of the

slave projector until all the projectors are connected.

z-3-2. Next, using a commercially available, bi-directional RS-232C cable connect the PC CONTROL OUT terminal of the master

projector to the PC CONTROL IN terminal of the slave projector until all the projectors are connected.

z-3-3. Turn all the projectors on and roughly make some optical adjustments to each projector.

Example: Composite signal

Distribution amplifer

S-Video cable (not supplied)

S-VIDEO

INPUT

S-Video cable (not supplied)

L R

AUDIO OUT VIDEO OUT

S-VIDEO OUTPUT

VIDEO

S-VIDEO

L/MONO

AUDIO OUT

VIDEO S-VIDEO

AUDIO OUT

VIDEO S-VIDEO

RGB 1

L/MONO

AUDIO

RGB 2

R/Cr

G/Y

RGB OUT

B/Cb

L/MONORL/MONO

RGB 1

L/MONO

AUDIO

RGB 2

R/Cr

G/Y

RGB OUT

B/Cb

L/MONORL/MONO

Video equipment

NOTE: Connect a commercially available distribution amplifier to both the master and the slave projectors to distribute signal to two outputs of the master and the slave projectors.

AUDIO

SLOT 1 SLOT 2

AUDIO

SLOT 1 SLOT 2

DVI

PC CONTROL

OUT

PC CONTROL

USB(

MOUSE/HUB

) USB(PC) PC CARD

PC CONTROL

USB(

MOUSE/HUB

) USB(PC) PC CARD

PC CONTROL

OUT

SC TRIGGER REMOTE 2

OUT

SC TRIGGER REMOTE 2

LAN

REMOTE 1

OUT

AC IN

LAN

REMOTE 1

OUT

AC IN

Bi-directional RS232C cable (not supplied)

7-4

7. Setting Up for Double Stacking in Link Mode

x Adjusting and Registering Signals to Be Projected

x-1. Display a desired input signal on the master projector.

x-2. Make adjustment to the signal, then save (register) adjust-

ments on the master projector by pressing and holding CTL and pressing ENTRY LIST button on the remote control.

x-3. Repeat steps x-1 and x-2 for all signals you want to project.

Display all the signals you registered and check. To check, select [Source Select] → [Entry List].

x-4 Transferring Signal Data in the Entry List

x-4-1. Transfer the data from the master projector to the slave

projector so that both the projectors have the same data in memory.

c Adjusting the Lens Shift, Zoom and Focus to Clearly Display all projected patterns

c-1. Display the internal crosshatch test pattern.

NOTE: Use a different single color for each projector. Example: Turn on Green of master projctor, then Red of the slave projector.

c-2. Adjust the Lens Shift by pressing and holding CTL and press-

ing the POSITION button on the remote control. For lens shift adjustable range, see page 2-4 and 2-5. Lens Shift Adjustable Range.

c-3. Zoom the lens in and out by pressing and holding CTL and

pressing the MAGNIFY(ZOOM)+/- button on the remote control.

c-4. Adjust the lens focus by pressing and holding CTL and press-

ing the FOCUS +/- button on the remote control.

NOTE: If the physical (vertical) alignment of the projector is not correct, adjust the height of the feet. If there is any keystone distortion, use 3D-Reform (Keystone) adjustment to correct and save the settings on each projector. See page 3-4 for 3DReform correction.

v Link Mode Setting

v-1. Set the Link Mode on each projector.

NOTE: Be sure to set the Link Mode on the slave projector before the master projector. If you do this first on the master projector, you will not be able to set the Link Mode on the slave projector.

x-4-2. Select [Projector Options] → [Link Mode] on the mas-

ter projector.

x-4-3.Select [Entry List Copy] and press the ENTER button.

The following will be displayed.

x-4-4.Select [OK] and press the ENTER button.

The data has been transferred from the master projector to the slave projector.

x-5.Making Adjustments to the Slave Projector

x-5-1. Display a desired input signal on the slave projector.

x-5-2. Make adjustment to the signal, then save (register) ad-

justments on the slave projector by pressing and holding CTL and pressing ENTRY LIST button on the remote control.

x-5-3. Repeat steps x-2 and x-2 for all signals you want to

project.

Display all the signals you registered and check. To check,

select [Source Select] → [Entry List].

v-1-1. Select [Projector Options] → [Link Mode] → [Settings].

v-1-2. First select [Slave] on the slave projector.

v-1-3. Select [Master] on the master projector.

v-2. Projecting a Source Image from both the Projectors.

v-3. Display any signal onto the screen.

v-4. Check to see if the images on the master projector are dis-

played in synchronization with the ones on the slave projector while the projectors are in Link Mode.

NOTE: Registering signals is not possible in the Link mode. To register a signal, first set "Link Mode" to "Standalone" on the menu and then repeat the steps from “x Adjusting and Registering Signals to Be Projected”. If you select an unregistered signal, the master projector displays the image, but the slave projector doesn't. To view the information on the currently displayed signal, select [Help] → [Source Information].

7-5

7. Setting Up for Double Stacking in Link Mode

b List of Menu Items Available in Link Mode

Available Menu Items NOTE Source Select *1 Sound Menu Link Mode On/Off Timer Sleep Timer Source Information Projector Information

Direct Button NOTE LENS SHIFT Projector *2 FOCUS Projector *2

Remote Control *2

ZOOM Projector *2

Remote Control *2 "MENU/SELECT/ ENTER/CANCEL" Projector

Remote Control POWER Projector *3 POWER ON Remote Control *3 POWER OFF Remote Control *3 INPUT Remote Control *1 MUTE(PICTURE) Remote Control MUTE(SOUND) Remote Control MUTE(OSD) Remote Control

*1: Unregistered signal is displayed on the master projector only and the picture is muted on the slave projector. *2: Adjustment is possible on each projector independently. *3: You can also turn on the slave projector only.

7-6

Using On-Screen Menu

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

z Basic Menu Operation ............................... 8-2

x List of Direct Button Combinations ............ 8-3

c Menu tree ................................................... 8-4

v Menu Descriptions & Functions ................. 8-7

Adjust (Source) ......................................... 8-8

Picture ...................................................8-8

Video Adjust ......................................... 8-8

Picture Management ............................ 8-9

Image Options.....................................8-10

Option Adjust ..................................... 8-10

Lens Memory ..................................... 8-11

Signal Type..........................................8-11

Sound ...................................................... 8-11

Ref. Adjust ............................................... 8-12

Using 3D Reform ............................... 8-12

Projector Options .....................................8-13

Menu ...................................................8-13

Setup...................................................8-15

Lamp Settings .....................................8-18

Link Mode .......................................... 8-18

LAN Mode .......................................... 8-19

Setting a Password ............................ 8-22

Security .............................................. 8-23

Tools ........................................................ 8-24

Timer ...................................................8-24

Using Capture .....................................8-26

Using PC Card Files .......................... 8-26

Using ChalkBoard .............................. 8-26

Help .......................................................... 8-26

Contents............................................. 8-26

Screen Type ....................................... 8-12

Reference White Balance ...................8-12

Reference Color Correction ............... 8-12

Reference Lens Memory.....................8-13

Factory Default ........................................ 8-13

Source Information..............................8-26

Projector Information.......................... 8-27

Test Pattern ............................................. 8-27

8-1

8. Using On-Screen Menu

z Basic Menu Operation

Using the Menus

NOTE: The on-screen menu may not be displayed correctly while interlaced motion video image is projected.

1. Press the MENU button on the remote control or projector cabinet to display the Basic, Advanced or Custom Menu.

ADDRESS

NOTE: When using a USB mouse, click the mouse button to display the menu. For other operations, do the same way as you use your PC mouse.

2. Press the SELECT cabinet to highlight the menu for the item you want to adjust or set.

3. Press the SELECT 왘 button or the ENTER button on the remote control or the projector cabinet to select a submenu or item.

4. Adjust the level or turn the selected item on or off by using SELECT or 왘 buttons on the remote control or the projector cabinet.

The on-screen slide bar will show you the amount of increase or decrease.

왖왔

buttons on the remote control or the projector

왗

Customizing the Menu

The Custom menu can be customized to meet your requirements. Selecting a menu item from the "Custom Menu Edit" list, allows you to custom tailor the menu items to your needs.

1. Select "Custom Menu Edit" to display the "Custom Menu Edit" screen.

왖

2. Use the SELECT the ENTER button to place a check mark next to an option.

This action enables that feature. Press the ENTER button again to clear the check box.

If you select an item with a solid triangle ton on the remote control or the projector cabinet, you can enable all the items within that submenu. Also you can turn on an item within the submenu without placing a check mark on the main menu item.

NOTE: Up to 12 main menu items (within Custom Menu Edit, not including submenu items) can be selected.

3. In order for the changes to take effect, use the SELECT on the remote control or the projector cabinet to highlight "OK", then press the ENTER button. To cancel the changes, use the SELECT 왖 or

왔

buttons to highlight "Cancel" and press the ENTER button. To return to the factory default, select "Reset" then press the ENTER button.

NOTE: Once you have selected OK on the Custom Menu Edit screen, you cannot cancel the changes on the Menu screen. However, you can reedit the menu items over again as described in the steps above.

NOTE: If the "Advanced Menu" item has been selected on the Menu mode, you get the "Change Custom menu now?" upon completion of "Custom Menu" editing. In this case, selecting "Yes" then "ENTER" will close all the menus and apply the changes from the Advanced menu to the Custom Menu. If you select "No" then "ENTER" functions, then all menu items will return to the Advanced menu, but your changes will still be available within the "Custom Menu" selection. To display the previously tailored Custom Menu, select "Custom Menu" from the "Menu Mode".

or 왔 buttons to highlight your selection and press

왘

and press the ENTER but-

왗

or 왘 button

An item "To Advanced Menu" will be added to the bottom of the Custom Menu. Selecting this item and pressing the ENTER button will display the "Advanced Menu" features.

5. Changes are stored until you adjust it again.

ENTER

CANCEL

ENTER ........ Stores the setting or adjustments.

CANCEL ...... Return to the previous screen without storing set-

tings or adjustments.

6. Repeat steps 2-5 to adjust an additional item, or press the CANCEL button on the projector cabinet or the remote control to quit the menu display.

8-2

8. Using On-Screen Menu

x List of Direct Button Combinations

CTL+ Input (1-10) Switches to any selected signal found in the Entry List.

To enable this combination, you must first assign specific remote buttons for direct input selection in the Entry Edit window.

CTL+ ENTER (While displaying Entry list) Displays the selected signal.

CTL+ CANCEL Returns to the previous menu without closing the slidebar or dialog.

CTL+ UNDO Clears all menus or adjustment/setting screens. All adjustments are saved

automatically.

CTL+ 왖왔왗왘 Moves the slidebar or dialog box horizontally or vertically.

While using zoom on remote control: Displays the magnifying glass icon.

CTL+ 왗 (BS) Deletes one letter or numeral in the entry screen.

CTL+MUTE OSD Turns off the on-screen display forciblly.

CTL+ MENU (ADDRESS) Displays the remote ID entry window.

CTL+ IMAGE (PROJECTOR) Sequentially selects the Projector Options sub menu.

CTL+ POSITION (LENS) Displays the Lens Shift adjustment window.

CTL+ KEYSTONE (R) Turns on red. Available only when the projector is in the test pattern mode.

CTL+ AMPLITUDE (G) Turns on green. Available only when the projector is in the test pattern

mode.

CTL+ ENTRY LIST (B) Turns on blue. Available only when the projector is in the test pattern mode.

Stores a signal in the Entry List when you are not displaying a test pattern.

CTL+ MAGNIFY (ZOOM) Zooms the lens in and out

CTL+ (FOCUS) Adjusts the lens focus.

CTL+ INFO. Stores lens position settings.

8-3

c Menu tree

NOTE: The item appears dimmed on the menu, it is unavailable.

8. Using On-Screen Menu

Advanced Menu

Source Select

Adjust (Source)

Sound

Ref. Adjust

Factory Default

Projector Options

Tools

Help

Test Pattern

1. RGB1

2. RGB2

3. DVI(DIGITAL)

4. Video

5. S-Video

6. Viewer

7. LAN

8. Slot 1

9. Slot 2

0. RGB1(Video) Entry List

Picture Video Adjust

Picture Management

Image Options

Option Adjust

Lens Memory Signal Type

Input Terminal 1/Input Terminal 2(available only when option board is installed) Input Terminal 1/Input Terminal 2(available only when option board is installed) RGB1(Video)/RGB1(S-Video) Load/Cut/Copy/Paste/Store/Edit/All Delete

Brightness/Contrast/Saturation/Color/Hue/Sharpness Noise Reduction Color Matrix Y/C Delay YTR Adjustment CTR Adjustment SweetVision Deinterlace Telecine Black Expansion Contrast Enhancement 3D Y/C Separation Presentation/sRGB/Graphic/Video/Movie User

Gamma Correction Color Correction

Color Temperature White Balance

Base Setting Pixel Adjust Position Aspect Ratio Resolution Overscan Video Filter Blanking Clamp Timing Sync Protection VD Delay Signal Level Set Custom Point/Use Custom Point RGB/Component

Off/Low/Medium/High HDTV/SDTV 0 to 15 Gain/Tap Gain/Tap Off/Low/Medium/High Off/On Auto/Off 0 to 5

-3 to +3 Off/On

Dynamic/Natural/Black Detail Red/Green/Blue/Yellow/Magenta/ Cyan/Color Gain 6 Steps Brightness R/G/B, Contrast R/G/B

Presentation/sRGB/Graphic/Video/Movie Clock/Phase Horizontal/Vertical

1.25:1(5:4)/1.33:1(4:3)/1.78:1(16:9)/1.85:1/2.35:1 Auto/Native 0%/5%/10%/25% Off/Less/More Top/Bottom/Left/Right Mode 0-4/ Adjust Upper/Lower Adjustment/Field Invert (On/Off) Red/Green/Blue, Y/Cb/Cr, Y/Pb/Pr

Split Mode (Off/On)

Sound

Volume/Bass/Treble

8-4

NOTE: The shaded item indicates the default setting.

8. Using On-Screen Menu

Advanced Menu

Source Select

Adjust (Source)

Sound

Ref. Adjust

Factory Default

Projector Options

Tools

Help

Test Pattern

3D Reform

Screen

Ref. White Balance Ref. Color Correction Ref. Lens Memory

Setup

Page 1

Page 2 Page 3

Page 1

Page 2

Page 3

Page 4

Page 5

Page 6

Language Menu Mode

Menu Display Time Date Format

Date, Time Preset Display Select Menu Color Mouse Pointer Orientation Background RGBOUT Terminal Closed Caption Sync Termination Viewer Options Capture Options Mouse

Signal Select

Auto Adjust (On/Off), Auto Start (On/Off), Power Management (On/Off), Power Off Confirmation (On/Off), 3D Reform Save (On/Off), Built-in Speaker (On/Off), Last Memory (On/Off), Idle Mode (On/Off), Back Light (On/Off), Screen Trigger (On/Off) Remote Sensor S-Video Mode Select Clear Filter Usage Meter Communication Speed Projector ID Default Source Select

Control Panel Key Lock

Conerstone Keystone Screen Type Position Brightness R/G/B, Contrast R/G/B Red/Green/Blue/Yellow/Magenta/Cyan/Color Gain Set Reference Point/Use Reference Point/Return to Factory Default/ Use Point on Signal Change? Yes/No Picture Mute during Lens Shift? Yes/No

All Data (Including Entry List)/Current SignalFactory Default

Custom Menu Edit

Horizontal/Vertical

1.25:1(5:4)/1.33:1(4:3)/1.78:1(16:9)/1.85:1/2.35:1

English/Deutsch/Français/Italiano/Español/Svenska/ Basic/Custom/Advanced

Manual/Auto 5 sec./Auto 15 sec./Auto 45 sec. MM/DD/YYYY, MM/DD/YYYY ddd, DD/MM/YYYY, DD/MM/YYYY ddd, YYYY/MM/DD, YYYY/MM/DD ddd, Month DD, YYYY, Month DD, YYYY ddd Date Month/Day/Year (Day of the week), Time (H/M) Date/Time/Input Terminal/Source Name/Projector ID/Message Color/Monochrome Pointer 1-9 Desktop Front/Ceiling Rear/Desktop Rear/Ceiling Front Blue/Black/Logo Last/RGB 1/RGB 2 Off/Caption 1-4/Text 1-4 RGB 1(Hi-Z/75Ω) Show Folder List, Auto Play/Manual Play, Interval (5-300 sec) High Quality/Normal/High Compression Button (Right Hand/Left Hand), Sensitivity (Fast/Medium/Slow) Operation Mode Select (Auto/Projector)

RGB 1 (RGB/Component, RGB, Component, Scart RGB2 (RGB/Component, RGB, Component, Scart) Video (Auto/NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM) S-Video (Auto/NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM) RGB1 (Video) (Auto/NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM) RGB1(S-Video) (Auto/NTSC3.58/NTSC4.43/PAL/PAL-M/PAL-N/PAL60/SECAM)

Front/Back/Left/Right Off/S2

4800/9600/19200/38400 Enable (1-64)/Disable Last/Auto/Select Select: RGB1/RGB2/DVI(DIGITAL)/Video/S-Video/ Viewer/LAN/Solt-1-1(None)/Solt-1-2(None) Solt-2-1(None)/Solt-2-2(None)/RGB1(Video)/ RGB1(S-Video) Enable/Disable

8-5

8. Using On-Screen Menu

Advanced Menu

Source Select

Adjust (Source)

Sound

Ref. Adjust

Factory Default

Projector Options

Tools

Help

Test Pattern

Lamp Settings

Link Mode

LAN Mode

Password Security

Lamp Mode Lamp Select Interval Lamp Type

Settings

Status

Mail

Menu, Logo Enable/Disable, Keyword, Use Protect Key, Drive/Read/Register/Delete

Normal/Eco Dual/Lamp 1/Lamp 2 Auto/1 week/4 weeks/1300H/1800H/3000H/4000H Lamp1, Lamp2 Mode Communication Speed Projector ID Entry List Copy Link Mode(Master/Slave, ID, Status, Connected PJ) Reconnect LAN Card Projector Name IP Address Subnet Mask MAC Address Advanced IP Address

Network Type

WEP

Alert Mail Sender's Address SMTP Server Name Recipient's Adderss 1-3 Test Mail

Standalone/Master/Slave 4800/9600/19200/38400 Enable (1 - 64)/Disable

Build-in/PC Card

Automatic/Manual IP Address Subnet Mask Gateway DNS Configuration Domain Name Mode

SSID Channel TX Rate

WEP Key Select Key 1-4

Infrastructure/802.11 Ad Hoc/ Ad Hoc/Easy Connection

1-14 Automatic/11M/5.5M/2M/1M/ 1M-2M-Automatic Disable/64 bit/128 bit Key 1-4

On/Off

On/Of

Timer

Capture, PC Card Files, ChalkBoard

Contents Source Information

Projector Information

Test Pattern

Red (On/Off), Green (On/Off), Blue (On/Off)

On/Off Timer Sleep Timer

Page 1

Page 2 Page 1

Page 2 Page 3

Cross Hatch/Gray Bars/Raster (0%)/Raster(25%)/Raster(50%)/Focus Raster(100%)/Raster Blue/Gray Raster 10/Gray Raster 30

Execute Switch (Active/Inactive), Edit, Delete Preset Time (Off/0:30/1:00/2:00/4:00/8:00/12:00/16:00)

Source Name/Input Terminal/Entry No./Horizontal Frequency/ Vertical Frequency/Sync Polarity Signal Type/Video Type/Sync Type/Interlace/Direct Key Remaining Lamp 1Time/Remaining Lamp 2 Time/ Lamp 1 Hour Meter/Lamp 2 Hour Meter Filter Usage/Projector Usage/Projector ID Version (BIOS/Firmware/Data/FPGA)

8-6

8. Using On-Screen Menu

Entering Alphanumeric Characters by Using the Menu

Alphabet or numeric characters are used for your IP address or projector name. To enter IP Address or projector name, use the software keyboard. For using the software keyboard, see page 10-10.

Entering Alphanumeric Characters by Using the Remote Control Numeric Buttons

Input alphanumeric characters by selecting one character at a time with the numeric (Source/Input) buttons 1through 10(0) and by moving the cursor with the SELECT 왘 button. After finishing the selection of the characters, press the ENTER button. Whenever one of the Source/Input buttons on the remote control is pressed, characters will be rotated.

For example: A → B → C → 1 → A → ...

NOTE: When holding and pressing the CTL button and pressing one of the Source/ Input buttons, another group of characters will be rotated. For example: a → b → c → ! → a → ...

The alphanumeric characters corresponding to these Source/Input buttons are as follows:

Numeric buttons Press Press with CTL

1A → B → C → 1a → b → c → ! 2D → E → F → 2d → e → f → ” 3G → H → I → 3g → h → i → # 4J → K → L → 4j → k → l → $ 5M → N → O → 5m → n → o → % 6P → Q → R → 6p → q → r → & 7S → T → U → 7s → t → u → ' 8V → W → X → 8v → w → x → ( 9Y → Z → / → 9y → z → ? → ) 0* → , → . → 0; → : → + → -

v Menu Descriptions & Functions

Source Select

Enables you to select a video source such as a VCR, DVD player, laser disc player, computer or document camera depending on what is connected to your inputs. Press the up/down buttons on your remote control or the projector cabinet to highlight the menu for the item you want to project.

* RGB1,2 * Viewer * DVI DIGITAL * LAN * Video * RGB 1 (Video) * S-Video * RGB 1 (S-Video)

Entry List

Displays the list of the entry signals. Use the SELECT 왖왔 but- tons on your remote control or the projector cabinet to select the signal and press the ENTER button on the remote control or the projector cabinet to display the Entry Edit Command screen.

Using the Entry List

Making any adjustments to the current picture will automatically register its adjustments to the Entry List. The registered signal can be loaded any time from the Entry List.

NOTE: Up to 100 presets can be registered.

Entry Edit Command

You can edit signals on the Entry List.

Load ............ Enables you to select a signal from the list.

NOTE: This can be done by pressing CTL and ENTER buttons.

Store ............Enables you to store the currently projected sig-

nal.

NOTE: This can be done by pressing CTL and ENTRY LIST buttons.

* If you have made an error in the input of a character, use the

SELECT 왗 button and enter the correct letter or number.

NOTE: Only numbers can be entered when you use the remote control Source/ Input buttons while displaying the Software Keyboard.

Cut ............... Enables you to remove a selected signal from

the list and place it on the "clipboard" in the projector.

Copy .............. Enables you to copy a selected signal from the

list and place it on the "clipboard" in the projector.

Paste ........... Enables you to paste the signal placed on the

"clipboard" to any other line of the list. To do this, select "Paste" and then select the line number you want to paste to. Last press ENTER.

8-7

8. Using On-Screen Menu

Edit .............. Enables you to change source names or assign

the direct key.

Source Name

Enter a signal name. Up to 18 alphanumeric characters can be used.

Input Terminal

Change the input terminal. RGB1 and RGB2 are available for RGB signal; Video and S-Video are available for composite signal.

Direct key

You can assign specific remote keys for direct signal input selection.

Lock

Set so that the selected signal cannot be deleted when "All Delete" is executed. The changes cannot be saved.

Skip

Set so that the selected signal will be skipped during auto search.

When complete, select OK and press ENTER. To e xit without storing setting, select Cancel. Select "Source Name" and press ENTER to display the Source Name Edit window. You can change source name on this window. Press [왔] to display the software keyboard, which you can enter alphanumeric characters. See page 10-10 for the key function of the software keyboard.

All Delete ..... This feature enables you to delete all the regis-

tered signals in the Entry List.

The following buttons are not available for the currently projecting signals:

Video Adjust (not available for RGB)

Noise Reduction

Select one of the three levels for reducing video noise: Low, Medium or High.

NOTE: The lower the Noise Reduction level, the better the image quality by way of higher video bandwidth.

Color Matrix

Select an appropriate color matrix for your input signal, either HDTV or SDTV.

Y/C Delay

Adjusts Y/C delay level.

YTR Adjustment

Adjusts luminance transient time.

CTR Adjustment

1) The Cut and Paste buttons on the Entry Edit Command screen

2) The Input Terminal button on the Entry Edit screen

Adjust (Source)


Brightness

Adjusts the brightness level or the back raster intensity.

Contrast

Adjusts the intensity of the image according to the incoming signal.

Saturation

Adjust saturation at the white peak.

Color

Increases or decreases the color saturation level (not available for RGB).

Hue

Var ies the color level from +/- green to +/-blue. The red level is used as reference. This adjustment is only valid for Video and Component inputs (not available for RGB).

Sharpness

Controls the detail of the image for Video (not available for RGB).

Adjusts chroma transient time.

8-8

8. Using On-Screen Menu

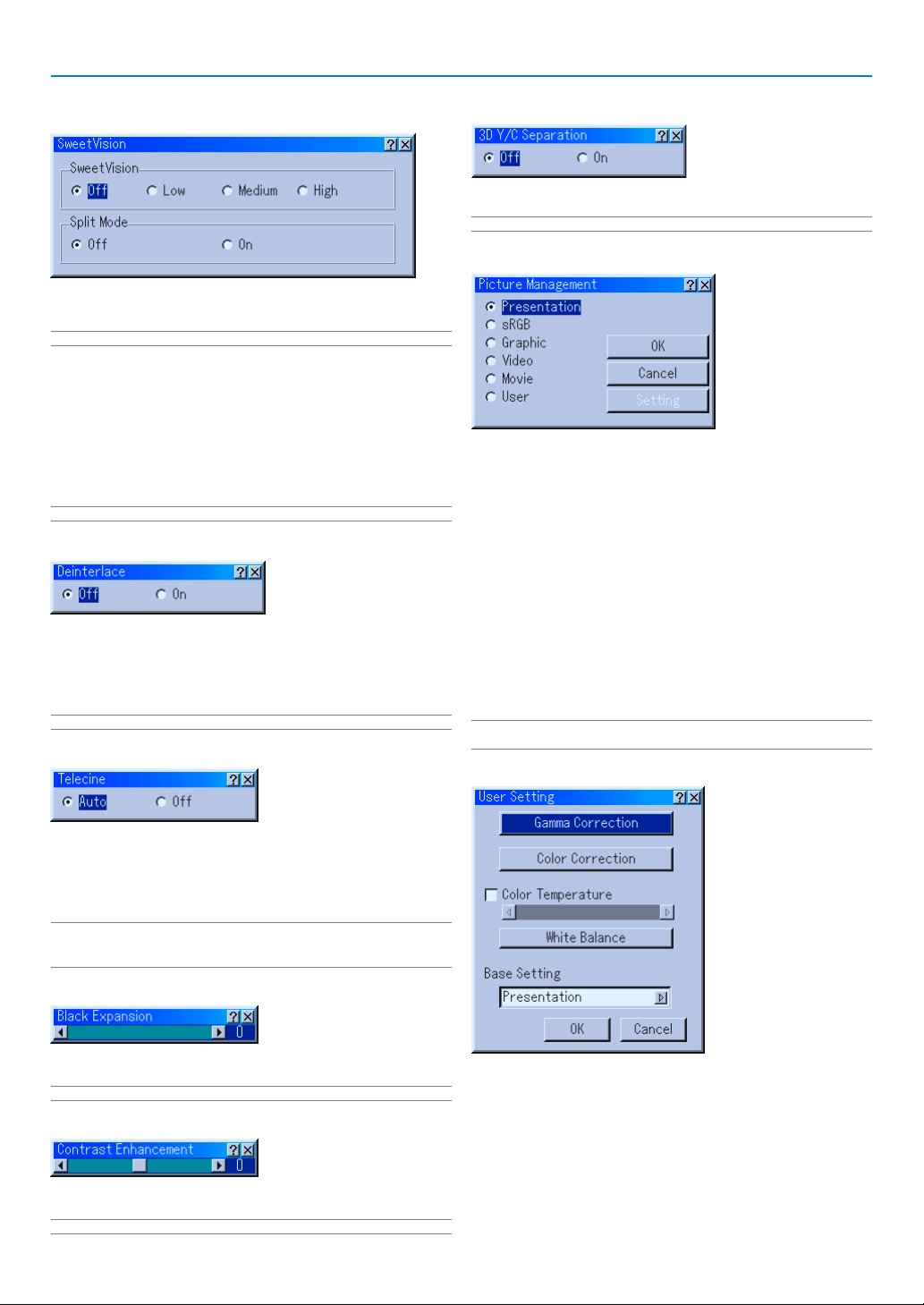

SweetVision

The SweetVision feature provides improvement of contrast using a proprietary detail enhancement technology.

NOTE: This feature is not available for 480p, 576p and HDTV signals.

Off ............... Turns off the SweetVision feature

Low .............. Selects low level

Medium ....... Selects medium level

High .............Selects high level

Split Mode

This feature turns on or off to show the effect of the Sweet Vision.

NOTE: When the projector is turned off, the Split Mode will return to Off.

Deinterlace

Tu r ns on or off the deinterlace function for a telecine signal.

On ............... Default standard setting.

Off ............... Select this option if there is any jitter or artifacts

in video.

NOTE: This feature is not available for 480p, 576p and HDTV signals.

Telecine

3D Y/C Separation

This option turns on or off the 3 dimension separation feature.

NOTE: This feature is available for NTSC3.58 of Video signal only.

Picture Management

This option allows you to adjust neutral tint for yellow, cyan or magenta. There are 5 factory presets optimized for various types of images, or you can set a user adjustable setting.

Presentation ..

Recommended for making a presentation using a PowerPoint file.

sRGB ........... Standard color values

Graphic ........ Recommended for graphics

Video ........... Recommended for regular picture such as TV

program

Movie ........... Recommended for movies

User ............. User adjustable

NOTE: When "sRGB", "Graphic", "Video" or "Movie" is selected, the brightness decreases slightly when compared to "Presentation". This is not a malfunction.

User Adjust

Use 3:2 pull down correction to eliminate jitter and artifacts in video.

Auto .............For film source such as a DVD player

Off ............... For signals other than film sources

NOTE:

• This feature is not available for 480p, 576p and HDTV signals.

• When “Off” is selected in Deinterlace, this feature is not available.

Black Expansion

Minimizes blacks that appear more like shades of gray to provide a true black and white image at high contrast.

NOTE: This feature is not available for 480p, 576p and HDTV signals.

Contrast Enhancement

This option allows you to provide a high contrast image in a bright scene.

NOTE: This feature is not available for 480p, 576p and HDTV signals.

When selecting the user adjustable presetting (User), the submenu will be displayed. You can customize each gamma or color. To do so, first select [Setting] and press the ENTER button, and then proceed the following steps.

8-9

8. Using On-Screen Menu

Selecting Gamma Correction Mode

Use the 왗 or 왘 buttons to choose one mode from three options. Each mode is recommended for :

Dynamic ...... For true color reproduction of natural tones

Natural ......... Normal settings

Black Detail . For dark portions of a picture

Selecting Color Correction

Adjusts red, green, blue, yellow, magenta, cyan and color gain each independently to correct the tint on whole screen.

Adjusting Color Temperature

This feature adjusts the color temperature using the slide bar. Checking "Color Temperature" enables the color temperature slide bar.

Adjusting White Balance

Press the White Balance button to access the Contrast/Brightness adjustment for each R, G, and B.

NOTE: The White Balance is not available for Viewer and LAN.

Selecting Base Setting

This feature allows you to use color correction or gamma values as reference data to optimize for various types of images. You can select one of the following five settings.

• Presentation • Graphic • Movie

• sRGB • Video

Image Options

Pixel Adjust

Displays the Clock and Phase adjustments.

Clock ........... Use this item to fine tune the computer image or

to remove any vertical banding that might appear.

Phase .......... Use this item to adjust the clock phase or to re-

duce video noise, dot interference or cross talk. (This is evident when part of your image appears to be shimmering.) Use the 왗 and 왘 buttons to adjust the image.

Use "Phase" only after the "Clock" is complete.

Resolution

This allows you to activate or deactivate the Advanced AccuBlend feature.

Auto .............Turns on the Advanced AccuBlend feature. The

projector automatically reduces or enlarges the current image to fit the full screen.

Native ..........Turns off the Advanced AccuBlend feature. The

projector displays the current image in its true resolution.

NOTE: * When "Resolution" is set to "Native", "3D Reform", "Aspect Ratio", "Screen" and

"Overscan" are not available.

* While you are displaying an image with higher resolution than the projector's

native resolution, "Resolution" is not available.

Overscan

Select overscan percentage (0%, 5%, 10% and 25%) for signal.

NOTE: When "Resolution" is set to "Native", this feature is not available, and the stored settings and adjustments are invalid.

Video Filter (not available for Video, Component, Viewer and LAN)

This function reduces video noise.

Off ............... The filter is removed.

Less ............. The low-pass filter is applied partially.

More ............ The low-pass filter is applied fully.

Blanking

This feature allows you to mask any unwanted area of the screen image. Adjust the Top, Bottom, Left or Right blanking with the SELECT 왗 or 왘 button.

Option Adjust

Clamp Timing

Position

Adjusts the image location horizontally and vertically using the SELECT 왗and 왘 buttons.

Aspect Ratio

You can select the aspect ratio for input signal. Select the appropriate aspect ratio using the SELECT 왗 or 왘 button.

NOTE: When "Resolution" is set to "Native", this feature is not available, and the aspect ratio is set to “1.33:1 (4:3)”.

8-10

According to the signal, this function sets the detection position (i.e., clamp position) of the black level reproduction of the analog input signal. Normally this is not used.

Mode 0-4 .....Select the appropriate one.

Adjust ..........This permits the video clamp position for each

signal to be set. Use "Adjust" when a clamp timing error occurs at the time of special analog signal reception such as 1080P. Note that "Adjust" is not valid for doubler signals such as NTSC and PAL.

To delete the "Clamp Timing" setting screen, select the SELECT 왔 button and press the ENTER button, or press the remote control CANCEL button.

8. Using On-Screen Menu

Sync Protection

When a VCR, DVD, or some other equipment that supports Copyguard (a copy prevention system) is played back, the screen may be displayed in a curved manner. Adjustments are made in such circumstances. Use the SELECT 왗 or 왘 button to adjust the VD level.

VD Delay

Adjustment: This feature is used to correct vertical jitter of a signal.

NOTE: When connecting with a scan converter: If an image from the scan converter is not correctly displayed, adjust to select the best level point so that the image is displayed correctly.

Field Invert: This feature is used to correct diagonal lines of a non-standard interlaced signal when they appear jaggy. Invert the odd or even field of a video signal.

Signal Level

Lens Memory

This function serves to store or apply the adjusted value when using the Shift, Focus and Zoom buttons on the projector or the remote control.

Set Custom Point ........... Store the current adjusted values in

memory.

Use Custom Point .......... Apply the adjusted values to the cur-

rent signal.

NOTE:

•To enable the Lens Memory feature, select [Ref. Adjust] and place a check mark next to “Yes” for [Use Point on Signal Change?].

• The Lens Memory feature is not available in the Link Mode.

•To store adjusted values common to all the input sources, use the Ref. Lens Memory. See page 8-13.

→

[Ref. Lens Memory]

Signal Type

RGB/Component

Select either the RGB signal type or the Component signal type.

RGB ............ RGB signal

Component .. Component signals such as Y/Cb/Cr, Y/Pb/Pr

NOTE: This feature is available on RGB 1 and 2 only. If you do not get a better picture even when you set "Signal Select" to "Component" in Setup, set this to "Component".

R/G/B, Y/Cb/Cr or Y/Pb/Pr Gain: Adjust RGB, Component or HDTV Gain to match multiple projector color uniformity.

Sound

Volume/Bass/Treble

Controlling Volume, Bass and Treble. Adjusts the sound, bass and treble level of the projector speaker and AUDIO OUT (RCA).

8-11

8. Using On-Screen Menu

Ref. Adjust

Using 3D Reform

This feature corrects trapezoidal distortion so that the projected image is rectangular. Tw o options are available for correcting procedures. You can save adjustment settings by using the 3D Reform Save option on Setup (See page 8-16).

Cornerstone

See page 3-4.

* When "Resolution" is set to "Native", "Cornerstone" and "Keystone" are not available.

Keystone

Position

This feature adjusts the vertical position of the image when viewing video with an aspect ratio selected. When some aspect ratios are selected in Image Options, the image is displayed with black borders on the top and bottom. You can adjust the vertical position between top and bottom.

NOTE: This option is available only when "1.78:1 (16:9)", "1.85:1" and "2.35:1 " are selected in Screen Type and Aspect Ratio.

NOTE: During 3D Reform adjustment, "Screen Type" and "Screen Position" may not be available. To make available, first reset the 3D Reform data and then do settings again. Secondly repeat the 3D Reform adjustment. Changing "Screen Type" and "Screen Position" can limit 3D Reform in its adjustable range.

Reference White Balance [Ref. White Balance]

1. Press the SELECT 왗 or 왘 button to adjust the horizontal keystone.

2. Press the SELECT 왖 or 왔 button to select "Vertical".

3. Press the SELECT 왗 or 왘 button to adjust the vertical keystone.

4. After completing, press the ENTER button. This will return to the menu screen.

Screen

Screen Type

Select the correct aspect ratio for the screen to be used. See also "Aspect Ratio" on page 8-10.

NOTE: When "Resolution" is set to "Native", this selection is inactive.

Brightness R/G/B, Contrast R/G/B

This feature adjusts the white balance that is used as a reference. This adjustment affects all sources.

Reference Color Correction [Ref. Color Correction]

Red/Green/Blue/Yellow/Magenta/Cyan/Color Gain

This option allows you to adjust red, green, blue, yellow, cyan, magenta or color gain.

8-12

8. Using On-Screen Menu

Reference Lens Memory [Ref. Lens Memmory]

This function serves to store the adjusted value common to all input sources when using the Shift, Focus, and Zoom buttons of the main unit or the remote control.

Set Reference Point ............. Stores the current adjusted val-

ues in memory as a reference.

Use Reference Point ............ Applies the adjusted values

stored in Set Reference Point to the current signal.

Return to Factory Default ..... Returns the adjusted values to

the factory default setting.

Use Point on Signal Change? ....

For change to take effect at the time of source selection, select “Yes”.

Picture Mute during Lens Shift? ...

To turn off the image and sound during lens shift, select "Yes".

NOTE: This option is only available when "Yes" is selected for "Use Point on Signal Change?".

* See "Tips on Adjusting Focus" on page 3-4 for more information.

NOTE:

• Adjusted values in Ref. Lens Memory will not be returned to default by using the

Factory Default.

•To store adjusted values for each input source, use the Lens Memory.

NOTE: In the Link mode the Lens Memory feature is not available.

Including Entry List:

Also deletes all the signals in the Entry List and returns to the factory preset.

NOTE: Locked signals in Entry List cannot be deleted.

Current Signal

.................... Resets the adjustments for the current signal to

the factory preset levels.

All the items in "Adjust (Source)" and "Sound" can be reset.

NOTE: Locked signals in Entry List cannot be reset.

Projector Options

[Page 1]

Selecting Menu Language [Language]

You can choose one of seven languages for on-screen instructions. The options are: English, German, French, Italian, Spanish, Swedish and Japanese.

Selecting Menu Mode [Menu Mode]

This feature allows you to select 4 menu modes: Advanced, Custom, Basic and Service Menu.

Factory Default

All Data /Current Signal

The Factory Default feature allows you to change adjustments and setting to the factory preset for source.

All Data ........Reset all the adjustments and settings for all the

signals to the factory preset except Ref. Lens Memory, Language, Background Logo, Communication Speed, Projector ID, Lamp Settings, LAN Mode, Password, Security, Remaining Lamp1/2 Time, Lamp 1/2 Hour Meter, Filter Usage and Projector Usage.

Advanced Menu ...... This is the menu that contains all the

available menus and commands.

Basic Menu ............. This is the basic menu that contains mini-

mum essentials of menus and commands.

Custom Menu .......... This is the menu that you can customize

using the Custom Menu Edit to fit your needs.

Service Menu .......... For service personnel only.

Customizing the Menu [Custom Menu Edit]

See page 8-2 for instructions about how to customize the Menu.

8-13

8. Using On-Screen Menu

Selecting Menu Display Time

This option allows you to select how long the projector waits after the last touch of a button to turn off the menu. The preset choices are "Manual", "Auto 5 sec", "Auto 15 sec", and "Auto 45 sec". The "Auto 45 sec" is the factory preset.

Manual ........ The menu can be turned off manually.

Auto 5 sec ... The menu will automatically be turned off in 5

seconds if no buttons are pressed within 5 seconds.

Auto 15 sec . The menu will automatically be turned off in 15

seconds if no buttons are pressed within 15 seconds.

Auto 45 sec . The menu will automatically be turned off in 45

seconds if no buttons are pressed within 45 seconds.

Selecting Date Format

Eight display formats can be selected. This date format sets the current date that appears on the upper left corner of the screen.

Setting the Current Date and Time [Date, Time Preset]

You can set the current time, month, date, and year.

1. Type in date. Enter month, date and year in this order using Source/Input buttons on the remote control. Month and date must be entered in two digits. For example, to display "February", press "0" and "2".

2. Type in time. Time is expressed in the 24-hour format. For example, 6:00 p.m. is entered as 18:00.

3. Select "OK" and press ENTER. Closing the window allows the clock to start. The current year, month, date and time are displayed on the top of the screen.

[Page 2]

Display Select

You can choose the desired status information to be displayed on the screen.

The information selections are: Date, Time, Input Terminal, Source Name, Projector ID and Message.

The Message selections are: Lamp life warning, lamp error, 3-minute before power off time, clearn filter, lock in Security and “Wait a moment”.

[Page 3]

NOTE: The projector has a built-in clock. The clock will keep working for about 3 days after the main power is turned off. If the main power is off for 3 days or more, the built-in clock will cease. If the built-in clock ceases, set the date and time again. The built-in clock will not cease while in the standby or idle condition.

8-14

Selecting Menu Color [Menu Color Select]

You can choose between two color modes for menu color: color and monochrome.

Selecting Mouse Pointer Icon [Mouse Pointer]

This enables you to select from nine different mouse icons when using a USB mouse.

NOTE: There may be cases where the Pointer function is not available (ex. a noninterlace signal at 15kHz such as video game.)

8. Using On-Screen Menu

Setup

[Page 1]

Selecting Projector Orientation [Orientation]

This reorients your image for your type of projection. The options are: desktop front projection, ceiling rear projection, desktop rear projection, and ceiling front projection.

Selecting a Color or Logo for Background [Background]

Use this feature to display a blue/ black screen or logo when no signal is available. The default background is "Blue". You can change the logo screen using the PC Card Files feature. See pages 4-4.

Setting RGB 1 or 2 for RGB OUT [RGBOUT Terminal]

This option allows you to determine which RGB source is output from the RGBOUT connector during Idle mode.

Last ............. The signal from the last RGB input will be output

to the RGBOUT connector.

RGB 1 ......... The signal from RGB1 IN will be output to the

RGBOUT connector.

RGB 2 ......... The signal from RGB2 IN will be output to the

RGBOUT connector.

NOTE:

• The AUDIO OUT jack (RCA) will not output sound during the Idle mode.

• The RGB signal can be output even when Video, S-Video, Viewer and LAN is

selected.

• When the DVI (DIGITAL) input is selected, the RGB OUTPUT terminal will not

output signal.

Setting Closed Caption

This option sets several closed caption modes that allows text to be superimposed on the projected image of Video or SVideo.

CAPTION 1-4 ...

Te xt is superimposed.

TEXT 1-4 .....Text is displayed in full screen.

OFF ............. This exits the closed caption mode.

[Page 2]

Setting Viewer Options [Viewer Options]

Show Folder List:

If this option is checked, when the Viewer source is selected on the projector, the folder lists will be displayed and allows you to select the presentation from a PC card.

Auto Play:

If this option is checked, when the Viewer source is selected on the projector any given slide will start to play automatically.

Auto Play Interval:

You can specify interval time between 5 and 300 seconds.

NOTE: The Auto Play Interval time set on "Slide Show Settings" of the Dynamic Image Utility 2.0 overrides the one set here.

Manual Play:

Views a slide manually when the Viewer source is selected.

Selecting Capture Options [Capture Option]

(available for JPEG only)

These options are used for the Capture function that you can select from Tools. You have three options for JPEG compression quality: High quality, Normal and High Compression.

High Quality ............. Gives quality of JPEG a priority.

Normal ..................... Gives normal JPEG quality.

High Compression ... Gives compression a priority.

Setting Mouse Button and Sensitivity [Mouse]

This option lets you to change your USB mouse settings. The mouse settings feature is available for USB mouse only. Choose the settings you want:

Mouse Button .......... "Right Hand" or "Left Hand"

Mouse Sensitivity .... "Fast", "Medium" or "Slow"

Sync Termination (RGB1)

This function is used to select the impedance of the sync signal. Select " 75Ω" or "Hi-Z".

NOTE: This should be "75Ω" for normal use. Select the "Hi-Z" when inputting a TTL signal.

8-15

8. Using On-Screen Menu

Selecting Operation Mode [Operation Mode Select]

Set the operation mode of the USB mouse connected to the USB port (MOUSE/HUB) on the projector

Auto .............Depending on connection of the USB port (PC)

on the projector and a USB port (type A) on your PC, the USB mouse is operated in the following way:

* When connecting the projector to your PC

The USB mouse connected to the projector can be used as a PC mouse.

* When not connecting the projector to your PC

The USB mouse connected to the projector can perform menu operation of the projector.

Projector ......The USB mouse connected to the projector can

perform menu operation of the projector.

[Page 3]

[Page 4]

Enabling Auto Adjust [Auto Adjust]

When "Auto Adjust" is set to "On", the projector automatically determines the best resolution for the current RGB input signal to project an image using NEC's Advanced AccuBlend Intelligent Pixel Blending Technology. The image can be automatically adjusted for position and stability; "Horizontal Position", "Vertical Position", "Clock", "Phase", and "Resolution".

On ............... Automatically adjusts image "Horizontal Posi-

tion", "Vertical Position", "Clock", "Phase" and "Resolution".

Off ............... User can adjust the image display functions

("Horizontal Position", "Vertical Position", "Clock", "Phase" and "Resolution") manually.

Selecting Signal Format [Signal Select]

RGB1/2

Allows you to choose "RGB" for an RGB source such as a computer, or "Component" for a component video source such as a DVD player. Normally select "RGB/Component" and the projector automatically detects an either incoming signal. However there may be some component signals that the projector is unable to detect. If this is the case, select "Component". Select "Scart" in RGB 1 or 2 for the European Scart.

VIDEO, S-VIDEO and RGB1 (Video and S-Video)

This feature enables you to select composite video standards manually. Normally select "Auto". Select the video standard from the pulldown menu. This must be done for Video and S-Video separately and "VIDEO" or "S-VIDEO" for RGB1 connector.

Enabling Auto Start [Auto Start]

Tu r ns the projector on automatically when the power cable is inserted into an active power outlet and the main power switch is turned on. This eliminates the need to always use the "Power" button on the remote control or projector cabinet.

Enabling Power Management [Power Management]

When this option is on and there is no input for five minutes or more, the projector will automatically turn itself off.

Enabling Power Off Confirmation [Power Off Confirmation]

This option determines whether a confirmation dialog for turning off the projector will appear or not.

Enabling Horizontal and Vertical Keystone Correction Save [3D Reform Save]

This option enables you to save your current 3D Reform settings. Saving your change once affects all sources. The changes are saved when you turn off the projector.

Selecting Built-in Speakers [Built-in Speaker]

This option allows you to mute the built-in speakers.

8-16

8. Using On-Screen Menu

Enabling Last Memory [Last Memory]

The projector stores the last signal data in memory for each input (RGB1, RGB2, DVI DIGITAL, Video, S-Video and Slot 1/

2). This feature will reduce switching time between sources. If a commercially available switcher is connected, turning on this feature may cause the image to appear incorrectly. Should this happen, turn this feature off to mute the screen during switching.

Enabling Idle Mode [Idle Mode]

The projector has two standby modes: Standby and Idle. Standby is the mode that allows you to put the projector in the standby condition which consumes less power than the idle mode. The projector is preset for Standby at the factory. When this check box is turned on, you allow the RGB OUT connector to output RGB signal during Idle mode.

NOTE: * The RGB OUT connector will not output signal during the Standby mode.

*Via the USB interface the projector can be turned on from your PC using Dy-

namic Image Utility 2.0 during the Standby or Idle mode. On the LAN connection the projector can be controlled or monitored from your PC using Dynamic Image Utility 2.0 only in the Idle mode.

* The HTTP server functions are not available during Standby mode. See page 10-

11.

Tu r ning on or off the Back Light [Back Light]

This function turns on or off the backlight of the buttons on the cabinet.

NOTE: The Back Light feature is available in the normal operating mode or the idle mode only.

S-Video Mode Select:

This feature is used to select the S-Video signal detection mode. This allows identifying of the S-Video signals with different aspect ratio (16:9 and 4:3).

Off ............... Does not identify any S-video signal.

S2 ................Identifies the 16:9 or 4:3 signal.

NOTE: The Aspect Ration is not available when S2 signal is detected.

Resetting the Filter Usage Hours [Clear Filter Usage Meter]

Resets the filter usage back to zero. Pressing this button appears a confirmation dialog box. To reset the filter usage hours, press "OK".

[Page 6]

Enabling Screen Trigger [Screen Trigger]

When "Screen Trigger" is selected and the projector is powered ON, the screen trigger output sends a low voltage trigger to the screen controller and the screen will go down. When the projector is powered OFF the screen trigger stops sending a low voltage trigger to the screen controller and the screen will go up. Use a commercially available stereo mini cable.

[Page 5]

Remote Sensor

This option determines which remote sensors on the projector are enabled in wireless mode. The options are: front, rear, right, or left. All checked boxes indicate that they can accept the infrared signal from the supplied remote control.

Selecting Communication Speed [Communication Speed]

This feature sets the baud rate of the PC CONTROL port (DSub 9 Pin). It supports data rates from 4800 to 38400 bps. The default is 38400 bps. Select the appropriate baud rate for your equipment to be connected (depending on the equipment, a lower baud rate may be recommended for long cable runs).

Enabling and Disabling Projector ID

Each projector needs its own unique addresses when used in serial communication mode. You can choose one of 64 unique address using the spin box. First select Enable. Keep pressing 왘 button increases the number. To make your setting available, select OK.

Selecting Default Source [Default Source Select]

You can set the projector to default to any one of its inputs each time the projector is turned on.

Last ............. Sets the projector to default to the previous or

last active input each time the projector is turned on.

Auto .............Searches for an active source in order of RGB1

→ RGB2 → DVI(DIGITAL) → Video → S-Video → Viewer → Slot 1 → Slot 2 → RGB1(Video) →

RGB1(S-Video) → RGB1 and displays the first found source.

Select .......... Displays the selected source input every time the

projector is started up. Select an input from the pull-down menu.

8-17

8. Using On-Screen Menu

Disabling the Cabinet Buttons [Control Panel Key Lock]

This option turns on or off the Control Panel Key Lock function.

NOTE: * This Control Panel Key Lock does not affect the remote control functions.

* When the cabinet buttons are disabled, pressing and holding the CANCEL button

for about 10 seconds will change the setting to enable.

Lamp Settings

The projector is designed to accept two lamps (dual lamp system). This dual lamp system provides prolong lamp life or high brightness or extra lamp (Extended life lamp).

NOTE: Be sure to use the same lamp type for both lamp 1 and 2.

Lamp Mode

This feature enables you to select two modes of the lamp: Normal and Eco. The lamp life can be extended by using the Eco mode.

Normal Mode . This is the default setting (100% Brightness).

Eco Mode ....Select this mode to increase the lamp life (80%

Brightness).

NOTE: When the optional Extended life lamp is used, the Lamp Mode is fixed to Eco mode.

Link Mode

Settings Selecting Standalone/Master/Slave

This feature is used for multiple projector connection. The master projector is set to Master. The other slave projectors are set to Slave. When not using Link mode, set to Standalone. See page 7-5 for setting up for double stacking in link mode.

Selecting Communication Speed [Communication Speed]

This feature sets the baud rate of the PC CONTROL port (DSub 9 Pin). This is the same procedure as in “Page 6” of “Setup”.

Enabling and Disabling Projector ID:

Each projector needs its own unique addresses when used in serial communication mode. This is the same procedure as in “Page 6” of “Setup”.

Copying Signals in the Entry List

Press the Entry List Copy button to copy all of the signals recorded in the Entry List from one projector to another.

Lamp Select

This feature allows you to select which lamp to be used.

NOTE: This option is not displayed in the Basic menu.

Dual .............Select to use the two lamps at the same time to

increase brightness.

Lamp1/2 ...... Select to use one lamp of the two lamps. (Lamp

1 on the right side and Lamp 2 on the left side when viewed from the front)

Interval

This allows you to specify the time for switching between the two lamps alternately. This option is available only when “Lamp1” or “Lamp2” is selected. When Auto is selected and one lamp has reached the end of its usable life, the other lamp is turned on. The lamp cannot be turned off for 60 seconds immediately after the lamp is turned on.

NOTE: This option is not displayed in the Basic menu.

Lamp Type: The lamp type you use and its information are displayed here. The information displayed here are: Light on or off, standard lamp or extended life lamp and remaining hours.

8-18

8. Using On-Screen Menu

Status

Displaying Current Status of Link Mode When selecting the tab "Status", you will get the following dialog box.

Master ID ................. Indicates the Master projector

Status ...................... Indicates the status of the master pro-

jector

Connected PJ .......... Indicates number of connected slave

projectors

Slave No .................. Indicates serial number of the slave pro-

jector

ID ............................. Indicates ID of a slave projector

Status ...................... Indicates the status of the slave projec-

tor

Reconnect button .... Confirms connection of all linked projec-

tors

LAN Mode

This feature allows you to set various setting items when the projector is used on your network. Consult with your network administrator about these settings.

NOTE:

• Connect an Ethernet LAN cable to the LAN port (RJ-45) of the projector for network connection.

• NEC's optional wireless LAN card is available. For more information on inserting or ejecting a LAN card, see page 5-2.

• Either PC Card Slots 1 or 2 can accept LAN card. If two LAN cards are inserted into both PC card slots, the first inserted one is effective.

• The standard built-in LAN feature and a commercially LAN card are available for network connection, but only one can be used at a time (mutual exclusion).

CAUTION: Make sure that the LAN card is removed during Standby mode (NOT Idle mode) or with the main power off. Failure to do so may cause damage to the data on your PC card.

Status

Status items

Running ................... The projector is now working

Cooling Lamp .......... The fan is now cooling the lamp

Standby ................... The projector is in stand-by or idle.

Communication Error ...

A communication error has occurred

Connecting .............. The projector is now verifying for con-

nection

Error Standby .......... An error caused the projector to enter

the stand-by mode.

LAN Card

This option selects to use either LAN feature between the standard LAN port (RJ-45) and an optional LAN card inserted in the PC CARD slot.

Projector Name

Specify a unique projector name. Press 왔 to display the software keyboard and type in. Up to 16 alphanumeric characters can be used.

IP Address ............... Indicates the IP address of the projec-

tor.

Subnet Mask ........... Indicates the subnet mask of the projec-

tor.

MAC Address .......... Indicates the MAC address of the LAN

card.

Advanced ................ Displays the IP Address setting window.

NOTE: Once you have selected "OK" on the Advanced screen, you cannot cancel the changes using "Cancel" on the LAN Mode screen.

8-19

8. Using On-Screen Menu

Advanced

IP Address

An IP address can be automatically assigned to this projector by your DHCP server. If your network does not automatically assign IP address, ask your network administrator for an address, and then register it manually.

Automatic .... Automatically assigns an IP address to the pro-

jector from a DHCP server.

Manual ........ Provides a space for you to register the IP ad-

dress or subnet mask number obtained from your network administrator.

IP Address ...Set your IP address. Press 왔 to display the soft-

ware keyboard and type in 12 numeric characters.

Subnet Mask Set your subnet mask number. Press 왔 to dis-

play the software keyboard and type in 12 numeric characters.

Gateway ...... Set the default gateway of the network connected

to the projector. Press 왔 to display the software keyboard and type in 12 numeric characters.

Checking this box will make the set default route valid.

When data is sent from the LAN card, the transfer location will be searched according to the previously set routing information; however, when the transfer location has not been found as a result of the search, the data will be sent to the device that holds the IP address set here. The IP address that is set here must be one that can be identified by a search of the routing information.

DNS Configuration

.................... Type in the IP address of DNS server on the net-

work connected to the projector.

12 numeric characters are used.

Domain Name

.................... Type in domain name of the network connected

to the projector. Up to 60 alphanumeric characters can be used.

Network Type (required for wireless only)

Mode:

Select communication method when using wireless LAN.

Infrastructure

.................... Select this option when communicating with one

or more equipment connected to the wireless or wired LAN network via an access point.

802.11 Ad Hoc

.................... Select this option when using the wireless LAN

to communicate with a computer in a one-to-one correspondence. This is a method that meets the IEEE802.11 wireless standard.

Ad Hoc ........ Select this option when using the wireless LAN

to communicate with a computer in a one-to-one correspondence.

Easy Connection

.................... This allows you to easily set up wireless LAN

connection. See the Software Utility Installation section for more information.

See chapter 6 “Using the Projector in a Network”.

SSID (Network name):

Enter an identifier (SSID) for wireless LAN. Communication can be done only with equipment whose SSID matches SSID for your wireless LAN. Up to 32 alphanumeric characters can be used (Case sensitive).

NOTE: To disable SSID, select a space (null) or "ANY"(All caps).

Channel:

Set this option when selecting [802.11 Ad Hoc] or [Ad Hoc] in [Mode]. Select a channel number from the pull-down list. The channel must match for all wireless devices communicating on your wireless LAN.

NOTE: Channels in the pull-down list are different depending on which country you live in.

TX rate:

Select a wireless transmission speed. Normally leave it as Automatic. Tr y another transmission speed when the connection fails.

8-20

8. Using On-Screen Menu

WEP (for Wireless only)

Select this option whether using the WEP (Wired Equivalent Privacy) key for encryption or not. To use encryption, specify WEP key.

Disable ........ Will not turn on the encryption feature. Your com-

munications may be monitored by someone.

64bit ............ Uses 64-bit datalength for secure transmission.

128bit .......... Uses 128-bit datalength for secure transmission.

This option will increase privacy and security when compared to use of 64bit datalength encryption.

NOTE: The WEP settings must be the same as communication devices such as PC or access point in your wireless network. When you use WEP, your image transmission speed will slow down.

Key Select:

Selects one key from the four keys below when selecting [64bit] or [128bit] in [WEP].

Mail

NOTE: To the Mail Alert feature on wireless LAN connection, select "Infrastructure" for "Mode" in "Network Type." .

Alert Mail:

Checking this box enables Alert Mail feature. This option notifies your computer of an error message via email when using wireless or wired LAN. The error message will be notified when the projector lamp has reached the end of its usable life or an error occurs in the projector.

Sample of a message sent from the projector:

The lamp is at the end of its usable life. Please replace the lamp.

Projector Name: X X X X

Lamp 1 Hour Meter: xxxx [H]

Lamp 2 Hour Meter: xxxx [H]

Projector Usage: xxxxxx [H]

Key1-4:

Enter encryption key when selecting [64bit] or [128bit] in [WEP]. Up to 5 characters can be set in 64 bit and up to 13 characters in 128 bit.

The key can also be set in hexadecimal digit. * Enter 0X(numeral and alphabet respectively) right in front

of your key code. *Hexadecimal uses 0 to 9 and A to F. * Up to 10 characters can be set in 64 bit and up to 26

characters in 128 bit.

NOTE: Only numbers can be entered when you use the remote control Source/ Input buttons.

Sender's Address:

Specify the senders address. Use the Software keyboard. Up to 60 alphanumeric and symbols characters can be used. See "Using Software Keyboard" in Appendix for more details.

SMTP Server Name:

Type in the SMTP server name to be connected to the projector. Up to 60 alphanumeric characters can be used.

Recipient's Address 1 to 3:

Type in your recipient's address. Up to 60 alphanumeric and symbols characters can be used.

Test Mail:

Send a test mail to check if your settings are correct.

NOTE: If you entered an incorrect address in a test, you may not receive an Alert mail. Should this happen, check if the Recipient's Address is correctly set.

NOTE: Unless any one of the "Sender's Address", "SMTP Server's Name" or "Recipient's Address 1-3" is selected, "Test Mail" is not available.

NOTE: Be sure to highlight “OK” and press the ENTER button before executing “Test Mail”.

8-21

8. Using On-Screen Menu

Setting a Password

A password can be set for your projector to avoid operation by an unauthorized person.

There are two password options: one for menu and the other for logo. When a password is set, doing any one of the following four operations will display the Password input screen.

For Menu:

* Changing the menu to Advanced

* Editing the custom menu

For Logo:

* Changing the background

* Changing the logo data in PC Card Files

Procedures for Password setting apply to both Menu and Logo.

Entry

To assign your password:

NOTE: Up to 15 alphanumeric characters can be assigned.

• Only numbers can be entered when you use the remote control Source/Input buttons.

1. Type a password.

Highlight "Entry" and press the ENTER button. The "Enter the Password screen" will be displayed.

Make sure that "왔" is highlighted and then press the ENTER button. The Software keyboard appears. Use the Software keyboard to type a password and then highlight "OK" on the “Enter the Password” screen and press the ENTER button. The [Confirm Password] screen will be displayed.

2. Type the same password again. Highlight "OK" on the “Enter the Pass-

word” screen and press the ENTER button.

Delete

To delete your password:

1. Highlight [Delete] and press the ENTER button. The "Current Password" screen will be displayed.

2. Use the Software keyboard to type your password. Highlight "OK" on the “Current Password” screen and then press the ENTER button.

Your password will be deleted.

In case you forget your password, follow the steps below to delete it.

1. Select the Advanced menu from the Basic menu. The "Password" entry screen will be displayed.

2. Use the Software keyboard to type "1111". Highlight "OK" on the “Password” entry screen and then press the ENTER button. The "Password Warning!!" message will be displayed.

3. Use the Software keyboard to type "3333". Highlight "OK" on the “Password” entry screen and then press the ENTER button. The "Password Warning!!" message will be displayed.

4. Use the Software keyboard to type "5555". Highlight "OK" on the “Password” entry screen and then press the ENTER button. The "Delete Password. Are you sure? Yes/No" dialog box will be displayed.

5. Use the SELECT 왗 or 왘 button to highlight "Yes" and press the ENTER button.

Your password will be deleted.

Your password will be assigned.

8-22

8. Using On-Screen Menu

Security

The Security function enables you to protect your projector so that the projector will not project a signal unless you enter a keyword. There is also an option to lock the projector by using a registered PC card as a protect key. Once you have registered your PC card as a protect key, you are required to insert the registered PC card into the PC card slot of the projector each time you turn on the projector. You can enable the Security function by using a keyword only.

Enable/Disable ........ This turns the Security function on or off.

Keyword .................. Enter an appropriate keyword when you

use the Security function.

(Up to 10 characters can be used.)

The Security function is available only when your keyword is entered.

Use Protect key ....... Check this box to lock your projector

when using a PC card. To use a keyword without a PC card, do not check this box.

Drive ........................ Switches between PC Card slots.

Read ........................ Reads data of a PC card.

The Security function is not available unless at least one PC card is registered. (if the “Use Protect key” check box is selected)

Up to 5 PC cards can be registered.

Delete ...................... Deletes data of a registered PC card.

To set up a keyword to enable the Security function without using a registered PC card.

NOTE: Only numbers can be entered when you use the remote control Source/ Input buttons.

1. Use the SELECT keyboard to enter a keyword.

NOTE: Please make a note of your keyword.

2. Use the SELECT

왖왔

button to select “OK”, then the Security function will be enabled. An “Are you sure?” message will appear. Use the SELECT 왗왘 button and press the ENTER button. The Security function takes effect.

왖왔

button to select “Keyword” and use the software

왖왔

button to select “Enable” and use the SELECT

To register a PC card as a protect key.

1. Insert a PC card into the PC card slot of the projector.

2. Use the SELECT ENTER button. A check mark will be placed.

3. Use the SELECT 왖왔 button to select "Read" and press the ENTER button.

Data of the PC card will be read into the projector.

4. Use the SELECT button.

Downloaded data will be registered and be displayed in the list window.

5. Use the SELECT keyboard to enter a keyword.

NOTE: To use a PC card as a protect key, you must also set up a keyword. Please make a note of your keyword.

왖왔

button to select “Use Protect key” and press the

왖왔

button to select "Register" and press the ENTER

왖왔

button to select "Keyword" and use the software

This completes registration of your PC card.

To enable Security, use the SELECT 왖왔 button to select "En- able" and use the SELECT 왖왔 button to select "OK" and "Secu- rity function will be enabled. An “Are you sure?" message will appear. Use the SELECT 왗왘 button and press the ENTER button. The Security function takes effect.

To turn on the projector when Security is enabled (when using your keyword only).

NOTE: Only numbers can be entered when you use the remote control Source/ Input buttons.

1. Press and hold the POWER button for a minimum of two seconds.

The projector will be turned on and display a message to the effect that the projector is security-protected.

2. Select [Projector Options] ENTER button.

The Release Code input screen will be displayed.

3. Enter your keyword in the Release Code input screen. You can view the projected image.

NOTE: Do not forget your keyword. However, if you forget your keyword, NEC or your dealer will provide you with your Release Code. See more information at the end of this section.

→

[Security] from the menu and press the

To turn on the projector when Security is enabled (when using a PC card as a protect key).

1. Insert your registered PC card into the PC card slot.

2. Press and hold the POWER button for a minimum of two seconds. The projector will turn on and then recognize the PC card. Once the image has been projected, it will stay on without the PC card.

• The security disable mode is maintained until the main power is turned off (by setting the main power switch to "O" or unplugging the power cable).

In the following cases you will be asked to check the protect key or input the keyword:

(1) When "OK" is selected at an image for which security is set and

the power is turned off then back on

(2) When the main power is turned off then back on while the security

function is enabled

(3) When you attempt to display an image for which security is set

while the security function is enabled

• Blanks (spaces) cannot be used in the Keyword section.

8-23

8. Using On-Screen Menu

To delete PC card data you registered.

1. Use the SELECT 왖왔 button to select "Delete" and use the SELECT button to select the list window.

2. Use the SELECT delete.

3. Press the SELECT button.

The PC card data will be deleted.

왖왔

button to select the PC card data you wish to

왘

button to select "Delete" and press the ENTER

왗

If you've lost your registered PC card, proceed as follows:

NOTE: NEC or your dealer will provide you with your Release Code in exchange for your registered keyword and Request Code. See URLs at the end of this section.

1. Press and hold the POWER button for a minimum of two seconds.

The projector will be turned on and display a message to the effect that the projector is security-protected.

→

2. Select [Projector Options] ENTER button.

The Release Code input screen will be displayed as well as your Request Code (24 alphanumeric characters).

3. Enter your Release Code in the Release Code Input screen.

* If the projector is turned on by entering the Release Code, your Secu-

rity will be disabled.

NOTE: * Some types of PC cards cannot be registered as your protect key. * It is recommended that you register two or more PC cards in case you lose or

damage your registered PC card.

* Formatting your registered PC card will disable your protect key function.

NOTE: For additional information visit: US : http://www.necvisualsystems.com Europe : http://www.nec-europe.com/ Global : http://www.nec-pj.com/

[Security] from the menu and press hte

Tools

Provides tools for setting On/Off timer, sleep timer, capturing images, displaying files or changing your background logo in a PC Card and drawing.

Timer

Enables you to turn on or off your projector automatically at a specified time. Two timer functions are available: On/Off Timer and Sleep Timer.

NOTE: The projector has a built-in clock. The clock will keep working for about three days after the main power is turned off. If the main power is not supplied to the projector for three days or more, the built-in clock stops working.

On/Off Timer

Up to 10 settings can be programmed.

• Before setting On/Off Timer, make sure that Date, Time Preset feature is set.

•Even after setting On/Off Timer, turning the projector on or off with the remote control is possible.

Setting the On or Off Timer

1. Open the On/Off Timer window.

2. Select a program number (No. 1 to 10) by using the SELECT 왖 or button.

8-24

왔

8. Using On-Screen Menu

3. Select “Edit” and press the ENTER button to open the Edit window.

4. Set the Day, Time (24 hours format), On-Time and Off-Time using the SELECT buttons and the Software keyboard (1 thru 10).

5. Select On Timer or Off Timer

Enabling the On or Off Timer

1. To execute the setting, select “Active” .

2. Select “OK” and press the ENTER button.

NOTE: When one program or more are specified, all the settings are active.

NOTE: The settings will be executed in numerical order. Finished settings will be automatically deleted.

NOTE: The On/Off Timer will not work while the cooling fans are running or an error message appears. Do not turn off the main power switch in this condition.

Disabling the On or Off Timer

To disable the setting, select “Inactive”. Select “OK” and press the ENTER button.

6. Repeat the Timer To repeat the On Timer or Off Timer program every week, place a check mark in “Repeat”.

7. Select “OK” and press the ENTER button on the remote control to complete the setting. To cancel this and return to its previous screen, select “Cancel”.

NOTE: If there is no operation for 4 hours or more after the projector is turned on with On-Timer function, the projector will enter the standby or idle mode.

Deleting the On or Off Timer settings

1. Select the setting you want to delete.

2. Select “Delete” and press the ENTER button.

3. Select “OK” and press the ENTER button to complete the deletion.

4. Select “Delete” again and press the ENTER button to return to the previous screen.

8-25

8. Using On-Screen Menu

Enabling Sleep Timer

1. Select your desired time between 30 minutes and 16 hours: Off, 0:30, 1:00, 2:00, 4:00, 8:00, 12:00, 16:00.

2. Select “Set” and press the ENTER button on the remote control.

3. The remaining time starts counting down.

4. The projector will turn off after the countdown is complete.

NOTE:

•To cancel the preset time, set "Off" for the preset time or turn off the power.

• When the remaining time reaches 3 minutes before the projector is turned off,

the "Projector will turn off in 3 minutes" message will be displayed on the bottom of the screen.

Using Capture

Allows you to capture an image from a source that is currently being displayed. The image is saved as JPEG in the PC card. When you select Capture from the menu, you will get a tool bar. You can capture an image directly using the tool bar when the menu is not displayed. See page 5-4.

Using ChalkBoard

The ChalkBoard feature allows you to write and draw messages on a projected image. See page 4-4.

NOTE: This feature is available only when using with USB mouse.

Help

Contents

Using PC Card Files

The PC Card Files feature allows you to display a list of all the files stored in the PC card so that you can select a file you want to display. You can also sort files by file name or date, or display the file. See page 4-4. Changing Background Logo: You can change the default background logo using the PC Card Files feature. See page 4-4.

NOTE: File size must be 256KB or less. Other file formats than JPEG and BMP are not available. See page 4-4.

Provides an online help about how to use the menus. An underlined link means that you can move to an adjustment item directly. Selecting the underlined link and pressing ENTER moves to the corresponding adjustment item.

NOTE: The Help menu may not be displayed correctly when an image is overscanned.

Source Information

Information

Displays the status of the current signal. This dialog box has two pages.

Page 1

Source Name, Input Terminal, Entry No., Horizontal Frequency, Ver tical Frequency, Sync Polarity

8-26

8. Using On-Screen Menu

Page 2

Signal Type, Video Type, Sync Type, Interlace, Direct Key

Projector Information

Displays the information for your projector such as lamp usage, filter usage, version number and others. This dialog box has three pages.

Page 1

Page 2

Filter Usage, Projector Usage, Projector ID

Page 3

Version (BIOS/Firmware/Data/FPGA)

Remaining Lamp 1 Time, Remaining Lamp 2 Time, Lamp 1 Hour Meter, Lamp 2 Hour Meter

NOTE: The progress indicator shows the percentage of remaining bulb life. The value informs you of the amount of lamp 1 and 2 respectively.

• When the remaining lamp time reaches 0, the Remaining Lamp Time bar indica-

tor changes from 0% to 100 hours and starts counting down. If the remaining lamp time reaches 0 hour, the projector will not turn on.

Lamp life (H)

Type

Standard lamp

Extended life lamp

NOTE: The lamp life is typically 1500 hours in Normal mode (2000 hours in Eco mode). The lamp life, however, may be decreased under certain conditions and the lamp could reach end of life within the specified time.

Normal

1500H

Eco

2000H

4500H

Model

GT60LP

GT60LPS

Test Pattern

Press to display the test pattern. Pressing this button sequentially selects 10 test patterns for each red, green and blue.

8-27

Maintenance

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

z Replacing the Lamp.................................................. 9-2

x Replacing or Cleaning the Filter ...............................9-3

c Cleaning the Cabinet and the Lens ..........................9-4

9. Maintenance

This chapter describes the simple maintenance procedures you should follow to replace the lamp and the filter, and to clean the filter and the cabinet.

z Replacing the Lamp

The projector has two lamps. The lamp replacement procedure applies to both lamps. After your lamp 1 and 2 has been operating for 1500 hours (Normal mode on the standard life lamp) or longer, the "Lamp" indicator in the cabinet will blink red and the message will appear. Even though the lamp may still be working, replace it as soon as possible to maintain optimal projector performance.

NOTE: Be sure to use the same lamp type for both lamp 1 and 2.

CAUTION

• DO NOT TOUCH THE LAMP immediately after it has been used. It will be extremely hot. Turn the projector off, wait 90 seconds, turn off the main power switch, and then disconnect the power cable. Allow at least one hour for the lamp to cool before handling.

• DO NOT REMOVE ANY SCREWS except the lamp cover screw and the two lamp case screws. You could receive an electric shock.

• The projector will turn off and go into stand by mode after 1600 hours (Normal mode on the standard life lamp) of service. If this happens, be sure to replace the lamp. If you continue to use the lamp after 1500 hours (Normal mode on the standard life lamp) of use, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp housing. Do not touch them as the pieces of glass may cause injury. If this happens, contact your NEC dealer for lamp replacement.

• When "Dual" is selected in "Lamp Select" of "Lamp Settings", replace both lamp 1 and 2 at the same time so that the projector can keep the color of projected image even.

To replace the lamp:

3. Insert a new lamp housing until the lamp housing is plugged into the socket.

CAUTION: Do not use a lamp other than the NEC replacement lamp (Standard life lamp: GT60LP or Extended life lamp: GT60LPS).

4. Secure it in place with the two screws. Be sure to tighten the screws.

5. Reattach the lamp cover.

1. Loosen the lamp cover screw until the screwdriver goes into a freewheeling condition and remove the lamp cover. The lamp cover screw is not removable.

2. Loosen the two screws securing the lamp housing until the screwdriver goes into a freewheeling condition. The two screws are not removable. Remove the lamp housing by pulling out the handle.

Interlock

6. Tighten the lamp cover screw. Be sure to tighten the screw.

NOTE: Replacing a new lamp automatically clears the lamp usage hours.

NOTE: The lamp housing has an EEPROM chip memorizing its amount of usage hours. You can check the amount usage hours in Information of the menu. (The standard lamp and the optional lamp have an EEPROM chip in it so that when you remove it, your lamp usage hours are saved in its own memory. The projector reads the lamp usage hours from the EEPROM chip to display them in Information of the menu.)

NOTE: There is an interlock on this case to prevent the risk of electrical shock. Do not attempt to circumvent this interlock.

9-2

9. Maintenance

x Replacing or Cleaning the Filter

To replace the filter:

• Replace both filters at the same time.

• Before replacing the filters, remove dust and dirt from the projector cabinet.

• The projector contains high-precision parts. Keep out dust and dirt during filter replacement.

• Do not wash the filter with water. Water will damage the filter membrane.

• Reattach the filter cover correctly. Failure to do so may cause projector malfunction.

Preparation: Replace the lamp before replacing the filters.

1. Pull out the filter cover by pushing up on the catch.

(This must be done to the filters on both left and right.)

The air-filter sponge prevents dust or dirt from getting the inside of the projector and should be cleaned after every 100 hours of operation (more often in dusty conditions). If the filter is dirty or clogged, your projector may overheat.

CAUTION

•Turn off the power, wait for 90 seconds, turn off the main power and unplug the projector before replacing the filter.

• Do not attempt to operate the projector without filter.

•Your projector will not operate unless the filter cover is installed correctly.

To clean the filter:

Pull out the filter by pushing up on the catch. Vacuum the filterthrough the filter.

The "Please clean the filters" message will be displayed each time the projector is turned on after it has been used in excess of 168 hours. Should this message appear, clean the filters.

Filter holding frame Filter cover

2. Replace both filters.

1. Remove the filter and clean the filter cover.

Filter

2. Place the new filter on the filter cover in the correct direction.

3. Reinstall the filter cover. (This must be done to both left and right)

4. Plug the power cable into a wall outlet and turn on the projector.

5. Reset the filter usage hours to zero.

Select [Menu] Filter Usage Meter] → [OK]. Press the ENTER button.

→

[Projector Options] → [Setup] → [Page 5] → [Clear

NOTE: * The message can be turned on or off using the "Message" option on the Setup

menu. See page 8-14.

* After cleaning the filters and resetting the filter usage time back to zero, the mes-

sage will not be displayed. See page 8-17 for resetting the filter usage time.

9-3

9. Maintenance

c Cleaning the Cabinet and the Lens

O C U S

A R D

1 PC C

A R D

L E N S

S H

T M P

IG H T

T U S

T O N

R E

F O R

D A U

O A D

A J U

S T

1. Turn off the projector before cleaning.

2. Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinner.

3. Use a blower or lens paper to clean the lens, and be careful not to scratch or mar the lens.

LAN

REMOTE 1

PC CARD

OUT

)

(

USB

)

AC IN

PC CONTROL

MOUSE/HUB

(

USB

OUT

SC TRIGGER REMOTE 2

DVI

AUDIO

SLOT 1 SLOT 2

RGB 1

L/MONO

R/Cr

AUDIO

G/Y

AUDIO OUT

B/Cb

RGB 2

H/ HV

L/MONO

RGB OUT

VIDEO S-VIDEO

L/MONO

F O

C U S

C C

M A R

1 PC C

T A M

N P 1

E N S

S H

A T U

T O N

/ S

T A

E F O

R M

U T O

A J U S

9-4

Appendix

○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○○

USB Memory Device or USB Memory Card Reader Support ....

x Troubleshooting ...................................................... 10-3

c Specifications ......................................................... 10-5

v Cabinet Dimensions ............................................... 10-7

b Pin Assignments of D-Sub RGB Input Connector .. 10-7

n Compatible Input Signal List ...................................10-8

10-2

m REMOTE 1 Connector............................................ 10-9

, PC Control Codes and Cable Connection ............10-10

Cable Connection ............................................................................................ 10-10

PC Control Connector (D-SUB 9P) ................................................................. 10-10

. Using Software Keyboard ..................................... 10-10

⁄0 Operation Using an HTTP Browser ...................... 10-11

z USB Memory Device or USB Memory Card

Reader Support

The projector is compatible with either a USB memory device or USB memory card reader which supports the viewer and security features.

•To use a USB memory device or USB memory card reader, connect the device to the USB port (type A).

• Select one of the Drive icons in the Viewer toolbar, Capture toolbar and PC Card File setting screen. Up to four drives can be accepted.

•To use a USB memory device as a Protect key for Security function, select one from the Drive icons in the Security setting screen.

10. Appendix

NOTE:

• Some USB memory devices (brands) or USB memory card readers may not work.

•You cannot use a USB memory device and a USB memory card reader when connecting a USB mouse to the projector. Using a USB HUB that allows multiple USB memory devices or card readers is not supported either.

• Do not do the following while the USB memory device or USB memory card reader’s access indicator is lit or flashing (while data is being accessed.) Doing so can damage your USB memory device or USB memory card in the reader. Back up your data in case it will need to be restored. * Pulling out the USB memory device or USB memory card reader

from the USB port of the projector. * Pulling out the memory card from the USB memory card reader *Turning off the main power switch or unplugging the power cable.

• The drive for ”USB 1-4” is displayed only when the USB memory device or USB memory card reader is connected to the projector. The drive for “USB 1-4” may be displayed differently from the one in the USB memory card reader.

• Some USB memory devices (brands) or USB memory cards cannot be used as Protect key for the projector’s Security function.

10-2

x Troubleshooting

This section helps you resolve problems you may encounter while setting up or using the projector.

Power Indicator

Indicator Condition

Blinking light

Steady light

Status Indicator

Indicator Condition

Blinking light

Steady light

Off

Green blinking

Orange blinking

Green Orange

Off

Red blinking

Orange

Green

0.5 sec ON,

0.5 sec OFF

2.5 sec ON,

0.5 sec OFF

0.5 sec ON,

0.5 sec OFF

2.5 sec ON,

0.5 sec OFF

1 cycle (0.5 sec ON,

2.5 sec OFF)

2 cycle (0.5 sec ON,

0.5 sec OFF)

3 cycle (0.5 sec ON,

0.5 sec OFF)

4 cycle (0.5 sec ON,

0.5 sec OFF)

Projector Condition Note

The main power is off The projector is getting ready to turn on.

Off Timer or Sleep Timer is active.

The projector is cooling down.

On Timer is active.

The projector is turned on. The projector is in Standby or Idle.

Projector Condition Note

Normal Lens hood or lamp cover error

Temperature error

Power error

Fan error

Control key locked

Idle condition

– Wait for a moment.

–

Wait for a moment.

–

– –

– Replace the lens hood or the lamp cover correctly. The projector is overheated. Move the projector to a cooler location. Power unit will not work correctly.

Cooling fan has stopped. Contact your dealer. You have pressed control panel key when Control Key Lock is enabled. –

10. Appendix

Lamp 1/2 Indicator

Indicator Condition

Blinking light

Steady light

Red blinking

Green blinking Orange blinking Red

Green Orange

Off

2.5 sec ON,

0.5 sec OFF 1 cycle (0.5 sec ON,

2.5 sec OFF)

6 cycle (0.5 sec ON,

0.5 sec OFF)

7 cycle (0.5 sec ON,

0.5 sec OFF)

Projector Condition Note

Light off Lamp has reached its end of life. Lamp replacement message will be displayed. No lamp

Lamp error

Lamp data error

Re-firing the lamp Switching from Lamp 1 to 2 Lamp has been used beyond its limit. The projector will not turn on until the lamp is replaced. Lamp mode is set to Normal mode Lamp mode is set to Eco mode.

– Replace the lamp.

Lamp is not installed. Turn off the power and install lamp. Lamp fails to light. Wait a full minute and turn on the power again. If this will not solve the problem, consult your dealer. Fails to read lamp data. Consult your dealer. Wait for a moment. Wait for a moment. Replace the lamp.

– –

10-3

Common Problems & Solutions

Problem Check These Items

10. Appendix

Does not turn on

No picture

Image isn’t square to the screen

Picture is blurred

• Check that the power cable is plugged in and that the main power switch on the projector is on. See pages 19 and 2-11.

• Ensure that the lens hood or the lamp cover is installed correctly. See pages 1-4 and 9-2.

• Check to see if the projector has overheated or the lamp has reached the end of its usable life. If there is insufficient ventilation around the projector or if the room where you’re presenting is particularly warm, move the projector to a cooler location.

• Use the menu or Source/Input button to select your source (RGB 1/2, DVI, Video, S-Video, Viewer or LAN). See page 3-3 or 8-7.

• Ensure your cables are connected properly.

• Use menus to adjust the brightness and contrast. See page 8-8.

• Select correct option in the Signal Select for current signal. See page 8-16.

• Select RGB/Component when connecting DVD player to RGB connector of the projector. See page 8-11.

• Apply a standard RGB signal when using RGB connector.

• Adjust picture for RGB signal.

• Make sure each setting is correct.

• If the problem still persists, reset the settings or adjustments to factory preset levels using the Factory Default in the Adjustment Menu. See page 8-13.

• If Security is enabled, a keyword or PC card as a protect key is required.

• Remove the lens cap.

• Reposition the projector to improve its angle to the screen. See page 3-3.

• Use the 3DReform function to correct the trapezoid distortion. See page 3-4.

• Adjust the focus. See page 3-4.

• Reposition the projector to improve its angle to the screen. See page 3-3.

• Ensure that the distance between the projector and screen is within the adjustment range of the lens. See page 2-2.

• Condensation may form on the lens if the projector is cold, brought into a warm place and is then turned on. Should this happen, let the projector stand until there is no condensation on the lens.

Image is scrolling vertically, horizontally or both

Remote control does not work

Indicator is lit or blinking

Cross color in RGB mode

USB mouse does not work

No on-screen menu

• Use the menus or Source/Input button on the remote control or the cabinet to select the source you want to input. See page 3-3 or 8-7.

• Install new batteries. See page 1-12.

• Make sure there are no obstacles between you and the projector. See page 1-12.

• Stand within 22 feet (7 m) of the projector. See page 1-12.

• Check if one or more remote sensors are enabled. Select [Projector Options] → [Setup] → [Page 5] → [Remote Sensor] from the menu. See page 8-17.

• If the remote control cable plug is inserted into the REMOTE 2 IN jack, the remote control does not function wirelessly. See page 1-13.

• Make sure that the remote control’s ID corresponds with the projector’s ID. See page 7-2.

• See the Power/Status/Lamp Indicator on page 10-3.

• If Auto Adjust is off, turn it on or adjust the image manually with the Position/Clock in the Image Options. See page 8-16.

• Make sure that your USB mouse is properly connected to the projector. The projector may not support some brands of a USB mouse.

• Press MUTE OSD if the image is muted. Or press and hold CTL and press MUTE OSD button. See page 4-2.

10-4

10. Appendix

c Specifications

This section provides technical information about the GT5000 Projector’s performance.

Model Number GT5000

Optical

LCD Panel 1.4" p-Si TFT active-matrix with Micro Lens Array, 1024⳯768 native resolution up to 1600⳯1200 with

Advanced AccuBlend Technology Lamp 275 W DC lamp⳯2 Lamp Life Eco-mode 2000 hours/Normal mode 1500 hours Lens Options Motorized zoom and Motorized focus

GT10RLB : F2.4 f=28.9mm

GT19ZL : F2.0-2.7 f=48.9-63.7mm

GT13ZLB : F2.3-2.8 f=34.5-42.5mm

GT20ZL : F1.8-2.5 f=57.4-74.7mm

GT24ZLB : F2.5-3.2 f=64.0-93.8mm

GT34ZLB : F2.5-3.3 f=93.5-140.3mm Lens Shift GT20ZL: Vertical +/- 0.5V, Horizontal +/- 0.32H

GT13ZLB: Vertical +/-0.32V, Horizontal +/-0.19H

GT19ZL/GT24ZLB/GT34ZLB: Vertical +/- 0.39V, Horizontal +/- 0.24H Image Size GT10RLB: 40-250 inches (1016-6350mm) diagonal

GT20ZL/GT19ZL/GT13ZLB: 40 - 300 inches (1016 - 7620 mm) diagonal

GT24ZLB: 60 - 400 inches (1524 - 10160 mm) diagonal

GT34ZLB : 80-500 inches (2032-12700 mm) diagonal Projection Distance GT10RLB lens: 0.8 - 5.0 m / 31.5" - 196.9"

GT13ZLB lens: 1.0 - 9.0 m / 39.37"- 354.3"

GT19ZL lens: 1.4 - 13.5 m / 55.12"- 531.5"

GT20ZL lens: 1.7 - 15.8 m / 66.93"- 622"

GT24ZLB lens: 2.6 - 26.4 m / 102.4"- 1039"

GT34ZLB lens: 5.1 - 49.7 m / 200.8"- 1957"

Electrical

Input Connections RGB/YCr/Cb/H(HV)V 5 BNC⳯1, Audio: RCA (L/MONO, R)⳯1

RGB D-Sub 15 pin⳯1, Audio: Stereo Mini Audio⳯1

DVI DIGITAL DVI-D (Max resolution : XGA@60Hz) x 1, Audio: Stereo Mini Audio⳯1

Video BNC⳯1, Audio: RCA (L/MONO, R)⳯1

S-Video Mini DIN 4⳯1, Audio: RCA (L/MONO, R)⳯1

PC Card Slot⳯2

Option Board Slot⳯2 Output Connections RGB D-Sub 15 pin⳯1

Audio Out RCA (L/MONO, R)⳯1 Other Input/Output Remote Control Stereo mini jack ;IN x 1; OUT⳯1

PC Control D-Sub 9 pin; IN⳯1, OUT⳯1

Ex. Control D-Sub 15 Din⳯1

SC. TRIGGER Stereo mini jack⳯1

LAN Port RJ-45⳯1

USB Port A Type⳯1, B Type⳯1 Input Compatibility NTSC / PAL / PAL60 / SECAM / NTSC4.43, YCbCr Component, HDTV-1080I, 1080p, 720p, 480p,

480I, VGA, SVGA, XGA, SXGA / UXGA (with Advanced AccuBlend) Sychronization Horizontal Frequency : 15 - 100 kHz (RGB : 24 kHz or over) Range Vertical Frequency : 48 - 120 Hz Video Bandwidth RGB: 100 MHz Color Reproduction Full color, 16.7 million colors simultaneously Horizontal Resolution 550 TV lines : NTSC / PAL / NTSC4.43 / YCbCr

350 TV lines : SECAM

RGB: 1024 dots horizontal, 768 dots vertical

10-5

10. Appendix

Built-in Speakers 5W⳯2 Power Requirement 100 - 120VAC / 200 - 240 VAC, 50 / 60 Hz Input Current 8.0 A (100 - 120 VAC) / 4.0A (200 - 240 VAC) Power Consumption 800W (Lamp Normal mode) (2 lamps) 660W (Lamp Eco mode)

1W (Standby)

Mechanical

Dimensions 20.4" (W)⳯9.5" (H)⳯21.6" (D) / 518 mm (W)⳯242 mm (H)⳯548 mm (D) (not including protrusions) Net Weight 40.6 lbs / 18.4 kg (not including lens) Environment Operational Temperatures: 32˚ - 95˚F (0˚ to 35˚C), 20 - 80% humidity

Storage Temperatures: 14˚ - 122˚F (-10˚ to 50˚C), 20 - 80% humidity Regulations UL Approved (UL 60950, CSA 60950)

Meets DOC Canada Class B requirements

Meets FCC Class B requirements

Meets AS/NZS3548 Class B

Meets EMC Directive (EN55022, EN55024, EN61000-3-2, EN61000-3-3)

Meets Low Voltage Directive (EN60950, TUV GS Approved)

For additional information visit:

US: http://www.necvisualsystems.com

Europe: http://www.nec-europe.com/

Global: http://www.nec-pj.com/

LCD panels are inherently susceptible to pixel defects. For additional information regarding pixel data, please contact your local NEC sales office.

The specifications are subject to change without notice.

10-6

v Cabinet Dimensions

AUTO ADJUST

10. Appendix

STATUSPC CARD 2PC CARD 1 LAMP 1 LAMP 2 POWER

ON/STAND BY

SELECT

3D REFORM

3D A

FOCUS ZOOM

DOWN

LENS SHIFT

LEFT RIGHT

548 (21.6)

2 (0.08)

259 (10.2)

518 (20.4)

Lens center

USB (MOUSE/HUB)USB (PC)PC CARD

PC CONTROL

OUT

SC TRIGGER REMOTE 2

LAN

REMOTE 1

OUT

AC IN

225 (8.9)

242 (9.5)

AUDIO OUT

VIDEO S-VIDEO

DVI

AUDIO

RGB 1

SLOT 1 SLOT 2

L/MONO

AUDIO

RGB 2

R/Cr

G/Y

RGB OUT

B/Cb

H/HV

L/MONORL/MONO

17 (0.7)

b Pin Assignments of D-Sub RGB Input Connector

Mini D-Sub 15 Pin Connector

51423

6978

1112131415

Signal Level Video signal : 0.7Vp-p (Analog) Sync signal : TTL level * RGB 2 Input only

Pin No. RGB Signal (Analog) YCbCr Signal

1 Red Cr 2 Green or Sync on Green Y 3 Blue Cb 4 Ground 5 Ground 6 Red Ground Cr Ground 7 Green Ground Y Ground 8 Blue Ground Cb Ground

9 No Connection 10 Sync Signal Ground 11 SCART Sync Sync 12 Bi-directional DATA (SDA)* 13 Horizontal Sync or Composite Sync 14 Vertical Sync 15 Data Clock*

6 (0.2)

Lens center

Unit = mm (inch)

135 (5.3)

10-7
