NEC Express5800-S120T User's Guide

Series3800/S120T

USER’S MANUAL

1.0

The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates. Please Note: For the most up-to-date version of this

manual, please see our web site at www.supermicro.com.

Super Micro Computer, Inc. ("Supermicro") reserves the right to make changes to the product described in this manual at any time and without notice. This product, including software, if any, and documentation may not, in whole or in part, be copied, photocopied, reproduced, translated or reduced to any medium or machine without prior written consent.

IN NO EVENT WILL SUPERMICRO BE LIABLE FOR DIRECT, INDIRECT, SPECIAL, INCIDENTAL, SPECULATIVE OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OR INABILITY TO USE THIS PRODUCT OR DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN PARTICULAR, SUPERMICRO SHALL NOT HAVE LIABILITY FOR ANY HARDWARE, SOFTW ARE, OR DA TA STORED OR USED WITH THE PRODUCT, INCLUDING THE COSTS OF REPAIRING, REPLACING, INTEGRATING, INSTALLING OR RECOVERING SUCH HARDWARE, SOFTWARE, OR DATA.

Any disputes arising between manufacturer and customer shall be governed by the laws of Santa Clara County in the State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Super Micro's total liability for all claims will not exceed the price paid for the hardware product.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the manufacturer’s instruction manual, may cause interference with radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and the receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/television technician for help.

WARNING: Handling of lead solder materials used in this product may expose you to lead, a chemical known to the State of California to cause birth defects and other reproductive harm.

Manual Revision 1.0 Release Date: February 15, 2008

Unless you request and receive written permission from Super Micro Computer, Inc., you may not copy any part of this document.

Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

Printed in the United States of America

Preface

About This Manual

This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SERIES3800/S120T (7045AC3/7045A-CT). Installation and maintenance should be performed by experienced technicians only.

The SERIES3800/S120T (7045A-C3/7045A-CT) is a high-end server based on the SC743TQ-865-SQ tower/4U rackmount chassis and the X7DCA-3/ X7DCA-i, a dual processor serverboard that supports dual Intel 5400/5300/5200/5100 series processors.

Xeon® LGA771

Preface

Manual Organization

Chapter 1: Introduction

The ﬁ rst chapter provides a checklist of the main components included with the server system and describes the main features of the X7DCA-3/X7DCA-i serverboard and the SC743TQ-865-SQ chassis, which comprise the SERIES3800/ S120T (7045A-C3/7045A-CT).

Chapter 2: Server Installation

This chapter describes the steps necessary to setup the SERIES3800/S120T (7045A-C3/7045A-CT) into a rack and check out the server conﬁ guration prior to powering up the system. If your server was ordered without processor and memory components, this chapter will refer you to the appropriate sections of the manual for their installation.

Chapter 3: System Interface

Refer here for details on the system interface, which includes the functions and information provided by the control panel on the chassis as well as other LEDs located throughout the system.

iii

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Chapter 4: System Safety

You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SERIES3800/S120T (7045A-C3/7045A-CT).

Chapter 5: Advanced Serverboard Setup

Chapter 5 provides detailed information on the X7DCA-3/X7DCA-i serverboard, including the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconﬁ guring the serverboard.

Chapter 6: Advanced Chassis Setup

Refer to Chapter 6 for detailed information on the SC743TQ-865-SQ server chassis. You should follow the procedures given in this chapter when installing, removing or reconﬁ guring SAS/SATA or peripheral drives and when replacing system power supply units and cooling fans.

Chapter 7: BIOS

The BIOS chapter includes an introduction to BIOS and provides detailed information on running the CMOS Setup Utility.

Appendix A: BIOS POST Messages

Appendix B: BIOS POST Codes

Appendix C: Intel HostRaid Setup Guidelines

Appendix D: System Speciﬁ cations

Notes

Preface

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Table of Contents

Chapter 1 Introduction

1-1 Overview .........................................................................................................1-1

1-2 Serverboard Features .....................................................................................1-2

Processors ......................................................................................................1-2

Memory ...........................................................................................................1-2

Onboard SAS .................................................................................................. 1-2

Serial ATA ....................................................................................................... 1-2

PCI Expansion Slots ....................................................................................... 1-2

Onboard Controllers/Ports .............................................................................. 1-3

Other Features ................................................................................................ 1-3

1-3 Server Chassis Features ................................................................................ 1-3

System Power ................................................................................................. 1-3

SAS Subsystem .............................................................................................. 1-3

SATA Subsystem .............................................................................................1-3

Front Control Panel ......................................................................................... 1-3

I/O Backplane ..................................................................................................1-4

Cooling System ............................................................................................... 1-4

1-4 Notes ............................................................................................................... 1-6

Chapter 2 Server Installation

2-1 Overview .........................................................................................................2-1

2-2 Unpacking the System .................................................................................... 2-1

2-3 Preparing for Setup ......................................................................................... 2-1

Choosing a Setup Location .............................................................................2-2

Rack Precautions ............................................................................................ 2-2

Server Precautions ..........................................................................................2-2

Rack Mounting Considerations ....................................................................... 2-3

Ambient Operating Temperature ................................................................ 2-3

Reduced Airﬂ ow ......................................................................................... 2-3

Mechanical Loading ................................................................................... 2-3

Circuit Overloading ..................................................................................... 2-3

Reliable Ground ......................................................................................... 2-3

2-4 Installing the System into a Rack ................................................................... 2-4

Identifying the Sections of the Rack Rails ...................................................... 2-4

Installing the Chassis Rails ............................................................................. 2-5

Table of Contents

Installing the Rack Rails .................................................................................2-6

Installing the Server into the Rack ..................................................................2-7

2-5 Checking the Serverboard Setup ....................................................................2-8

2-6 Checking the Drive Bay Setup ........................................................................2-9

Chapter 3 System Interface

3-1 Overview .........................................................................................................3-1

3-2 Control Panel Buttons ..................................................................................... 3-1

Power ..............................................................................................................3-1

Reset ...............................................................................................................3-1

3-3 Control Panel LEDs ........................................................................................3-2

Power ..............................................................................................................3-2

HDD ................................................................................................................. 3-2

NIC1 ................................................................................................................3-2

NIC2 ................................................................................................................3-2

Overheat/Fan Fail ........................................................................................... 3-2

Power Fail ....................................................................................................... 3-3

3-4 Drive Carrier LEDs .......................................................................................... 3-3

SAS Drives ...................................................................................................... 3-3

SATA Drives ....................................................................................................3-3

Chapter 4 System Safety

4-1 Electrical Safety Precautions .......................................................................... 4-1

4-2 General Safety Precautions ............................................................................ 4-2

4-3 ESD Precautions ............................................................................................. 4-3

4-4 Operating Precautions .................................................................................... 4-4

Chapter 5 Advanced Serverboard Setup

5-1 Handling the Serverboard ............................................................................... 5-1

Precautions .....................................................................................................5-1

Unpacking .......................................................................................................5-2

5-2 Serverboard Installation ..................................................................................5-2

5-3 Connecting Cables .......................................................................................... 5-2

Connecting Data Cables ................................................................................. 5-3

Connecting Power Cables .............................................................................. 5-3

Connecting the Control Panel ......................................................................... 5-3

5-4 I/O Ports .......................................................................................................... 5-4

5-5 Installing the Processor and Heat Sink...........................................................5-5

5-6 Installing Memory ............................................................................................5-9

5-7 Adding PCI Cards ..........................................................................................5-11

5-8 Serverboard Details ...................................................................................... 5-12

vii

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

X7DCA-3/X7DCA-i Quick Reference ............................................................ 5-13

5-9 Connector Deﬁ nitions ................................................................................... 5-14

5-10 Jumper Settings ............................................................................................5-21

5-11 Onboard Indicators ........................................................................................5-23

5-12 Parallel, Floppy, IDE, and SATA Ports .......................................................... 5-24

Chapter 6 Advanced Chassis Setup

6-1 Static-Sensitive Devices ..................................................................................6-1

Precautions .....................................................................................................6-1

Unpacking .......................................................................................................6-1

6-2 Front Control Panel ......................................................................................... 6-3

6-3 System Fans ................................................................................................... 6-4

Fan Failure ...................................................................................................... 6-4

Replacing Chassis Cooling Fans .................................................................... 6-4

6-4 Drive Bay Installation ......................................................................................6-6

SAS/SATA Backplane ......................................................................................6-7

Installing Components in the 5.25" Drive Bays .............................................. 6-8

6-5 Power Supply ..................................................................................................6-9

Power Supply Failure ...................................................................................... 6-9

Chapter 7 BIOS

7-1 Introduction ......................................................................................................7-1

7-2 Running Setup ................................................................................................ 7-2

7-3 Main BIOS Setup ............................................................................................ 7-2

7-4 Advanced Setup .............................................................................................. 7-7

7-5 Security .........................................................................................................7-21

7-6 Boot ............................................................................................................... 7-23

7-7 Exit ................................................................................................................7-24

Appendix A BIOS POST Messages Appendix B BIOS POST Codes Appendix C Intel H ost RAI D Setu p Guide line s Appendix D System Speciﬁ cations

viii

Chapter 1: Introduction

Chapter 1

Introduction

1-1 Overview

The 7045A-C3/7045A-CT is a high-end workstation comprised of two main subsystems: the SC743TQ-865-SQ tower/4U server chassis and the X7DCA-3/X7DCA-i dual Intel Xeon processor serverboard. Please refer to our web site for information on operating systems that have been certiﬁ ed for use with the SERIES3800/S120T (7045A-C3/7045A-CT).

In addition to the serverboard and chassis, various hardware components have been included with the SERIES3800/S120T (7045A-C3/7045A-CT), as listed below:

 Two (2) 8-cm hot-swap PWM "SuperQuiet" chassis fans (FAN-0104L4)

 One (1) 9-cm PWM "SuperQuiet" exhaust fan (FAN-0103L4)

 Two (2) CPU heat sinks (SNK-P0034AP4)

 One (1) 3.5" ﬂ oppy drive (FPD-PNSC-01)

 One (1) cable for DVD drive (CBL-0140L)

 One (1) ﬂ oppy cable (CBL-112L)

 SAS Accessories (7045A-C3)

One (1) SAS backplane (CSE-SAS-743TQ) Two (2) SAS cables (CBL-0119L) Six (6) SATA hot-swap drive carriers [CSE-PT17(B)]

 SATA Accessories (7045A-CT) One (1) SATA backplane (CSE-SAS-743TQ) Six (6) SATA cables (CBL-0061L) Two (2) SGPIO cables (CBL-0157L) Six (6) SATA hot-swap drive carriers [CSE-PT17(B)]

 Optional: One (1) 8-cm PWM fan (FAN-0104L) One (1) rackmount kit [CSE-PT26L-(B)]

1-1

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

1-2 Serverboard Features

At the heart of the SERIES3800/S120T (7045A-C3/7045A-CT) lies the X7DCA-3/ X7DCA-i, a dual processor serverboard based on the Intel 5100 chipset and designed to provide maximum performance. Below are the main features of the X7DCA-3/X7DCA-i. (See Figure 1-1 for a block diagram of the chipset).

Processors

The X7DCA-3/X7DCA-i supports single or dual LGA771 type Intel Xeon 5400/5300/5200/5100 Series processors at a FSB speed of 1333/1066 MHz. Please refer to the serverboard description pages on our web site for a complete listing of supported processors.

Memory

The X7DCA-3/X7DCA-i has six 240-pin DIMM slots that can support up to 32 GB of ECC DDR2-667/533 SDRAM. The memory operates in an interleaved conﬁ guration and requires requires modules of the same size and speed to be installed two at a time. See Chapter 5 Section 5 for details.

Onboard SAS

An onboard LSI 1068 SAS controller is integrated into the X7DCA-3 (only), which supports eight SAS hard drives. The SAS drives are connected to a backplane that provides power, bus termination and conﬁ guration settings. These SAS drives are hot-swappable units and support RAID levels 0, 1, 10 and (with iButton) 5.

Note: The operating sy stem you us e must have R A ID supp or t to enab le the h otswap capability and RAID functi on of the SAS drives.

Serial ATA

A Serial ATA controller is integrated into the ICH9 (South Bridge) portion of the chipset to provide a six-port 3 Gb/s SATA subsystem, which is RAID 0, 1, 10 and 5 supported. The SATA drives are hot-swappable units.

Note: The operating sy stem you us e must have R A ID supp or t to enab le the h otswap capability and RAID functi on of the SATA drives.

PCI Expansion Slots

The X7DCA-3/X7DCA -i has one PCI-Express x16 slot, one PCI-Express x4 (in a x16 slot), two 64-bit 133/100 MHz PCI-X slots, two PCI 33 MHz slots and an IPMI slot.

1-2

Chapter 1: Introduction

Onboard Controllers/Ports

One ﬂ oppy drive connector and one onboard ATA/100 connector are provided to support IDE hard drives or ATAPI devices. The color-coded rear I/O ports include two COM ports, one parallel port, four USB 2.0 ports, PS/2 mouse and keyboard ports, two gigabit Ethernet ports and HDA (High Deﬁ nition Audio) ports.

Other Features

Other onboard features that promote system health include onboard voltage monitors, a chassis intrusion header, auto-switching voltage regulators, chassis and CPU overheat sensors, virus protection and BIOS rescue.

1-3 Server Chassis Features

The SERIES3800/S120T (7045A-C3/7045A-CT) is a scaleable server platform designed with today's most state-of-the-art features. The following is a general outline of the main features of the SC743TQ-865-SQ server chassis.

System Power

The 7045A-C3/7045A-CT features a single 865W power supply. This power supply unit has been designed to operate at a low noise level to make it ideal for use in a workstation environment.

SAS Subsystem

The SC743TQ-865-SQ chassis wa s designed to sup port ei ght SAS hard dri ves, which are h ot-swa ppabl e units ( 7045 A- C3 o nly).

SATA Subsystem

The SC743TQ-865-SQ supports up to six 3 Gb/s Serial ATA drives. The SATA drives are hot-swappable units and are connected to a backplane that provides power and control.

Front Control Panel

The control panel on the SERIES3800/S120T (7045A-C3/7045A-CT) provides you with system monitoring and control. LEDs indicate system power, HDD activity, network activity, overheat conditions and power supply failure. A main power button and a system reset button are also included.

Note: the power supply fail LED indicates the power supply fan has failed.

1-3

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

I/O Backplane

The SC743TQ-865-SQ is an ATX form factor chassis that can be used as a tower or mounted in a 4U rackmount conﬁ guration. The I/O backplane provides seven expansion slots, two COM ports, a parallel port, four USB 2.0 ports, PS/2 mouse and keyboard ports, two Gigabit Ethernet port(s) and 7.1 HDA ports.

Cooling System

The SC743TQ-865-SQ chassis has an innovative "Super Quiet" cooling design that provides sufﬁ cient cooling at very low noise level - ideal for a workplace envi- ronment. The chassis includes two 8-cm hot-plug PWM (Pulse Width Modulation) system cooling fans located in the middle of the chassis. The system cooling fans fans work with an air shroud to cool the areas where the most heat is generated. A 9-cm PWM exhaust fan is also located at the rear of the chassis.

The power supply has two fans for redundancy; if one fan fails the other will incease its rpm to compensate. This may cause the system to run louder than usual. See details in Chapter 6.

1-4

Chapter 1: Introduction

Figure 1-1. Intel 5100 Chipset:

System Block Diagram

Note: This is a general block diagram. Please see Chapter 5 for details.

Ports #0~3

Ports #4~7

PCI-X

PCI-E x16

SAS

LSI 1068

133/100MHz

PCI-E x16

to PCIE or SAS

PXH-V

IDE

PCI-33

VRD

PCI-Exp x16

PCI-Exp x4

PHY#1

iI82573V

PHY#2

i82573L

PCI 33MHz

Processor #2

1333/1067

MT/S

Ports #4,5 #6,7

Port

Lanes 1~4

Lane 5

Lane 6

MCH

5100

ICH9

Processor #1

1333/1067

MT/S

Port #0

PCIE x4

DMI

SIO

W83627

VRD

DDR2 667/533

3.0 Gb/S

USB 2.0

LPC

FWH /TPM

DDR2 667/533

SATA#0~5

USB

#0~3

#4~9

SIMLP

Parallel

Port

1-5

COM1 External

COM2 Inernal/SOL

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

1-4 Notes

1-6

Chapter 2: Server Installation

Chapter 2

Server Installation

2-1 Overview

This chapter provides a quick setup checklist to get your SERIES3800/S120T (7045A-C3/7045A-CT) up and running. Following these steps in the order given should enable you to have the system operational within a minimum amount of time. This quick setup assumes that your system has come to you with the processors and memory preinstalled. If your system is not already fully integrated with a serverboard, processors, system memory etc., please turn to the chapter or section noted in each step for details on installing speciﬁ c components.

The 7045A-C3/7045A-CT may be employed either as a tower or mounted in a rack as a 4U rackmount chassis. If using it as a tower unit, please read the Server

Precautions in the next section and then skip ahead to Section 2-5.

2-2 Unpacking the System

You should inspect the box the system was shipped in and note if it was damaged in any way. If the server itself shows damage you should ﬁ le a damage claim with the carrier who delivered it.

Decide on a suitable location for the SERIES3800/S120T (7045A-C3/7045A-CT). It should be situated in a clean, dust-free area that is well ventilated. Avoid areas where heat, electrical noise and electromagnetic ﬁ elds are generated. You will also need it placed near a grounded power outlet. Be sure to read the Rack and Server Precautions in the next section.

2-3 Preparing for Setup

The box the system was shipped in may include two sets of rail assemblies, two rail mounting brackets and mounting screws needed for installing the system into a rack (optional kit). Follow the steps in the order given to complete the installation process in a minimum amount of time. Please read this section in its entirety before you begin the installation procedure outlined in the sections that follow.

2-1

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Choosing a Setup Location

Leave enough clearance in front of the rack to enable you to open the front door • completely (~25 inches) and approximately 30 inches of clearance in the back of the rack to allow for sufﬁ cient airﬂ ow and ease in servicing.

•

This product is for installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like).

This product is not suitable for use with visual display work place devices • acccording to §2 of the the German Ordinance for Work with Visual Display Units.

Warnings and Precautions!

Rack Precautions

Ensure that the leveling jacks on the bottom of the rack are fully extended to • the ﬂ oor with the full weight of the rack resting on them.

In single rack installation, stabilizers should be attached to the rack. In multiple • rack installations, the racks should be coupled together.

Always make sure the rack is stable before extending a component from the • rack.

You should extend only one component at a time - extending two or more si-• multaneously may cause the rack to become unstable.

Server Precautions

Review the electrical and general safety precautions in Chapter 4.•

Determine the placement of each component in the rack • before you install the rails.

Install the heaviest server components on the bottom of the rack ﬁ rst, and then • work up.

Use a regulating uninterruptible power supply (UPS) to protect the server from • power surges, voltage spikes and to keep your system operating in case of a power failure.

2-2

Chapter 2: Server Installation

Allow the hot plug SAS/SATA drives and power supply modules to cool before • touching them.

Always keep the rack's front door and all panels and components on the servers • closed when not servicing to maintain proper cooling.

Rack Mounting Considerations

Ambient Operating Temperature

If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

Reduced Airﬂ ow

Equipment should be mounted into a rack so that the amount of airﬂ ow required for safe operation is not compromised.

Mechanical Loading

Equipment should be mounted into a rack so that a hazardous condition does not arise due to uneven mechanical loading.

Circuit Overloading

Consideration should be given to the connection of the equipment to the power supply circuitry and the effect that any possible overloading of circuits might have on overcurrent protection and power supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

Reliable Ground

A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.).

2-3

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Inner rail

Outer rail

Rail brackets

2-4 Installing the System into a Rack

This section provides information on installing the system into a rack unit. Rack installation requires the use of the optional rackmount kit. If the system has already been mounted into a rack or if you are using it as a tower, you can skip ahead to Sections 2-5 and 2-6.

There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. The following is a guideline for installing the server into a rack with the rack rails provided in the rackmount kit. You should also refer to the installation instructions that came with the rack unit you are using.

Identifying the Sections of the Rack Rails

The optional rackmount kit includes two rack rail assemblies. Each of these assemblies consist of three sections: an inner ﬁ xed chassis rail that secures to the chassis, an outer rack rail that secures directly to the rack itself and two rail brackets, which also attack to the rack (see Figure 2-1.) The inner and outer rails must be detached from each other to install.

To remove the inner chassis rail, pull it out as far as possible - you should hear a "click" sound as a locking tab emerges from inside the rail assembly and locks the inner rail. Depress the locking tab to pull the inner rail completely out. Do this for both assemblies (one for each side).

Figure 2-1. Identifying the Sections of the Rack Rails

2-4

Chapter 2: Server Installation

Installing the Chassis Rails

You will need to remove the top cover and the feet to add rack rails to the chassis. First, remove the top and right covers (top and left covers when standing as a tower chassis) by ﬁ rst removing the screws that secure them to the chassis. Depress the button on the top (side if tower) of the chassis to release the cover and then pull the cover off. Then unscrew the four feet and remove them from the chassis (see Figure 2-2).

You can now attach rack rails to the top and bottom (now the sides) of the chassis. First add the rack handles. Then position the inner chassis rail sections you just removed along the side of the chassis making sure the screw holes line up. Note that these two rails are left/right speciﬁ c. Screw the rail securely to the side of the chassis (see Figure 2-3). Repeat this procedure for the other rail on the other side of the chassis. You will also need to attach the rail brackets when installing into a telco rack.

Locking Tabs: As mentioned, the chassis rails have a locking tab, which serves two functions. The ﬁ rst is to lock the server into place when installed and pushed fully into the rack, which is its normal position. Secondly, these tabs also lock the server in place when fully extended from the rack. This prevents the server from coming completely out of the rack when you pull it out for servicing.

Figure 2-2. Preparing to Install the Chassis Rails

2-5

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Figure 2-3. Installing the Rails to the Chassis

Installing the Rack Rails

Determine where you want to place the SERIES3800/S120T (7045A-C3/7045A-CT) in the rack. (See Rack and Server Precautions in Section 2-3.) Position the ﬁ xed rack rail/sliding rail guide assemblies at the desired location in the rack, keeping the sliding rail guide facing the inside of the rack. Screw the assembly securely to the rack using the brackets provided. Attach the other assembly to the other side of the rack, making sure both are at the exact same height and with the rail guides facing inward.

2-6

Chapter 2: Server Installation

Installing the Server into the Rack

You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. You should have two brackets in the rack mount kit. Install these ﬁ rst keeping in mind that they are left/right speciﬁ c (marked with "L" and "R"). Then, line up the rear of the chassis rails with the front of the rack rails. Slide the chassis rails into the rack rails, keeping the pressure even on both sides (you may have to depress the locking tabs when inserting).

When the server has been pushed completely into the rack, you should hear the locking tabs "click". Finish by inserting and tightening the thumbscrews that hold the front of the server to the rack (see Figure 2-4).

Figure 2-4. Installing the Server into a Rack

2-7

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

2-5 Checking the Serverboard Setup

After setting up the the system, you will need to open the unit to make sure the serverboard is properly installed and all the connections have been made.

Accessing the Inside of the System

If rack mounted, ﬁ rst release the retention screws that secure the unit to the 1. rack. Then grasp the two handles on either side and pull the unit straight out until it locks (you will hear a "click").

There are two screws that secure the cover to the chassis - remove these 2. ﬁ rst. Locate the latch on the top (side if tower) of the chassis - depress where it says "push" then lift the latch to release the cover. You can then lift the cover from the chassis to gain full access to the inside of the server. See Figure 2-5.

Checking the Components and Setup

You may have one or two processors already installed into the serverboard. 1. Each processor should have its own heatsink attached. See Chapter 5 for instructions on processor installation.

Your server may have come with system memory already installed. Make 2. sure all DIMMs are fully seated in their slots. For details on adding system memory, refer to Chapter 5.

If desired, you can install add-on cards to the system. See Chapter 5 for 3. details on installing PCI add-on cards.

Make sure all power and data cables are properly connected and not blocking 4. the chassis airﬂ ow. See Chapter 5 for details on cable connections.

2-8

Chapter 2: Server Installation

Figure 2-5. Accessing the Inside of the System

(Rack Conﬁ guration shown)

2-6 Checking the Drive Bay Setup

Next, you should check to make sure the peripheral drives and the SAS/SATA drives and backplane have been properly installed and all connections have been made.

Checking the Drives

All drives can be accessed from the front of the server. For servicing the CD-1. ROM, IDE hard drives and ﬂ oppy drives, you will need to remove the top/left chassis cover. The SAS/SATA disk drives can be installed and removed from the front of the chassis without removing any chassis covers.

To install components into the 5.25" drive bays, you must ﬁ rst remove the 2. top/left chassis cover as described in the previous section. Refer to Chapter 6 for details.

Refer to Chapter 6 if you need to reinstall a CD-ROM and/or ﬂ oppy disk drive 3. to the system.

2-9

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Depending upon your system's conﬁ guration, your system may have one or 4. more drives already installed. If you need to install SAS/SATA drives, please refer to Chapter 6.

Checking the Airﬂ ow

Airﬂ ow is provided by four hot-swap 8-cm chassis fans working in conjunction 1. with an air shroud. One 9-cm exhaust fan is also mounted at the rear of the chassis. The system component layout was carefully designed to promote sufﬁ cient airﬂ ow through the chassis.

Note that all power and data cables have been routed in such a way that they 2. do not block the airﬂ ow generated by the fans. Keep this in mind when you reroute them after working on the system.

Providing Power

Plug the power cords from the power supplies unit into a high-quality power 1. strip that offers protection from electrical noise and power surges. It is recommended that you use an uninterruptible power supply (UPS).

Depress the power on button on the front of the chassis.2.

2-10

Chapter 3: System Interface

Chapter 3

System Interface

3-1 Overview

The control panel on the 7045A-C3/7045A-CT has several LEDs and two buttons. There are also two LEDs on each SAS/SATA drive carrier. These LEDs keep you constantly informed of the overall status of the system and the activity and health

of speciﬁ c components.

3-2 Control Panel Buttons

There are two push-buttons located on the front of the chassis: a power on/off button and a reset button.

Power

This is the main power button, which is used to apply or turn off the main system power. T urning of f system power with this button removes the main power but keeps standby power supplied to the system.

Reset

Use the reset button to reboot the system.

3-1

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

3-3 Control Panel LEDs

The control panel located on the front of the SC743TQ-865-SQ chassis has six LEDs that provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

Power

Indicates power is being supplied to the system's power supply. This LED should normally be on when the system is operating.

HDD

Indicates IDE channel activity. On the 7045A-C3/7045A-CT, this LED indicates SAS/SATA drive activity when ﬂ ashing.

NIC1

Indicates network activity on LAN1 when ﬂ ashing.

NIC2

Indicates network activity on LAN2 when ﬂ ashing.

Overheat/Fan Fail

When this LED ﬂ ashes, it indicates a chassis fan failure. When on continuously it indicates an overheat condition, which may be caused by cables obstructing the

3-2

Chapter 3: System Interface

airﬂ ow in the system or the ambient room temperature being too warm. Check the routing of the cables and make sure all fans are present and operating normally. You should also check to make sure that the chassis covers are installed. Finally, verify that the heatsinks are installed properly (see Chapter 5). This LED will remain ﬂ ashing or on as long as the indicated condition exists.

Power Fail

Indicates a power supply fan has failed. The power supply module has a redundant backup fan that will increase its rpm to compensate, but the power module should be replaced as soon as it's convenient.

3-4 Drive Carrier LEDs

Note: the LEDs of some drive carriers may not function depending on the number

of drives that are supported by the motherboard and/or backplane.

SAS Drives

Green:• When illuminated, the green LED on the front of the SAS drive carrier

indicates drive activity. A connection to the SAS backplane enables this LED to blink on and off when that particular drive is being accessed.

Red:• The SES2 backplane activates the red LED to indicate a drive failure.

If one of the SAS drives fail, you should be notiﬁ ed by your system manage- ment software. Please refer to Chapter 6 for instructions on replacing failed SAS drives.

SATA Drives

Green:• Each SATA drive car rier has a green LED. When illuminated, this

green LED (on the f ront of the SATA drive carrier) in dicates drive ac tivity. A connec tio n to the SATA backplane ena bles t his LED to b link on an d of f when that particular drive is being accessed. Please refer to Chapter 6 for instructions on replacing failed SATA drives.

Red:• The red LED to indicate an SATA drive failure. If one of the SATA drives

fail, you should be notiﬁ ed by your system management software. Please refer to Chapter 6 for instructions on replacing failed SATA drives.

3-3

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Notes

3-4

Chapter 4: System Safety

Chapter 4

System Safety

4-1 Electrical Safety Precautions

Basic electrical safety precautions should be followed to protect yourself from harm and the SERIES3800/S120T (7045A-C3/7045A-CT) from damage:

Be aware of the locations of the power on/off switch on the chassis as well • as the room's emergency power-off switch, disconnection switch or electrical outlet. If an electrical accident occurs, you can then quickly remove power from the system.

Do not work alone when working with high voltage components.•

Power should always be disconnected from the system when removing or in-• stalling main system components, such as the serverboard, memory modules and the CD-ROM and ﬂ oppy drives. When disconnecting power, you should ﬁ rst power down the system with the operating system and then unplug the power cords of all the power supply units in the system.

When working around exposed electrical circuits, another person who is familiar • with the power-off controls should be nearby to switch off the power if necessary.

Use only one hand when working with powered-on electrical equipment. This • is to avoid making a complete circuit, which will cause electrical shock. Use extreme caution when using metal tools, which can easily damage any electrical components or circuit boards they come into contact with.

Do not use mats designed to decrease electrostatic discharge as protection from • electrical shock. Instead, use rubber mats that have been speciﬁ cally designed as electrical insulators.

The power supply power cord must include a grounding plug and must be • plugged into grounded electrical outlets.

4-1

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Serverboard Battery: • CAUTION - There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarities (see Figure 4-1). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

• CAUTION - this server may have come equipped with a CD-

CD-ROM Laser: ROM drive. To prevent direct exposure to the laser beam and hazardous radiation exposure, do not open the enclosure or use the unit in any unconventional way.

Mainboard replaceable soldered-in fuses: Self-resetting PTC (Positive T empera-• ture Coefﬁ cient) fuses on the mainboard must be replaced by trained service technicians only. The new fuse must be the same or equivalent as the one replaced. Contact technical support for details and support.

4-2 General Safety Precautions

Follow these rules to ensure general safety:

Keep the area around the SERIES3800/S120T (7045A-C3/7045A-CT) clean • and free of clutter.

The 7045A-C3/7045A-CT weighs approximately 64 lbs (29.1 kg.) when fully • loaded. When lifting the system, two people at either end should lift slowly with their feet spread out to distribute the weight. Always keep your back straight and lift with your legs. Don't use the handles (if installed) to lift the chassis; the handles should only be used to pull the server out of the rack.

Place the chassis top cover and any system components that have been re-• moved away from the system or on a table so that they won't accidentally be stepped on.

While working on the system, do not wear loose clothing such as neckties and • unbuttoned shirt sleeves, which can come into contact with electrical circuits or be pulled into a cooling fan.

Remove any jewelry or metal objects from your body, which are excellent metal • conductors that can create short circuits and harm you if they come into contact with printed circuit boards or areas where power is present.

4-2

Chapter 4: System Safety

After accessing the inside of the system, close the system back up and secure • it to the rack unit with the retention screws after ensuring that all connections have been made.

4-3 ESD Precautions

Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other. An electrical discharge is created to neutralize this difference, which can damage electronic com ponents and printed circuit boards. The following measures are generally sufﬁ cient to neutralize this difference before contact is made to protect your equipment from ESD:

Use a grounded wrist strap designed to prevent static discharge.•

Keep all components and printed circuit boards (PCBs) in their antistatic bags • until ready for use.

Touch a grounded metal object before removing the board from the antistatic • bag.

Do not let components or PCBs come into contact with your clothing, which may • retain a charge even if you are wearing a wrist strap.

Handle a board by its edges only; do not touch its components, peripheral chips, • memory modules or contacts.

When handling chips or modules, avoid touching their pins.•

Put the serverboard and peripherals back into their antistatic bags when not • in use.

For grounding purposes, make sure your computer chassis provides excellent • conductivity between the power supply, the case, the mounting fasteners and the serverboard.

4-3

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

4-4 Operating Precautions

Care must be taken to assure that the chassis cover is in place when the 7045AC3/7045A-CT is operating to assure proper cooling. Out of warranty damage to the 7045A-C3/7045A-CT system can occur if this practice is not strictly followed.

Figure 4-1. Installing the Onboard Battery

LITHIUM BATTERY

BATTERY HOLDER BATTERY HOLDER

4-4

Chapter 5: Advanced Serverboard Setup

Chapter 5

Advanced Serverboard Setup

This chapter covers the steps required to install the X7DCA-3/X7DCA-i serverboard into the chassis, connect the data and power cables and install add-on cards. All serverboard jumpers and connections are also described. A layout and quick reference chart are included in this chapter for your reference. Remember to completely close the chassis when you have ﬁ nished working with the serverboard to better cool and protect the system.

5-1 Handling the Serverboard

Electrostatic discharge (ESD) can damage electronic com ponents. To prevent damage to any printed circuit boards (PCBs), it is important to handle them very carefully (see previous chapter). To prevent the serverboard from bending, keep one hand under the center of the board to support it when handling. The following measures are generally sufﬁ cient to protect your equipment from electric static discharge.

Precautions

Use a grounded wrist strap designed to prevent electrostatic discharge (ESD).•

Touch a grounded metal object before removing any board from its antistatic • bag.

Handle a board by its edges only; do not touch its components, peripheral chips,

•

memory modules or gold contacts.

When handling chips or modules, avoid touching their pins.

•

Put the serverboard, add-on cards and peripherals back into their antistatic • bags when not in use.

For grounding purposes, make sure your computer chassis provides excellent

•

conductivity between the power supply, the case, the mounting fasteners and the serverboard.

5-1

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Unpacking

The serverboard is shipped in antistatic packaging to avoid electrical static discharge. When unpacking the board, make sure the person handling it is static protected.

5-2 Serverboard Installation

This section explains the ﬁ rst step of physically mounting the X7DCA-3/X7DCA-i into the SC743TQ-865-SQ chassis. Following the steps in the order given will eliminate the most common problems encountered in such an installation. To remove the serverboard, follow the procedure in reverse order.

Installing to the Chassis

Access the inside of the system by removing the screws from the back lip of 1. the side cover of the chassis, then pull the cover off.

The X7DCA-3/X7DCA-i requires a chassis big enough to support a 12" x 13" 2. serverboard, such as SC743TQ-865-SQ.

Make sure that the I/O ports on the serverboard align properly with their 3. respective holes in the I/O shield at the back of the chassis.

Carefully mount the serverboard to the serverboard tray by aligning the board 4. holes with the raised metal standoffs that are visible in the chassis.

Insert screws into all the mounting holes on your serverboard that line up 5. with the standoffs and tighten until snug (if you screw them in too tight, you might strip the threads). Metal screws provide an electrical contact to the serverboard ground to provide a continuous ground for the system.

Finish by replacing the chassis cover.6.

5-3 Connecting Cables

Now that the serverboard is installed, the next step is to connect the cables to the board. These include the data cables for the peripherals and control panel and the power cables.

5-2

Chapter 5: Advanced Serverboard Setup

Connecting Data Cables

The cables used to transfer data from the peripheral devices have been carefully routed to prevent them from blocking the ﬂ ow of cooling air that moves through the system from front to back. If you need to disconnect any of these cables, you should take care to keep them routed as they were originally after reconnecting them (make sure the red wires connect to the pin 1 locations). The following data cables (with their locations noted) should be connected. (See the layout on page 5-12 for connector locations.)

Control Panel cable (JF1)

•

Floppy drive cable (Floppy)•

7045A-3

SAS drive data cables (SAS0 ~ SAS7)

•

7045A-T

SATA drive data cables (I-SATA0 ~ I-SATA5)

•

SGPIO cable (T-SGPIO-1, T-SGPIO-2)•

Important! Make sure the the cables do not come into contact with the fans.

Connecting Power Cables

The X7DCA-3/X7DCA-i has a 24-pin primary power supply connector (JPW3) for connection to the ATX power supply. In addition, there is a 4-pin secondary power connector (JPW1) as well as an 8-pin processor power connector (JPW2) that must be connected to your power supply. See Section 5-9 for power connector pin deﬁ nitions.

Connecting the Control Panel

JF1 contains header pins for various front control panel connectors. See Figure 5-1 for the pin locations of the various front control panel buttons and LED indicators.

All JF1 wires have been bundled into a single cable to simplify this connection. Make sure the red wire plugs into pin 1 as marked on the board. The other end connects to the Control Panel PCB board, located just behind the system status LEDs on the chassis. See Chapter 5 for details and pin descriptions.

5-3

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Figure 5-1. Control Panel Header Pins

20 19

Ground

NMI

x (Key)

Power On LED

HDD LED NIC1 LED NIC2 LED

OH/Fan Fail LED

Power Fail LED

Ground Ground

2 1

x (Key) Vcc Vcc Vcc Vcc Vcc Vcc Reset (Button) Power (Button)

5-4 I/O Ports

The I/O ports are color coded in conformance with the PC 99 speciﬁ cation. See Figure 5-2 below for the colors and locations of the various I/O ports.

Figure 5-2. I/O Ports

I/O Port Deﬁ nitions

1 PS/2 Keyboard 10 LAN1 Port 2 PS/2 Mouse 11 LAN2 Port 3 USB Port 0 12 Side Speaker (Gray) 4 USB Port 1 13 Rear Speaker (Black) 5 USB Port 2 14 Center/Subwoofer (Orange) 6 USB Port 3 15 Mic In (Pink) 7 COM1 Port 16 Front Speaker (Lime) 8 COM2 Port 17 Line In (Light Blue) 9 Parallel (Printer) Port

5-4

Chapter 5: Advanced Serverboard Setup

5-5 Installing the Processor and Heat Sink

Avoid placing direct pressure to the top of the processor package. Always remove the power cord ﬁ rst before adding, removing or changing any hardware components.

Notes: Always connect the power cord last and remove it before adding, removing or changing any components. Make sure to install the processor into the CPU socket before you install the CPU heat sink.

Intel's boxed Xeon CPU package contains the CPU fan and heat sink assembly. If you buy the CPUs separately, use only Intel-certiﬁ ed heat sinks and fans.

Make sure to install the heat sink backplate and the serverboard into the chassis before you install the CPU heat sink and fan (see below).

Inspect the CPU socket and make sure that the CPU plastic cap is in place and none of the socket pins are bent. Otherwise, contact the retailer immediately.

All graphics shown in this manual are for reference only. The components that came with your serverboard may or may not look exactly the same as the pictures shown in this manual.

Installation Procedure

For proper system setup, please follow the procedures in the order given below:

Install the heat sink backplate into the chassis if needed1.

Install the serverboard into the chassis.2.

Install the CPU(s).3.

Install the heat sink or/and cooling fans (if any).4.

Connect fan and power cables.5.

5-5

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

CPU Installation

A black PnP cap is attached to 1. the load plate to protect the CPU socket. Press the load lever down and away from the retention clasp to release the load plate from its locked position.

Gently lift the load lever to open 2. the load plate.

Use your thumb and your index 3. ﬁ nger to hold the CPU at opposite sides.

Align pin1 of the CPU (the corner 4. marked with a triangle) with the notched corner of the CPU socket.

Load lever

PnP cap

Find the corner of the CPU that 5. has a semi-circle cutout below a gold dot (CPU key). This corner should be aligned with the cutout on the socket (socket key).

Once aligned, carefully lower 6. the CPU straight down into the socket. Do not drop the CPU on the socket, do not move the CPU horizontally or vertically and do not rub the CPU against any surface or any of the contacts, which may damage the CPU and/or contacts.

Load plate released

5-6

Chapter 5: Advanced Serverboard Setup

With the CPU in the socket, in-7. spect the four corners of the CPU to make sure that it is properly installed.

Use your thumb to gently push the 8. load lever down until it snaps into the retention clasp.

If the CPU is properly installed 9. into the socket, the PnP cap will be automatically released from the load plate when the lever locks. Remove the cap. Repeat steps to install a second CPU if desired.

Warning! Keep the plastic PnP cap. The serverboard must be shipped with the PnP cap properly installed to protect the CPU socket. Shipment without the PnP cap properly installed will void the warranty.

Gold dot

Socket key

CPU key

Notched corner

CPU pin 1

Load lever

CPU installed in socket

PnP cap released from load plate

5-7

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Installation and Removal of the Heat Sink

Installing the Heat Sink Installation

Do not apply any thermal grease to the 1. heat sink or the CPU die; the required amount has already been applied.

Place the heatsink on top of the CPU so 2. that the four mounting holes are aligned with those on the retention mechanism.

Screw in two diagonal screws (i.e. the #1 3. and the #2 screws) until just snug (do not over-tighten the screws, which may damage the CPU.)

Finish the installation by fully tightening all 4. four screws.

Uninstalling the Heat Sink

Warning: We do not recommend removing the CPU or the heat sink. However, if you do need to uninstall the heat sink, please follow these instructions to avoid damaging the CPU or the CPU socket.

Screw #1

Screw #2

Unscrew and remove the heat sink 1. screws in the sequence shown in the picture on the right.

Hold the heat sink as shown in the picture 2. on the right and gently wriggle to loosen it from the CPU. (Do not use excessive force when doing this!)

Once the heat sink is loosened, remove it 3. from the CPU socket.

Clean the surface of the CPU and the 4. heat sink to get rid of the old thermal grease. Reapply the proper amount of thermal grease before you re-install the heat sink.

Screw #1

Screw #4

Screw #3

Screw #2

5-8

5-6 Installing Memory

CAUTION! Exercise extreme care when installing or removing DIMM modules to prevent any possible damage.

Installing Memory Modules

Insert the desired number of DIMMs into the memory slots. The memory 1. scheme is interleaved, so you must install two modules at a time, beginning with DIMM 1A and DIMM 1B, then DIMM 2A and DIMM 2B and ﬁ nally DIMM 3A and DIMM 3B.

Insert each DIMM module vertically into its slot. Pay attention to the notch 2. along the bottom of the module to prevent inserting the DIMM module incorrectly.

Gently press down on the DIMM module until it snaps into place in the slot. 3. Repeat for all modules (see step 1 above).

Chapter 5: Advanced Serverboard Setup

Memory Support

The X7DCA-3/X7DCA-i supports up to 32 GB of registered ECC DDR2-667/533 in 6 slots. Po pulating sl ots with a pair (or pai rs) of DIMMs of th e same ty pe and size will result in interleaved memory.

Notes: Due to OS limi tation s, some op erating sy stems may not sh ow more th an 4 GB of memory.

Due to me mo ry allocat i o n to sys tem d evi c e s, m em o ry remaining ava il ab le fo r operational use will be reduced when 4 GB of RAM is used. The reduction in memory availabil ity is d ispro por tio nal. Refer to t he tab le bel ow for det ails.

5-9

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Possible System Memory Allocation & Availability

System Device Size Physical Memory

Remaining (-Available) (4 GB Total System Memory)

Firmware Hub ﬂ ash memory (System

1 MB 3.99

BIOS) Local APIC 4 KB 3.99 Area Reserved for the chipset 2 MB 3.99 I/O APIC (4 Kbytes) 4 KB 3.99 PCI Enumeration Area 1 256 MB 3.76 PCI Express (256 MB) 256 MB 3.51 PCI Enumeration Area 2 (if needed)

512 MB 3.01

-Aligned on 256-MB boundaryVGA Memory 16 MB 2.85 TSEG 1 MB 2.84 Memory available to OS and other ap-

2.84

plications

Figure 5-3. DIMM Installation

Notch

Release

Tab

Note: Notch

should align

with its

receptive point

on the slot

Notch

Release

Tab

To Install: Insert module vertically and press down until it snaps into place. Pay attention to the bottom notches. To Remove: Use your thumbs to gently push each release tab outward to free the DIMM from the slot.

5-10

Chapter 5: Advanced Serverboard Setup

5-7 Adding PCI Cards

The X7DCA-3/X7DCA-i has one PCI-Express x16 slot, one PCI-Express x4 slot (in a x16 slot), two 64-bit 133/100 MHz PCI-X slots and two PCI 33 MHz slots. The SC743TQ-865-SQ chassis can accommodate up to seven PCI expansion cards. PCI cards are installed directly to the serverboard.

Installing an Add-on Card

Before installing a PCI add-on card, make sure you install it into a slot that supports the speed of the card (see step 1, above).

Begin by removing the PCI slot shield for the slot you wish to populate.1.

Fully seat the card into the riser card slot, pushing down with your thumbs 2. evenly on both sides of the card.

Finish by using a screw to secure the top of the card shield to the chassis. 3. The PCI slot shields protect the serverboard and its components from EMI and aid in proper ventilation, so make sure there is always a shield covering each unused slot.

5-11

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

5-8 Serverboard Details

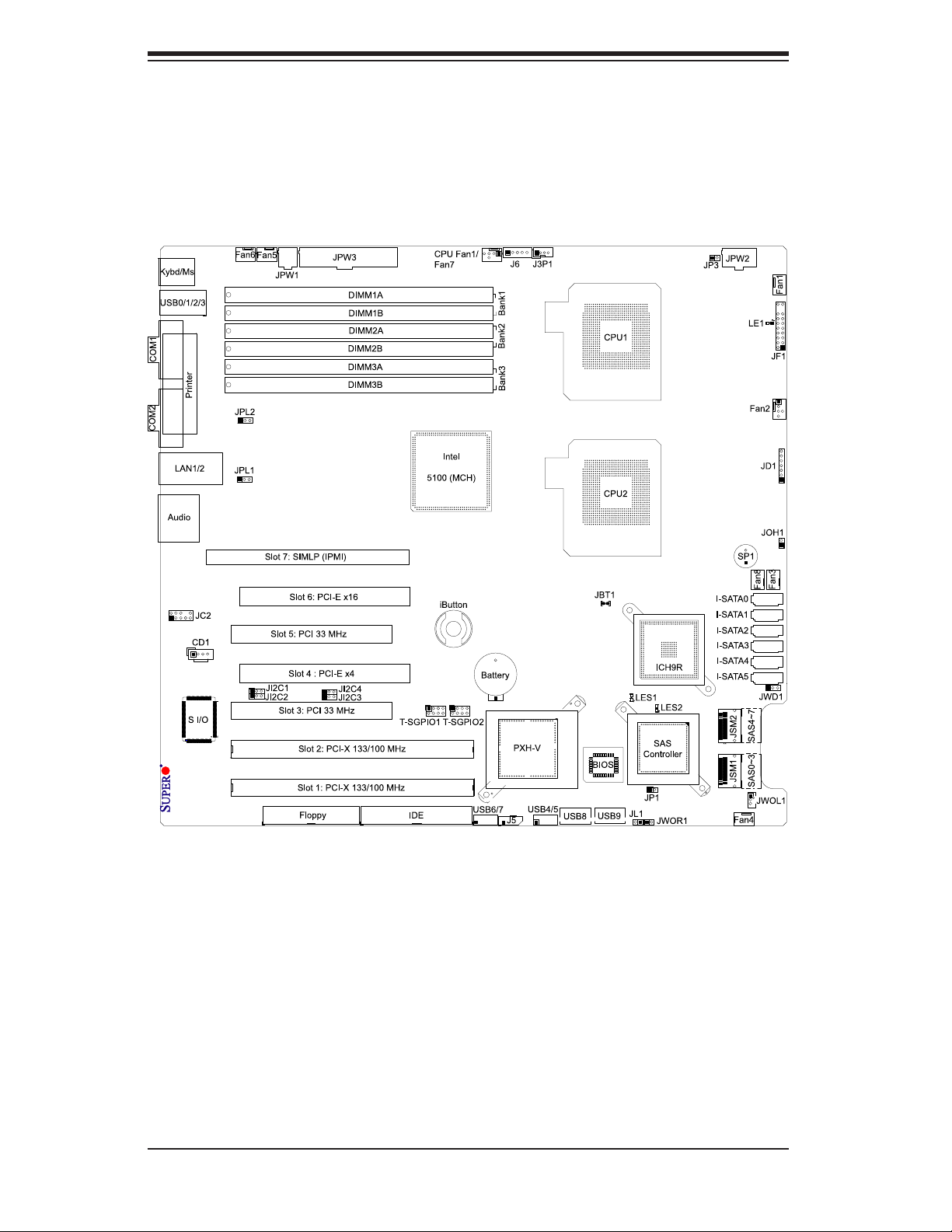

Figure 5-4. X7DCA-3/X7DCA-i Layout

(not drawn to scale)

X7DCA-3

Note: the X7DCA-i shares the same layout as the X7DCA-3 but has no SAS components or connectors.

5-12

Chapter 5: Advanced Serverboard Setup

X7DCA-3/X7DCA-i Quick Reference

Jumper Description Default Setting

JBT1 CMOS Clear (See Section 5-10)

C1/JI2C2 I2C to PCI-X Slots Pins 2-3 (Disabled)

C3/JI2C4 I2C to PCI-E Slots Pins 2-3 (Disabled) JPL1/JPL2 LAN1/2 Enable/Disable Pins 1-2 (Enabled) JWD1 Watch Dog Pins 1-2 (Reset)

Connector Description

Audio High Deﬁ nition Audi o (HDA) Jacks CD1/JC2 Audio Headers (see Section 5-9) COM1/COM2 COM1 Serial Ports FAN 1-8 Chassis/CPU Fan Headers Floppy Floppy Disk Drive Connector IDE IDE Drive Connector I-SATA0 ~ I-SATA5 SATA Ports J5 Power System M anage ment (I J6 Power Supply SMBus I

C Header

C) H ea d er

JD1 Onboard Speaker/Power LED JF1 Control Panel Connector JL1 Chassis Intrusion Header JOH1 Overheat Warning Header JP3 SAS Power System Management I JPW1 4-Pin Power Connector JPW2 8-Pin Power Connector JPW3 24-pin Main ATX Power Connector JWOL1 Wake-On-LAN Header JWOR1 Wake-On-Ring Header LAN1/2 Gigabit Ethernet (RJ45) Ports SAS0~3, SAS4~7* Serial A tt ached S CSI (SAS) Por ts

C Header

SIMLP IPMI (Remote Management) Slot T-SGPIO-1/T-SGPIO-2 Serial General Purpose Input/Output Headers USB0/1/2/3, USB8, USB9 Universal Serial Bus (USB) Ports USB4/5, USB6/7 Universal Serial Bus (USB) Headers

*X7DCA-3 only.

5-13

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

5-9 Connector Deﬁ nitions

Main ATX Power Supply Connector

The primary power supply connector (JPW3) meets the SSI (Superset ATX) 24-pin speciﬁ cation. Refer to the table on the right for the pin deﬁ nitions of the ATX 24-pin power connector. You must also connect the 4-pin (JPW1) and 8-pin (JPW2) power connectors to your power supply (see below).

Secondary Power Connectors

JPW1 must also be connected to the power supply. See the table on the right for pin deﬁ nitions.

ATX Power 24-pin Connector

Pin Deﬁ nitions (JPW3)

Pin# Deﬁ nition Pin # Deﬁ nition 13 +3.3V 1 +3.3V 14 -12V 2 +3.3V 15 COM 3 COM 16 PS_ON 4 +5V 17 COM 5 COM 18 COM 6 +5V 19 COM 7 COM 20 Res (NC) 8 PWR_OK 21 +5V 9 5VSB 22 +5V 10 +12V 23 +5V 11 +12V 24 COM 12 +3.3V

+12V 4-pin Power

Pin Deﬁ nitions (JPW1)

Pins Deﬁ nition 1 - 2 Ground 3 - 4 +12V

Required Connection

Processor Power Connector

In addition to the Main ATX power connector (above), the 12V 8-pin processor power connector at JPW2 must also be connected to your power supply. See the table on the right for pin deﬁ nitions.

PW_ON Connector

The PW_ON connector is on pins 1 and 2 of JF1. This header should be connected to the chassis power button. See the table on the right for pin deﬁ nitions.

5-14

+12V 8-pin Power

Pin Deﬁ nitions (JPW2)

Pins Deﬁ nition 1 - 4 Ground 5 - 8 +12V

Required Connection

Power Button

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 1 PW_ON 2 Ground

Reset Connector

The reset connector is located on pins 3 and 4 of JF1 and attaches to the reset switch on the computer chassis. See the table on the right for pin deﬁ nitions.

Chapter 5: Advanced Serverboard Setup

Reset Button

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 3 Reset 4 Ground

Power Fail LED

The Power Fail LED connection is locate d on pins 5 and 6 of JF1. Refer to the table on the right for pin deﬁ nitions.

Overheat/Fan Fail LED (OH)

Connect an LED to the OH connection on pins 7 and 8 of JF1 to provide advanced warning of chassis overheating. Refer to the table on the right for pin deﬁ nitions.

NIC2 (LAN2) LED

The LED connections for LAN2 are on pins 9 and 10 of JF1. Attach an LED cable to display network activity. See the table on the right for pin deﬁ nitions.

PWR Fail LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 5 Vcc 6 Ground

OH/Fan Fail LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 7 Vcc 8 Ground

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 9 Vcc 10 Ground

OH/Fan Fail Indicator

State Deﬁ nition Off Normal On Overheat Flash-

ing

NIC2 LED

Status

Fan Fail

NIC1 (LAN1) LED

The LED connections for LAN1 are on pins 11 and 12 of JF1. Attach an LED cable to display network activity. See the table on the right for pin deﬁ nitions.

5-15

NIC1 LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 11 Vcc 12 Ground

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

HDD LED

The HDD LED connection is located on pins 13 and 14 of JF1. This LED is used to display all IDE and SATA activity. See the table on the right for pin deﬁ nitions.

HDD LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 13 Vcc 14 HD Active

Power On LED

The Power On LED connector is located on pins 15 and 16 of JF1 (use JLED for a 3-pin connector). This connection is used to provide LED indication of power being supplied to the system. See the table on the right for pin deﬁ nitions.

NMI Button

The non-maskable interrupt button header is located on pins 19 and 20 of JF1. Refer to the table on the right for pin deﬁ nitions.

Power LED

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 15 5V Stby 16 Control

NMI Button

Pin Deﬁ nitions (JF1)

Pin# Deﬁ nition 19 Control 20 Ground

Fan Headers

There are eight fan headers on the serverboard, all of which are 4-pin fans. (Pins 1-3 of the fan headers are backward compatible with the tradit ional 3- pin fans.) See the tab le on the right for pin deﬁ nitions. The onboard fan speeds are controlled by Thermal Management (via Hardware Monitoring) under the Advanced Section in the BIOS. The default is disabl ed. When usi ng Therm al Management setting, please use all 3-pin fans or al l 4- pin fa ns.

5-16

Fan Header

Pin Deﬁ nitions

(FAN1-8)

Pin# Deﬁ nition 1 Ground (Black) 2 +12V (Red) 3 Tachometer 4 PWM Control

Note: Fan 7 is for the CPU1 and Fan8 is for the CPU2 heat sink.

Chapter 5: Advanced Serverboard Setup

Chassis Intrusion

The Chassis Intrusion header is designated JL1. Attach an appropriate cable from the chassis to inform you of a chassis intrusion when the chassis is opened

Wake-On-LAN

The Wake-On-LAN header is designated JWOL1 on the serverboard. See the table on the right for pin deﬁ nitions. You must also have a LAN card with a Wake-On-LAN connector and cable to use this feature.

Wake-On-Ring

The Wake-On-Ring header is designated JWOR1. This function allows your computer to receive and be "awakened" by an incoming call when in the suspend state. See the table on the right for pin deﬁ nitions. You must also have a WOR card and cable to use this feature.

Chassis Intrusion

Pin Deﬁ nitions (JL1)

Pin# Deﬁ nition 1 Intrusion Input 2 Ground

Wake-On-LAN

Pin Deﬁ nitions

(JWOL1)

Pin# Deﬁ nition 1 +5V Standby 2 Ground 3 Wake-up

Wake-On-Ring Pin Deﬁ nitions

(JWOR1)

Pin# Deﬁ nition 1 Ground (Black) 2 Wake-up

LAN1/2 (Ethernet Ports)

Two Ethernet ports (designated LAN1 and LAN2) are located beside the VGA port on the I/O backplane. These ports accept RJ45 type cables.

Serial Ports

Two serial ports (COM1 and COM2) are included on the I/O backplane. See the table on the right for pin deﬁ nitions.

5-17

Serial Port Pin Deﬁ nitions

(COM1/COM2)

Pin # Deﬁ nition Pin # Deﬁ nition 1 DCD 6 DSR 2 RXD 7 RTS 3 TXD 8 CTS 4 DTR 9 RI 5 Ground 10 NC

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Overheat LED/Fan Fail (JOH1)

The JOH1 header is used to connect an LED to provide warning of chassis overheating. This LED will blink to indicate a fan failure. Refer to the table on right for pin deﬁ nitions.

Power LED/Speaker

OH/Fan Fail LED

States

State Message Solid Overheat Blinking Fan Fail

Overheat LED

Pin Deﬁ nitions (JOH1)

Pin# Deﬁ nition 1 5vDC 2 OH Active

On JD1 header, pins 1-3 are for a power LED and pins 4-7 are for the speaker. Close pins 4-7 with a jumper to use an external speaker. If you wish to use the onboard speaker, please close pins 6-7. See the table on the right for speaker pin deﬁ nitions.

Universal Serial Bus (USB)

There are two Universal Serial Bus ports located on the I/O panel (USB0/1/2/3), four USB headers located on the serverboard (USB4/5 and USB6/7) and two additional ports located on the board itself (USB8 and USB9). The headers can be used to provide front side USB access (cables not included). See the table on the right for pin deﬁ nitions.

Power LED/Speaker

Connector (JD1)

Pin Setting Deﬁ nition Pins 6-7 Internal Speaker Pins 4-7 External Speaker

Universal Serial Bus

Pin Deﬁ nitions (USB)

USB0/1/2/3/8/9

Pin # Deﬁ nition 1 +5V 1 +5V 2 PO- 2 PO3 PO+ 3 PO+ 4 Ground 4 Ground 5 N/A 5 Key

USB4/5, USB6/7

Pin # Deﬁ nition

SGPIO Headers

The SGPIO (Serial General Purpose Input/Output) headers are used to communicate with a system-monitoring chip on the backplane. See the table on the right for pin deﬁ nitions.

5-18

Pin Deﬁ nitions (T-SGPIO-1/T-SGPIO-2)

SGPIO Header

Pin# Deﬁ nition Pin Deﬁ nition 1NC 2 NC 3 Ground 4 DATA Out

5 Load 6 Ground 7 Clock 8 NC

NC = No Connection

ATX PS/2 Keyboard and PS/2 Mouse Ports

The ATX PS/2 keyboard and the PS/2 mouse are located beside the USB0/1 ports. The mouse port is above the keyboard port. See the table on the right for pin deﬁ nitions.

Power SMB (I2C) Connector

The power SMB (I

C) connector is used to monitor the status of the power supply, fan and system temperature. See the table on the right for pin deﬁ nitions.

Chapter 5: Advanced Serverboard Setup

PS/2 Keyboard and

Mouse Port Pin

Deﬁ nitions

Pin# Deﬁ nition 1 Data 2NC 3 Ground 4 VCC 5 Clock 6NC

PWR SMB Header

Pin Deﬁ nitions (J6)

Pin# Deﬁ nition 1 Clock 2 Data

3 PWR Fail (Input from PS to MB) 4 Ground 5 +3.3V

Backpanel Power SMB (I2C) Connector

The power SMB (I

C) connector is used to monitor the status of the power supply and the temperature of the backplane. See the table on the right for pin deﬁ nitions.

SAS Power SMB (I2C) Connector

The SAS power SMB (I

C) connector is used to monitor the status of the power supply system management bus for the SAS ports. See the table on the right for pin deﬁ nitions (X7DCA-i only).

Backpanel PWR SMB Connector

Pin Deﬁ nitions (J5)

Pin# Deﬁ nition 1 SMBDAT_ICH_EXIT 2 Ground

3 SMBCLK_ICH_EXIT 4NC

SAS PWR SMB Connector

Pin Deﬁ nitions (JP3)

Pin# Deﬁ nition 1 TWSI_SDA 2 Ground

3 TWSI_SCK

5-19

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

CD Header

A 4-pin CD header (CD1) and a Front Panel Audio header (JC2) are included on the serverboard. These headers allow you to use the onboard s ound for audio C D playback. Connect an audio cable from your CD drive to the CD header that ﬁ ts your cable's connector. Only one CD header can be used at any time.

Front Panel Audio Control

When front panel headphones are plugged in, the back panel audio output is disabled. This is done through the FP Audio header (JC2). If the front panel interface card is not connected to the front panel audio header, jumpers should be installed on pin pairs 1-2, 5-6, and 9-10 of the Audio FP header. If these jumpers are not installed, the back panel line out connector will be disabled, and pin 1 of the microphone in will be left ﬂ oating, which can lead to excessive back panel microphone noise and crosstalk. See the table at right for pin deﬁ nitions.

CD Header Pin

Deﬁ nitions (CD1)

Pin# Deﬁ nition 1 Left 2 Ground 3 Ground 4 Right

Front Panel Audio Pin

Deﬁ nitions (JC2)

Pin# Deﬁ nition 1 MIC_L 2 Audio Ground 3 MIC_R 4 FP Audio Detect 5 Line_2_R 6 Ground 7 FP_Jack Detect 8 Key 9 Line_2_L 10 Ground

5-20

5-10 Jumper Settings

Explanation of Jumpers

To modify the operation of the serverboard, jumpers can be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector. Pin 1 is identiﬁ ed with a square solder pad on the printed circuit board. See the serverboard layout pages for jumper locations.

Note: On a two-pin jumper, "Closed" means the jumper is on both pins and "Open" means the jumper is either on only one pin or completely removed.

Chapter 5: Advanced Serverboard Setup

CMOS Clear

JBT1 is used to clear CMOS (which will also clear any passwords). Instead of pins, this jumper consists of contact pads to prevent accidentally clearing the contents of CMOS.

To clear CMOS,

First power down the system and unplug the power cord(s).1.

With the power disconnected, short the CMOS pads with a metal object such 2. as a small screwdriver.

Remove the screwdriver (or shorting device).3.

Reconnect the power cord(s) and power on the system.4.

Note: Do not use the PW_ON connector to clear CMOS.

5-21

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

LAN1/2 Enable/Disable

Change the setting of jumper JPL1 and JPL2 to enable or disable the LAN1 and LAN2 Ethernets port, respectively. See the table on the right for jumper settings. The default setting is enabled.

I2C Bus to PCI-X/ Slots

LAN1/2 Enable/Disable

Jumper Settings (JPL1)

Jumper Setting Deﬁ nition Pins 1-2 Enabled Pins 2-3 Disabled

Jumpers JI

C1 and JI2C2 allow you to

connect the System Management Bus

C) to the PCI-X slots. The default

setting is Disabled. Both jumpers must be set to the same setting See the table on the right for jumper settings.

I2C Bus to PCI-Exp. Slots

Jumpers JI

C3 and JI2C4 allow you to

connect the System Management Bus

C) to the PCI-E slots. The default

setting is Disabled. Both jumpers must be set to the same setting See the table on the right for jumper settings.

Watch Dog Enable/Disable

I2C to PCI-X Slots

Jumper Settings (JI2C1/JI2C2)

Jumper Setting Deﬁ nition Pins 1-2 Enabled Pins 2-3 Disabled

I2C to PCI-E Slots

Jumper Settings (JI

Jumper Setting Deﬁ nition Pins 1-2 Enabled Pins 2-3 Disabled

C3/JI2C4)

JWD controls the Watch Dog function. Watch Dog is a system monitor that can reboot the system when a software application hangs. Jumping pins 1-2 will cause WD to reset the system if an application hangs. Jumping pins 2-3 will generate a non-maskable interrupt signal for the application that hangs. See the table on the right for jumper settings. Watch Dog must also be enabled in BIOS.

Note: When enabled, the user needs to write their own application software in order to disable the Watch Dog Timer.

5-22

Watch Dog

Jumper Settings (JWD)

Jumper Setting Deﬁ nition Pins 1-2 Reset Pins 2-3 NMI Open Disabled

Chapter 5: Advanced Serverboard Setup

5-11 Onboard Indicators

LAN1/2 LEDs

The Ethernet ports (located beside the VGA port) have two LEDs. On each port, one LED indicates activity while the other LED may be green, amber or off to indicate the speed of the connection. See the table on the right for the functions associated with the connection speed LED.

Onboard Power LED (LE1)

An Onboard Power LED is located at LE1. This LED Indicator is lit when the system is on. Be sure to unplug the power cable before removing or adding any components. See the table on the right for more details.

(Connection Speed Indicator)

LAN1/2 LED

LED Color Deﬁ nition Off 10 MHz Green 100 MHz Amber 1 GHz

Onboard PWR LED Indicator

(LE1)

LED Color Deﬁ nition Off System Off Blinking Standby On System On

SAS LEDs

Two SAS LEDs are designated LES1 and LES2. When illuminated, these LEDs indicate activity on the SAS ports.

5-23

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

5-12 Parallel, Floppy, IDE, and SATA Ports

Use the following information to connect the IDE hard disk drive cables.

A red mark on a wire typically designates the location of pin 1.

•

The 80-wire ATA100/66 IDE hard disk drive cable that came with your system • has two connectors to support two drives. This special cable should be used to take advantage of the speed this new technology offers. The blue connector connects to the onboard IDE connector interface and the other connector(s) to your hard drive(s). Consult the documentation that came with your disk drive for details on actual jumper locations and settings for the hard disk drive.

Parallel (Printer) Port

Pin Deﬁ nitions

Pin# Deﬁ nition Pin # Deﬁ nition

Parallel (Printer) Port

The parallel (printer) port is located above the C OM por ts. Se e the tab le on the r ight for p in deﬁ nitions.

1 Strobe- 2 Auto Feed3 Data Bit 0 4 Error5 Data Bit 1 6 Init7 Data Bit 2 8 SLCT IN9 Data Bit 3 10 GND 11 Data Bit 4 12 GND 13 Data Bit 5 14 GND 15 Data Bit 6 16 GND 17 Data Bit 7 18 GND 19 ACK 20 GND 21 BUSY 22 Write Data 23 PE 24 Write Gate 25 SLCT 26 NC

5-24

IDE Connector

There is a single IDE connector on the serverboard. See the table on the right for pin deﬁ nitions.

Chapter 5: Advanced Serverboard Setup

IDE Drive Connector Pin Deﬁ nitions (IDE)

Pin# Deﬁ nition Pin # Deﬁ nition 1 Reset IDE 2 Ground 3 Host Data 7 4 Host Data 8 5 Host Data 6 6 Host Data 9 7 Host Data 5 8 Host Data 10 9 Host Data 4 10 Host Data 11 11 Host Data 3 12 Host Data 12 13 Host Data 2 14 Host Data 13 15 Host Data 1 16 Host Data 14 17 Host Data 0 18 Host Data 15 19 Ground 20 Key 21 DRQ3 22 Ground 23 I/O Write 24 Ground 25 I/O Read 26 Ground 27 IOCHRDY 28 BALE 29 DACK3 30 Ground 31 IRQ14 32 IOCS16 33 Addr1 34 Ground 35 Addr0 36 Addr2 37 Chip Select 0 38 Chip Select 1 39 Activity 40 Ground

SATA Ports

There are no jumpers to conﬁ gure the onboard SATA connectors. See the table on the right for pin deﬁ ni- tions.

Pin Deﬁ nitions (I-SATA0~I-SATA5)

SATA Port

Pin # Deﬁ nition 1 Ground 2 TXP 3 TXN 4 Ground 5 RXN 6 RXP 7 Ground

5-25

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Floppy Drive Connector

The ﬂ oppy connector is designated "Floppy". See the table below for pin deﬁ nitions.

Floppy Drive Connector

Pin Deﬁ nitions (Floppy)

Pin# Deﬁ nition Pin # Deﬁ nition 1 Ground 2 FDHDIN 3 Ground 4 Reserved 5 Key 6 FDEDIN 7 Ground 8 Index 9 Ground 10 Motor Enable 11 Ground 12 Drive Select B 13 Ground 14 Drive Select B 15 Ground 16 Motor Enable 17 Ground 18 DIR 19 Ground 20 STEP 21 Ground 22 Write Data 23 Ground 24 Write Gate 25 Ground 26 Track 00 27 Ground 28 Write Protect 29 Ground 30 Read Data 31 Ground 32 Side 1 Select 33 Ground 34 Diskette

5-26

Chapter 6: Advanced Chassis Setup

Chapter 6

Advanced Chassis Setup

This chapter covers the steps required to install components and perform simple maintenance on the SC743TQ-865-SQ chassis. Following the component installation steps in the order given will eliminate most common problems. If some steps are unnecessary, skip ahead to the step that follows. Refer to Chapter 2 for instructions on installing the system as a 4U rackmount.

Tools Required: The only tool you will need is a Philips screwdriver.

6-1 Static-Sensitive Devices

Static electrical discharge can damage electronic com ponents. To prevent damage to any printed circuit boards (PCBs), it is important to handle them very carefully. The following measures are generally sufﬁ cient to protect your equipment from static discharge.

Precautions

Use a grounded wrist strap designed to prevent static discharge.•

Touch a grounded metal object before removing any board from its antistatic • bag.

Handle a board by its edges only; do not touch its components, peripheral chips,

•

memory modules or gold contacts.

When handling chips or modules, avoid touching their pins.•

Put the serverboard, add-on cards and peripherals back into their antistatic • bags when not in use.

For grounding purposes, make sure your computer chassis provides excellent

•

conductivity between the power supply, the case, the mounting fasteners and the serverboard.

Unpacking

The serverboard is shipped in antistatic packaging. When unpacking the board, make sure the person handling it is static protected.

6-1

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Figure 6-1. Chassis Front View

5.25" Drive Bays (2)

System ResetMain Power

USB Ports

Floppy Drive

6-2

8 SAS/SATA Drive Bays (behind locking bezel)

Chapter 6: Advanced Chassis Setup

6-2 Front Control Panel

The front control panel must be connected to the JF1 connector on the serverboard to provide you with system status and alarm indications. A ribbon cable has bundled these wires together to simplify this connection.

Connect the cable from JF1 on the serverboard (making sure the red wire plugs into pin 1) to the appropriate comnnector on the front control panel PCB (printed circuit board). Pull all excess cabling over to the control panel side of the chassis. The LEDs on the control panel inform you of system status - see Figure 6-2 for details. See Chapter 5 for details on JF1.

Figure 6-2. Front Control Panel LEDs

Power

HDD

NIC1

NIC2

Overheat/Fan Fail

Power Fail

Indicates power is being supplied to the system.

Indicates IDE device and hard drive activity. On the SC743TQ-865-SQ, this LED indicates SAS/SATA hard drive activity when ﬂ ashing.

Indicates network activity on LAN port 1.

Indicates network activity on LAN port 2

When this LED ﬂ ashes, it indicates a fan failure. When on continuously it indicates an overheat condition (see Chapter 3 for details).

Indicates a power supply fan failure. An alarm will also sound, which can be turned off with the reset switch on the back of the power supply.

6-3

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

6-3 System Fans

Two 8-cm PWM chassis fans provide air intake while one 9-cm PWM exhaust fan expels hot air from the chassis. All are low-noise fans that result in very low system noise levels. The chassis is also ﬁ tted with an air shroud to concentrate the ﬂ ow of cooling air through the system. The fans should be connected to headers on the serverboard (see Chapter 5).

The power supply includes redundant cooling fans. If one fan fails, the rpm of the remaining fan will ramp up its rpm to provide sufﬁ cient cooling. The Power Fail LED will illuminate and an audible alarm will sound, which can be silenced with a button on the power supply. If a power supply fan fails, you should replace the power supply at your earliest convenience.

Fan Failure

Under normal operation, the chassis fans, the exhaust fan and the power supply fans run continuously. The chassis fans are hot-swappable and can be replaced without powering down the system.

Replacing Chassis Cooling Fans

Removing a Fan

First locate the failed chassis fan by removing the top/left chassis cover (see 1. Chapter 2 for details). Locate the fan that has stopped working.

Depress the locking tab on the failed fan: on a chassis fan, push the tab on 2. the side of the housing inward, on the exhaust fan push down on the colored tab.

With the tab depressed, pull the unit straight out (see Figure 6-3). The wiring 3. for these fans has been designed to detach automatically.

Installing a New Fan

Replace the failed fan with an identical one.1.

Install it in the same position and orientation as the one you removed; it 2. should click into place when fully inserted.

Check that the fan is working then replace the top/left side chassis panel.3.

6-4

Chapter 6: Advanced Chassis Setup

Figure 6-3. Removing a Chassis Fan

6-5

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

6-4 Drive Bay Installation

A total of eight SAS (or six SATA) drives may be housed in the SC743TQ-865-SQ chassis. The drive IDs are preconﬁ gured as 0 through 7 (or 5) in order from bot- tom to top (or from left to right if rackmounted). A bezel covers the drive area but does not need to be removed to access the drives; simply swing open the bezel. If you wish to remove the bezel piece, push on the three tabs on the inside of the left lip of the front chassis cover. Then slightly swing out the same (left) side of the cover - about ½ inch only. Remove by pushing on the open side of the cover to remove it from the chassis (do not try to swing or pull it straight out after opening the left side).

Regardless of how many SAS/SATA drives are installed, all drive carriers must remain in the drive bays to promote proper airﬂ ow.

Installing/Removing SAS/SATA Drives

The SAS/SATA drive carriers are all easily accessible at the front of the chassis. These drives are hot-swappable, meaning they can be removed and installed without powering down the system.

Open the front bezel then push the release button located beside the drive 1. LEDs.

Swing the handle fully out and then use it to pull the unit straight out.2.

Note: Your operating system must have RAID support to enable the hot-swap capability of the SAS/SATA drives.

Mounting a SAS/SATA drive in a Drive Carrier

The SAS/SATA drive carriers help to promote proper airﬂ ow for the system. For this reason, even carriers without SAS/SATA drives must remain in the server.

Insert the drive into the carrier with the printed circuit board side facing down 1. so that the mounting holes align with those in the carrier.

Secure the drive to the carrier with four screws (see Figure 6-5).2.

6-6

Chapter 6: Advanced Chassis Setup

Figure 6-4. Removing a SAS/SATA Drive Carrier

Figure 6-5. Mounting a SAS/SATA Drive in a Carrier

Important! Use extreme caution when working around the SAS/ SATA backplane. Do not touch the backplane with any metal objects and make sure no ribbon cables touch the backplane or obstruct the airﬂ ow holes.

SAS/SATA Backplane

The SAS/SATA drives plug into a SAS/SATA backplane. A data cables (CBL-061L) for each drive and two SAS/SATA LED cables (CBL-0157L) need to be connected from the serverboard to the appropriate connectors on the backplane. You cannot cascade the SAS/SATA backplane.

6-7

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Installing Components in the 5.25" Drive Bays

The 7045A-C3/7045A-CT has two 5.25" drive bays. Components such as an extra ﬂ oppy drive, IDE hard drives or CD-ROM drives can be installed into these 5.25" drive bays.

Removing the Empty Drive Bay

First power down the system.1.

Remove the top/left chassis cover to access the drive components.2.

With the cover off, remove the screws that secure the drive carrier to the 3. chassis (one side only) then push the entire empty drive carrier out from the back.

Adding a DVD/CD-ROM Drive

Remove the guide plates (one on each side) from the empty drive carrier 1. and screw them into both sides of the DVD/CD-ROM drive using the holes provided.

Slide the DVD/CD-ROM into the bay and secure it to the chassis with the 2. drive carrier screws you ﬁ rst removed.

Attach the power and data cables to the drive.3.

Replace the top/left chassis cover and restore power to the system.4.

Adding an IDE or Floppy Drive

Install an IDE or ﬂ oppy into one of the removed empty drive carriers 1. with the printed circuit board side toward the carrier so that the drive's mounting holes align with those in the carrier.

Secure the drive to the carrier with screws then slide the assembly into 2. the bay and secure it to the chassis with the drive carrier screws you ﬁ rst removed.

Attach the power and data cables to the drive.3.

Replace the top/left chassis cover and restore power to the system.4.

Note: A red wire typically designates the location of pin 1. Drive carriers should remain in any empty drive bays to maintain proper airﬂ ow within the chassis.

6-8

Chapter 6: Advanced Chassis Setup

6-5 Power Supply

The SERIES3800/S120T (7045A-C3/7045A-CT) has a single 865 watt power supply. This power unit is equipped with low-noise technology, making the system ideal for workstation environments.

The power supply has an auto-switching capability that enable it to automatically sense and operate with 100 or 240 volt inputs.

Power Supply Failure

If the power supply unit fails, the system will shut down and you will need to replace the power supply unit. Replace with the same model - PWS-865-PQ. As there is only one power supply unit, the server must be powered down before removing and/or replacing the power supply for whatever reason.

Replacing the Power Supply

First power down the server.1.

Unplug the power cord from the power supply module.2.

Remove the screws that secure the module to the chassis then pull it com-3. pletely out.

Replace the failed unit with another unit of the exact same part number 4. (PWS-865-PQ).

Gently but ﬁ rmly push the new unit all the way into the open bay.5.

Secure it to the chassis using the screws you previously removed.6.

Finish by replacing the chassis left/top cover and then plugging the power 7. cord back into the new module you just added.

Push the power button to restart the system.8.

6-9

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Notes

6-10

Chapter 7: BIOS

Chapter 7

BIOS

7-1 Introduction

This chapter describes the Phoenix BIOS™ Setup utility for the X7DCA-3/X7DCA-i. The Phoenix ROM BIOS is stored in a ﬂ ash chip and can be easily upgraded using a ﬂ oppy disk-based program.

Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual. Please refer to the Manual

System BIOS

The BIOS is the Basic Input Output System used in all IBM® PC, XT™, AT®, and

PS/2

compatible computers. The Phoenix BIOS stores the system parameters, types of disk drives, video displays, etc. in the CMOS. The CMOS memory requires very little electrical power. When the computer is turned off, a backup battery provides power to the CMOS Logic, enabling it to retain system parameters. Each time the computer is powered on, the computer is conﬁ gured with the values stored in the CMOS Logic by the system BIOS, which gains control at boot up.

How To Change the Conﬁ guration Data

The CMOS information that determines the system parameters may be changed by entering the BIOS Setup utility. This Setup utility can be accessed by pressing the <Delete> key at the appropriate time during system boot. (See below.)

Starting the Setup Utility

Normally , the only visible POST (Power On Self Test) routine is the memory test. As the memory is being tested, press the <Delete> key to enter the main menu of the BIOS Setup utility. From the main menu, you can access the other setup screens, such as the Security and Power menus. Beginning with Section 7-3, detailed descriptions are given for each parameter setting in the Setup utility.

Warning: Do not shut down or reset the system while updating BIOS

to prevent possible boot failure.

7-1

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

7-2 Running Setup

Default settings are in bold text unless otherwise noted.

The BIOS setup options described in this section are selected by choosing the appropriate text from the main BIOS Setup screen. All displayed text is described in this section, although the screen display is often all you need to understand how to set the options (see the next page).

When you ﬁ rst power on the computer, the Phoenix BIOS™ is immediately acti- vated.

While the BIOS is in control, the Setup program can be activated in one of two ways:

By pressing <Delete> immediately after turning the system on, or1.

When the message shown below appears brieﬂ y at the bottom of the screen 2. during the POST (Power On Self-Test), press the <Delete> key to activate the main Setup menu:

Press the <Delete> key to enter Setup

7-3 Main BIOS Setup

All main Setup options are described in this section. The main BIOS Setup screen is displayed below.

Use the Up/Down arrow keys to move among the different settings in each menu. Use the Left/Right arrow keys to change the options for each setting.

Press the <Esc> key to exit the CMOS Setup Menu. The next section describes in detail how to navigate through the menus.

Items that use submenus are indicated with the press the <Enter> key to access the submenu.

Xicon. With the item highlighted,

7-2

Main BIOS Setup Menu

Chapter 7: BIOS

Main Setup Features

System Time

To set the system date and time, key in the correct information in the appropriate ﬁ elds. Then press the <Enter> key to save the data.

System Date

Using the arrow keys, highlight the month, day and year ﬁ elds, and enter the correct data. Press the <Enter> key to save the data.

BIOS Date

This ﬁ eld displays the date when this version of BIOS was built.

Legacy Diskette A

This setting allows the user to set the type of ﬂ oppy disk drive installed as diskette A. The options are Disabled, 360Kb 5.25 in, 1.2MB 5.25 in, 720Kb 3.5 in, 1.44/1.25MB,

3.5 in and 2.88MB 3.5 in.

7-3

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

XIDE Primary Master/Slave, IDE Secondary Master/Slave, SATA Port3, SATA Port4 and Ext. Primary Master/Slave

These settings allow the user to set the parameters of IDE Primary Master/Slave, IDE Secondary Master/Slave, SATA Port 3, SATA Port 4 and Ext. Primary Master/ Slave. Hit <Enter> to activate the following sub-menu screen for detailed options of these items. Set the correct conﬁ gurations accordingly. The items included in the sub-menu are:

Type

This option allows the user to select the type of IDE hard drive. The option Auto will allow the BIOS to automatically conﬁ gure the parameters of the HDD installed at the connection. Enter a number between 1 to 39 to select a predetermined HDD type. Select User to allow the user to enter the parameters of the HDD installed. Select CDROM if a CDROM drive is installed. Select ATAPI if a removable disk drive is installed.

7-4

Chapter 7: BIOS

CHS Format (Available for Primary/Master only)

The following items will be displayed by the BIOS:

Type: This item displays the type of IDE or SATA Device. Cylinders: This item indicates the status of Cylinders. Headers: This item indicates the number of headers. Sectors: This item displays the number of sectors. Maximum Capacity: This item displays the maximum storage capacity of the

system.

LBA Format

The following items will be displayed by the BIOS: Total Sectors: This item displays the number of total sectors available in the

LBA Format. Maximum Capacity: This item displays the maximum capacity in the LBA

Format.

Multi-Sector Transfers

This item allows the user to specify the number of sectors per block to be used in multi-sector transfer. The options are Disabled, 4 Sectors, 8 Sectors, and 16 Sectors.

LBA Mode Control

This item determines whether the Phoenix BIOS will access the IDE Channel 0 Master Device via the LBA mode. The options are Enabled and Disabled.

32 Bit I/O

This option allows the user to enable or disable the function of 32-bit data transfer. The options are Enabled and Disabled.

Transfer Mode

This option allows the user to set the transfer mode. The options are Standard, Fast PIO1, Fast PIO2, Fast PIO3, Fast PIO4, FPIO3/DMA1 and FPIO4/DMA2.

Ultra DMA Mode

This option allows the user to select Ultra DMA Mode. The options are Disabled, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4, and Mode 5.

7-5

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Serial ATA

This setting allows the user to enable or disable the Serial ATA function. The options are Disabled and Enabled.

Native Mode Operation

Select the native mode for ATA. The options are Parallel ATA, Serial ATA, Both and Auto.

Serial ATA (SATA) RAID Enable

Select Enable to enable Serial ATA RAID Functions. (For a Windows OS environment, use the RAID driver if this feature is set to Enabled. If this item is set to Disabled, the item SATA AHCI Enable will be available.) The options are Enabled and Disabled.

ICH RAID Code Base (Available when SATA RAID is Enabled)

Select Intel to enable Intel's SA TA RAID ﬁ rmware. Select LSI to use LSI's HostRAID ﬁ rmware. The options are Intel and LSI.

SATA AHCI (Available when SATA RAID is Disabled)

Select Enable to enable the function of Serial ATA Advanced Host Interface. (Use caution when enabling this function. This feature is for advanced programmers only .) The options are Enabled and Disabled.

System Memory

This display informs you how much system memory is recognized as being present in the system.

Extended Memory

This display informs you how much extended memory is recognized as being present in the system.

7-6

Chapter 7: BIOS

7-4 Advanced Setup

Choose Advanced from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. The items with a triangle beside them have sub menus that can be accessed by highlighting the item and pressing <Enter>.

XBoot Features

Access the submenu to make changes to the following settings.

QuickBoot Mode

If enabled, this feature will speed up the POST (Power On Self Test) routine by skipping certain tests after the computer is turned on. The settings are Enabled and Disabled. If Disabled, the POST routine will run at normal speed.

QuietBoot

This setting allows you to Enable or Disable the graphic logo screen during bootup.

ACPI Mode

Use the setting to determine if you want to employ ACPI (Advanced Conﬁ guration and Power Interface) power management on your system. The options are Yes and No.

7-7

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

ACPI Sleep Mode

UThis feature allows you to decide which ACPI power management mode to use when in sleep mode. The options are S1, S3 and S1S3.

Power Button Behavior

If set to Instant-Off, the system will power off immediately as soon as the user hits the power button. If set to 4-sec., the system will power off when the user presses the power button for 4 seconds or longer. The options are instant-off and 4-sec override.

Resume On Modem Ring

Select On to “wake your system up” when an incoming call is received by your modem. The options are On and Off.

Power Loss Control

This setting allows you to choose how the system will react when power returns after an unexpected loss of power. The options are Stay Off, Power On and Last

State.

Watch Dog

If enabled, this option will automatically reset the system if the system is not active for more than 5 minutes. The options are Enabled and Disabled.

Summary Screen

This setting allows you to Enable or Disable the summary screen which displays the system conﬁ guration during bootup.

XMemory Cache

Cache System BIOS Area

This setting allows you to designate a reserve area in the system memory to be used as a System BIOS buffer to allow the BIOS to write (cache) data into this reserved memory area. Select Write Protect to enable this function, and this area will be reserved for BIOS ROM access only. Select Uncached to disable this function and make this area available for other devices.

Cache Video BIOS Area

This setting allows you to designate a reserve area in the system memory to be used as a Video BIOS buffer to allow the BIOS to write (cache) data into this reserved memory area. Select Write Protect to enable the function and this area

7-8

Chapter 7: BIOS

will be reserved for Video BIOS ROM access only. Select Uncached to disable this function and make this area available for other devices.

Cache Base 0-512K

If enabled, this feature will allow the data stored in the base memory area: block 0-512K to be cached (written) into a buffer, a storage area in the Static DROM (SDROM) or to be written into the L1, L2 cache inside the CPU to speed up CPU operations. Select Uncached to disable this function. Select Write Through to allow data to be cached into the buffer and written into the system memory at the same time. Select Write Protect to prevent data from being written into the base memory area of Block 0-512K. Select Write Back to allow the CPU to write data back directly from the buffer without writing data to the System Memory for fast CPU data processing and operation. The options are Uncached, Write Through, Write Protect and Write Back.

Cache Base 512K-640K

If enabled, this feature will allow the data stored in the memory area: 512K-640K to be cached (written) into a buffer, a storage area in the Static DROM (SDROM) or written into the L1, L2, L3 cache inside the CPU to speed up CPU operations. Select Uncached to disable this function. Select Write Through to allow data to be cached into the buffer and written into the system memory at the same time. Select Write Protect to prevent data from being written into the base memory area of Block 512-640K. Select Write Back to allow the CPU to write data back directly from the buffer without writing data to the System Memory for fast CPU data processing and operation. The options are Uncached, Write Through, Write Protect and Write Back.

Cache Extended Memory

If enabled, this feature will allow the data stored in the extended memory area to be cached (written) into a buffer, a storage area in the Static DROM (SDROM) or written into the L1, L2, L3 cache inside the CPU to speed up CPU operations. Select Uncached to disable this function. Select Write Through to allow data to be cached into the buffer and written into the system memory at the same time. Select Write Protect to prevent data from being written into the extended memory area above 1MB. Select Write Back to allow the CPU to write data back directly from the buffer without writing data to the System Memory for fast CPU data processing and operation. The options are Uncached, Write Through, Write Protect and Write Back.

Discrete MTRR Allocation

If enabled, MTRRs (Memory Type Range Registers) are conﬁ gured as distinct, separate units and cannot be overlapped. If enabled, the user can achieve better

7-9

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

graphic effects when using a Linux graphic driver that requires the write-combining conﬁ guration with 4GB or more memory. The options are Enabled and Disabled.

XPCI Conﬁ guration

Access the submenu to make changes to the following settings for PCI devices.

Onboard GLAN1/Onboard GLAN2 (Gigabit- LAN) OPROM Conﬁ gure

Select Enabled to allow the system to boot from the GLAN1 connection or the GLAN 2 connection. The options are Disabled and Enabled.

Reset Conﬁ guration Data

If set to Yes, this setting clears the Extended System Conﬁ guration Data (ESCD) area. The options are Yes and No.

XSlot1 PCI-X 133/100 MHz, Slot2 PCI-X 133/100 MHz, Slot3 PCI 33 MHz, Slot 4 PCI-Exp. x8/x4, Slot 5 PCI 33 MHz and Slot 6 PCI Exp. x16

Access the submenu for each of the settings above to make changes to the following:

Option ROM Scan

When enabled, this setting will initialize the device expansion ROM. The options are Enabled and Disabled.

Enable Master

This setting allows you to enable the selected device as the PCI bus master. The options are Enabled and Disabled.

Latency Timer

This setting allows you to set the clock rate for Bus Master. A high-priority, highthroughout device may beneﬁ t from a greater clock rate. The options are Default,

0020h, 0040h, 0060h, 0080h, 00A0h, 00C0h and 00E0h. For Unix, Novell and other Operating Systems, please select "Other". If a drive fails after installing new software, you might want to change this setting and try again. A different OS requires a different Bus Master clock rate.

Large Disk Access Mode

This setting determines how large hard drives are to be accessed. The options are DOS or Other (for Unix, Novelle NetWare and other operating systems).

7-10

Chapter 7: BIOS

XAdvanced Chipset Control

Access the submenu to make changes to the following settings.

Warning: Use caution when changing the Advanced settings. Incorrect setup,

a very high DRAM frequency or an incorrect DRAM timing may cause the system become unstable. If this occurs, reset the stting to the default setting.

Crystal Beach Features

Select Enabled to use Intel's I/O AT (Acceleration Technology) to accelerate the performance of TOE devices. (A TOE device is a specialized, dedicated processor that is installed on an add-on card or a network card to handle some or all packet processing of the add-on card. For this serverboard, the TOE device is built inside

the ESB2 South Bridge chip.) The options are Enabled and Disabled.

SERR Signal Condition

This setting speciﬁ es the ECC Error conditions that an SERR# is to be asserted. The options are None, Single Bit, Multiple Bit, and Both.

4GB PCI Hole Granularity

This feature allows you to select the granularity of PCI hole for PCI slots. If MTRRs are not enough, this option may be used to reduce MTRR occupation. The options are: 256 MB, 512 MB, 1GB and 2GB.

Azalia Audio

Select Auto to allow BIOS to automatically enable the onboard Azalia audio if detected. The options are Auto and Disabled.

Route Port 80h Cycles to

This feature allows the user to decide which bus to send debug information to. The options are Disabled, PCI and LPC.

Enabling Multi-Media Timer

Select Yes to activate a set of timers that are alternative to the traditional 8254 timers for the OS use. The options are Yes and No.

USB Host Controller 1

Select Enabled to activate USB Host Controller 1. The settings are Enabled and Disabled.

7-11

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

USB Host Controller 2

Select Enabled to activate USB Host Controller 2. The settings are Enabled and Disabled.

Legacy USB Support

This setting allows you to enable support for Legacy USB devices. The settings are Enabled and Disabled.

XAdvanced Processor Options

Access the submenu to make changes to the following settings.

CPU Speed

This is a display that indicates the speed of the installed processor.

Frequency Ratio (Available when supported by the CPU)

The feature allows the user to set the internal frequency multiplier for the CPU. The options are Default, x12, x13, x14, x15, x16, x17 and x18.

Core-Multi-Processing (Available when supported by the CPU)

Set to Enabled to use a processor's Second Core and beyond. (Please refer to Intel's web site for more information.) The options are Disabled and Enabled.

Machine Checking (Available when supported by the CPU)

Set to Enabled to activate the function of Machine Checking and allow the CPU to detect and report hardware (machine) errors via a set of model-speciﬁ c registers (MSRs). The options are Disabled and Enabled.

Thermal Management 2 (Available when supported by the CPU)

Set to Enabled to use Thermal Management 2 (TM2) which will lower CPU voltage and frequency when the CPU temperature reaches a predeﬁ ned overheat threshold. Set to Disabled to use Thermal Manager 1 (TM1), allowing CPU clocking to be regulated via CPU Internal Clock modulation when the CPU temperature reaches

the overheat threshold.

C1 Enhanced Mode (Available when supported by the CPU)

Set to Enabled to enable Enhanced Halt State to lower CPU voltage/frequency to prevent overheat. The options are Enabled and Disabled. Note: please refer to Intel’s web site for detailed information.

7-12

Chapter 7: BIOS

Execute Disable Bit (Available when supported by the CPU and the OS)

Set to Enabled to enable Execute Disable Bit and allow the processor to classify areas in memory where an application code can execute and where it cannot, and thus preventing a worm or a virus from inserting and creating a ﬂ ood of codes to overwhelm the processor or damage the system during an attack. (This feature is only available if your OS and your CPU support the Execute Disable Bit function.) The options are Disabled and Enabled. For more information regarding hardware/ software support for this function, please refer to Intel's and Microsoft's web sites.

Adjacent Cache Line Prefetch (Available when supported by the CPU)

The CPU fetches the cache line for 64 bytes if this option is set to Disabled. The CPU fetches both cache lines for 128 bytes as comprised if Enabled. The options are Disabled and Enabled.

Hardware Prefetcher (Available when supported by the CPU)

Set to this option to enabled to enable the hardware components that are used in conjunction with software programs to prefetch data in order to shorten execution cycles and maximize data processing efﬁ ciency. The options are Disabled and

Enabled.

Echo TPR

Set to Enabled to prevent xTPR messages from being sent to the system. The options are Disabled and Enabled.

Intel <R> Virtualization Technology (Available when supported by the CPU)

Select Enabled to use the feature of Virtualization Technology to allow one platform to run multiple operating systems and applications in independent partitions, creating multiple "virtual" systems in one physical computer. The options are Enabled and Disabled. Note: If there is any change to this setting, you will need to power off and restart the system for the change to take effect. Please refer to Intel’s web site for detailed information.

Intel EIST Support (Available when supported by the CPU)

Select Enabled to use the Enhanced Intel SpeedStep Technology and allows the system to automatically adjust processor voltage and core frequency in an effort to reduce power consumption and heat dissipation. The options are Enabled and Disabled. Please refer to Intel’s web site for detailed information.

7-13

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

XCPU Cache Control

Access the submenu to make changes to the following settings.

Direct Cache Access (Available when supported by the CPU)

Set to Enable to route inbound network IO trafﬁ c directly into processor caches to reduce memory latency and improve network performance. The options are

Disabled and Enabled.

DCA Delay Clocks(Available when supported by the CPU)

This feature allows the user to set the clock delay setting from snoop to prefetch for Direct Cache Access. Select a setting from 8 (bus cycles) to 120 (bus cycles)

(in 8-cycle increment). The default setting is 32 (bus cycles).

XI/O Device Conﬁ guration

Access the submenu to make changes to the following settings.

KBC Clock Input

This setting allows you to select clock frequency for KBC. The options are 6MHz, 8MHz, 12MHz and 16MHz.

Serial Port A

This setting allows you to assign control of serial port A. The options are Enabled (user deﬁ ned), Disabled and Auto (BIOS or OS controlled).

Base I/O Address

This setting allows you to select the base I/O address for serial port A. The options are 3F8, 2F8, 3E8 and 2E8.

Interrupt

This setting allows you to select the IRQ (interrupt request) for serial port A. The options are IRQ3 and IRQ4.

Serial Port B

This setting allows you to assign control of serial port B. The options are Enabled (user deﬁ ned), Disabled, Auto (BIOS controlled) and OS Controlled.

Mode

This setting allows you to set the type of device that will be connected to serial port B. The options are Normal and IR (for an infrared device).

7-14

Chapter 7: BIOS

Base I/O Address

This setting allows you to select the base I/O address for serial port B. The options are 3F8, 2F8, 3E8 and 2E8.

Interrupt

This setting allows you to select the IRQ (interrupt request) for serial port B. The options are IRQ3 and IRQ4.

Parallel Port

This setting allows you to assign control of the parallel port. The options are Enabled (user deﬁ ned), Disabled and Auto (BIOS or OS controlled).

Base I/O Address

Select the base I/O address for the parallel port. The options are 378, 278 and 3BC.

Interrupt

This setting allows you to select the IRQ (interrupt request) for the parallel port. The options are IRQ5 and IRQ7.

Mode

This feature allows you to specify the parallel port mode. The options are Output only, Bi-Directional, EPP and ECP.

DMA Channel

This item allows you to specify the DMA channel for the parallel port. The options are DMA1 and DMA3.

Floppy Disk Controller

This setting allows you to assign control of the ﬂ oppy disk controller. The options are Enabled (user deﬁ ned), Disabled and Auto (BIOS and OS controlled).

Base I/O Address

This setting allows you to select the base I/O address for the Floppy port. The options are Primary and Secondary.

XDMI Event Logging

Access the submenu to make changes to the following settings.

7-15

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Event Log Validity

This is a display to inform you of the event log validity. It is not a setting.

Event Log Capacity

This is a display to inform you of the event log capacity. It is not a setting.

View DMI Event Log

Highlight this item and press <Enter> to view the contents of the event log.

Event Logging This setting allows you to Enable or Disable event logging.

ECC Event Logging This setting allows you to Enable or Disable ECC event logging.

Mark DMI Events as Read

Highlight this item and press <Enter> to mark the DMI events as read.

Clear All DMI Event Logs

Select Yes and press <Enter> to clear all DMI event logs. The options are Yes and No.

XConsole Redirection

Access the submenu to make changes to the following settings.

COM Port Address

This item allows you to specify which COM port to direct the remote console to Onboard COM A or Onboard COM B. This setting can also be Disabled.

BAUD Rate

This item allows you to set the BAUD rate for the console redirection. The options are 300, 1200, 2400, 9600, 19.2K, 38.4K, 57.6K and 115.2K.

Console Type

This item allows you to choose the console redirection type. The options are VT100, VT100,8bit, PC-ANSI, 7bit, PC ANSI, VT100+ and VT-UTF8.

Flow Control

This item allows you to set the ﬂ ow control for the console redirection. The options are None, XON/XOFF and CTS/RTS.

7-16

Chapter 7: BIOS

Console Connection

This item allows you to decide how the console redirection is to be connected: either Direct or Via Modem.

Continue CR after POST

This item allows you to decide whether you want to continue with the console redirection after POST routines. The options are On and Off.

XHardware Monitor Logic

Note: The Phoenix BIOS will automatically detect the type of CPU(s) and hardware

monitoring chip used on the motherboard and will display the Hardware Monitoring screen accordingly.

CPU Temperature Threshold

This option allows the user to set a CPU temperature threshold that will activate the alarm system when the CPU temperature reaches this pre-set temperature threshold. The hardcode default setting is 80 5100 Series CPU is 75

C and for the 5000 Series CPU is 80oC - see below).

C. (The default setting for the Intel

Temperature Monitoring (Available if supported by the CPU)

This function monitors the following PECI (Platform Environment Control Interface) items: CPU1 Temperature/CPU1 Second Core/CPU2 Temperature/CPU2 Second Core/PECI Agent 1/PECI Agent 2/PECI Agent 3 /PECI Agent 4 Temperature/System Temperature

Fan1-Fan8 Speeds: If the feature of Auto Fan Control is enabled, the BIOS will automatically display the status of the fans indicated in this item.

Fan Speed Control Modes

This feature allows the user to decide how the system controls the speeds of the onboard fans. The CPU temperature and the fan speed are correlative. When the CPU on-die temperature increases, the fan speed will also increase, and vice versa. If the option is set to 3-pin fan, the fan speed is controlled by voltage. If the option is set to 4-pin, the fan speed will be controlled by Pulse Width Modulation (PWM). Select 3-pin if your chassis came with 3-pin fan headers. Select 4-pin if your chassis came with 4-pin fan headers. Select Workstation if your system is used as a Workstation. Select Server if your system is used as a Server. Select Disable to disable the fan speed control function to allow the onboard fans to run at full speed (12V) at all times. The Options are: 1. Disable, 2. 3-pin (Server), 3. 3-pin (Workstation), 4. 4-pin (Server) and 5. 4-pin (Workstation).

7-17

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Voltage Monitoring

The following items will be monitored and displayed: Vcore A, Vcore B, -12V, +12V, P1V5, +3.3V, 5Vsb, 5VDD, P_VTT and Vbat

Note: In a Windows OS environment, the Doctor III settings take precedence over the BIOS settings. When ﬁ rst installed, Doctor III adopts the temperature threshold settings previously set in the BIOS. Any subsequent changes to these thresholds must be made within Doctor, since the SD III settings override the BIOS settings. For the Windows OS to adopt the BIOS temperature threshold settings, please change the SDIII settings to be the same as those set in the BIOS.

XIPMI (Available only when an IPMI card is installed in the system.)

IPMI Speciﬁ cation Version: This item displays the current IPMI Version.

Firmware Version: This item displays the current Firmware Version.

System Event Logging

Select Enabled to enable IPMI Event Logging. When this function is set to Disabled, the system will continue to log events received via system interface. The options are Enabled and Disabled.

Clear System Event Logging

Enabling this function to force the BIOS to clear the system event logs during the next cold boot. The options are Enabled and Disabled.

7-18

Chapter 7: BIOS

Existing Event Log Number

This item displays the number of the existing event log.

Event Log Control

System Firmware Progress

Enable this function to log the POST progress. The options are Enabled and

Disabled.

BIOS POST Errors Enabling this function to log POST errors. The options are Enabled and Dis-

abled.

BIOS POST Watch Dog Set to Enabled to enable POST Watch Dog. The options are Enabled and Dis-

abled.

OS Boot Watch Dog Set to Enabled to enable OS Boot Watch Dog. The options are Enabled and Dis-

abled.

Timer for Loading OS (Minutes)

This feature allows the user to set the time value (in minutes) for the previous item: OS Boot Watch Dog by keying-in a desired number in the blank. The default setting is 10 (minutes.) (Please ignore this option when OS Boot Watch Dog is set to "Disabled".)

Time Out Option

This feature allows the user to determine what action to take in an event of a system boot failure. The options are No Action, Reset, Power Off and Power Cycles.

XSystem Event Log/System Event Log (List Mode)

These options display the System Event (SEL) Log and System Event (SEL) Log in List Mode. Items include: SEL (System Event Log) Entry Number, SEL Record ID, SEL Record Type, Time Stamp, Generator ID, SEL Message Revision, Sensor Type, Sensor Number, SEL Event Type, Event Description, and SEL Event Data.

7-19

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

XRealtime Sensor Data

This feature display information from motherboard sensors, such as temperatures, fan speeds and voltages of various components.

7-20

Chapter 7: BIOS

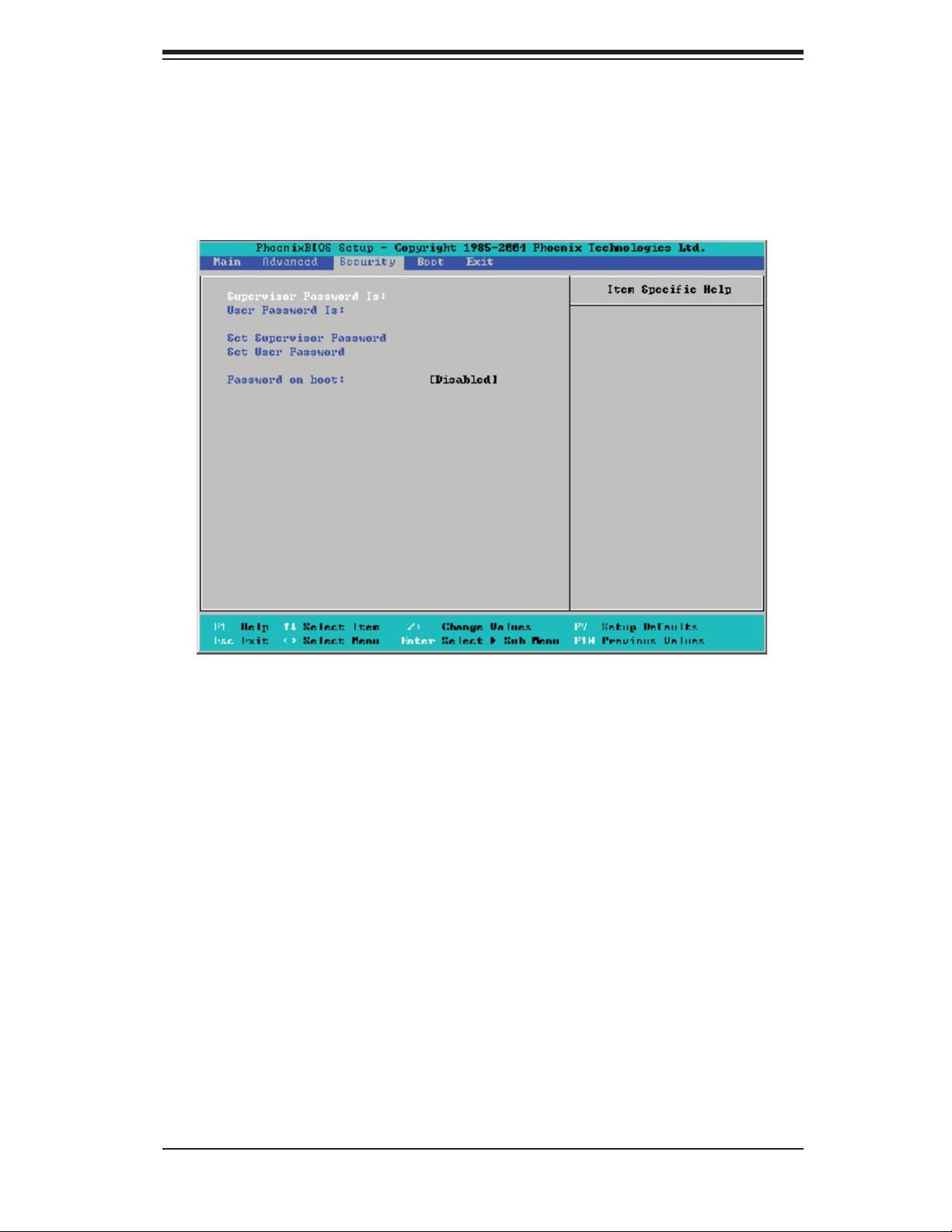

7-5 Security

Choose Security from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. Security setting options are displayed by highlighting the setting using the arrow keys and pressing <Enter>. All Security BIOS settings are described in this section.

Supervisor Password Is:

This indicates if a supervisor password has been entered for the system. Clear means such a password has not been used and Set means a supervisor password has been entered for the system.

User Password Is:

This indicates if a user password has been entered for the system. Clear means such a password has not been used and Set means a user password has been entered for the system.

Set Supervisor Password

When the item Set Supervisor Password is highlighted, hit the <Enter> key. When prompted, type the Supervisor's password in the dialogue box to set or to change supervisor's password, which allows access to the BIOS.

7-21

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

Set User Password

When the item Set User Password is highlighted, hit the <Enter> key. When prompted, type the user's password in the dialogue box to set or to change the user's password, which allows access to the system at boot-up.

Password on Boot

This setting allows you to determine if a password is required for a user to enter the system at bootup. The options are Enabled (password required) and Disabled (password not required).

7-22

Chapter 7: BIOS

7-6 Boot

Choose Boot from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. See details on how to change the order and specs of boot devices in the Item Speciﬁ c Help window. All Boot BIOS settings are described in this section.

Boot List

Candidate List

Boot Priority Order/Excluded from Boot Orders

The devices included in the boot list section (above) are bootable devices listed in the sequence of boot order as speciﬁ ed. The boot functions for the devices included in the candidate list (above) are currently disabled.

Use the <+> key or <-> key to move the device up or down. Use the <f> key or the <r> key to specify the type of a USB device: either ﬁ xed or removable. You can select one item from the boot list and hit the <x> key to remove it from the list of bootable devices (to make its resource available for other bootable devices). Subsequently, you can select an item from the candidate list and hit the <x> key to remove it from the candidate list and put it in the boot list. This item will then become a bootable device.

See details on how to change the priority of boot order of devices in the "Item Speciﬁ c Help" window.

7-23

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

7-7 Exit

Choose Exit from the Phoenix BIOS Setup Utility main menu with the arrow keys. You should see the following display. All Exit BIOS settings are described in this section.

Exit Saving Changes

Highlight this item and hit <Enter> to save any changes you made and to exit the BIOS Setup utility.

Exit Discarding Changes

Highlight this item and hit <Enter> to exit the BIOS Setup utility without saving any changes you may have made.

Load Setup Defaults

Highlight this item and hit <Enter> to load the default settings for all items in the BIOS Setup. These are the safest settings to use.

Discard Changes

Highlight this item and hit <Enter> to discard (cancel) any changes you made. You will remain in the Setup utility.

Save Changes

Highlight this item and hit <Enter> to save any changes you made. You will remain in the Setup utility.

7-24

Appendix A: BIOS POST Messages

Appendix A

BIOS POST Messages

Durin g the Power-On S elf-Tes t (POST), the BI OS will che ck for prob lems. If a proble m is fou nd, th e BIO S will ac ti vate an alar m or di splay a m ess age. T he fol lowing is a list of such BIOS messages.

Failure Fixed Disk

Fixed disk is not working or not conﬁ gured properly. Check to see if ﬁ xed disk is at- tached properly. Run Setup. Find out if the ﬁ xed-disk type is correctly identiﬁ ed.

Stuck key

Stuck key on keyboard.

Keyboard error

Keyboard not working.

Keyboard Controller Failed

Keyboard controller failed test. May require replacing keyboard controller.

Keyboard locked - Unlock key switch

Unlock the system to proceed.

Monitor type does not match CMOS - Run SETUP

Monitor type not correctly identiﬁ ed in Setup

Shadow Ram Failed at offset: nnnn

Shadow RAM failed at offset nnnn of the 64k bl ock at which th e error was detected.

System RAM Failed at offset: nnnn

System RAM failed at offset nnnn of i n the 64 k block at w hich t he erro r was detected.

Extended RAM Failed at offset: nnnn Extended memory notworking or not conﬁ gured properly at offset nnnn.

System battery is dead - Replace and run SETUP

The CM OS c lo c k bat te ry indicato r sho ws t he battery is de ad. Re pla ce t he b at te r y and run Setup to reconﬁ gure the system.

A-1

SeriesS3800/S120T (7045A-C3/7045A-CT) User's Manual

System CMOS checksum bad - Default conﬁ guration used

System CMOS has been corrupted or modiﬁ ed incorrectly, perhaps by an applica- tion program that changes data stored in CMOS. The BIOS installed Default Setup Values. If you do no t want t h e se va lu e s, e nte r S etu p an d e nter yo u r ow n val ue s . If the error persists, check the system battery or contact your dealer.

System timer error

The timer test failed. Requires repair of system board.

Real time clock error Real-Time Clock fails BIOS hardware test. May require board repair.

Check date and time settings

BIOS fou nd da te or ti me ou t of ra nge a nd re set t he Rea l -Time Clo ck . May re qui re setting legal date (1991-2099).

Previous boot incomplete - Default conﬁ guration used

Previous POST did not complete successfully. POST loads default values and offers to run Setup. If the failure was caused by incorrect values and they are not corrected, the next boot will likely fail. On systems with control of wait states, improper Setup settings can also terminate POST and cause this error on the next boot. Run Setup and veri f y th at th e wait st ate co nﬁ guratio n is c o r rec t . Thi s er r or i s cl ear ed t he n ext time the system is booted.

Memory Size found by POST differed from CMOS

Memory size found by POST differed from CMOS.

Diskette drive A error Diskette drive B error

Drive A : or B: is p re s ent b ut f ai ls t he B I OS P O ST di sket te te st s. C he c k to s ee t hat the drive is deﬁ ned with the proper diskette type in Setup and that the diskette drive is attached correctly.

Incorrect Drive A type - run SETUP

Type of ﬂ oppy drive A: not correctly identiﬁ ed in Setup.

Incorrect Drive B type - run SETUP

Type of ﬂ oppy drive B: not correctly identiﬁ ed in Setup.

System cache error - Cache disabled

RAM cache failed and BIOS disabled the cache. On older boards, check the cache jumper s. You may have to replace t he cac he. See your d ealer. A disable d cach e

A-2

Appendix A: BIOS POST Messages

slows system performance considerably.

CPU ID:

CPU socket number for Multi-Processor error.

EISA CMOS not writeable

ServerBIOS2 test error: Cannot write to EISA CMOS.

DMA Test Failed

Ser verBIOS2 te st error: C annot write to ex tended DMA (D irect M emor y Acces s) registers.

Software NMI Failed

ServerBIOS2 test error: Cannot generate software NMI (Non-Maskable Interrupt).

Fail-Safe Timer NMI Failed

ServerBIOS2 test error: Fail-Safe Timer takes too long.

device Address Conﬂ ict Address conﬂ ict for speciﬁ ed device.

Allocation Error for: device

Run ISA or EIS A C on ﬁ guratio n Ut il ity to resolve res ou rc e conﬂ ict for th e sp e c iﬁ ed

device.

CD ROM Drive

CD ROM Drive identiﬁ ed.

Entering SETUP ...

Starting Setup program

Failing Bits: nnnn

The hex number nnnn is a map of the bits at the RAM address which failed the memory test. Each 1 ( one) in the map indicates a failed bit. See errors 230, 231, or 232 above for offset address of the failure in System, Extended, or Shadow memory.

Fixed Disk n Fixed disk n (0-3) identiﬁ ed. Invalid System Conﬁ guration Data

Problem with NVRAM (CMOS) data.

A-3

SeriesS3800/S120T (7045A-C3/7045A-CT) User's Manual

I/O device IRQ conﬂ ict

I/O device IRQ conﬂ ict error.

PS/2 Mouse Boot Summary Screen:

PS/2 Mouse installed.

nnnn kB Extended RAM Passed Where nnnn is the amount of RAM in kilobytes successfully tested.

nnnn Cache SRAM Passed Where nnnn is the amount of system cache in kilobytes successfully tested.

nnnn kB Shadow RAM Passed Where nnnn is the amount of shadow RAM in kilobytes successfully tested.

nnnn kB System RAM Passed Where nnnn is the amount of system RAM in kilobytes successfully tested.

One or m ore I2O Bloc k S t o r a ge Devices w e r e exc l u ded from th e S e t u p B o o t Menu

There was n ot en ou gh r oo m in t he I P L ta bl e to di sp lay al l ins ta ll ed I 2O b lo c k-st orage devices.

Operating system not found

Operating system cannot be located on either drive A: or drive C:. Enter Setup and see if ﬁ xed disk and drive A: are properly identiﬁ ed.

Parity Check 1 nnnn

Parity error found in the system bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????. Parity is a method f or ch eck ing er ro rs in b inar y d ata. A p ari ty e rr or ind ica tes that s ome d ata has been corrupted.

Parity Check 2 nnnn

Parity error found in the I/O bus. BIOS attempts to locate the address and display it on the screen. If it cannot locate the address, it displays ????.

Press <F1> to resume, <F2> to Setup, <F3> for previous

Displayed after any recoverable error message. Press <F 1> to start the boot process or <F2> to enter Setup and change the settings. Press <F3> to display the previous

A-4

Appendix A: BIOS POST Messages

screen (usually an initialization error of an Option ROM , i.e., an add-on card). Write down and follow the information shown on the screen.

Press <F2> to enter Setup

Optional message displayed during POST. Can be turned off in Setup.

PS/2 Mouse:

PS/2 mouse identiﬁ ed.

Run the I2O Conﬁ guration Utility

One or mo r e unc l aim e d bl oc k s tor a ge d evices have the Conﬁ guration Request bit set in the LCT. Run an I2O Conﬁ guration Utility (e.g. the SAC utility).

System BIOS shadowed

System BIOS copied to shadow RAM.

UMB upper limit segment address: nnnn

Display s the addre ss nnnn of t he uppe r limit of Upper Memo ry Blocks, indic ating rele ased segm ents of the B IOS whic h can be r eclaime d by a virt ual memo ry manager.

Video BIOS shadowed

Video BIOS successfully copied to shadow RAM.

A-5

SeriesS3800/S120T (7045A-C3/7045A-CT) User's Manual

Notes

A-6

Appendix B: BIOS POST Codes

Appendix B

BIOS POST Codes

This section lists the POST (Power On Self Test) codes for the PhoenixBIOS. POST codes are divided into two categories: recoverable and terminal.

Recoverable PO ST Errors

When a recoverable type of error occurs during POST, the BIOS will display an POST code that describes the problem. BIOS may also issue one of the following beep codes:

1 long and two short beeps - video conﬁ guration error 1 repetitive long beep - no memory detected

Ter minal POST Errors

If a terminal type of error occurs, BIOS will shut down the system. Before doing so, BIOS will write the error to port 80h, attempt to initialize video and write the error in the top left corner of the screen. The following is a list of codes that may be written to port 80h.

POST Code Description

01h IPMI Initialization 02h Verify Real Mode 03h Disable Non-Maskable Interrupt (NMI) 04h Get CPU type 06h Initialize system hardware 07h Disable shadow and execute code from the ROM. 08h Initialize chipset with initial POST values 09h Set IN POST ﬂ ag 0Ah Initialize CPU registers 0Bh Enable CPU cache 0Ch Initialize caches to initial POST values 0Eh Initialize I/O component 0Fh Initialize the local bus IDE 10h Initialize Power Management 11h Load alternate registers with initial POST values 12h Restore CPU control word during warm boot 13h Reset PCI Bus Mastering devices 14h Initialize keyboard controller 16h 1-2-2-3 BIOS ROM checksum 17h Initialize cache before memory Auto size

B-1

Series3800/S120T (7045A-C3/7045A-CT) User's Manual

POST Code Description

18h 8254 timer initialization 1Ah 8237 DMA controller initialization 1Ch Reset Programmable Interrupt Controller 20h 1-3-1-1 Test DRAM refresh 22h 1-3-1-3 Test 8742 Keyboard Controller 24h Set ES segment register to 4 GB 28h Auto size DRAM 29h Initialize POST Memory Manager 2Ah Clear 512 kB base RAM 2Ch 1-3-4-1 RAM failure on address line xxxx* 2Eh 1-3-4-3 RAM failure on data bits xxxx* of low byte of memory bus 2Fh Enable cache before system BIOS shadow 32h Test CPU bus-clock frequency 33h Initialize Phoenix Dispatch Manager 36h Warm start shut down 38h Shadow system BIOS ROM 3Ah Auto size cache 3Ch Advanced conﬁ guration of chipset registers 3Dh Load alternate registers with CMOS values 41h Initialize extended memory for RomPilot (optional) 42h Initialize interrupt vectors 45h POST device initialization 46h 2-1-2-3 Check ROM copyright notice 48h Check video conﬁ guration against CMOS 49h Initialize PCI bus and devices 4Ah Initialize all video adapters in system 4Bh QuietBoot start (optional) 4Ch Shadow video BIOS ROM 4Eh Display BIOS copyright notice 4Fh Initialize MultiBoot 50h Display CPU type and speed 51h Initialize EISA board (optional) 52h Test keyboard 54h Set key click if enabled 55h Enable USB devices 58h 2-2-3-1 Test for unexpected interrupts 59h Initialize POST display service 5Ah Display prompt “Press <ESC> to enter SETUP” 5Bh Disable CPU cache

B-2

NEC Express5800-S120T User's Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
