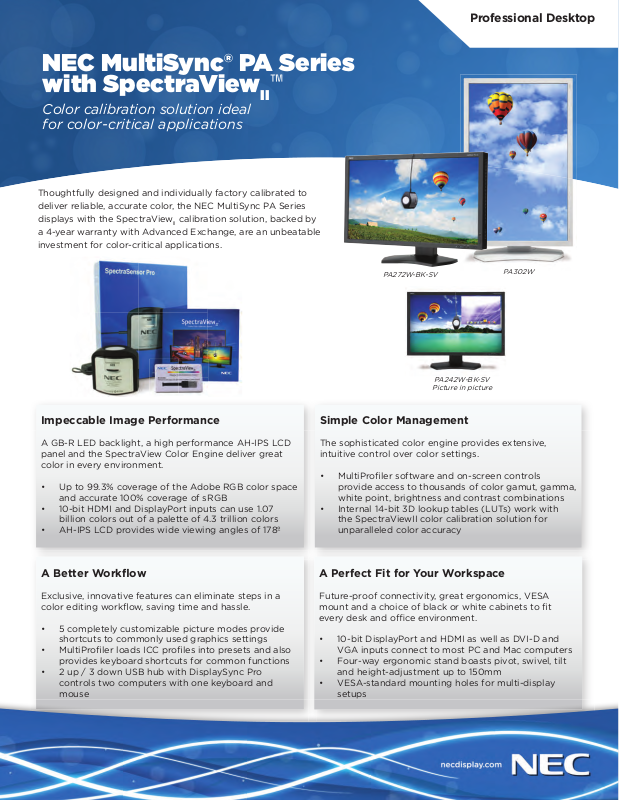

NEC MultiSync® PA Series with SpectraViewII™

Color calibration solution ideal for color-critical applications

Thoughtfully designed and individually factory calibrated to deliver reliable, accurate color, the NEC MultiSync PA Series displays with the SpectraView a 4-year warranty with Advanced Exchange, are an unbeatable investment for color-critical applications.

calibration solution, backed by

Professional Desktop

Impeccable Image Performance

A GB-R LED backlight, a high performance AH-IPS LCD panel and the SpectraView Color Engine deliver great color in every environment.

• Up to 99.3% coverage of the Adobe RGB color space and accurate 100% coverage of sRGB

• 10-bit HDMI and DisplayPort inputs can use 1.07 billion colors out of a palette of 4.3 trillion colors

• AH-IPS LCD provides wide viewing angles of 178º

PA272W-BK-SV

PA242W-BK-SV

Picture in picture

PA302W

Simple Color Management

The sophisticated color engine provides extensive, intuitive control over color settings.

• MultiProﬁ ler software and on-screen controls provide access to thousands of color gamut, gamma, white point, brightness and contrast combinations

• Internal 14-bit 3D lookup tables (LUTs) work with the SpectraViewII color calibration solution for unparalleled color accuracy

A Better Workﬂ ow

Exclusive, innovative features can eliminate steps in a color editing workﬂ ow, saving time and hassle.

• 5 completely customizable picture modes provide shortcuts to commonly used graphics settings

• MultiProﬁ ler loads ICC proﬁ les into presets and also provides keyboard shortcuts for common functions

• 2 up / 3 down USB hub with DisplaySync Pro controls two computers with one keyboard and mouse

A Perfect Fit for Your Workspace

Future-proof connectivity, great ergonomics, VESA mount and a choice of black or white cabinets to ﬁ t every desk and o ce environment.

• 10-bit DisplayPort and HDMI as well as DVI-D and VGA inputs connect to most PC and Mac computers

• Four-way ergonomic stand boasts pivot, swivel, tilt and height-adjustment up to 150mm

• VESA-standard mounting holes for multi-display setups

SpectraViewII Color Calibration Solution Features and Beneﬁ ts

How it works

The SpectraView MDSVSENSOR3 colorimeter to take color measurements of the display screen during calibration. The software analyzes these measurements and sends color adjustment commands directly to the display monitor. All adjustments are made in the monitor rather than in the video graphics adapter, resulting in full use of the number of colors available on the graphics adapter and a much brighter image with the maximum possible color gamut. Since the video graphics adapter is not used at all to make any gamma or tone response curve corrections to the display, so the full color resolution and ﬁ delity of the system is maintained and the display remains calibrated for all digital video inputs.

Multiple calibration targets

Di erent monitor calibrations can be instantly loaded, allowing quick and easy switching between di erent calibration settings without the need to re-calibrate the display. These calibration targets contain many settings, including luminance, contrast ratio, color gamuts and gamma curves. Each time a calibration set is loaded, the necessary monitor settings and ICC/ColorSync proﬁ les are automatically updated.

Calibrated display information

At the end of each monitor calibration, an

information window is displayed that includes a wealth of information about the display such as the measured color gamut, grayscale color tracking, Delta-E and luminance values as well as the model name, serial number and the total hours of use.

Monitor proﬁ ling

After calibration, the display is automatically proﬁ led and highly accurate ICC/ColorSync color proﬁ les are generated and automatically registered with the computer’s color management system.

system uses the customized NEC

Colorimeter function

The software features a colorimeter function, which allows direct measurements to be taken by the color sensor and the results displayed in a variety of di erent formats.

USB & Display Data Channel Command Interface (DDC/CI) Communications

SpectraView

communicates with the monitor using either

USB or DDC/CI, which is a two-way communications link between the video graphics adapter and display monitor using the standard video signal cable.

Monitor locking

Once calibrated, the On Screen Display (OSD®)

controls for the display monitors can be locked to prevent accidental or unauthorized adjustment, which may invalidate the calibrated state of the monitor.

NEC NaViSet™ Administrator integration

SpectraView

integrates with the NEC NaViSet

Administrator network software to provide remote network access and monitoring of display monitors. NaViSet Administrator is able to read, display and log the current calibration settings and status of displays on a corporate network.

SpectraView

Software Requirements

Apple Mac OS X v10.5 or higher. Microsoft Windows 2000, Windows XP (Home and Professional editions), Windows XP 64 bit, Windows Vista 32 bit and 64 bit versions, and Windows 7 32-bit and 64-bit versions. Suse Enterprise Desktop 10 and higher. At least one available USB port for MDSVSENSOR3 color sensor.

Visit www.necdisplay.com for the latest requirements.

Calibration status validation

SpectraView

will query each calibrated monitor

to see if any controls have changed since the last calibration. If anything has changed, the previous calibrated state can be restored automatically.
