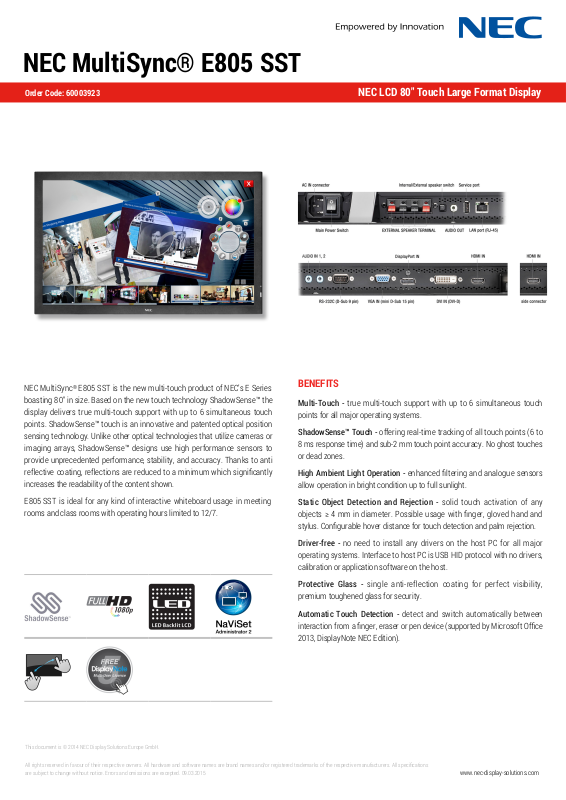

NEC MultiSync® E805 SST

Order Code: 60003923

NEC LCD 80" Touch Large Format Display

NEC MultiSync®E805 SST is the new multi-touch product of NEC’sE Series boasting 80" in size. Based on the new touch technology ShadowSense™ the display delivers true multi-touch support with up to 6 simultaneous touch points. ShadowSense™ touch is an innovative and patented optical position sensing technology. Unlike other optical technologies that utilize cameras or imaging arrays, ShadowSense™ designs use high performance sensors to provide unprecedented performance, stability, and accuracy. Thanks to anti reﬂective coating, reﬂections are reduced to a minimum which signiﬁcantly increases the readability of the content shown.

E805SST is ideal for any kind ofinteractive whiteboard usage in meeting rooms and class rooms with operating hours limited to 12/7.

BENEFITS

Multi-Touch - true multi-touch support with up to 6 simultaneous touch points for all major operating systems.

ShadowSense™ Touch - offering real-time tracking of all touch points (6 to 8 ms response time) and sub-2 mm touch point accuracy. No ghost touches or dead zones.

High Ambient Light Operation - enhanced ﬁltering and analogue sensors allow operation in bright condition up to full sunlight.

Static Object Detection and Rejection - solid touch activation of any objects ≥ 4 mm in diameter. Possible usage with ﬁnger, gloved hand and stylus. Conﬁgurable hover distance for touch detection and palm rejection.

Driver-free - no need to install any drivers on the host PC for all major operating systems. Interface to host PC is USB HID protocol with no drivers, calibration or application software on the host.

Protective Glass - single anti-reﬂection coating for perfect visibility, premium toughened glass for security.

Automatic Touch Detection - detect and switch automatically between interaction from a ﬁnger, eraser or pen device (supported by Microsoft Oﬃce 2013, DisplayNote NEC Edition).

All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All speciﬁcations are subject to change without notice. Errors and omissions are excepted. 09.03.2015 www.nec-display-solutions.com

NEC MultiSync® E805 SST - Technical Speciﬁcation

DISPLAY

SYNCHRONISATION RATE

RESOLUTION

CONNECTIVITY

SENSORS

ELECTRICAL

ENVIRONMENTAL CONDITIONS

MECHANICAL

GLASS

TOUCH

ADDITIONAL FEATURES

AVAILABLE OPTIONS

GREEN FEATURES

Panel Technology UV² A with Edge LED backlight

Active Screen Area (W x H) [mm] 1.771 x 996

Screen Size [inch/cm] 80 / 203

Brightness (shipping) [cd/m²] 300, (350 max)

Contrast Ratio (typ.) 5000:1

Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

Response Time (typ.) [ms] 4 (grey-to-grey)

Supported Orientation Landscape

Horizontal Frequency [kHz] 31.5 - 91.1 (analog and digital)

Vertical Frequency [Hz] 50 - 85

Native Resolution 1920 x 1080 at 60 Hz

Supported on DisplayPort and HDMI 1920 x 1080; 1600 x 1200; 1360 x 768; 1280 x 1024; 1280 x 768; 1080i; 1080p; 1024 x 768; 800 x 600; 720p (50/60 Hz); 640 x 480; 576p

(50 Hz); 480p (60 Hz)

Supported on HDMI only 1360 x 768; 576i (50 Hz); 480i (60 Hz)

Input Video Analogue 1 x D-sub 15 pin

Input Video Digital 1 x DisplayPort (with HDCP); 1 x DVI-D (with HDCP); 2 x HDMI (with HDCP)

Input Audio Analogue 2 x 3,5 mm jack

Input Audio Digital 1 x DisplayPort; 2 x HDMI

Input Control LAN 100Mbit; RS232

Output Audio Analogue 3,5mm jack

Remote Control LAN with SNMP; RS-232C (9-pin D-sub) Input

Ambient Light Sensor Integrated, triggered actions programmable

Temperature Sensor Integrated, 3 sensors, triggered actions programmable

Power Consumption on Mode [W] 248 shipping

Power Savings Mode [W] < 0.5 (ECO Standby); < 1

Power Management VESA DPMS

Operating Temperature [°C] +0 to +35

Operating Humidity [%] 20 to 80

Dimensions (W x H x D) [mm] Without stand: 1,878 x 1,097 x 104

Weight [kg] Without stand: 85

Bezel Width [mm] 40 (left and right); 40 (top and bottom)

VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M8

Thickness [mm] 5

Type Premium toughened glass, single sided anti-reﬂective coating

Light Transmission [%] 92 (+/- 2 %)

Touch Technology ShadowSense™ Touch

Number of Touches Real multi-touch up to 6 touches

Response Time [ms] 6 to 8

Touch Active Area (W x H) [mm] 1,796.88 x 1,015.84

Touch Method Finger; Gloves; Stylus (≥ 4 mm)

Operating System Native Multi-Touch: Windows 7, Windows 8, Linux, Android; Default Mouse: Windows XP, Windows Vista, Mac OS X

Data Interface USB 2.0 (full speed) HID; USB powered, plug & play

Accuracy [mm] < 2

Touch Resolution 12-bit (4096 x 4096)

Ambient Light Rejection Up to full sunlight (approx. 100000 lux)

Special Characteristics Automatic Alarm E-Mails; Colour temperature mode; Image ﬂip; NaViSet Administrator 2; Point Zoom Function; Scheduler

Colour Versions Black Front Bezel, Black Back Cabinet

Safety and Ergonomics CE; RoHS

Audio Integrated Speakers (10 W + 10 W); Optional Speakers (15 W + 15 W)

Shipping Content CD-ROM (User Guides/Manuals); Display; DVI-D cable; Pen and Eraser; Power Cable; Remote Control; USB cable

Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension

Operating Hours 12/7

Accessories Feet (ST-801); Speaker (SP-TF1, SP-RM1); Trolley (PDMHA); Wall mount (PDW T XL, PDWHM-L)

Energy Eﬃciency Ambient light sensor; Carbon savings meter; ECOMode

Ecological Materials Manuals on CD; Optional feet
