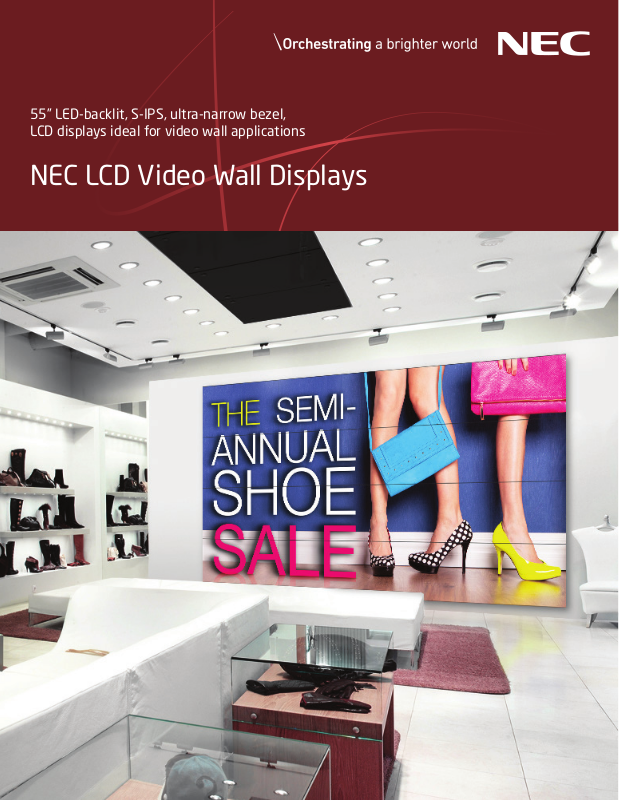

55” LED-backlit, S-IPS, ultra-narrow bezel,
LCD displays ideal for video wall applications

NEC LCD Video Wall Displays

24/7 runtimes and picture perfect image quality make these

displays ideal video wall solutions for retail signage, control room

applications, broadcast environments and rental markets.

The Ideal Video Wall Display

Transform your video walls with the crystal clear imagery of the NEC 55"

X555UNS and X555UNV. Brand new S-IPS panel technology provides

exceptional viewing angles and top of the line color depth to enhance

image quality for all types of installations. On top of that, direct LED

backlighting not only reduces power consumption and improves edge-to-

edge brightness uniformity but also allows for localized dimming capabilities

that will control the backlighting and ultimately improve contrast ratio

based on the current content shown on the display. Mere millimeters

separate content from display to display which ensures a smooth transition

across a video wall. This display is ideal for digital signage, boardrooms,

entrance lobbies and broadcast applications, and can be deployed in

video wall applications up to 10 x 10 in size utilizing integrated TileMatrix™

technology*. TileMatrix technology within these displays can also now

support up to UHD (3840 x 2160) resolution through the internal daisy chain

functionality and still show imagery across the entire video wall. This is 4x

the resolution that previous generations of product would support.

S-IPS Panel and an Ultra Narrow Bezel

Brand new S-IPS panel technology allows for 10-bit color depth and

far less off-angle color shift compared to typical video wall displays. On

top of that, mere millimeters separate content from display to display,

which ensures a smooth transition across a video wall. The X555UNS

and X555UNV minimize that distance to a ground-breaking 3.5 mm.

DisplayPort UHD Daisy Chain Functionality

These displays have the ability to input a UHD/30Hz signal via HDMI or

DisplayPort then also output the same signal across the entire wall. This

allows TileMatrix to support up to 4x the resolution as previous generation

products.

Advanced Heat Management

Monitoring and managing the temperature of each display is crucial to

secure reliability and longevity. An industrial-strength, premium-grade

panel with additional thermal protection, internal temperature sensors

with self-diagnostics, and fan-based technology allows for 24/7 operation,

and protects your display investment.

Bezel width

1.2 mm

2.3 mm

Auto TileMatrix, Auto ID and Auto
IP Address TechnologiesTechnology

Auto TileMatrix and ID features allow a user to simply set up the size of

the video wall on the first display and automatically scale the content

across the remaining displays. Auto IP Address simplifies control setup by

setting the static IP address on the first display then initiatiing the feature

so that the IP Addresses of consecutive displays following the LAN daisy

chain.

2

3.5 mm

With advanced heat management

Withou t advanced hea t mana gemen t

Without heat management, the displays placed higher on a wall will

sustain a hotter temperature than the screens below. This damaging heat

will lower the picture quality and life expectancy of the product. However,

NEC’s advanced heat management ensures heat dissipation for a more

uniform overall wall temperature. Integrated cooling fans automatically turn

on and stay on when high internal temperatures are detected. These will

stay on until the heat is properly dissipated and the display remains under

proper temperature thresholds.
