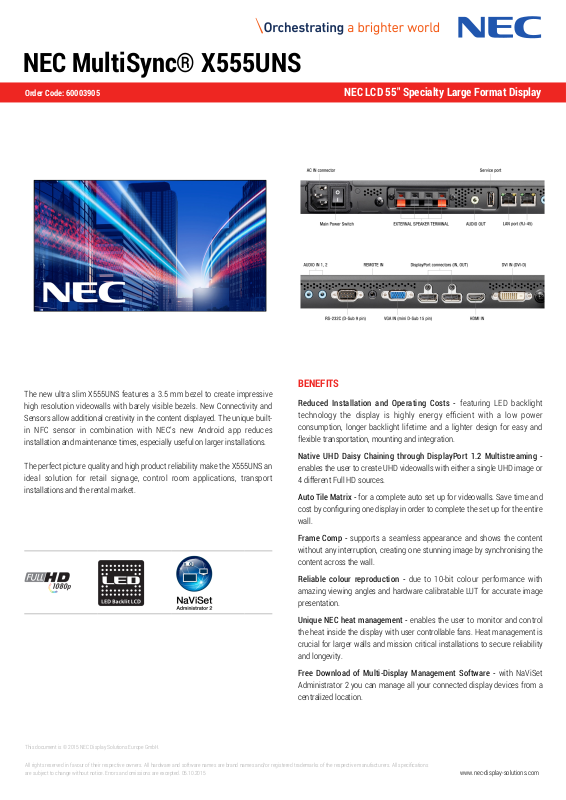

NEC MultiSync® X555UNS

Order Code: 60003905

NEC LCD 55" Specialty Large Format Display

The new ultra slim X555UNS features a 3.5 mm bezel to create impressive high resolution videowalls with barely visible bezels. New Connectivity and Sensors allow additional creativity in the content displayed. The unique builtin NFC sensor in combination with NEC’s new Android app reduces installation and maintenance times, especially useful on larger installations.

The perfect picture quality and high product reliability make the X555UNS an ideal solution for retail signage, control room applications, transport installations and the rental market.

BENEFITS

Reduced Installation and Operating Costs - featuring LED backlight technology the display is highly energy eﬃcient with a low power consumption, longer backlight lifetime and a lighter design for easy and ﬂexible transportation, mounting and integration.

Native UHD Daisy Chaining through DisplayPort 1.2 Multistreaming -

enables the user to create UHD videowalls with either a single UHD image or 4 different Full HD sources.

Auto Tile Matrix - for a complete auto set up for videowalls. Save time and cost by conﬁguring one display in order to complete the set up for the entire wall.

Frame Comp - supports a seamless appearance and shows the content without any interruption, creating one stunning image by synchronising the content across the wall.

Reliable colour reproduction - due to 10-bit colour performance with amazing viewing angles and hardware calibratable LUT for accurate image presentation.

Unique NEC heat management - enables the user to monitor and control the heat inside the display with user controllable fans. Heat management is crucial for larger walls and mission critical installations to secure reliability and longevity.

Free Download of Multi-Display Management Software - with NaViSet Administrator 2 you can manage all your connected display devices from a centralized location.

All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All speciﬁcations are subject to change without notice. Errors and omissions are excepted. 05.10.2015 www.nec-display-solutions.com

NEC MultiSync® X555UNS - Technical Speciﬁcation

DISPLAY

SYNCHRONISATION RATE

RESOLUTION

CONNECTIVITY

OPS OPTION SLOT

INTERFACE EXTENSION SLOT

SENSORS

ELECTRICAL

ENVIRONMENTAL CONDITIONS

MECHANICAL

ADDITIONAL FEATURES

AVAILABLE OPTIONS

GREEN FEATURES

Panel Technology IPS TFT with direct white LED backlights

Active Screen Area (W x H) [mm] 1,210 x 680

Screen Size [inch/cm] 55 / 139

Aspect Ratio 16:9

Brightness [cd/m²] 700, 420 Eco (shipment setting)

Contrast Ratio (typ.) 1200:1

Viewing Angle [°] 178 horizontal / 178 vertical (typ. at contrast ratio 10:1)

Response Time (typ.) [ms] 12

Panel Refresh Rate [Hz] 60

Haze Level [%] 44

Supported Orientation Face Up; Landscape; Portrait

Horizontal Frequency [kHz] 31.5 - 91.1

Vertical Frequency [Hz] 50 - 85

Native Resolution 1920 x 1080 at 60 Hz

Supported on DisplayPort and HDMI 3840 x 2160 (24/30 Hz); 1920 x 1080; 1600 x 1200; 1360 x 768; 1280 x 1024; 1280 x 768; 1080i; 1080p; 1024 x 768; 800 x 600; 720p

(50/60 Hz); 640 x 480; 576p (50 Hz); 480p (60 Hz)

Supported on HDMI only 4096 x 2160 (24 Hz); 3840 x 2160 (25 Hz); 1360 x 768; 576i (50 Hz); 480i (60 Hz)

Input Video Analogue 1 x D-sub 15 pin

Input Video Digital 1 x DisplayPort (with HDCP); 1 x DVI-D (with HDCP); 1 x HDMI (with HDCP); 1 x Interface Extension Slot; 1 x OPS Slot

Input Audio Analogue 2 x 3,5 mm jack

Input Audio Digital 1 x DisplayPort; 1 x HDMI

Input Control LAN 100Mbit; remote control wire (3,5mm jack); RS232

Output Video Digital 1 x DisplayPort out (loop through:DisplayPort, DVI-D, HDMI, Interface Extension Slot, OPS)

Output Audio Analogue 3,5mm jack

Output Control LAN 100Mbit

Remote Control LAN with SNMP; Remote Control IR (internal/external (optional) sensor); RS-232C (9-pin D-sub) Input

Slot Technology Open pluggable speciﬁcation (NEC / Intel OPS standard)

Inrush Current [A] max. 10

Power Consumption [W] max. 61

Voltage / Current [V/A] 16/4

Slot Technology analogue and digital interface extension (NEC standard)

Ambient Light Sensor Optional, triggered actions programmable

Human Sensor Optional, external, 4-5m range, triggered actions programmable

Temperature Sensor Integrated, 3 sensors, triggered actions programmable

NFC Sensor Integrated, 2cm range, free NEC Android App required

Power Consumption [W] 175 Eco (shipment setting), 310

Power Savings Mode [W] < 0.5 (ECO Standby); < 1

Power Management VESA DPMS

Operating Temperature [°C] +0 to +40

Operating Humidity [%] 20 to 80

Dimensions (W x H x D) [mm] Without stand: 1,213 x 684 x 95

Weight [kg] Without stand: 30.3

Bezel Width [mm] 1.2 bottom/right; 2.3 top/left; 3.5; Content to content 3.7

VESA Mounting [mm] 4 holes; 400 x 400 (FDMI); M6

Special Characteristics Auto ID assignment; Auto tiling function; Automatic Alarm E-Mails; Frame Comp; HTTP Server; Image ﬂip; Intelligent Wireless Data

(based on NFC); NaViSet Administrator 2; Point Zoom Function; Programmable 10-bit LUT with 3 memory banks; Sticky Note Function in OSD; TileMatrix; User readable log function

Colour Versions Black Front Bezel, Black Back Cabinet

Safety and Ergonomics C-tick; CE; Energy Star 6.0; FCC Class B; PSB; RoHS; TÜV GS; UL/C-UL or CSA; VCCI

Audio Optional Speakers (15 W + 15 W)

Shipping Content CD-ROM (User Guides/Manuals); Display; DisplayPort Cable; Free LAN control software (download); Power Cable

Signal Cable: LAN cable

Warranty 3 years warranty incl. backlight; additional services available; optional 4. + 5. year warranty extension

Operating Hours 24/7

Accessories Calibration kit (KT-LFD-CC2); Feet (ST-5220); Overframe kit (KT-55UN-OF3); Remote control kit (KT-RC2); Speaker (SP-RM1, SP-TF1);

Trolley (PD02VWM 2x2 46 55 L; PD02VWM 3x3 46 55 L); Wall mount (PDVWXUN 55 L/P; PD02VW MFS 46 55 L/P, easyFrame X55UN)

Interface Extension SB3-AB1 analogue: Audio; Component; Composite; S-Video

SB3-AB2 analogue: Audio; RGBHV SB3-DB1 digital: 1 x HDMI out; 2 x HDMI in

OPS HD-SDI 1.5G / 3G; HDBaseT receiver; Intel® Celeron and Core i3, i5, i7 Slot-in PCs; OPS Digital Signage Player

Energy Eﬃciency Annual energy consumption: 225 kWh (based on 4 operating hours per day); Carbon savings meter; ECOMode; Energy eﬃciency class:

C; Human Sensor

Ecological Materials Manuals on CD; Optional feet
