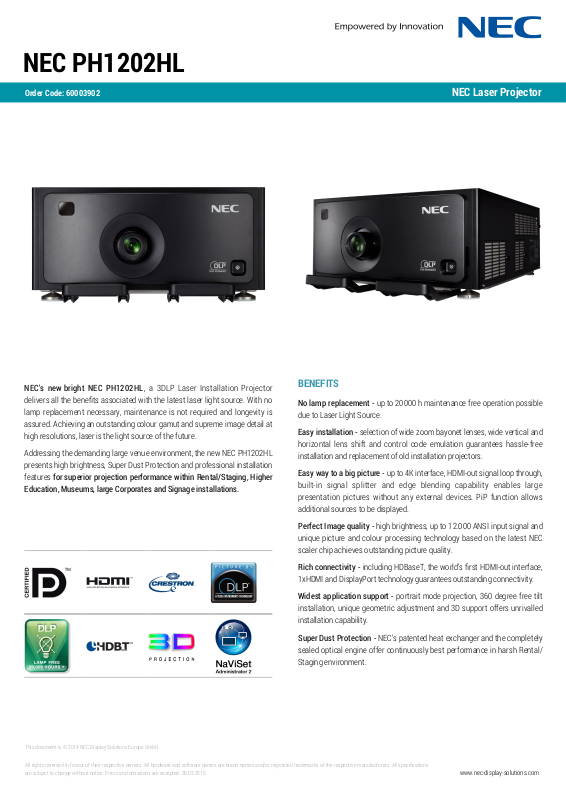

Nec 60003902 Datasheet

NEC PH1202HL

Order Code: 60003902

NEC Laser Projector

NEC's newbright NEC PH1202HL , a 3DLP Laser Installation Projector deliversall the beneﬁts associated with the latest laser light source. With no lamp replacement necessary, maintenance is not required and longevity is assured. Achieving an outstanding colour gamut and supreme image detail at high resolutions, laser is the light source of the future.

Addressing the demanding large venue environment, the new NEC PH1202HL presents high brightness, Super Dust Protection and professional installation features for superior projection performance within Rental/Staging, Higher

Education, Museums, large Corporates and Signage installations.

BENEFITS

No lamp replacement - up to 20000 h maintenance free operation possible due to Laser Light Source.

Easy installation - selection of wide zoom bayonet lenses, wide vertical and horizontal lens shift and control code emulation guarantees hassle-free installation and replacement of old installation projectors.

Easy way to a big picture - up to 4K interface, HDMI-out signal loop through, built-in signal splitter and edge blending capability enables large presentation pictures without any external devices. PiP function allows additional sources to be displayed.

Perfect Image quality - high brightness, up to 12.000 ANSI input signal and unique picture and colour processing technology based on the latest NEC scaler chip achieves outstanding picture quality.

Rich connectivity - including HDBaseT, the world’s ﬁrst HDMI-out interface, 1xHDMI and DisplayPort technology guarantees outstanding connectivity.

Widest application support - portrait mode projection, 360 degree free tilt installation, unique geometric adjustment and 3D support offers unrivalled installation capability.

Super Dust Protection - NEC's patented heat exchanger and the completely sealed optical engine offer continuously best performance in harsh Rental/ Staging environment.

All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All speciﬁcations are subject to change without notice. Errors and omissions are excepted. 30.03.2015 www.nec-display-solutions.com

NEC PH1202HL - Technical Speciﬁcation


CONNECTIVITY

REMOTE CONTROL

ELECTRICAL

MECHANICAL

ERGONOMICS

ADDITIONAL FEATURES

GREEN FEATURES

WARRANTY

SHIPPING CONTENT

OPTIONAL ACCESSORIES

Projection Technology 1.65 cm (0.65") DMD Chip - DLP™ Technology

Native Resolution 1920 x 1080 (1080p)

Contrast Ratio

Brightness

10000:1

12000 ANSI Lumen, with std. optional lense

Lamp Laser Light Source

Lamp Life [hrs] 20000, (50 % brightness after 20000 h)

Lens 6 optional bayonet lenses

Projection Factor depending on lens selection

Projection Distance [m] 1.4 – 74.7

Screen Size (diagonal) [cm] / [inch] Maximum: 1,524 / 600"; Minimum: 152 / 60"

Zoom Motorized

Focus Adjustment Motorized

Supported Resolutions 4096 x 2160 (4k); 2560 x 1600 (WQXGA); 2048 x 1080 (2k); 1920x1200 (WUXGA) - 640x480 (VGA); 1080i/50/60;

1080p/24/25/30/50/60; 720p/60; 720p/50; 576i/50; 576p/50; 480p/60; 480i/50

Frequency Horizontal: analog: 15/24-100 kHz, digital: 15/24-153 kHz; Vertical: analog: 48-120 Hz, digital: 24-120 Hz

RGB (analog) Input: 1 x 5BNC, shared with Component Signal (YPbPr); 1 x Mini D-sub 15 pin

Digital Input: 1 x DisplayPort supporting HDCP; 1 x HDBaseT; 1 x HDMI™ supporting HDCP

Output: 1 x HDMI supporting HDCP

Video Input: 1 x BNC R Share

S-Video Input: 1 x BNC G/B Share

Control Input: 1 x 3.5 mm Stereo Mini Jack (Wired Remote); 1 x D-Sub 9 pin (RS-232), Ethernet; 1 x Ethernet shared with HDBaseT

Option Slot Input: 1 x Slot for optional OPS modules

USB 1 x Type A (USB 2.0 high speed for mouse support)

3D Sync Output: 1 x Mini DIN 3pin

Video Signals NTSC; NTSC 4.43; PAL; PAL-M; PAL-N; PAL60; SECAM

Input: 1 x 3.5 mm Stereo Mini Jack

Remote Control Auto Adjust; AV Mute; Direct Info; Direct Source Select; Eco Mode Control; Freeze-function; Full Lense control; Help-function; ID Select;

Illuminated Buttons; Input Control; Magnify-function; On Screen On/Off Selection; Picture Adjust; PIP Function; Power (On-OFF); Select (up, down, left, right); Shutter function; Test Picture; Wired / Wireless Connection

Power Supply 200-240 V AC; 50 - 60 Hz

Power Consumption [W] 1392 Normal Mode; 752 Eco Mode

Dimensions (W x H x D) [mm] 680 x 333 x 860 (without lens and feet)

Weight [kg] 68

Fan Noise [dB (A)] 44 / 48 (Eco / Normal)

Colour Versions Black

Safety and Ergonomics CE; ErP; RoHS; TÜV GS

Special Characteristics 4K Interface; AMX Beacon; Built-in Display/Multiscreen Splitter; Cinema Quality Picture (CQP) Processing for best image quality;

Crestron RoomView; DICOM Simulation; Digital 3D Reform™; Direct Power-Off Function; Edge Blending Function (Build In); Free Tilt; Full 3D HDMI Support; Geometric Correction; HDBaseT; Keystone Correction (H=±40°, V=±40°); LAN; Lens Shift (vertical +0,5 max/-0,5 max, horizontal ± 0,11 max.); Light Source Adjustment; Manual Wall Color Correction; Multi-Screen compensation mode; NaViSet Administrator 2; OPS module support; Optional User Logo; OSD with 27 languages; Password Security System; PIP/Side by Side, HDMI

- Input; PJ LINK; Portrait Setting; RS-232 Control; Stacking Function; Timer-Function; Virtual Remote for direct PC control

Energy Eﬃciency Laser Light Source

Ecological Materials 100% recyclable packaging; Downloadable manuals

Ecological Standards ErP compliant

Projectors 3 years pan-European service

Shipping Contents IR Remote Control (RD - 465E); Network Set-up Guide; Power Cord; Projector; Quick Setup Guide; Users Manual on CD-ROM; Utility

software

Optional Accessories DLP-Link 3D Glasses (VolfoniFit); XpanD 3D Glasses (X105-RFX2); XpanD 3D RF Emitter (AD025-RF-X1)

Lenses NP-9LS08ZM1 (0.9-1.34:1); NP-9LS12ZM1 (1.28-1.83:1); NP-9LS13ZM1 (1.42-2.24:1); NP-9LS16ZM1 (1.73-2.88:1); NP-9LS20ZM1

(2.23-4.16:1); NP-9LS40ZM1 (4.43-6.76:1)

OPS Slot-in Modules Digital Signage Player; HD/SD-SDI Module; HDBaseT Receiver; Slot-in PCs

Compliance with ISO21118-2005

This product has been equipped with a laser module and is classiﬁed according to Class2 of Safety of Laser Products IEC 60825-1. DO NOT LOOK DIRECTLY INTO THE BEAM.
